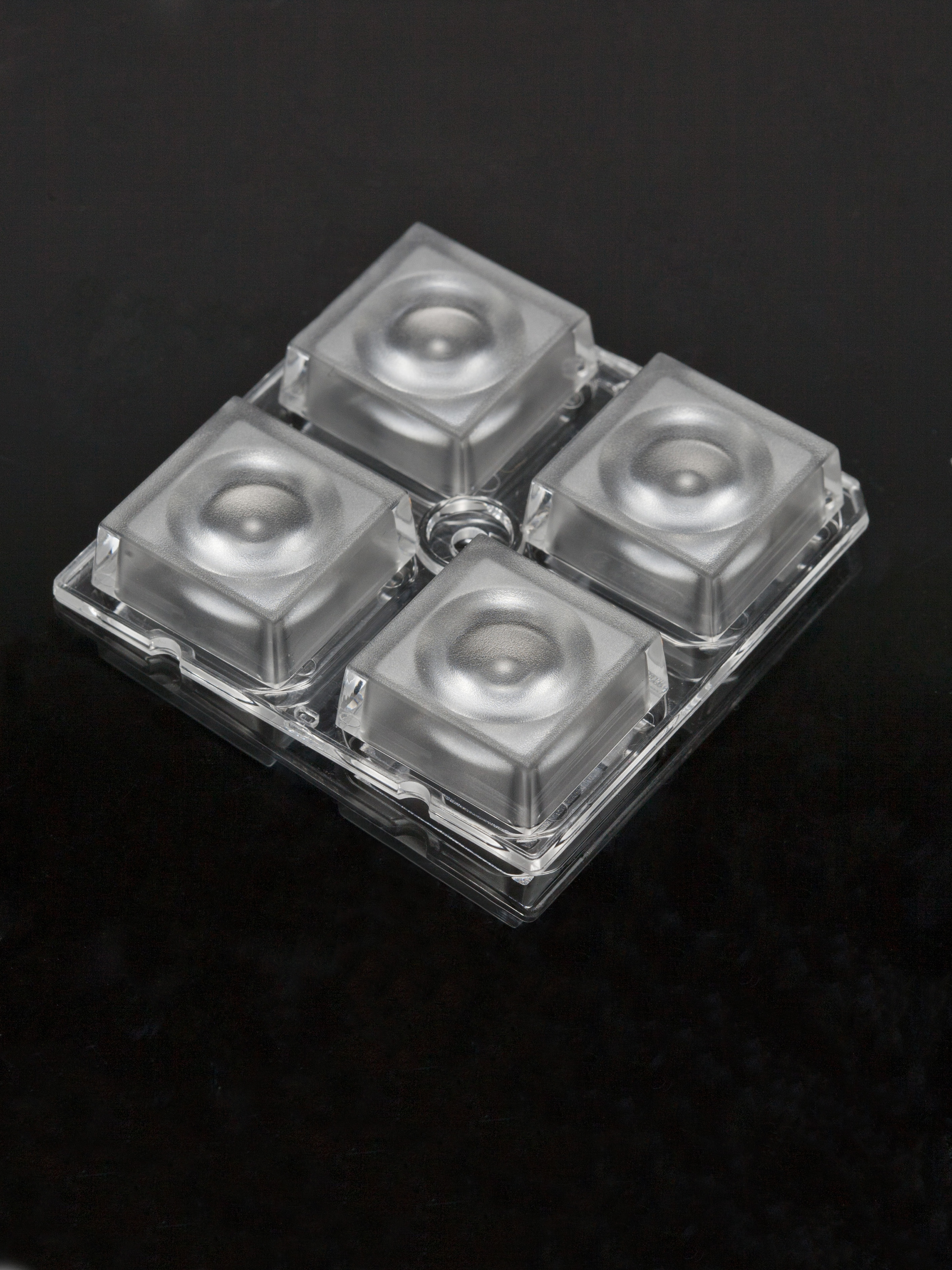

C13232_HB-2X2-WW
Print
~65° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

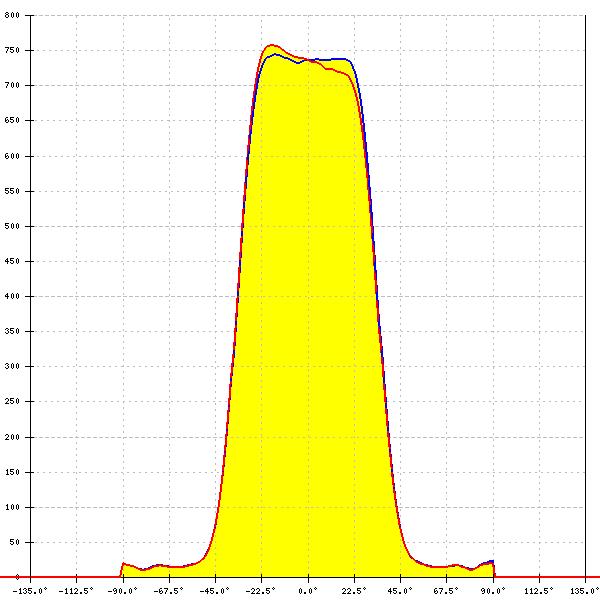

LED:

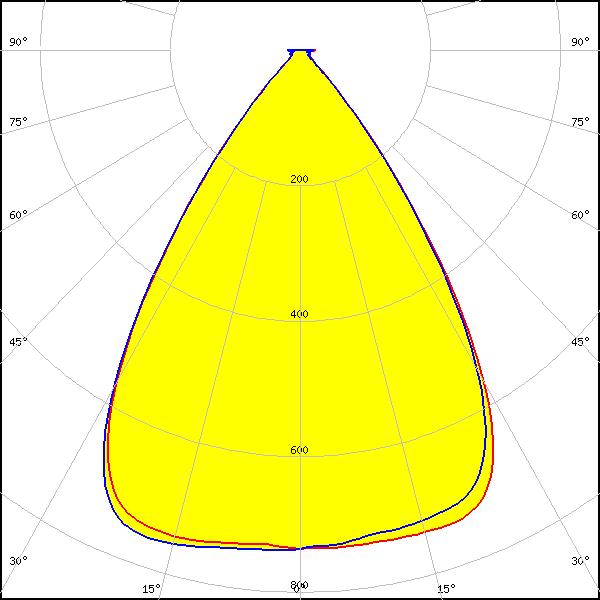

XD16
FWHM:
69°
FWTM:
90°
Peak intensity:
0.758 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

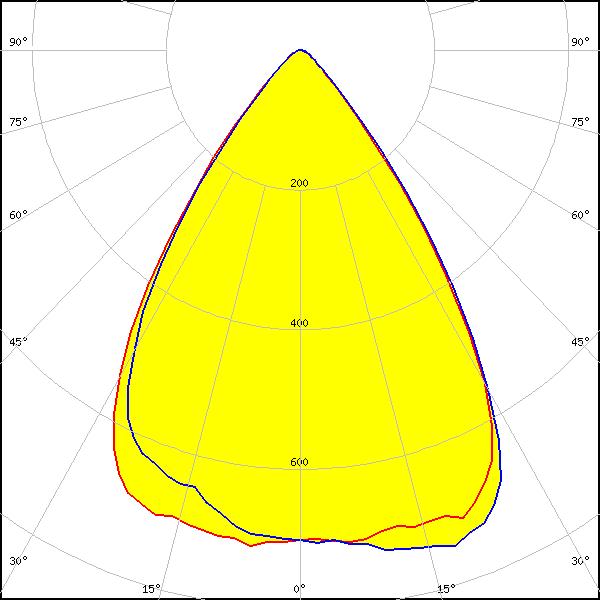

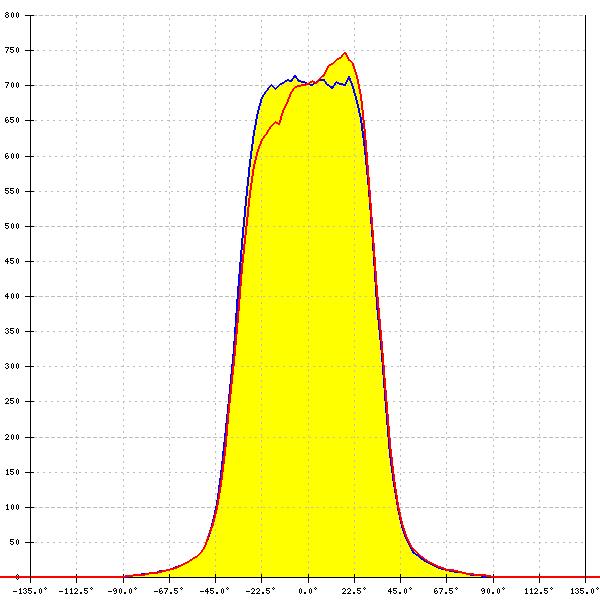

LED:
XP-G
FWHM:
69°
FWTM:
92°
Peak intensity:
0.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

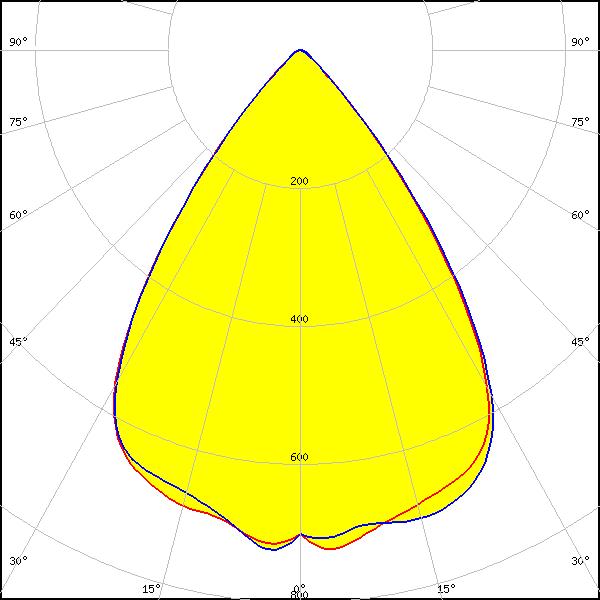

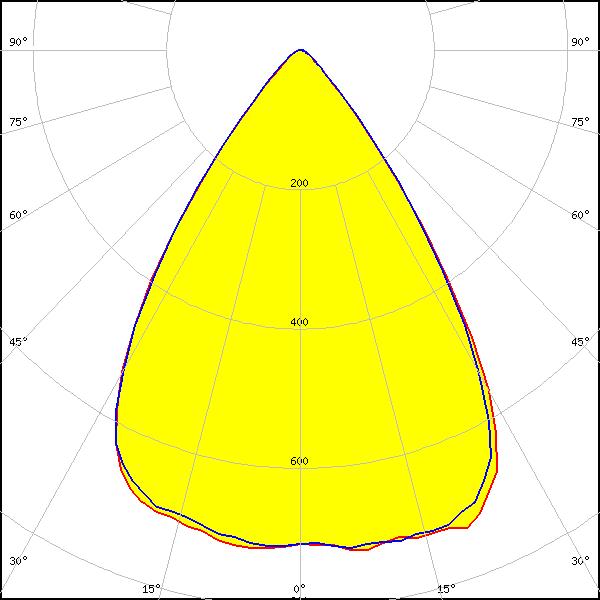

LED:

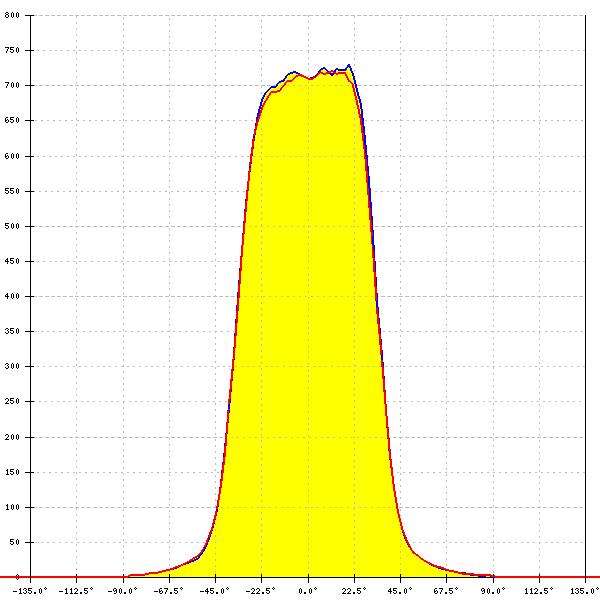

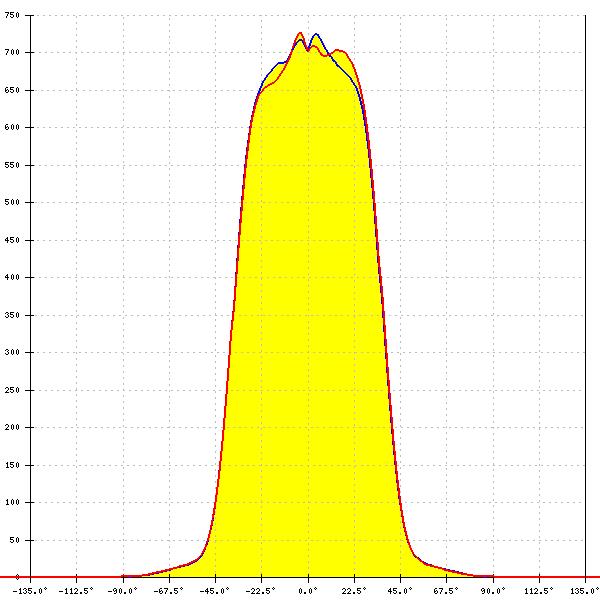

XP-G2
FWHM:
72°
FWTM:
94°
Peak intensity:
0.730 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
69°
FWTM:
92°
Peak intensity:
0.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

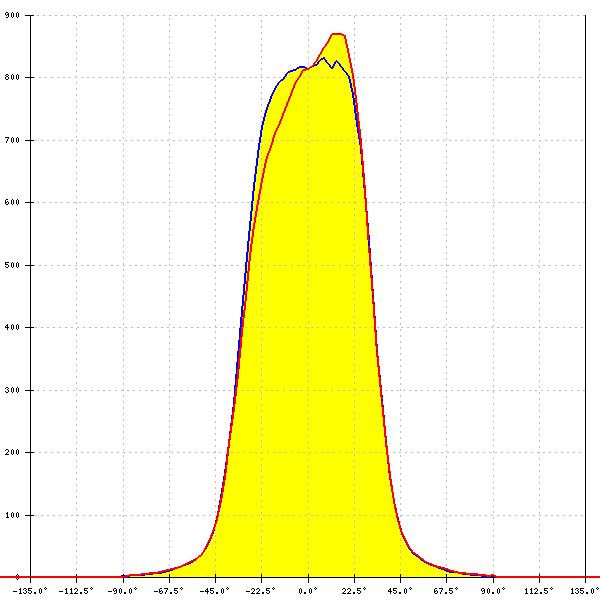

LED:

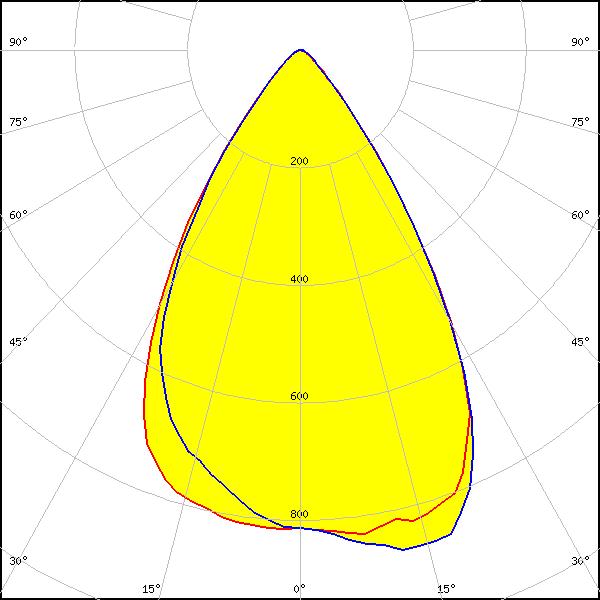

XT-E
FWHM:
65°
FWTM:
89°
Peak intensity:
0.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Brick HP 2x8
FWHM:
67°
FWTM:
92°
Peak intensity:
0.790 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

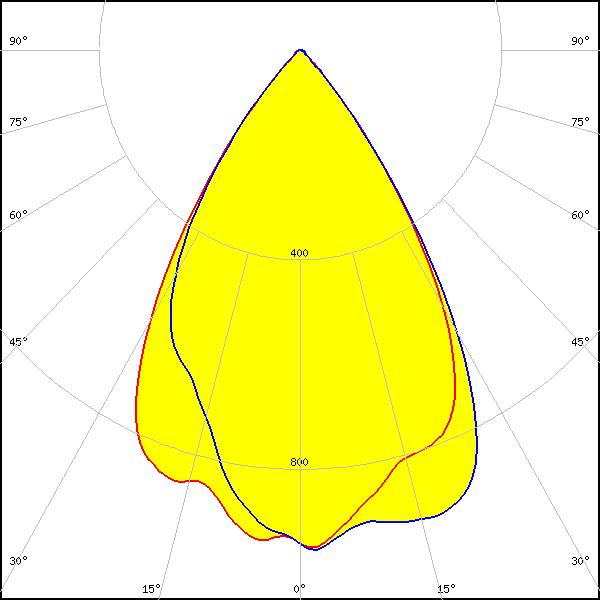

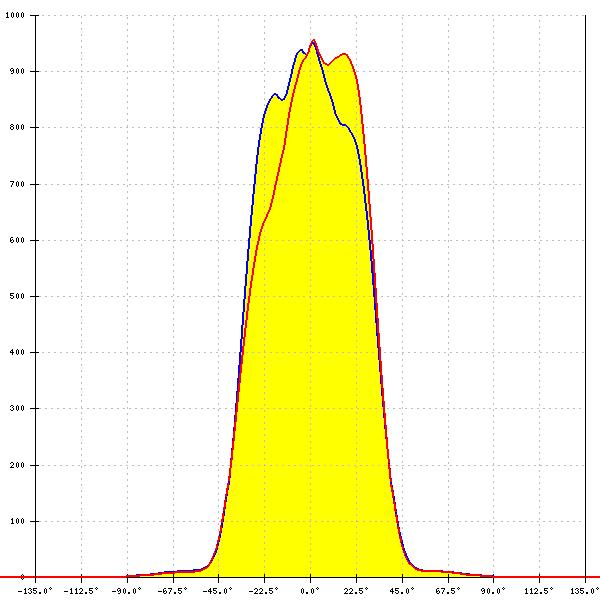

LED:
LUXEON 3030 2D (Round LES)
FWHM:
64°
FWTM:
82°
Peak intensity:
0.960 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

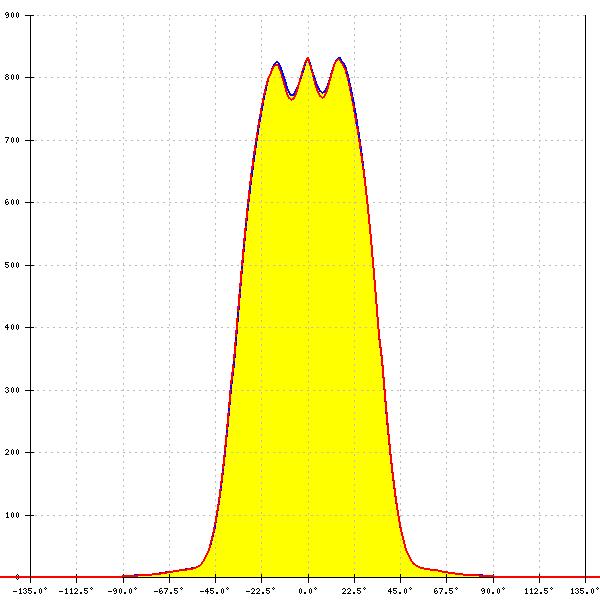

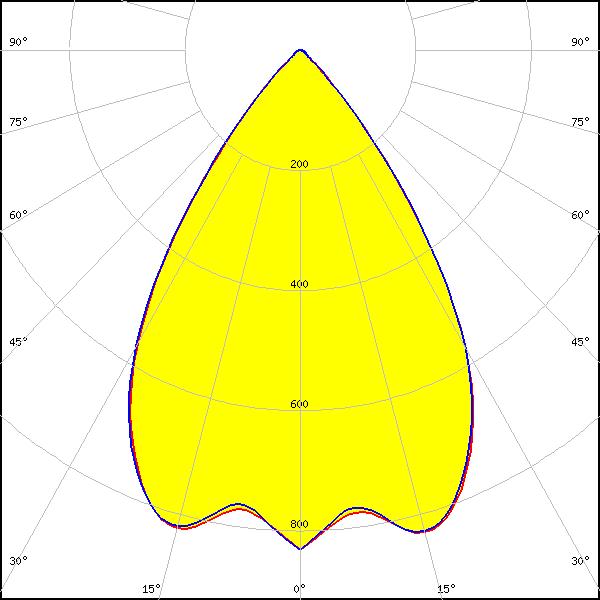

LED:
LUXEON C
FWHM:
65°
FWTM:
88°
Peak intensity:
0.840 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

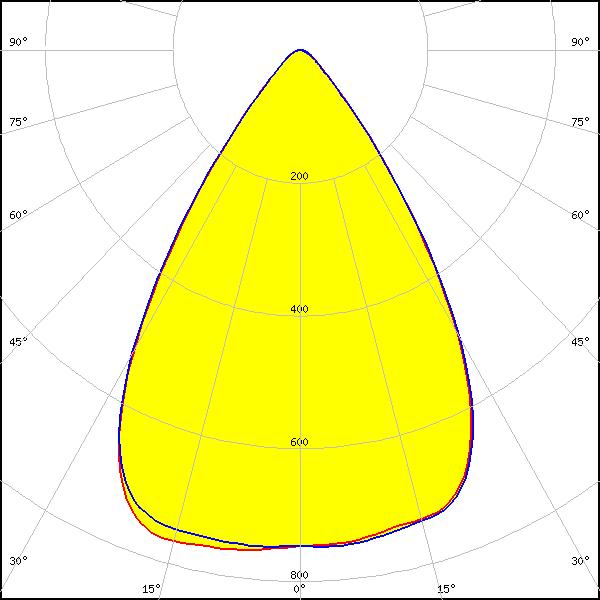

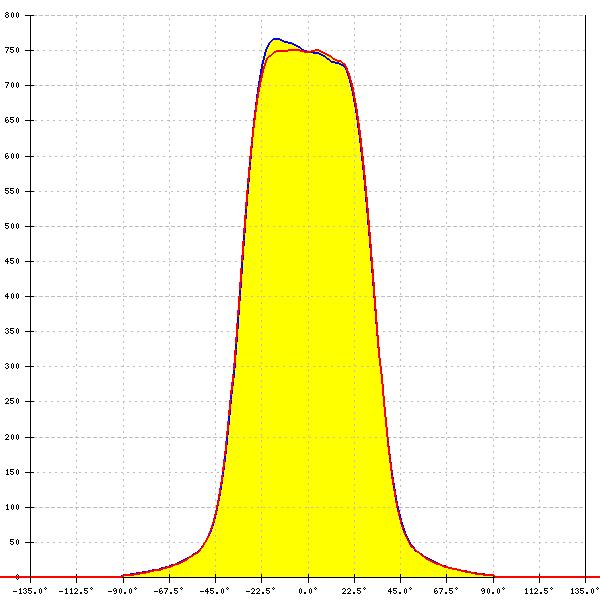

LED:
LUXEON Q
FWHM:
67°
FWTM:
92°
Peak intensity:
0.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

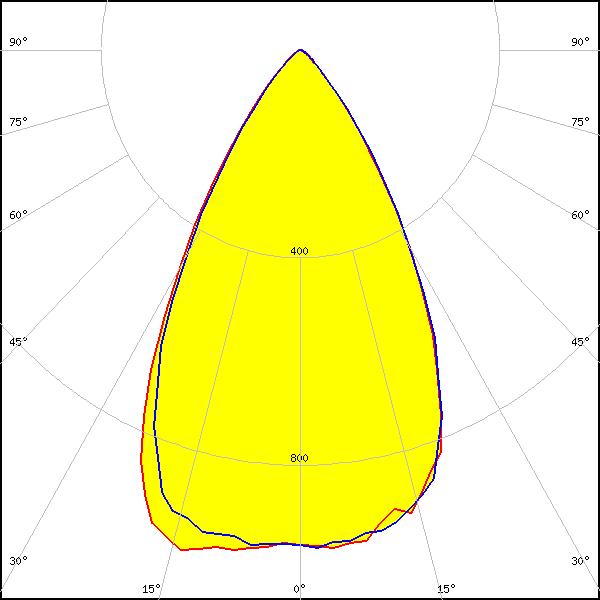

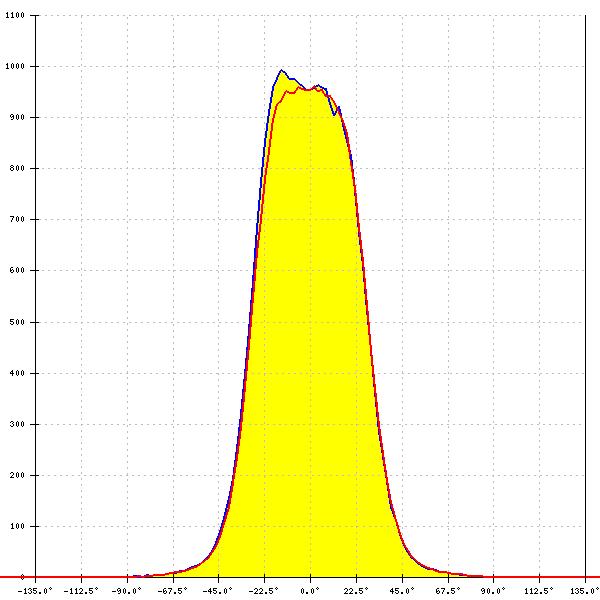

LED:
LUXEON Z ES
FWHM:
59°
FWTM:
87°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

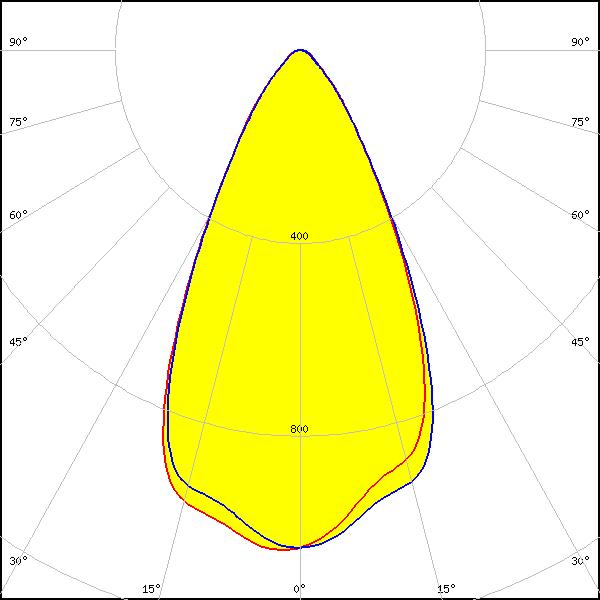

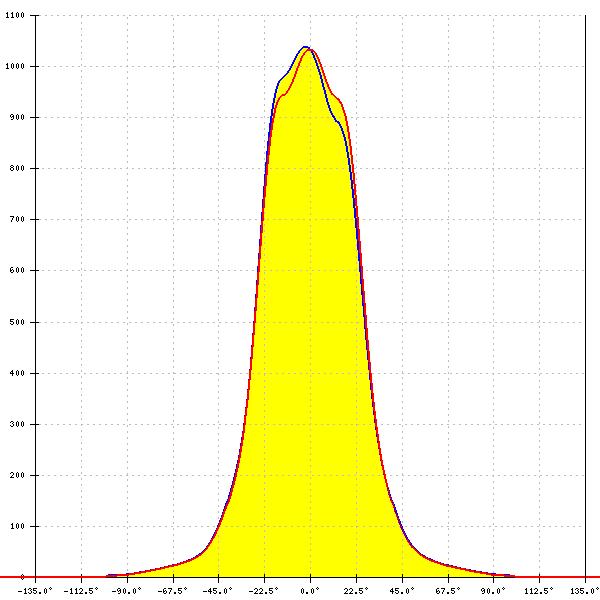

LED:
NVSxE21A
FWHM:
54°
FWTM:
89°
Peak intensity:
1.050 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

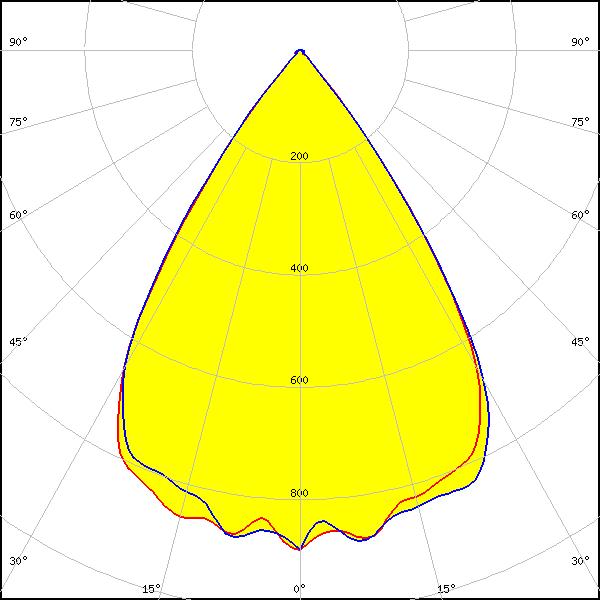

LED:

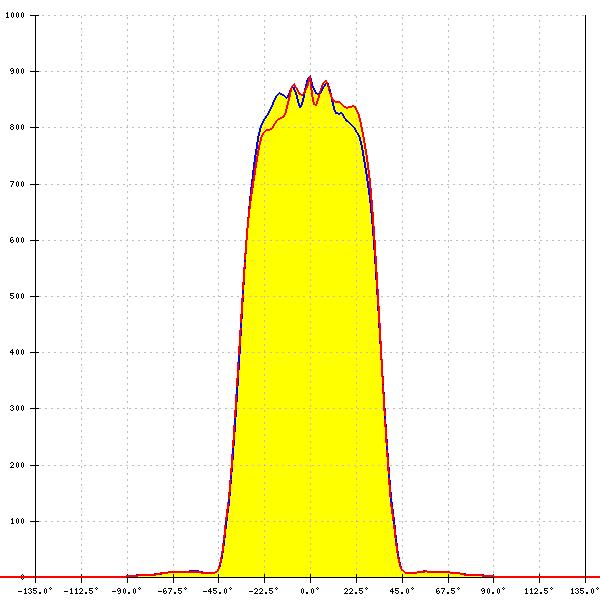

OSCONIQ C 2424 Gen1
FWHM:
68°
FWTM:
82°
Peak intensity:
0.948 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

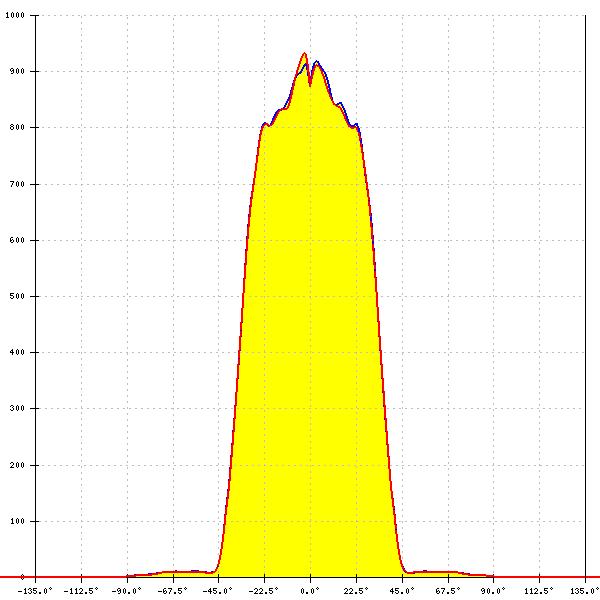

LED:

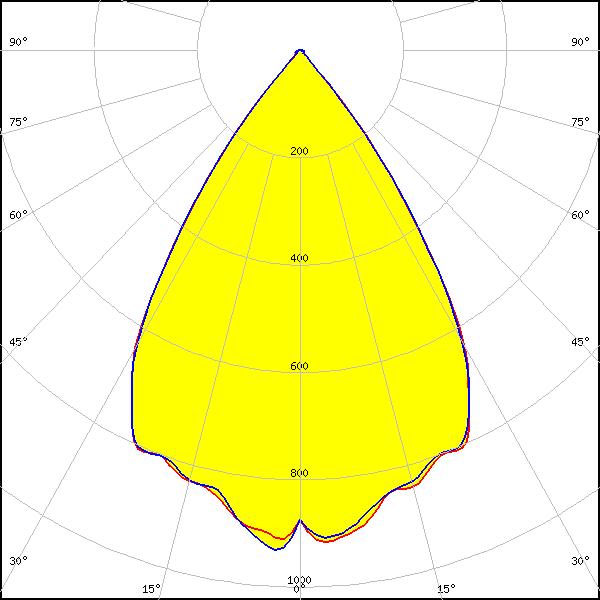

OSCONIQ C 3030
FWHM:
68°
FWTM:
84°
Peak intensity:
0.943 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
68°
FWTM:
84°
Peak intensity:
0.859 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

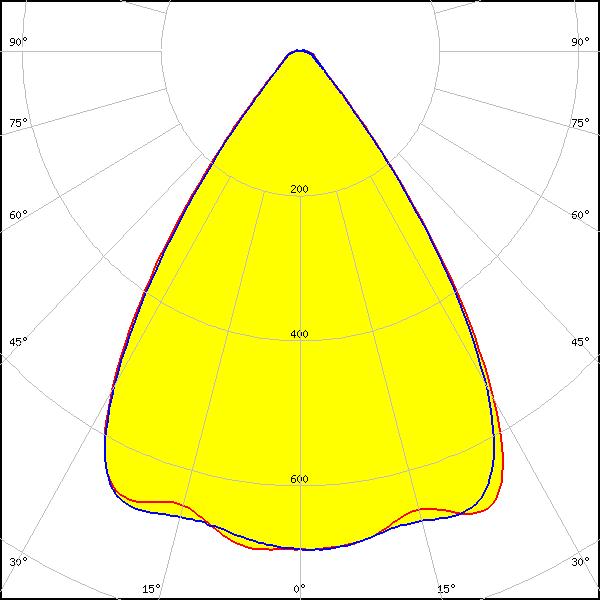

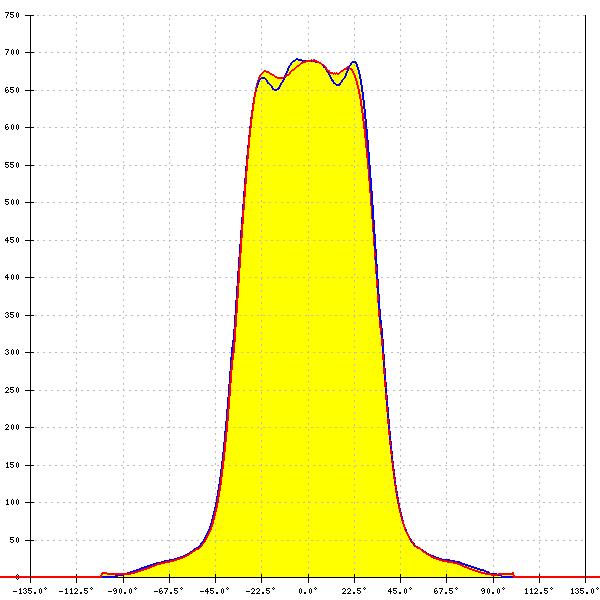

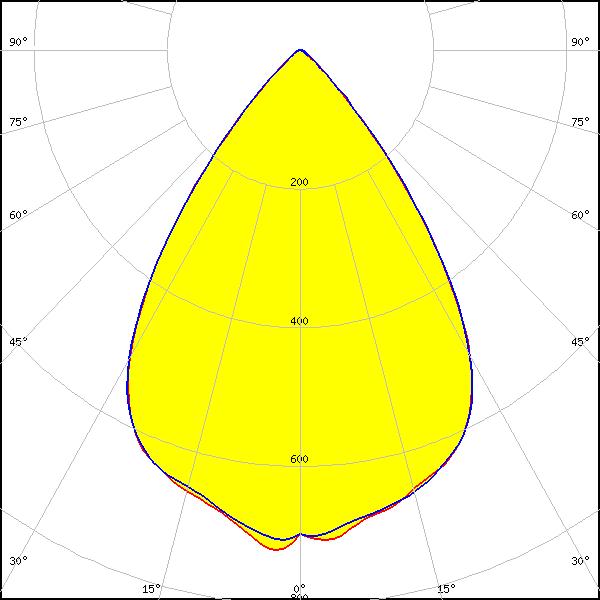

LED:

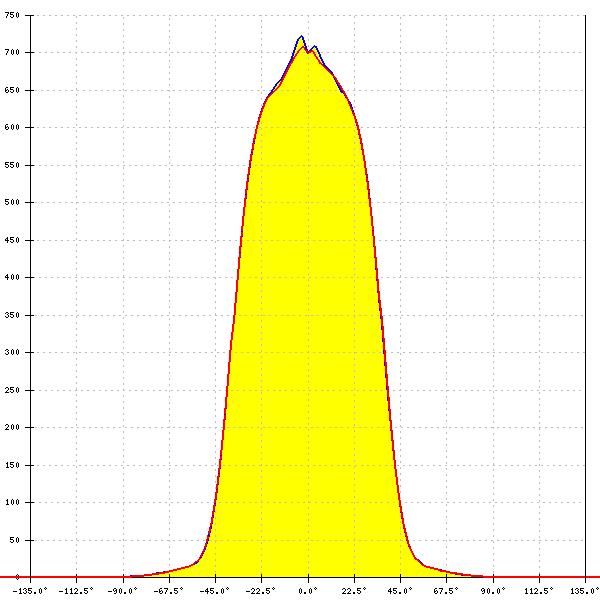

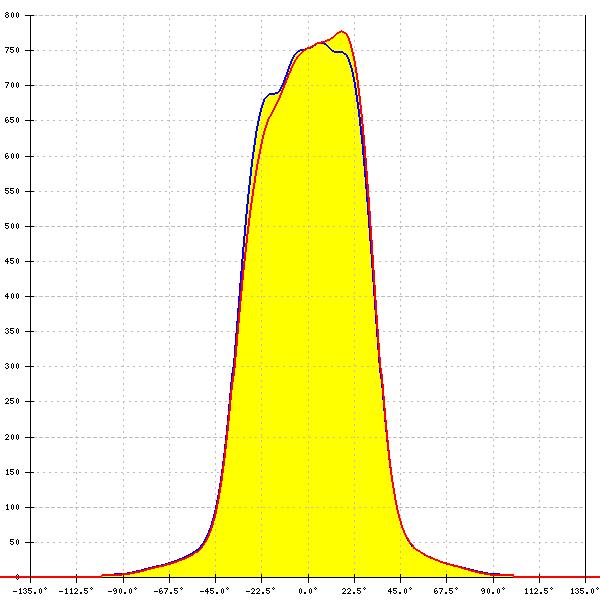

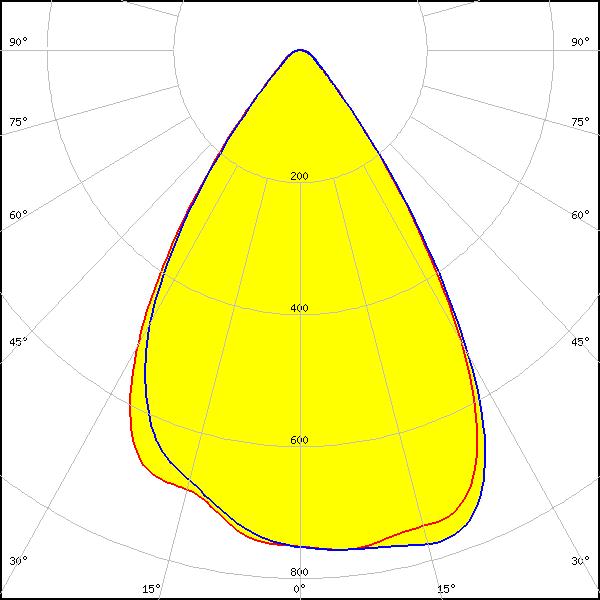

OSLON Square CSSRM2/CSSRM3
FWHM:
70°
FWTM:
94°
Peak intensity:
0.722 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
71°
FWTM:
94°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
67°
FWTM:
92°
Peak intensity:
0.790 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

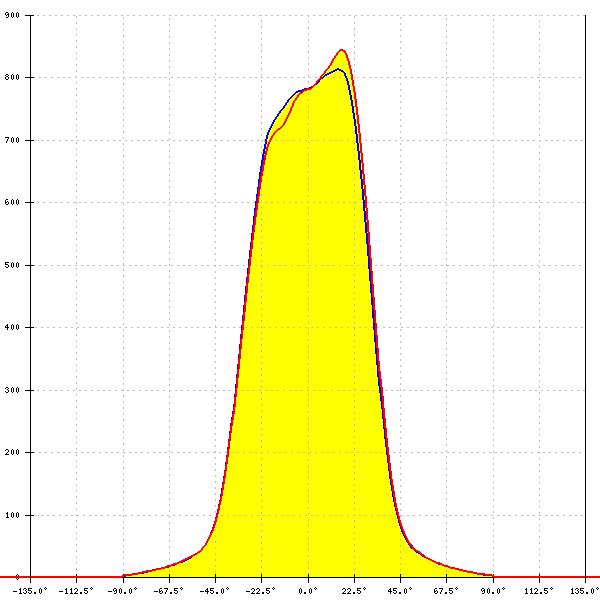

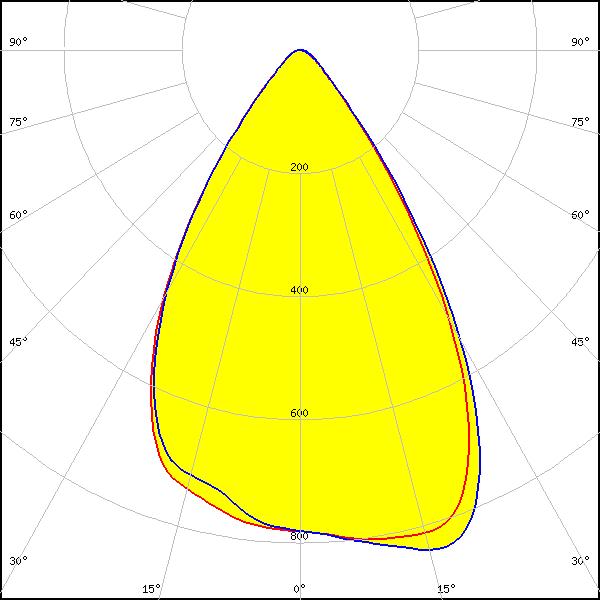

LED:
OSLON Square PC
FWHM:
63°
FWTM:
90°
Peak intensity:
0.863 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

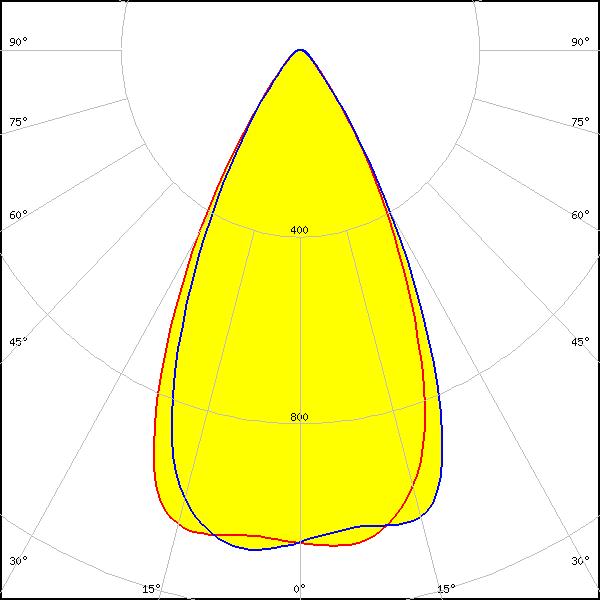

LED:

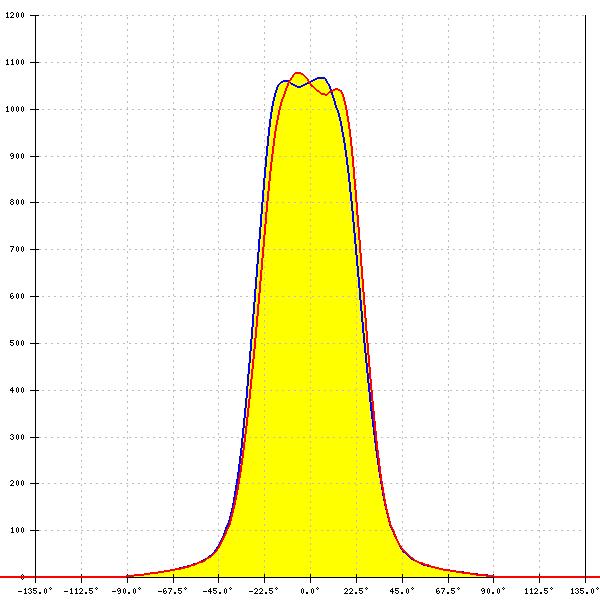

OSLON SSL 80
FWHM:
54°
FWTM:
80°
Peak intensity:
1.080 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

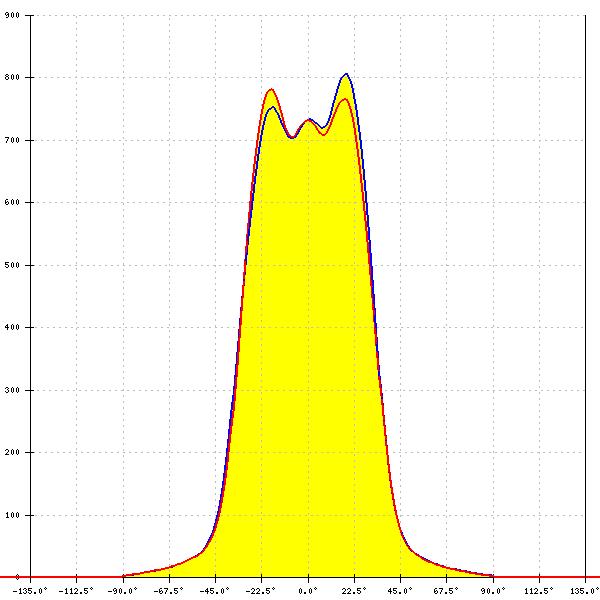

LED:
LH351A
FWHM:
68°
FWTM:
91°
Peak intensity:
0.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

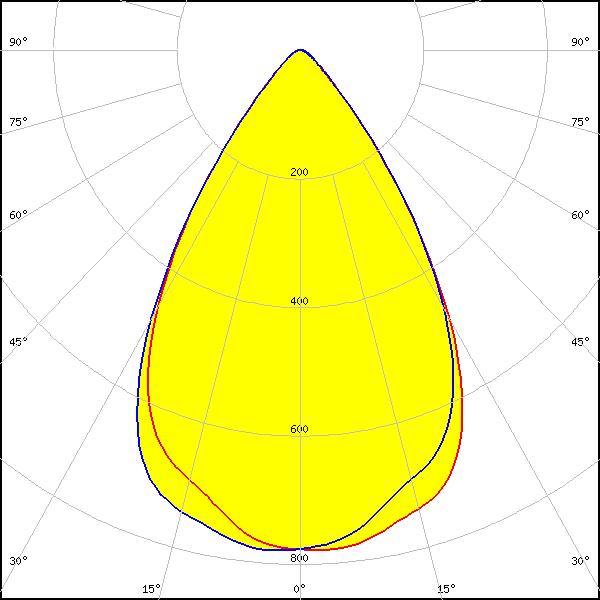

LED:

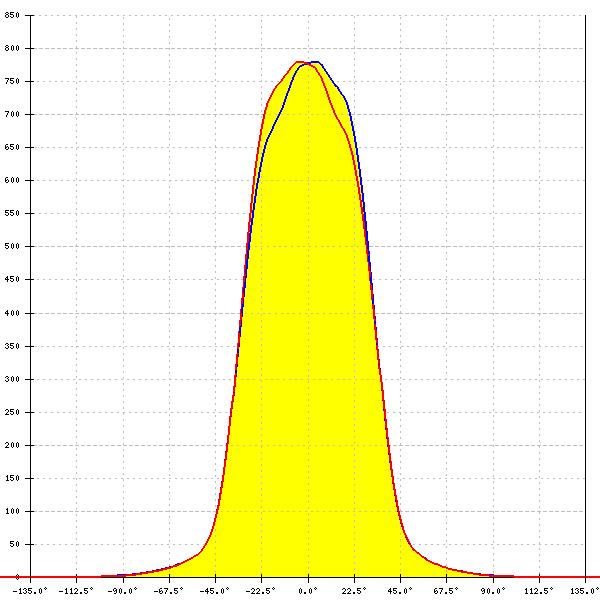

LH351B
FWHM:
65°
FWTM:
92°
Peak intensity:
0.780 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

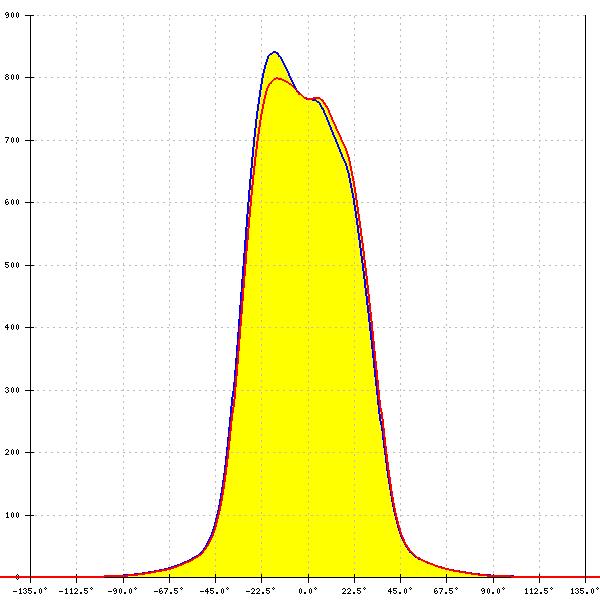

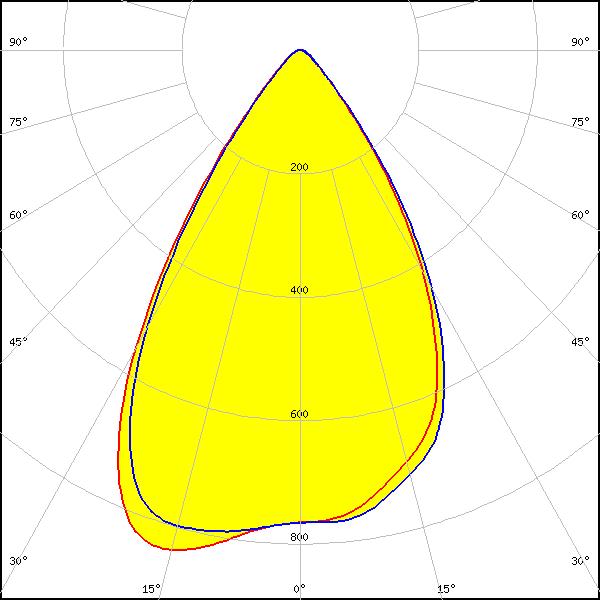

LED:
LH351Z
FWHM:
63°
FWTM:
89°
Peak intensity:
0.860 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

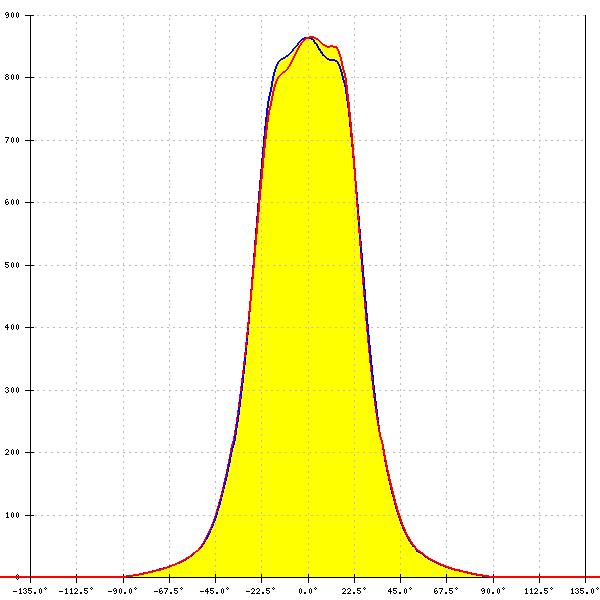

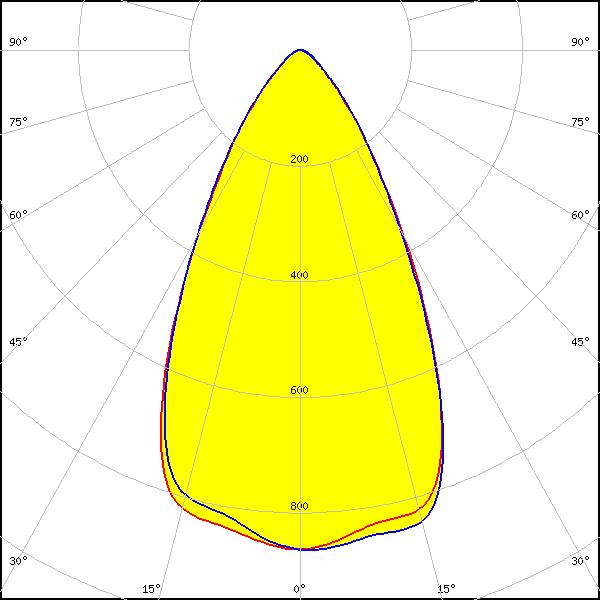

Z8Y15
FWHM:
56°
FWTM:
92°
Peak intensity:
0.870 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

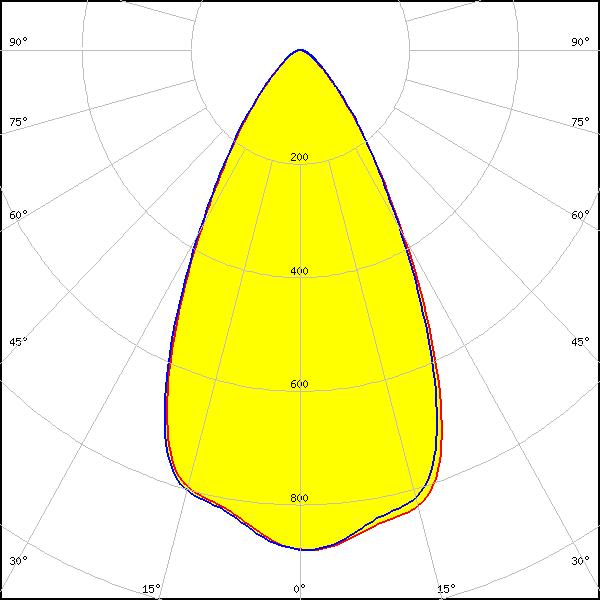

LED:

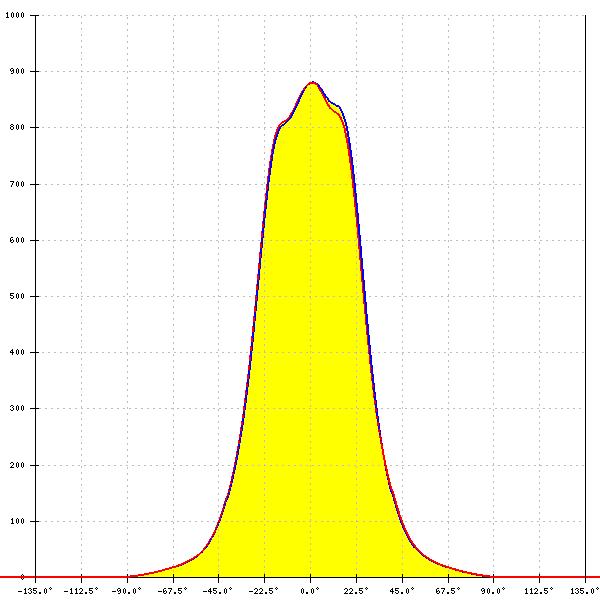

Z8Y19
FWHM:
56°
FWTM:
92°
Peak intensity:
0.880 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

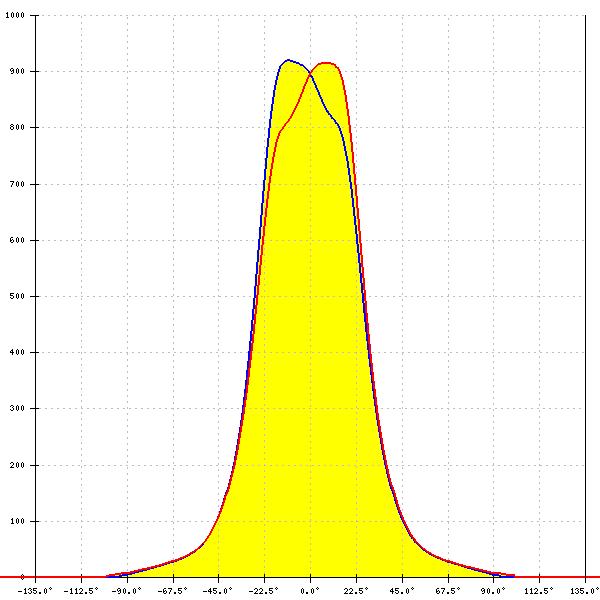

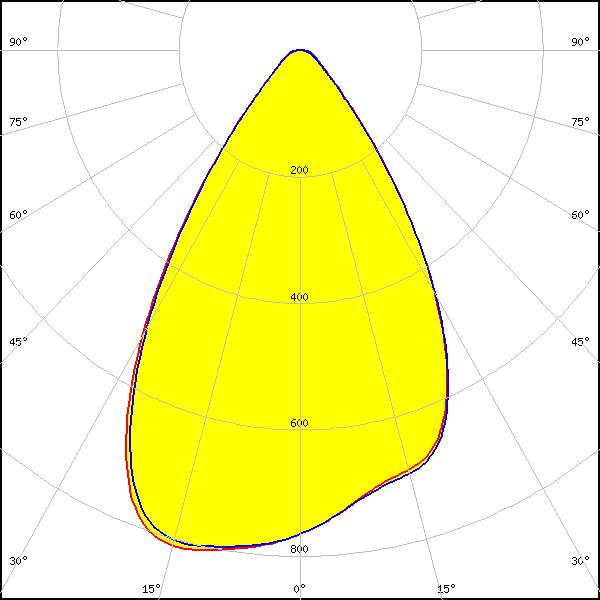

LED:

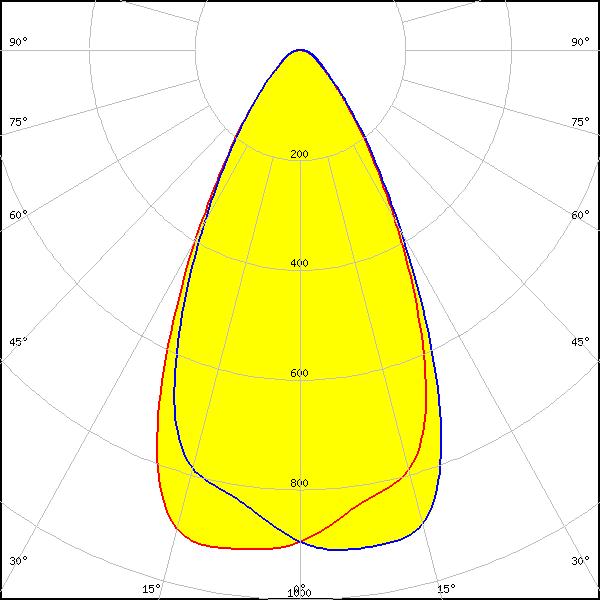

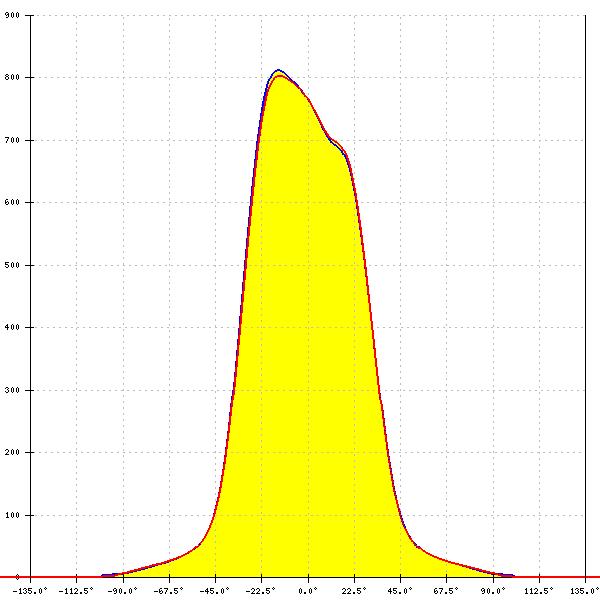

Z8Y22
FWHM:
55°
FWTM:
94°
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22P
FWHM:
65°
FWTM:
95°
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

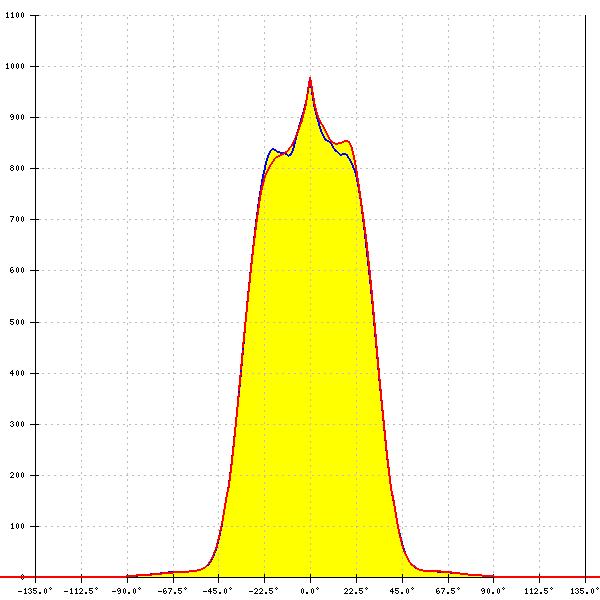

LED:
Z8Y22T
FWHM:
63°
FWTM:
86°
Peak intensity:
0.980 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

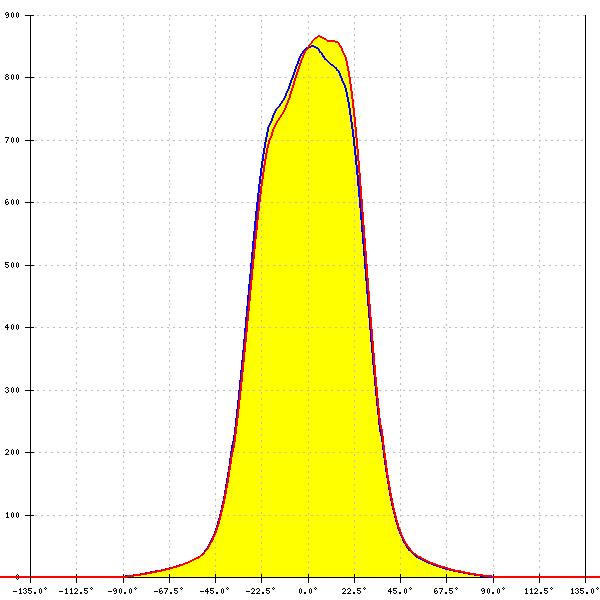

LED:
TL1L4
FWHM:
60°
FWTM:
87°
Peak intensity:
0.870 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

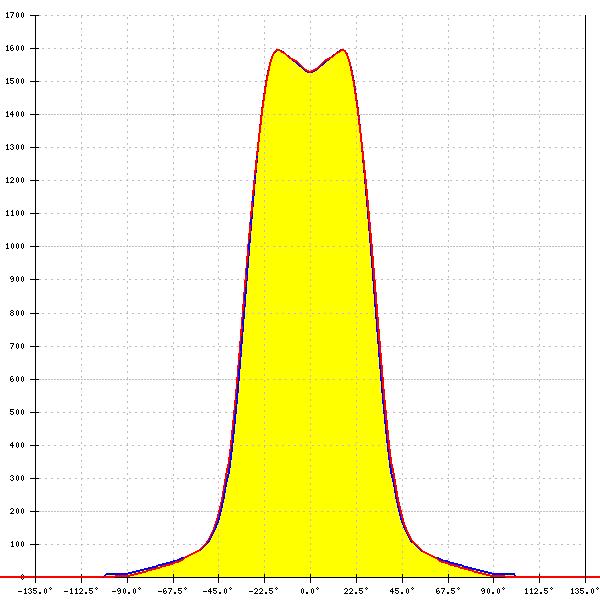

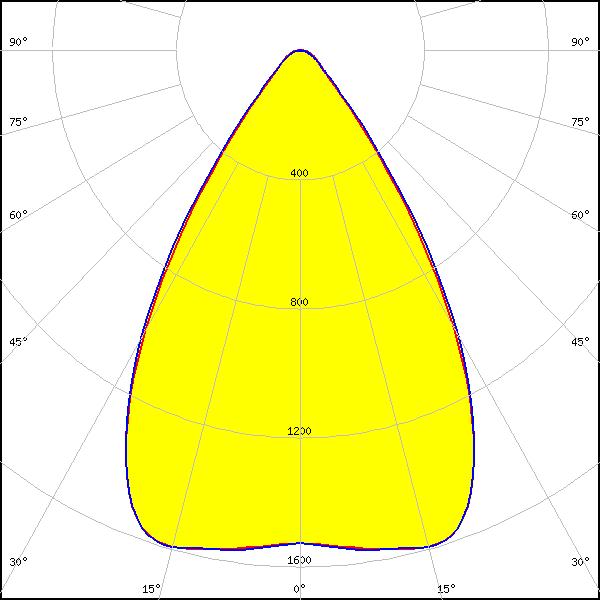

RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
67°
FWTM:
93°
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
67°
FWTM:
93°
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
67°
FWTM:
93°
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
67°
FWTM:
93°
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
