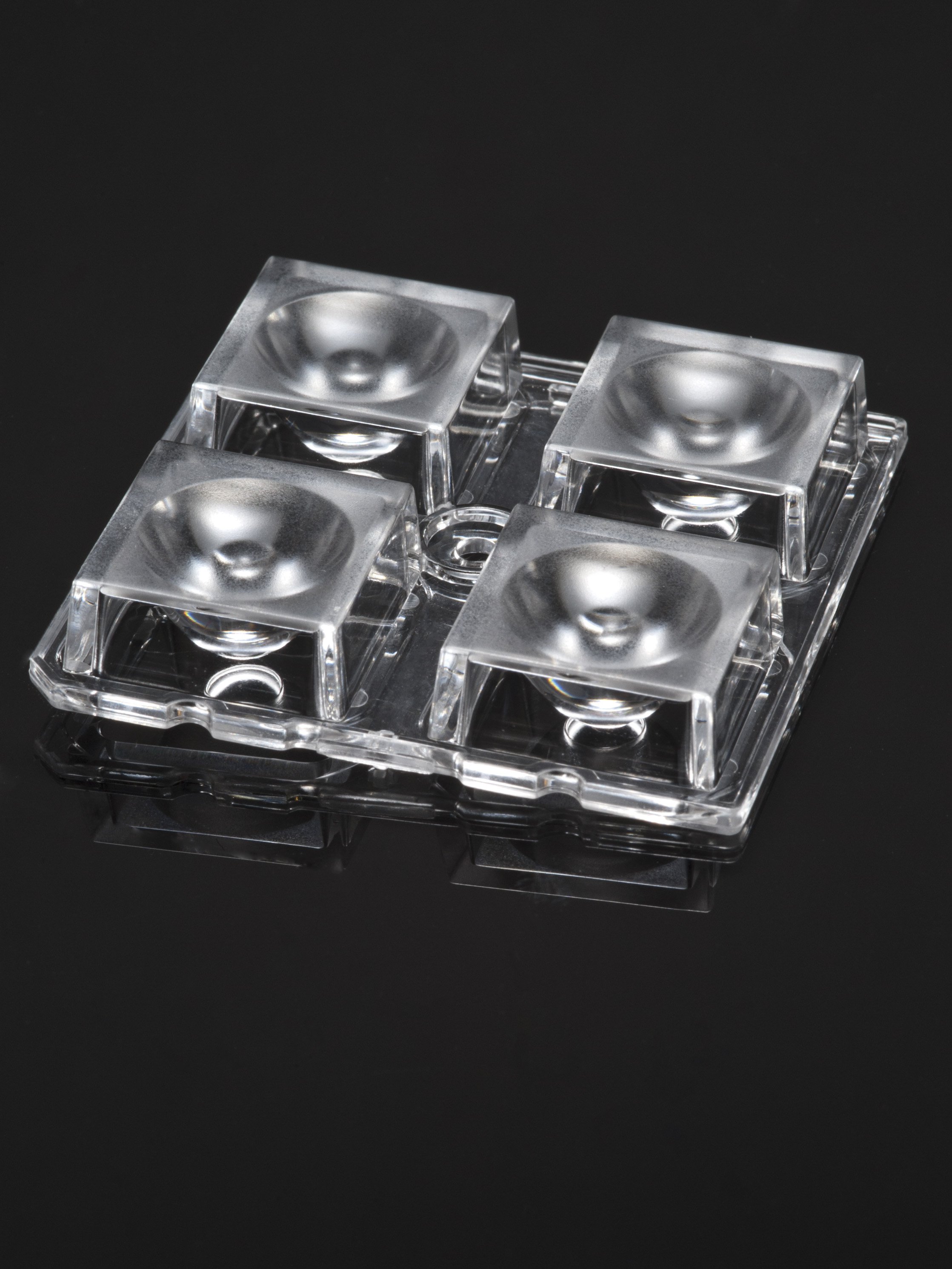

C13233_HB-2X2-M
Print
~25° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

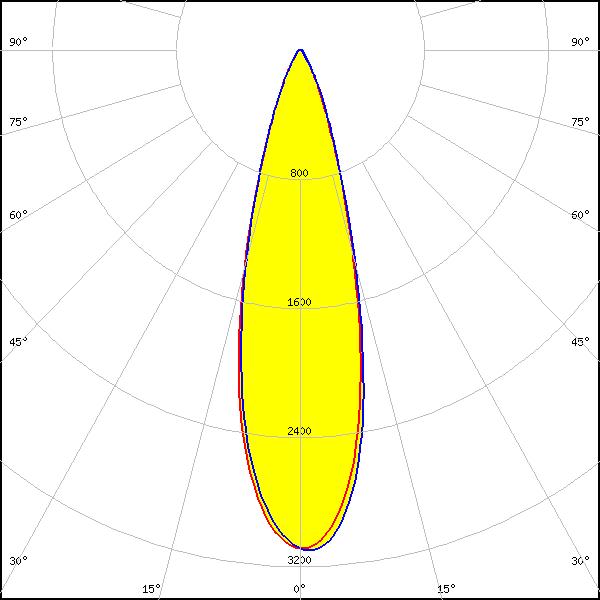

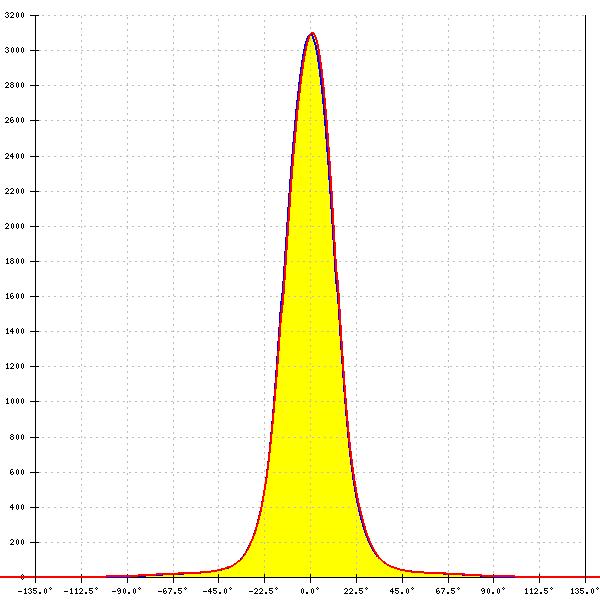

LED:
QUICK FLUX XTP 2x4 xxx LS G5
FWHM:
28°
FWTM:
52°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

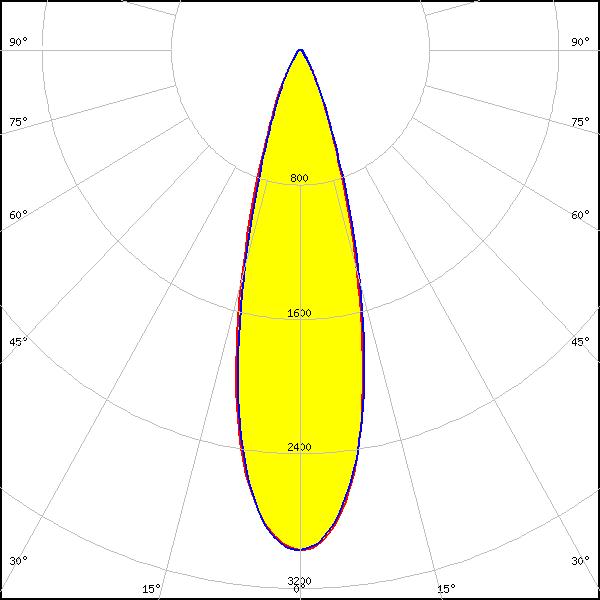

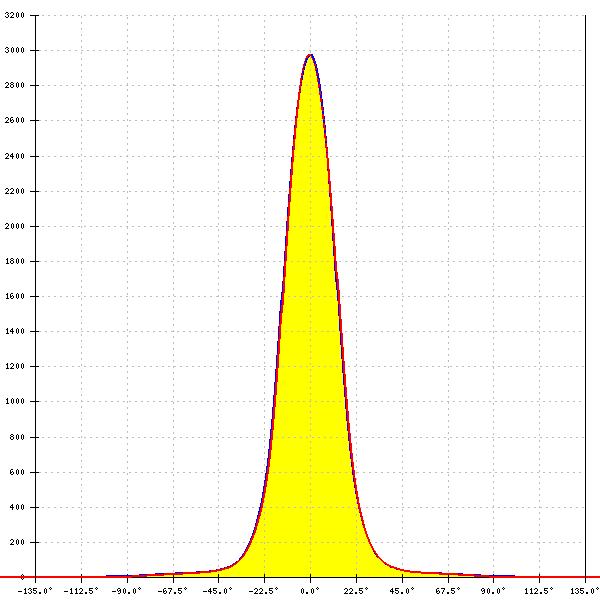

LED:
QUICK FLUX XTP 2x6 xxx LS G5
FWHM:
29°
FWTM:
52°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

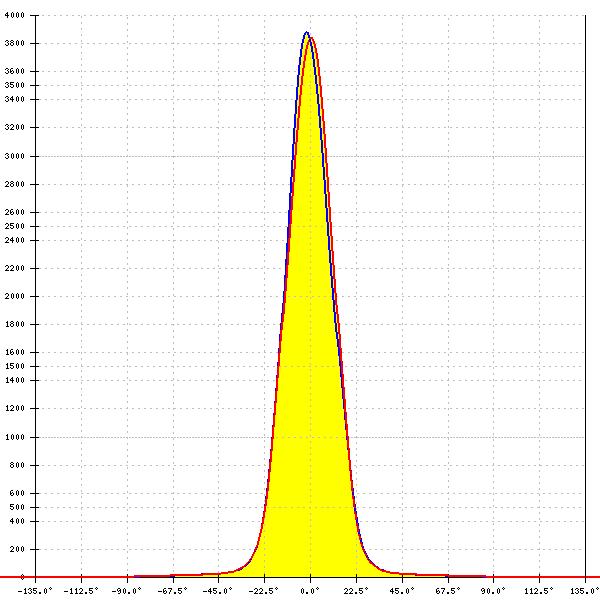

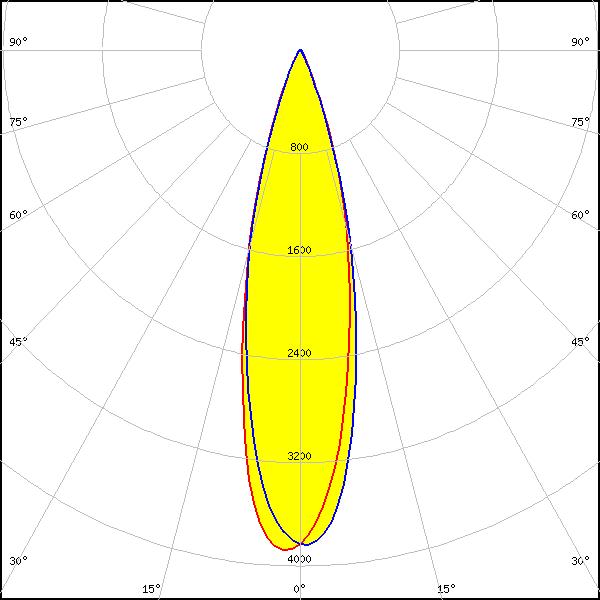

LED:
XB-D
FWHM:
26°
FWTM:
47°
Peak intensity:
3.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

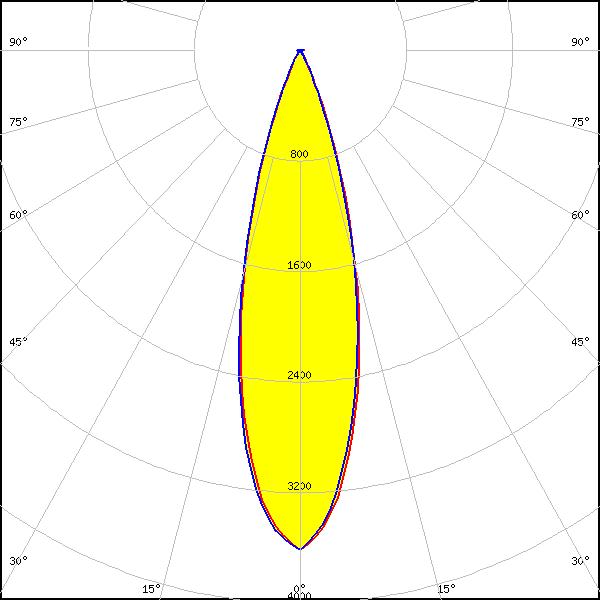

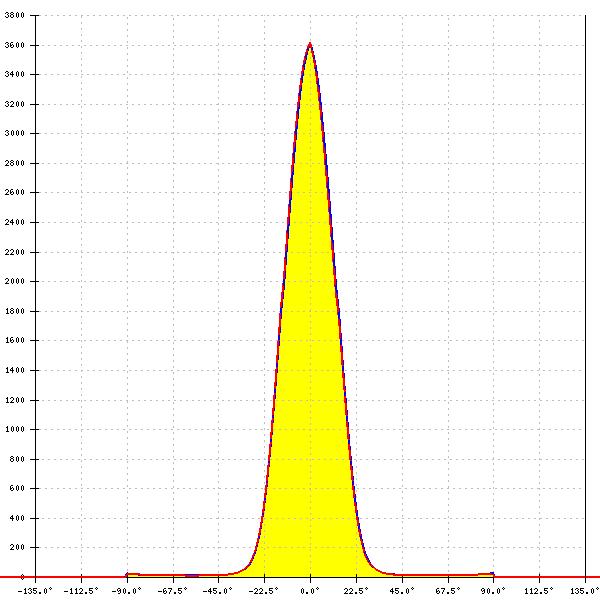

LED:
XD16
FWHM:
28°
FWTM:
48°
Peak intensity:
3.619 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

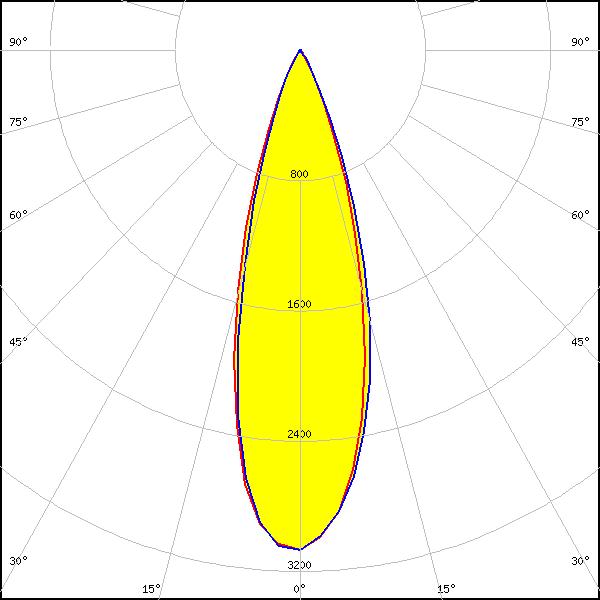

LED:

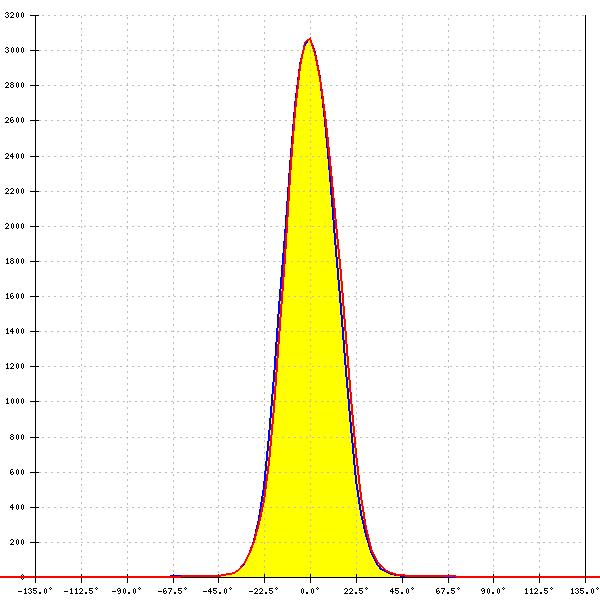

XP-G
FWHM:
31°
FWTM:
54°
Peak intensity:
3.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

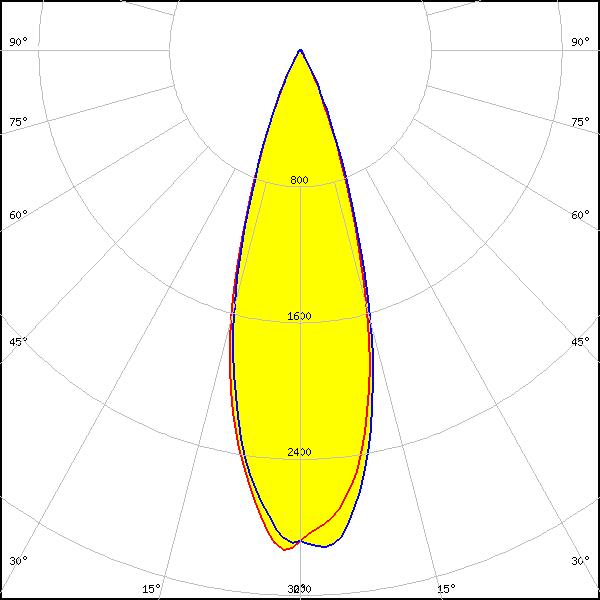

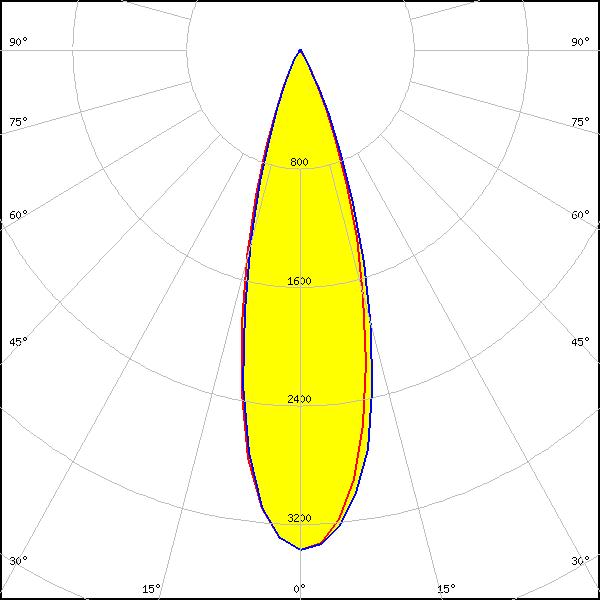

LED:

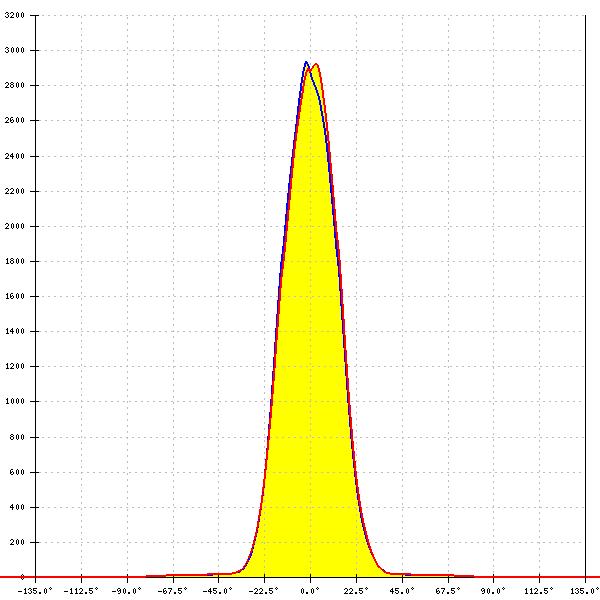

XP-G2
FWHM:
32°
FWTM:
52°
Peak intensity:
3.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

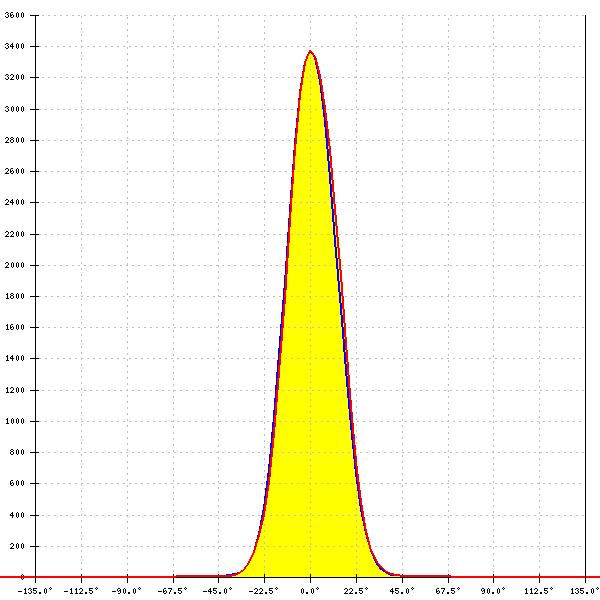

LED:
XP-G2
FWHM:
33°
FWTM:
54°
Peak intensity:
3.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

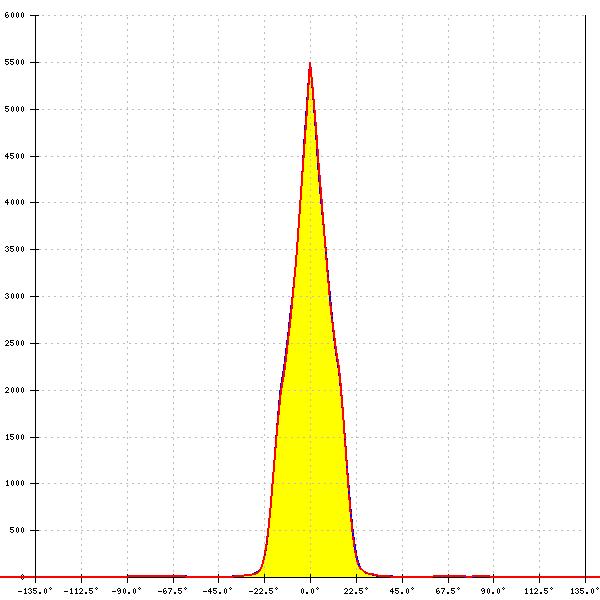

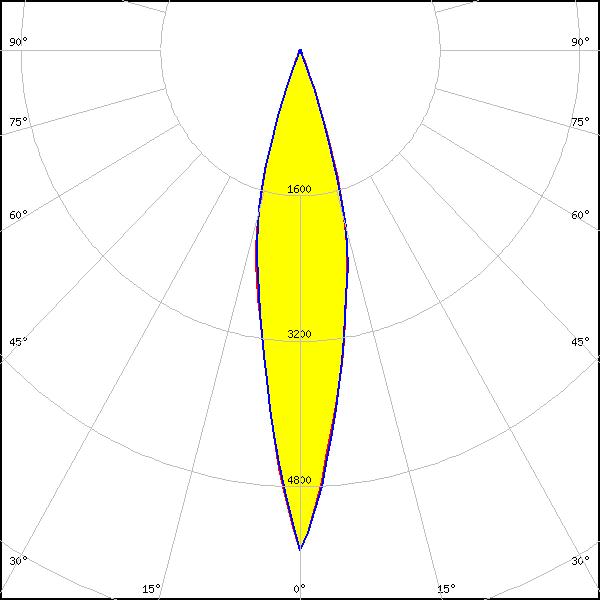

XQ-E HI
FWHM:
22°
FWTM:
42°
Peak intensity:
5.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

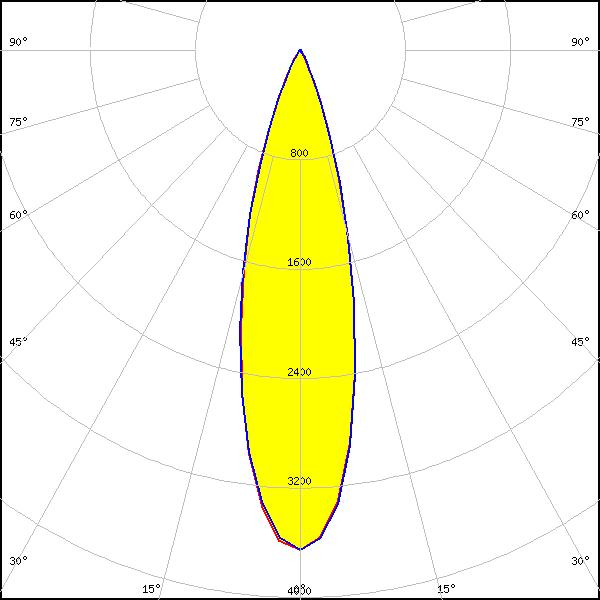

XT-E
FWHM:
25°
FWTM:
46°
Peak intensity:
3.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

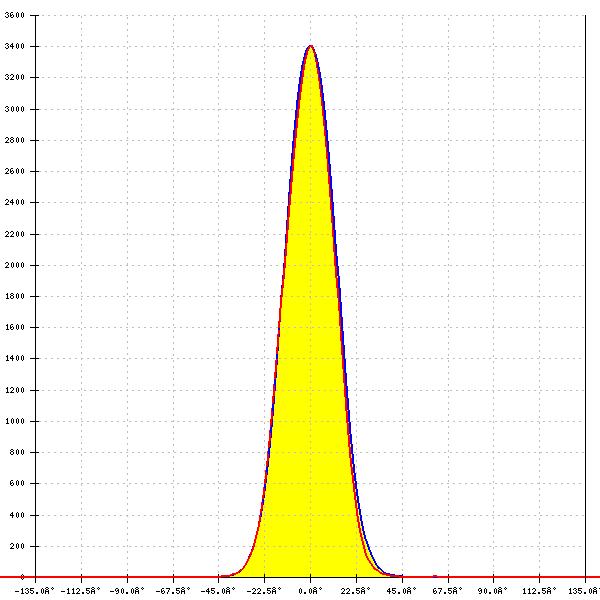

LED:
PrevaLED Brick HP 2x8
FWHM:
30°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

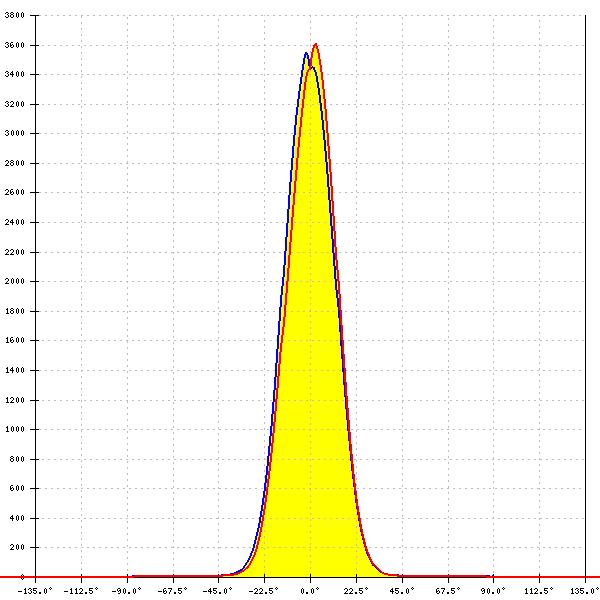

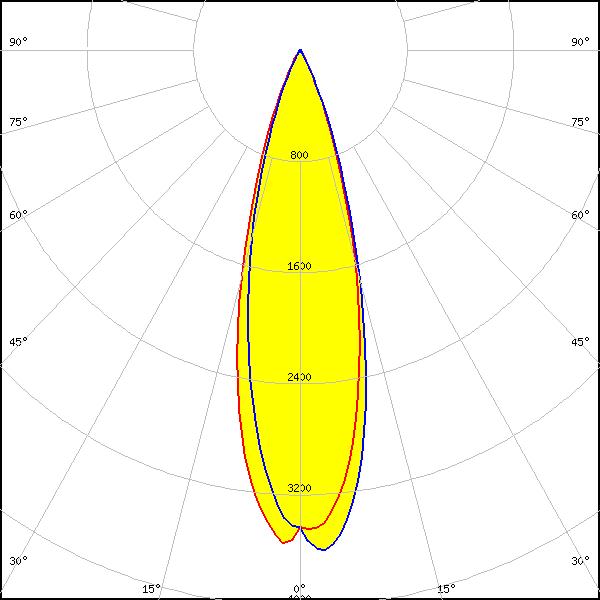

LUXEON 3030 2D (Round LES)
FWHM:
28°
FWTM:
49°
Peak intensity:
3.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

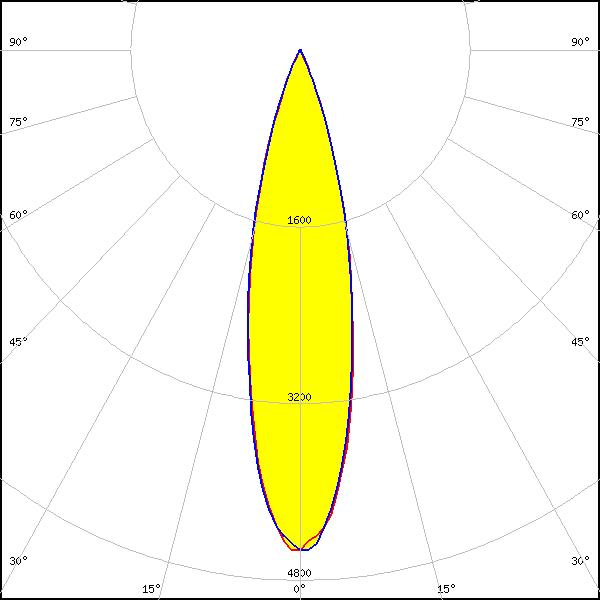

LED:
LUXEON C
FWHM:
25°
FWTM:
45°
Peak intensity:
4.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Q
FWHM:
26°
FWTM:
49°
Peak intensity:
3.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

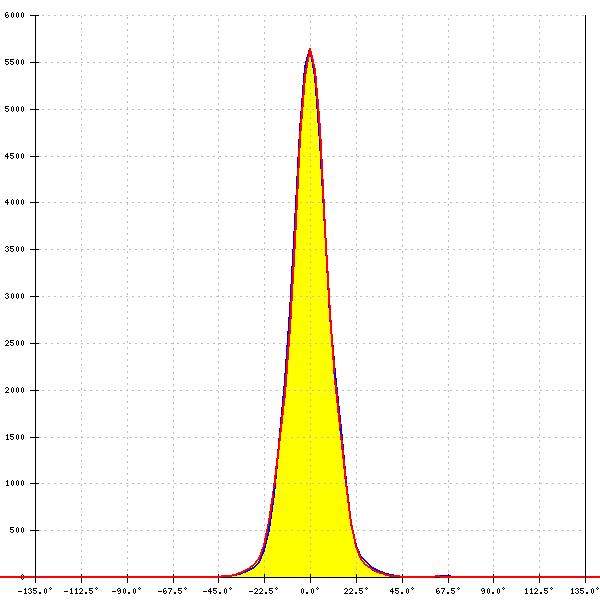

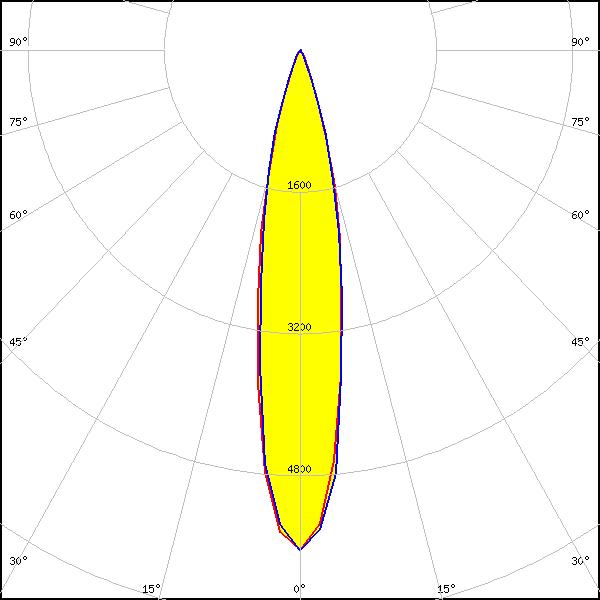

LED:
LUXEON Z ES
FWHM:
21°
FWTM:
42°
Peak intensity:
5.640 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

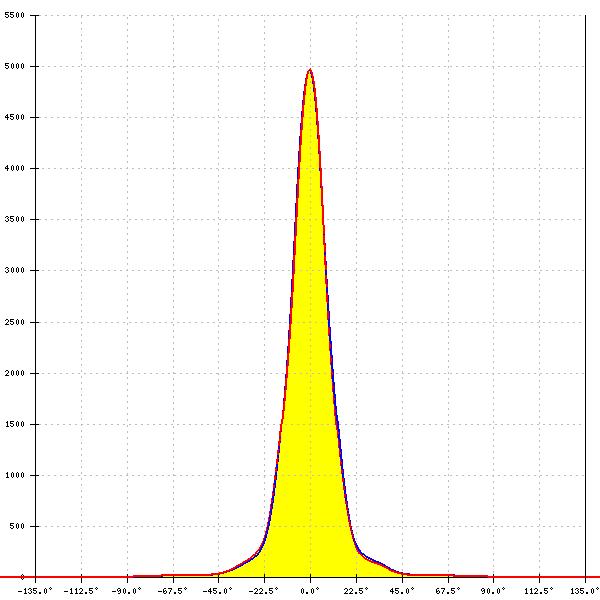

LED:

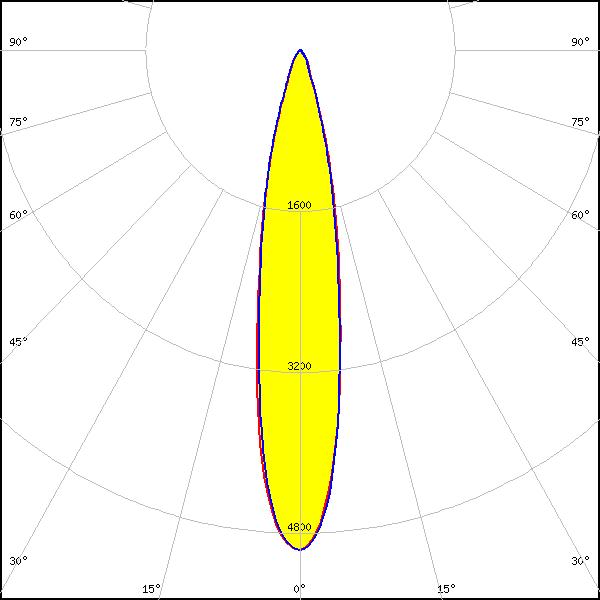

NVSxE21A
FWHM:
20°
FWTM:
40°
Peak intensity:
4.970 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

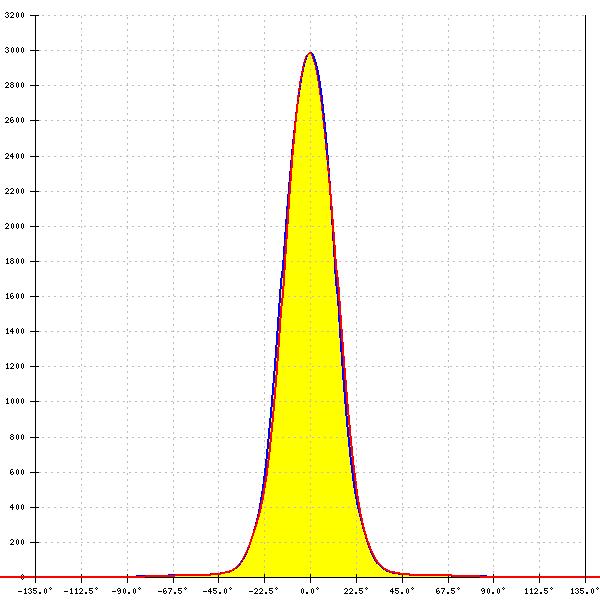

LED:

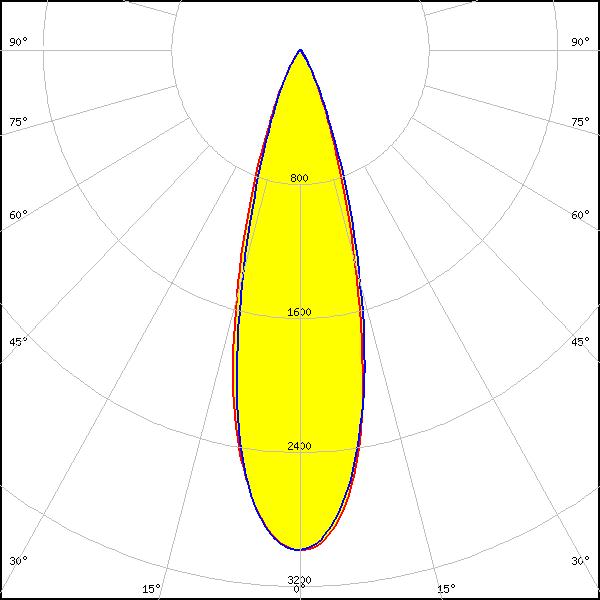

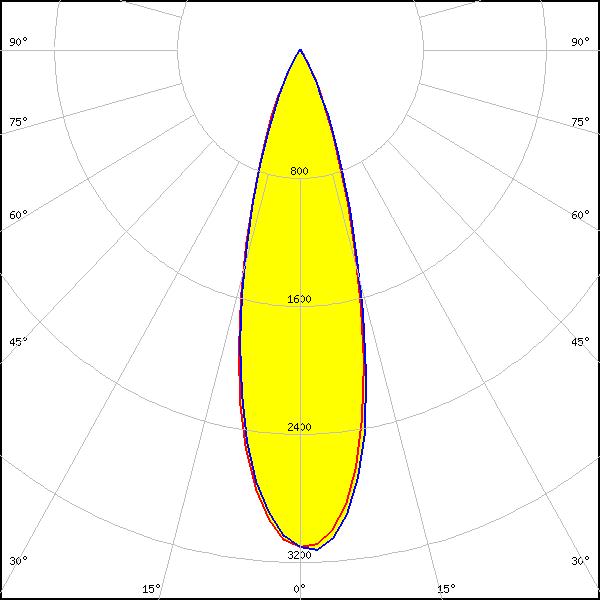

NVSxx19B/NVSxx19C
FWHM:
29°
FWTM:
52°
Peak intensity:
3.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
29°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

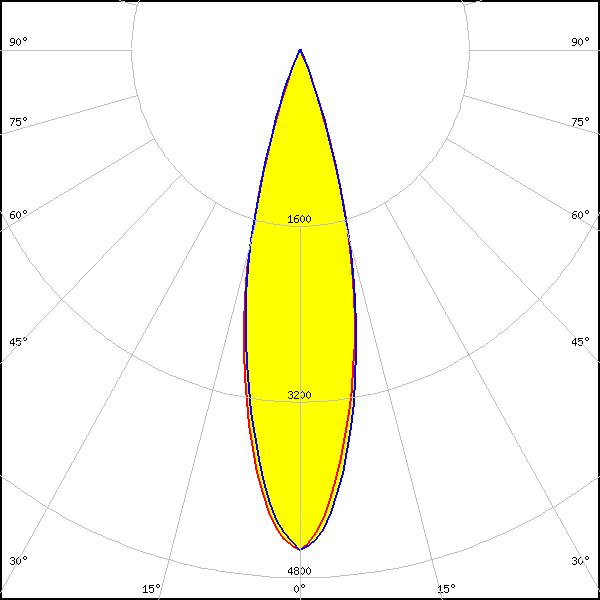

LED:
OSCONIQ C 2424 Gen1
FWHM:
26°
FWTM:
43°
Peak intensity:
4.551 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

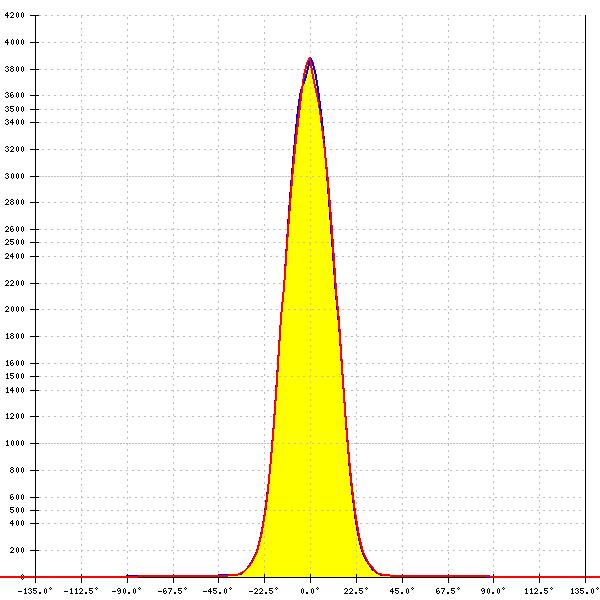

OSCONIQ C 3030
FWHM:
28°
FWTM:
46°
Peak intensity:
3.924 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
28°
FWTM:
46°
Peak intensity:
3.553 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

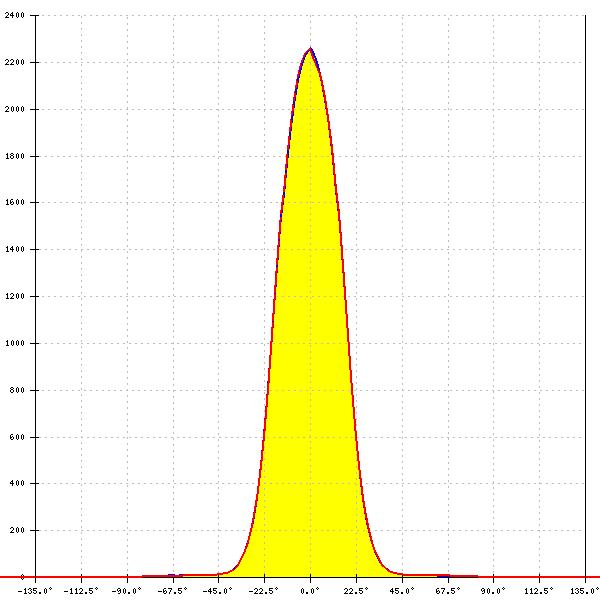

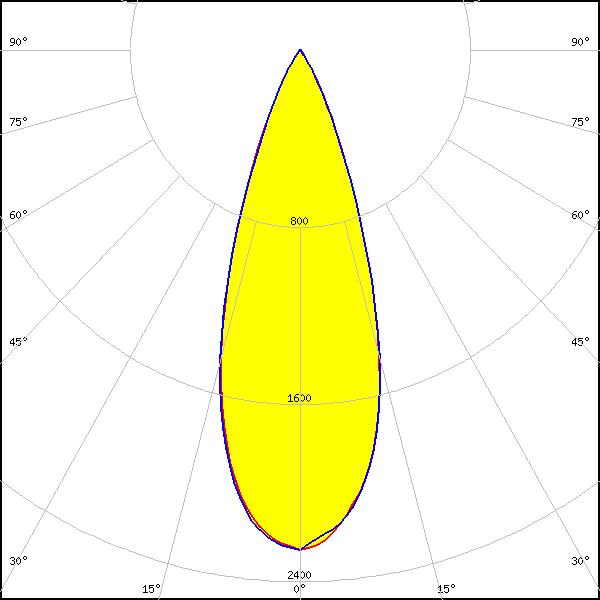

OSLON Square CSSRM2/CSSRM3
FWHM:
36°
FWTM:
56°
Peak intensity:
2.261 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
30°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

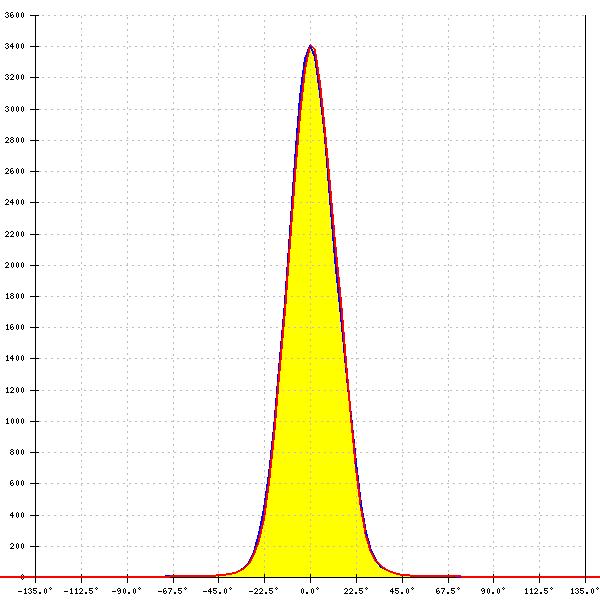

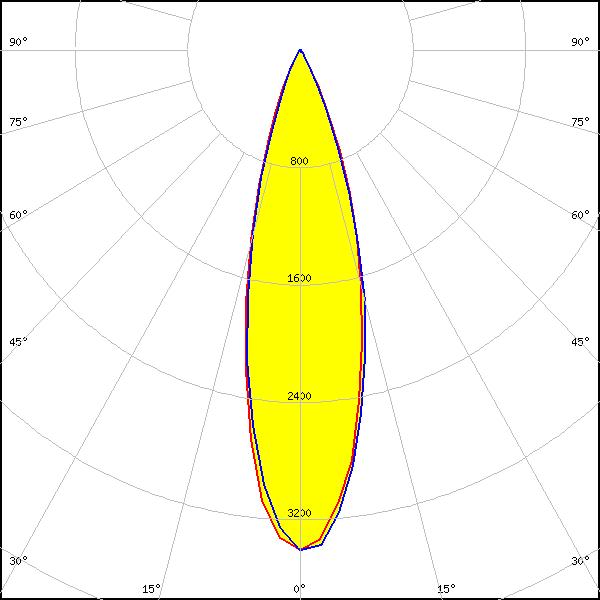

LED:
OSLON Square PC
FWHM:
30°
FWTM:
54°
Peak intensity:
3.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

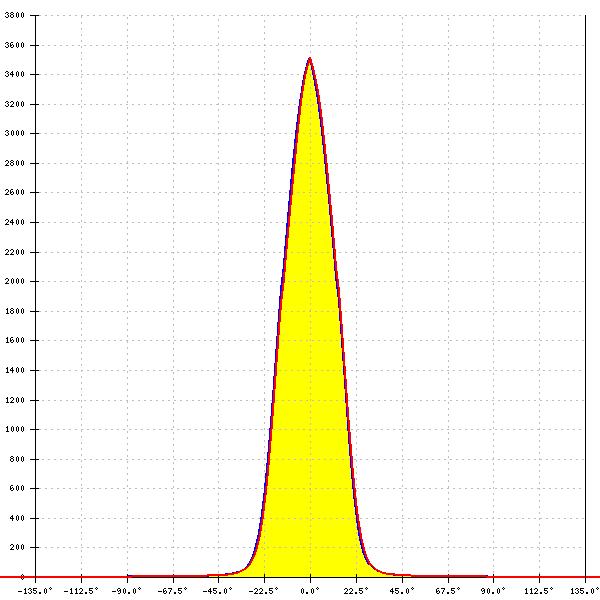

LED:

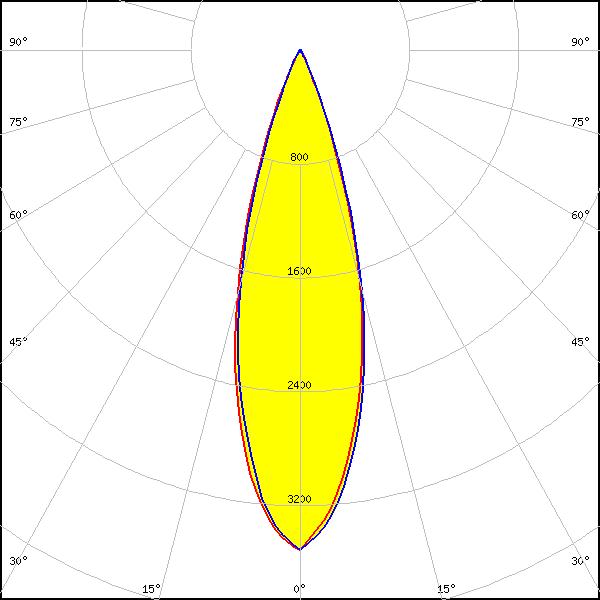

OSLON SSL 80
FWHM:
30°
FWTM:
48°
Peak intensity:
3.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

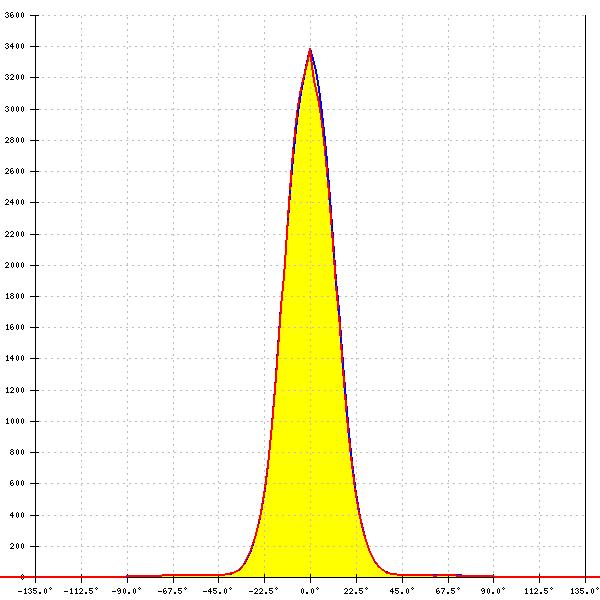

LED:

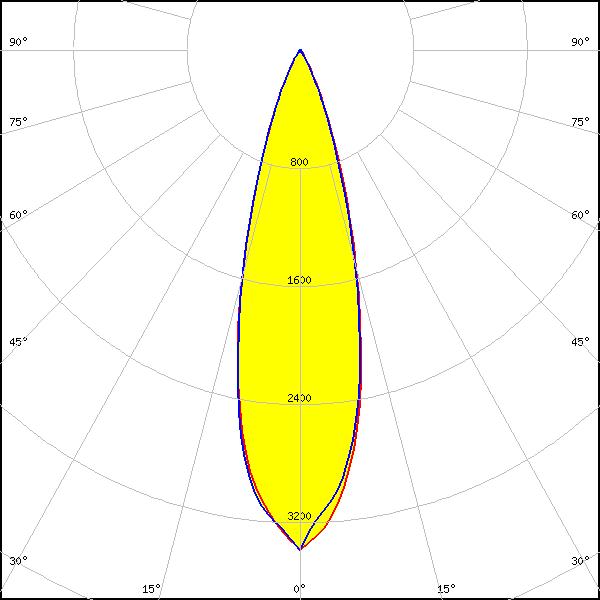

LH231B
FWHM:
28°
FWTM:
50°
Peak intensity:
3.387 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

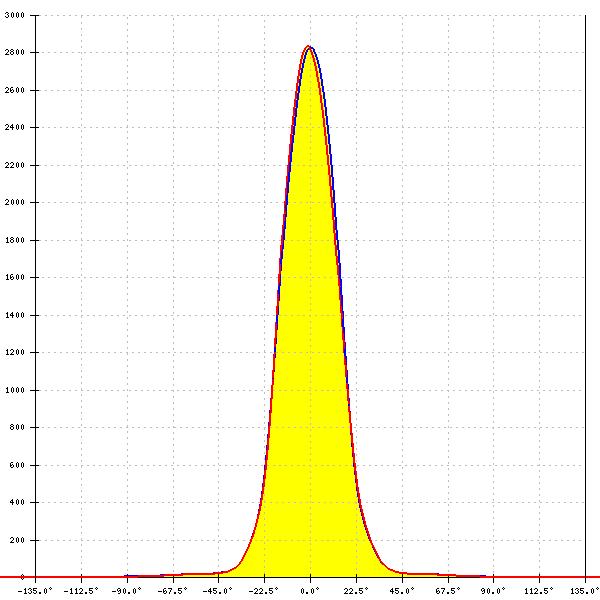

LED:

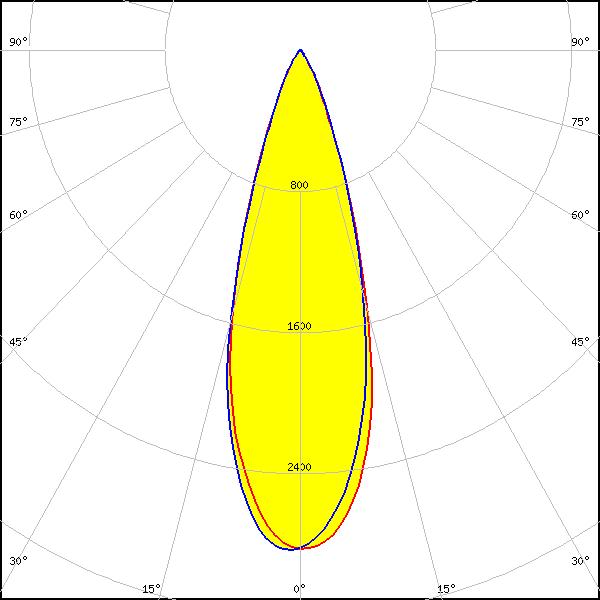

LH351B
FWHM:
31°
FWTM:
53°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

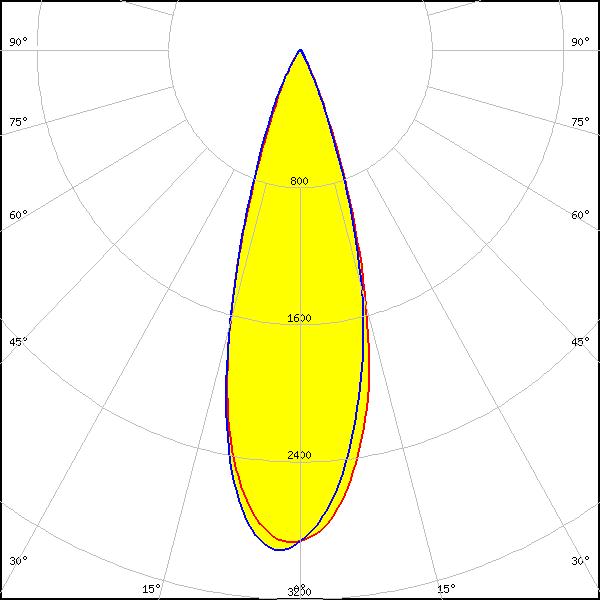

LED:

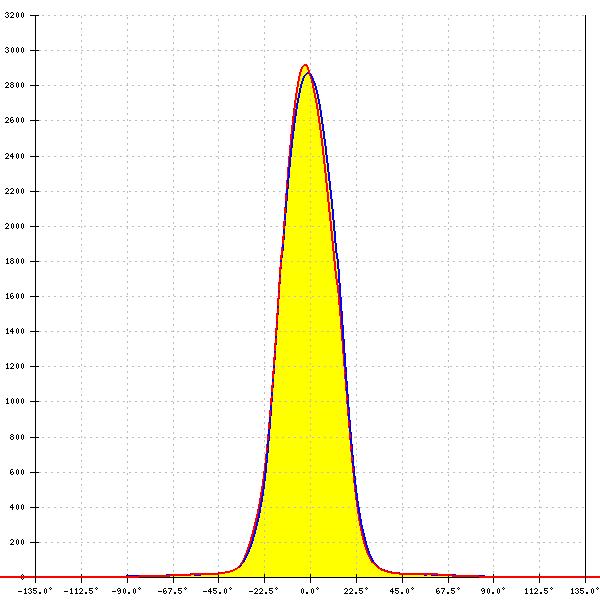

LH351Z
FWHM:
32°
FWTM:
52°
Peak intensity:
2.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

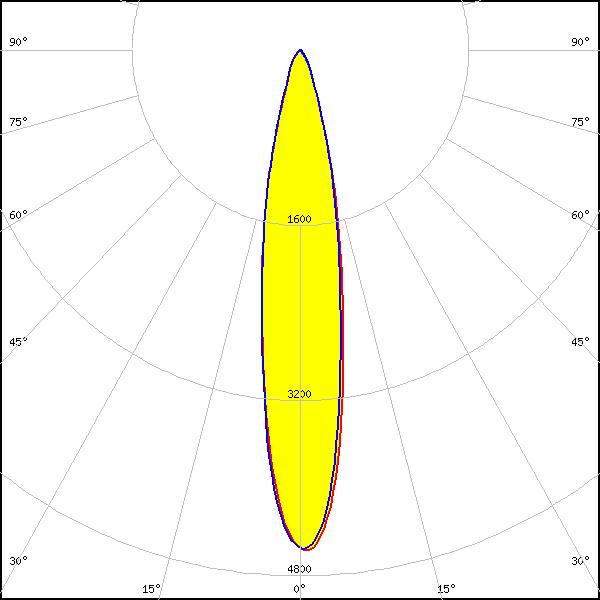

LED:

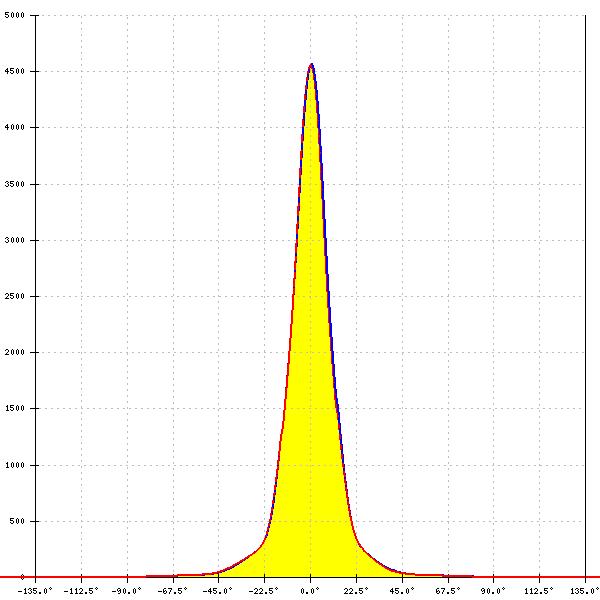

Z8Y15
FWHM:
20°
FWTM:
41°
Peak intensity:
4.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

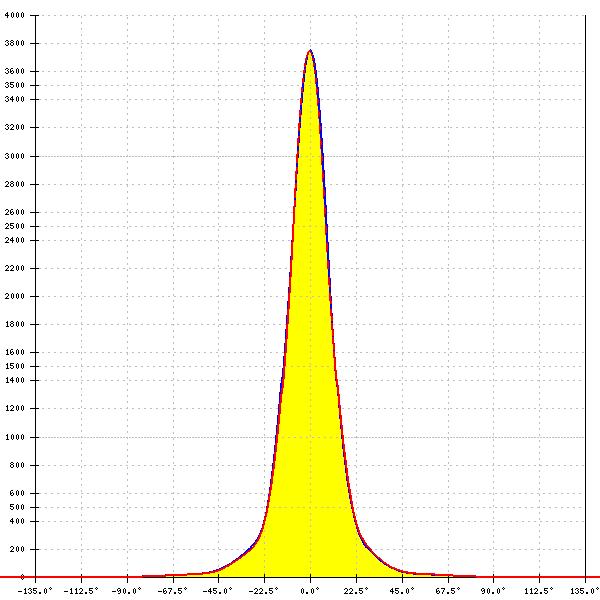

LED:

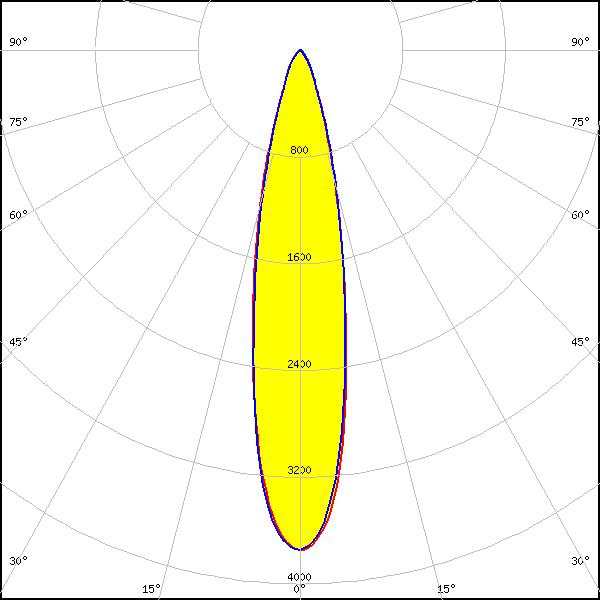

Z8Y19
FWHM:
22°
FWTM:
46°
Peak intensity:
3.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

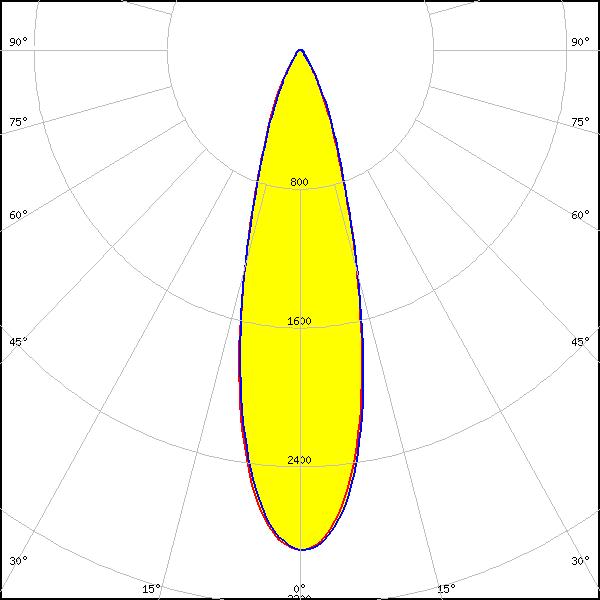

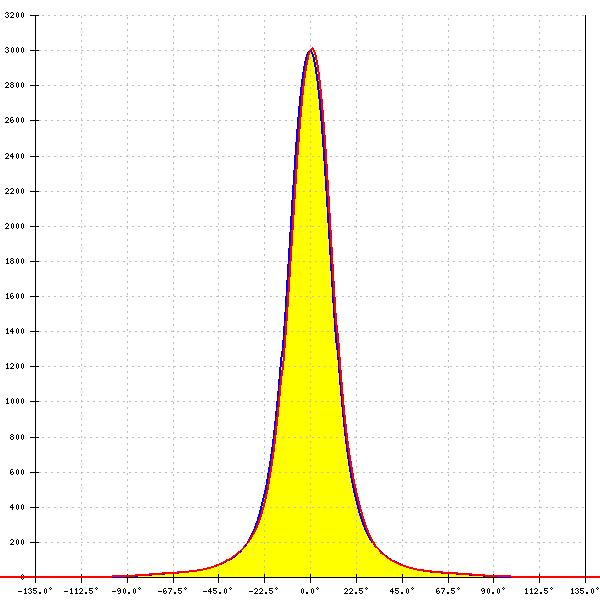

LED:

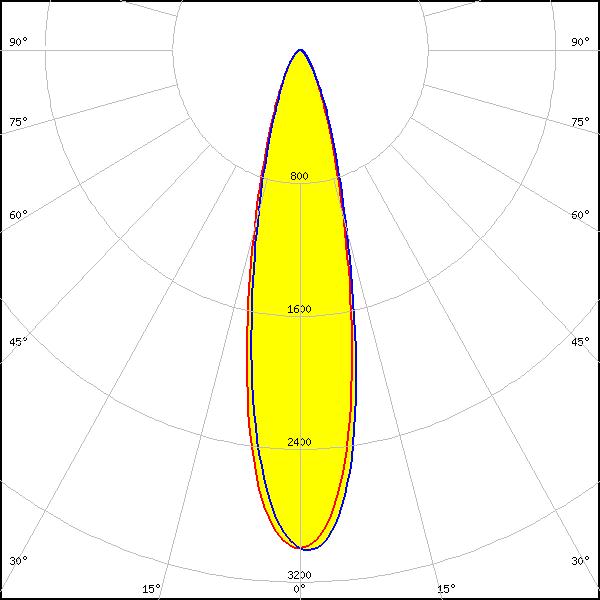

Z8Y22
FWHM:
24°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

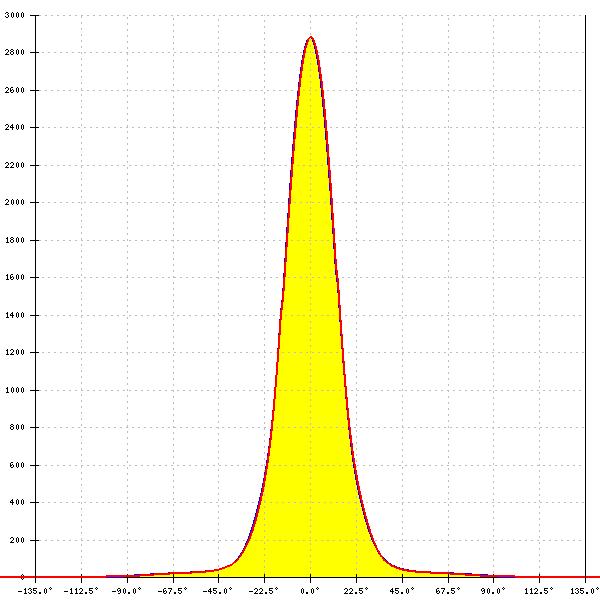

LED:
Z8Y22P
FWHM:
28°
FWTM:
56°
Peak intensity:
2.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

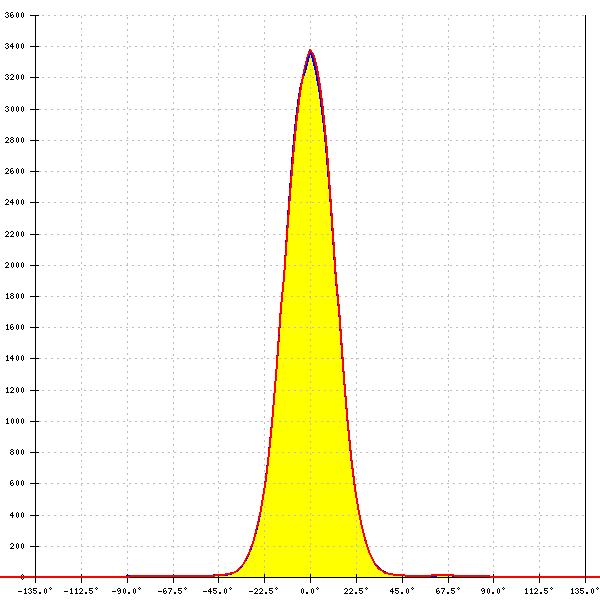

LED:
Z8Y22T
FWHM:
28°
FWTM:
51°
Peak intensity:
3.380 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

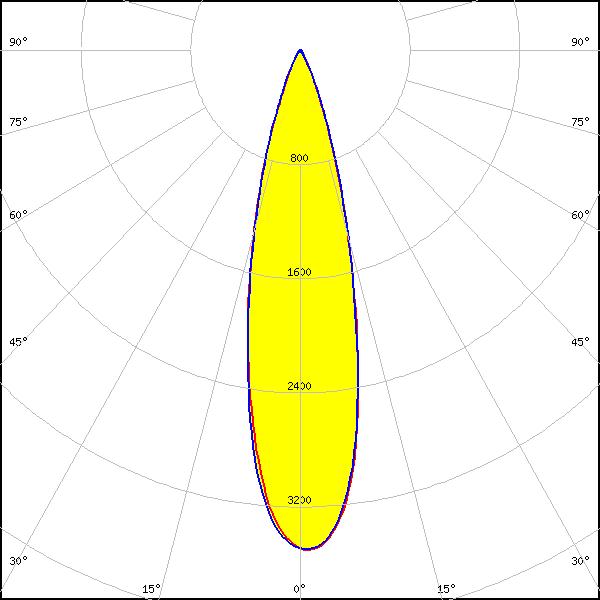

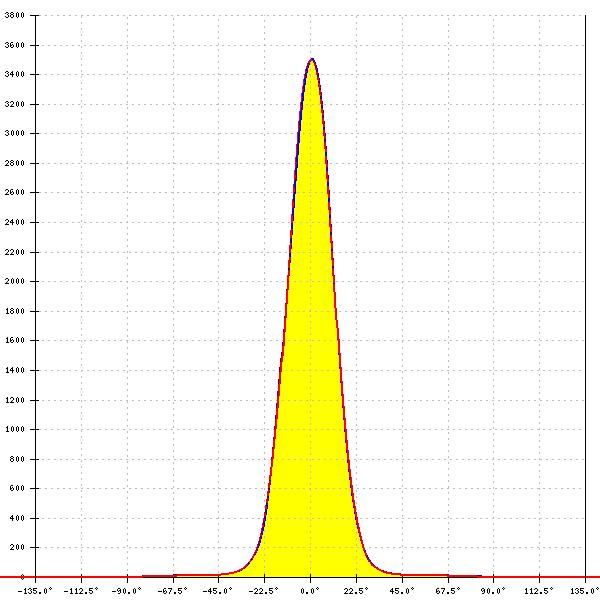

LED:
TL1L4
FWHM:
25°
FWTM:
46°
Peak intensity:
3.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

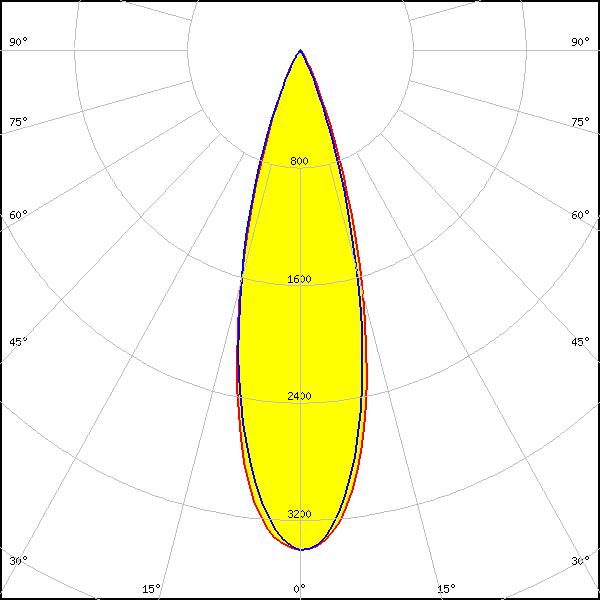

LED:
RLE 2x4 2000lm HP EXC2 OTD
FWHM:
29°
FWTM:
50°
Peak intensity:
3.403 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

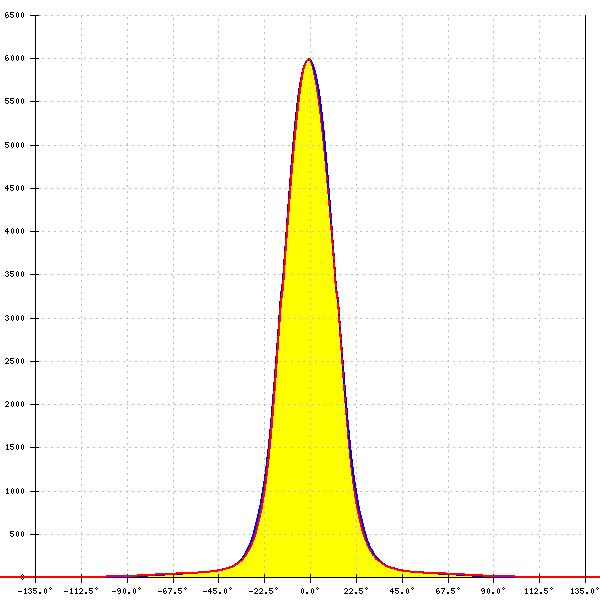

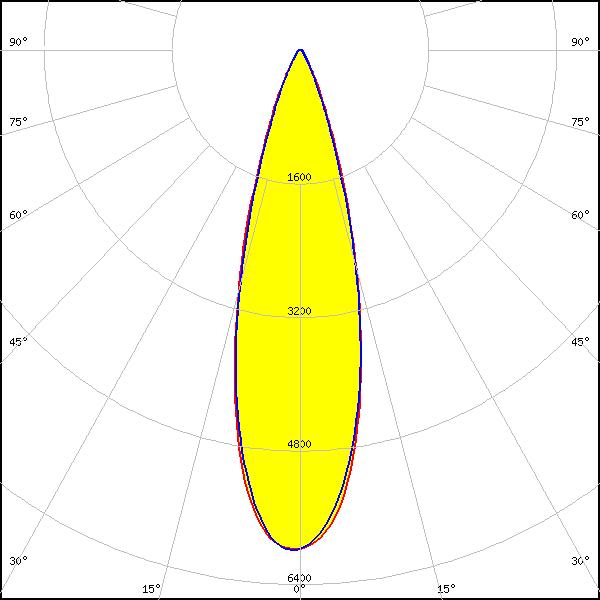

RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
29°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
29°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
29°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
29°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
