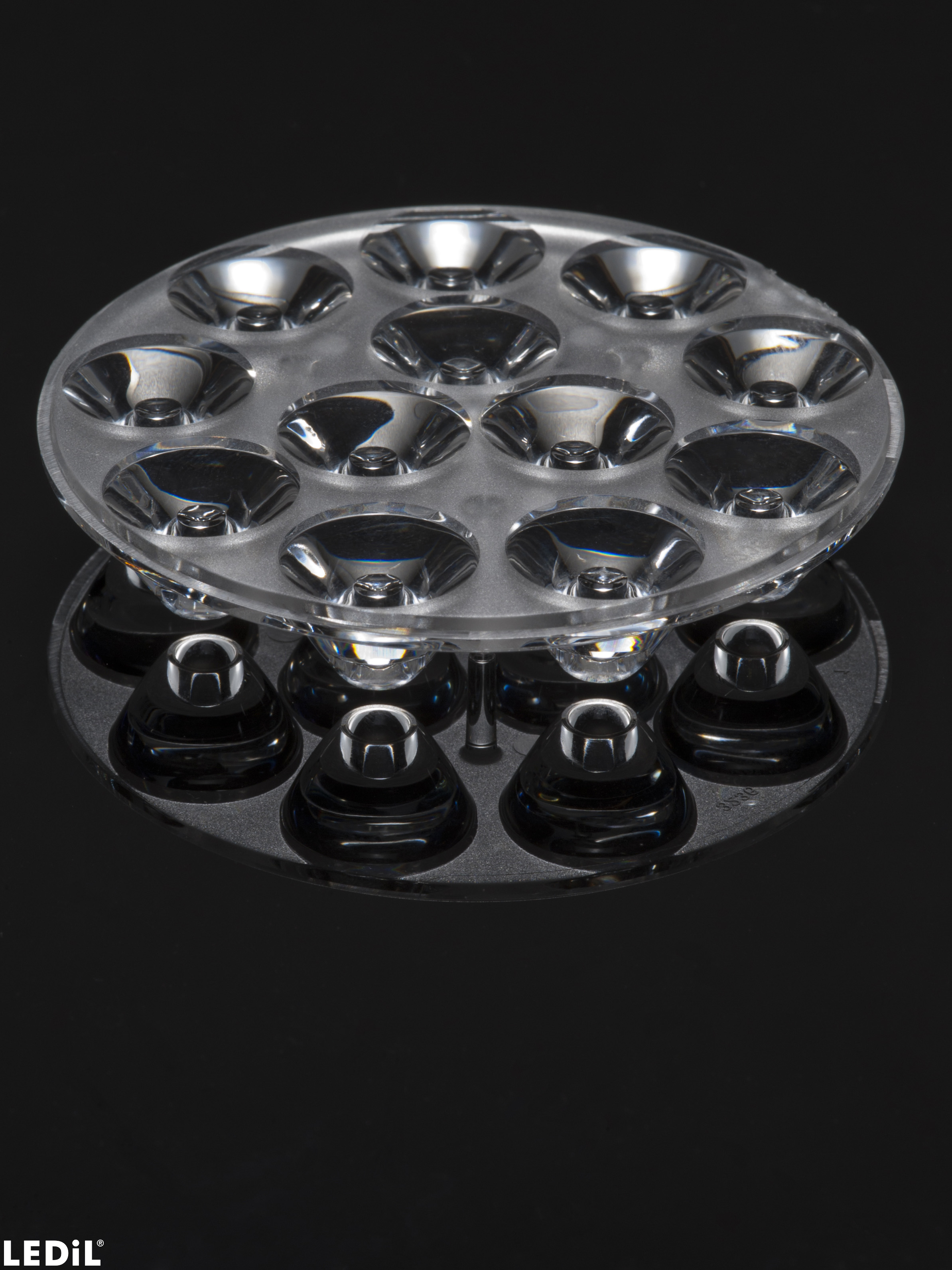

    C13236_SANDRA-12-S

    Print

    ~14° spot beam

    Specification
    • Dimensions:
      67 mm
    • Height:
      11.10 mm
    • Fastening:
      glue, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      306 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.8 kg
    • MPQ:
      18 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13236_SANDRA-12-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Optical results

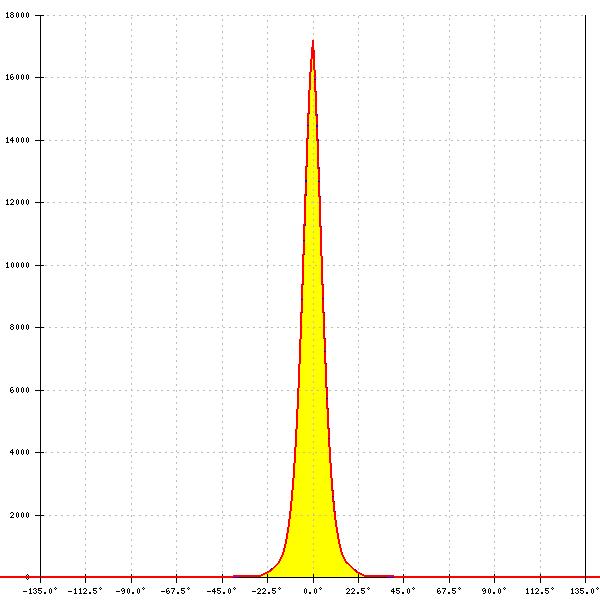

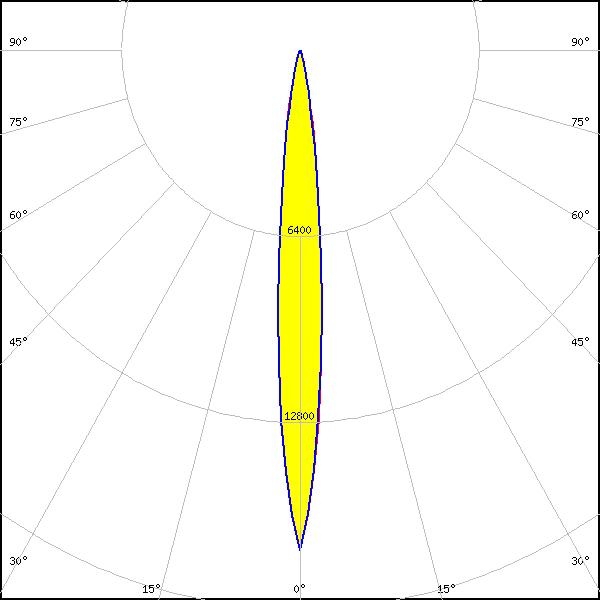

    LED: J Series 3030
    FWHM: 10°
    FWTM: 24°
    Peak intensity: 17.199 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

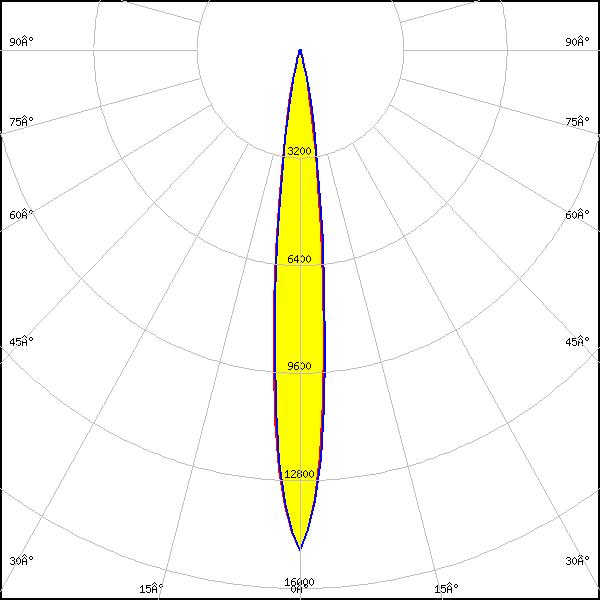

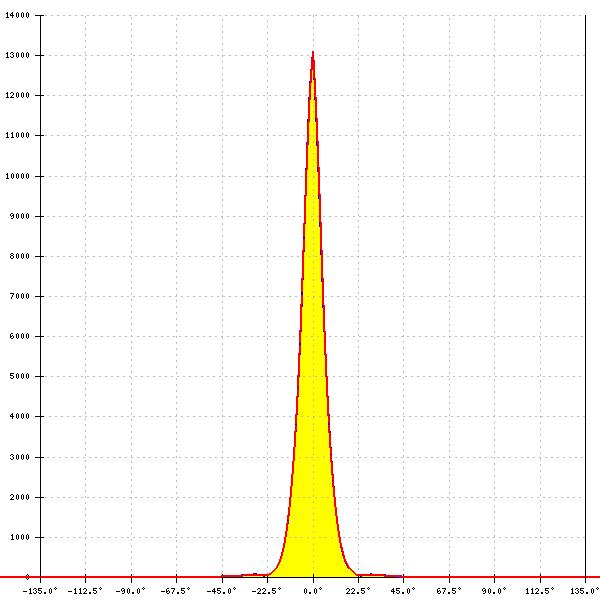

    LED: XB-D
    FWHM: 10°
    FWTM: 24°
    Peak intensity: 13.098 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XB-D
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.870 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

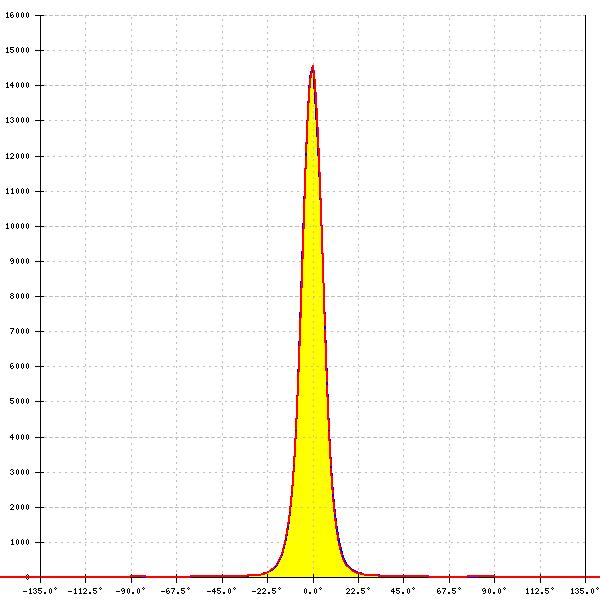

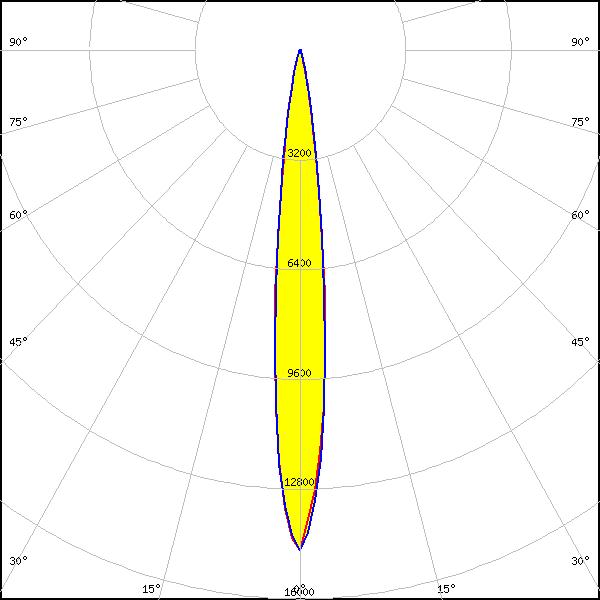

    LED: XD16
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 14.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

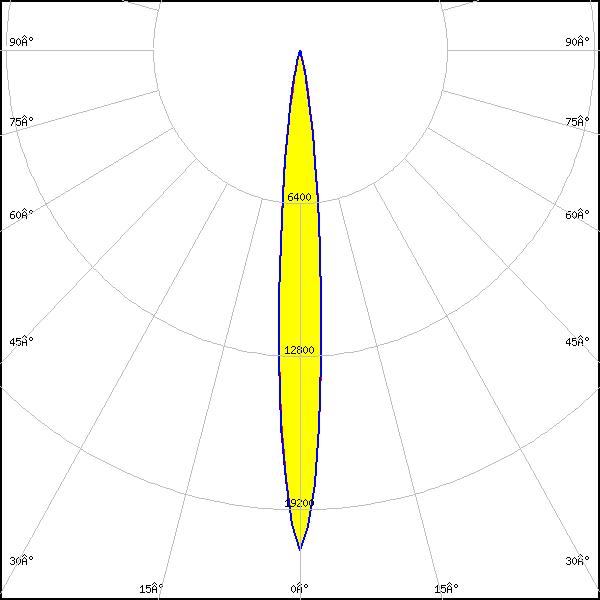

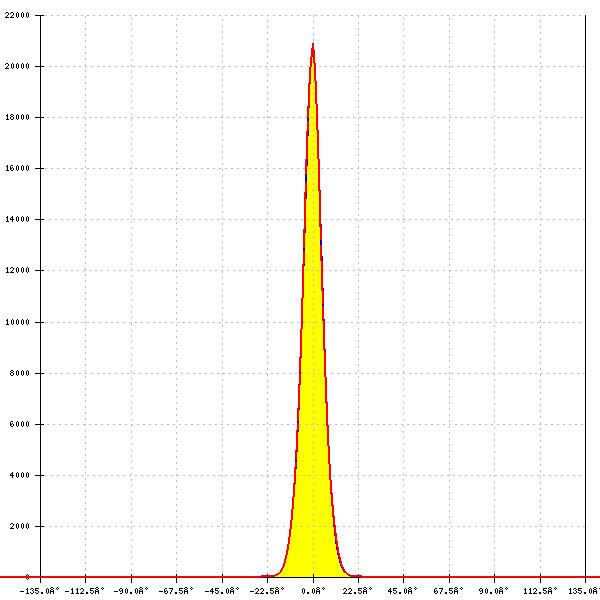

    LED: XP-E
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 18.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

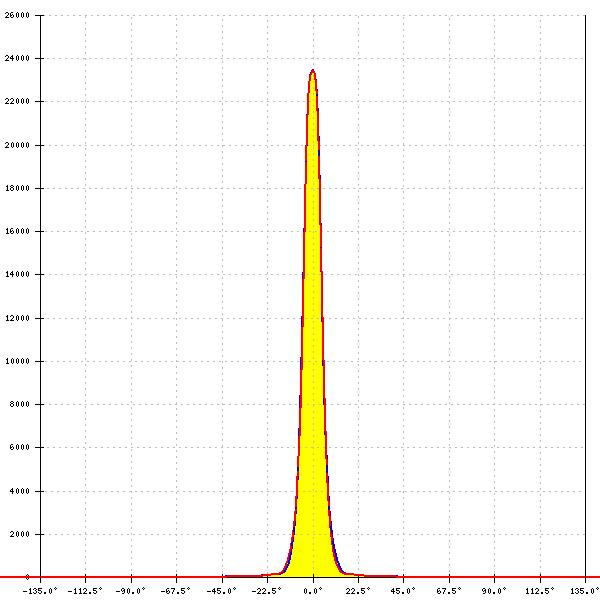

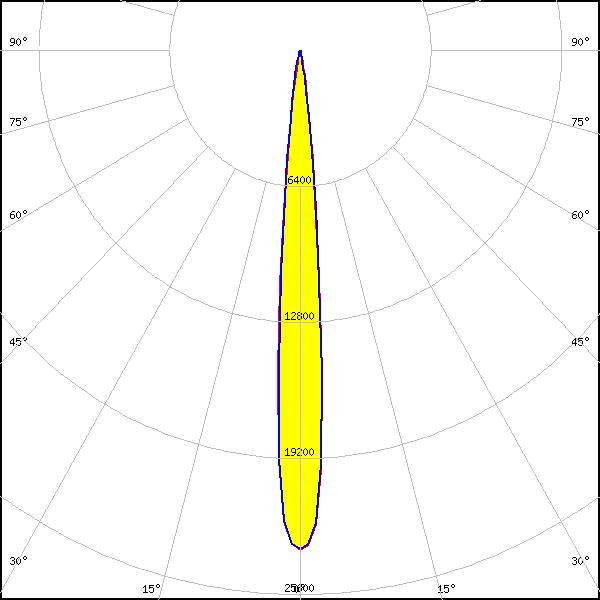

    LED: XP-E2
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 23.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 9.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel
    FWHM: 12°
    FWTM: 20°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 9.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 13°
    FWTM: 25°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 10°
    FWTM: 20°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

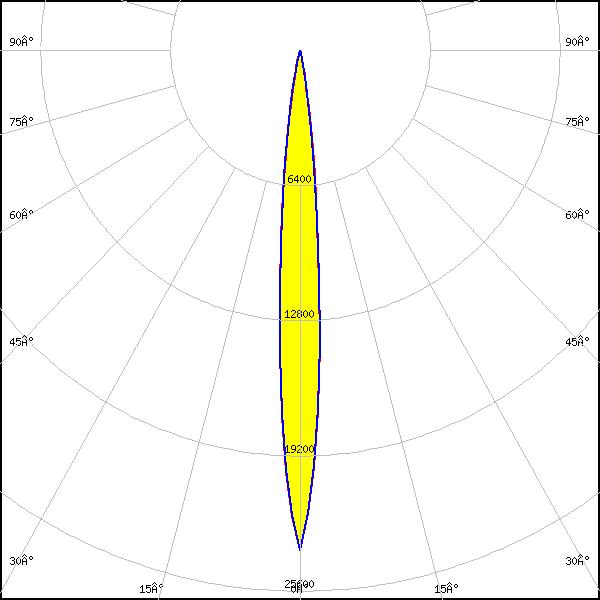

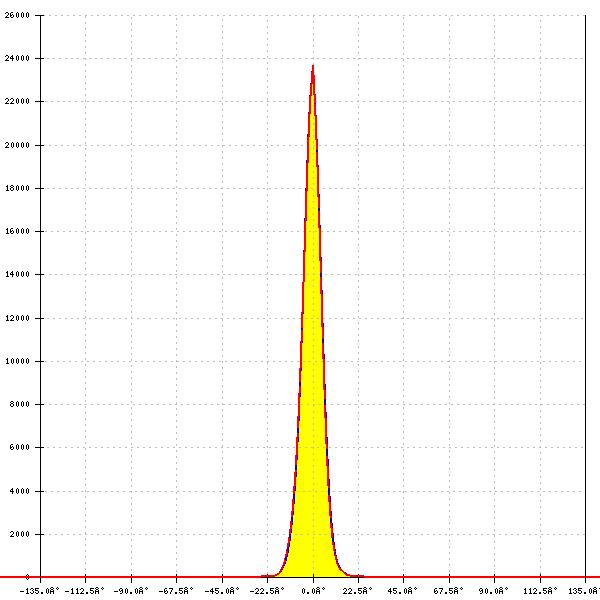

    LED: OSLON SSL 150
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.669 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

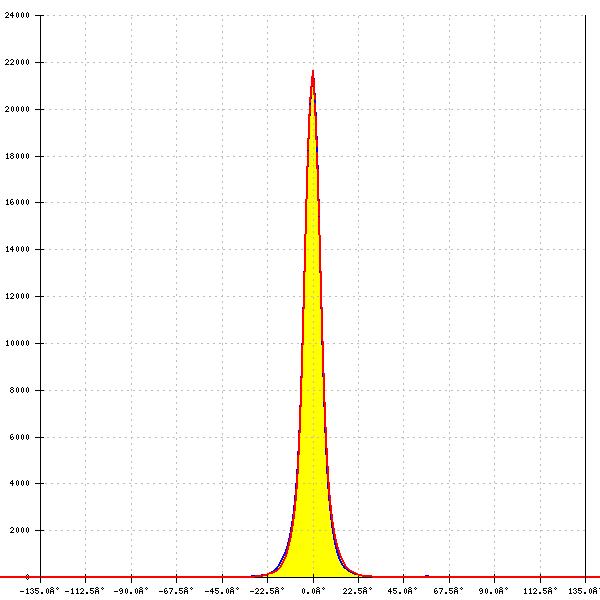

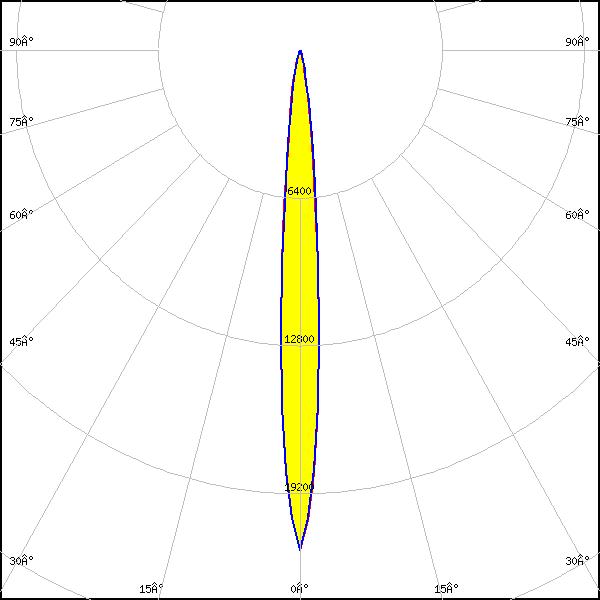

    LED: OSLON SSL 80
    FWHM: 10°
    FWTM: 21°
    Peak intensity: 18.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
