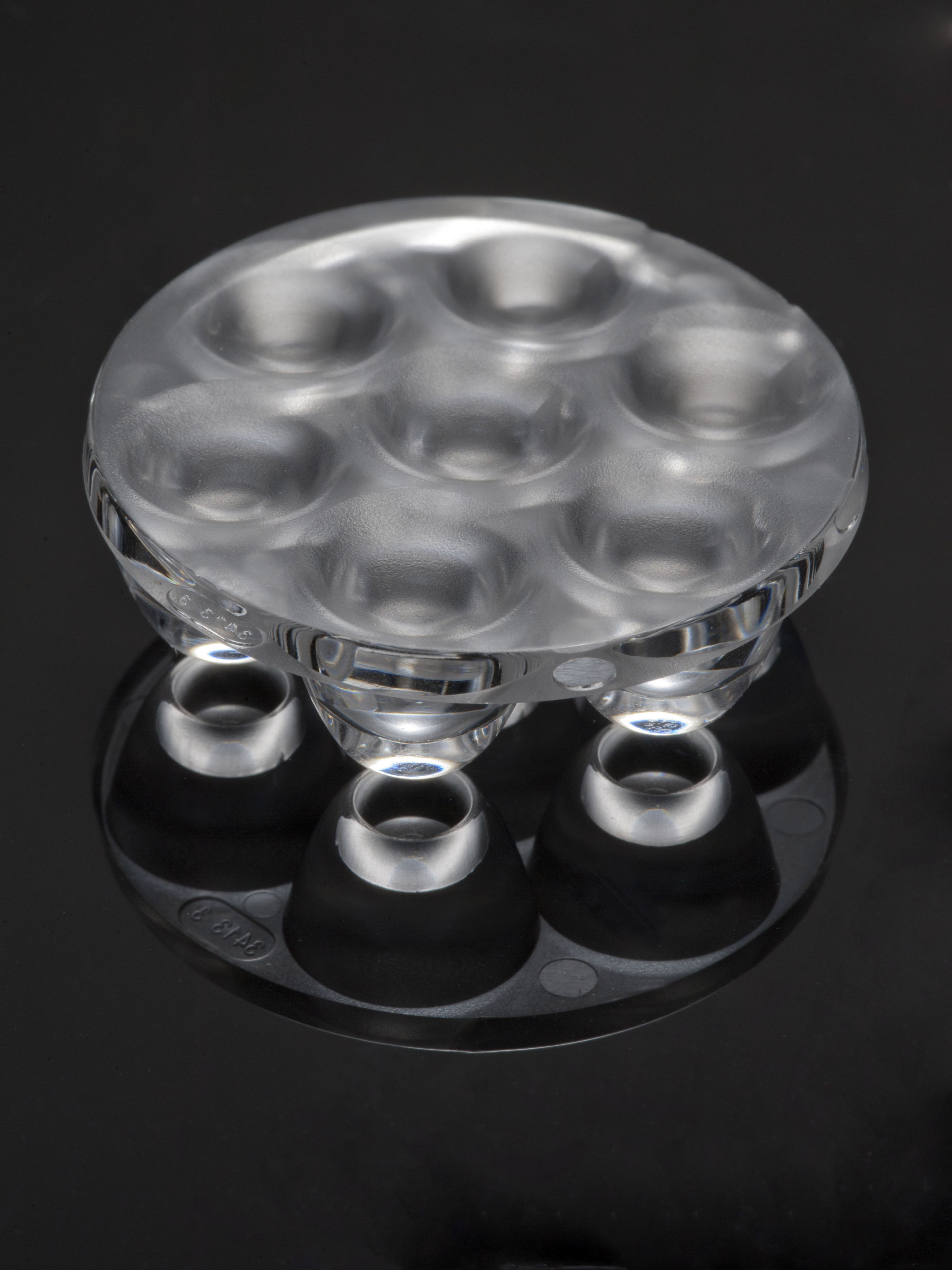

C13413_ANNA-40-7-WW
Print
~65° wide beam with 7 optics
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

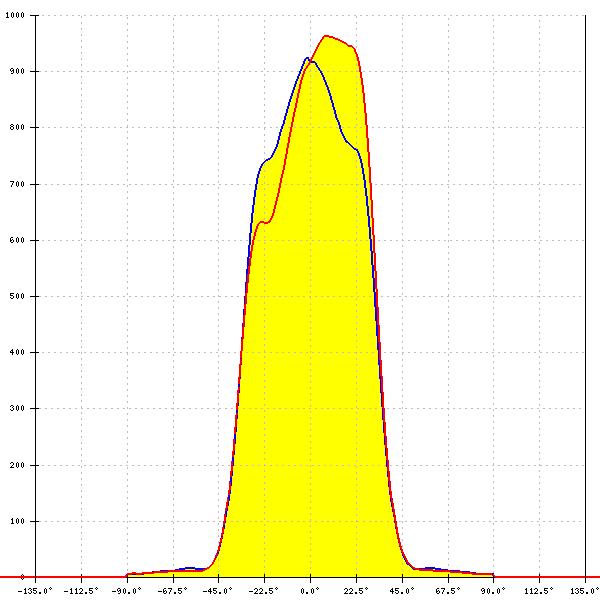

LED:

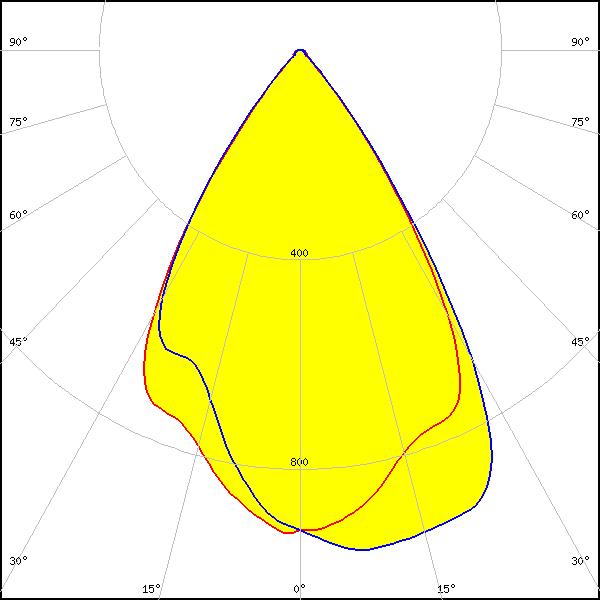

J Series 2835
FWHM:
66°
FWTM:
84°
Peak intensity:
0.964 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

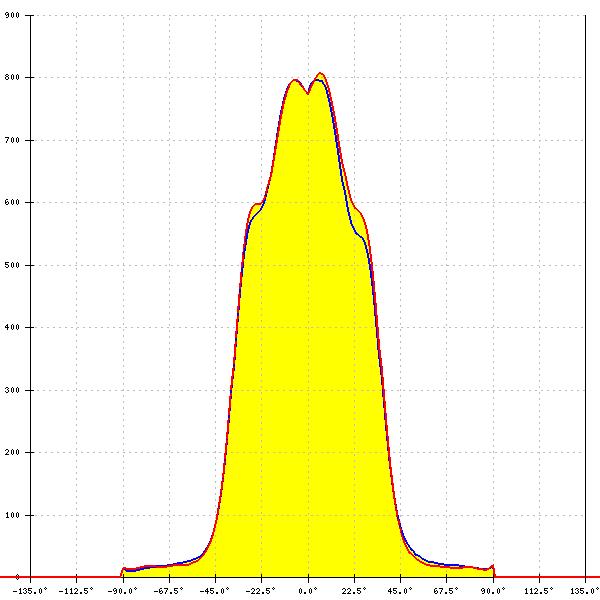

XB-D
FWHM:
69°
FWTM:
90°
Peak intensity:
0.811 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

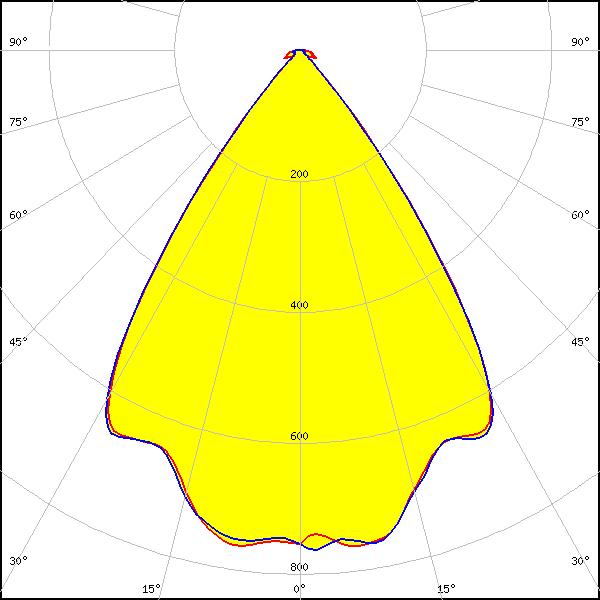

XP-G2
FWHM:
70°
FWTM:
86°
Peak intensity:
0.772 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

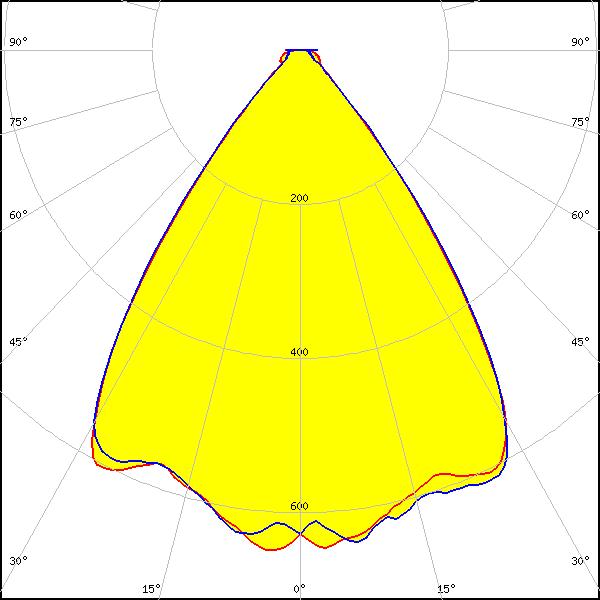

LED:

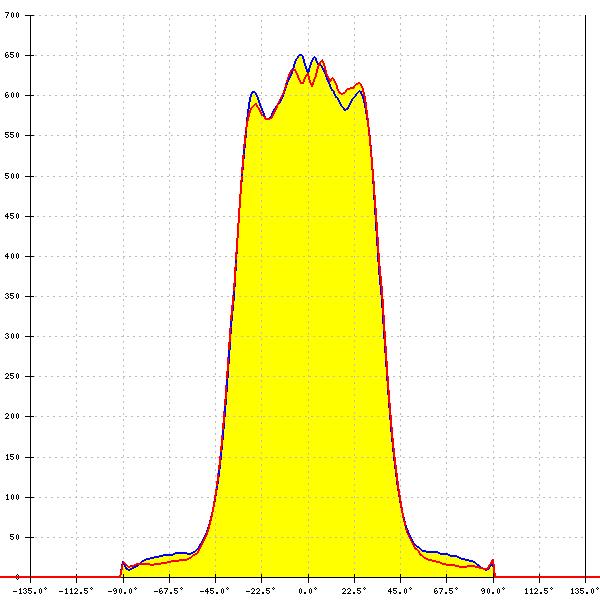

XP-G3
FWHM:
74°
FWTM:
96°
Peak intensity:
0.650 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
67°
FWTM:
82°
Peak intensity:
0.829 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

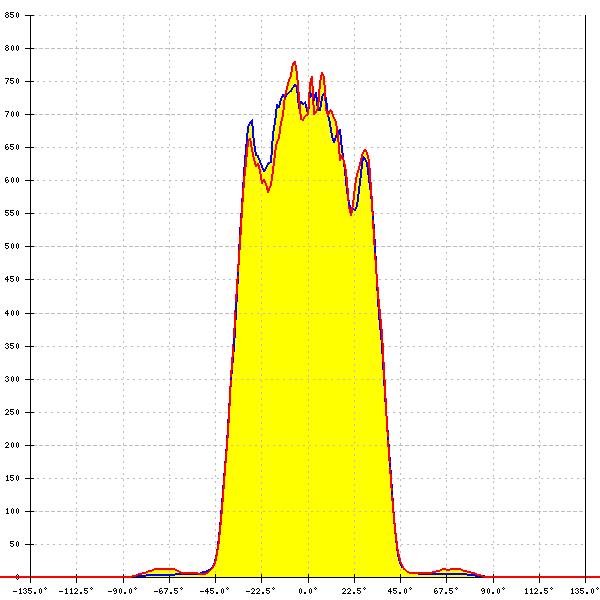

LED:

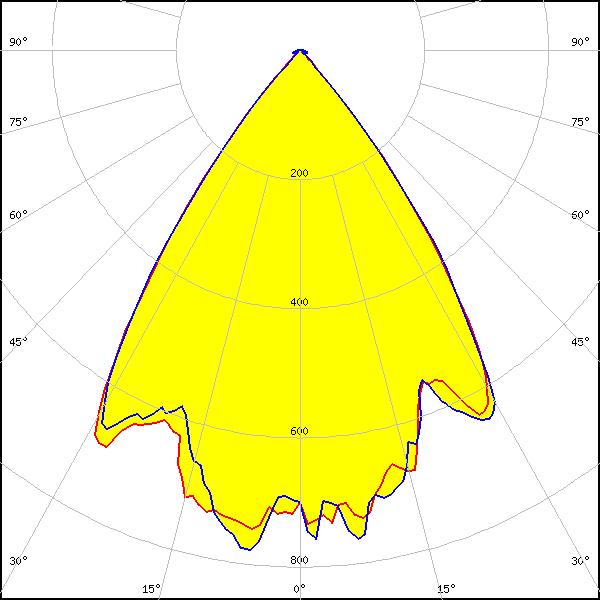

LUXEON A
FWHM:
69°
FWTM:
84°
Peak intensity:
0.810 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

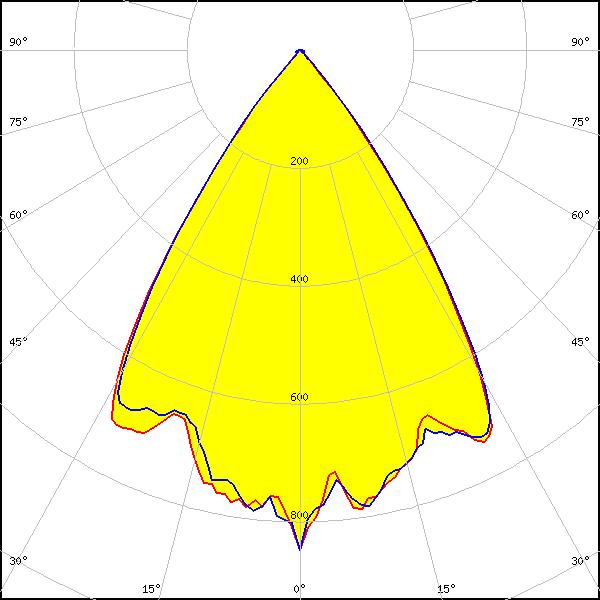

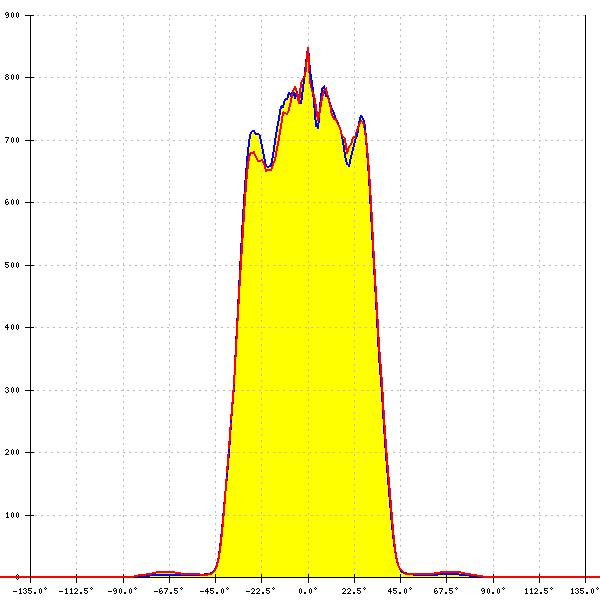

LED:
LUXEON R
FWHM:
68°
FWTM:
83°
Peak intensity:
0.848 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

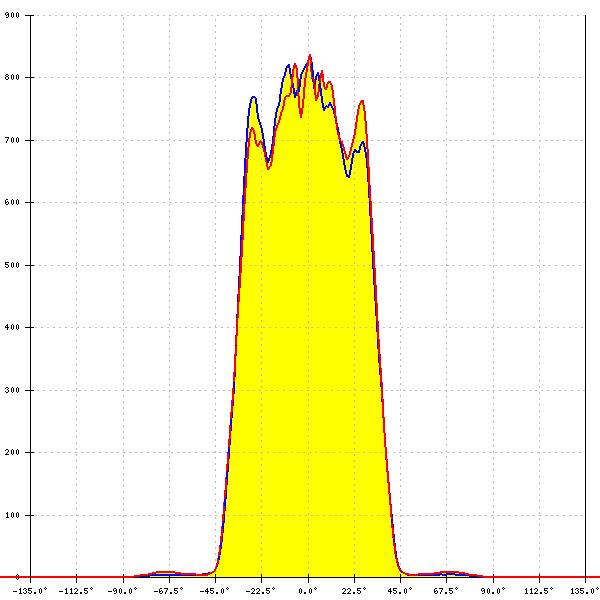

LED:

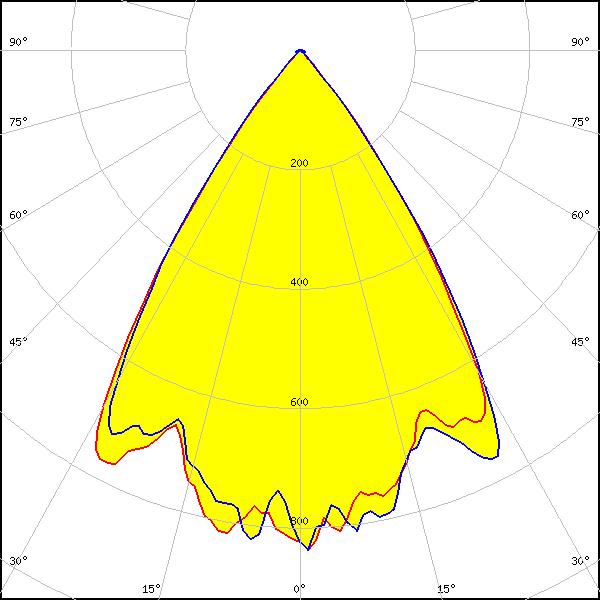

LUXEON Rebel ES
FWHM:
68°
FWTM:
82°
Peak intensity:
0.892 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

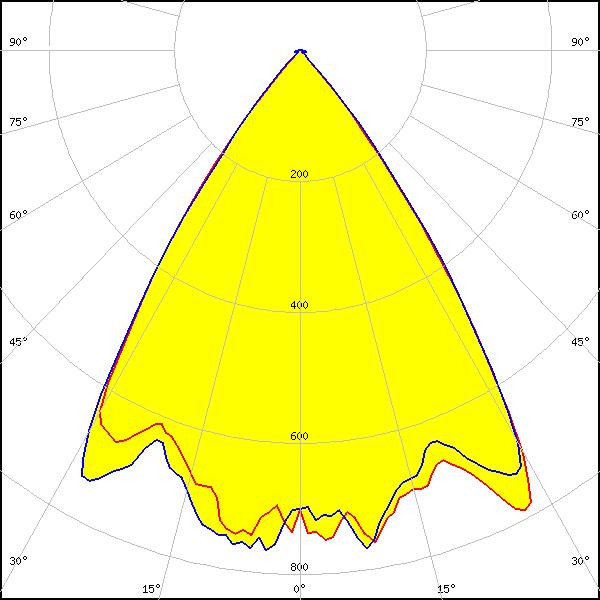

LED:
LUXEON T
FWHM:
69°
FWTM:
83°
Peak intensity:
0.814 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

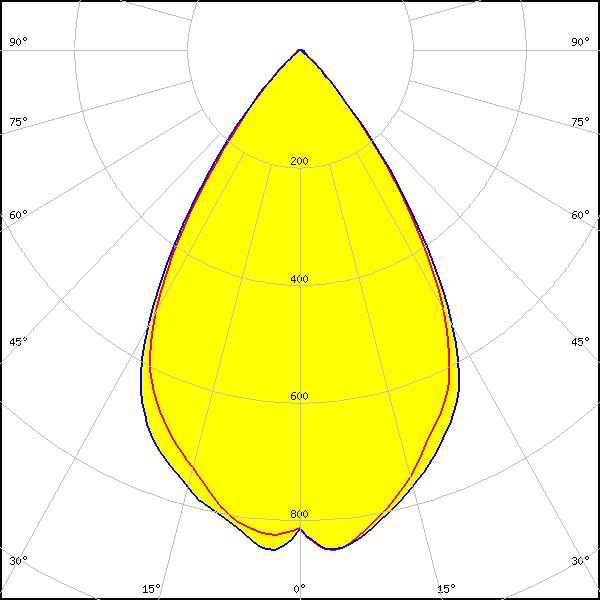

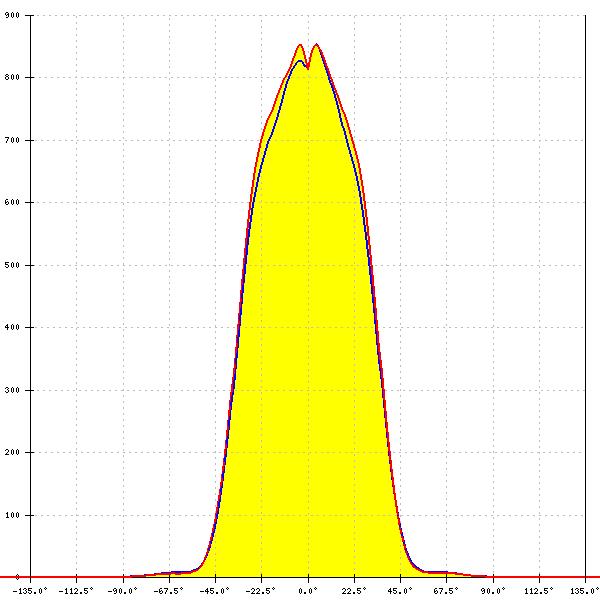

LUXEON TX
FWHM:
65°
FWTM:
91°
Peak intensity:
0.850 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

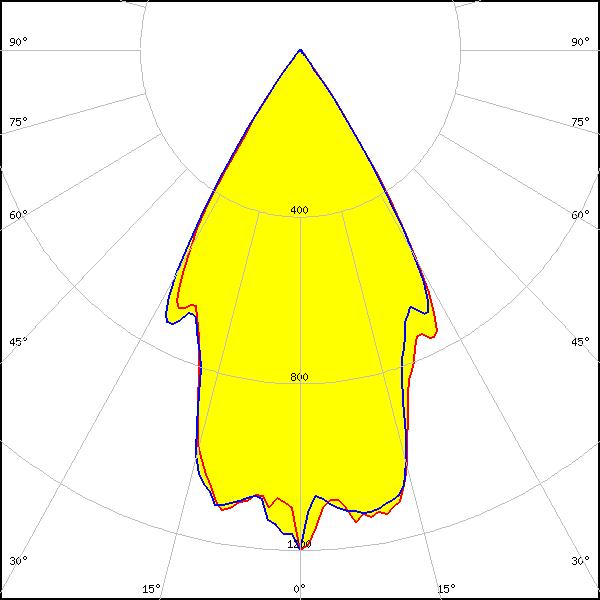

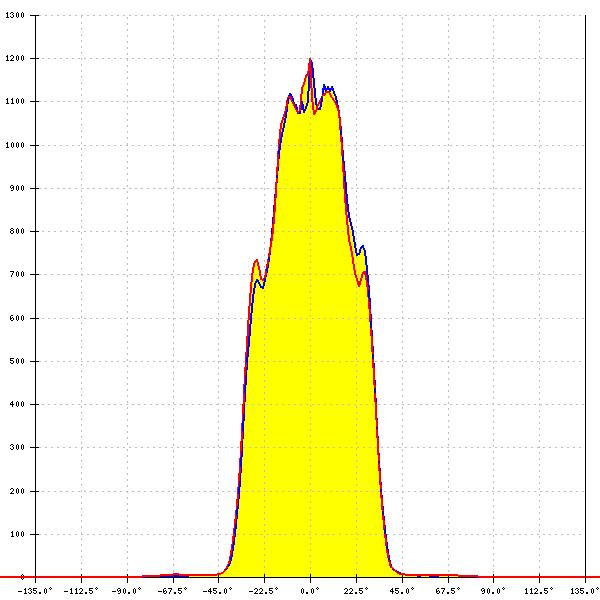

LED:
NCSxx19A
FWHM:
59°
FWTM:
74°
Peak intensity:
1.264 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

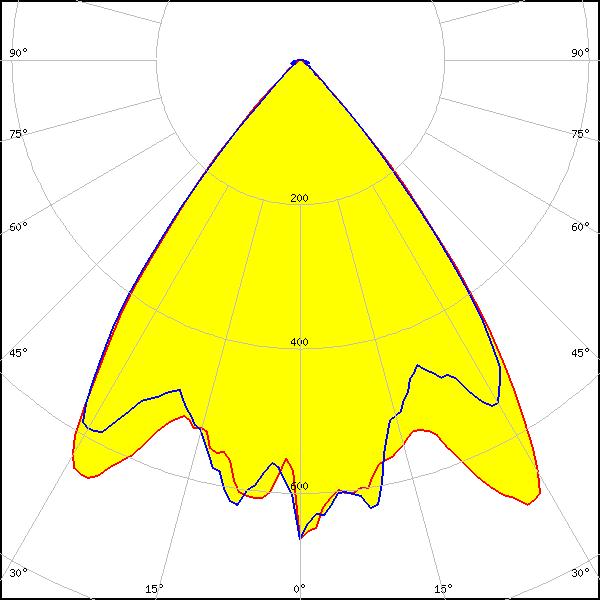

LED:

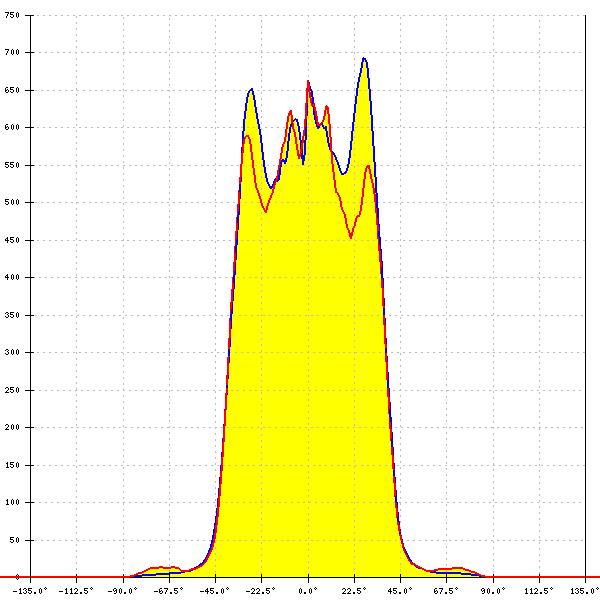

NS9x153
FWHM:
64°
FWTM:
82°
Peak intensity:
0.708 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

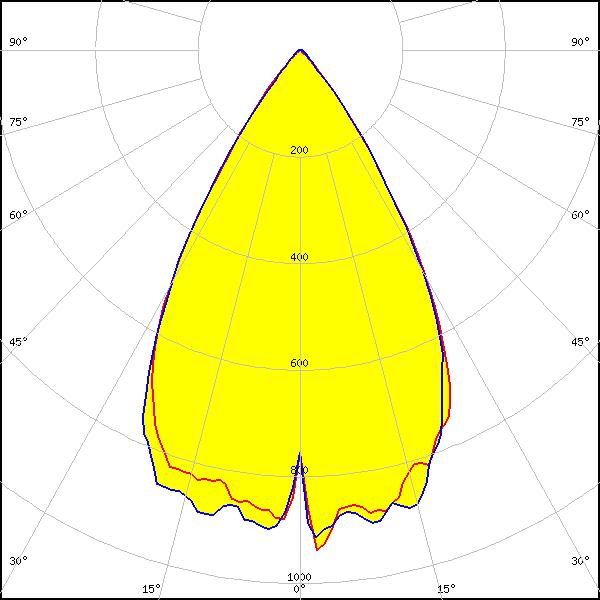

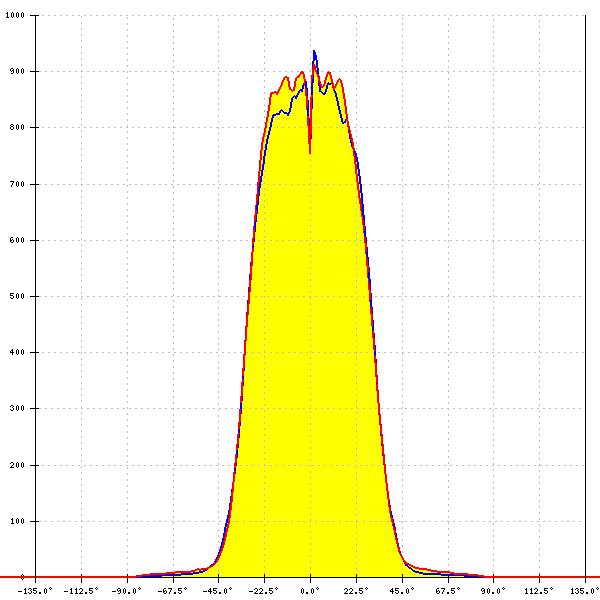

LED:
NS9x383
FWHM:
58°
FWTM:
80°
Peak intensity:
0.974 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

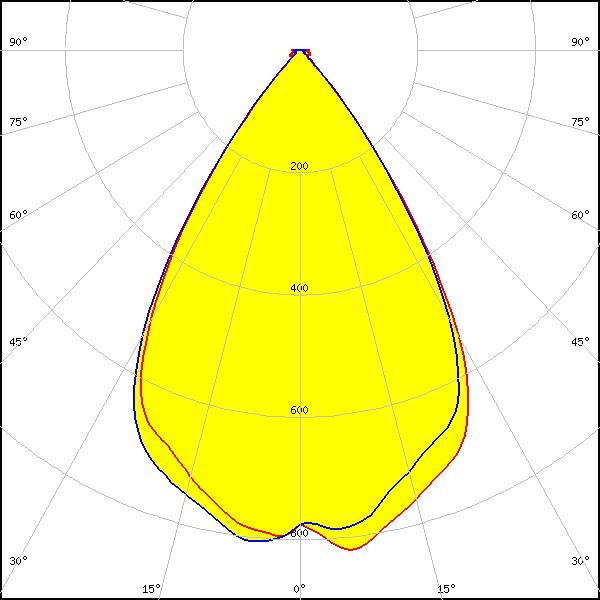

LED:

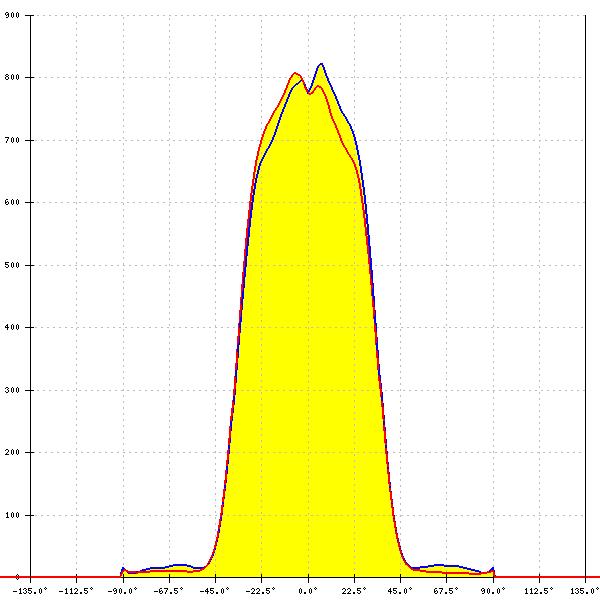

NVSxx19B/NVSxx19C
FWHM:
66°
FWTM:
85°
Peak intensity:
0.830 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

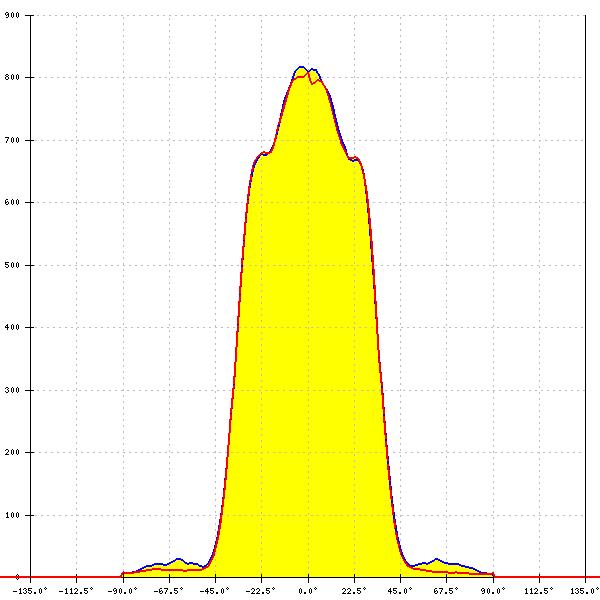

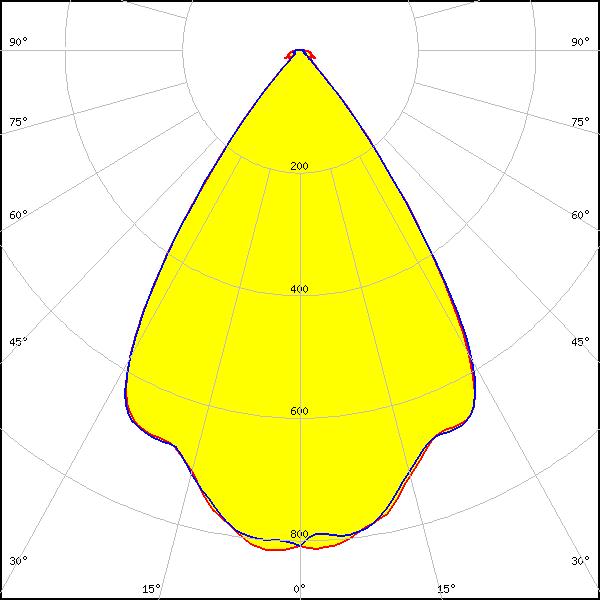

OSLON Square CSSRM2/CSSRM3
FWHM:
68°
FWTM:
86°
Peak intensity:
0.824 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

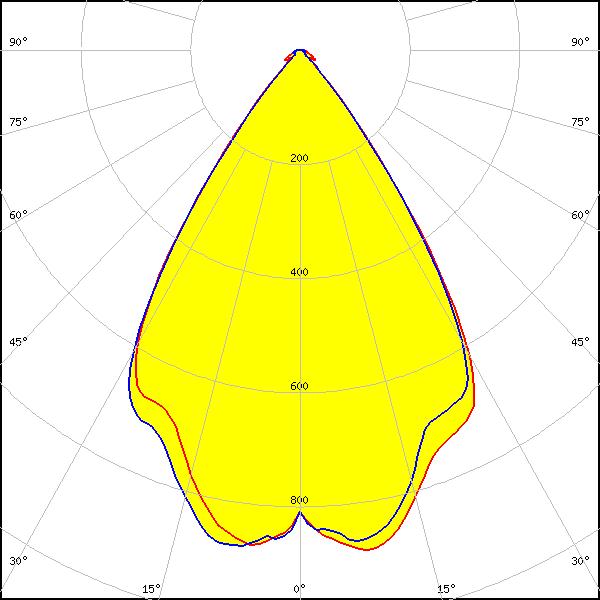

LED:

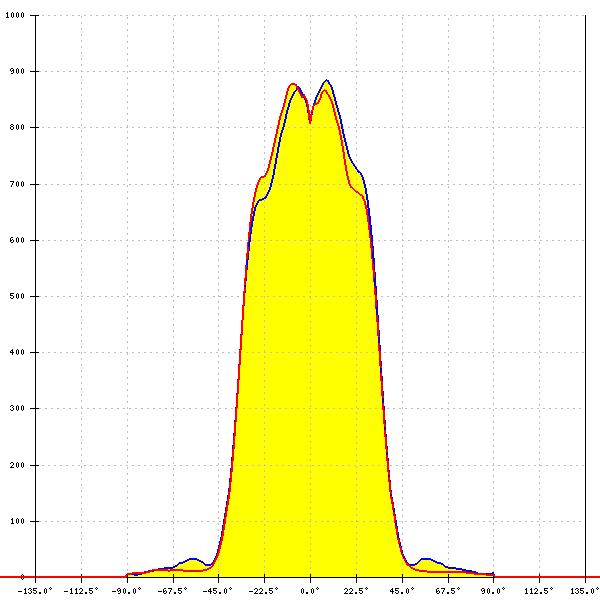

SFH 4726S
FWHM:
68°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
LH351A
FWHM:
45°
FWTM:
69°
Peak intensity:
1.518 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

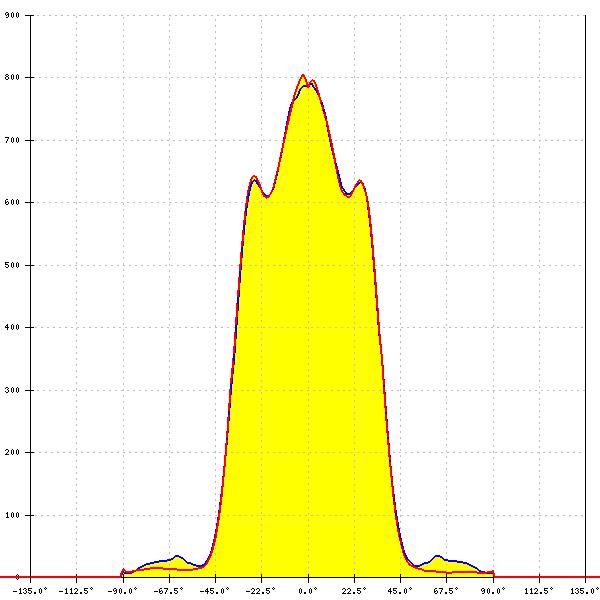

LED:

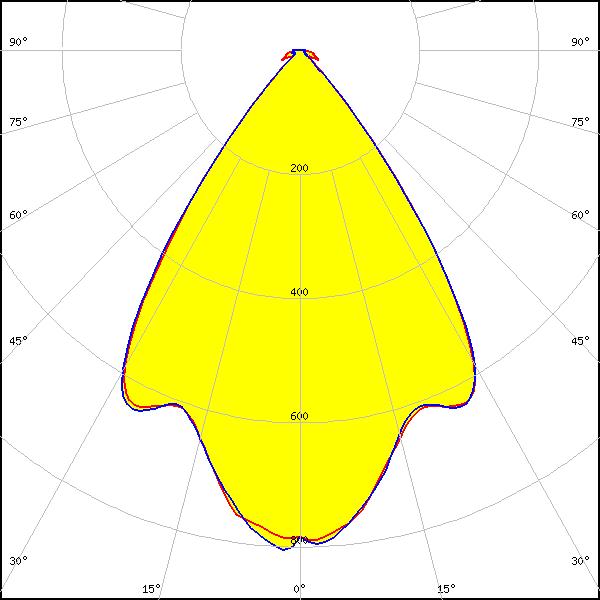

LH351B
FWHM:
70°
FWTM:
88°
Peak intensity:
0.813 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

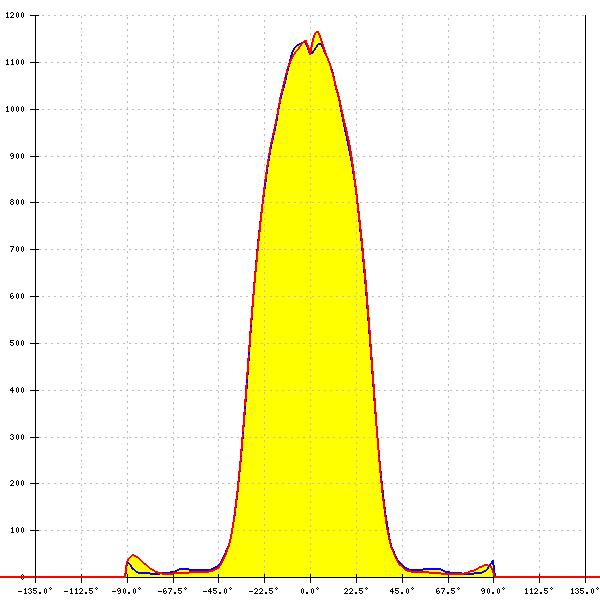

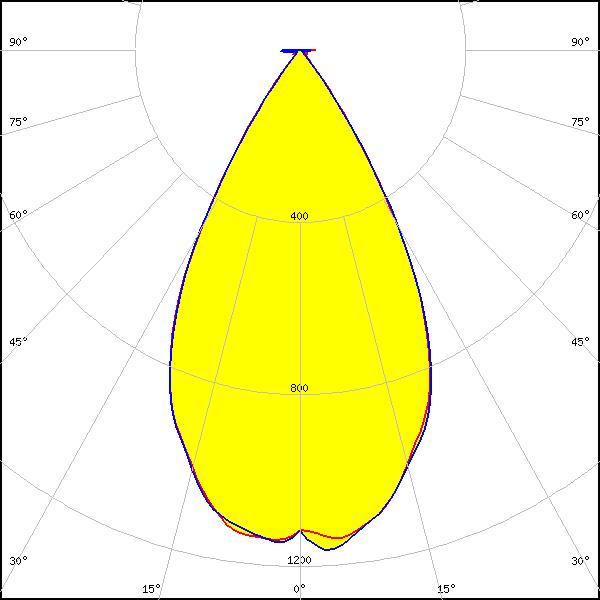

Z8Y22
FWHM:
56°
FWTM:
76°
Peak intensity:
1.181 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
