C13483_ANNA-40-7-S

Print

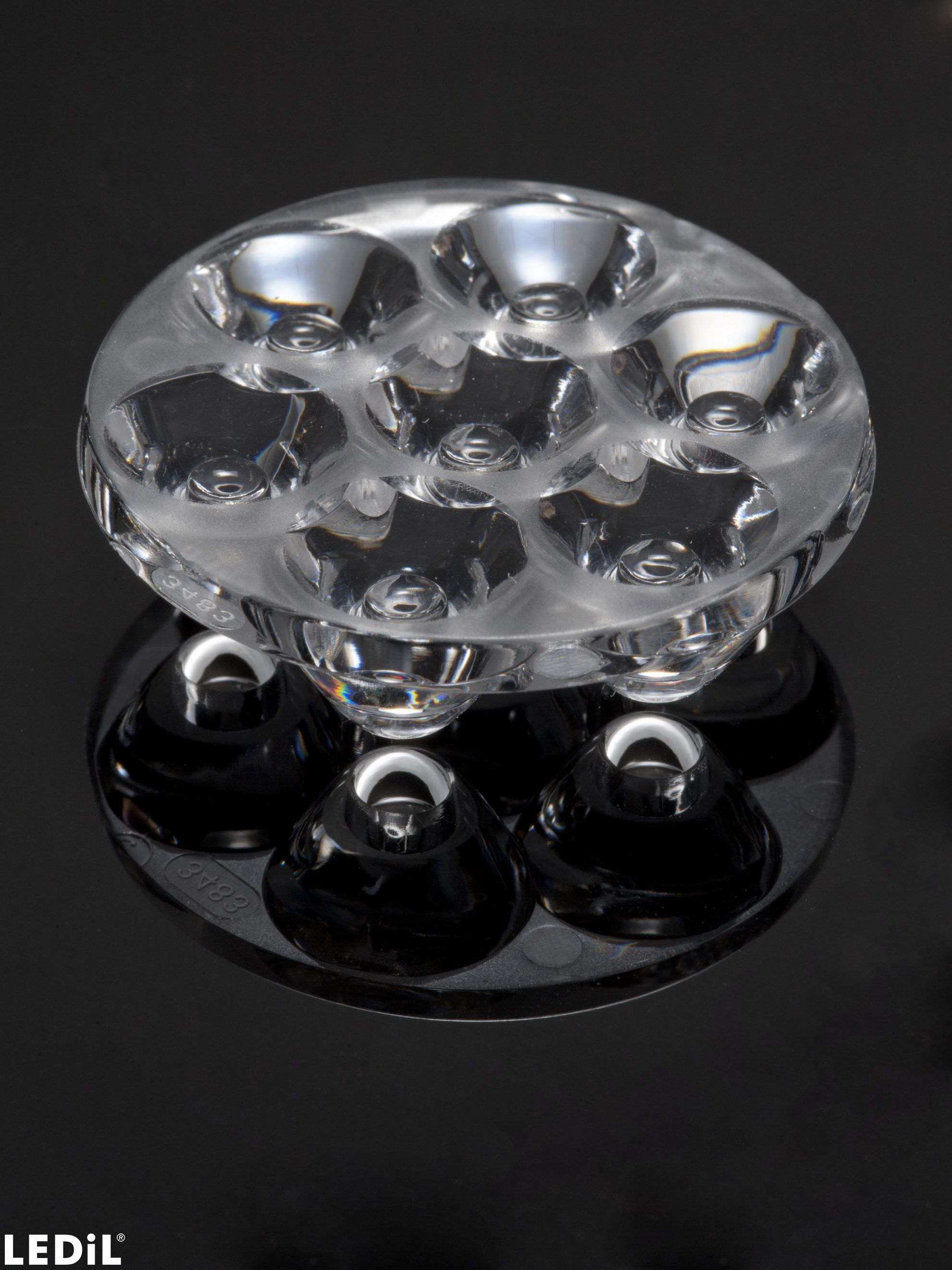

~15° spot beam with 7 optics

Specification
  • Dimensions:
    40 mm
  • Height:
    10.70 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    760 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.2 kg
  • MPQ:
    40 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 60 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13483_ANNA-40-7-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

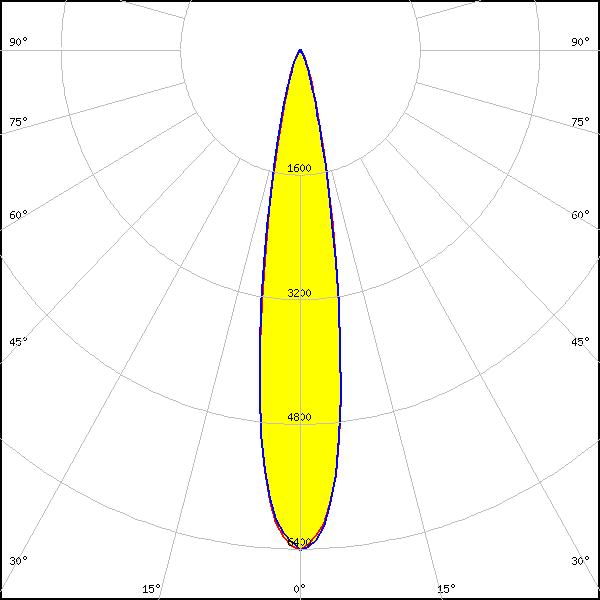

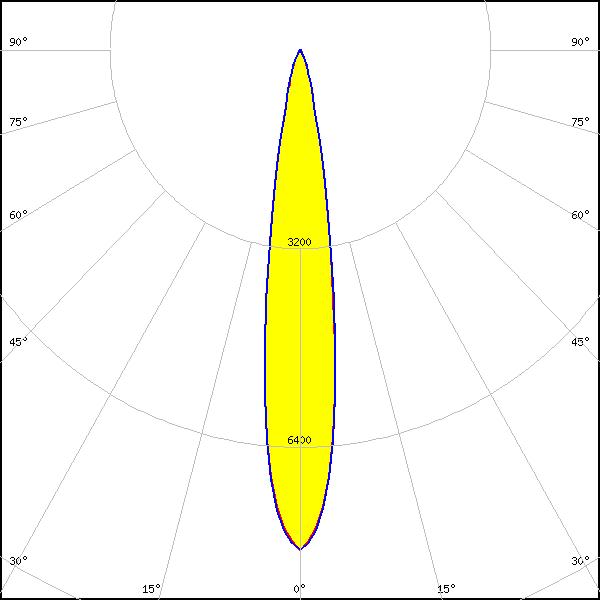

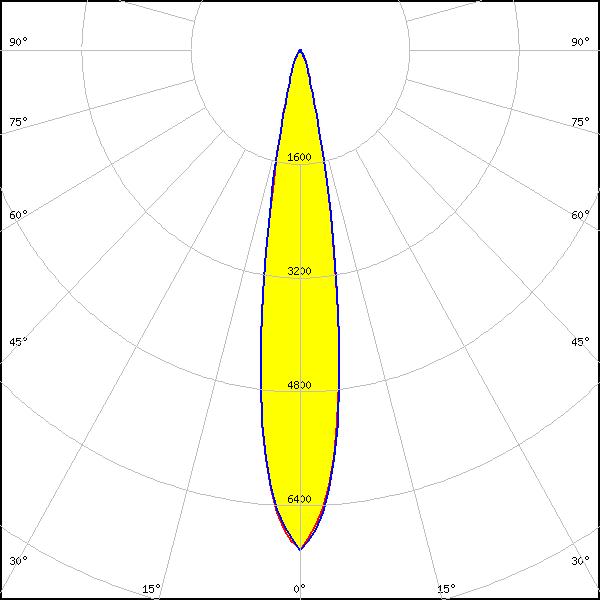

Optical results

LED: SM4
FWHM: 33°
FWTM: 66°
Peak intensity: 2.104 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

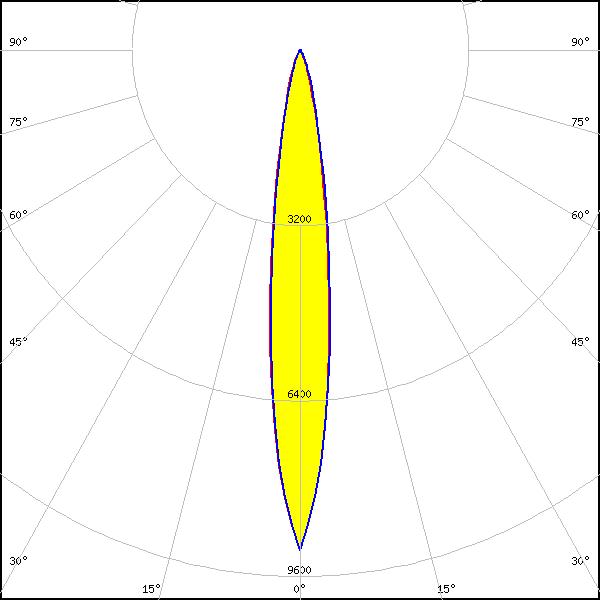

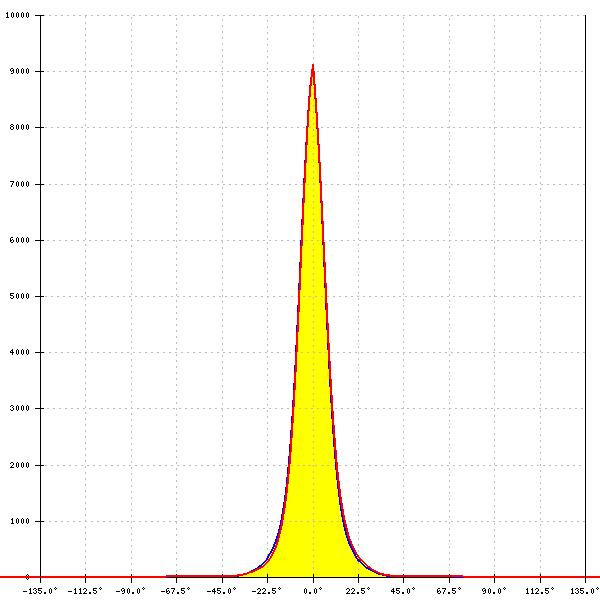

LED: J Series 2835
FWHM: 14°
FWTM: 32°
Peak intensity: 9.125 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

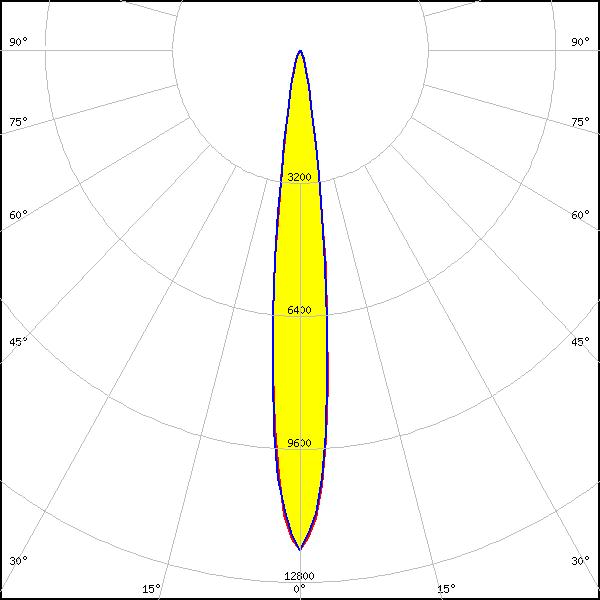

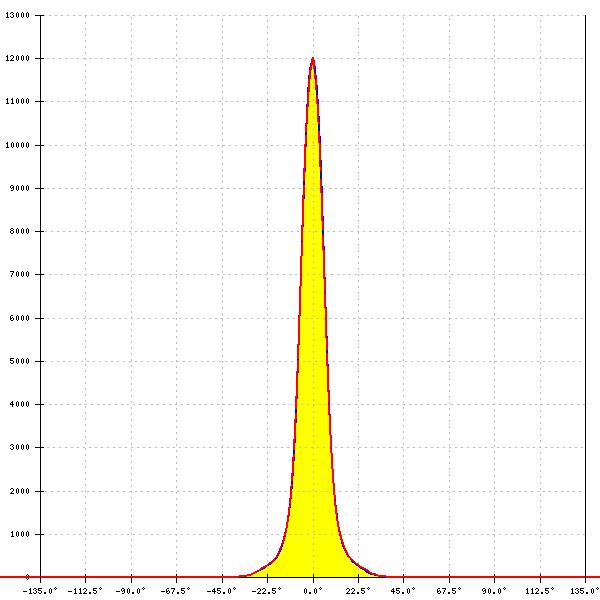

LED: XB-D
FWHM: 13°
FWTM: 25°
Peak intensity: 12.030 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

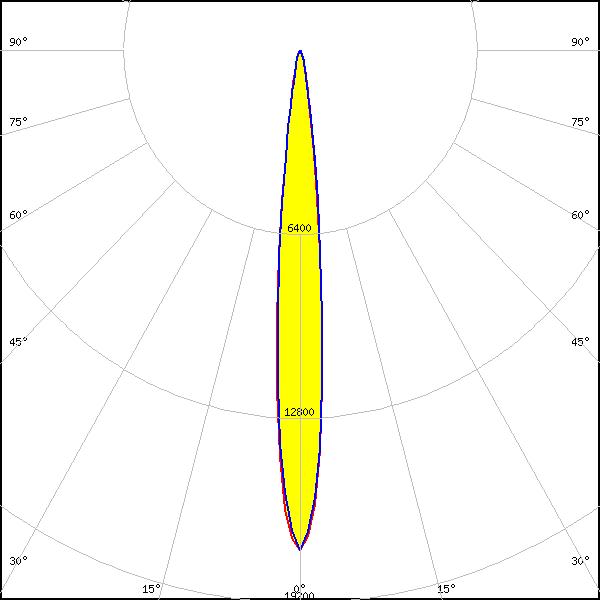

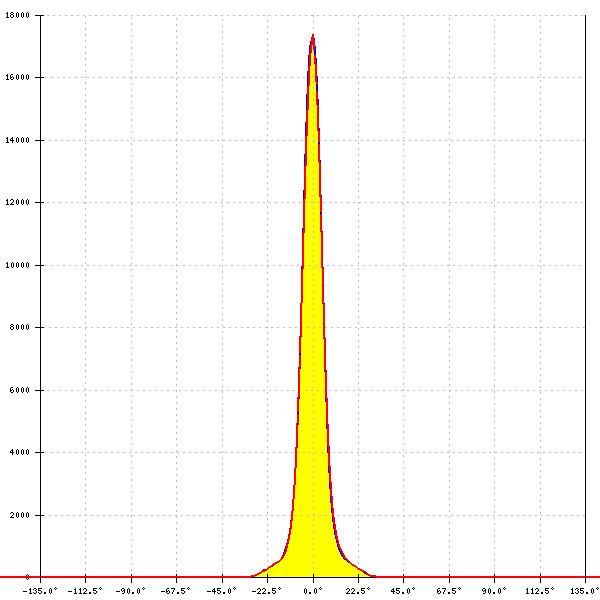

LED: XP-E
FWHM: 11°
FWTM: 21°
Peak intensity: 17.390 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

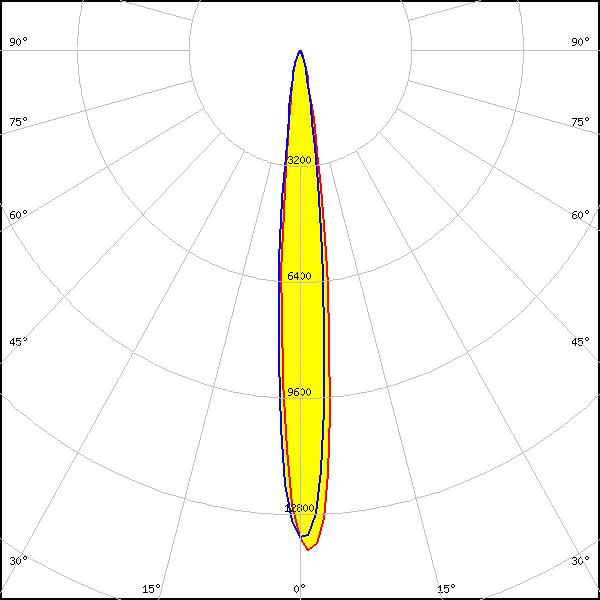

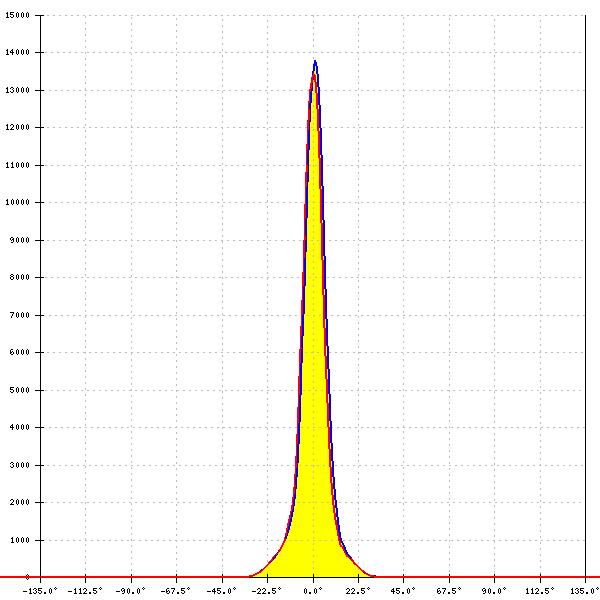

LED: XP-E2
FWHM: 12°
FWTM: 25°
Peak intensity: 13.831 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: 15°
FWTM: 30°
Peak intensity: 9.337 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

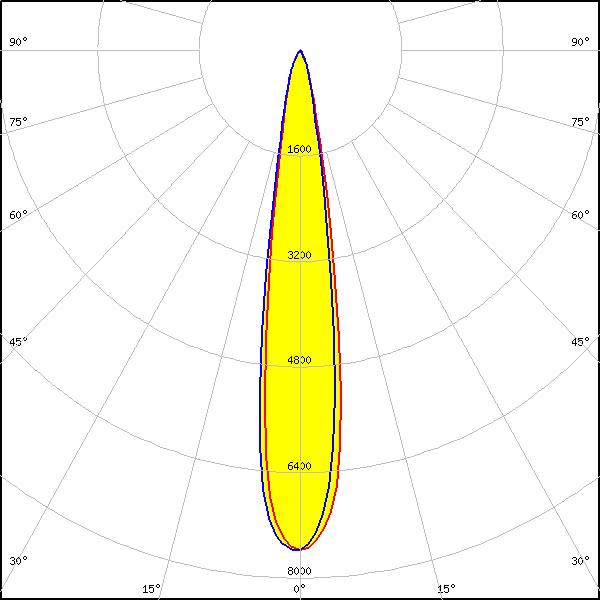

LED: XP-G2
FWHM: 17°
FWTM: 33°
Peak intensity: 7.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

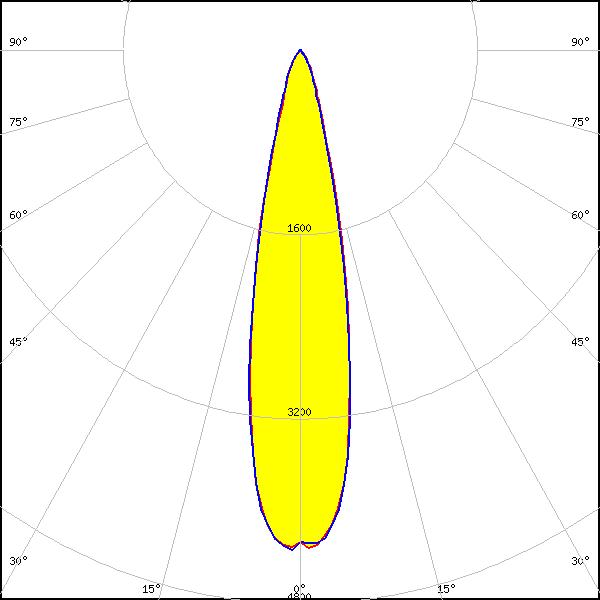

LED: XP-L HD
FWHM: 22°
FWTM: 42°
Peak intensity: 4.370 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

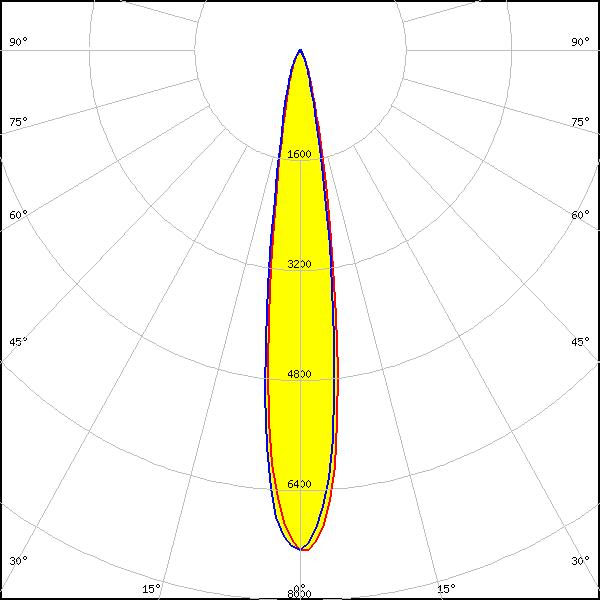

LED: XT-E
FWHM: 16°
FWTM: 33°
Peak intensity: 7.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

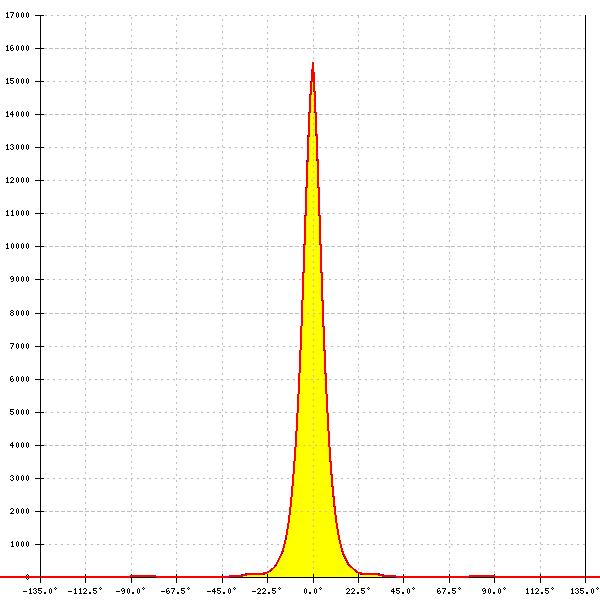

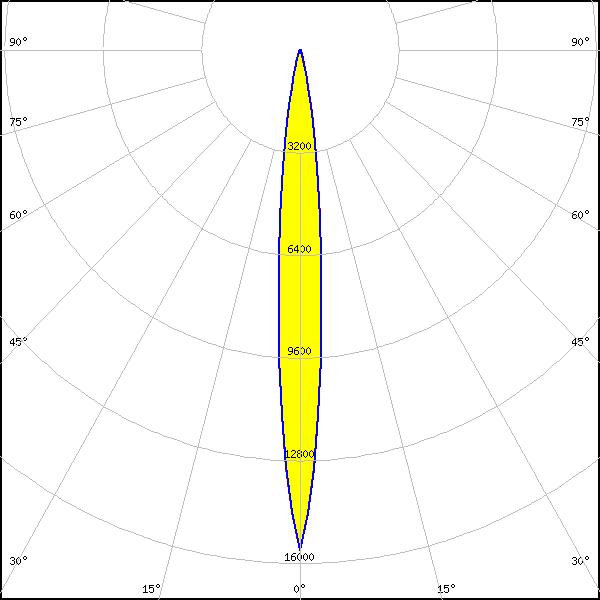

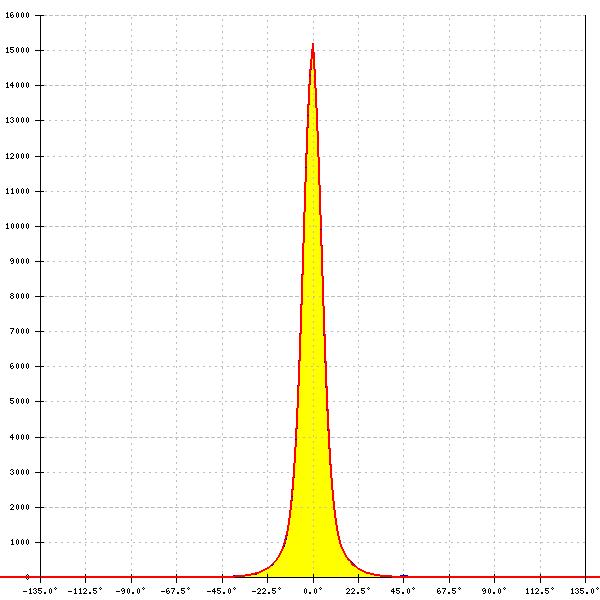

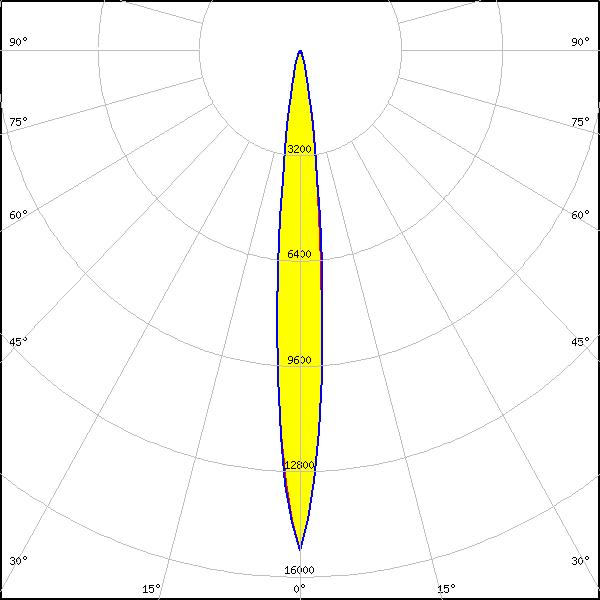

LED: LUXEON HL1Z
FWHM: 10°
FWTM: 24°
Peak intensity: 15.589 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

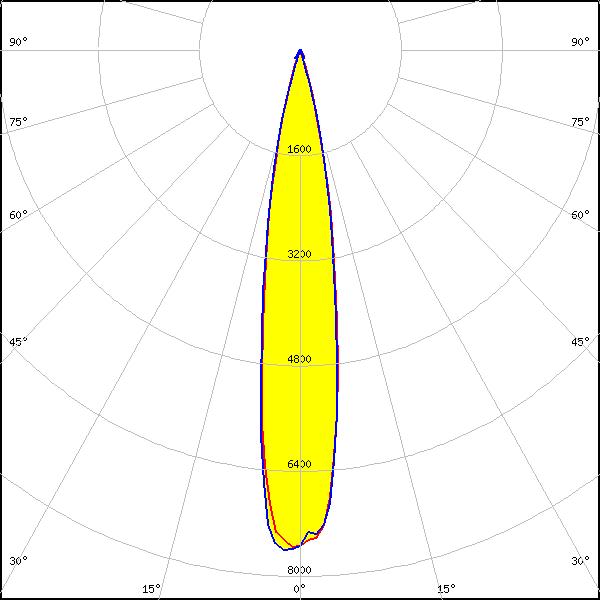

LED: LUXEON PWT
FWHM: 17°
FWTM: 32°
Peak intensity: 7.630 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

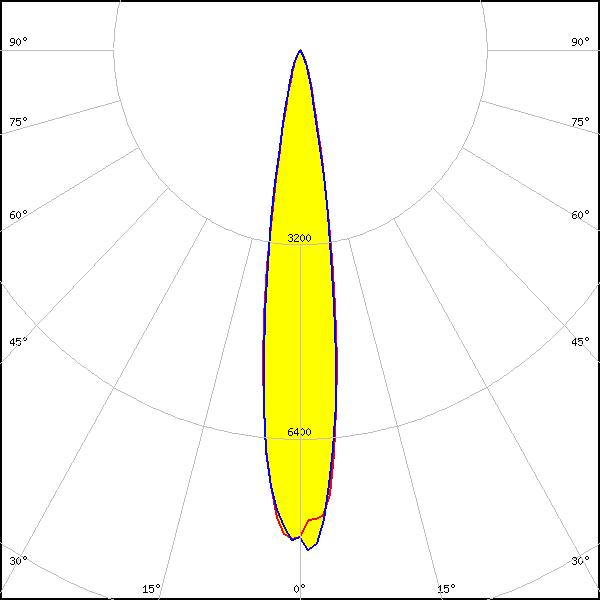

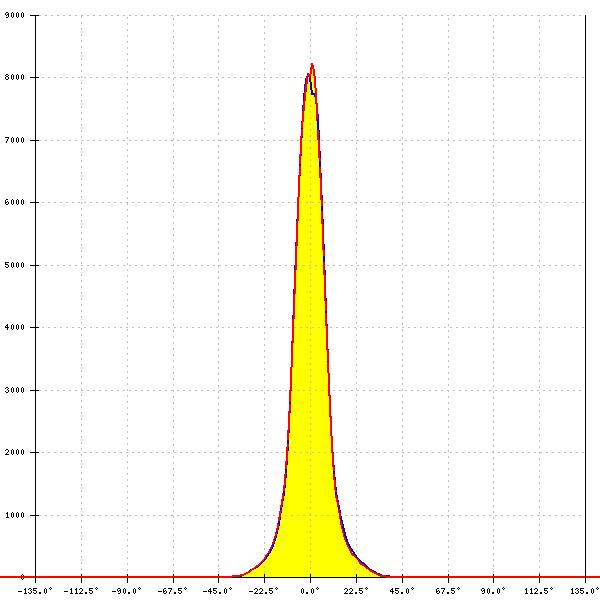

LED: LUXEON T
FWHM: 17°
FWTM: 31°
Peak intensity: 8.467 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

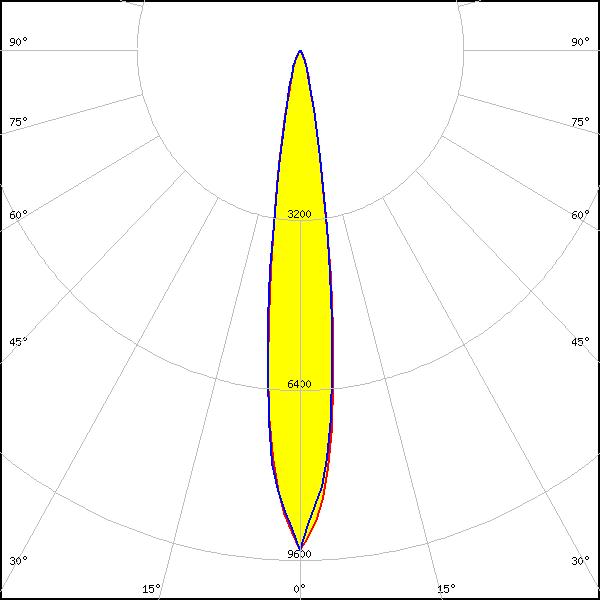

LED: LUXEON TX
FWHM: 15°
FWTM: 29°
Peak intensity: 9.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

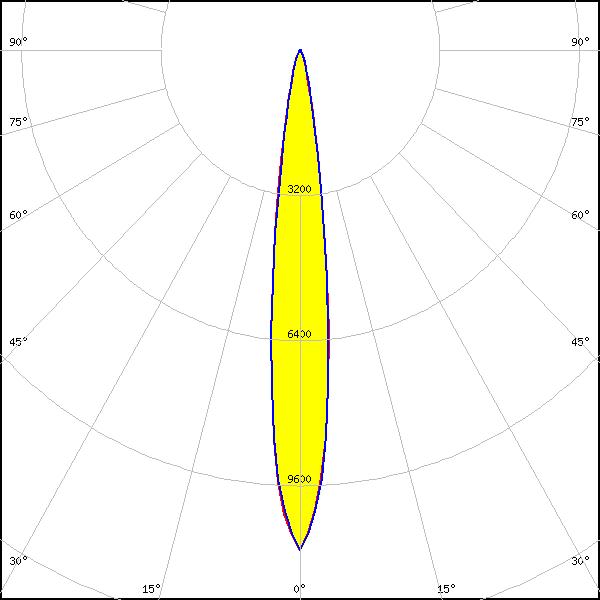

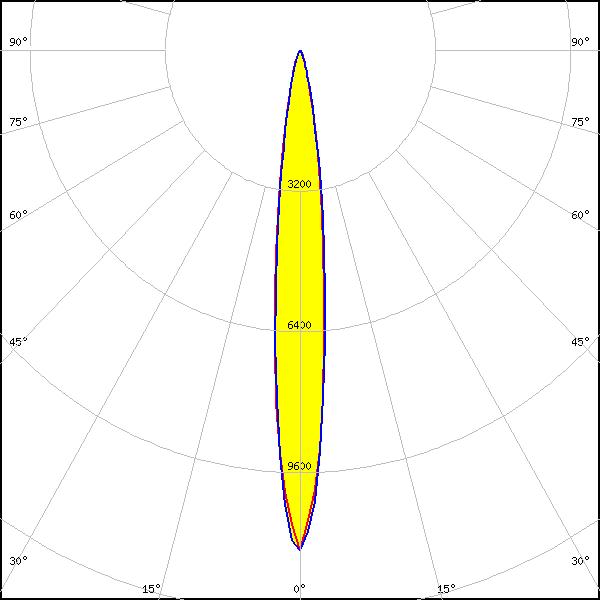

LED: NCSxx19A
FWHM: 17°
FWTM: 30°
Peak intensity: 7.748 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

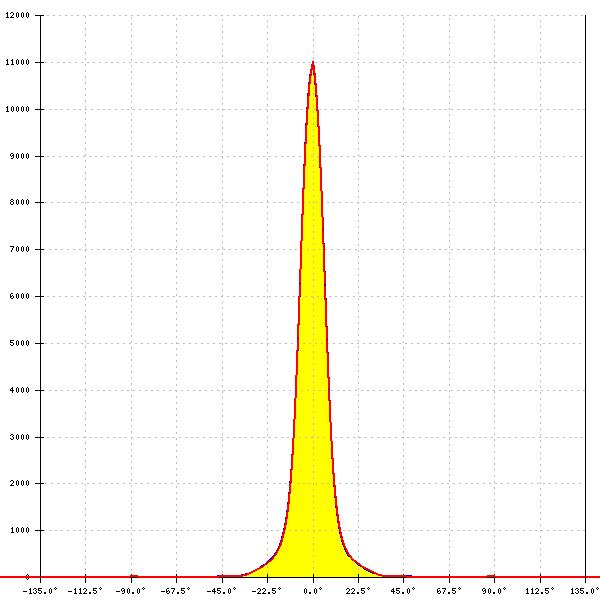

LED: NCSxx19B
FWHM: 14°
FWTM: 27°
Peak intensity: 11.021 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

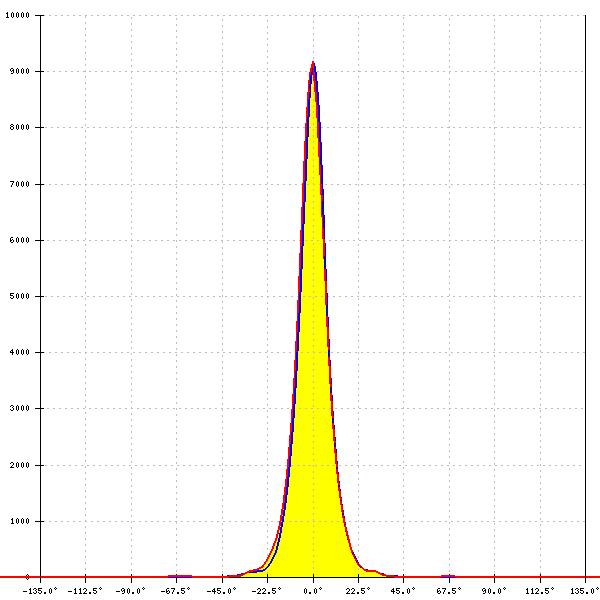

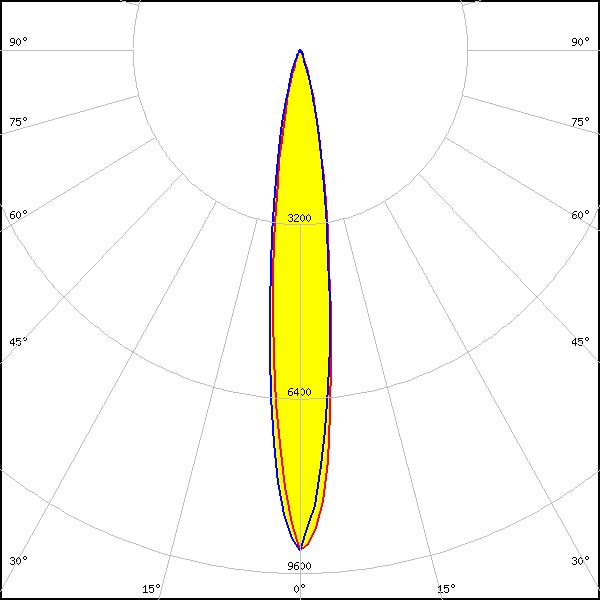

LED: NF2x757A
FWHM: 14°
FWTM: 32°
Peak intensity: 9.180 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 18°
FWTM: 35°
Peak intensity: 6.270 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

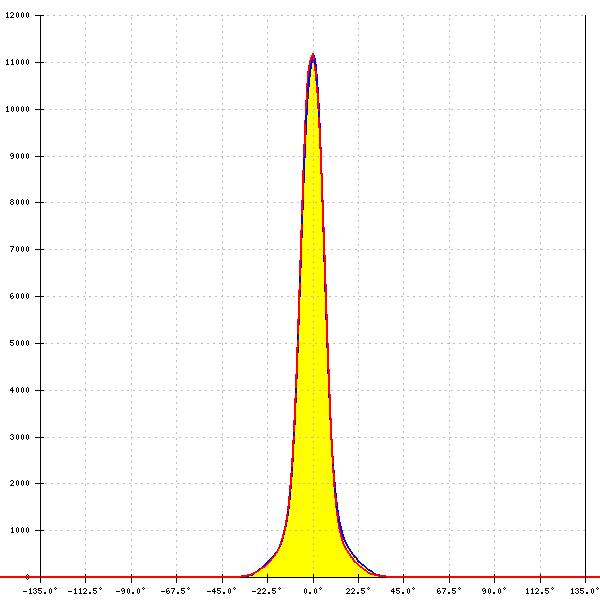

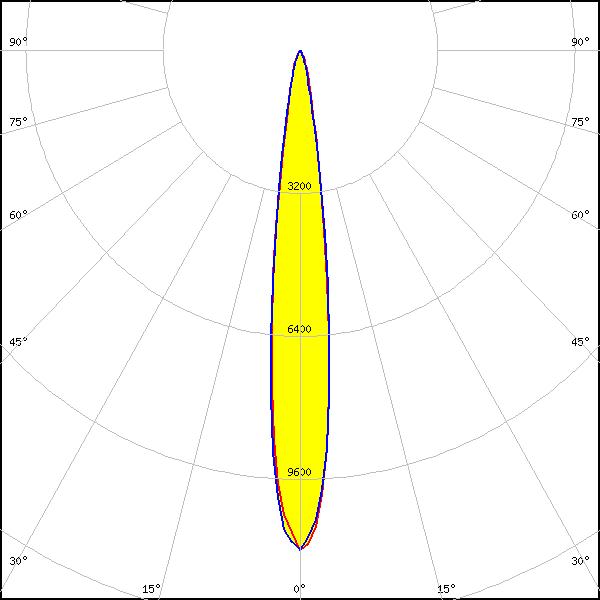

LED: OSLON Square EC
FWHM: 13°
FWTM: 27°
Peak intensity: 11.210 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

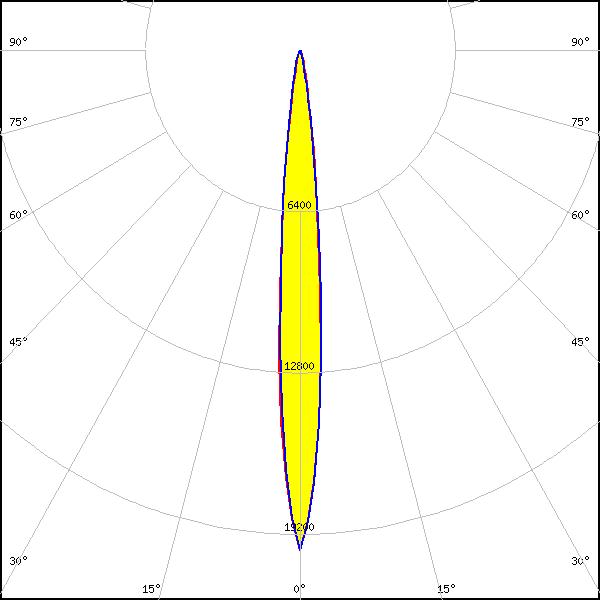

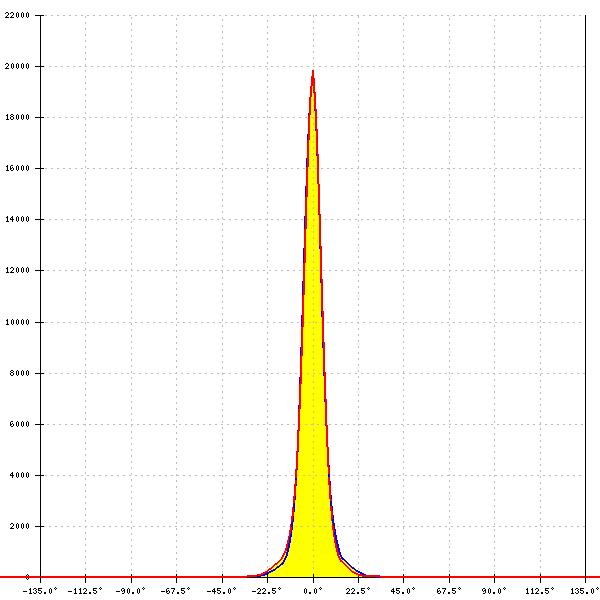

LED: OSLON SSL 150
FWHM: 10°
FWTM: 21°
Peak intensity: 19.840 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

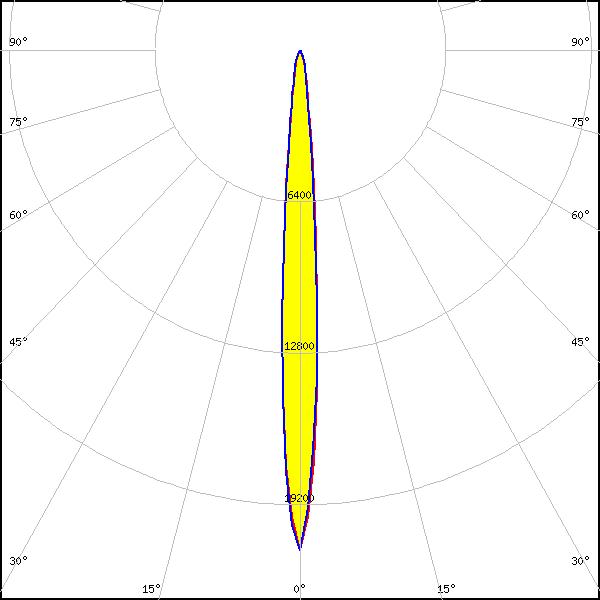

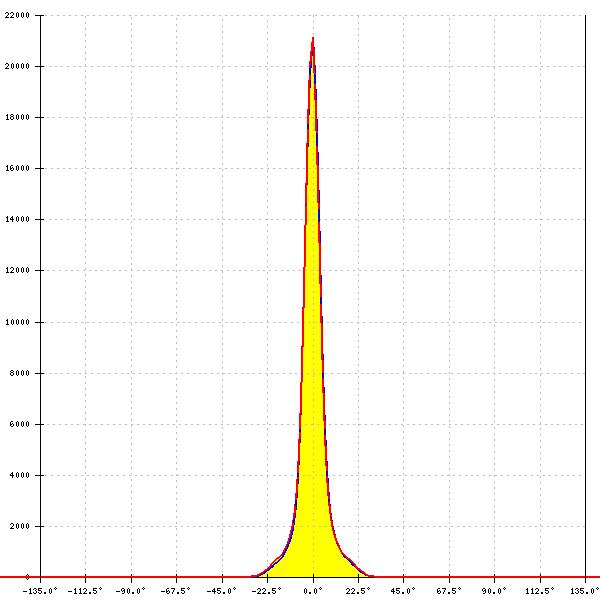

LED: OSLON SSL 80
FWHM: 8°
FWTM: 19°
Peak intensity: 21.130 cd/lm
LEDs/each optic: 1
Light colour: White

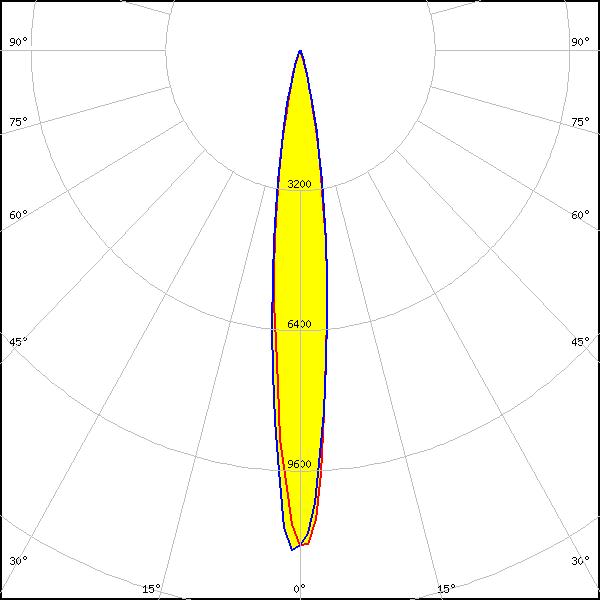

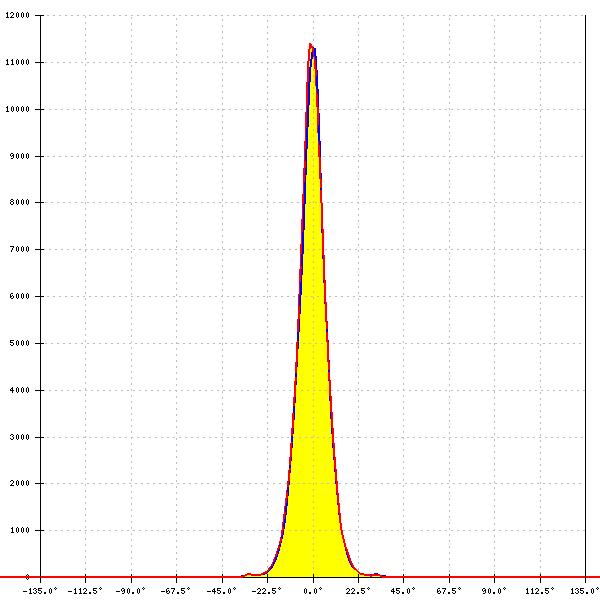

LED: SFH 4715S
FWHM: 13°
FWTM: 28°
Peak intensity: 11.690 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

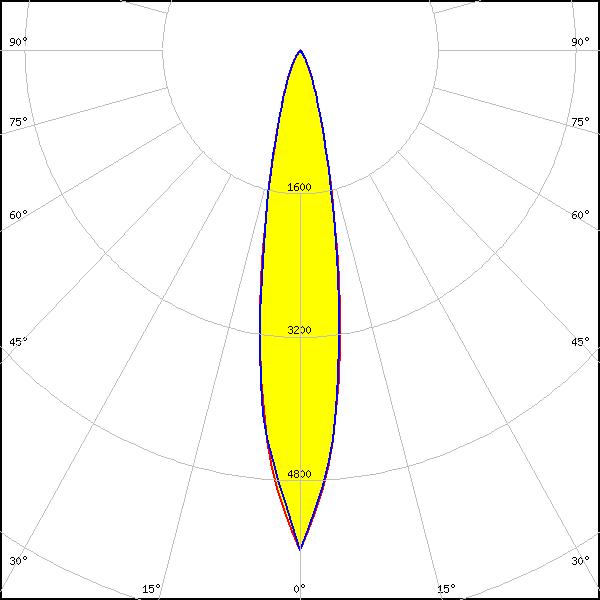

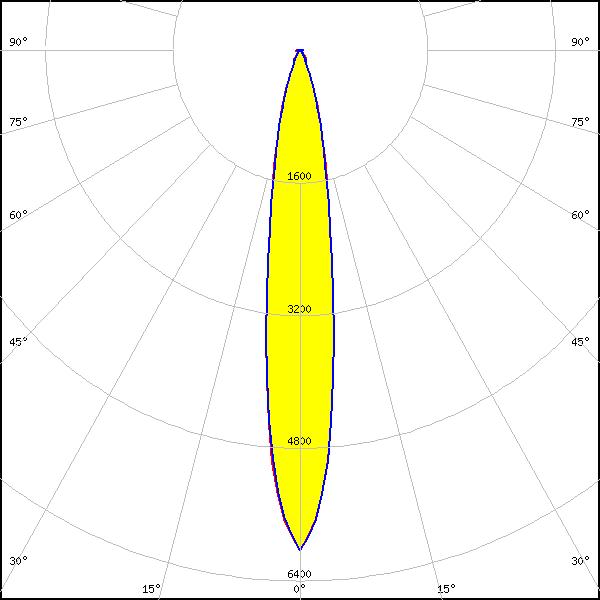

LED: Z8Y22P
FWHM: 18°
FWTM: -
Peak intensity: 5.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

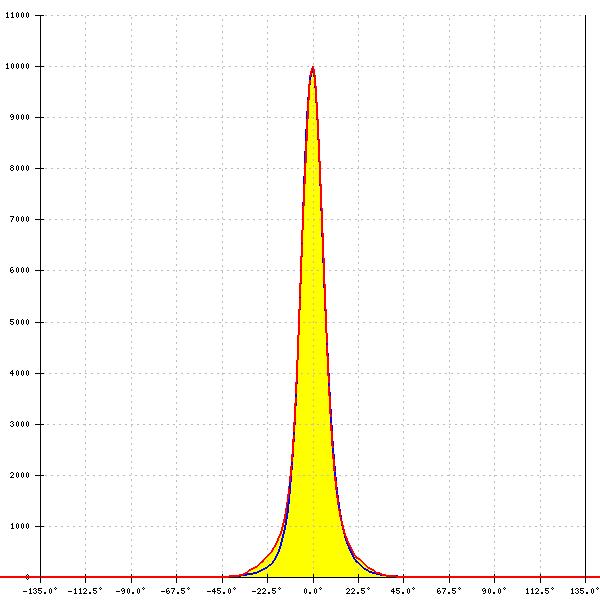

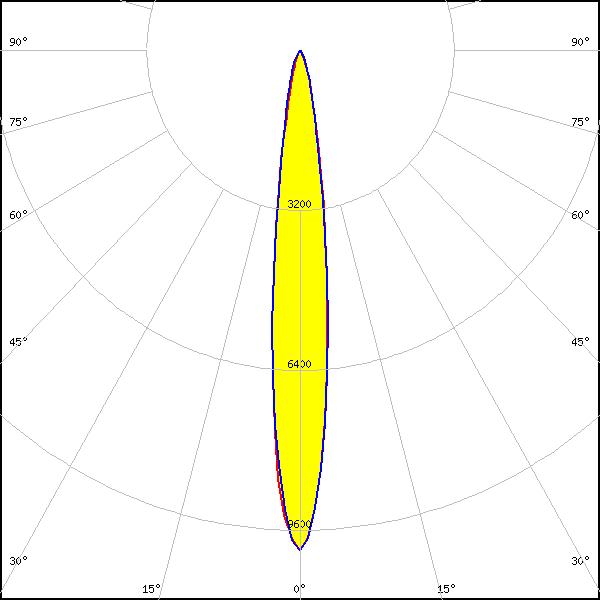

LED: Double Dome (GM2BB)
FWHM: 13°
FWTM: 29°
Peak intensity: 10.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
