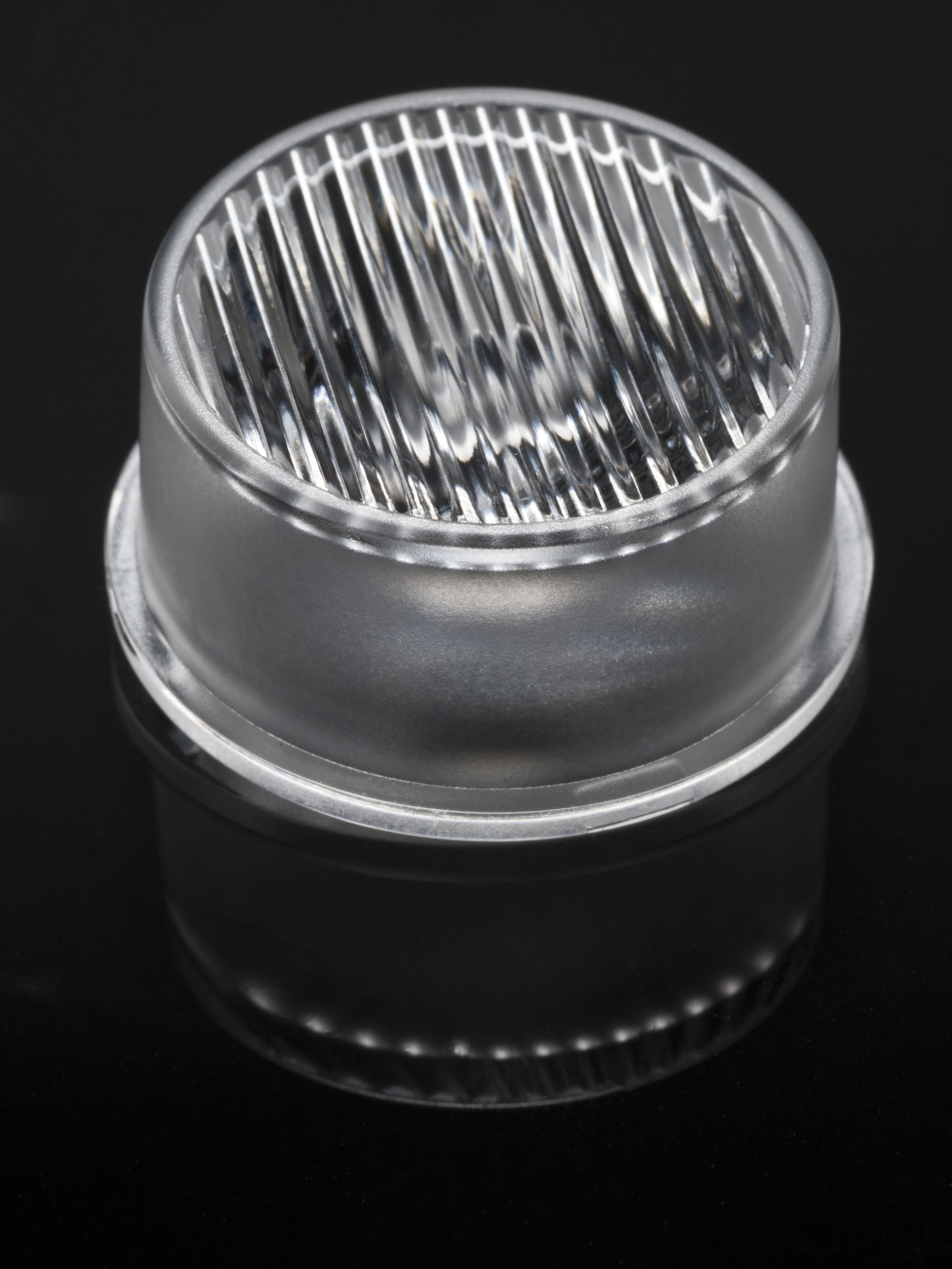

C13529_VERONICA-O
Print
~55° + 10° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

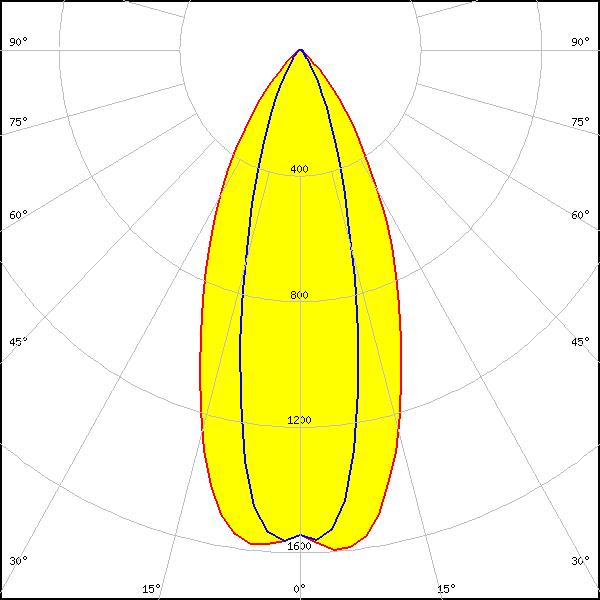

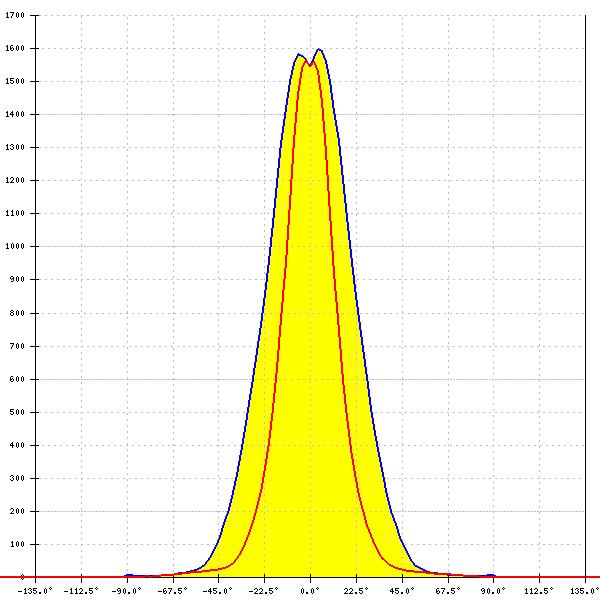

LED:
MK-R
FWHM:
48° + 28°
FWTM:
85° + 58°
Peak intensity:
1.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

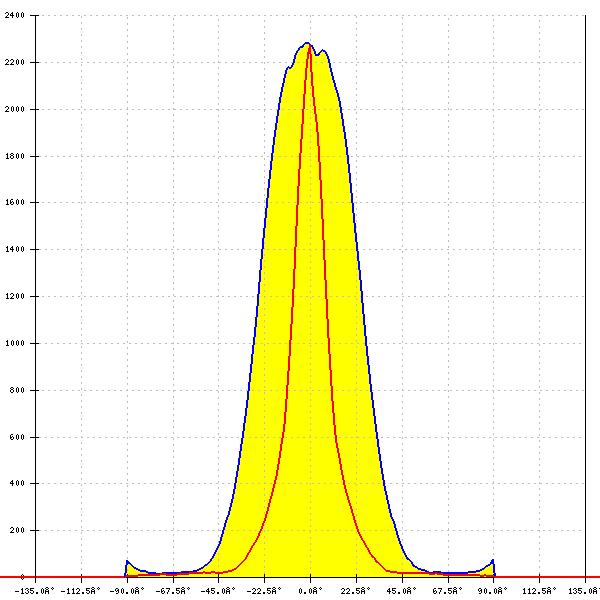

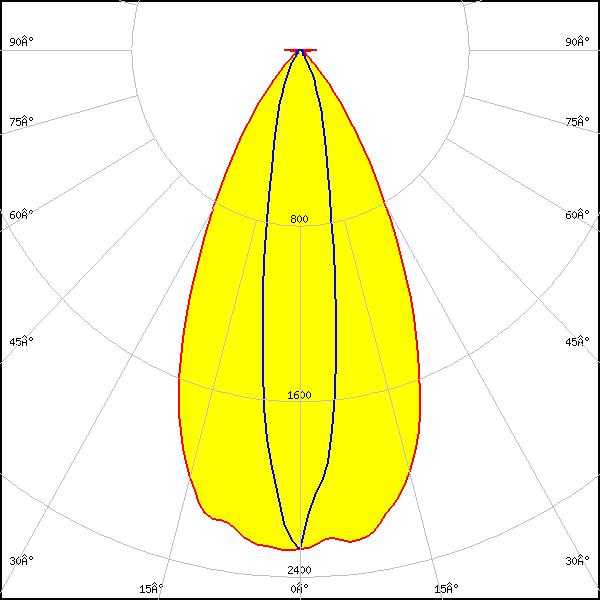

LED:
XHP35 HD
FWHM:
52° + 19°
FWTM:
84° + 44°
Peak intensity:
2.260 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
53° + 16°
FWTM:
82° + 38°
Peak intensity:
2.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

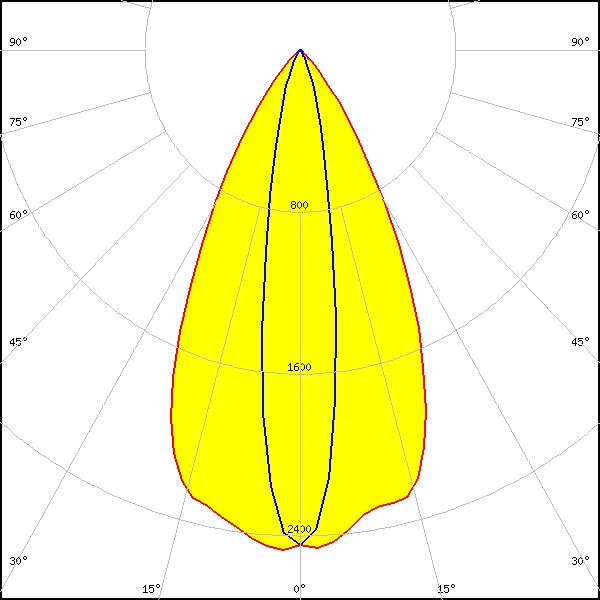

LED:

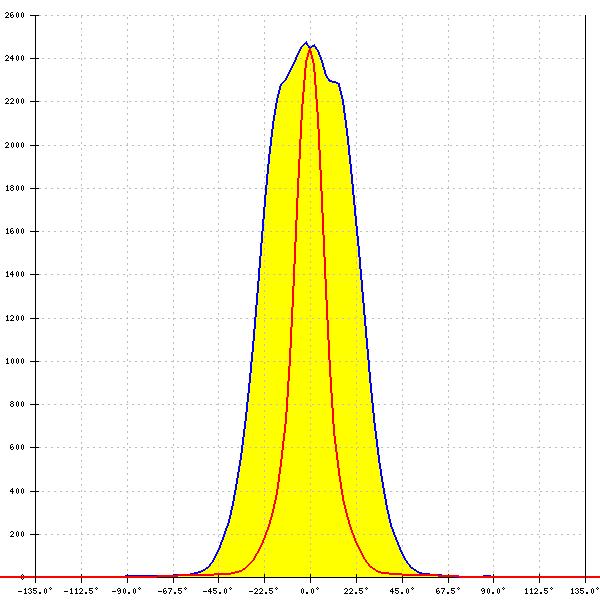

XM-L
FWHM:
54° + 18°
FWTM:
81° + 40°
Peak intensity:
2.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

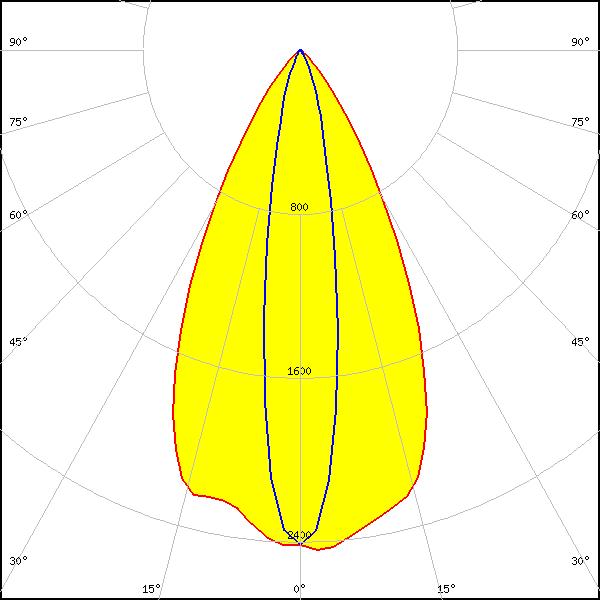

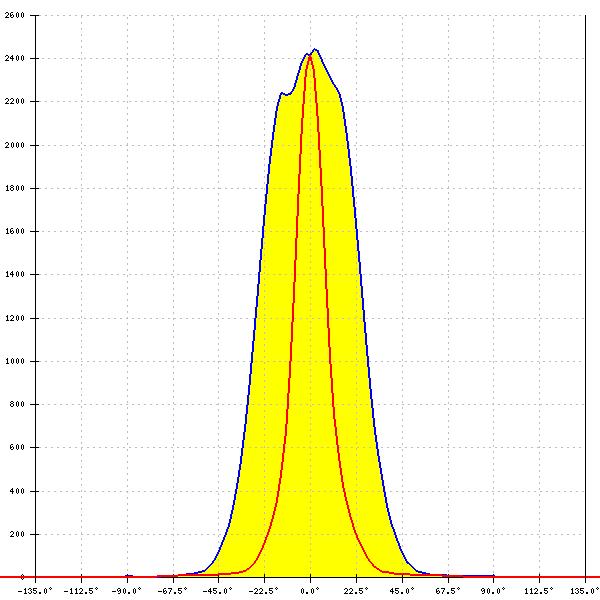

LED:
XM-L2
FWHM:
54° + 18°
FWTM:
81° + 41°
Peak intensity:
2.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

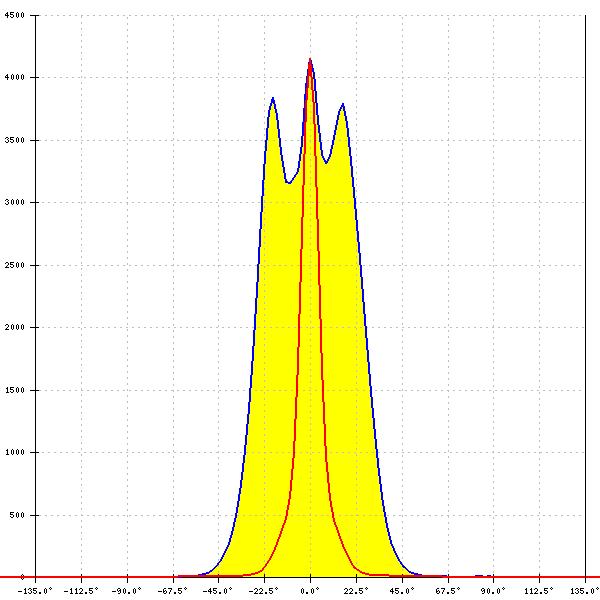

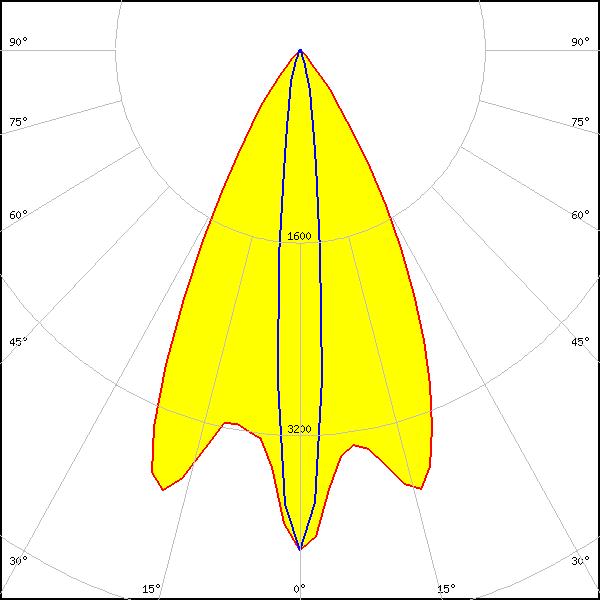

LED:
XP-E
FWHM:
54° + 11°
FWTM:
76° + 26°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

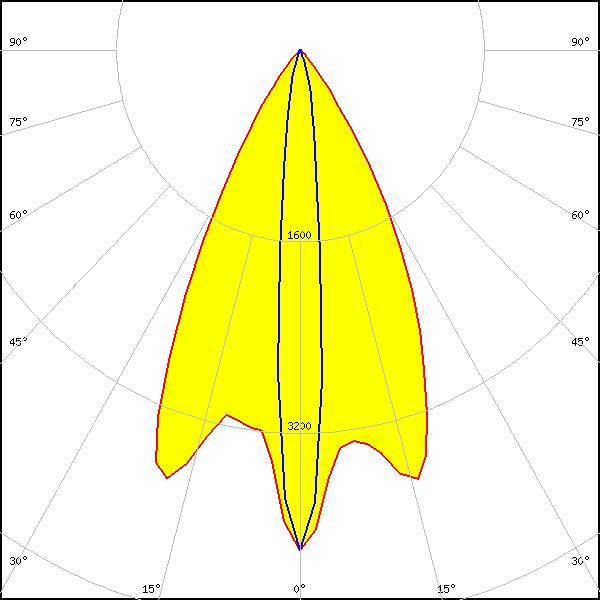

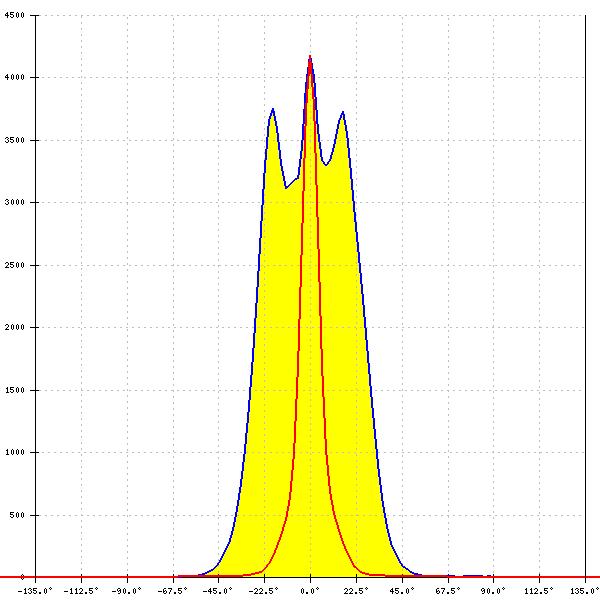

LED:
XP-E2
FWHM:
54° + 11°
FWTM:
76° + 27°
Peak intensity:
4.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

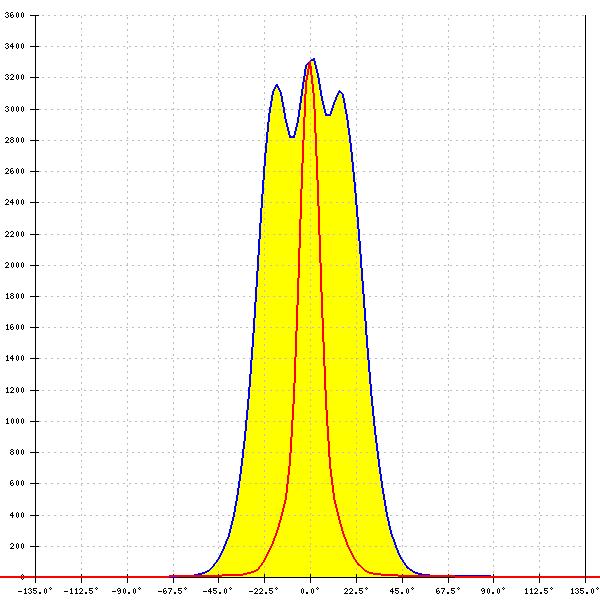

LED:

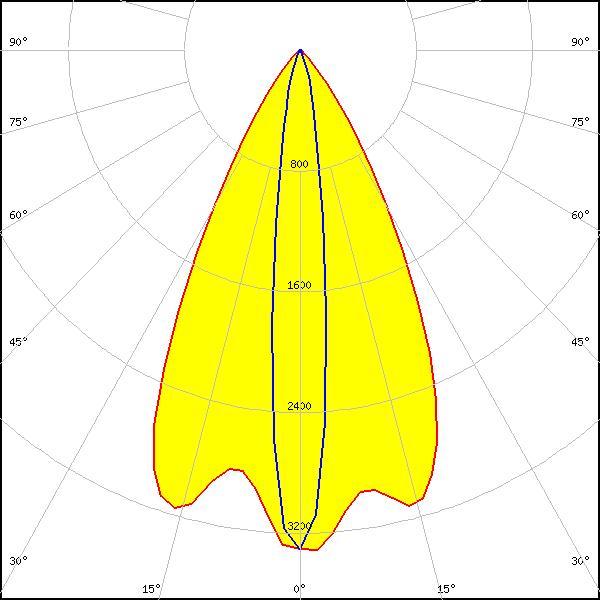

XP-G
FWHM:
55° + 13°
FWTM:
79° + 30°
Peak intensity:
3.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

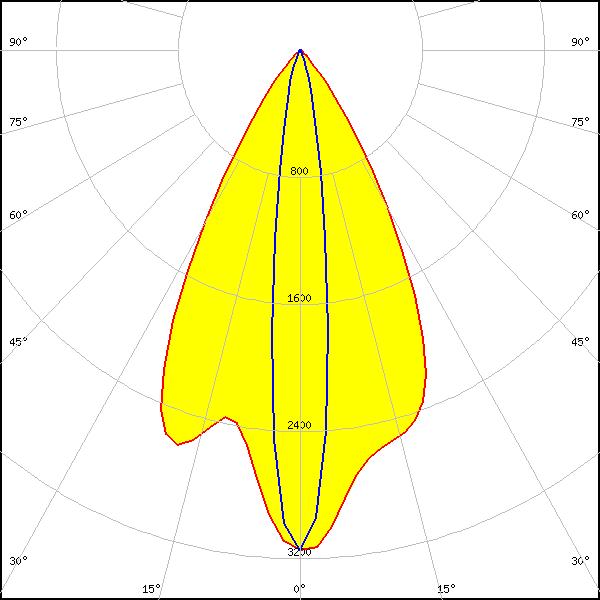

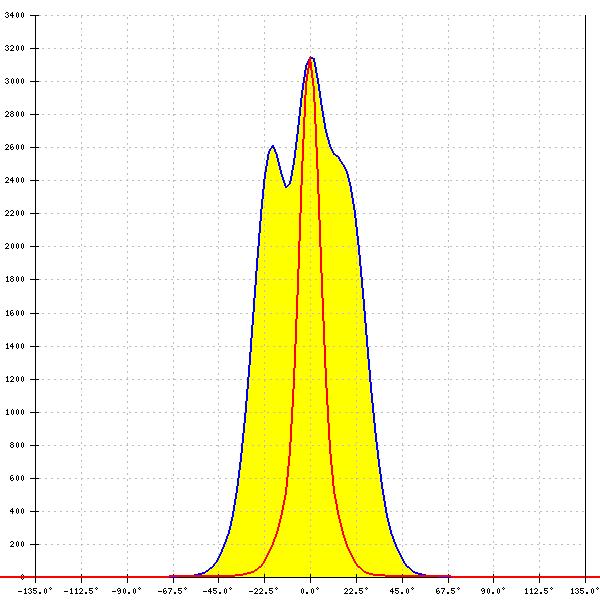

LED:
XP-G2
FWHM:
55° + 13°
FWTM:
78° + 30°
Peak intensity:
3.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

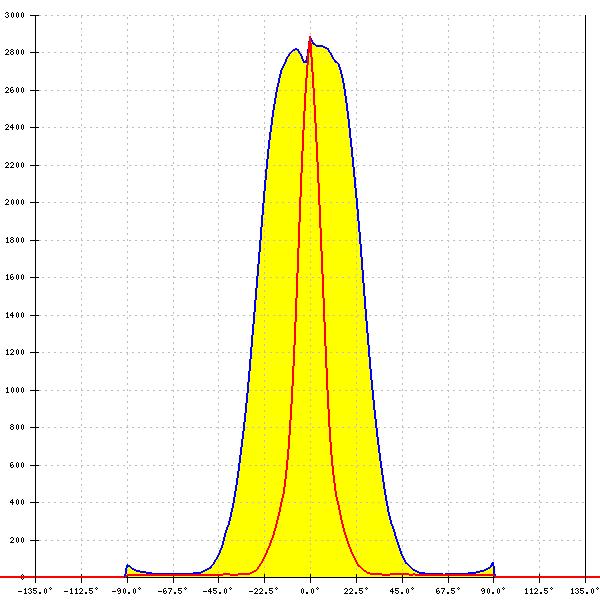

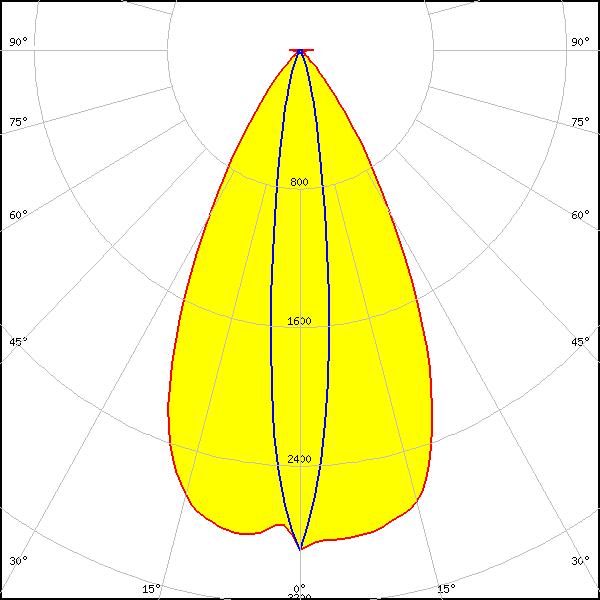

LED:
XP-G2 HE
FWHM:
54° + 14°
FWTM:
80° + 32°
Peak intensity:
2.887 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

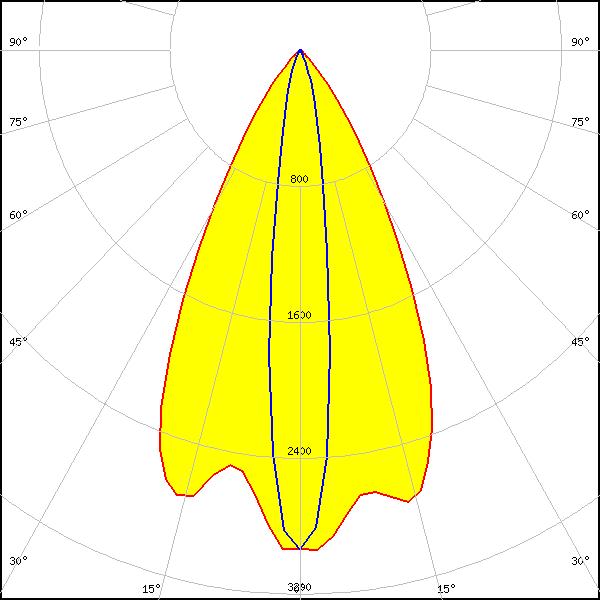

LED:
XT-E
FWHM:
54° + 15°
FWTM:
79° + 33°
Peak intensity:
2.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

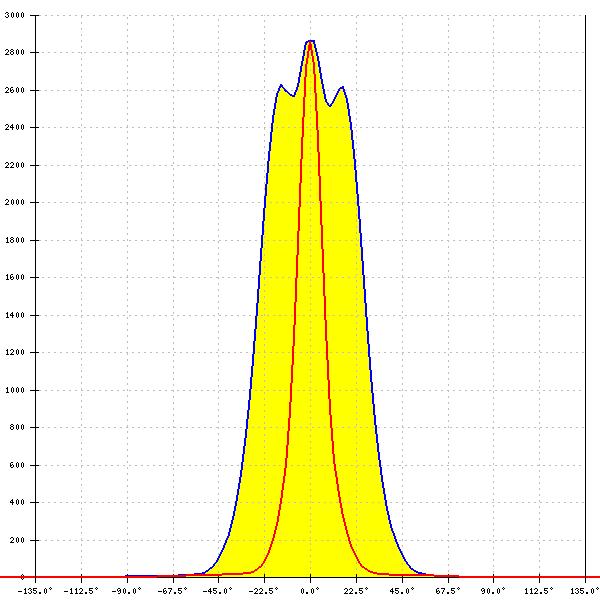

LED:
LUXEON A
FWHM:
54° + 15°
FWTM:
79° + 33°
Peak intensity:
2.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

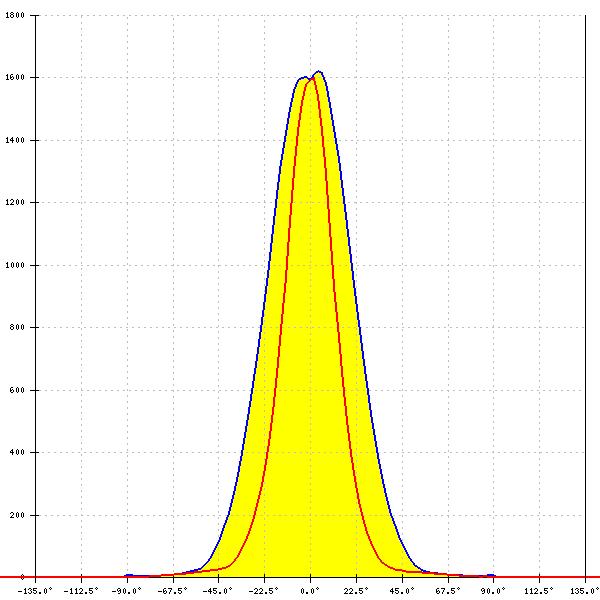

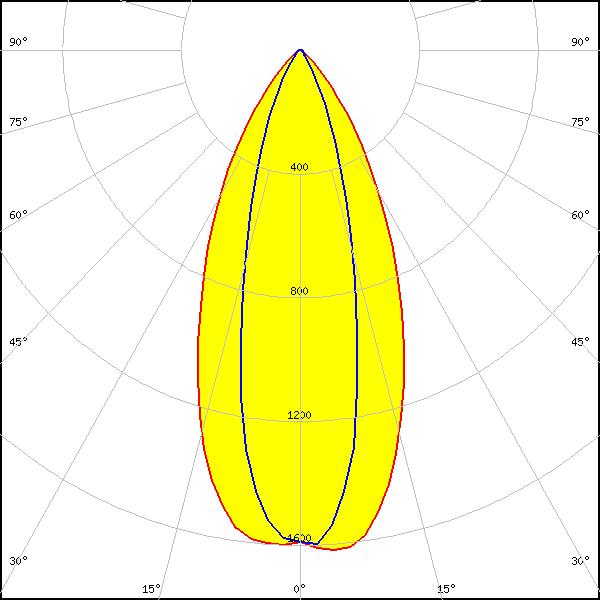

LED:
LUXEON M/MX
FWHM:
49° + 28°
FWTM:
84° + 57°
Peak intensity:
1.600 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

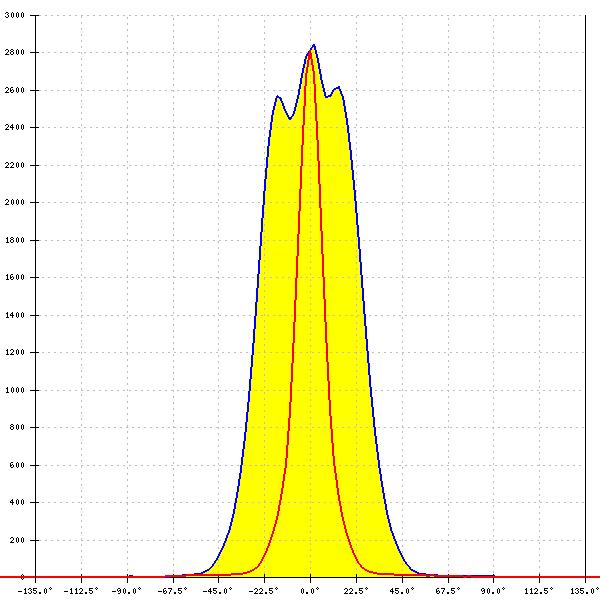

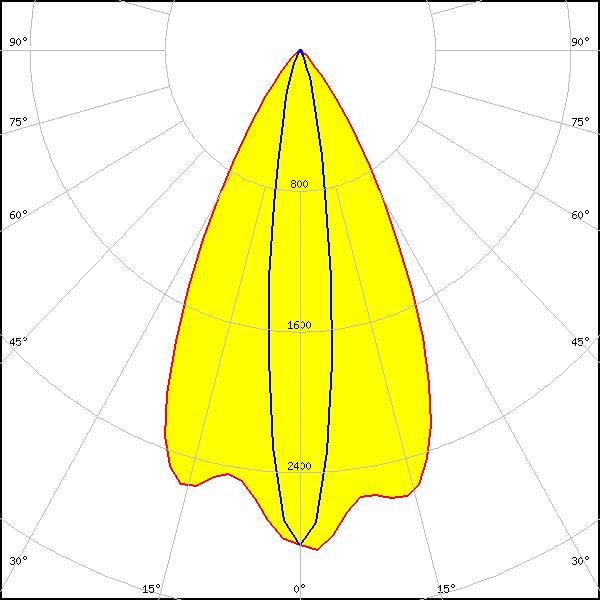

LED:
LUXEON R
FWHM:
54° + 16°
FWTM:
79° + 34°
Peak intensity:
2.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

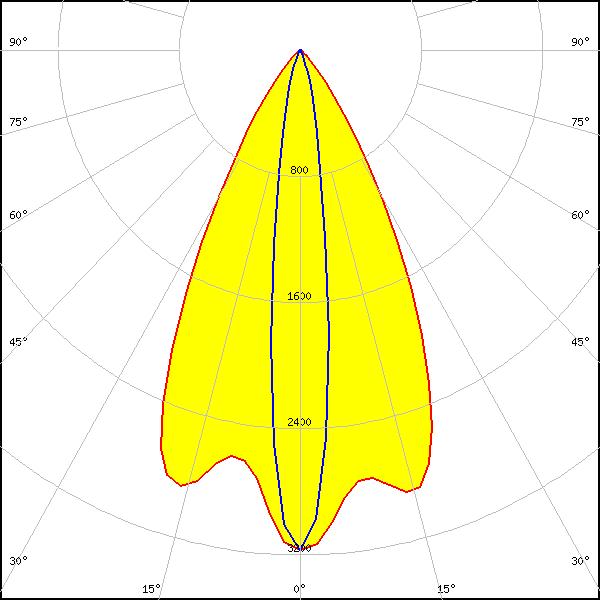

LED:
LUXEON Rebel
FWHM:
54° + 14°
FWTM:
78° + 31°
Peak intensity:
3.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

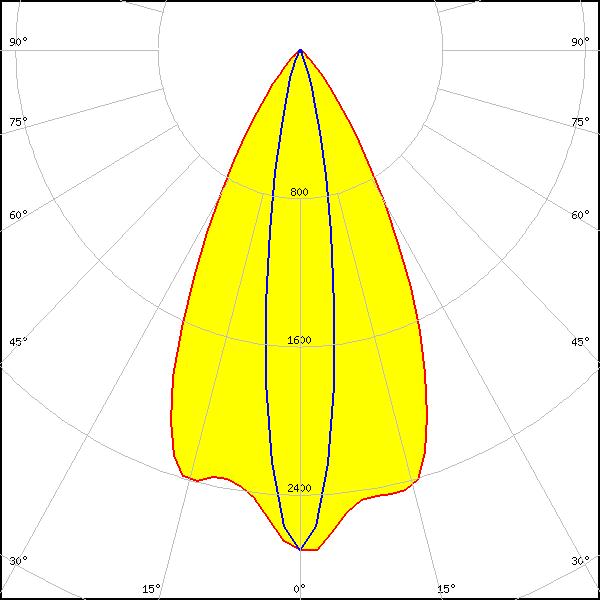

LED:

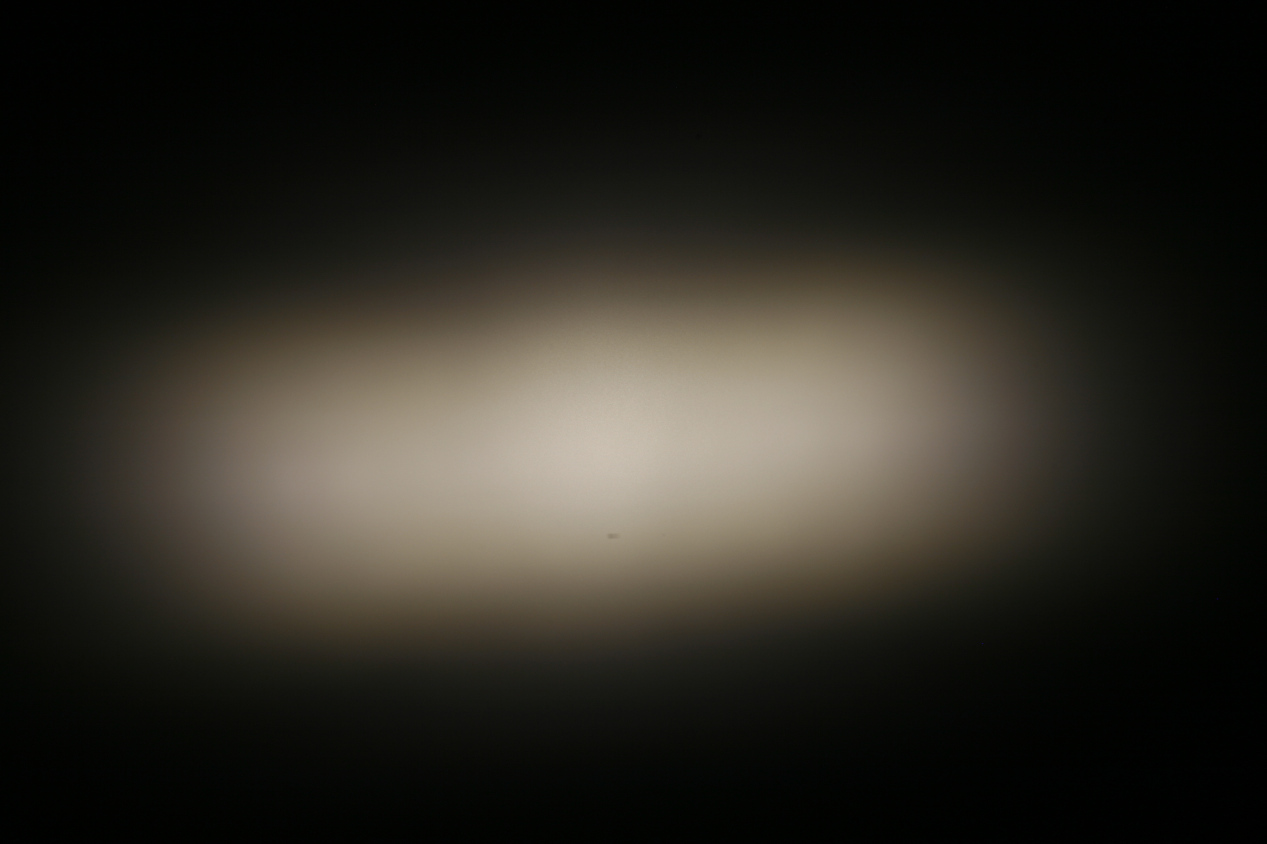

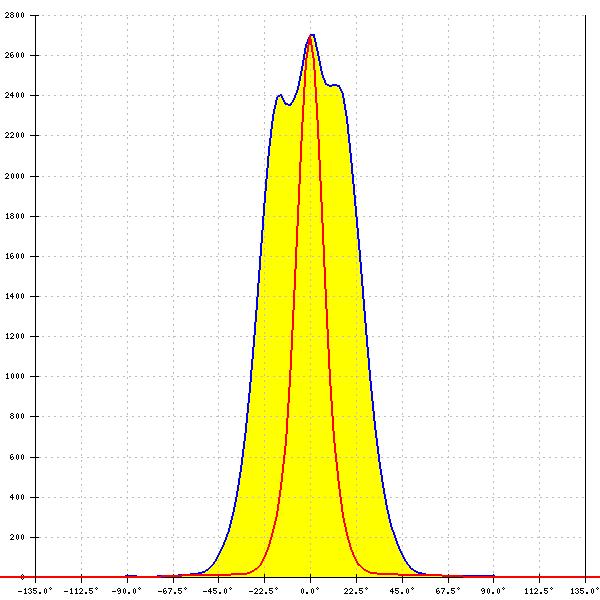

LUXEON Rebel ES
FWHM:
54° + 17°
FWTM:
80° + 34°
Peak intensity:
2.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

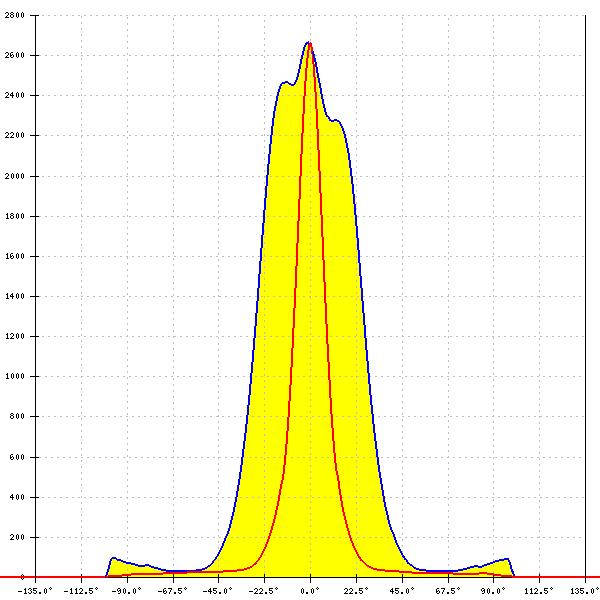

LED:

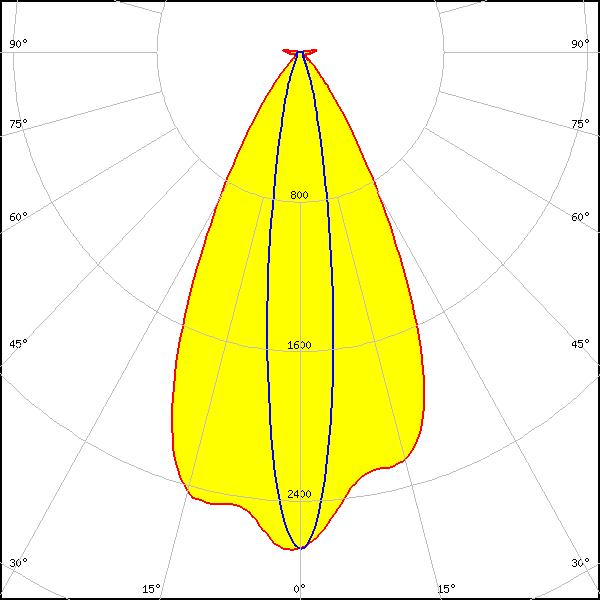

LUXEON V2
FWHM:
52° + 16°
FWTM:
78° + 36°
Peak intensity:
2.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19B
FWHM:
52° + 15°
FWTM:
80° + 32°
Peak intensity:
2.970 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

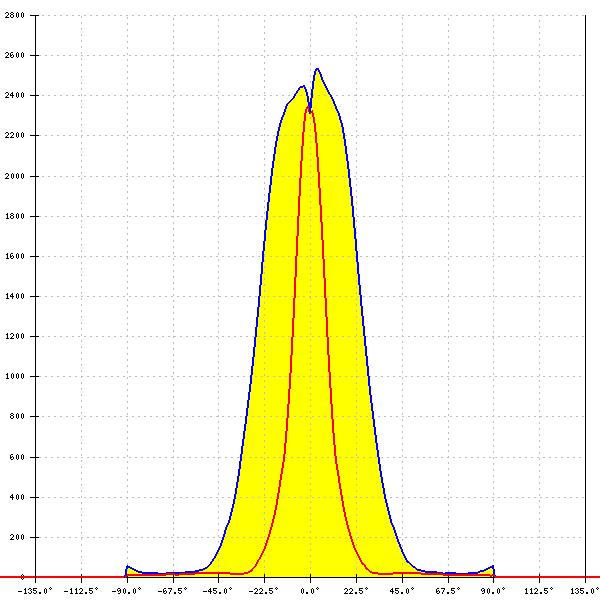

LED:
NV4WB35AM
FWHM:
52° + 18°
FWTM:
82° + 38°
Peak intensity:
2.540 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

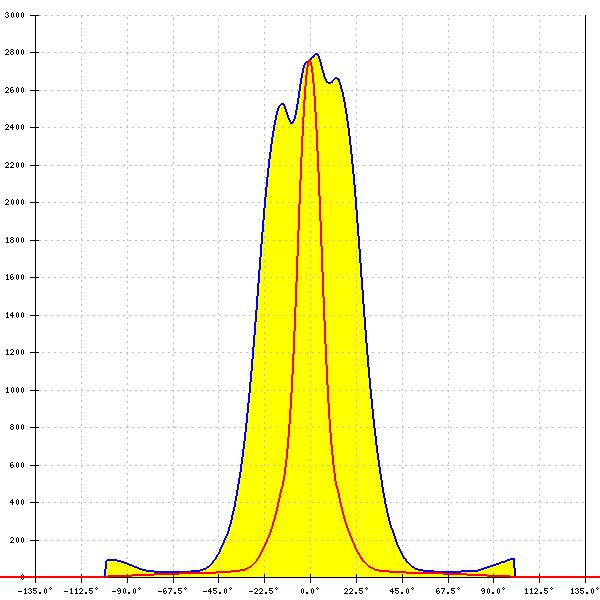

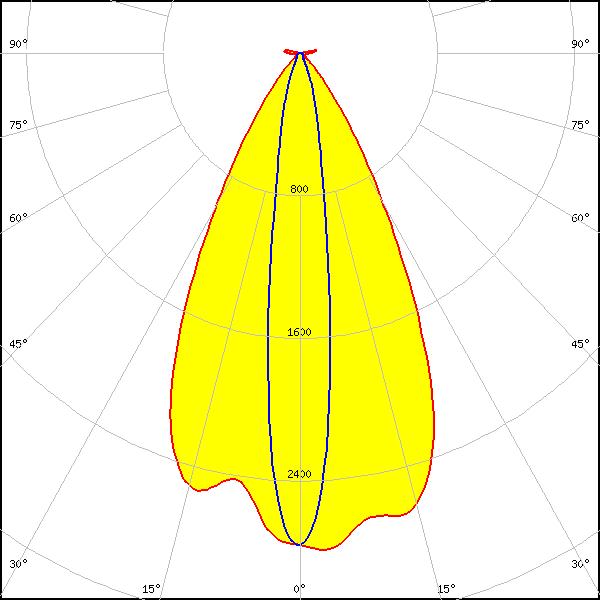

LED:
NVSW219F
FWHM:
53° + 15°
FWTM:
79° + 36°
Peak intensity:
2.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

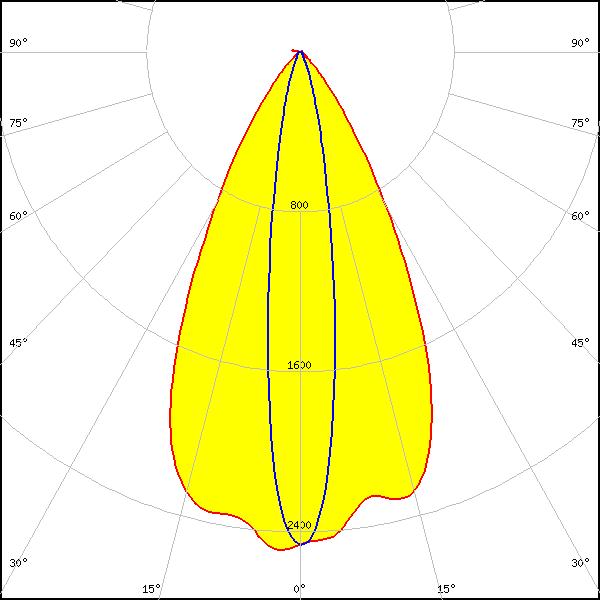

LED:

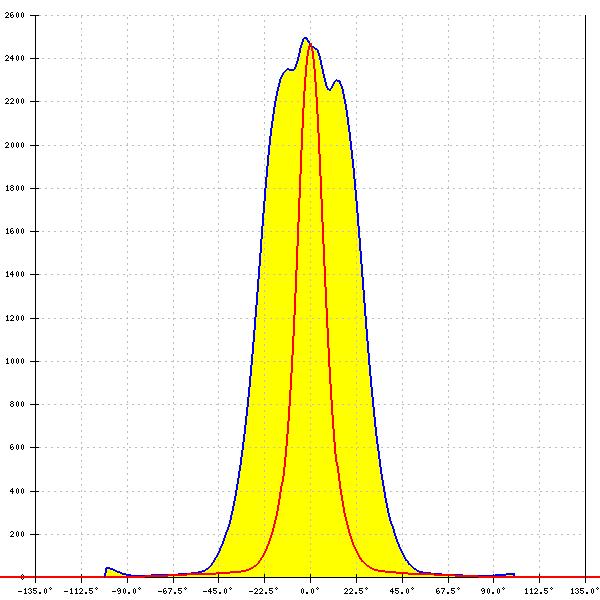

NVSW3x9A
FWHM:
53° + 16°
FWTM:
80° + 35°
Peak intensity:
2.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

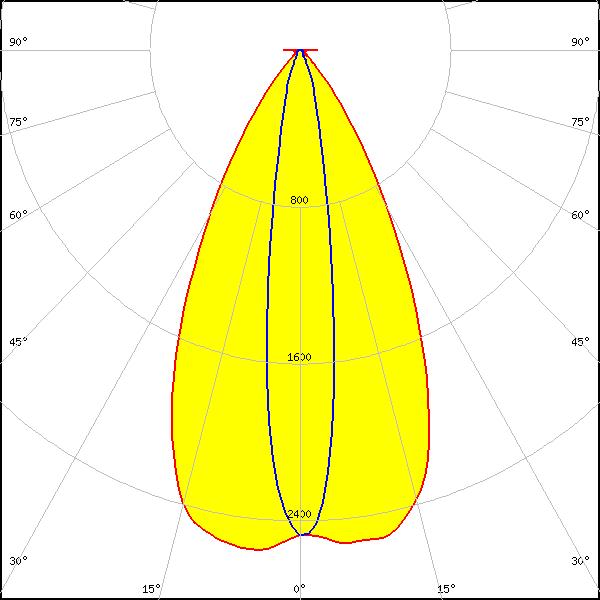

LED:
NVSW519A
FWHM:
54° + 16°
FWTM:
82° + 37°
Peak intensity:
2.561 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

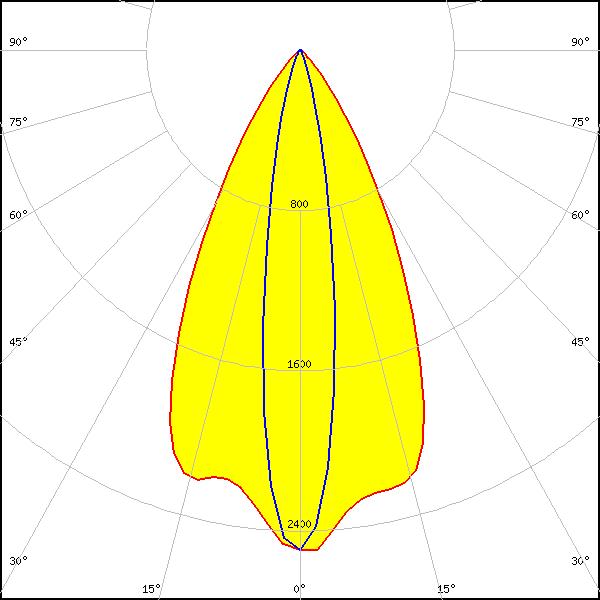

LED:

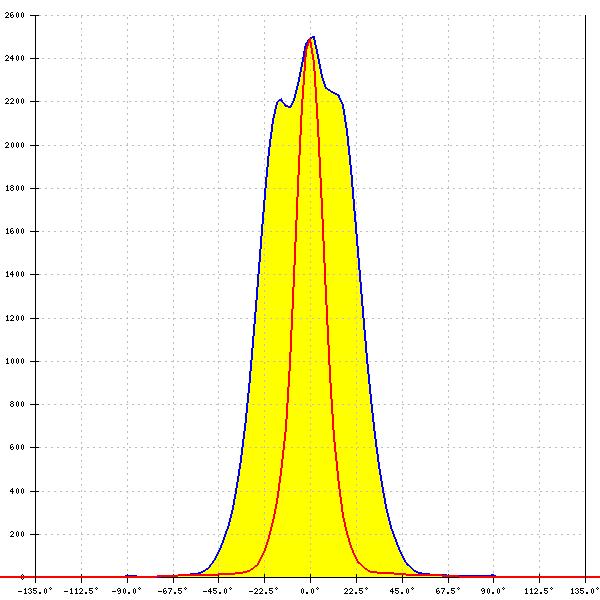

NVSxx19A
FWHM:
53° + 18°
FWTM:
80° + 36°
Peak intensity:
2.500 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

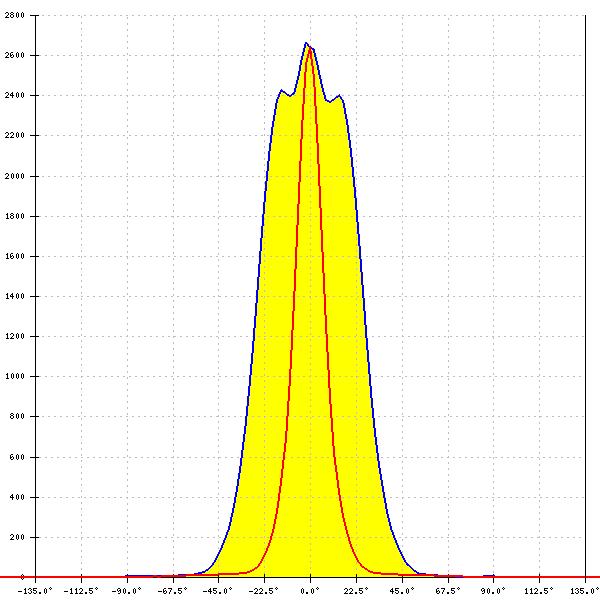

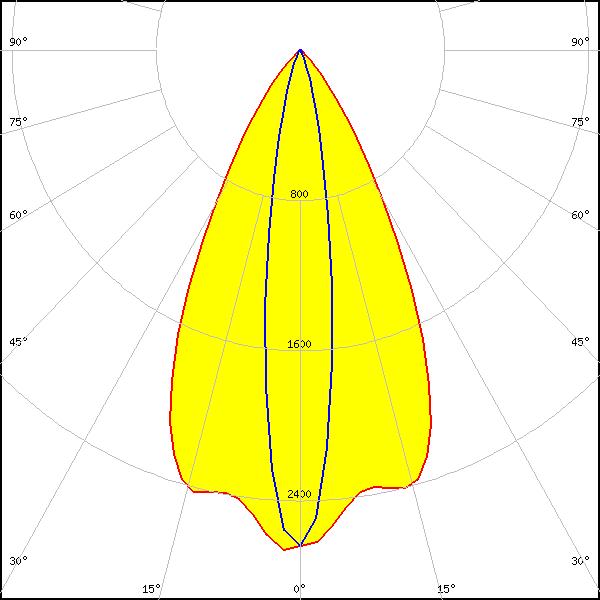

LED:
NVSxx19B/NVSxx19C
FWHM:
54° + 17°
FWTM:
79° + 35°
Peak intensity:
2.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
48° + 25°
FWTM:
85° + 50°
Peak intensity:
1.850 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

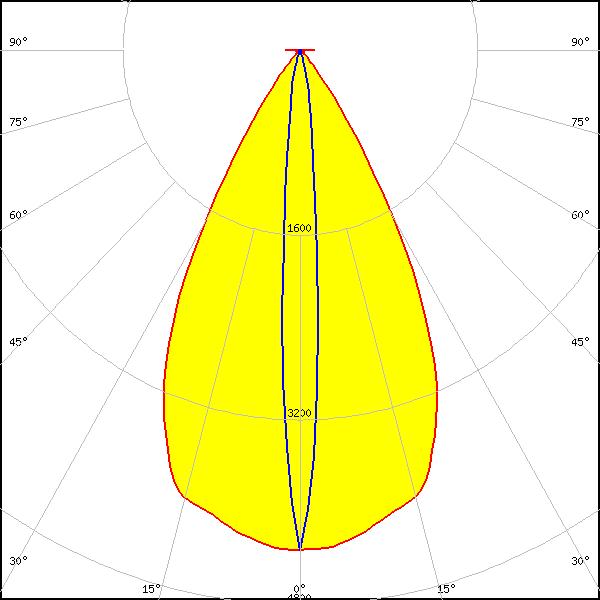

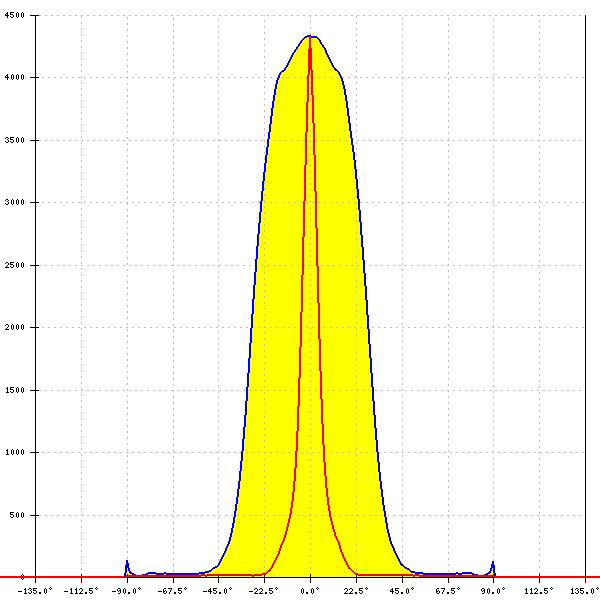

LED:
OSLON Pure 1414
FWHM:
56° + 8°
FWTM:
76° + 22°
Peak intensity:
4.332 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
57° + 11°
FWTM:
80° + 26°
Peak intensity:
3.400 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

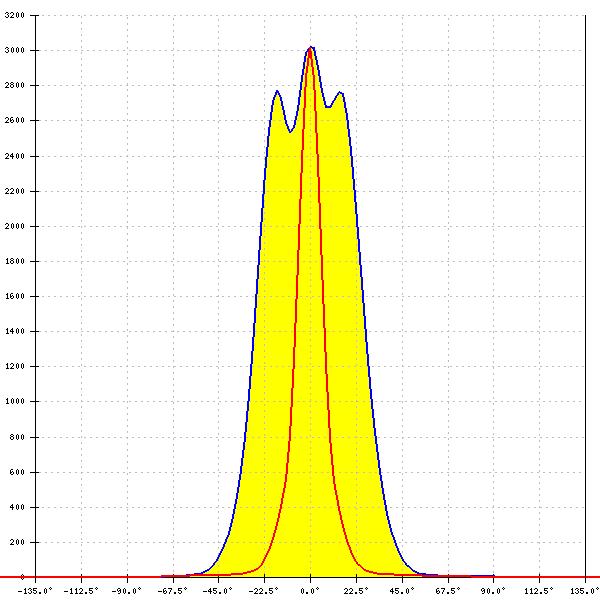

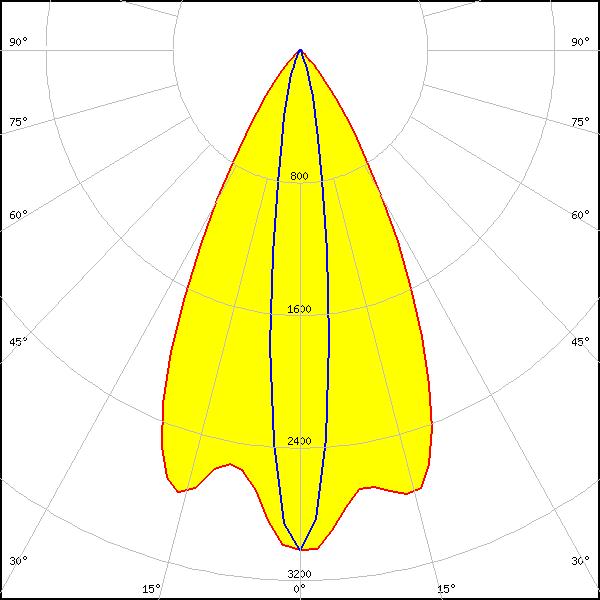

LED:
OSLON Square EC
FWHM:
54° + 14°
FWTM:
79° + 32°
Peak intensity:
3.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

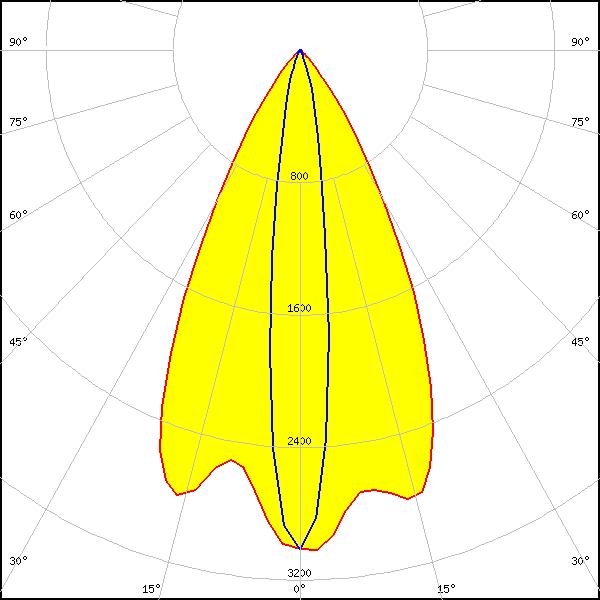

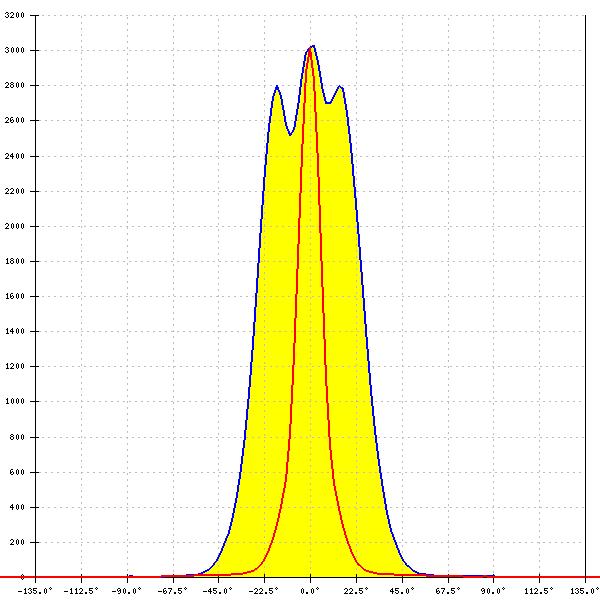

LED:
OSLON Square PC
FWHM:
54° + 15°
FWTM:
79° + 32°
Peak intensity:
3.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

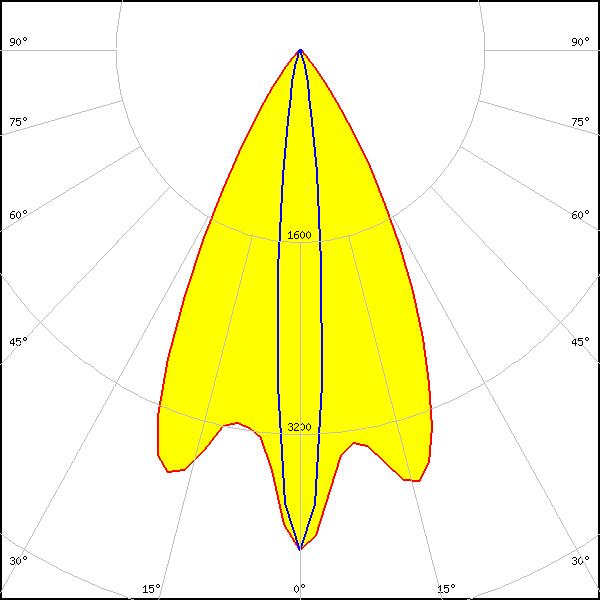

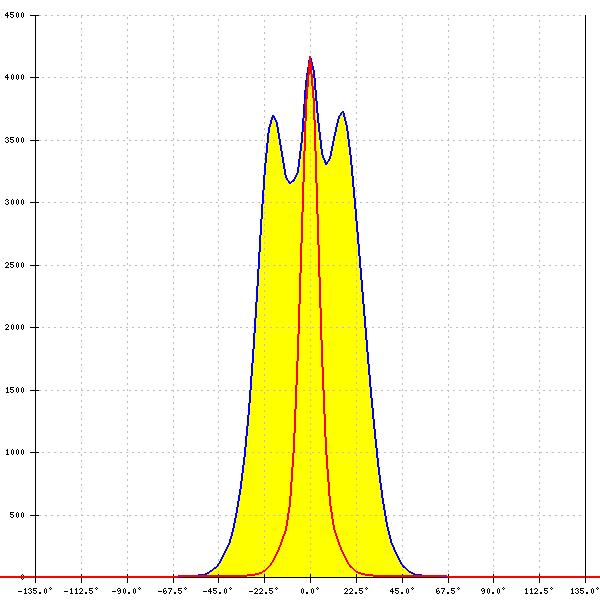

LED:
OSLON SSL 150
FWHM:
54° + 11°
FWTM:
76° + 24°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

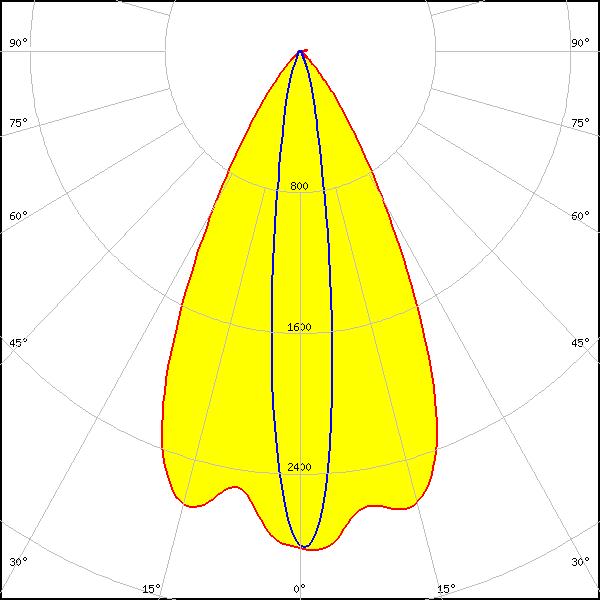

LED:

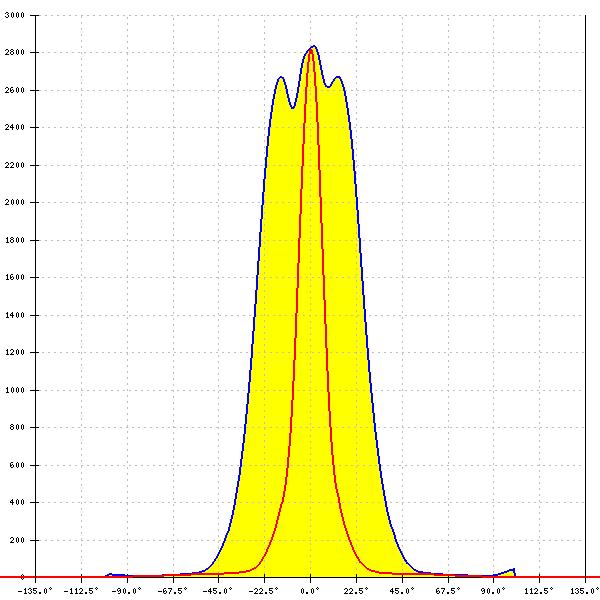

LH351B
FWHM:
54° + 14°
FWTM:
79° + 33°
Peak intensity:
2.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

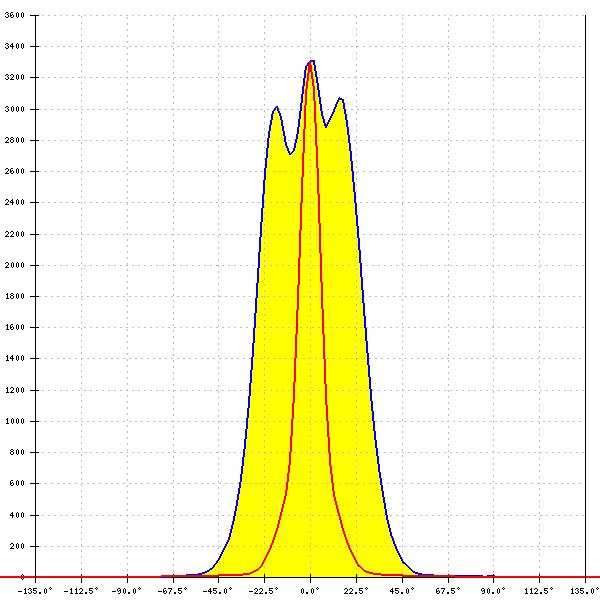

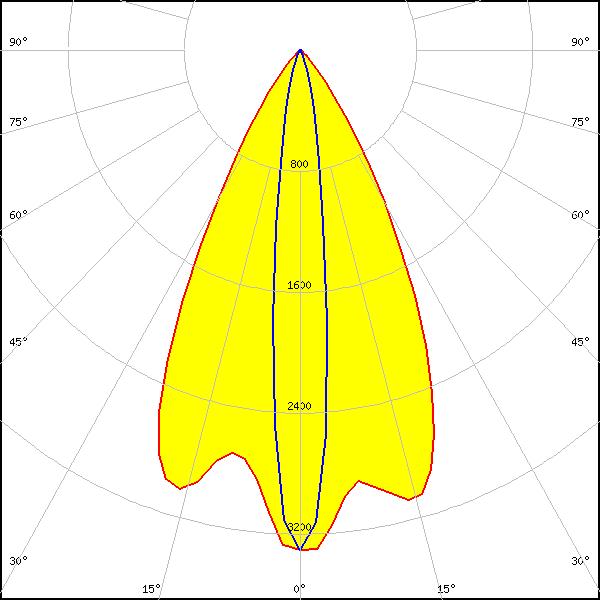

LED:
LH351Z
FWHM:
54° + 13°
FWTM:
78° + 31°
Peak intensity:
3.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

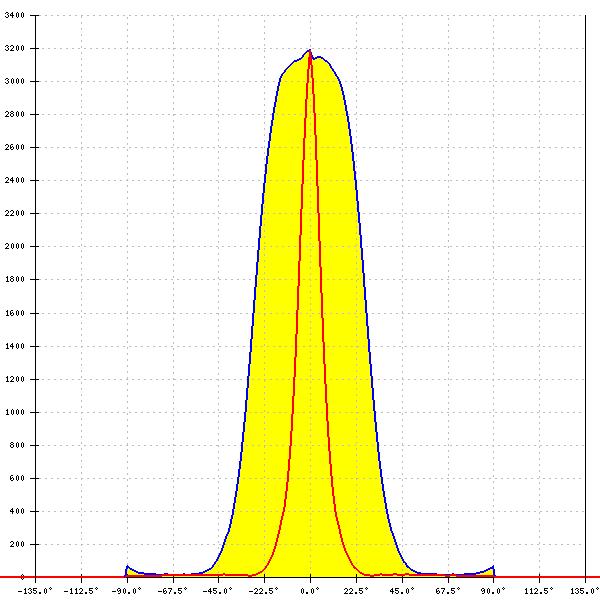

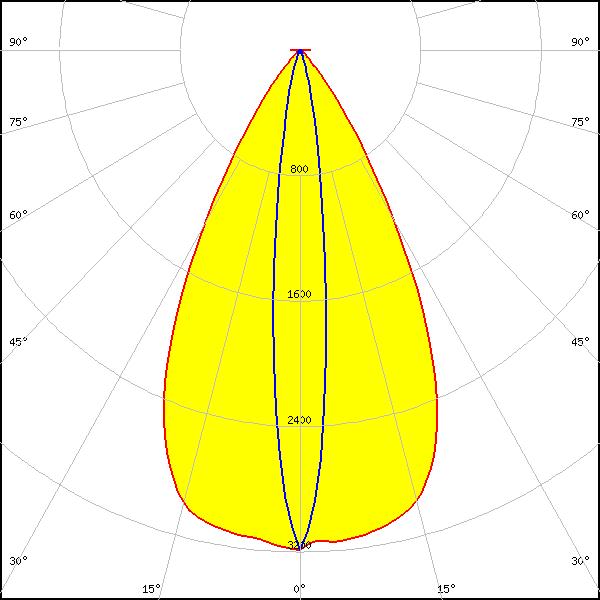

LED:
MJT 3030
FWHM:
56° + 12°
FWTM:
78° + 28°
Peak intensity:
3.201 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT 5050
FWHM:
50° + 30°
FWTM:
87° + 68°
Peak intensity:
1.351 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

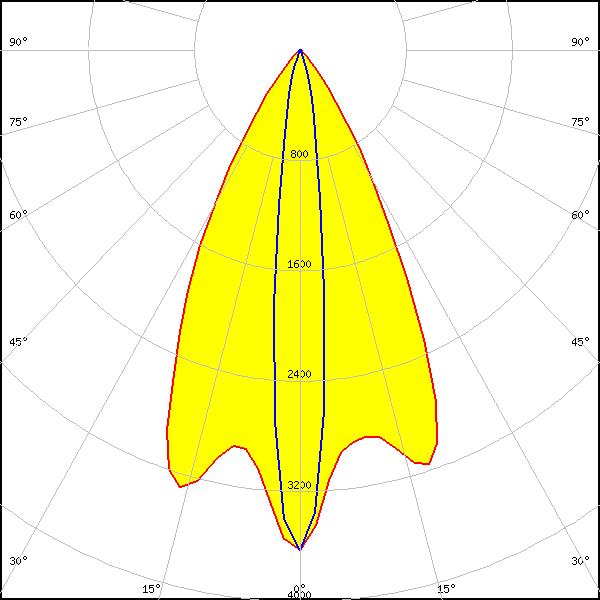

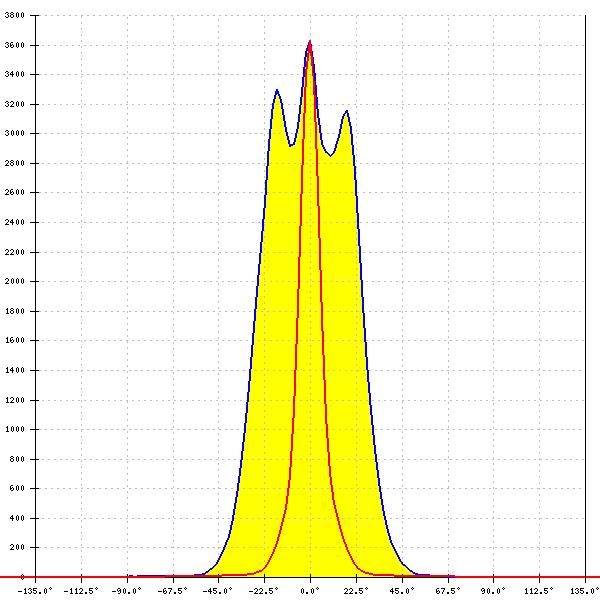

LED:
Z5
FWHM:
54° + 13°
FWTM:
77° + 28°
Peak intensity:
3.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

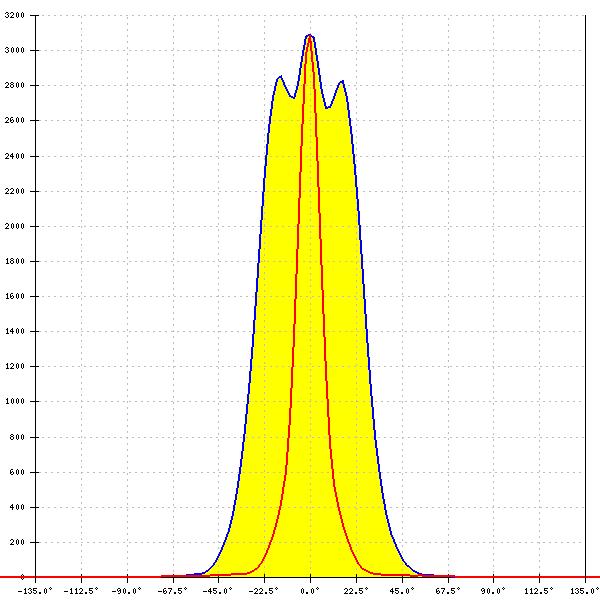

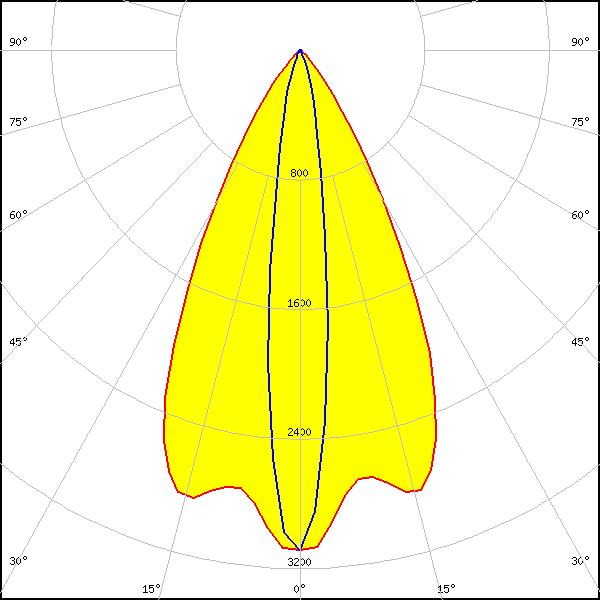

LED:

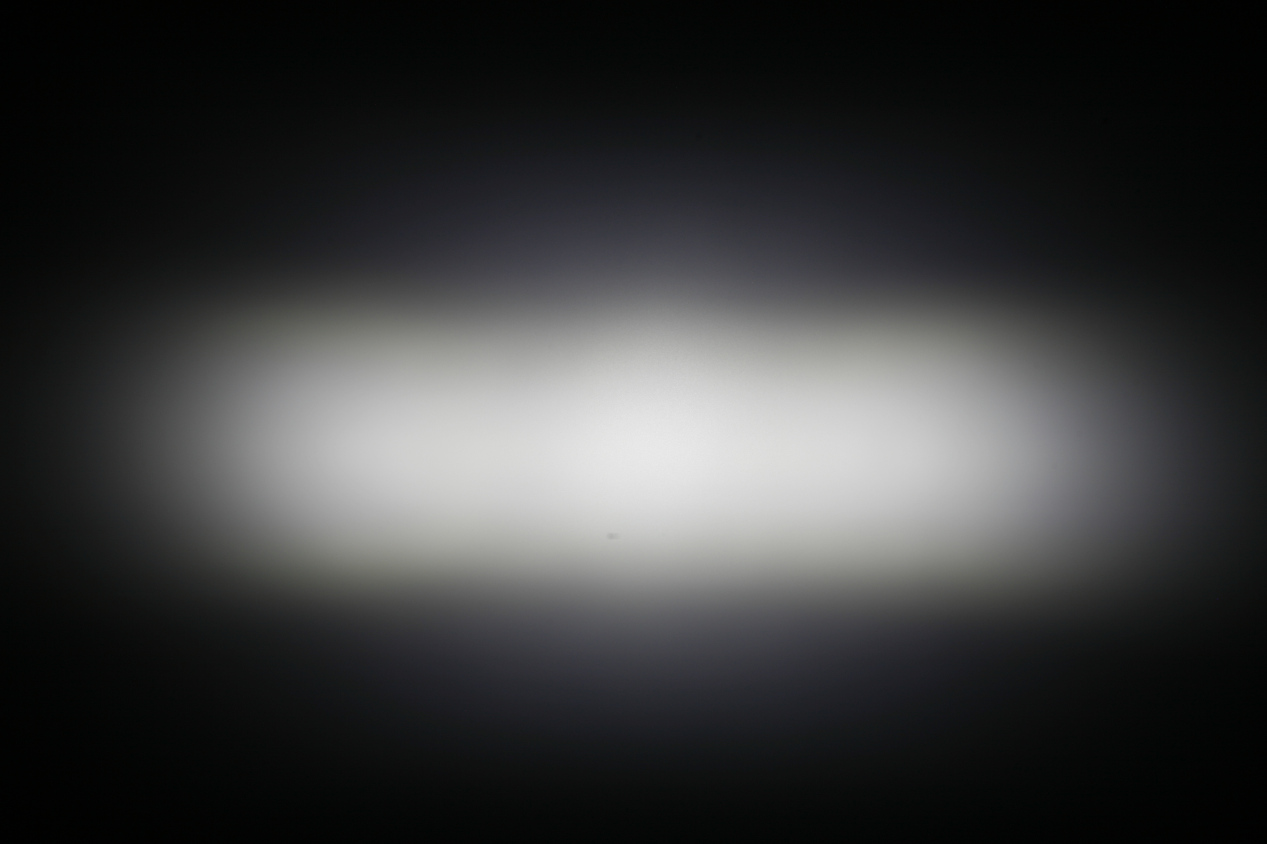

Z5M1/Z5M2
FWHM:
54° + 15°
FWTM:
79° + 33°
Peak intensity:
3.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

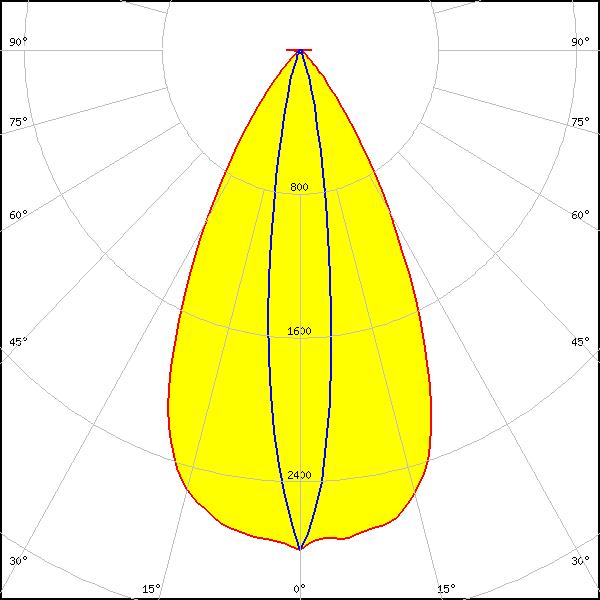

LED:
Z5M4
FWHM:
54° + 14°
FWTM:
80° + 32°
Peak intensity:
2.781 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

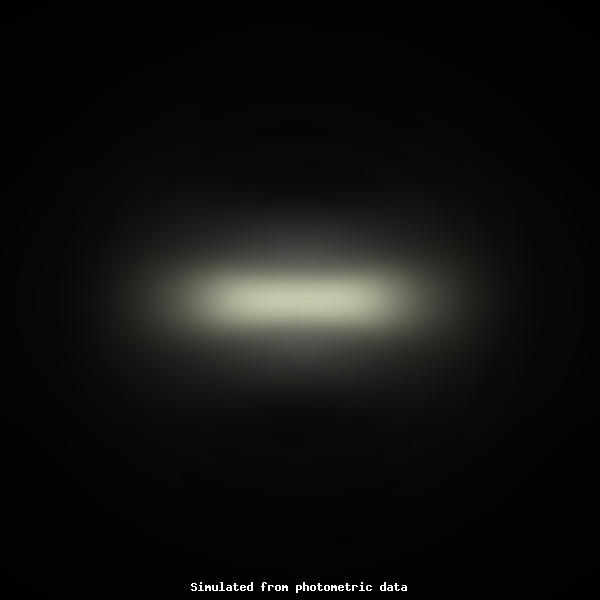

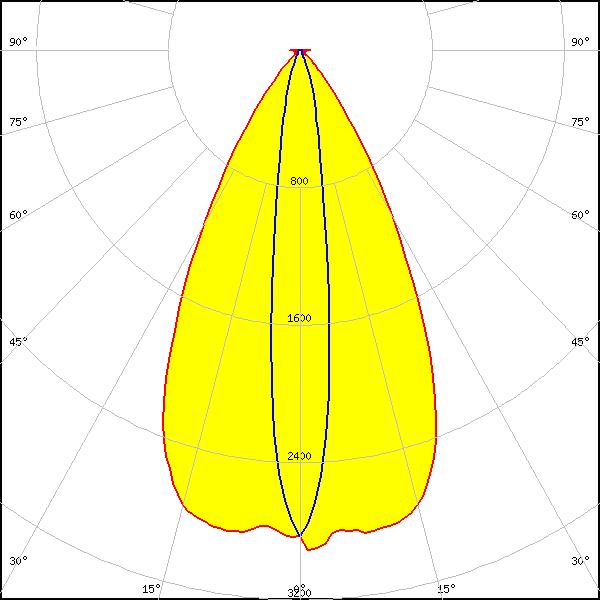

LED:
Z5M4-E1
FWHM:
55° + 14°
FWTM:
82° + 34°
Peak intensity:
2.920 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

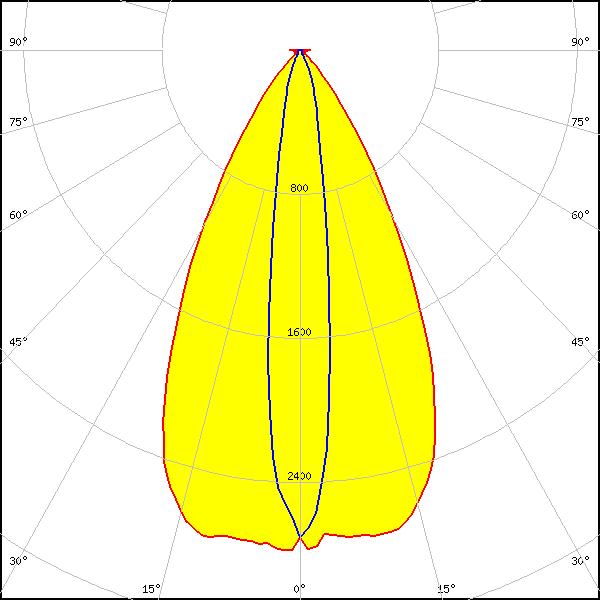

LED:

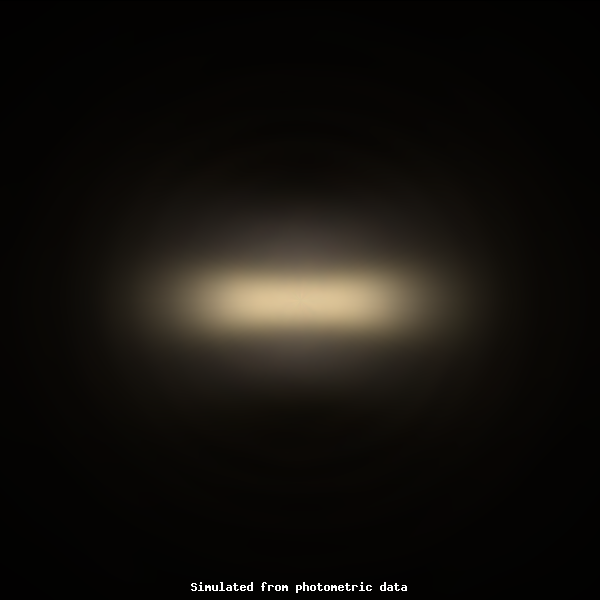

Z5M4-E2
FWHM:
55° + 14°
FWTM:
82° + 35°
Peak intensity:
2.803 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

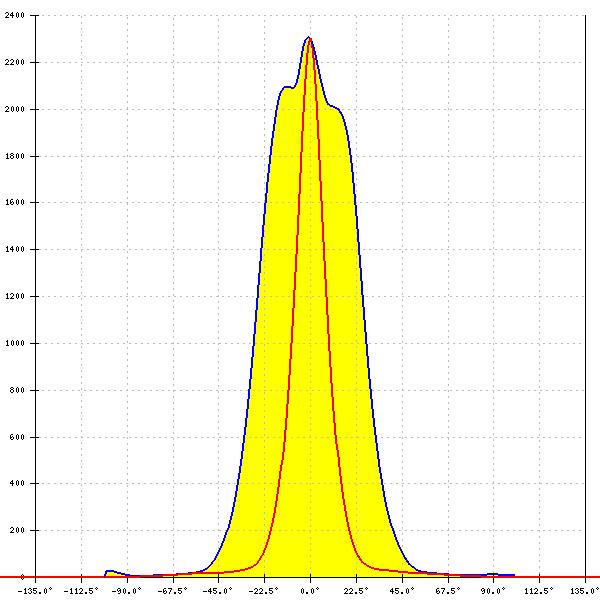

LED:

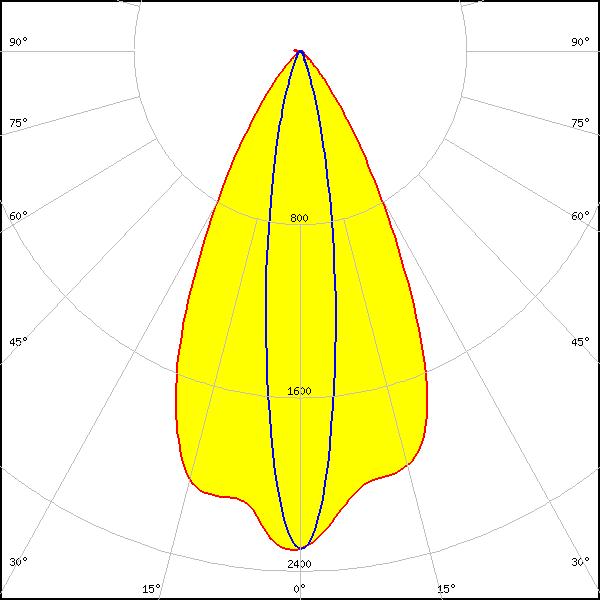

Z8Y22P
FWHM:
52° + 17°
FWTM:
79° + 37°
Peak intensity:
2.300 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

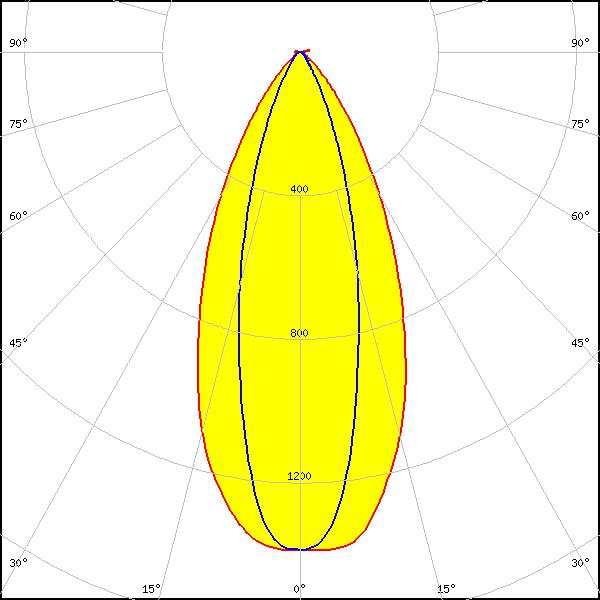

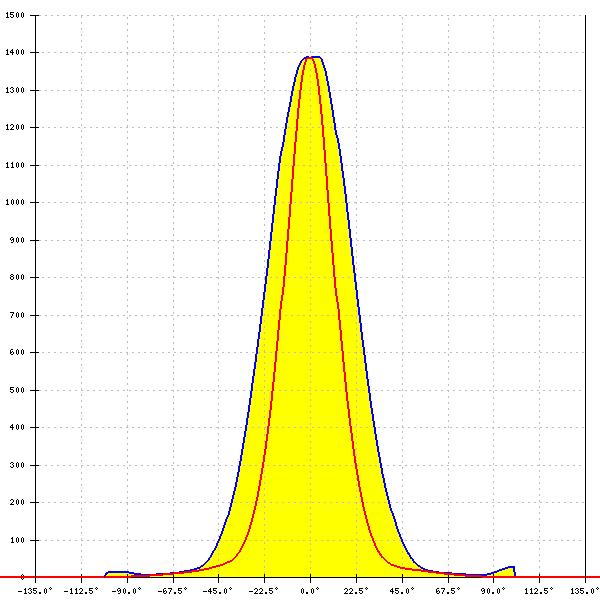

LED:
Z8Y50P
FWHM:
48° + 29°
FWTM:
84° + 58°
Peak intensity:
1.400 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White
