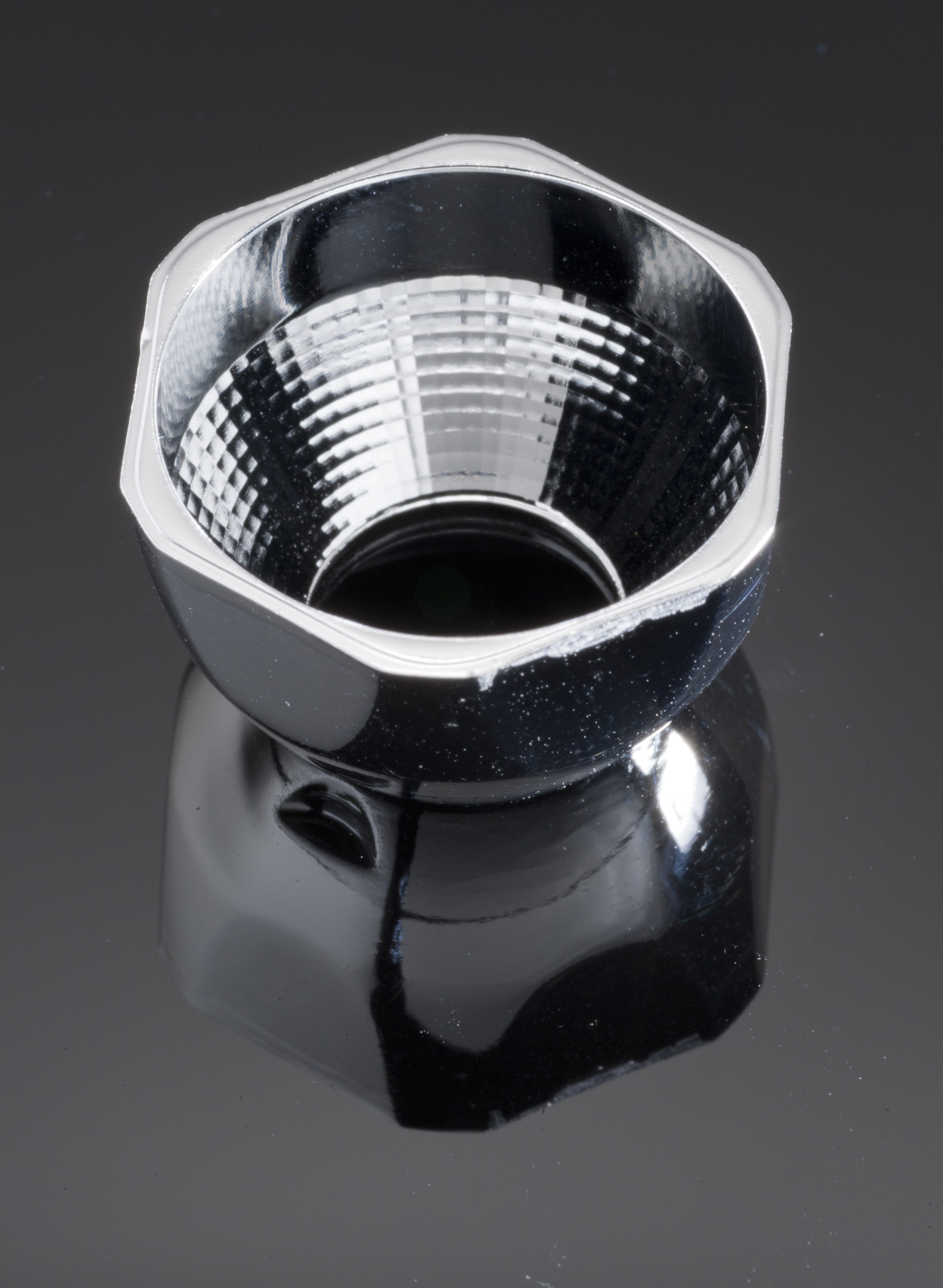

C13557_BRIDGET-S-UNI
Print
~25° spot beam
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

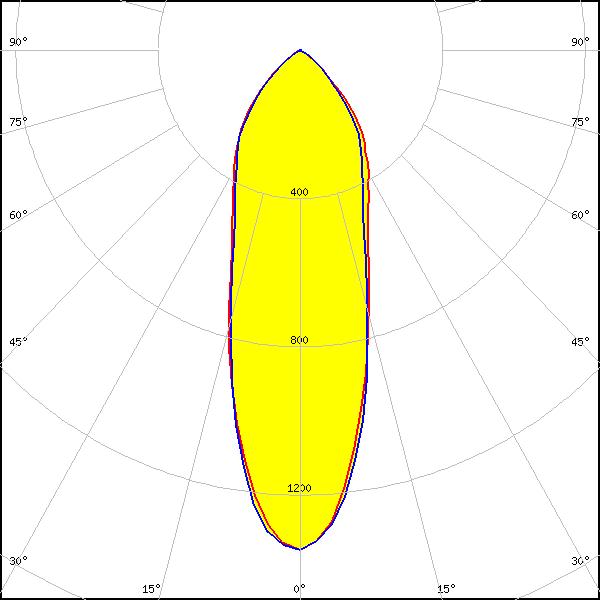

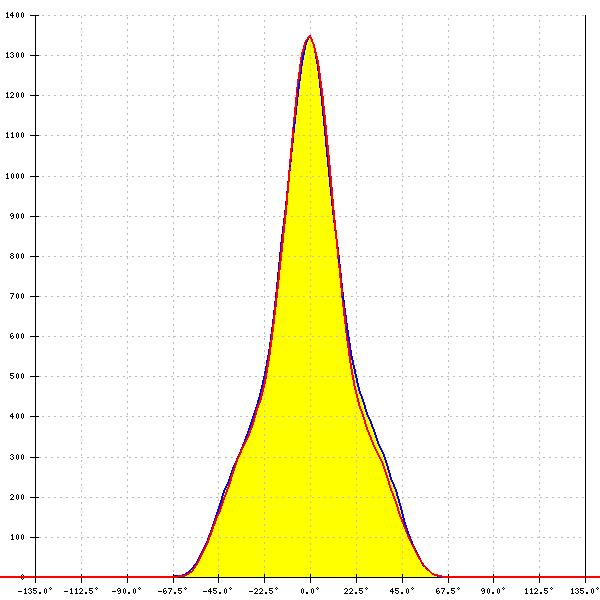

LED:
BXRA ES Star
LES size: 9.0 mm
FWHM:
35°
FWTM:
94°
Peak intensity:
1.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

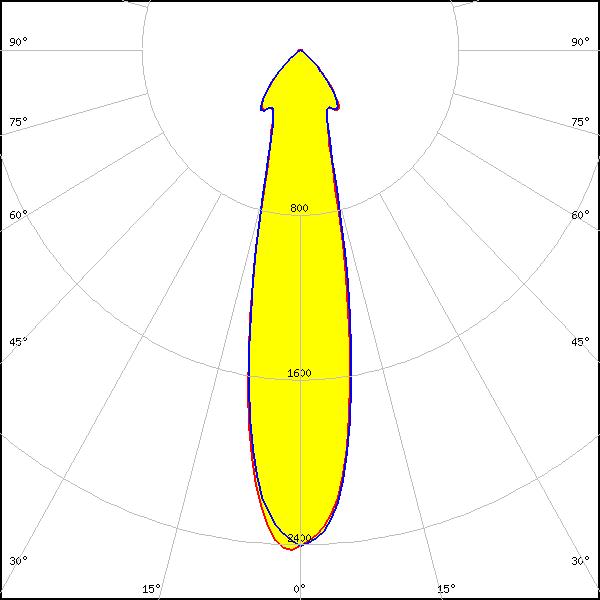

LED:
V4 HD Gen 7
LES size: 5.2 mm
FWHM:
24°
FWTM:
82°
Peak intensity:
2.428 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
FWHM:
22°
FWTM:
82°
Peak intensity:
2.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

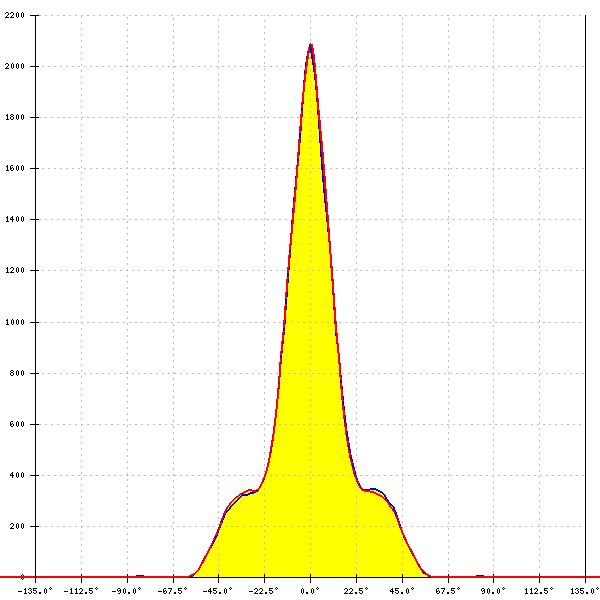

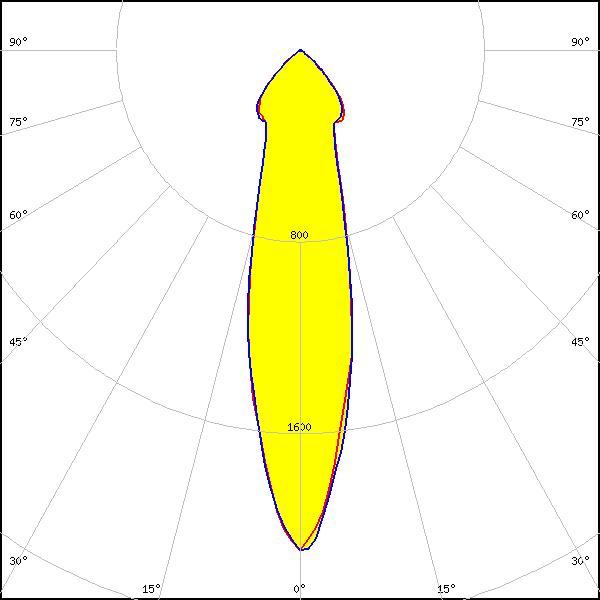

LED:
V6 HD Gen 7
LES size: 7.0 mm
FWHM:
24°
FWTM:
88°
Peak intensity:
2.090 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

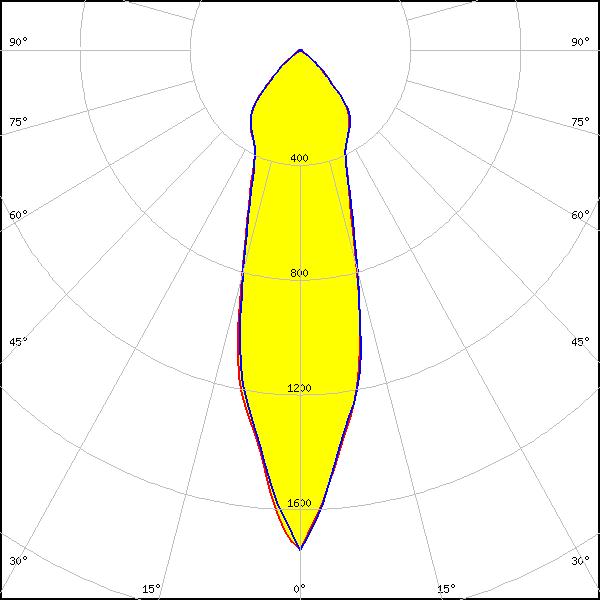

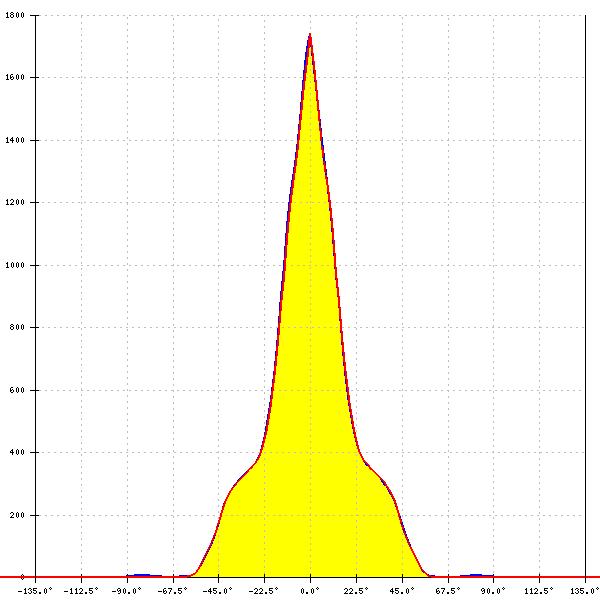

LED:
Vesta DTW 6mm
LES size: 6.8 mm
FWHM:
28°
FWTM:
90°
Peak intensity:
1.742 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

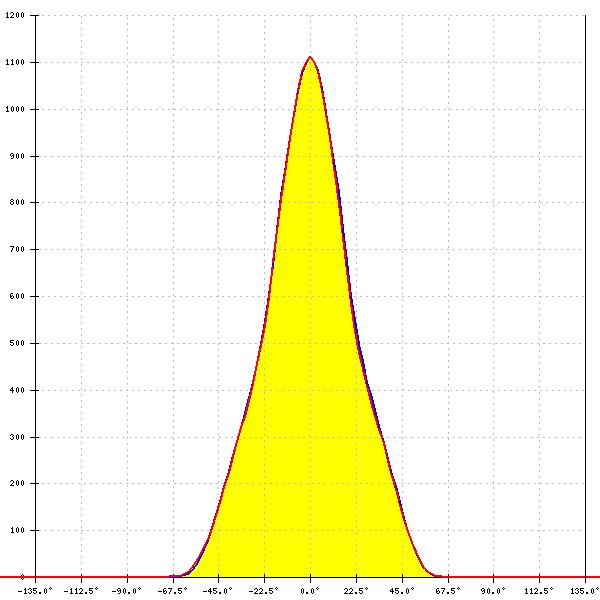

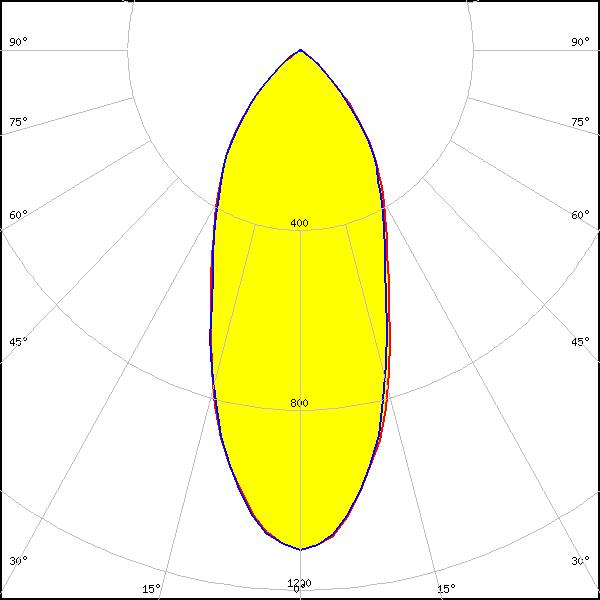

LED:
CLU02x (LES10)
LES size: 9.8 mm
FWHM:
44°
FWTM:
95°
Peak intensity:
1.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

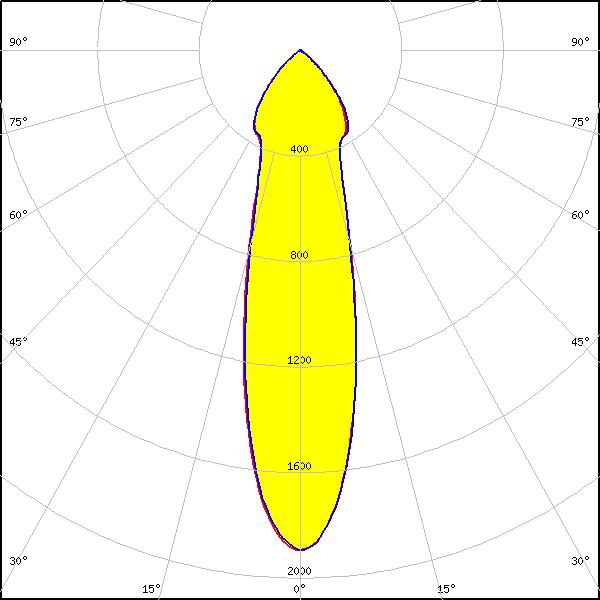

LED:
CLU700/701/702/703
LES size: 6.0 mm
FWHM:
26°
FWTM:
85°
Peak intensity:
1.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

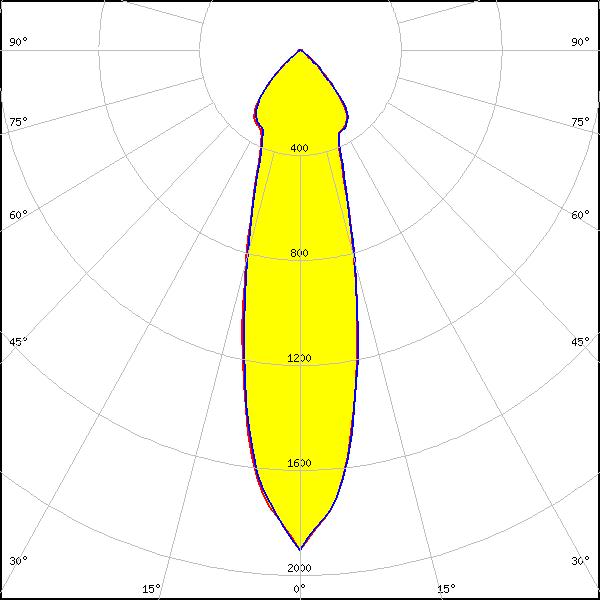

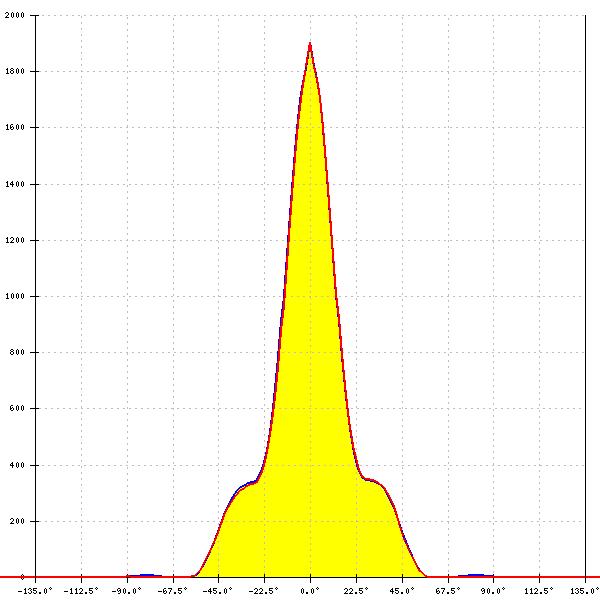

LED:
CMA1306
LES size: 6.0 mm
FWHM:
28°
FWTM:
88°
Peak intensity:
1.905 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

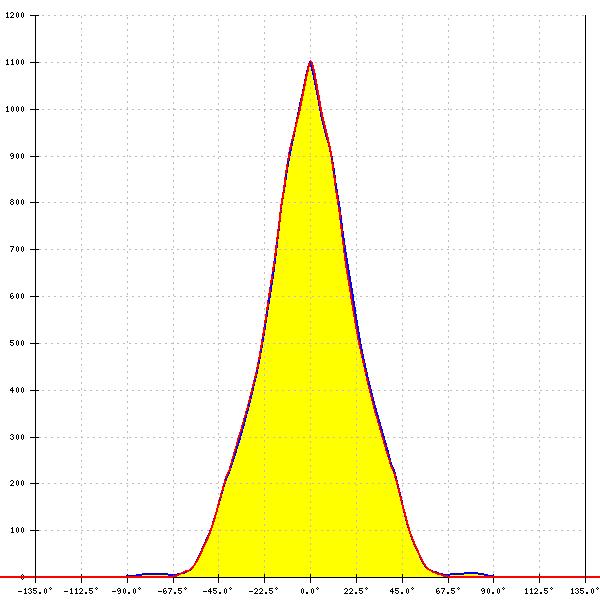

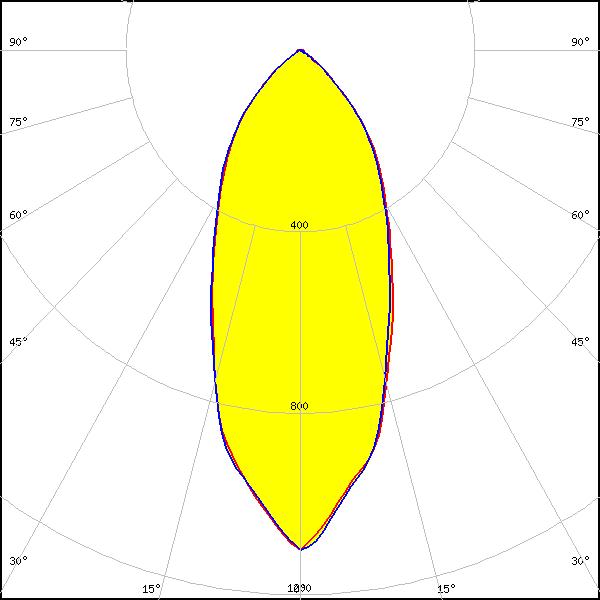

LED:
CMT14xx
LES size: 9.8 mm
FWHM:
44°
FWTM:
96°
Peak intensity:
1.102 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

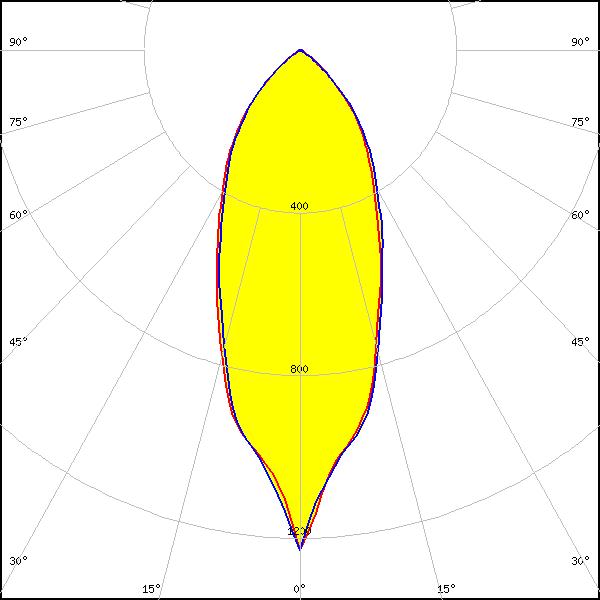

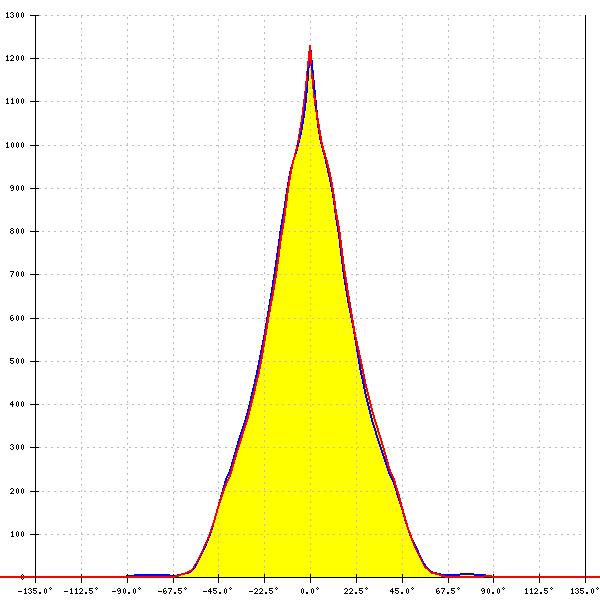

LED:
CMU10xx
LES size: 9.8 mm
FWHM:
40°
FWTM:
95°
Peak intensity:
1.230 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

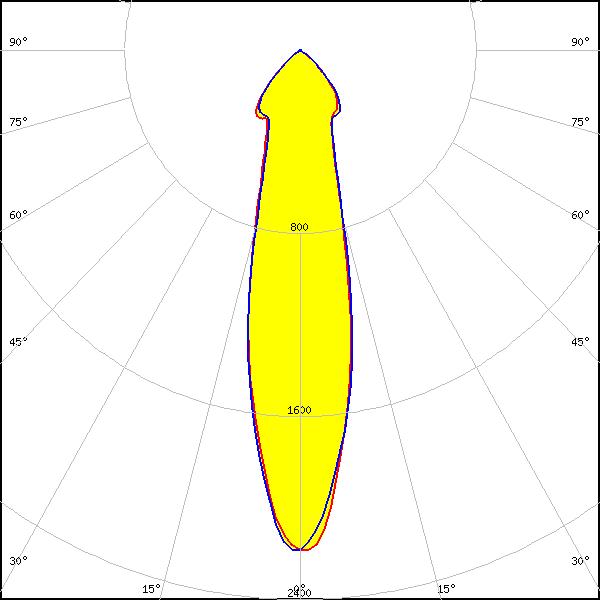

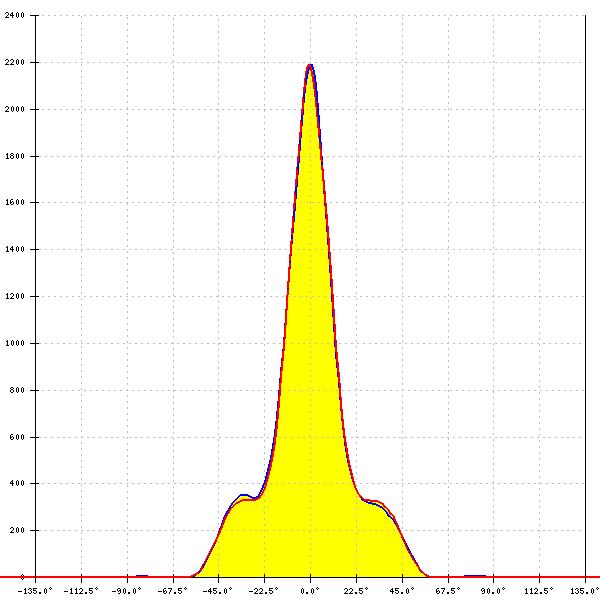

LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
24°
FWTM:
86°
Peak intensity:
2.220 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

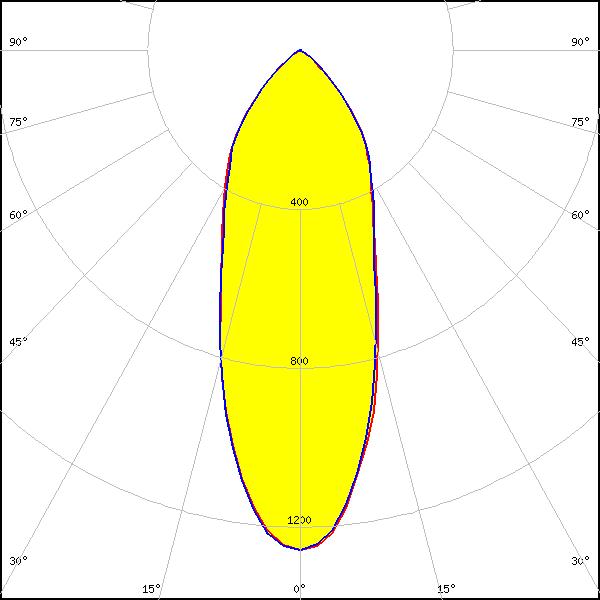

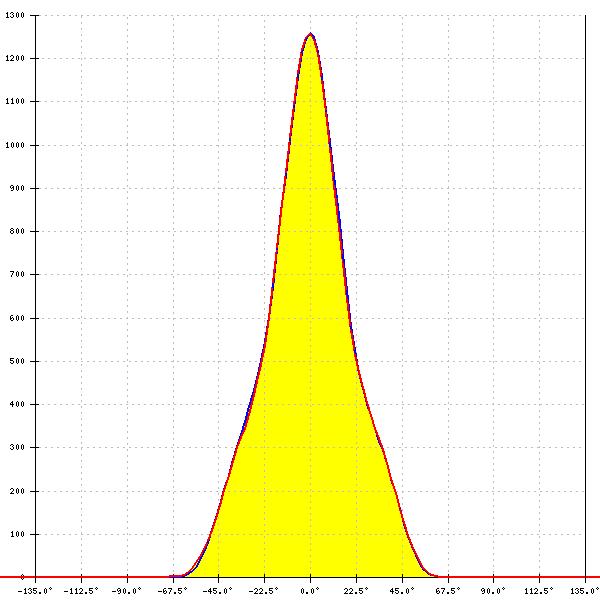

LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
39°
FWTM:
94°
Peak intensity:
1.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

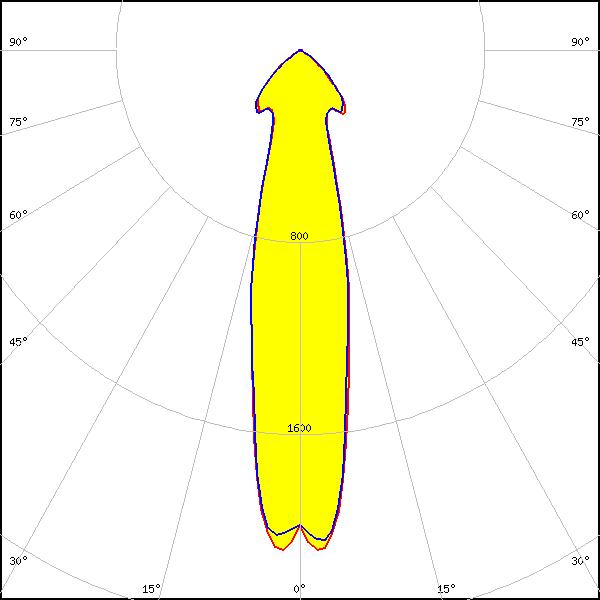

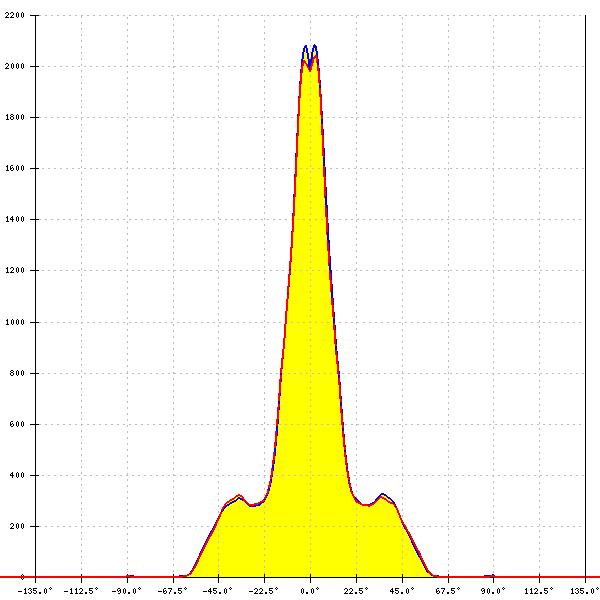

LED:
XHP50
LES size: 0.0 mm
FWHM:
24°
FWTM:
92°
Peak intensity:
2.116 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

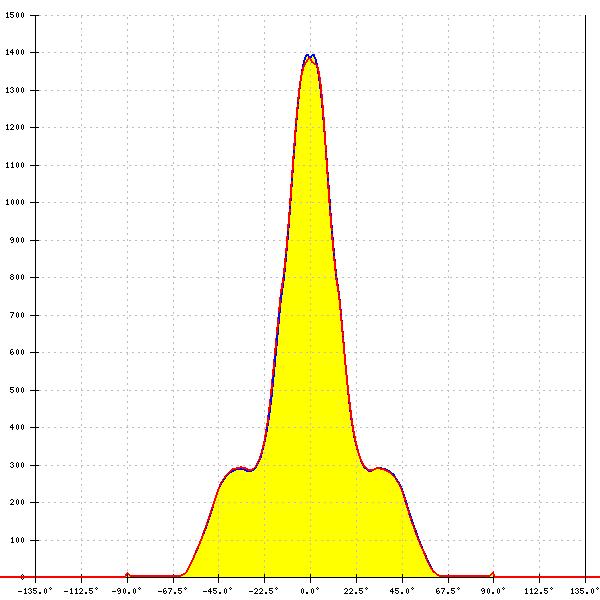

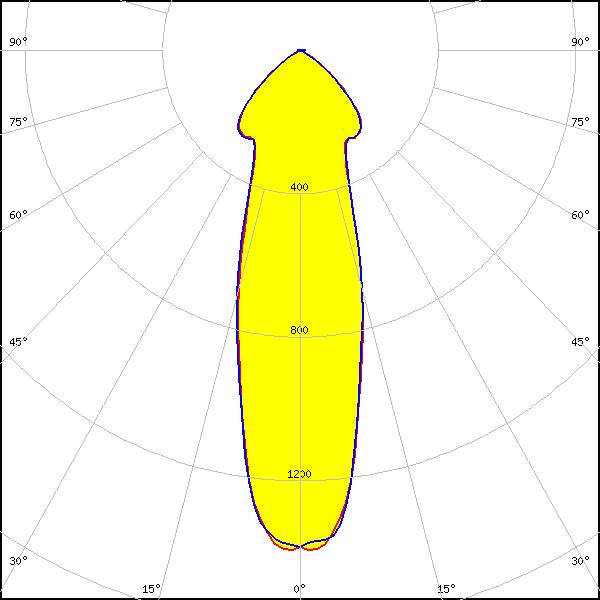

LED:
XHP70.3 HD
LES size: 0.0 mm
FWHM:
30°
FWTM:
102°
Peak intensity:
1.413 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

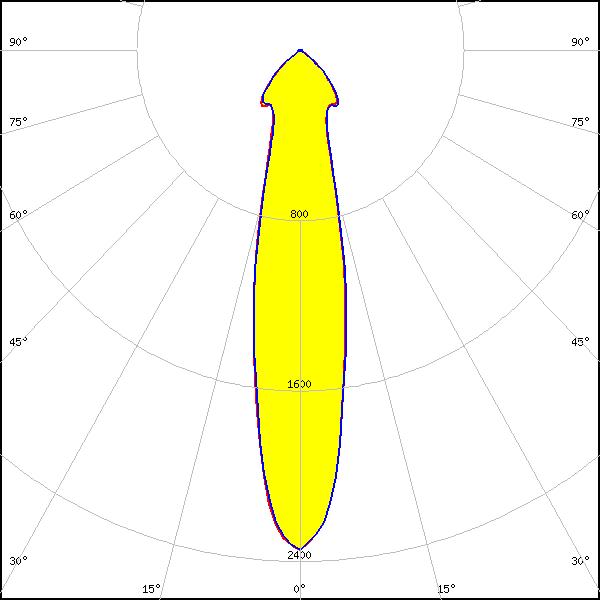

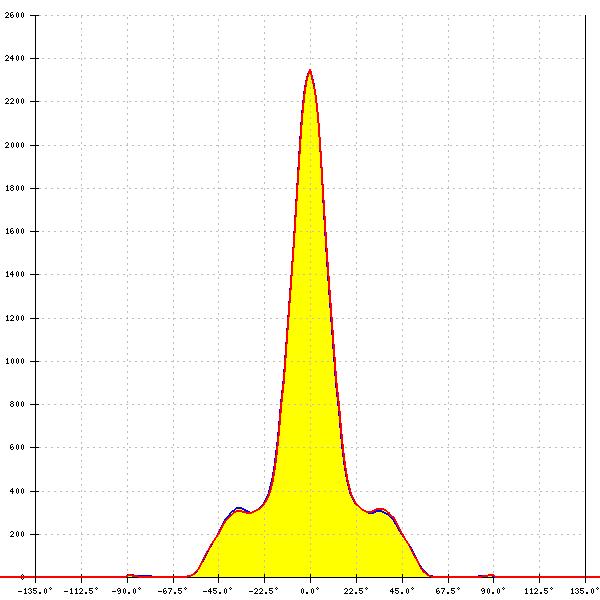

LED:
XHP70.3 HI
LES size: 0.0 mm
FWHM:
22°
FWTM:
86°
Peak intensity:
2.348 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HI
LES size: 0.0 mm
FWHM:
14°
FWTM:
29°
Peak intensity:
5.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

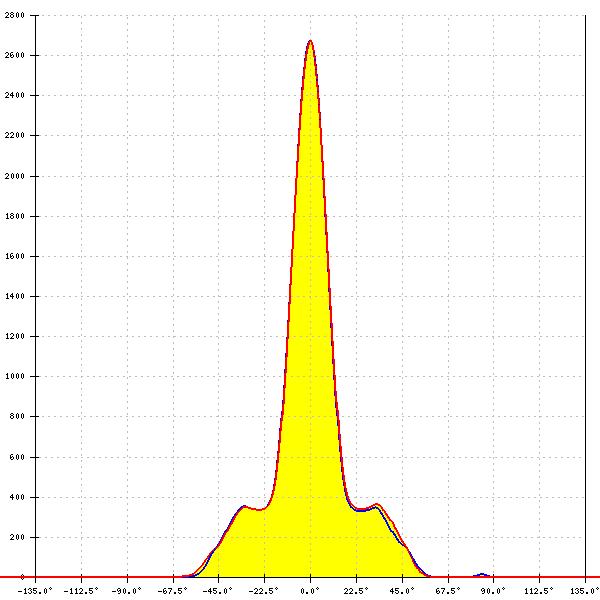

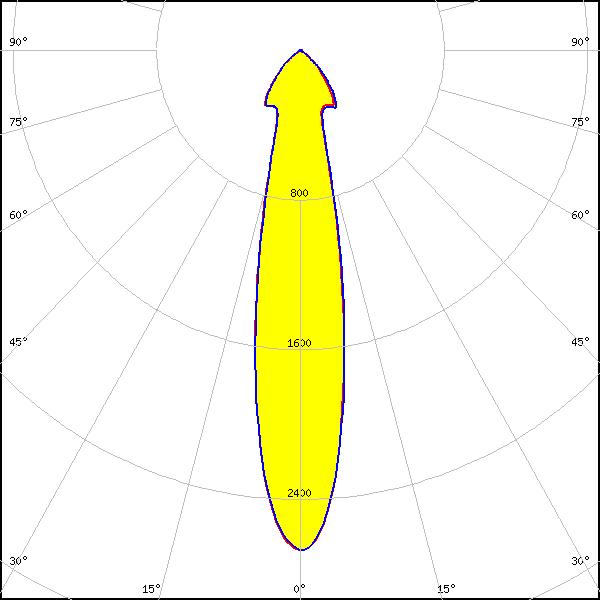

LED:
LUXEON 5050 Round LES
LES size: 0.0 mm
FWHM:
21°
FWTM:
78°
Peak intensity:
2.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

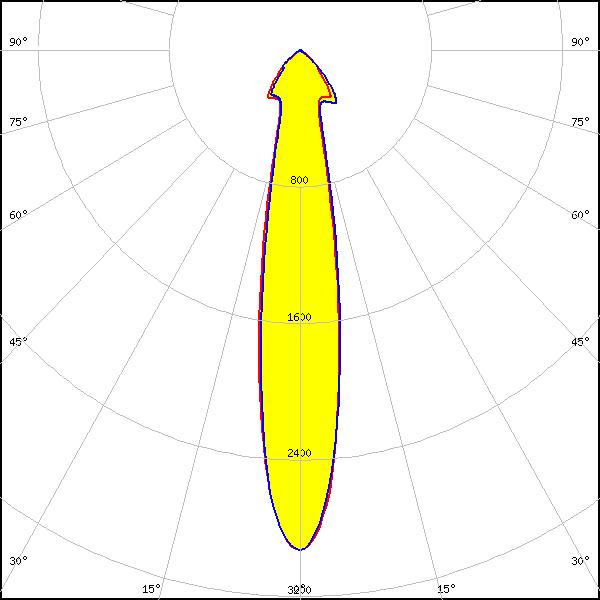

LED:
LUXEON V
LES size: 0.0 mm
FWHM:
19°
FWTM:
76°
Peak intensity:
2.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

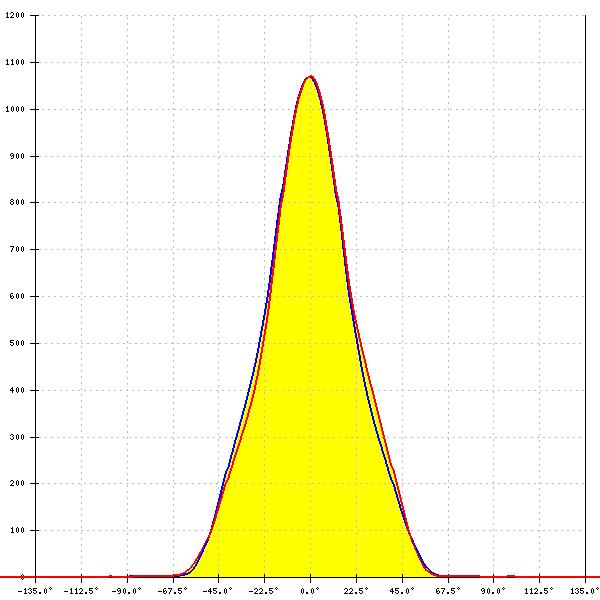

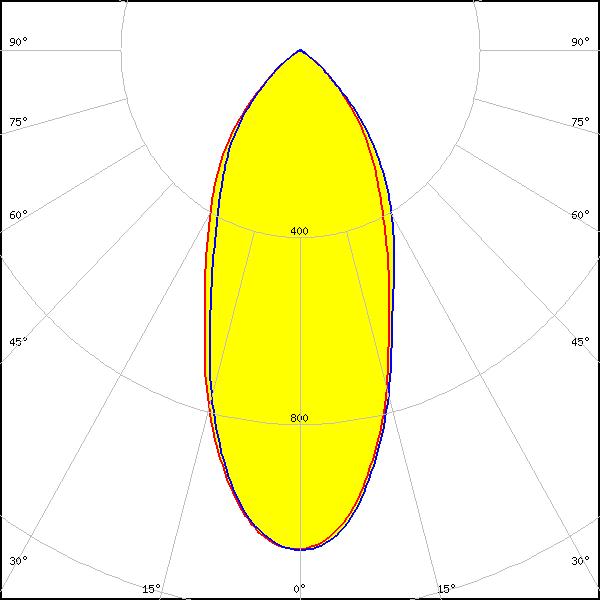

LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
FWHM:
45°
FWTM:
96°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

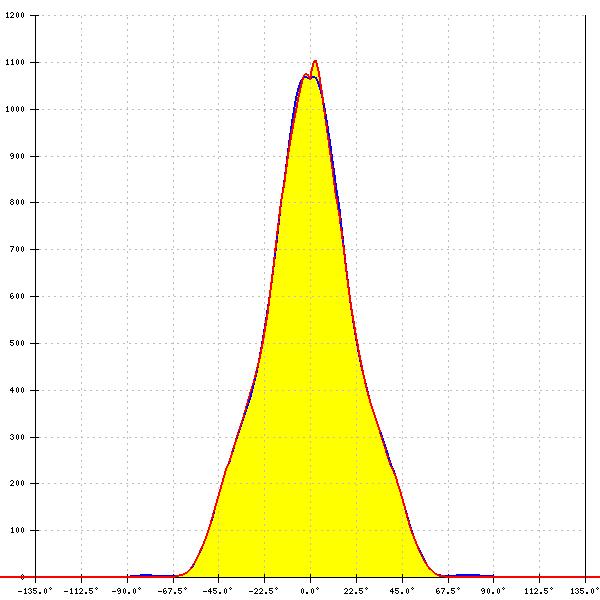

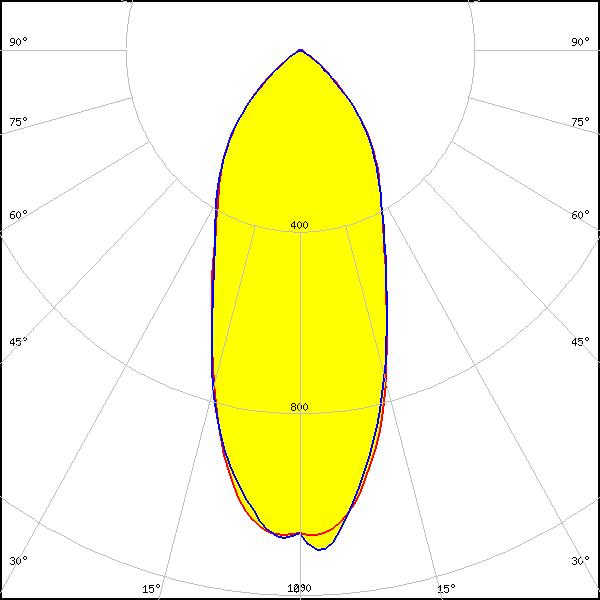

LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
42°
FWTM:
98°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
FWHM:
44°
FWTM:
95°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

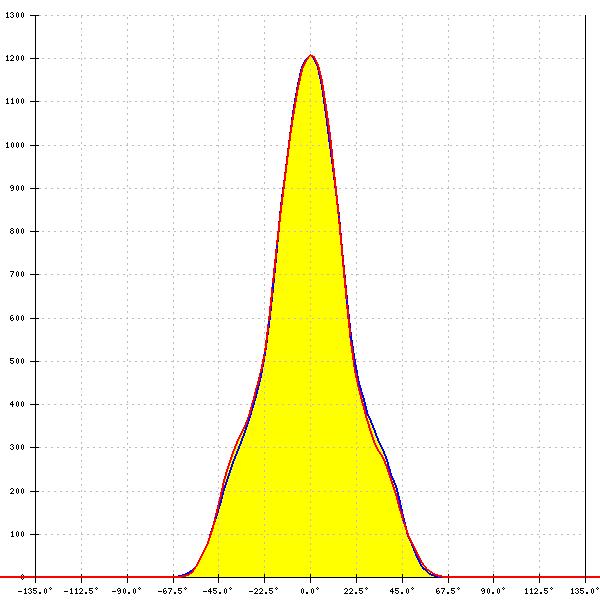

LED:
Mini Zenigata (GW5BM)
LES size: 10.0 mm
FWHM:
42°
FWTM:
95°
Peak intensity:
1.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
