C13600_CUTE-3-WW

Print

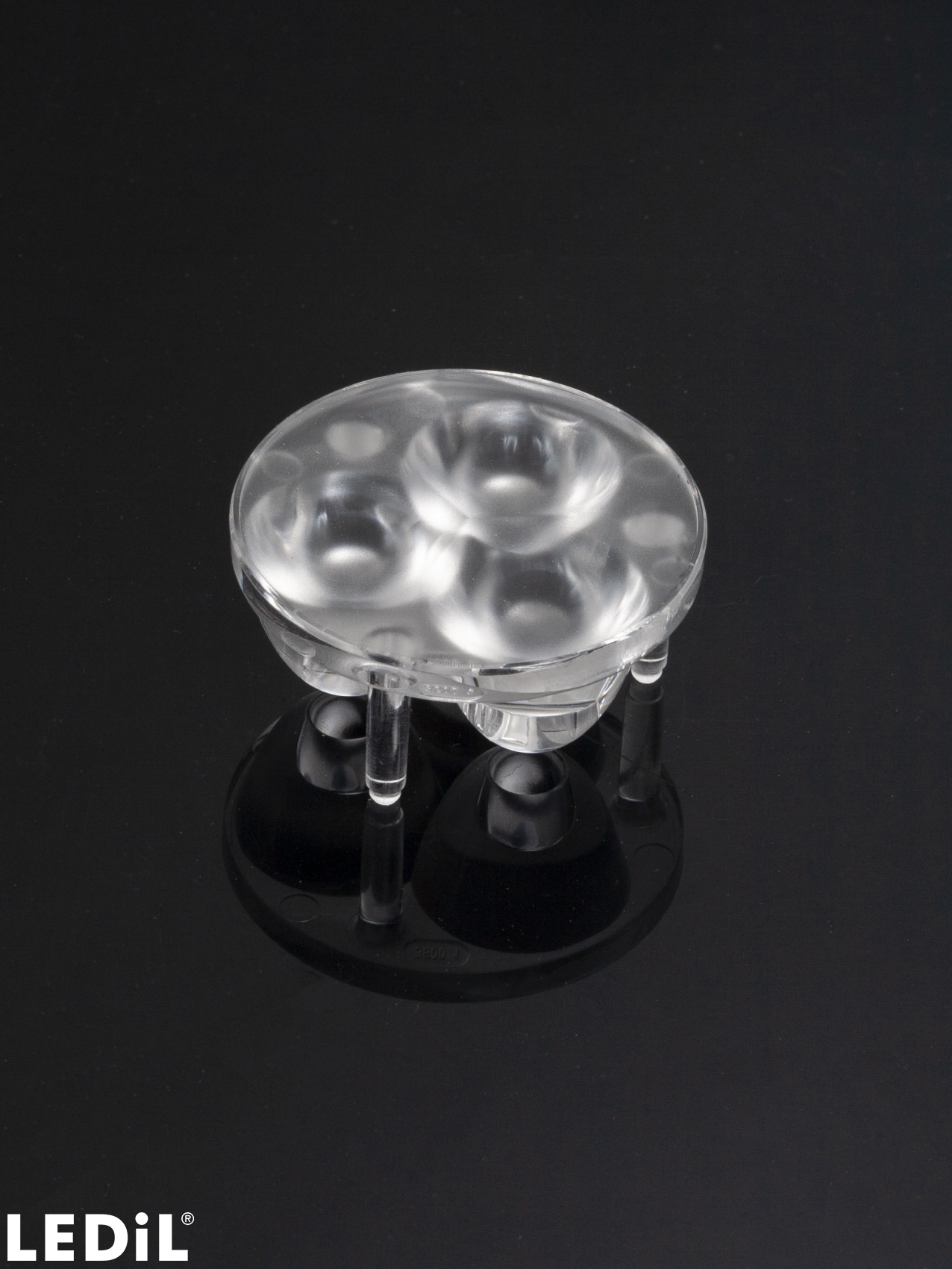

~60° wide beam with 1.5 mm high location pins. Optimized for CREE XR-E.

Specification
  • Dimensions:
    35 mm
  • Height:
    15.00 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    630 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.7 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 60 mm
  • MOQ weight:
    1.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13600_CUTE-3-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Location pin height 1.5mm

Optical results

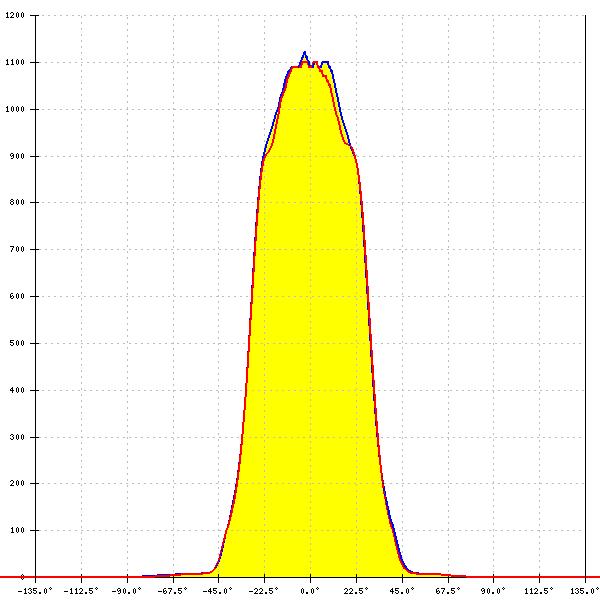

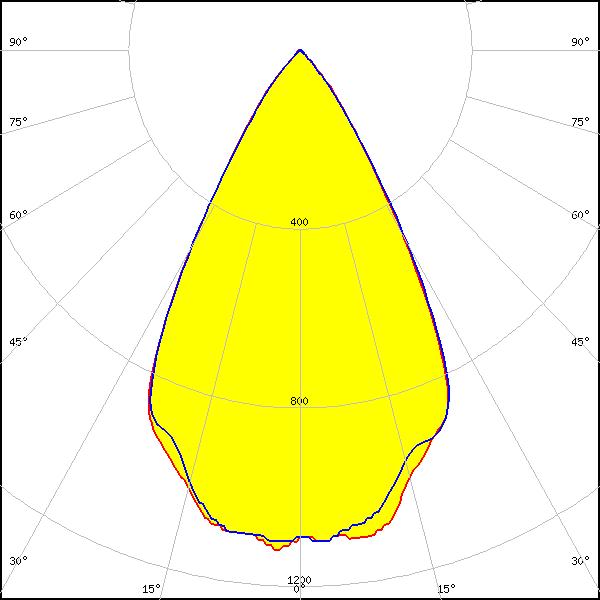

LED: XP-G
FWHM: 58°
FWTM: 80°
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

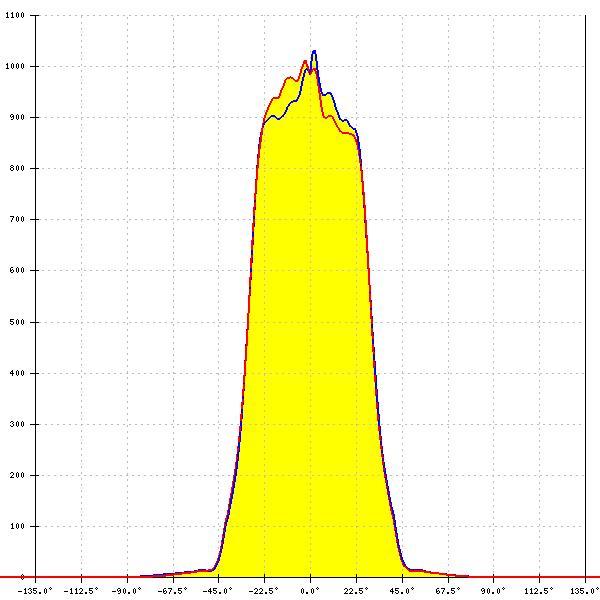

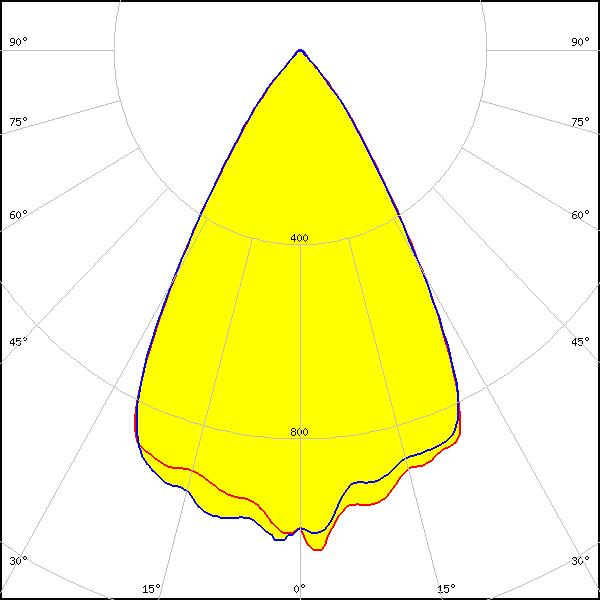

LED: XP-G2
FWHM: 60°
FWTM: 83°
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

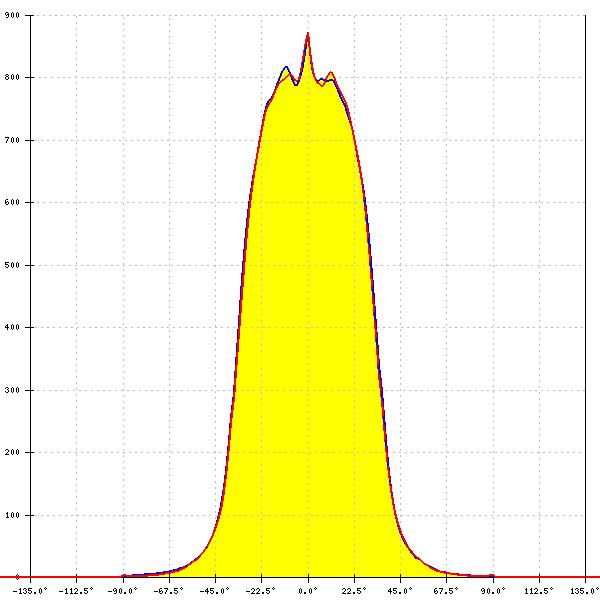

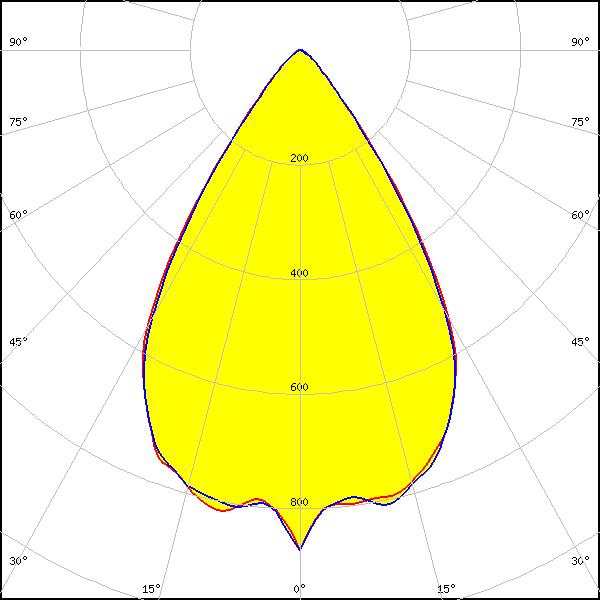

LED: XP-G3
FWHM: 65°
FWTM: 88°
Peak intensity: 0.872 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

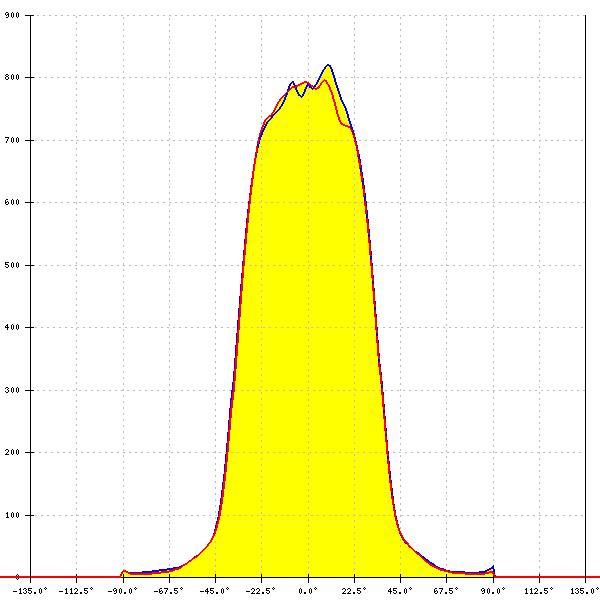

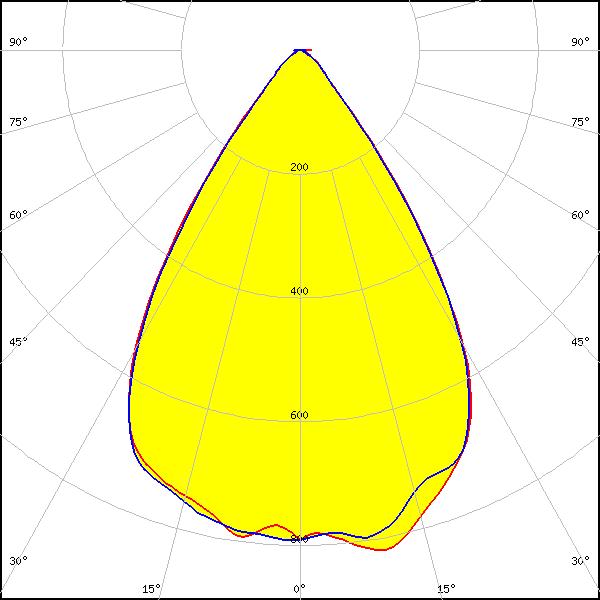

LED: XP-L HD
FWHM: 64°
FWTM: 86°
Peak intensity: 0.840 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

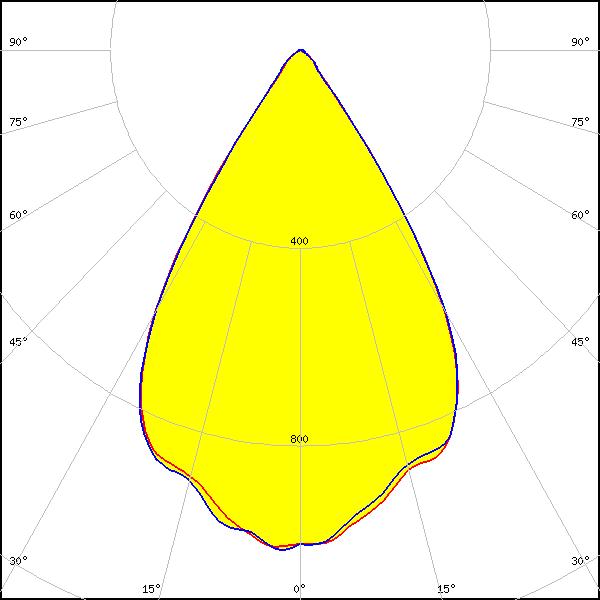

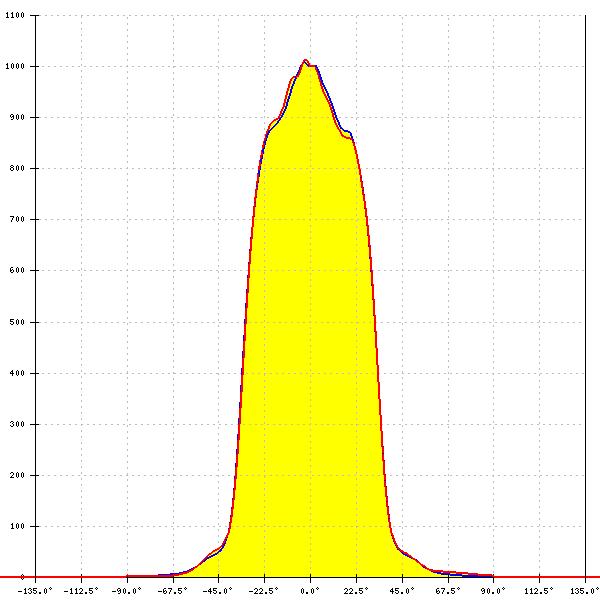

LED: OSLON SSL 150
FWHM: 64°
FWTM: 80°
Peak intensity: 1.016 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
