C13749_HB-2X2-O

Print

~20° + 115° oval beam for aisle lighting

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    10.6 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.4 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13749_HB-2X2-O

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

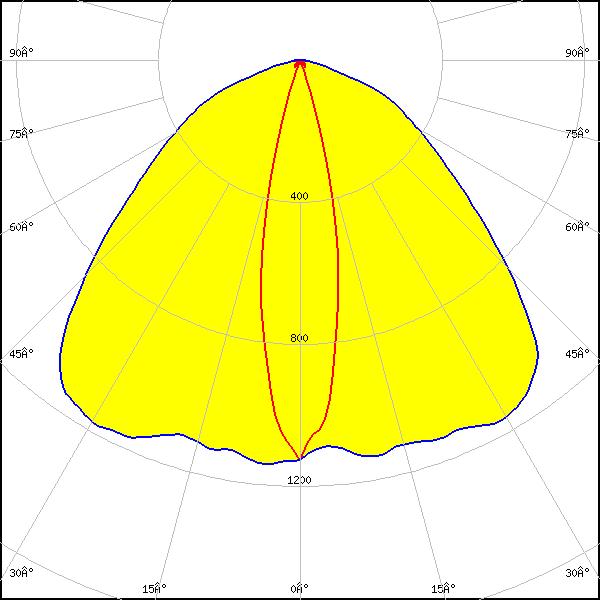

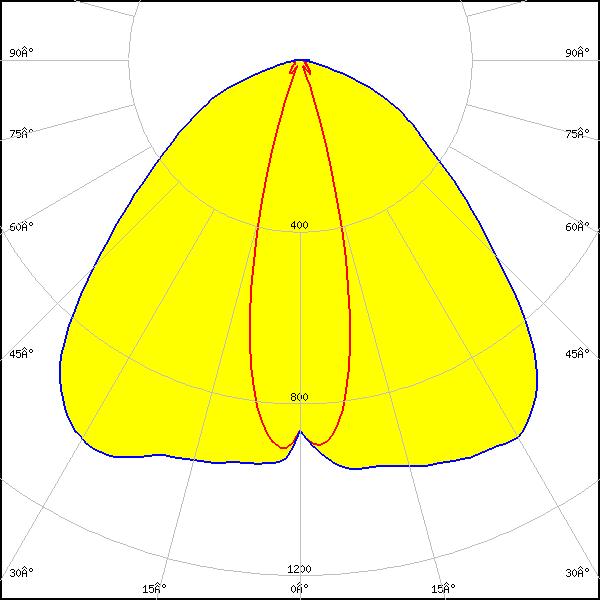

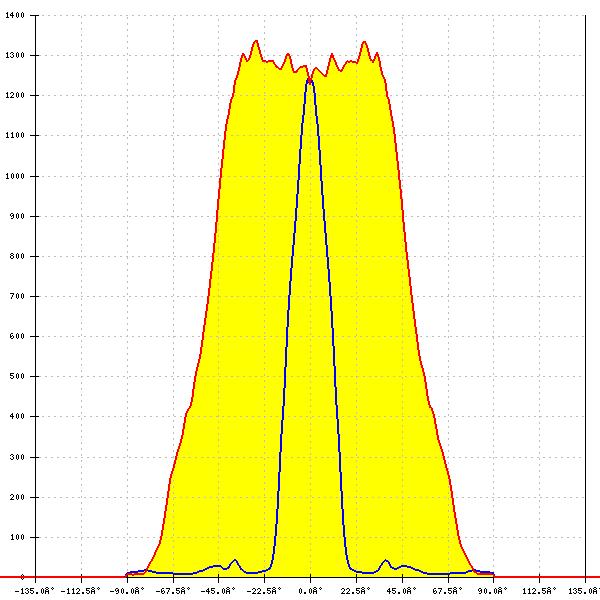

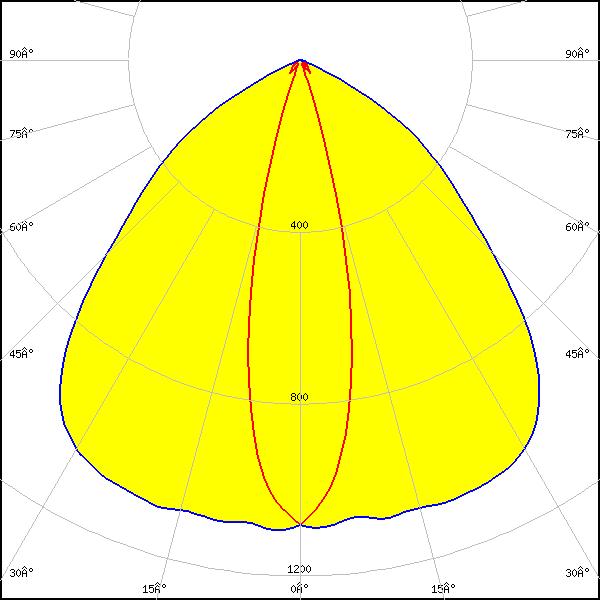

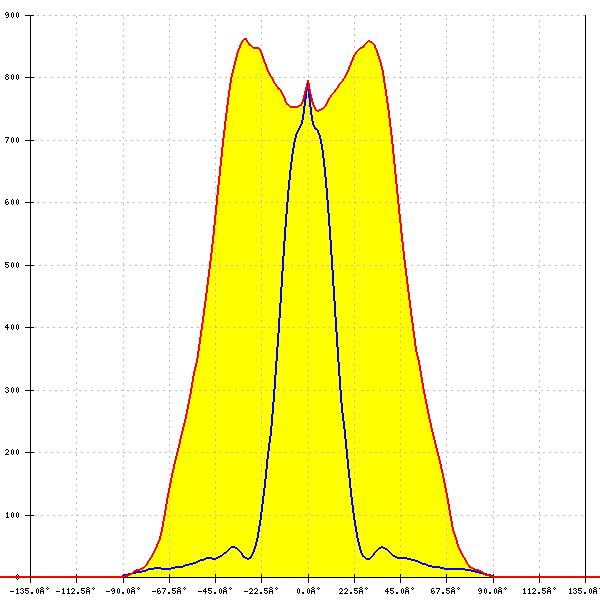

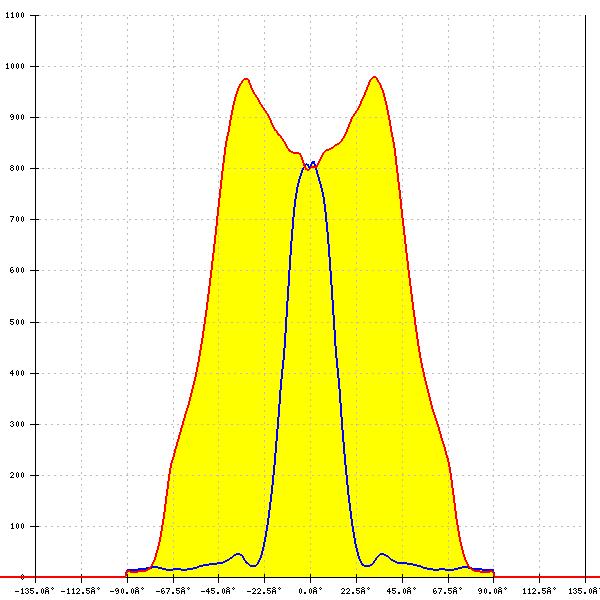

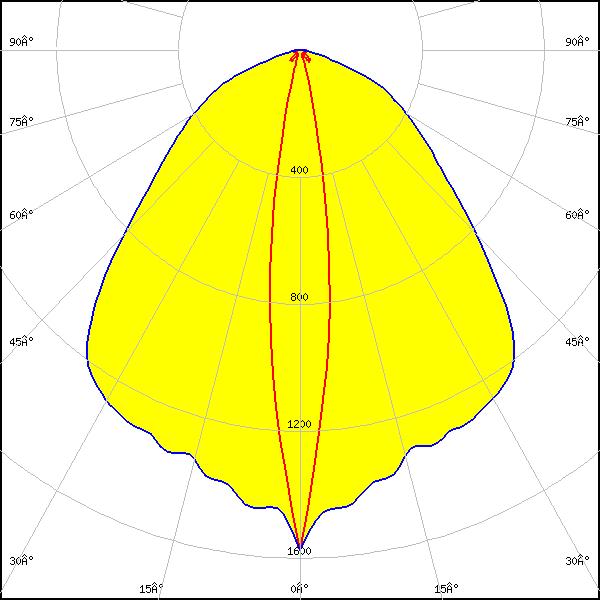

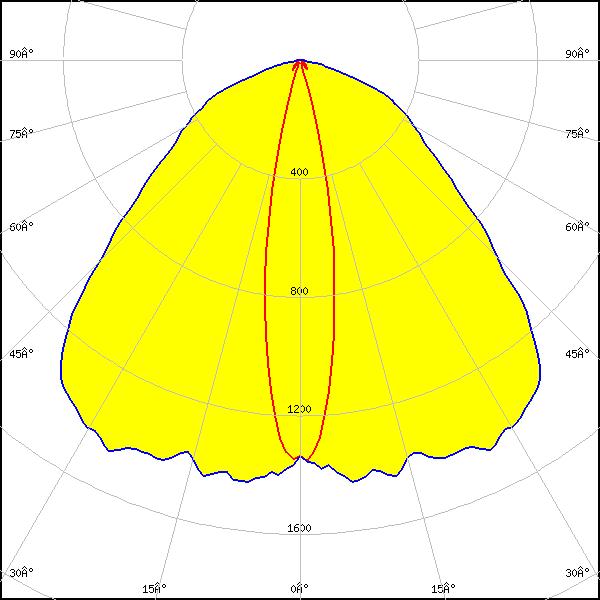

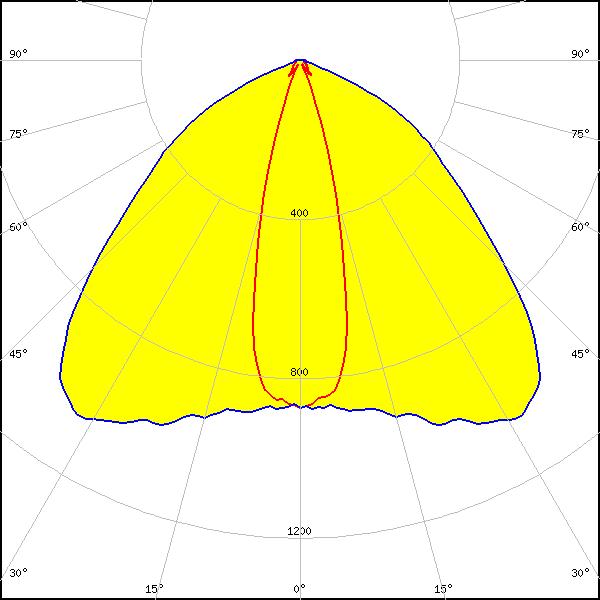

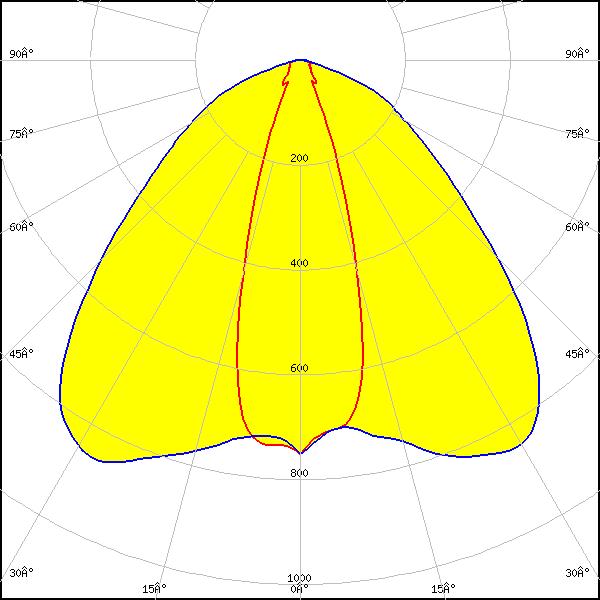

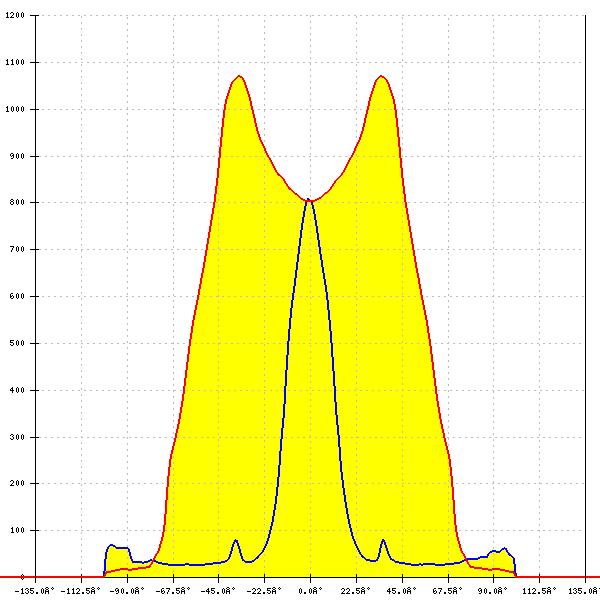

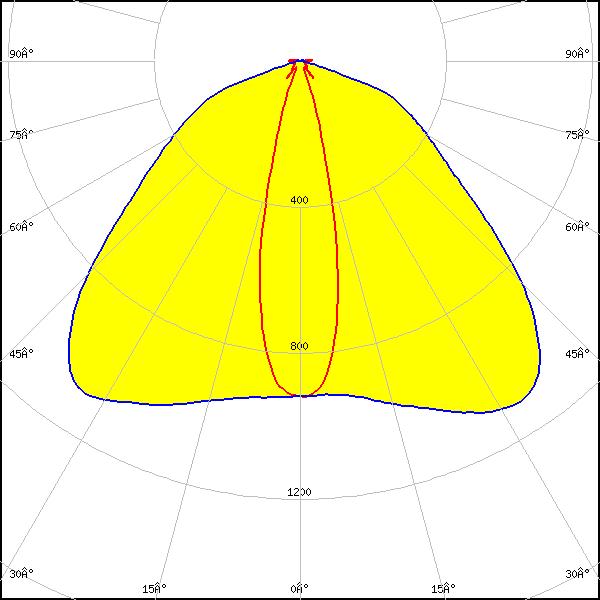

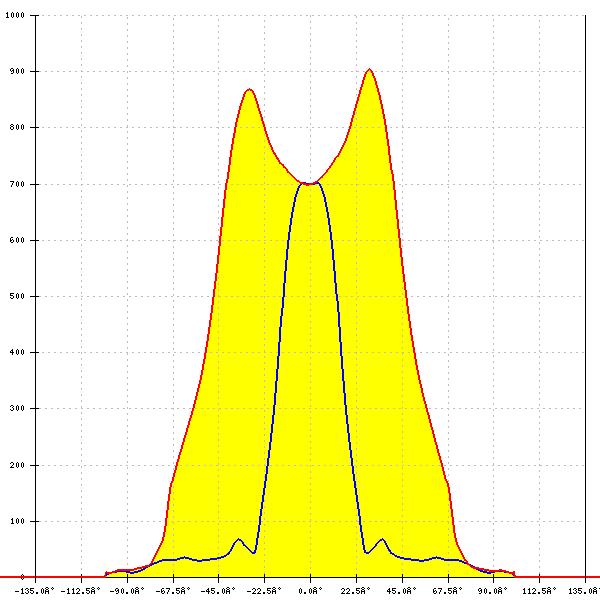

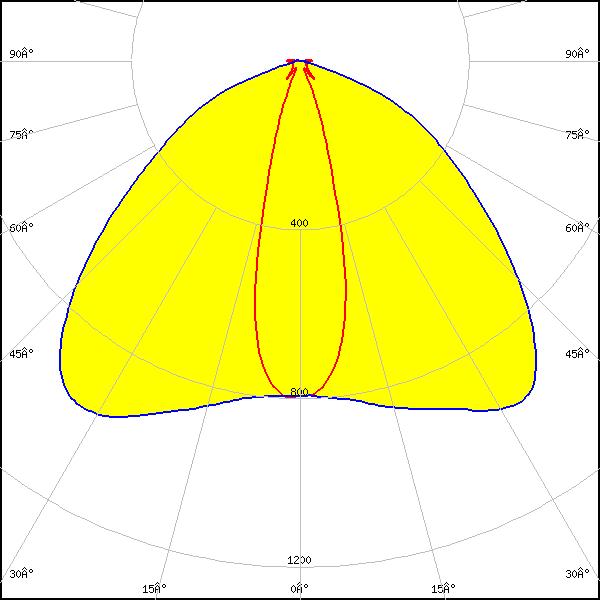

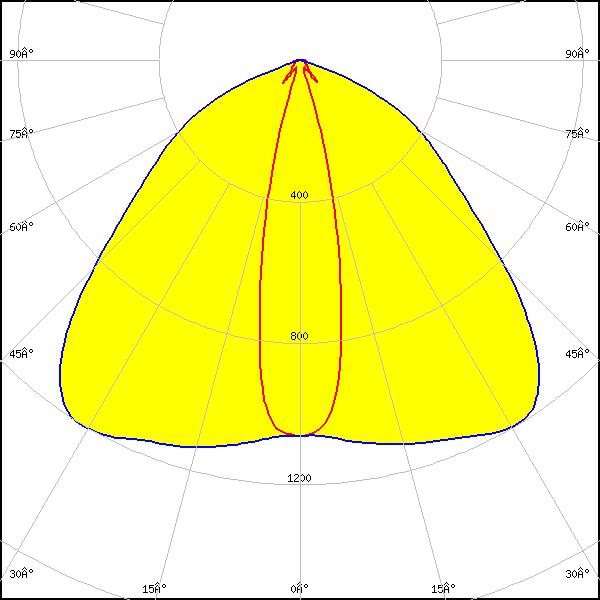

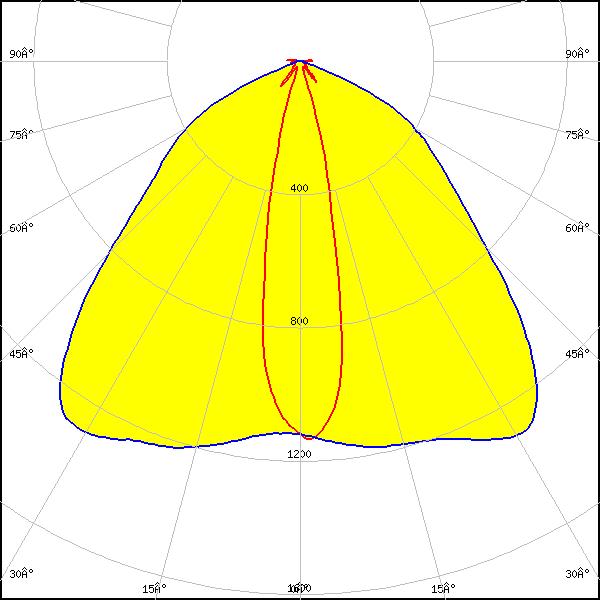

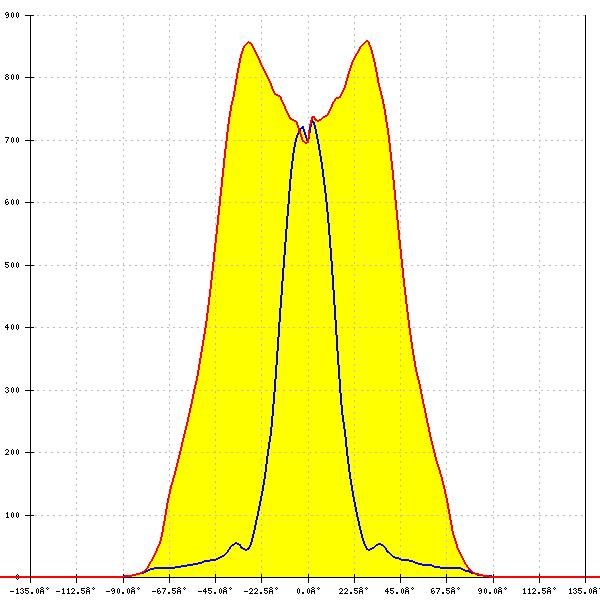

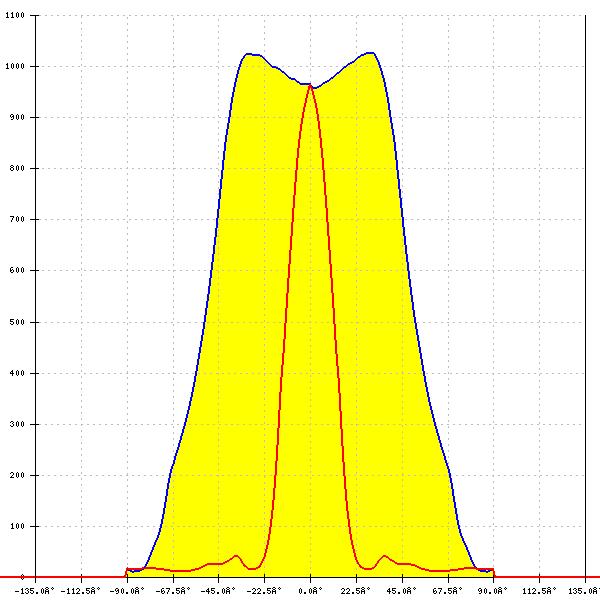

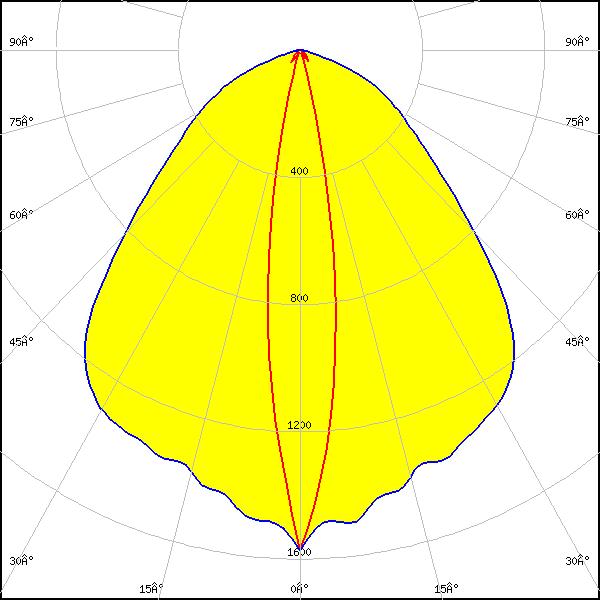

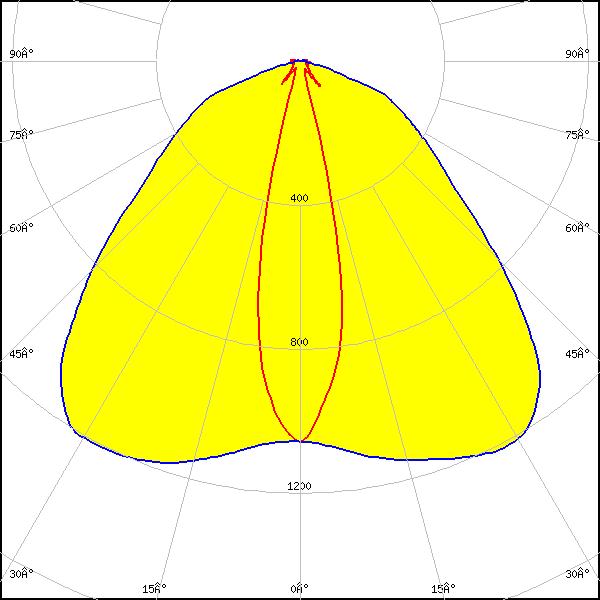

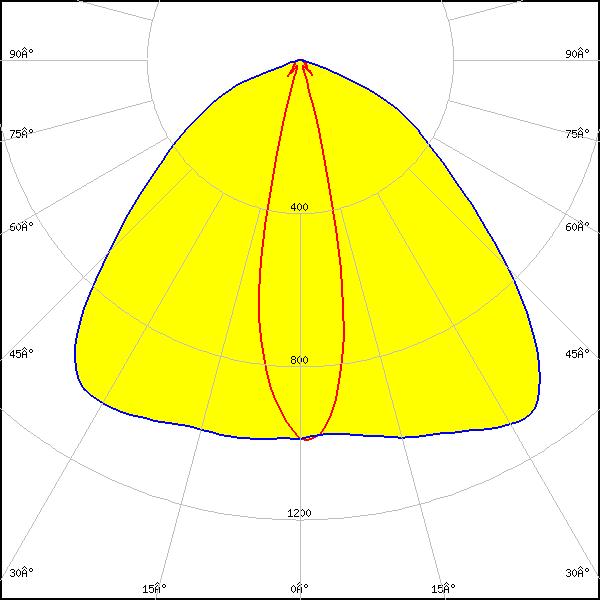

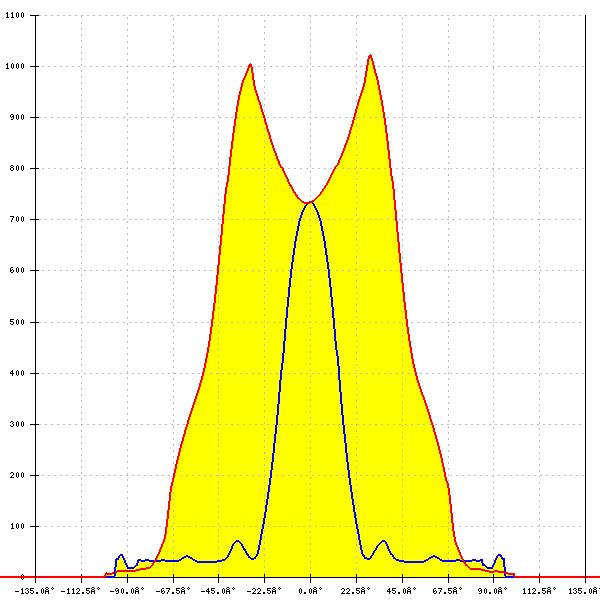

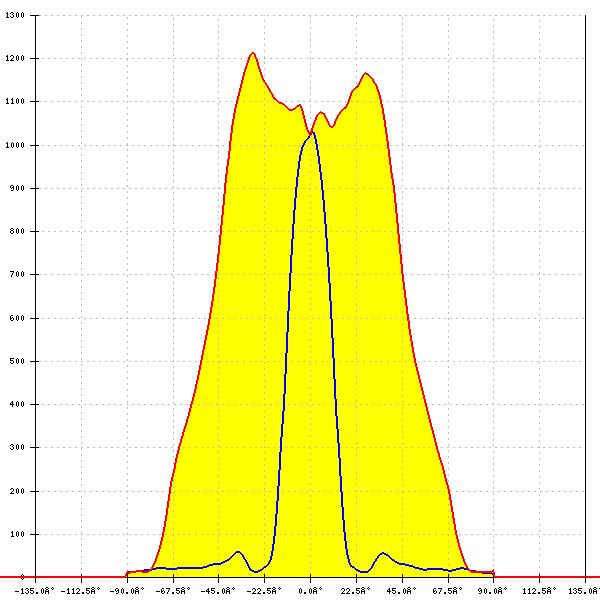

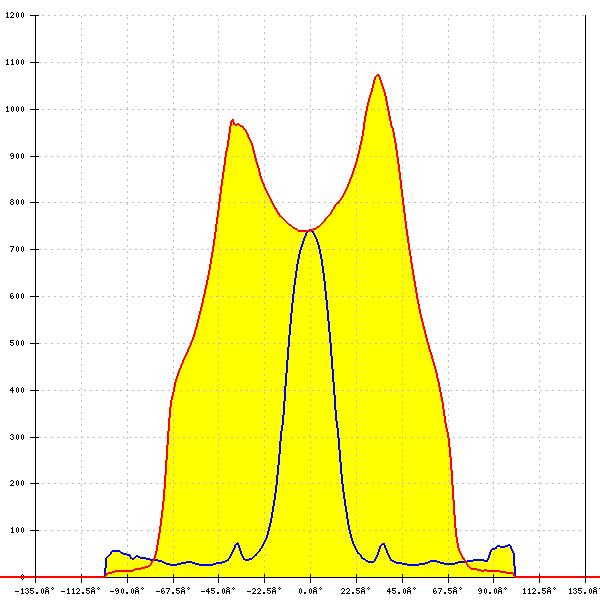

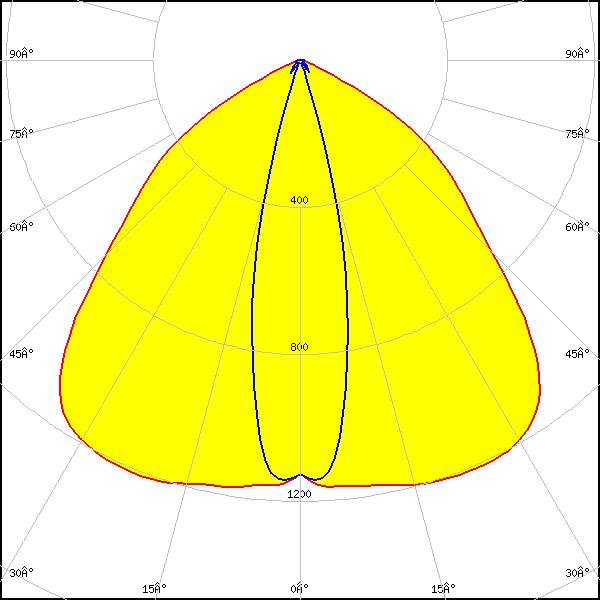

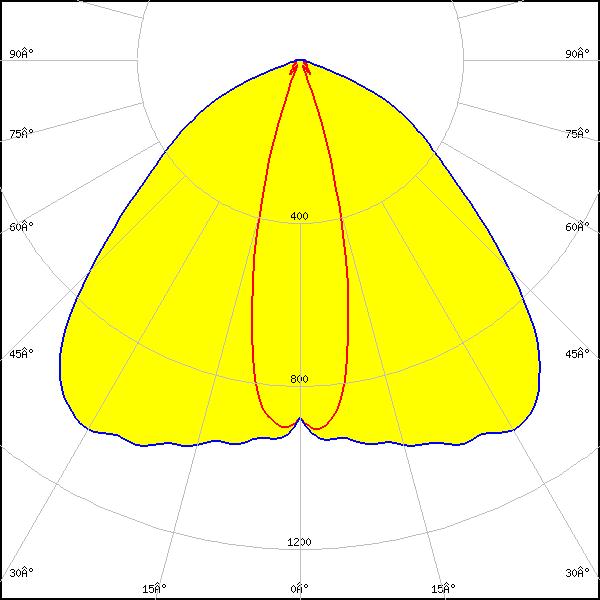

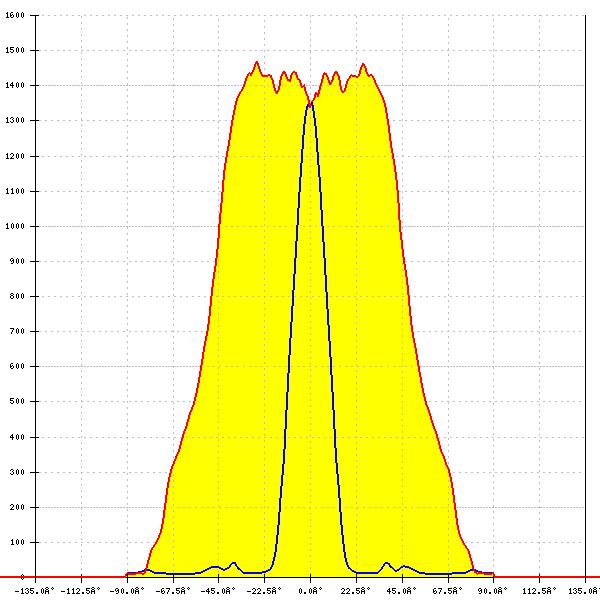

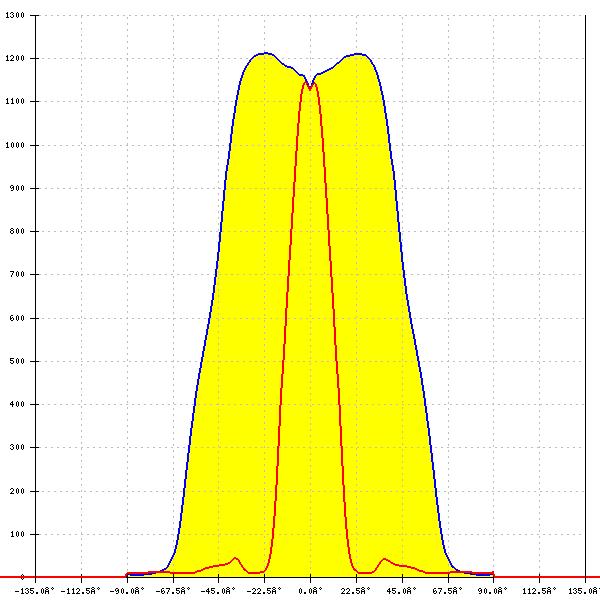

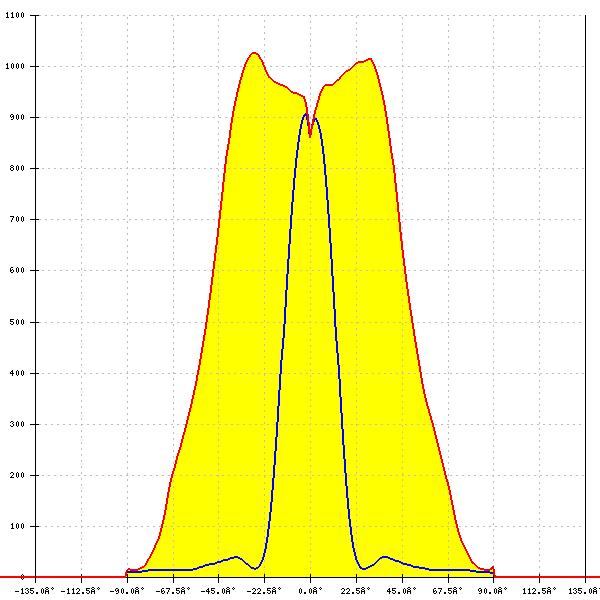

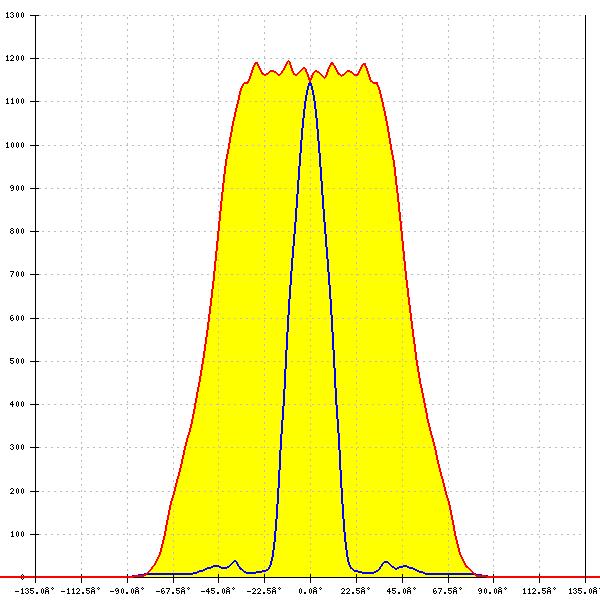

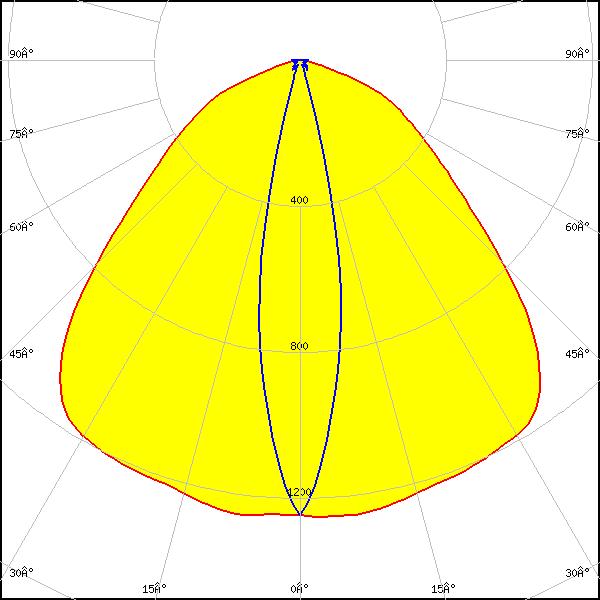

Optical results

LED: QUICK FLUX XTP 2x4 xxx LS G5
FWHM: 21° + 111°
FWTM: 32° + 148°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX XTP 2x6 xxx LS G5
FWHM: 22° + 111°
FWTM: 33° + 149°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

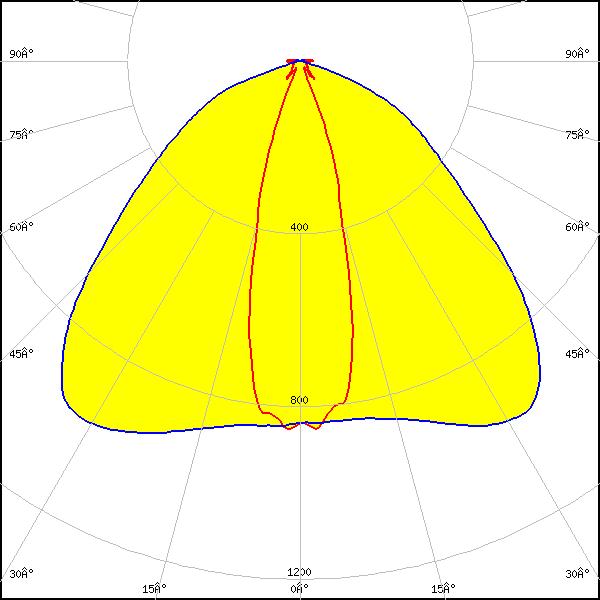

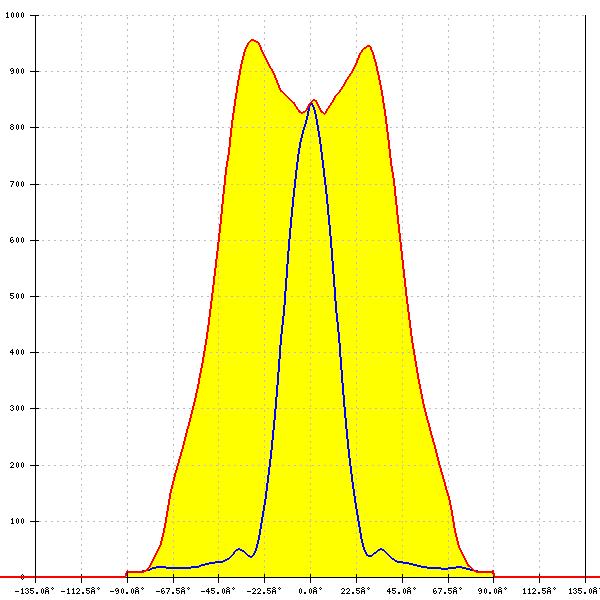

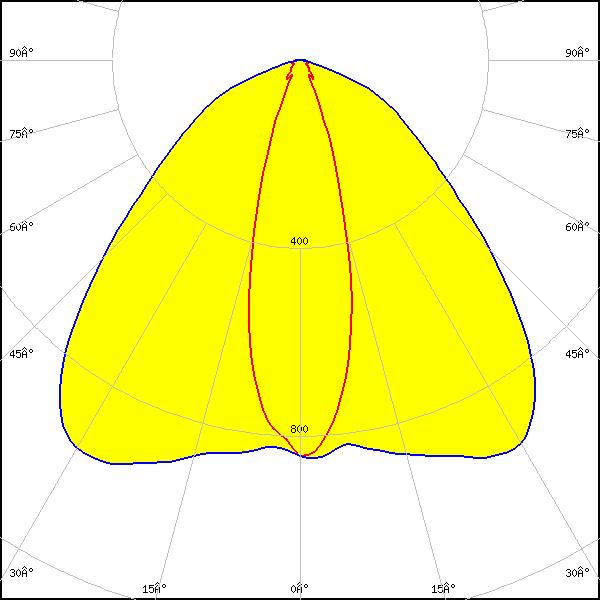

LED: J Series 5050 Round LES
FWHM: 30° + 97°
FWTM: 51° + 141°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

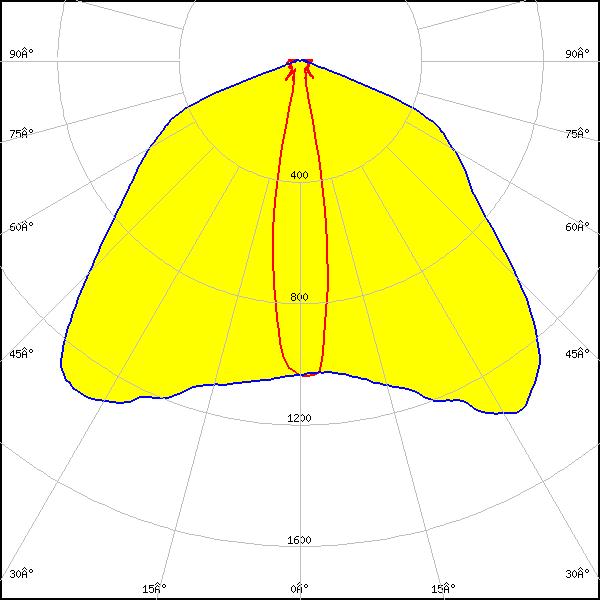

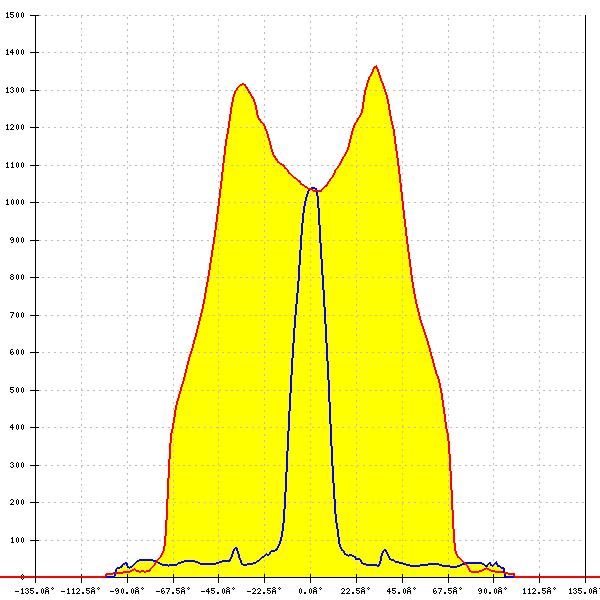

LED: XD16
FWHM: 19° + 127°
FWTM: 28° + 141°
Peak intensity: 1.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XD16
FWHM: 29° + 116°
FWTM: 44° + 141°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour: White

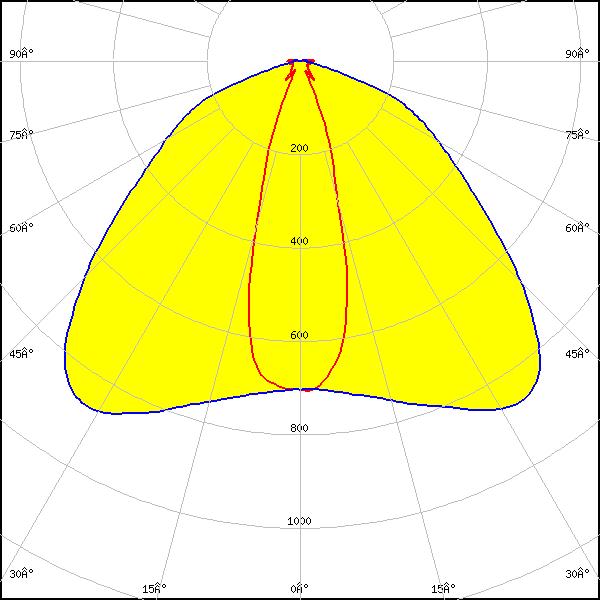

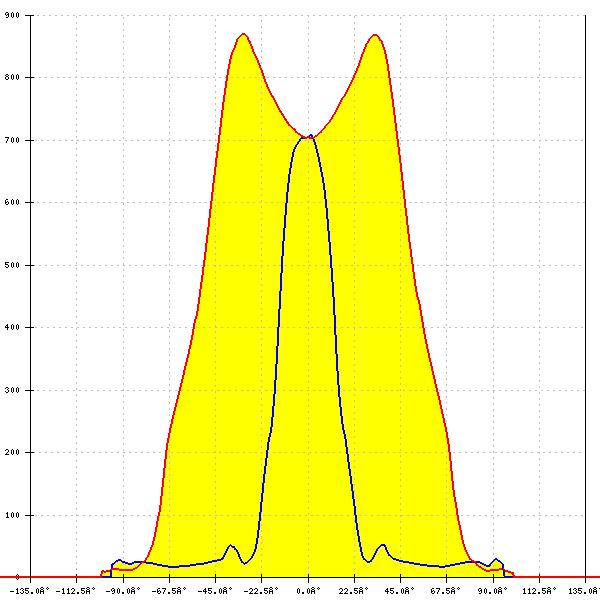

LED: XHP35 HD
FWHM: 29° + 117°
FWTM: 48° + 148°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

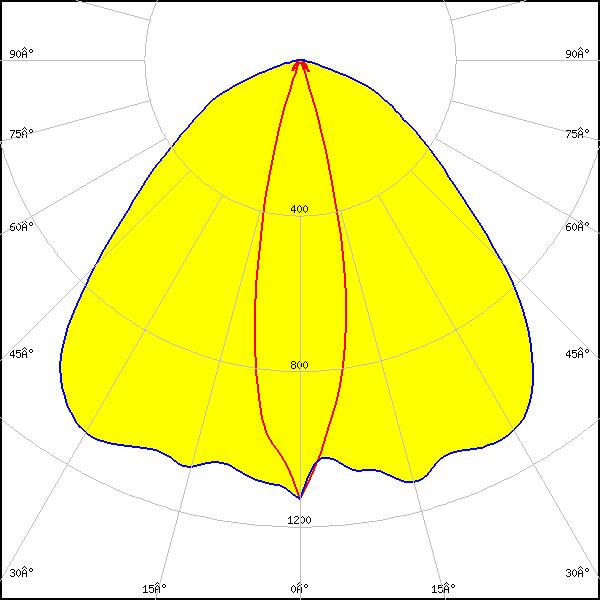

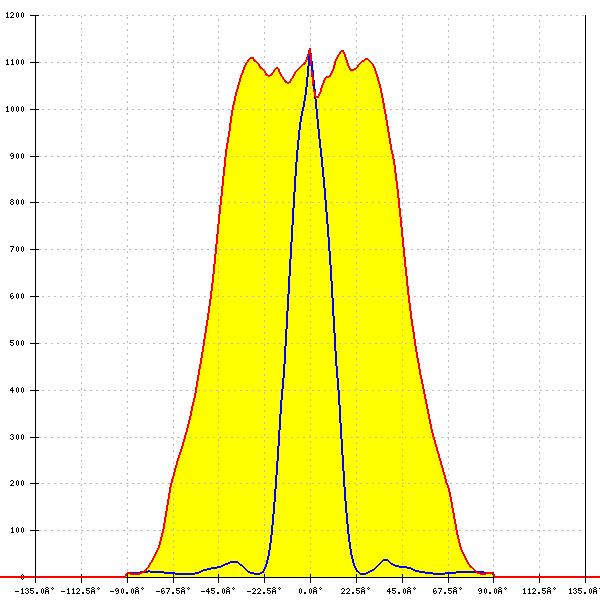

LED: XHP35 HI
FWHM: 101° + 27°
FWTM: 145° + 44°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

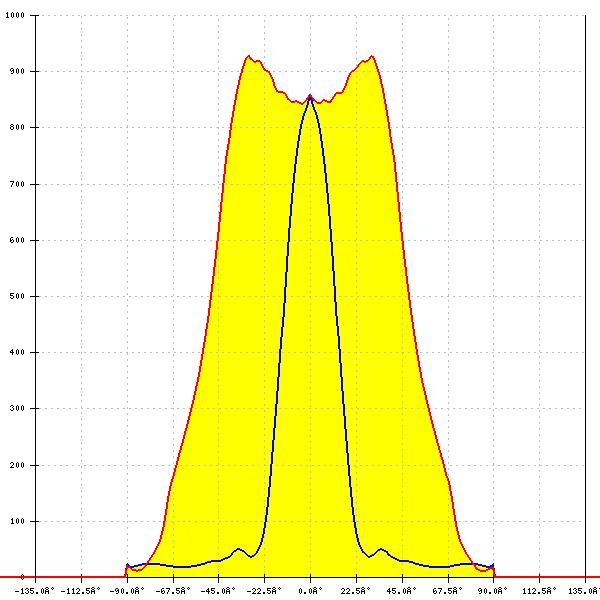

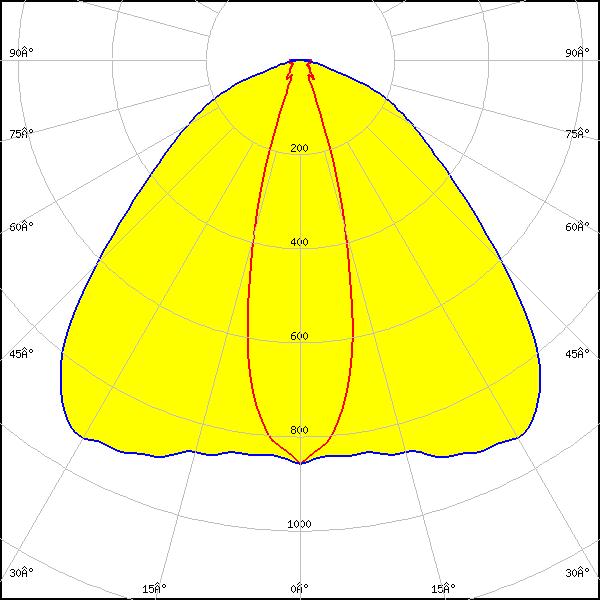

LED: XHP50.3 HI
FWHM: 28° + 100°
FWTM: 44° + 144°
Peak intensity: 0.9 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: XM-L
FWHM: 28° + 108°
FWTM: 45° + 142°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

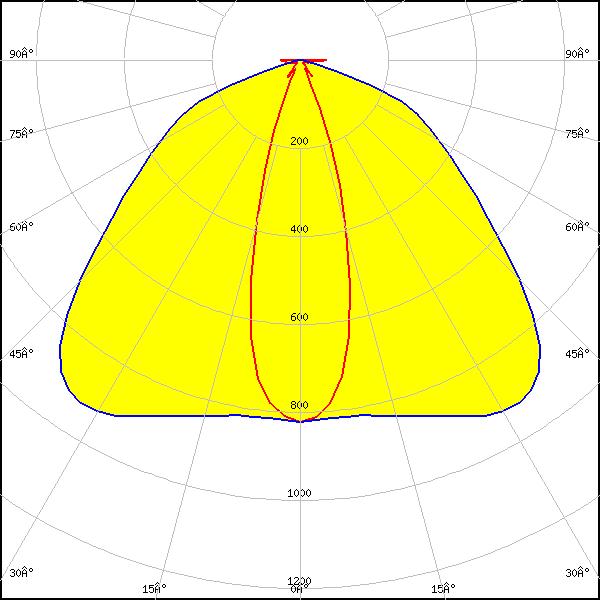

LED: XM-L2
FWHM: 30° + 106°
FWTM: 48° + 143°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-E2
FWHM: 93° + 18°
FWTM: 141° + 30°
Peak intensity: 1.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: 26° + 115°
FWTM: 44° + 158°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

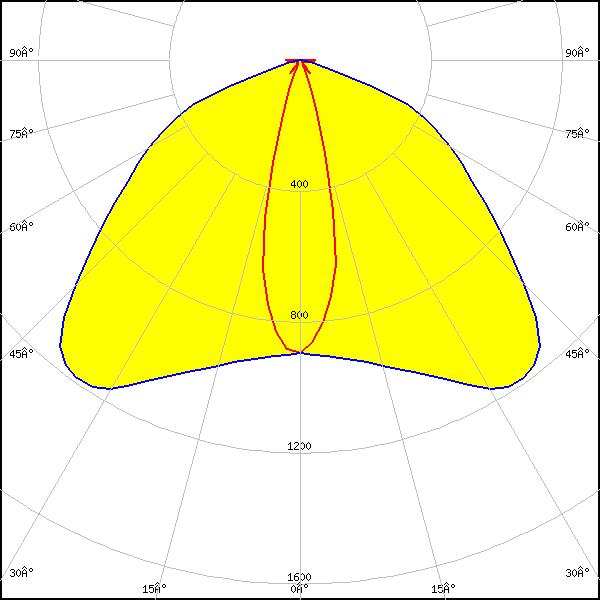

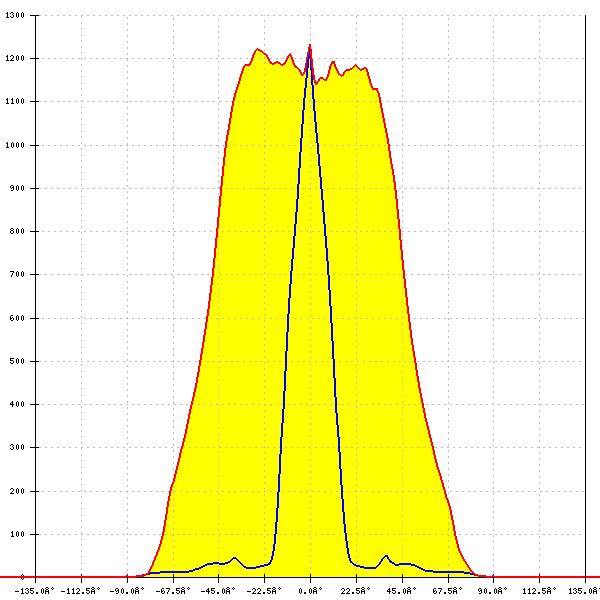

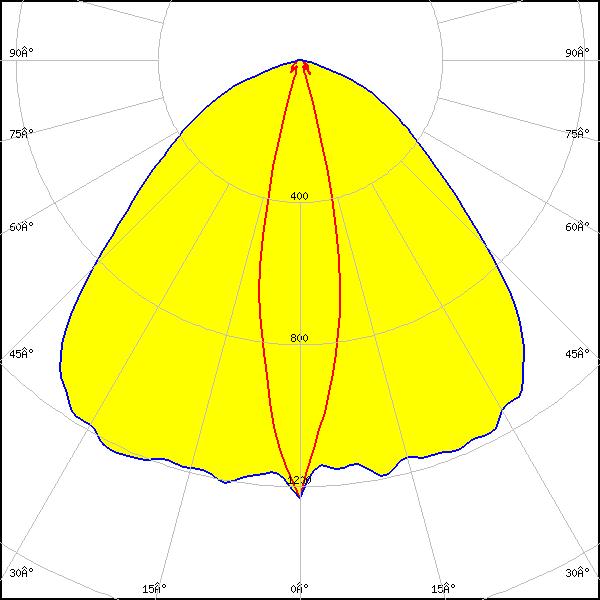

LED: XP-G2
FWHM: 21° + 98°
FWTM: 33° + 141°
Peak intensity: 1.2 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: XP-G2
FWHM: 27° + 112°
FWTM: 42° + 146°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

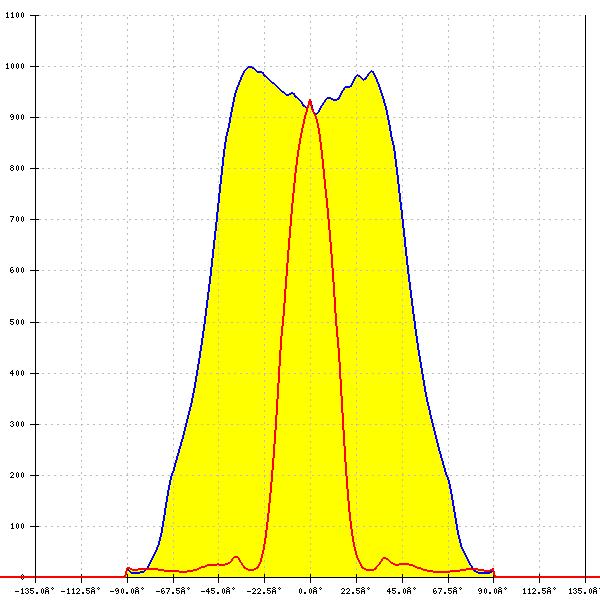

LED: XP-G2 HE
FWHM: 28° + 103°
FWTM: 41° + 144°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

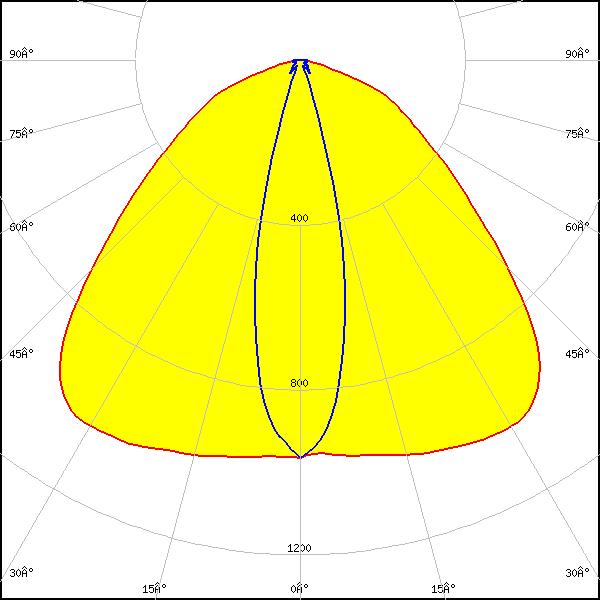

LED: XP-G3
FWHM: 103° + 29°
FWTM: 146° + 49°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

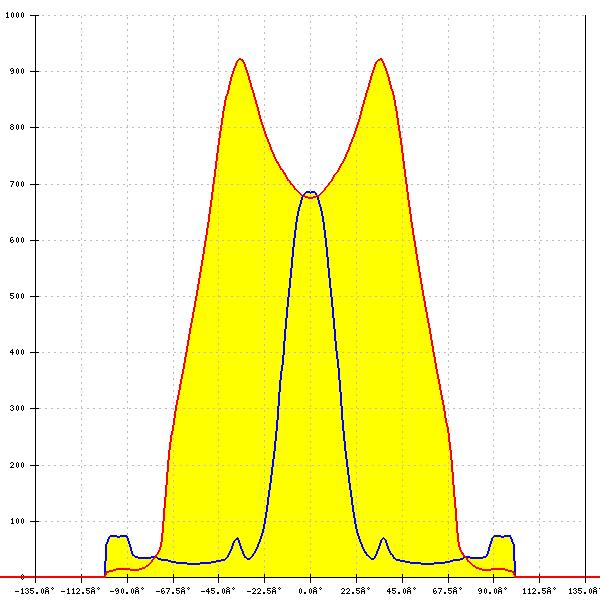

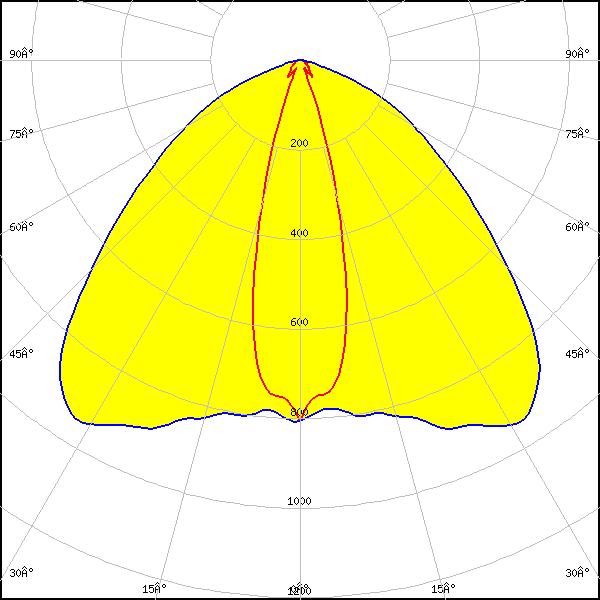

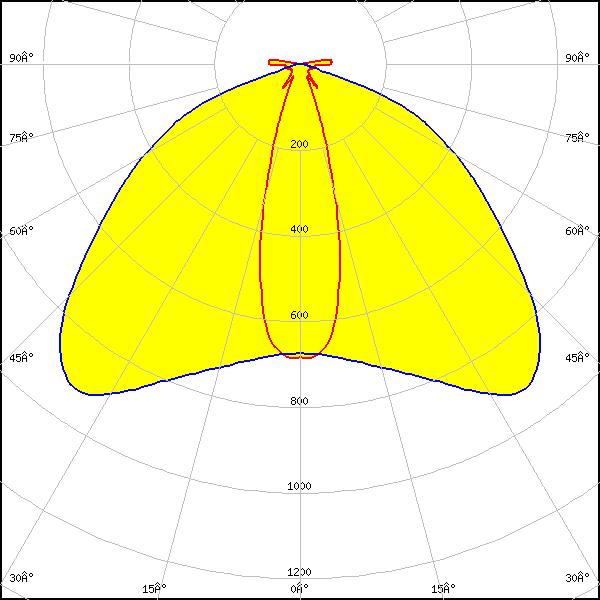

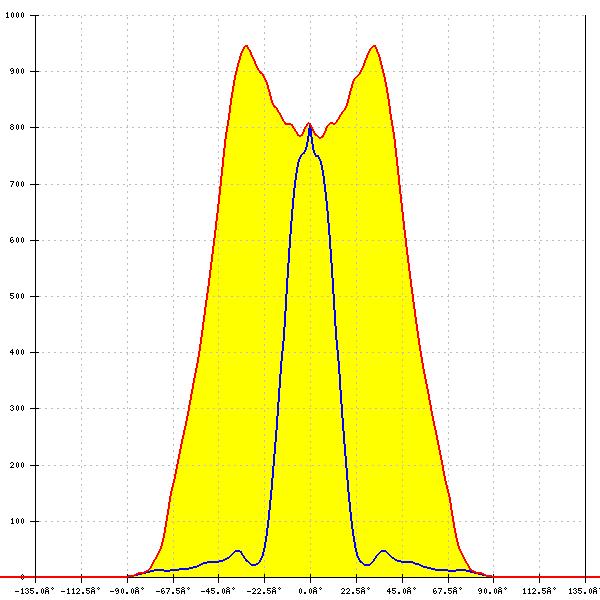

LED: XP-L HD
FWHM: 29° + 117°
FWTM: 48° + 144°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

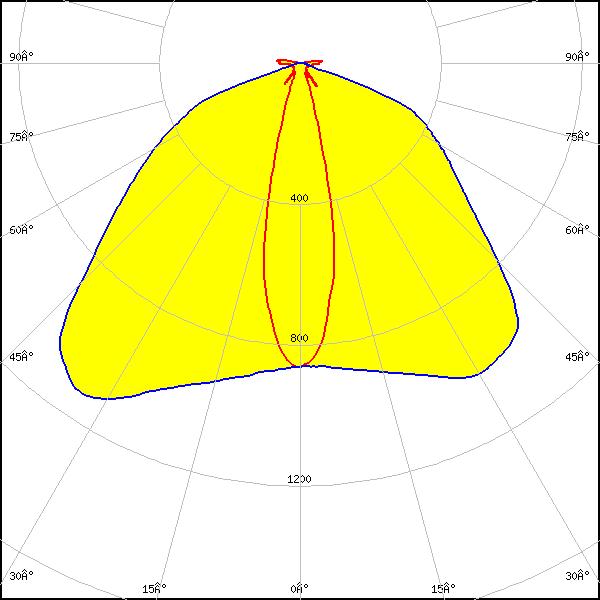

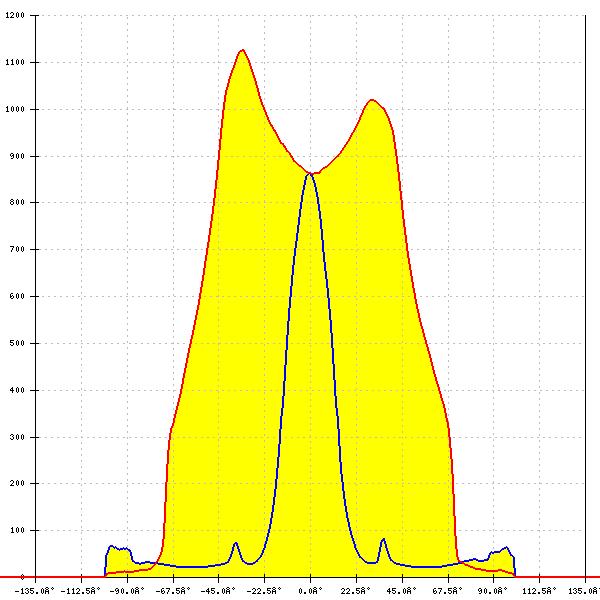

LED: XP-L HI
FWHM: 25° + 123°
FWTM: 41° + 143°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

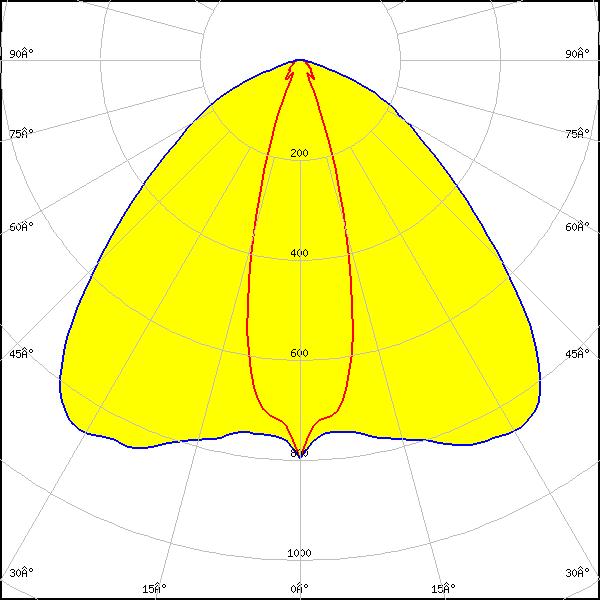

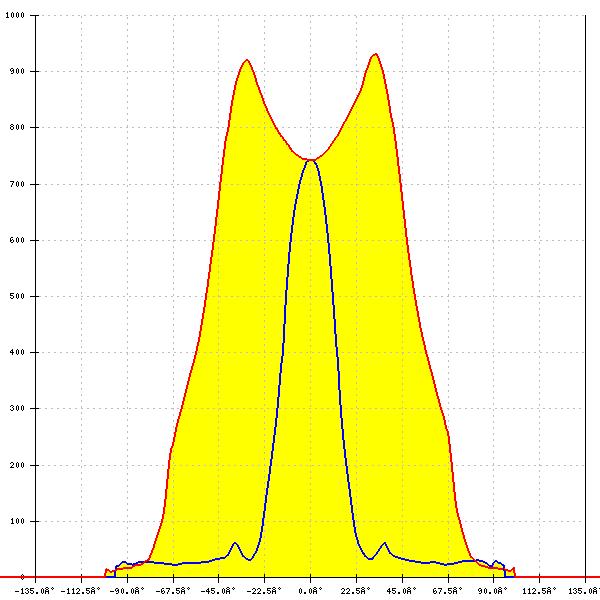

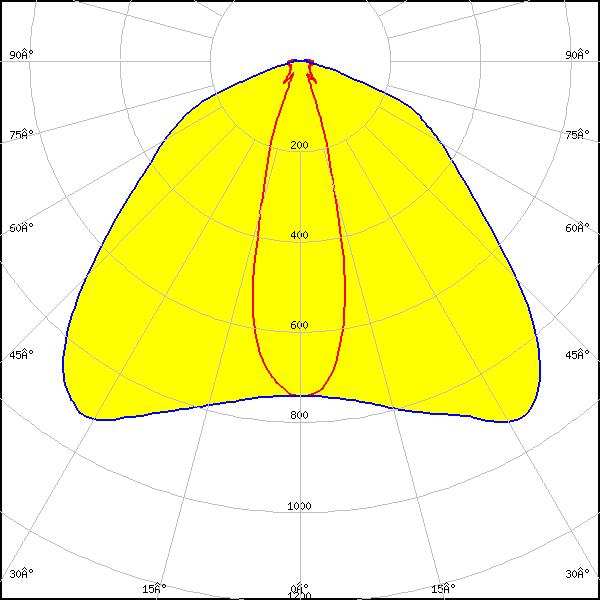

LED: XP-L2
FWHM: 28° + 117°
FWTM: 47° + 150°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XQ-E HI
FWHM: 96° + 14°
FWTM: 144° + 25°
LEDs/each optic: 1
Light colour: White

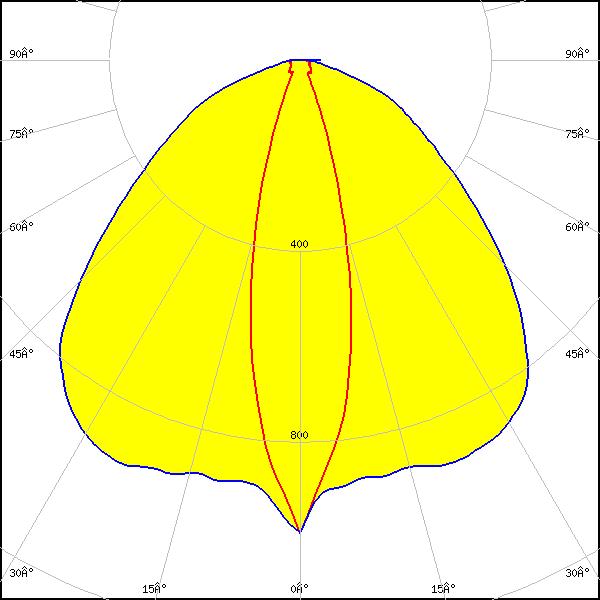

LED: XT-E HE
FWHM: 100° + 24°
FWTM: 0° + 0°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

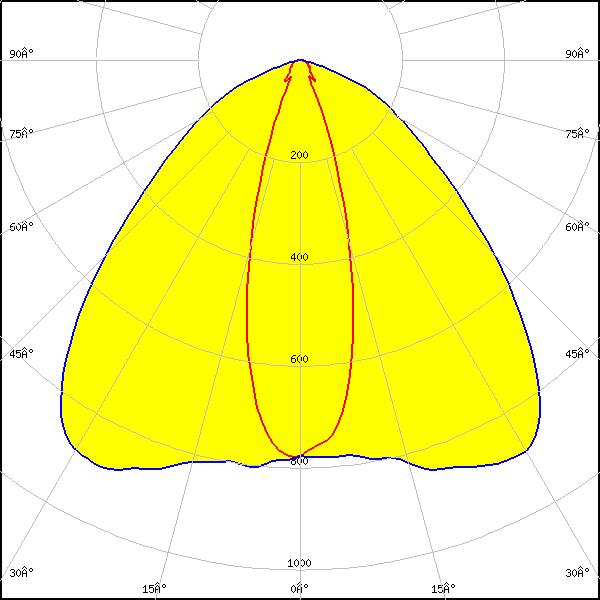

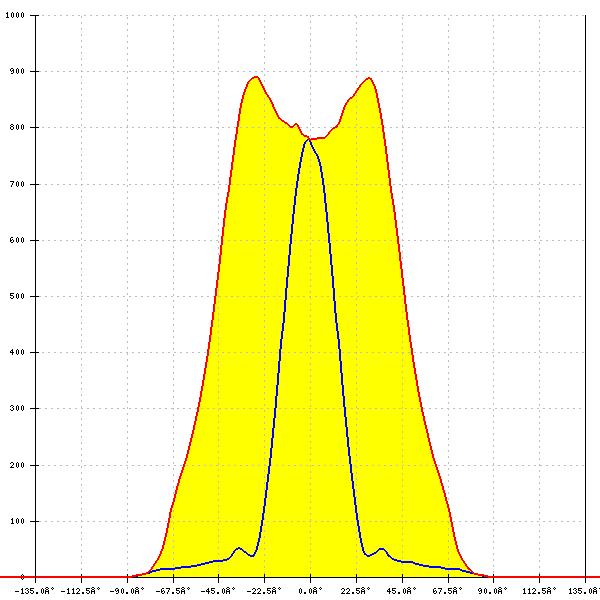

LED: LUXEON 5050 Round LES
FWHM: 30° + 96°
FWTM: 48° + 140°
Peak intensity: 0.9 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
FWHM: 29° + 114°
FWTM: 51° + 147°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

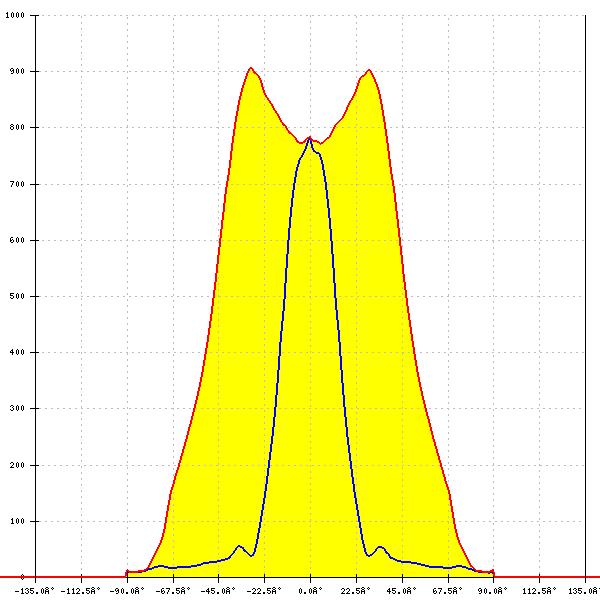

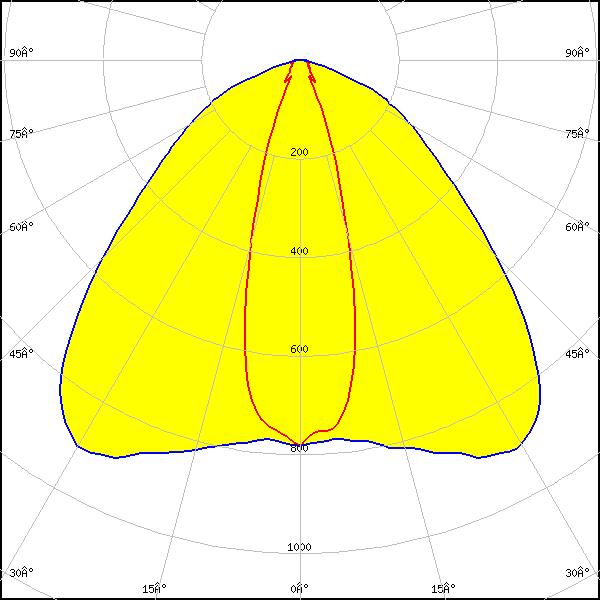

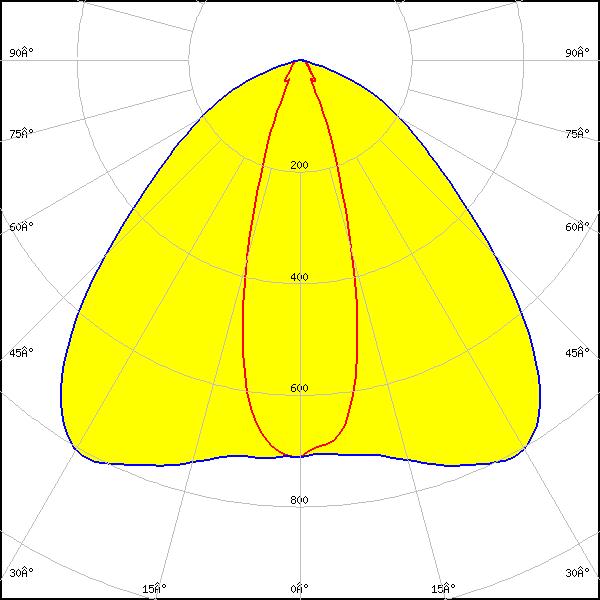

LED: LUXEON 5050 Square LES
FWHM: 30° + 98°
FWTM: 50° + 142°
Peak intensity: 0.9 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

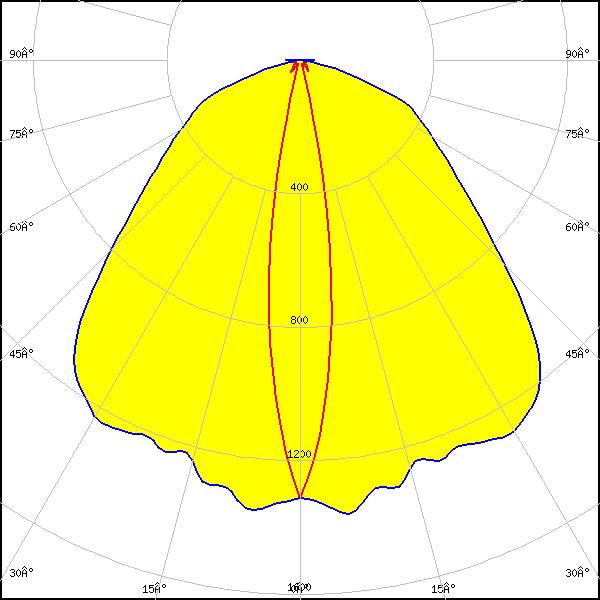

LED: LUXEON IR Domed 150
FWHM: 16° + 98°
FWTM: 28° + 149°
Peak intensity: 1.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON IR Domed 90
FWHM: 20° + 86°
FWTM: 29° + 128°
Peak intensity: 1.6 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

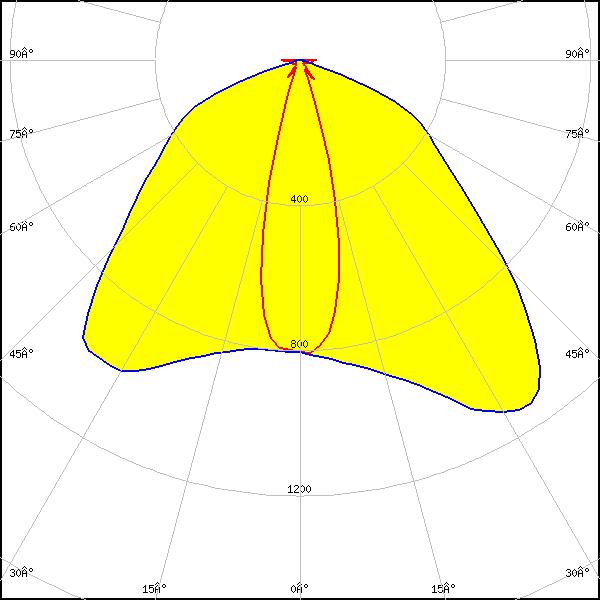

LED: LUXEON MZ
FWHM: 28° + 103°
FWTM: 43° + 14°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON R
FWHM: 25° + 105°
FWTM: 44° + 148°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

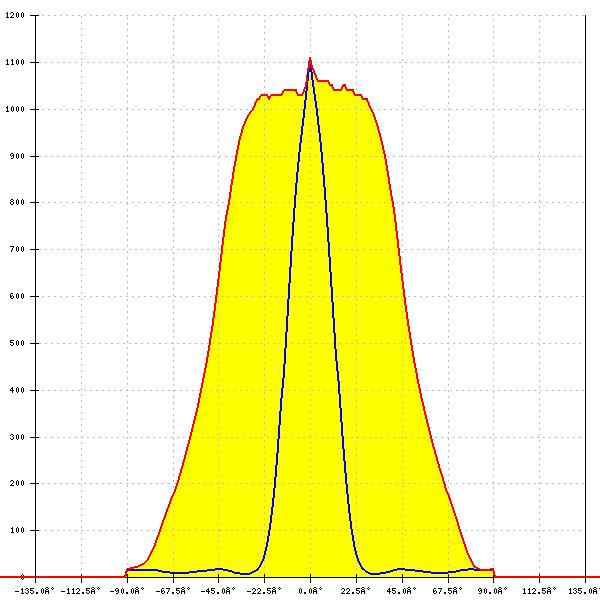

LED: LUXEON Rebel ES
FWHM: 25° + 106°
FWTM: 42° + 150°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

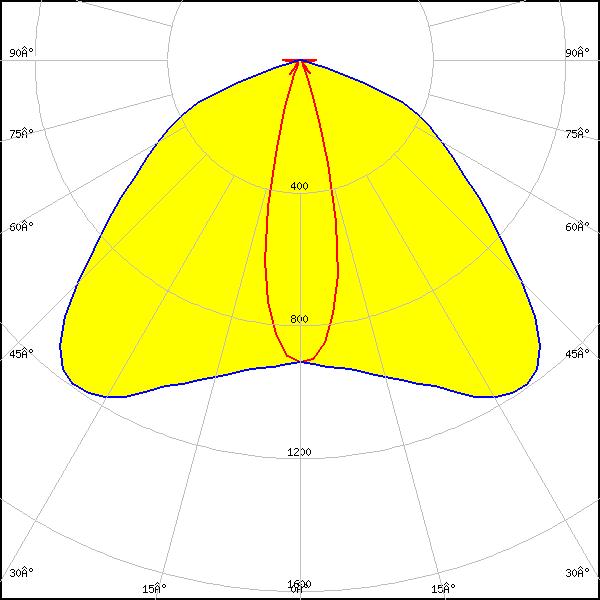

LED: LUXEON T
FWHM: 26° + 110°
FWTM: 41° + 145°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

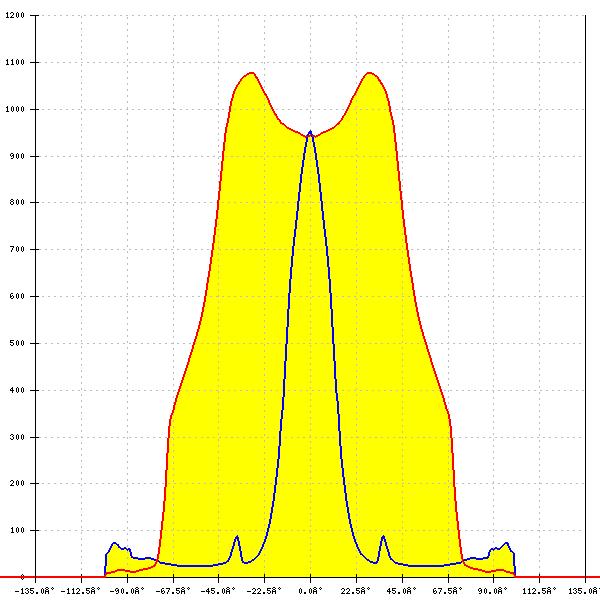

LED: LUXEON TX
FWHM: 24° + 118°
FWTM: 42° + 146°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

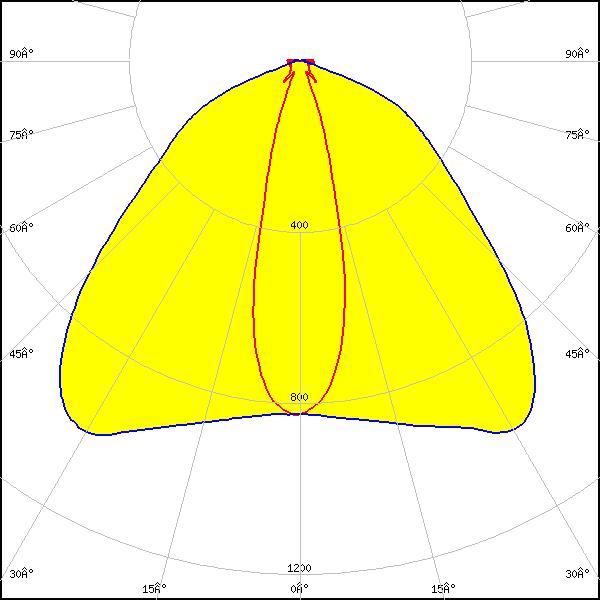

LED: LUXEON V
FWHM: 26° + 108°
FWTM: 44° + 141°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SST-10-B130
LEDs/each optic: 1
Light colour: Blue

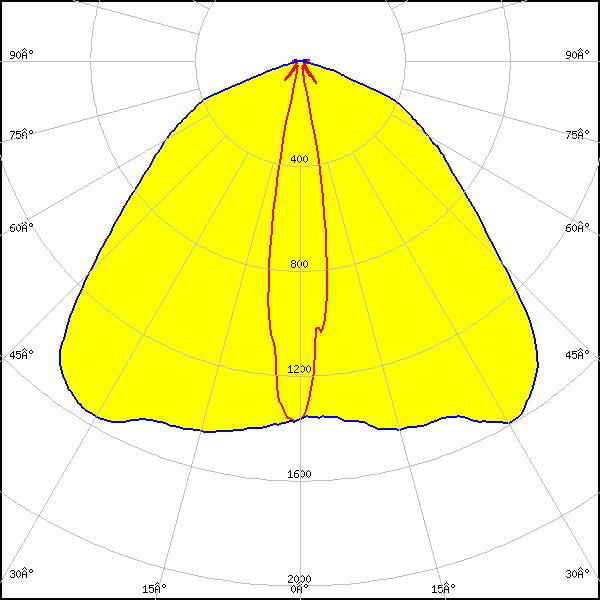

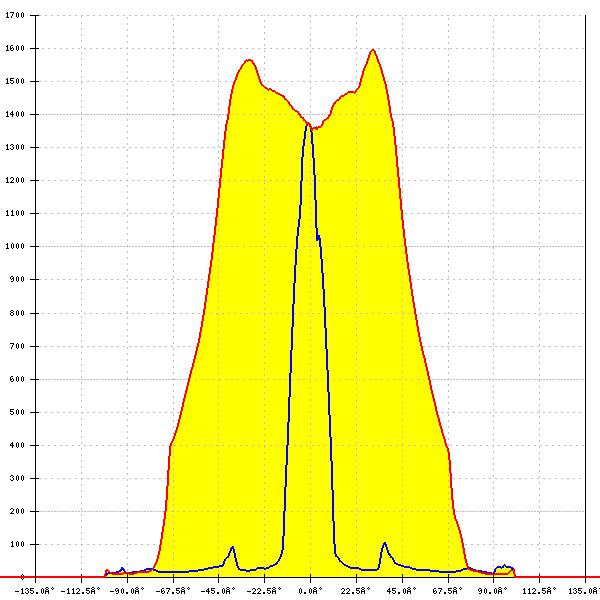

LED: SST-10-B130
FWHM: 18° + 104°
FWTM: 25° + 144°
Peak intensity: 1.6 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: Deep Red

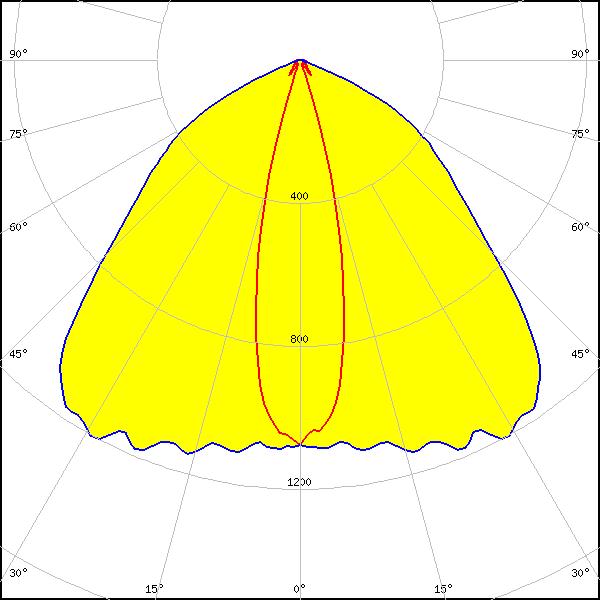

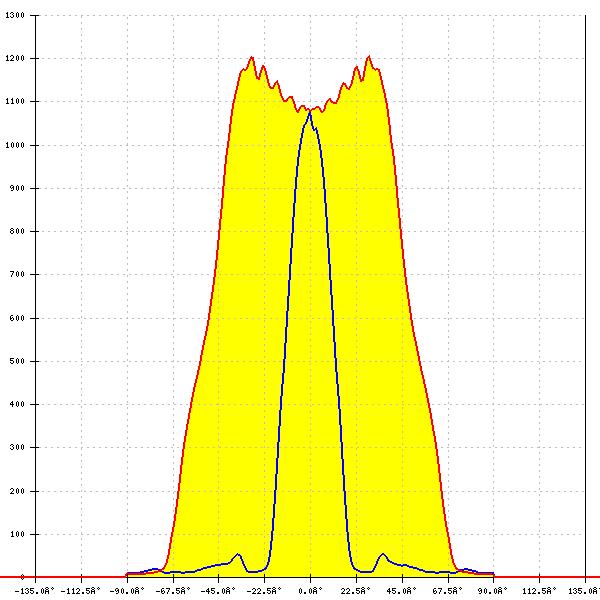

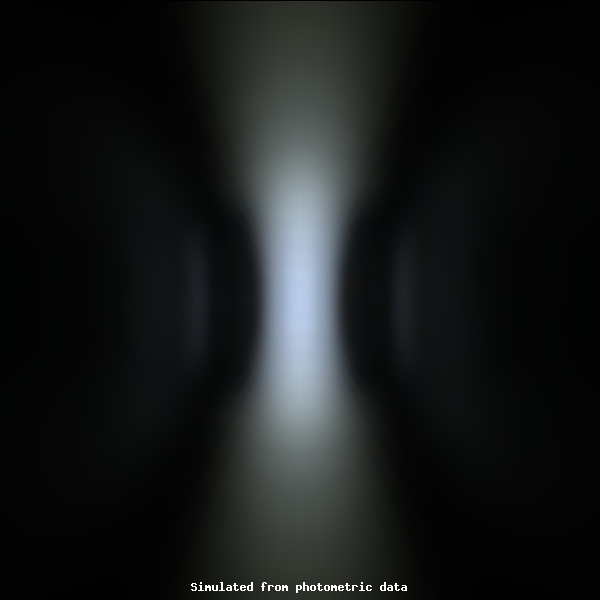

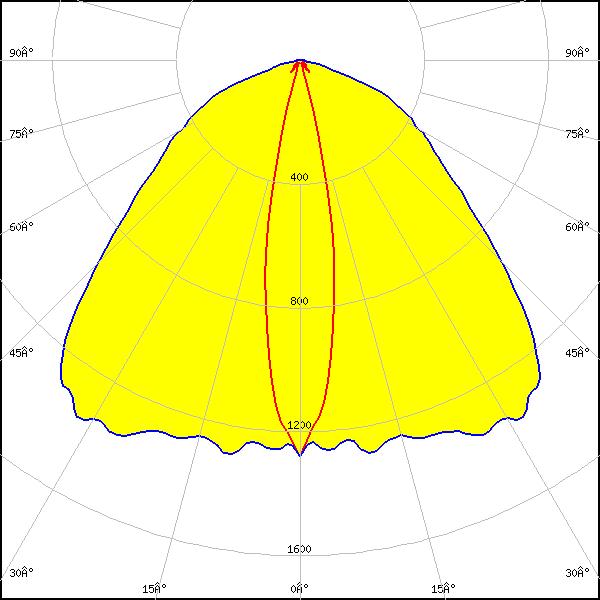

LED: SST-20
LEDs/each optic: 1
Light colour: White

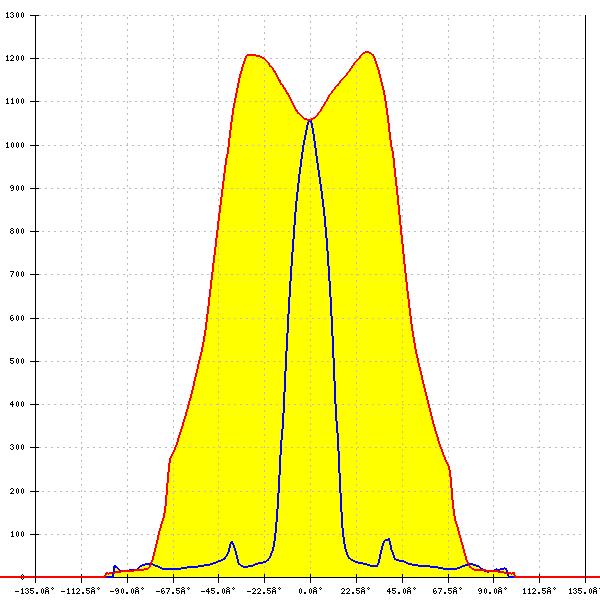

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: 24° + 97°
FWTM: 34° + 141°
Peak intensity: 1.1 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: 23° + 100°
FWTM: 33° + 145°
Peak intensity: 1.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

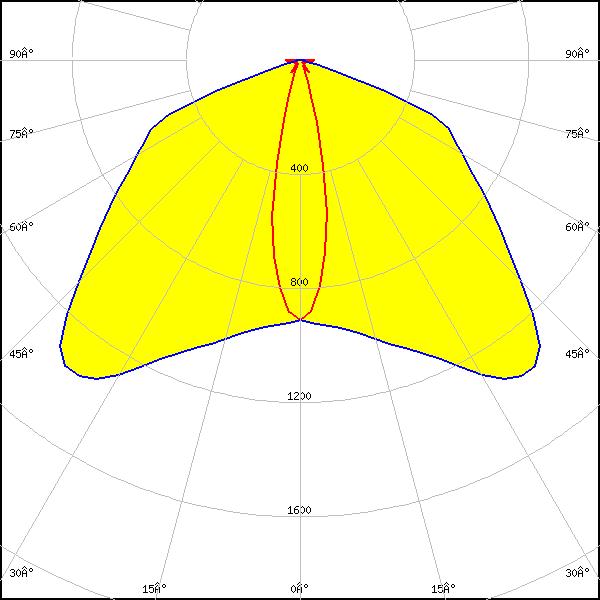

LED: NCSxx19B
FWHM: 23° + 113°
FWTM: 39° + 146°
Peak intensity: 1.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NV4WB35AM
FWHM: 28° + 100°
FWTM: 42° + 144°
Peak intensity: 1.0 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

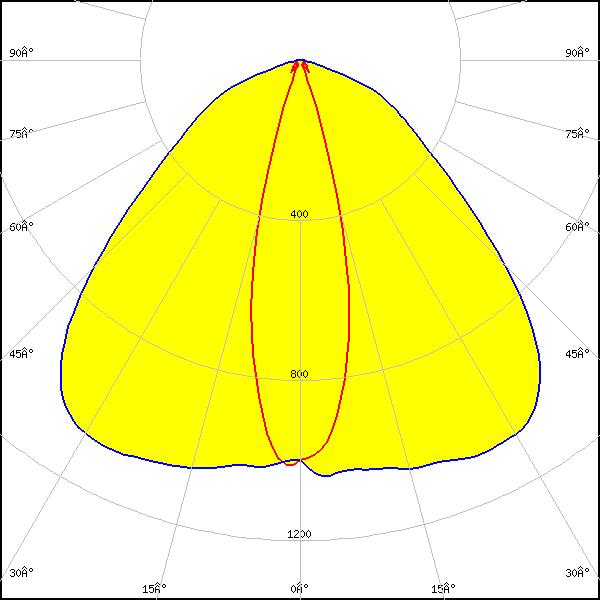

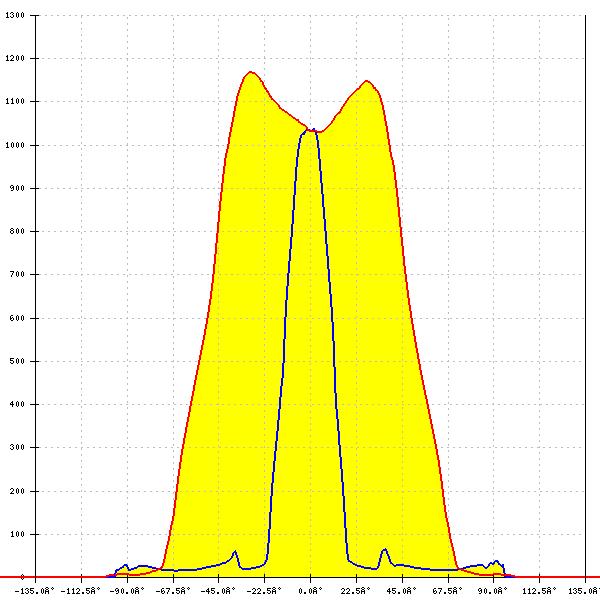

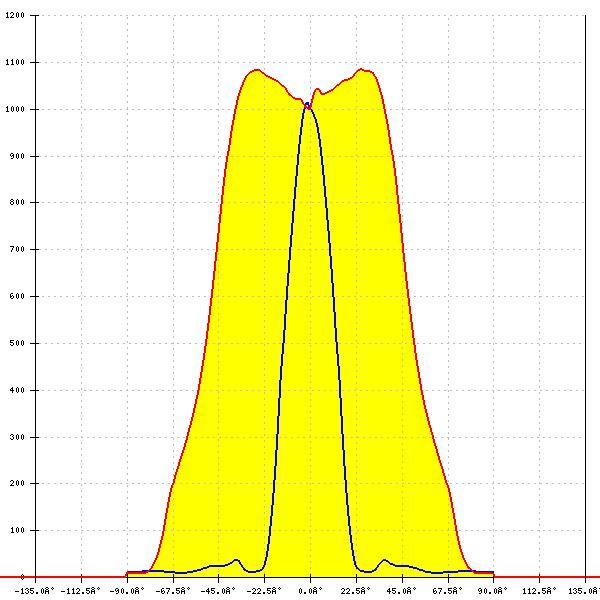

LED: NVSW219D
FWHM: 25° + 107°
FWTM: 37° + 137°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

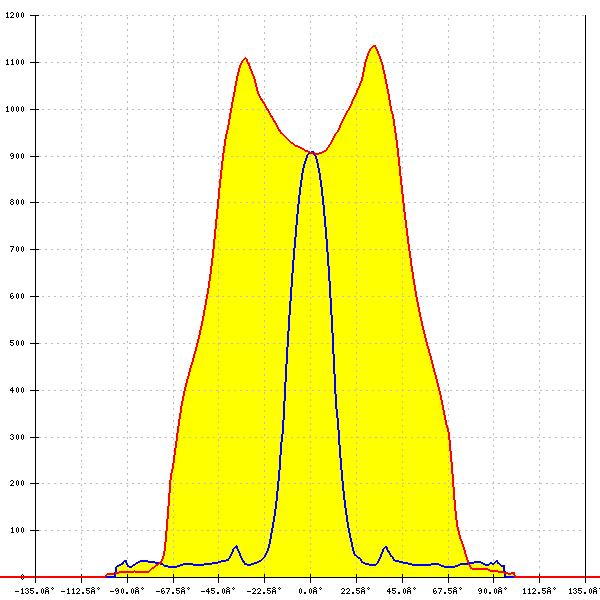

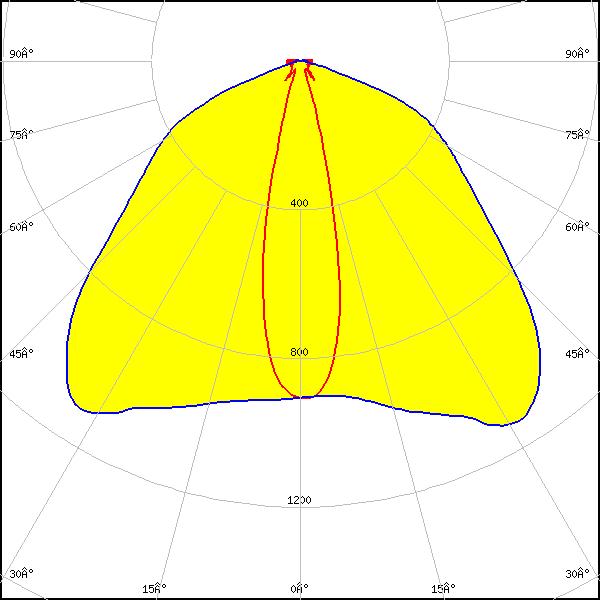

LED: NVSW319B
FWHM: 25° + 113°
FWTM: 41° + 144°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: 24° + 119°
FWTM: 38° + 144°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: 25° + 134°
FWTM: 43° + 147°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

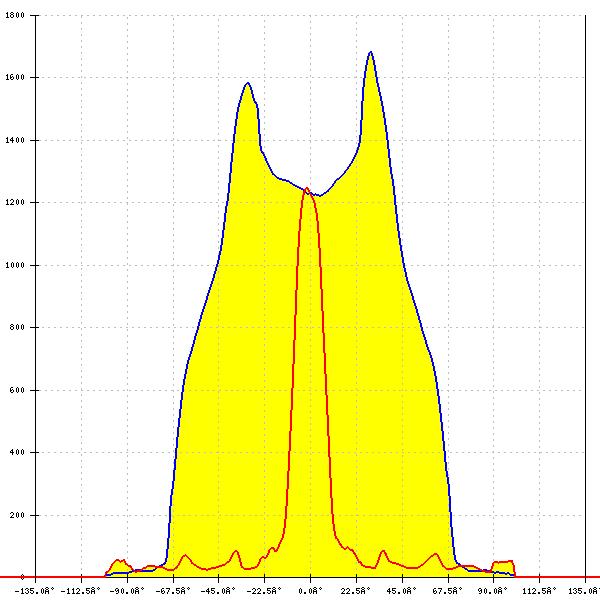

LED: NVSxE21A
FWHM: 17° + 125°
FWTM: 27° + 139°
Peak intensity: 1.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

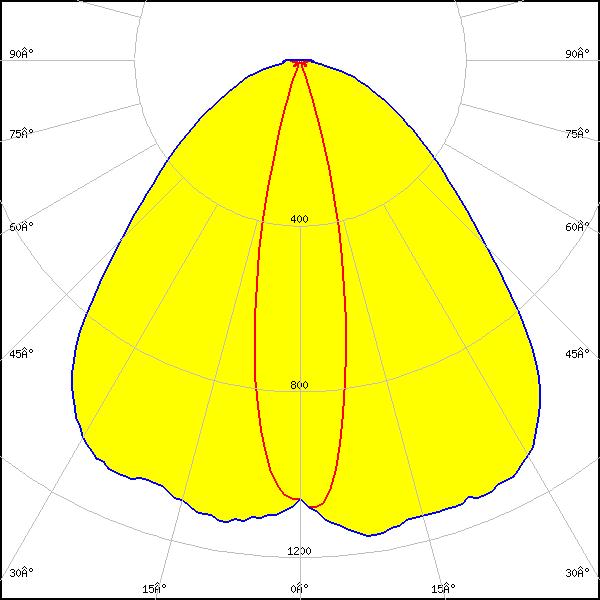

LED: NVSxx19A
FWHM: 24° + 105°
FWTM: 44° + 148°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 26° + 108°
FWTM: 41° + 145°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NWSx229A
FWHM: 27° + 118°
FWTM: 43° + 143°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: PL-BRICK HP 3800 2x8 SSG
FWHM: 26° + 102°
FWTM: 37° + 139°
Peak intensity: 1.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

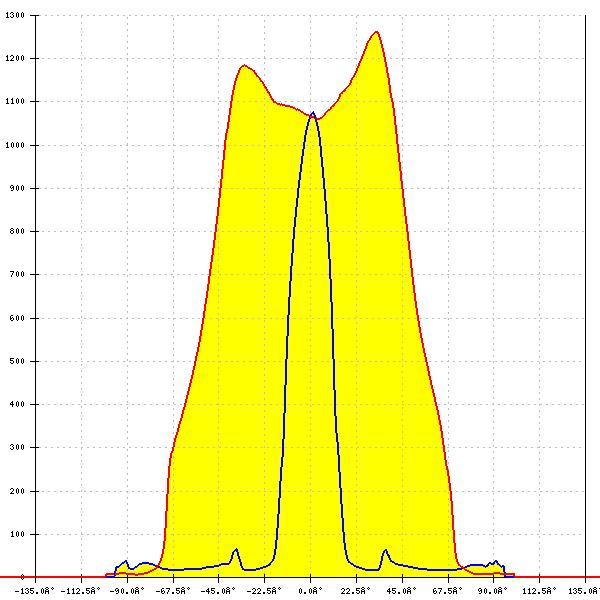

LED: PrevaLED Brick HP 2x8
FWHM: 23° + 111°
FWTM: 32° + 141°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ C 2424
FWHM: 18° + 96°
FWTM: 30° + 141°
Peak intensity: 1.5 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

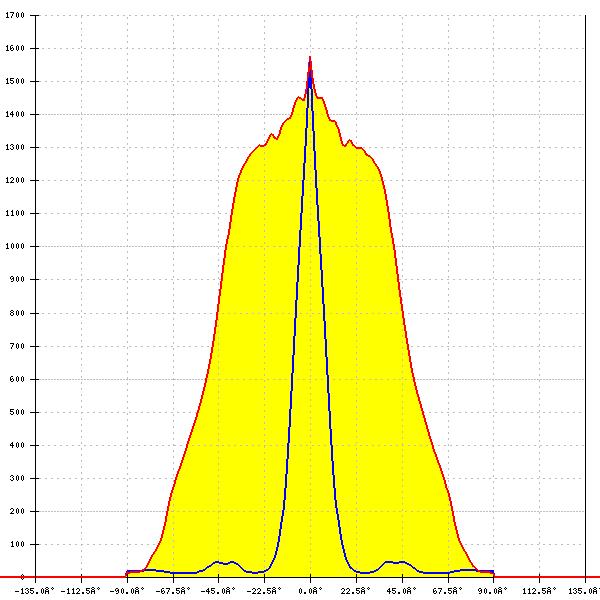

LED: OSCONIQ P 3030
FWHM: 14° + 92°
FWTM: 28° + 142°
Peak intensity: 1.6 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 99° + 19°
FWTM: 142° + 31°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 100° + 30°
FWTM: 144° + 51°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

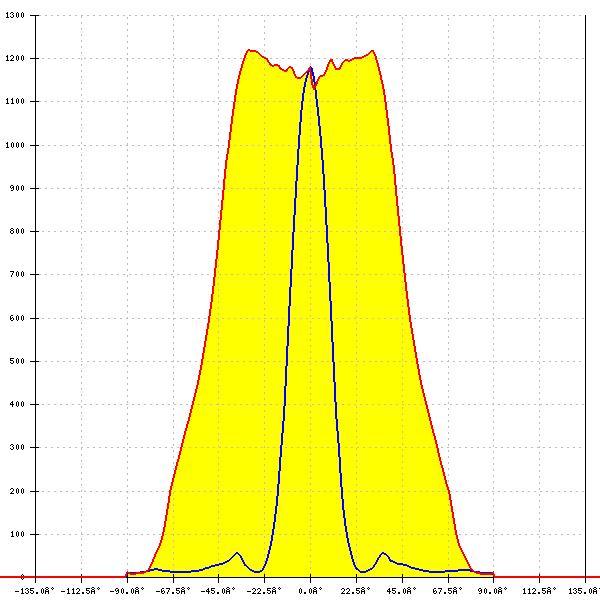

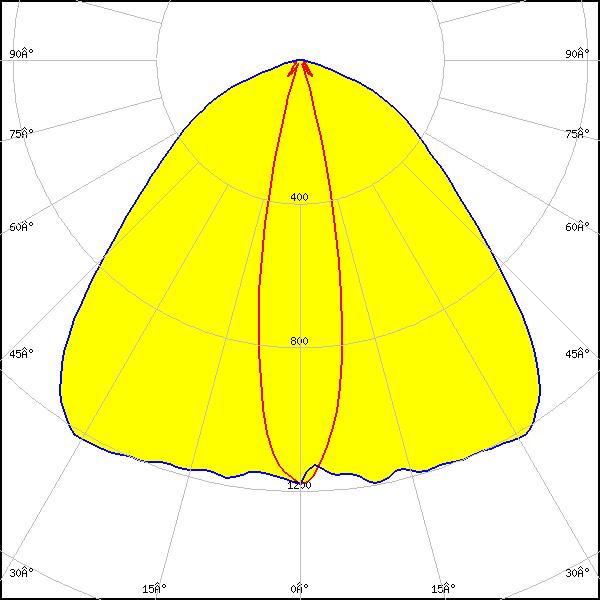

LED: OSCONIQ P 3737 Flat
FWHM: 22° + 98°
FWTM: 35° + 142°
Peak intensity: 1.2 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

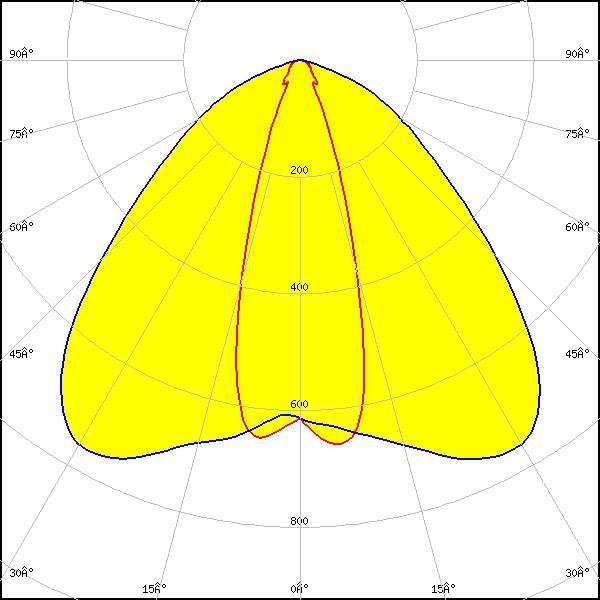

LED: OSCONIQ S 5050
FWHM: 32° + 99°
FWTM: 52° + 143°
Peak intensity: 0.8 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ S 5050
FWHM: 32° + 98°
FWTM: 53° + 140°
Peak intensity: 0.8 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

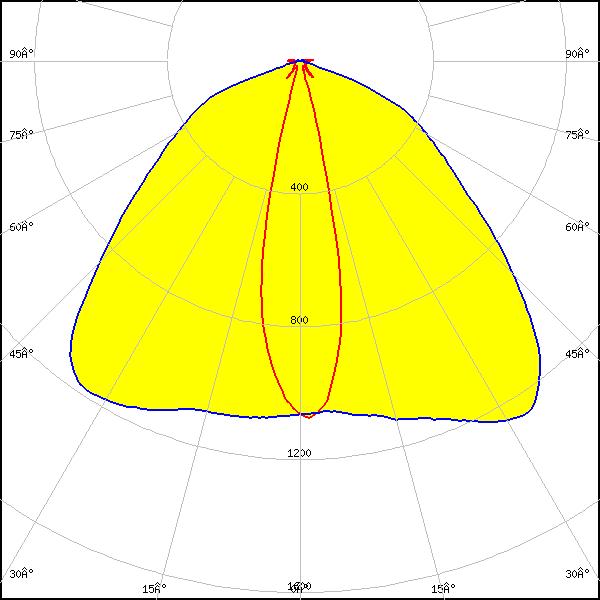

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 23° + 101°
FWTM: 33° + 140°
Peak intensity: 1.1 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 23° + 111°
FWTM: 32° + 141°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square Flat
FWHM: 16° + 90°
FWTM: 30° + 140°
Peak intensity: 1.6 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

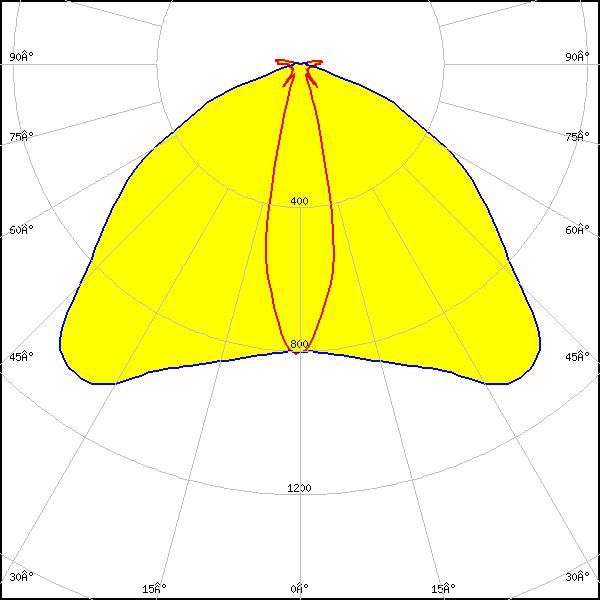

LED: OSLON Square PC
FWHM: 25° + 124°
FWTM: 42° + 145°
Peak intensity: 1.1 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: OSTAR Projection Compact (Kx.CSLNM1.xx)
FWHM: 16° + 89°
FWTM: 28° + 140°
Peak intensity: 1.7 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: 21° + 108°
FWTM: 31° + 147°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: 24° + 104°
FWTM: 37° + 145°
Peak intensity: 1.1 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: 24° + 103°
FWTM: 34° + 144°
Peak intensity: 1.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: 32° + 98°
FWTM: 51° + 142°
Peak intensity: 0.9 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

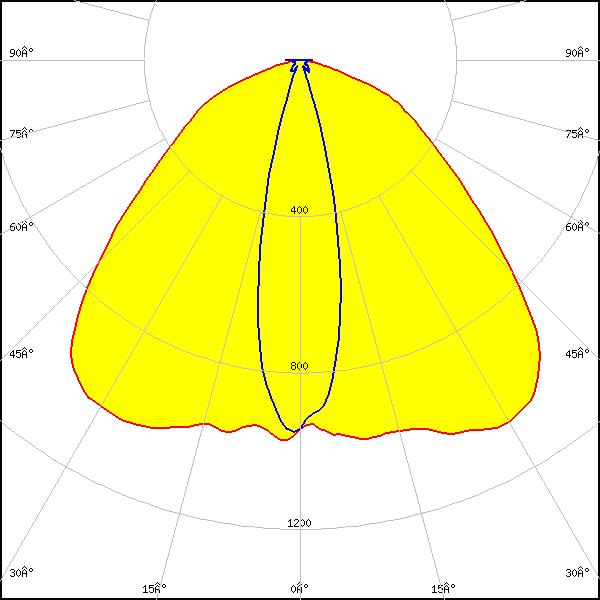

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: 103° + 29°
FWTM: 146° + 49°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

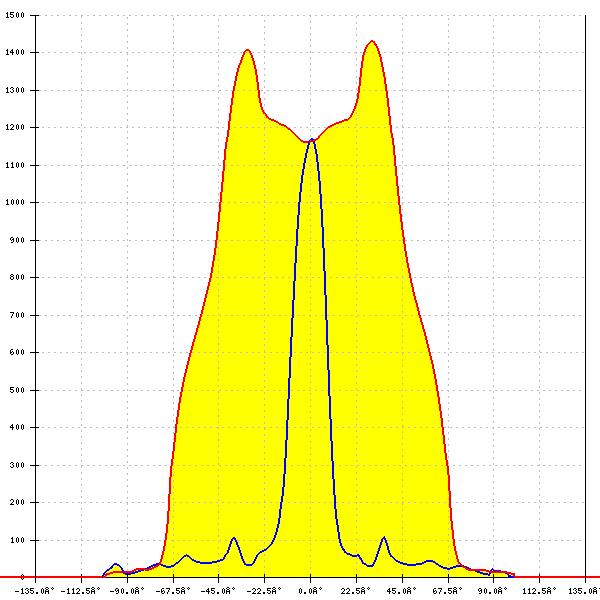

LED: HiLOM RC12 Z (LH181B)
FWHM: 19° + 106°
FWTM: 31° + 140°
Peak intensity: 1.4 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RH12 Z (LH351C)
FWHM: 23° + 102°
FWTM: 36° + 139°
Peak intensity: 1.2 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

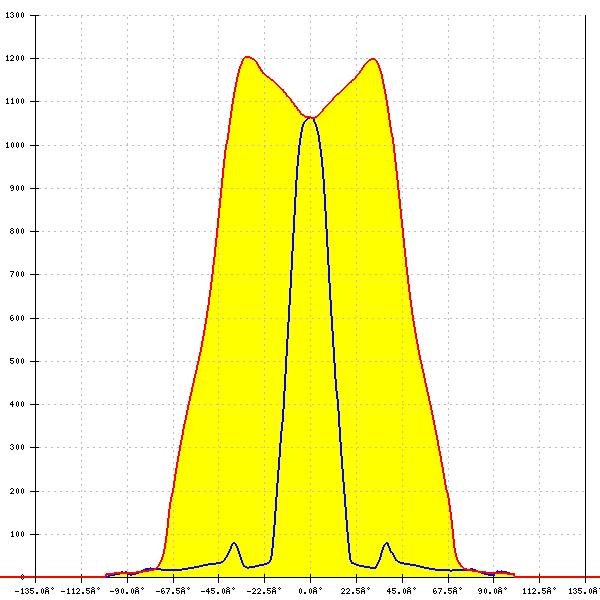

LED: HiLOM RH16 (LH351C)
FWHM: 23° + 106°
FWTM: 36° + 140°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

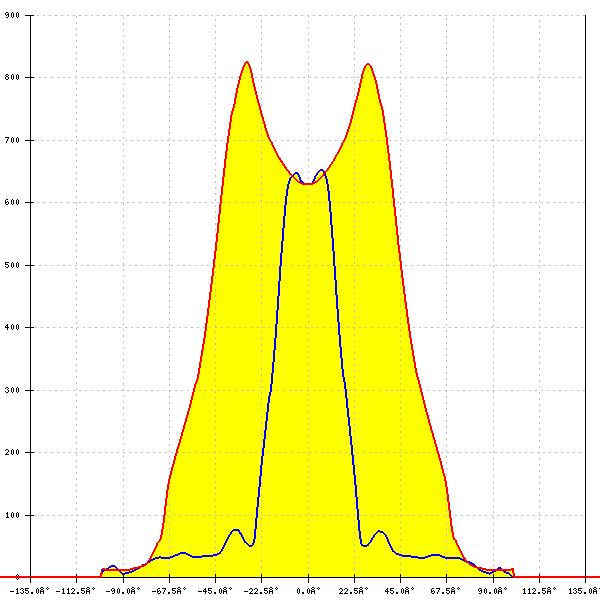

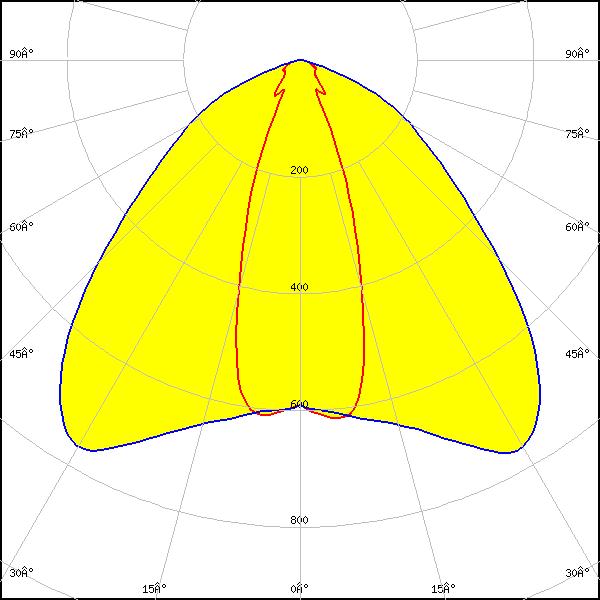

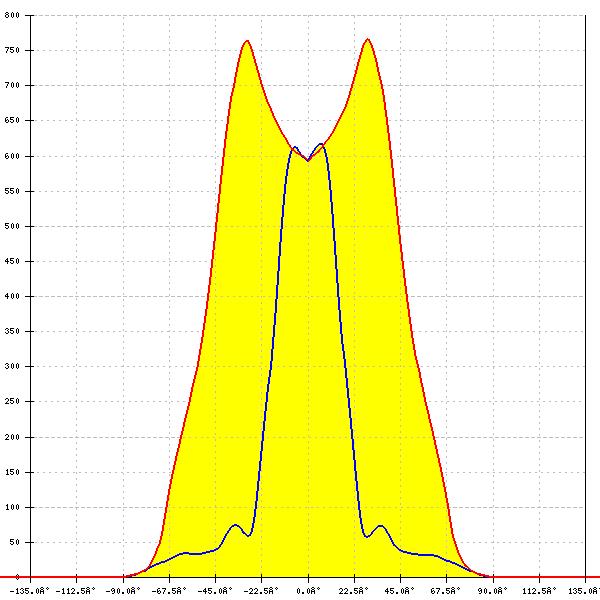

LED: HiLOM RM12 Z (LH502C)
FWHM: 36° + 98°
FWTM: 78° + 140°
Peak intensity: 0.8 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: HiLOM RM12 Z (LH502C)
FWHM: 35° + 98°
FWTM: 76° + 141°
Peak intensity: 0.8 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

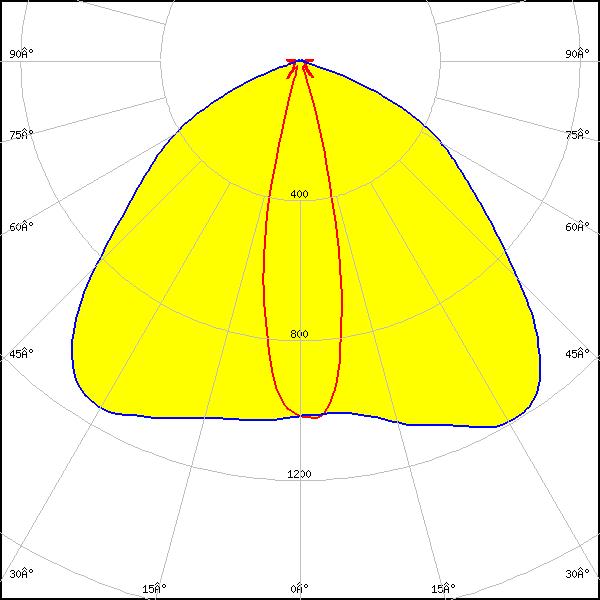

LED: LH351B
FWHM: 23° + 113°
FWTM: 35° + 141°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351C
FWHM: 24° + 111°
FWTM: 37° + 141°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LH351D
FWHM: 27° + 116°
FWTM: 44° + 144°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

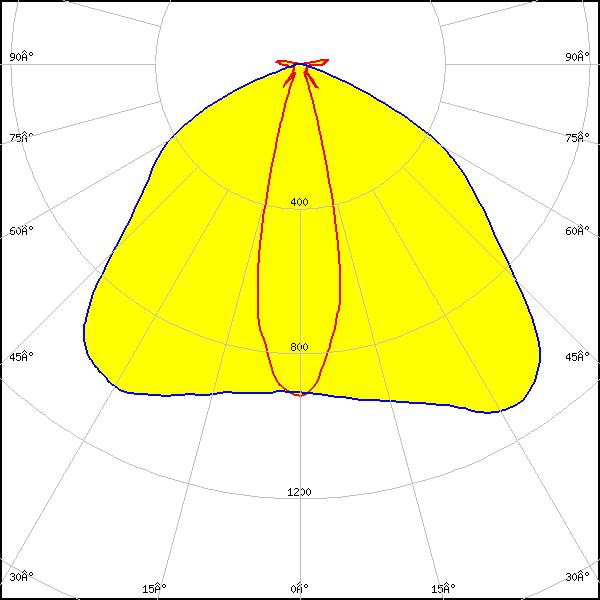

LED: LH351Z
FWHM: 26° + 117°
FWTM: 42° + 141°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: 22° + 105°
FWTM: 36° + 142°
Peak intensity: 1.3 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White
LED: MJT 5050
FWHM: 32° + 98°
FWTM: 52° + 142°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 5050 6V
FWHM: 33° + 98°
FWTM: 58° + 143°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z5M1/Z5M2
FWHM: 22° + 97°
FWTM: 34° + 142°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

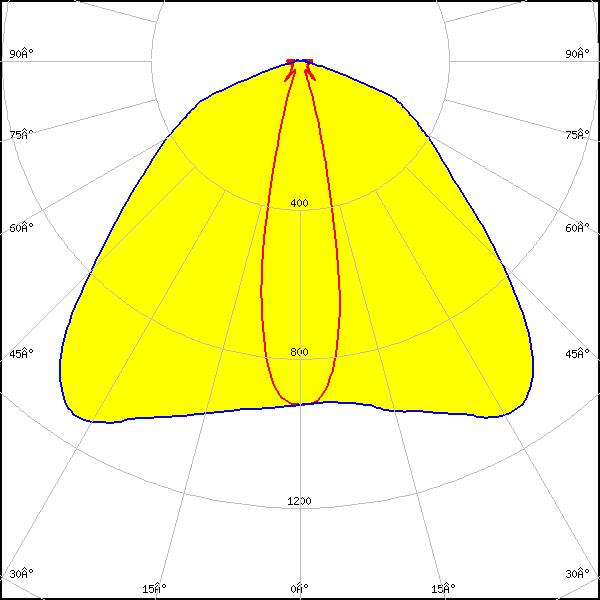

LED: Z5M3
FWHM: 23° + 113°
FWTM: 39° + 146°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

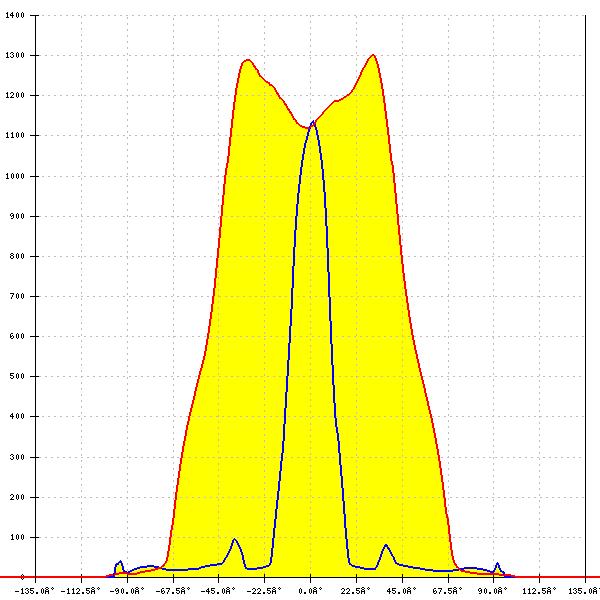

LED: Z5M4
FWHM: 22° + 97°
FWTM: 35° + 135°
Peak intensity: 1.3 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

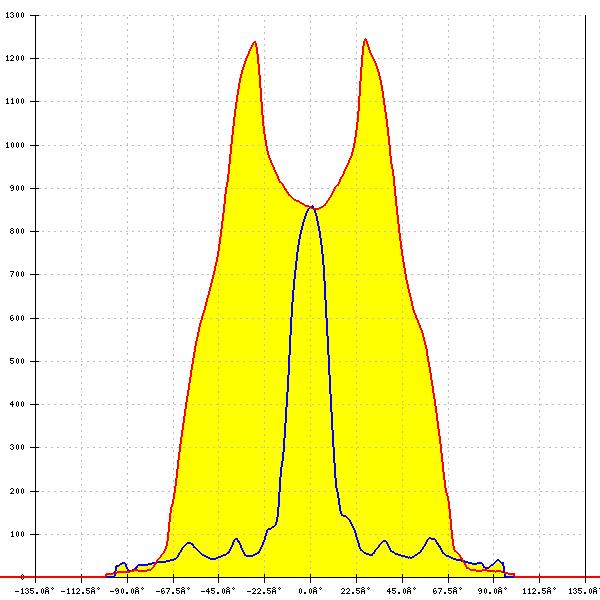

LED: Z8Y22
FWHM: 21° + 121°
FWTM: 99° + 140°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22P
FWHM: 23° + 121°
FWTM: 34° + 150°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

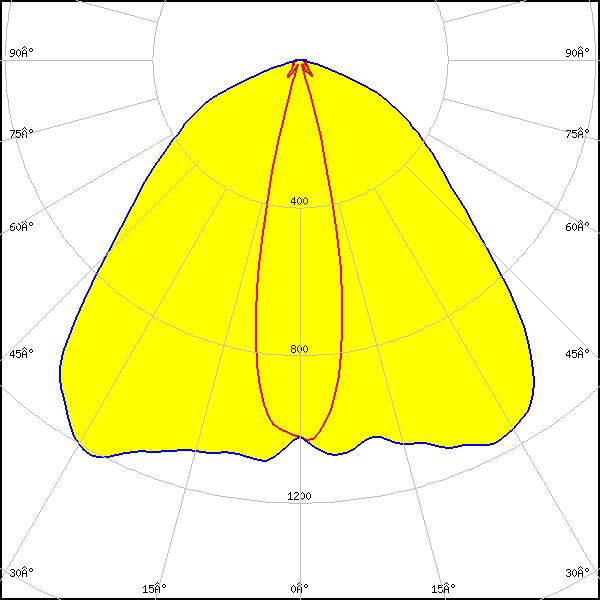

LED: Z8Y22T
FWHM: 21° + 96°
FWTM: 33° + 141°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: TL1L4
FWHM: 24° + 119°
FWTM: 39° + 140°
Peak intensity: 1.1 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: 22° + 113°
FWTM: 30° + 149°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

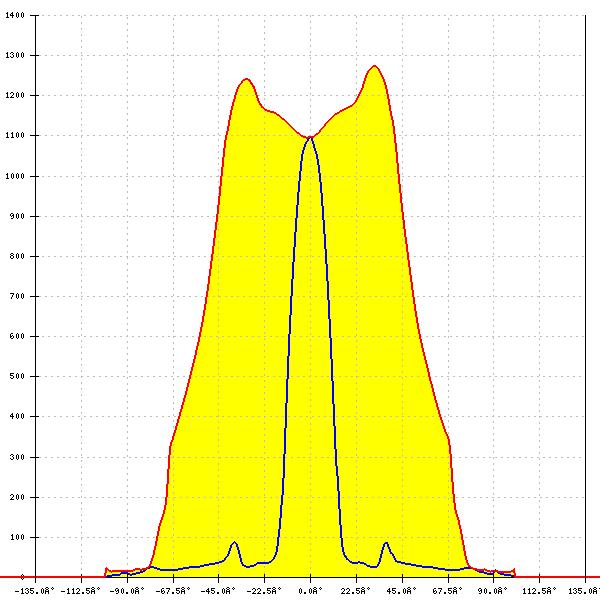

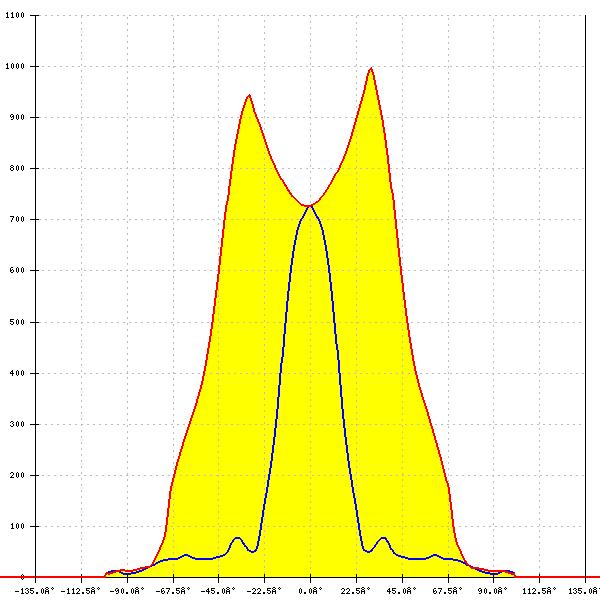

LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: 22° + 113°
FWTM: 30° + 149°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

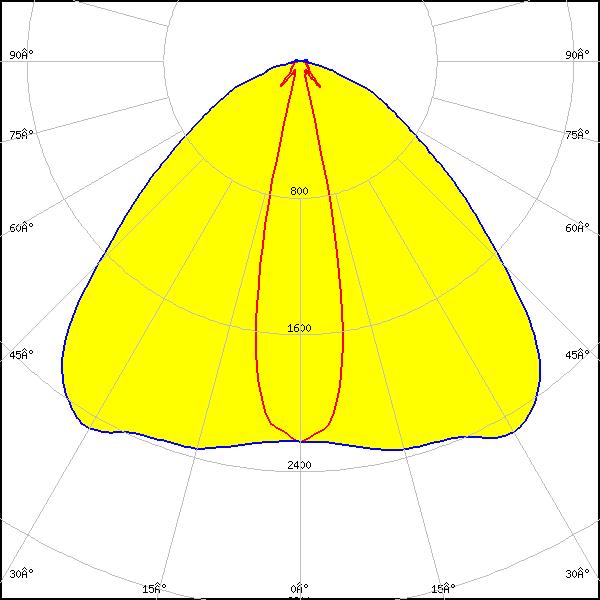

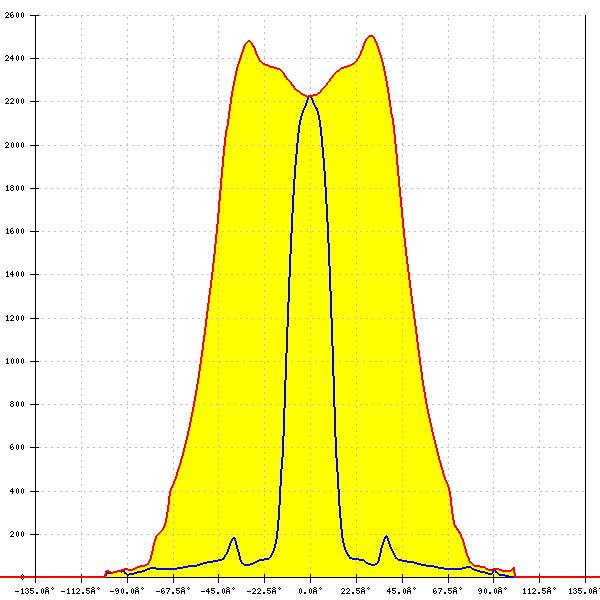

LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: 23° + 104°
FWTM: 31° + 144°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: 23° + 104°
FWTM: 31° + 144°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: 23° + 104°
FWTM: 31° + 144°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: 23° + 104°
FWTM: 31° + 144°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
