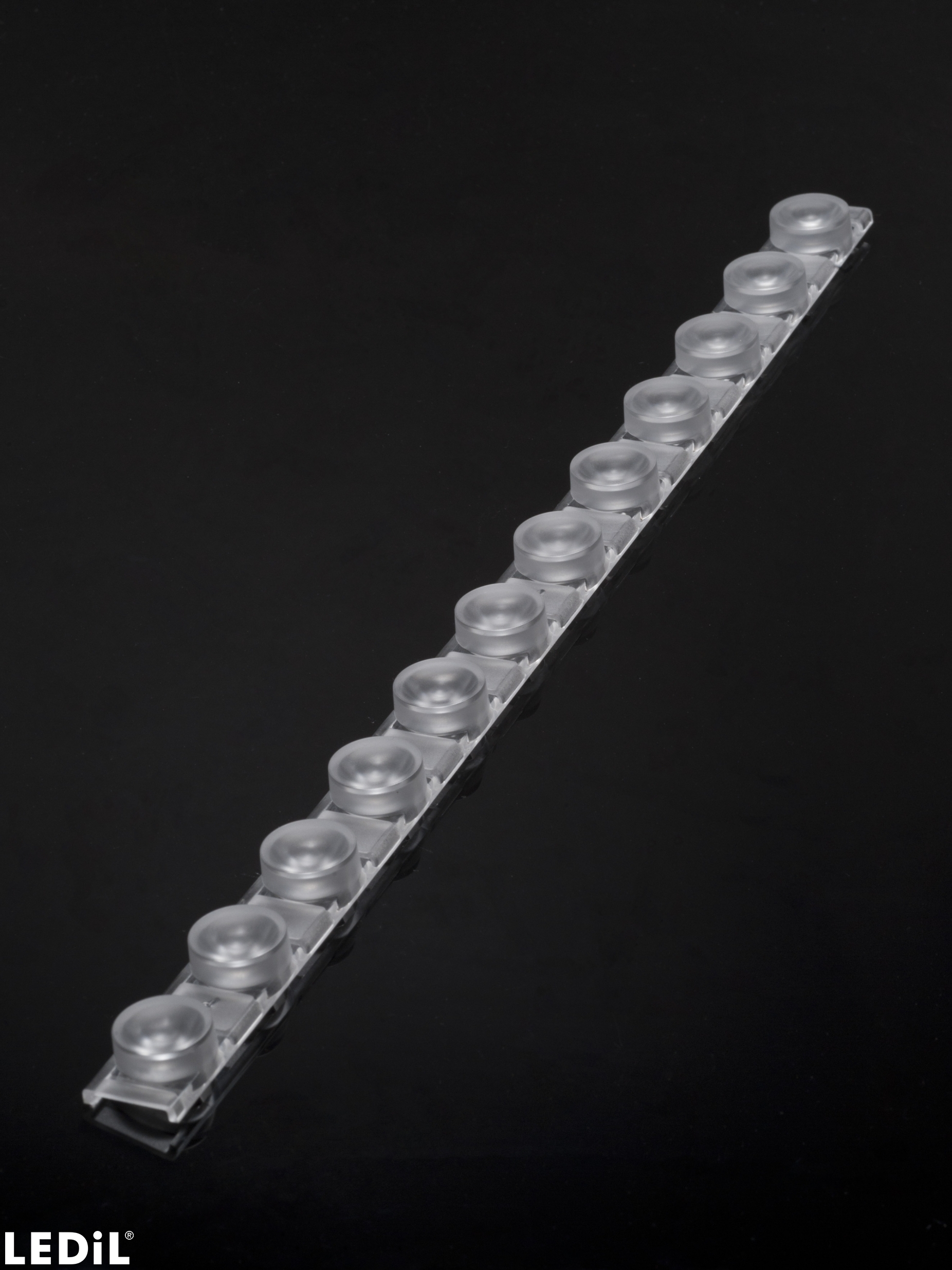

    C13869_VANESSA-B-S

    Print

    ~17° spot beam

    Specification
    • Dimensions:
      295 x  16 mm
    • Height:
      8.00 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      448 pcs
    • Box size:
      350 x 350 x 380 mm
    • Box weight:
      11.2 kg
    • MPQ:
      14 pcs
    • MOQ:
      84 pcs
    • MOQ size:
      360 x 350 x 80 mm
    • MOQ weight:
      2.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13869_VANESSA-B-S

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - VANESSA

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

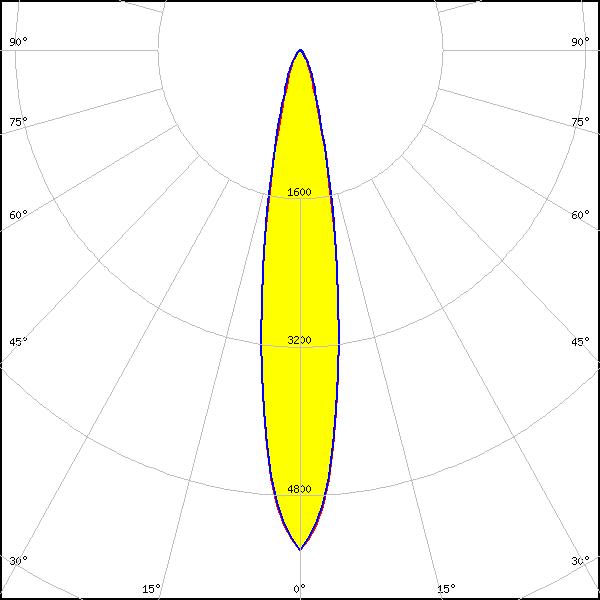

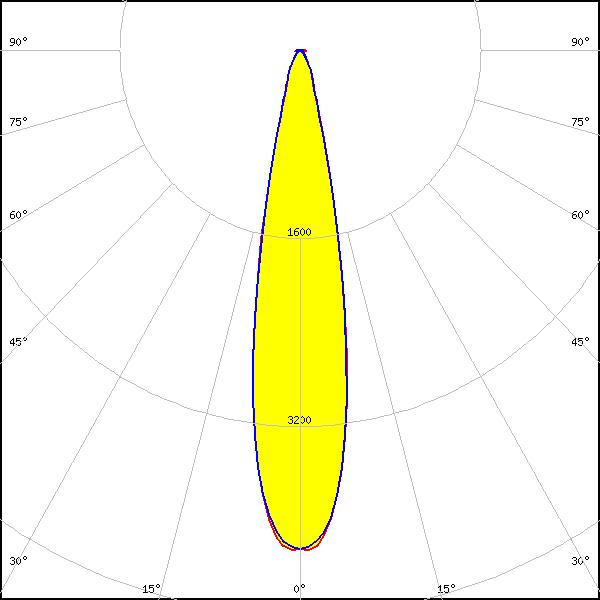

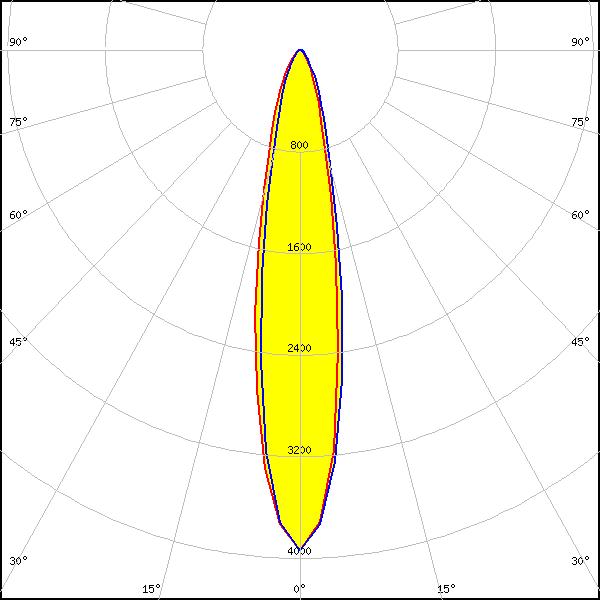

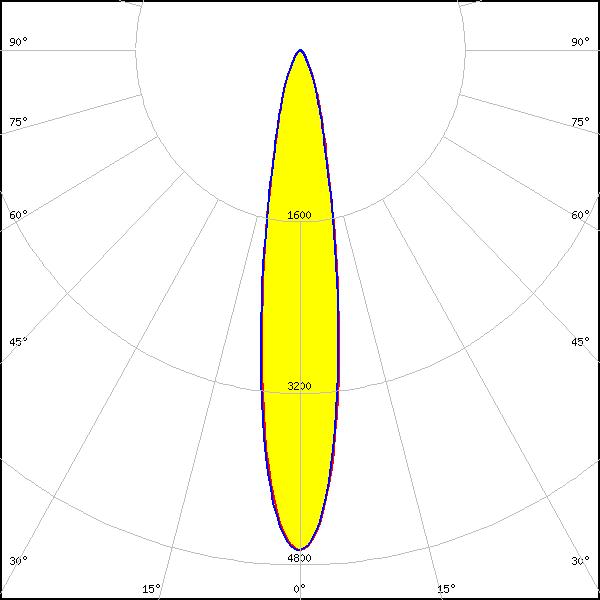

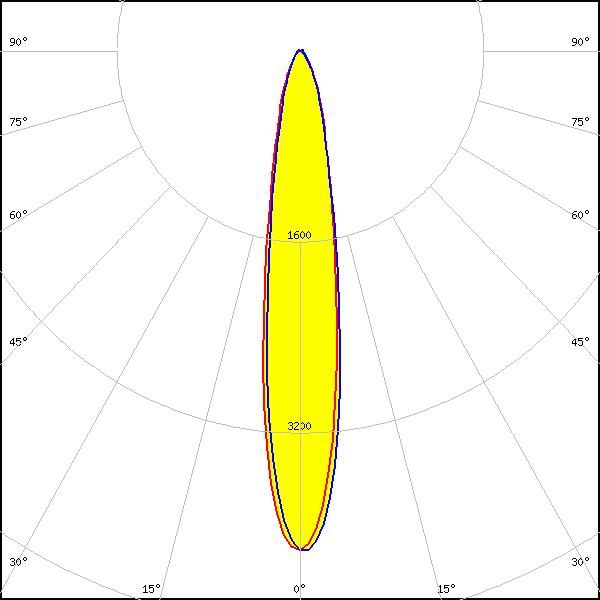

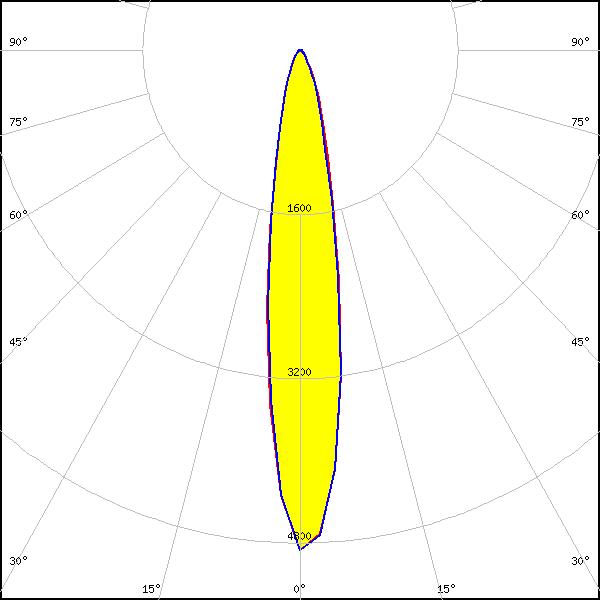

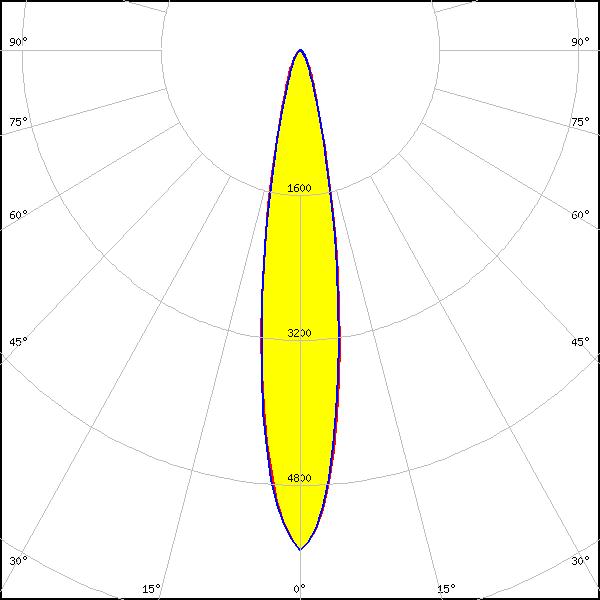

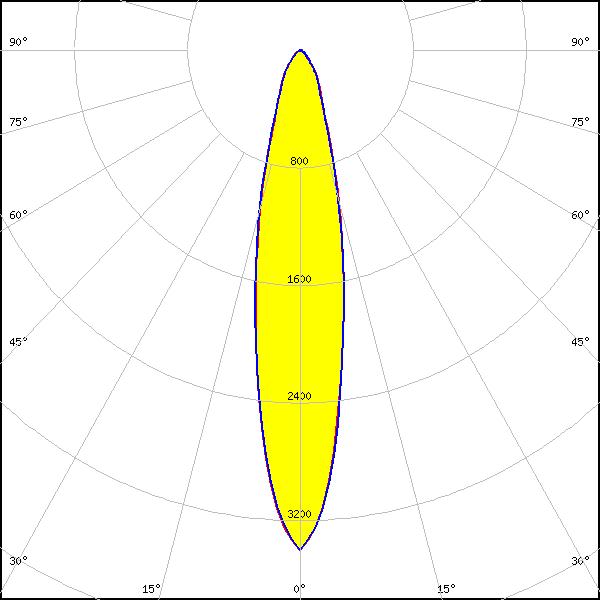

    Optical results

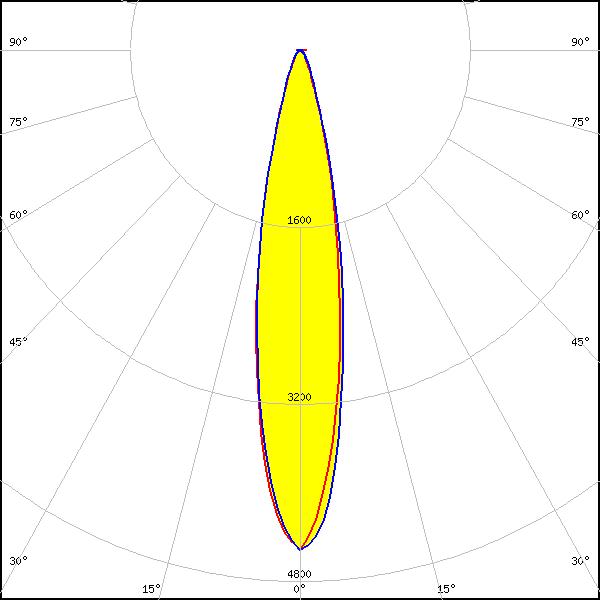

    LED: XB-D
    FWHM: 20°
    FWTM: 41°
    Peak intensity: 4.520 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 17°
    FWTM: 41°
    Peak intensity: 4.923 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E2
    FWHM: 18°
    FWTM: 42°
    Peak intensity: 4.670 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

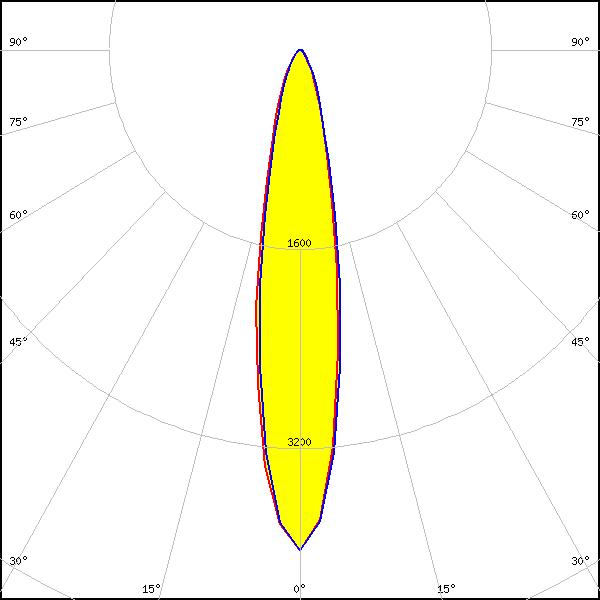

    LED: XP-G
    FWHM: 19°
    FWTM: 46°
    Peak intensity: 4.019 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 19°
    FWTM: 47°
    Peak intensity: 3.938 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

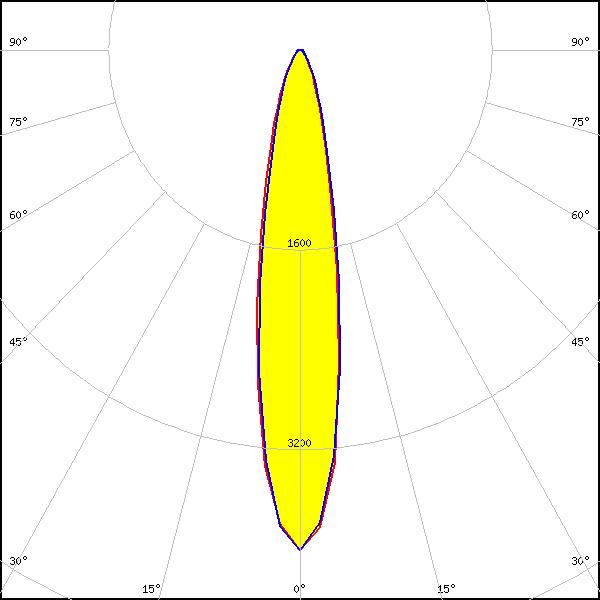

    LED: XT-E
    FWHM: 19°
    FWTM: 46°
    Peak intensity: 4.008 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Square LES)
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.518 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

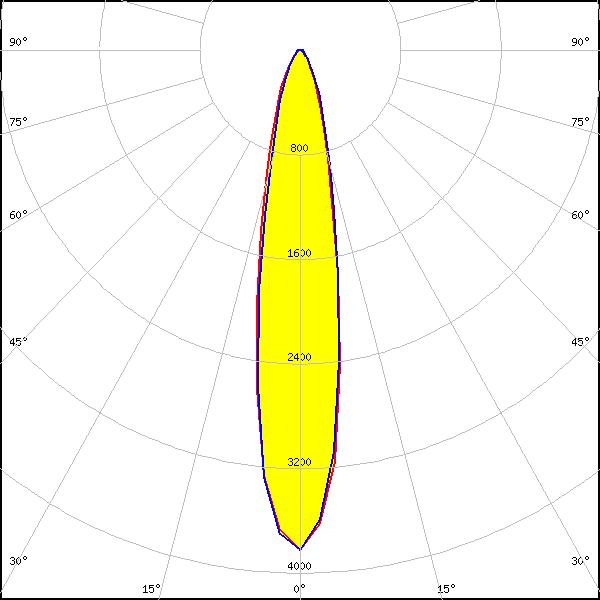

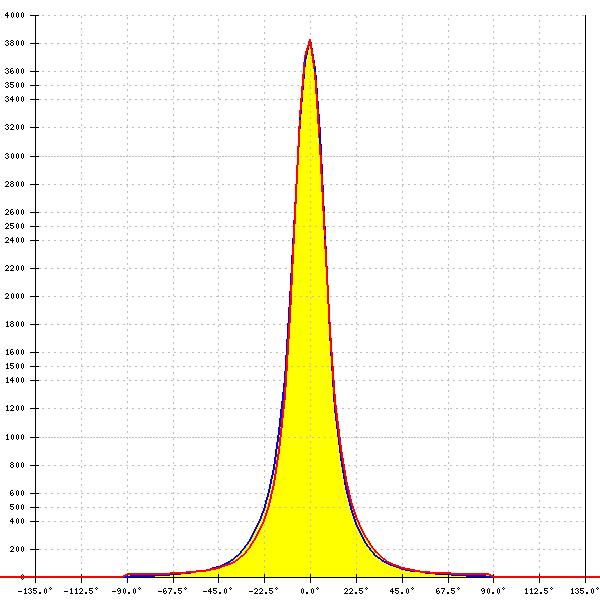

    LED: LUXEON Rebel ES
    FWHM: 19°
    FWTM: 48°
    Peak intensity: 3.827 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

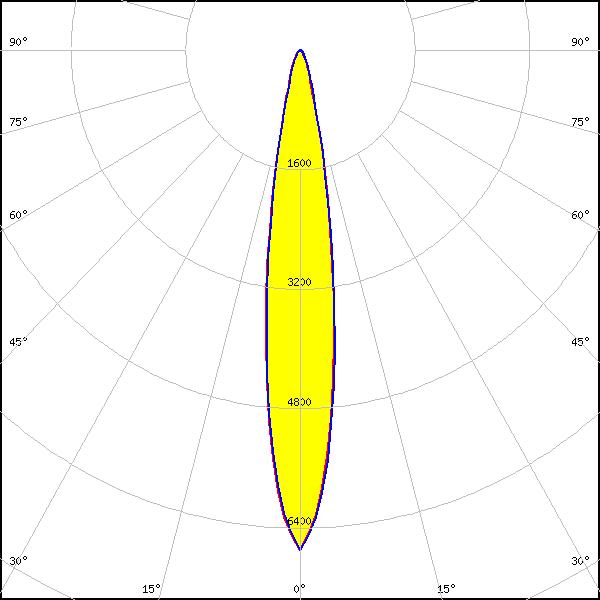

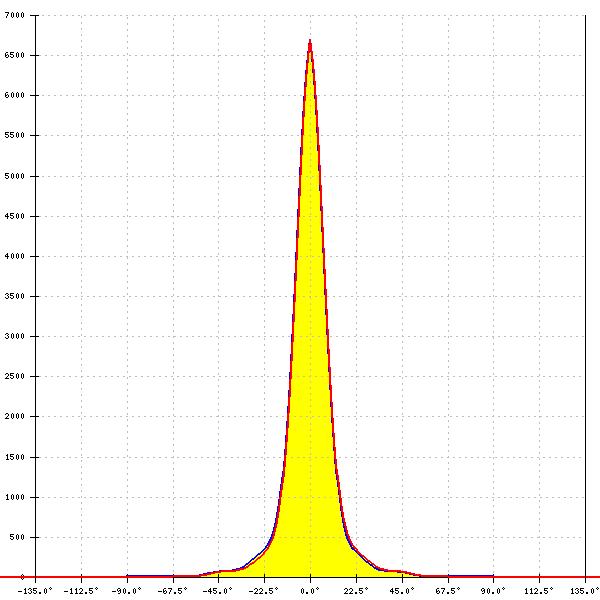

    LED: NCSxx19A
    FWHM: 16°
    FWTM: 33°
    Peak intensity: 6.698 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NF2x757G
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 5.389 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

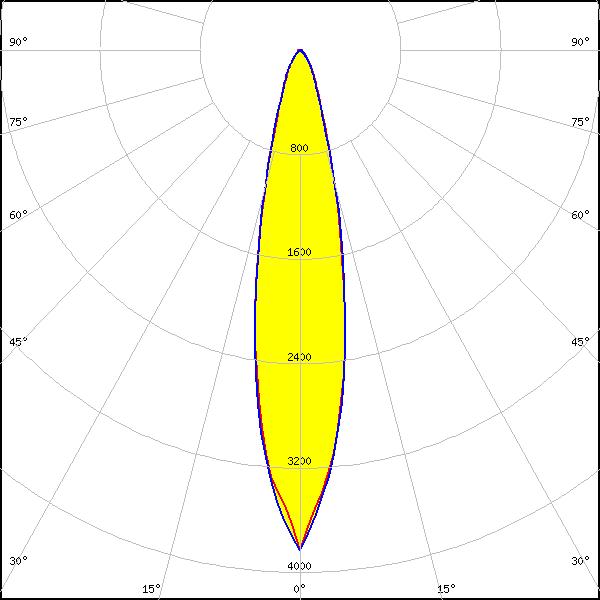

    LED: NVSxx19B/NVSxx19C
    FWHM: 21°
    FWTM: 45°
    Peak intensity: 3.800 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

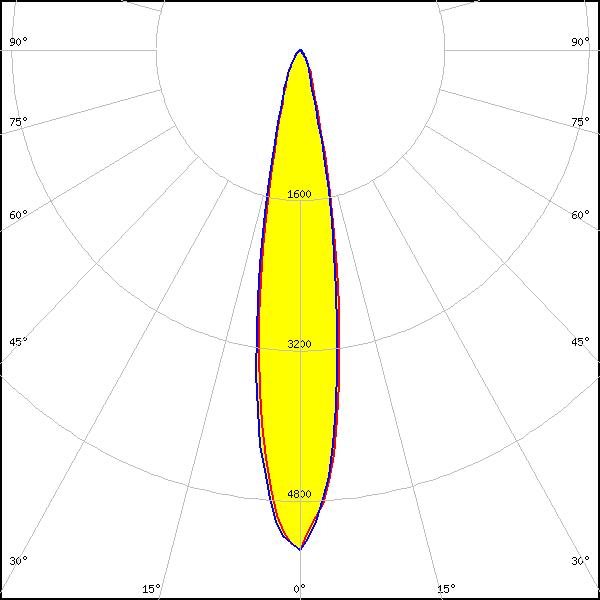

    LED: Duris S5 (2 chip)
    FWHM: 19°
    FWTM: 38°
    Peak intensity: 5.350 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

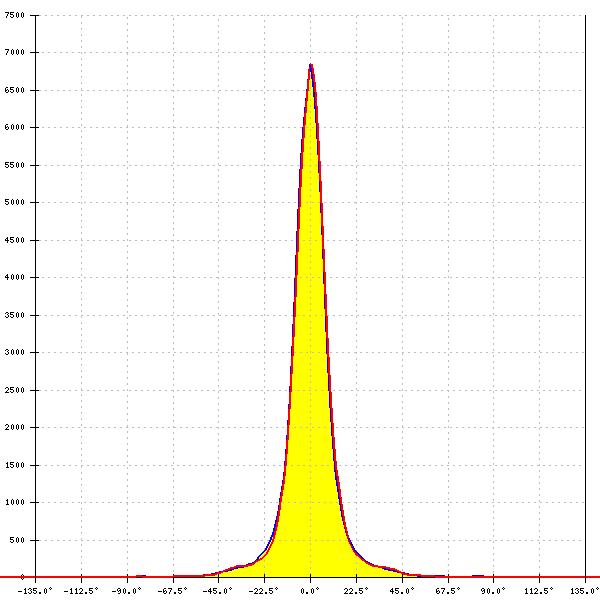

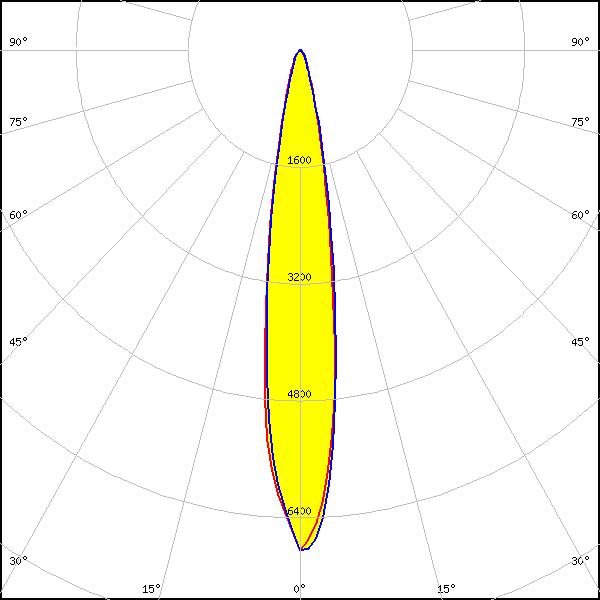

    LED: Duris S5 (Single chip)
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 6.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

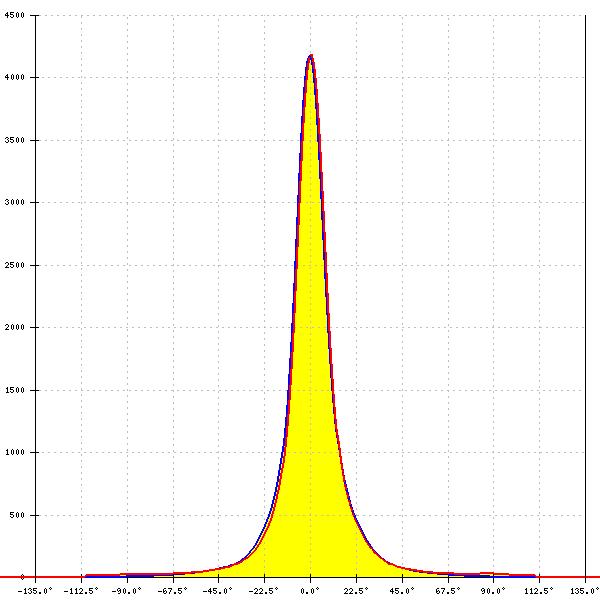

    LED: OSLON Square EC
    FWHM: 17°
    FWTM: 45°
    Peak intensity: 4.180 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 21°
    FWTM: 51°
    Peak intensity: 3.403 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: 21°
    FWTM: 39°
    Peak intensity: 4.281 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
