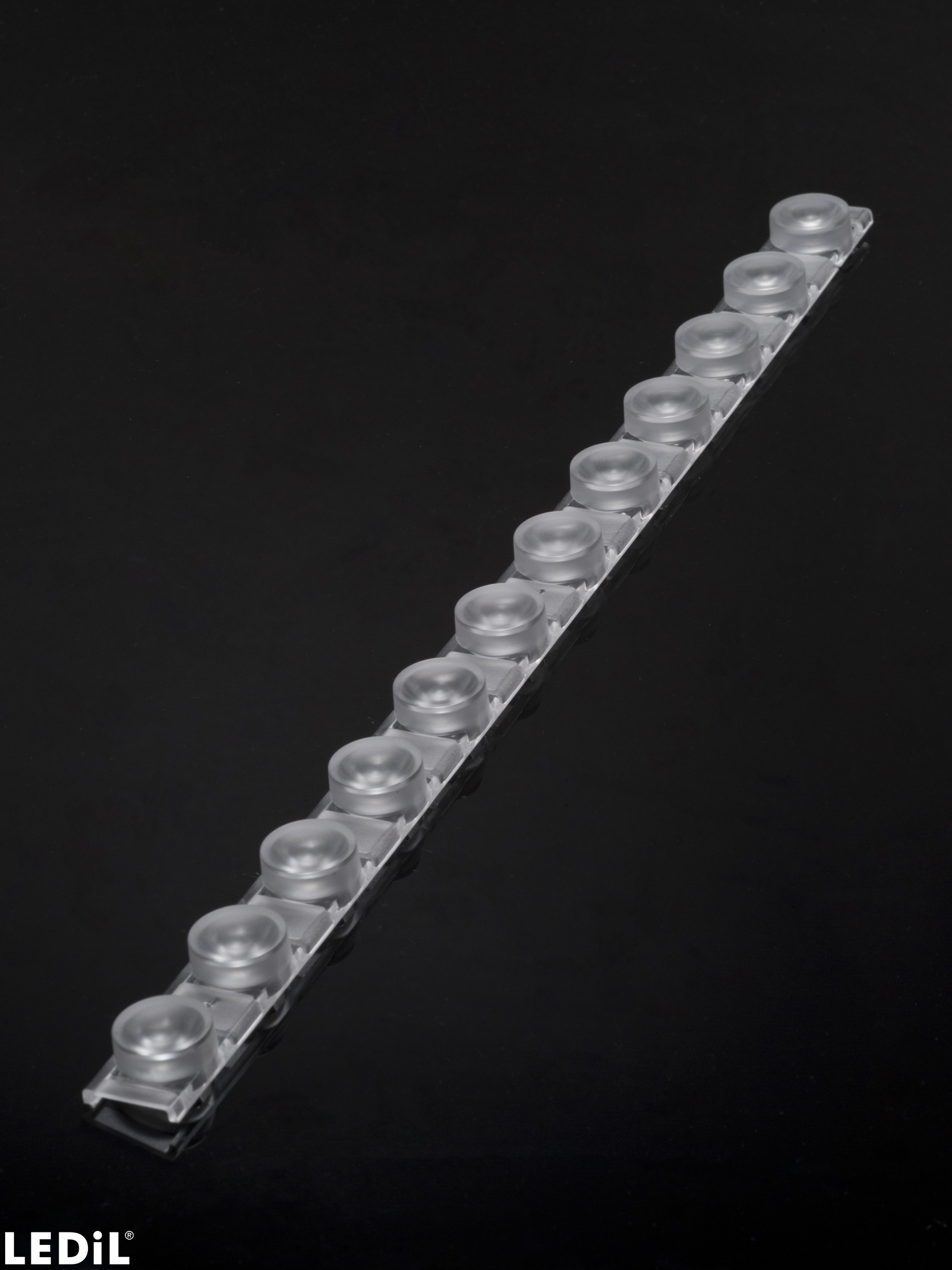

    C13870_VANESSA-B-W

    Print

    ~35° wide beam

    Specification
    • Dimensions:
      295 x  16 mm
    • Height:
      8.00 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      448 pcs
    • Box size:
      350 x 350 x 380 mm
    • Box weight:
      11.5 kg
    • MPQ:
      14 pcs
    • MOQ:
      84 pcs
    • MOQ size:
      360 x 350 x 80 mm
    • MOQ weight:
      2.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13870_VANESSA-B-W

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - VANESSA

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

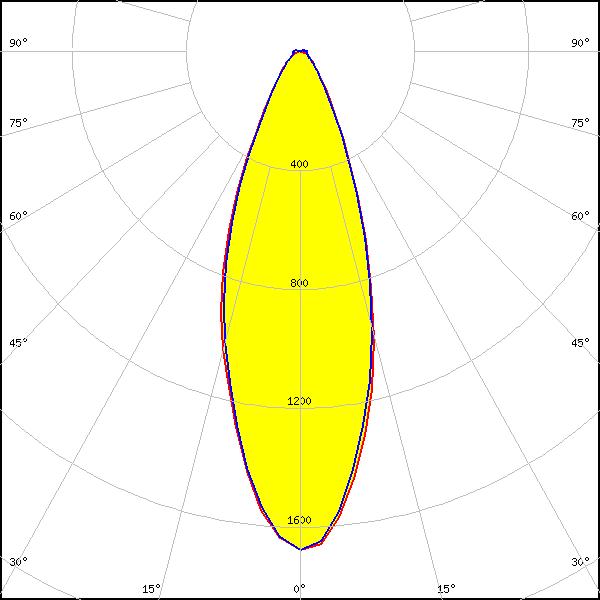

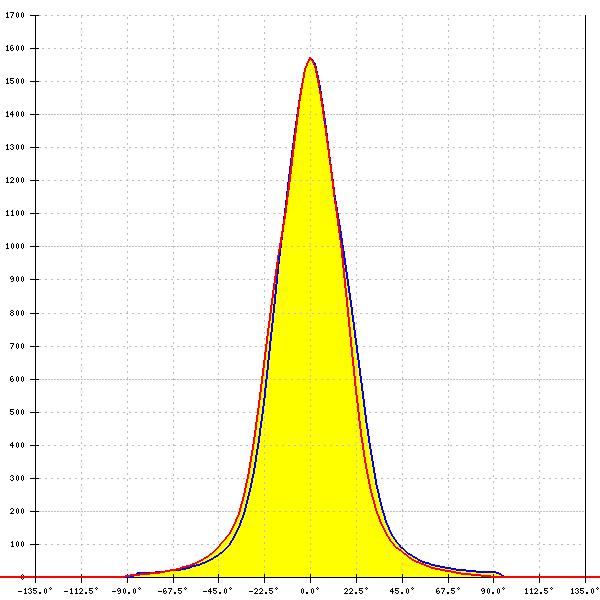

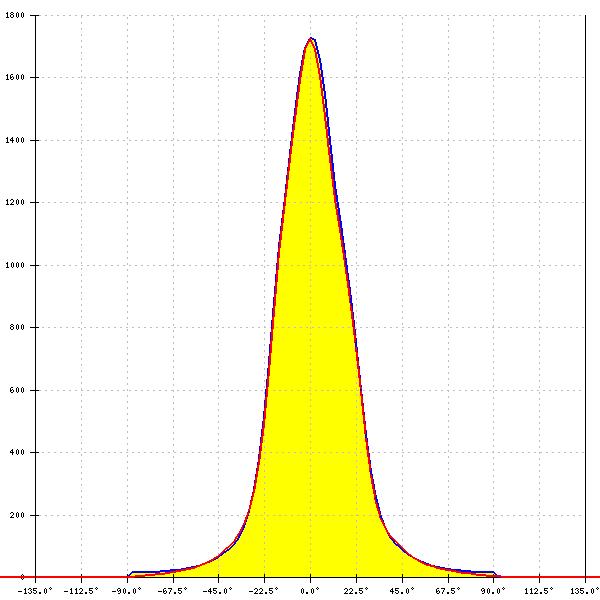

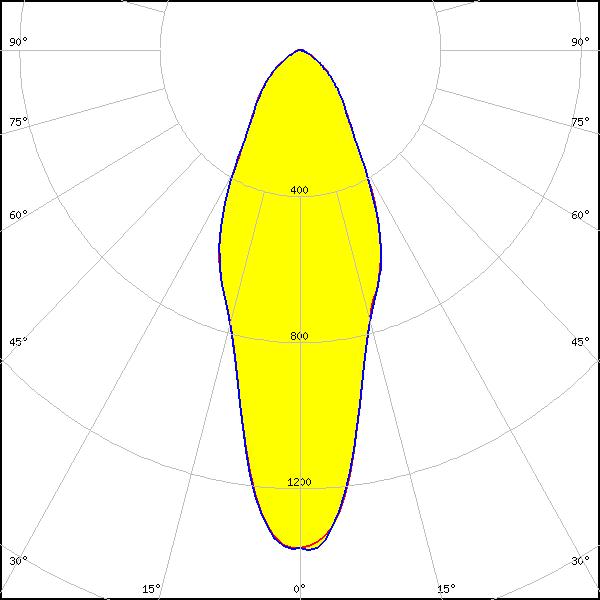

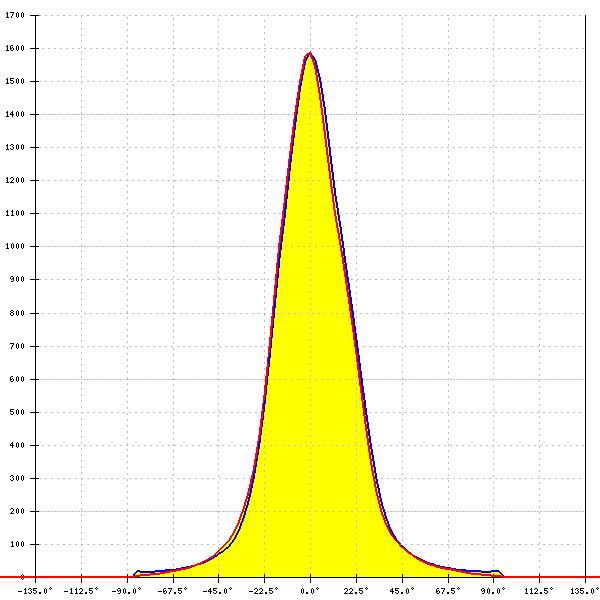

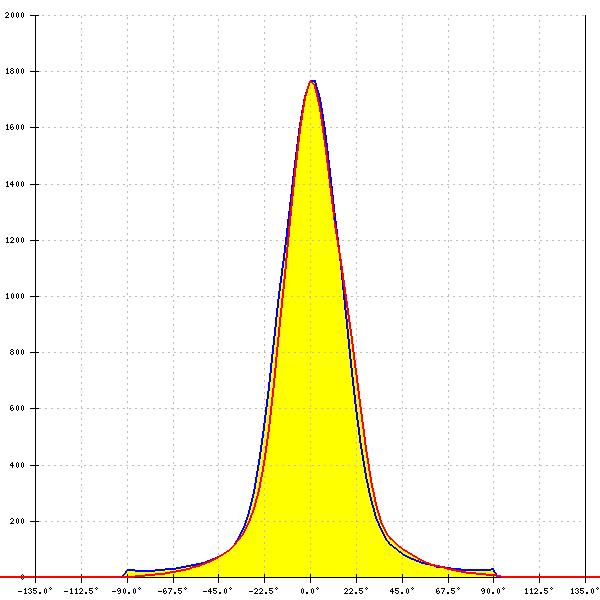

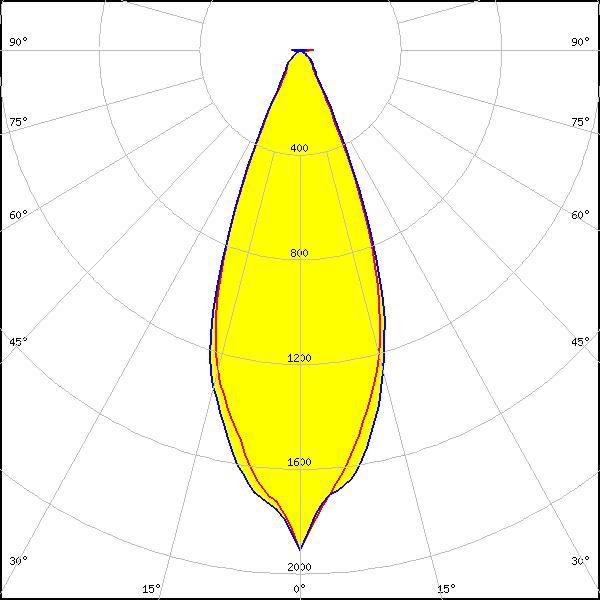

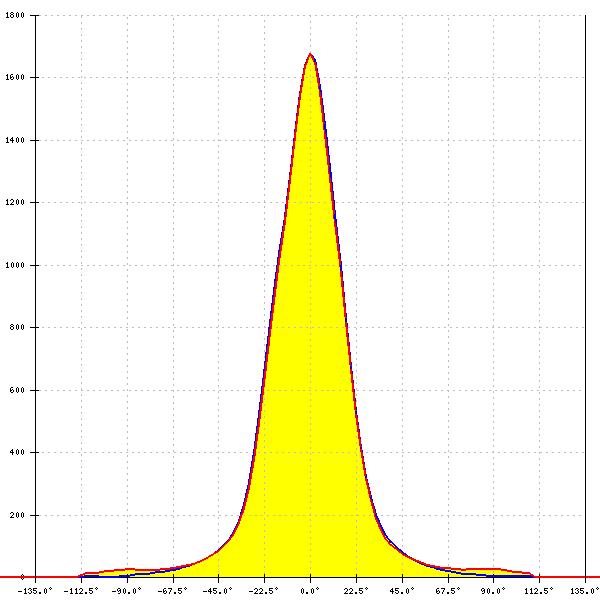

    Optical results

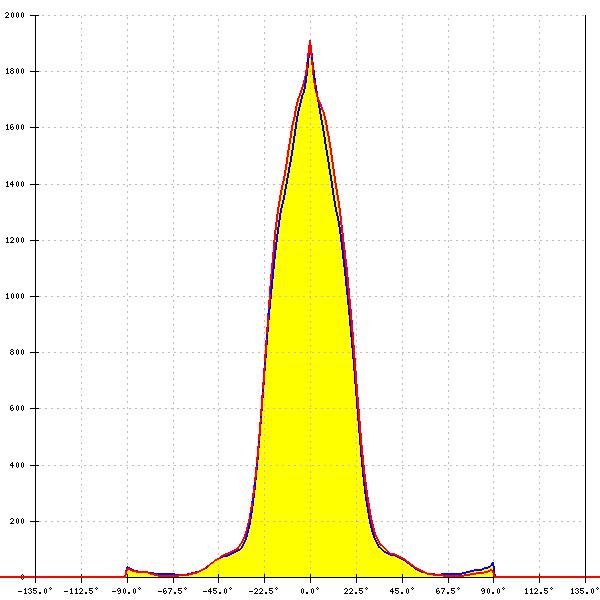

    LED: XB-D
    FWHM: 39°
    FWTM: 64°
    Peak intensity: 1.910 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

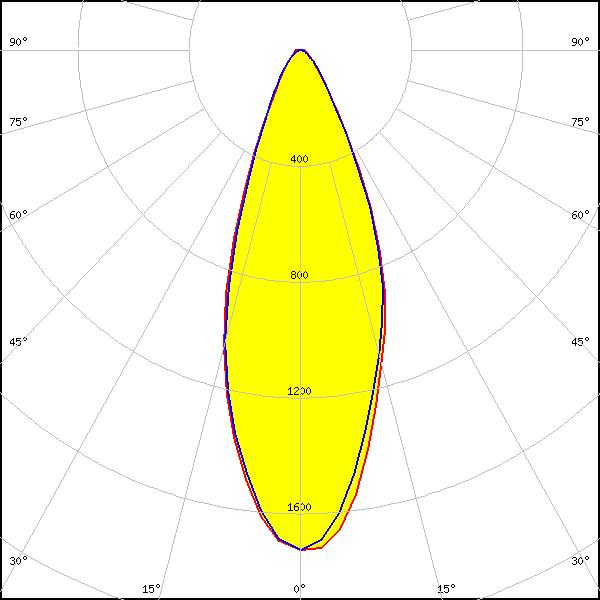

    LED: XP-E
    FWHM: 38°
    FWTM: 69°
    Peak intensity: 1.730 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

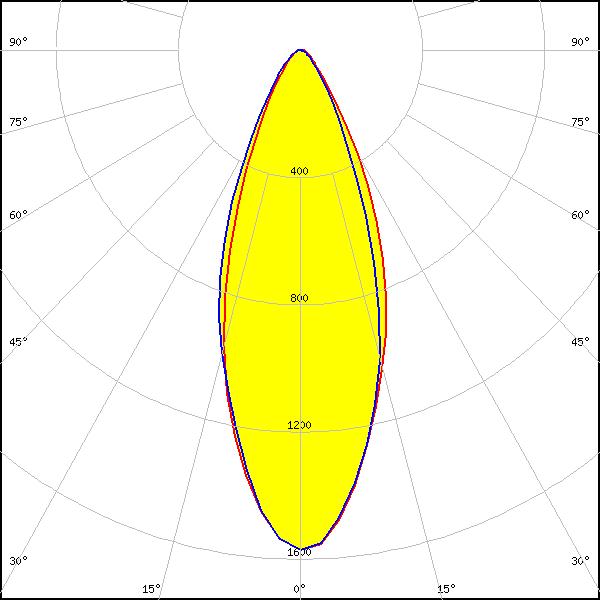

    LED: XP-G
    FWHM: 40°
    FWTM: 73°
    Peak intensity: 1.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

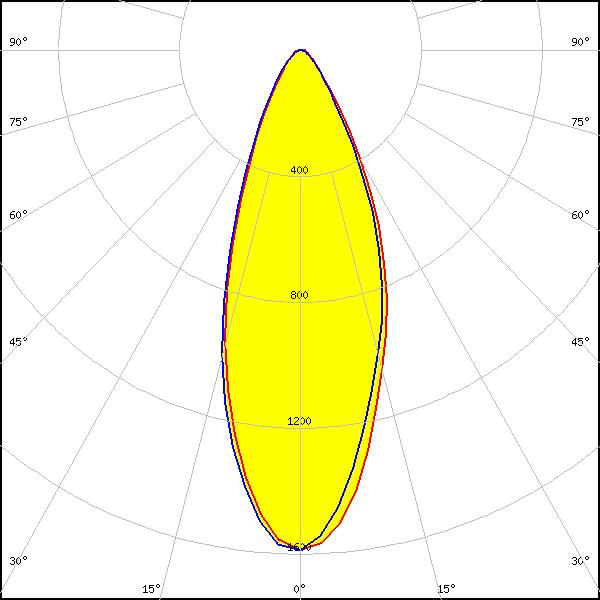

    LED: XP-G2
    FWHM: 39°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

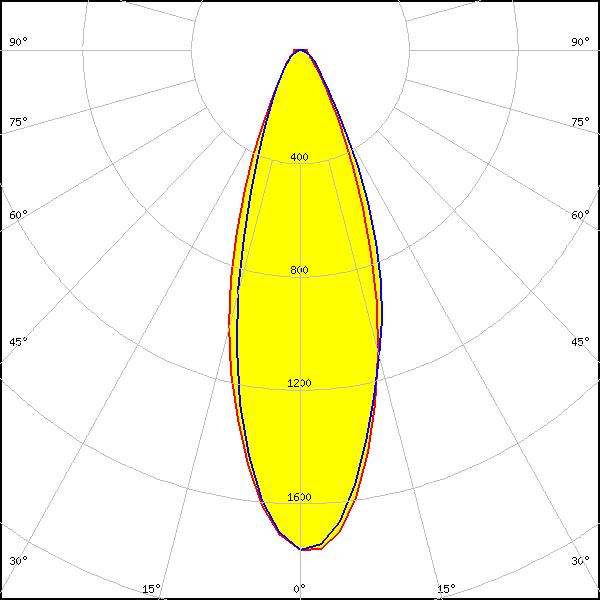

    LED: XT-E
    FWHM: 35°
    FWTM: 68°
    Peak intensity: 1.780 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

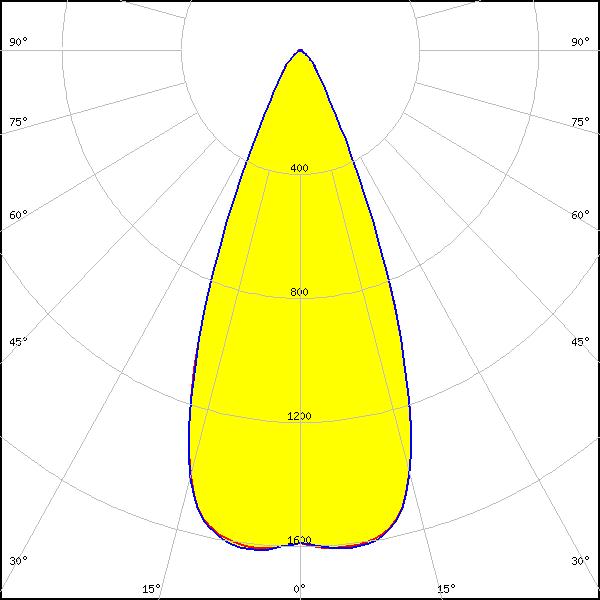

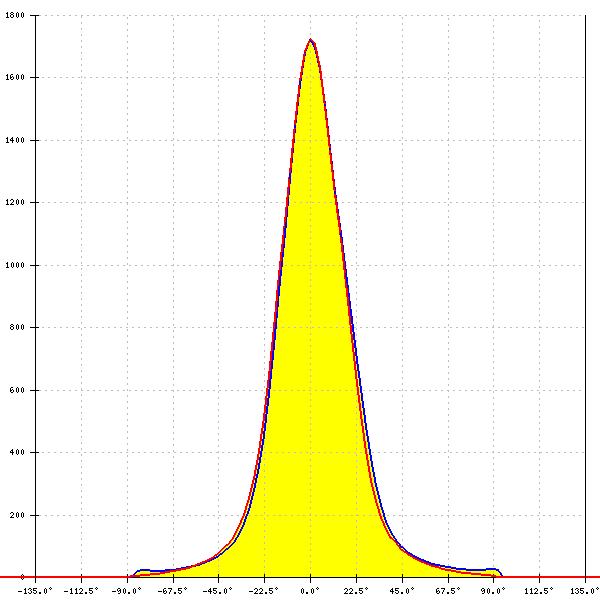

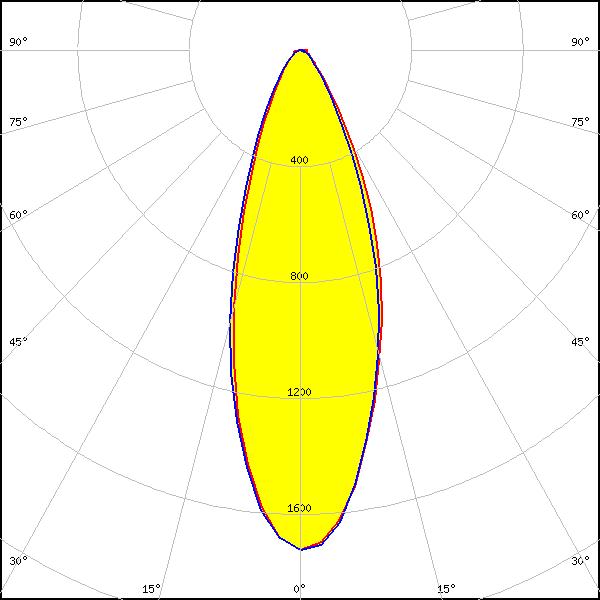

    LED: LUXEON Rebel ES
    FWHM: 36°
    FWTM: 71°
    Peak intensity: 1.730 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

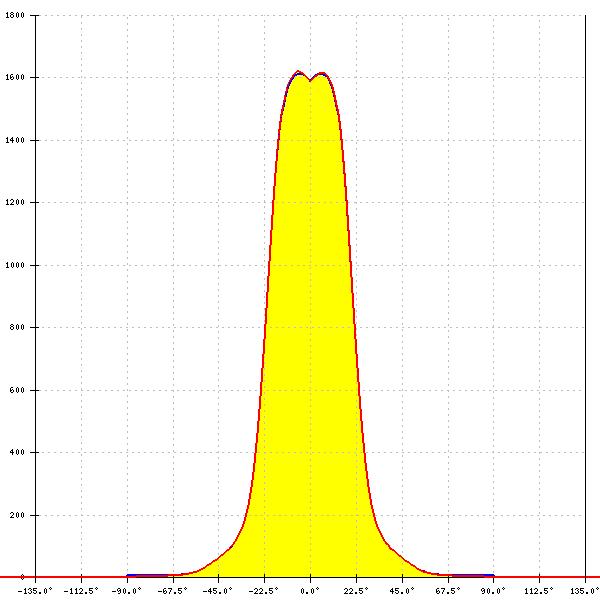

    LED: NF2x757G
    FWHM: 44°
    FWTM: 66°
    Peak intensity: 1.621 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    LEDs/each optic: 1
    Light colour/type: White

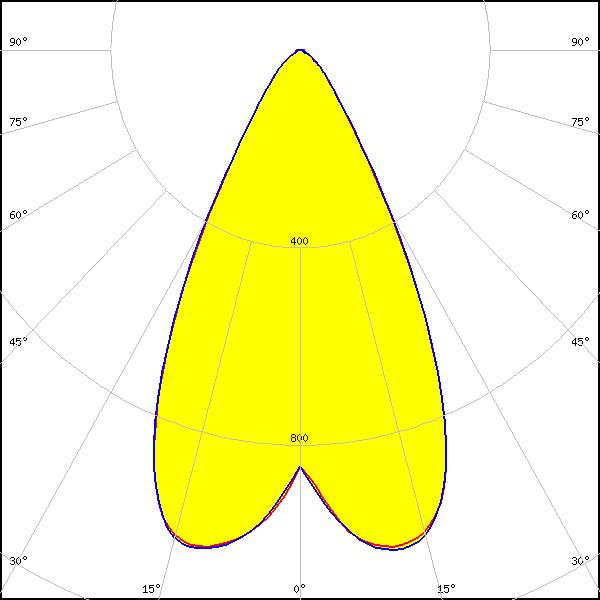

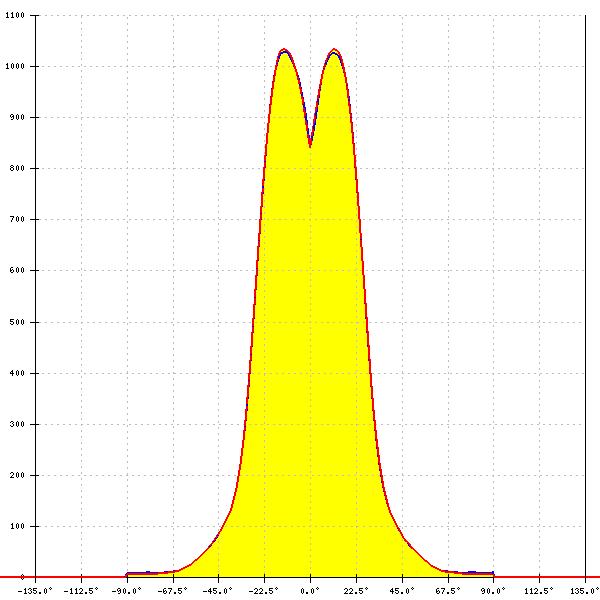

    LED: LH351B
    FWHM: 56°
    FWTM: 84°
    Peak intensity: 1.076 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

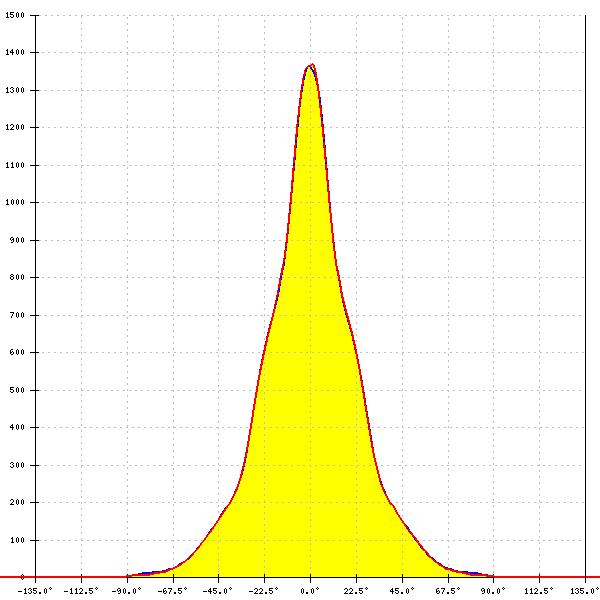

    LED: LM302Z plus
    FWHM: 38°
    FWTM: 94°
    Peak intensity: 1.378 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 2
    Light colour/type: White

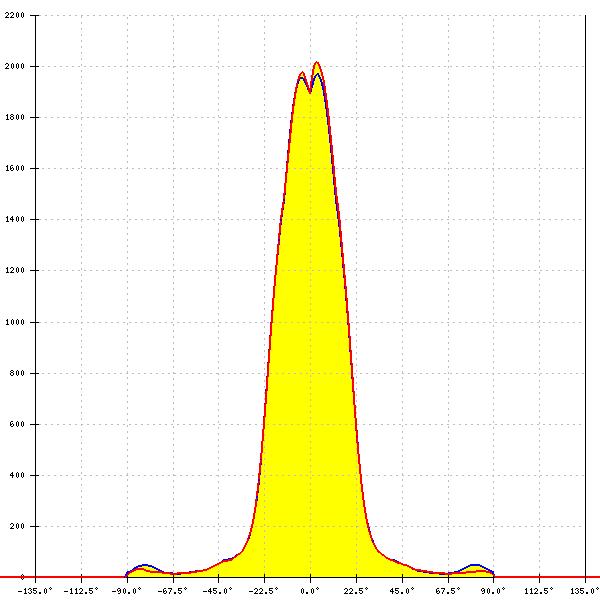

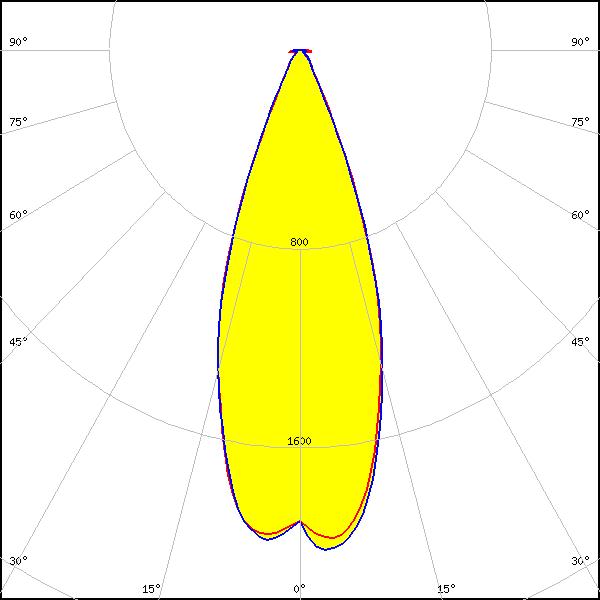

    LED: Z8Y22
    FWHM: 38°
    FWTM: 58°
    Peak intensity: 2.022 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
