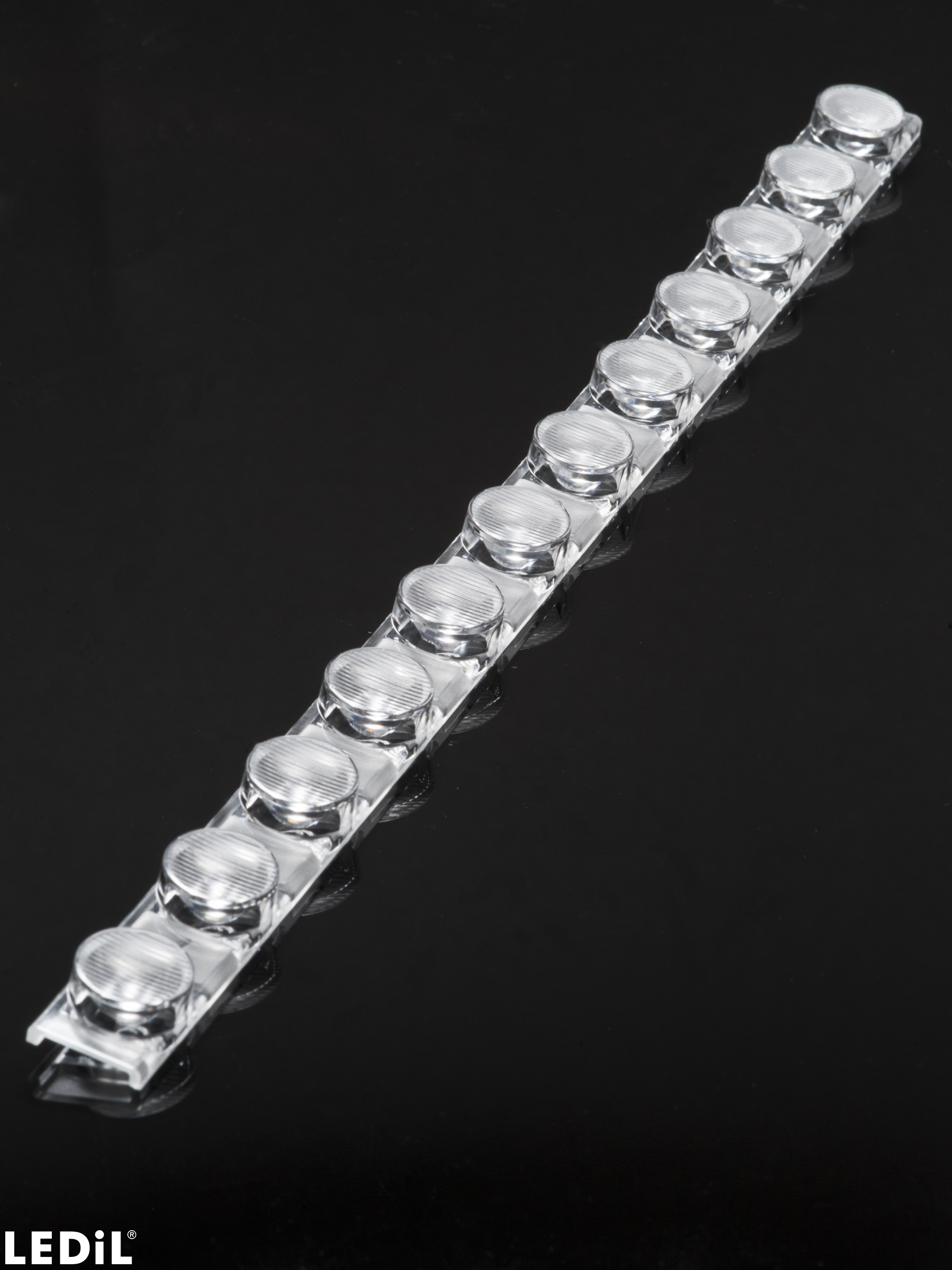

    C13871_VANESSA-B-O

    Print

    ~45° + 20° oval beam

    Specification
    • Dimensions:
      295 x  16 mm
    • Height:
      8.00 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      448 pcs
    • Box size:
      350 x 350 x 380 mm
    • Box weight:
      11.1 kg
    • MPQ:
      14 pcs
    • MOQ:
      84 pcs
    • MOQ size:
      360 x 350 x 80 mm
    • MOQ weight:
      2.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13871_VANESSA-B-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - VANESSA

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Optical results

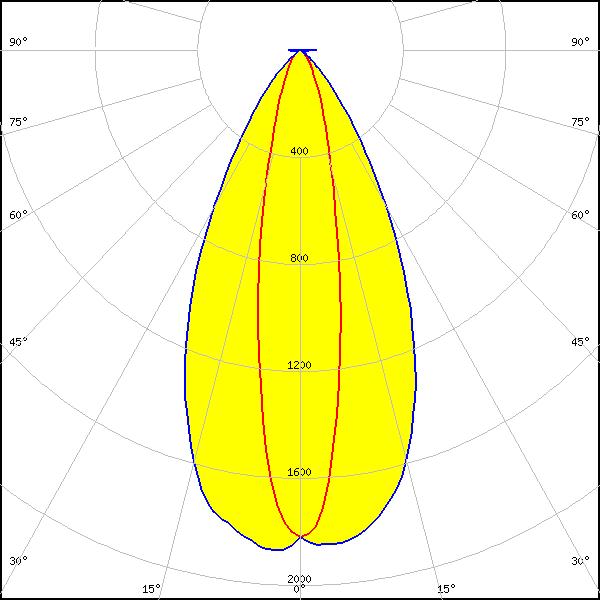

    LED: XB-D
    FWHM: 50° + 19°
    FWTM: 84° + 47°
    Peak intensity: 1.900 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

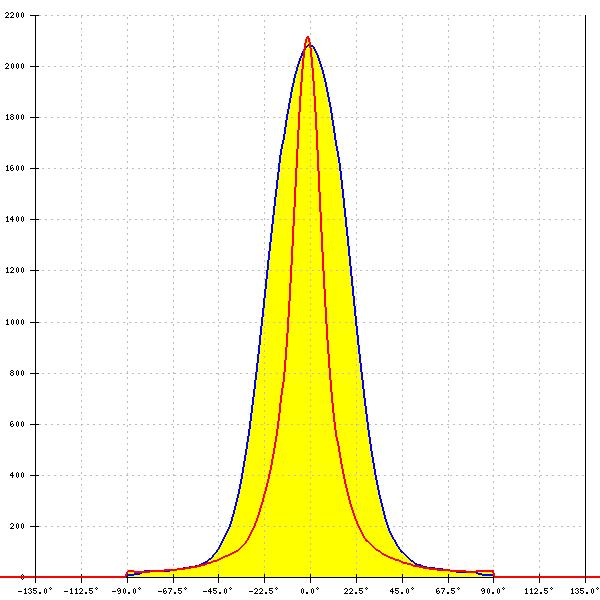

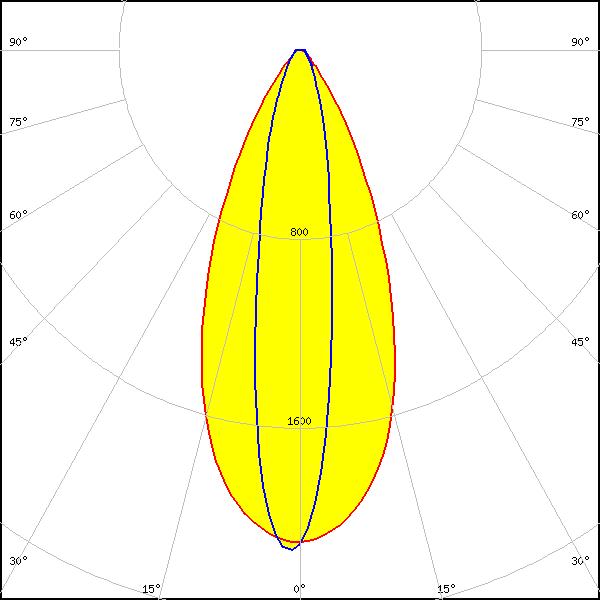

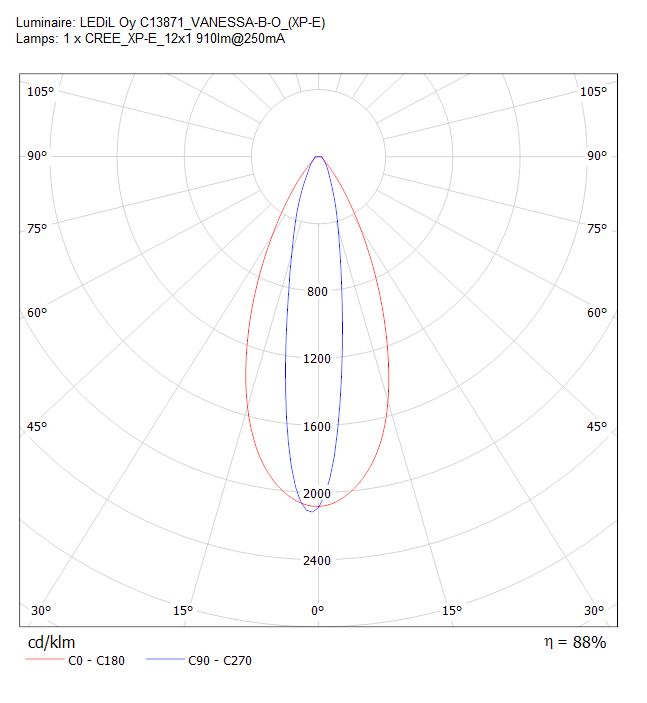

    LED: XP-E
    FWHM: 45° + 18°
    FWTM: 77° + 50°
    Peak intensity: 2.100 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

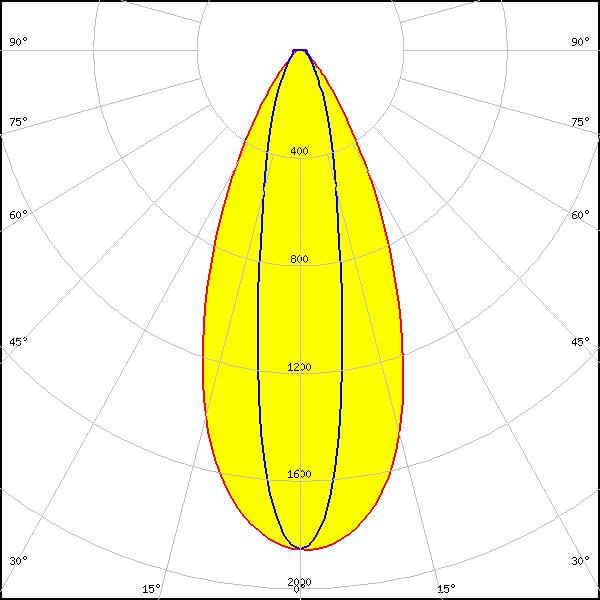

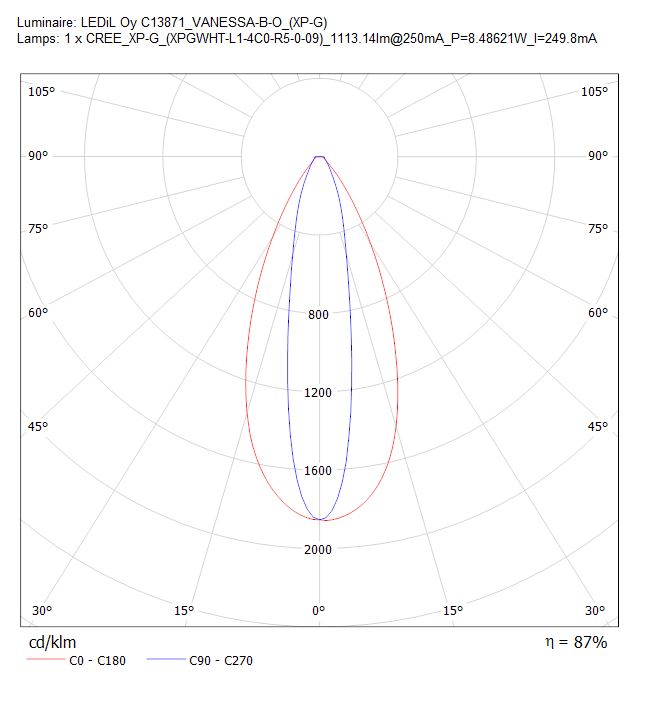

    LED: XP-G
    FWHM: 46° + 21°
    FWTM: 81° + 60°
    Peak intensity: 1.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

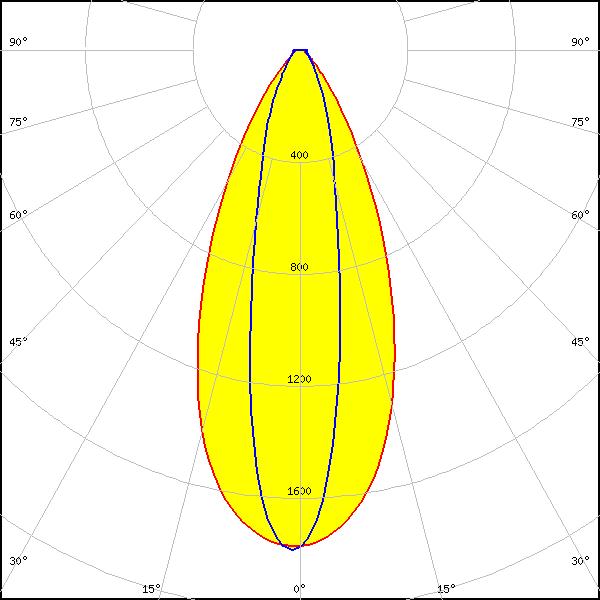

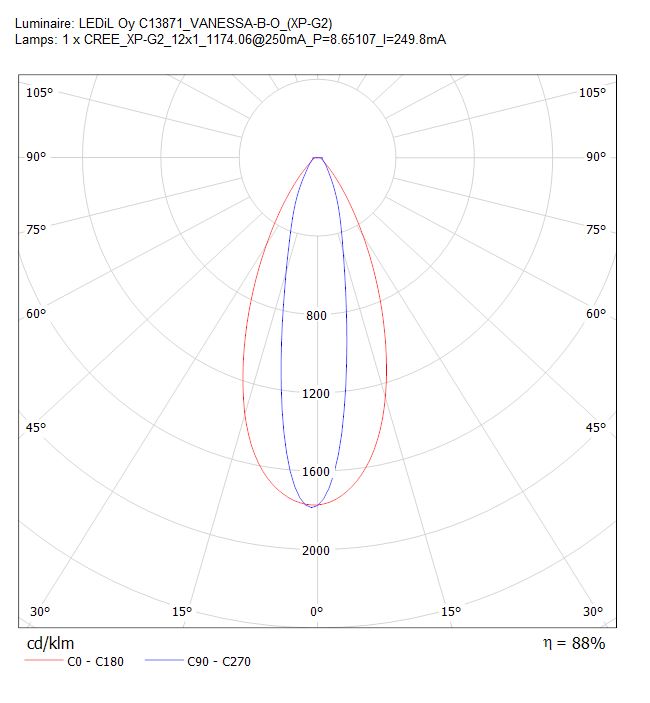

    LED: XP-G2
    FWHM: 46° + 21°
    FWTM: 81° + 59°
    Peak intensity: 1.790 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

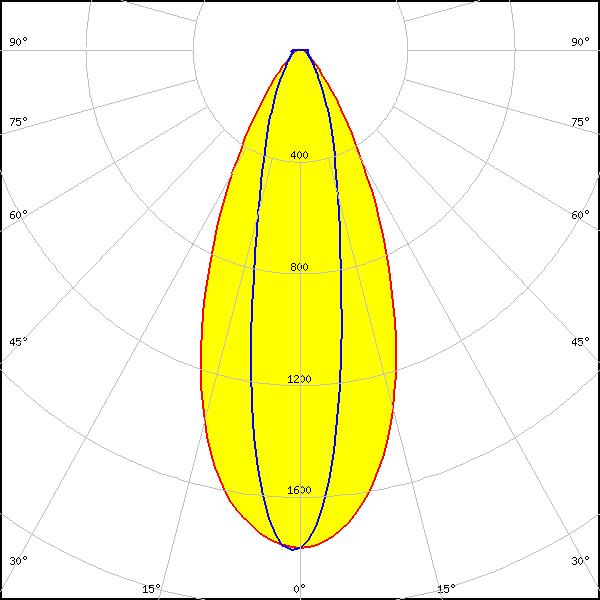

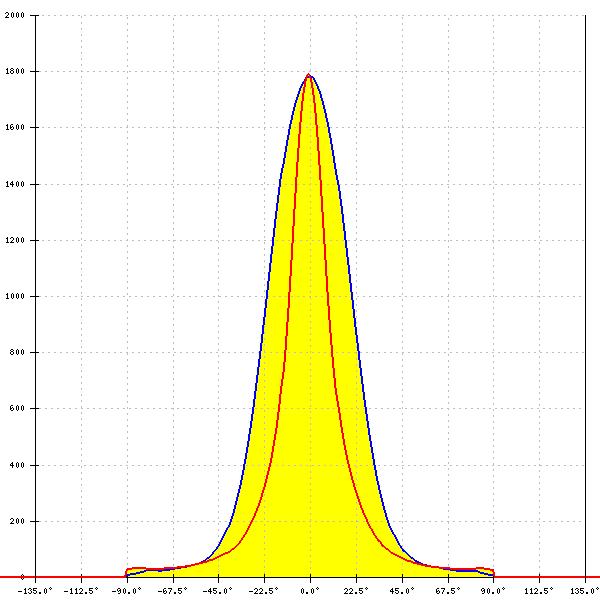

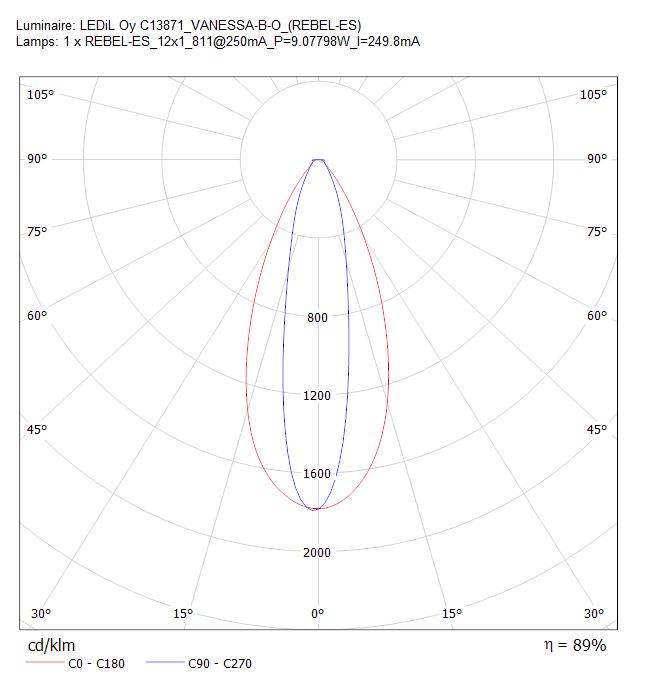

    LED: LUXEON Rebel ES
    FWHM: 45° + 21°
    FWTM: 80° + 60°
    Peak intensity: 1.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

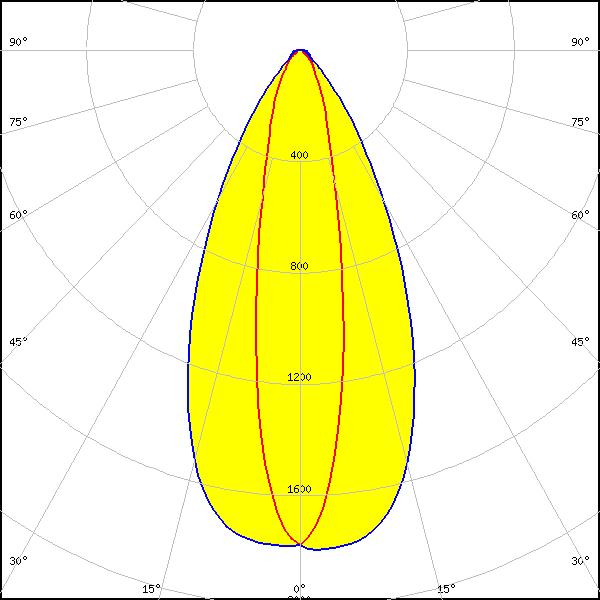

    LED: NCSxx19A
    FWHM: 21° + 51°
    FWTM: 57° + 85°
    Peak intensity: 1.798 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

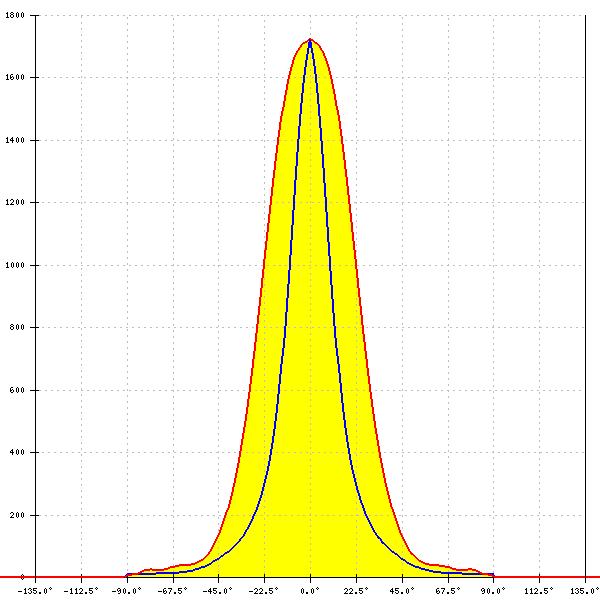

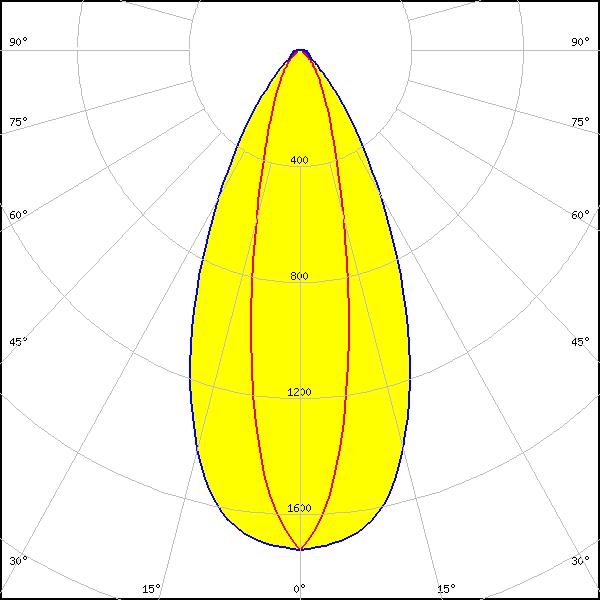

    LED: NF2x757G
    FWHM: 24° + 50°
    FWTM: 59° + 86°
    Peak intensity: 1.723 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

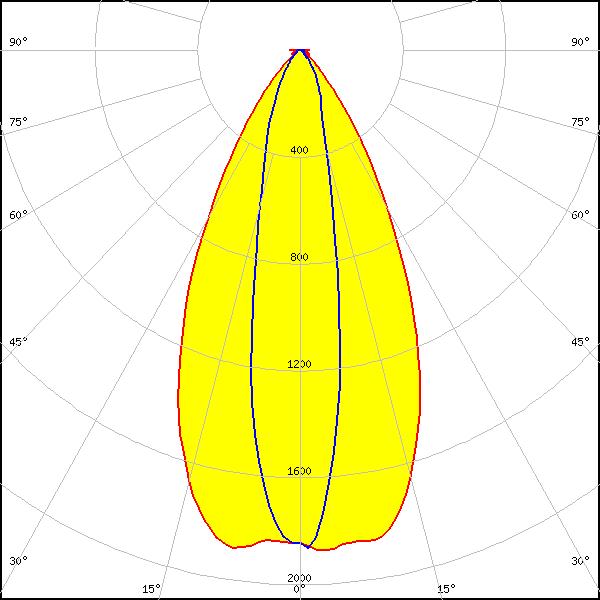

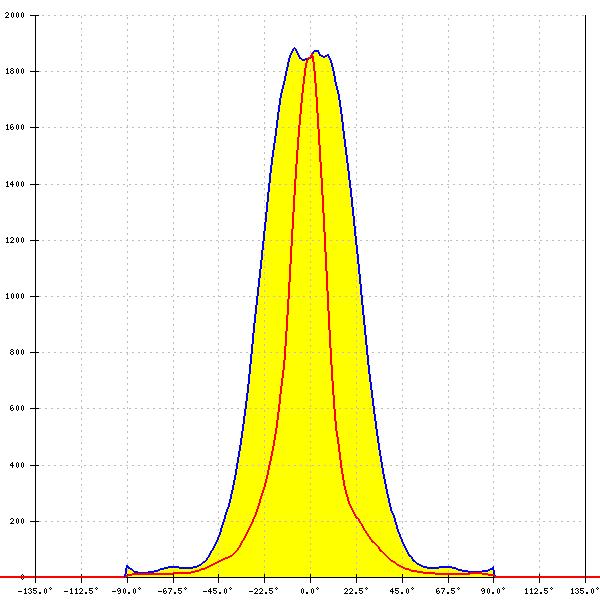

    LED: DURIS S5 (2 chip)
    FWHM: 53° + 21°
    FWTM: 85° + 54°
    Peak intensity: 1.890 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

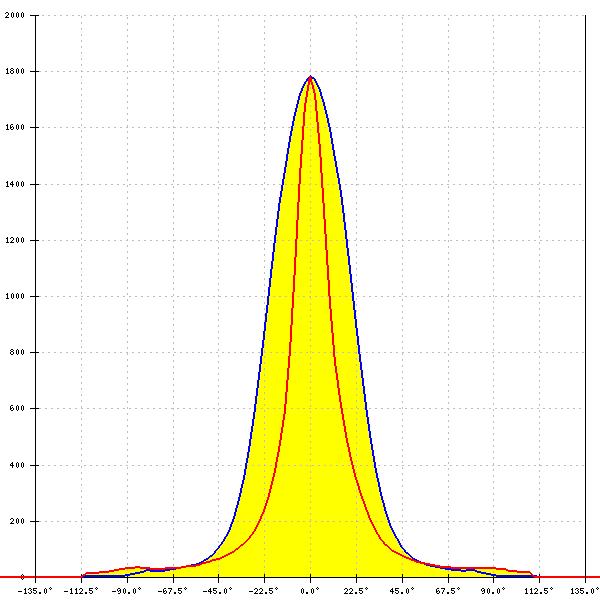

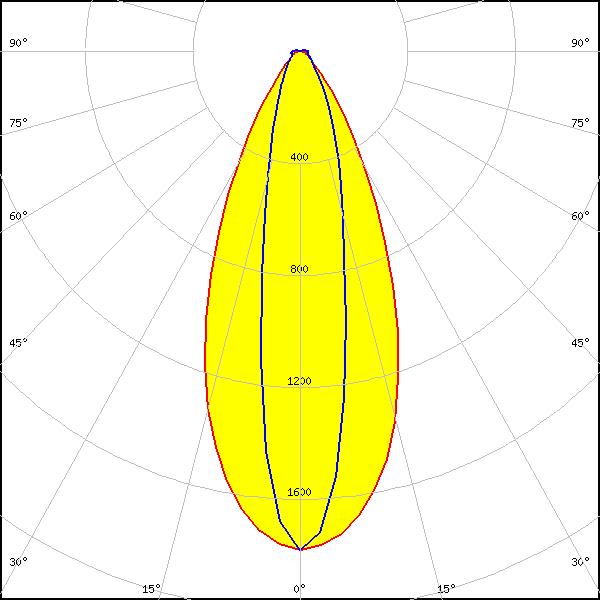

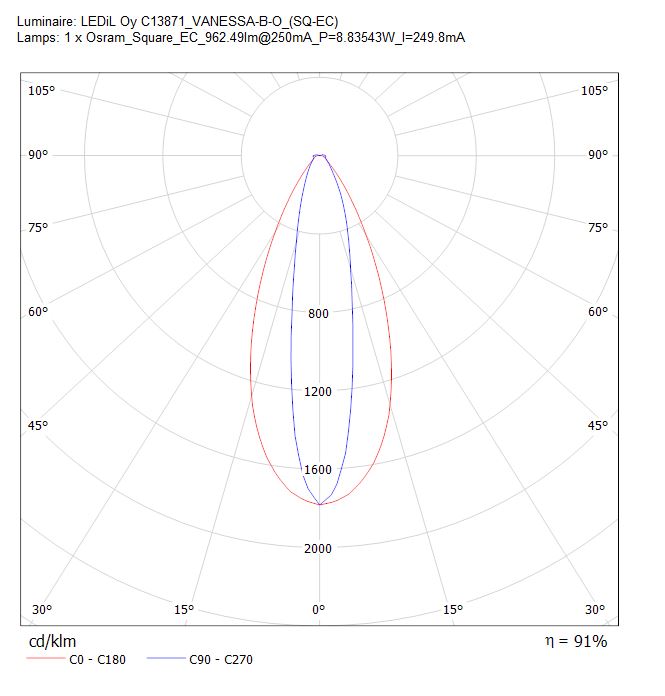

    LED: OSLON Square EC
    FWHM: 45° + 20°
    FWTM: 79° + 58°
    Peak intensity: 1.780 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

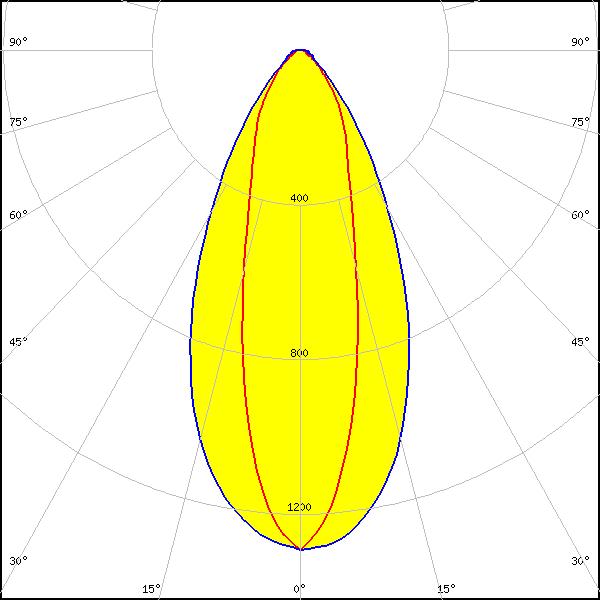

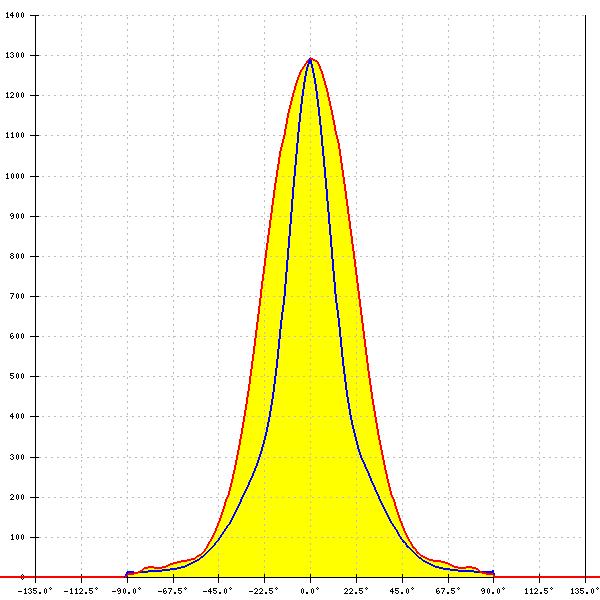

    LED: LH351B
    FWHM: 28° + 50°
    FWTM: 81° + 90°
    Peak intensity: 1.294 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
