    C14606_HB-2X2-WW

    Print

    ~65° wide beam optimized for CREE XP-L and XM-L

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.50 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.2 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14606_HB-2X2-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - HB-2X2 FOR CREE XP-L AND XM-L LEDS

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

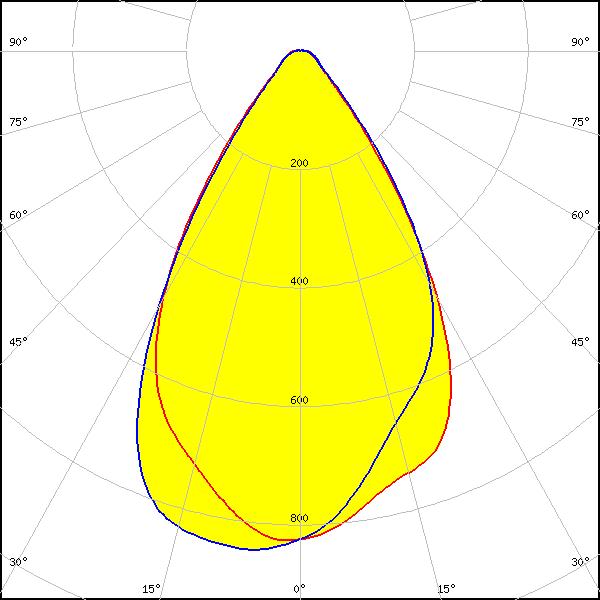

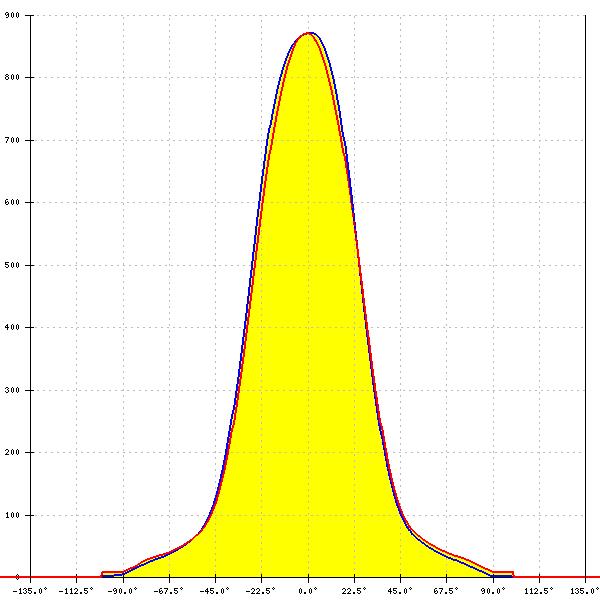

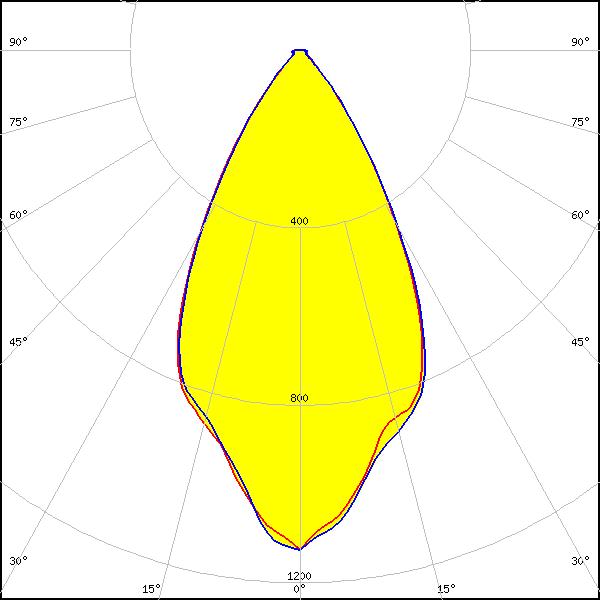

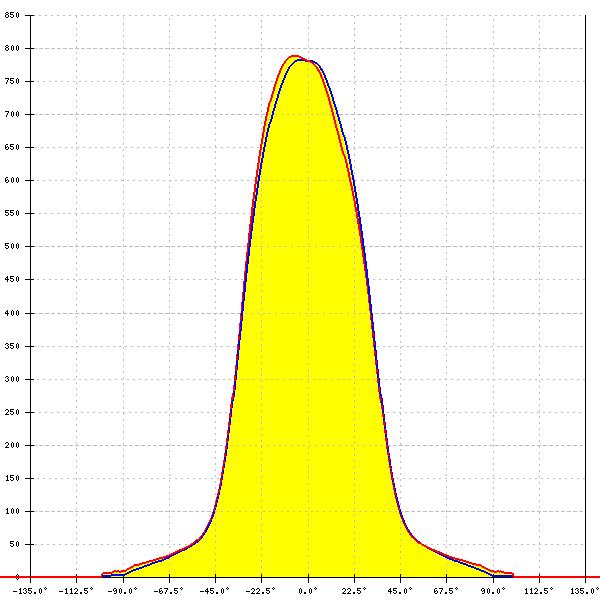

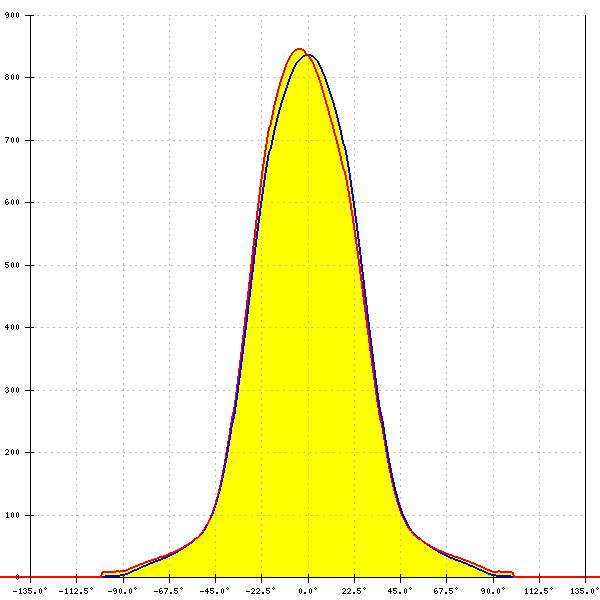

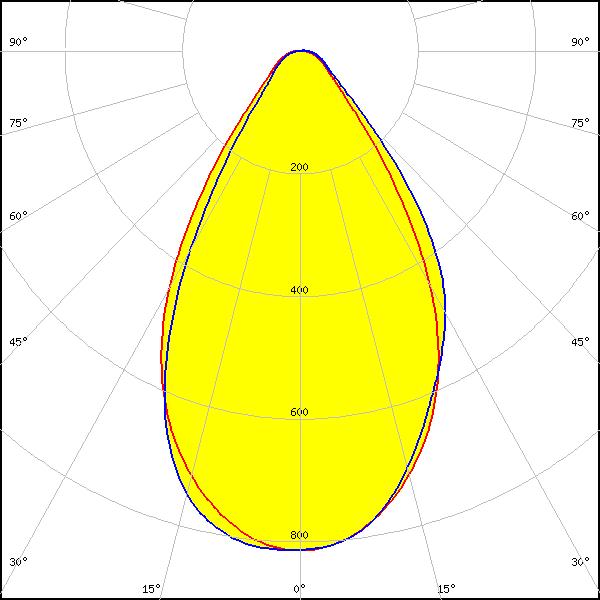

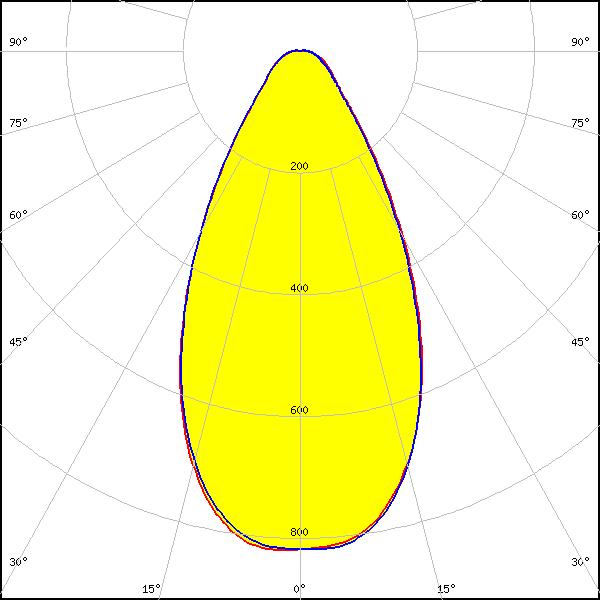

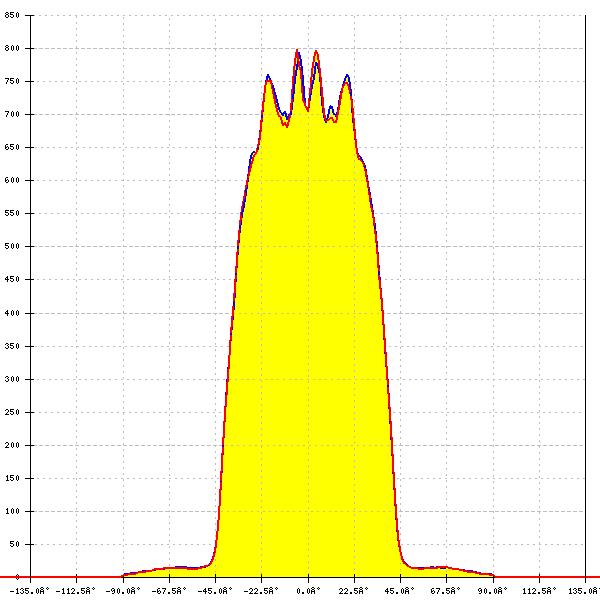

    Optical results

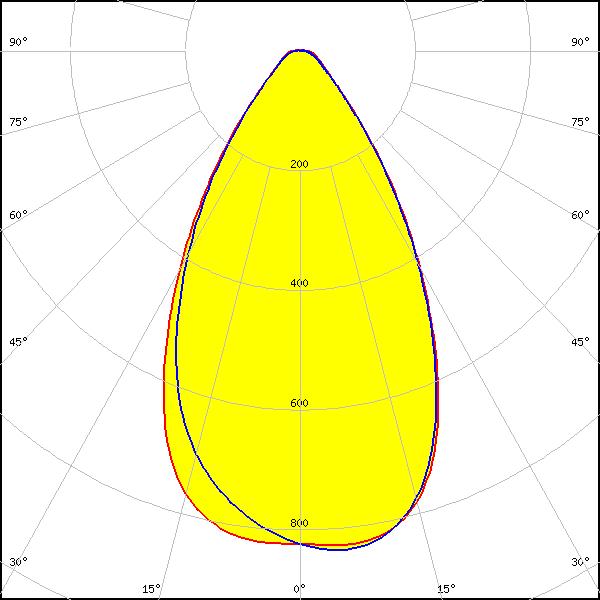

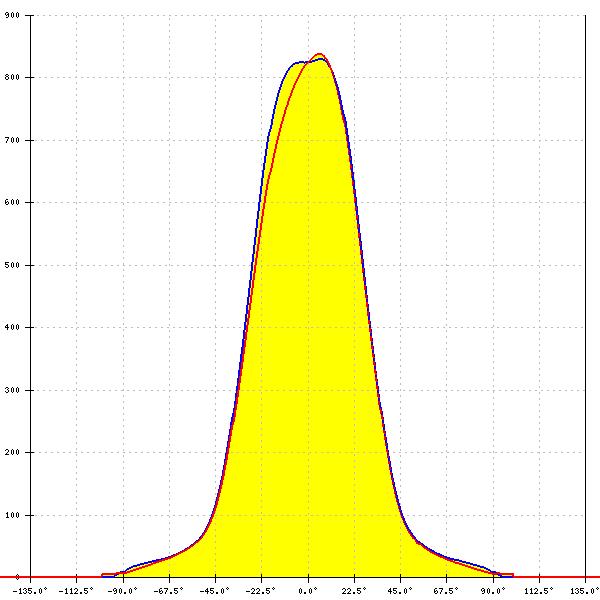

    LED: Bridgelux SMD 5050
    FWHM: 59°
    FWTM: 96°
    Peak intensity: 0.840 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

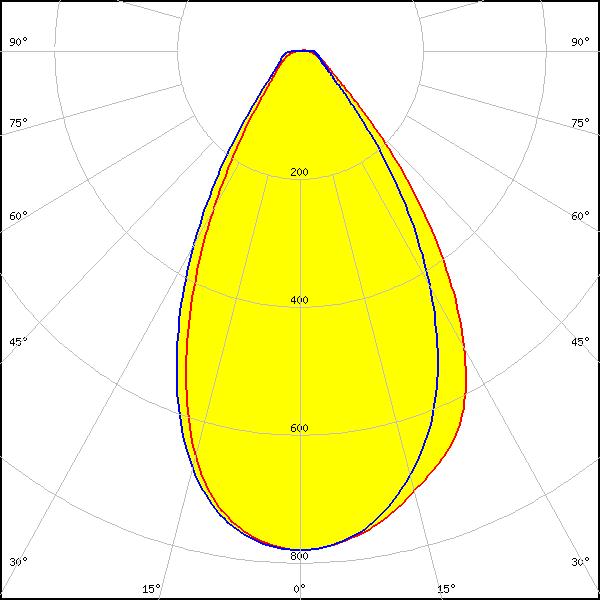

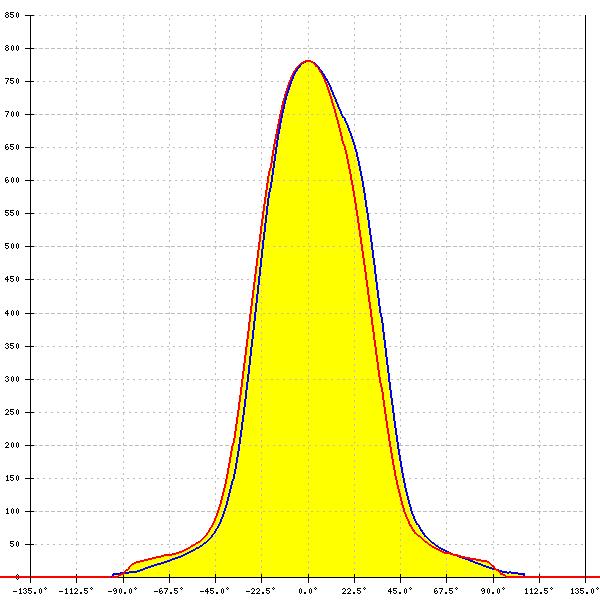

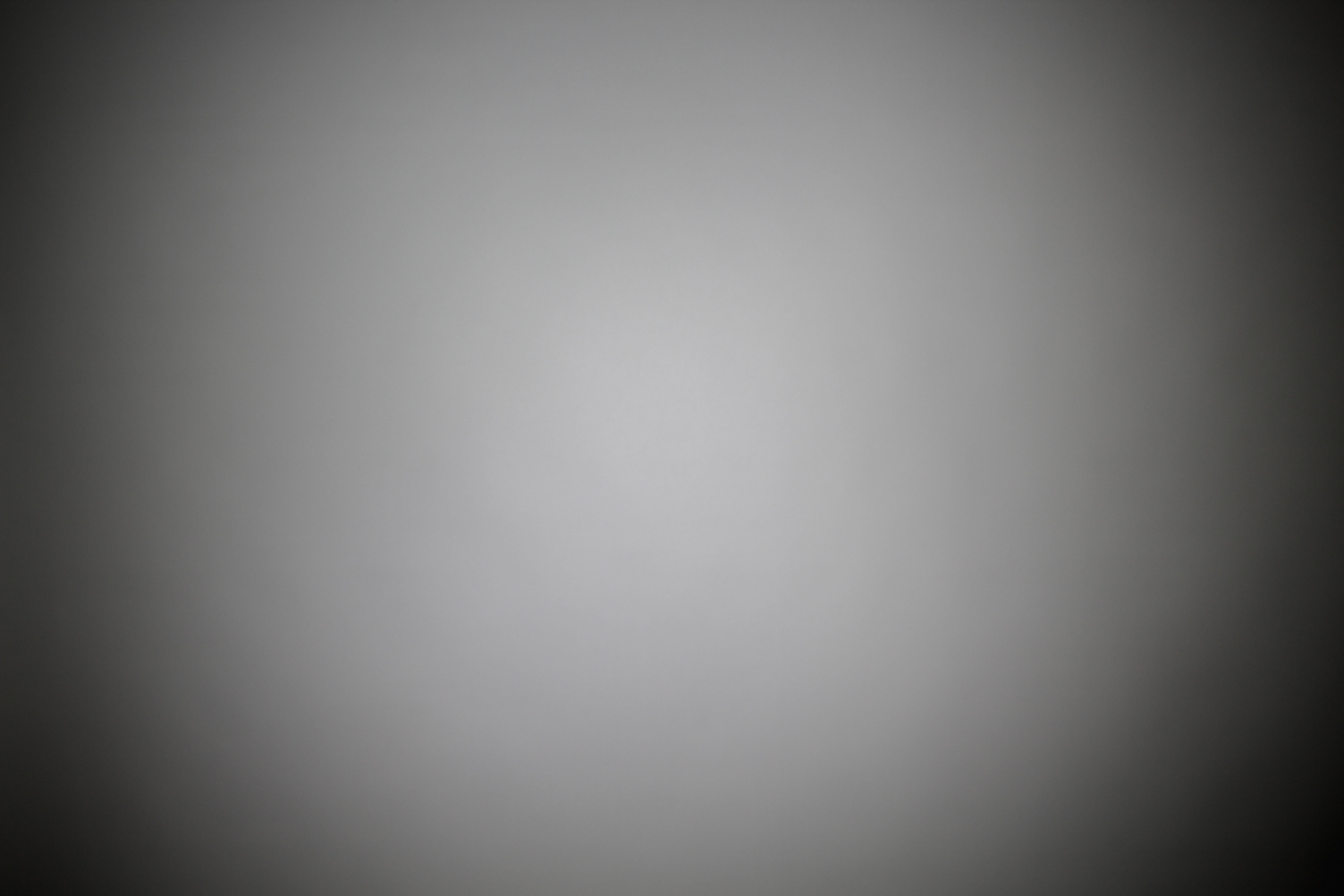

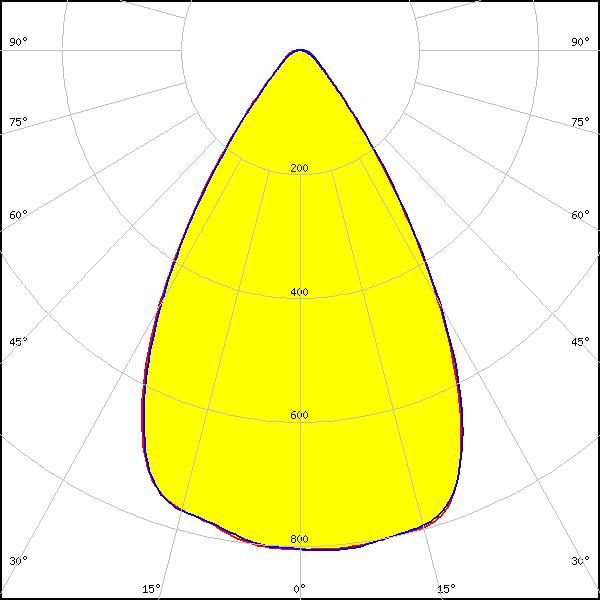

    LED: XD16
    FWHM: 63°
    FWTM: 92°
    Peak intensity: 0.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: 61°
    FWTM: 97°
    Peak intensity: 0.780 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

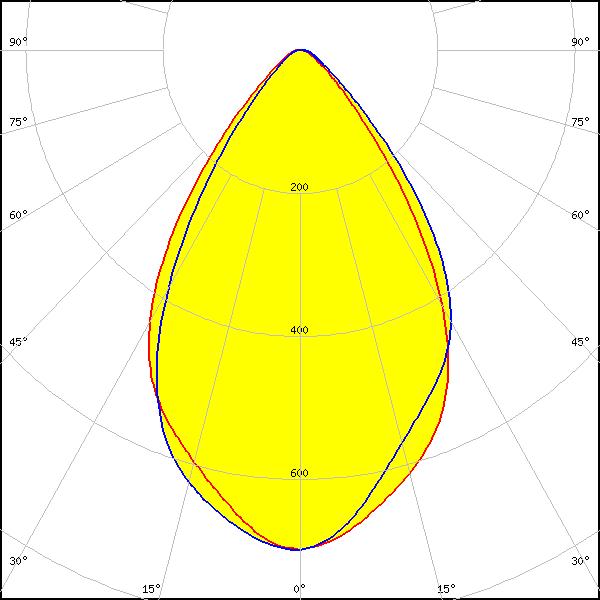

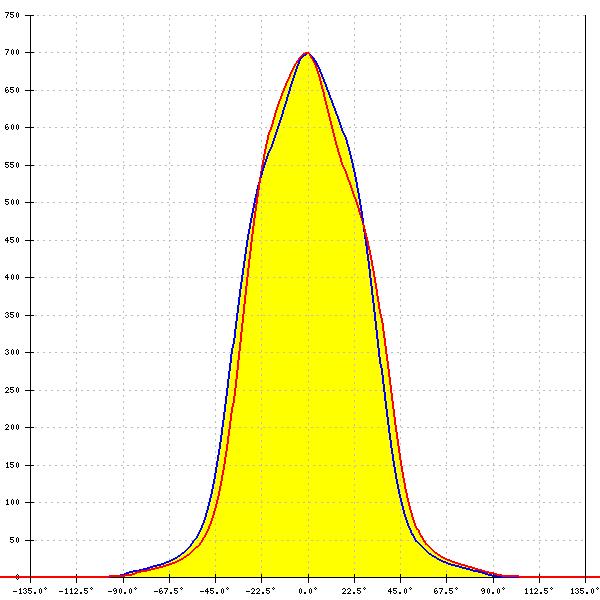

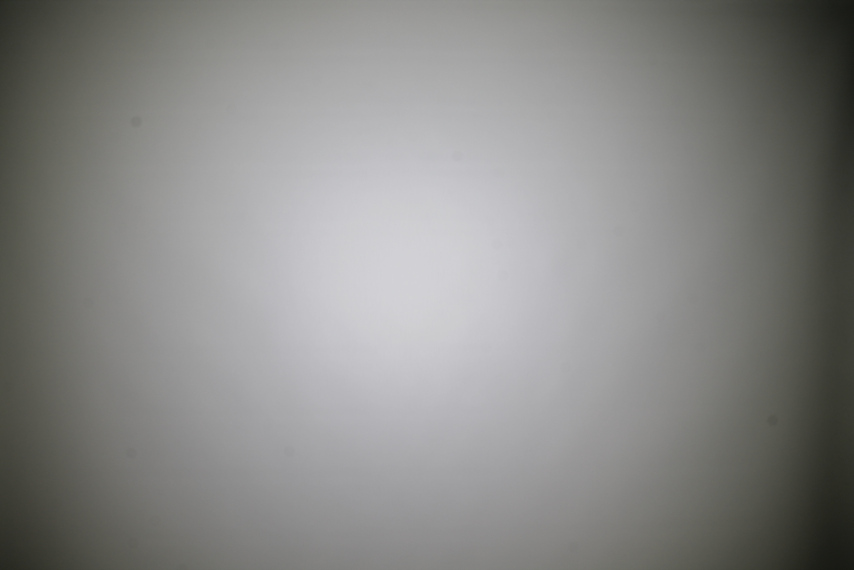

    LED: XHP35 HD
    FWHM: 67°
    FWTM: 100°
    Peak intensity: 0.700 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

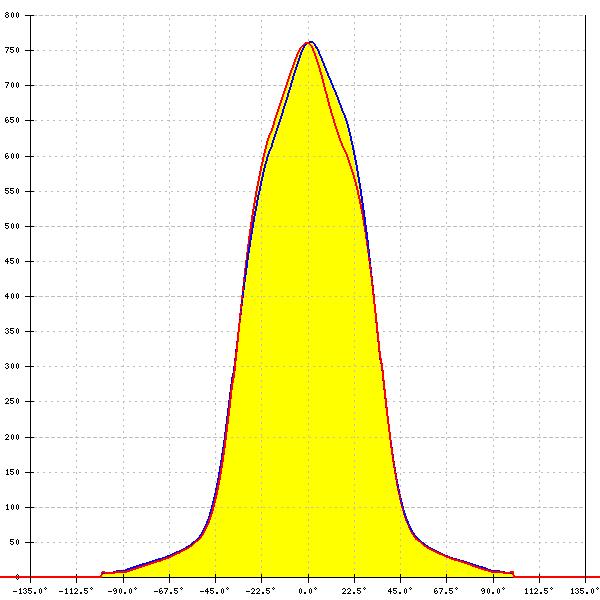

    LED: XM-L
    FWHM: 66°
    FWTM: 99°
    Peak intensity: 0.760 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

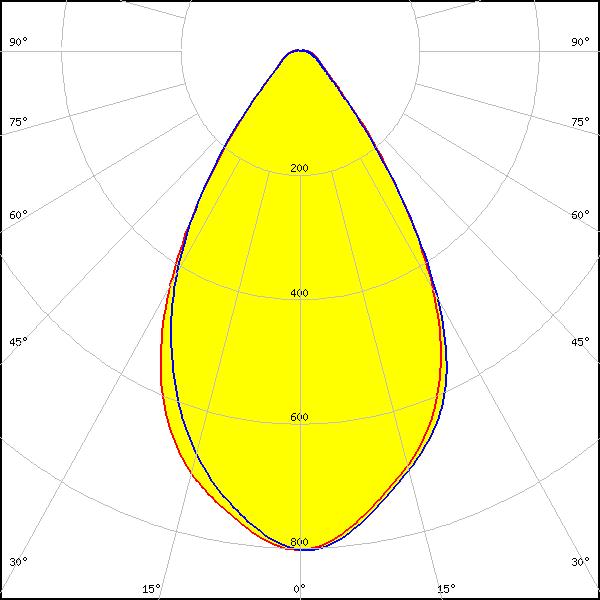

    LED: XM-L2
    FWHM: 62°
    FWTM: 96°
    Peak intensity: 0.803 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

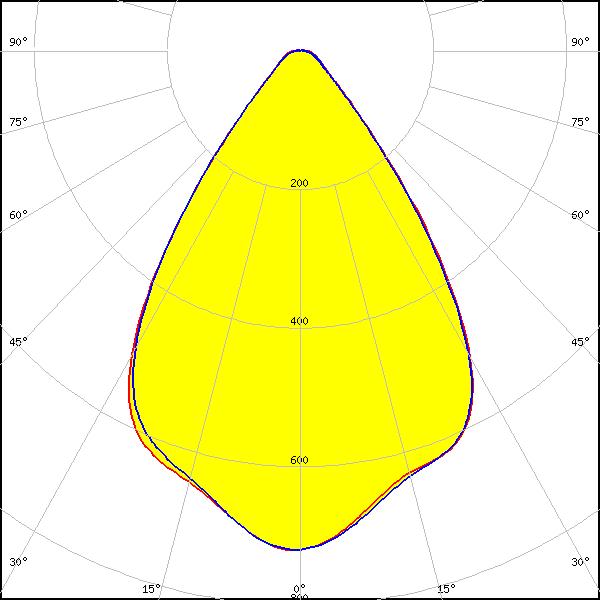

    LED: XM-L3
    FWHM: 70°
    FWTM: 98°
    Peak intensity: 0.721 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

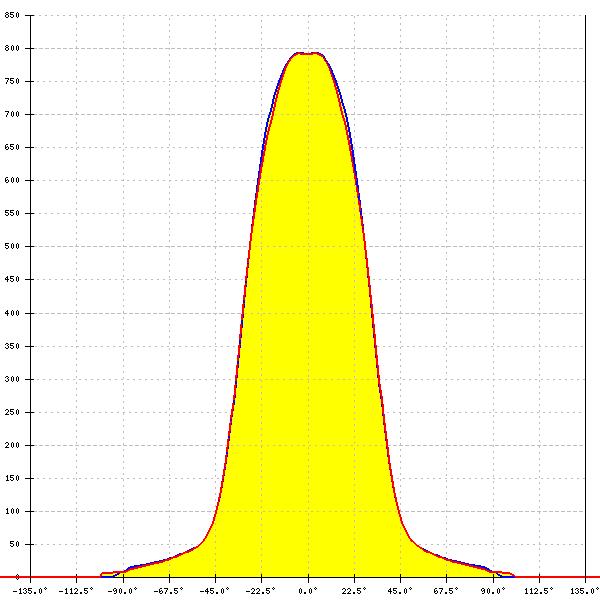

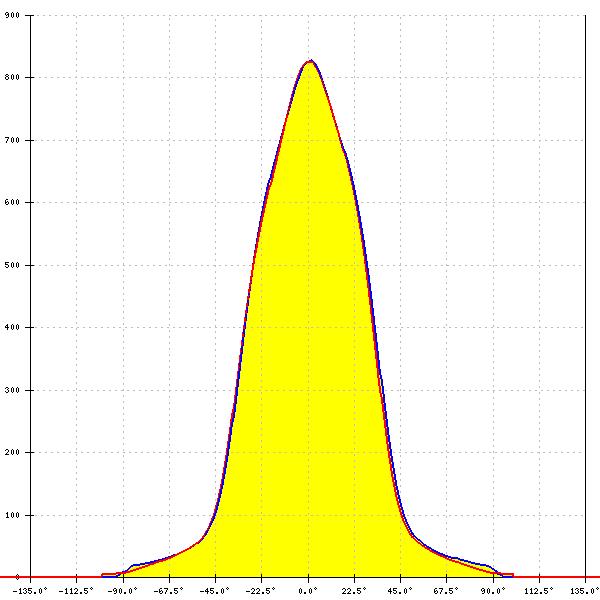

    LED: XP-G2
    FWHM: 63°
    FWTM: 93°
    Peak intensity: 0.830 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

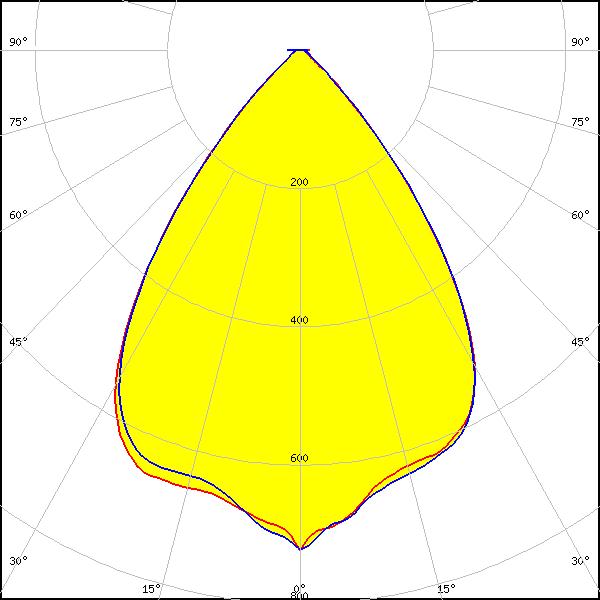

    LED: XP-G2 HE
    FWHM: 73°
    FWTM: 97°
    Peak intensity: 0.723 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

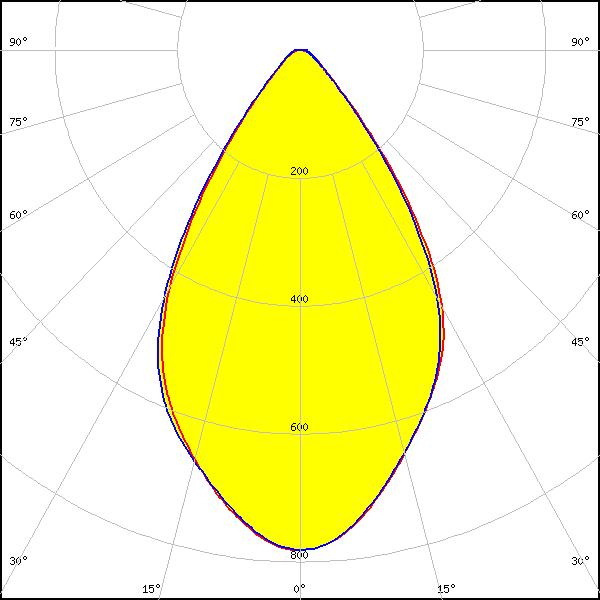

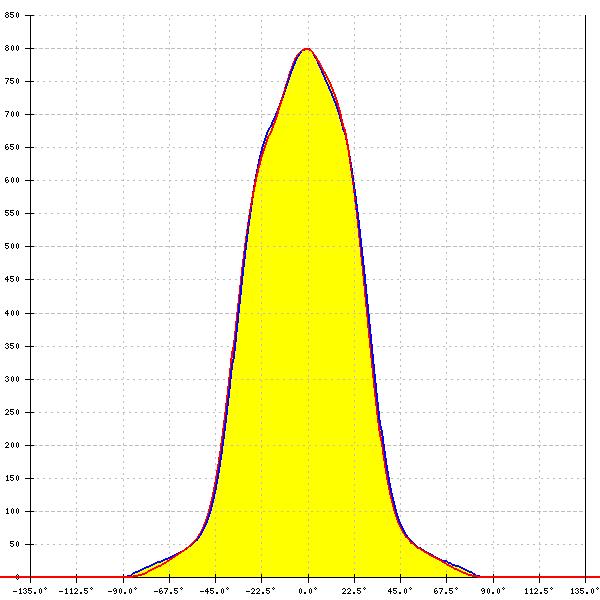

    LED: XP-G3
    FWHM: 63°
    FWTM: 95°
    Peak intensity: 0.799 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: 64°
    FWTM: 94°
    Peak intensity: 0.780 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

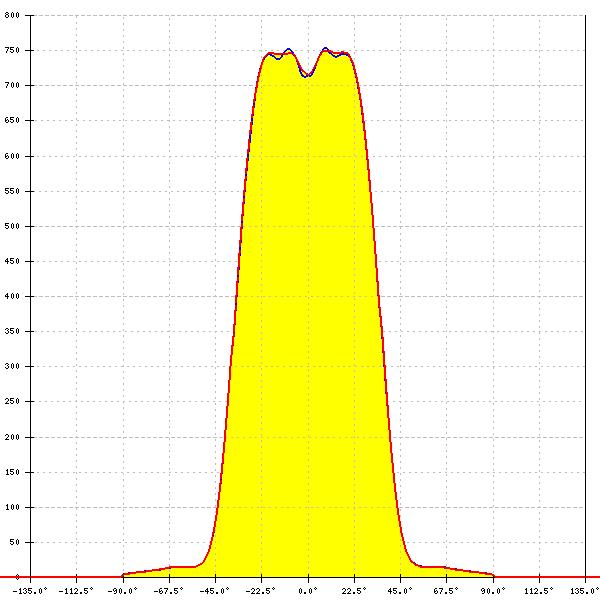

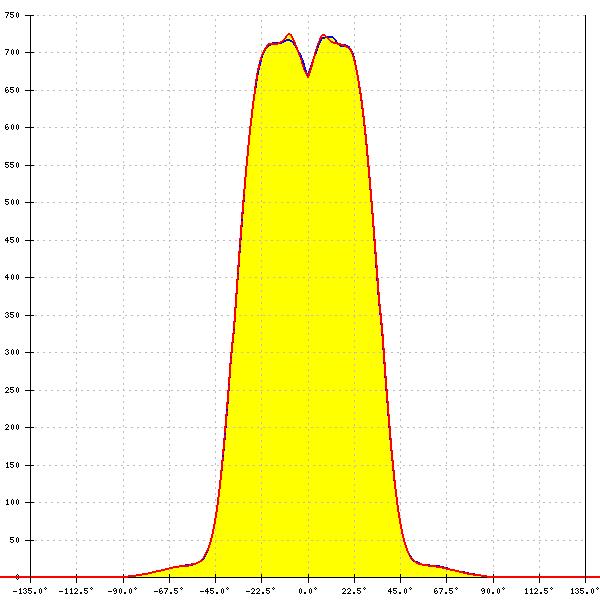

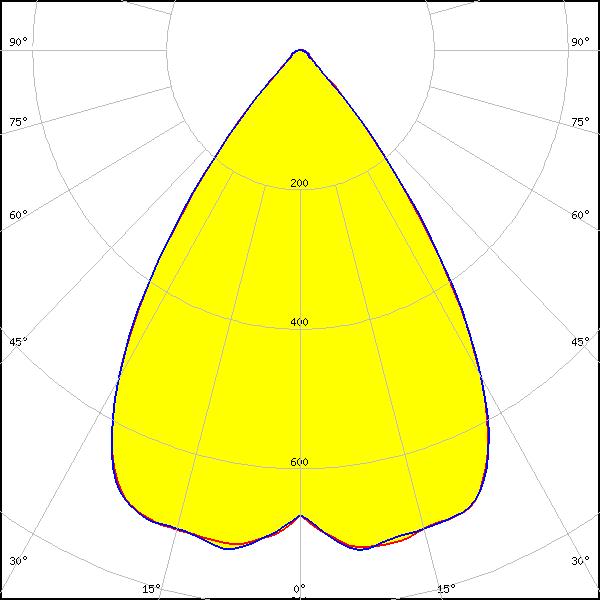

    LED: XP-G4
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.760 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.736 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

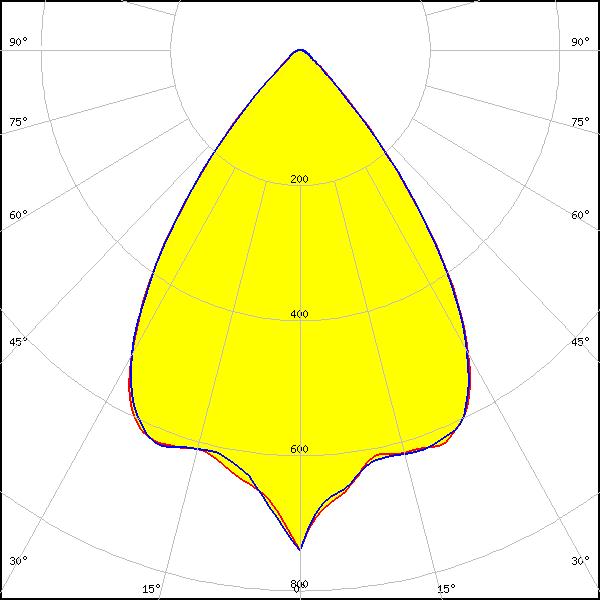

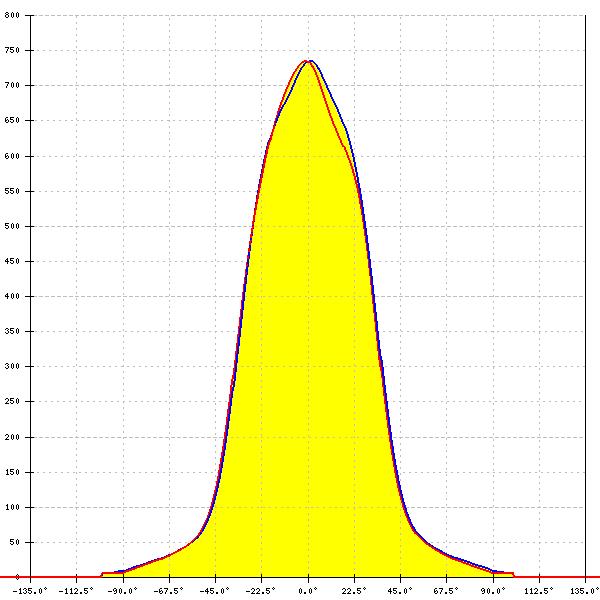

    LED: XP-L HD
    FWHM: 72°
    FWTM: 94°
    Peak intensity: 0.740 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: 66°
    FWTM: 102°
    Peak intensity: 0.735 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

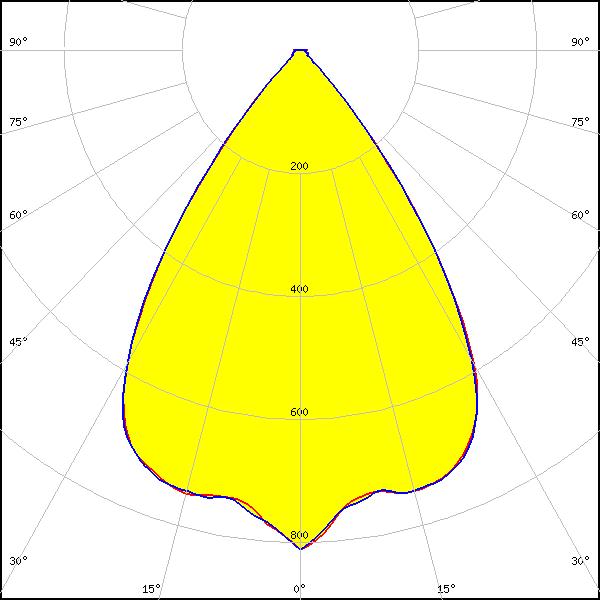

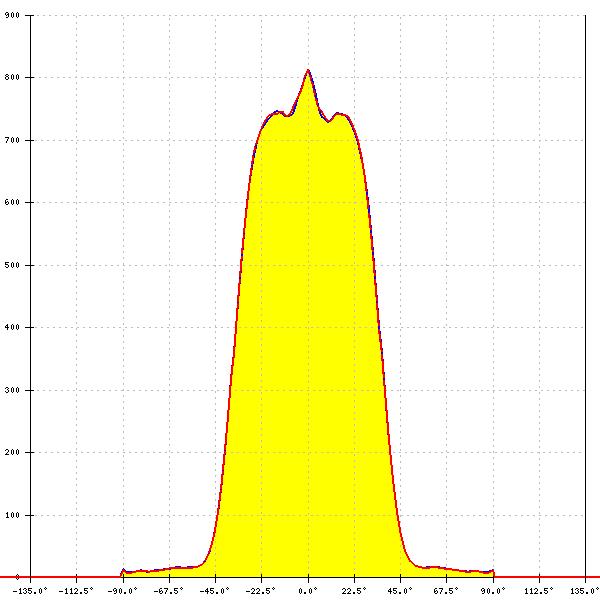

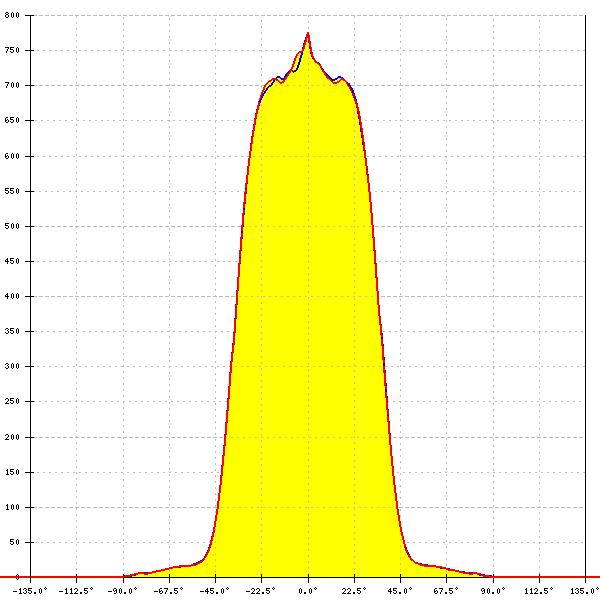

    LED: XP-L HI
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.813 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.780 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

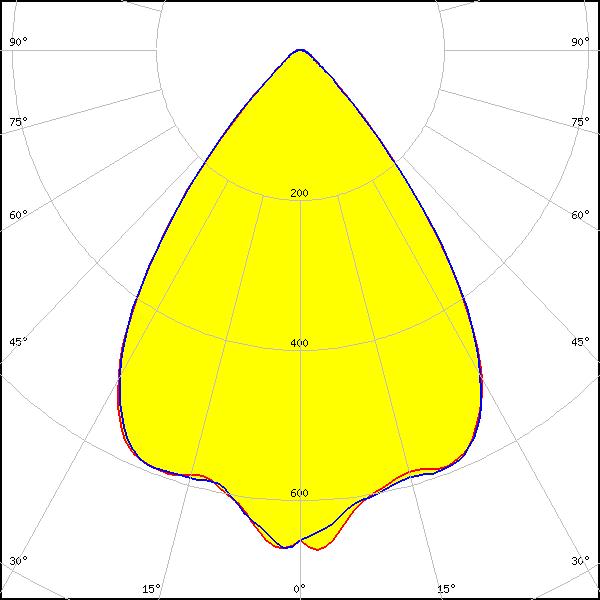

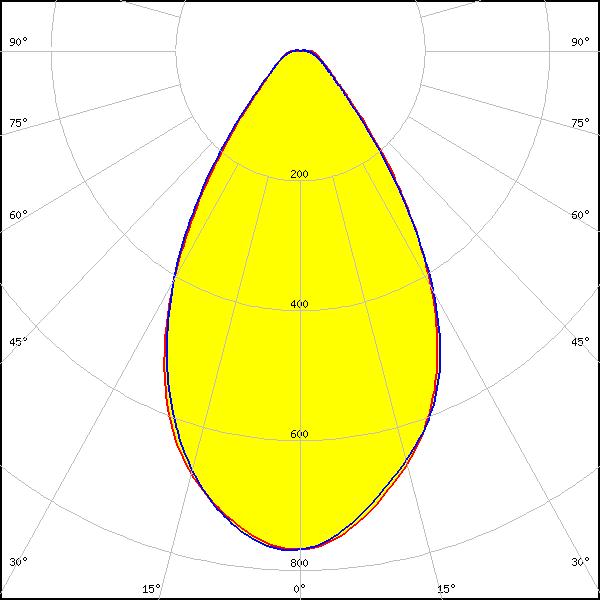

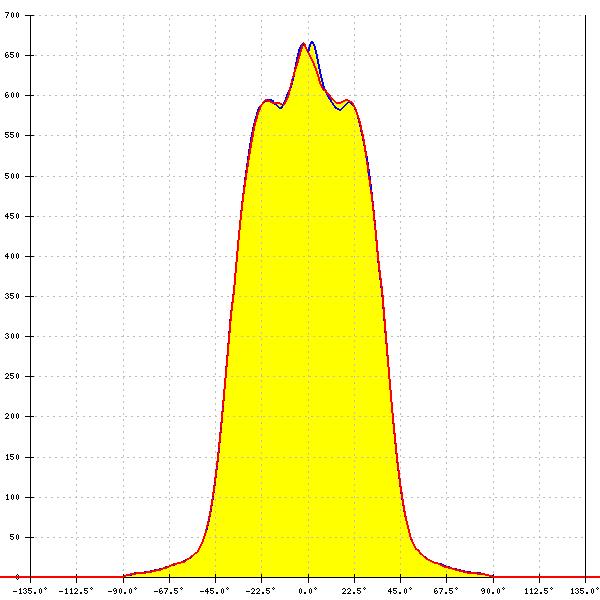

    LED: XP-L2
    FWHM: 74°
    FWTM: 98°
    Peak intensity: 0.691 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

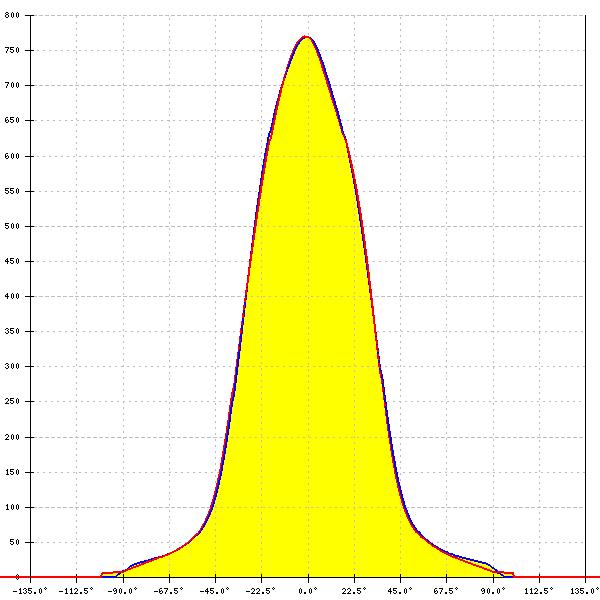

    LED: XP-L2
    FWHM: 62°
    FWTM: 101°
    Peak intensity: 0.770 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

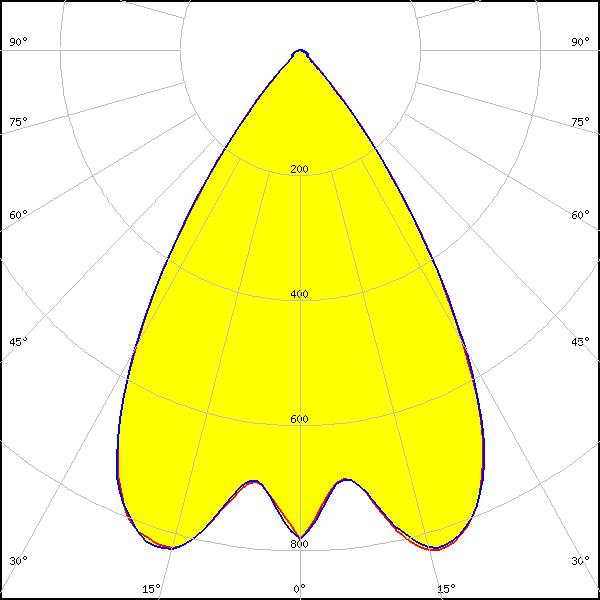

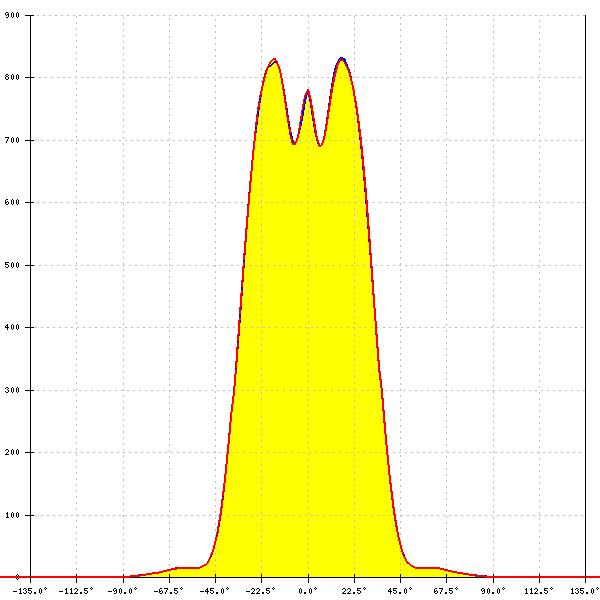

    LED: XP-P
    FWHM: 66°
    FWTM: 86°
    Peak intensity: 0.840 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

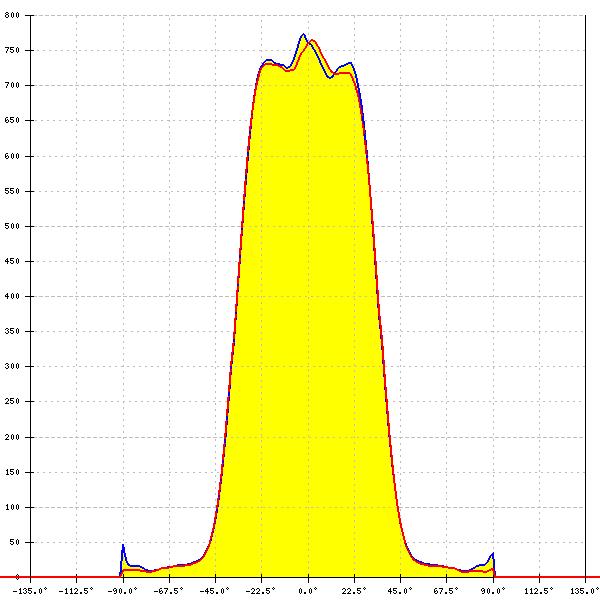

    LED: XT-E
    FWHM: 69°
    FWTM: 90°
    Peak intensity: 0.780 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

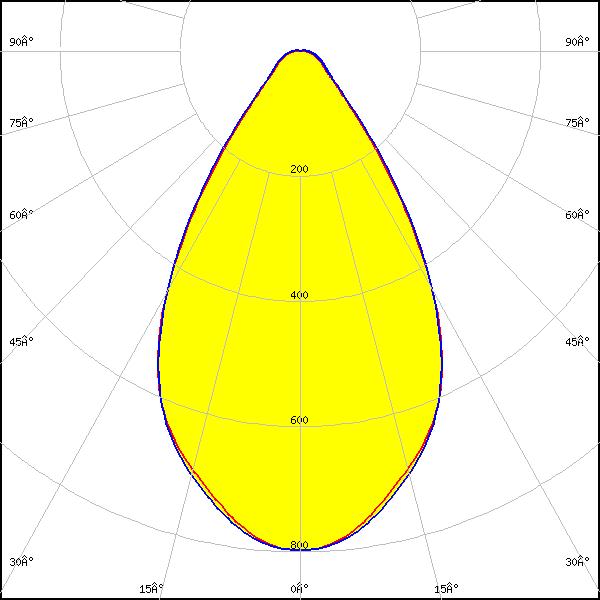

    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.798 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: 64°
    FWTM: 93°
    Peak intensity: 0.820 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3535L
    FWHM: 66°
    FWTM: 89°
    Peak intensity: 0.870 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

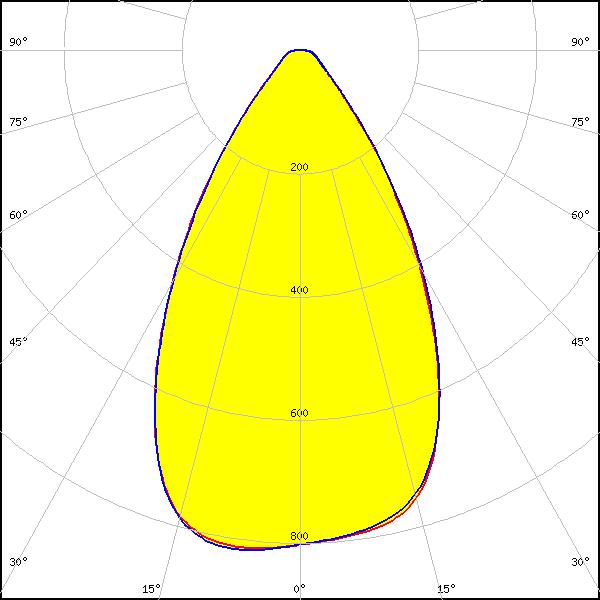

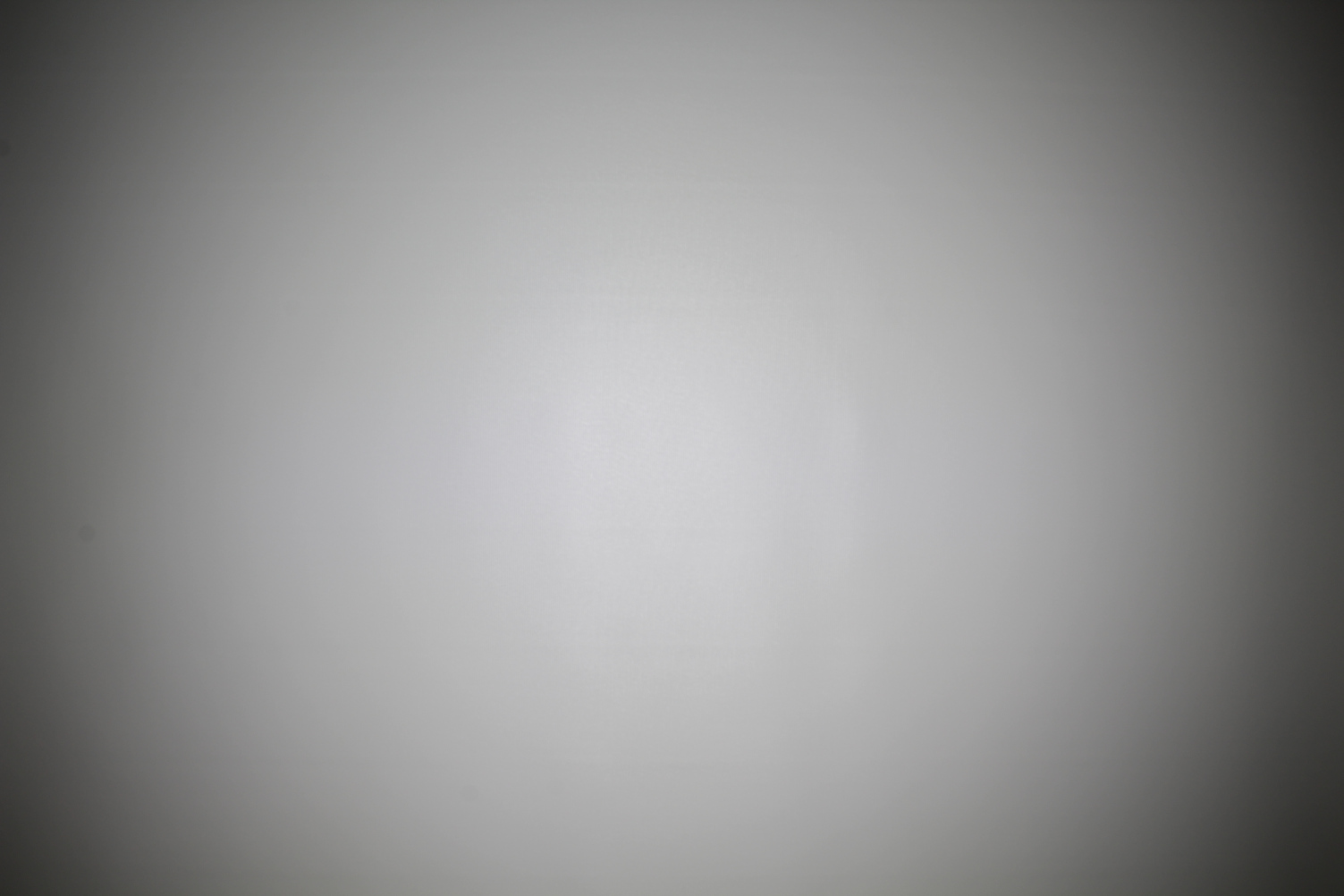

    LED: LUXEON 5050 Round LES
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.820 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

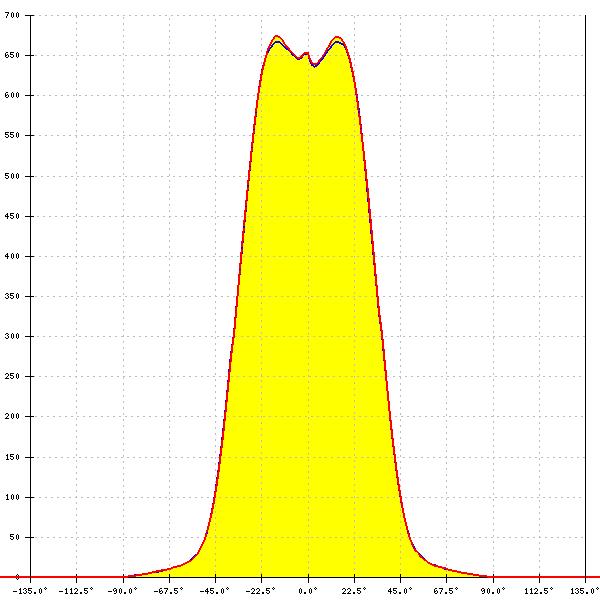

    LED: LUXEON 5050 Square LES
    FWHM: 70°
    FWTM: 96°
    Peak intensity: 0.693 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

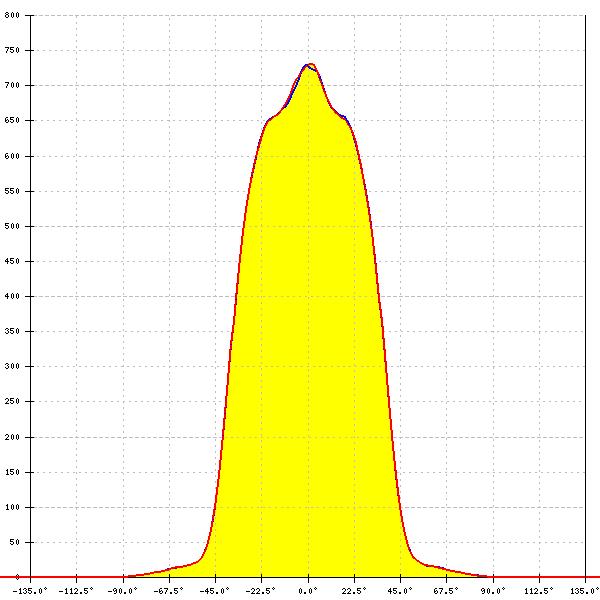

    LED: LUXEON HL2X
    FWHM: 72°
    FWTM: 94°
    Peak intensity: 0.735 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

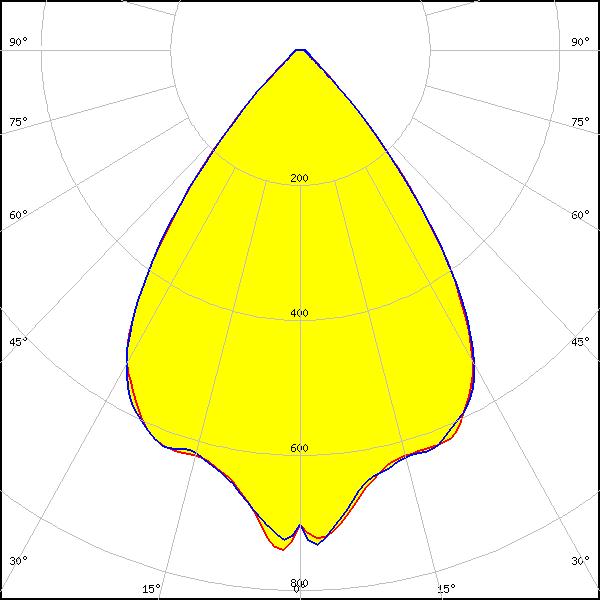

    LED: LUXEON HL4X
    FWHM: 74°
    FWTM: 96°
    Peak intensity: 0.744 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

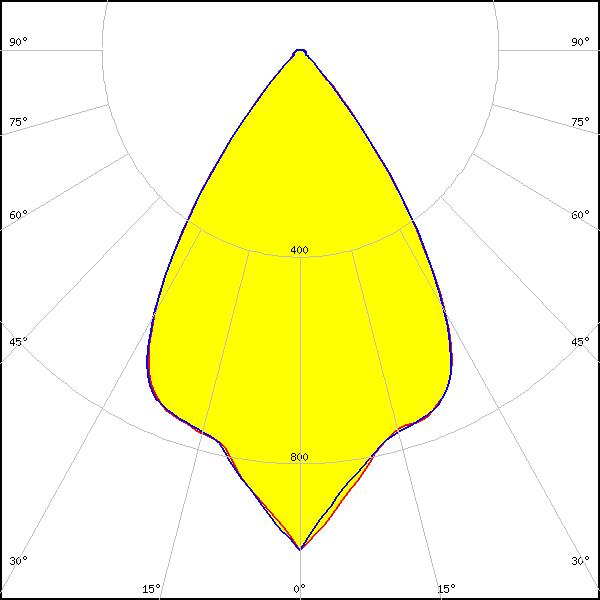

    LED: LUXEON HL4Z
    FWHM: 66°
    FWTM: 86°
    Peak intensity: 0.967 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

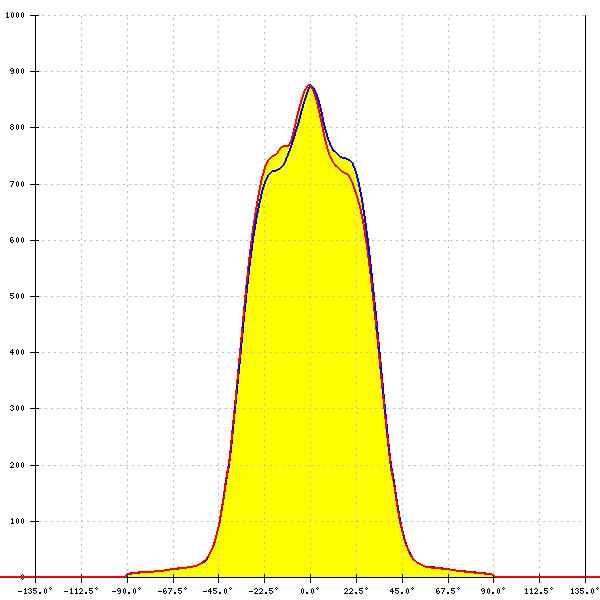

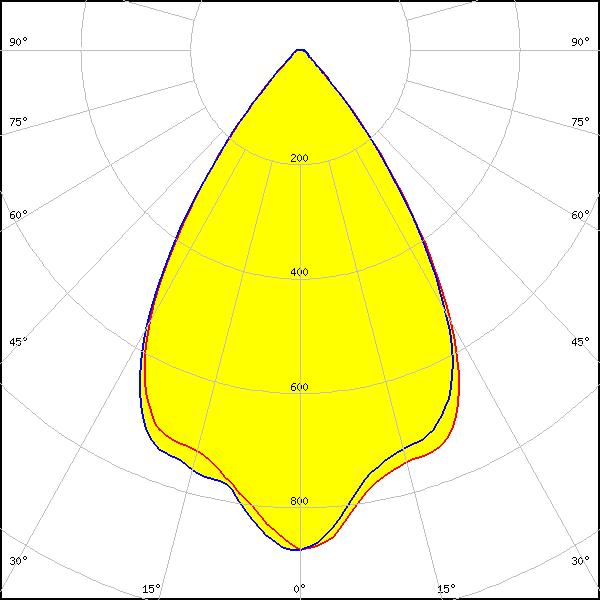

    LED: LUXEON MZ
    FWHM: 66°
    FWTM: 90°
    Peak intensity: 0.880 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

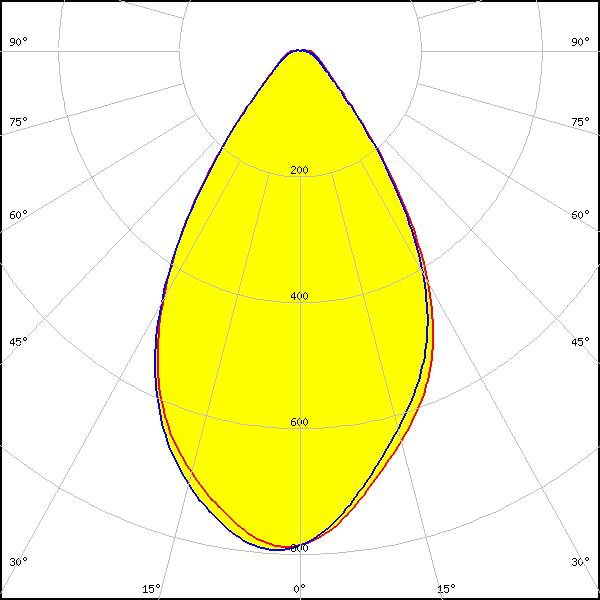

    LED: LUXEON V
    FWHM: 63°
    FWTM: 97°
    Peak intensity: 0.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

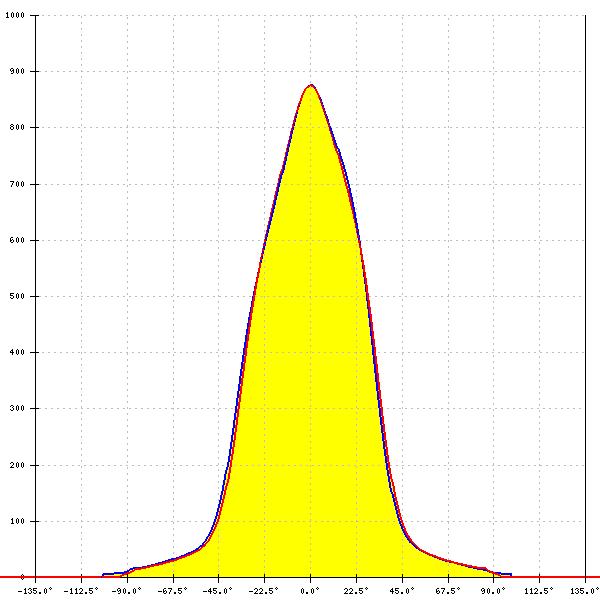

    LED: LUXEON V2
    FWHM: 61°
    FWTM: 93°
    Peak intensity: 0.880 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

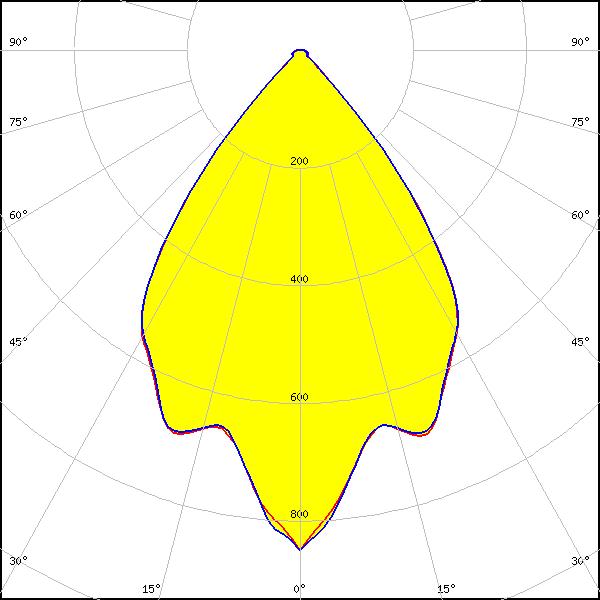

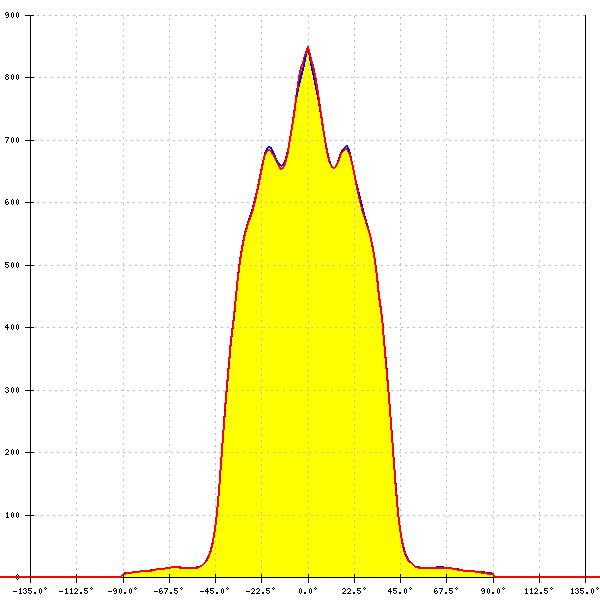

    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 72°
    FWTM: 90°
    Peak intensity: 0.850 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: 72°
    FWTM: 90°
    Peak intensity: 0.774 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-B130
    LEDs/each optic: 1
    Light colour/type: Blue

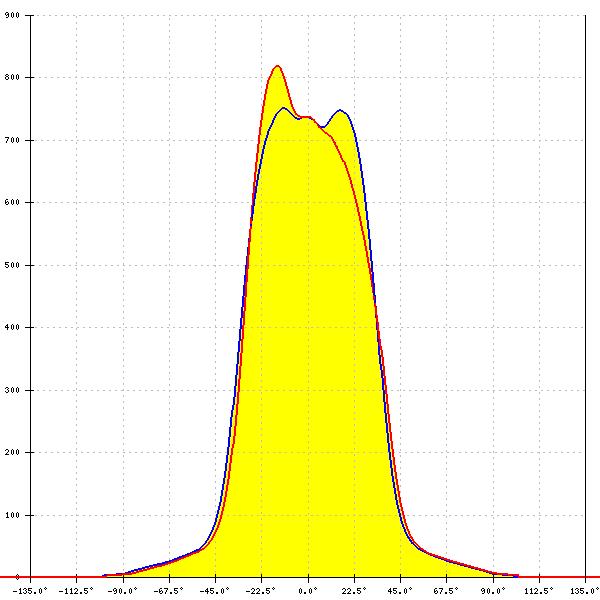

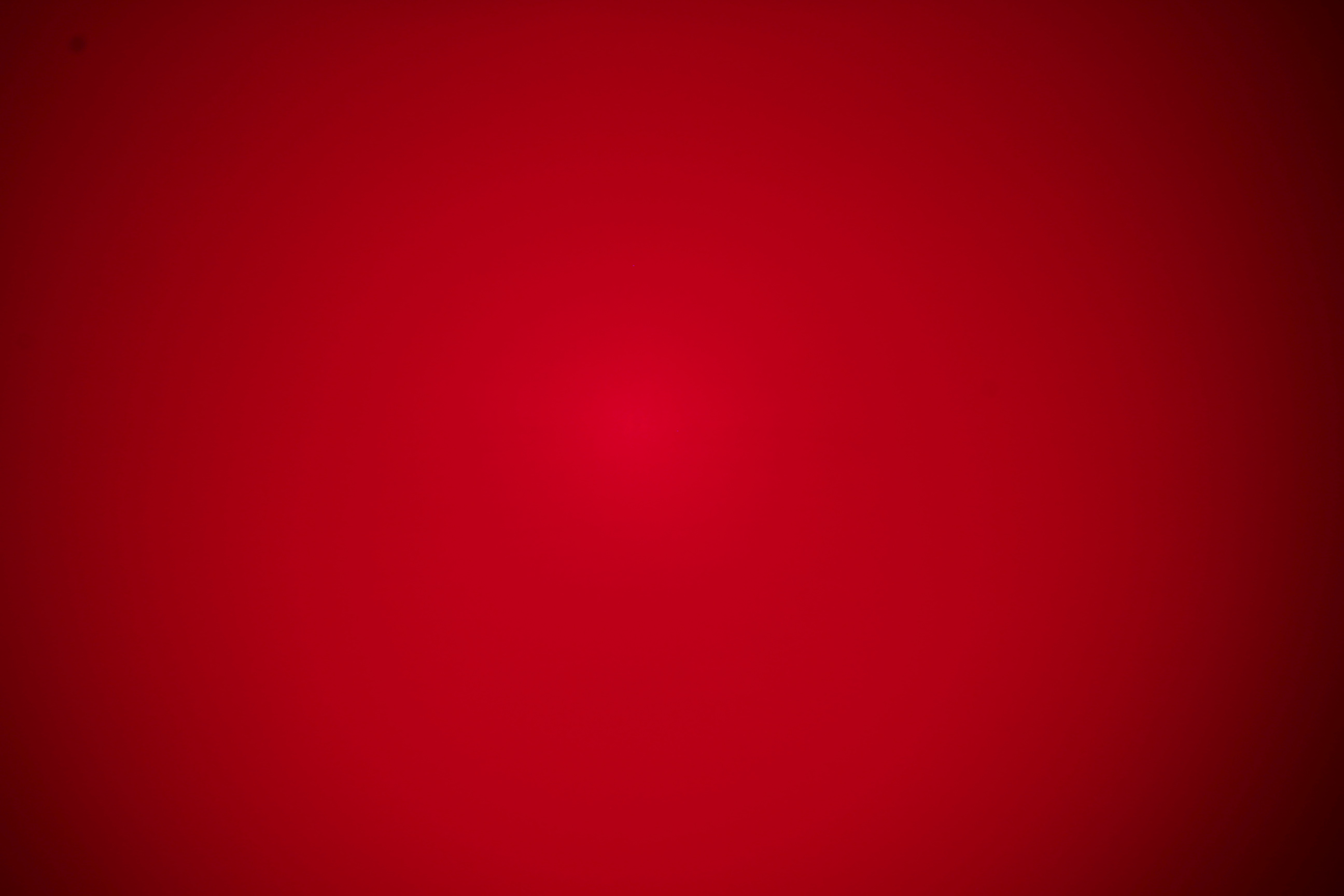

    LED: SST-10-B130
    FWHM: 69°
    FWTM: 94°
    Peak intensity: 0.819 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: Deep Red
    LED: SST-20 Gen1
    LEDs/each optic: 1
    Light colour/type: White

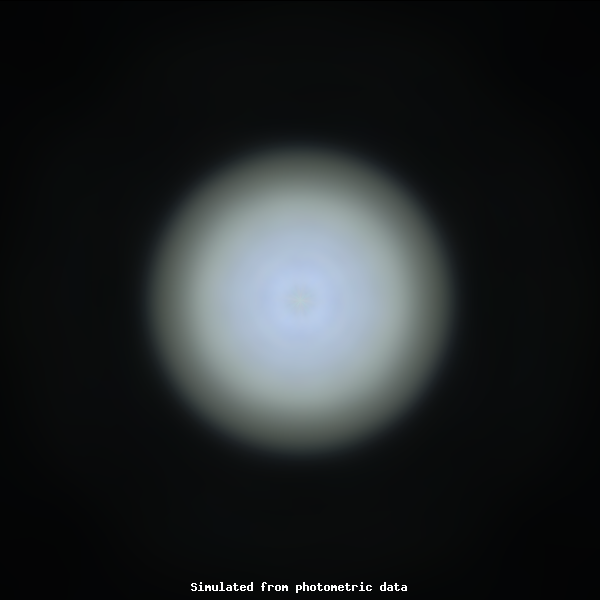

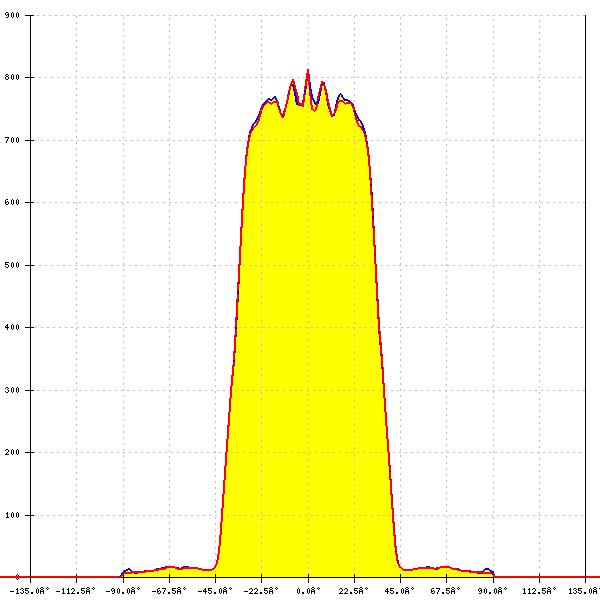

    LED: SST-20 Gen2
    FWHM: 70°
    FWTM: 84°
    Peak intensity: 0.813 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

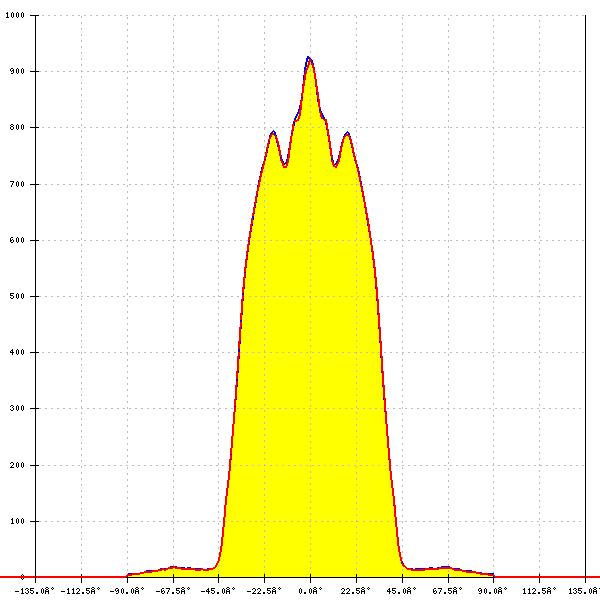

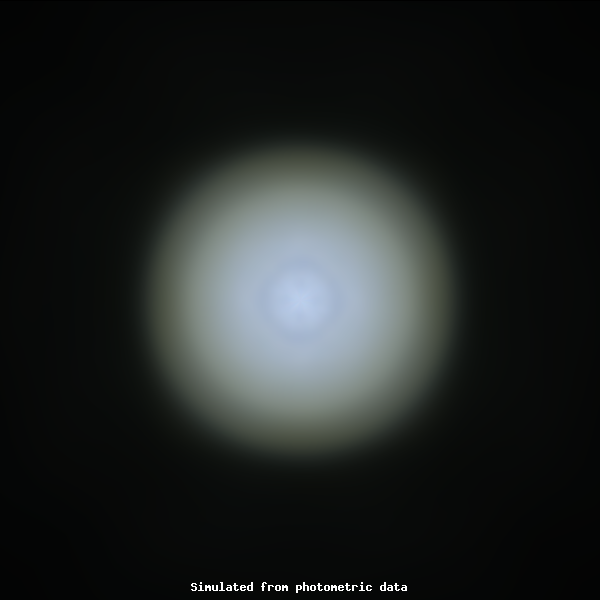

    LED: SST-20F-W
    FWHM: 68°
    FWTM: 84°
    Peak intensity: 0.940 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

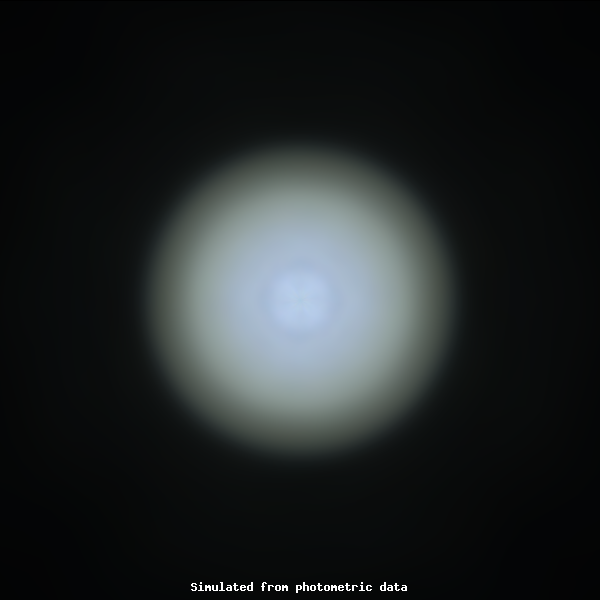

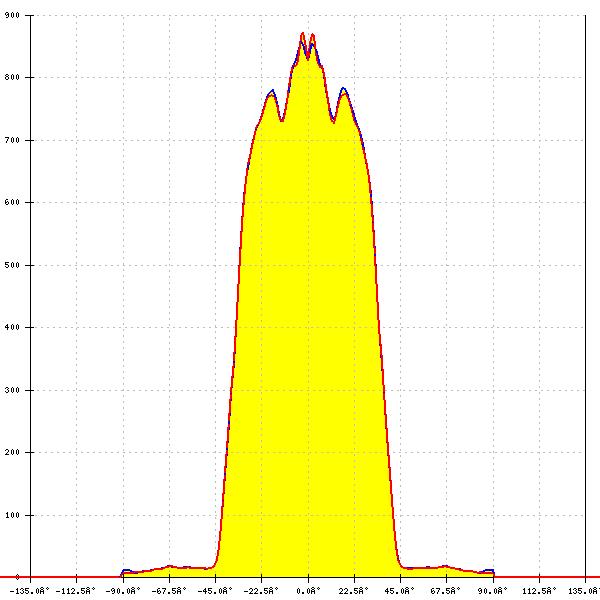

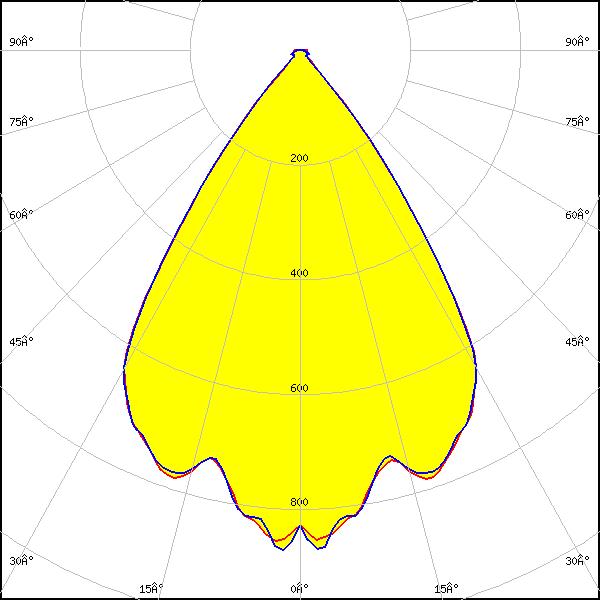

    LED: SST-25-W
    FWHM: 68°
    FWTM: 84°
    Peak intensity: 0.888 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

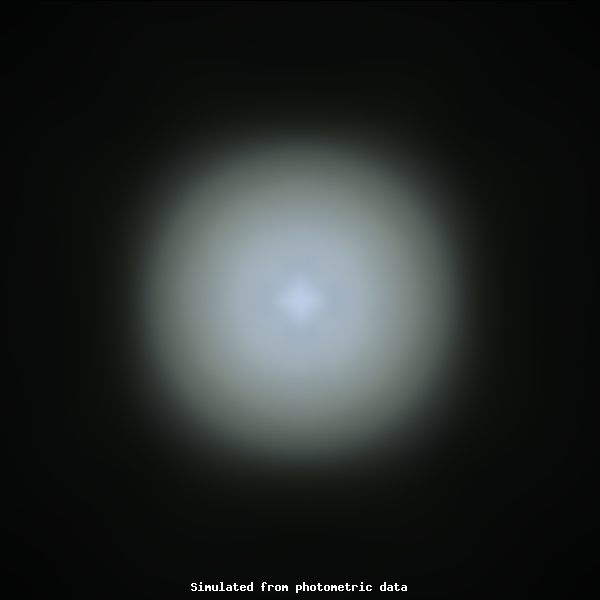

    LED: SST-36F-W
    FWHM: 70°
    FWTM: 88°
    Peak intensity: 0.881 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

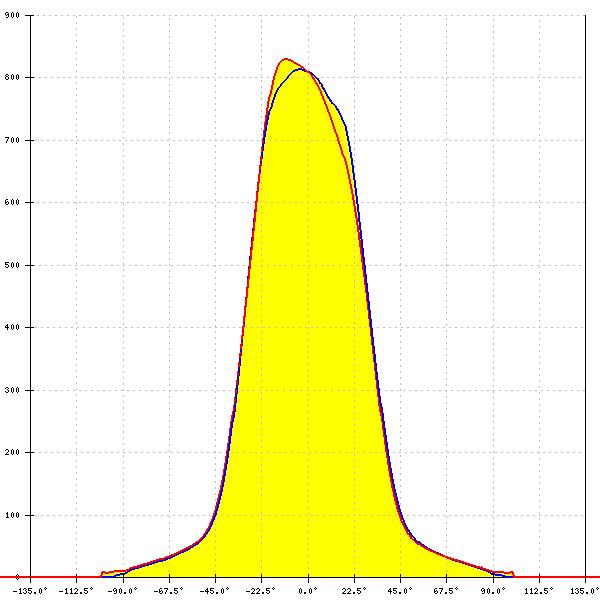

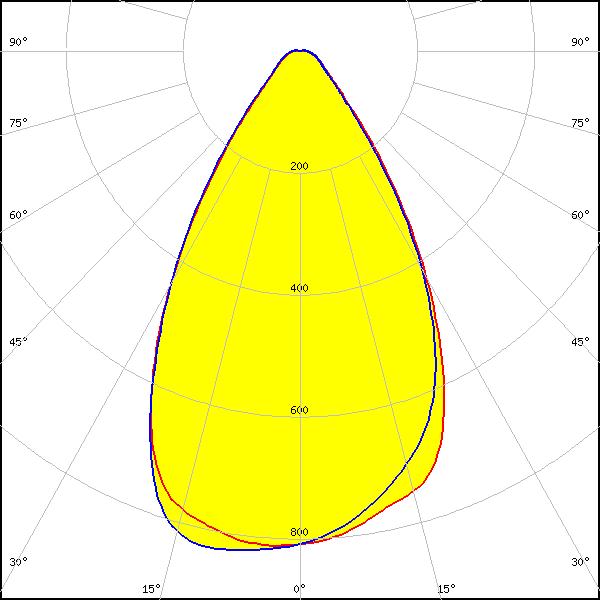

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: 61°
    FWTM: 94°
    Peak intensity: 0.836 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

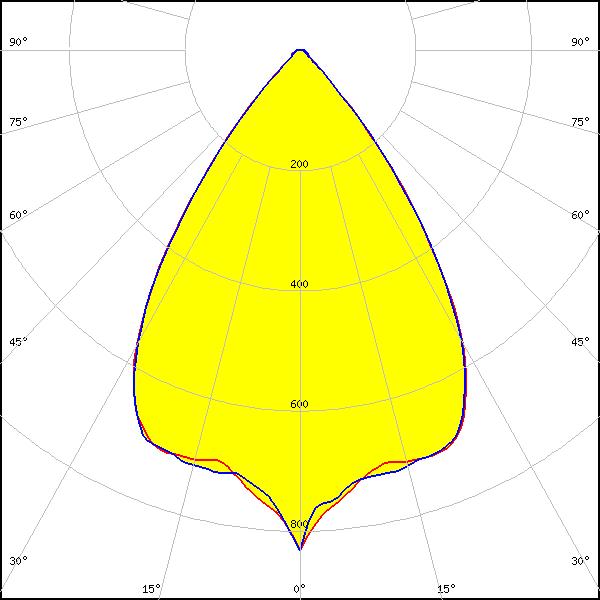

    LED: NV4WB35AM
    FWHM: 69°
    FWTM: 90°
    Peak intensity: 0.832 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

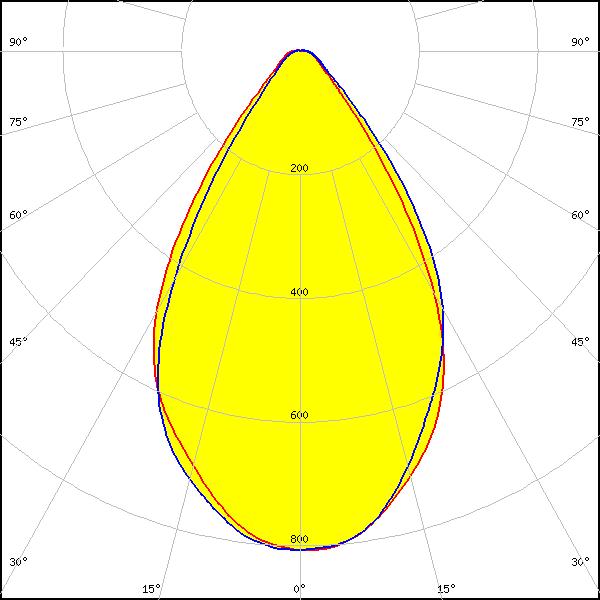

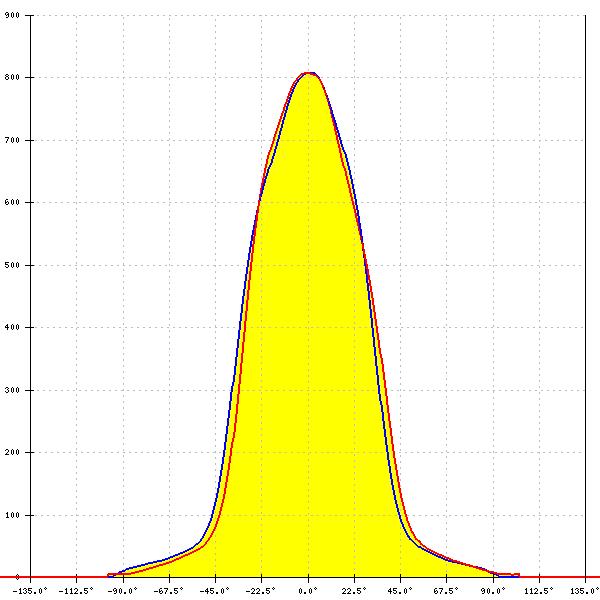

    LED: NVSW219D
    FWHM: 64°
    FWTM: 95°
    Peak intensity: 0.810 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

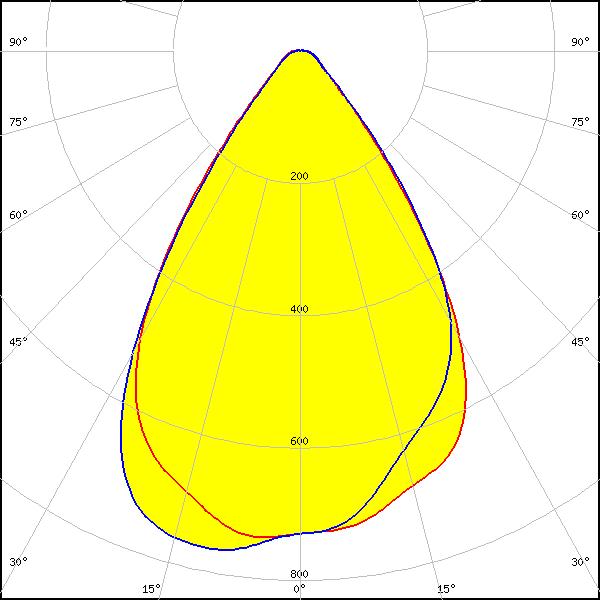

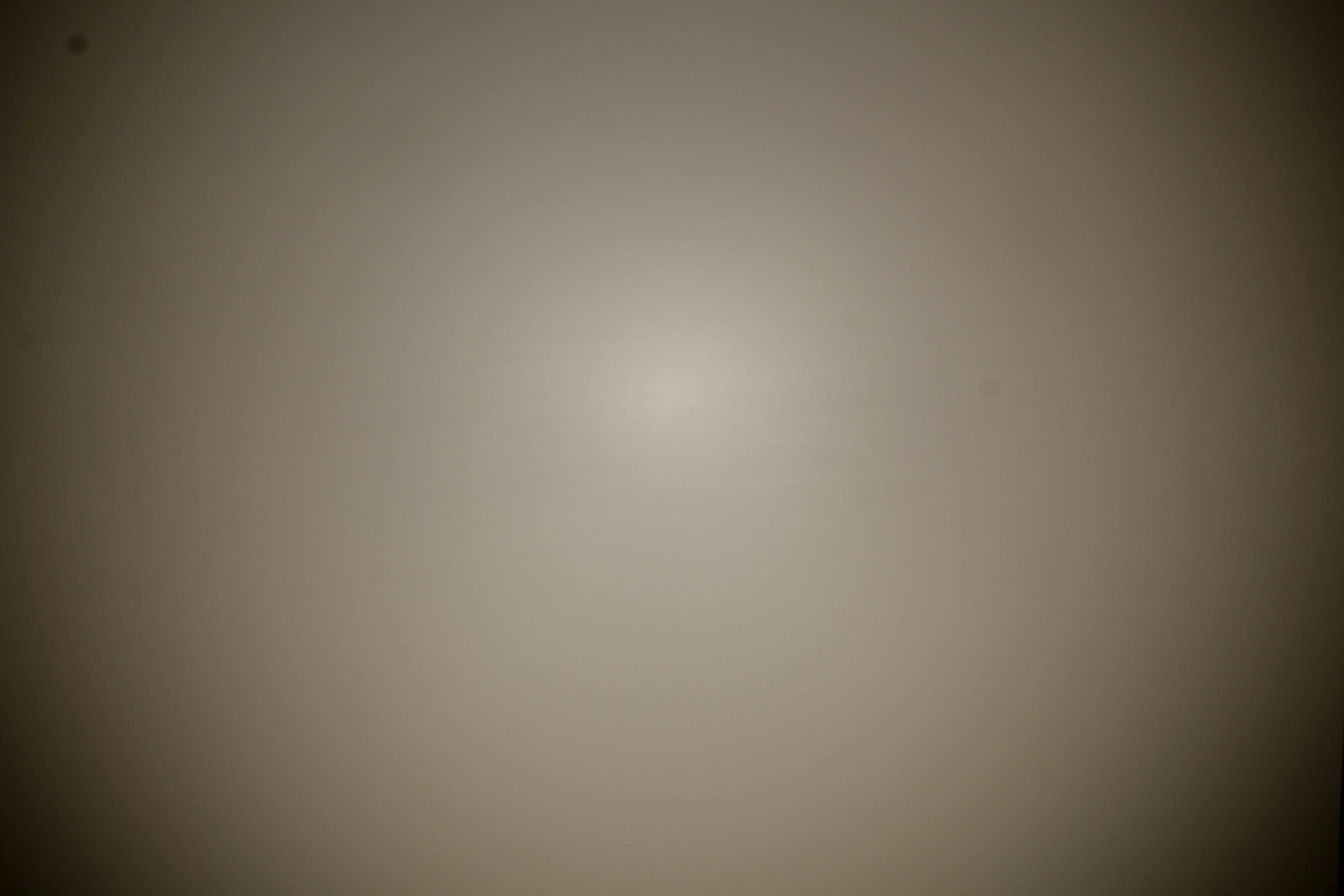

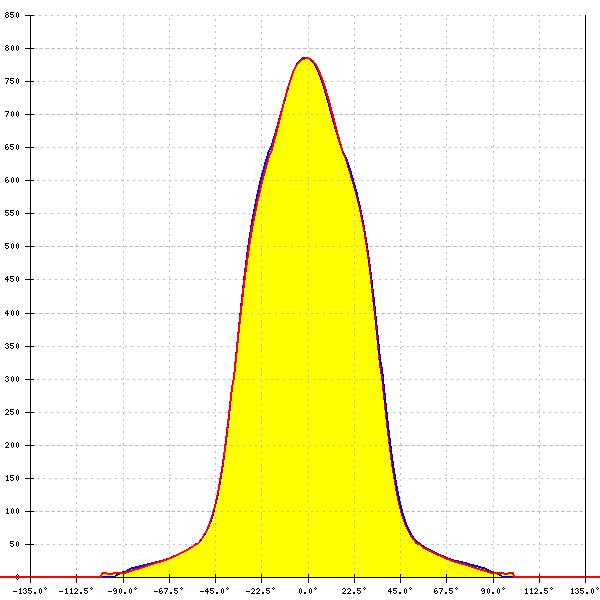

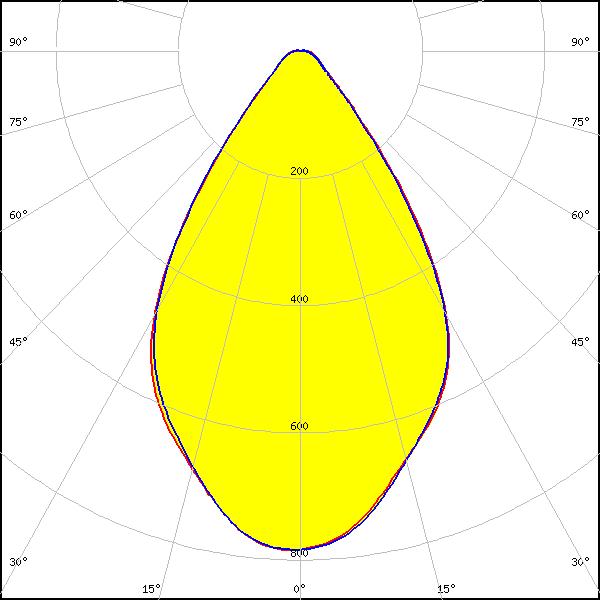

    LED: NVSW219F
    FWHM: 66°
    FWTM: 96°
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 69°
    FWTM: 96°
    Peak intensity: 0.766 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

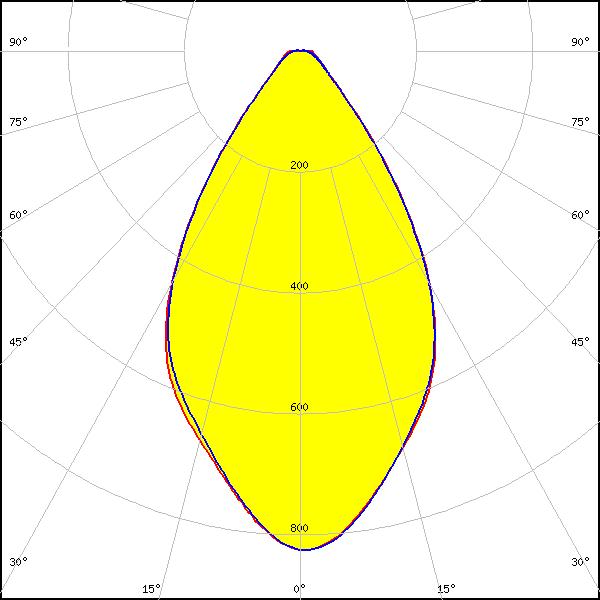

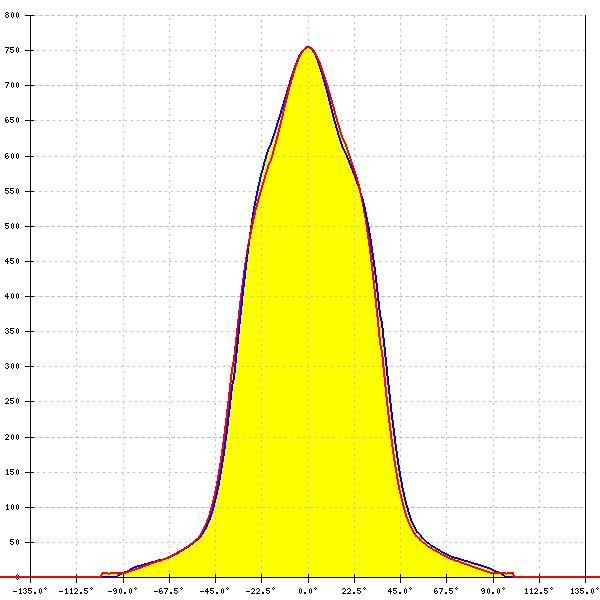

    LED: NVSW319B
    FWHM: 68°
    FWTM: 100°
    Peak intensity: 0.750 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 62°
    FWTM: 97°
    Peak intensity: 0.830 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.801 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

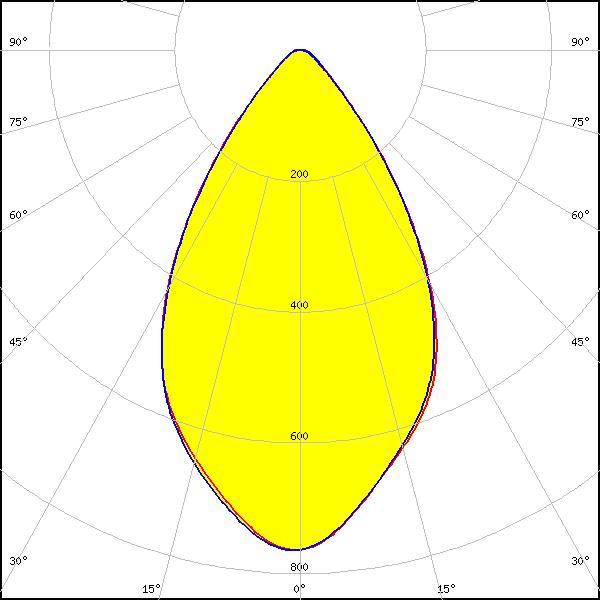

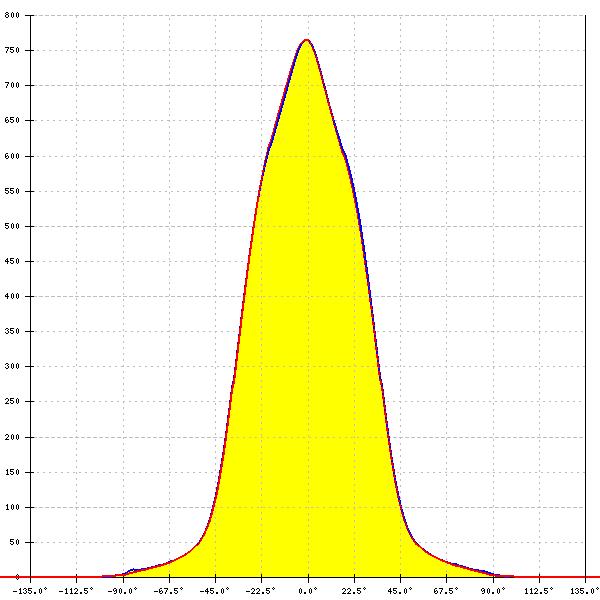

    LED: NWSx229A
    FWHM: 63°
    FWTM: 97°
    Peak intensity: 0.770 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

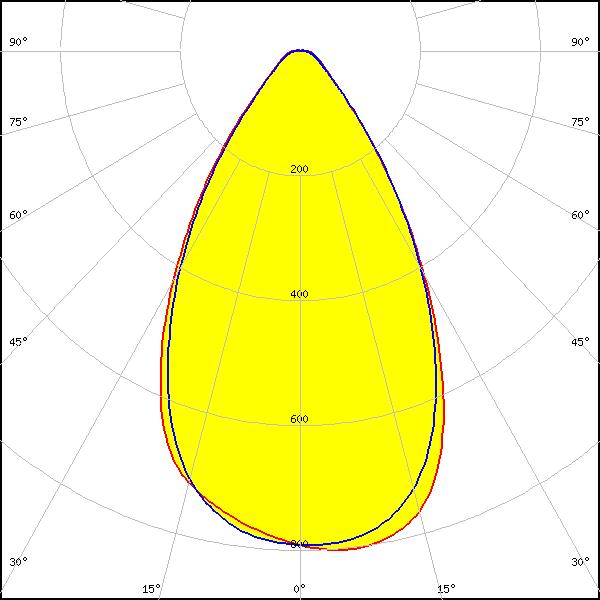

    LED: Duris S8
    FWHM: 61°
    FWTM: 97°
    Peak intensity: 0.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

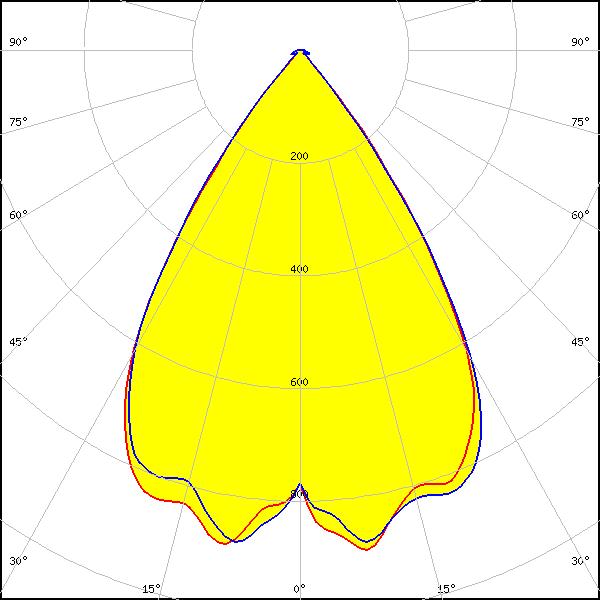

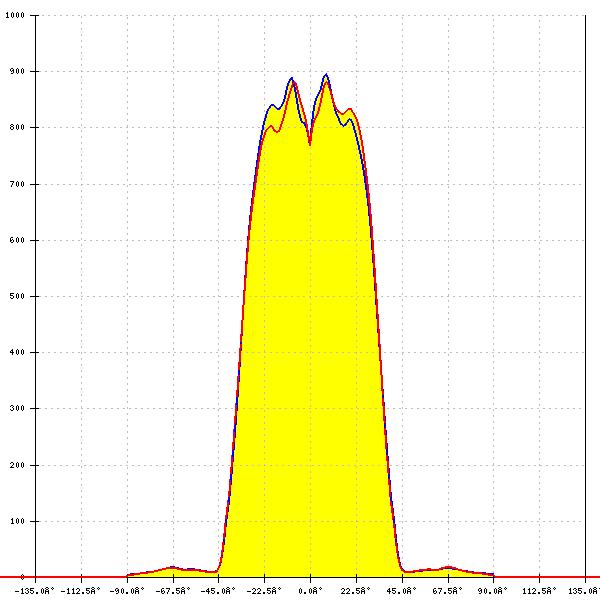

    LED: OSCONIQ C 2424 Gen1
    FWHM: 67°
    FWTM: 82°
    Peak intensity: 0.949 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

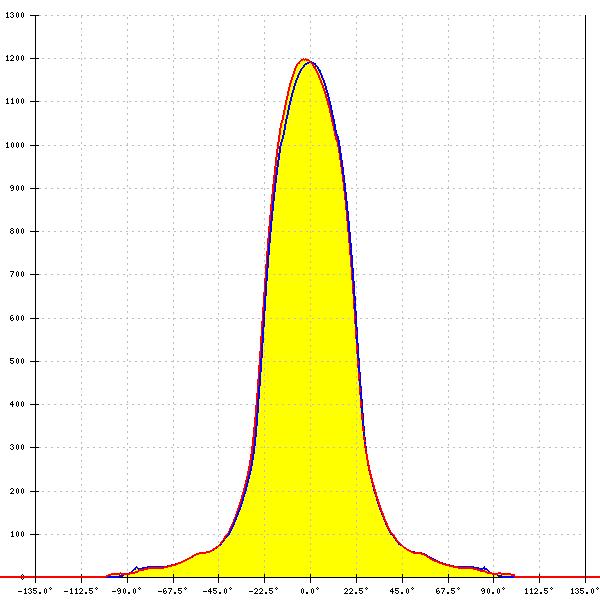

    LED: OSCONIQ C 3030
    FWHM: 45°
    FWTM: 76°
    Peak intensity: 1.198 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

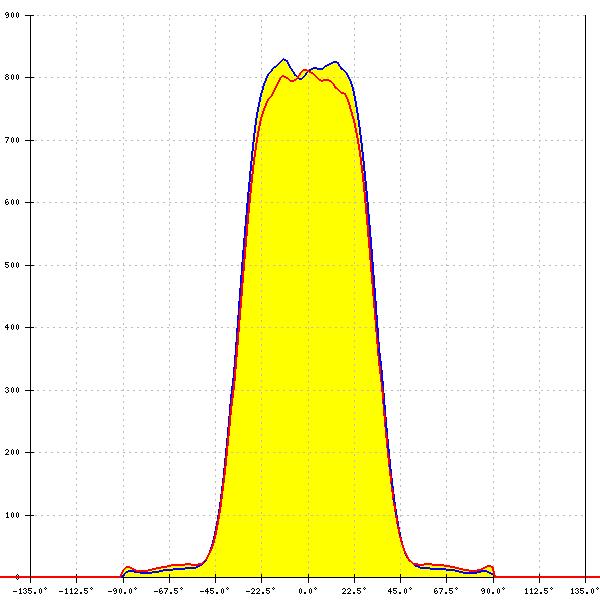

    LED: OSCONIQ P 3030
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.831 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

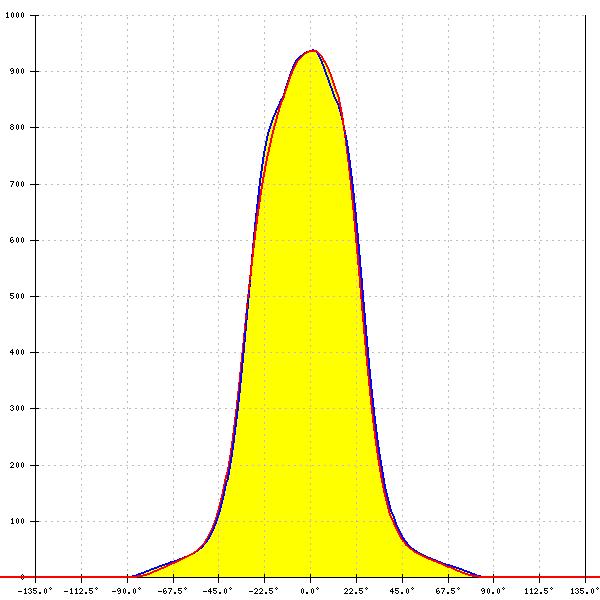

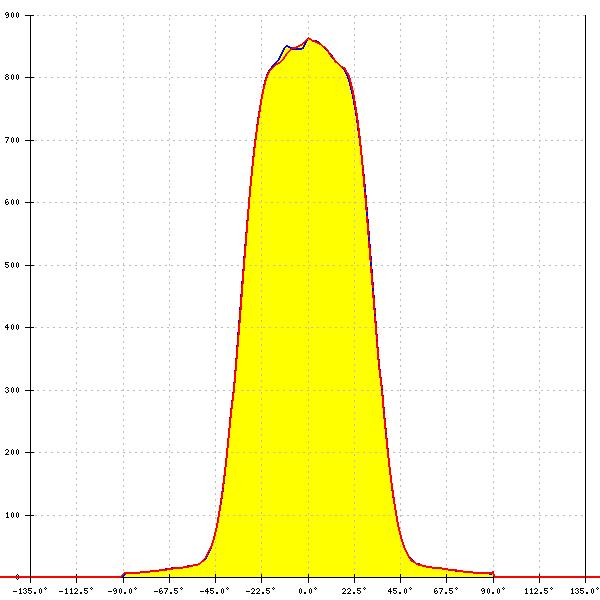

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 66°
    FWTM: 88°
    Peak intensity: 0.872 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: 58°
    FWTM: 88°
    Peak intensity: 0.939 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

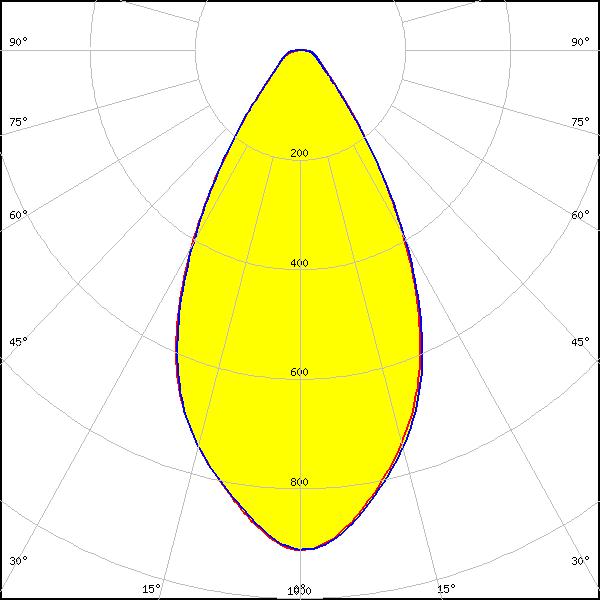

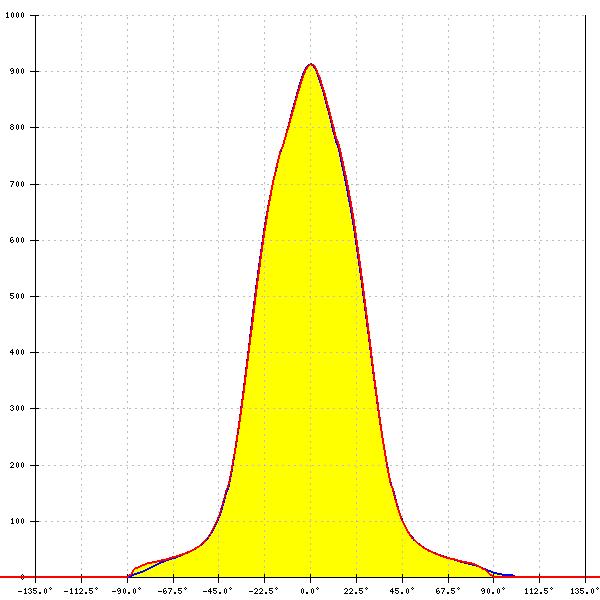

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 56°
    FWTM: 93°
    Peak intensity: 0.913 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

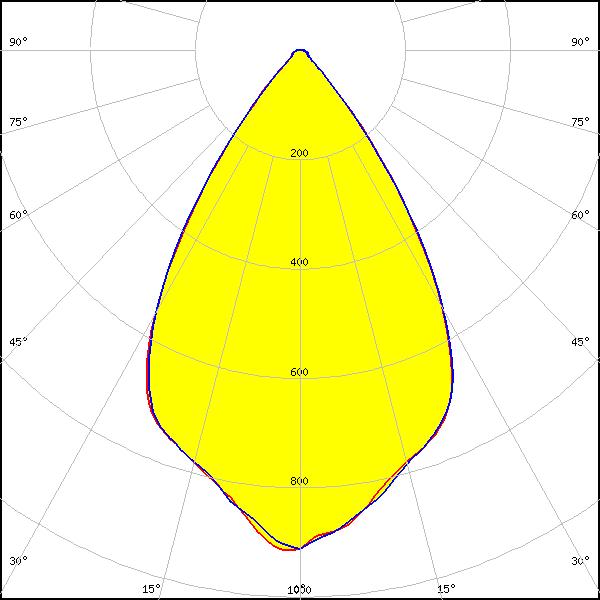

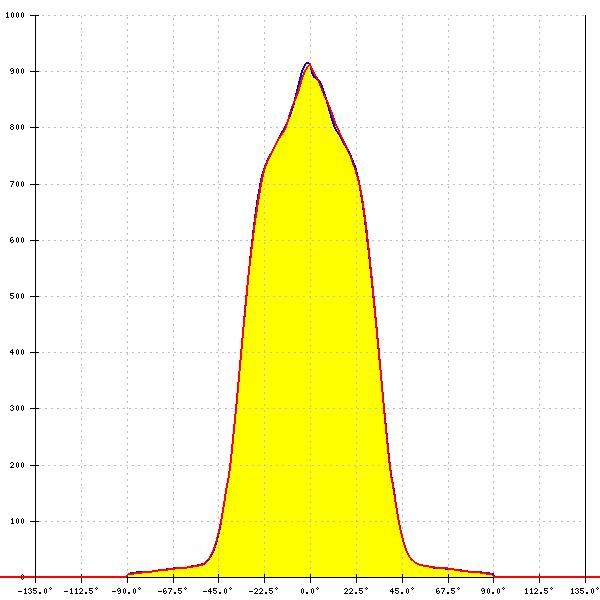

    LED: OSCONIQ P 3737 Flat
    FWHM: 64°
    FWTM: 88°
    Peak intensity: 0.915 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

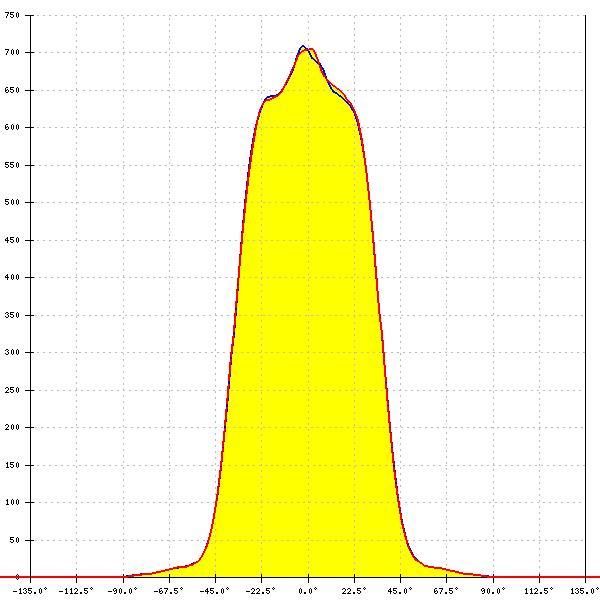

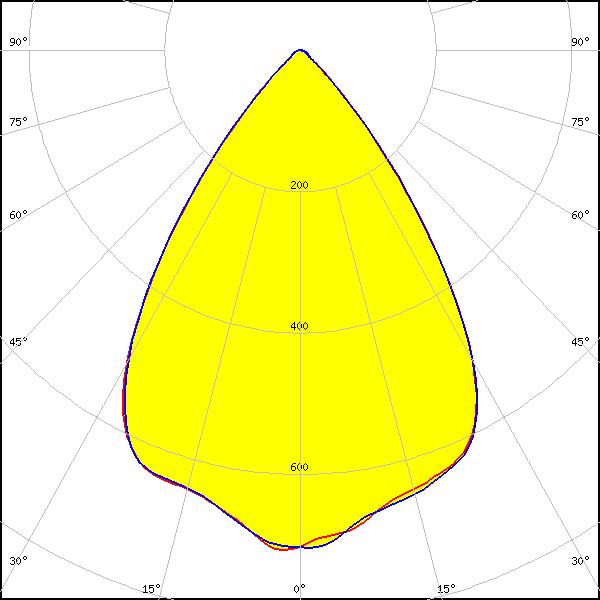

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 70°
    FWTM: 92°
    Peak intensity: 0.708 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 64°
    FWTM: 93°
    Peak intensity: 0.820 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square Flat
    FWHM: 68°
    FWTM: 86°
    Peak intensity: 0.851 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 80
    FWHM: 56°
    FWTM: 81°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

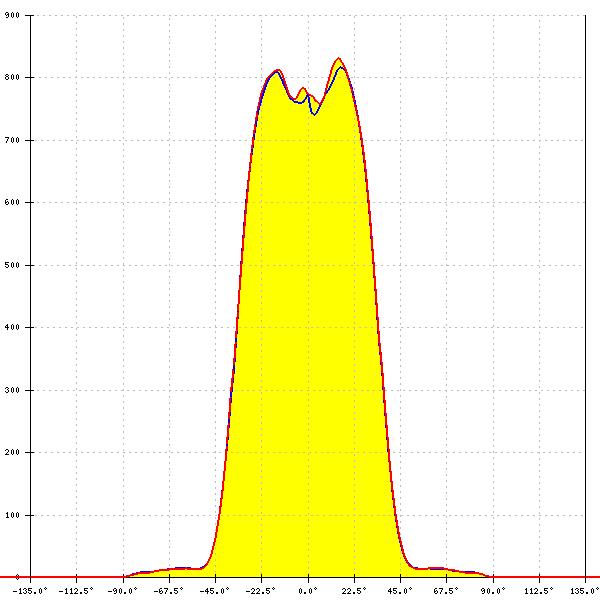

    LED: OSTAR Projection Compact (KW.CSLNM1.TG)
    FWHM: 68°
    FWTM: 88°
    Peak intensity: 0.838 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: 59°
    FWTM: 97°
    Peak intensity: 0.851 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.790 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: 64°
    FWTM: 101°
    Peak intensity: 0.778 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: 64°
    FWTM: 97°
    Peak intensity: 0.796 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

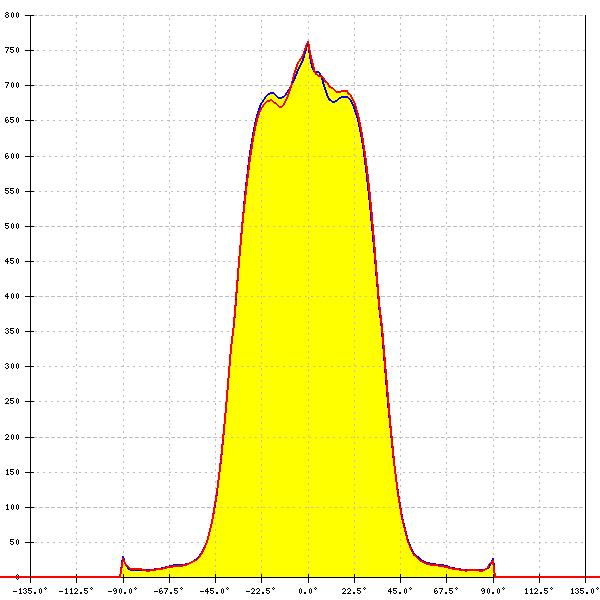

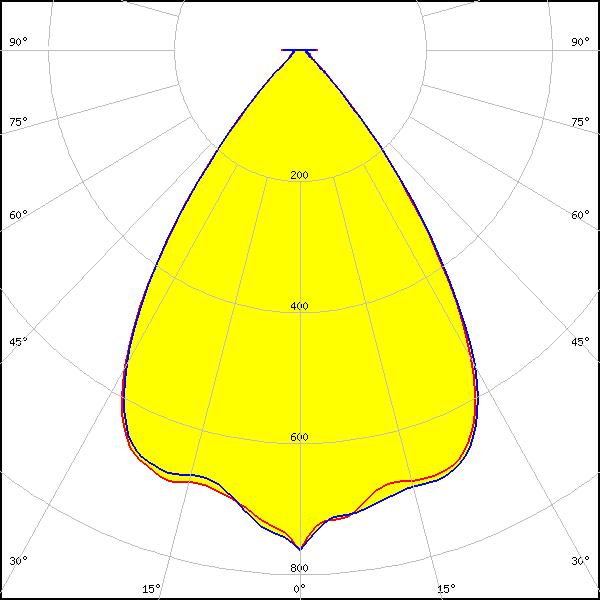

    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: 71°
    FWTM: 94°
    Peak intensity: 0.760 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

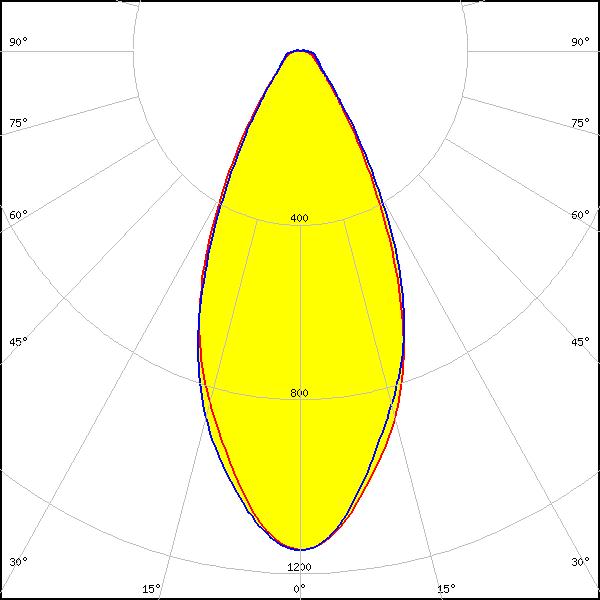

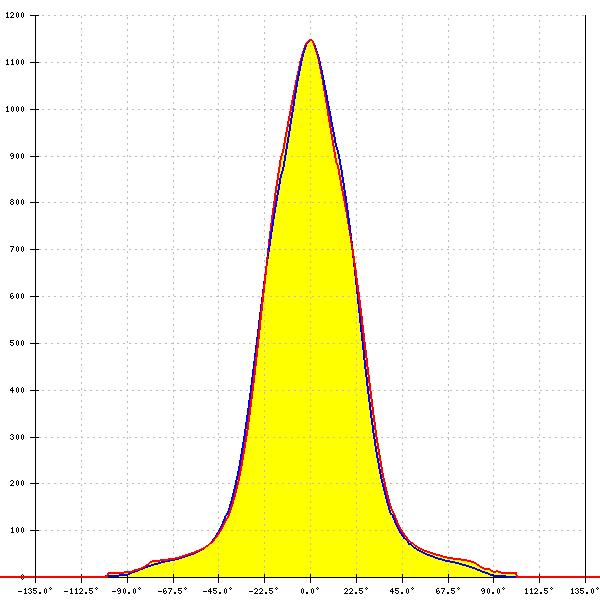

    LED: HiLOM RC12 Z (LH181B)
    FWHM: 48°
    FWTM: 85°
    Peak intensity: 1.146 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

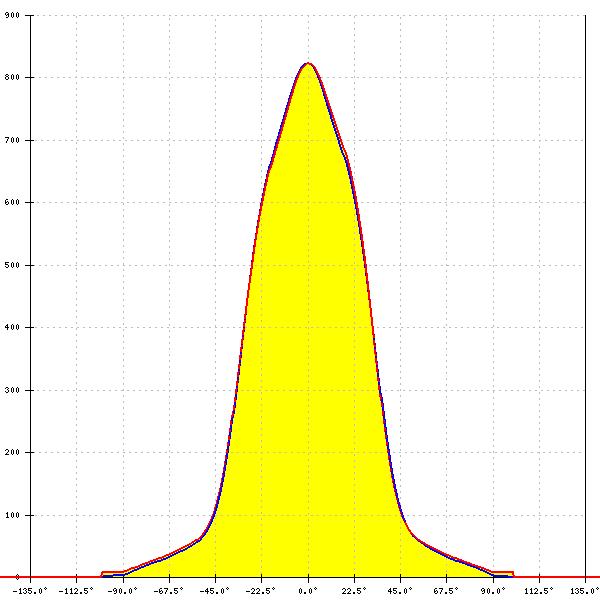

    LED: HiLOM RH12 Z (LH351C)
    FWHM: 62°
    FWTM: 97°
    Peak intensity: 0.823 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

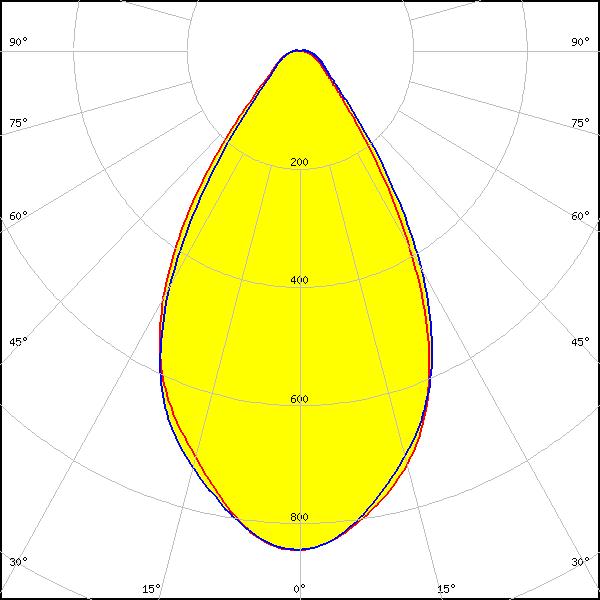

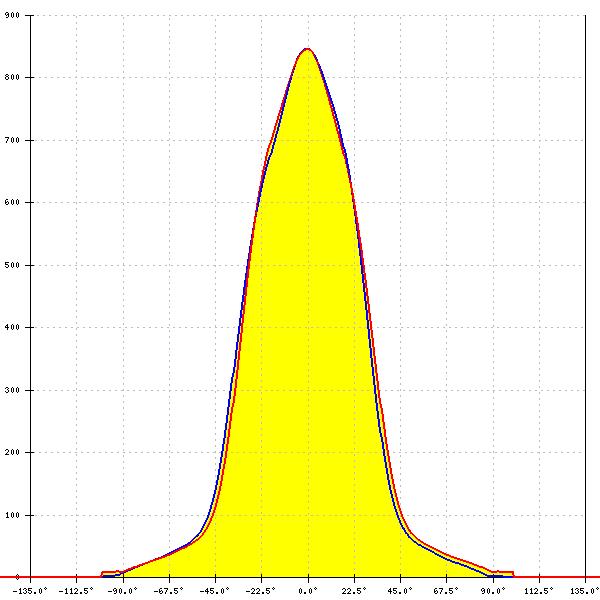

    LED: HiLOM RH16 (LH351C)
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: 57°
    FWTM: 98°
    Peak intensity: 0.851 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

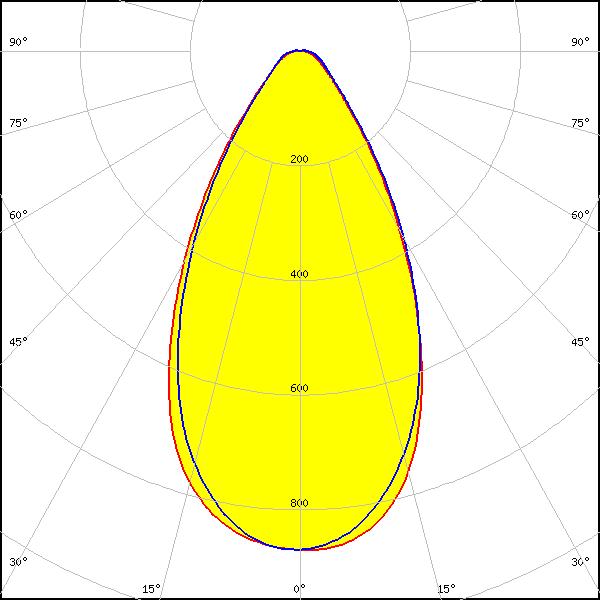

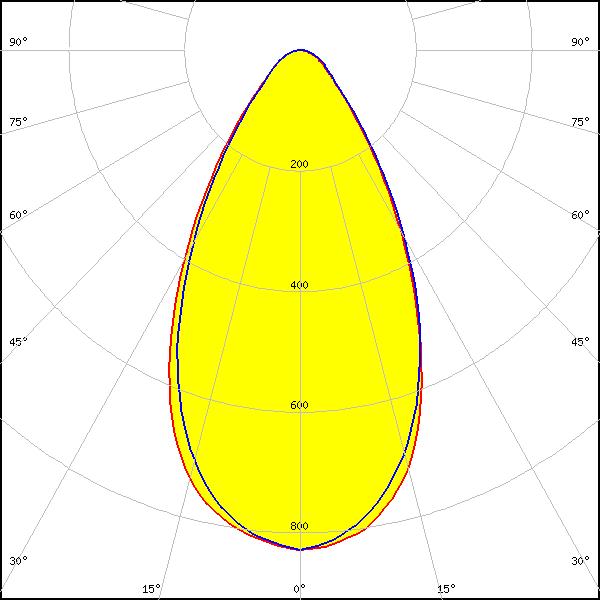

    LED: HiLOM RM16 Z (LH502C)
    FWHM: 56°
    FWTM: 98°
    Peak intensity: 0.829 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: 57°
    FWTM: 97°
    Peak intensity: 0.871 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

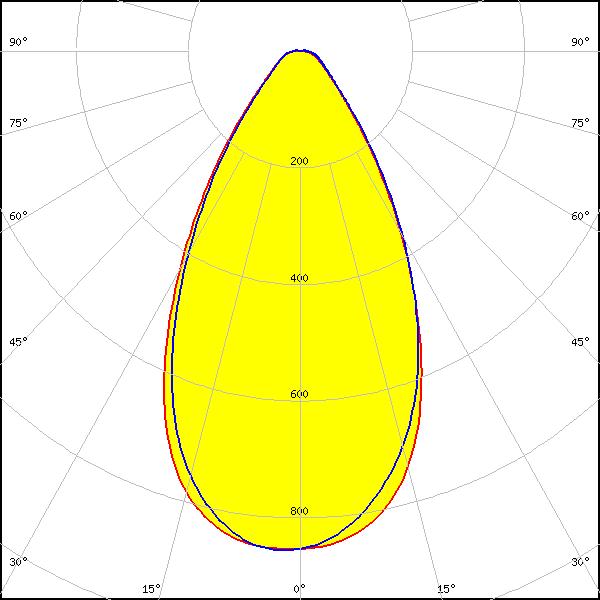

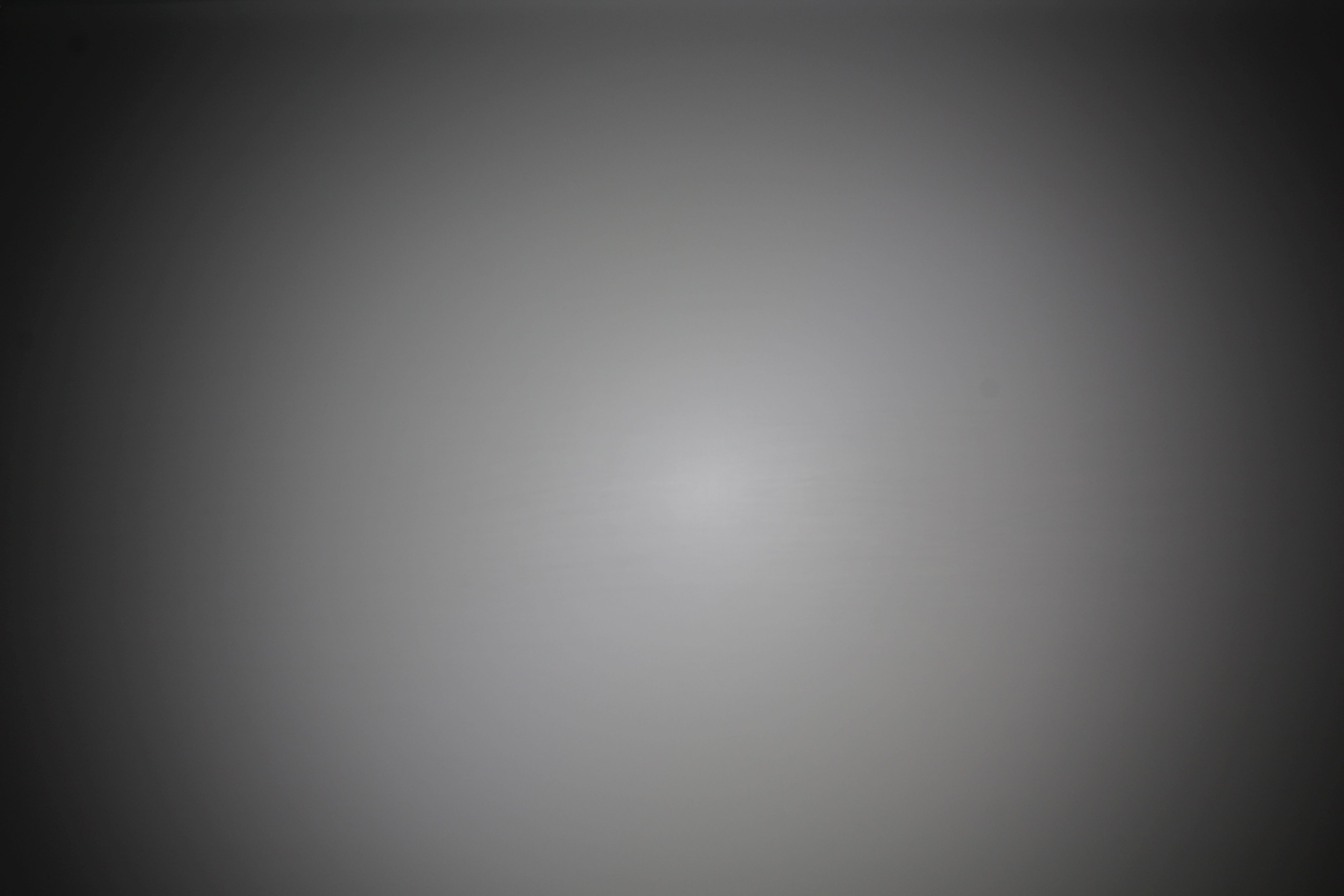

    LED: HiLOM RM8 Z (LH502C)
    FWHM: 57°
    FWTM: 98°
    Peak intensity: 0.860 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

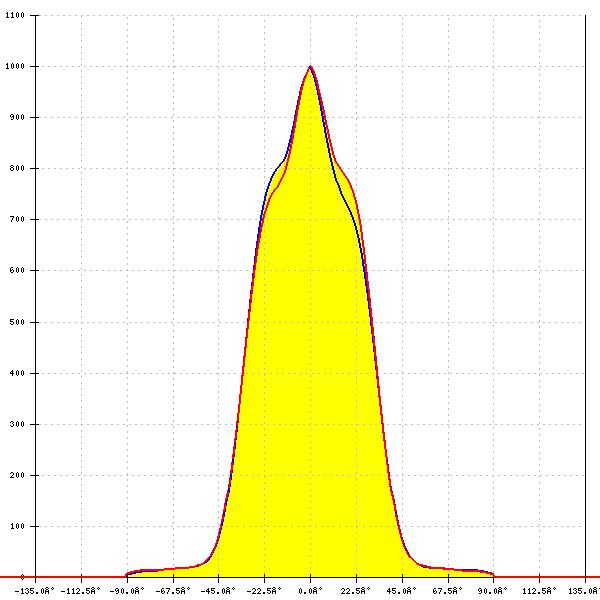

    LED: LH231B
    FWHM: 60°
    FWTM: 87°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

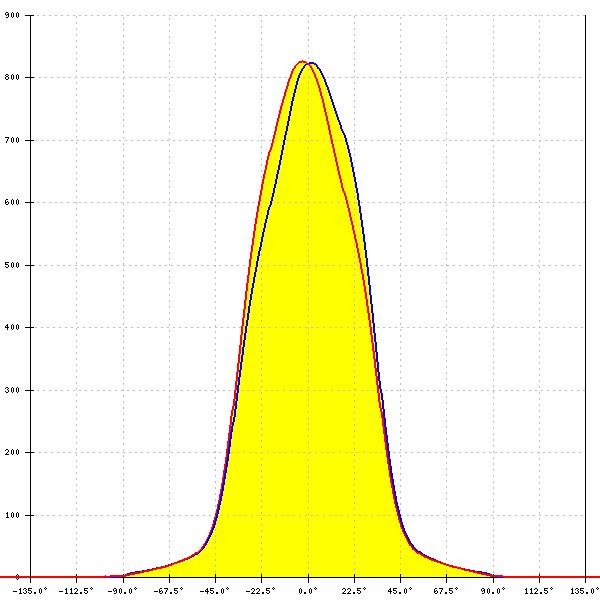

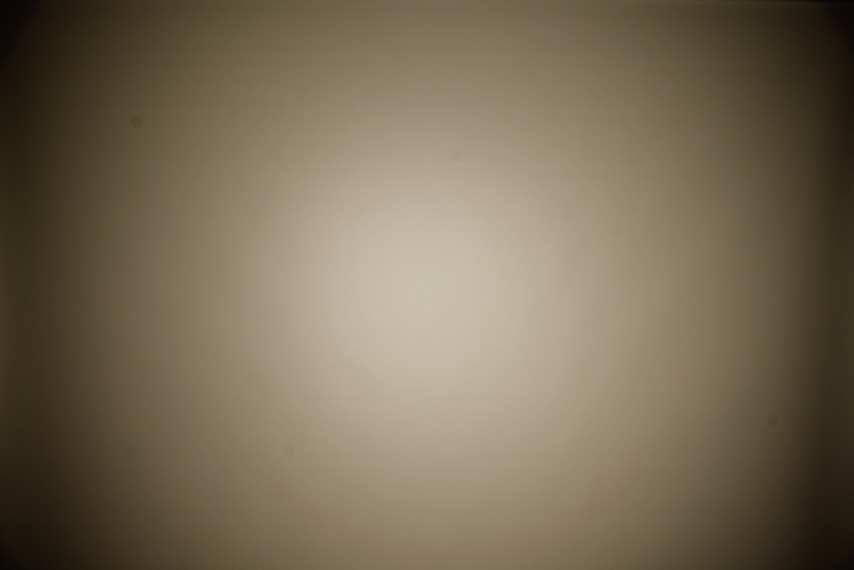

    LED: LH351B
    FWHM: 62°
    FWTM: 92°
    Peak intensity: 0.830 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: 62°
    FWTM: 94°
    Peak intensity: 0.840 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

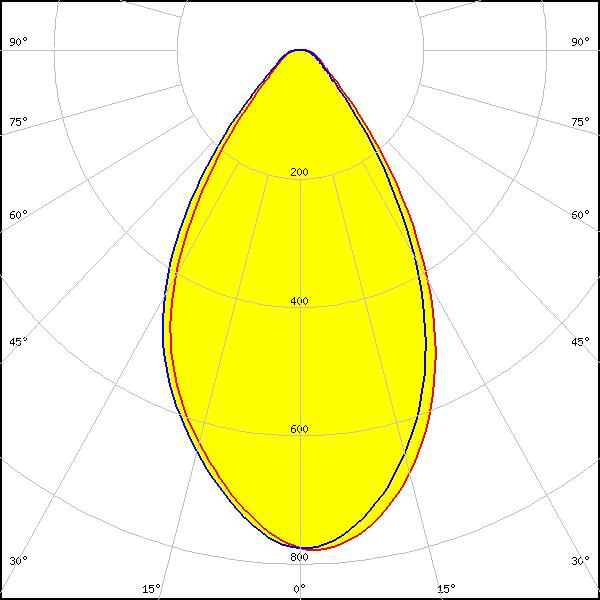

    LED: LH351D
    FWHM: 62°
    FWTM: 99°
    Peak intensity: 0.780 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

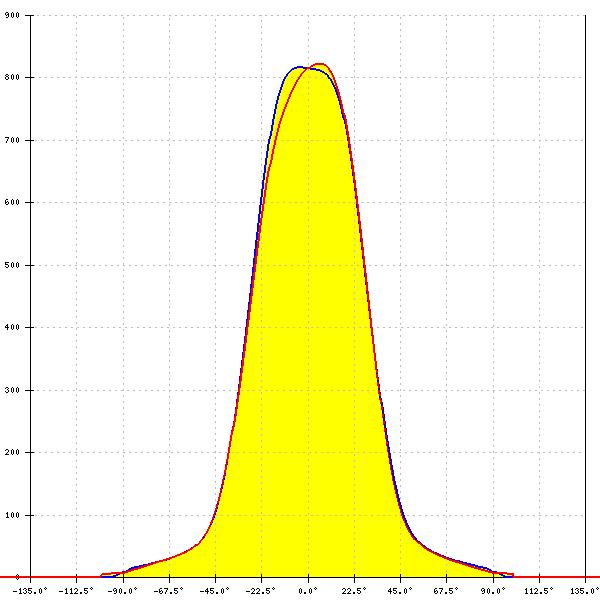

    LED: LH508A
    FWHM: 60°
    FWTM: 97°
    Peak intensity: 0.820 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

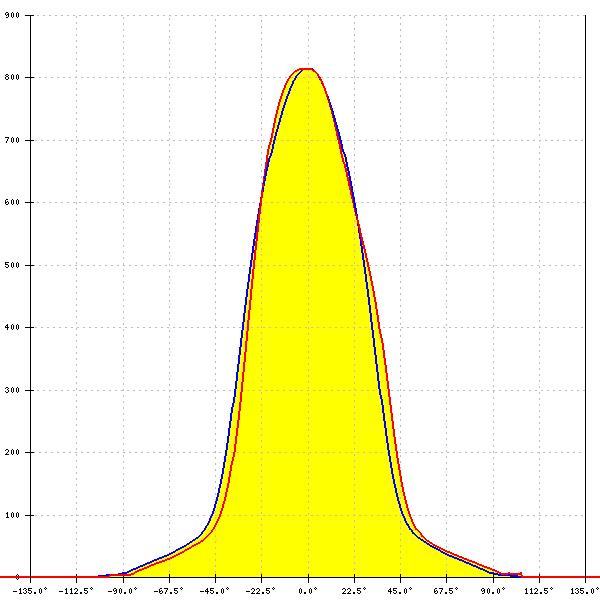

    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: 64°
    FWTM: 98°
    Peak intensity: 0.814 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: 2x2 Y22 module - SMJQ-D48W16AA-XX
    FWHM: 55°
    FWTM: 98°
    Peak intensity: 0.820 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: 64°
    FWTM: 93°
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

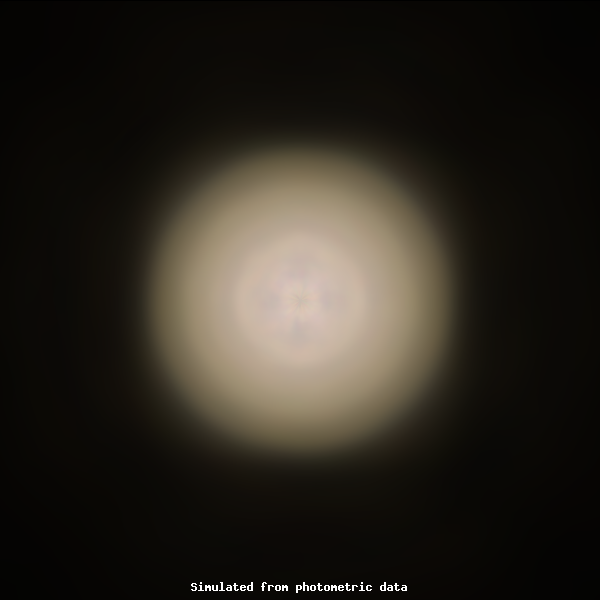

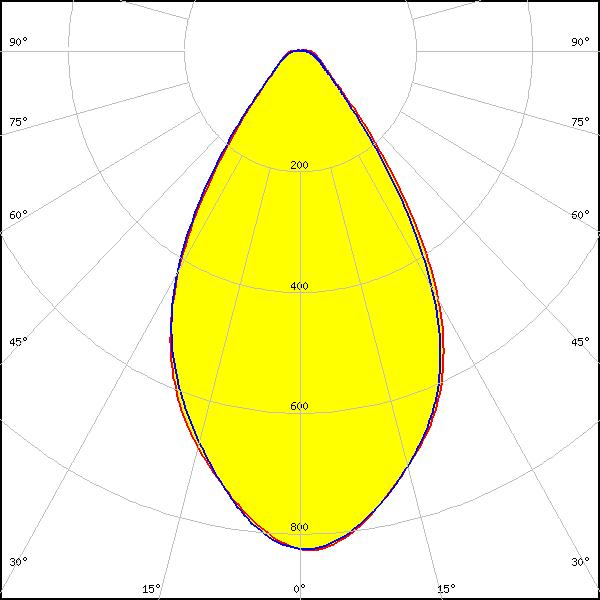

    LED: Z5M3
    FWHM: 62°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3-E1
    FWHM: 72°
    FWTM: 86°
    Peak intensity: 0.823 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: 64°
    FWTM: 92°
    Peak intensity: 0.847 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

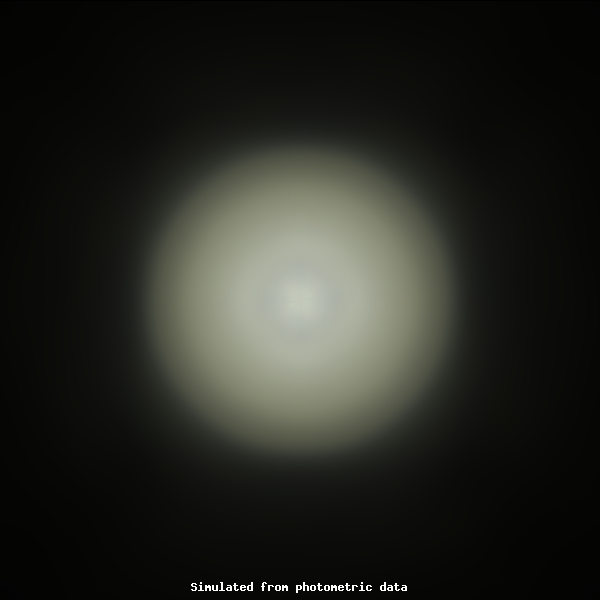

    LED: Z5M4-E1
    FWHM: 70°
    FWTM: 88°
    Peak intensity: 0.918 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

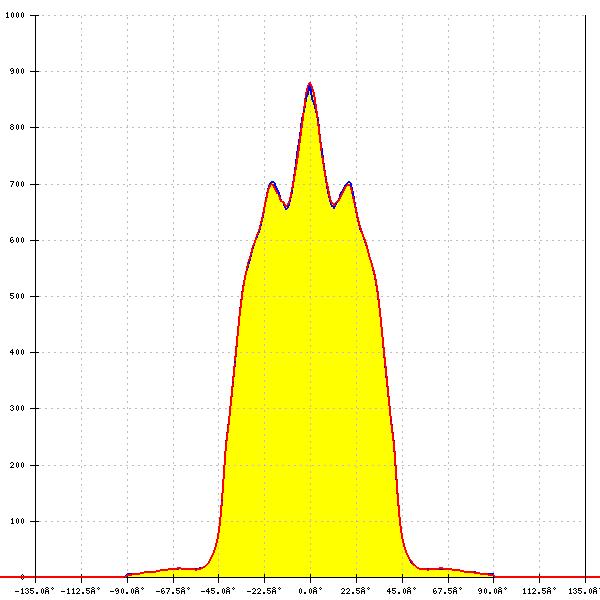

    LED: Z5M4-E2
    FWHM: 70°
    FWTM: 88°
    Peak intensity: 0.891 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: 55°
    FWTM: 98°
    Peak intensity: 0.820 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Z8Y19
    FWHM: 55°
    FWTM: 98°
    Peak intensity: 0.820 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

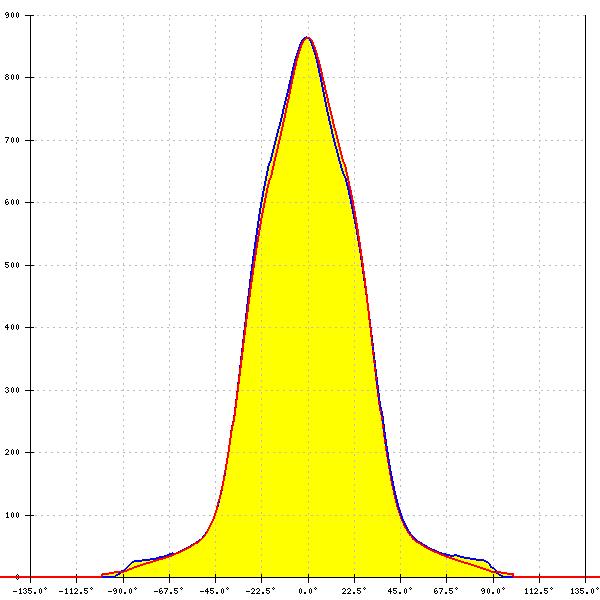

    LED: Z8Y22P
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.860 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

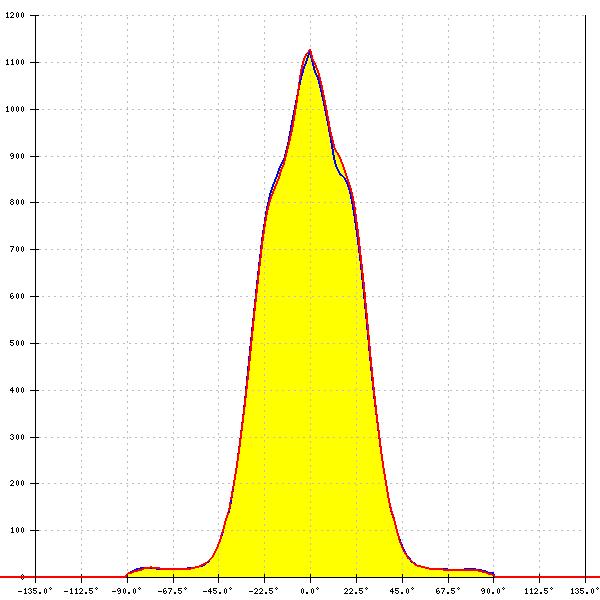

    LED: Z8Y22T
    FWHM: 55°
    FWTM: 83°
    Peak intensity: 1.130 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: 61°
    FWTM: 95°
    Peak intensity: 0.830 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

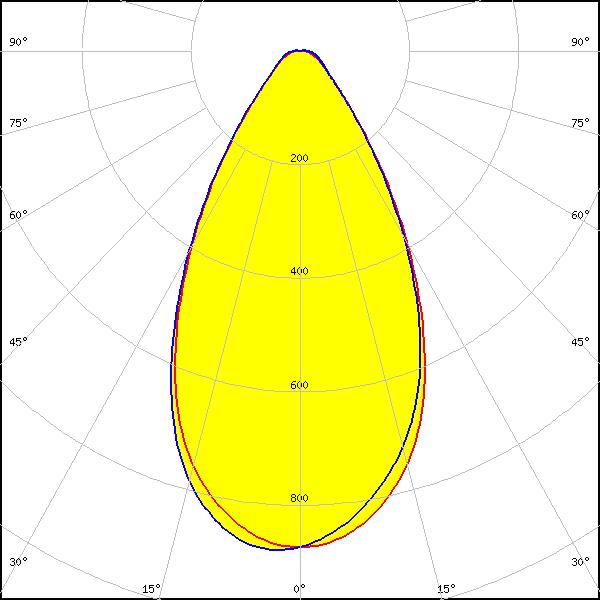

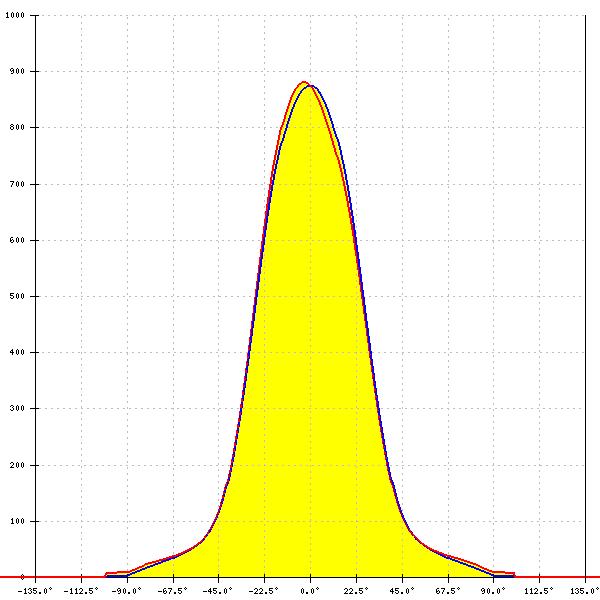

    LED: RLE 2x8 6000lm HP HE EXC3 OTD
    FWHM: 57°
    FWTM: 96°
    Peak intensity: 0.884 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x133mm 2000lm xxx EXC OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
