    C16123_OLGA-S

    Print

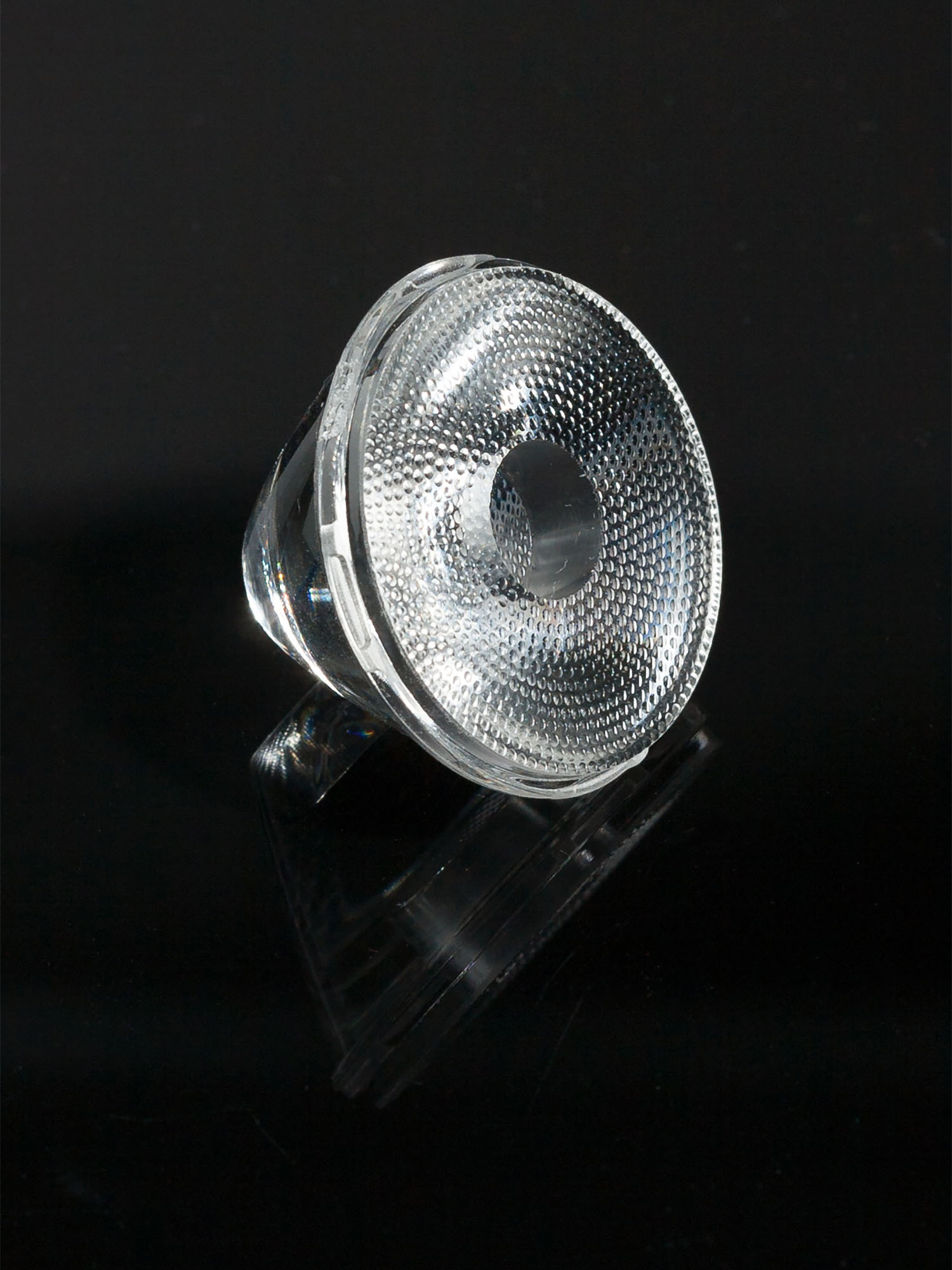

    ~11° spot beam assembly with flange

    Specification
    • Dimensions:
      30 mm
    • Height:
      18.45 mm
    • Fastening:
      glue
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      7.3 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16123_OLGA-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Track light luminaire with OLGA-S

    Application guide

    Guide for Retail Lighting Optics

    News

    OLGA – Expanding possibilities in architectural lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

    Optical results

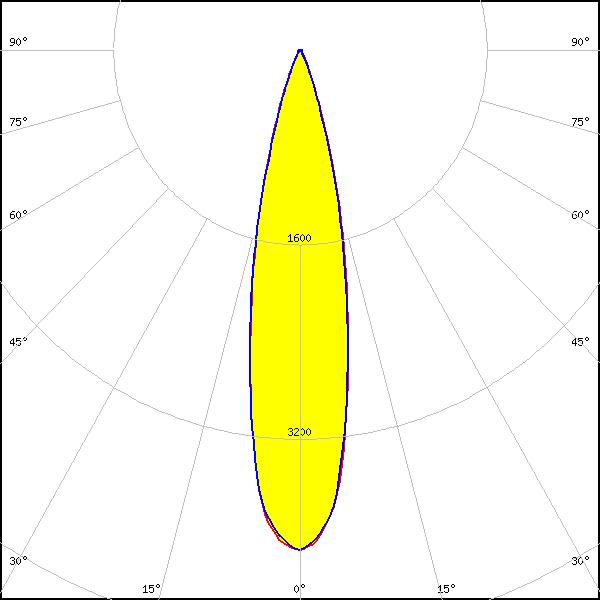

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    FWHM: 23°
    FWTM: 42°
    Peak intensity: 4.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

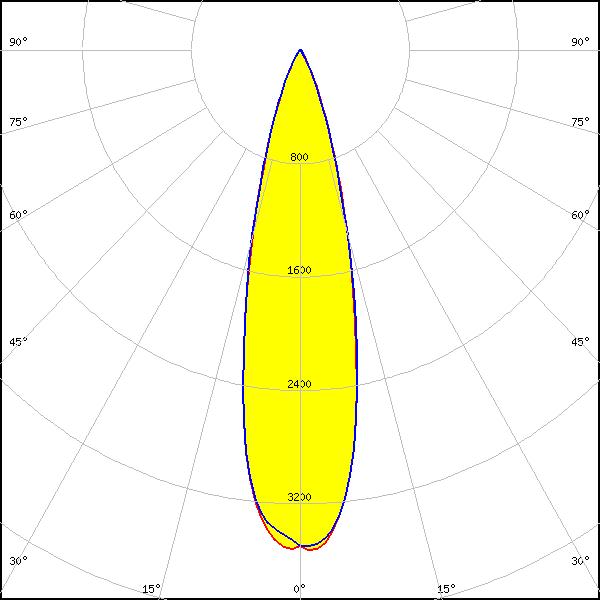

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.532 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

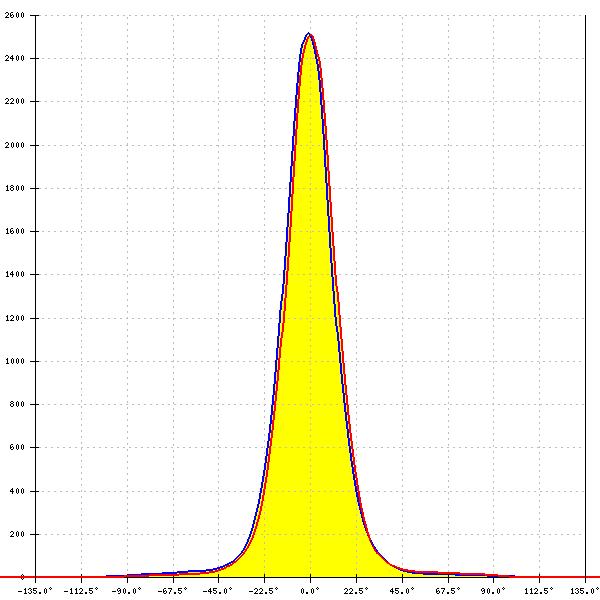

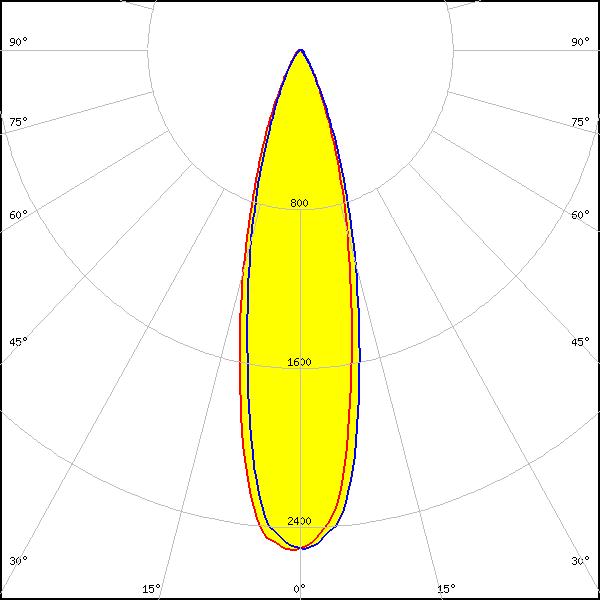

    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    FWHM: 27°
    FWTM: 54°
    Peak intensity: 2.516 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

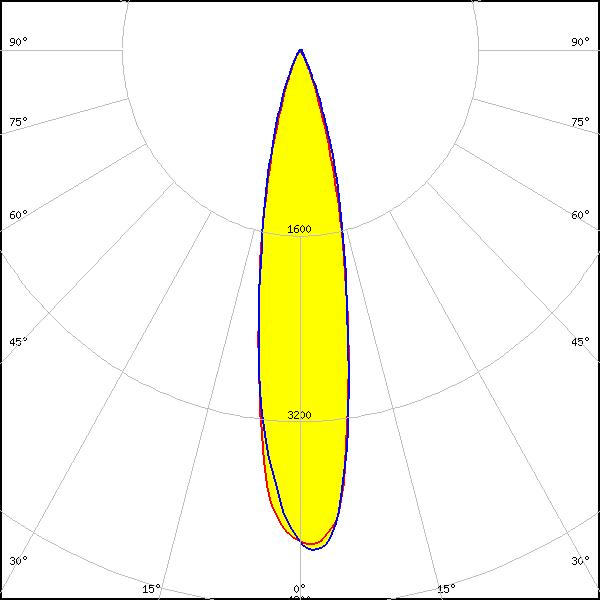

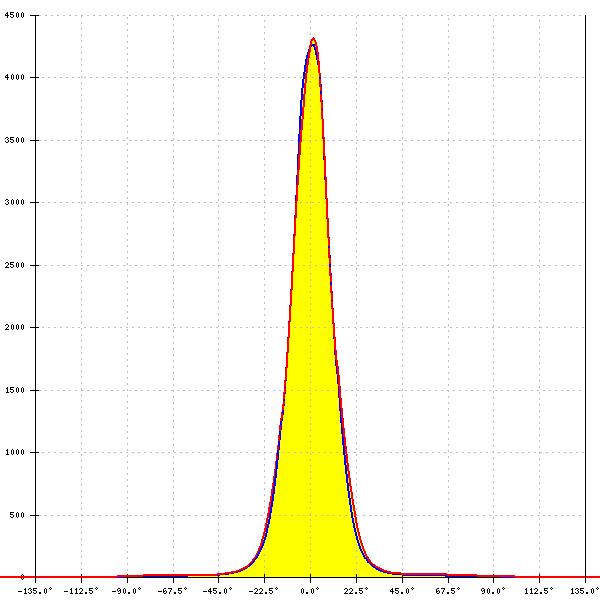

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    FWHM: 21°
    FWTM: 43°
    Peak intensity: 4.300 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

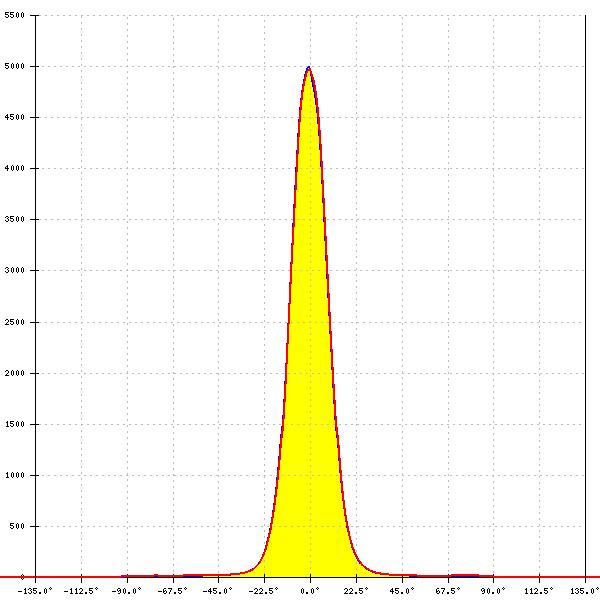

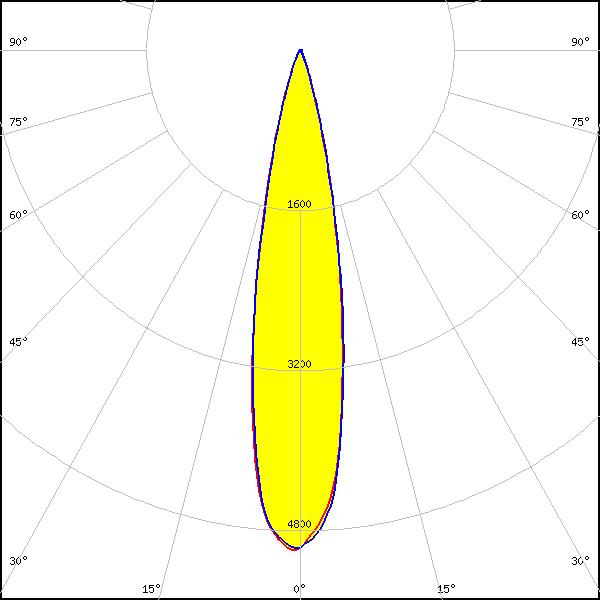

    LED: CLU7B2
    LES size: 3.3 mm
    FWHM: 21°
    FWTM: 37°
    Peak intensity: 4.996 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

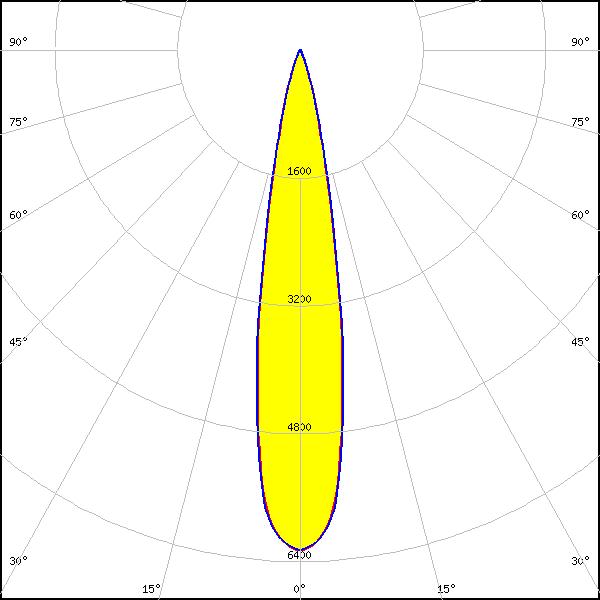

    LED: CLU7L3
    LES size: 2.4 mm
    FWHM: 19°
    FWTM: 35°
    Peak intensity: 6.286 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

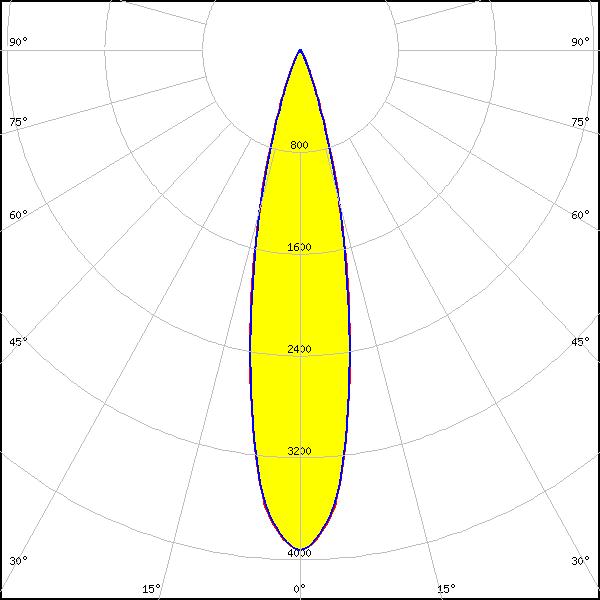

    LED: CLU7R3
    LES size: 4.2 mm
    FWHM: 23°
    FWTM: 42°
    Peak intensity: 3.927 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

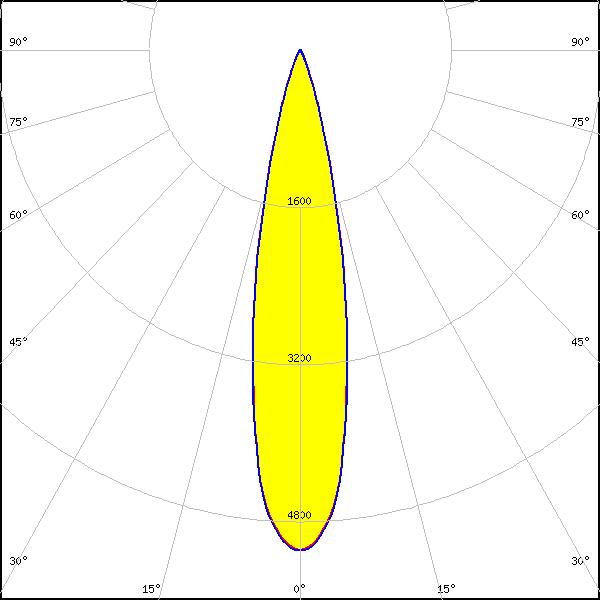

    LED: CLU7S3
    LES size: 3.5 mm
    FWHM: 22°
    FWTM: 39°
    Peak intensity: 5.096 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

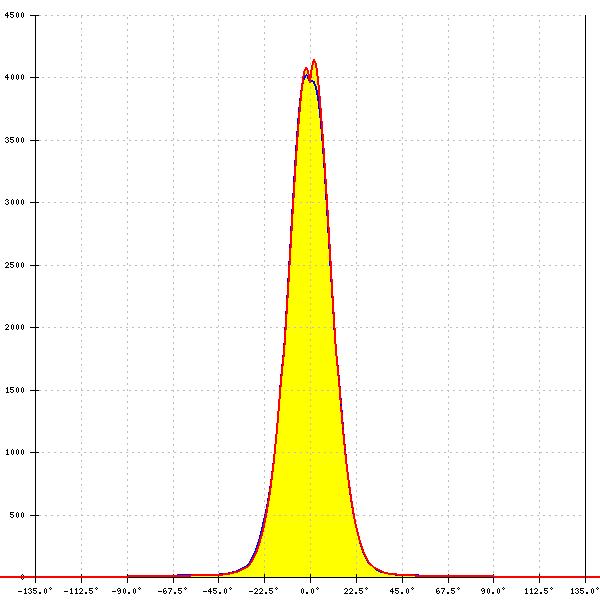

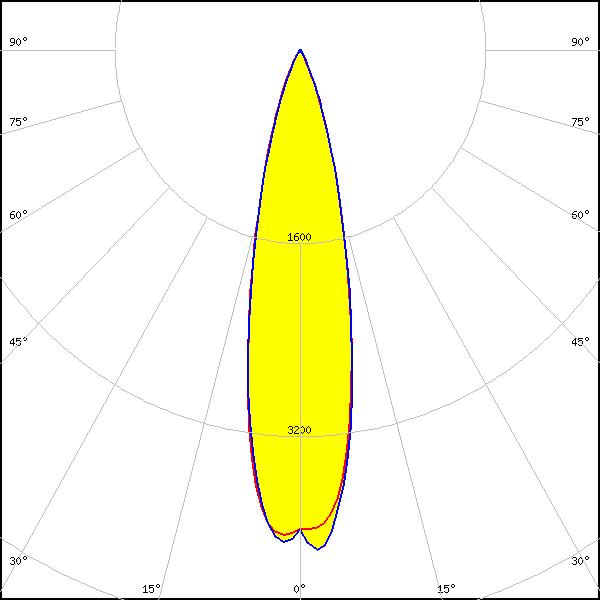

    LED: CXA/B 13xx
    LES size: 6.0 mm
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 4.159 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

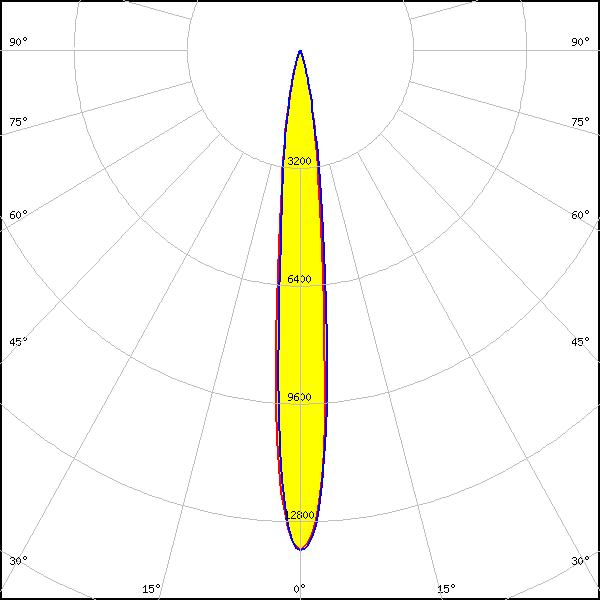

    LED: XP-E2
    LES size: 0.0 mm
    FWHM: 11°
    FWTM: 26°
    Peak intensity: 13.600 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

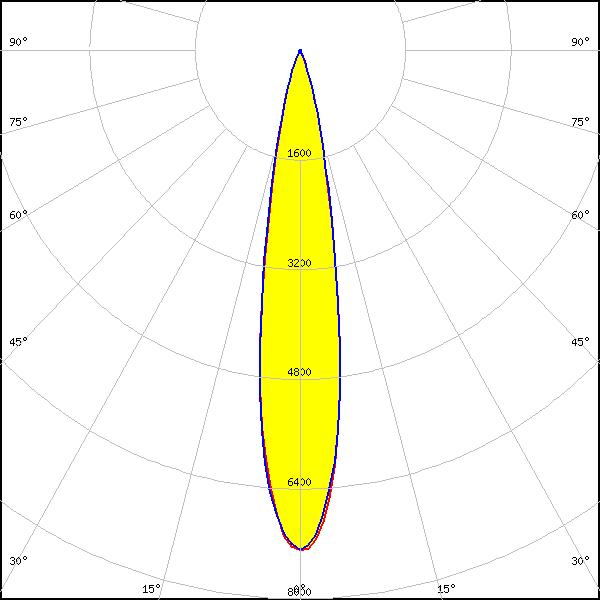

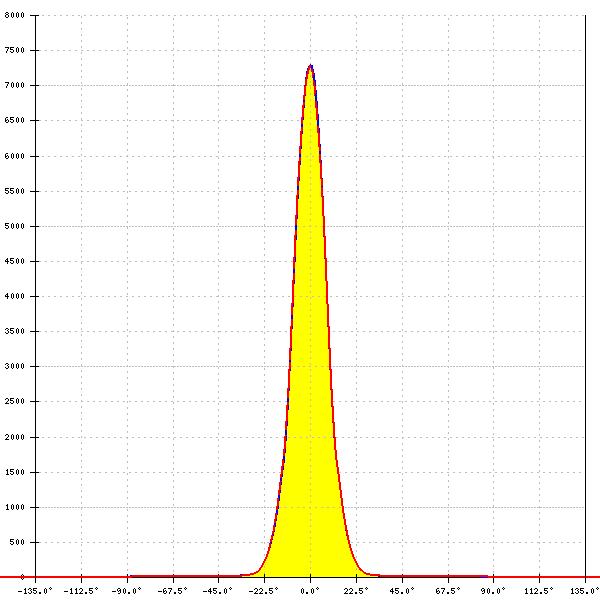

    LED: CXM-3
    LES size: 3.5 mm
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.331 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

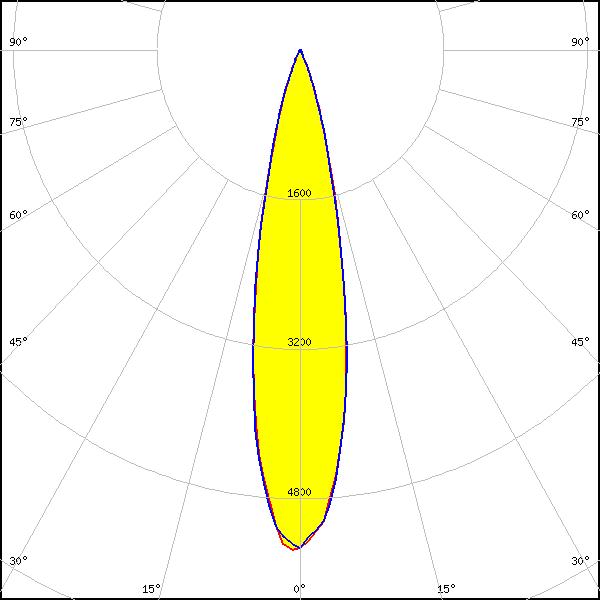

    LED: CXM-4
    LES size: 4.5 mm
    FWHM: 22°
    FWTM: 40°
    Peak intensity: 5.381 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

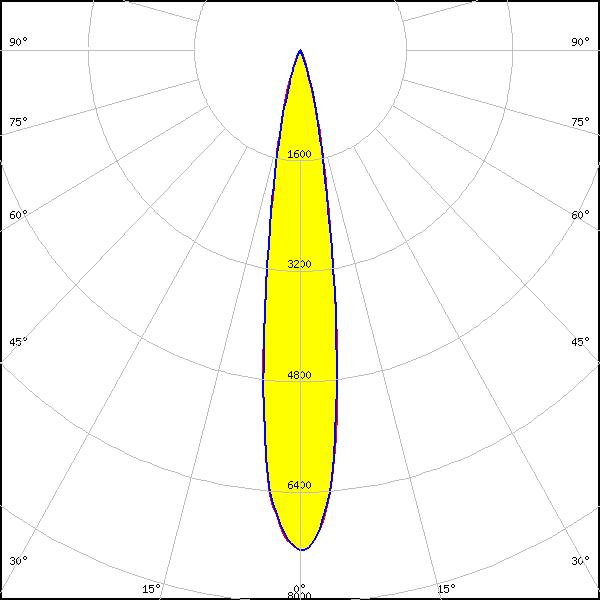

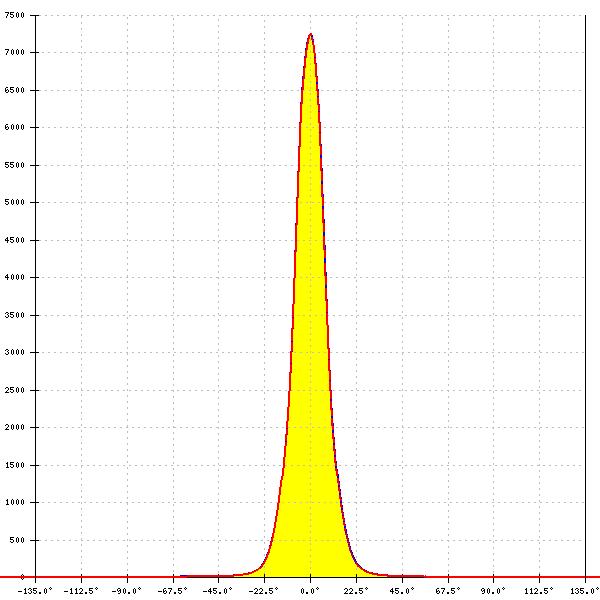

    LED: OSCONIQ P 3737 (3W) PUSTA1
    LES size: 0.0 mm
    FWHM: 17°
    FWTM: 33°
    Peak intensity: 7.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

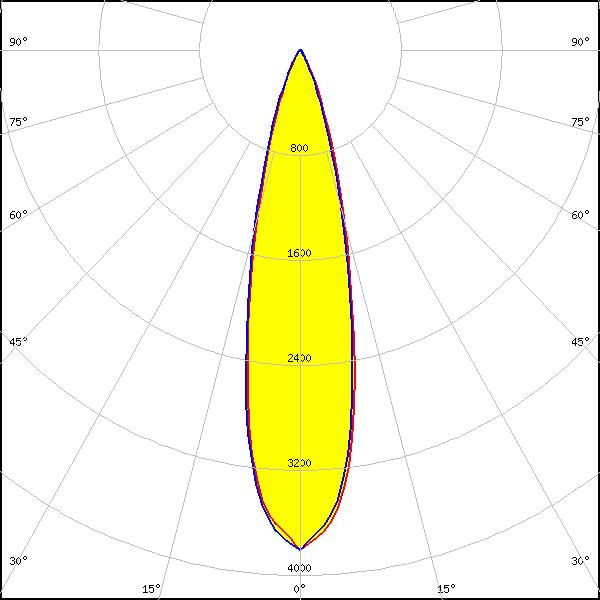

    LED: MJT COB LES 6
    LES size: 6.0 mm
    FWHM: 24°
    FWTM: 47°
    Peak intensity: 3.800 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

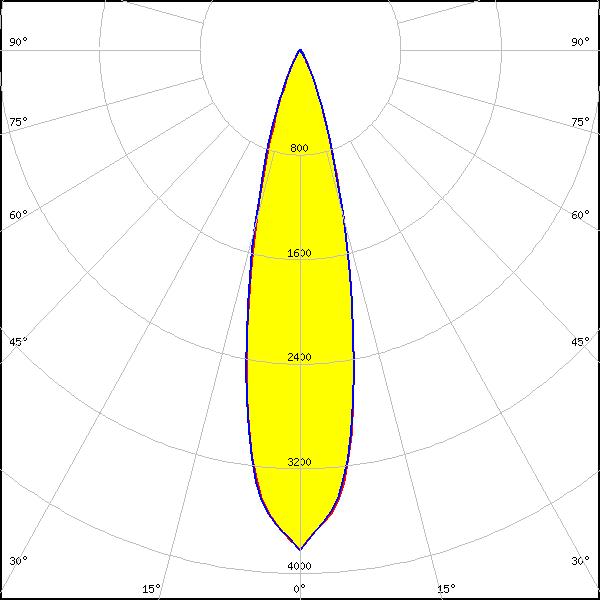

    LED: XOB06 Gen1
    LES size: 6.0 mm
    FWHM: 24°
    FWTM: 47°
    Peak intensity: 3.824 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

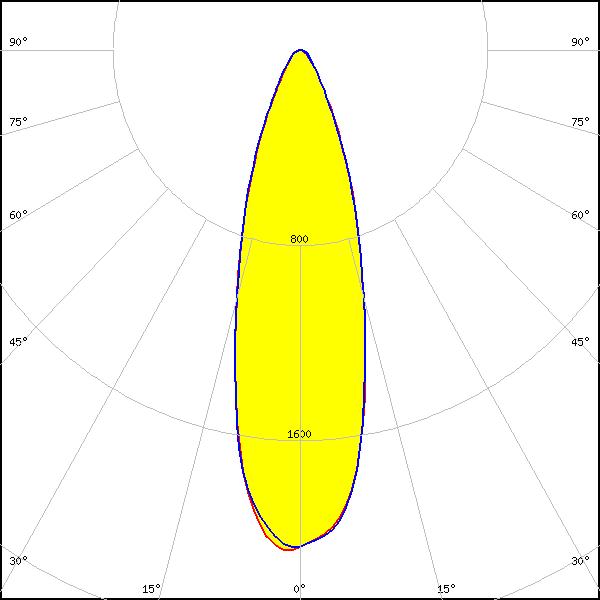

    LED: XOB09 Gen1
    LES size: 9.8 mm
    FWHM: 30°
    FWTM: 64°
    Peak intensity: 2.053 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
