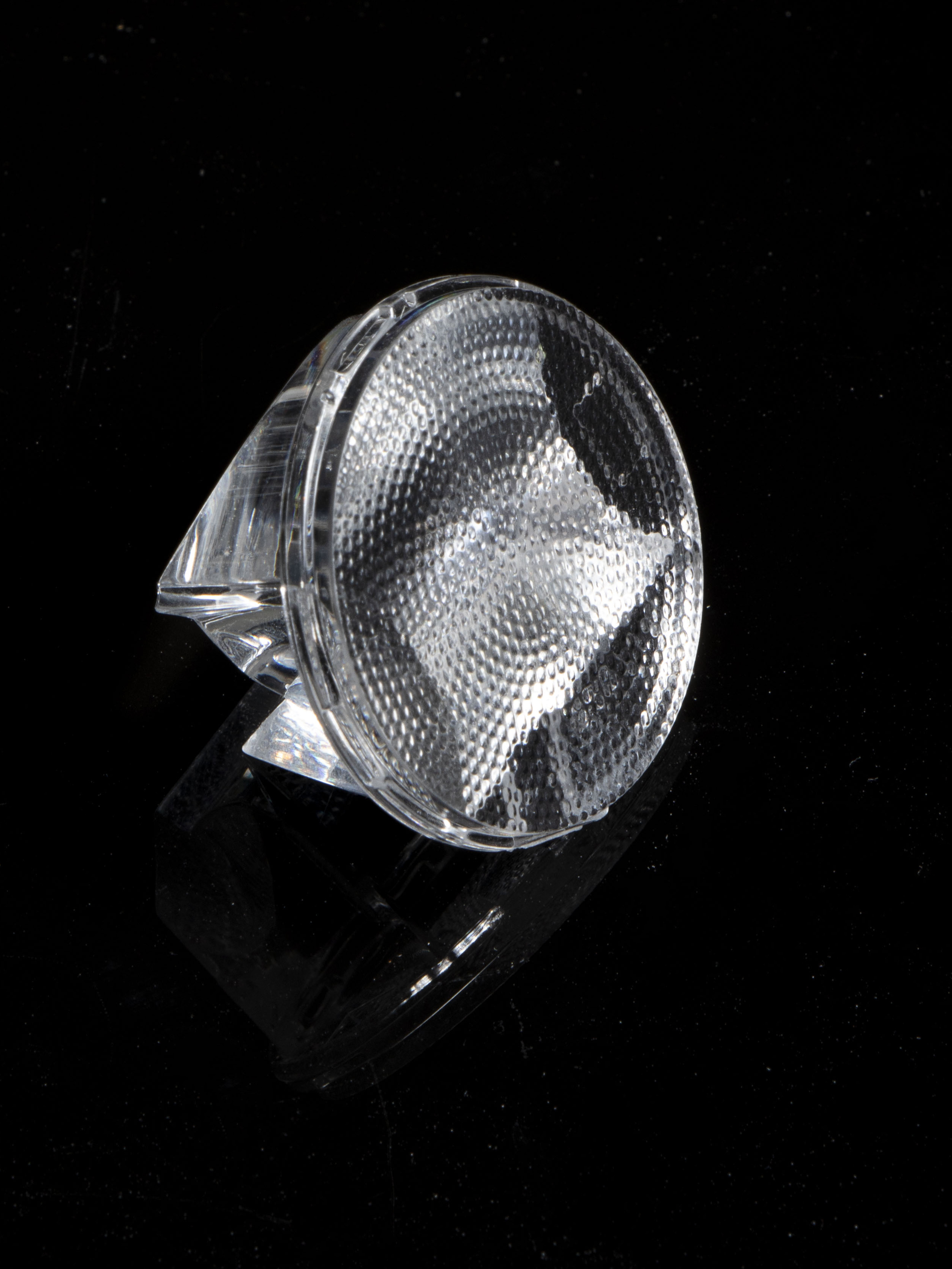

    C16307_OLGA-WAS

    Print

    Asymmetric beam for wall-washing

    Specification
    • Dimensions:
      30 mm
    • Height:
      17.25 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      6.5 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16307_OLGA-WAS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Luminaire, example

    Track module luminaire with OLGA-WAS

    News

    New Products - 2019-01-31

    Application example

    Wall-washing with OLGA-WAS

    Application guide

    Guide for Retail Lighting Optics

    News

    OLGA – Expanding possibilities in architectural lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

    Optical results

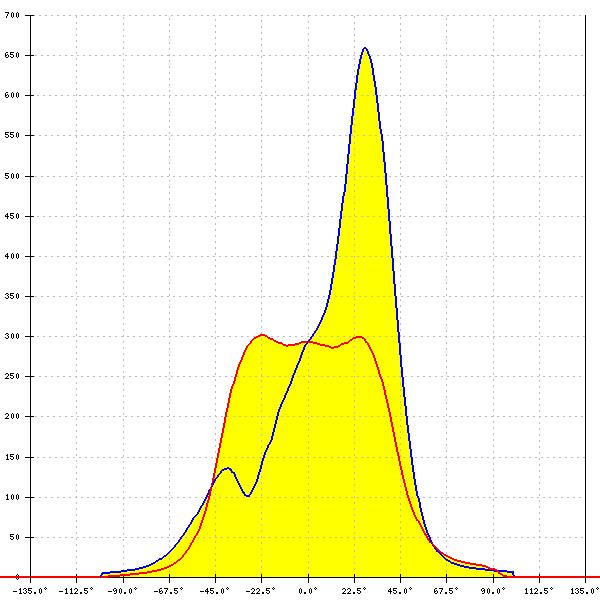

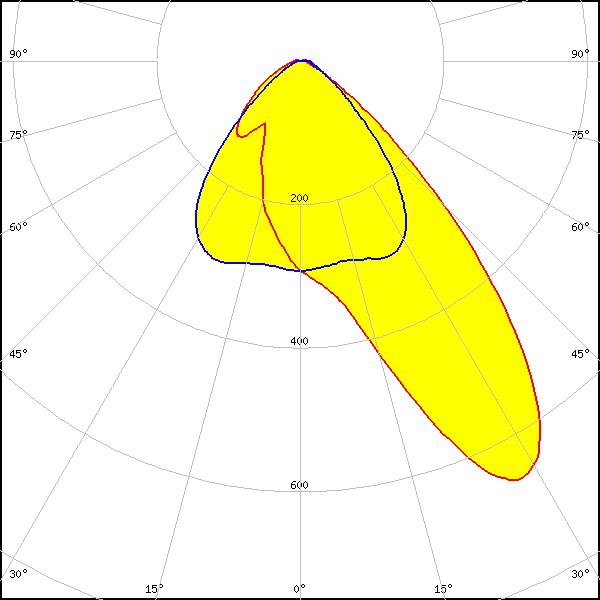

    LED: Vesta TW 6mm DP
    FWHM: asymmetric
    Peak intensity: 0.663 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

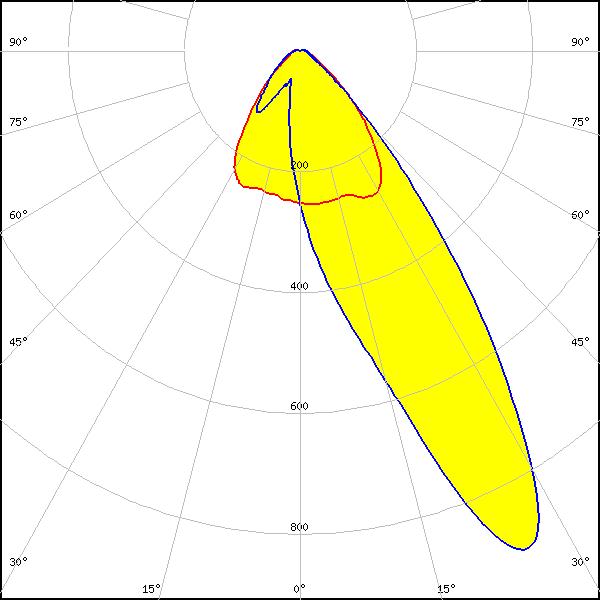

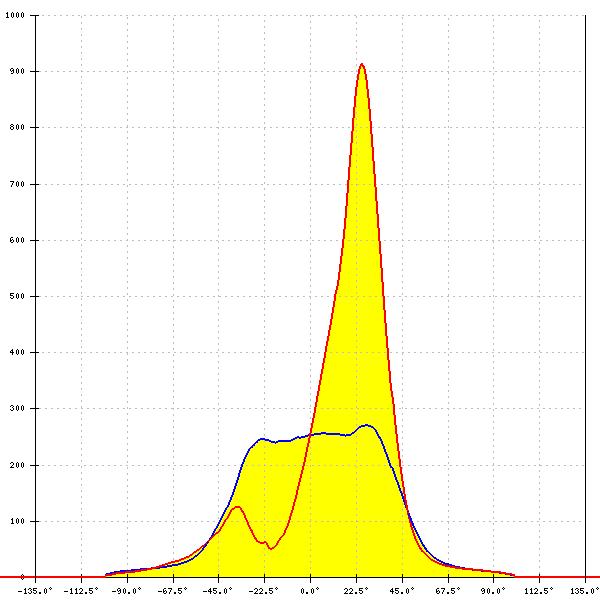

    LED: CLU7B2
    FWHM: asymmetric
    Peak intensity: 0.931 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

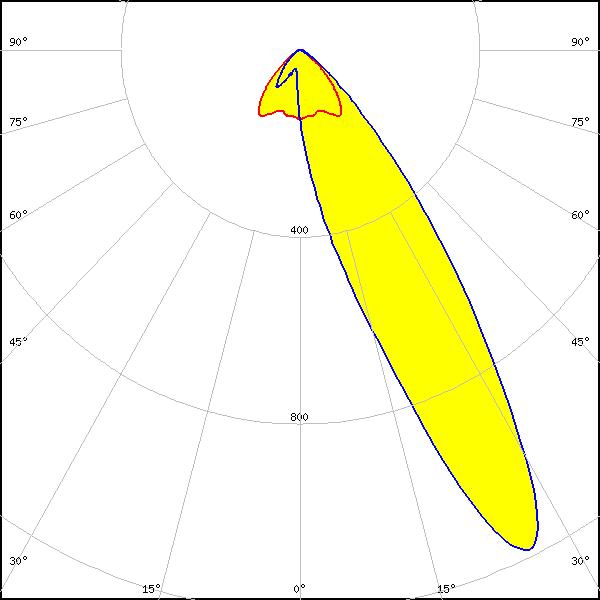

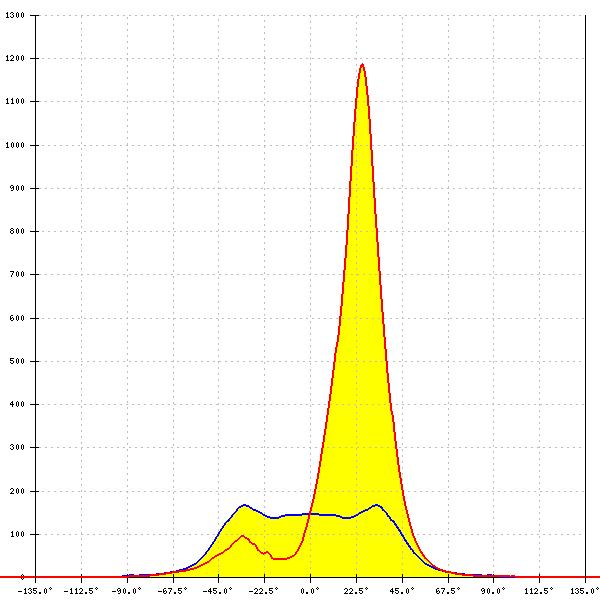

    LED: CLU7L3
    FWHM: asymmetric
    Peak intensity: 1.195 cd/lm
    Efficiency: 71 %
    LEDs/each optic: 1
    Light colour/type: White

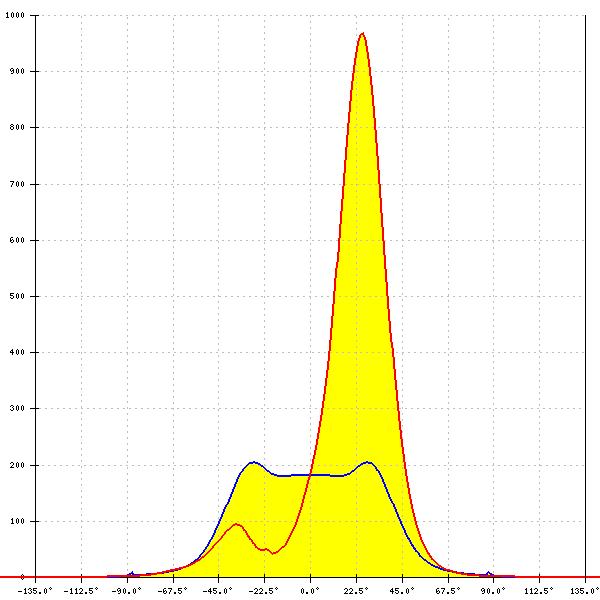

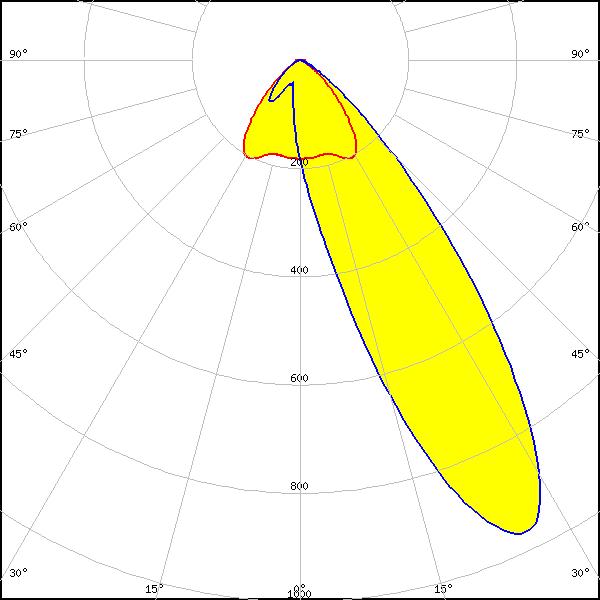

    LED: CLU7R3
    FWHM: asymmetric
    Peak intensity: 0.975 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

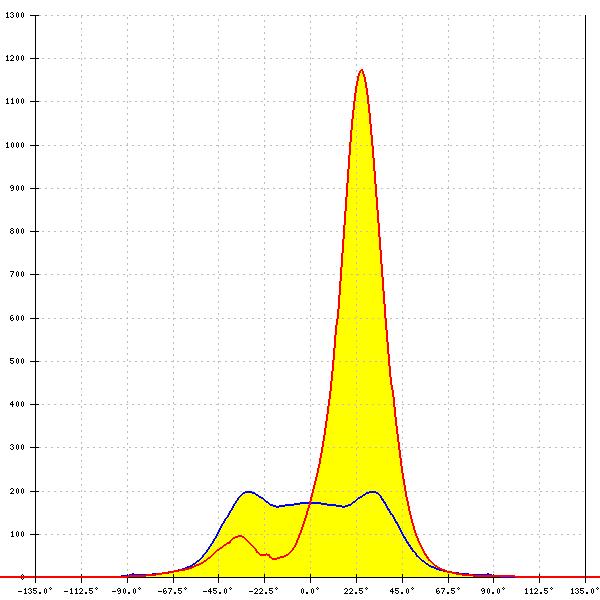

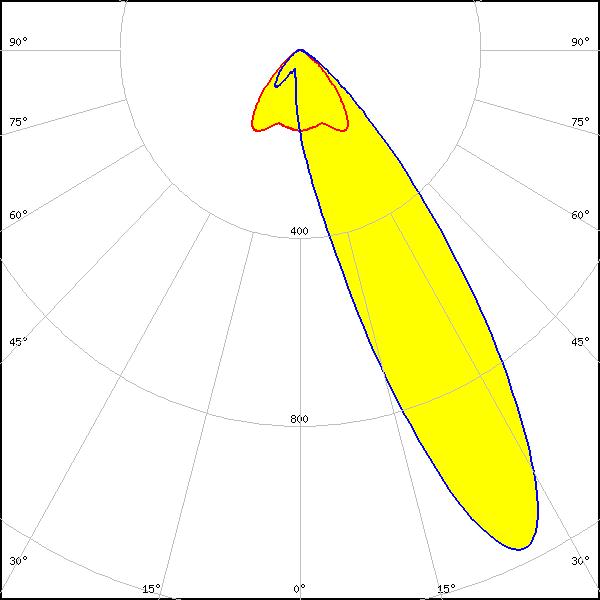

    LED: CLU7S3
    FWHM: asymmetric
    Peak intensity: 1.176 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

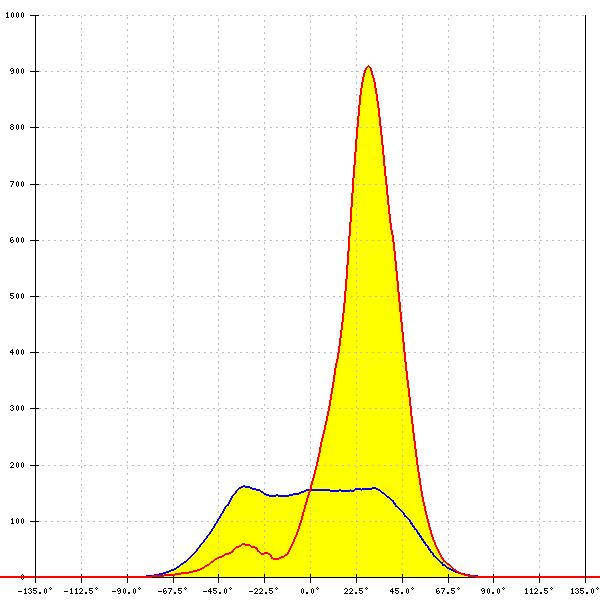

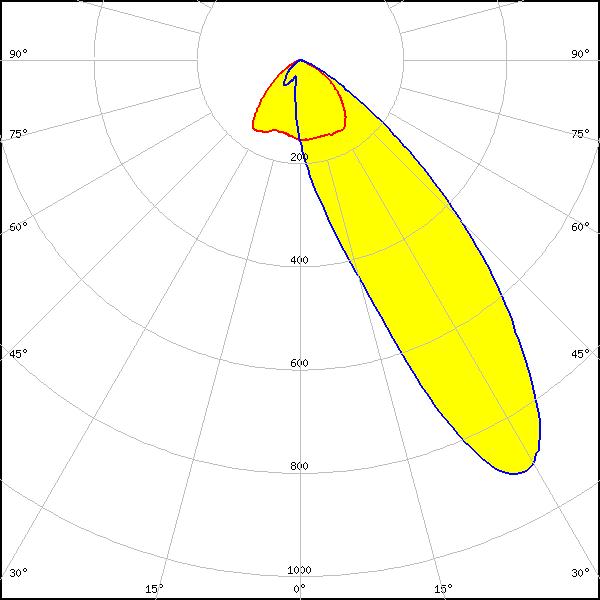

    LED: XHP35 HD
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

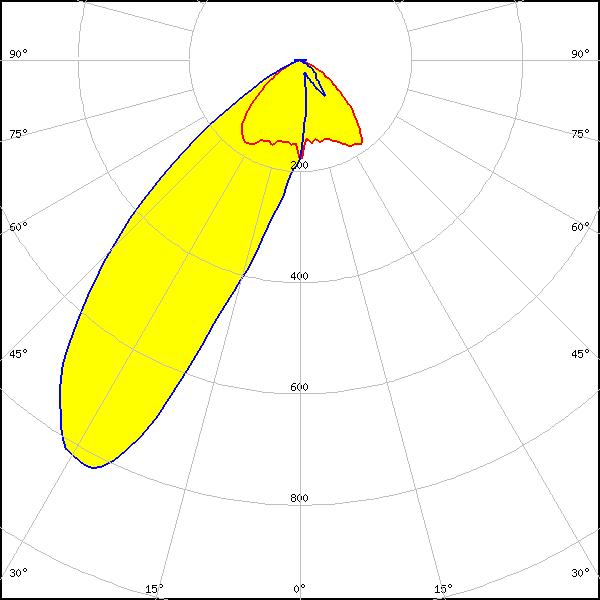

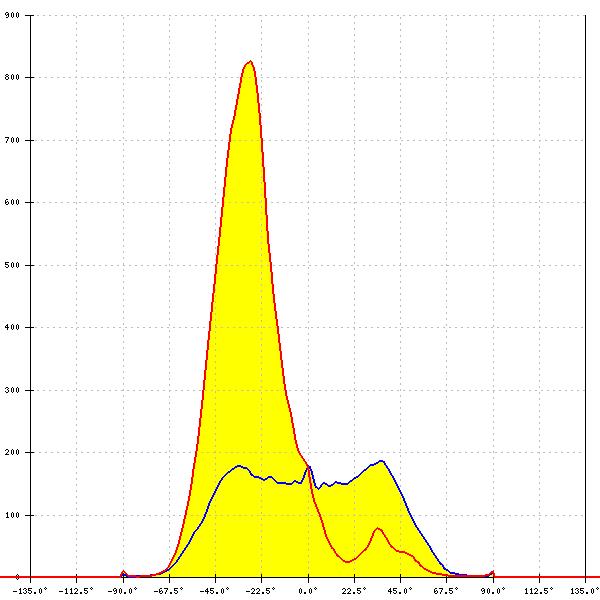

    LED: XHP35.2 HD
    FWHM: asymmetric
    Peak intensity: 0.838 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White

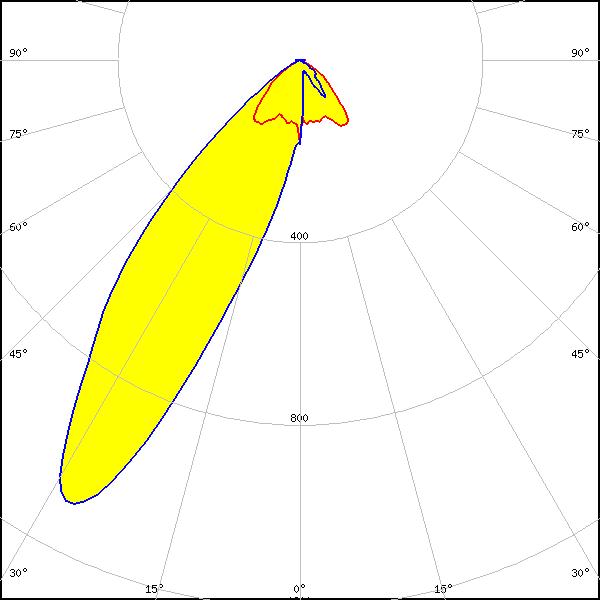

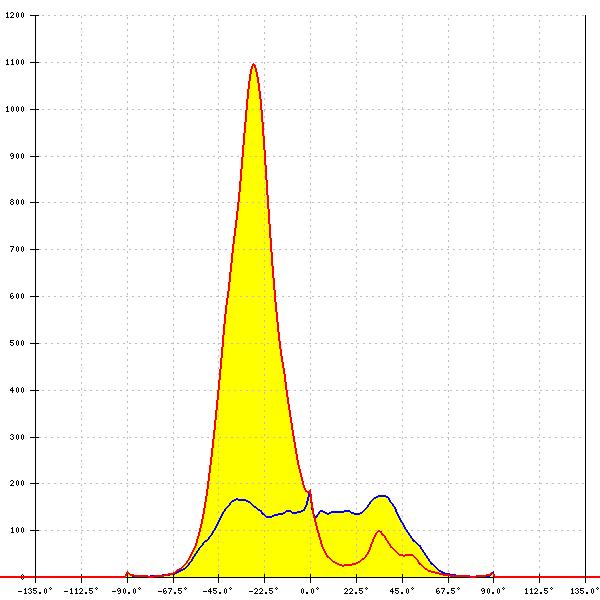

    LED: XHP35.2 HI
    FWHM: asymmetric
    Peak intensity: 1.095 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

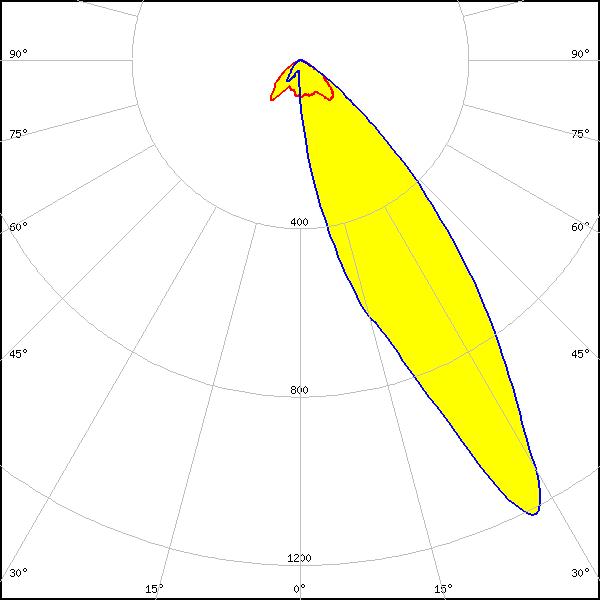

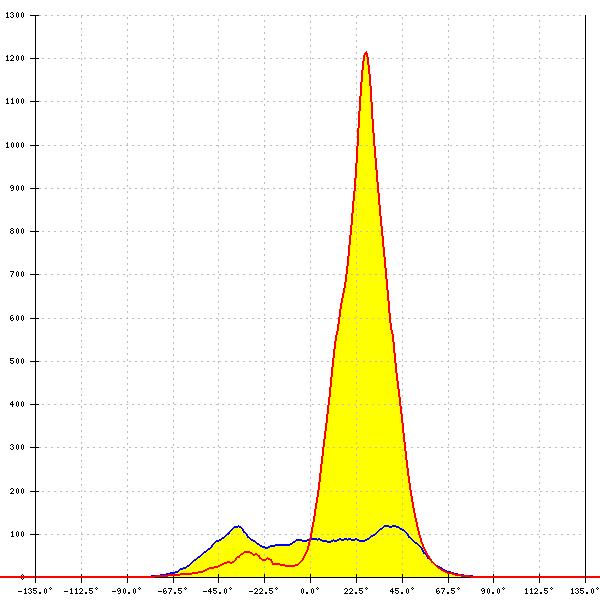

    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

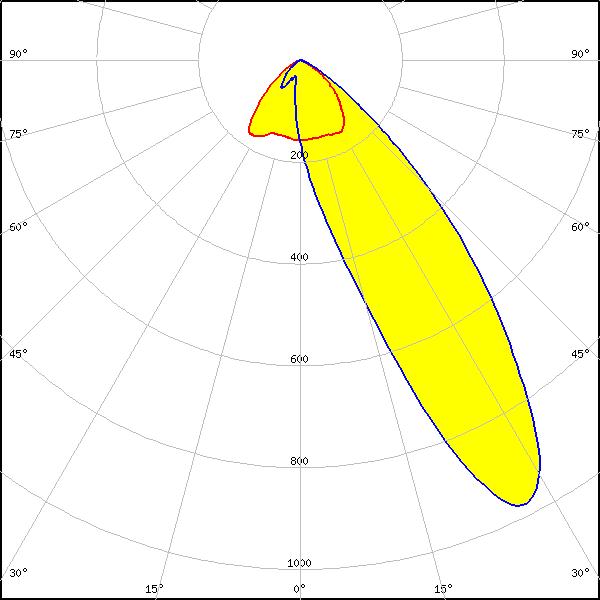

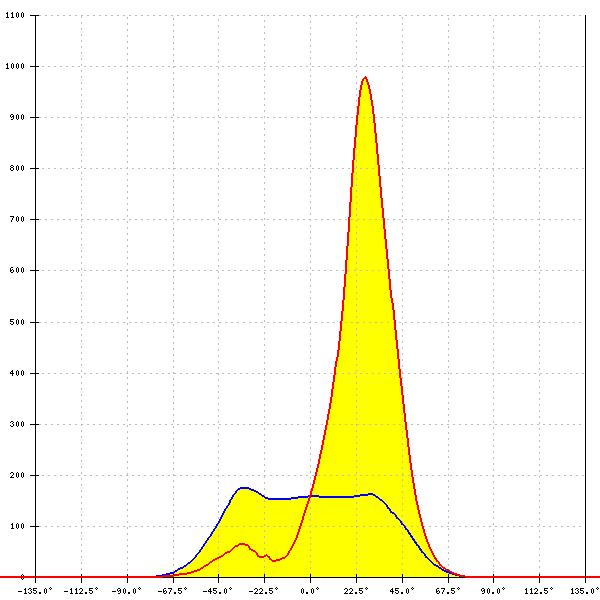

    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.990 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

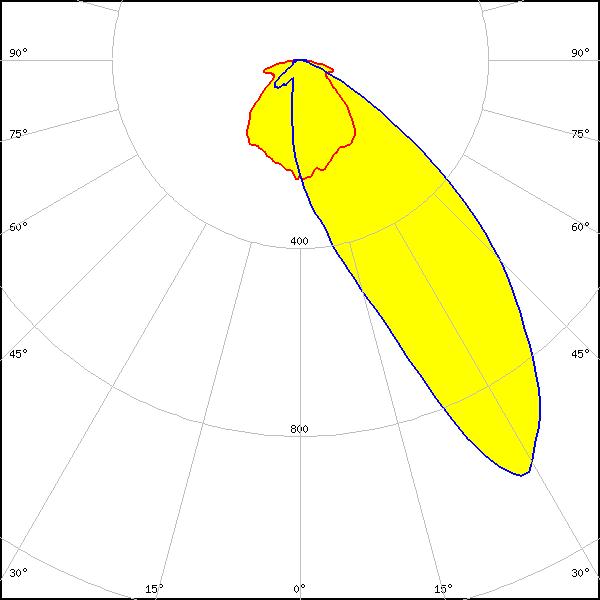

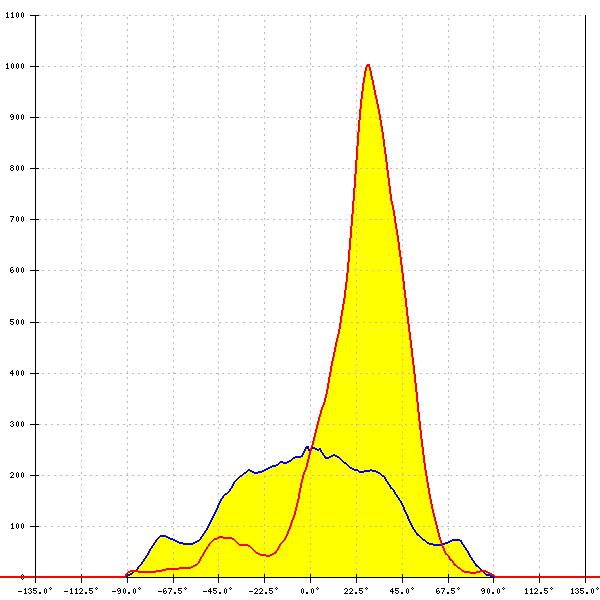

    LED: CXM-3
    FWHM: asymmetric
    Peak intensity: 1.003 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

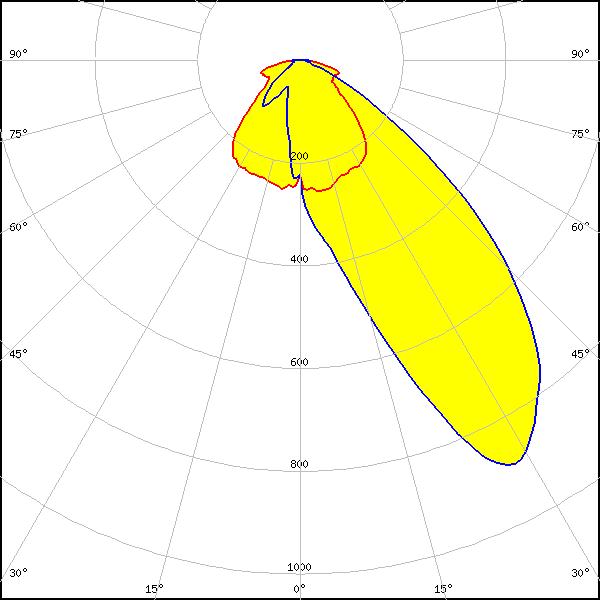

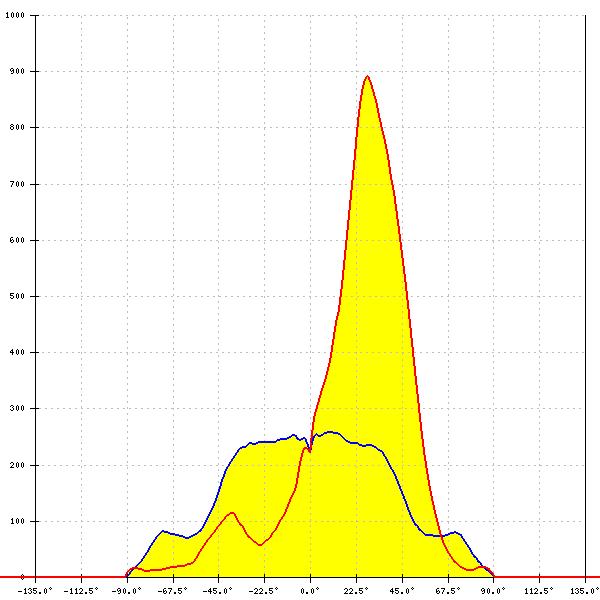

    LED: CXM-4
    FWHM: asymmetric
    Peak intensity: 0.892 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

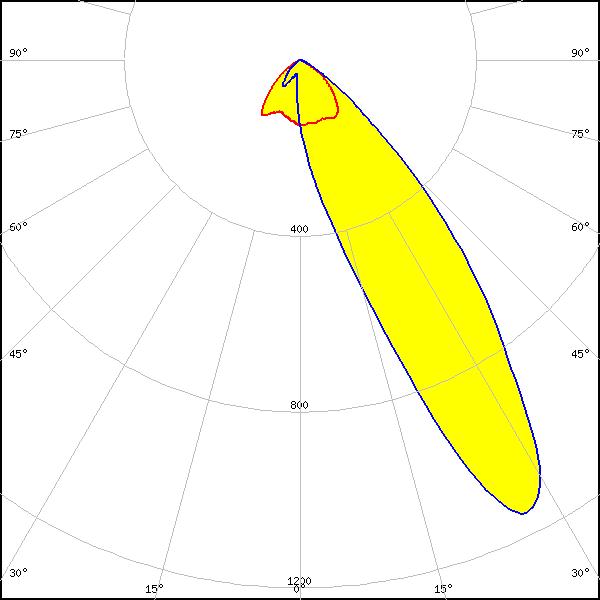

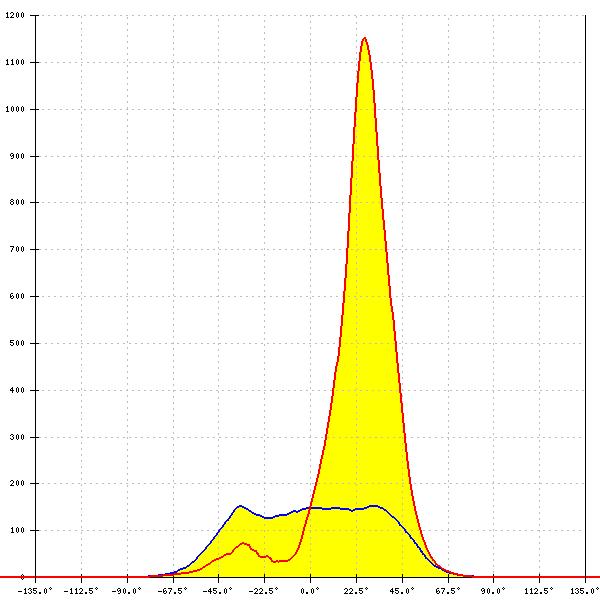

    LED: OSCONIQ P 3737 (3W) PUSTA1
    FWHM: asymmetric
    Peak intensity: 1.200 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

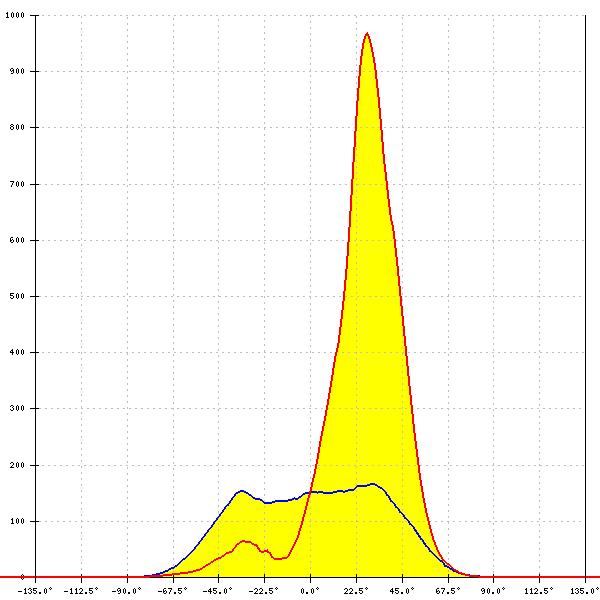

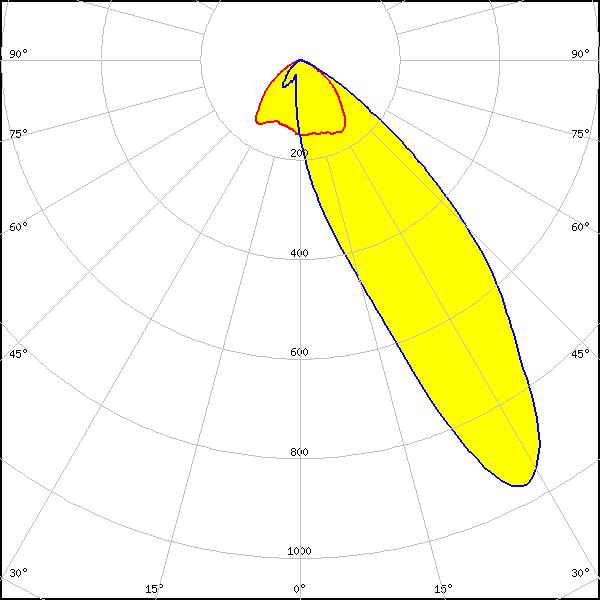

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.980 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
