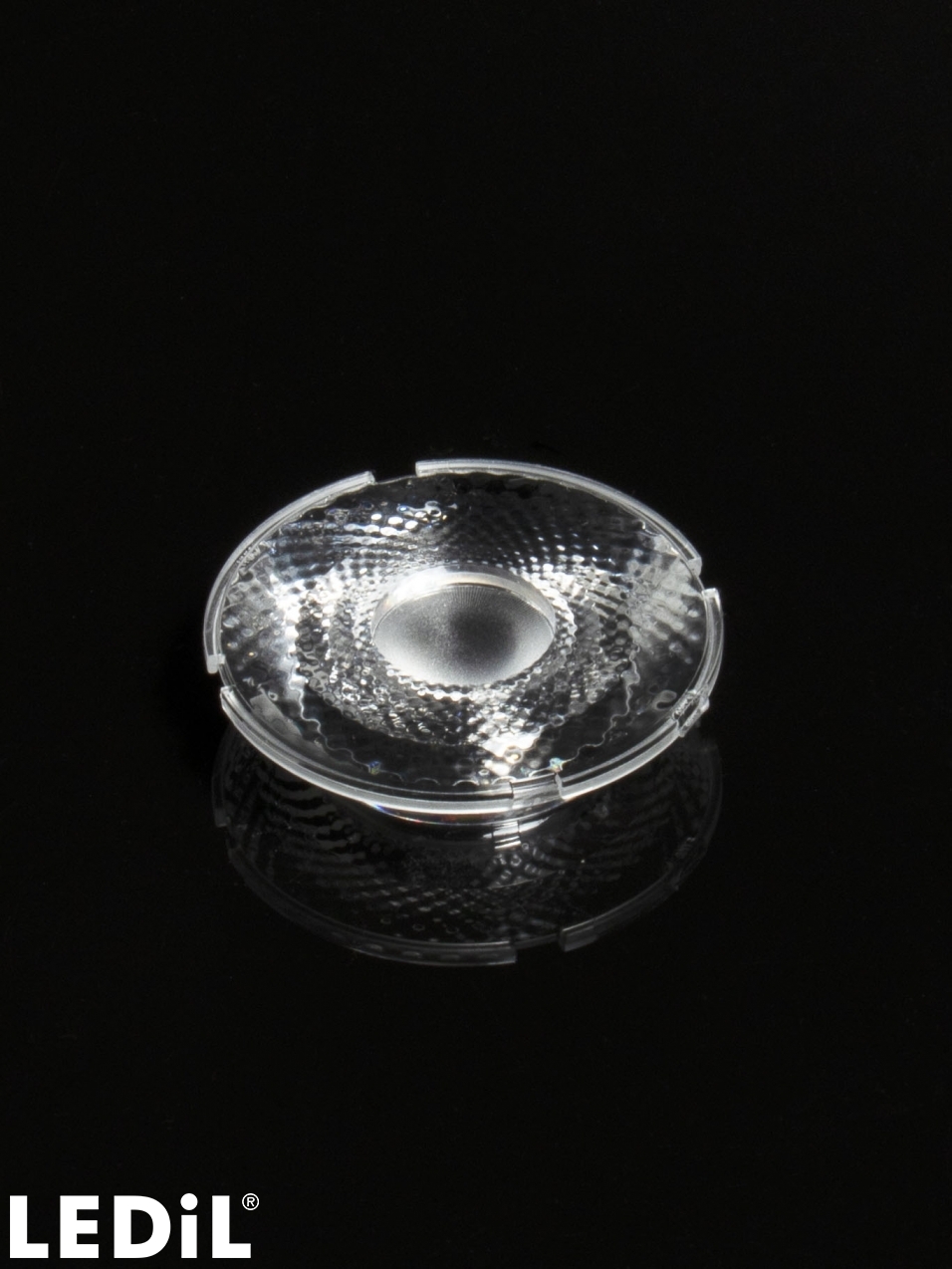

C17790_AMY-45-S

Print

~18° spot beam

Specification
  • Dimensions:
    45 mm
  • Height:
    10.00 mm
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.7 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17790_AMY-45-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

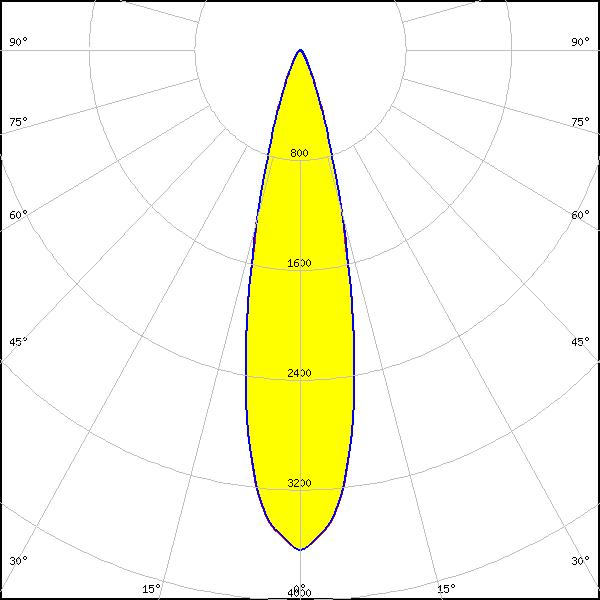

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 25°
FWTM: 46°
Peak intensity: 3.651 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 HD Gen 7
Required components:
FWHM: 17°
FWTM: 32°
Peak intensity: 7.126 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

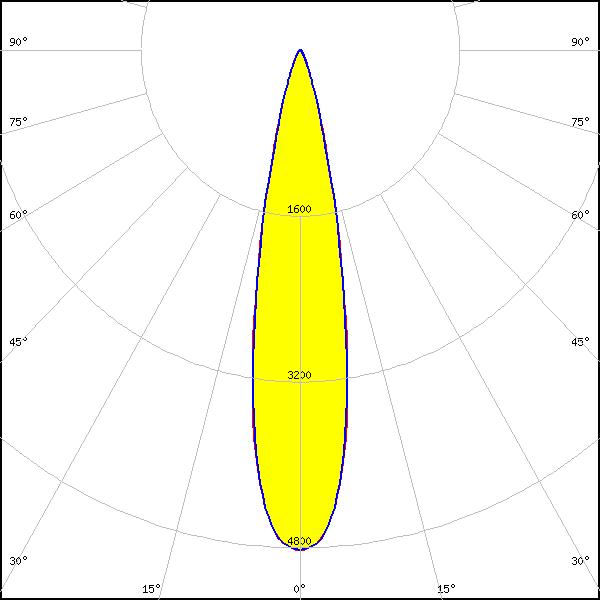

LED: V9 HD Gen7
Required components:
FWHM: 21°
FWTM: 39°
Peak intensity: 4.826 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

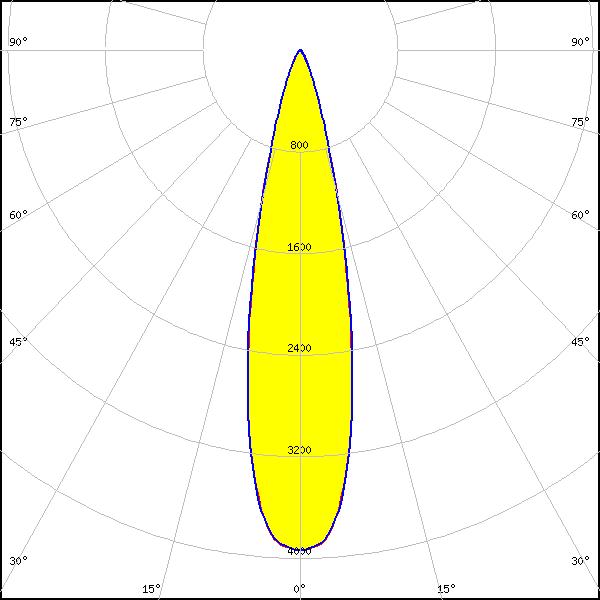

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 24°
FWTM: 43°
Peak intensity: 3.946 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

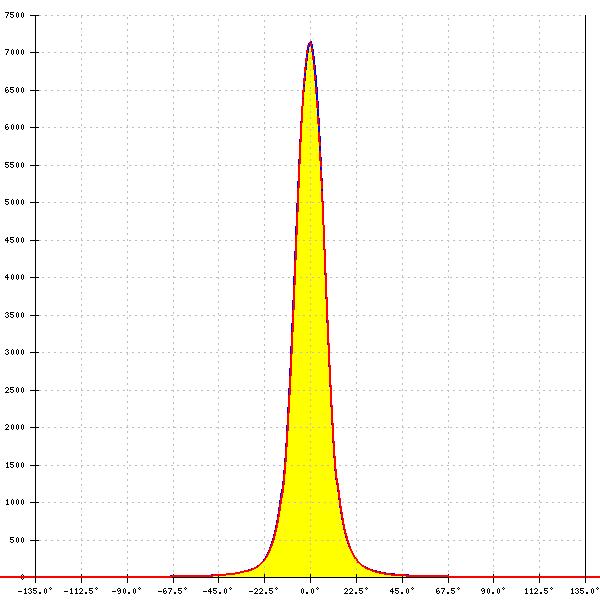

LED: CLU700/701/702/703
Required components:
FWHM: 17°
FWTM: 32°
Peak intensity: 7.144 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

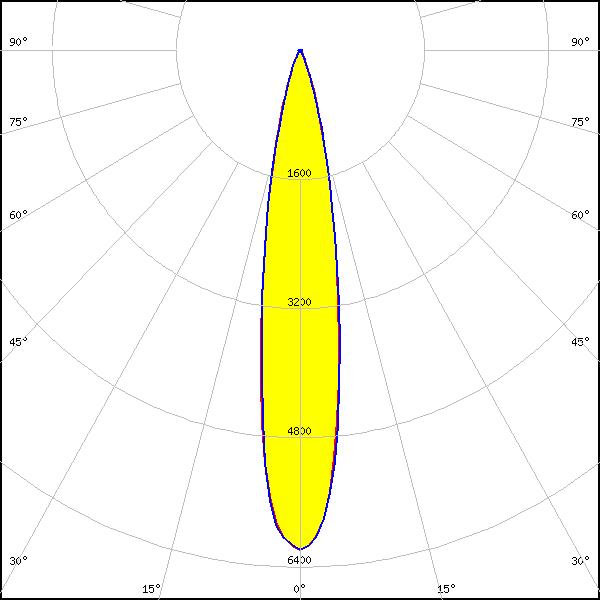

LED: CLU712/713
Required components:
FWHM: 18°
FWTM: 38°
Peak intensity: 6.235 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

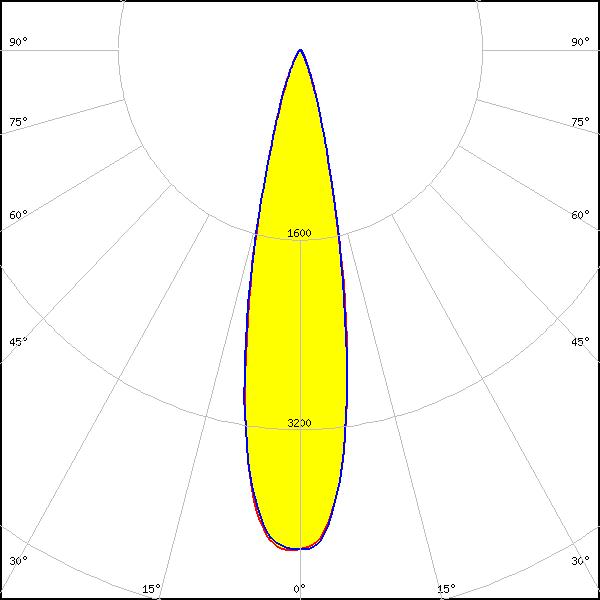

LED: CMA1516
Required components:
FWHM: 23°
FWTM: 42°
Peak intensity: 4.220 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1825
Required components:
FWHM: 25°
FWTM: 51°
Peak intensity: 3.356 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

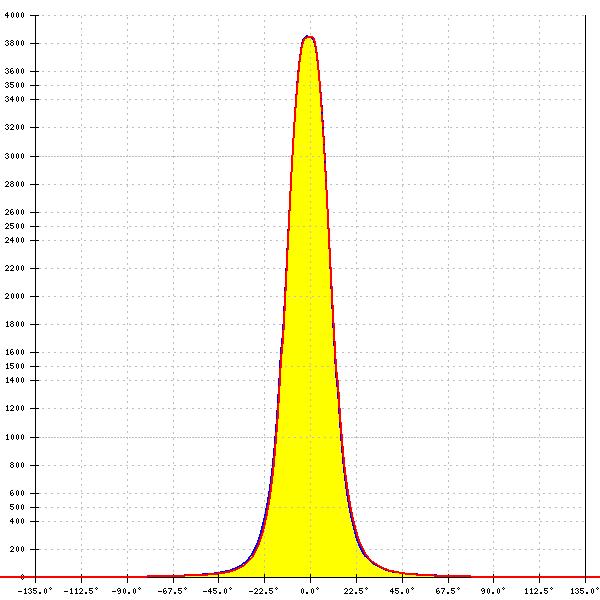

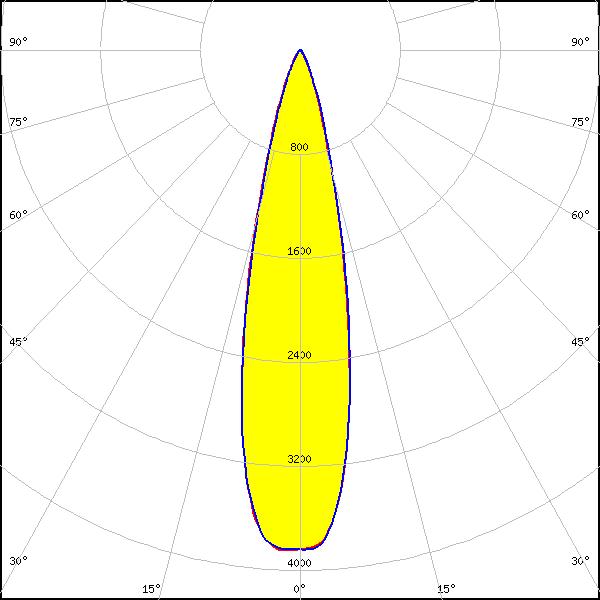

LED: CMT14xx
Required components:
FWHM: 24°
FWTM: 44°
Peak intensity: 3.849 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

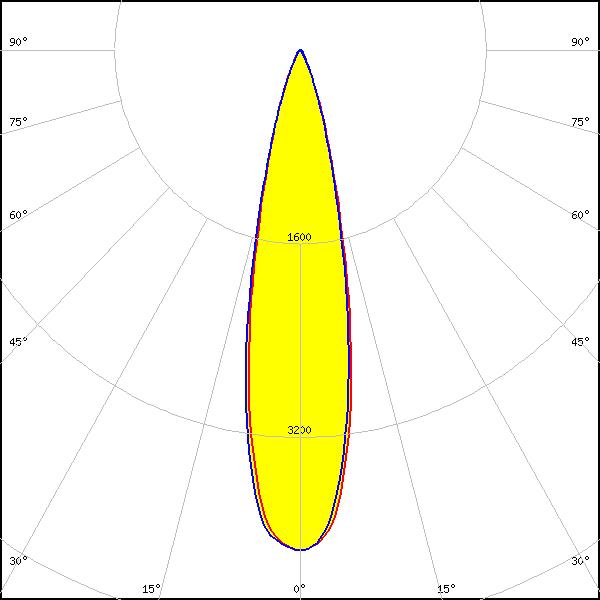

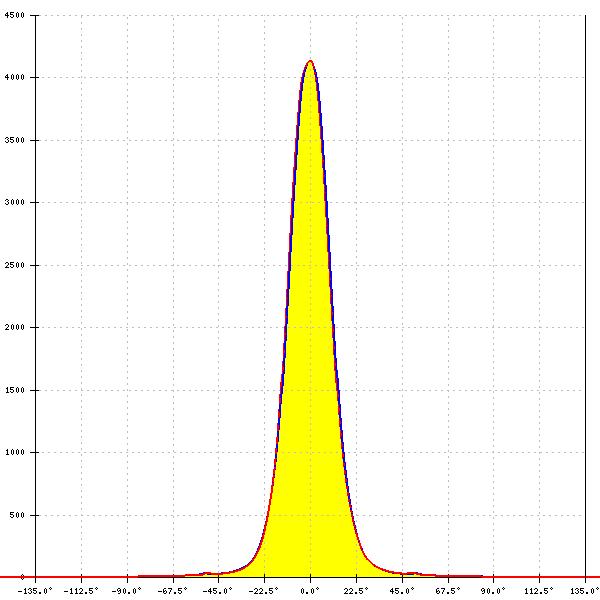

LED: CMU10xx
Required components:
BJB: 47.360.1020
FWHM: 23°
FWTM: 43°
Peak intensity: 4.136 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

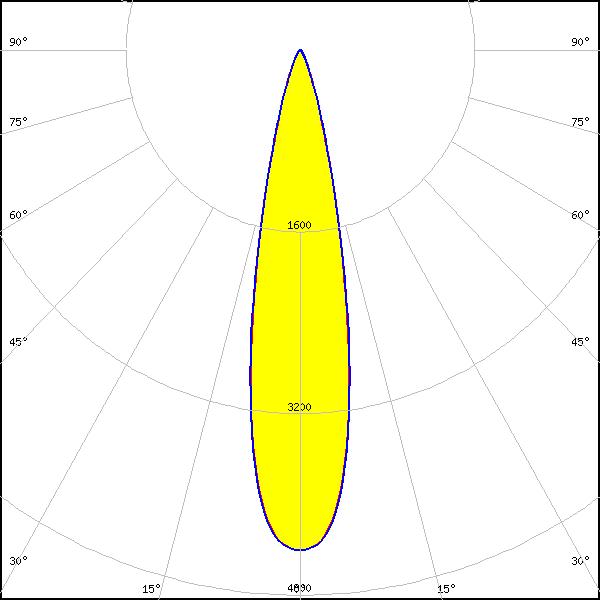

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 22°
FWTM: 40°
Peak intensity: 4.426 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

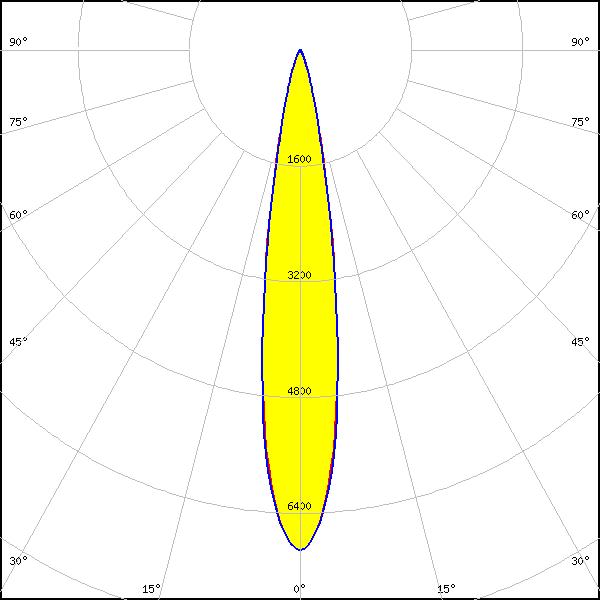

LED: LUXEON CoB 1202s
Required components:
FWHM: 17°
FWTM: 33°
Peak intensity: 6.912 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

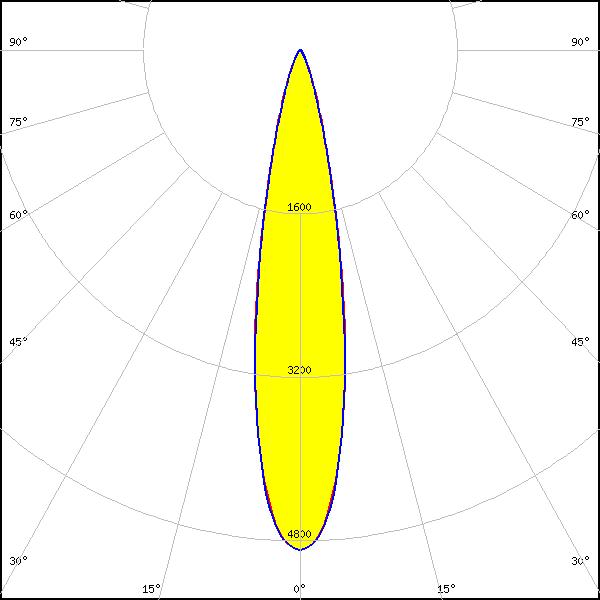

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
FWHM: 21°
FWTM: 40°
Peak intensity: 4.906 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

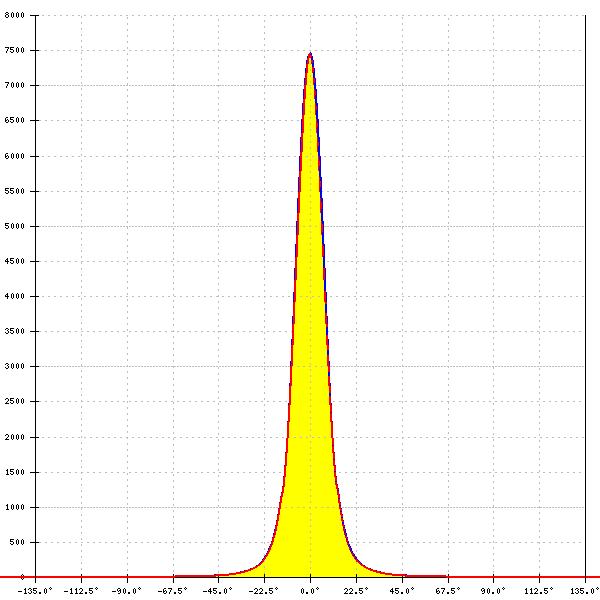

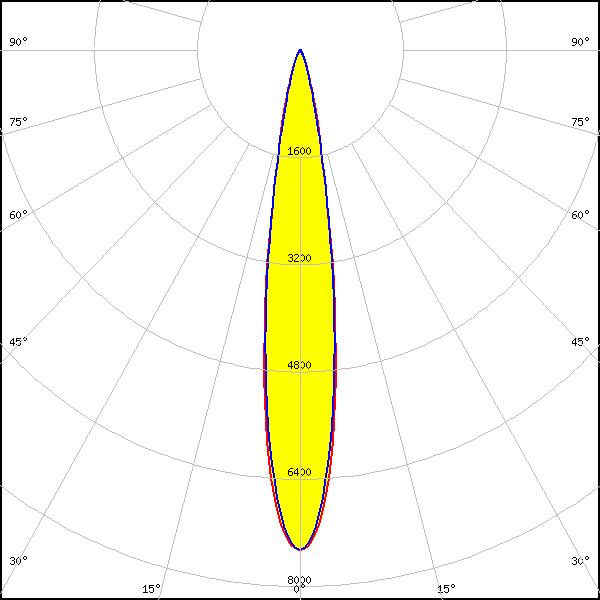

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
FWHM: 16°
FWTM: 32°
Peak intensity: 7.491 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

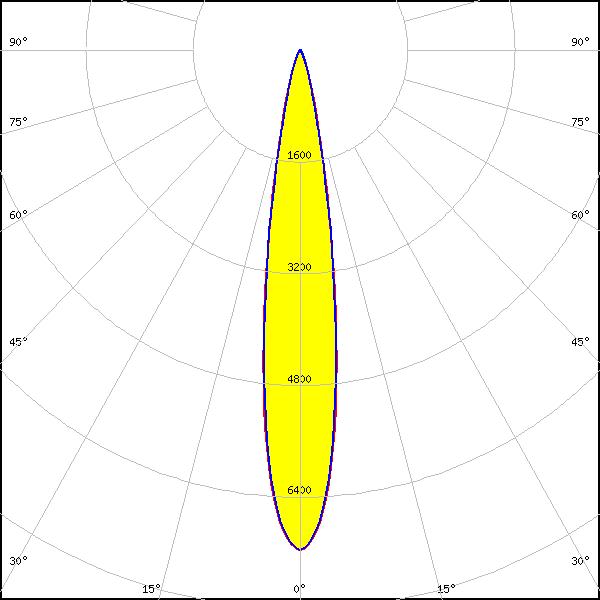

LED: CxM-6 (13.5x13.5)
Required components:
FWHM: 17°
FWTM: 32°
Peak intensity: 7.216 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

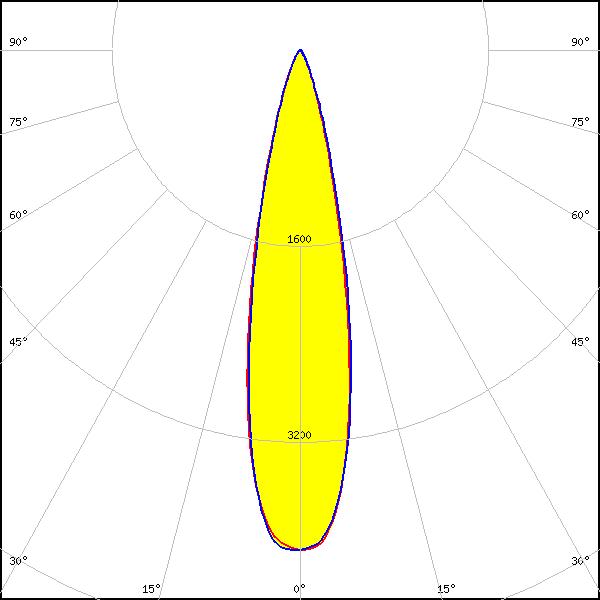

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 23°
FWTM: 43°
Peak intensity: 4.083 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 18°
FWTM: 35°
Peak intensity: 6.627 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Required components:
FWHM: 17°
FWTM: 33°
Peak intensity: 7.454 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

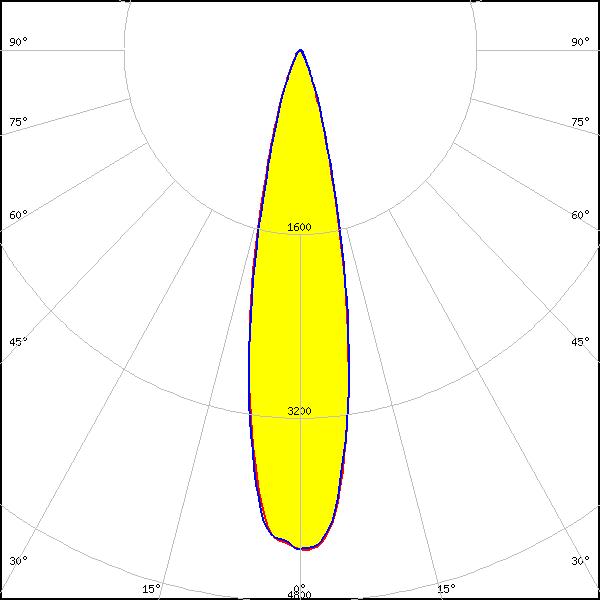

LED: LC003D / LC006D / LC009D / LC013D
FWHM: 23°
FWTM: 43°
Peak intensity: 4.351 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

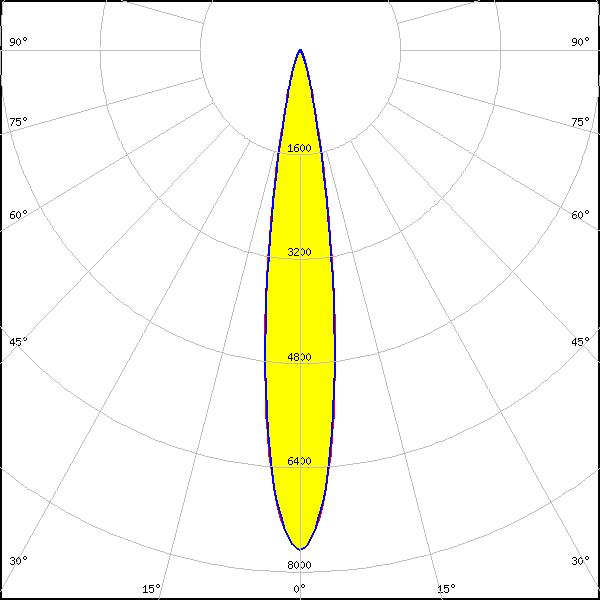

LED: MJT COB LES 6
Required components:
FWHM: 16°
FWTM: 31°
Peak intensity: 7.667 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

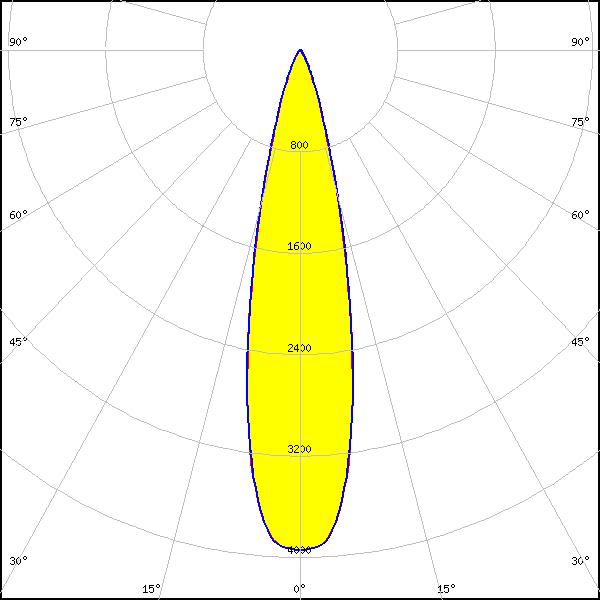

LED: MJT COB LES 9.8
Required components:
FWHM: 24°
FWTM: 44°
Peak intensity: 3.957 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
