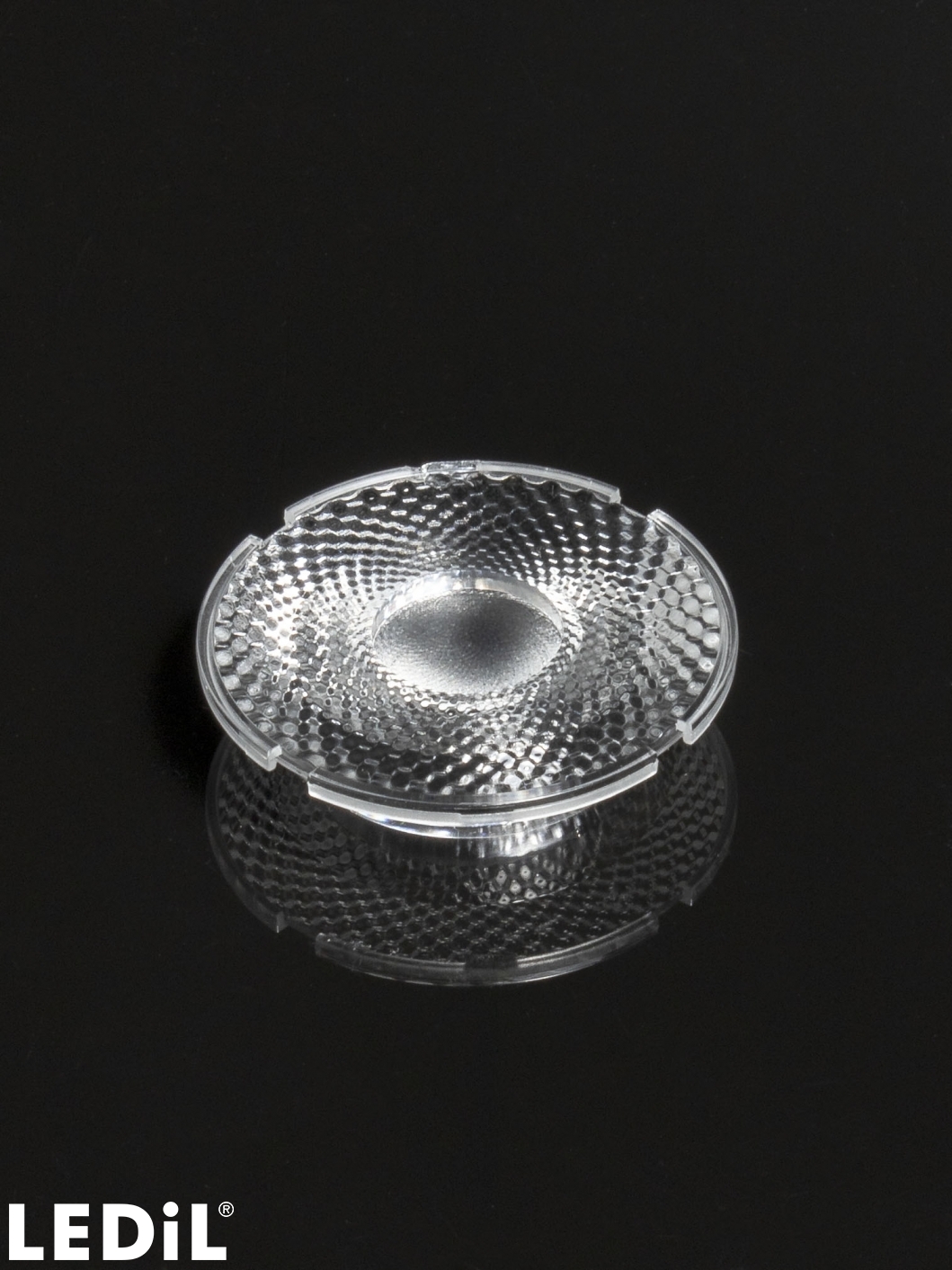

C17791_AMY-45-M
Print
~24° medium beam
Specification
-
Dimensions:45 mm
-
Height:10.00 mm
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:690 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.6 kg
-
MPQ:30 pcs
-
MOQ:120 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.5 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

LED:

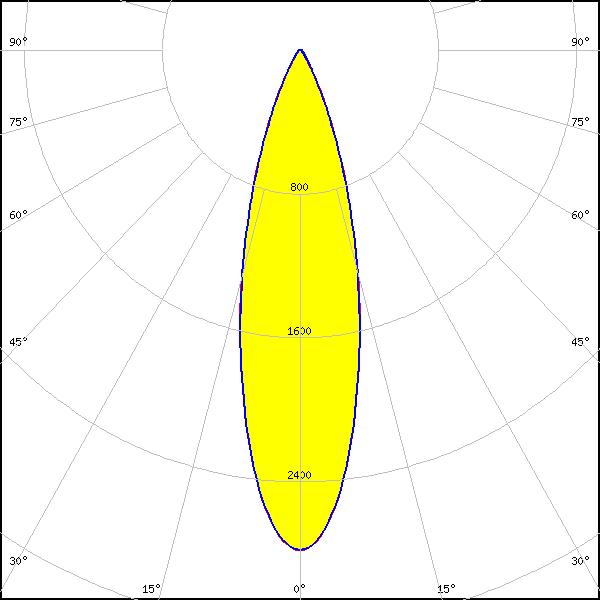

V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM:
29°
FWTM:
54°
Peak intensity:
2.784 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

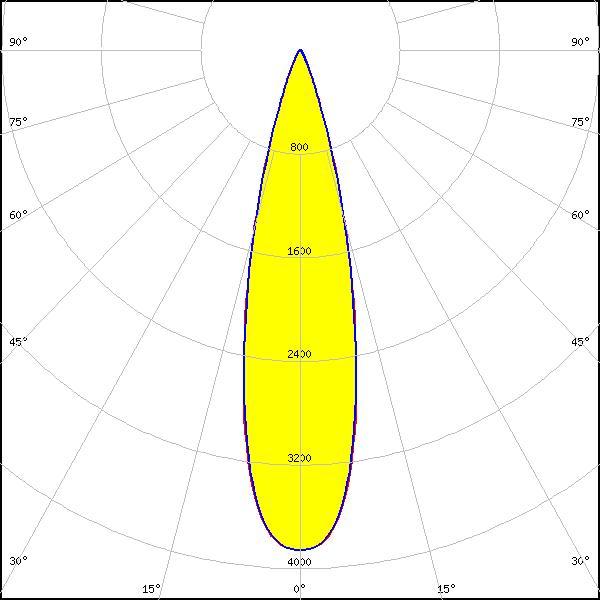

LED:
V6 HD Gen 7
Required components:
FWHM:
26°
FWTM:
44°
Peak intensity:
3.859 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:

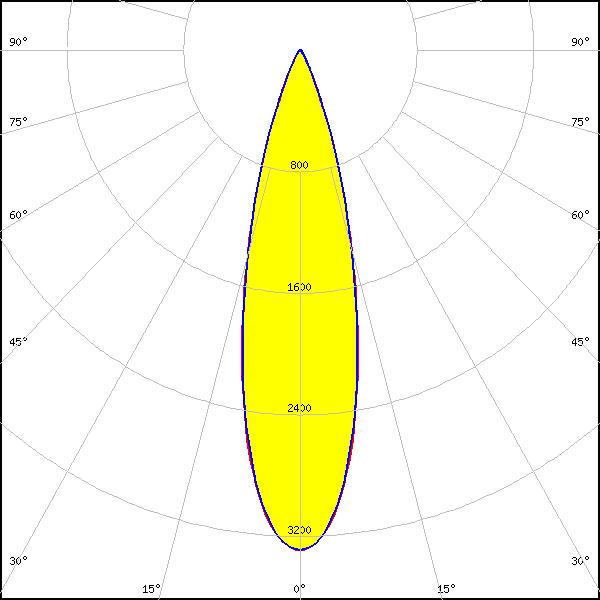

V9 HD Gen7
Required components:
FWHM:
27°
FWTM:
48°
Peak intensity:
3.296 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

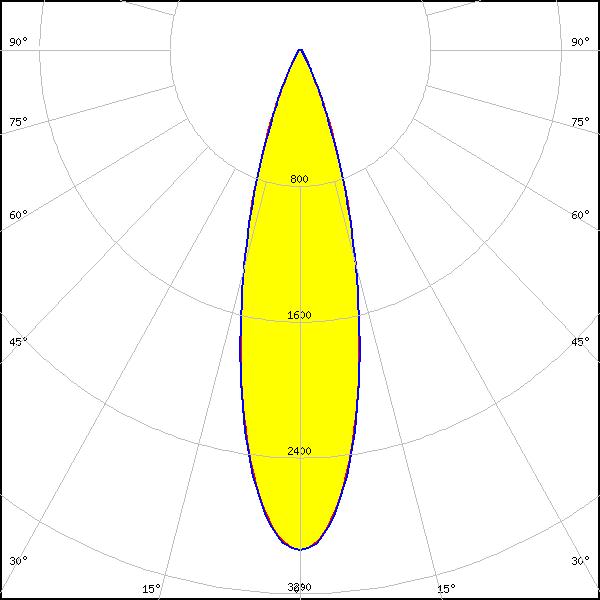

LED:
CLL02x/CLU02x (LES10)
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.945 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:

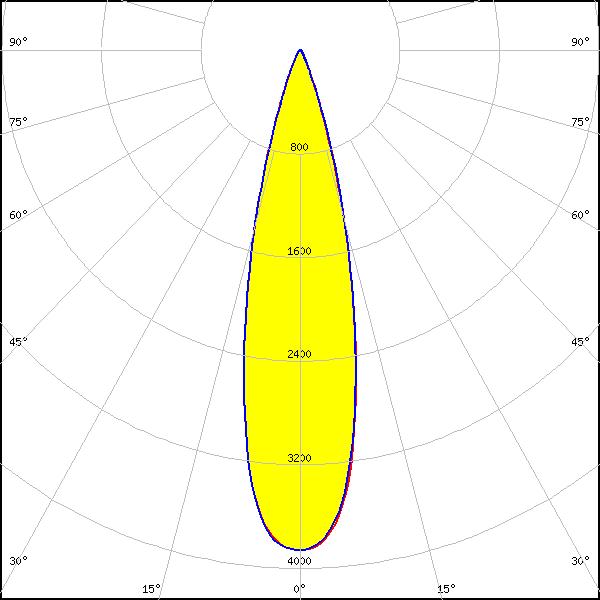

CLU700/701/702/703
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.866 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

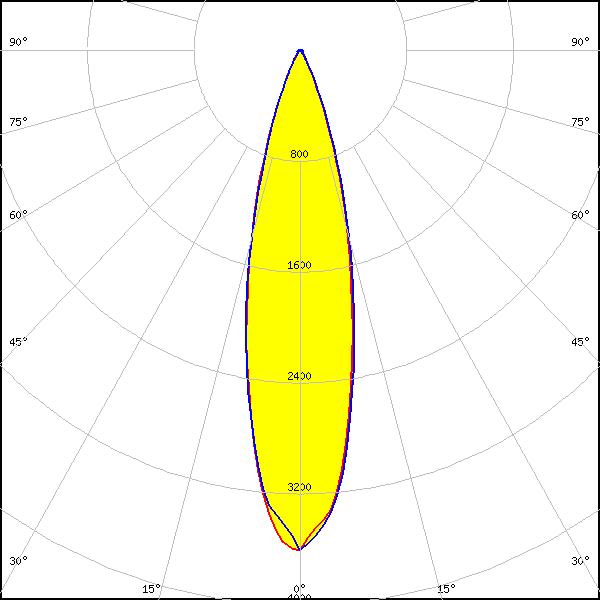

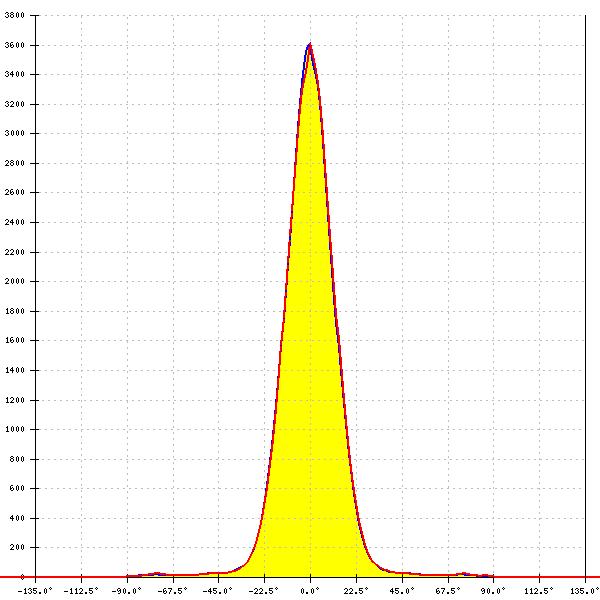

LED:
CLU712/713
Required components:
FWHM:
26°
FWTM:
48°
Peak intensity:
3.643 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

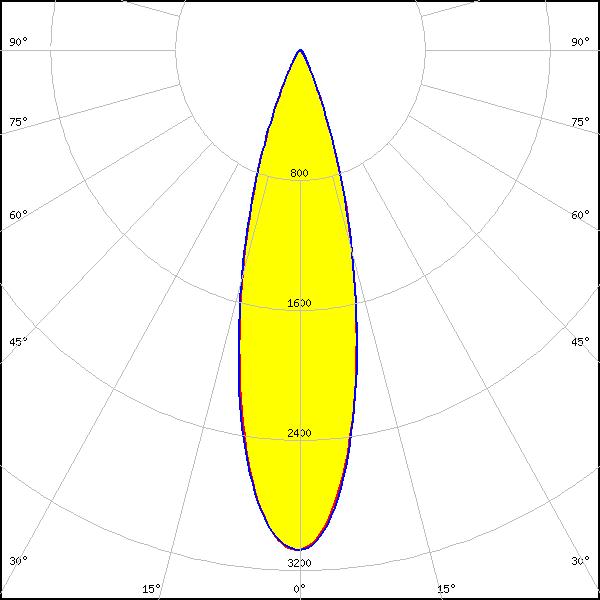

LED:
CMA1516
Required components:
FWHM:
28°
FWTM:
50°
Peak intensity:
3.078 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

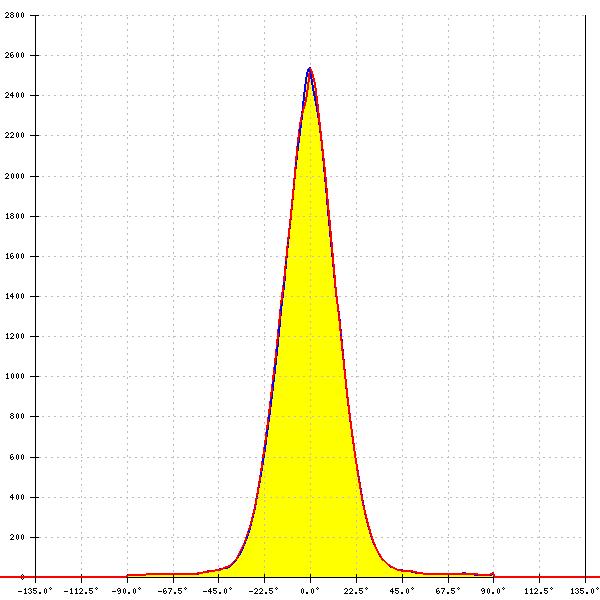

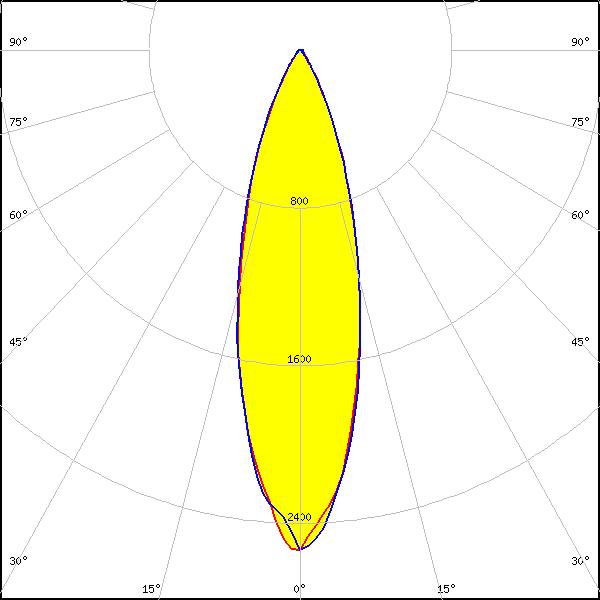

LED:
CMA1825
Required components:
FWHM:
29°
FWTM:
59°
Peak intensity:
2.539 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:

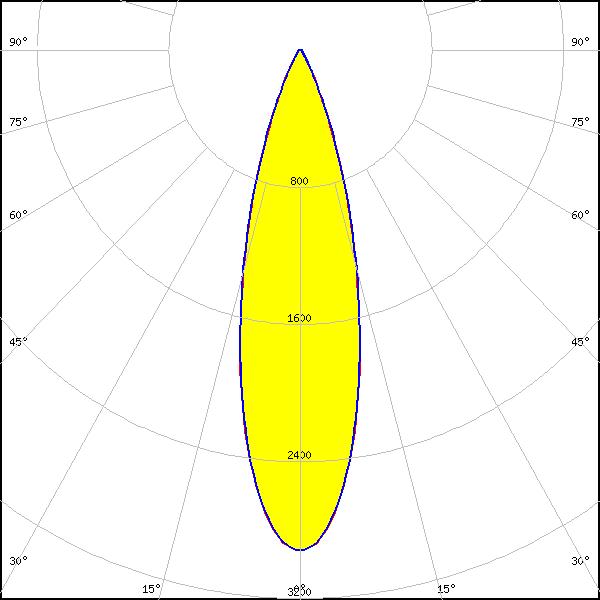

CMT14xx
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.921 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

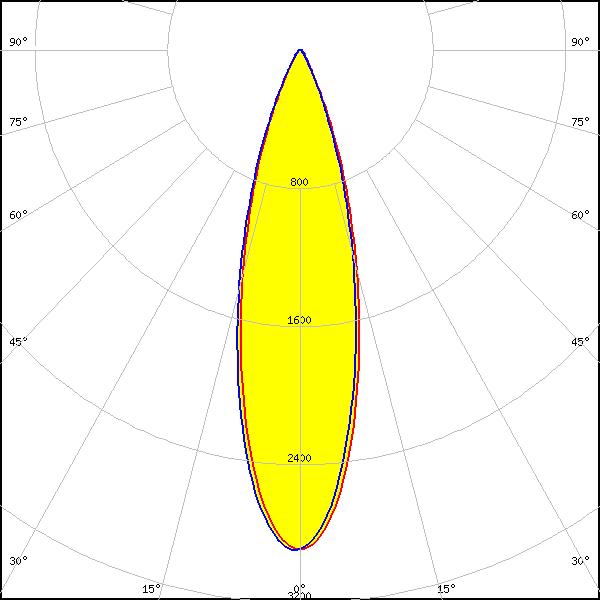

LED:
CMU10xx
Required components:
BJB: 47.360.1020
FWHM:
28°
FWTM:
53°
Peak intensity:
2.897 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:

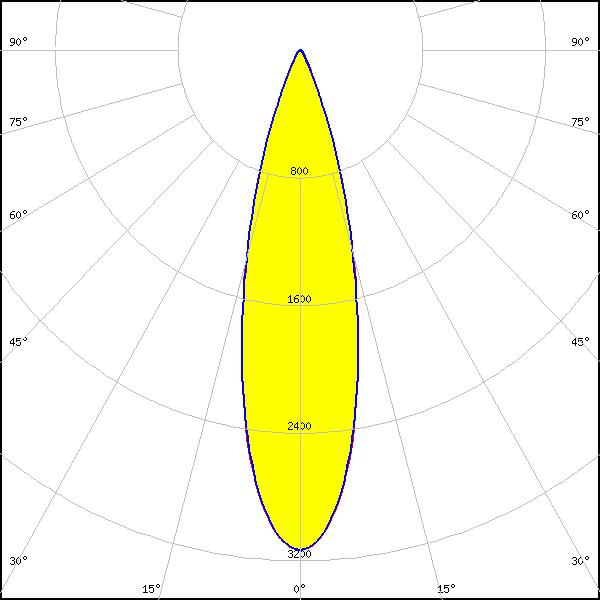

LUXEON CoB 1202/1203
Required components:
FWHM:
27°
FWTM:
49°
Peak intensity:
3.139 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

LED:

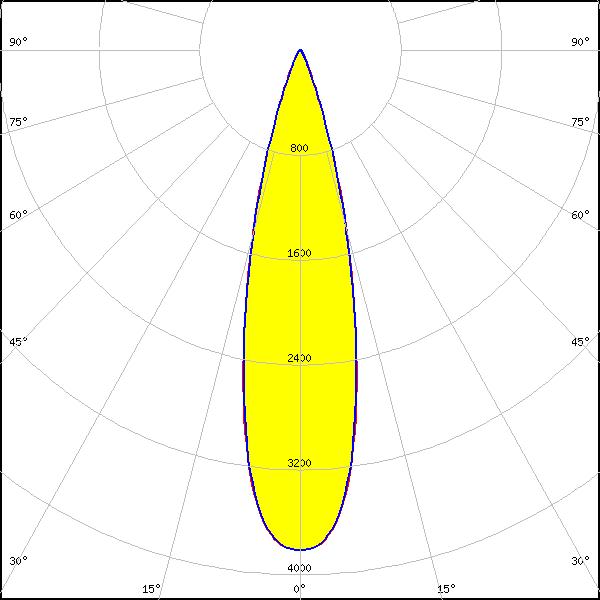

LUXEON CoB 1202s
Required components:
FWHM:
26°
FWTM:
44°
Peak intensity:
3.818 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

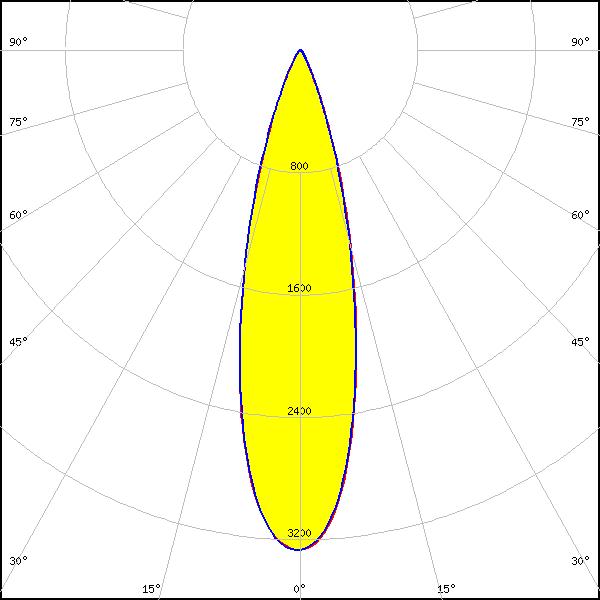

LED:
LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
FWHM:
27°
FWTM:
49°
Peak intensity:
3.269 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:

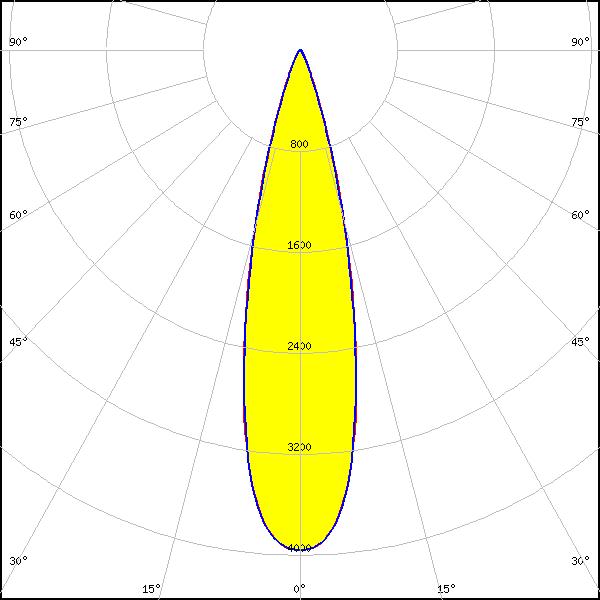

LUXEON CX Plus CoB S01 (Gen2)
Required components:
FWHM:
26°
FWTM:
44°
Peak intensity:
3.981 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

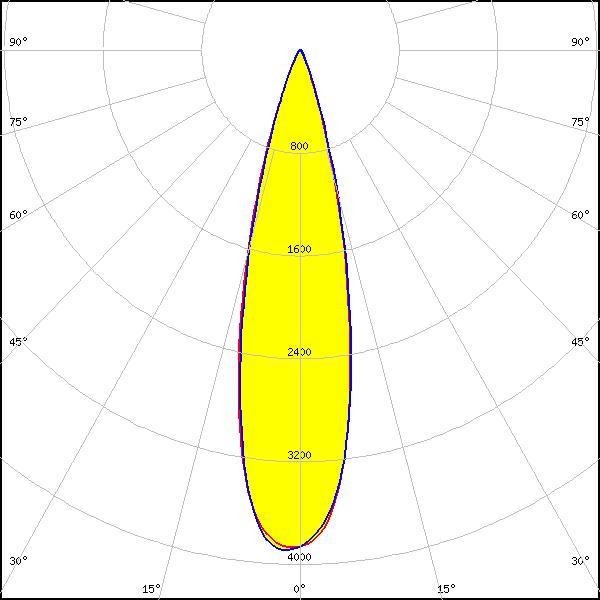

LED:

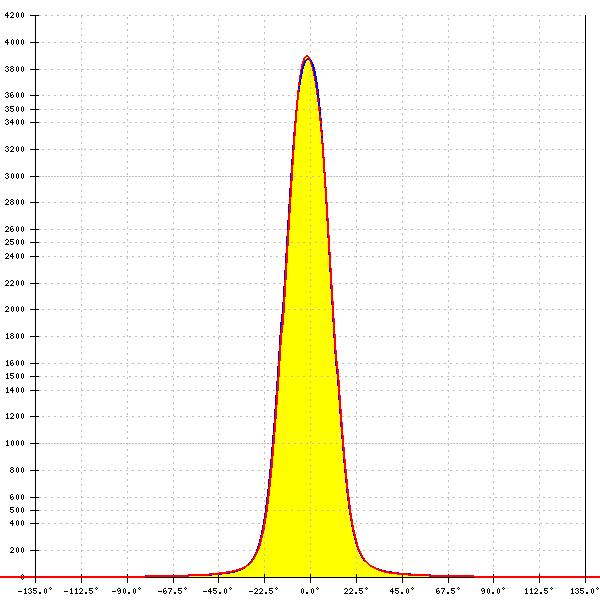

CxM-6 (13.5x13.5)
Required components:
FWHM:
25°
FWTM:
44°
Peak intensity:
3.902 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

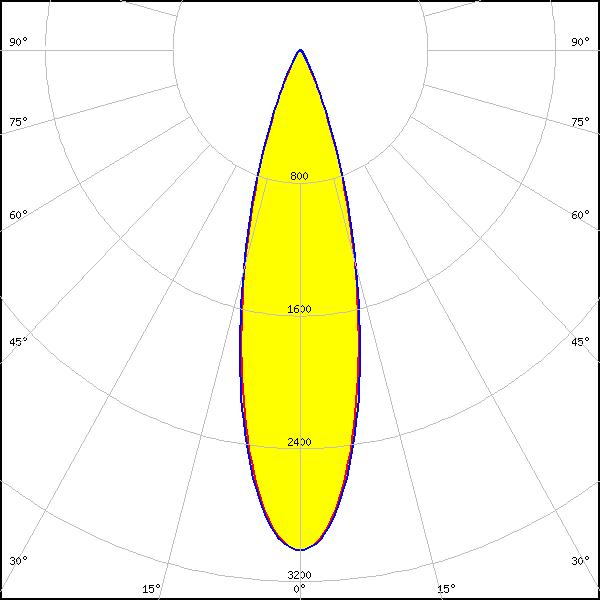

CxM-9 (13.5x13.5)
Required components:
FWHM:
28°
FWTM:
50°
Peak intensity:
3.012 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB S-Type (LES 7)
Required components:
FWHM:
26°
FWTM:
45°
Peak intensity:
3.749 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:
COB T-Type
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.980 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:

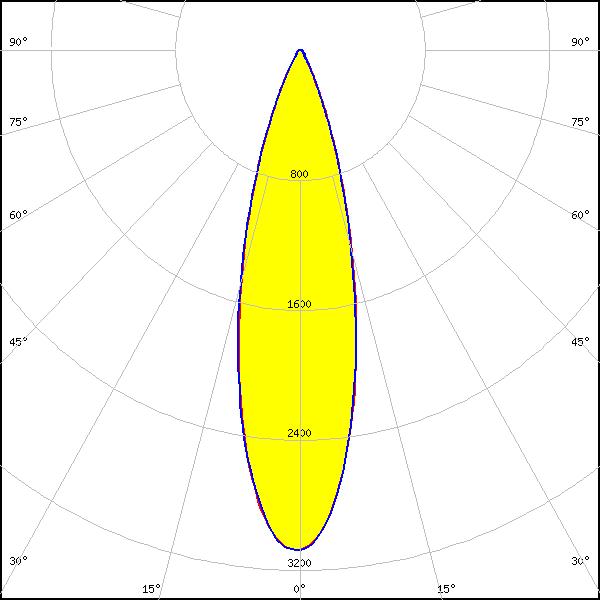

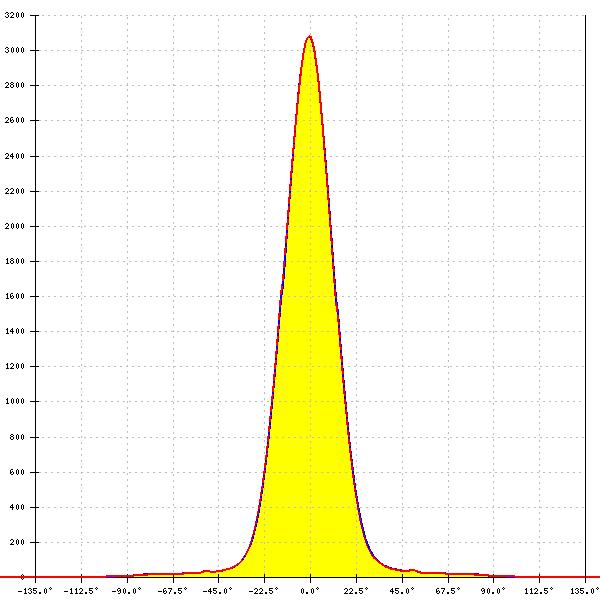

LC003D / LC006D / LC009D / LC013D
FWHM:
28°
FWTM:
52°
Peak intensity:
3.078 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

LED:

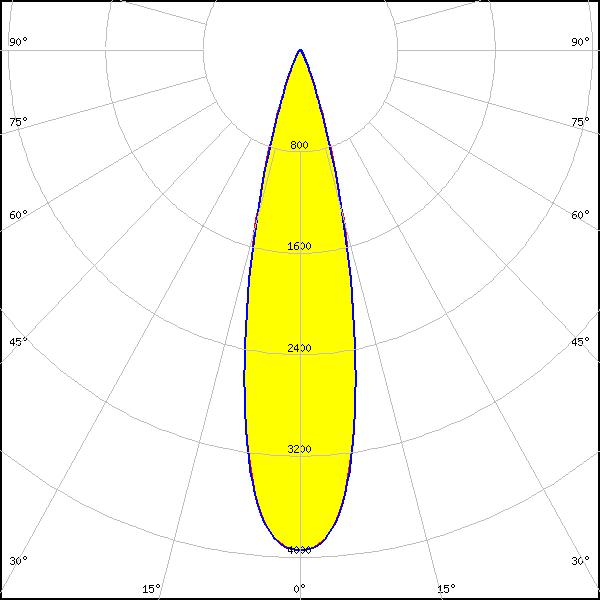

MJT COB LES 6
Required components:
FWHM:
25°
FWTM:
43°
Peak intensity:
3.949 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

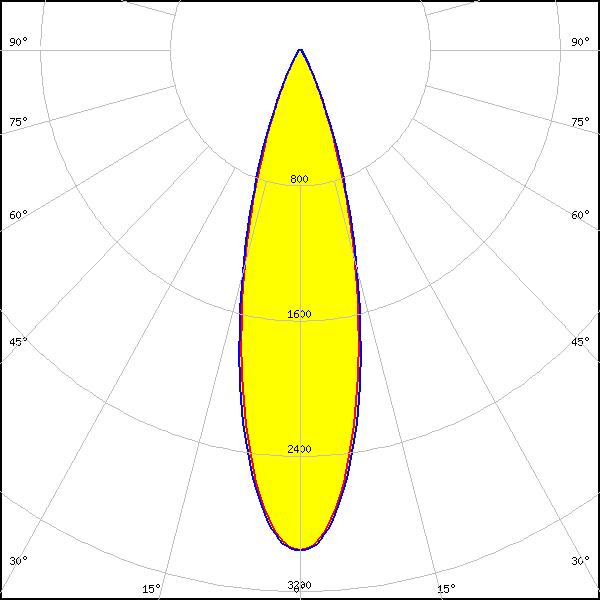

MJT COB LES 9.8
Required components:
FWHM:
28°
FWTM:
51°
Peak intensity:
2.956 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
