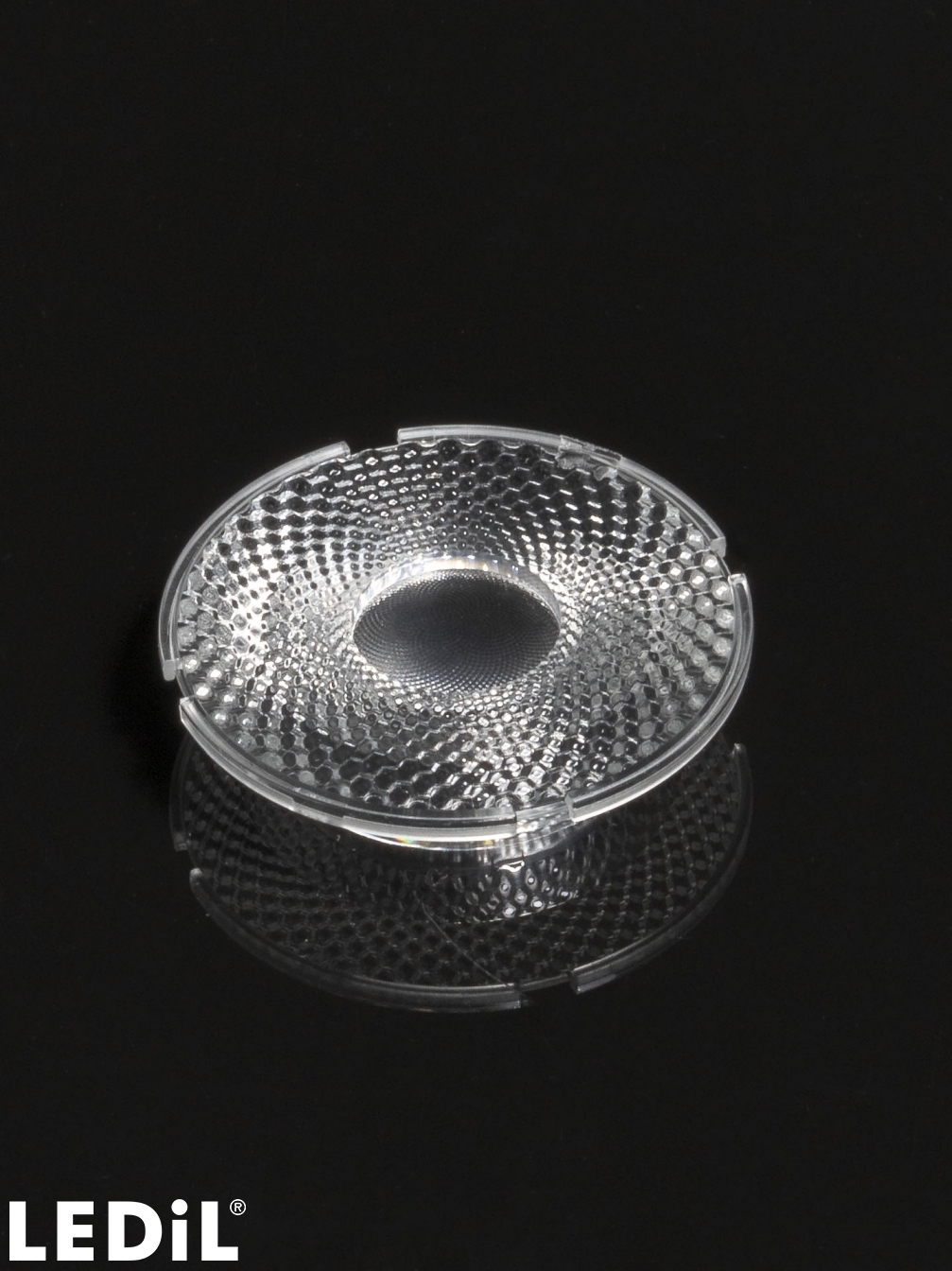

C17792_AMY-45-W

Print

~36° wide beam

Specification
  • Dimensions:
    45 mm
  • Height:
    10.00 mm
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.4 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17792_AMY-45-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

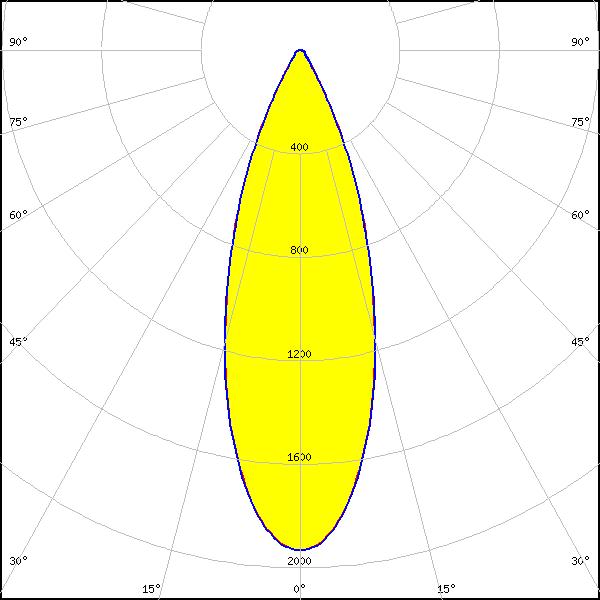

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 35°
FWTM: 62°
Peak intensity: 1.936 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

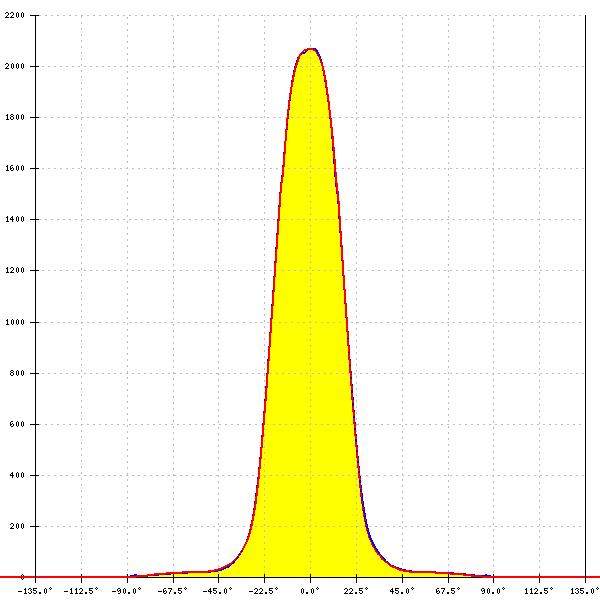

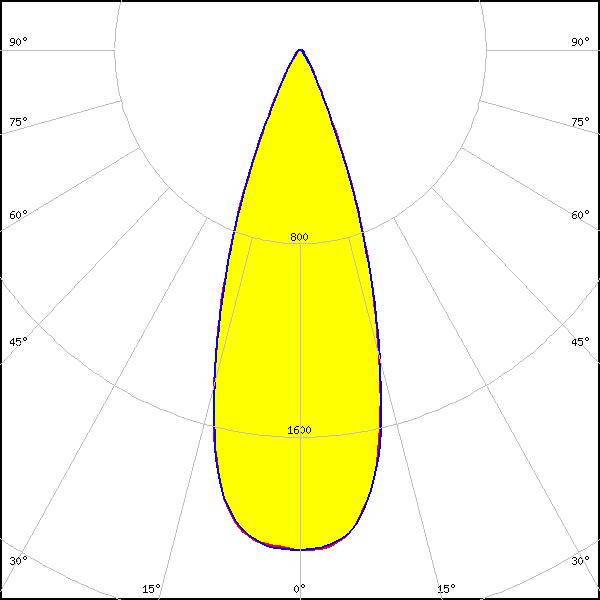

LED: V6 HD Gen 7
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.069 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

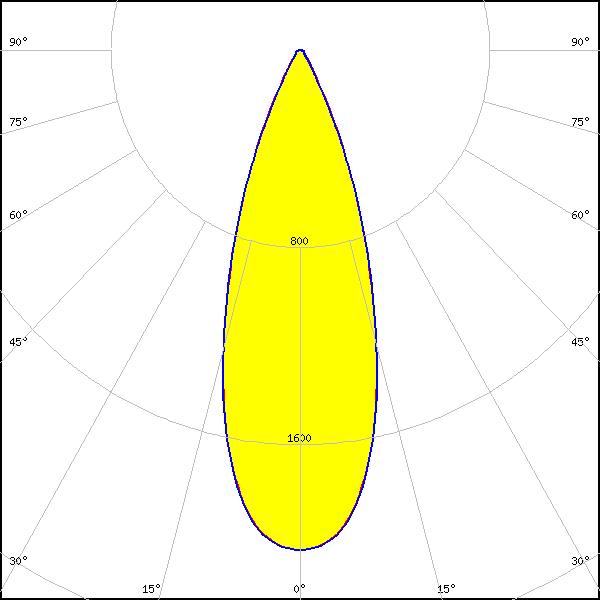

LED: V9 HD Gen7
Required components:
FWHM: 35°
FWTM: 58°
Peak intensity: 2.032 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

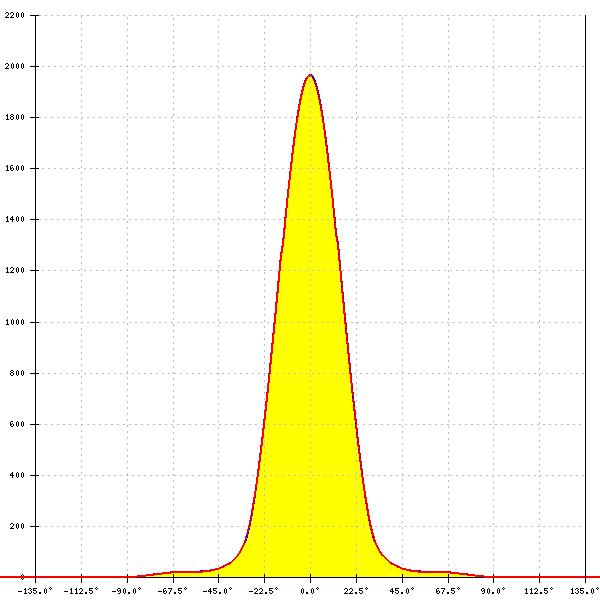

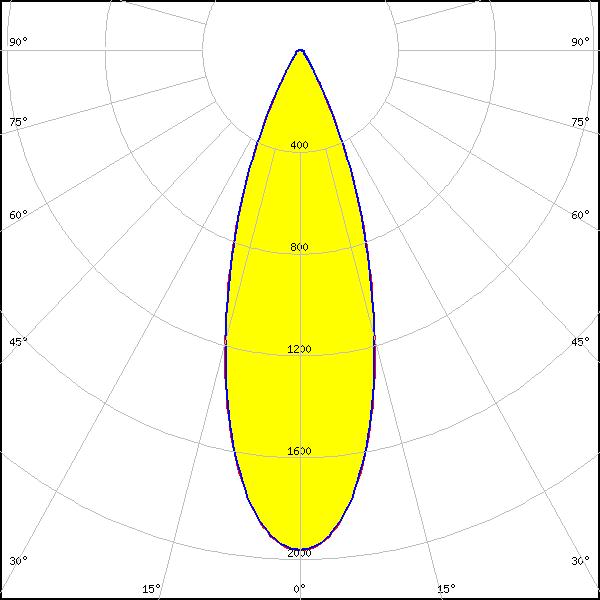

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 35°
FWTM: 60°
Peak intensity: 1.964 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

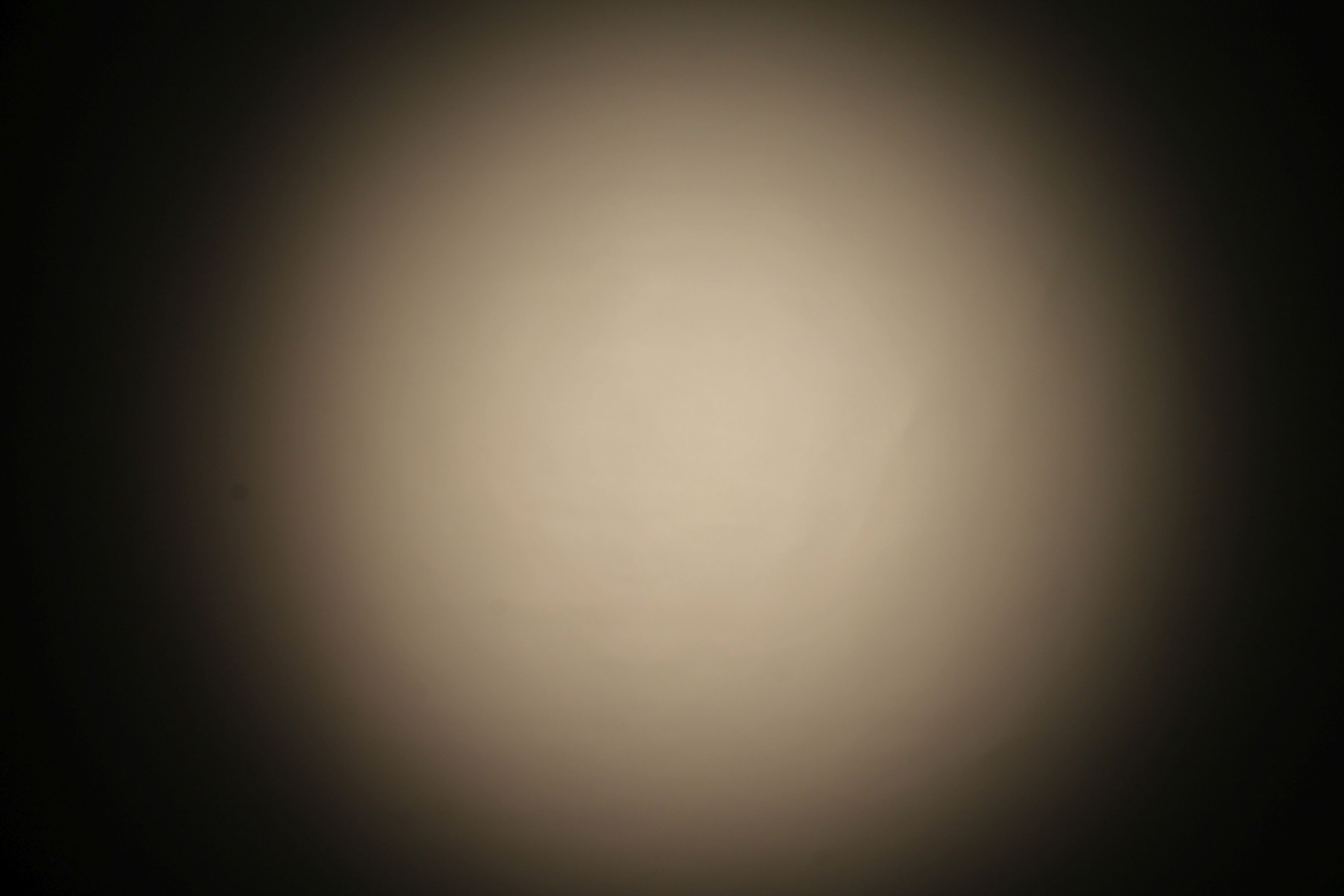

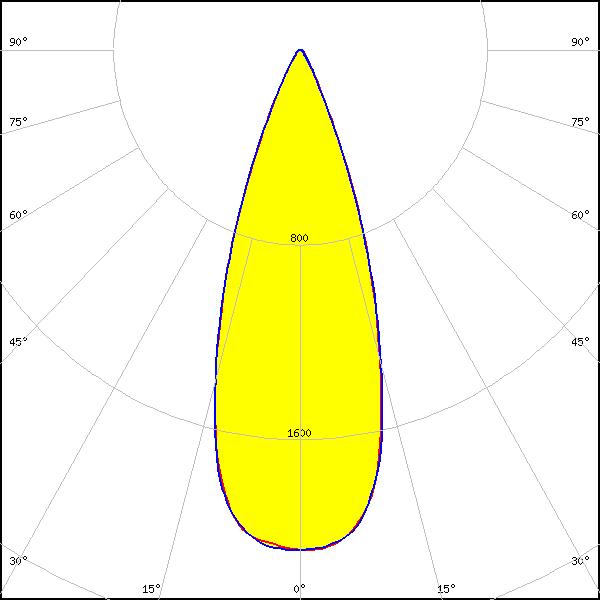

LED: CLU700/701/702/703
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.056 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

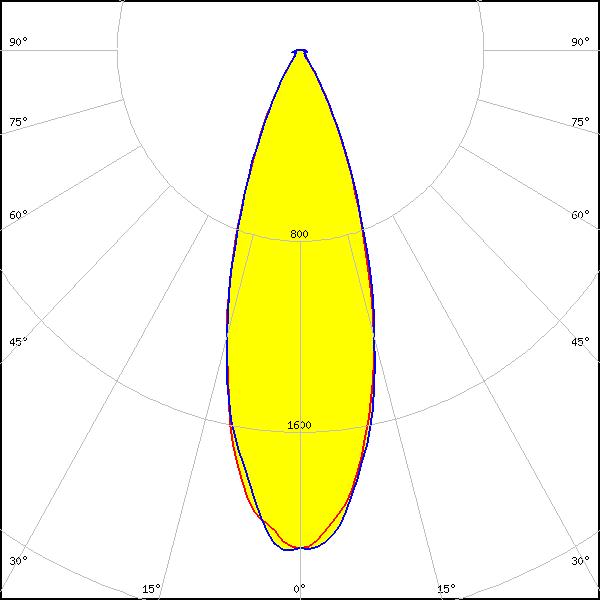

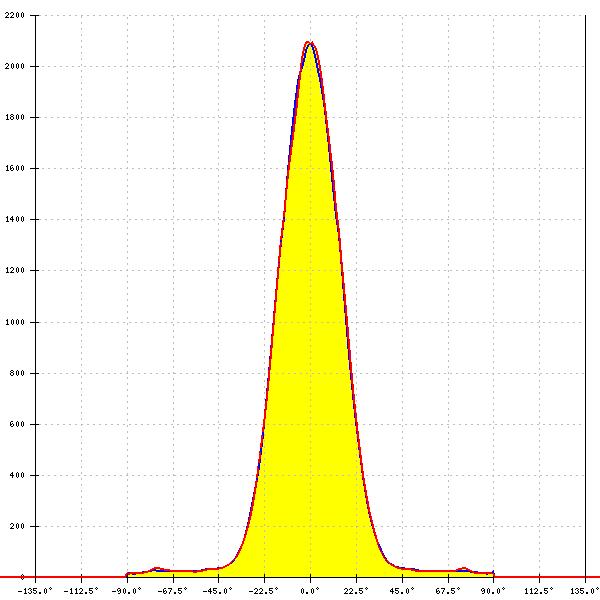

LED: CLU712/713
Required components:
FWHM: 34°
FWTM: 61°
Peak intensity: 2.115 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

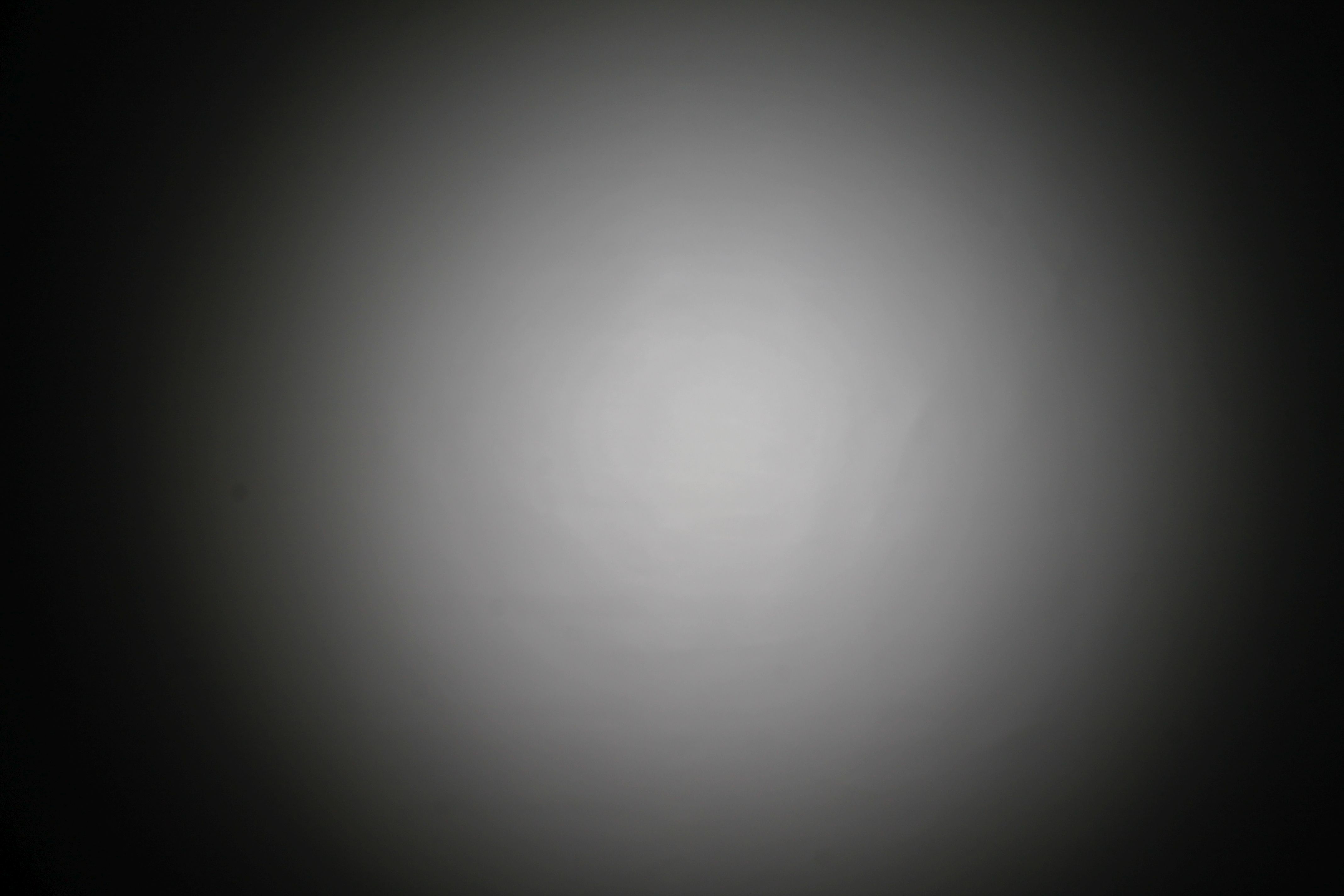

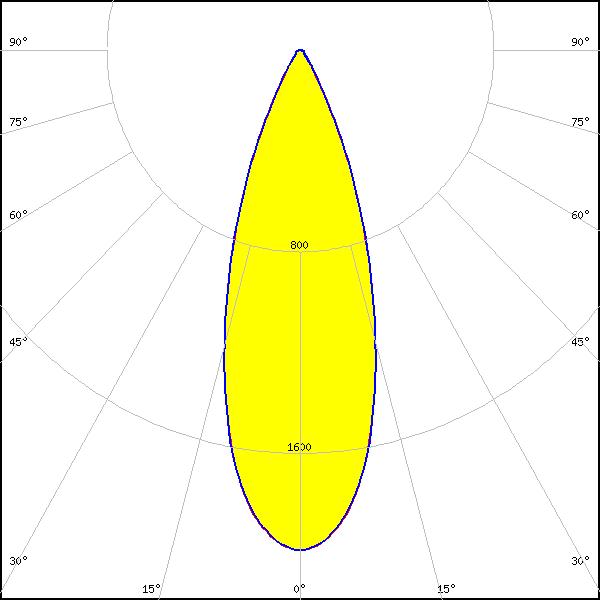

LED: CMA1516
Required components:
FWHM: 35°
FWTM: 59°
Peak intensity: 1.990 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

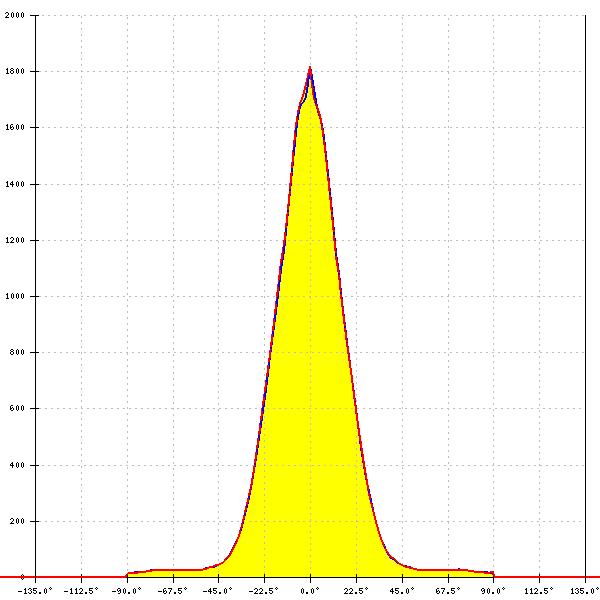

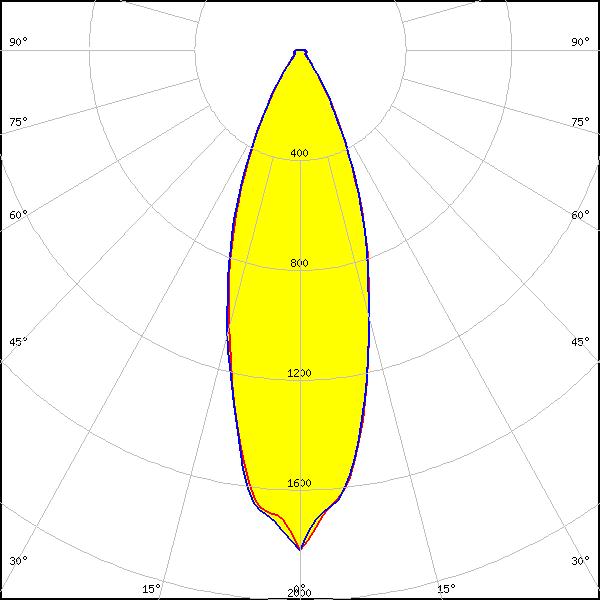

LED: CMA1825
Required components:
FWHM: 34°
FWTM: 67°
Peak intensity: 1.819 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

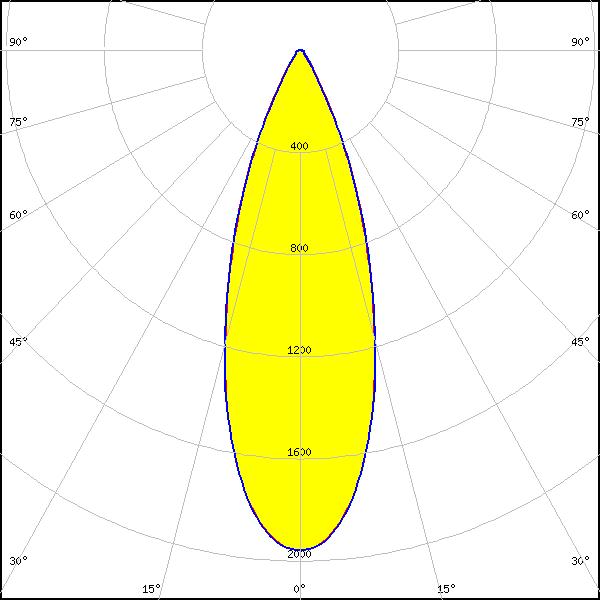

LED: CMT14xx
Required components:
FWHM: 35°
FWTM: 60°
Peak intensity: 1.959 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CMU10xx
Required components:
BJB: 47.360.1020
FWHM: 35°
FWTM: 61°
Peak intensity: 2.009 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

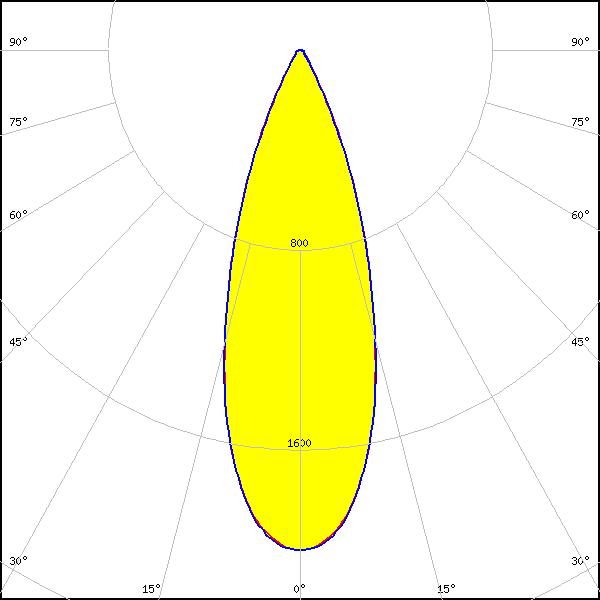

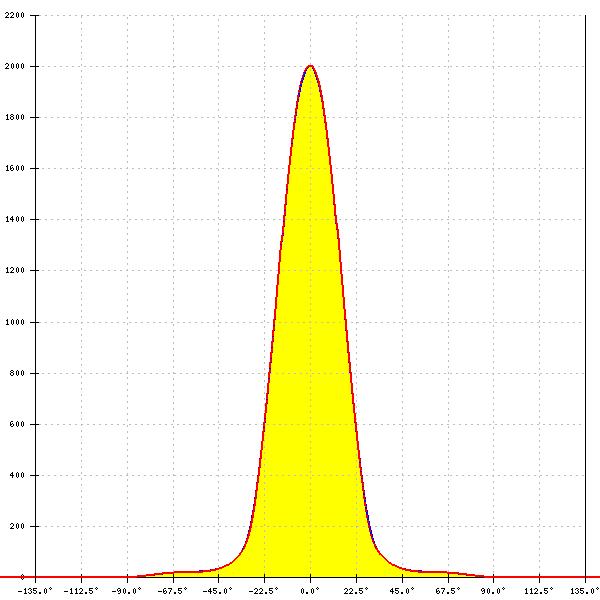

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 35°
FWTM: 59°
Peak intensity: 2.002 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

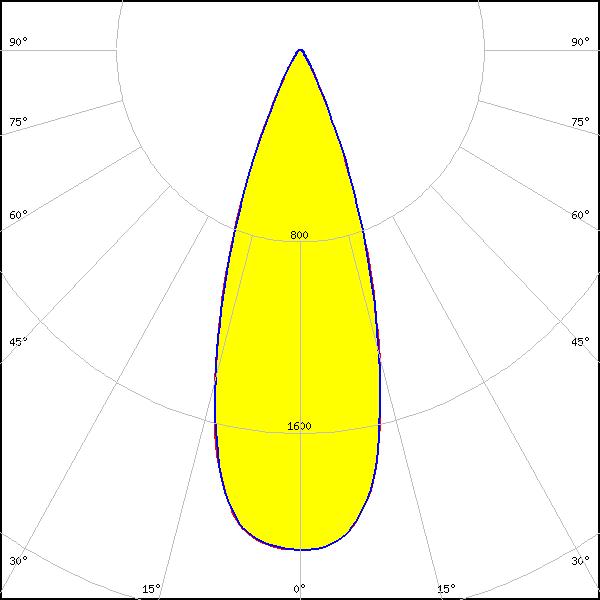

LED: LUXEON CoB 1202s
Required components:
FWHM: 36°
FWTM: 57°
Peak intensity: 2.089 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

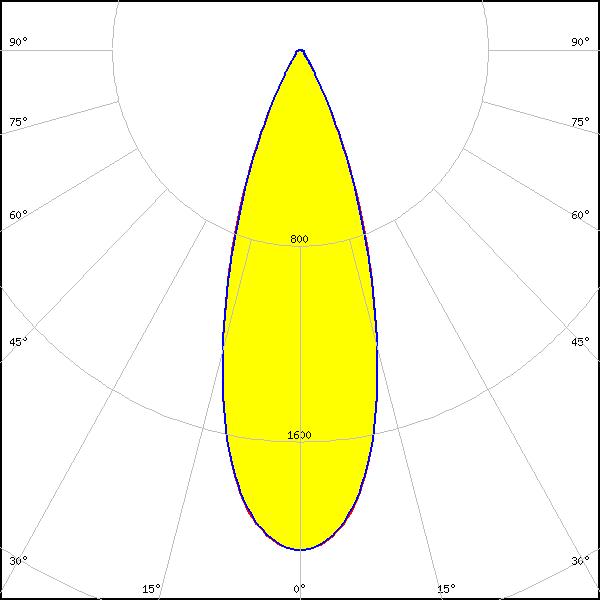

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
FWHM: 35°
FWTM: 59°
Peak intensity: 2.043 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

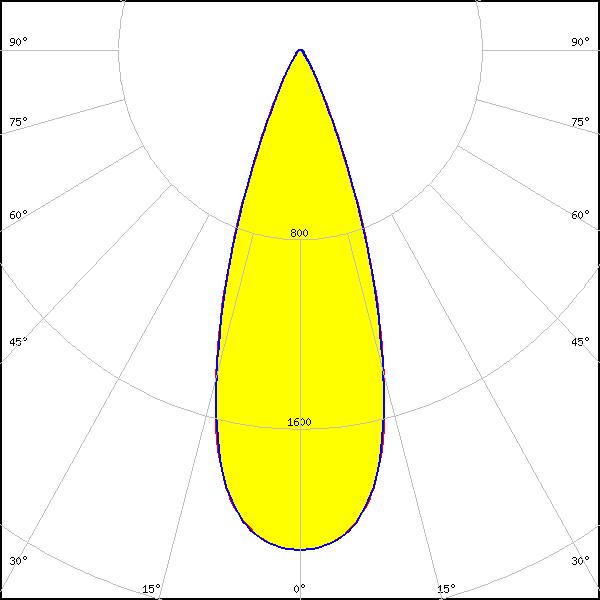

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.114 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

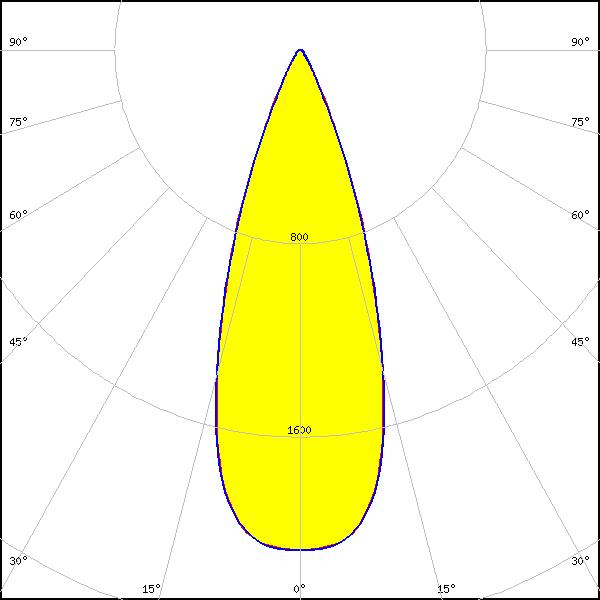

LED: CxM-6 (13.5x13.5)
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.075 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

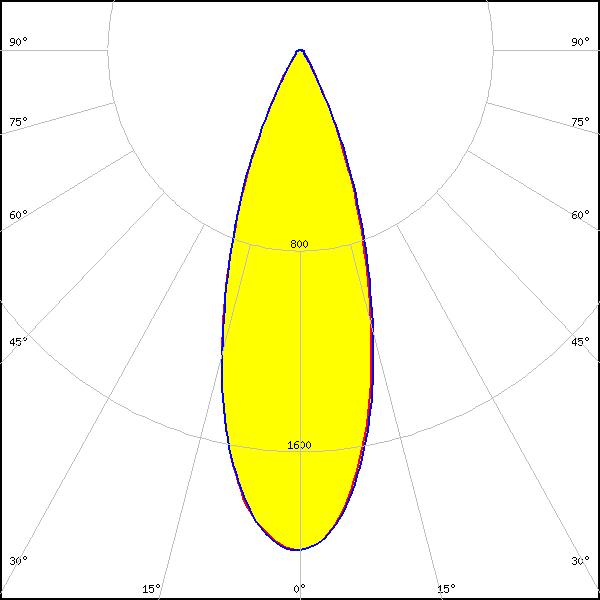

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 35°
FWTM: 60°
Peak intensity: 1.995 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 36°
FWTM: 57°
Peak intensity: 2.069 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.096 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

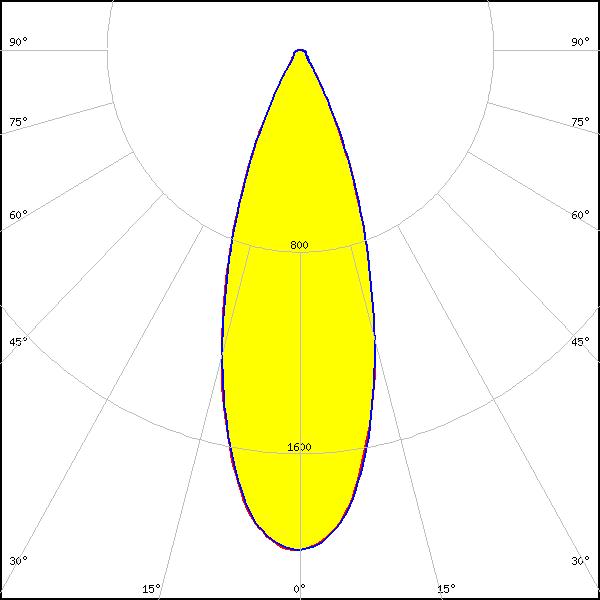

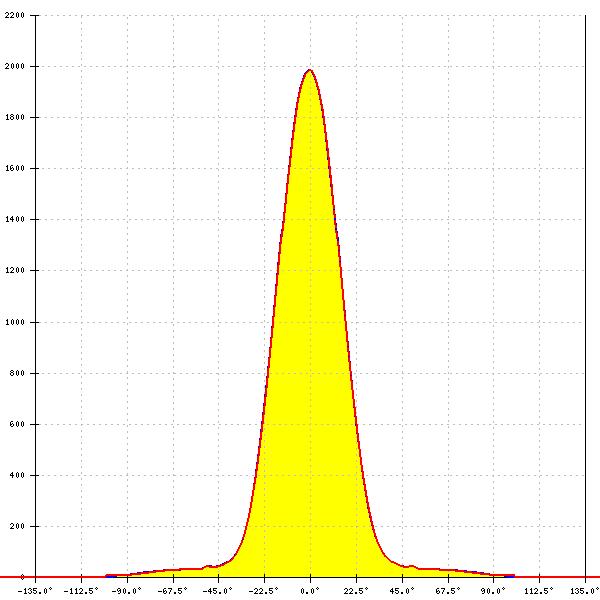

LED: LC003D / LC006D / LC009D / LC013D
FWHM: 36°
FWTM: 62°
Peak intensity: 1.985 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

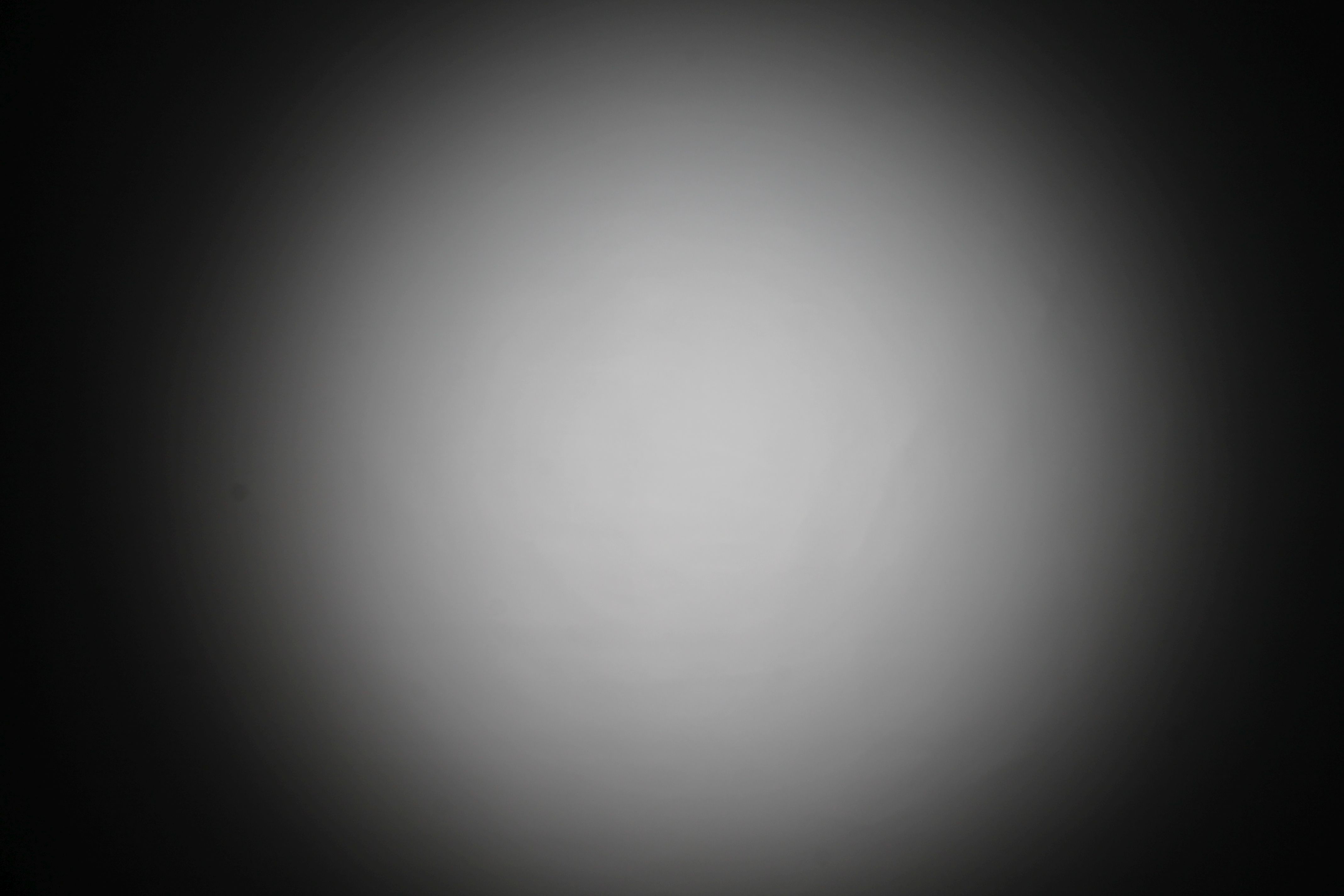

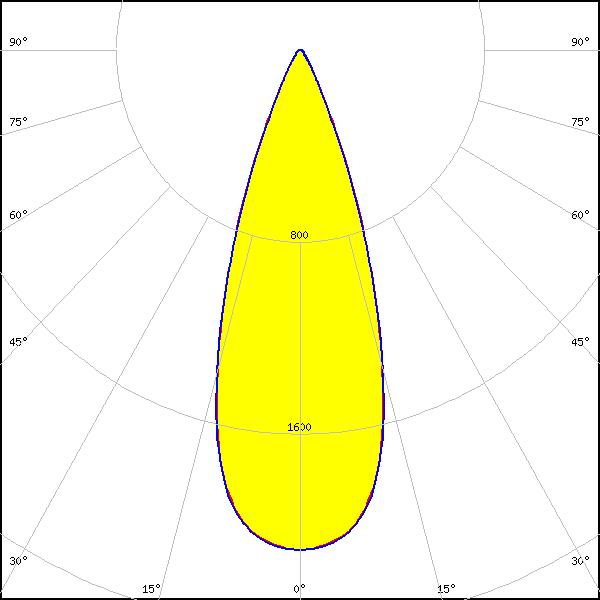

LED: MJT COB LES 6
Required components:
FWHM: 36°
FWTM: 56°
Peak intensity: 2.087 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT COB LES 9.8
Required components:
FWHM: 35°
FWTM: 60°
Peak intensity: 1.976 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
