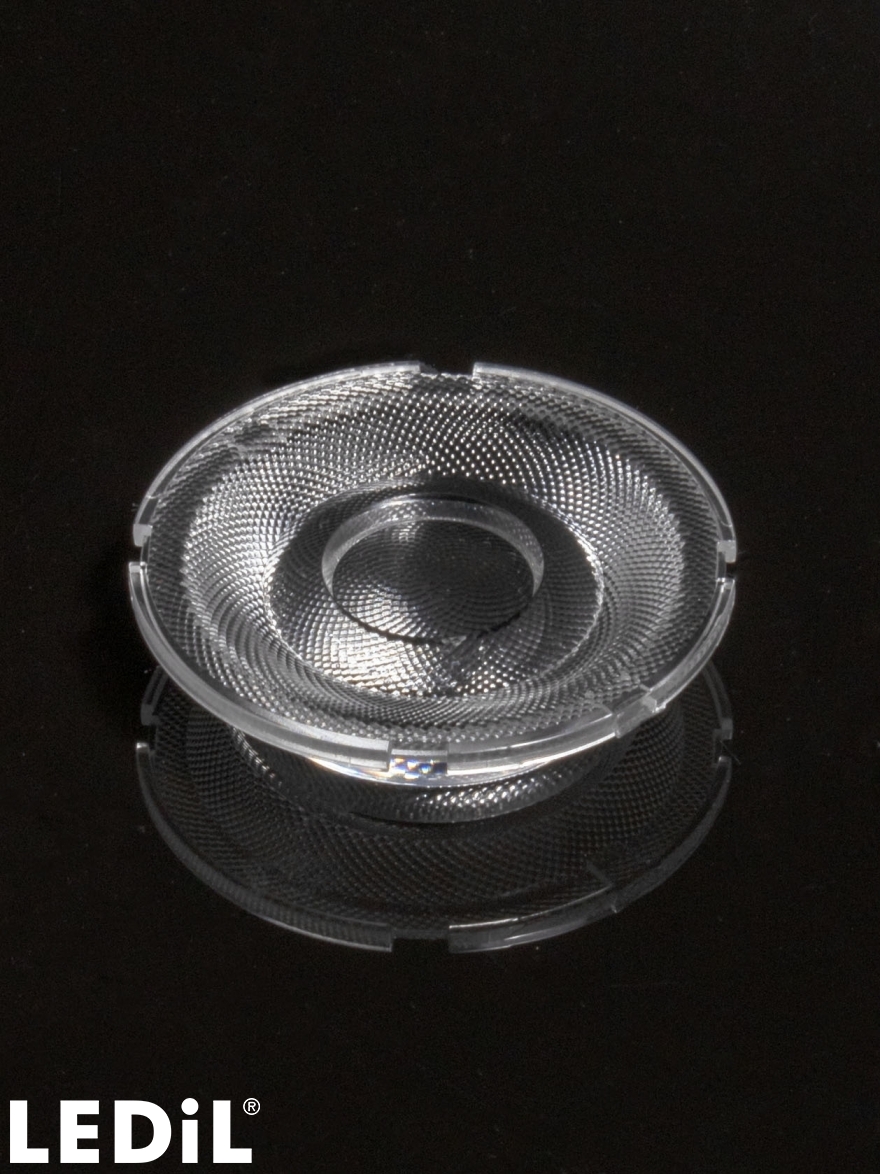

C17793_AMY-45-WW

Print

~60° wide beam

Specification
  • Dimensions:
    45 mm
  • Height:
    10.00 mm
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    690 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.6 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17793_AMY-45-WW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

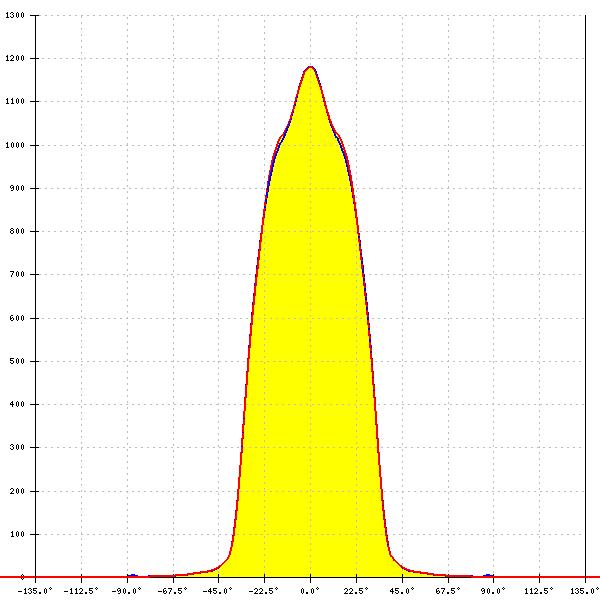

Optical results

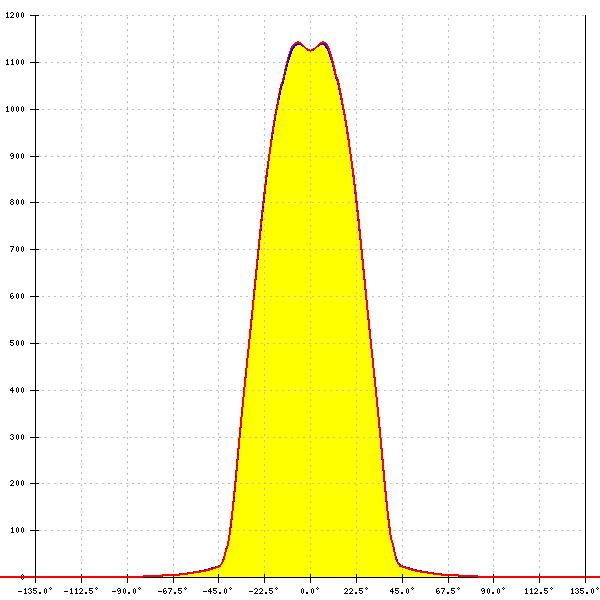

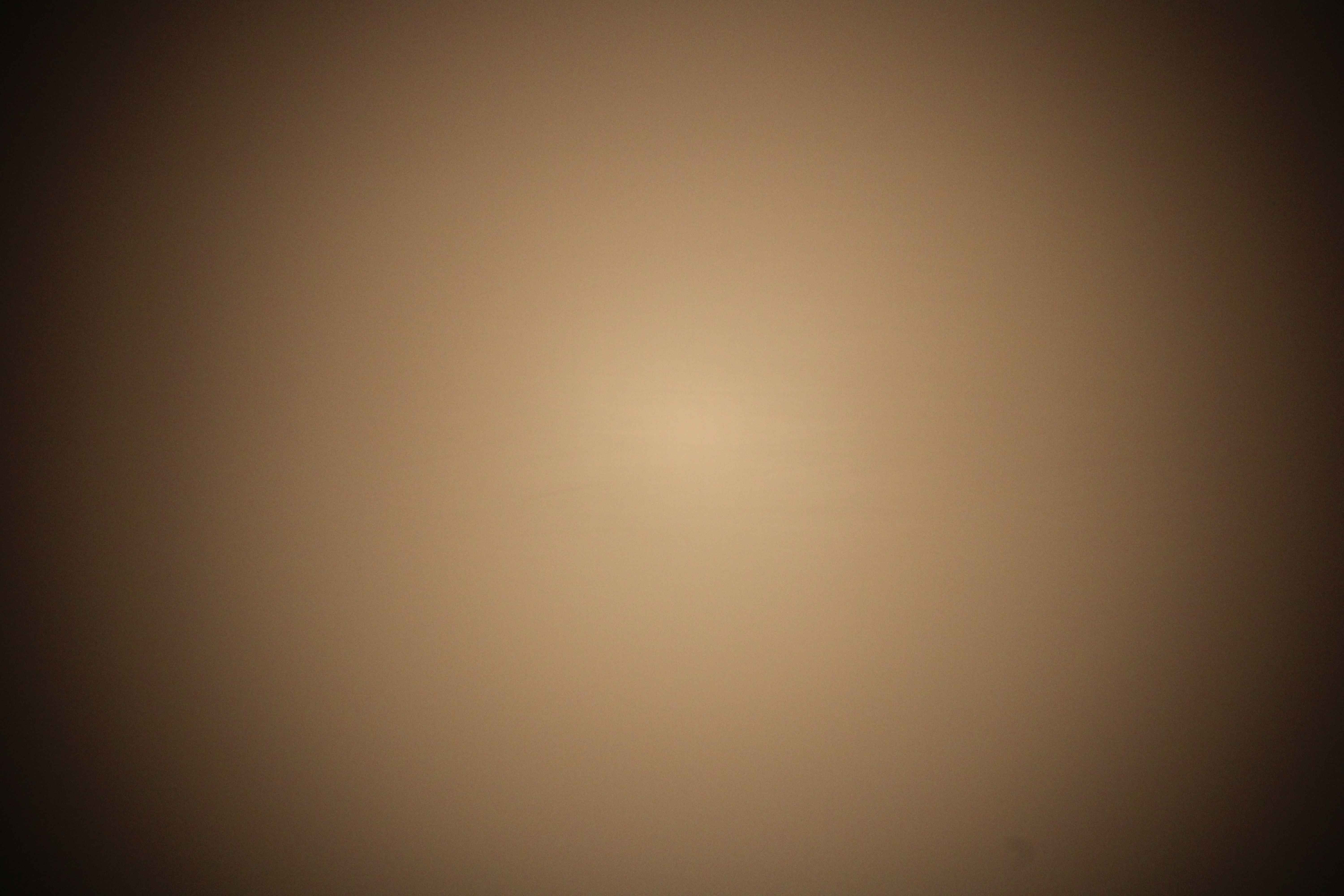

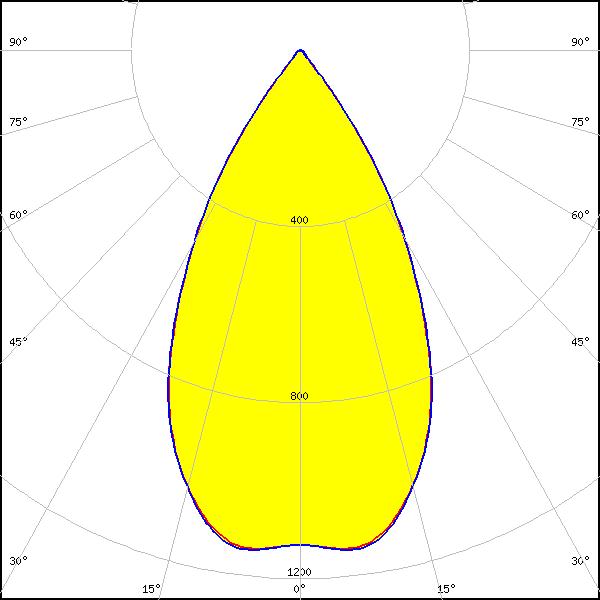

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 56°
FWTM: 78°
Peak intensity: 1.157 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

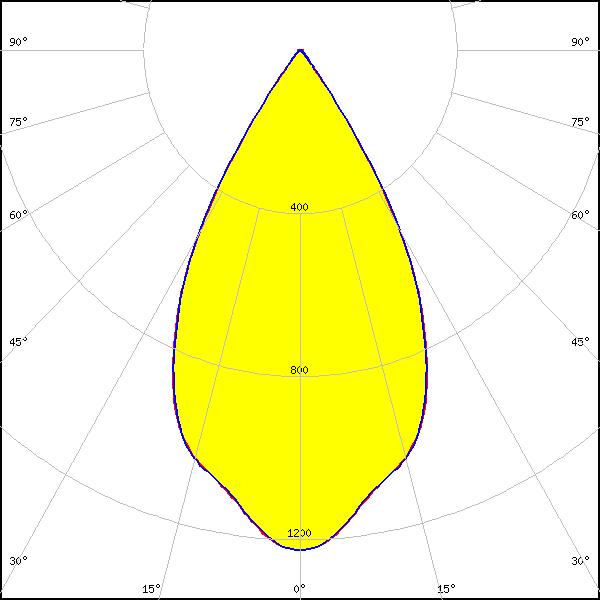

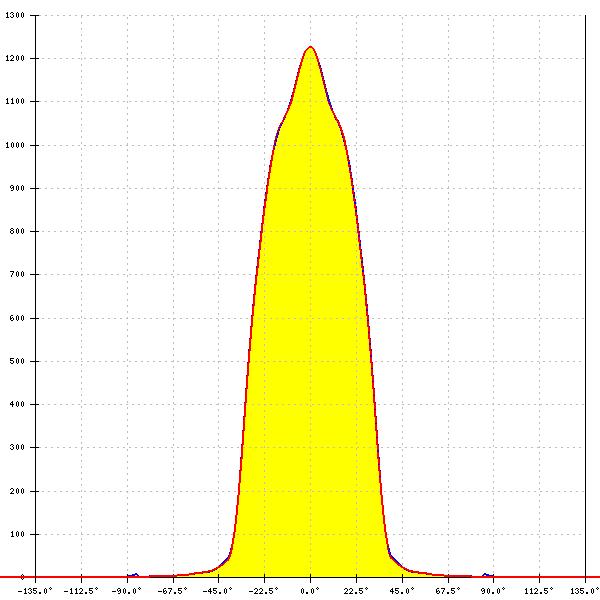

LED: V6 HD Gen 7
Required components:
FWHM: 56°
FWTM: 74°
Peak intensity: 1.230 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

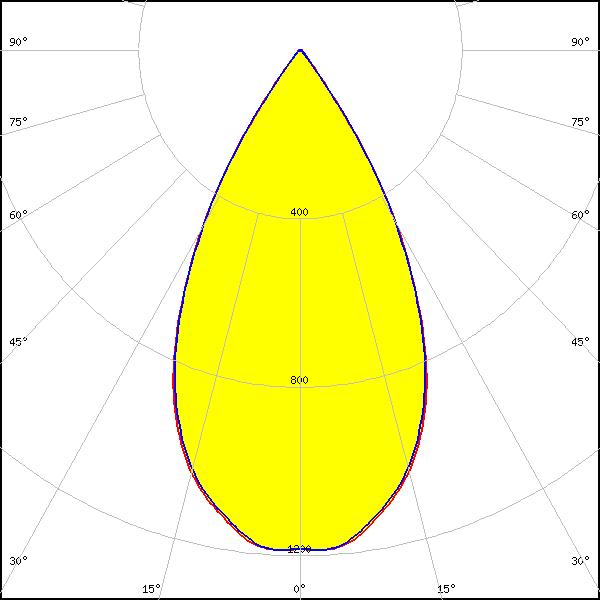

LED: V9 HD Gen7
Required components:
FWHM: 55°
FWTM: 75°
Peak intensity: 1.196 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

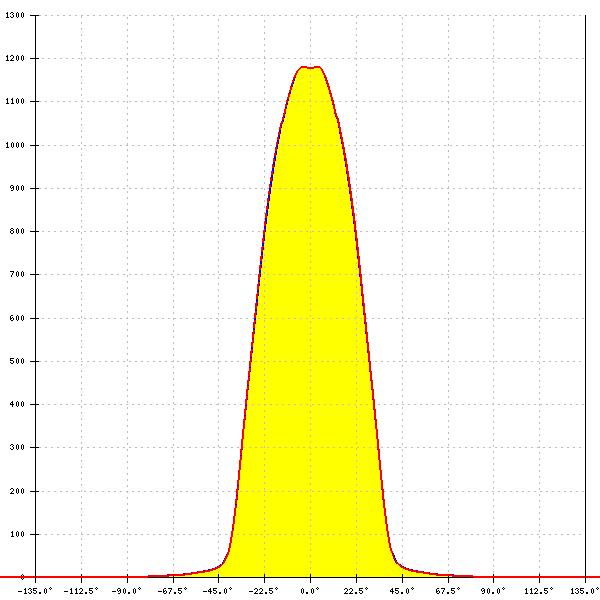

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 54°
FWTM: 76°
Peak intensity: 1.195 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

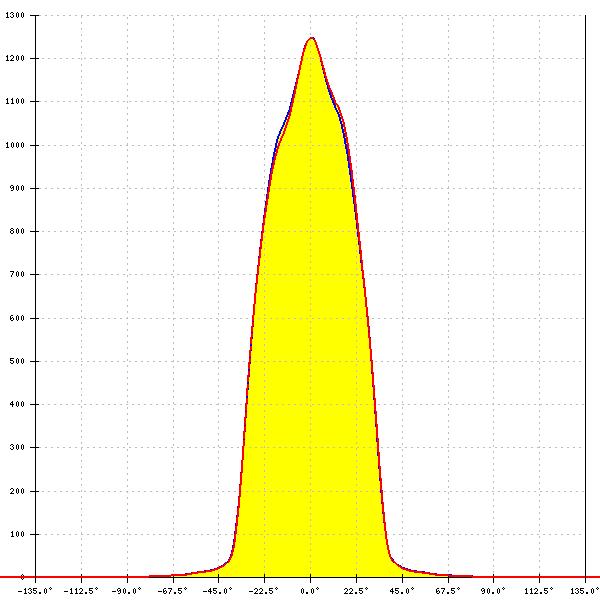

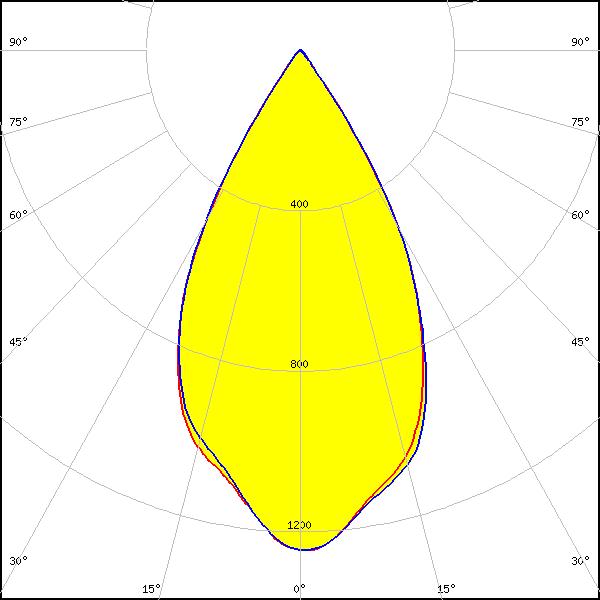

LED: CLU700/701/702/703
Required components:
FWHM: 56°
FWTM: 73°
Peak intensity: 1.247 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU712/713
Required components:
FWHM: 58°
FWTM: 78°
Peak intensity: 1.124 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

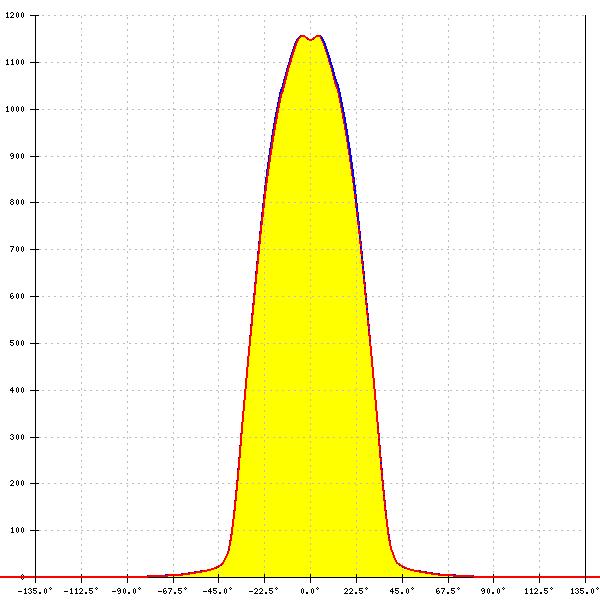

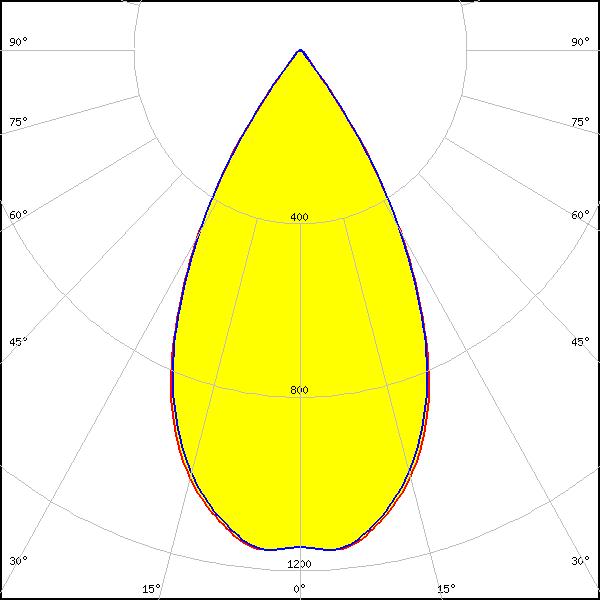

LED: CMA1516
Required components:
FWHM: 56°
FWTM: 76°
Peak intensity: 1.166 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

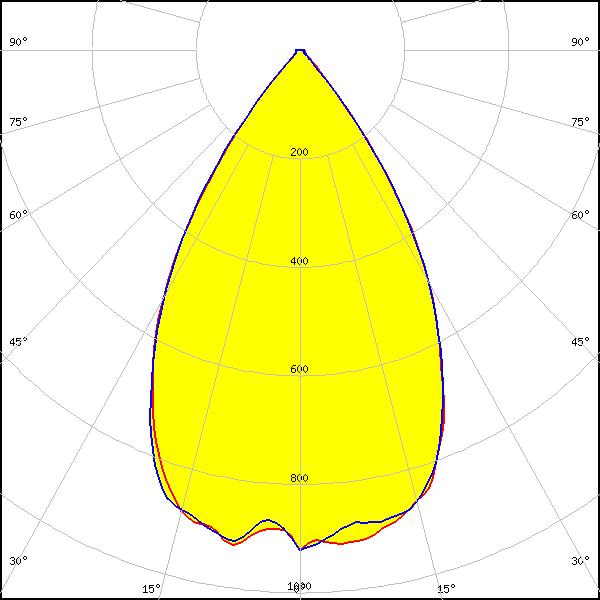

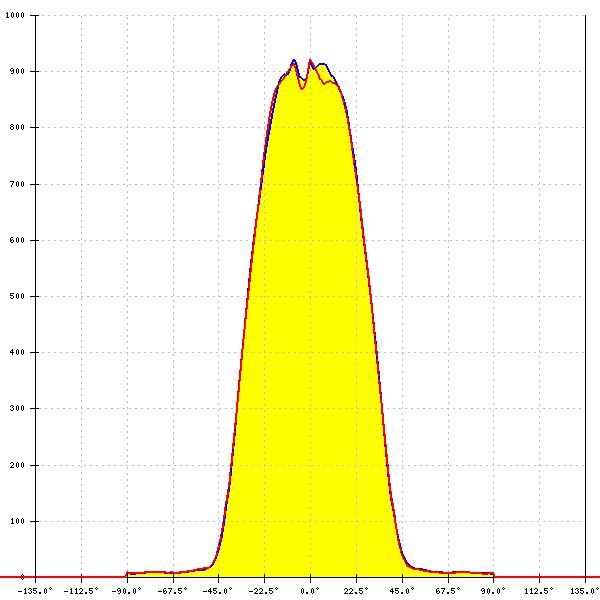

LED: CMA1825
Required components:
FWHM: 63°
FWTM: 85°
Peak intensity: 0.956 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

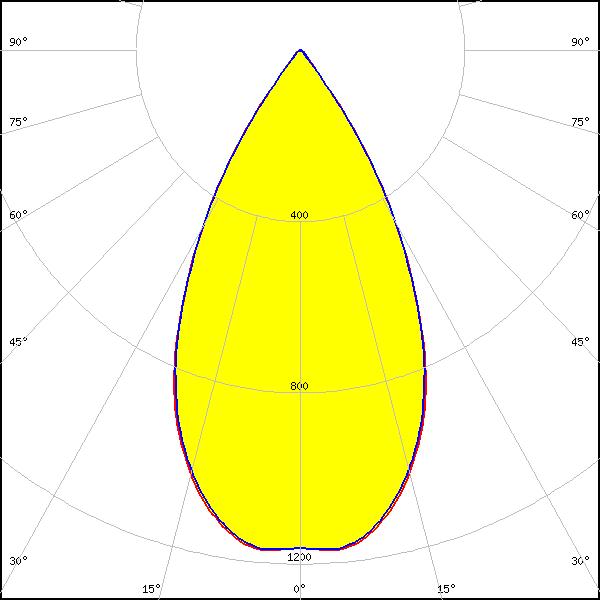

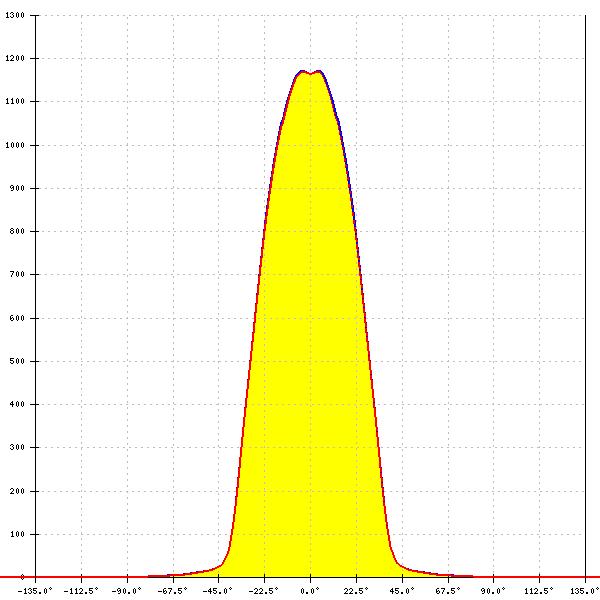

LED: CMT14xx
Required components:
FWHM: 55°
FWTM: 76°
Peak intensity: 1.174 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

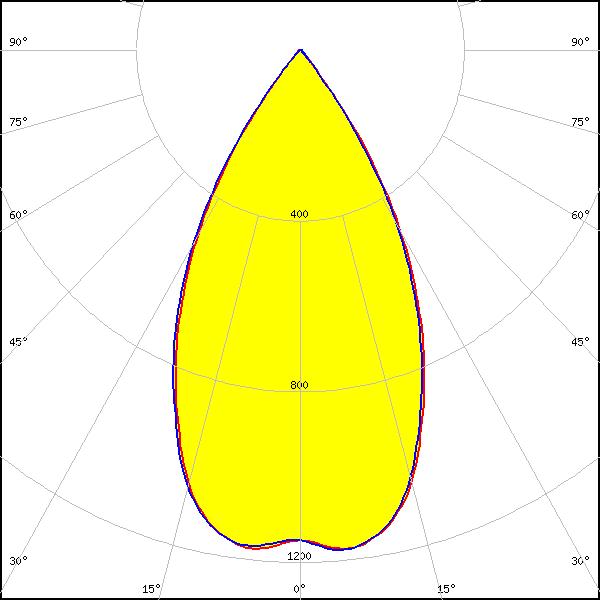

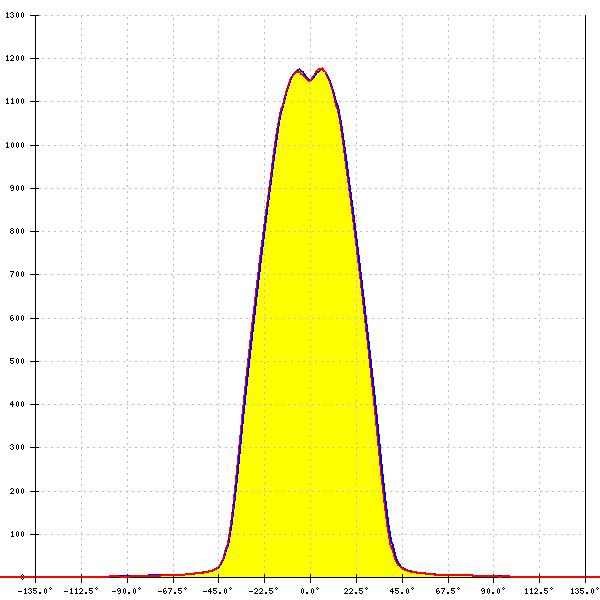

LED: CMU10xx
Required components:
BJB: 47.360.1020
FWHM: 56°
FWTM: 78°
Peak intensity: 1.178 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

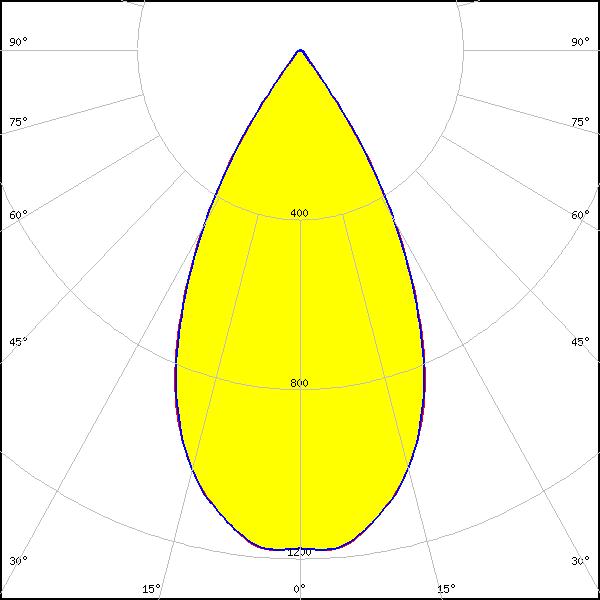

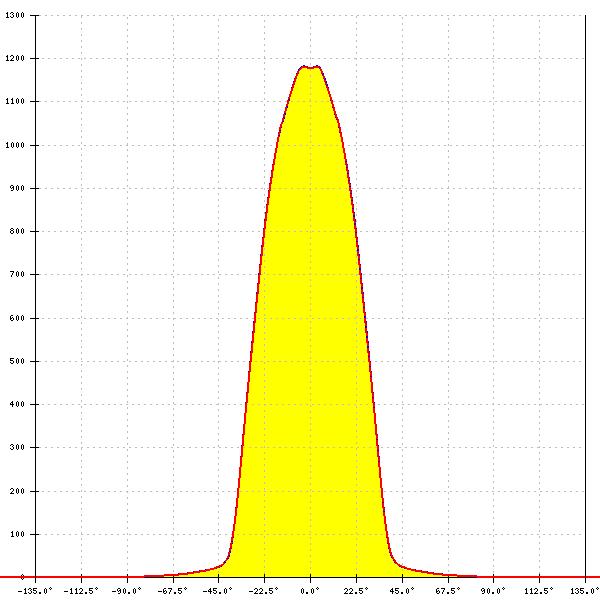

LED: LUXEON CoB 1202/1203
Required components:
FWHM: 54°
FWTM: 75°
Peak intensity: 1.193 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

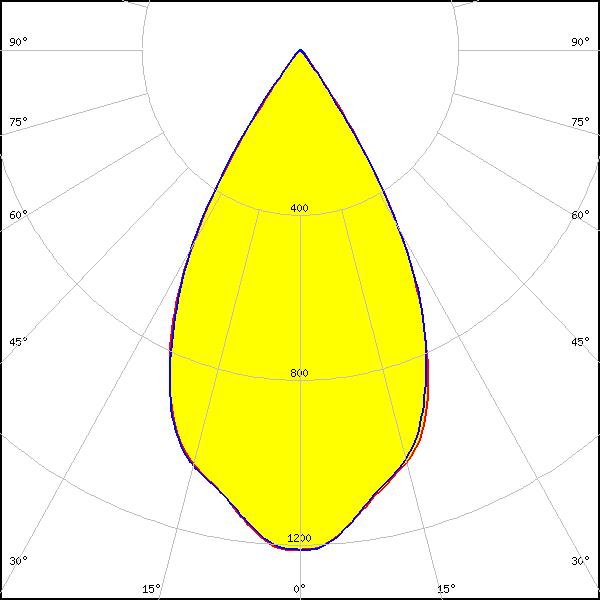

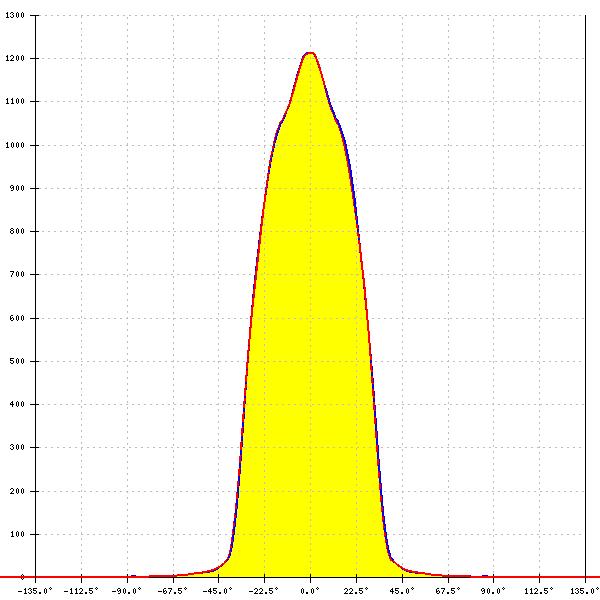

LED: LUXEON CoB 1202s
Required components:
FWHM: 57°
FWTM: 74°
Peak intensity: 1.213 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

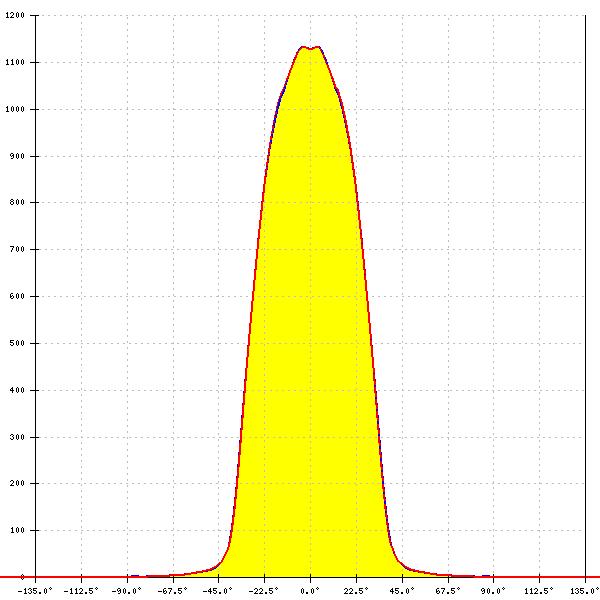

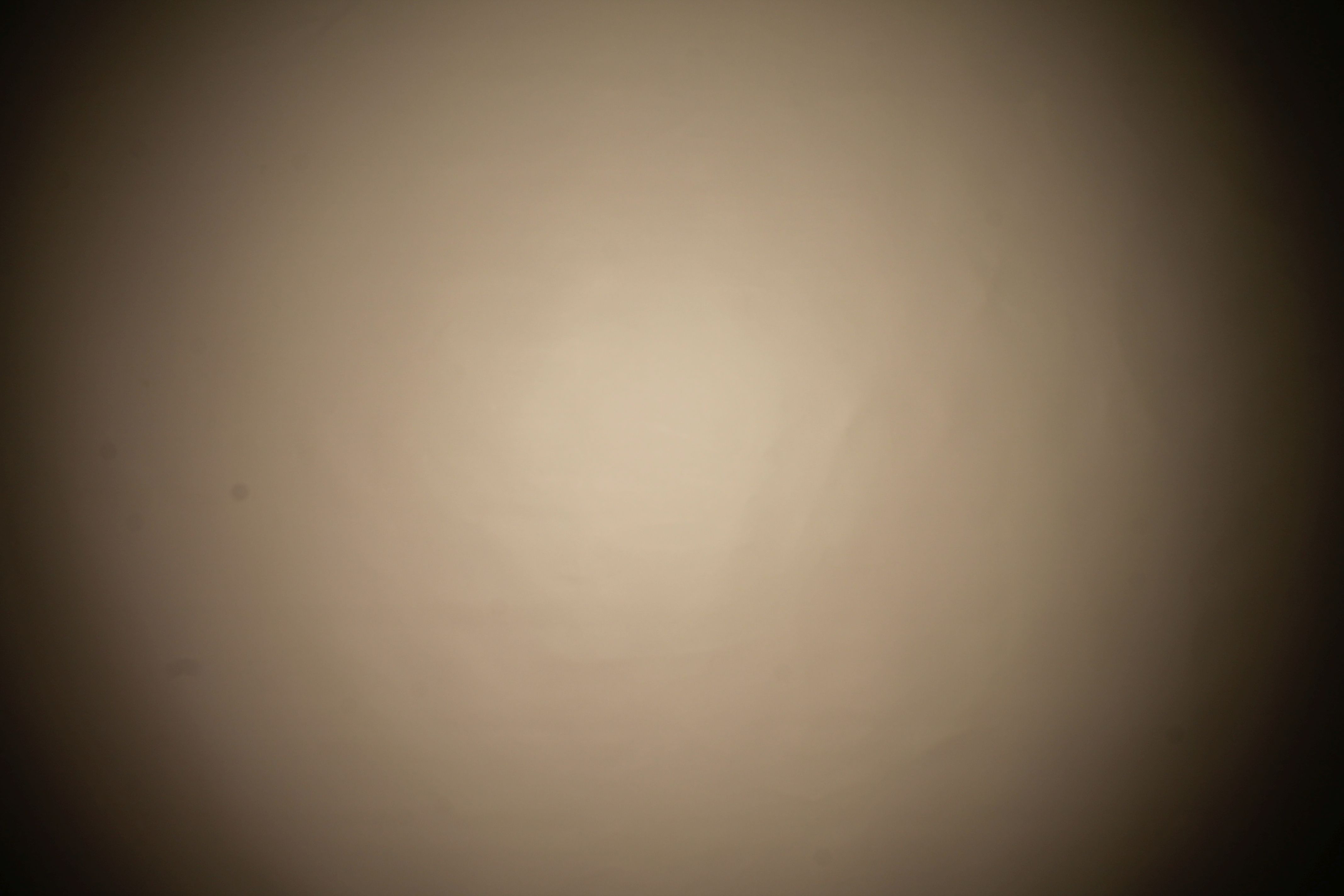

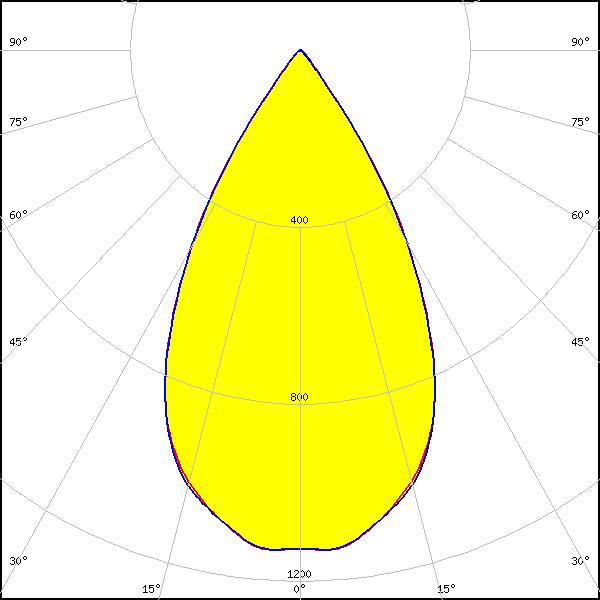

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
FWHM: 58°
FWTM: 76°
Peak intensity: 1.138 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

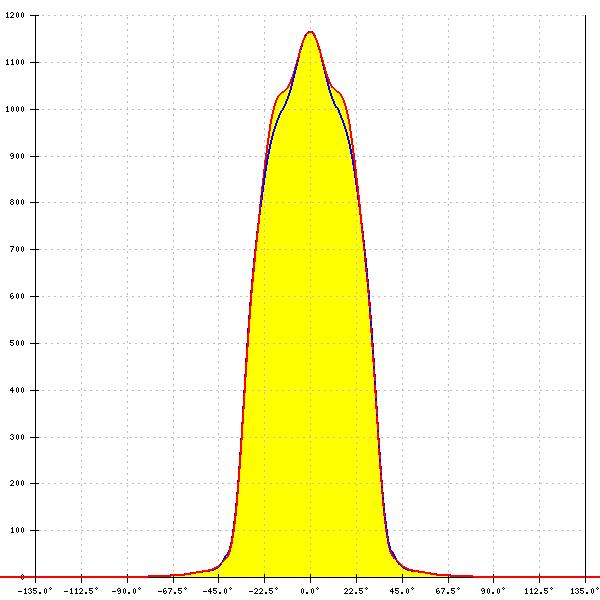

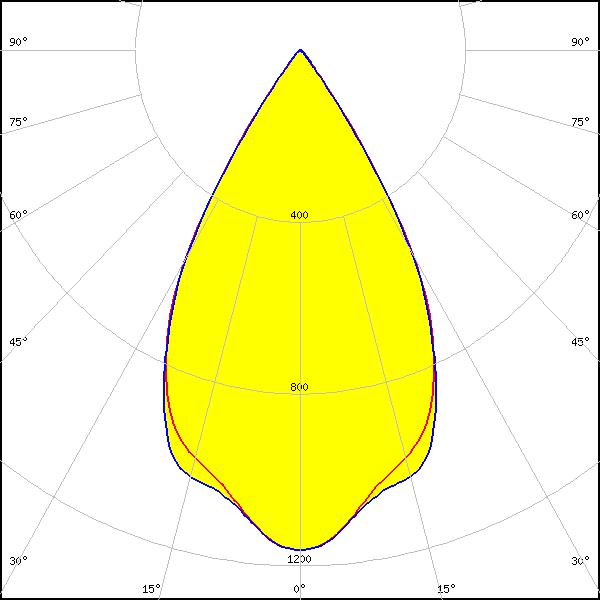

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
FWHM: 59°
FWTM: 75°
Peak intensity: 1.167 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

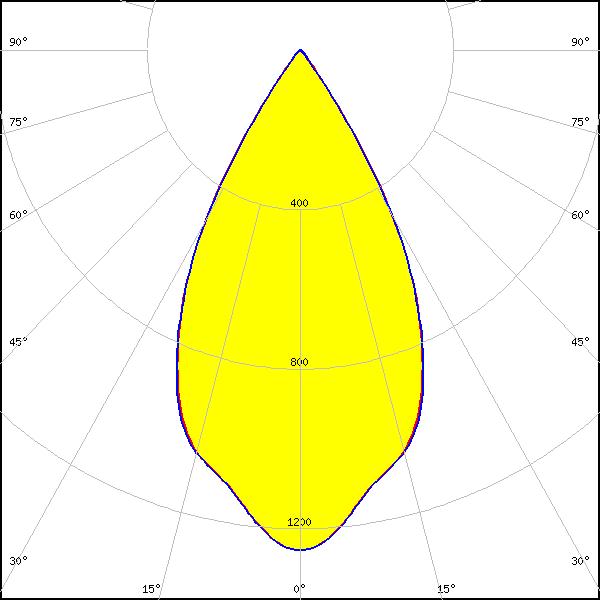

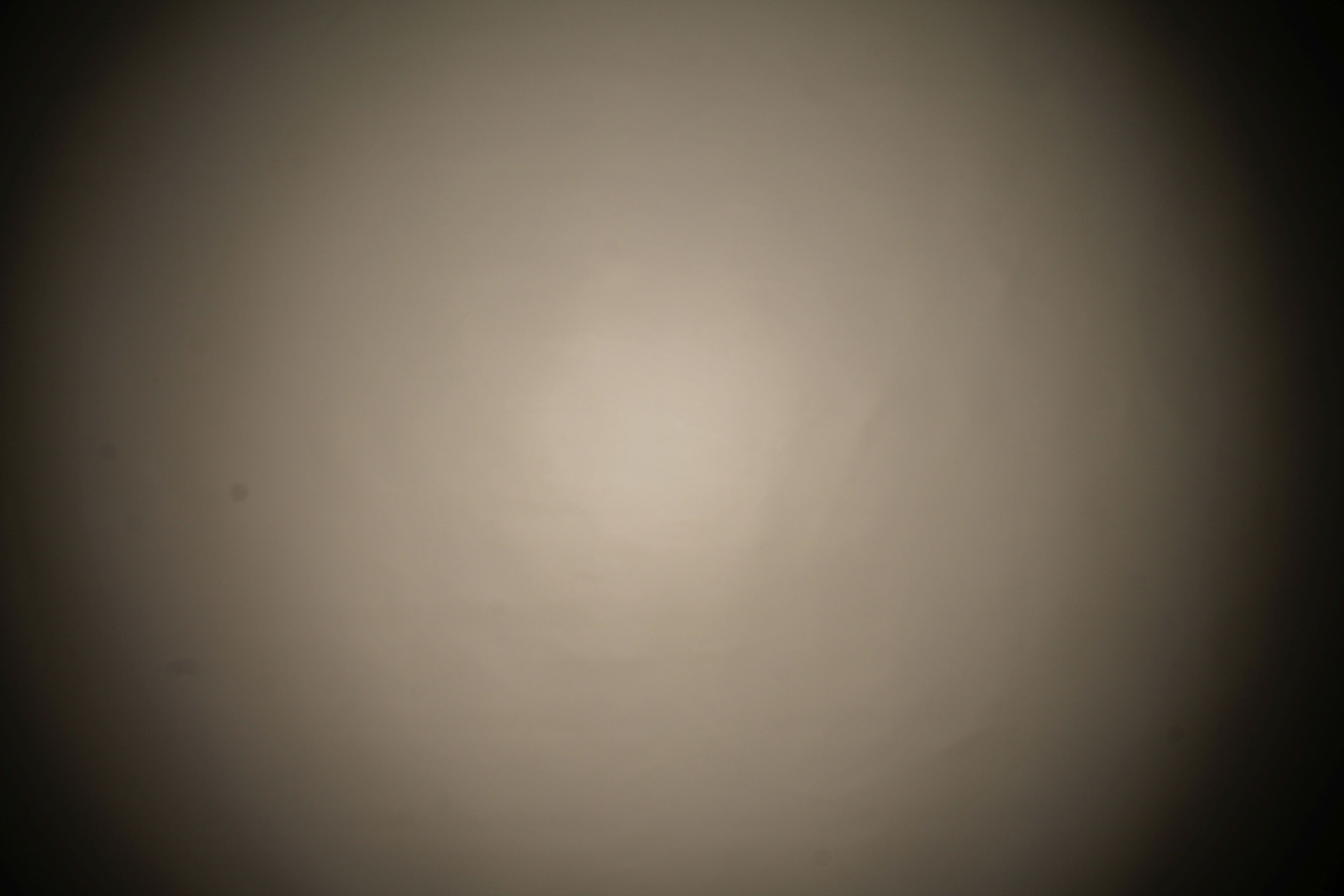

LED: CxM-6 (13.5x13.5)
Required components:
FWHM: 55°
FWTM: 73°
Peak intensity: 1.265 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

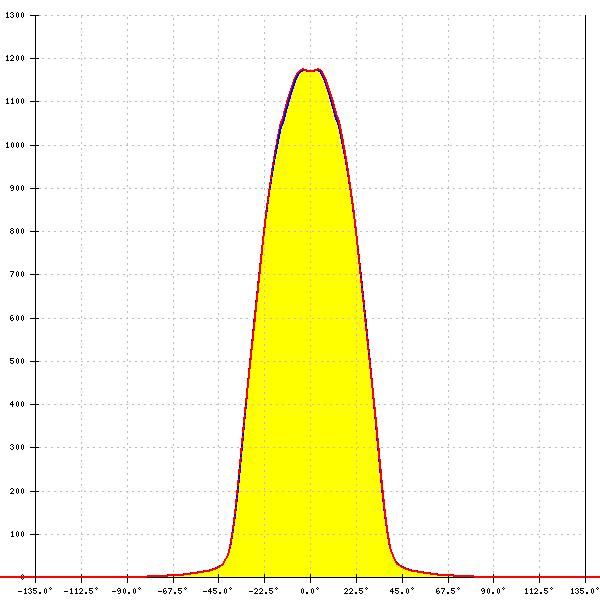

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 54°
FWTM: 76°
Peak intensity: 1.186 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
Required components:
FWHM: 58°
FWTM: 75°
Peak intensity: 1.176 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
Required components:
FWHM: 58°
FWTM: 74°
Peak intensity: 1.181 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

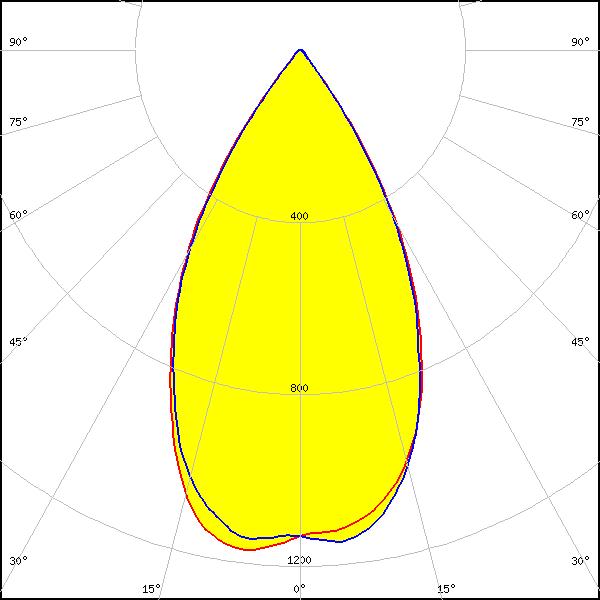

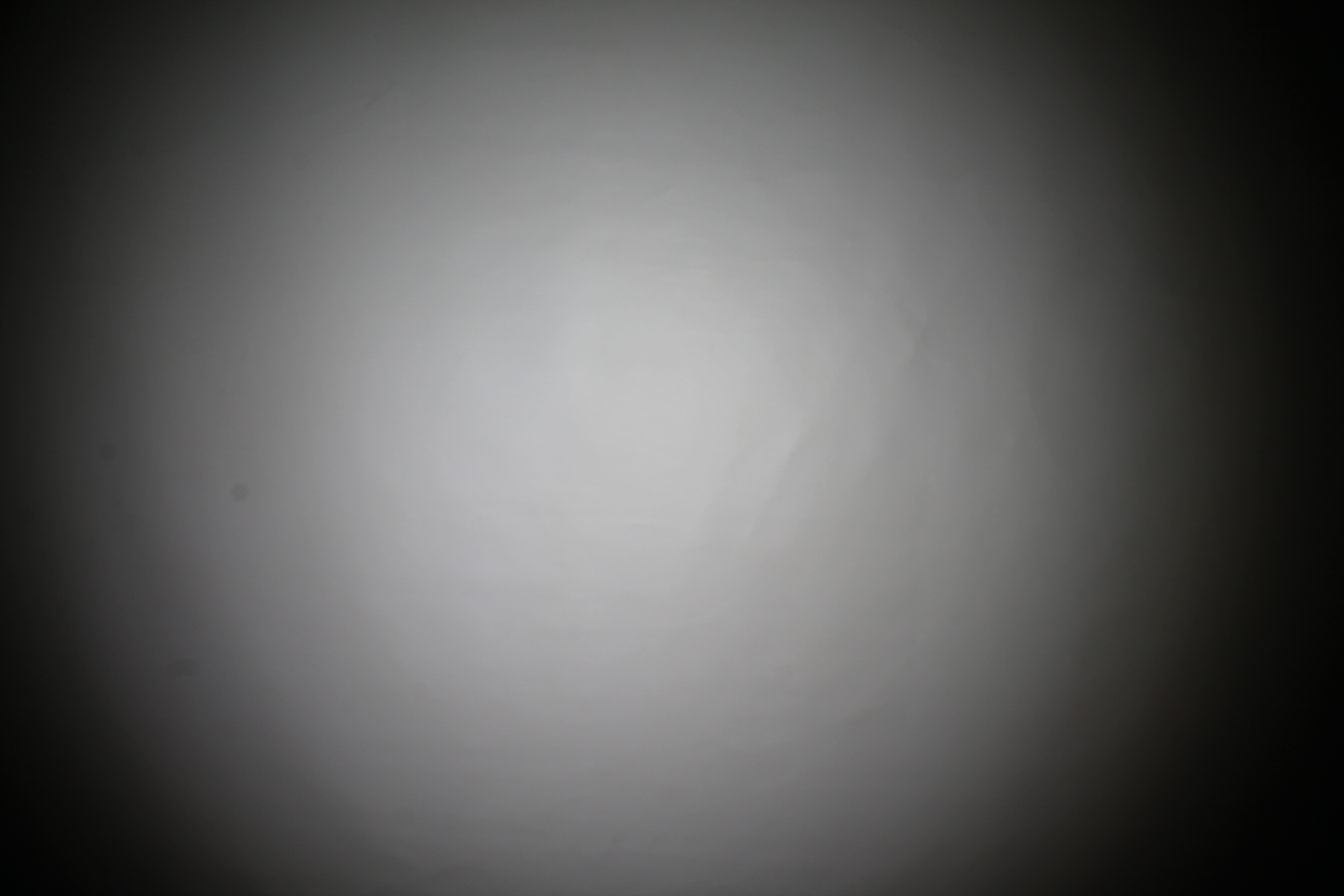

LED: LC003D / LC006D / LC009D / LC013D
FWHM: 56°
FWTM: 78°
Peak intensity: 1.169 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

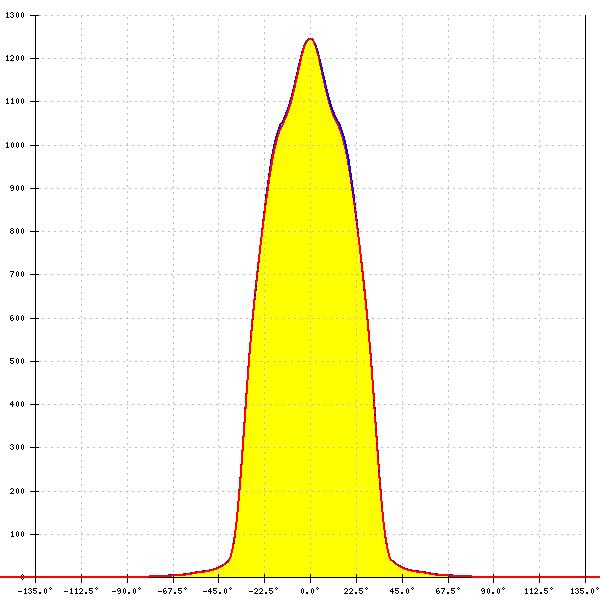

LED: MJT COB LES 6
Required components:
FWHM: 56°
FWTM: 73°
Peak intensity: 1.246 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

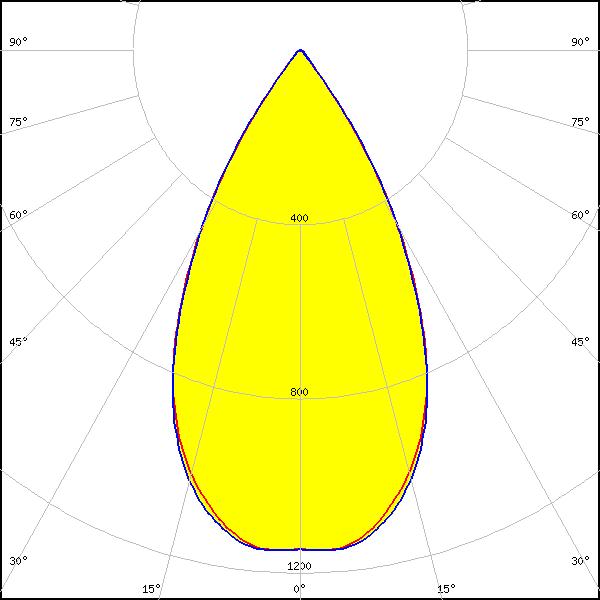

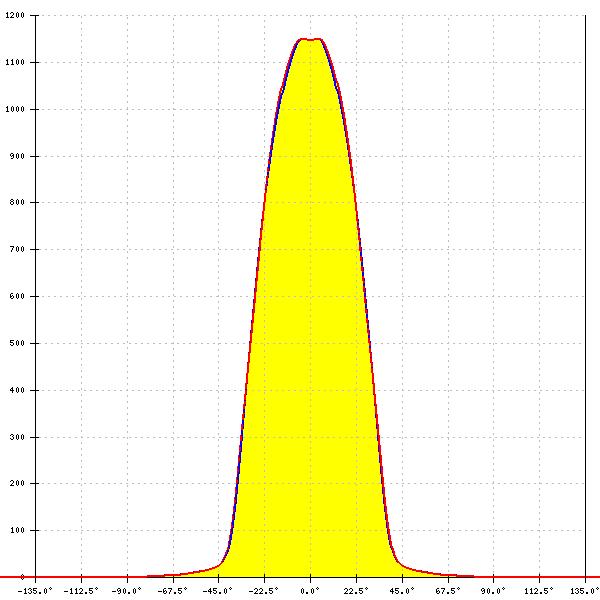

LED: MJT COB LES 9.8
Required components:
FWHM: 55°
FWTM: 76°
Peak intensity: 1.162 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
