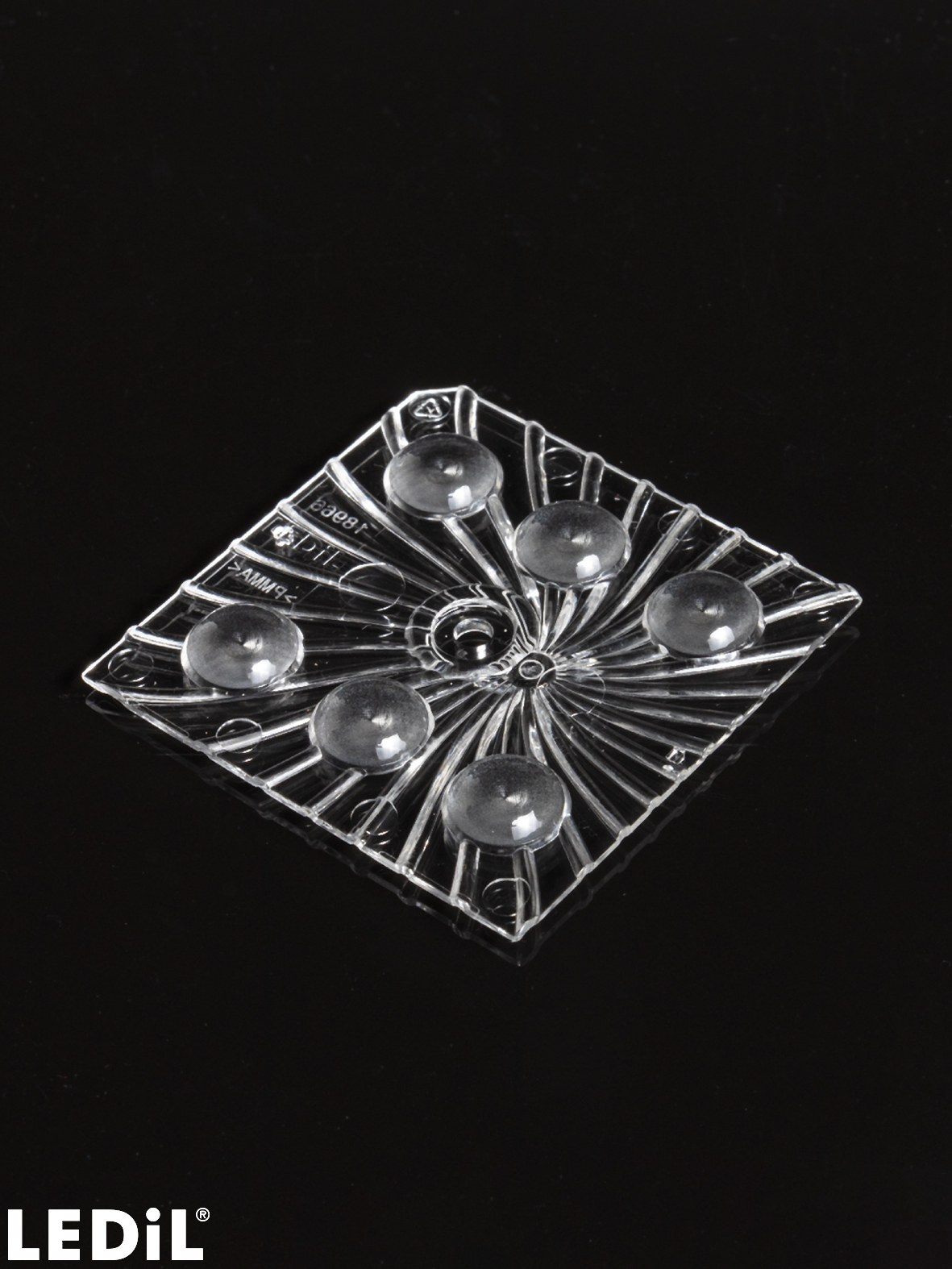

C18966_HB-2X3-5050-WWW

Print

~90° wide beam

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.73 mm
  • Fastening:
    glue, screw
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1200 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.9 kg
  • MPQ:
    240 pcs
  • MOQ:
    1200 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    5.9 kg
Documents
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18966_HB-2X3-5050-WWW
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

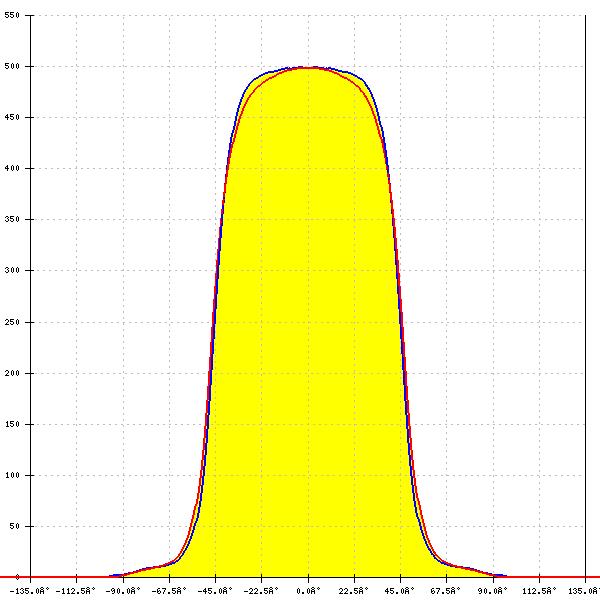

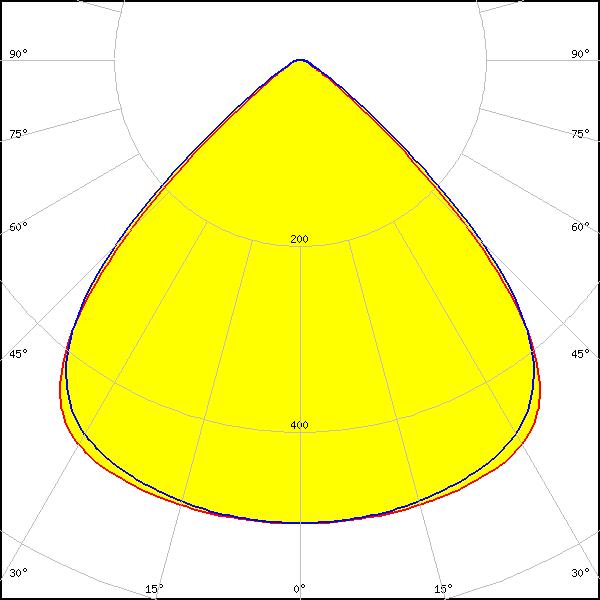

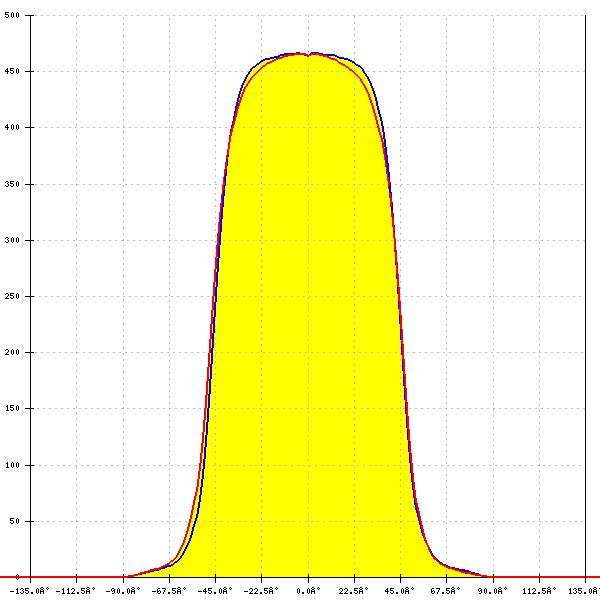

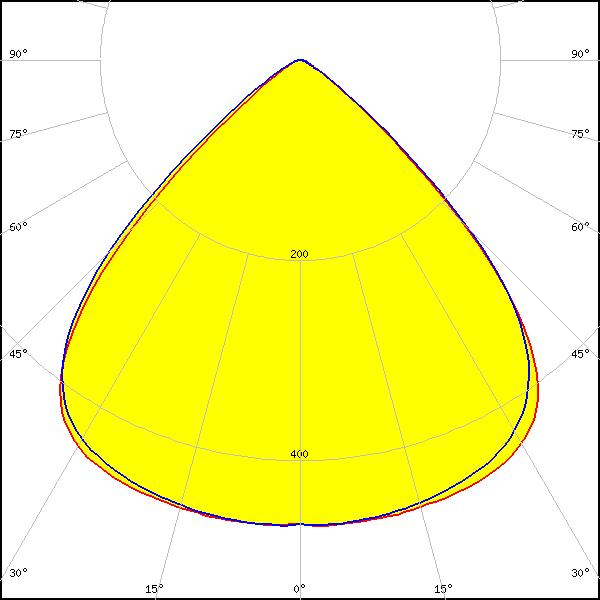

Optical results

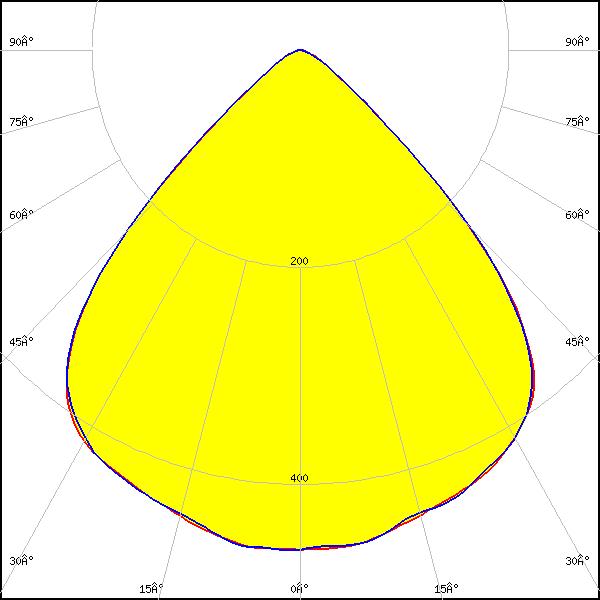

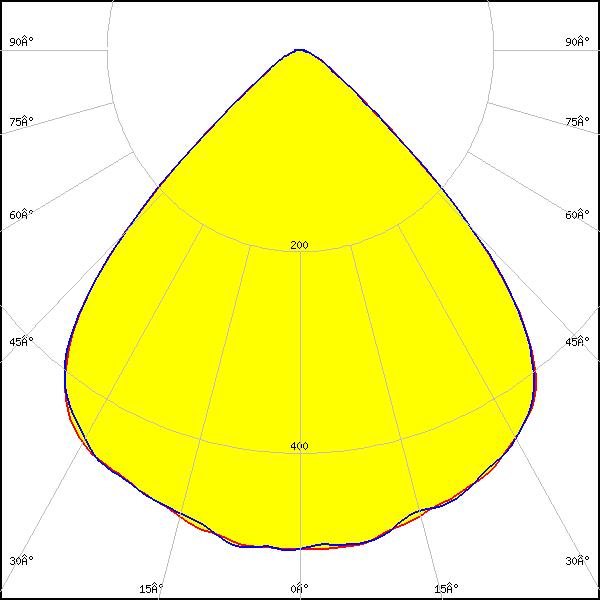

LED: J Series 5050 Round LES
FWHM: 90°
FWTM: 112°
Peak intensity: 0.511 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: 90°
FWTM: 112°
Peak intensity: 0.470 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

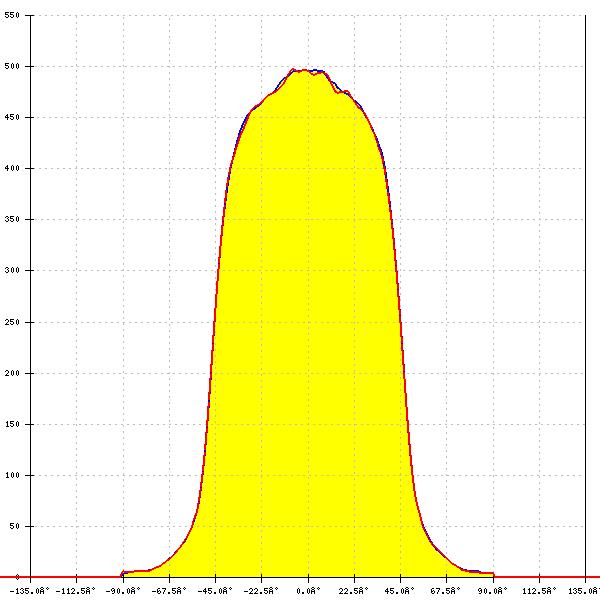

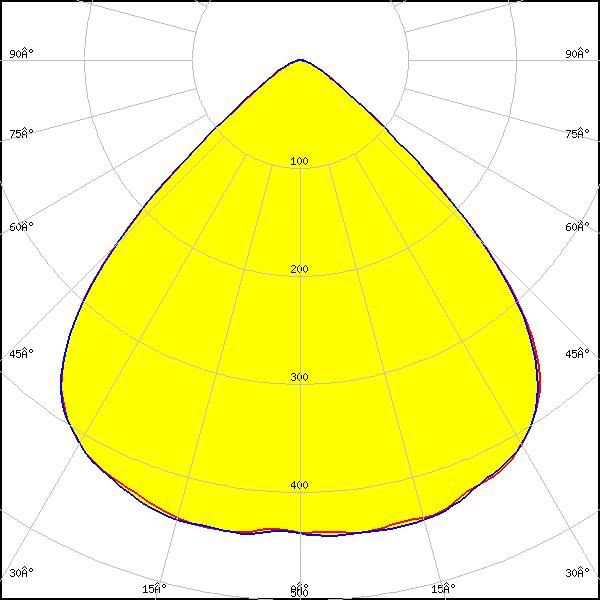

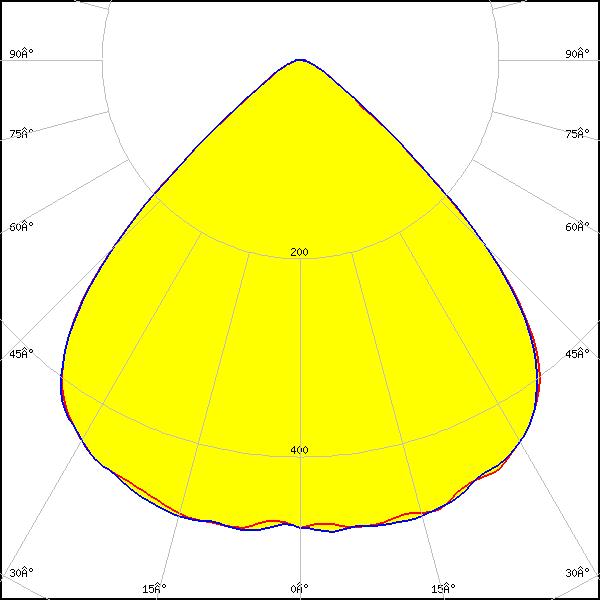

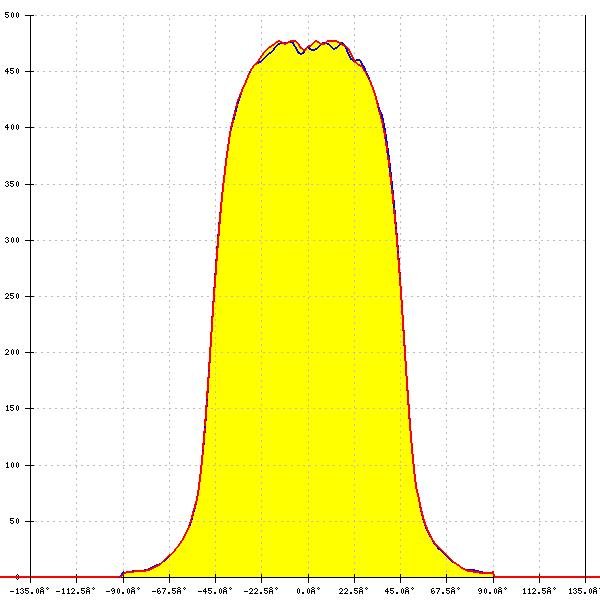

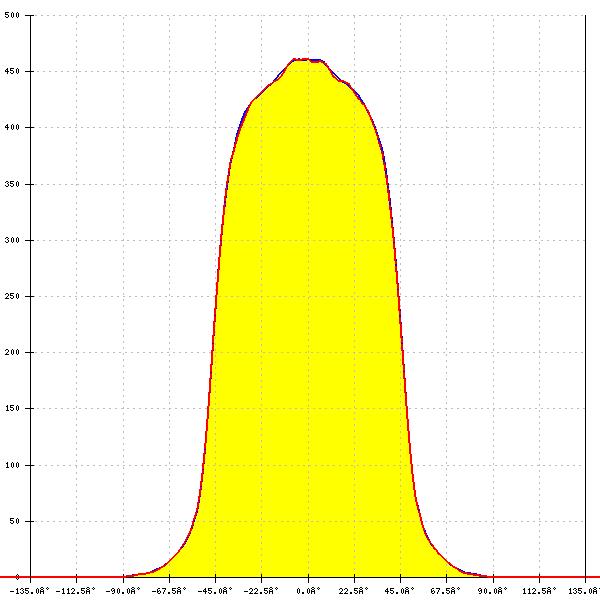

LED: J Series 5050B 6V K Class
FWHM: 92°
FWTM: 114°
Peak intensity: 0.482 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

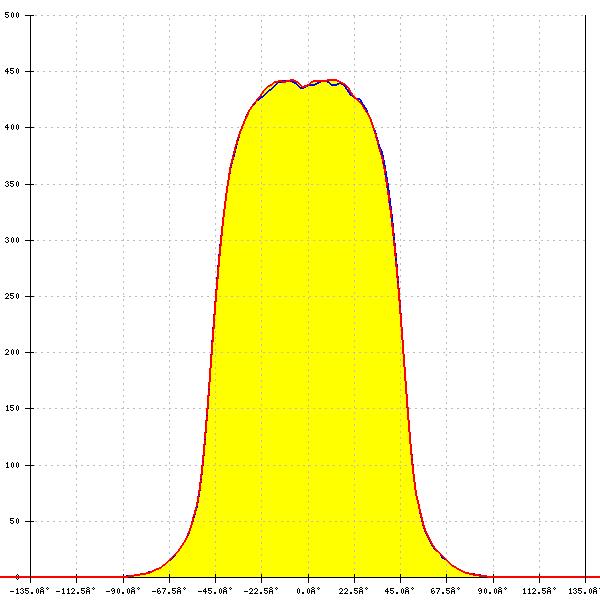

LED: J Series 5050B 6V K Class
FWHM: 92°
FWTM: 114°
Peak intensity: 0.446 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

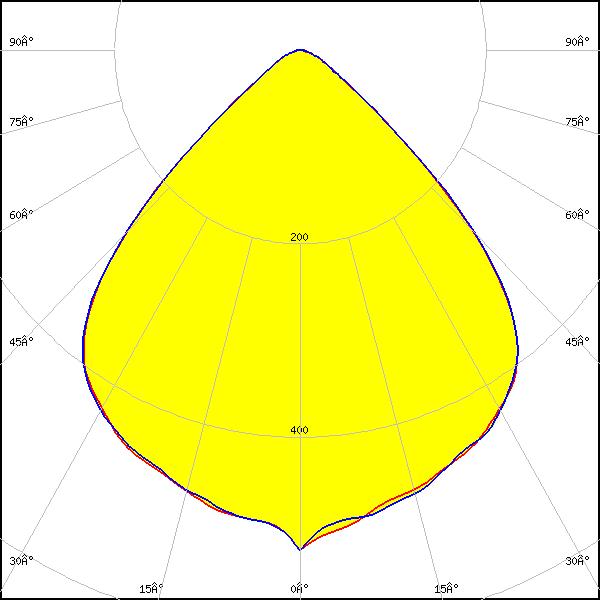

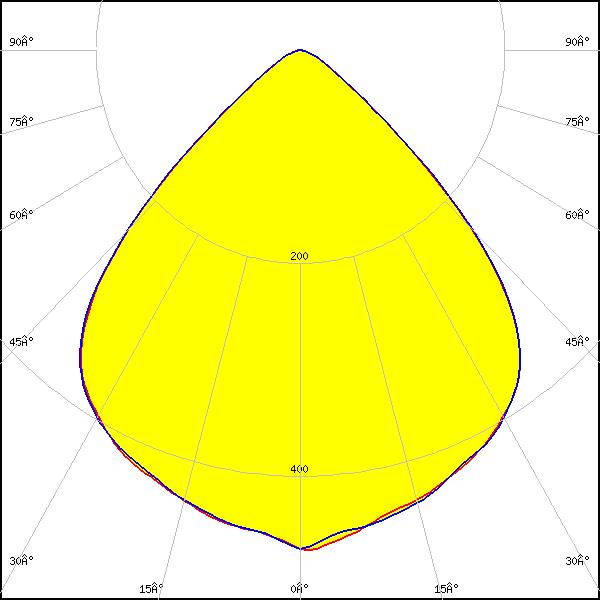

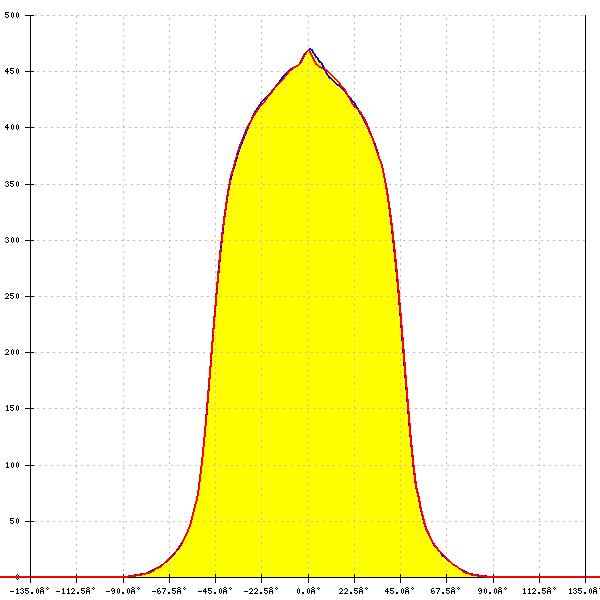

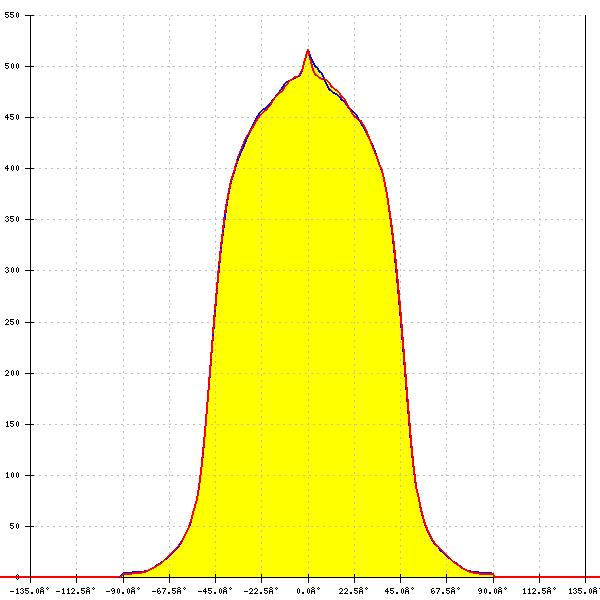

LED: LUXEON 5050 Square LES
FWHM: 90°
FWTM: 114°
Peak intensity: 0.470 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: 90°
FWTM: 114°
Peak intensity: 0.517 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

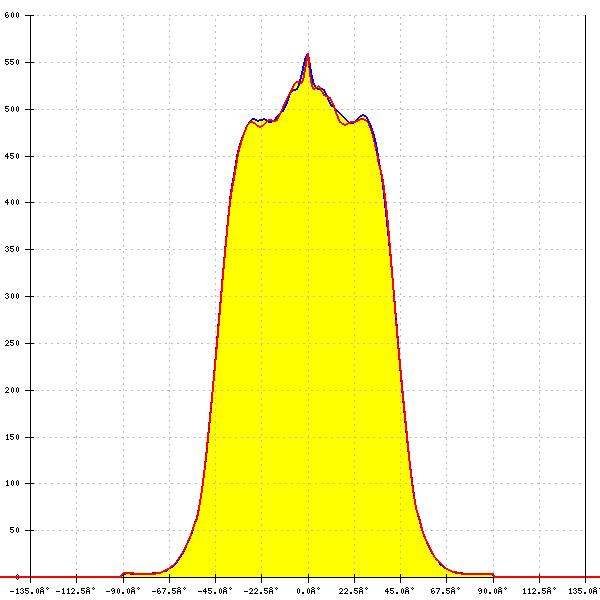

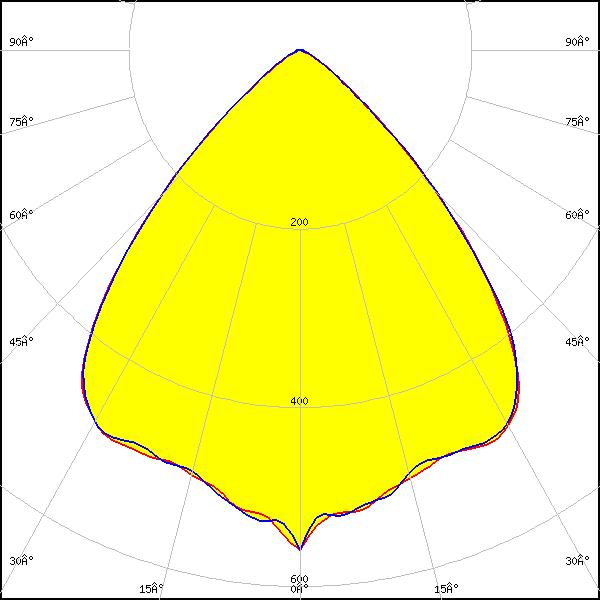

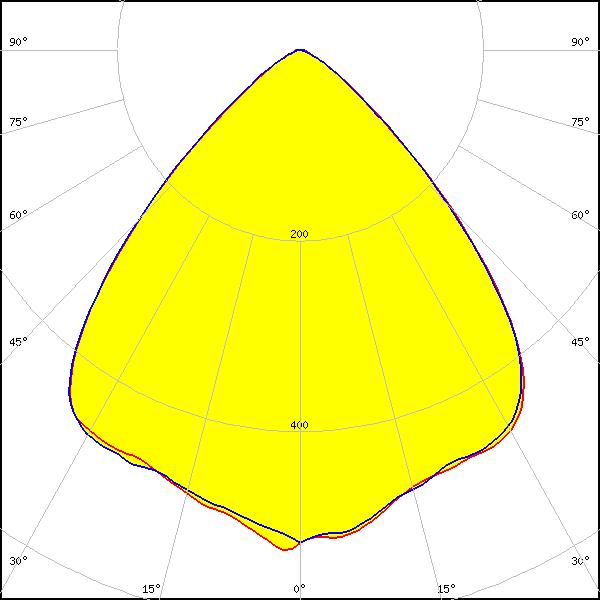

LED: Duris S5 (2 chip)
FWHM: 86°
FWTM: 110°
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

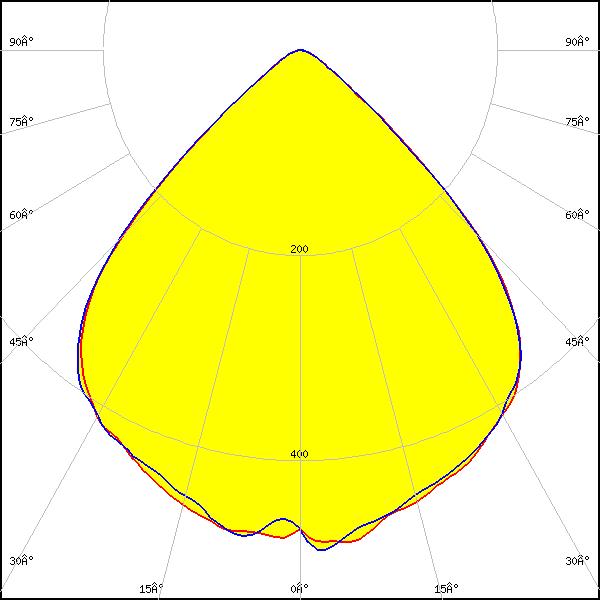

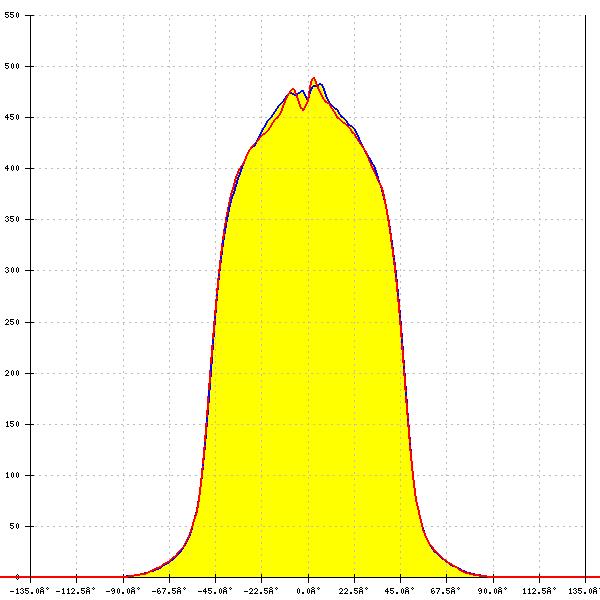

LED: OSCONIQ S 5050
FWHM: 91°
FWTM: 112°
Peak intensity: 0.488 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
