CA10252_TITANUM-O-M
Print
~25° medium beam. Assembly with tape.
Specification
-
Dimensions:26 mm
-
Height:14.80 mm
-
Fastening:tape
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials

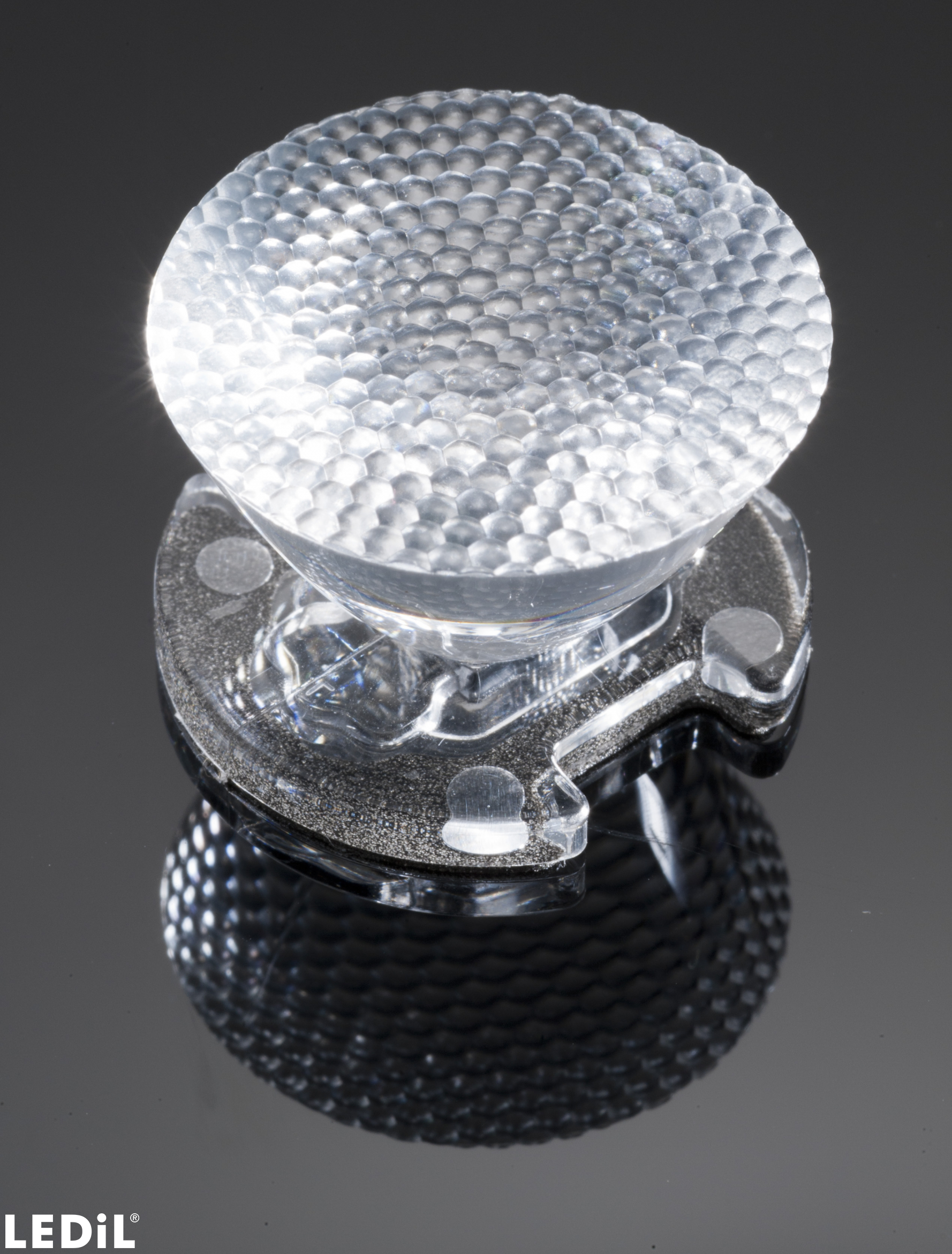

- TITANUM-O-MSingle lensPMMA
- SPUTNIK-TAPETapeAcryl tape
- Request material files from Tech Support
Ordering information
-
Quantity in box:1001 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.5 kg
-
MPQ:77 pcs
-
MOQ:308 pcs
-
MOQ size:480 x 280 x 110 mm
-
MOQ weight:2.5 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

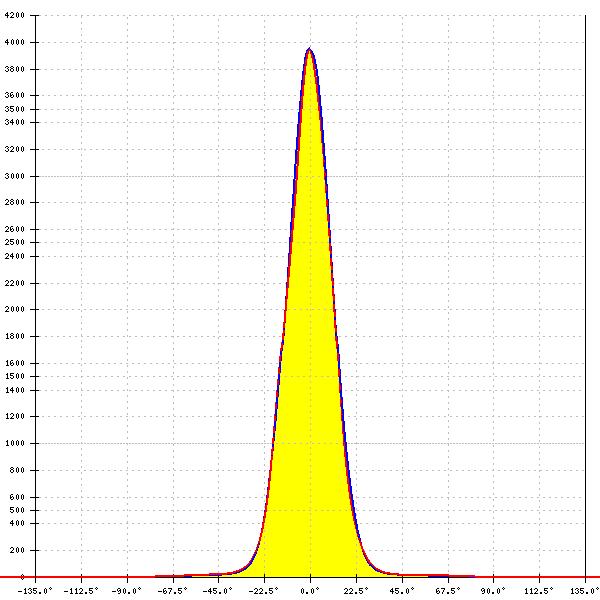

Optical results

LED:

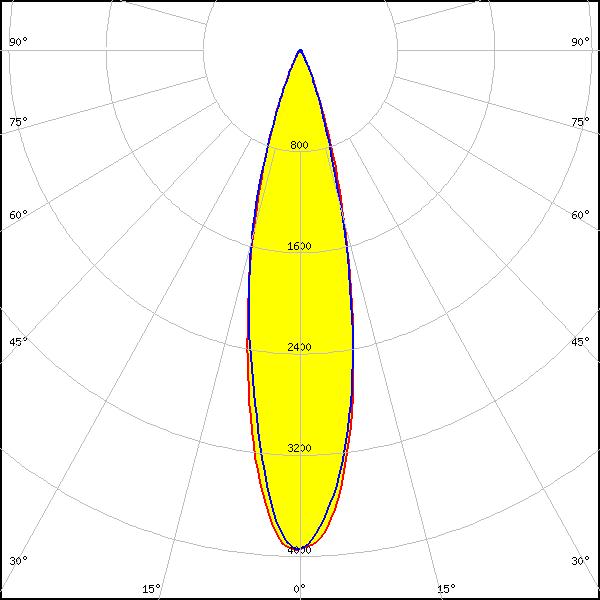

Golden Dragon+
FWHM:
25°
FWTM:
45°
Peak intensity:
4.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

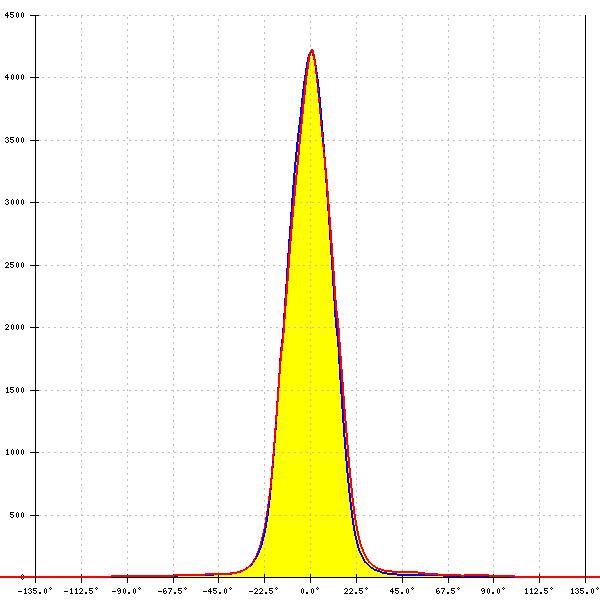

Platinum Dragon
FWHM:
26°
FWTM:
44°
Peak intensity:
4.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

LED:

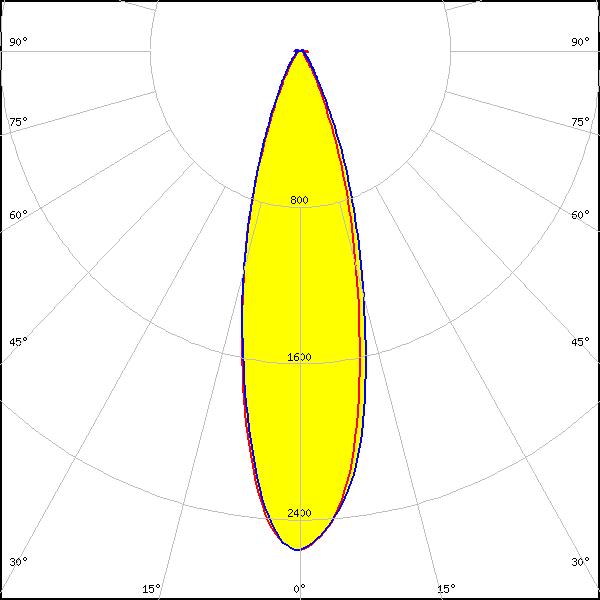

LM28xB Series
FWHM:
28°
FWTM:
56°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
