CA10560_OSS-2-SS
Print

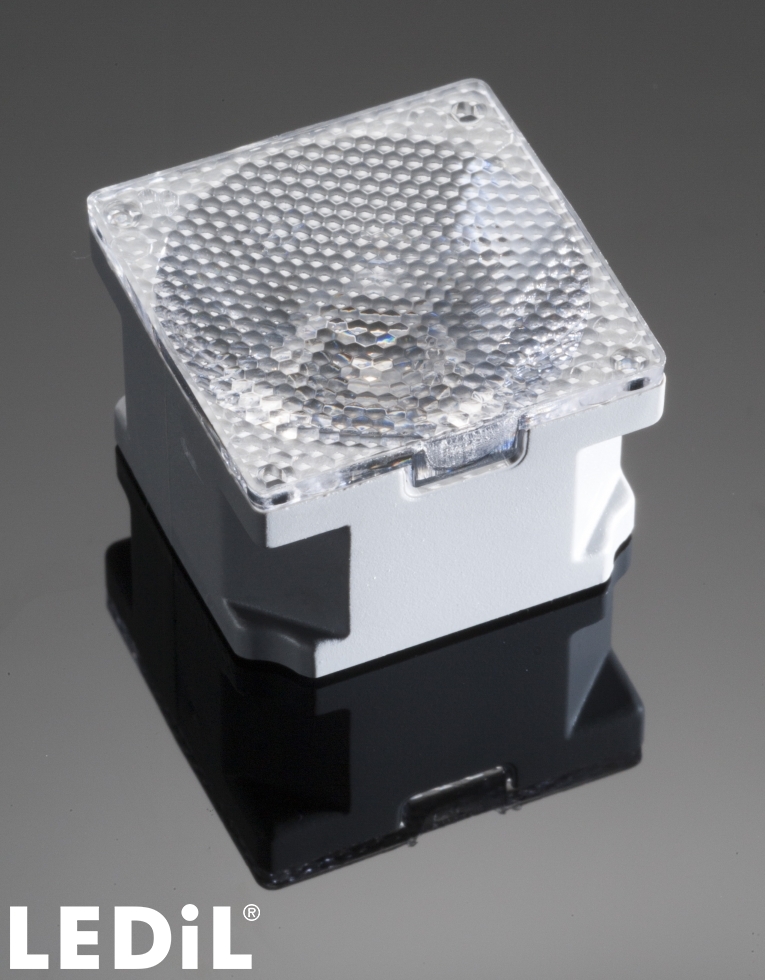

PMMA lens with ~15° smooth spot beam optimized for Osram Golden Dragon+. Assembly with white holder.
Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.
Specification
-
Dimensions:22 x 22 mm
-
Height:13.90 mm
-
Fastening:tape
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
- ROSE2-SSSingle lensPMMA
- ROSE-HLDHolderPC
- ROSE-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:1440 pcs
-
Box size:451 x 254 x 197 mm
-
Box weight:7.6 kg
-
MPQ:1440 pcs
-
MOQ:10080 pcs
-
MOQ size:451 x 254 x 197 mm
-
MOQ weight:7.6 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

LED:
Golden Dragon+
FWHM:
12°
FWTM:
22°
Peak intensity:
16.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
