CA13156_EMERALD-A
Print

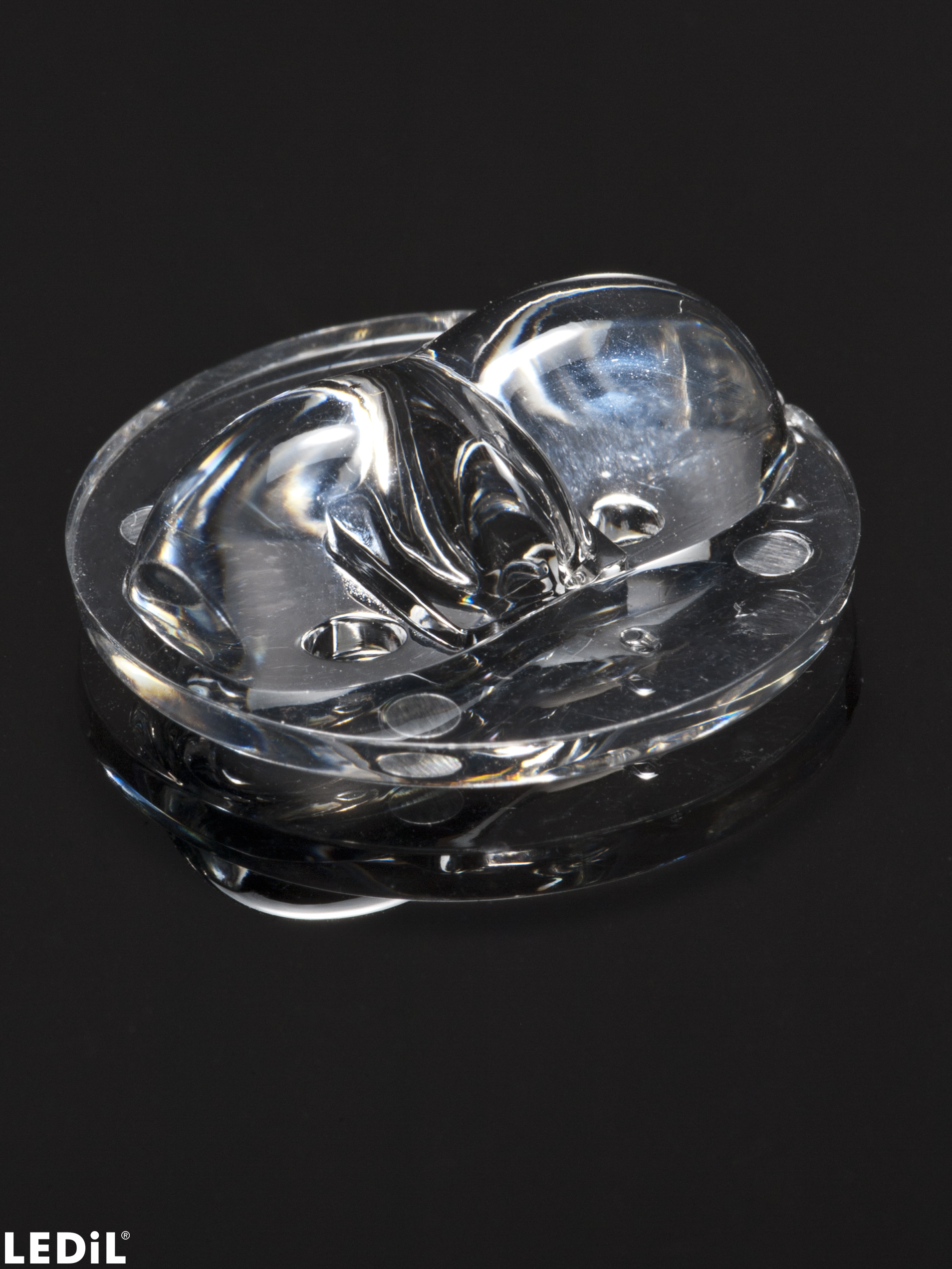

Asymmetric beam. Assembly with installation tape.
Specification
-
Dimensions:22 mm
-
Height:7.30 mm
-
Fastening:tape, pin
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
- EMERALD-ASingle lensPMMA
- HEIDI-TAPETapeAcryl tape
- Request material files from Tech Support
Ordering information
-
Quantity in box:2128 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:4.9 kg
-
MPQ:112 pcs
-
MOQ:336 pcs
-
MOQ size:480 x 280 x 70 mm
-
MOQ weight:1.1 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

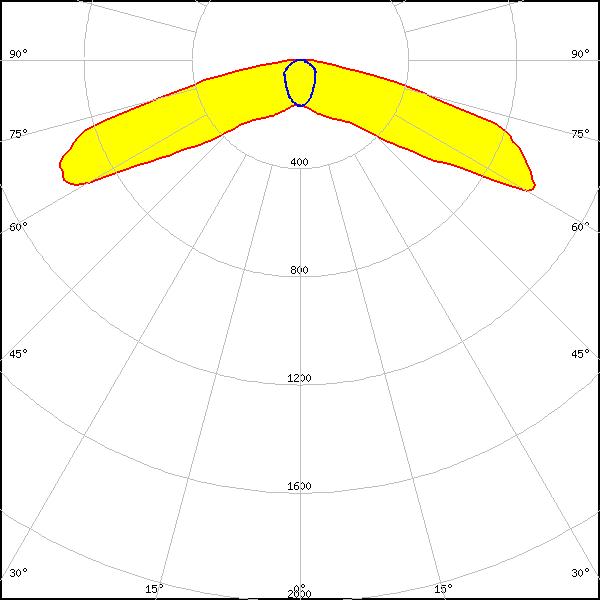

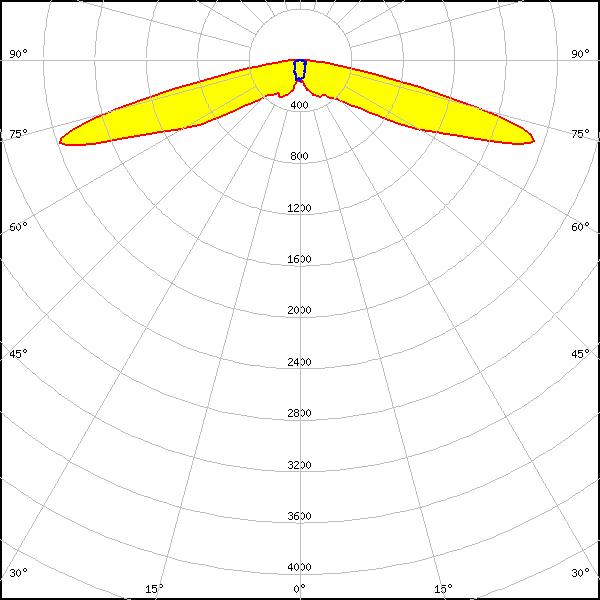

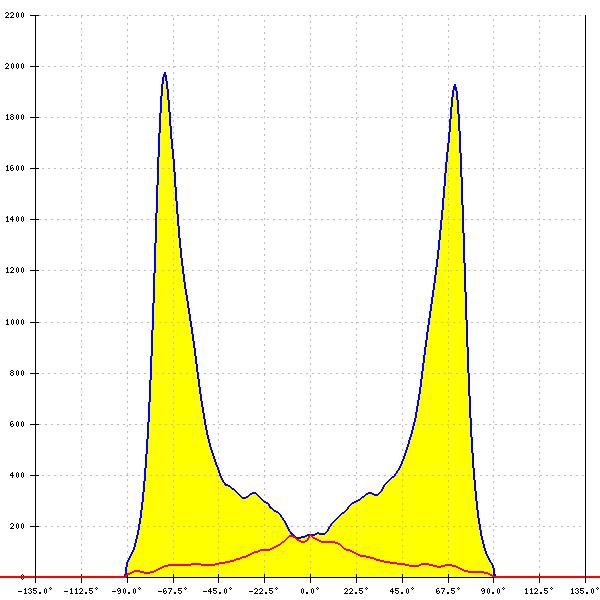

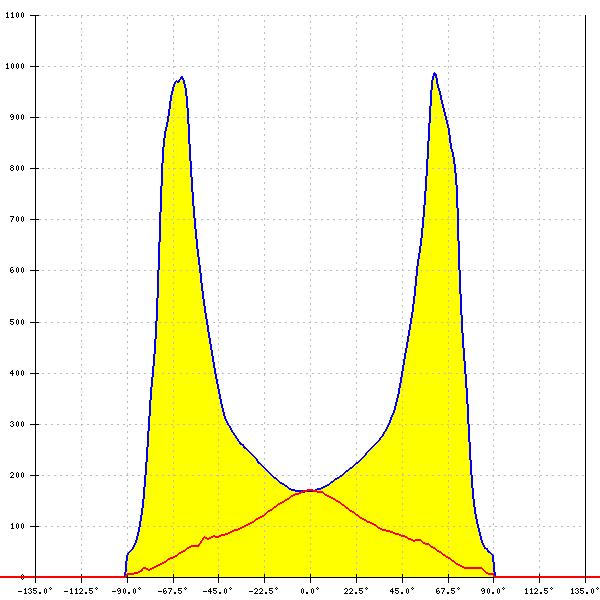

Optical results

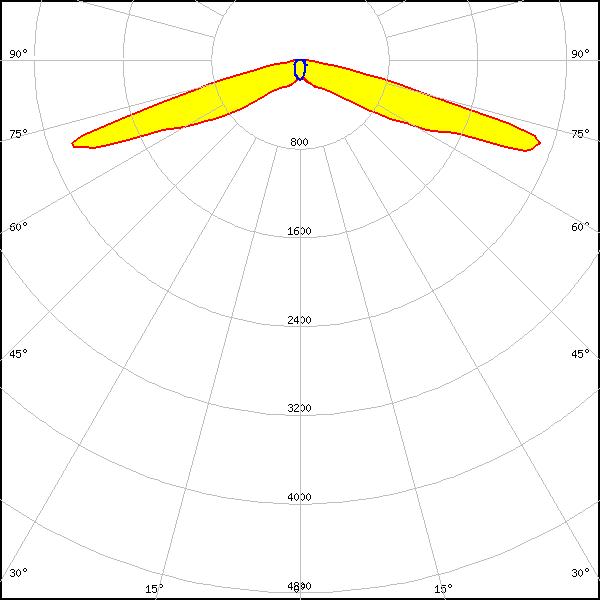

LED:

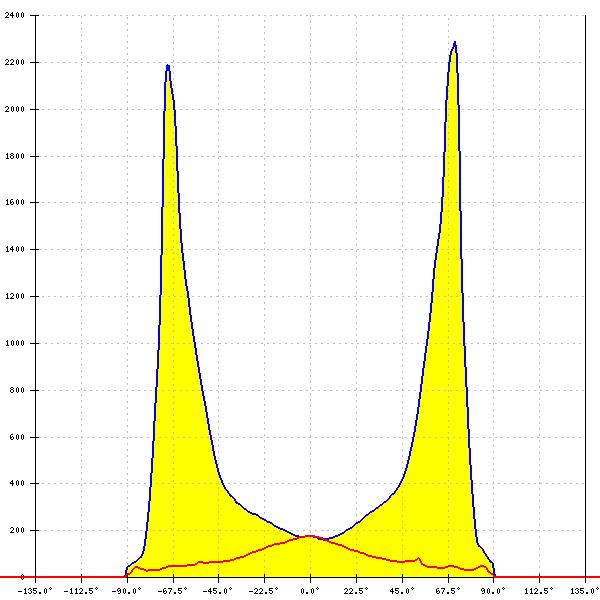

XB-D
FWHM:
150° + 63°
FWTM:
0° + 0°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

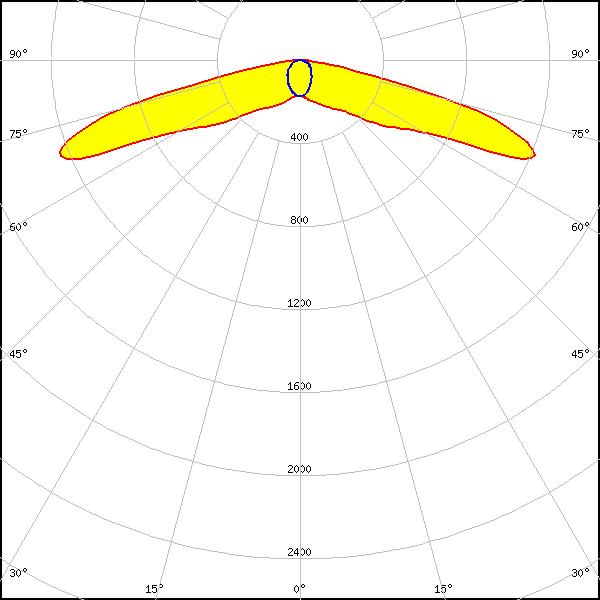

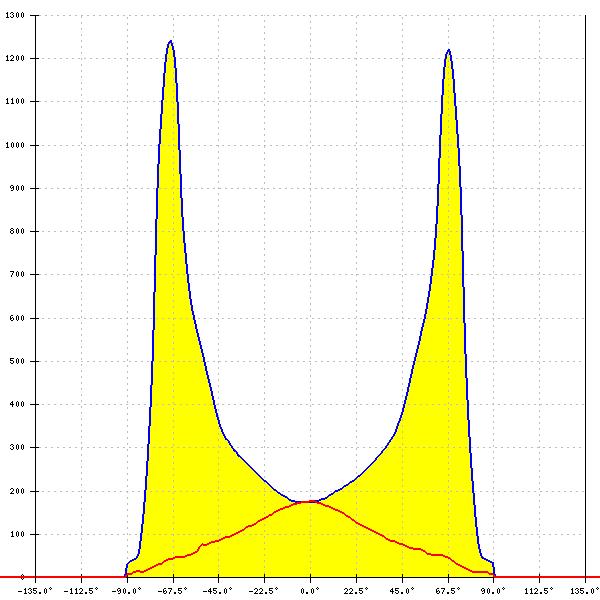

XM-L
FWHM:
152° + 81°
FWTM:
0° + 0°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:

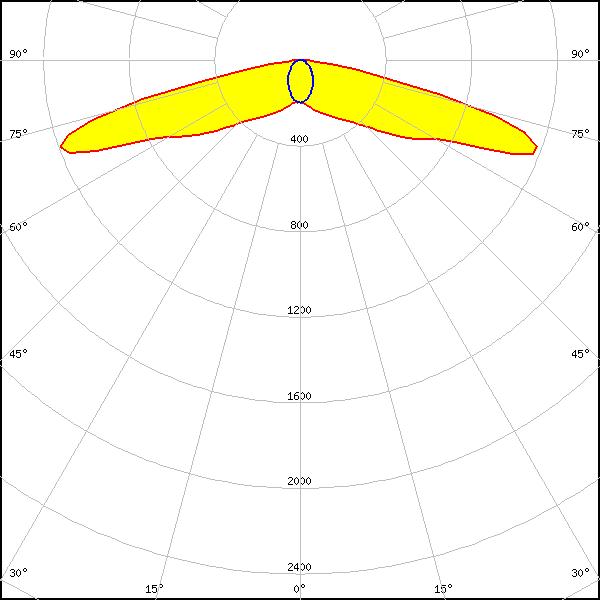

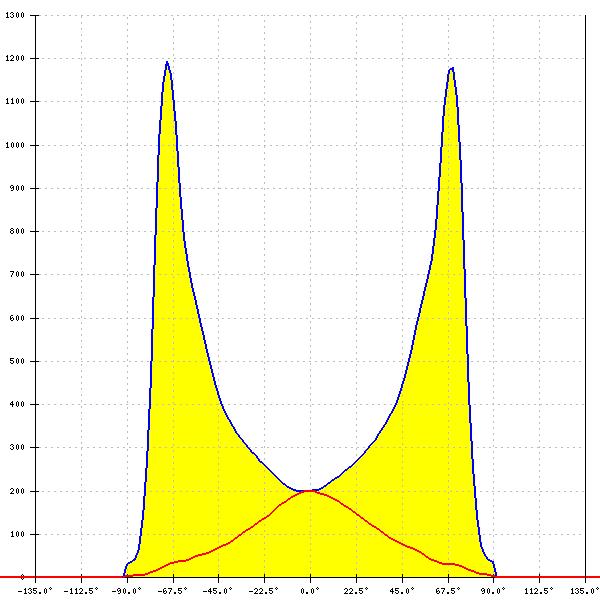

XM-L2
FWHM:
167° + 71°
FWTM:
0° + 0°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

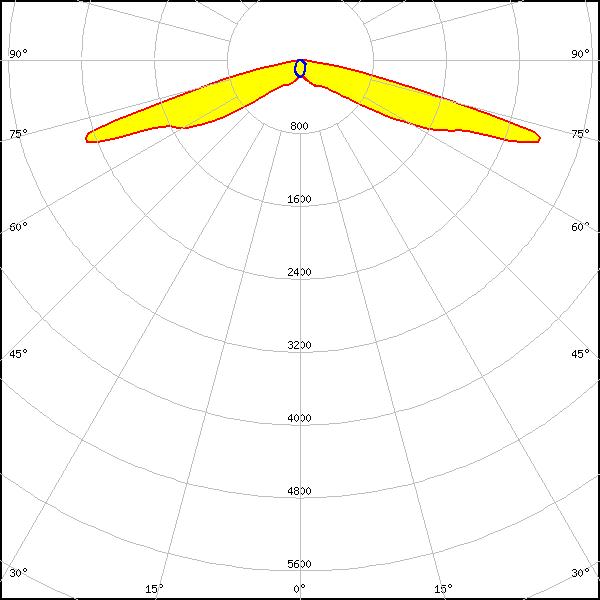

LED:

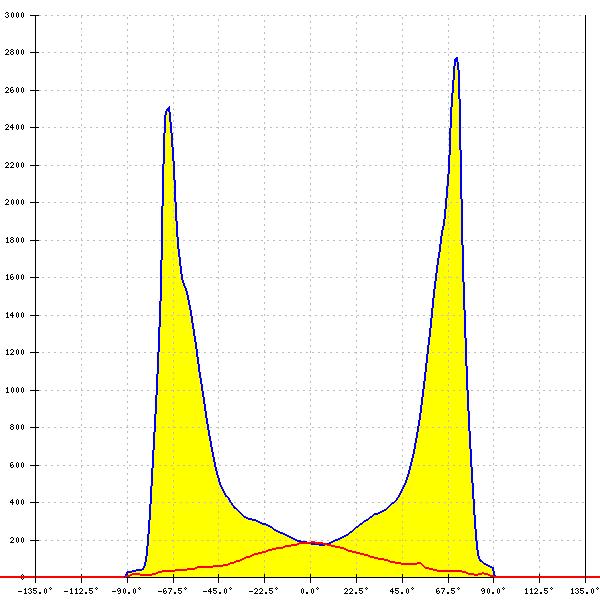

XP-E
FWHM:
152° + 71°
FWTM:
0° + 0°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:

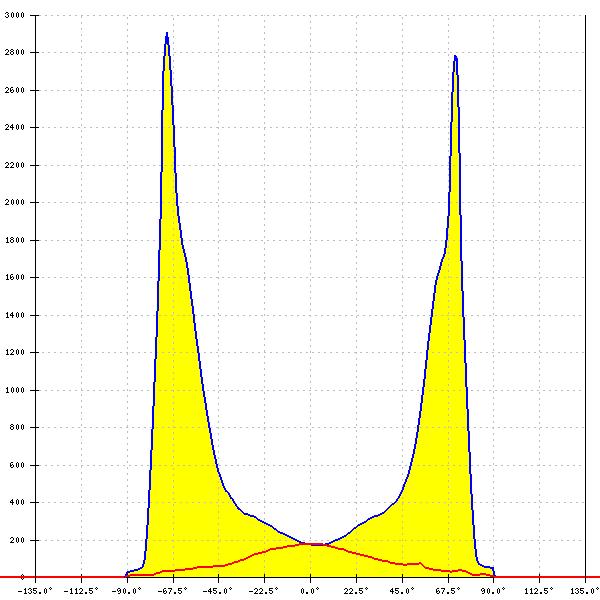

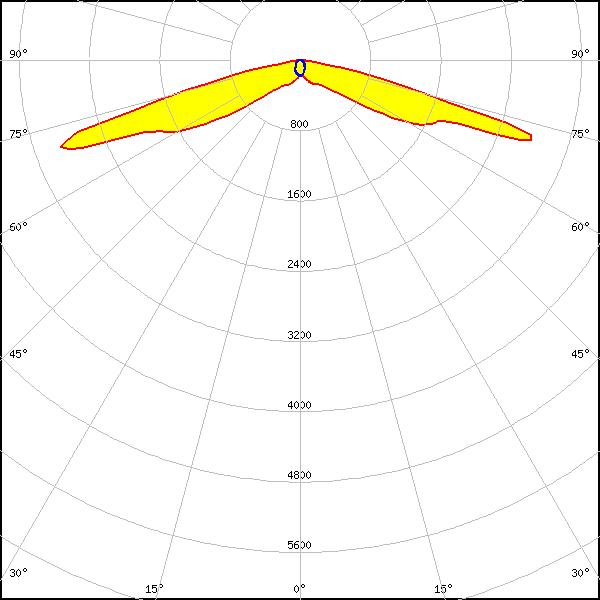

XP-E2
FWHM:
153° + 70°
FWTM:
0° + 0°
Peak intensity:
2.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

LED:

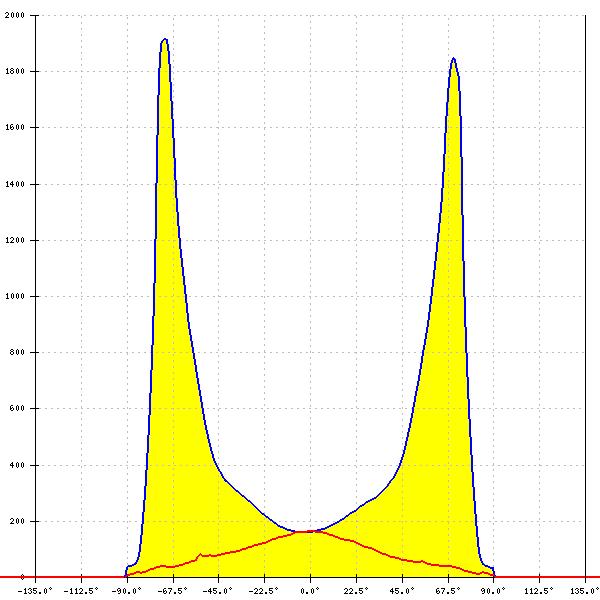

XP-G
FWHM:
153° + 92°
FWTM:
0° + 0°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

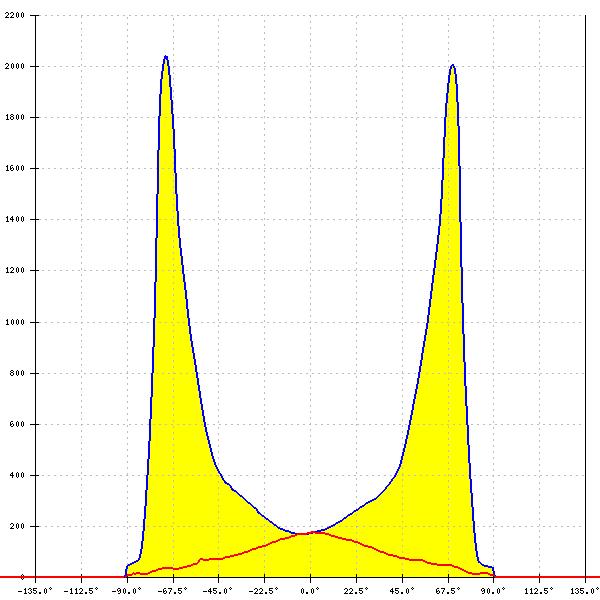

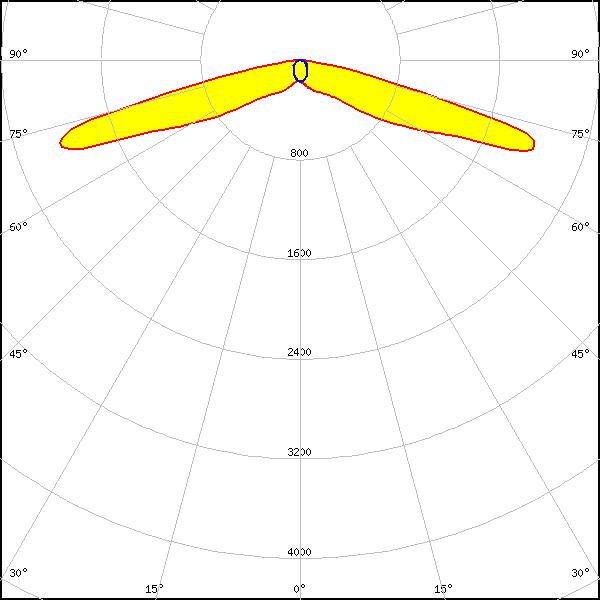

XP-G2
FWHM:
151° + 75°
FWTM:
0° + 0°
Peak intensity:
2.040 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

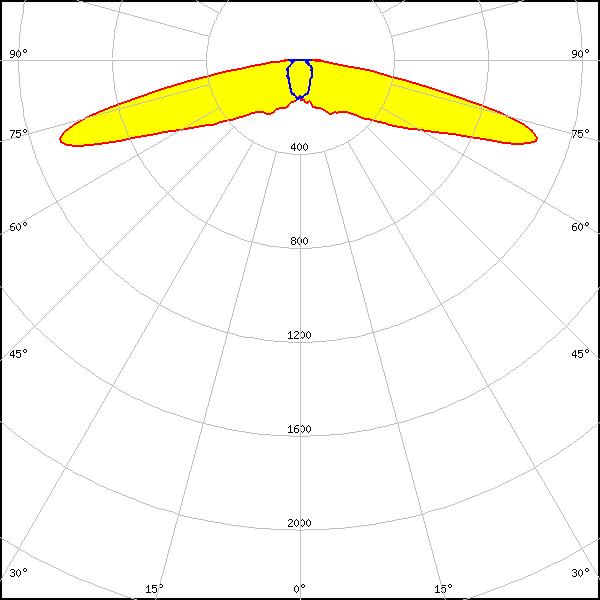

LED:

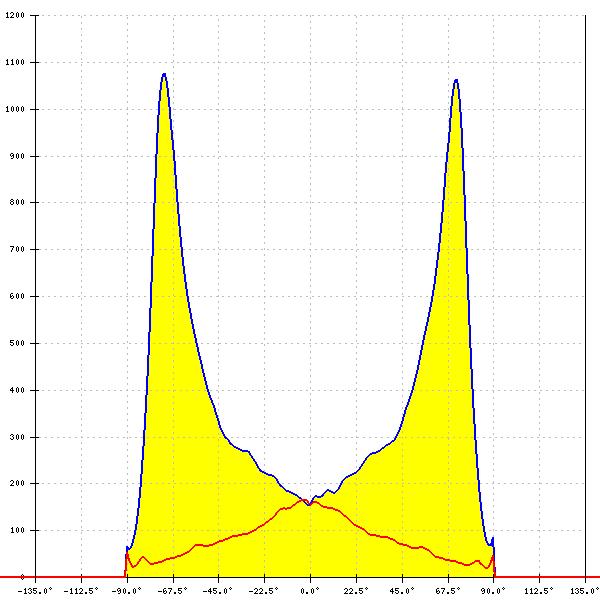

XP-G3
FWHM:
157° + 79°
FWTM:
171° + 182°
Peak intensity:
1.075 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

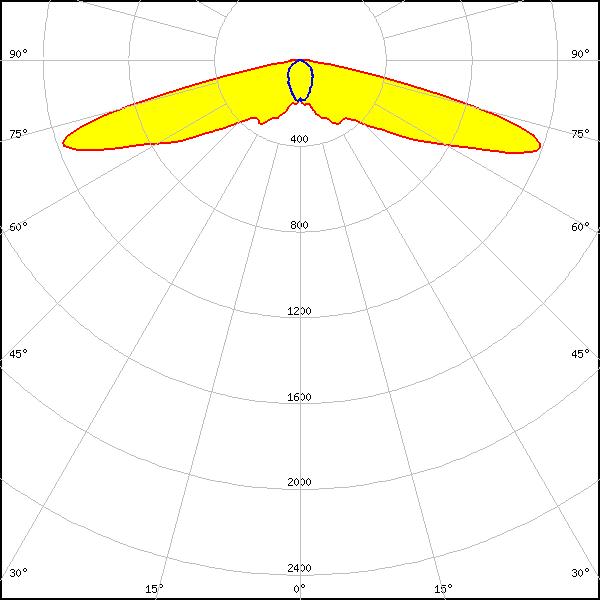

LED:

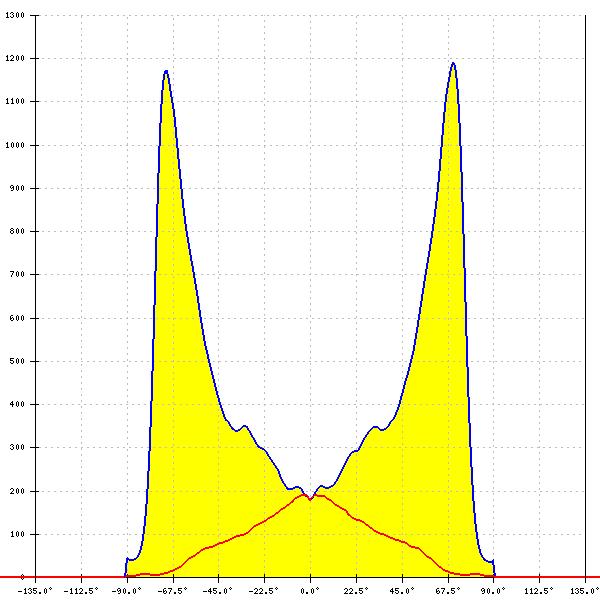

XP-G4
FWHM:
153° + 73°
FWTM:
162° + 131°
Peak intensity:
1.191 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:

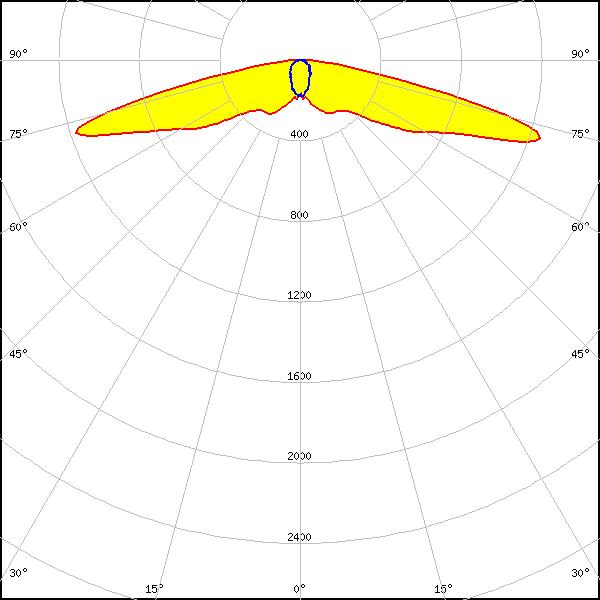

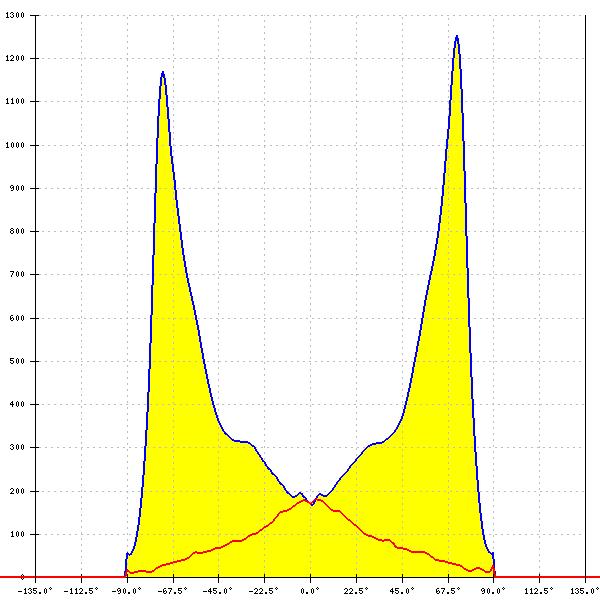

XP-L HI
FWHM:
156° + 64°
FWTM:
168° + 166°
Peak intensity:
1.254 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

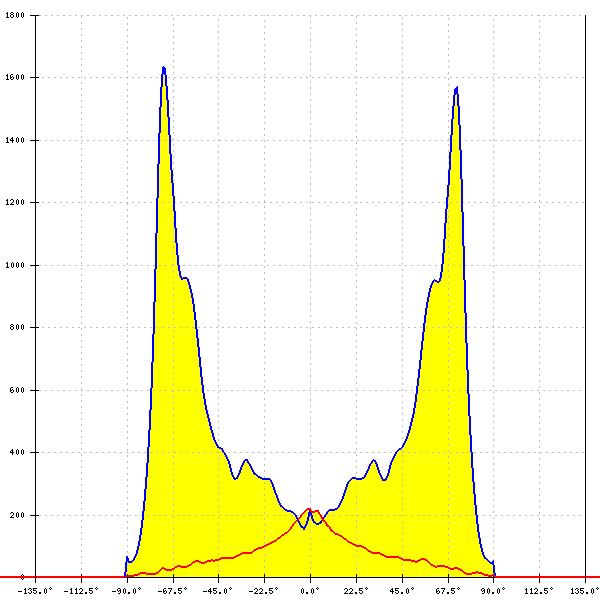

LED:

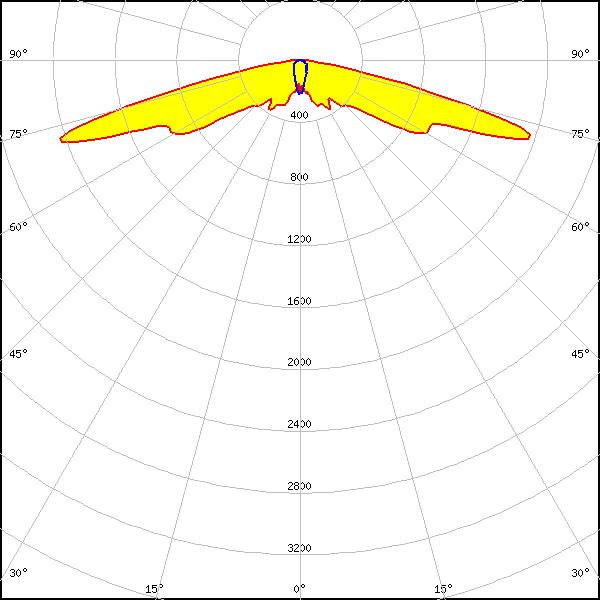

XP-P
FWHM:
153° + 39°
FWTM:
165° + 148°
Peak intensity:
1.633 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

LED:

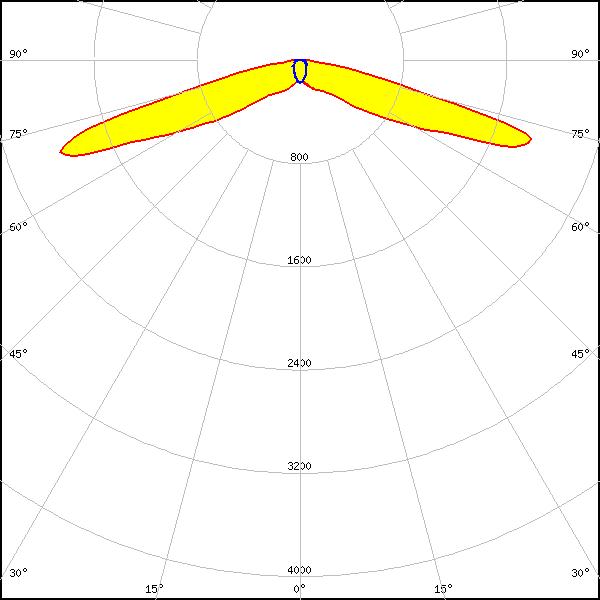

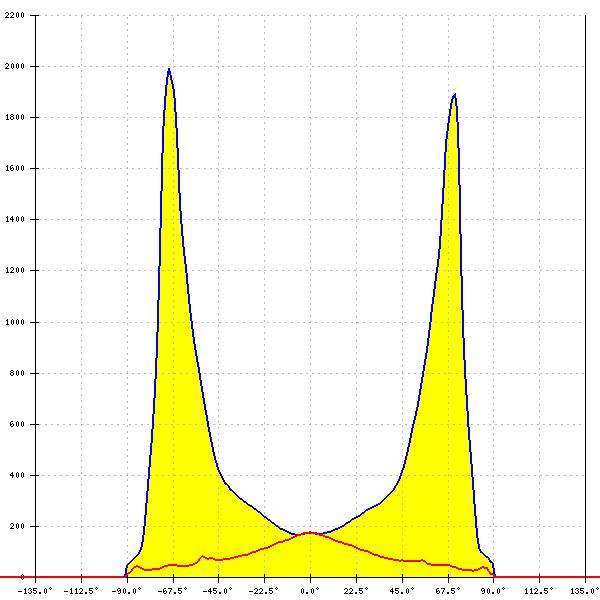

XT-E
FWHM:
150° + 64°
FWTM:
0° + 0°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

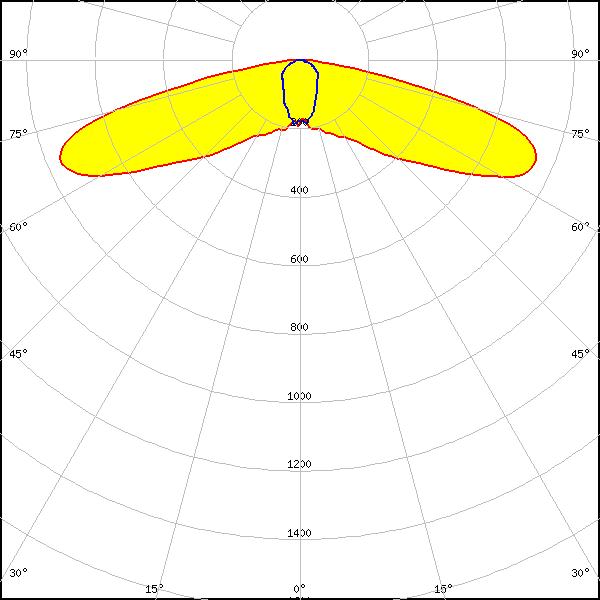

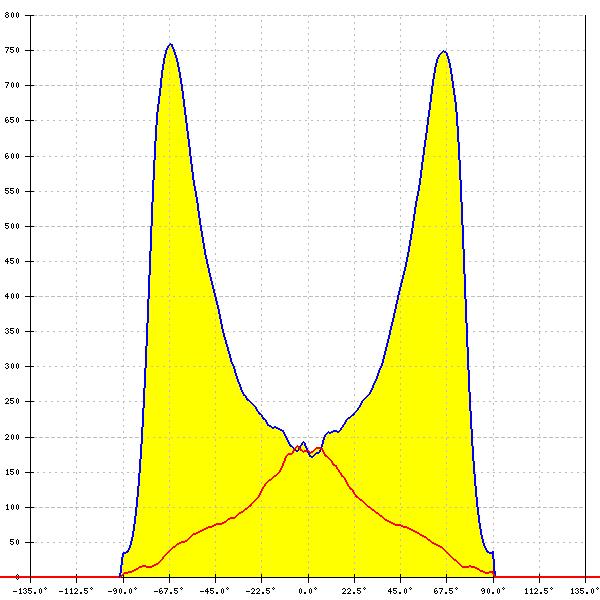

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.760 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

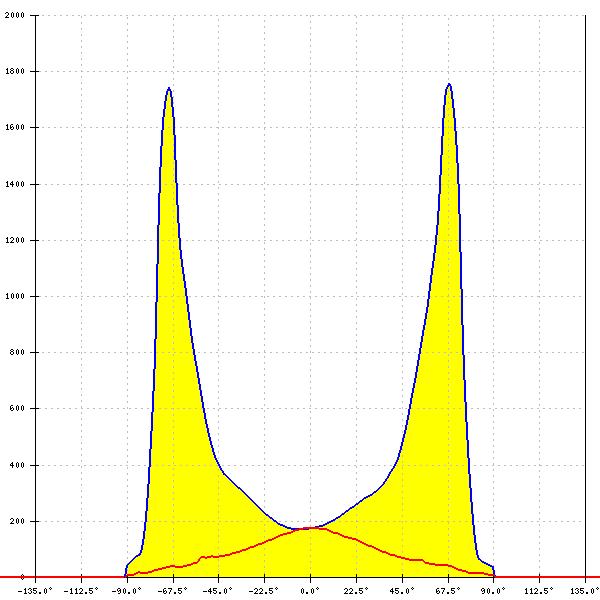

LED:

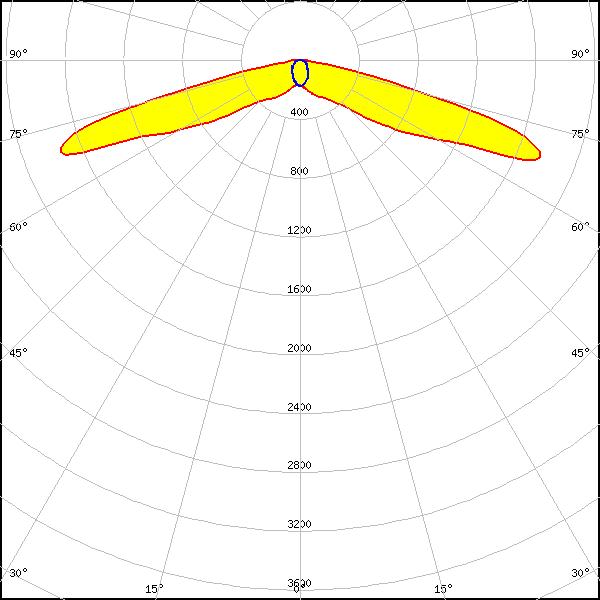

LUXEON A
FWHM:
151° + 73°
FWTM:
0° + 0°
Peak intensity:
1.750 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

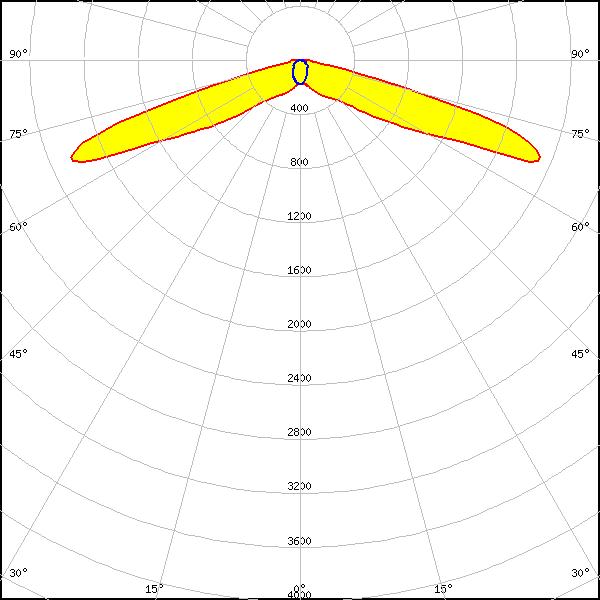

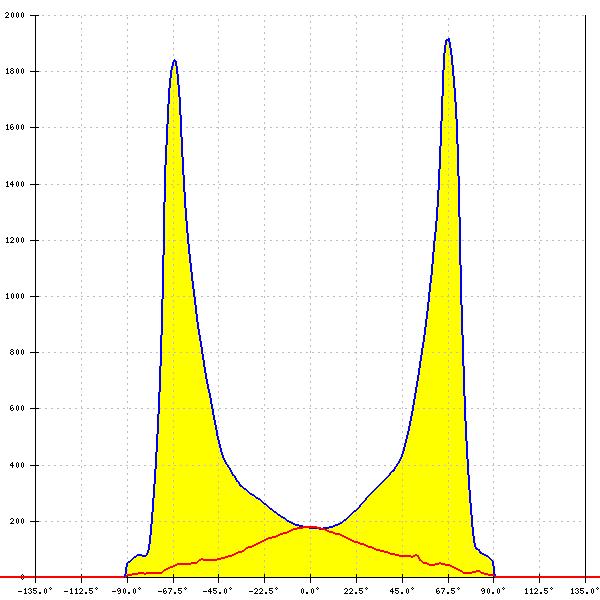

LED:
LUXEON R
FWHM:
147° + 71°
FWTM:
0° + 0°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:

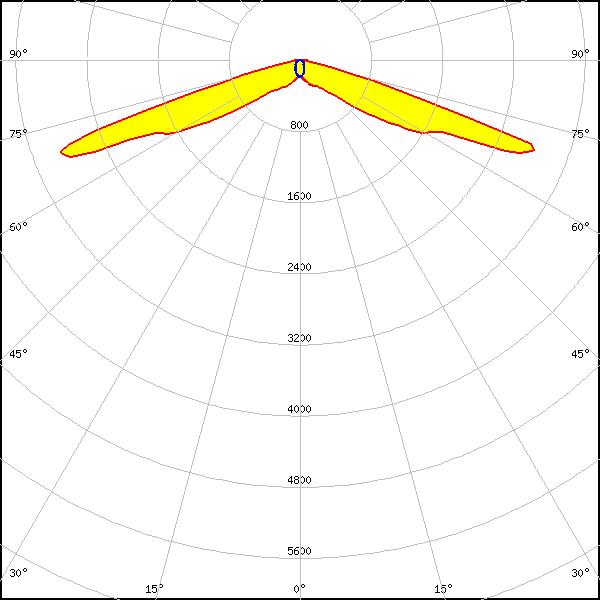

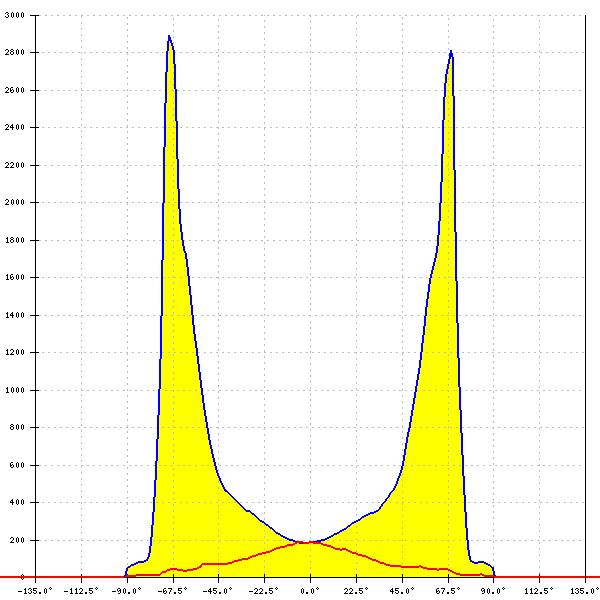

LUXEON Rebel
FWHM:
146° + 64°
FWTM:
0° + 0°
Peak intensity:
2.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

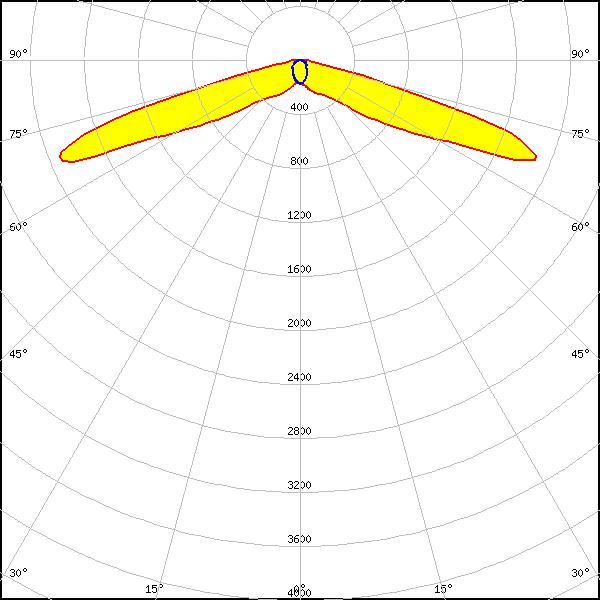

LED:

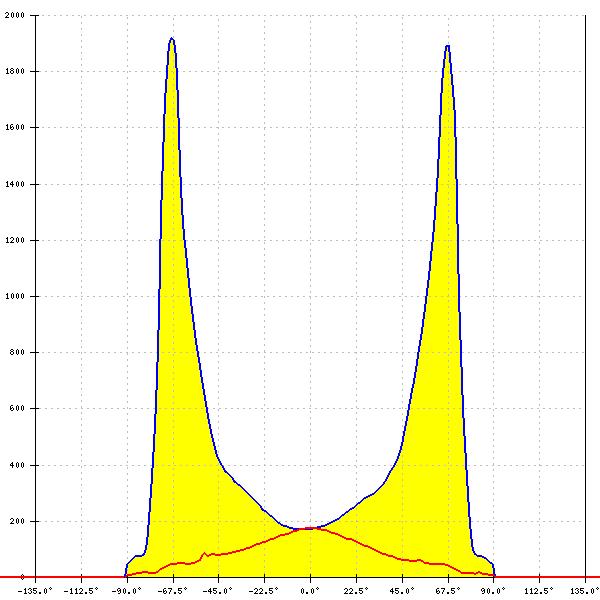

LUXEON Rebel ES
FWHM:
147° + 73°
FWTM:
0° + 0°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

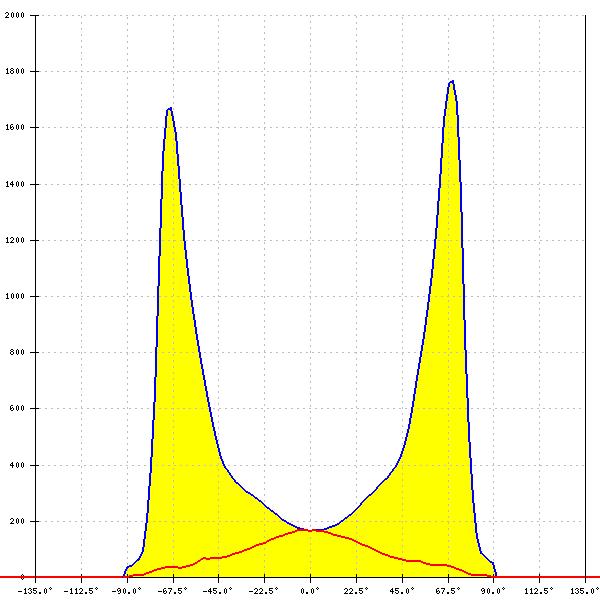

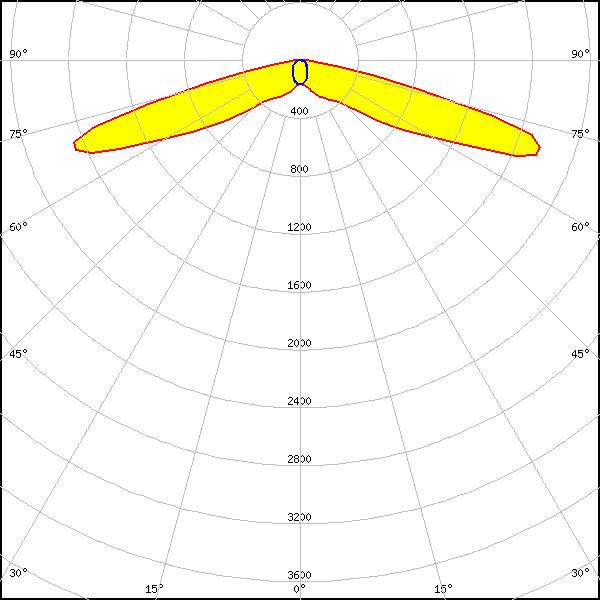

LED:
LUXEON T
FWHM:
151° + 75°
FWTM:
0° + 0°
Peak intensity:
1.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

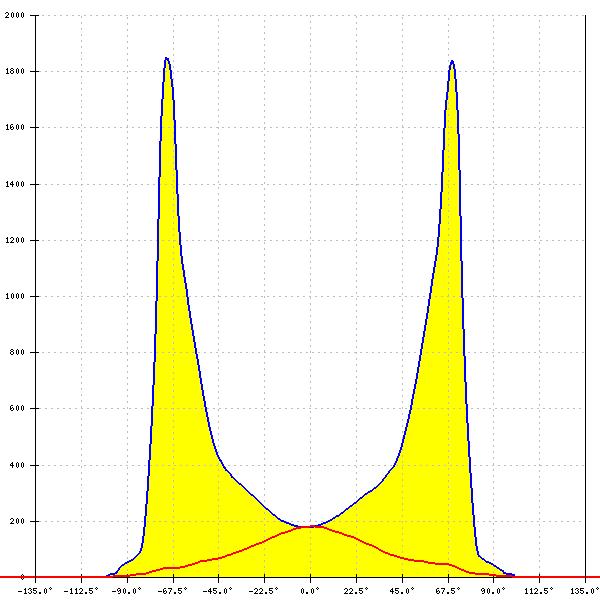

LED:

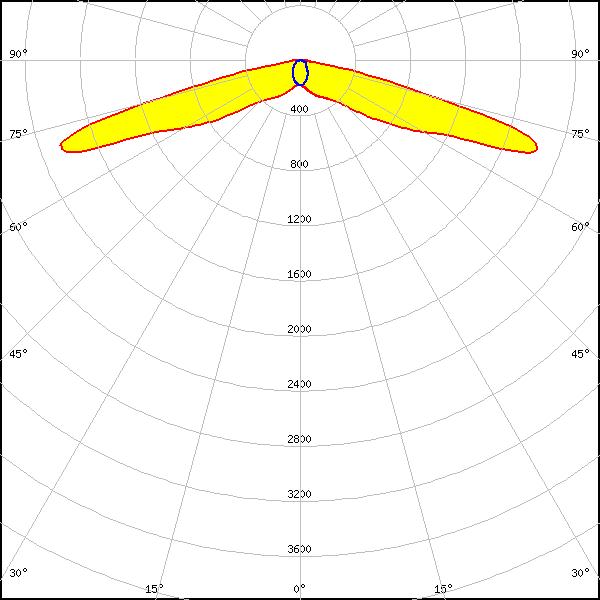

LUXEON TX
FWHM:
151° + 71°
FWTM:
0° + 0°
Peak intensity:
1.850 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:

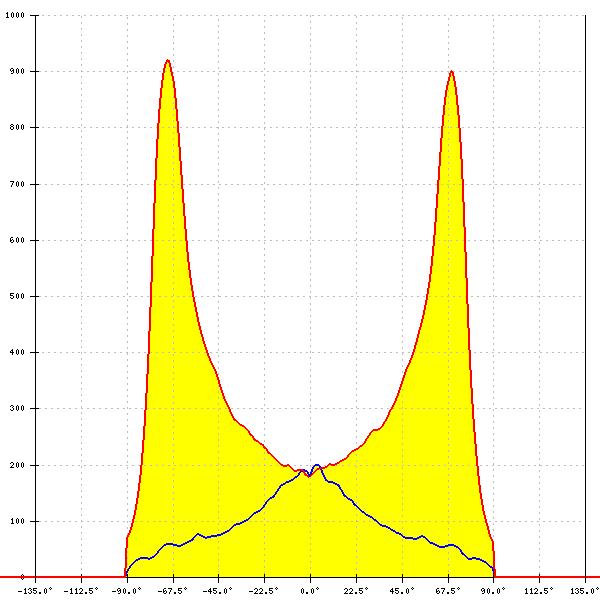

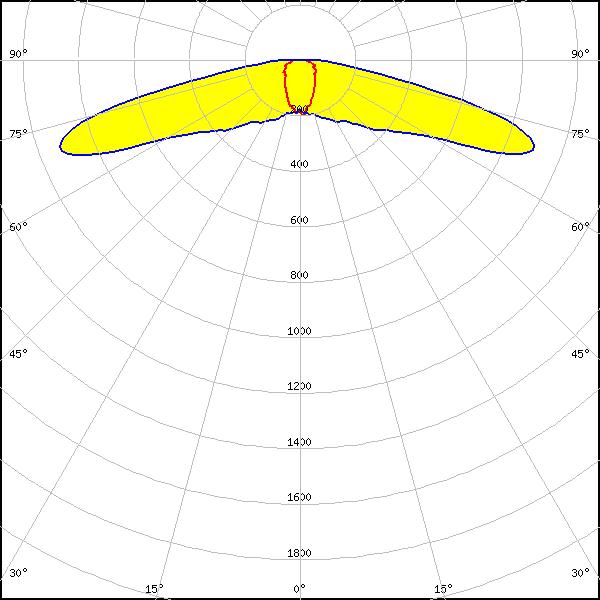

LUXEON V
FWHM:
64° + 156°
FWTM:
176° + 175°
Peak intensity:
0.921 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

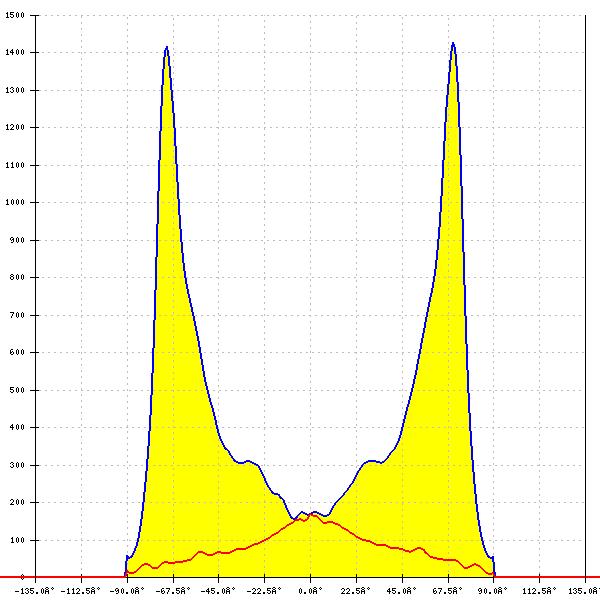

LED:

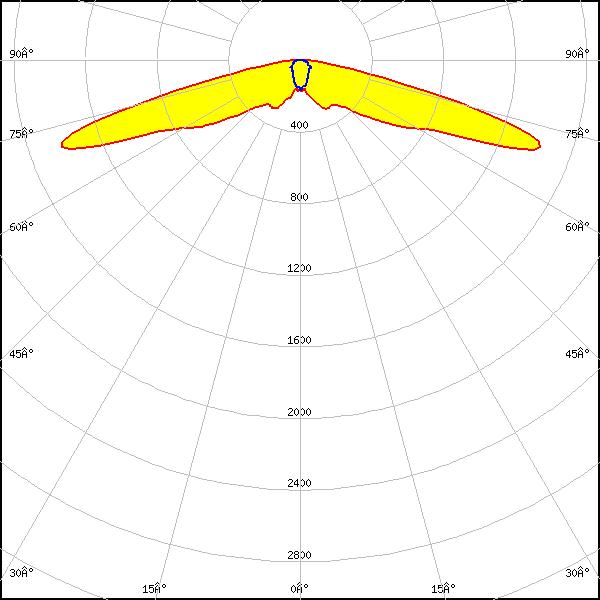

SST-20 Gen1
FWHM:
152° + 64°
FWTM:
166° + 170°
Peak intensity:
1.427 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

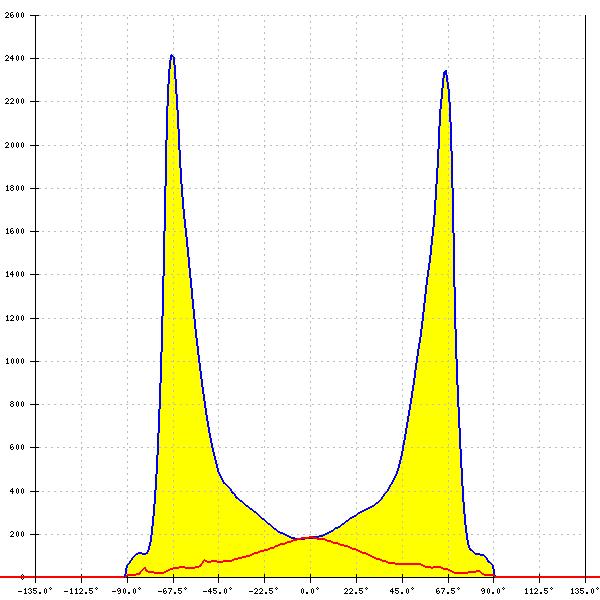

LED:

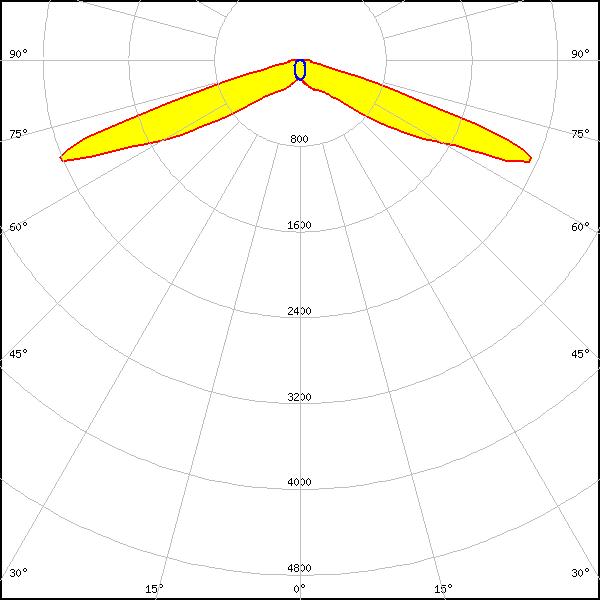

NCSxx19A
FWHM:
145° + 64°
FWTM:
0° + 0°
Peak intensity:
2.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

LED:
NS9x383
FWHM:
150° + 82°
FWTM:
0° + 0°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

LED:

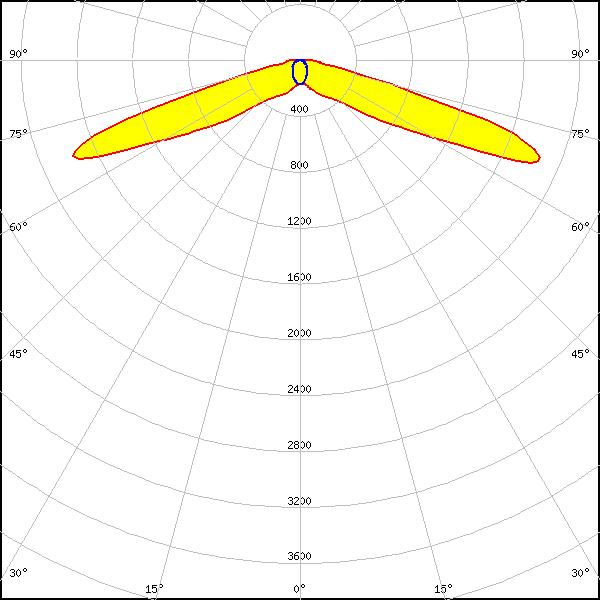

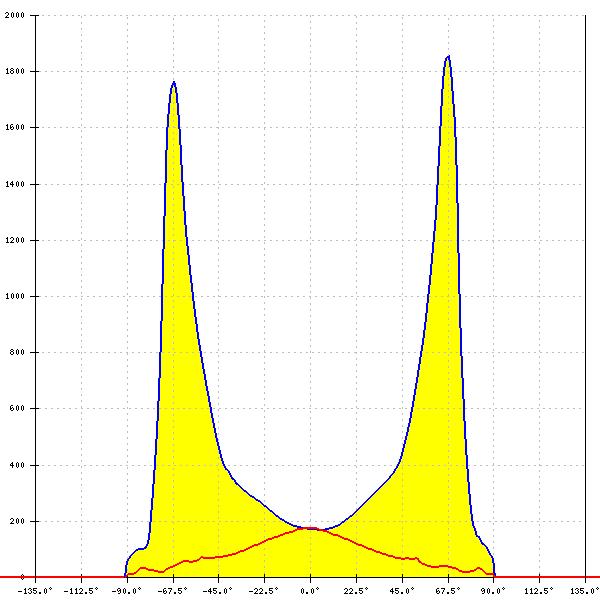

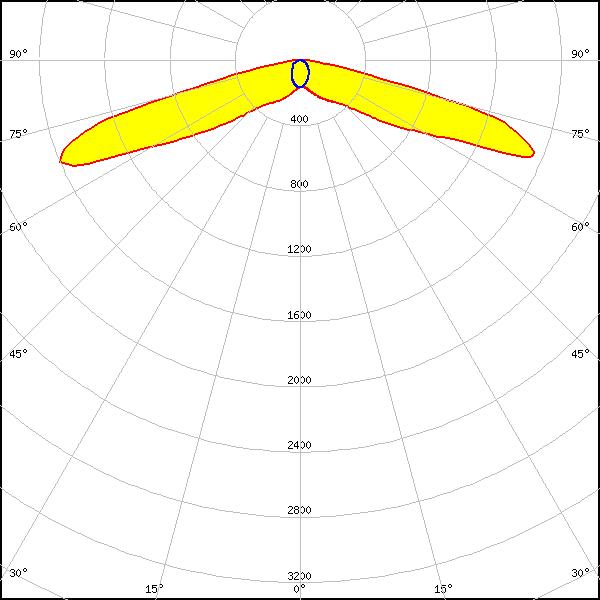

NVSxx19A
FWHM:
147° + 70°
FWTM:
0° + 0°
Peak intensity:
1.850 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

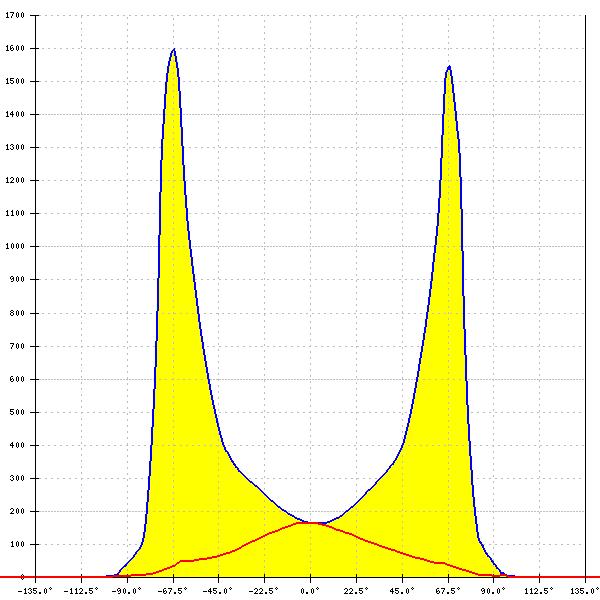

LED:
NVSxx19B/NVSxx19C
FWHM:
151° + 77°
FWTM:
163° + 152°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

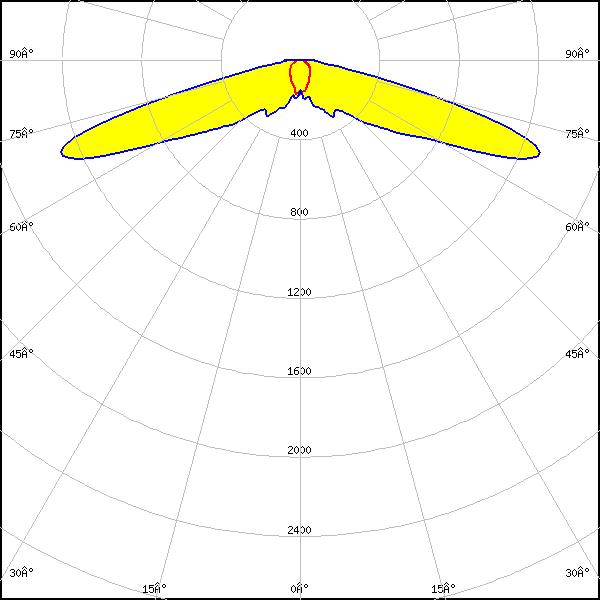

LED:

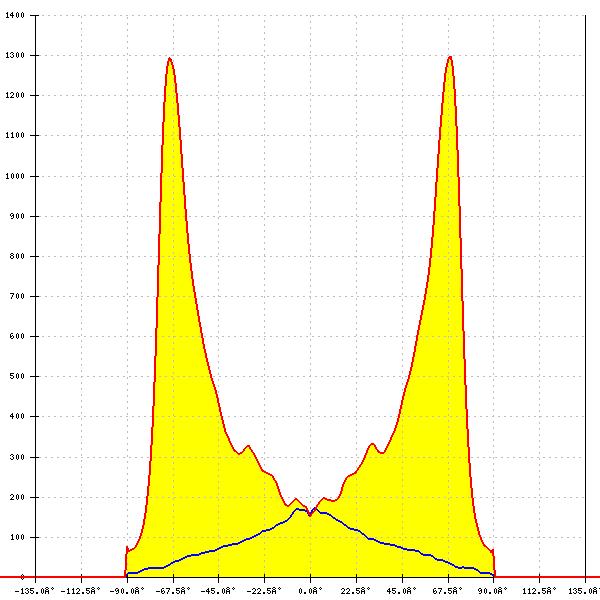

OSCONIQ P 3737 Gen2
FWHM:
150° + 68°
FWTM:
164° + 164°
Peak intensity:
1.296 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

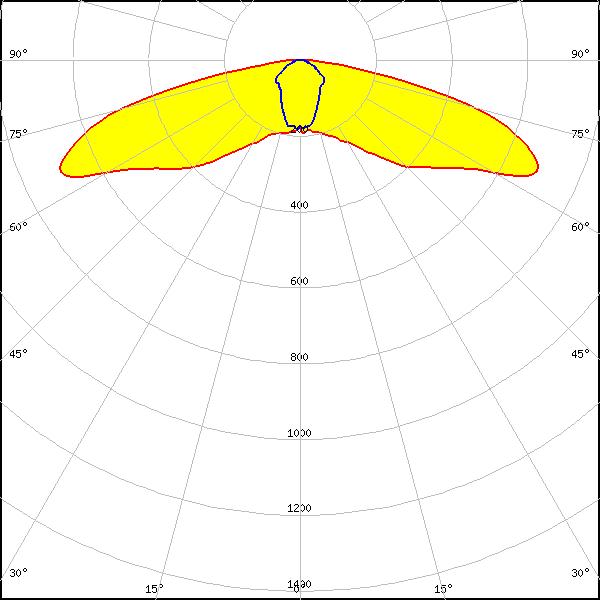

LED:

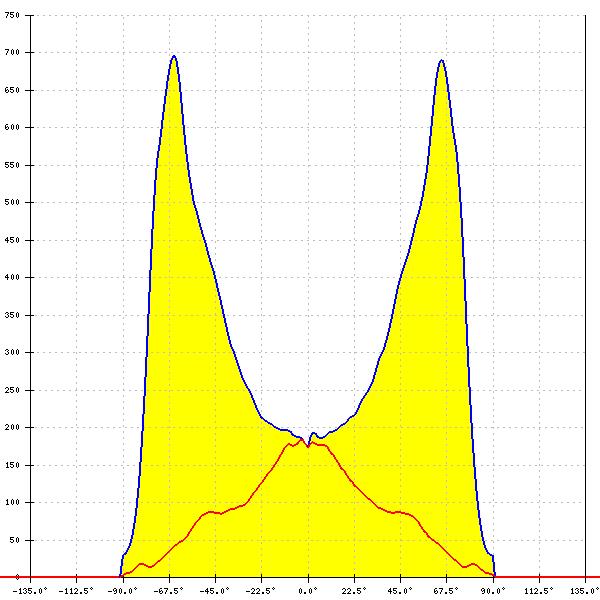

OSCONIQ S 5050 (Q9LR32)
FWHM:
154° + 72°
FWTM:
168° + 154°
Peak intensity:
0.697 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

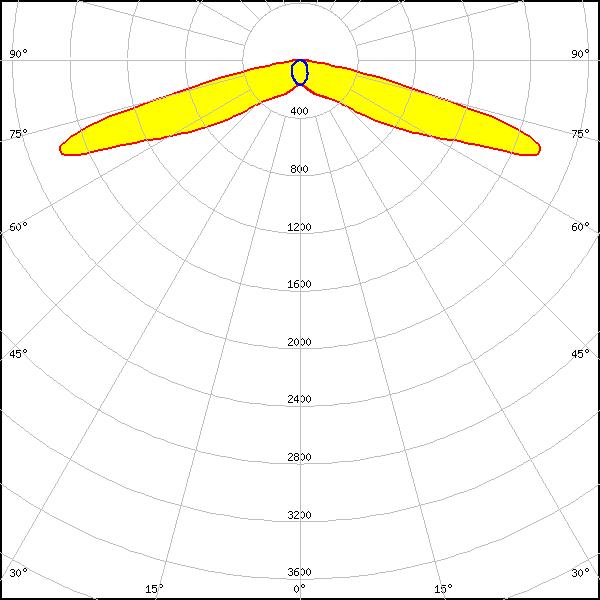

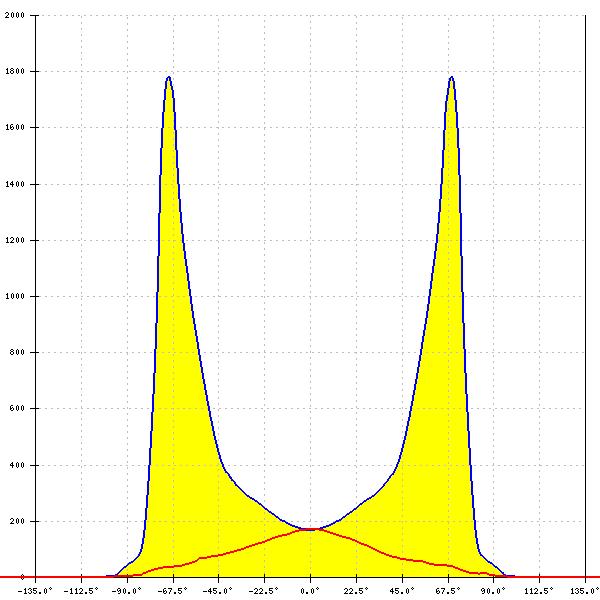

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
152° + 76°
FWTM:
163° + 158°
Peak intensity:
1.780 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

LED:

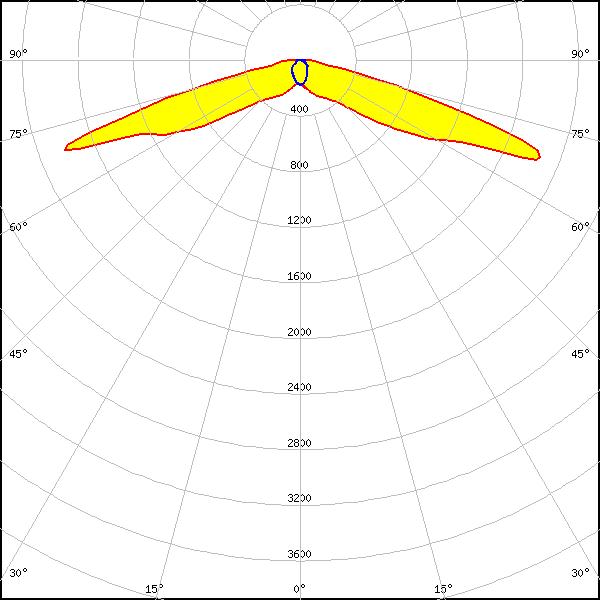

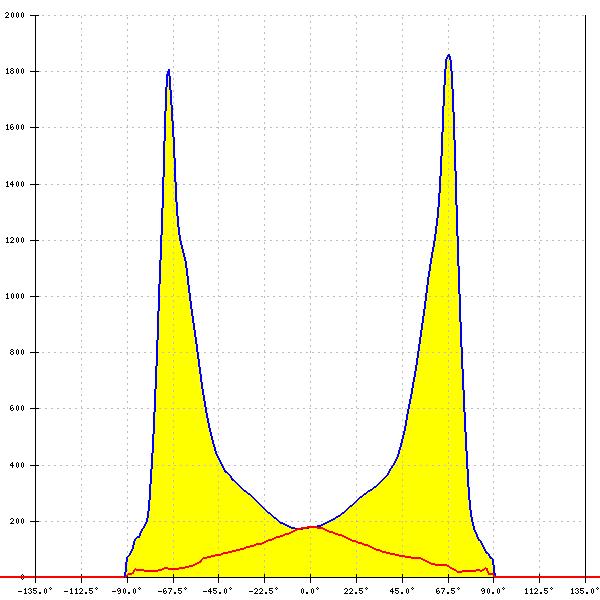

OSLON Square EC
FWHM:
150° + 76°
FWTM:
0° + 0°
Peak intensity:
1.850 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

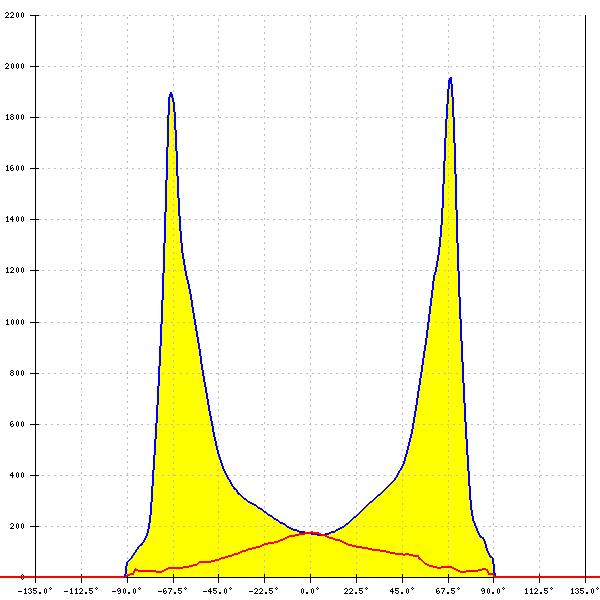

LED:

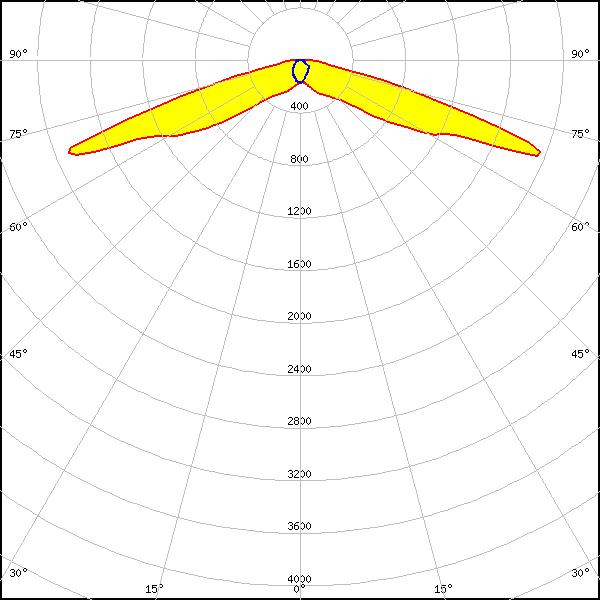

OSLON Square PC
FWHM:
150° + 86°
FWTM:
0° + 0°
Peak intensity:
2.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

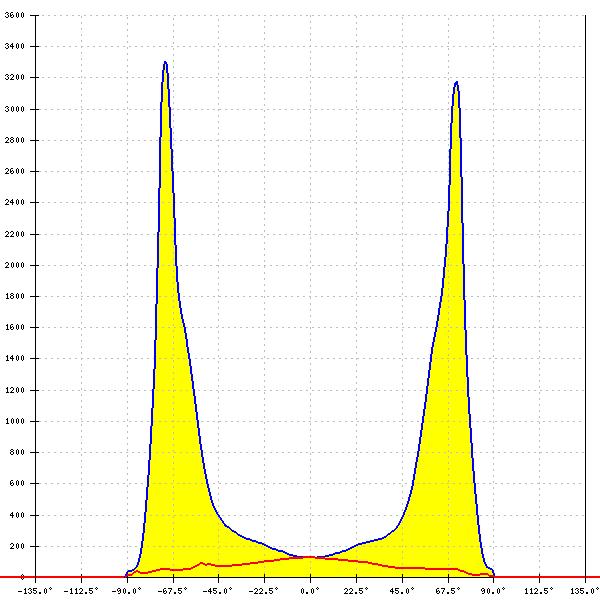

LED:

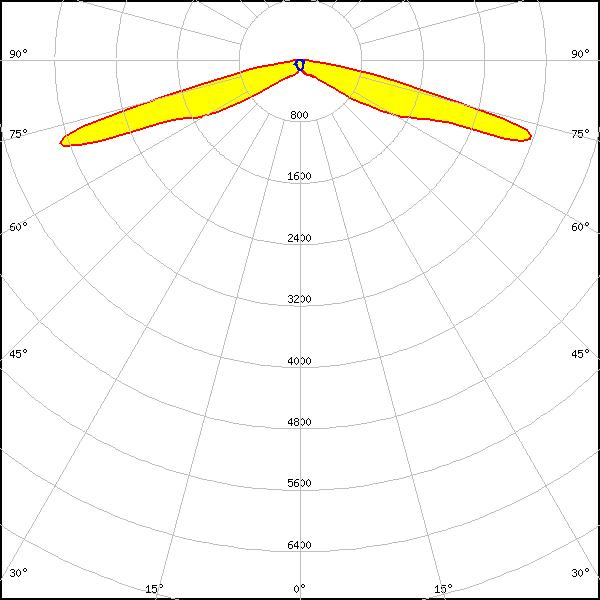

OSLON SSL 150
FWHM:
152° + 99°
FWTM:
0° + 0°
Peak intensity:
2.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

LED:

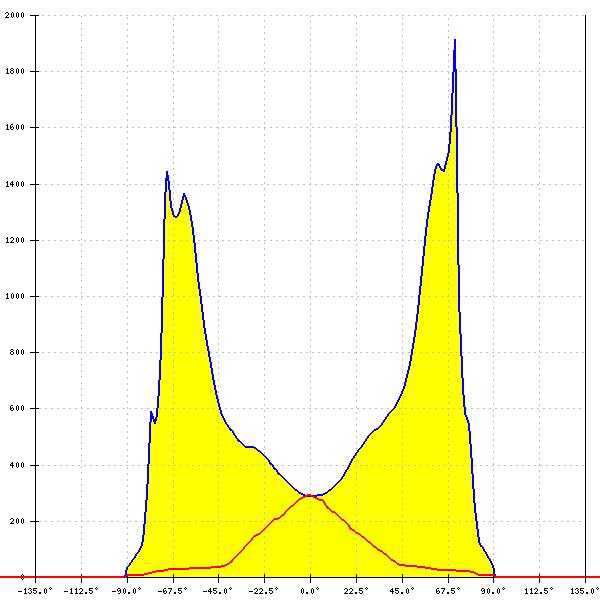

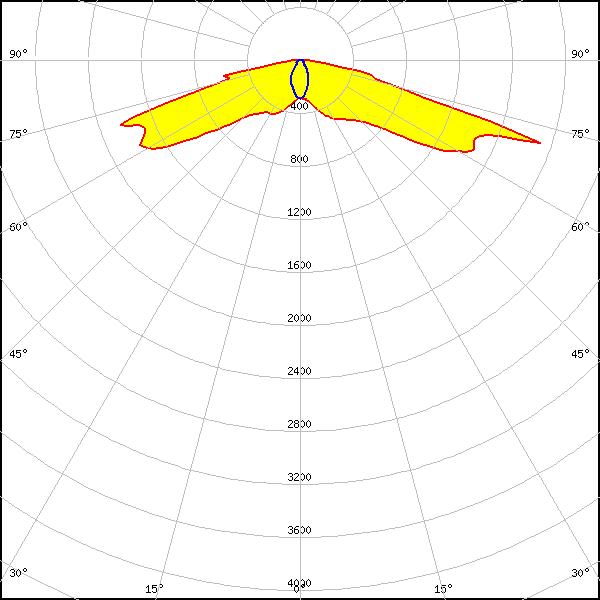

OSLON SSL 80
FWHM:
148° + 53°
FWTM:
0° + 0°
Peak intensity:
2.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

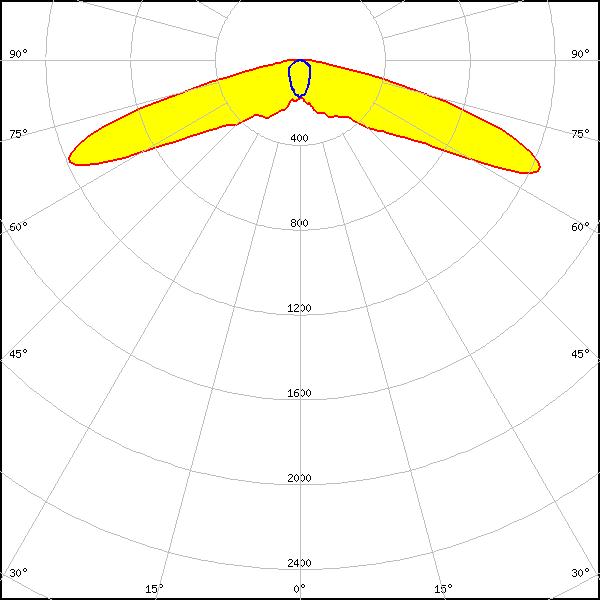

LED:

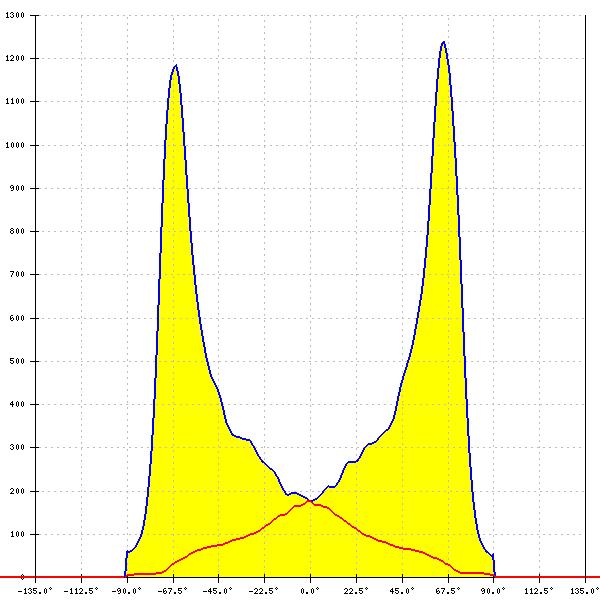

Z5M4
FWHM:
149° + 67°
FWTM:
164° + 140°
Peak intensity:
1.238 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

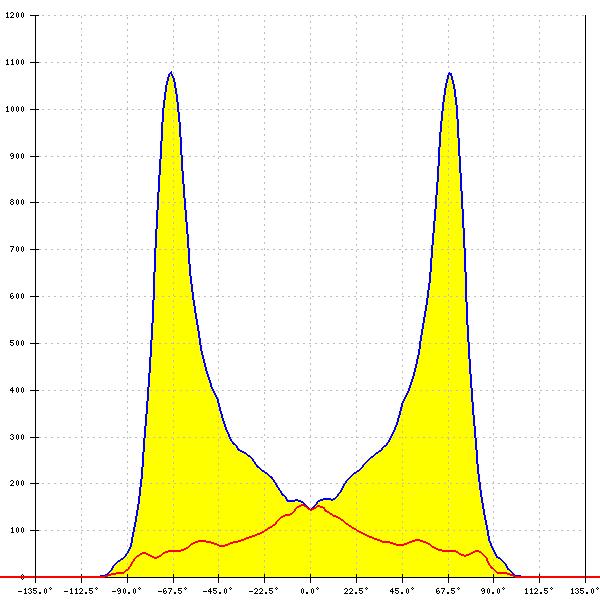

LED:

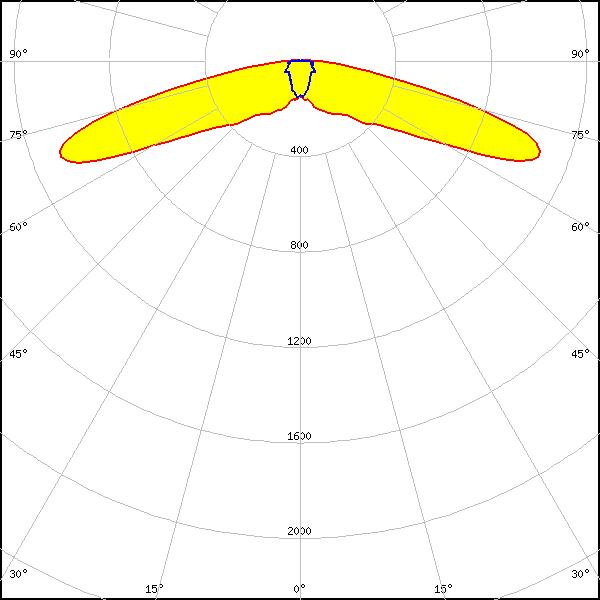

Z8Y22P
FWHM:
155° + 111°
FWTM:
172° + 180°
Peak intensity:
1.079 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
