    CA13177_RITA-WAS

    Print

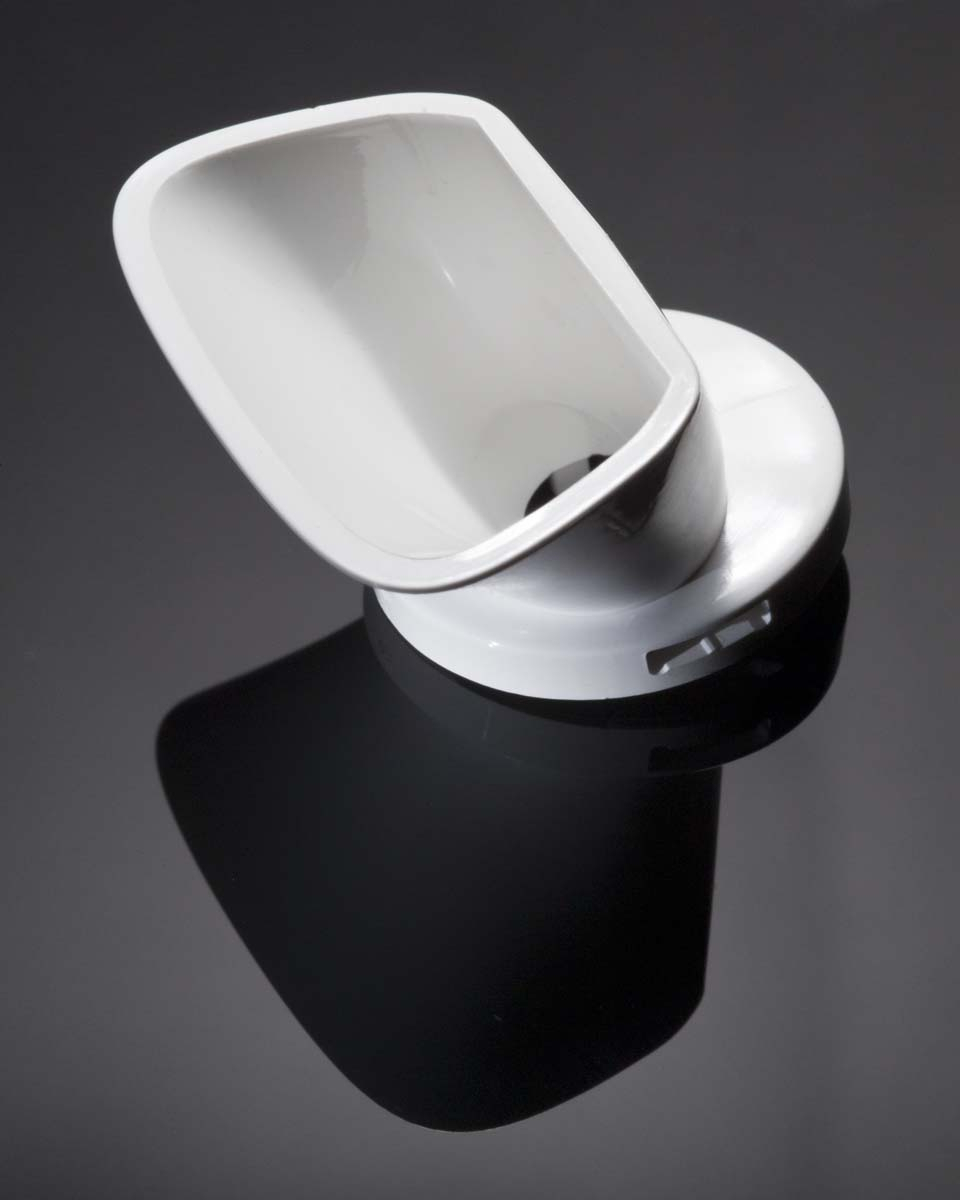

    Asymmetric beam for wall washing. Assembly with installation tape.

    Specification
    • Dimensions:
      32 x  28 mm
    • Height:
      17.30 mm
    • Fastening:
      tape, pin
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      900 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.4 kg
    • MPQ:
      60 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 140 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13177_RITA-WAS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - RITA-WAS

    Application area

    Indoor Architectural Lighting

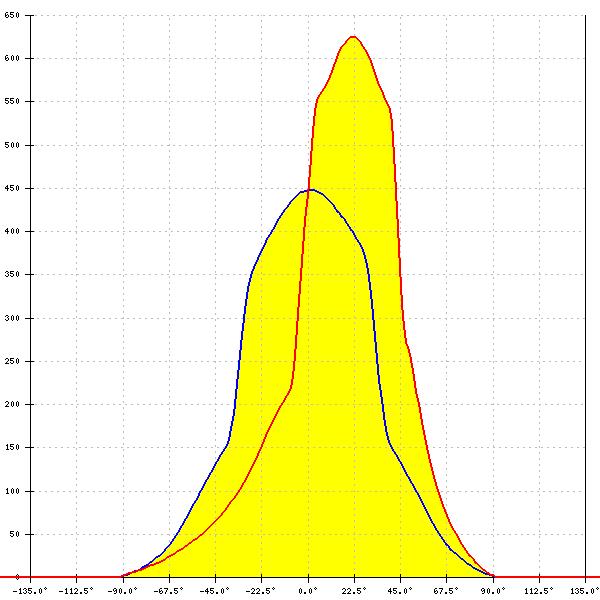

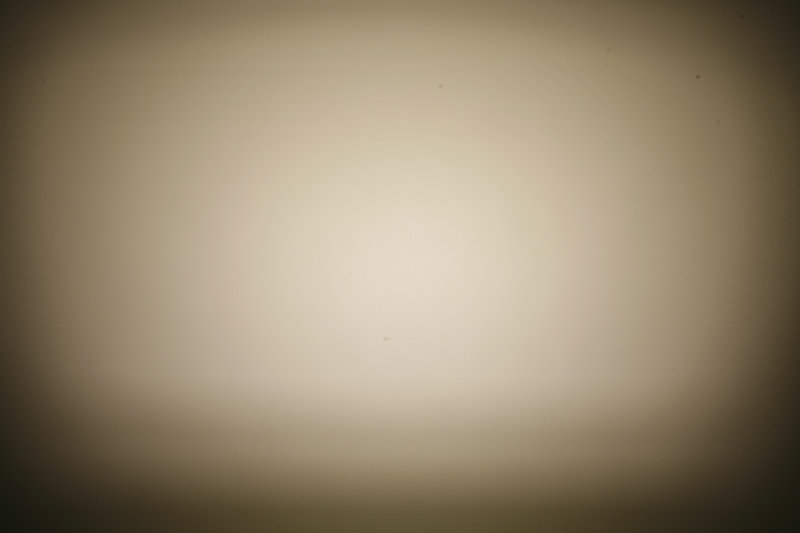

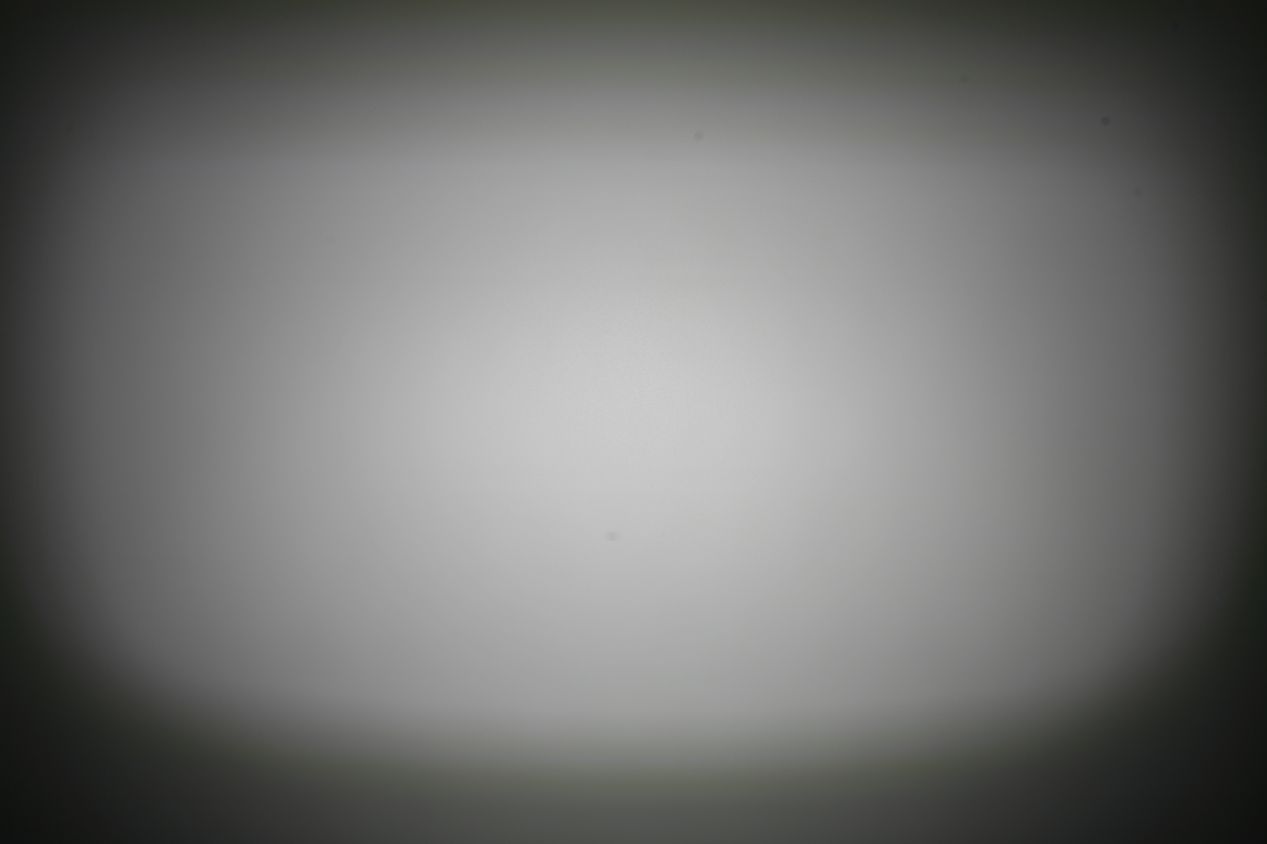

    Optical results

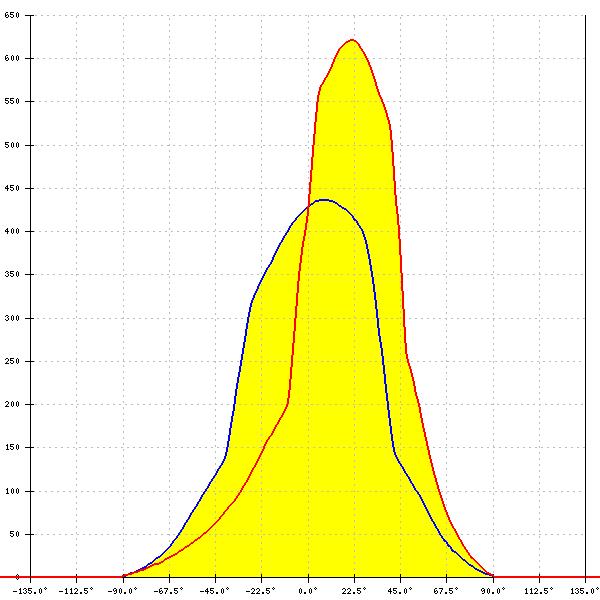

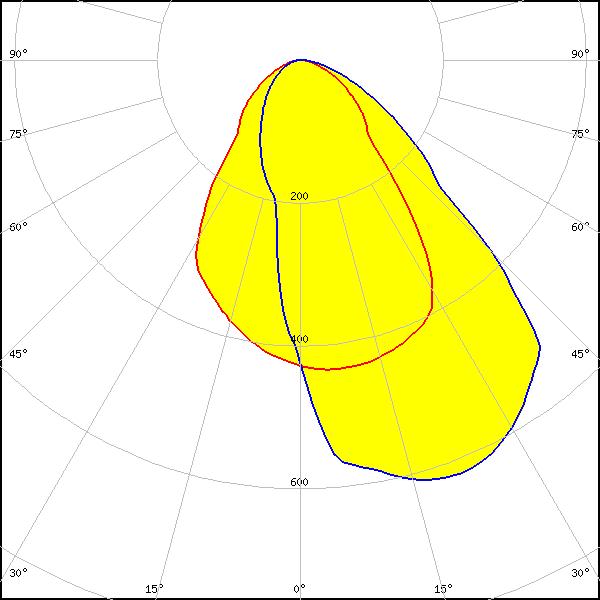

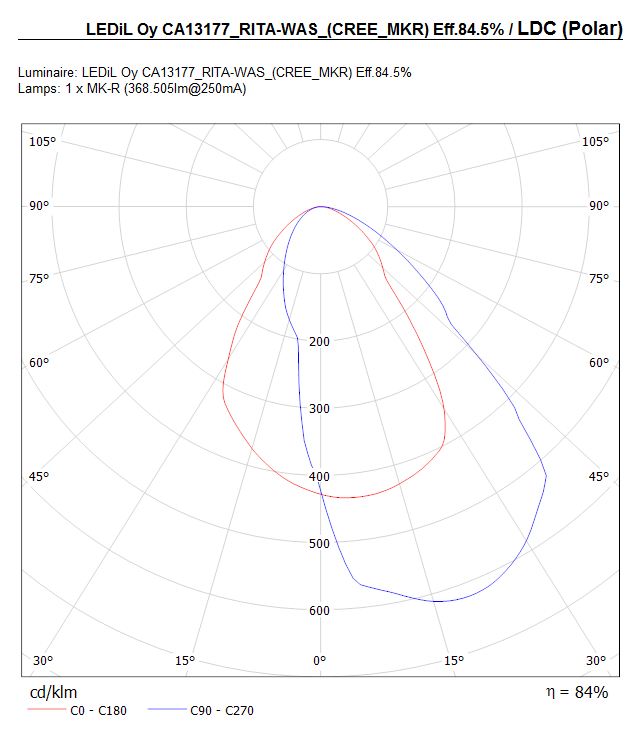

    LED: MK-R
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

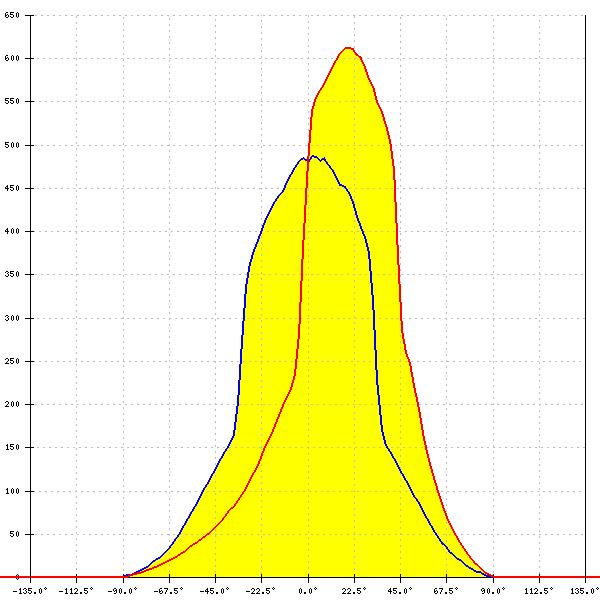

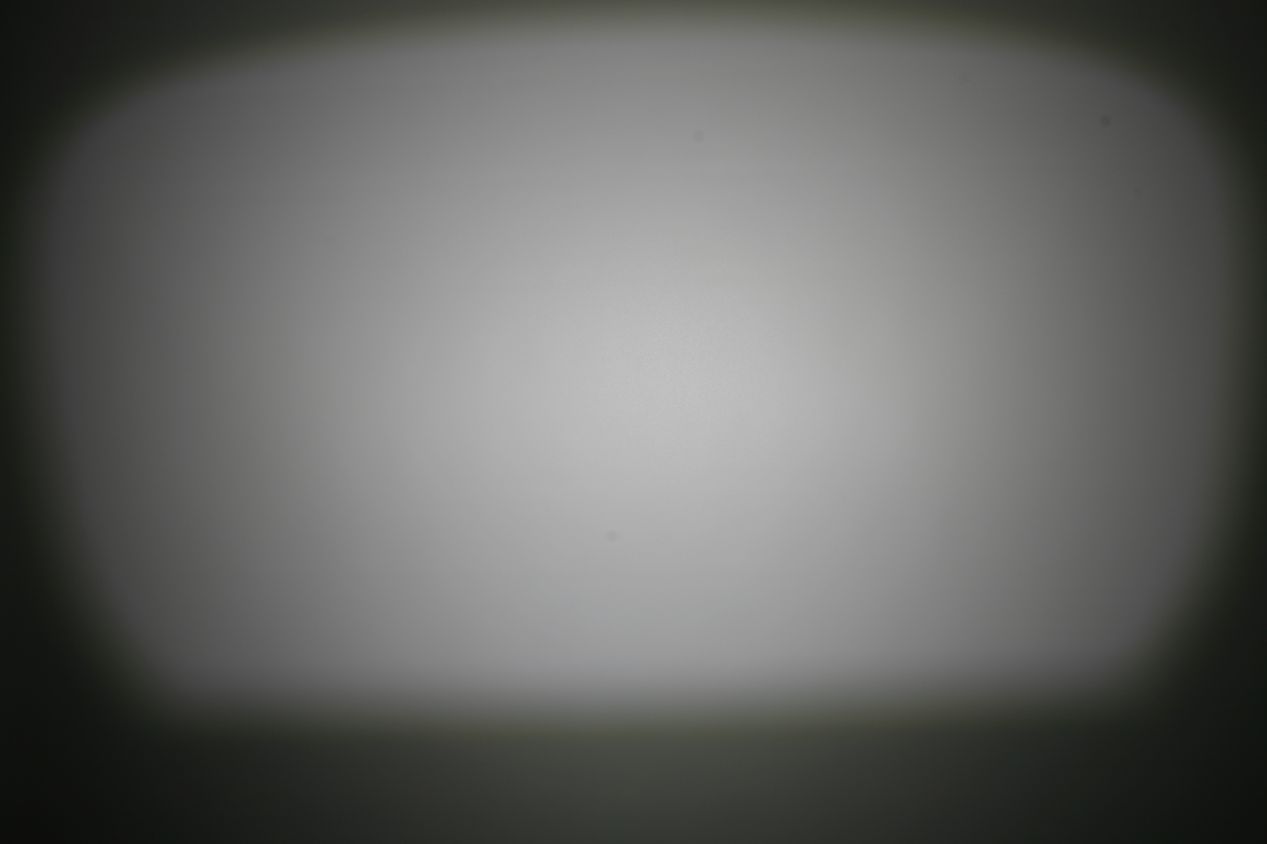

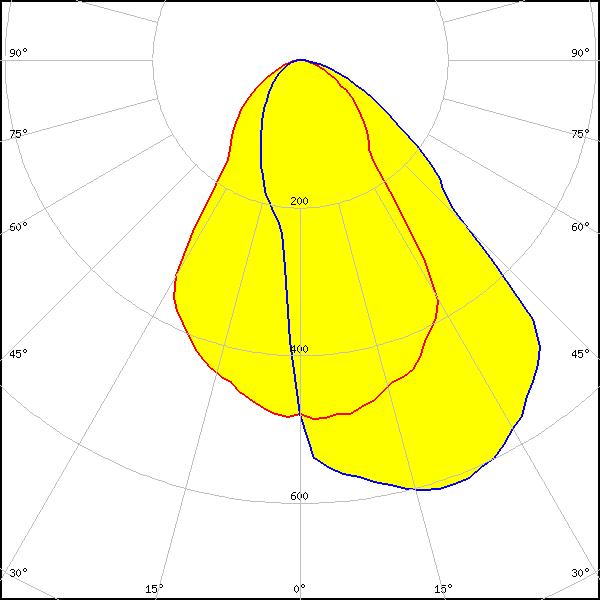

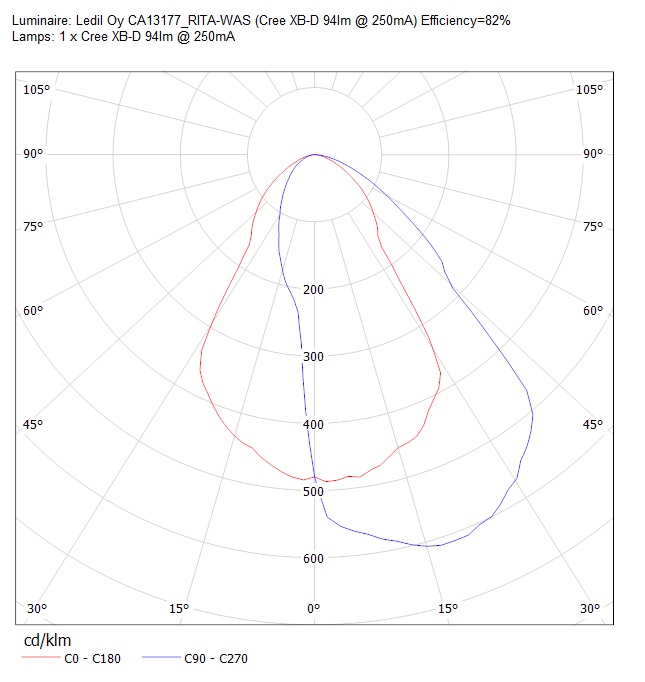

    LED: XB-D
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP50.2
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

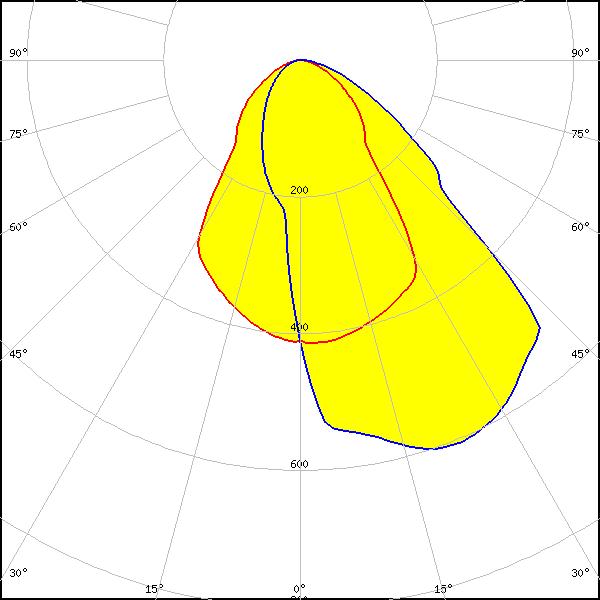

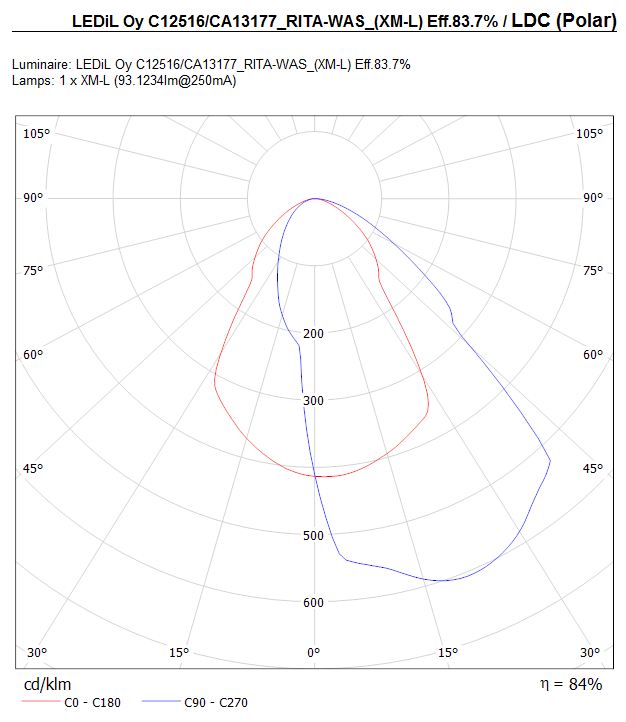

    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 0.611 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

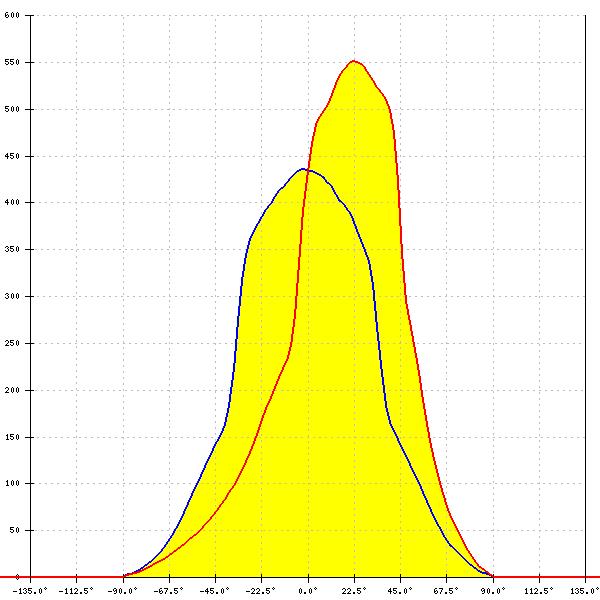

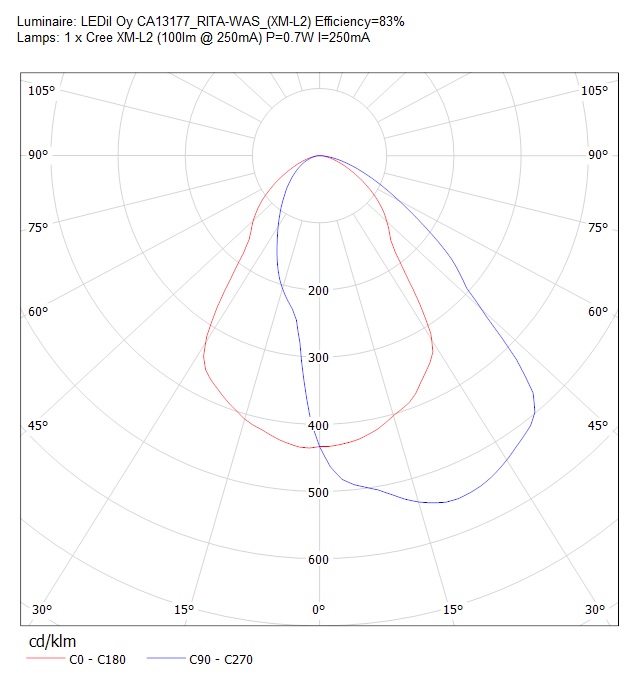

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

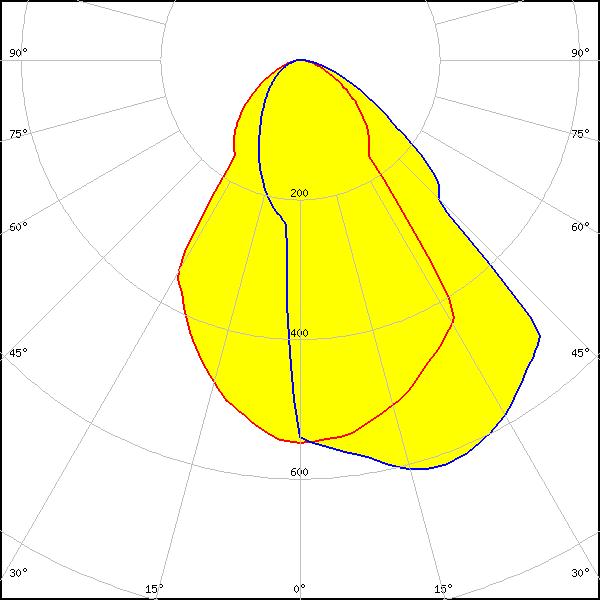

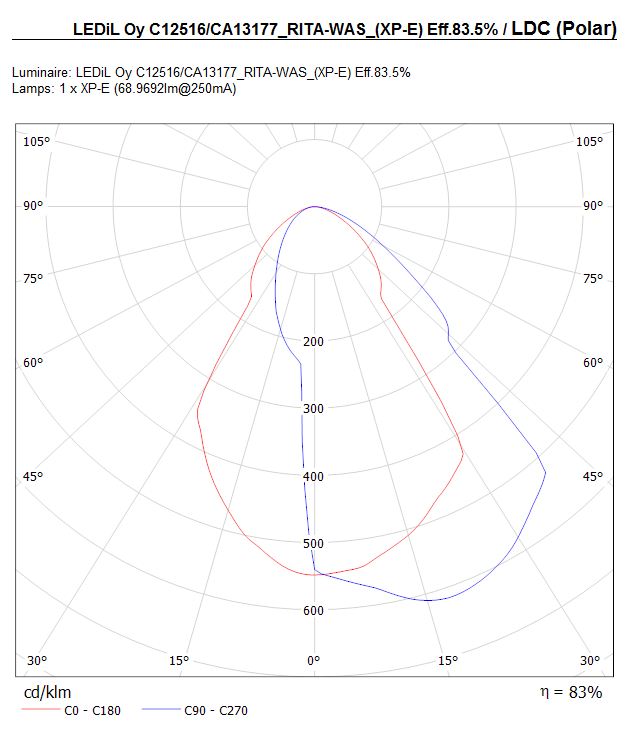

    LED: XP-E
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

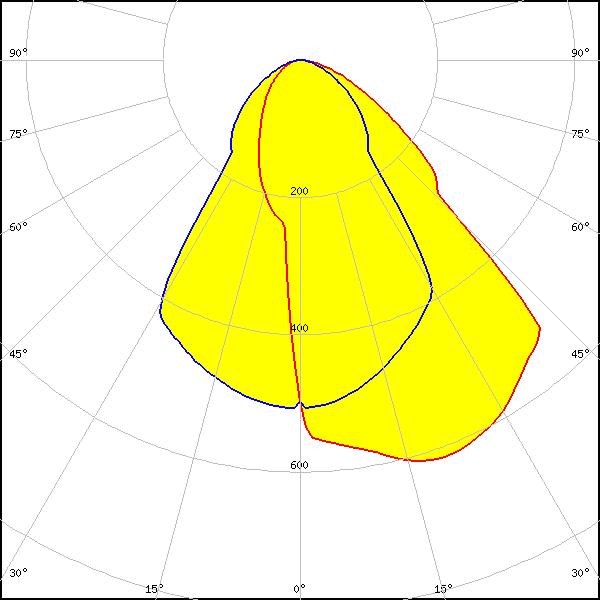

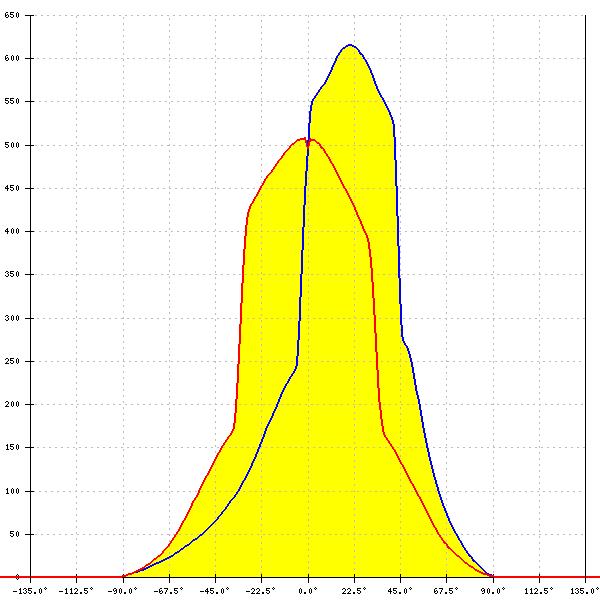

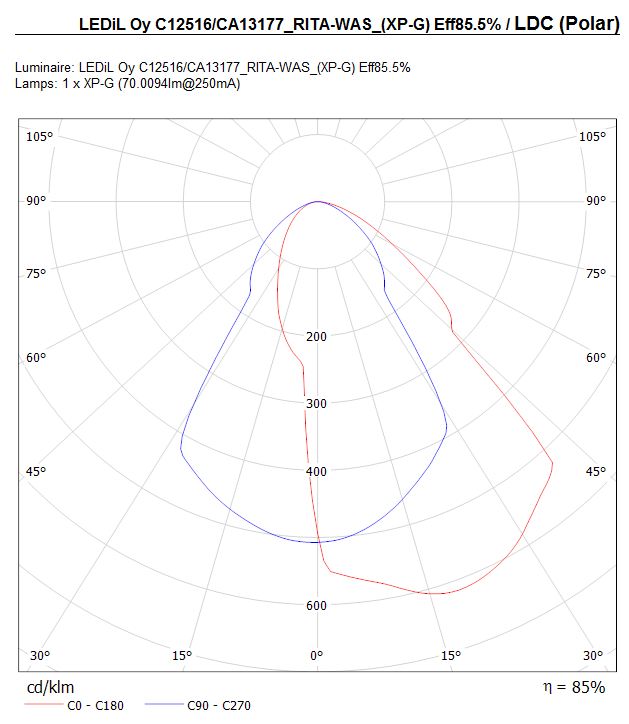

    LED: XP-G
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

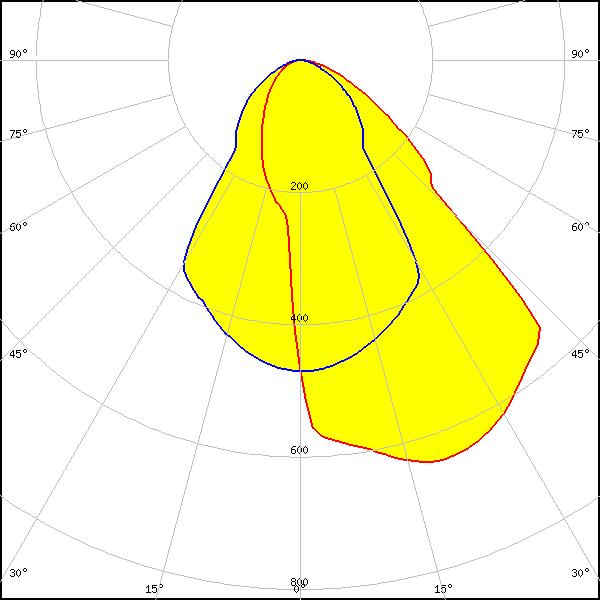

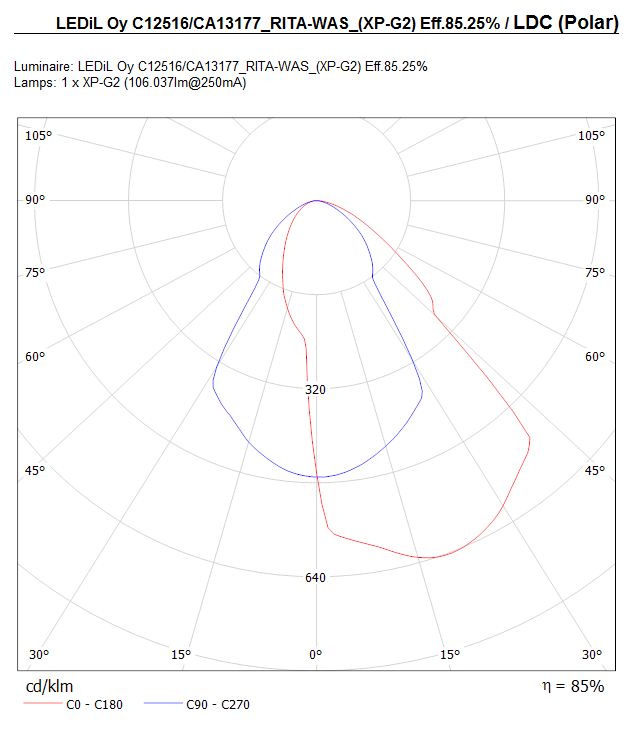

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.657 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

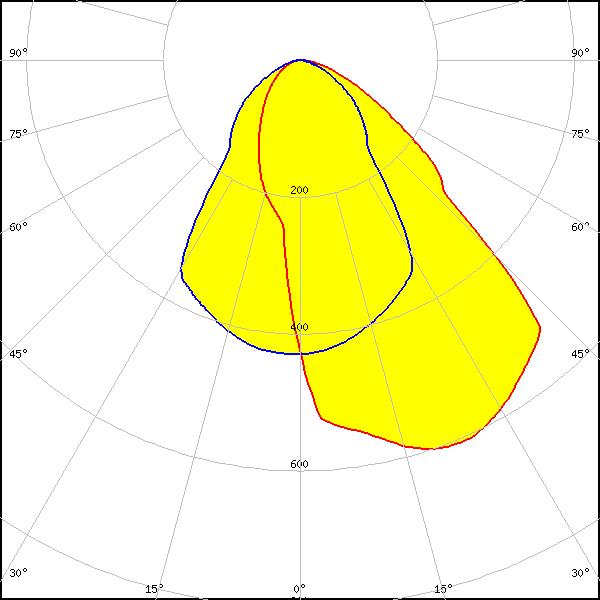

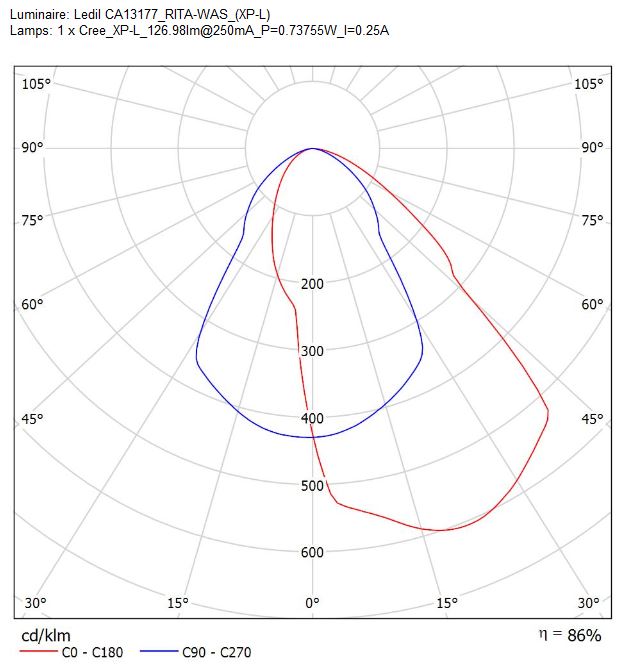

    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

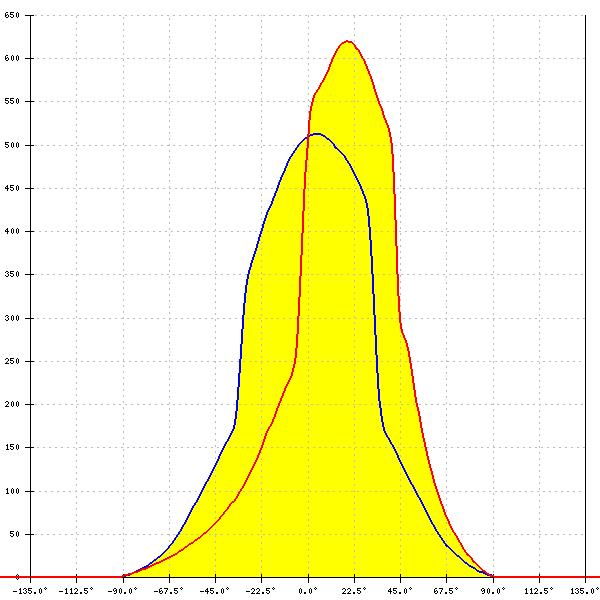

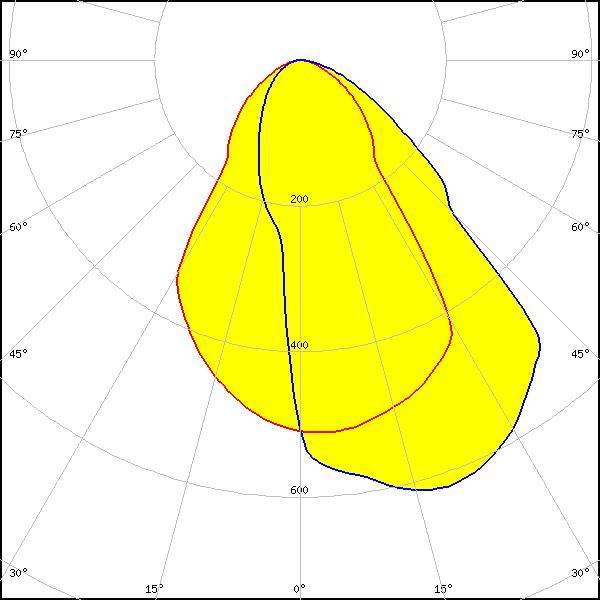

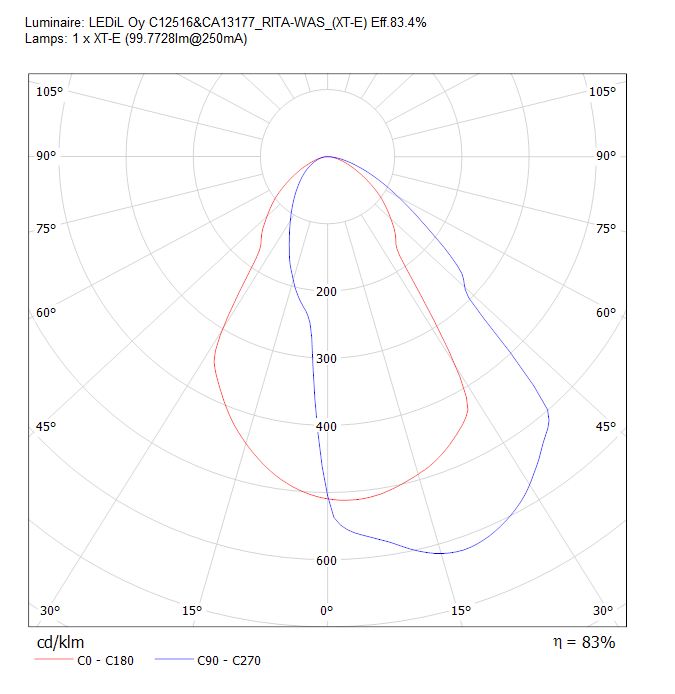

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.640 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

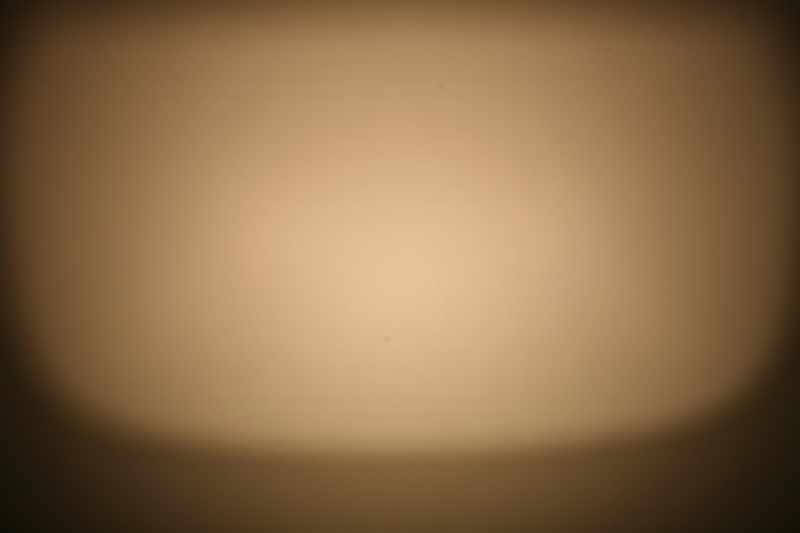

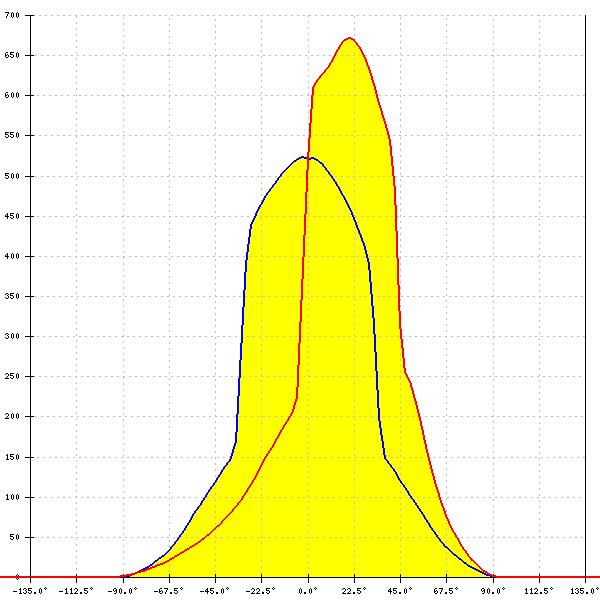

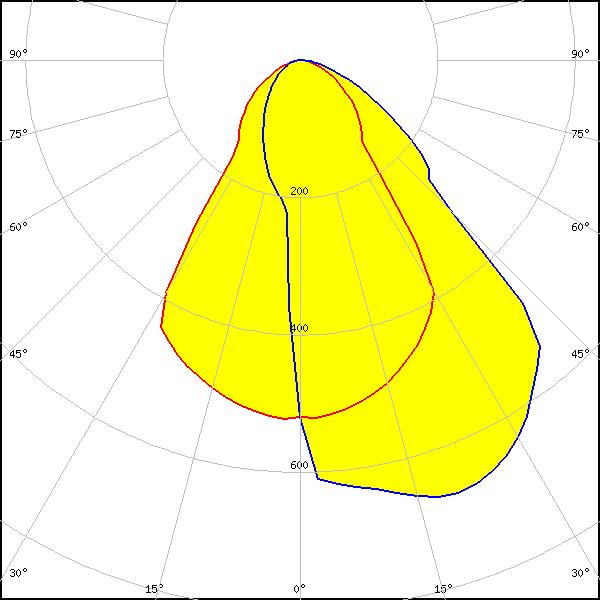

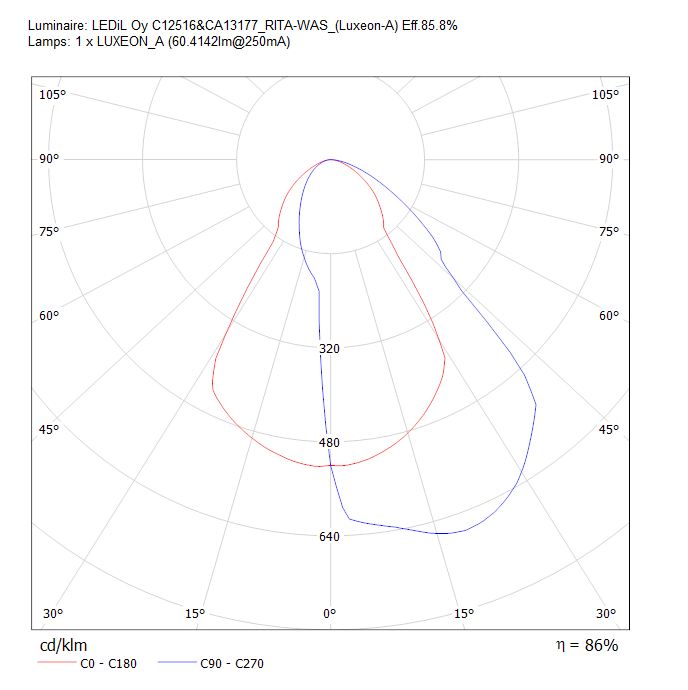

    LED: LUXEON A
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

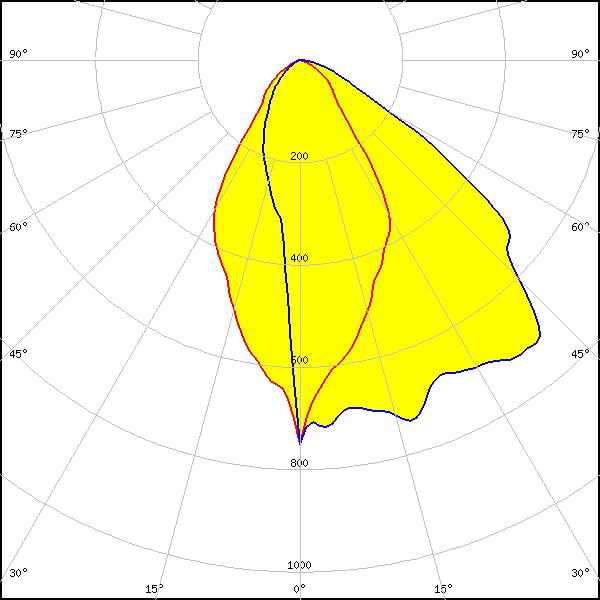

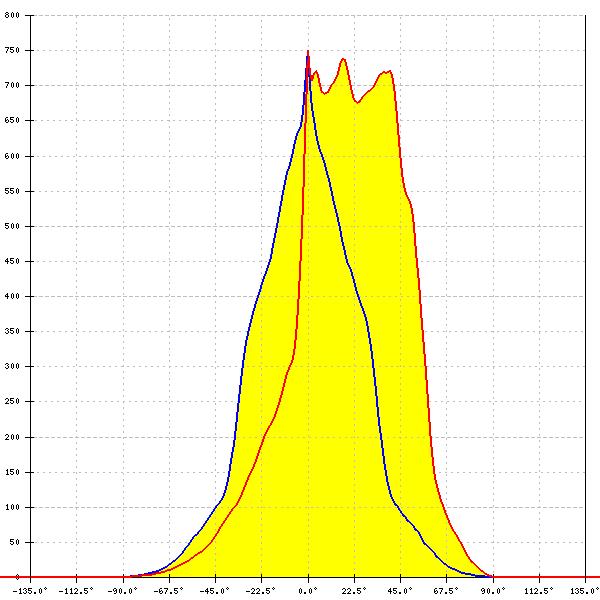

    LED: LUXEON H50-2
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

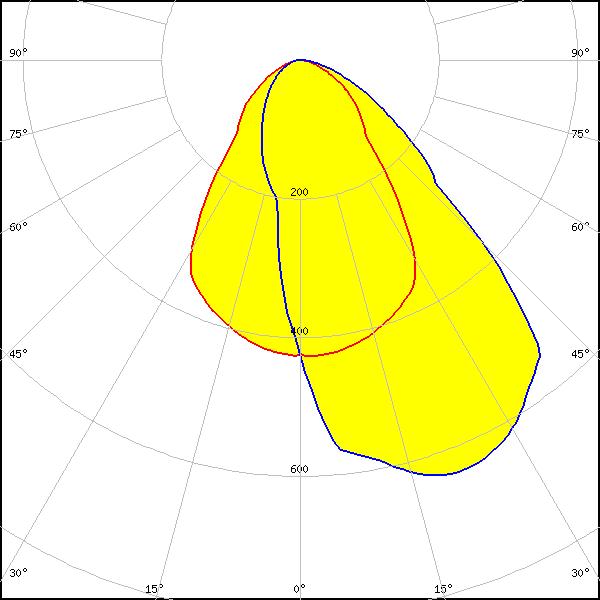

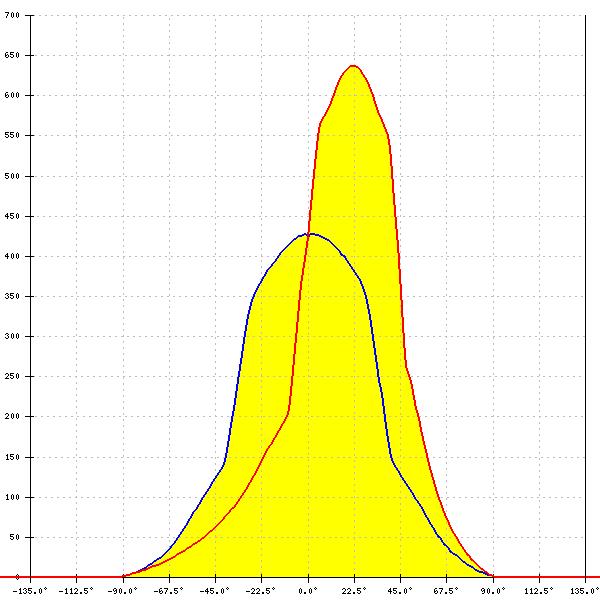

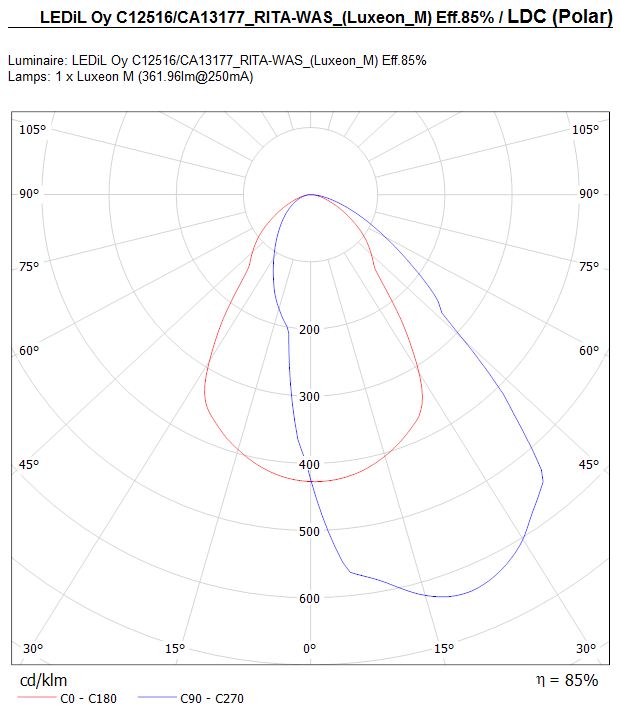

    LED: LUXEON M/MX
    FWHM: asymmetric
    Peak intensity: 0.638 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

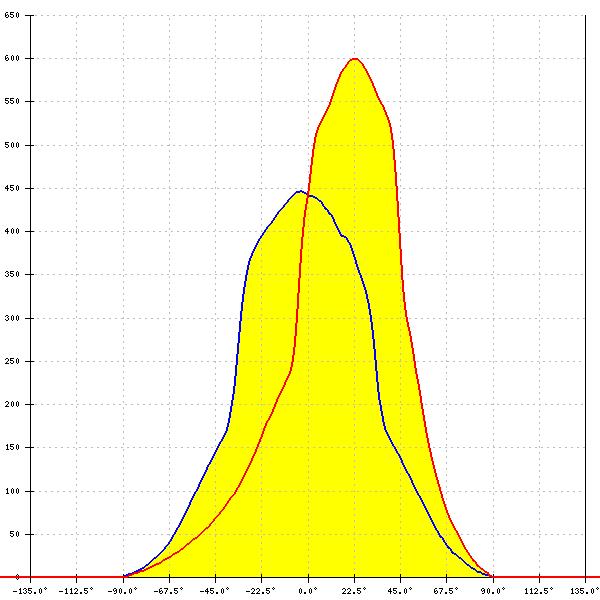

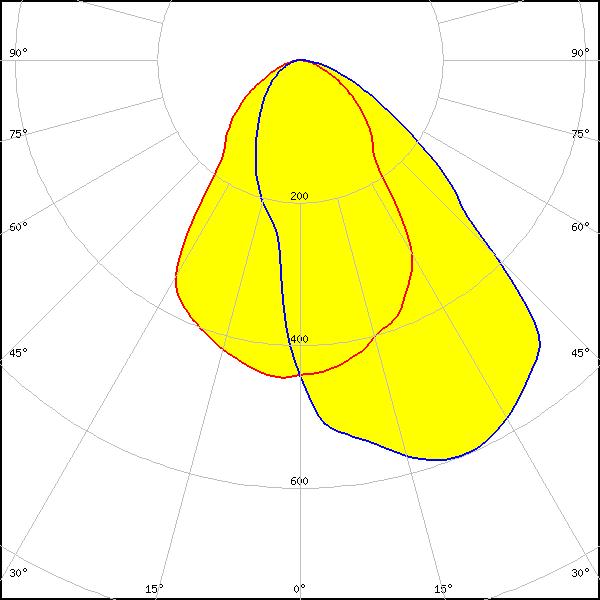

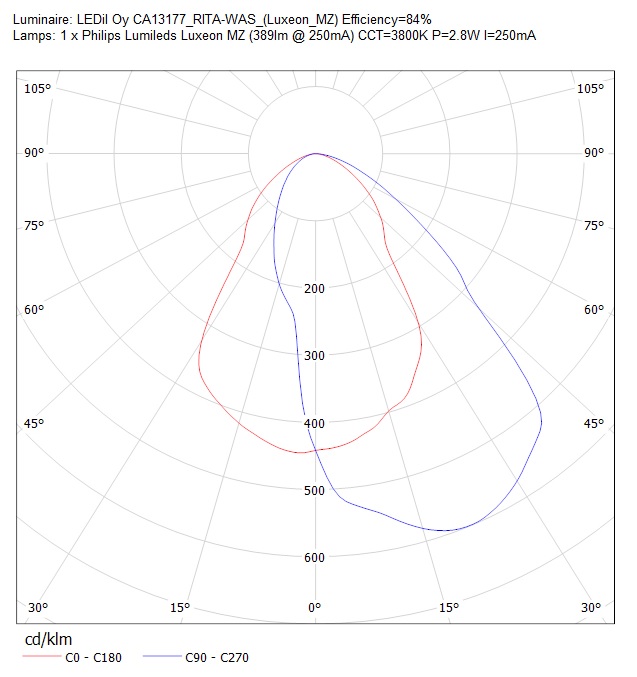

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    LEDs/each optic: 1
    Light colour/type: White

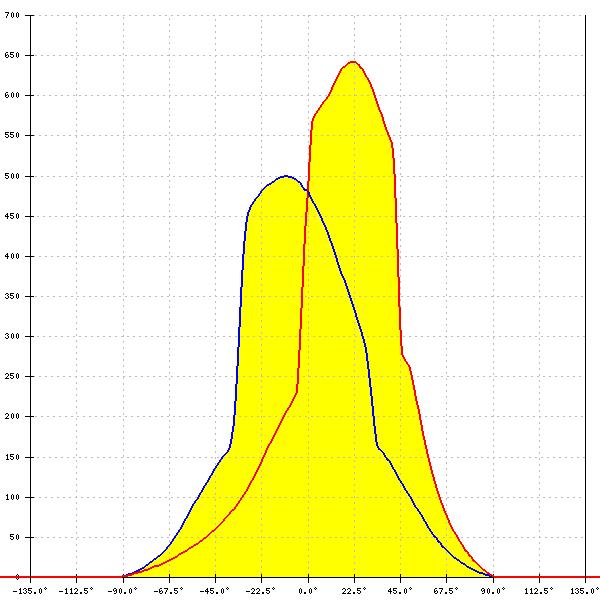

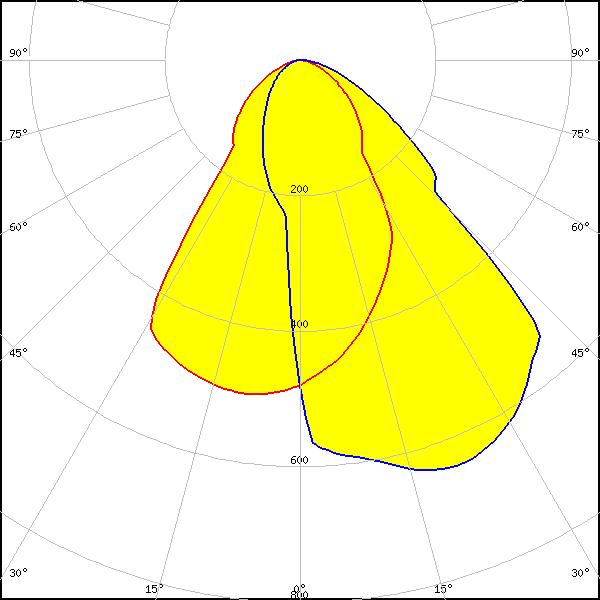

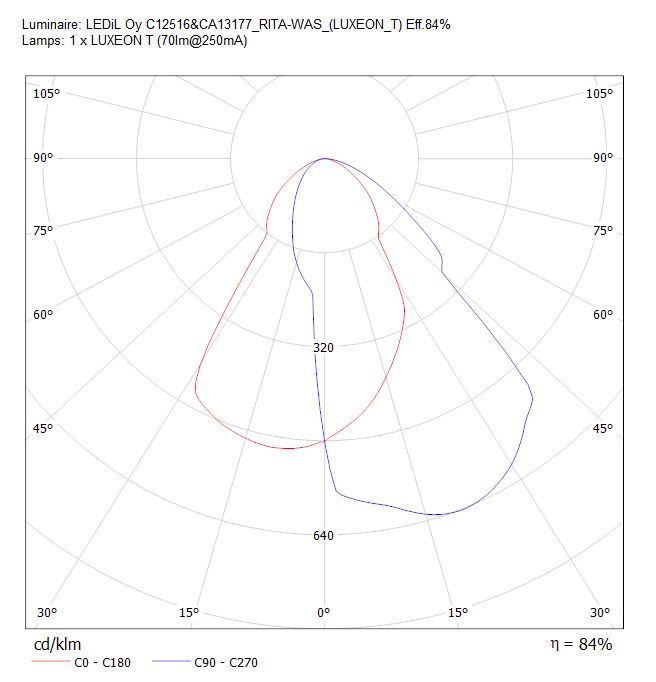

    LED: LUXEON T
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

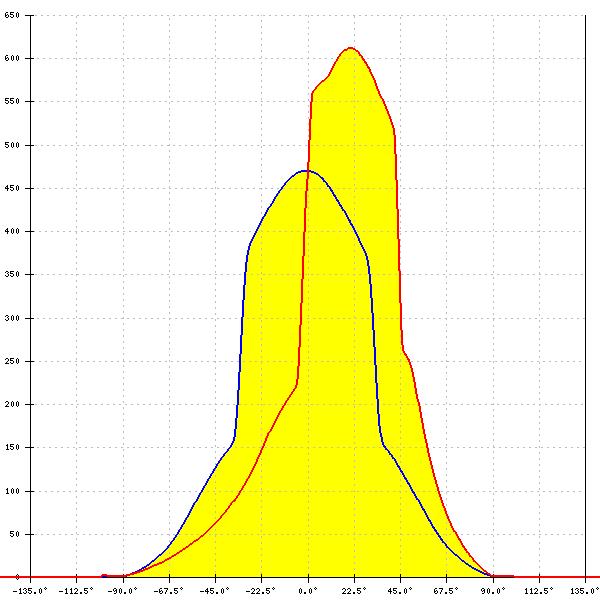

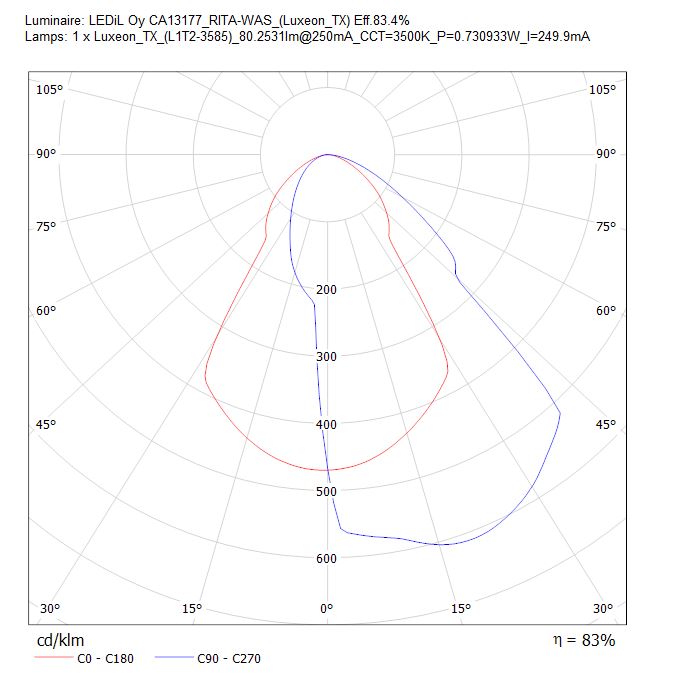

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

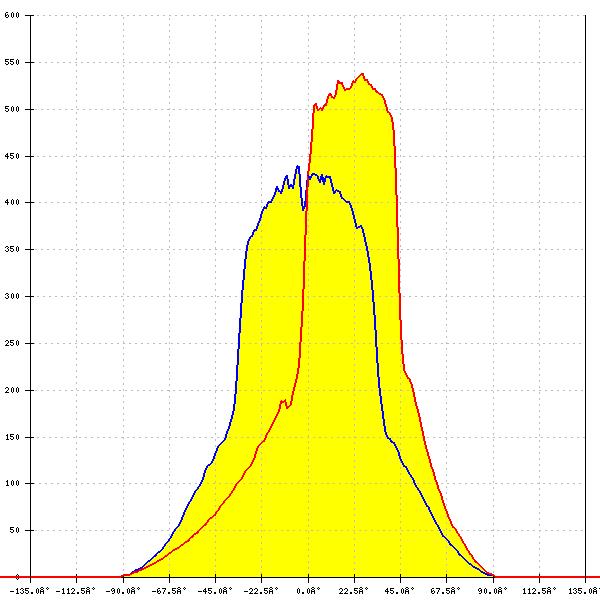

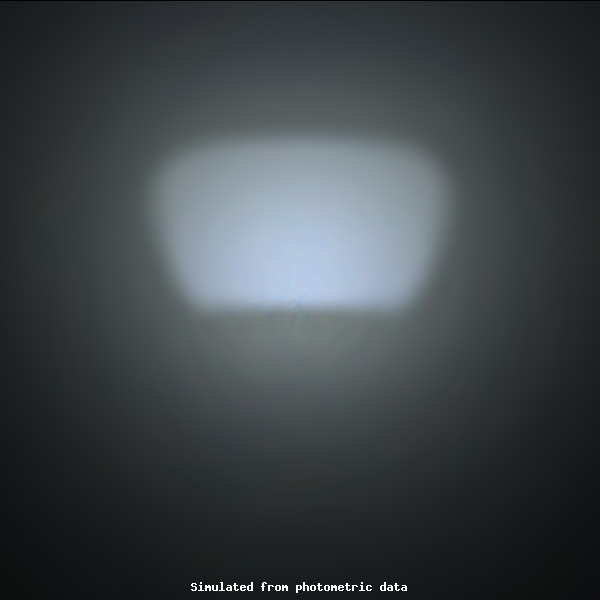

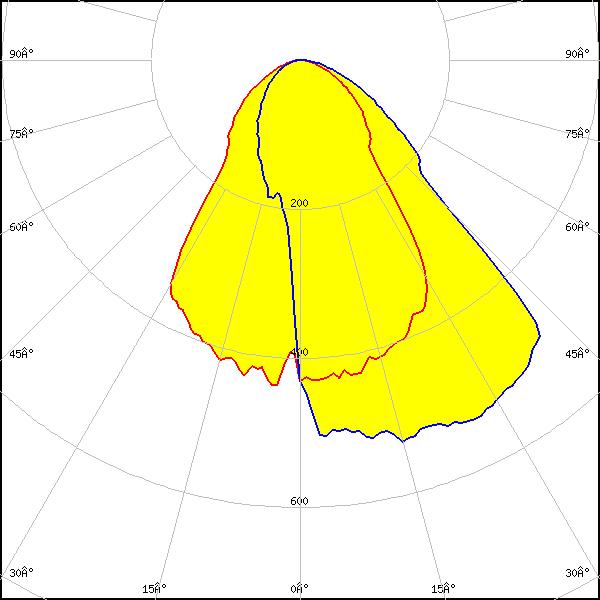

    LED: SST-20 Gen2
    FWHM: asymmetric
    Peak intensity: 0.539 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

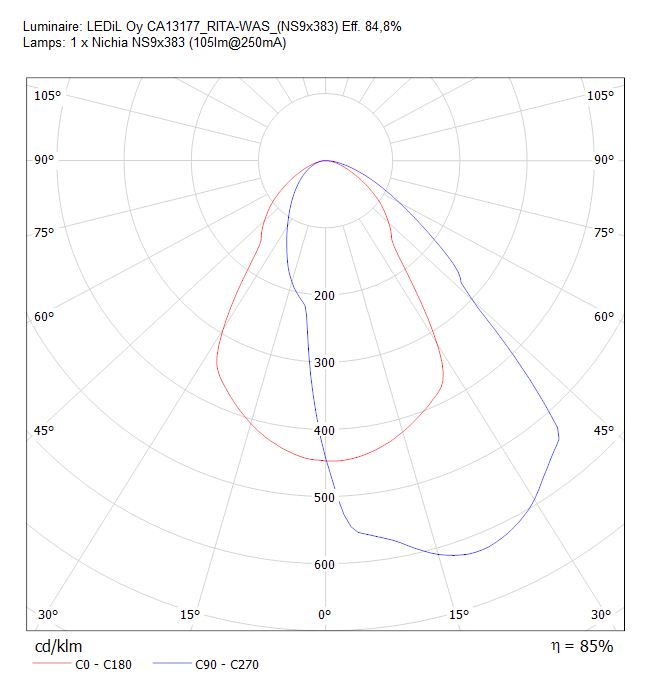

    LED: NS9x383
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

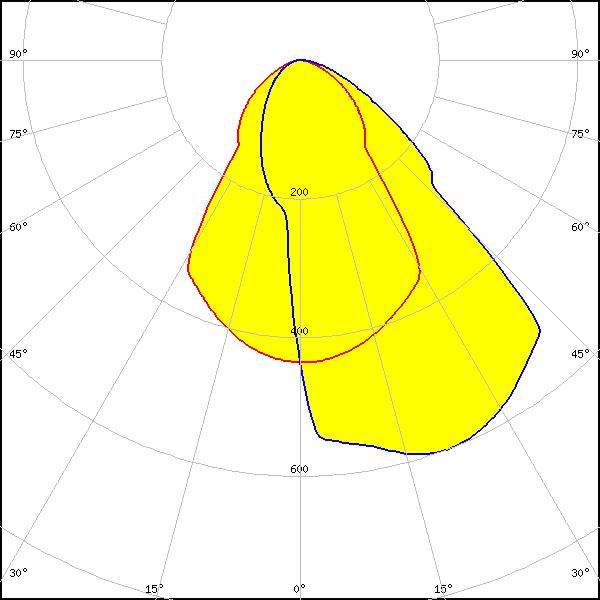

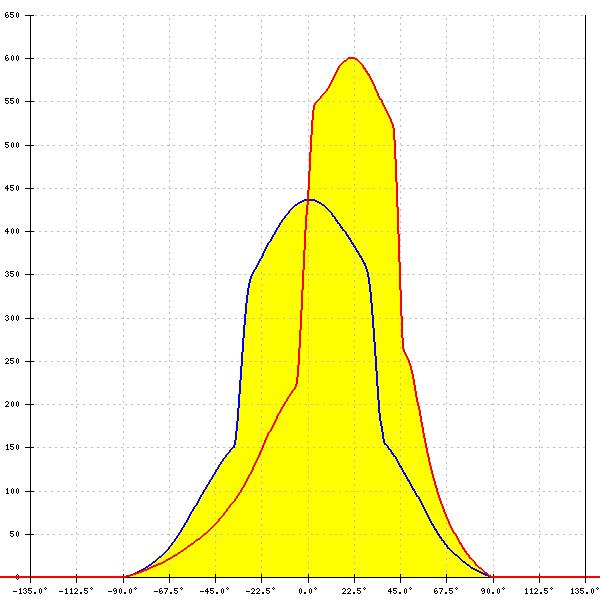

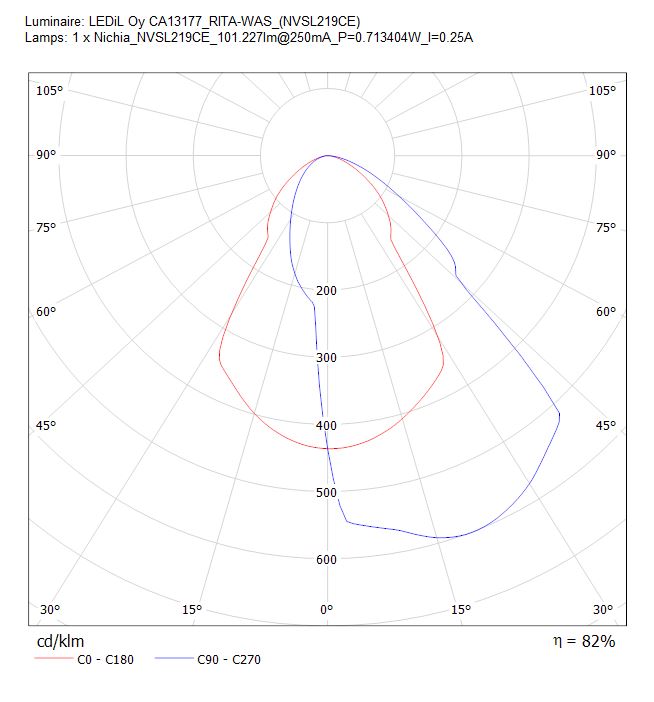

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

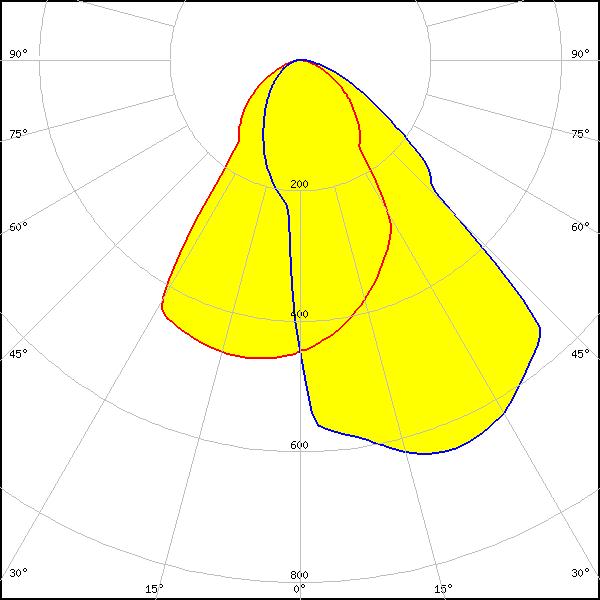

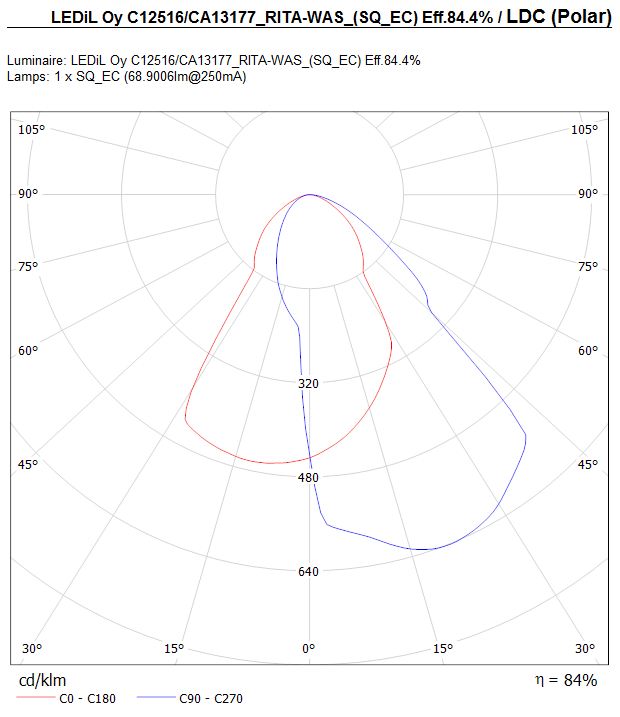

    LED: OSLON Square EC
    FWHM: asymmetric
    Peak intensity: 0.654 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
