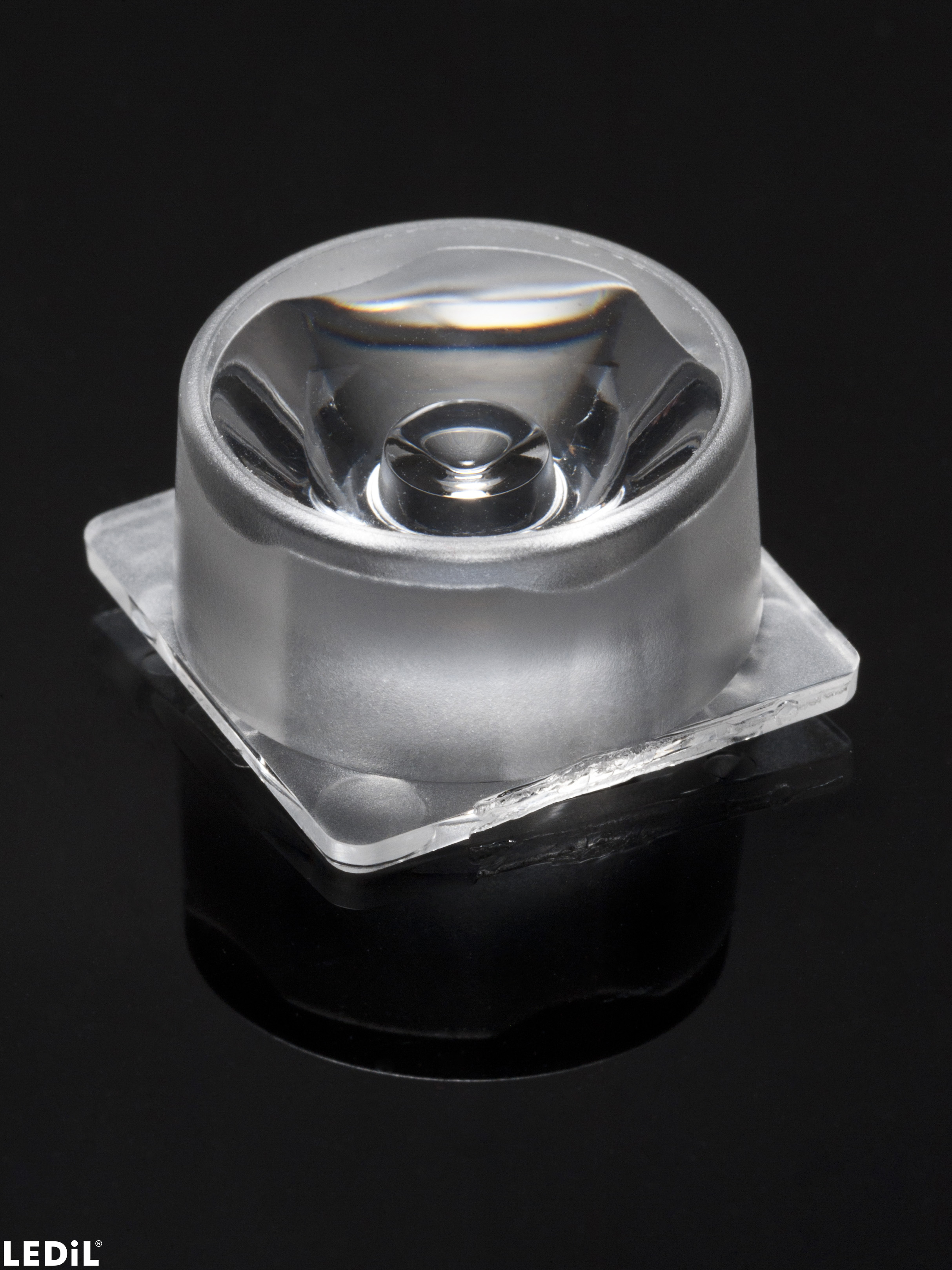

CA13724_VERONICA-SQ-RS

Print

~13° spot beam

Specification
  • Dimensions:
    23 mm
  • Height:
    12.20 mm
  • Fastening:
    tape, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1980 pcs
  • Box size:
    476 x 273 x 197 mm
  • Box weight:
    8.2 kg
  • MPQ:
    90 pcs
  • MOQ:
    360 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA13724_VERONICA-SQ-RS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

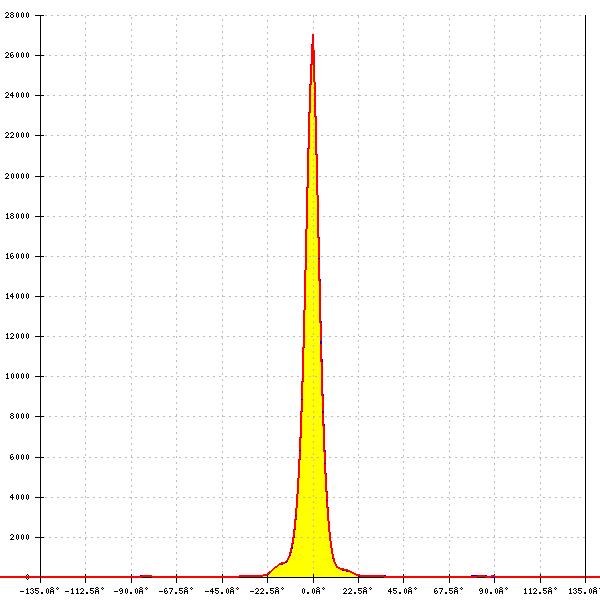

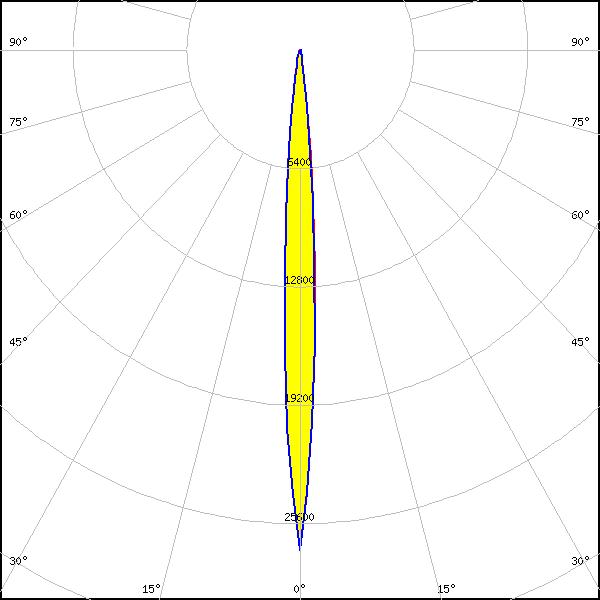

Optical results

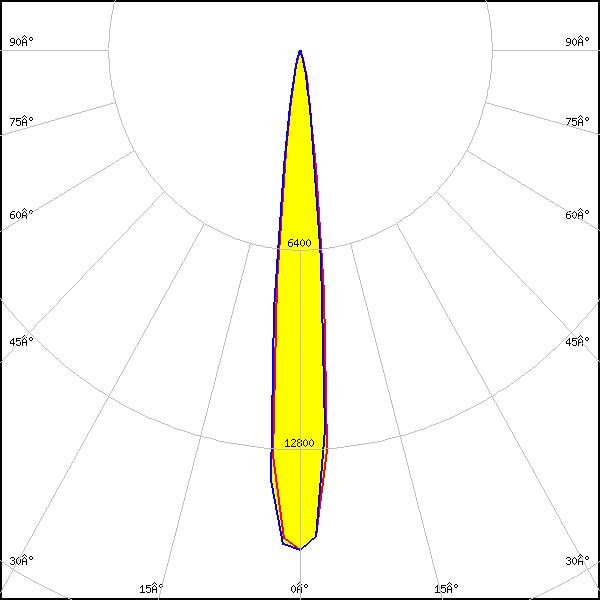

LED: XB-H
FWHM: 12°
FWTM: 22°
Peak intensity: 16.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

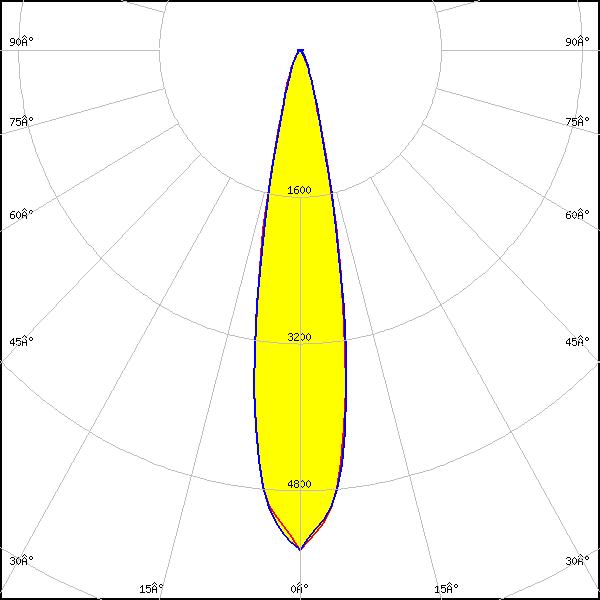

LED: XHP35.2 HD
FWHM: 20°
FWTM: 37°
Peak intensity: 5.451 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L
FWHM: 15°
FWTM: -
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L2
FWHM: 15°
FWTM: -
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-E
FWHM: 8°
FWTM: -
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

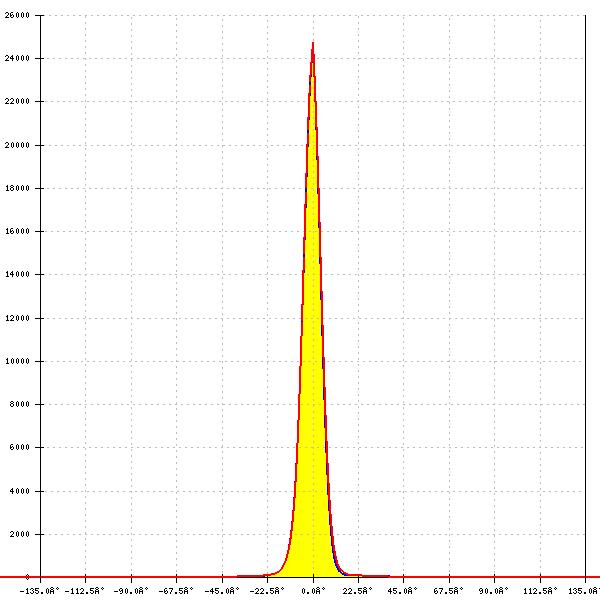

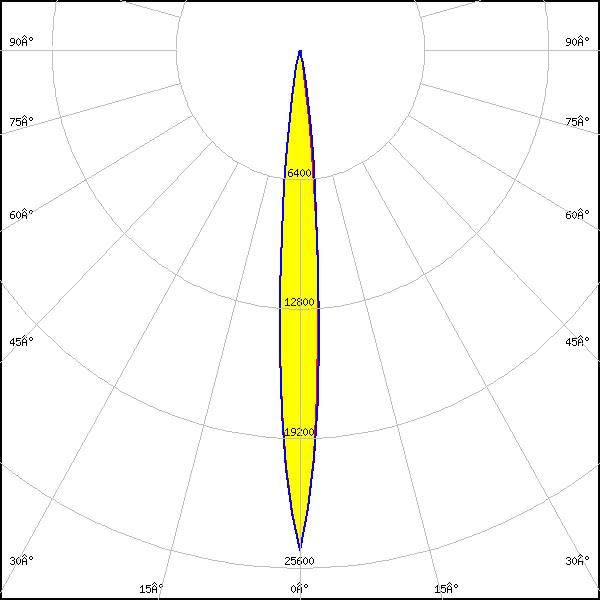

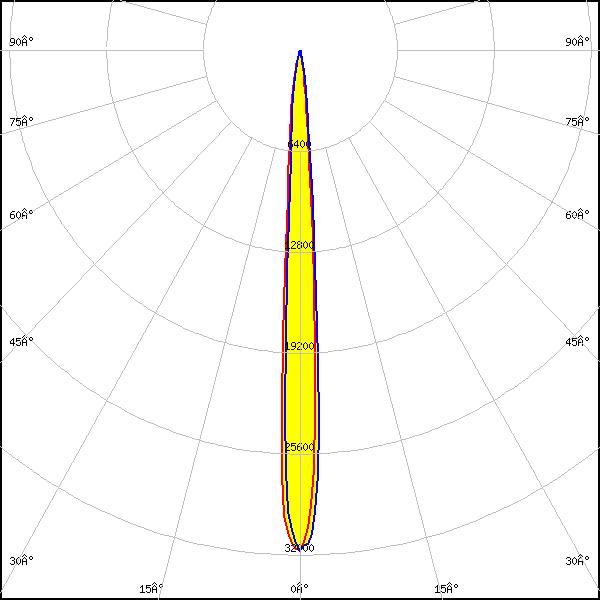

LED: XP-E2
FWHM: 10°
FWTM: 19°
Peak intensity: 24.730 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: Amber

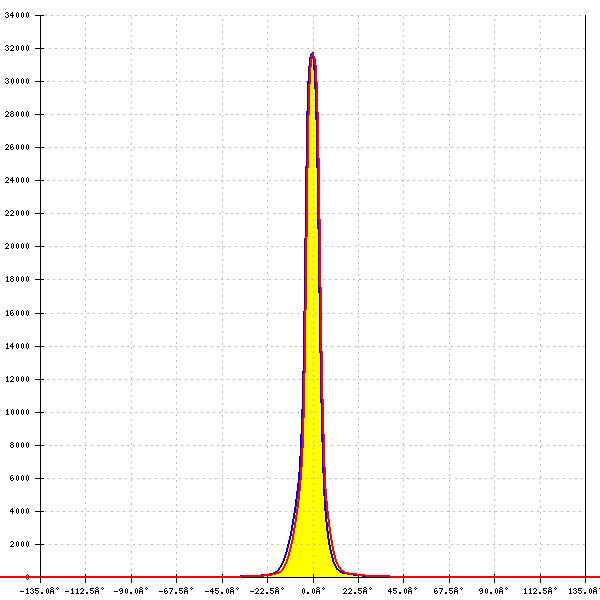

LED: XP-E2
FWHM: 7°
FWTM: 17°
Peak intensity: 31.709 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G
FWHM: 10°
FWTM: -
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

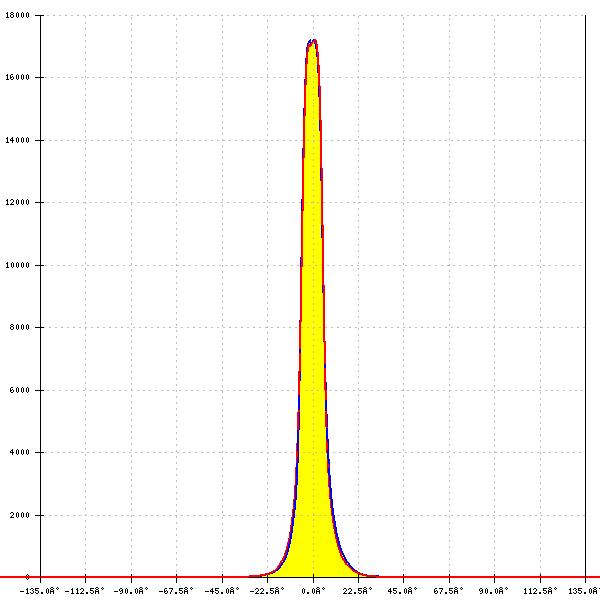

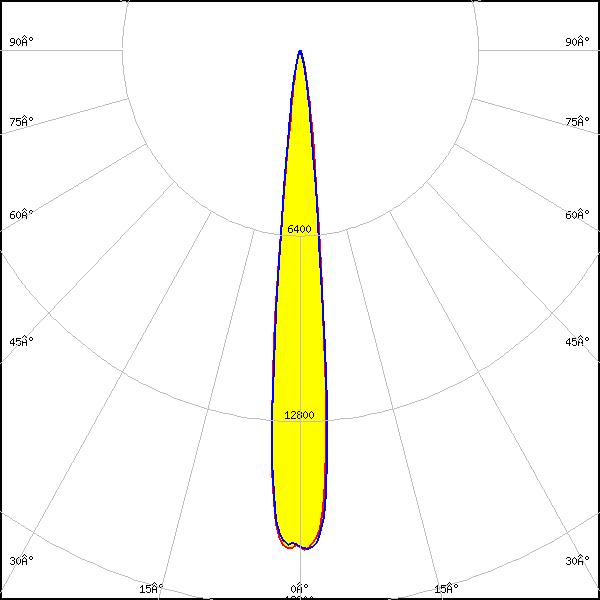

LED: XP-G2
FWHM: 11°
FWTM: 20°
Peak intensity: 18.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

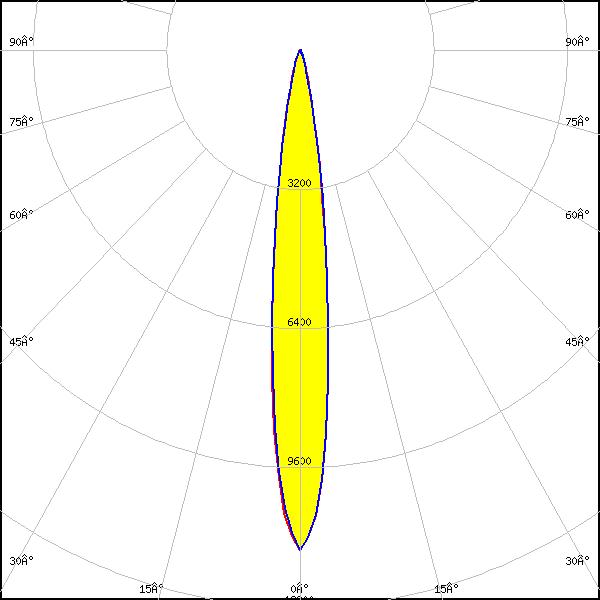

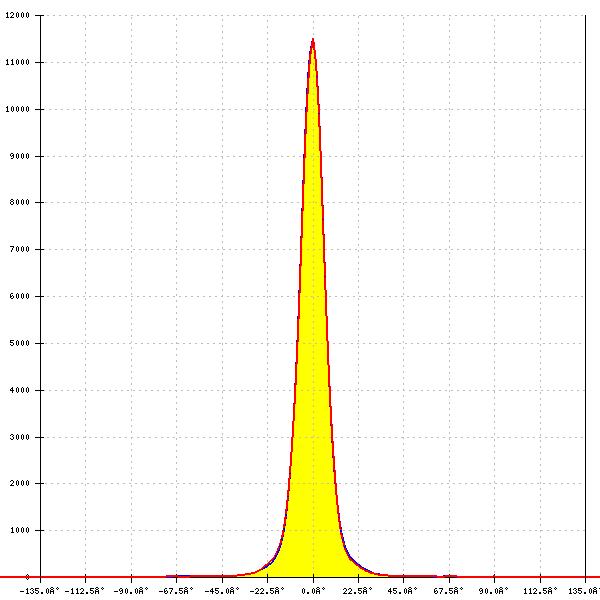

LED: XP-G2 HE
FWHM: 14°
FWTM: 27°
Peak intensity: 11.503 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

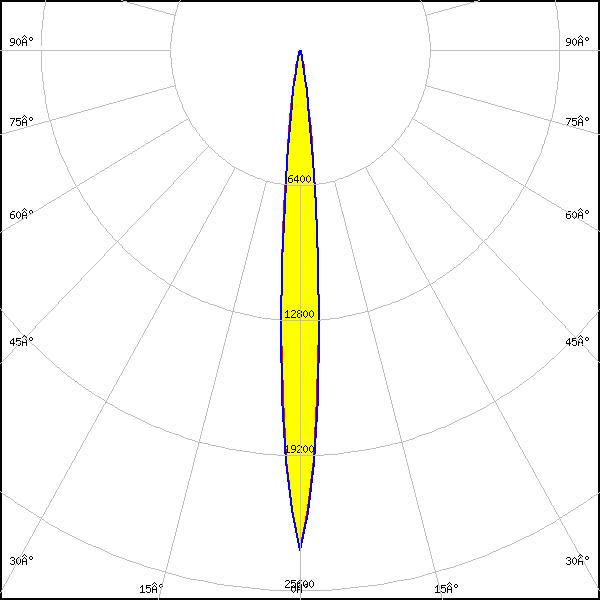

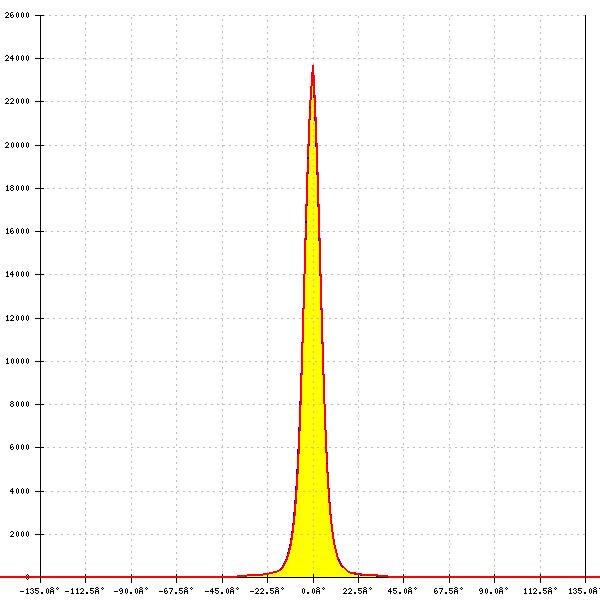

LED: XP-G4 HI
FWHM: 8°
FWTM: 18°
Peak intensity: 23.685 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

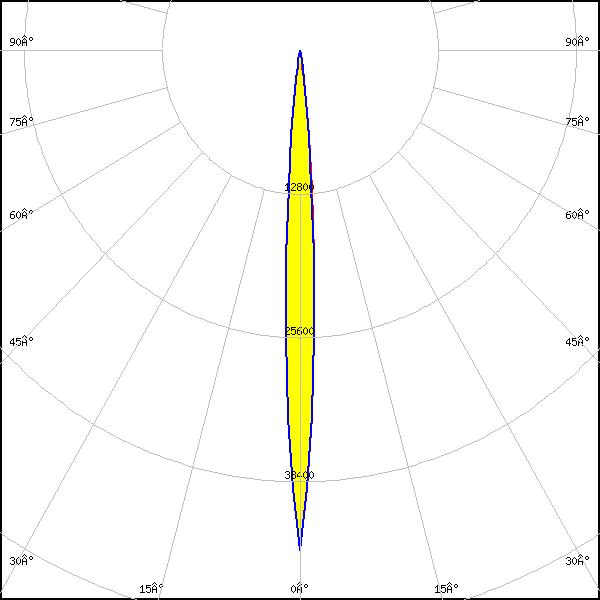

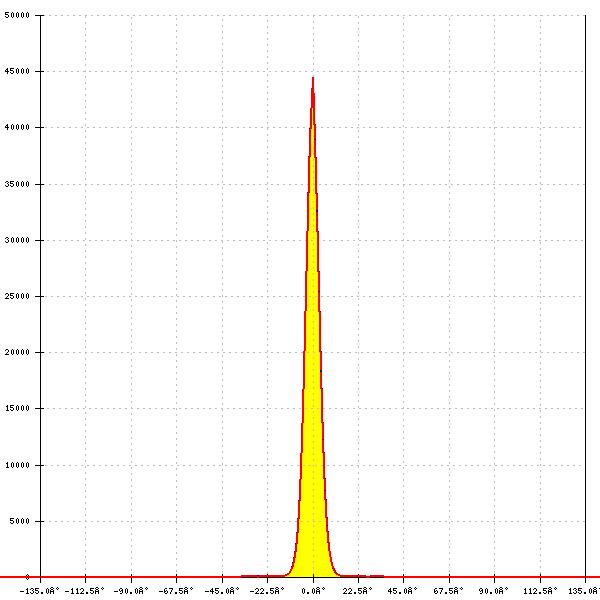

LED: XP-P
FWHM: 6°
FWTM: 14°
Peak intensity: 44.515 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

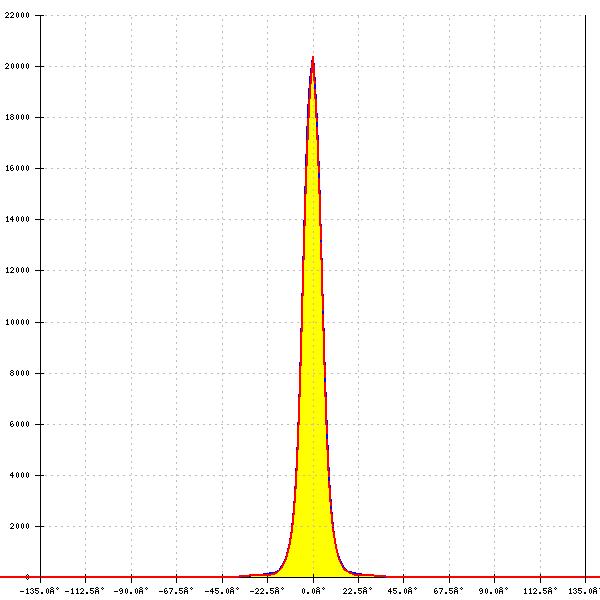

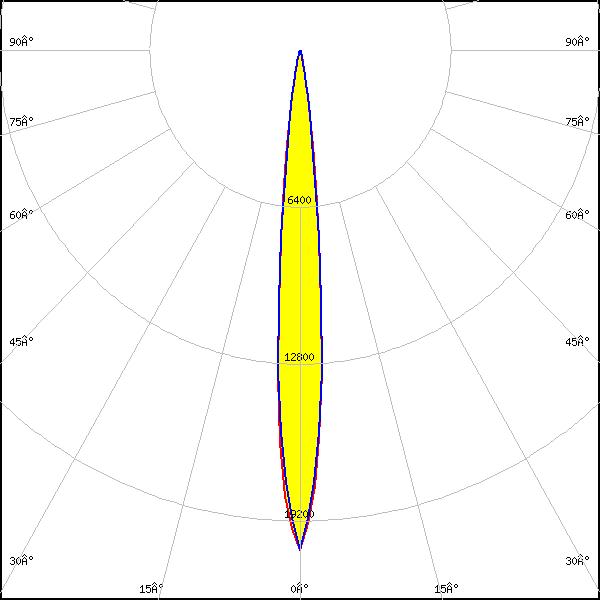

LED: XT-E
FWHM: 10°
FWTM: 20°
Peak intensity: 20.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

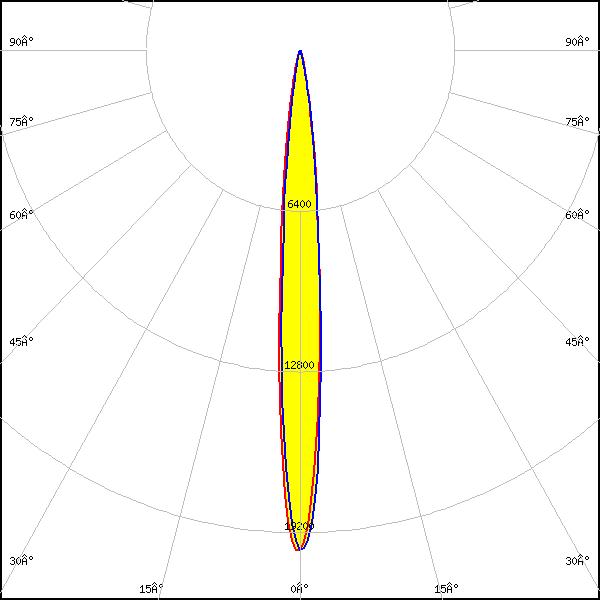

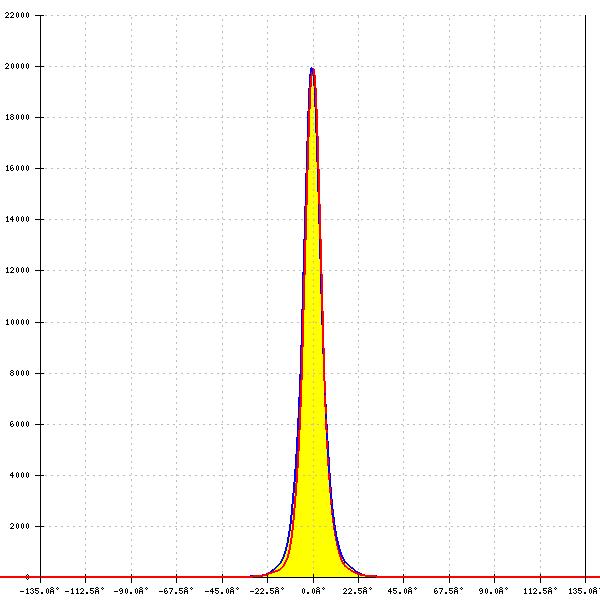

LED: LUXEON 3030 2D (Square LES)
FWHM: 10°
FWTM: 21°
Peak intensity: 19.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

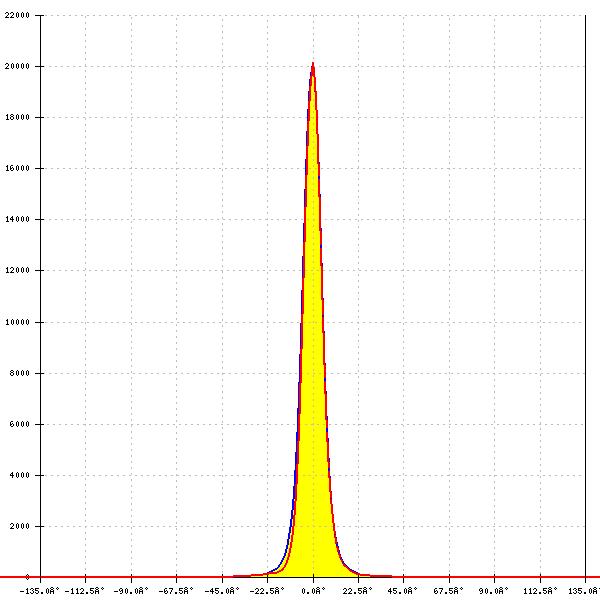

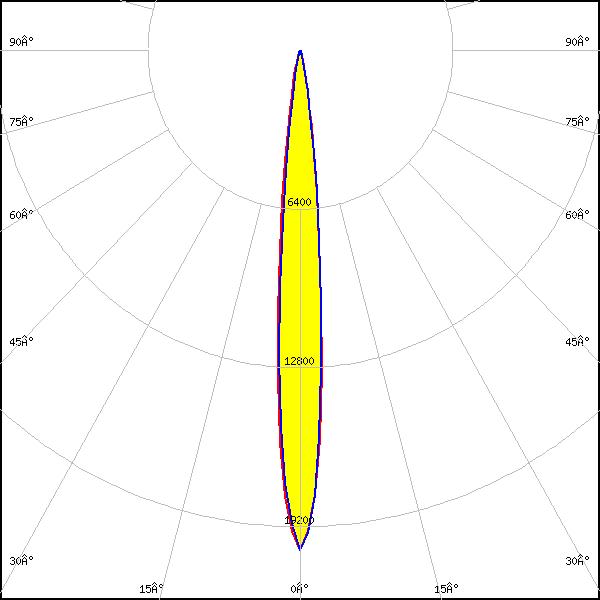

LED: LUXEON 3030 HV
FWHM: 10°
FWTM: 21°
Peak intensity: 20.970 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON A
FWHM: 11°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON R
FWHM: 11°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel
FWHM: 9°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Rebel ES
FWHM: 11°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

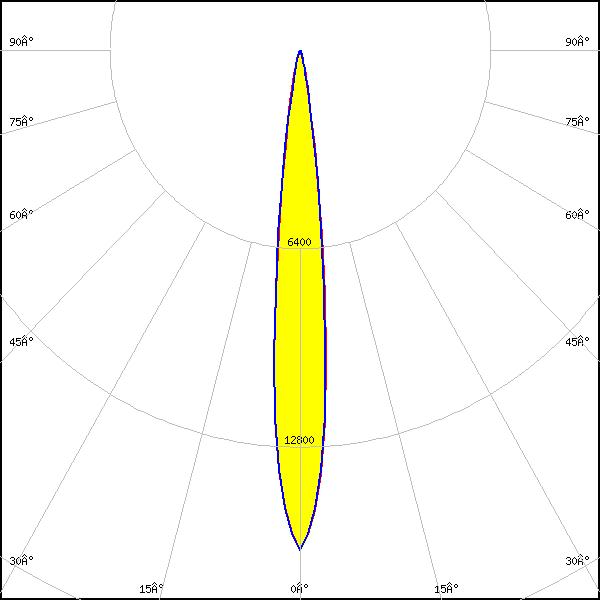

LED: LUXEON T
FWHM: 12°
FWTM: 22°
Peak intensity: 16.133 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

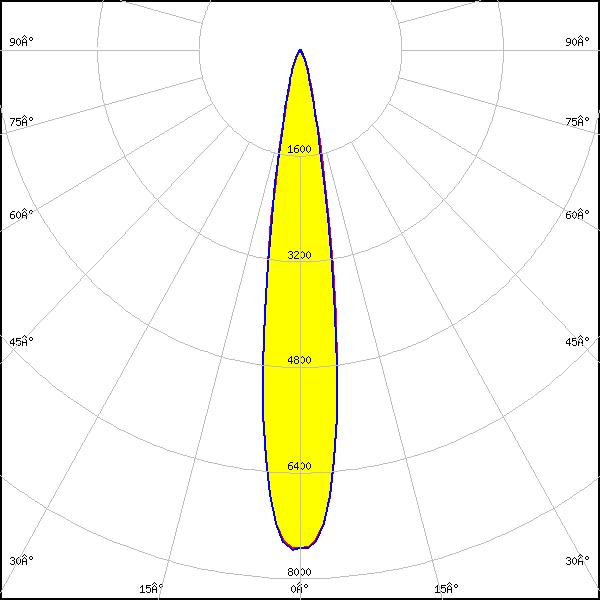

LED: LUXEON V
FWHM: 17°
FWTM: 31°
Peak intensity: 7.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

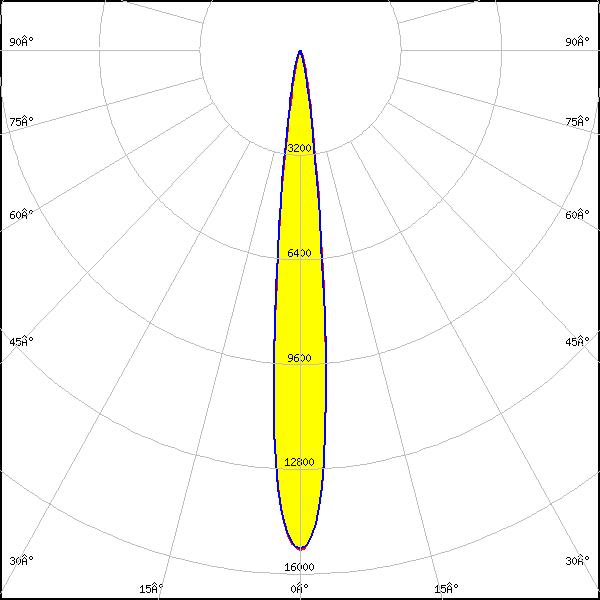

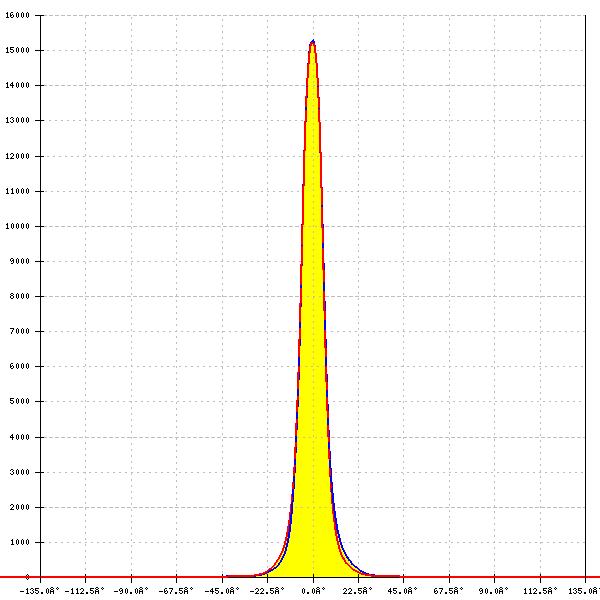

LED: LUXEON V2
FWHM: 12°
FWTM: 22°
Peak intensity: 15.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

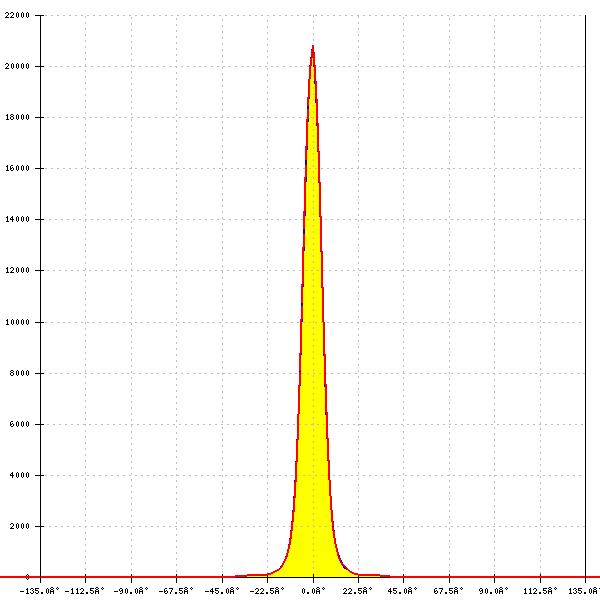

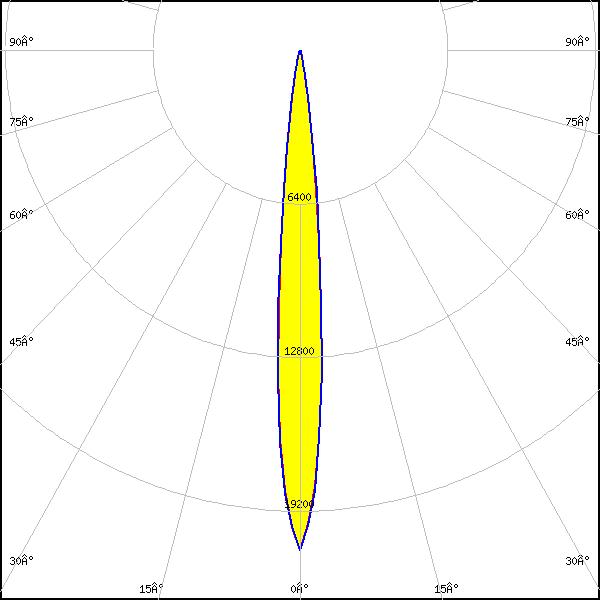

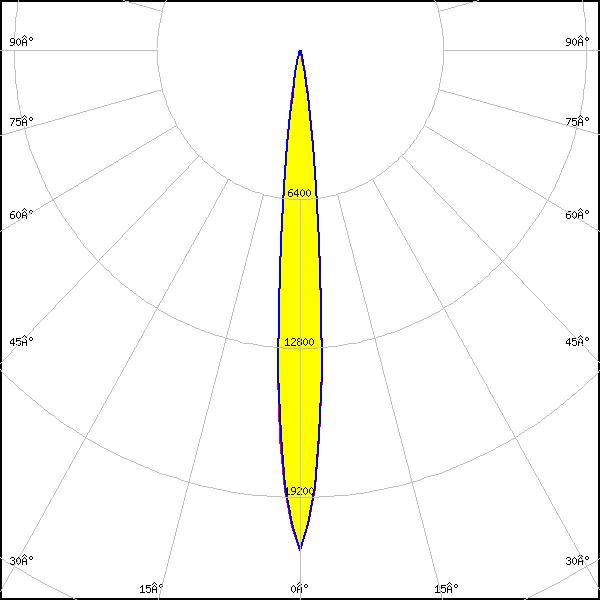

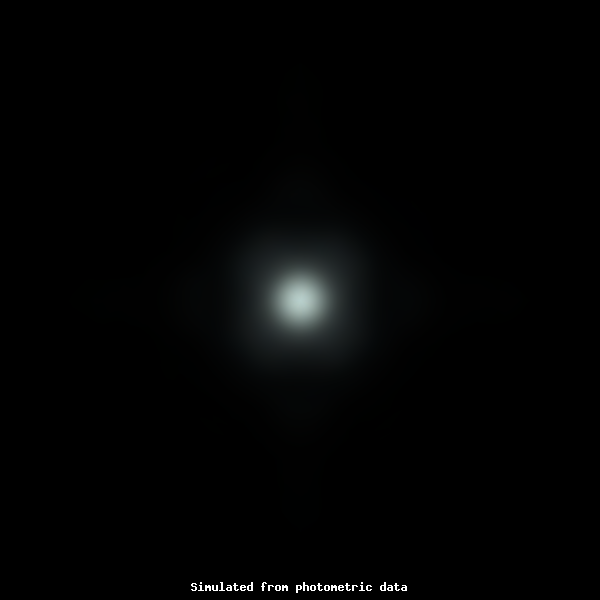

LED: SFT-40-WCS
FWHM: 10°
FWTM: 20°
Peak intensity: 21.475 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

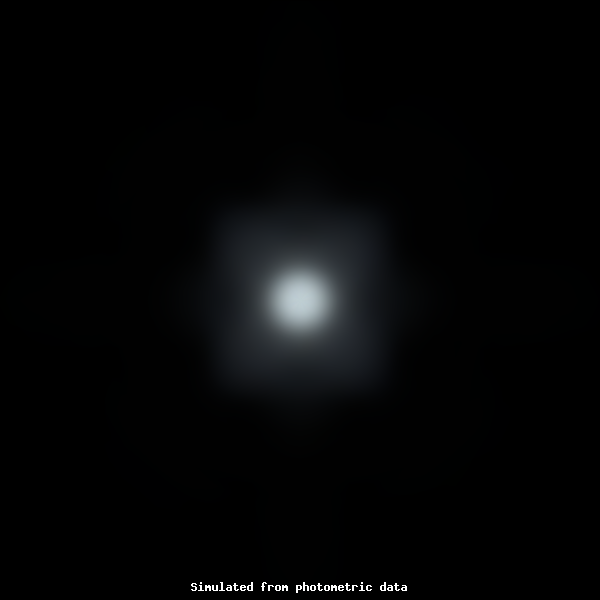

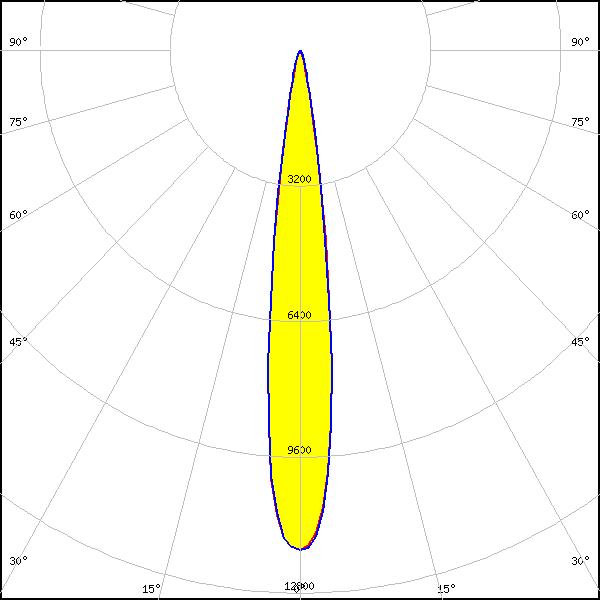

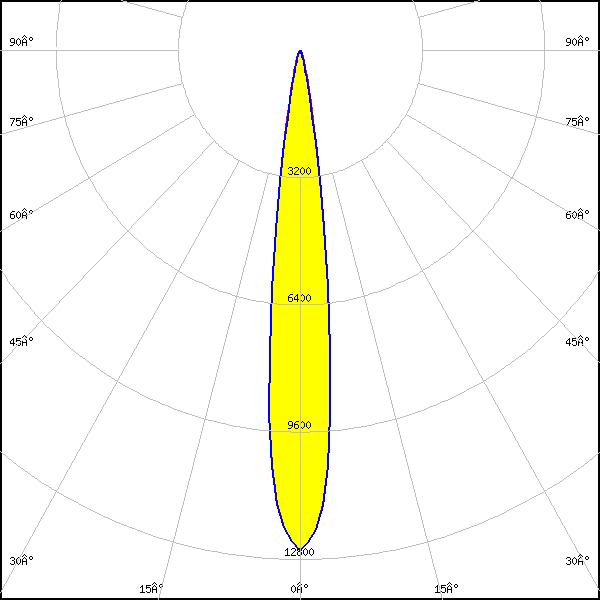

LED: SFT-70X-WCS
FWHM: 14°
FWTM: 24°
Peak intensity: 12.575 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: NCSxx19A
FWHM: 8°
FWTM: -
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

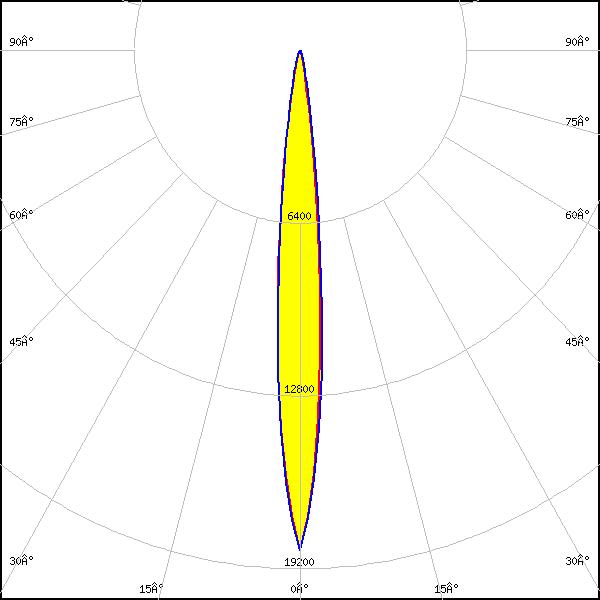

LED: NF2x757G
FWHM: 10°
FWTM: 21°
Peak intensity: 18.516 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

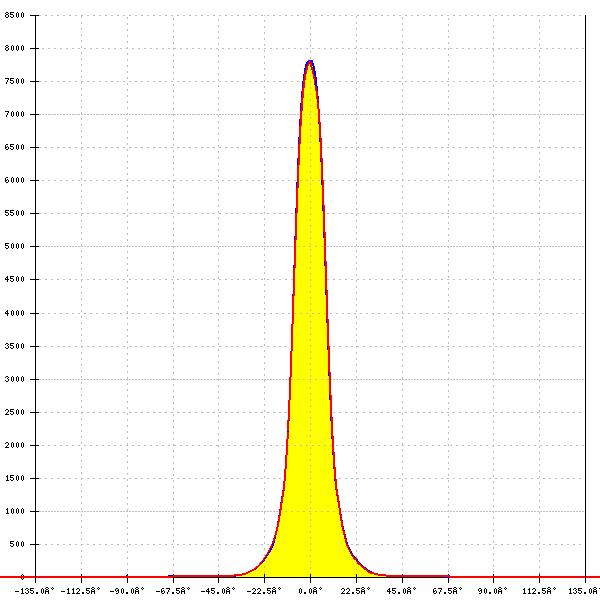

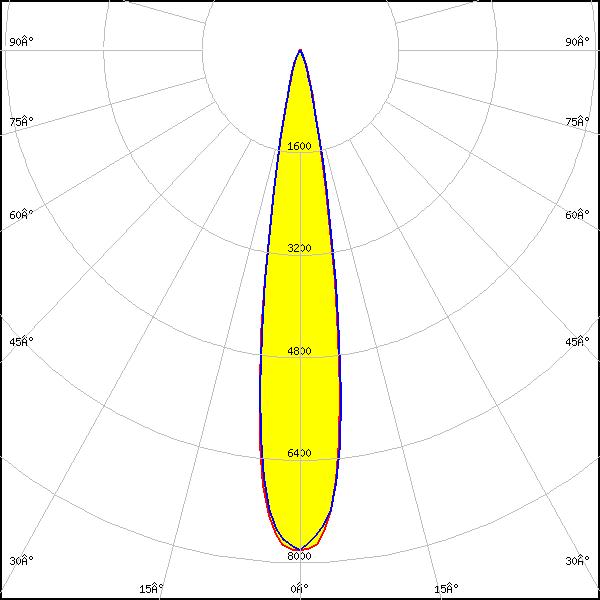

LED: NV4WB35AM
FWHM: 18°
FWTM: 32°
Peak intensity: 7.881 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

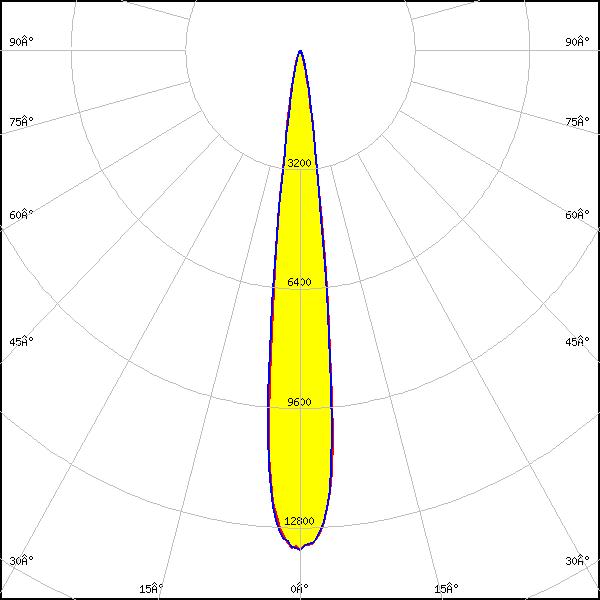

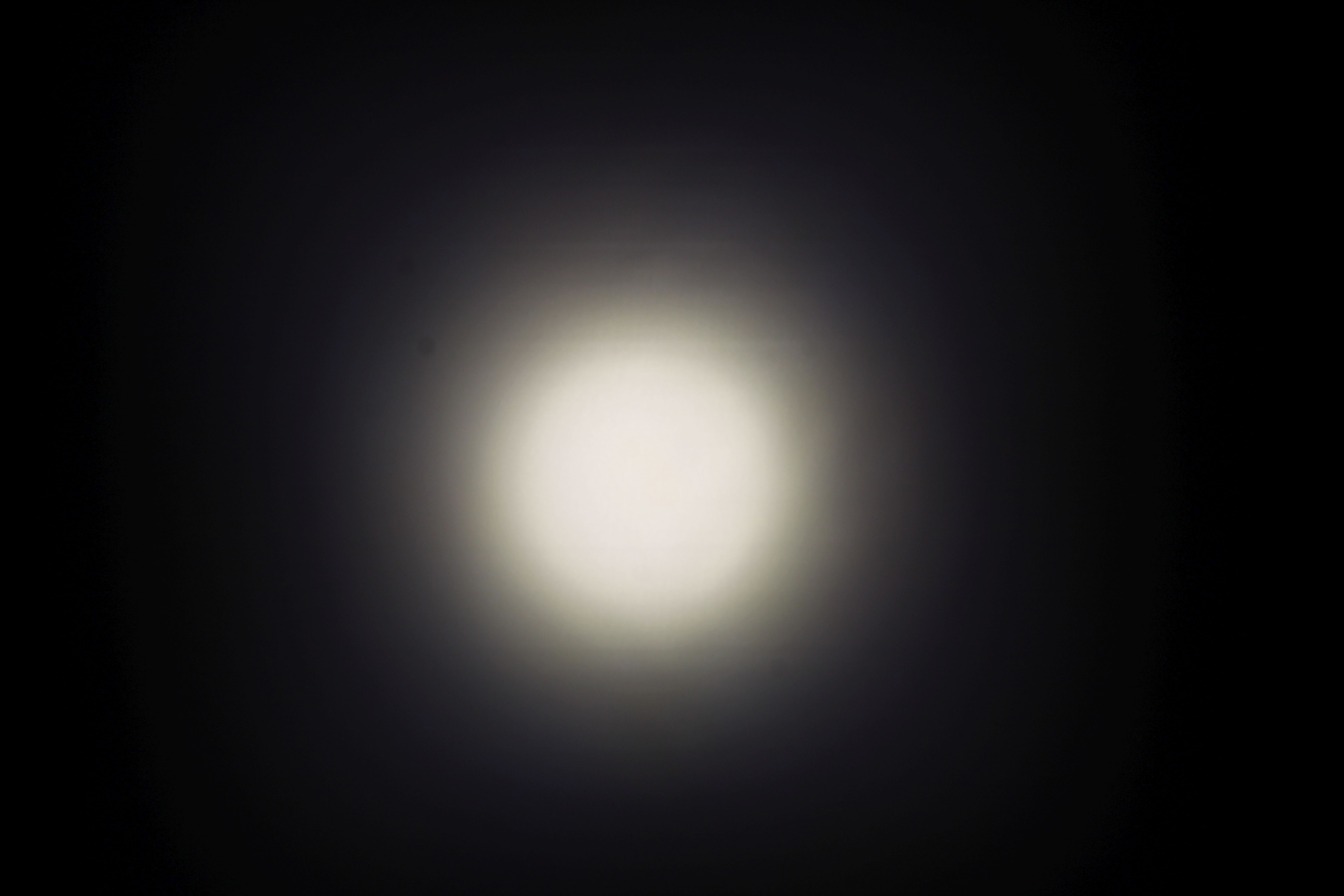

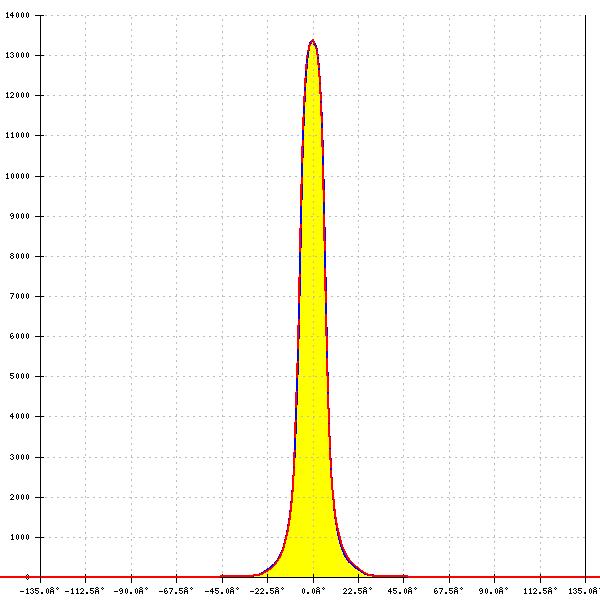

LED: NVSW219F
FWHM: 13°
FWTM: 23°
Peak intensity: 13.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

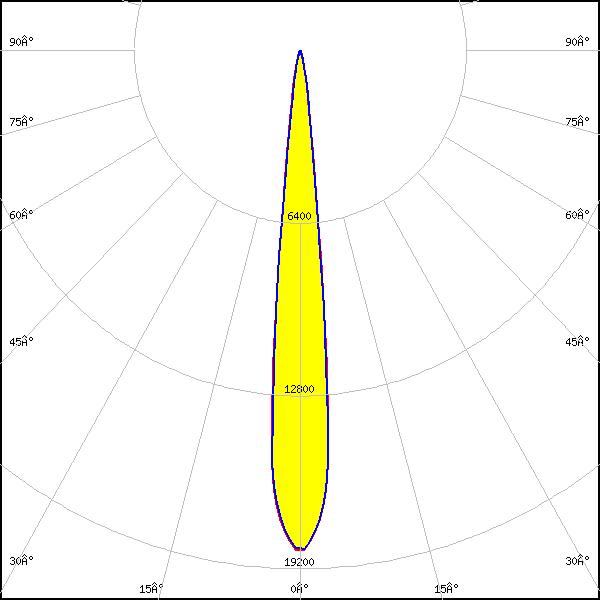

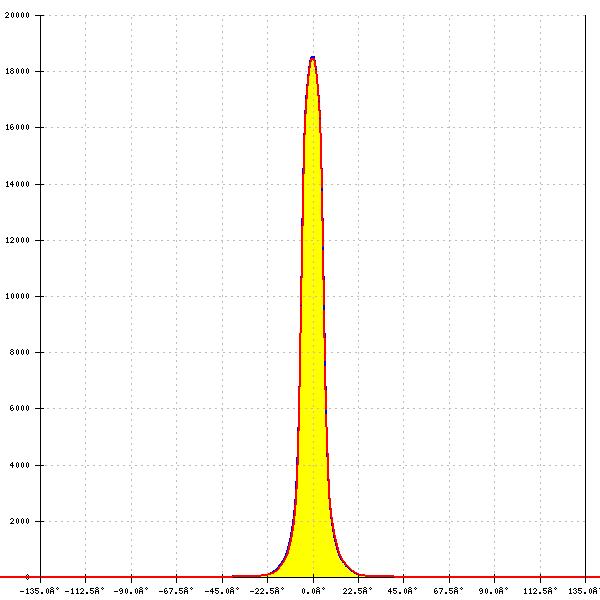

LED: NVSW719AC
FWHM: 11°
FWTM: 20°
Peak intensity: 18.563 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

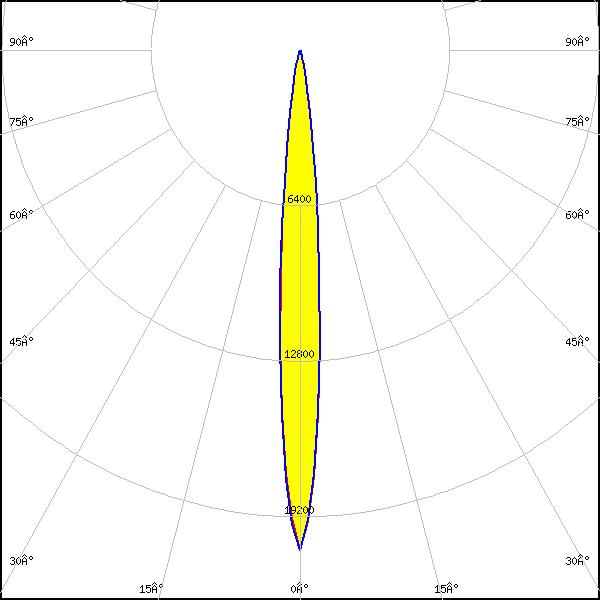

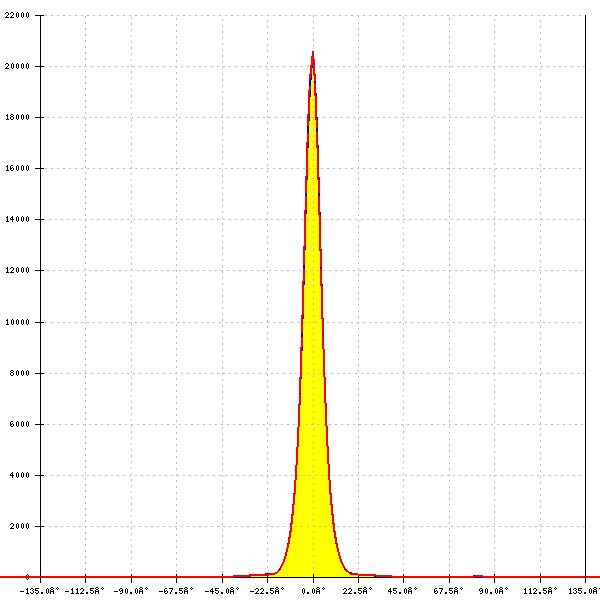

LED: NVSxE21A
FWHM: 9°
FWTM: 21°
Peak intensity: 20.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

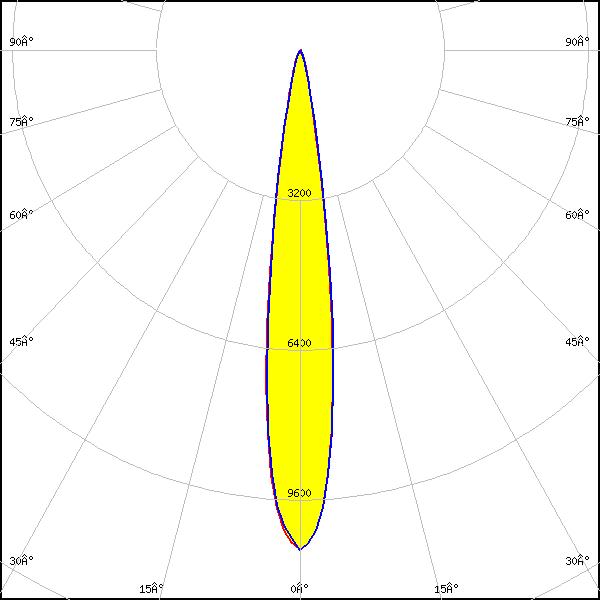

LED: NVSxx19A
FWHM: 15°
FWTM: 28°
Peak intensity: 10.674 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: 11°
FWTM: -
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

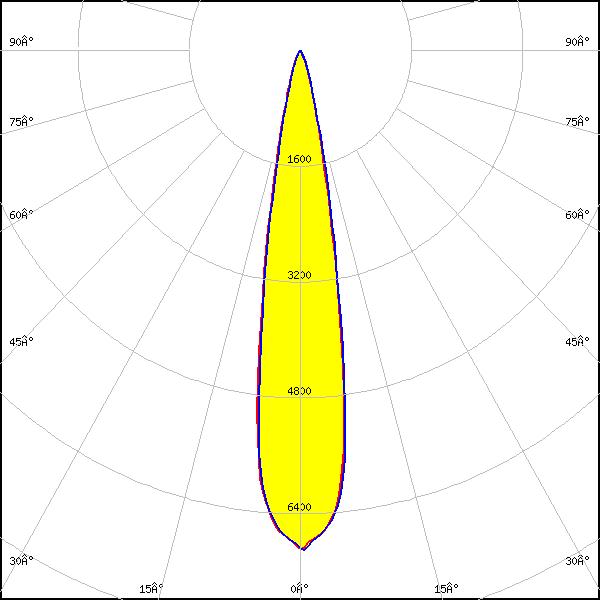

LED: NWSx229A
FWHM: 18°
FWTM: 33°
Peak intensity: 6.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

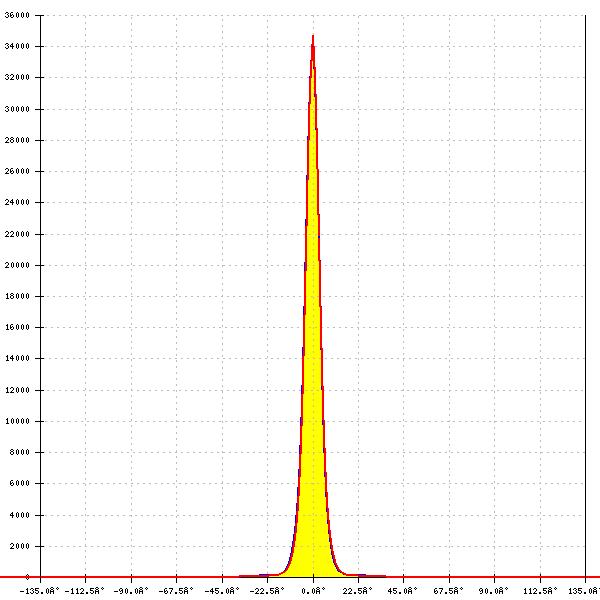

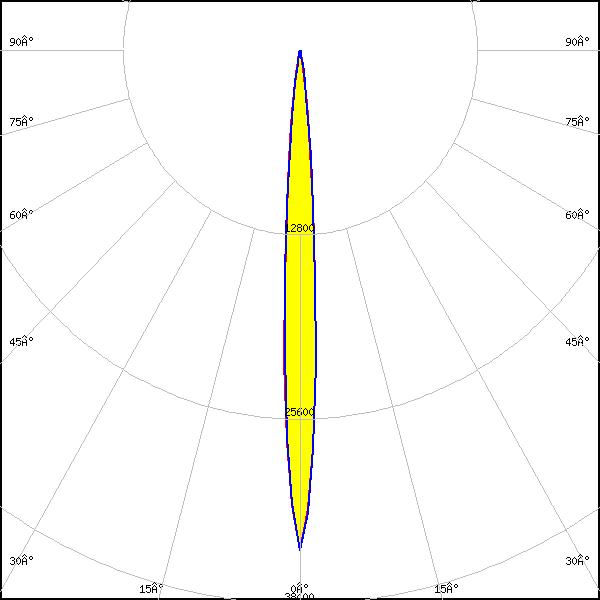

LED: OSCONIQ P 3030
FWHM: 7°
FWTM: 16°
Peak intensity: 34.706 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

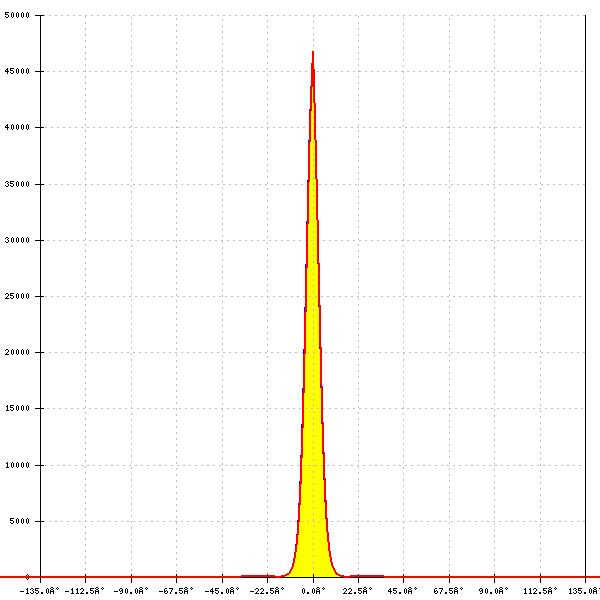

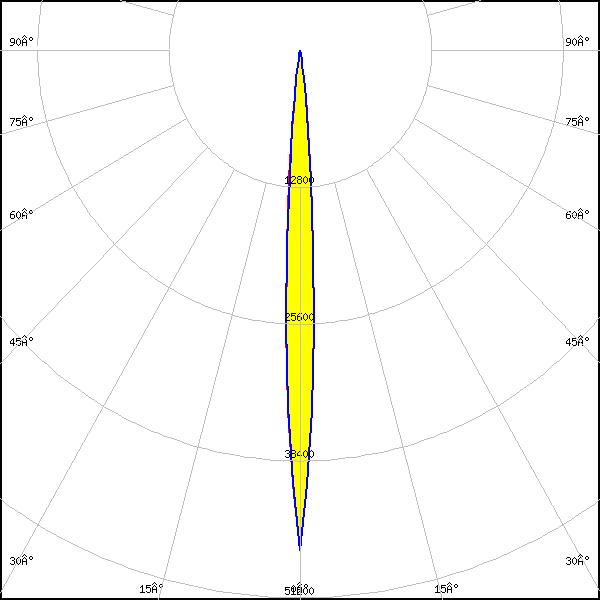

LED: OSLON Pure 1414
FWHM: 6°
FWTM: 14°
Peak intensity: 46.769 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

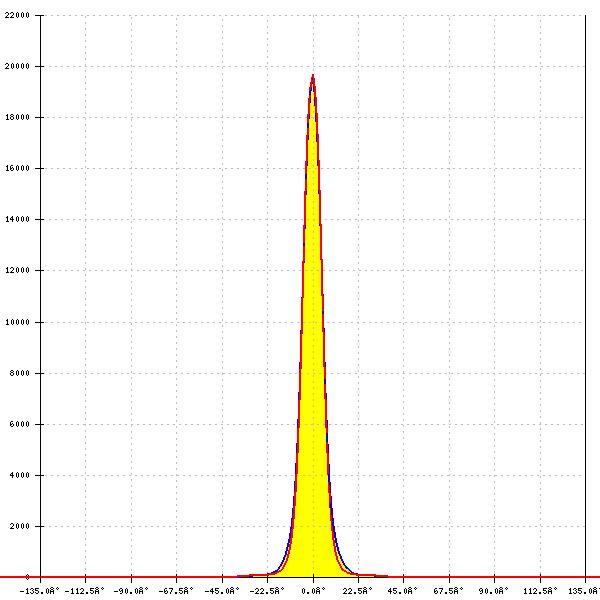

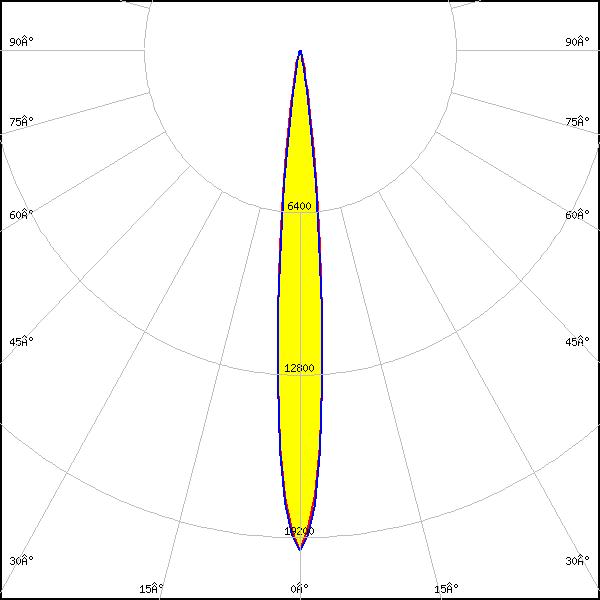

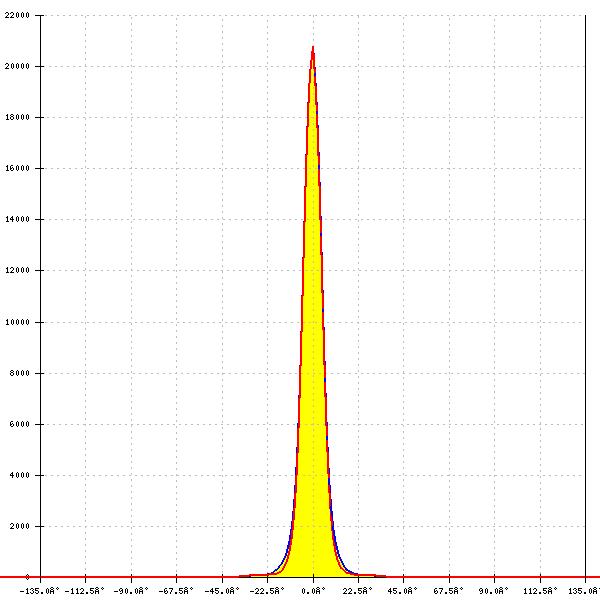

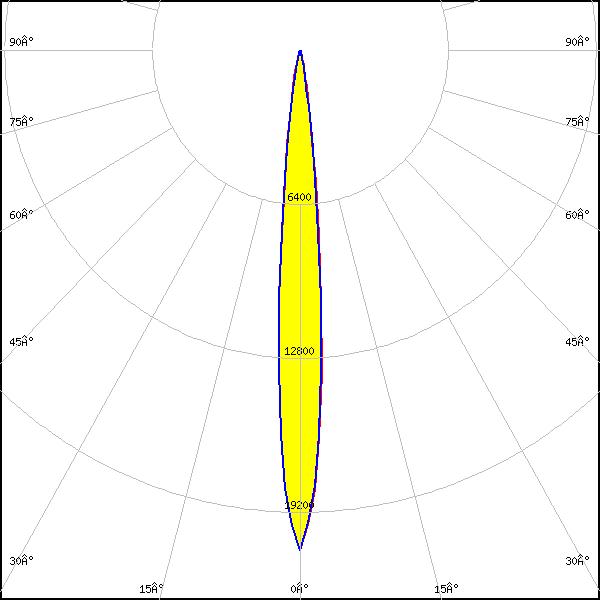

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 10°
FWTM: 20°
Peak intensity: 20.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square EC
FWHM: 10°
FWTM: 19°
Peak intensity: 20.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square PC
FWHM: 10°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON SSL 150
FWHM: 8°
FWTM: -
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

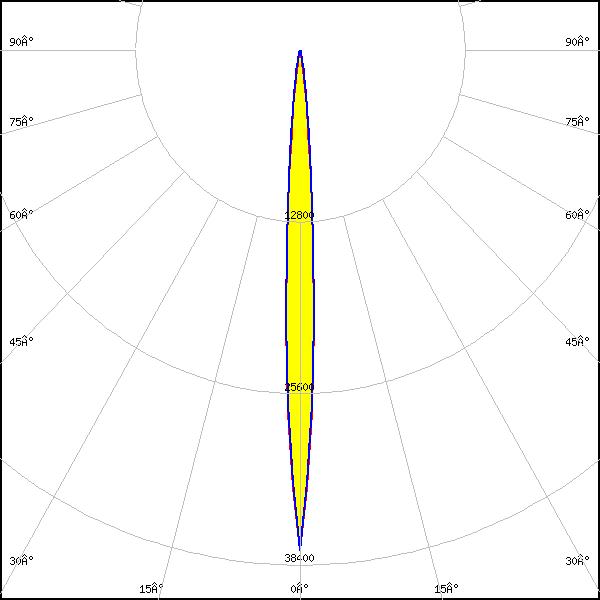

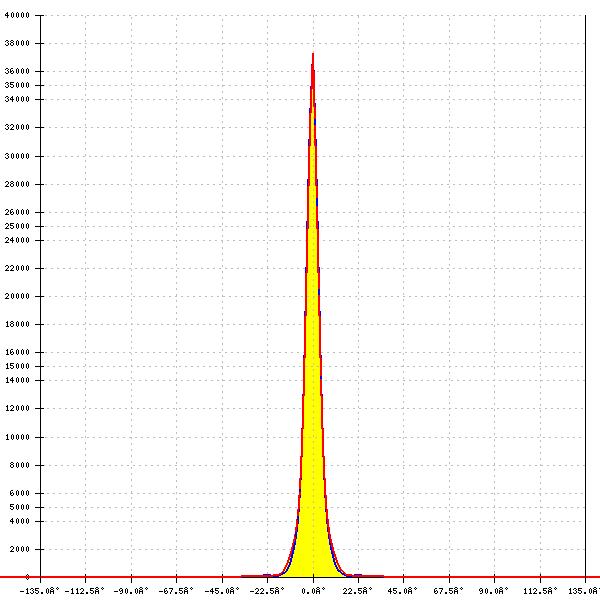

LED: OSLON SSL 80
FWHM: 7°
FWTM: -
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

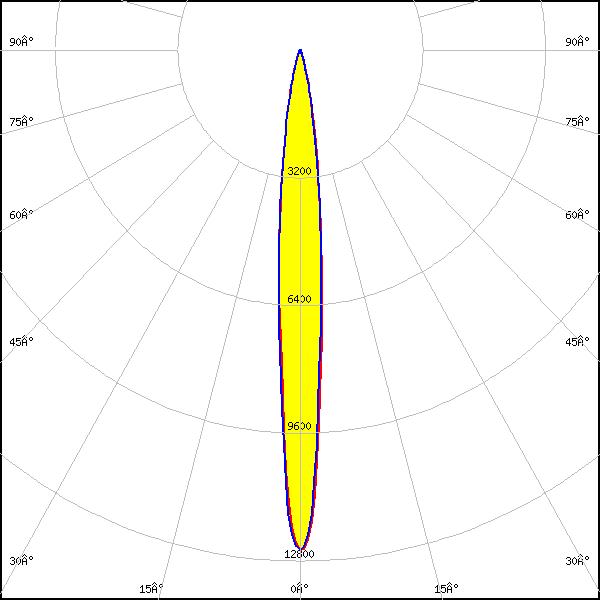

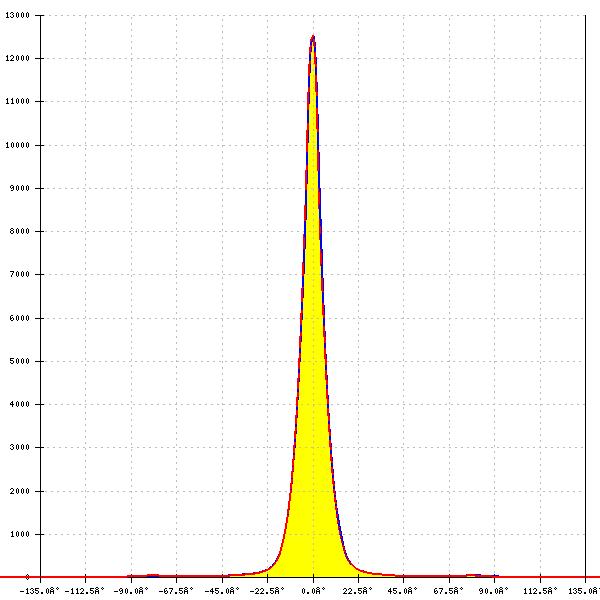

LED: LH181A
FWHM: 10°
FWTM: 26°
Peak intensity: 12.500 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

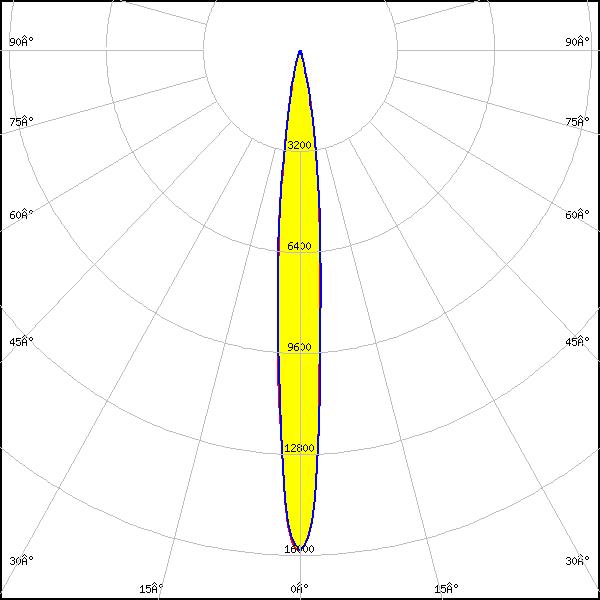

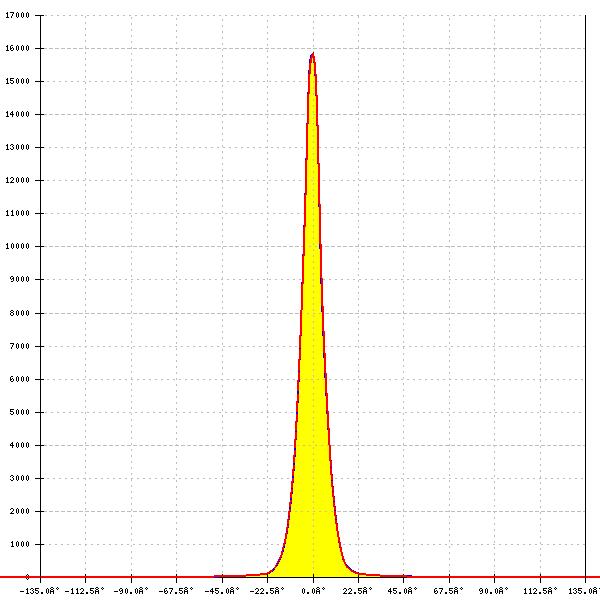

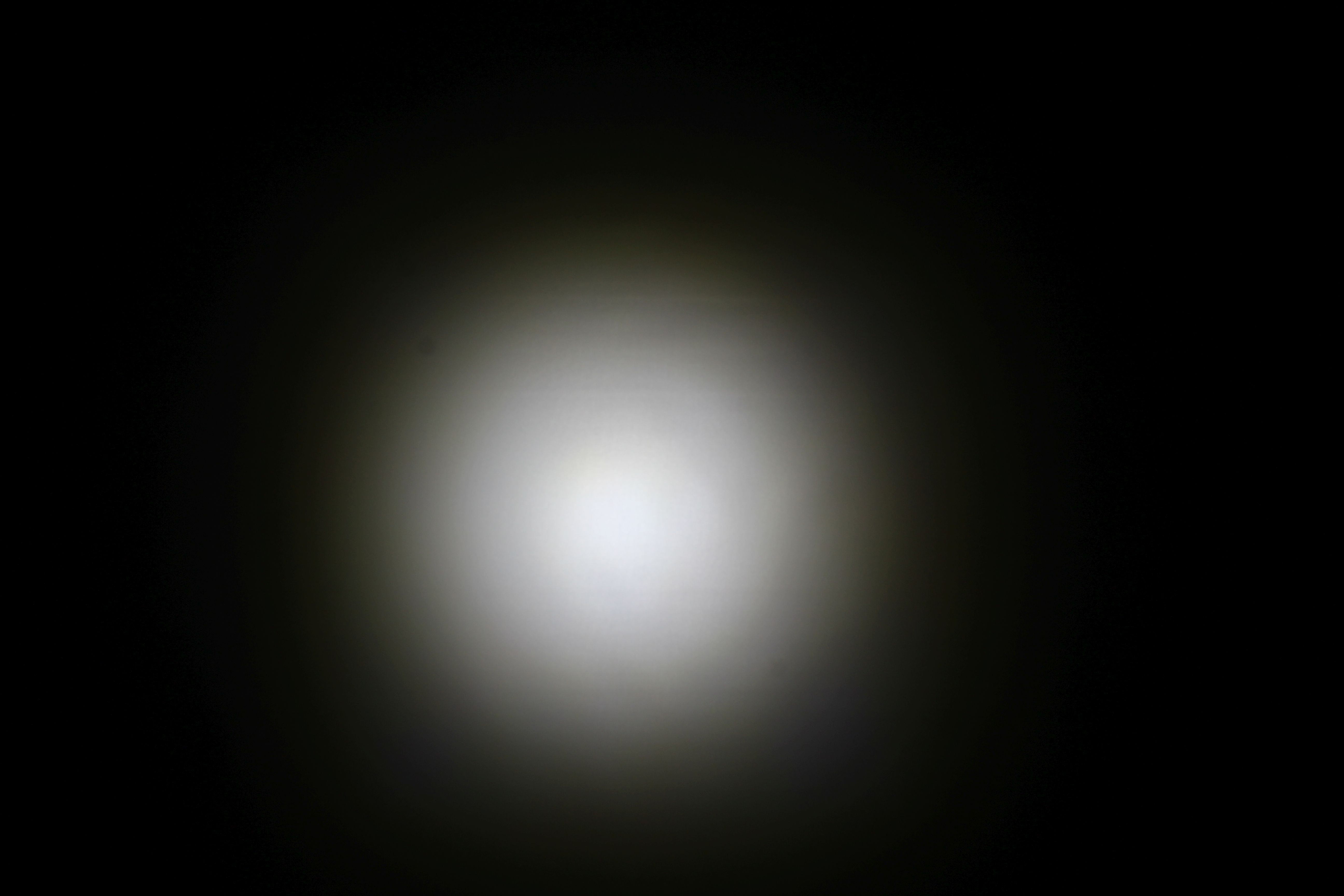

LED: LH181B
FWHM: 10°
FWTM: 24°
Peak intensity: 15.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: 12°
FWTM: -
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

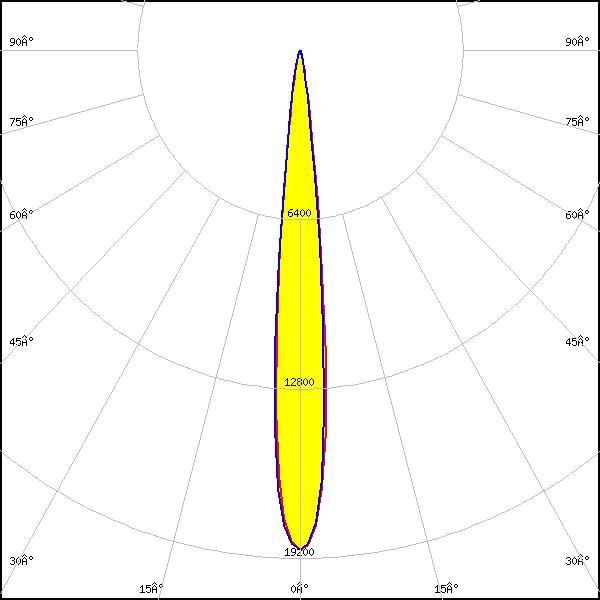

LED: LH351Z
FWHM: 12°
FWTM: 20°
Peak intensity: 18.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

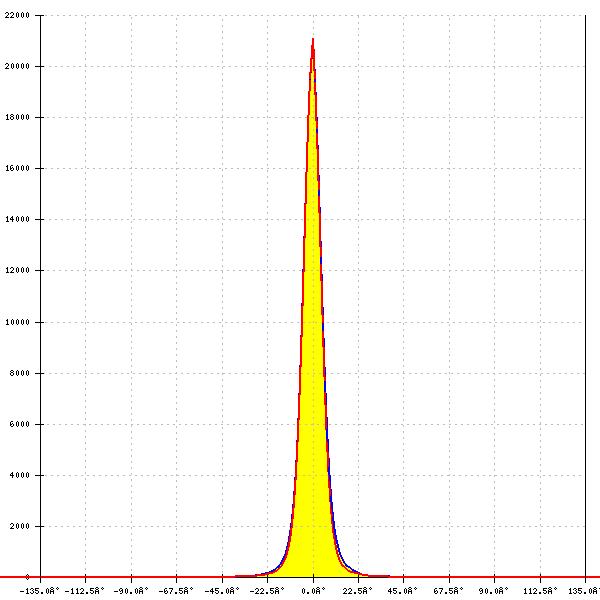

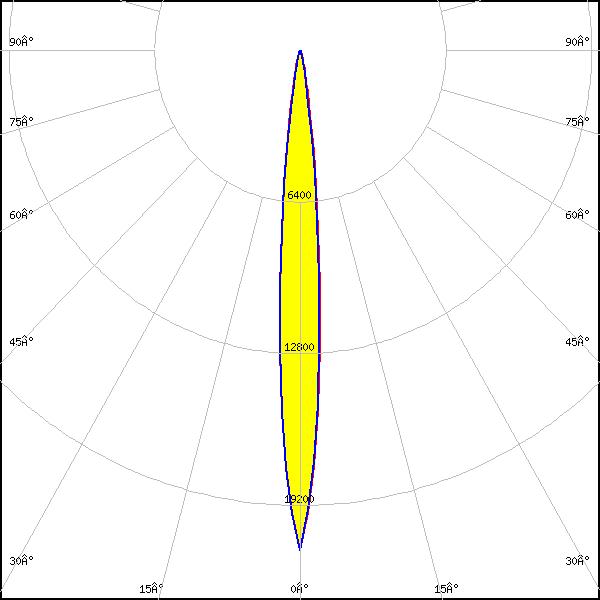

LED: MJT 3030
FWHM: 10°
FWTM: 20°
Peak intensity: 21.095 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

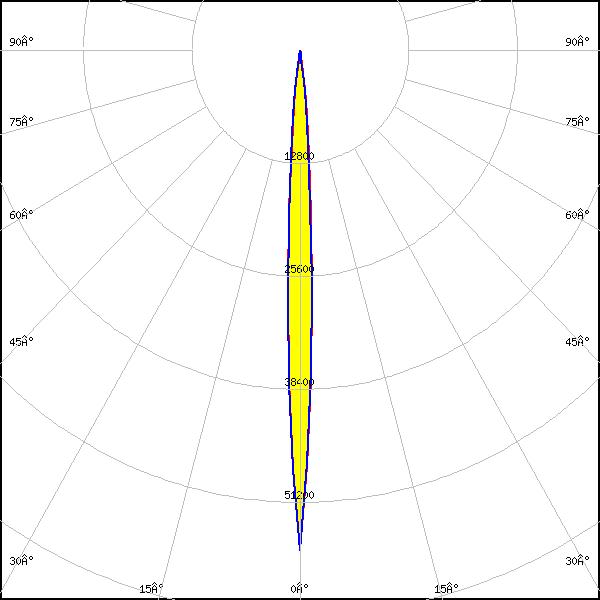

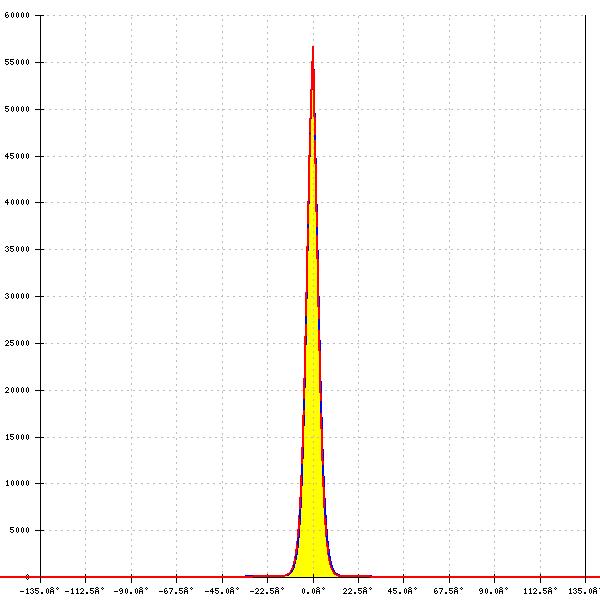

LED: Z5
FWHM: 6°
FWTM: 13°
Peak intensity: 56.649 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

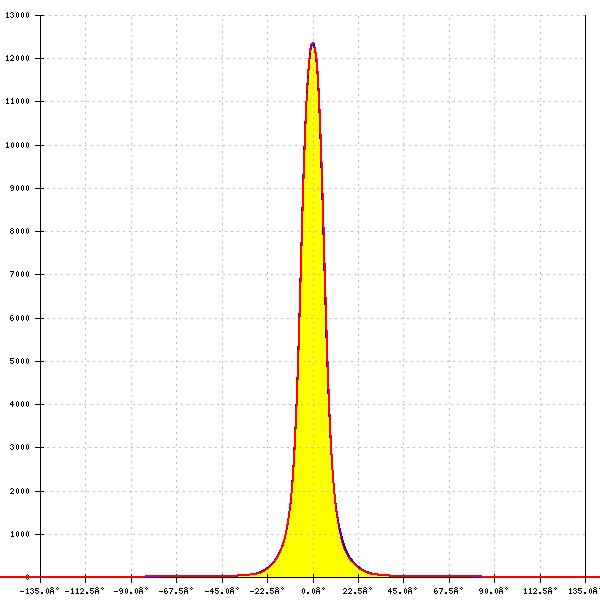

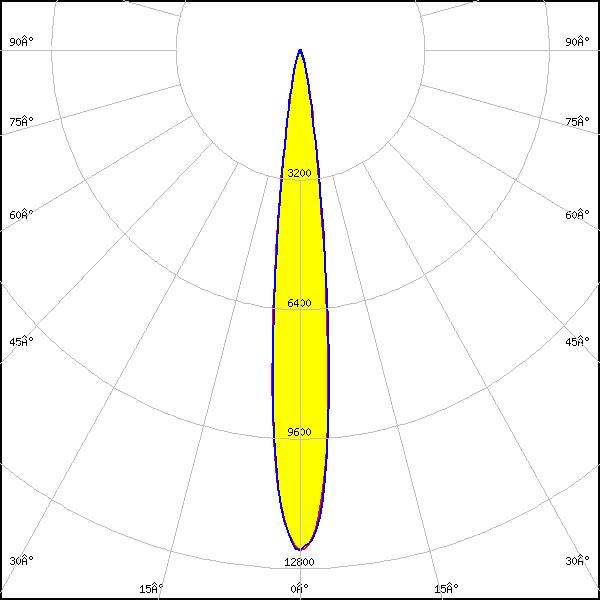

LED: Z5M3
FWHM: 13°
FWTM: 25°
Peak intensity: 12.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

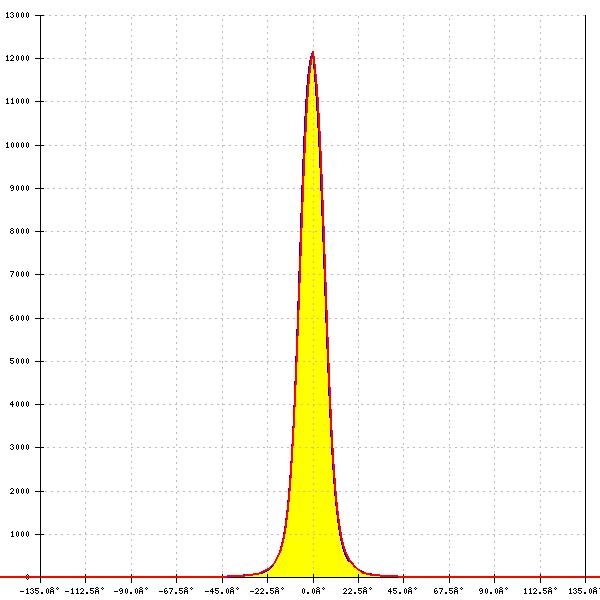

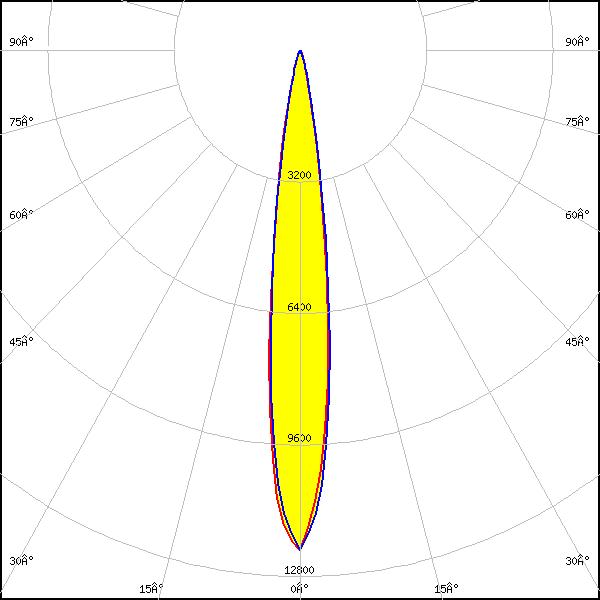

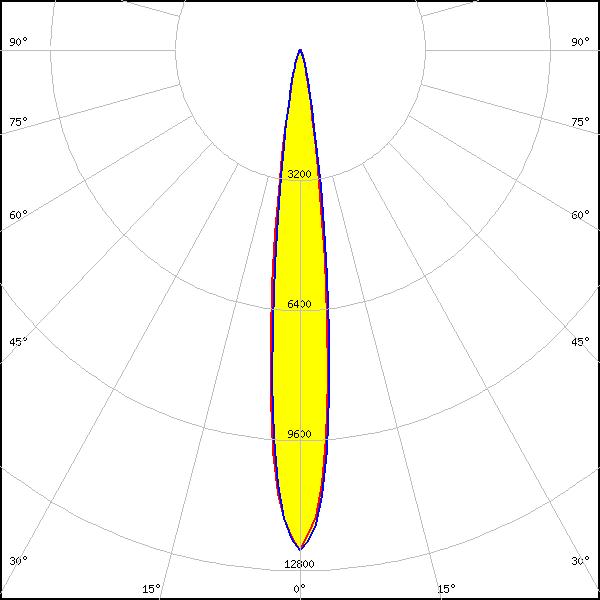

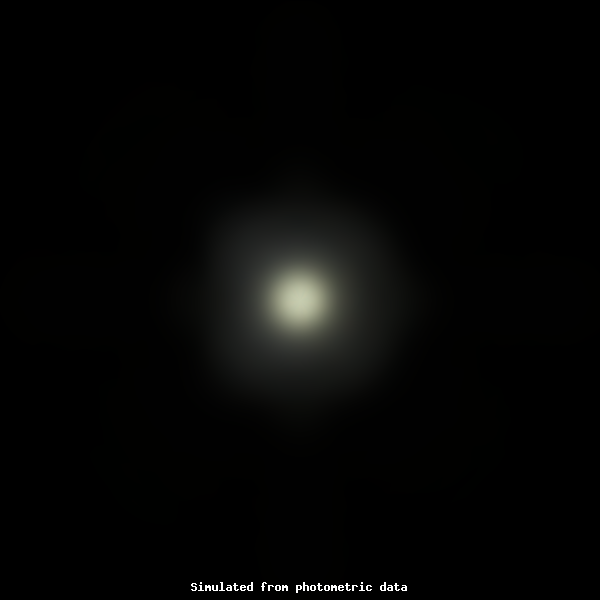

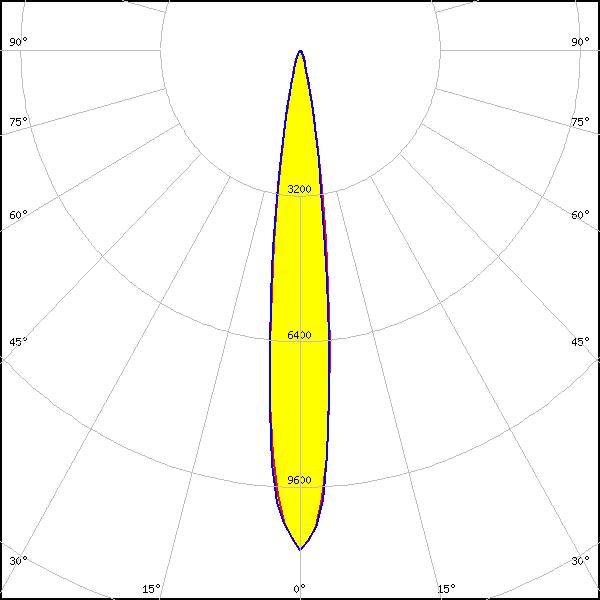

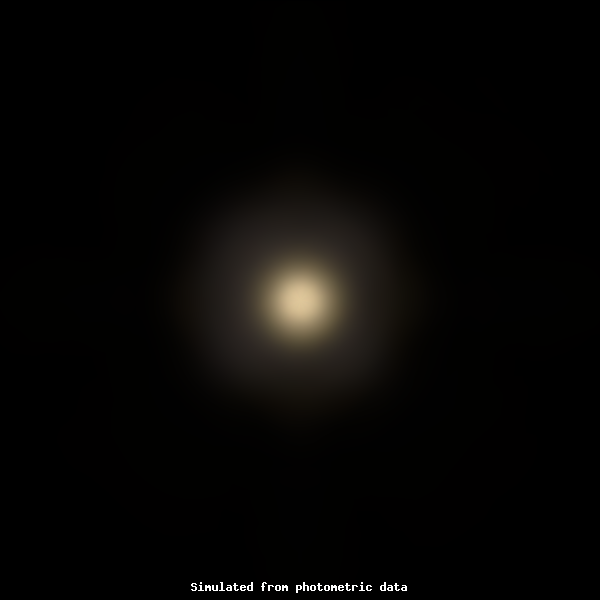

LED: Z5M4
FWHM: 14°
FWTM: 26°
Peak intensity: 12.165 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

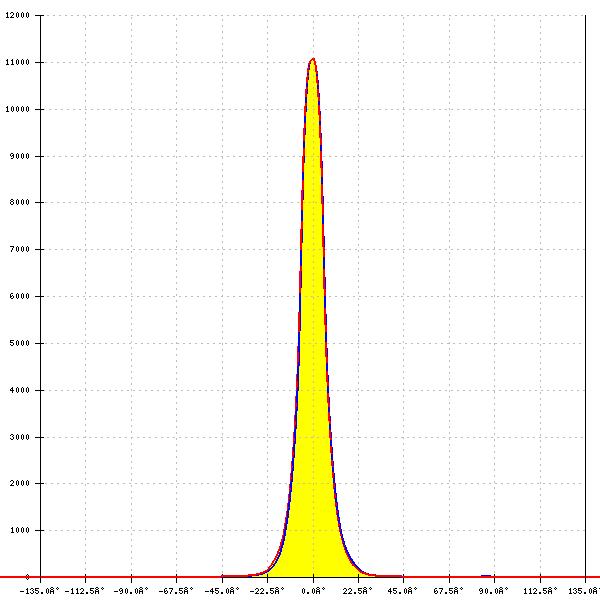

LED: Z8Y22P
FWHM: 12°
FWTM: 26°
Peak intensity: 11.059 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

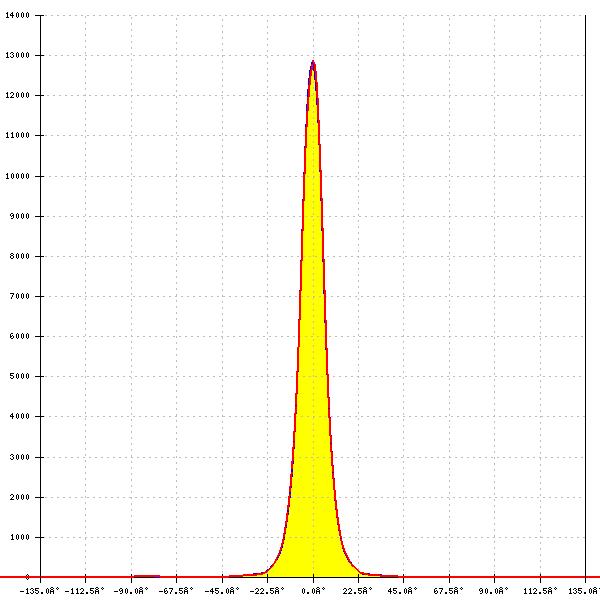

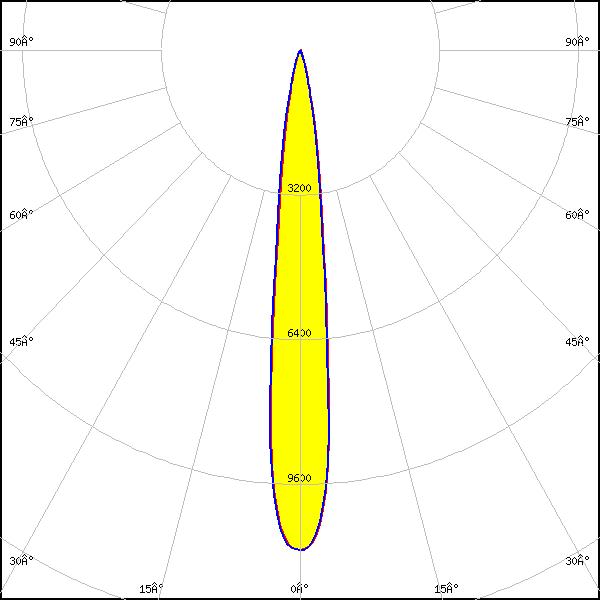

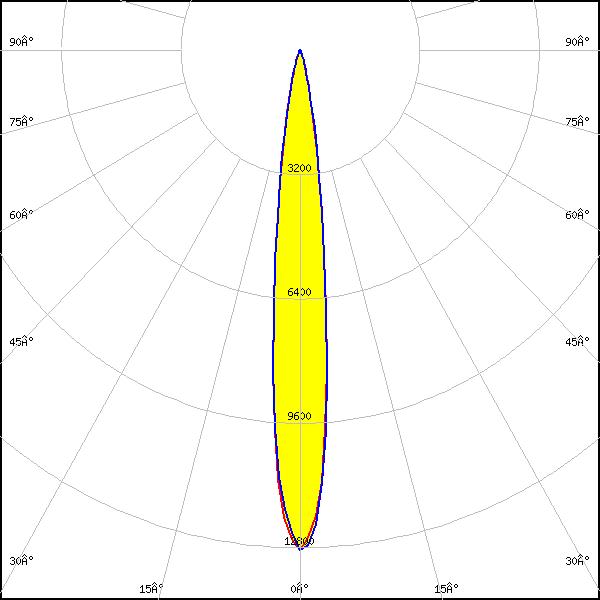

LED: Z8Y22T
FWHM: 12°
FWTM: 26°
Peak intensity: 12.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

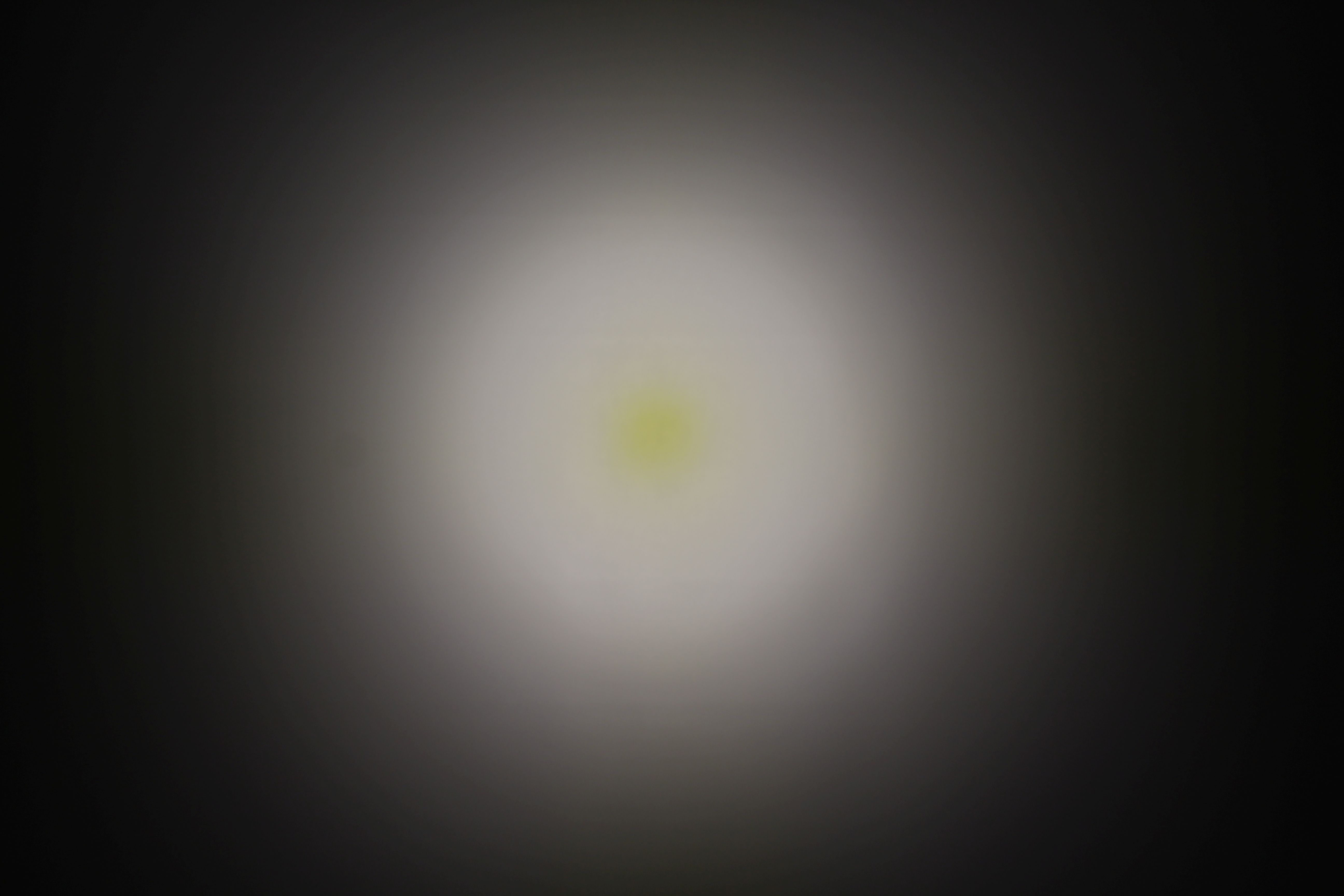

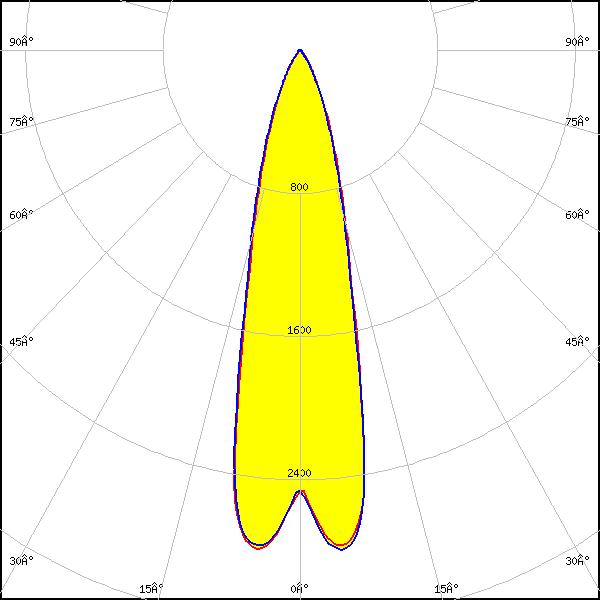

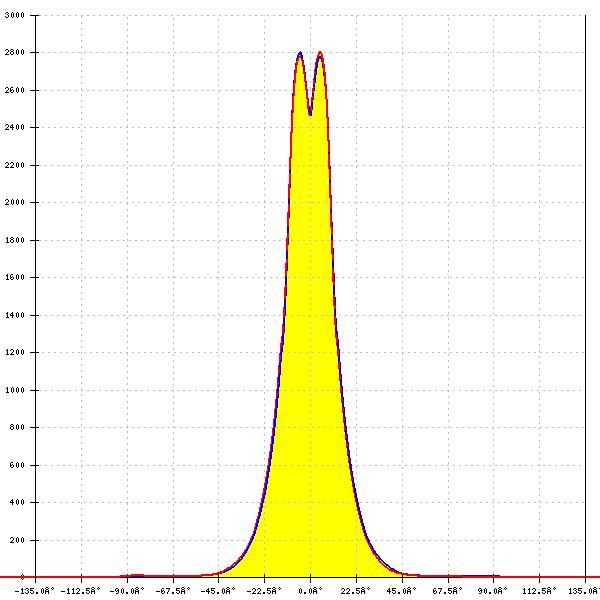

LED: Z8Y50P
FWHM: 25°
FWTM: 52°
Peak intensity: 2.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Double Dome (GM2BB)
LEDs/each optic: 1
Light colour/type: White
