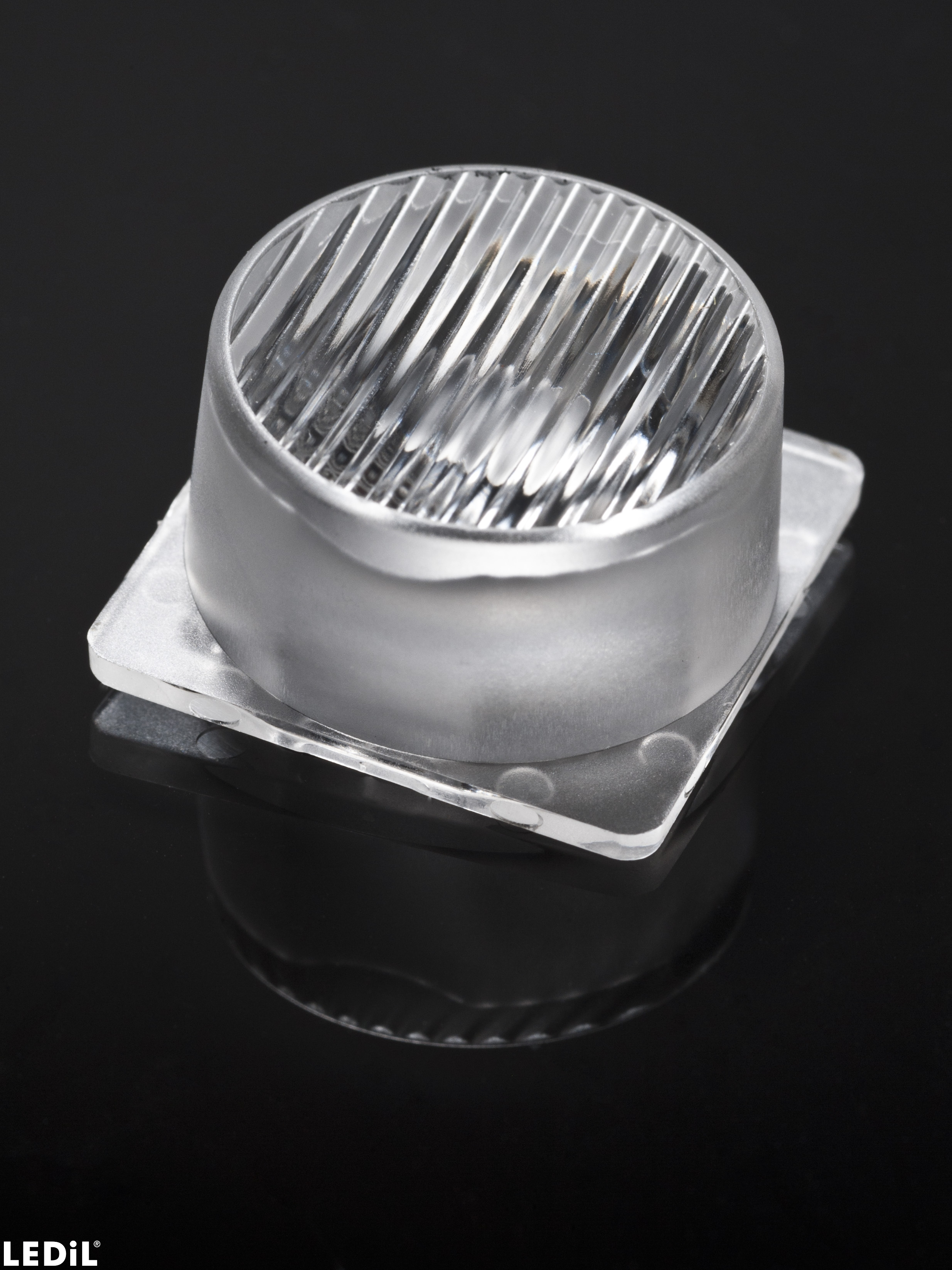

CA13726_VERONICA-SQ-O
Print
~55° + 12° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

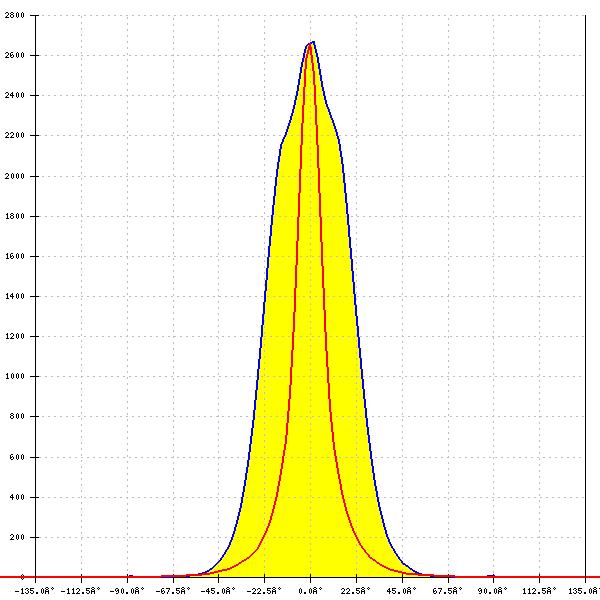

LED:
XB-H
FWHM:
45° + 16°
FWTM:
73° + 40°
Peak intensity:
2.700 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

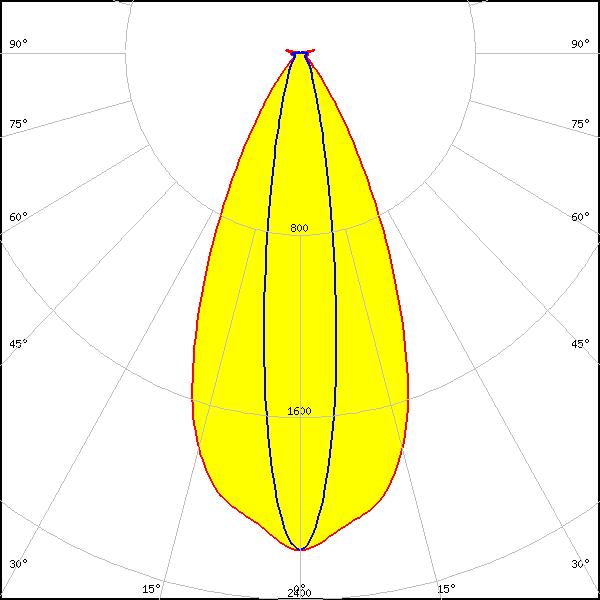

LED:
XD16
FWHM:
47° + 17°
FWTM:
76° + 41°
Peak intensity:
2.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HD
FWHM:
45° + 20°
FWTM:
78° + 48°
Peak intensity:
2.130 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP35 HI
FWHM:
46° + 16°
FWTM:
74° + 40°
Peak intensity:
2.700 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

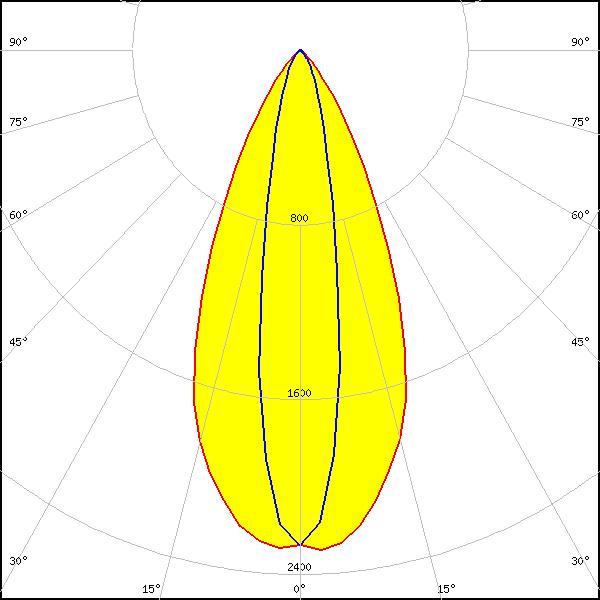

LED:
XM-L
FWHM:
47° + 20°
FWTM:
77° + 46°
Peak intensity:
2.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

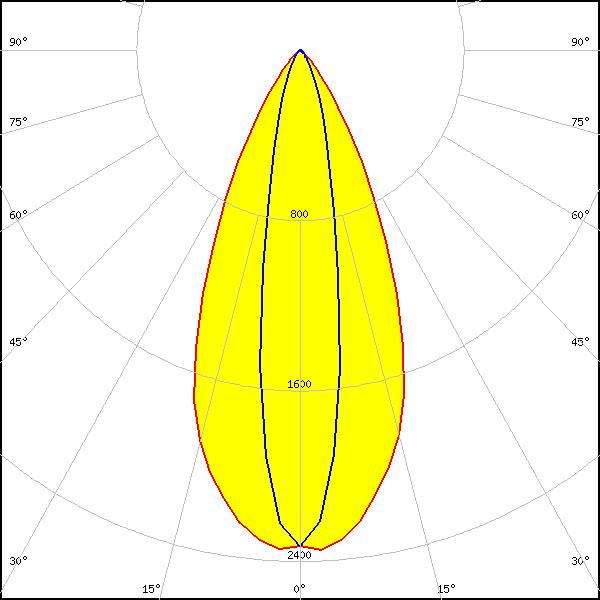

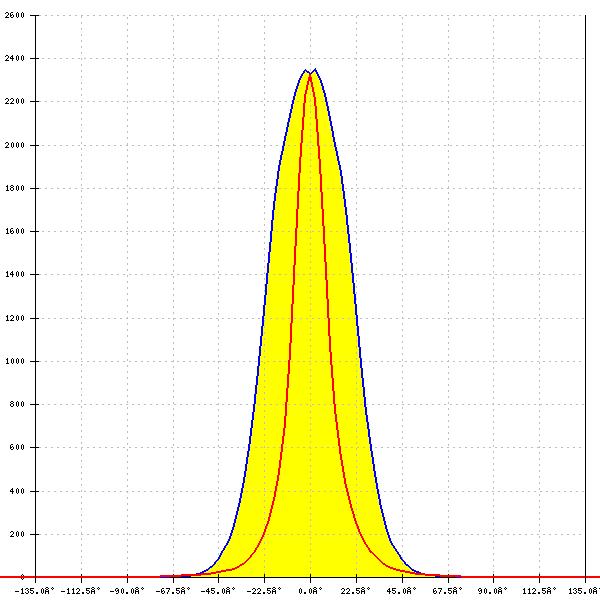

LED:
XM-L2
FWHM:
47° + 20°
FWTM:
76° + 45°
Peak intensity:
2.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

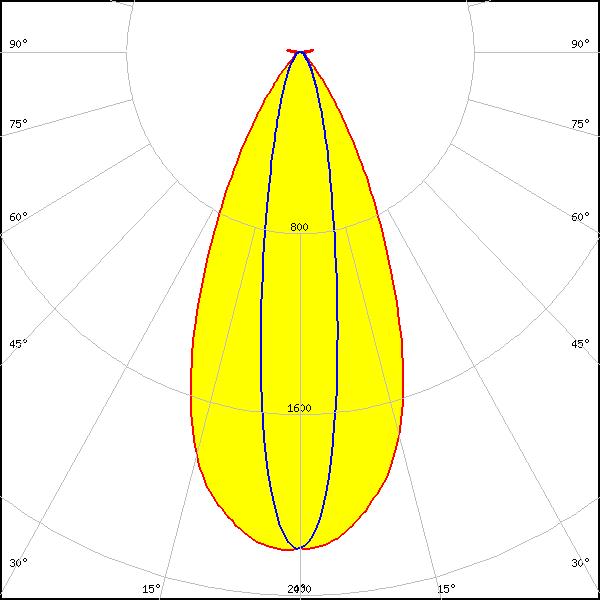

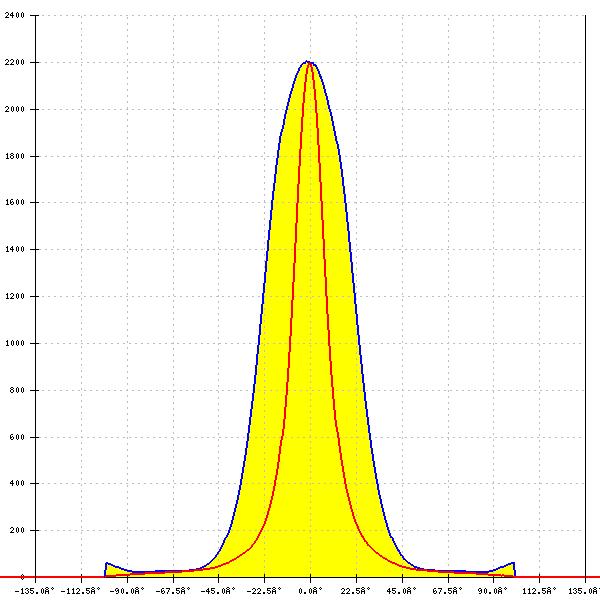

LED:
XM-L3
FWHM:
47° + 19°
FWTM:
77° + 46°
Peak intensity:
2.202 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

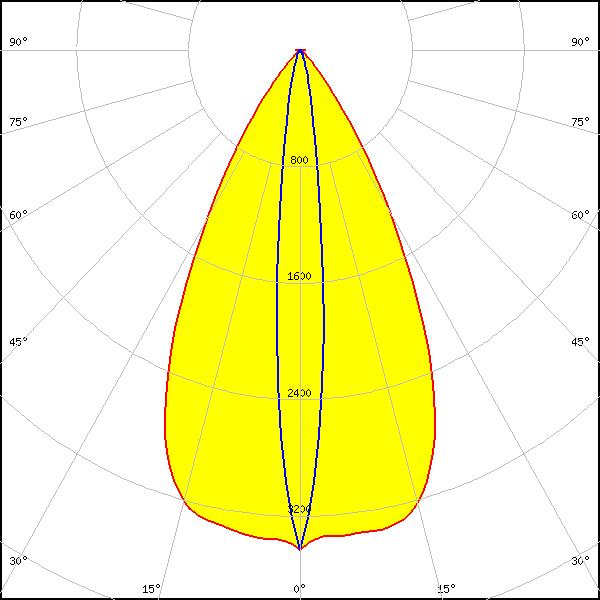

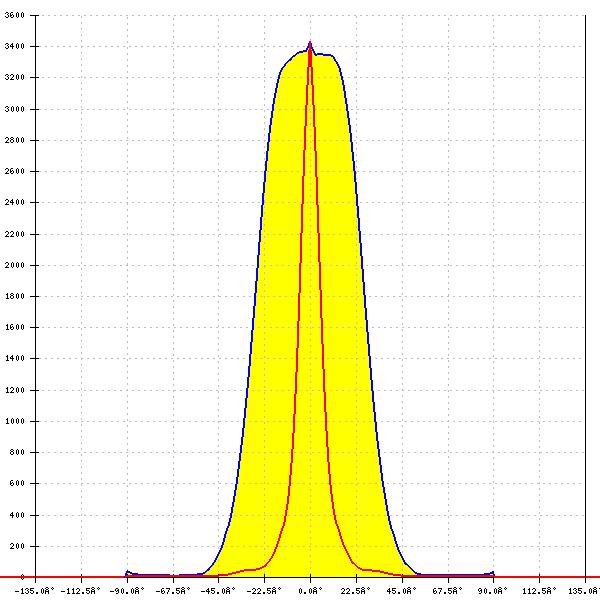

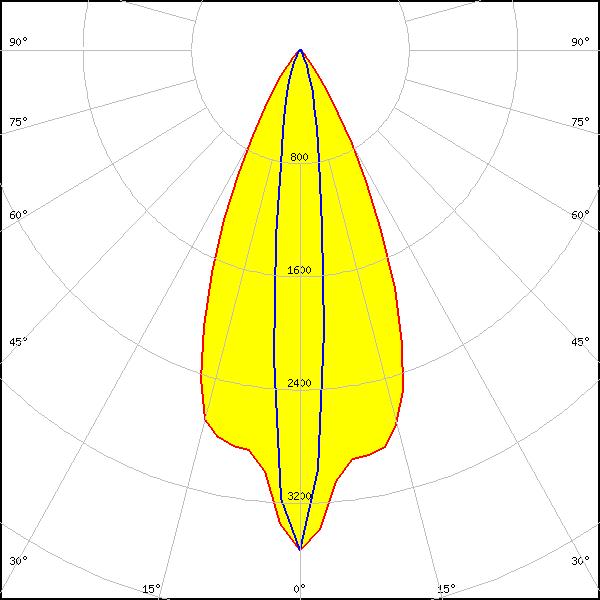

LED:
XP-E2
FWHM:
54° + 12°
FWTM:
80° + 26°
Peak intensity:
3.435 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
Blue

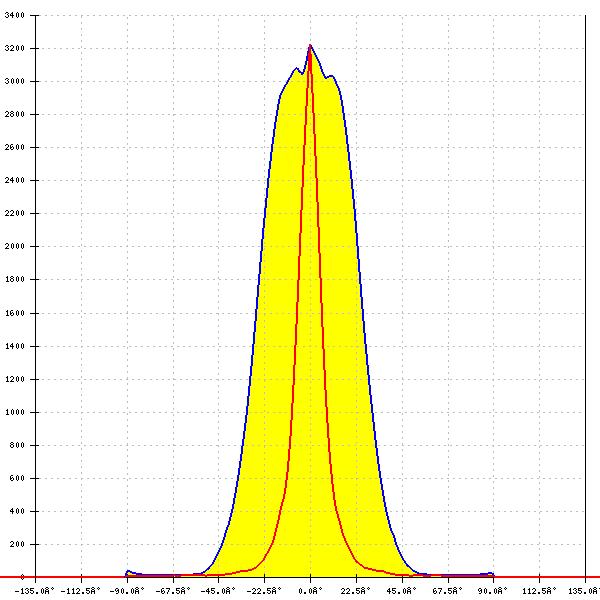

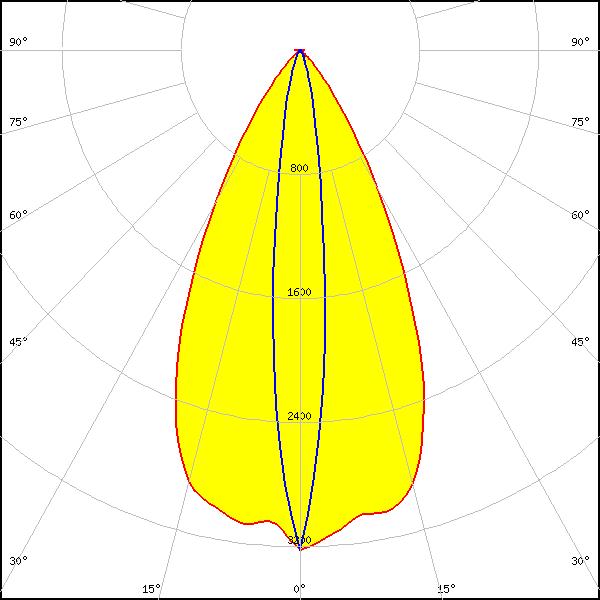

LED:
XP-E2
FWHM:
52° + 12°
FWTM:
79° + 31°
Peak intensity:
3.250 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
Amber

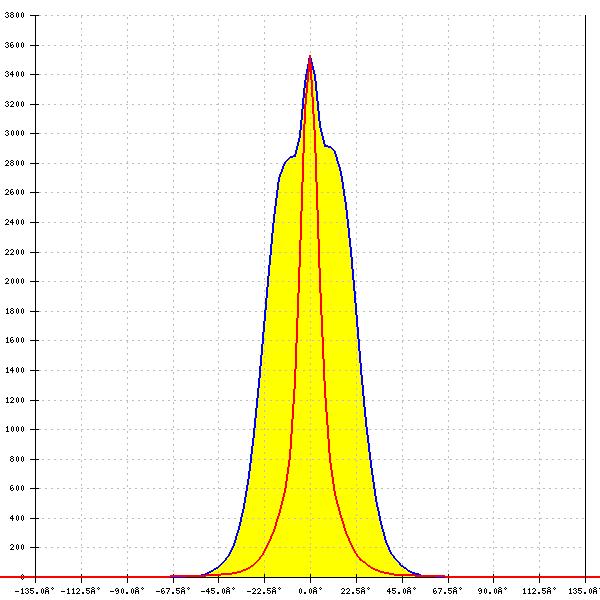

LED:
XP-E2
FWHM:
46° + 12°
FWTM:
71° + 34°
Peak intensity:
3.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

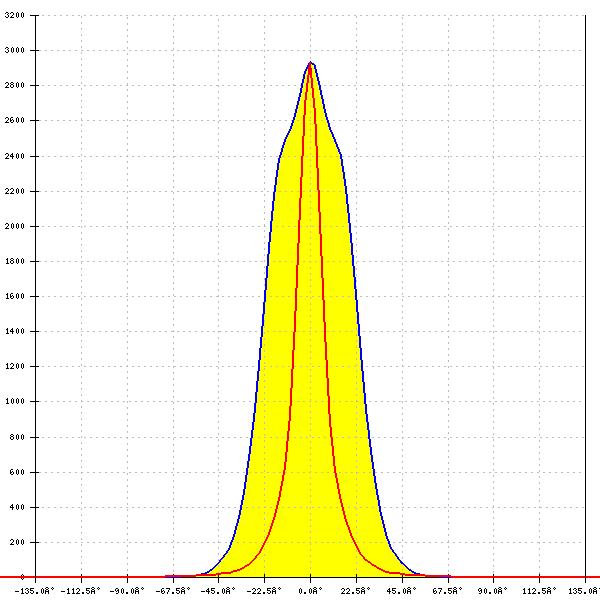

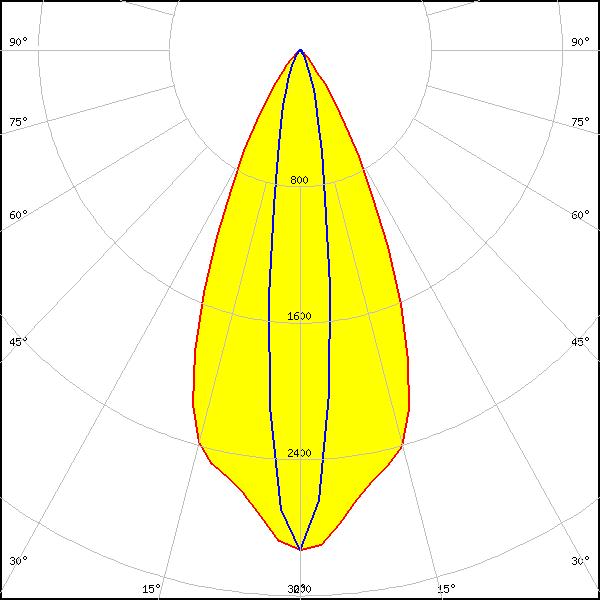

LED:
XP-G2
FWHM:
47° + 14°
FWTM:
76° + 40°
Peak intensity:
2.940 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
54° + 14°
FWTM:
80° + 35°
Peak intensity:
2.821 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

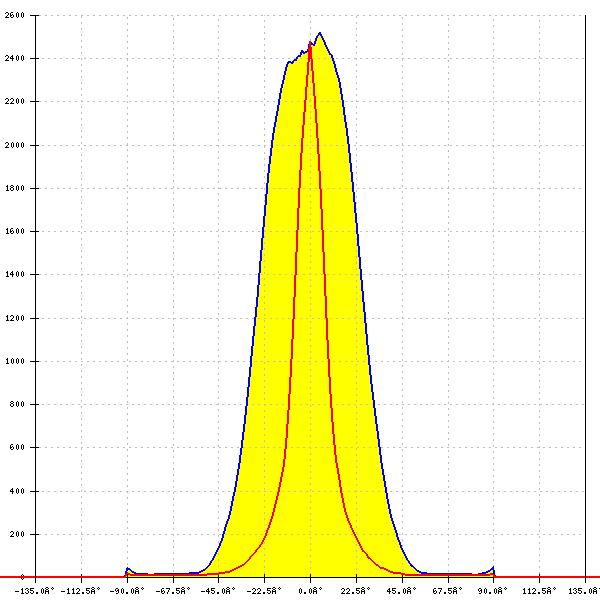

LED:

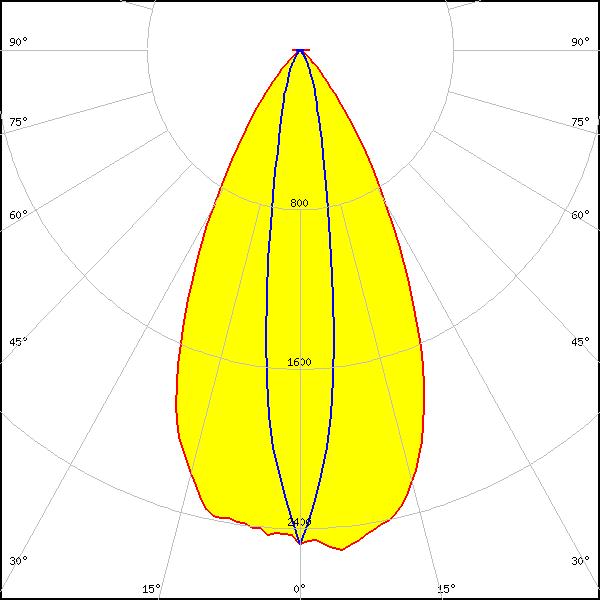

XP-L HD
FWHM:
53° + 16°
FWTM:
82° + 38°
Peak intensity:
2.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

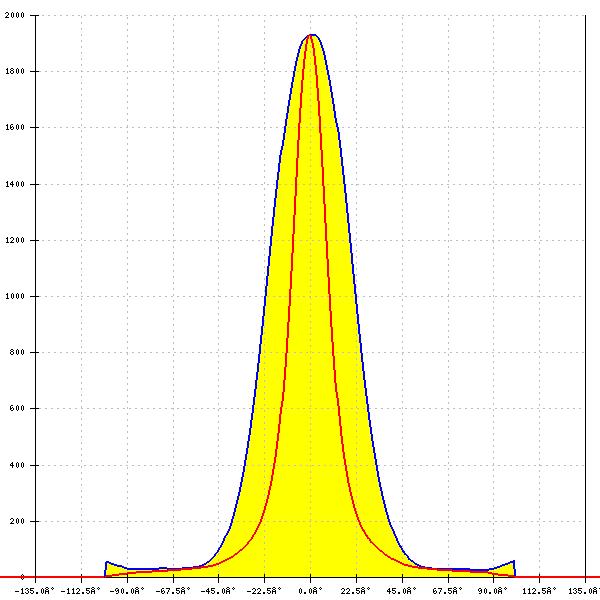

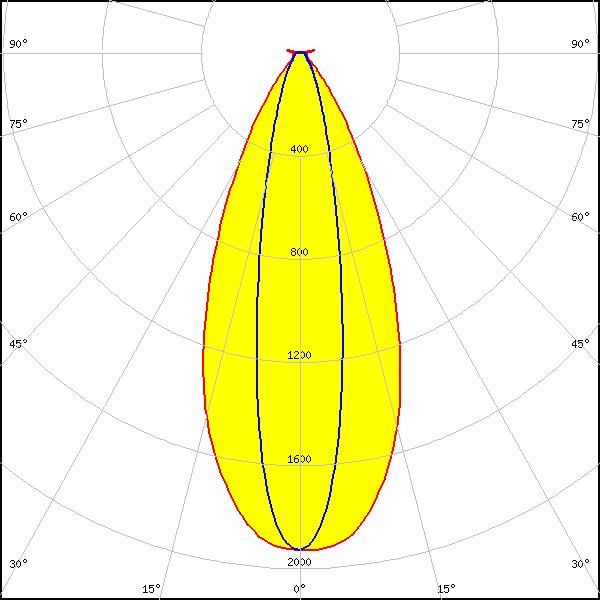

LED:
XP-L2
FWHM:
45° + 20°
FWTM:
78° + 49°
Peak intensity:
1.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

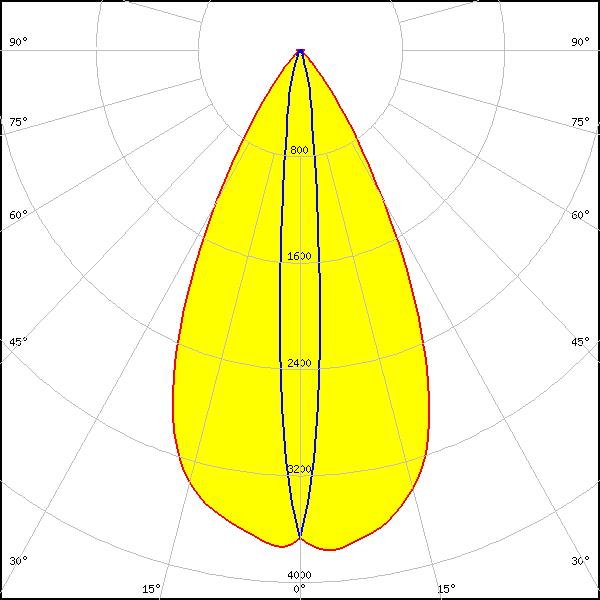

LED:
XQ-E HD
FWHM:
53° + 10°
FWTM:
78° + 27°
Peak intensity:
3.767 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HI
FWHM:
53° + 8°
FWTM:
76° + 24°
Peak intensity:
4.138 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
47° + 16°
FWTM:
74° + 40°
Peak intensity:
2.800 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

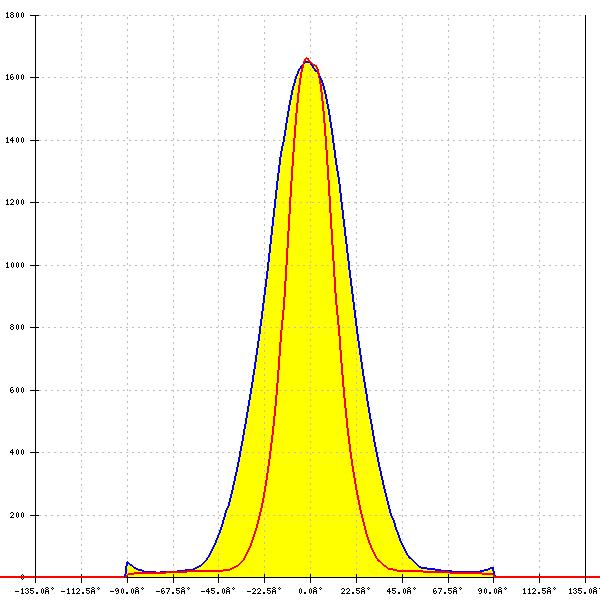

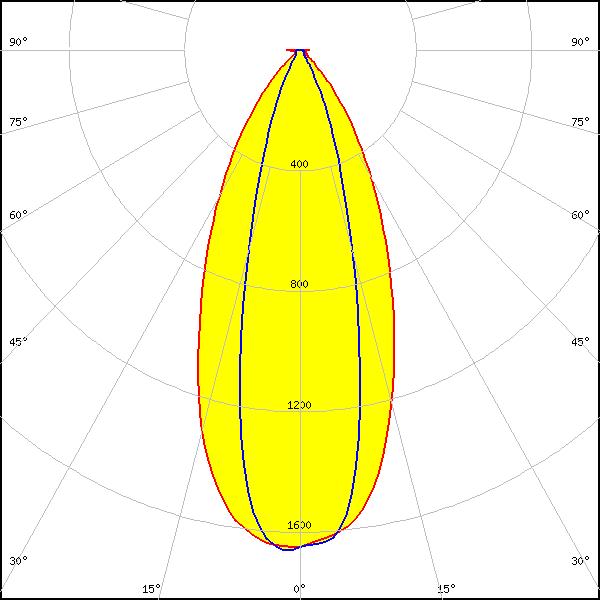

LED:
LUXEON C
FWHM:
46° + 27°
FWTM:
85° + 53°
Peak intensity:
1.667 cd/lm
Efficiency:
84 %
LEDs/each optic:
4
Light colour/type:
RGBW

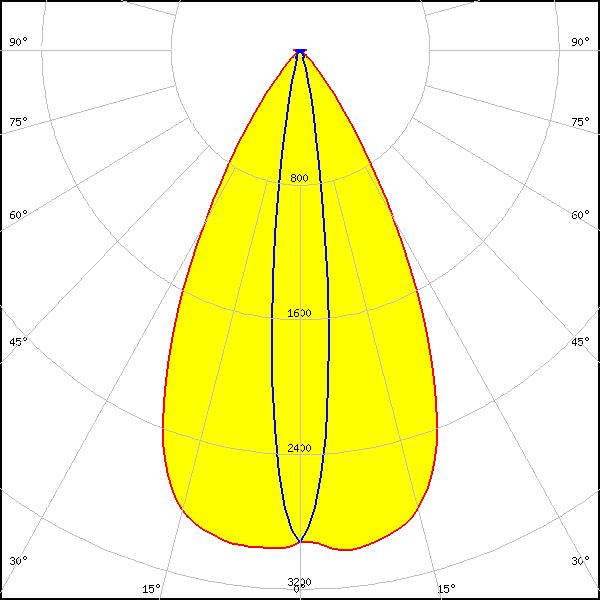

LED:
LUXEON HL1Z (White)
FWHM:
56° + 14°
FWTM:
80° + 26°
Peak intensity:
3.002 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

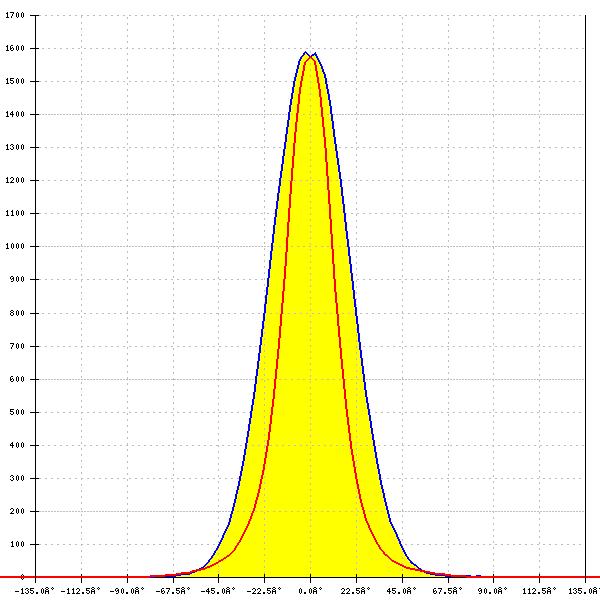

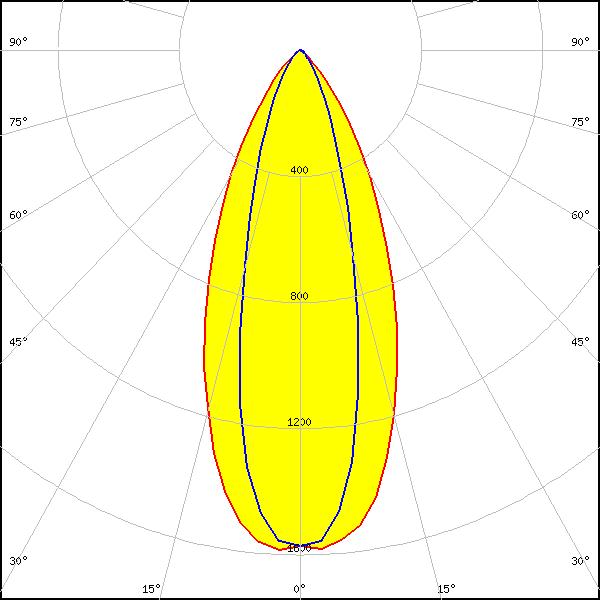

LED:
LUXEON M/MX
FWHM:
45° + 28°
FWTM:
81° + 60°
Peak intensity:
1.600 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

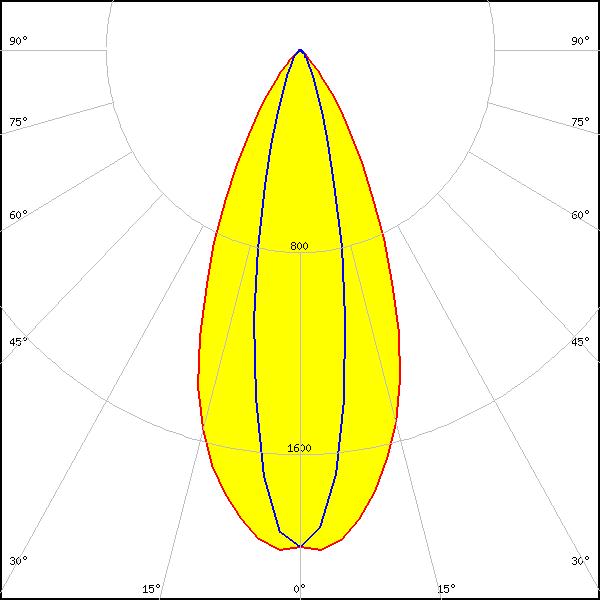

LED:
LUXEON MZ
FWHM:
47° + 23°
FWTM:
77° + 46°
Peak intensity:
2.000 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

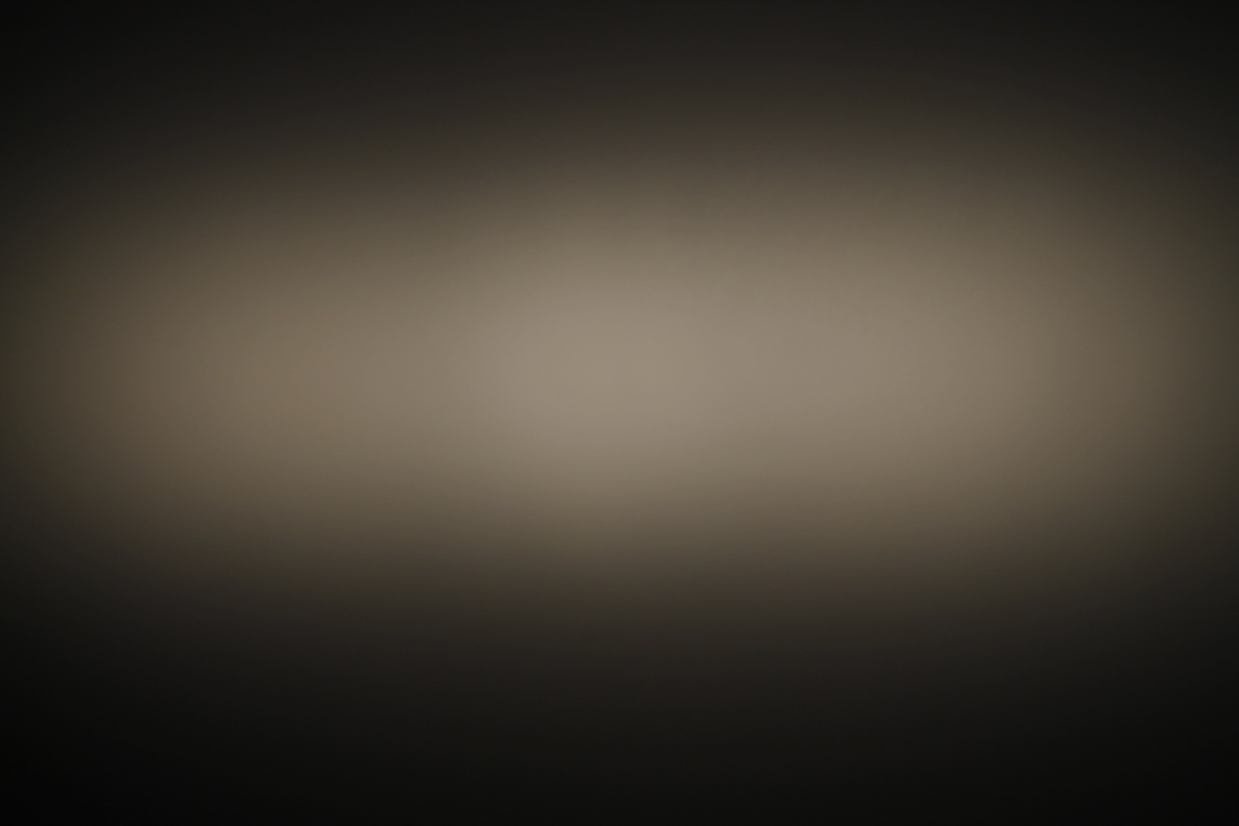

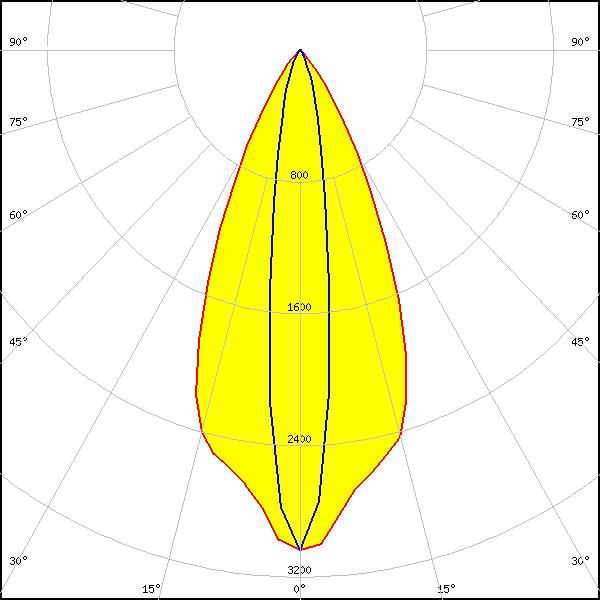

LED:
LUXEON Rebel
FWHM:
47° + 15°
FWTM:
72° + 38°
Peak intensity:
3.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

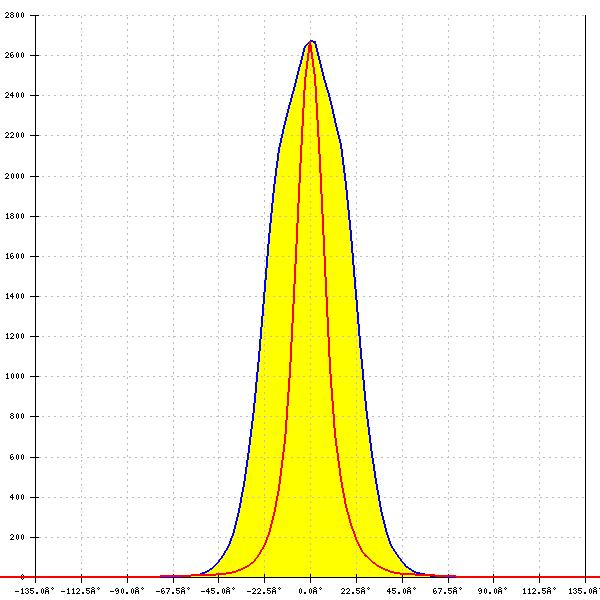

LED:

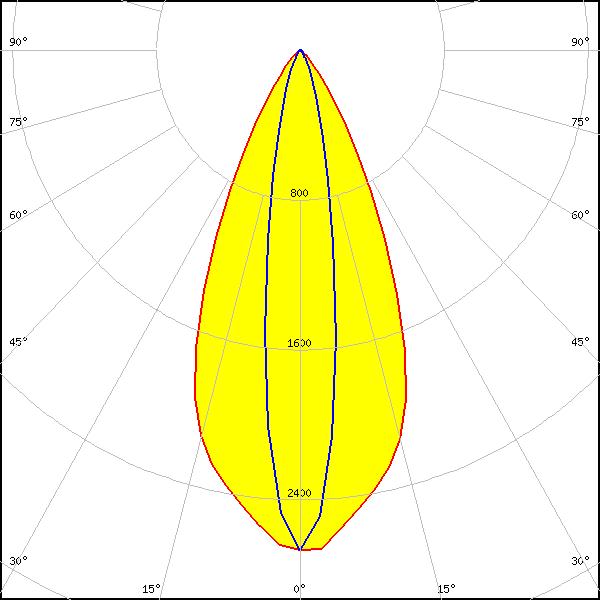

LUXEON Rebel ES
FWHM:
47° + 17°
FWTM:
74° + 39°
Peak intensity:
2.700 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

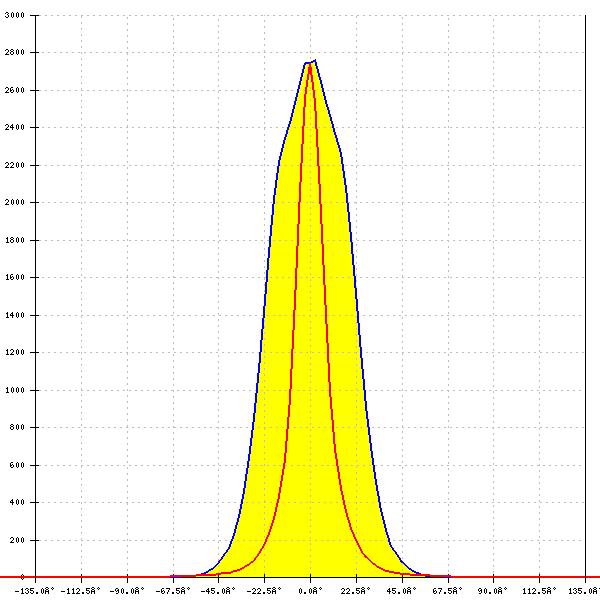

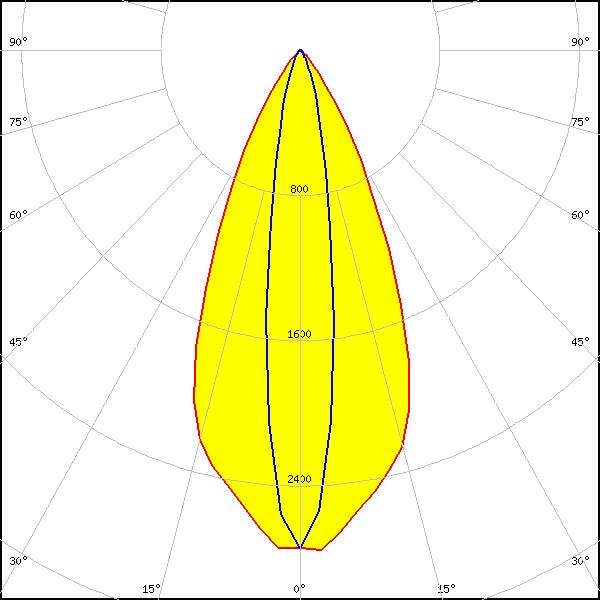

LED:
LUXEON T
FWHM:
47° + 17°
FWTM:
74° + 39°
Peak intensity:
2.800 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

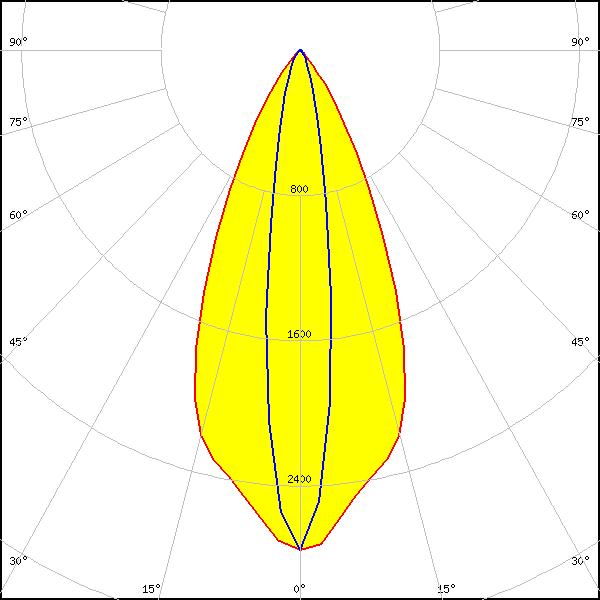

LED:
LUXEON TX
FWHM:
46° + 16°
FWTM:
73° + 37°
Peak intensity:
2.800 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

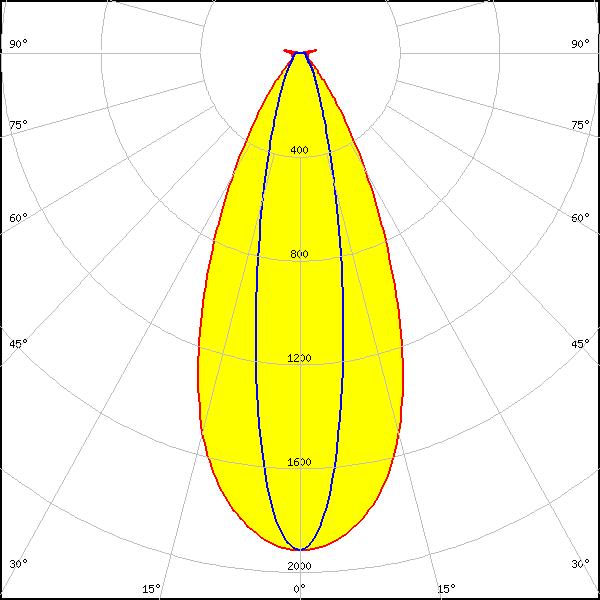

LED:
LUXEON V
FWHM:
46° + 21°
FWTM:
79° + 50°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

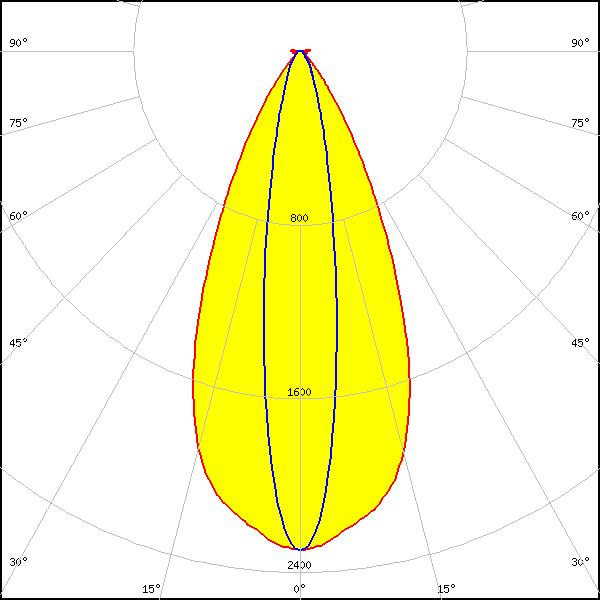

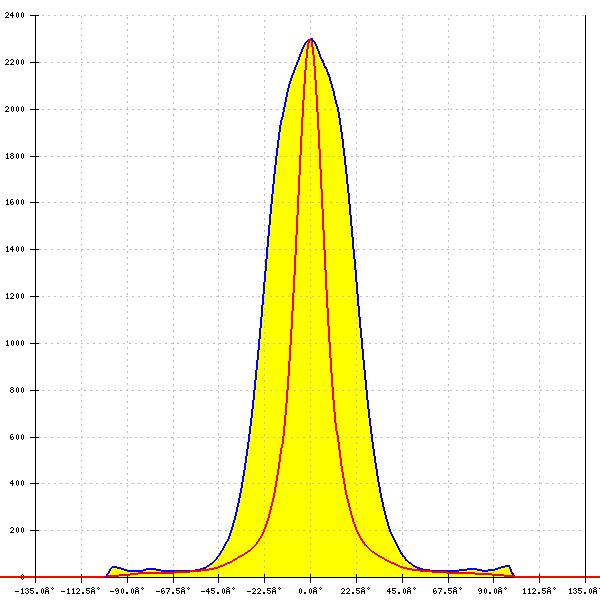

LED:
LUXEON V2
FWHM:
47° + 17°
FWTM:
76° + 43°
Peak intensity:
2.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

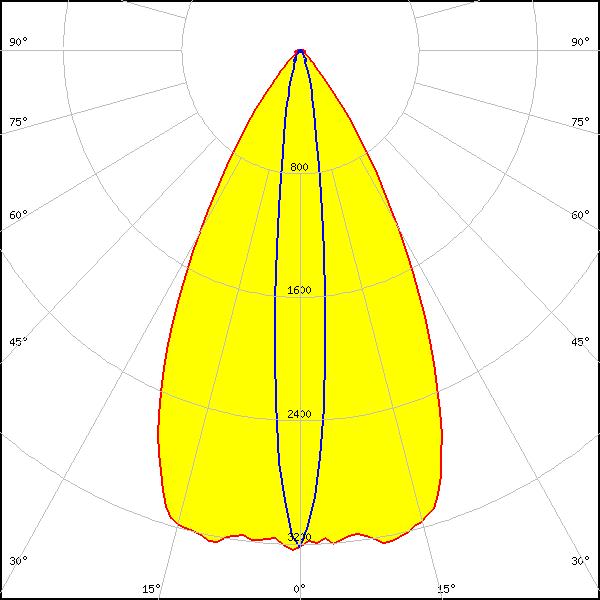

LED:
SFT-40 Gen2
FWHM:
56° + 12°
FWTM:
80° + 30°
Peak intensity:
3.251 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

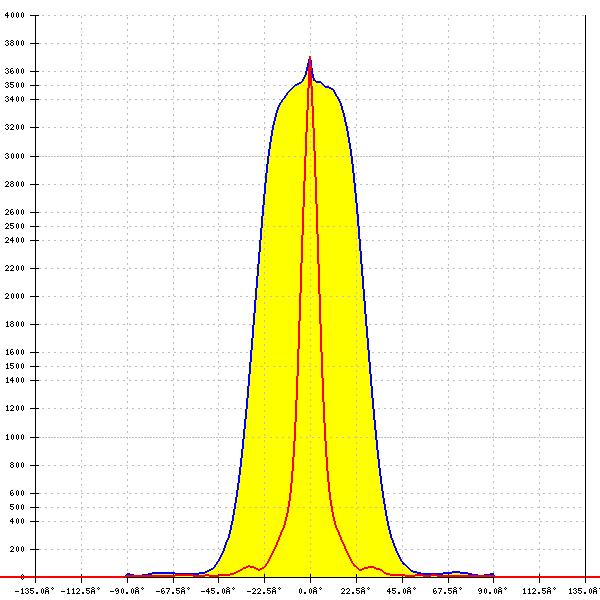

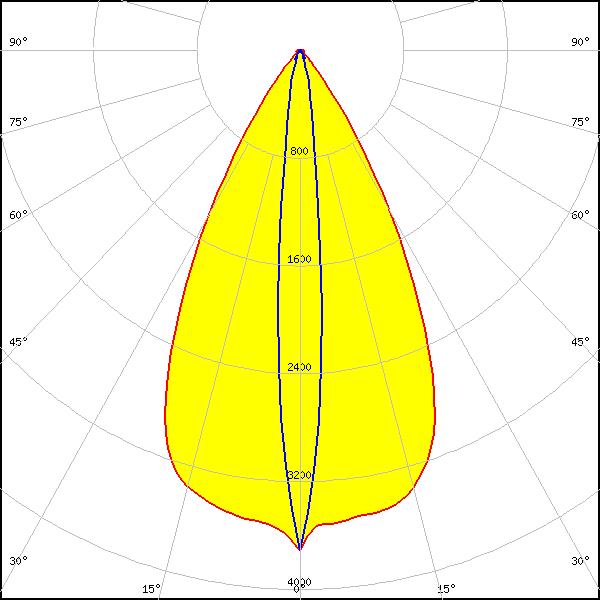

LED:
SFT-40-WCS
FWHM:
54° + 10°
FWTM:
78° + 26°
Peak intensity:
3.711 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

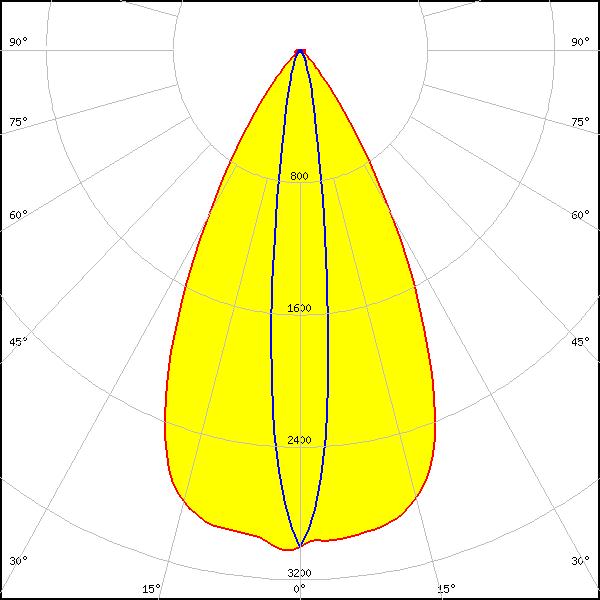

LED:
SFT-70X-WCS
FWHM:
54° + 14°
FWTM:
80° + 31°
Peak intensity:
3.025 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

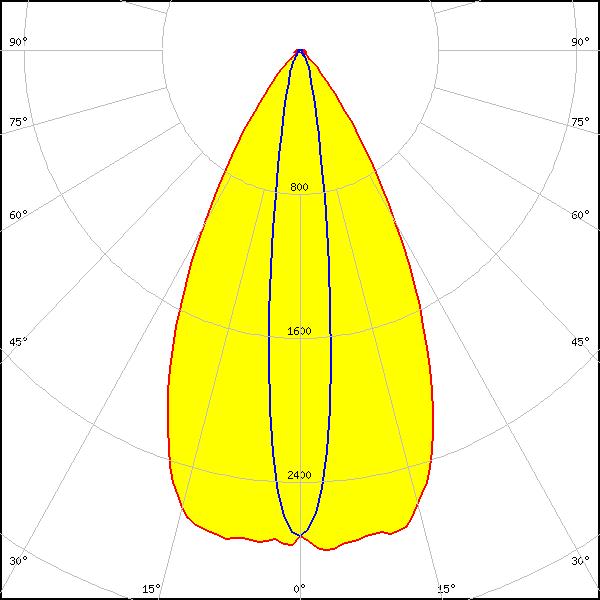

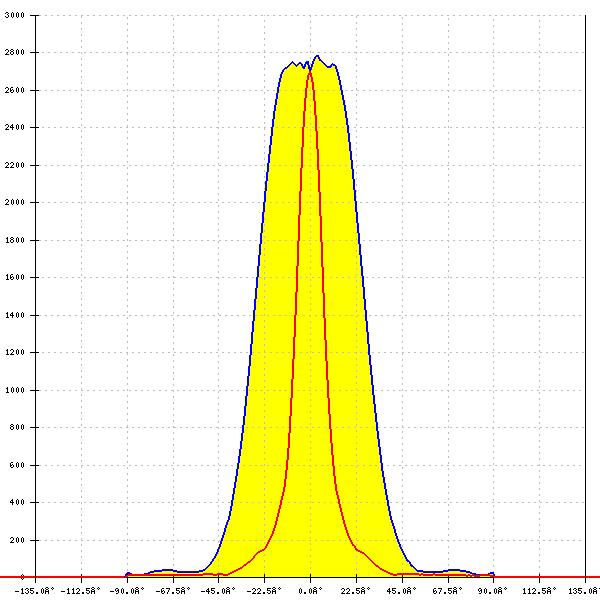

LED:
SFT-70X-WES-Gen2
FWHM:
56° + 14°
FWTM:
82° + 34°
Peak intensity:
2.812 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

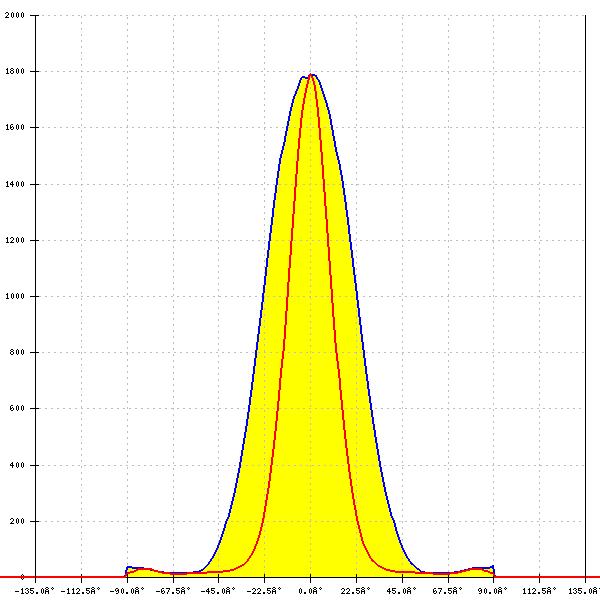

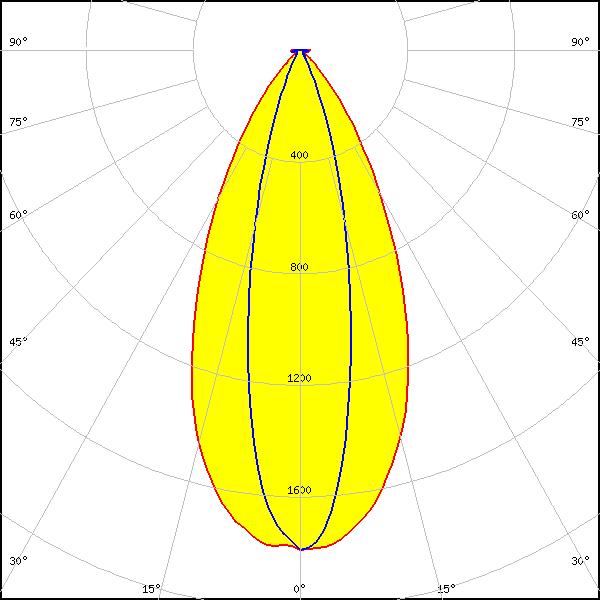

LED:
NCSxE17A
FWHM:
50° + 24°
FWTM:
84° + 48°
Peak intensity:
1.809 cd/lm
Efficiency:
83 %
LEDs/each optic:
4
Light colour/type:
White

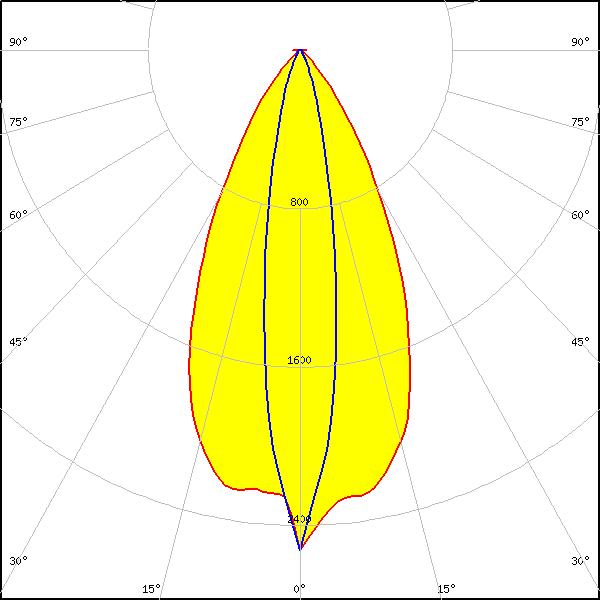

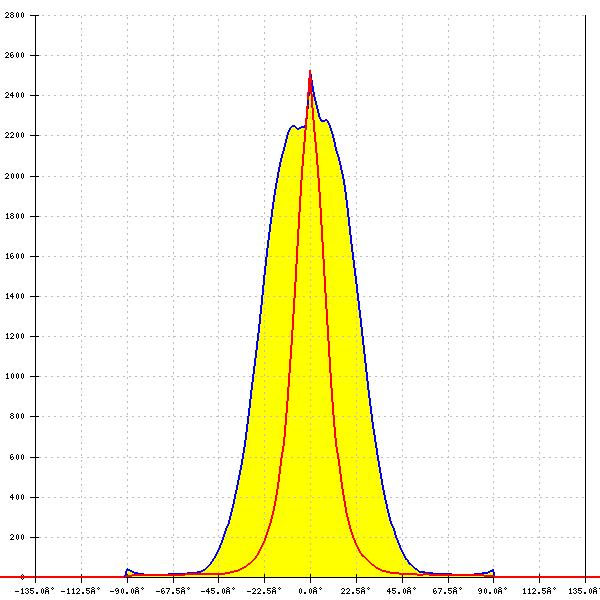

LED:
NV4WB35AM
FWHM:
50° + 18°
FWTM:
82° + 40°
Peak intensity:
2.526 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

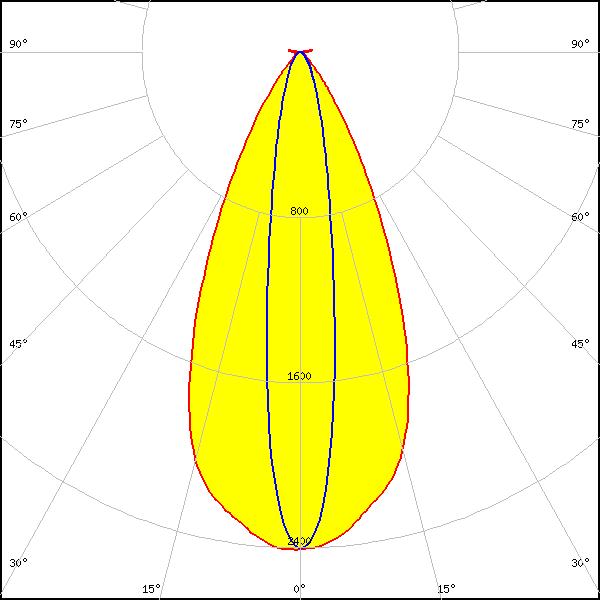

LED:
NVSW219F
FWHM:
48° + 16°
FWTM:
76° + 42°
Peak intensity:
2.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

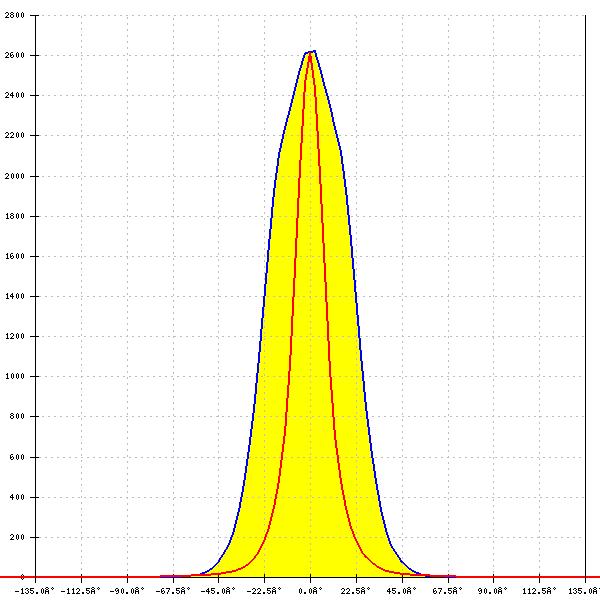

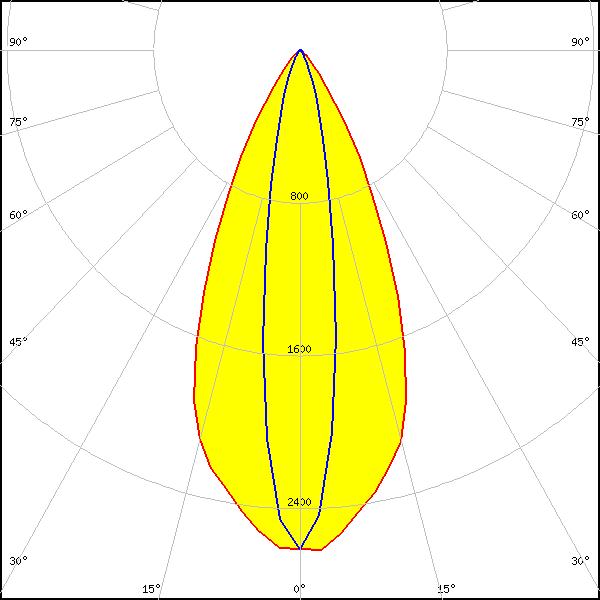

LED:
NVSxx19B/NVSxx19C
FWHM:
47° + 18°
FWTM:
74° + 37°
Peak intensity:
2.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

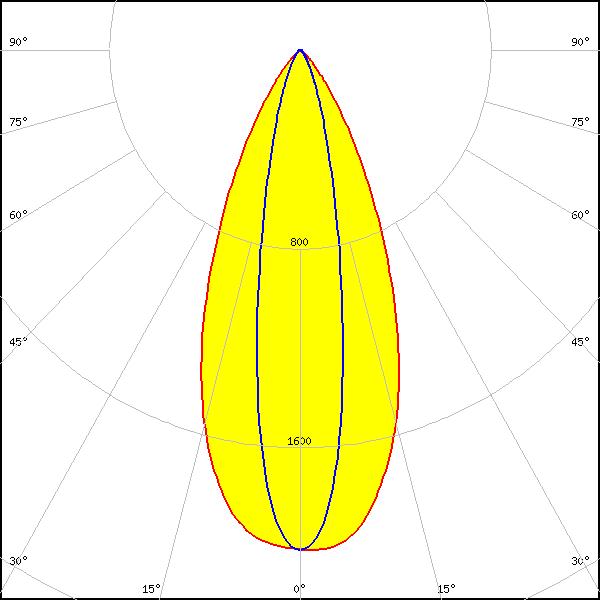

LED:
NWSx229A
FWHM:
20° + 45°
FWTM:
75° + 45°
Peak intensity:
2.000 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

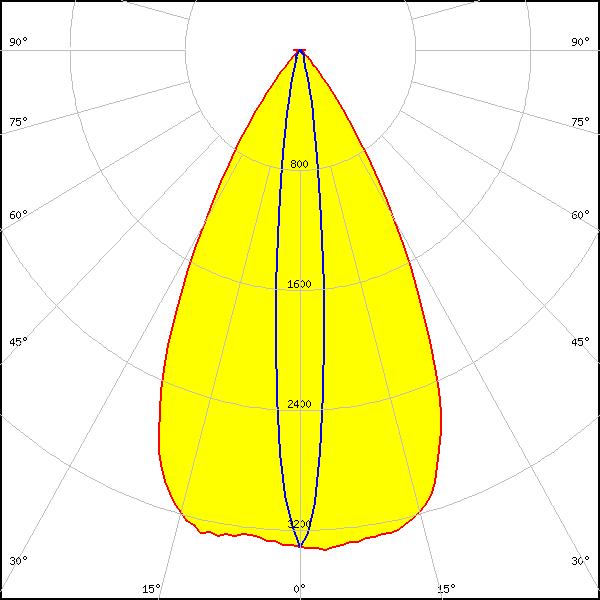

LED:

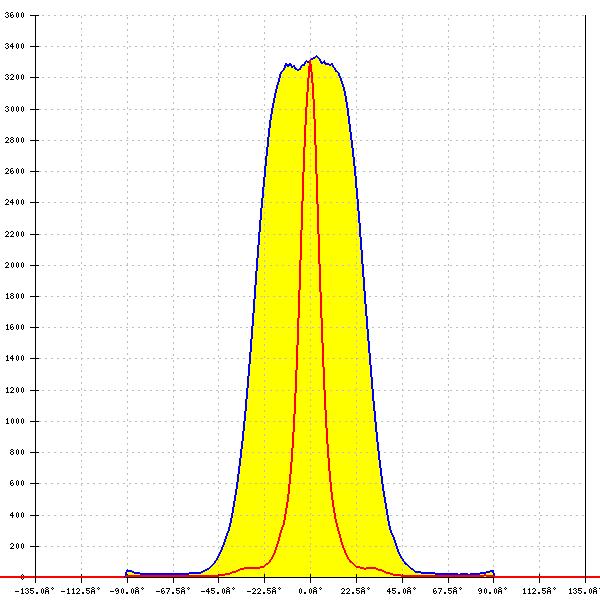

OSCONIQ P 3030
FWHM:
56° + 12°
FWTM:
79° + 26°
Peak intensity:
3.356 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
49° + 25°
FWTM:
83° + 53°
Peak intensity:
1.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

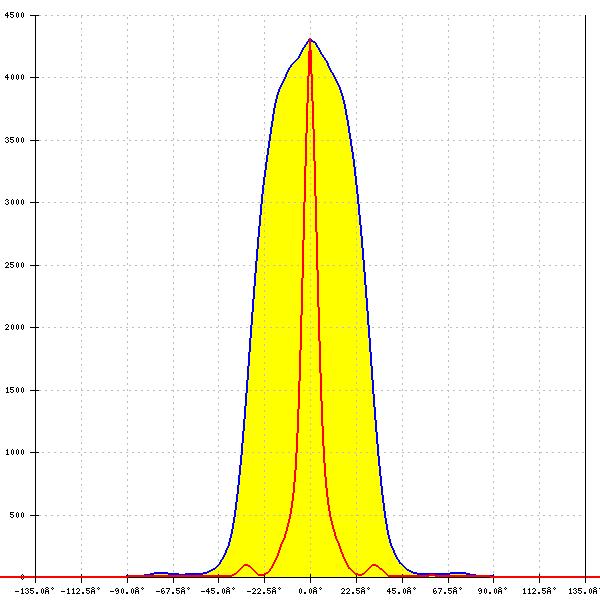

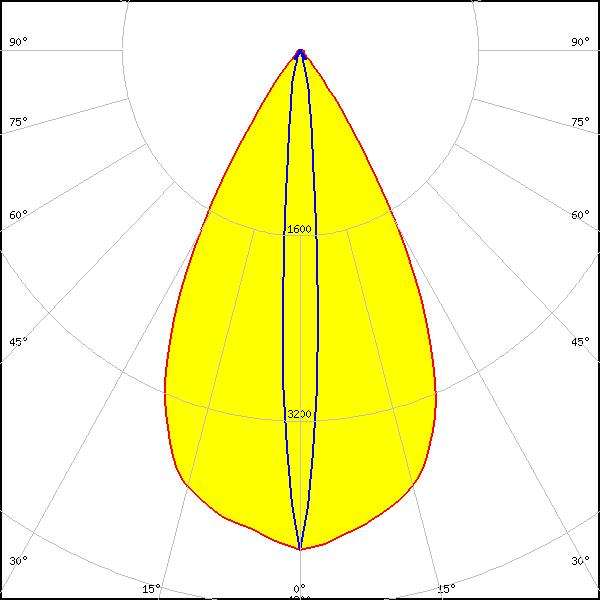

LED:
OSLON Pure 1414
FWHM:
56° + 8°
FWTM:
76° + 22°
Peak intensity:
4.315 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

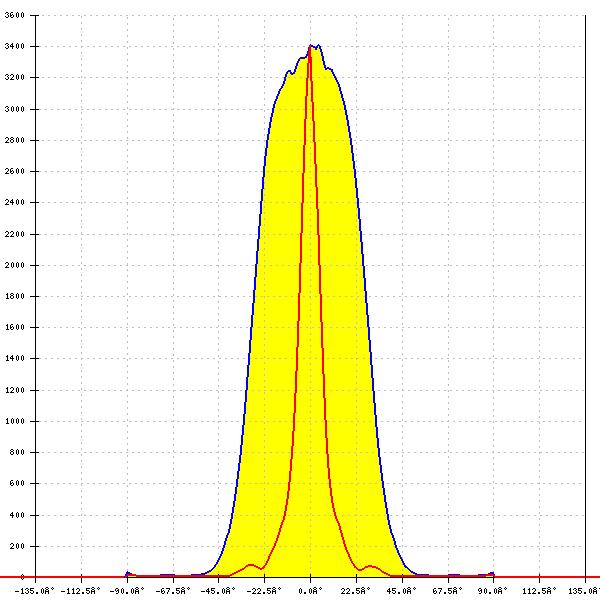

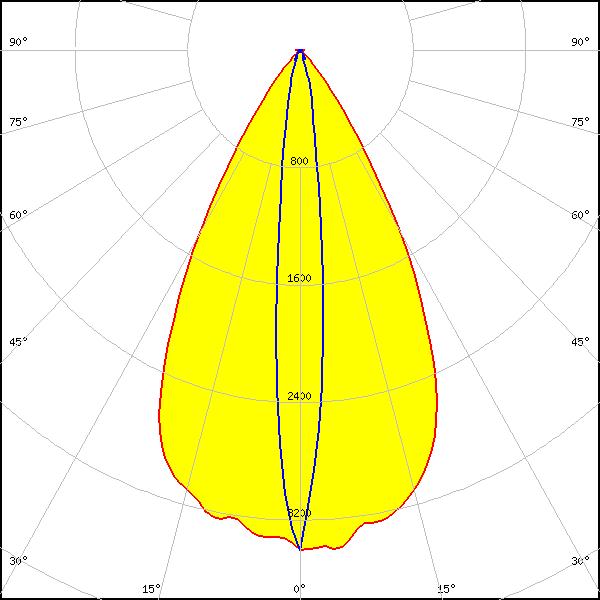

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
56° + 12°
FWTM:
58° + 28°
Peak intensity:
3.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

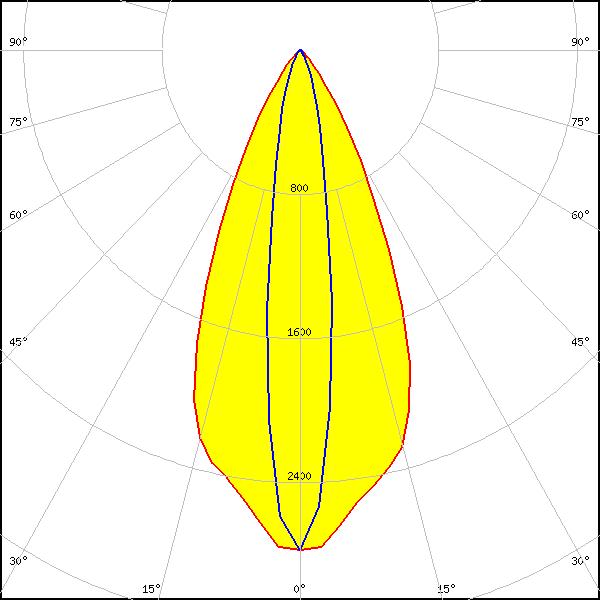

LED:

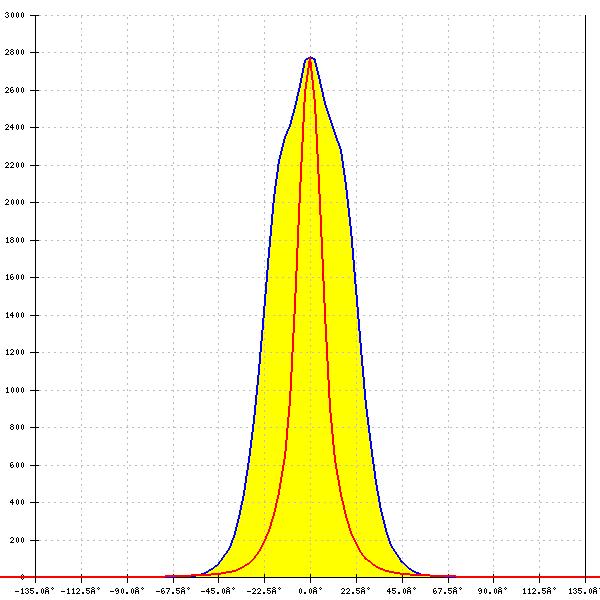

OSLON Square EC
FWHM:
47° + 17°
FWTM:
74° + 39°
Peak intensity:
2.800 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

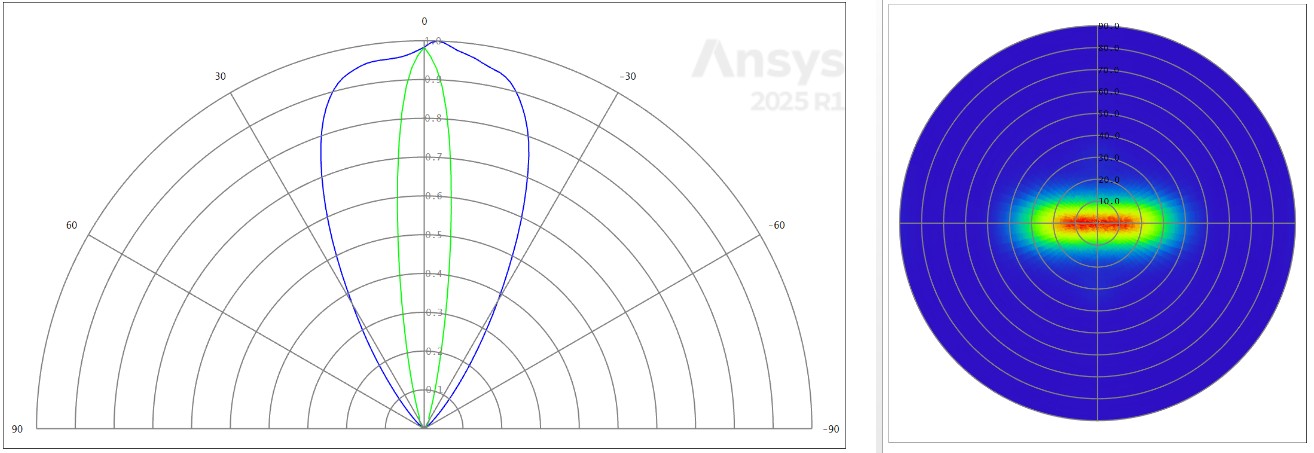

LED:
SFH 4715AS
FWHM:
56° + 16°
FWTM:
82° + 30°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR

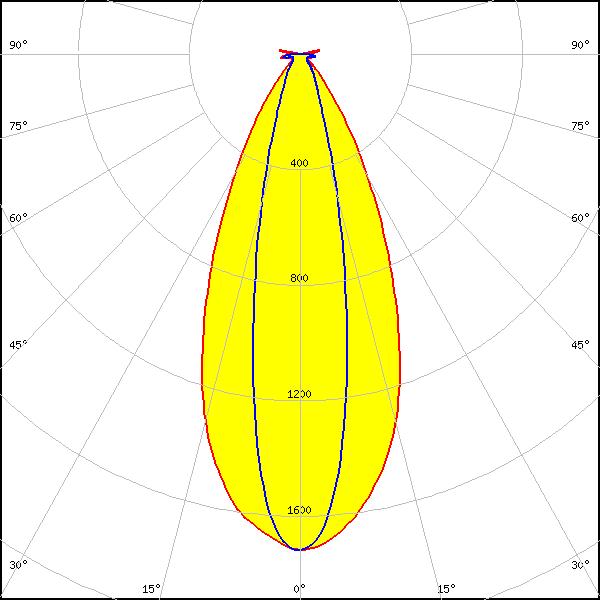

LED:

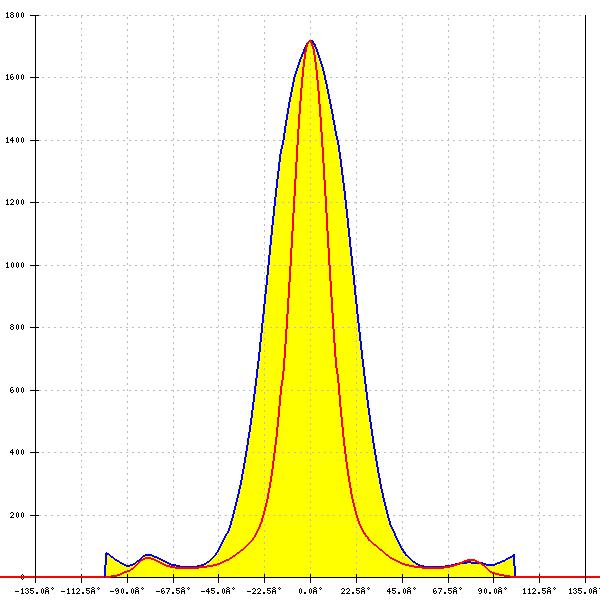

LH181A
FWHM:
46° + 22°
FWTM:
79° + 48°
Peak intensity:
1.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM:
46° + 21°
FWTM:
78° + 44°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351Z
FWHM:
47° + 15°
FWTM:
73° + 40°
Peak intensity:
2.800 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

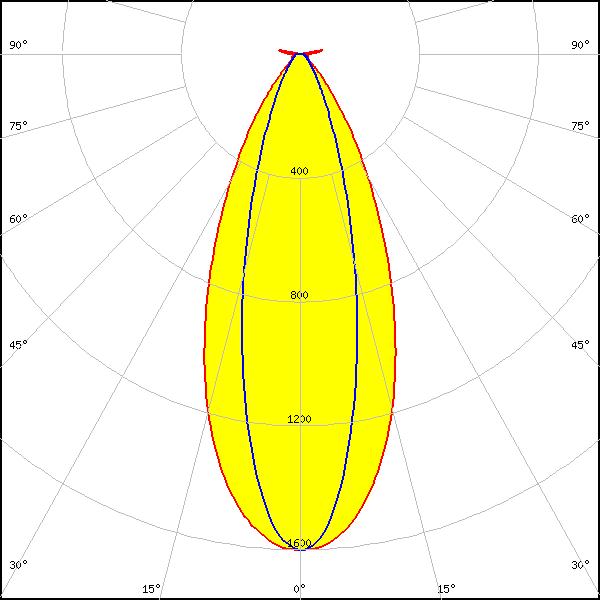

MJT 5050
FWHM:
45° + 28°
FWTM:
82° + 60°
Peak intensity:
1.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

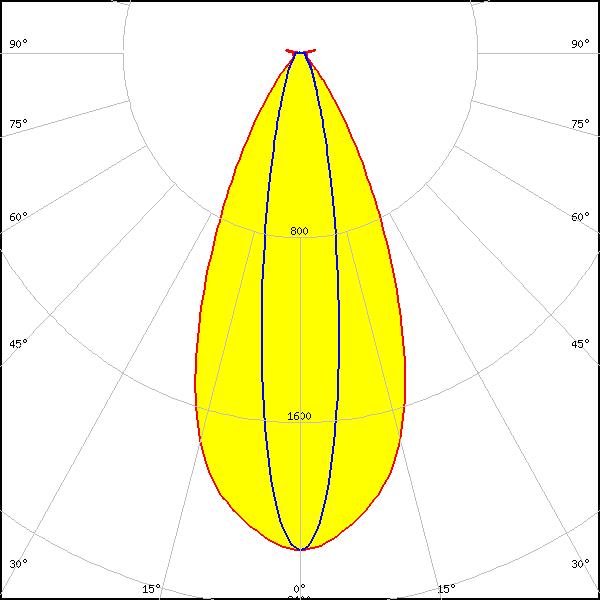

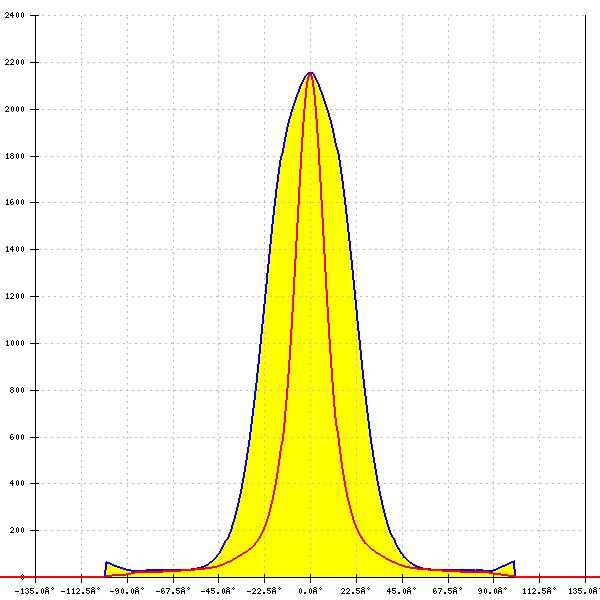

LED:
Z5M3
FWHM:
47° + 18°
FWTM:
77° + 45°
Peak intensity:
2.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

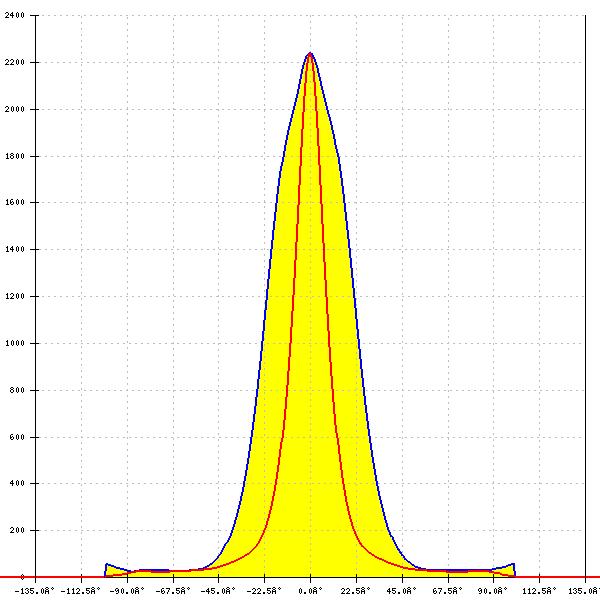

LED:
Z8Y22P
FWHM:
45° + 18°
FWTM:
75° + 42°
Peak intensity:
2.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

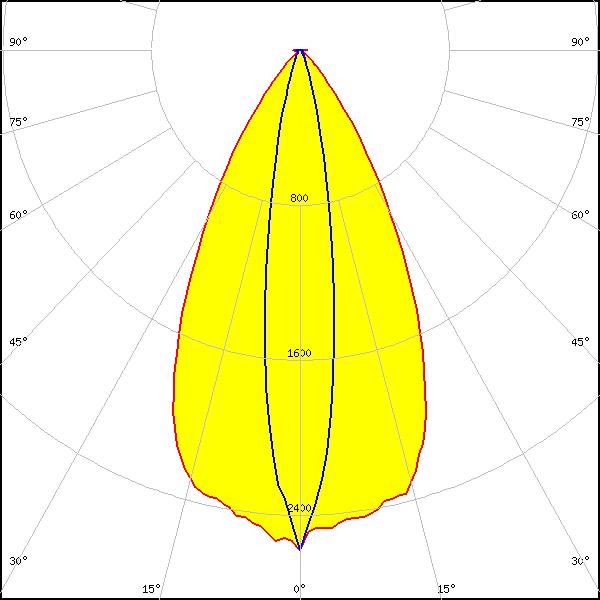

Z8Y22T
FWHM:
54° + 16°
FWTM:
82° + 35°
Peak intensity:
2.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

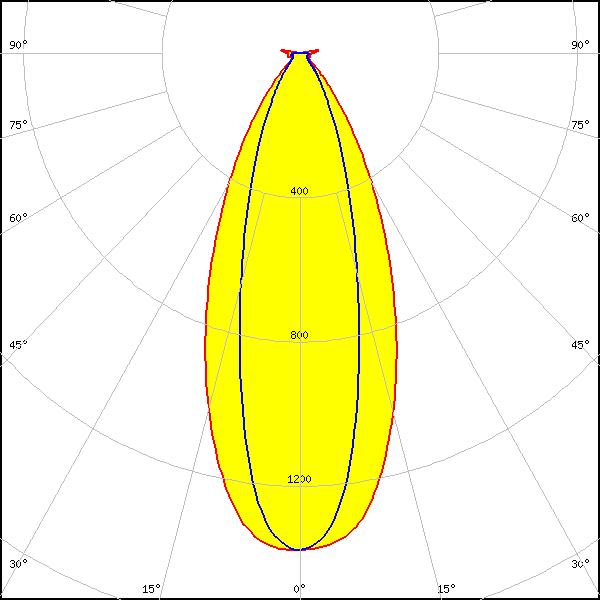

LED:

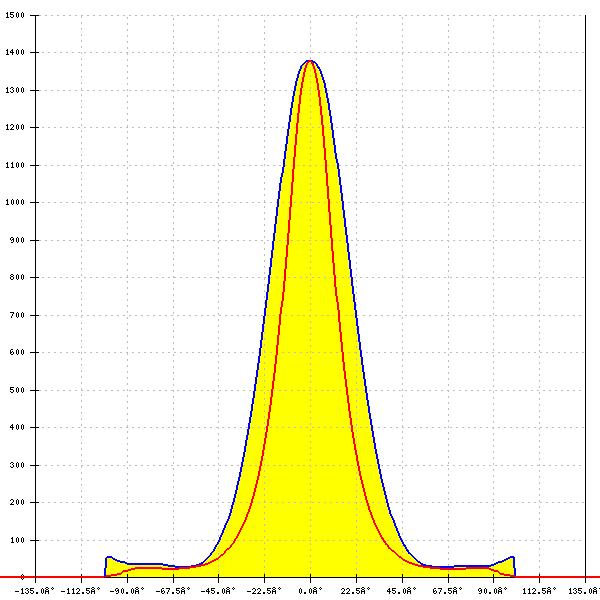

Z8Y50P
FWHM:
45° + 29°
FWTM:
83° + 65°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
