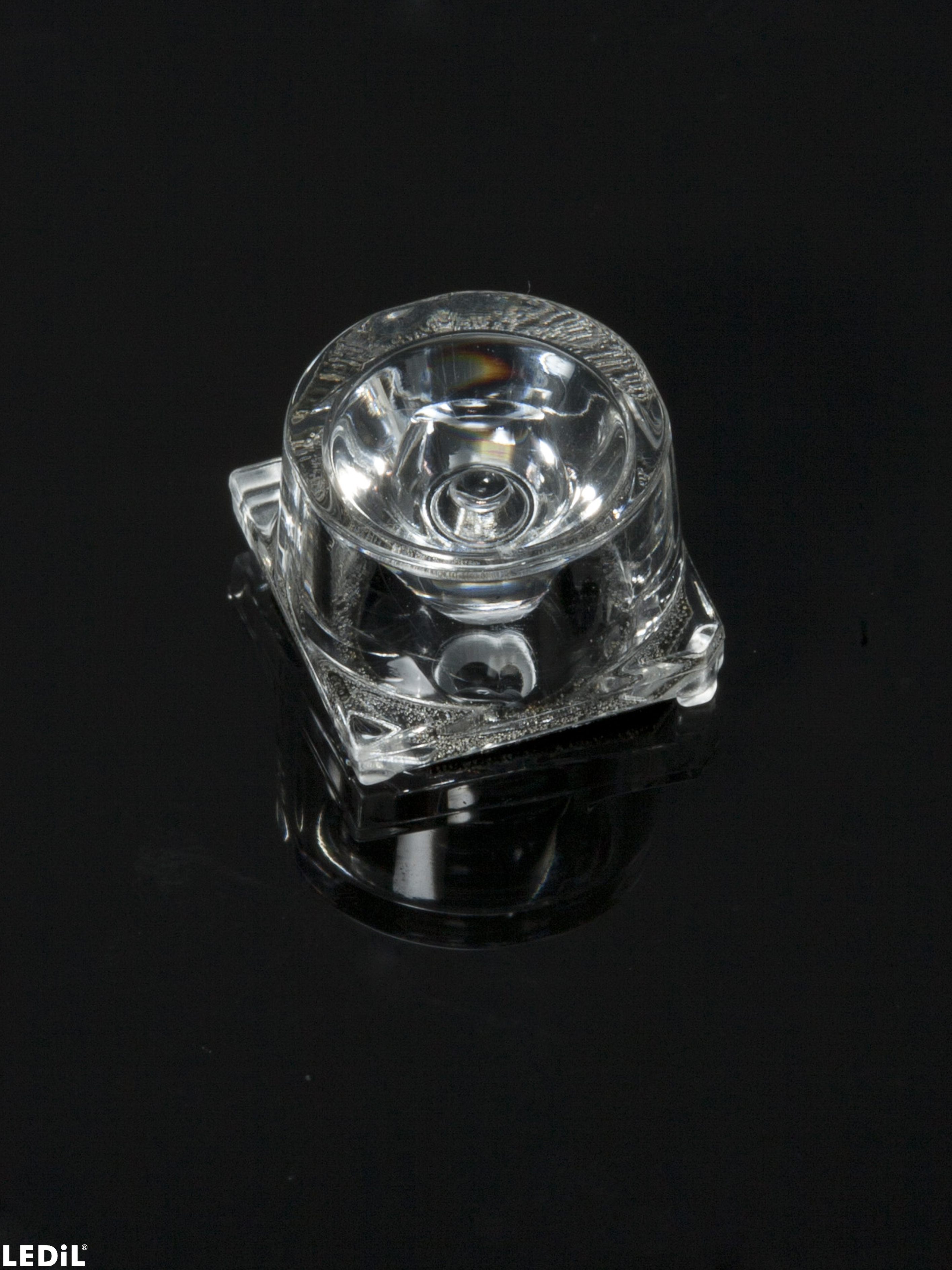

    CA14601_VERONICA-SQ-MINI-RS

    Print

    ~17° spot beam

    Specification
    • Dimensions:
      14 x  14 mm
    • Height:
      8.86 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      5544 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      252 pcs
    • MOQ:
      252 pcs
    • MOQ size:
      480 x 280 x 20 mm
    • MOQ weight:
      0.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA14601_VERONICA-SQ-MINI-RS

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - VERONICA-SQ-MINI

    PCN

    Product change notification NR115.a - Change of packaging quantities 280116

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    Case story

    Hall of Justice

    Application example

    Urban lighting with LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

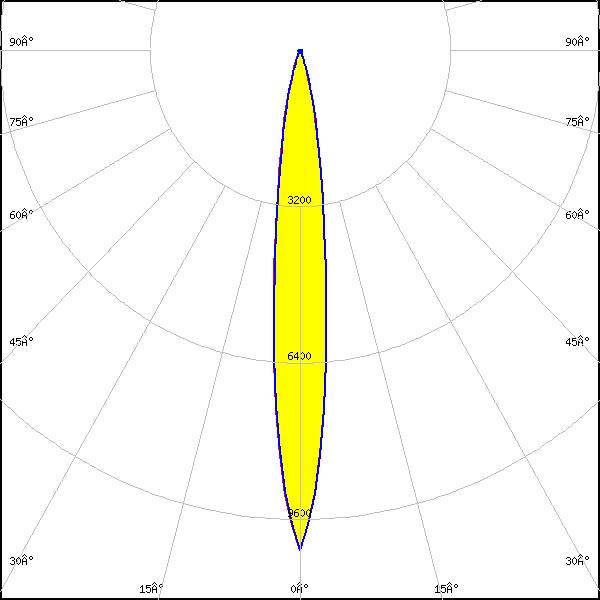

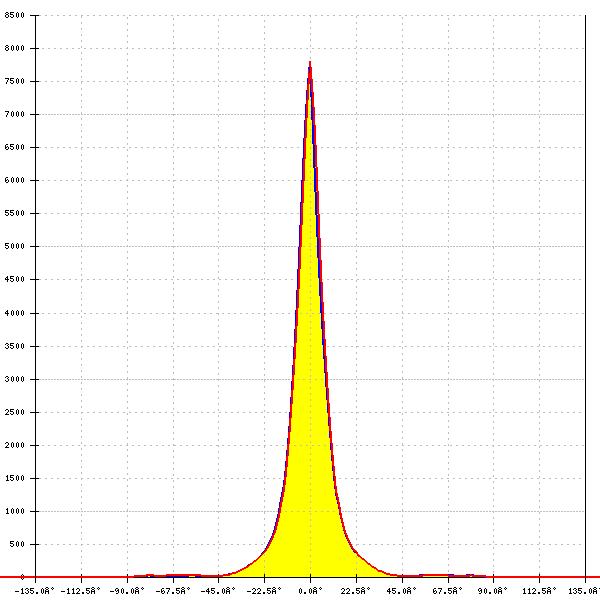

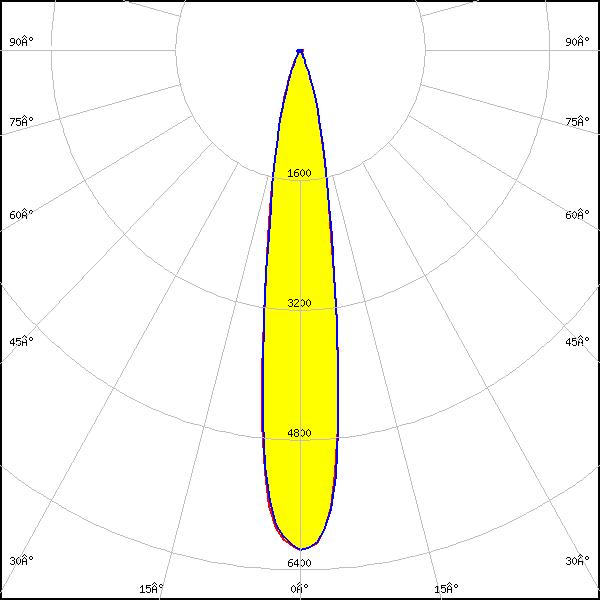

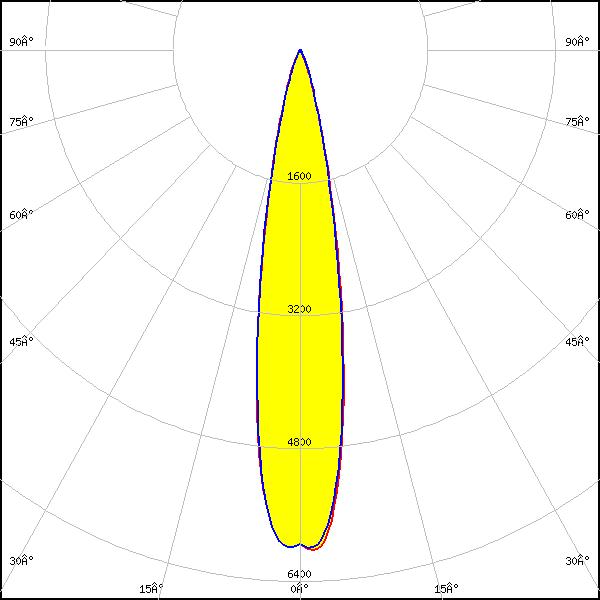

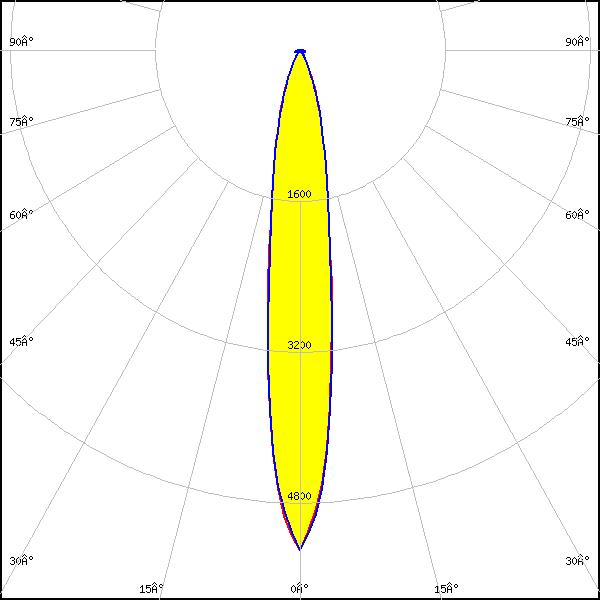

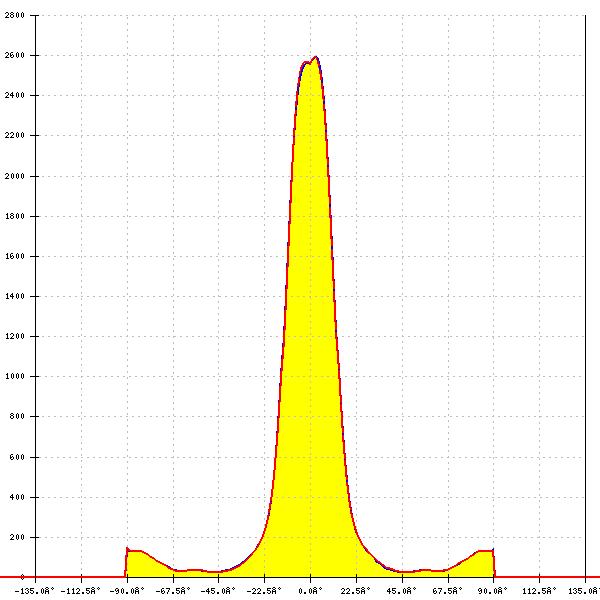

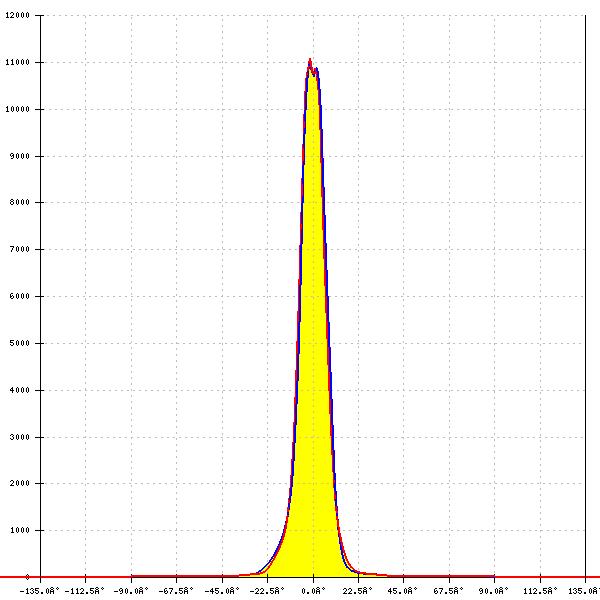

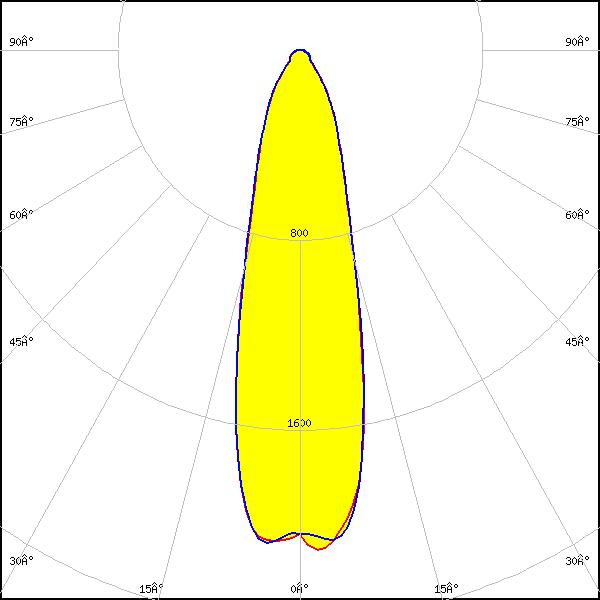

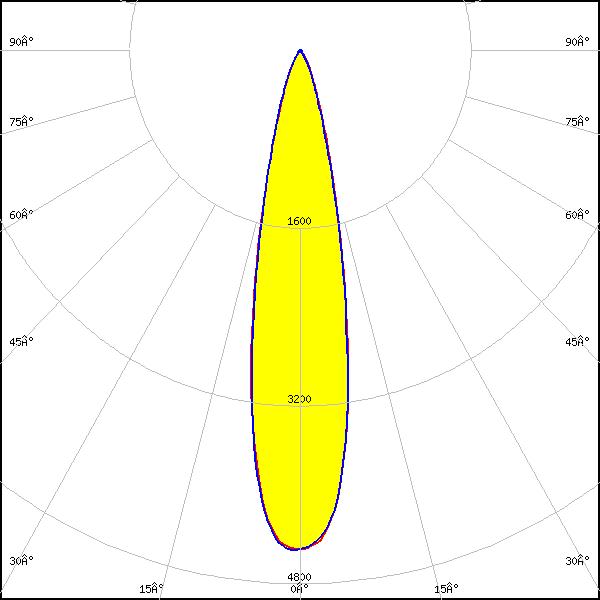

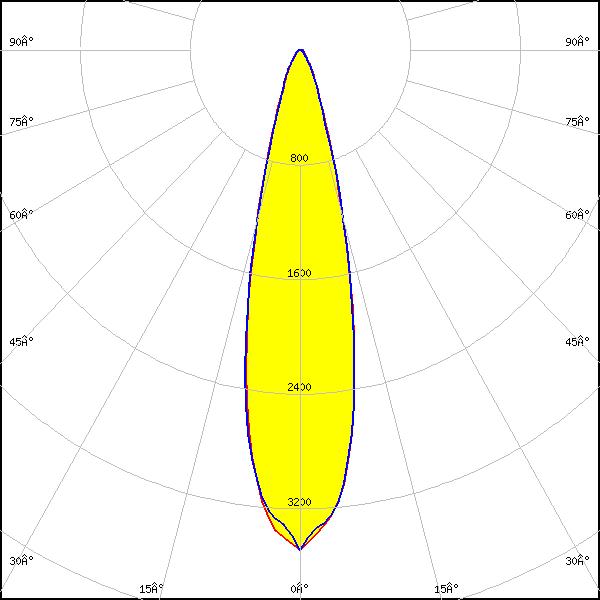

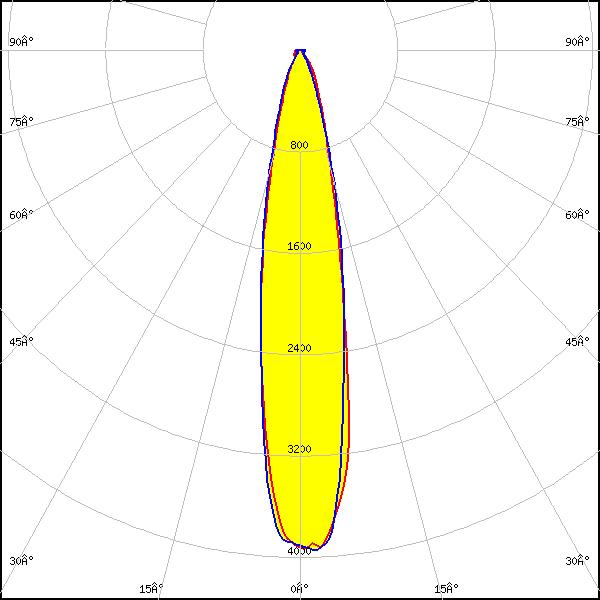

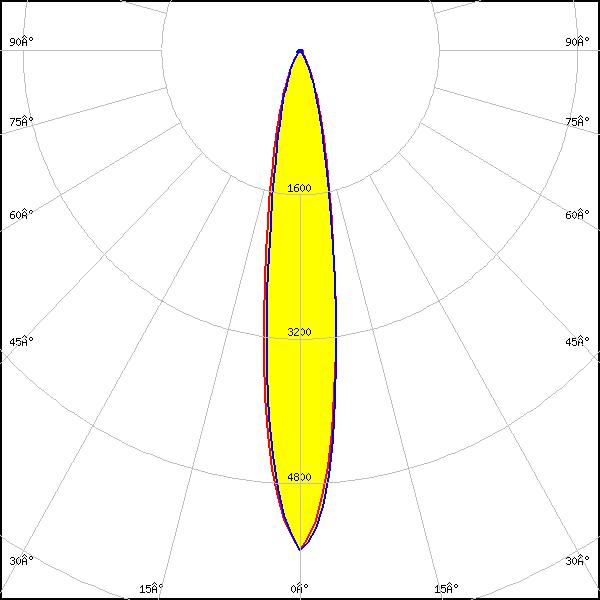

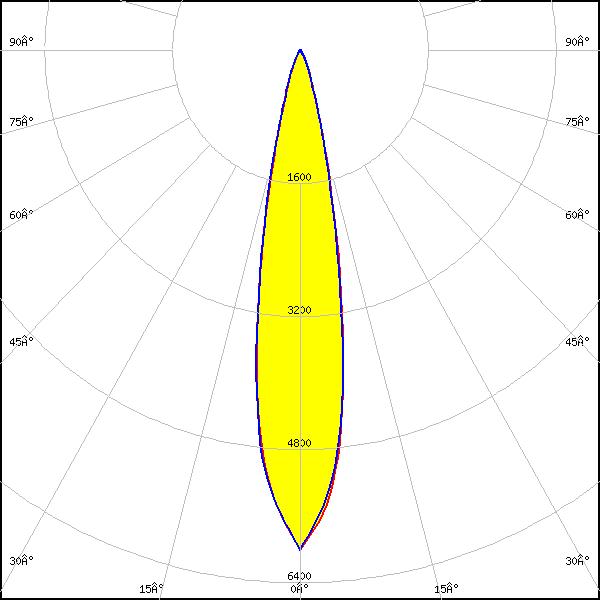

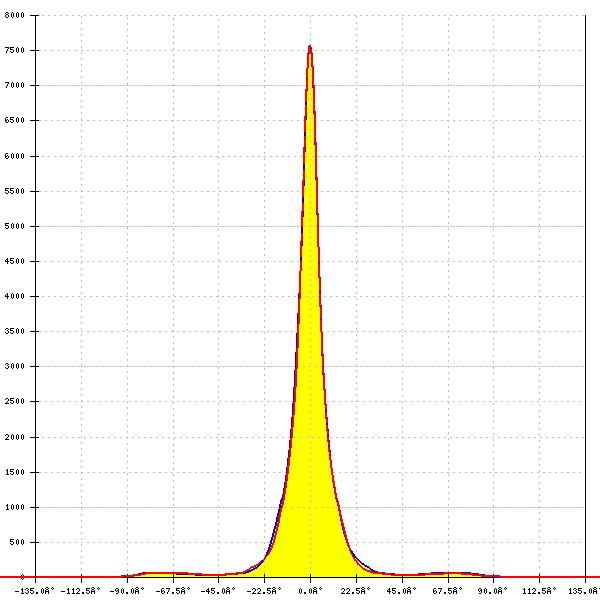

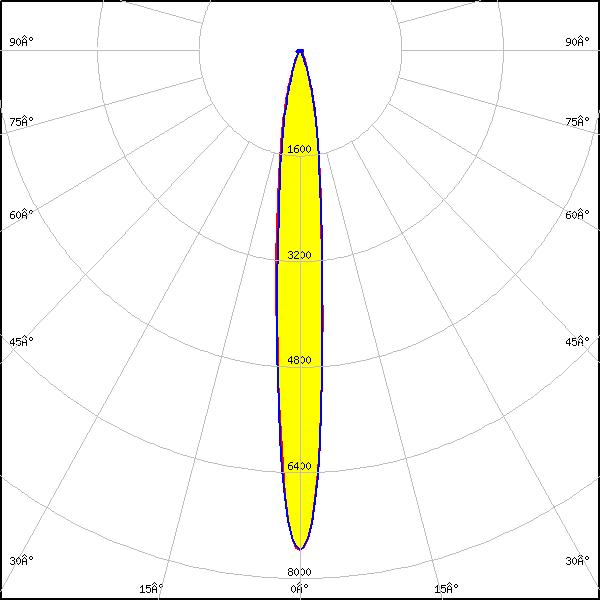

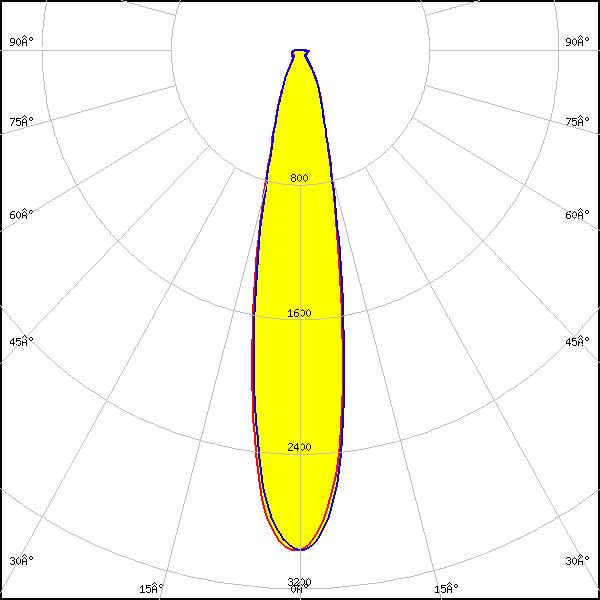

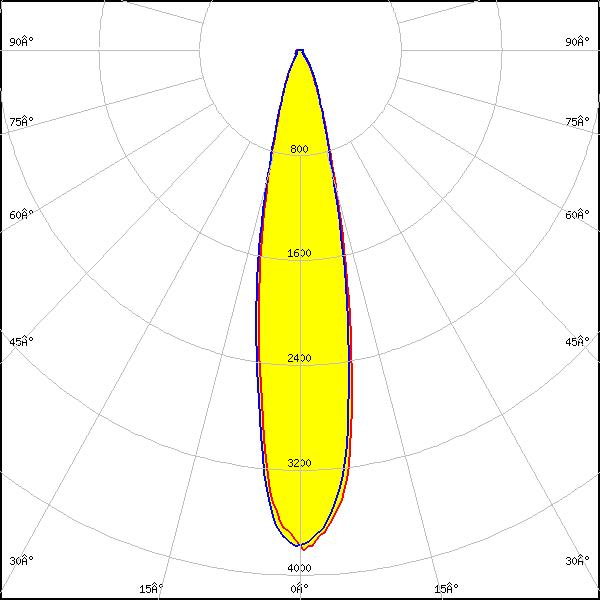

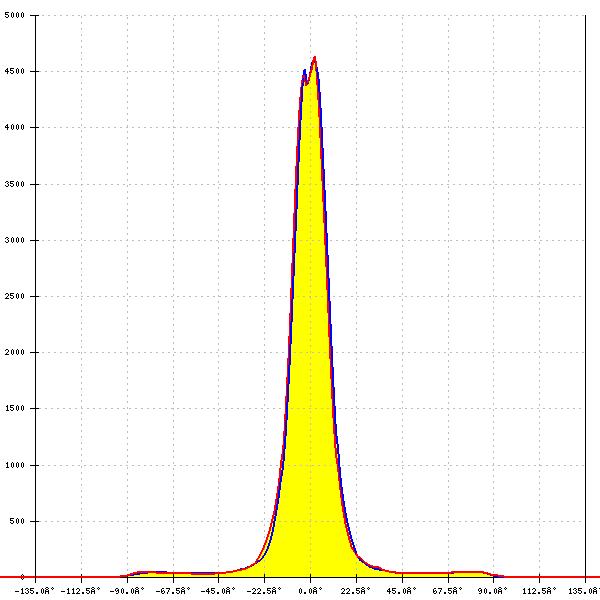

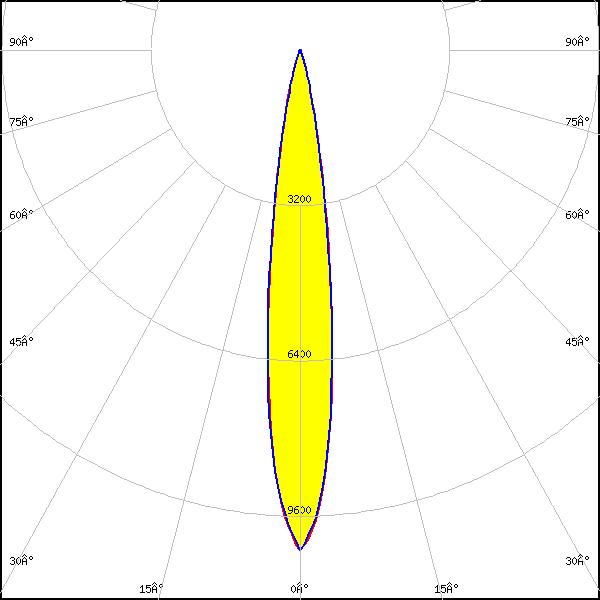

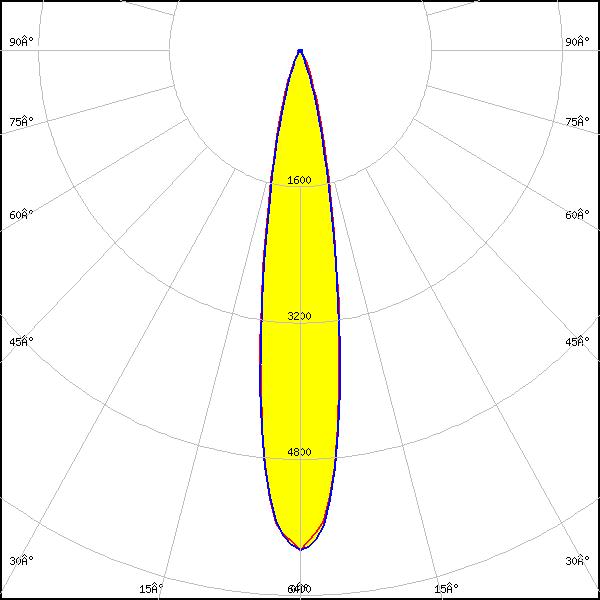

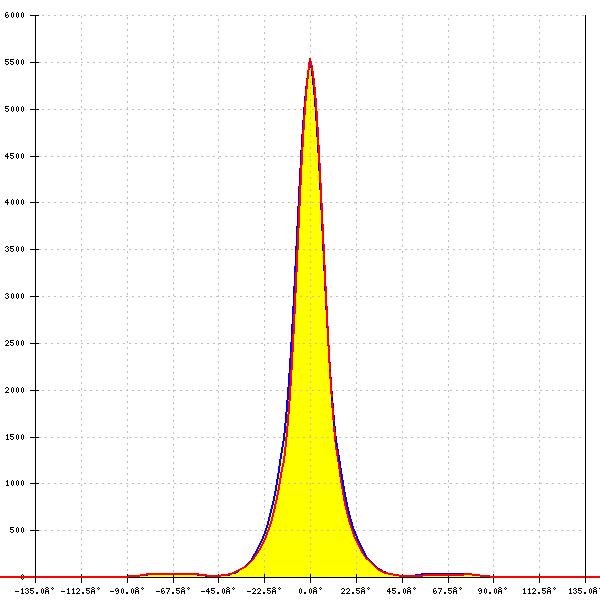

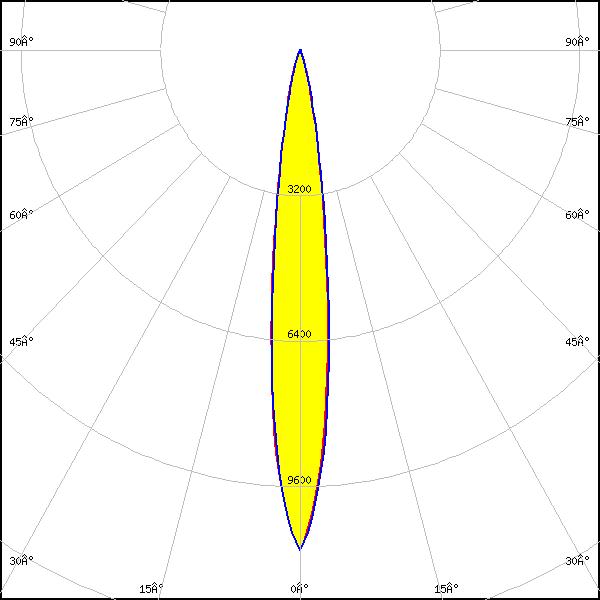

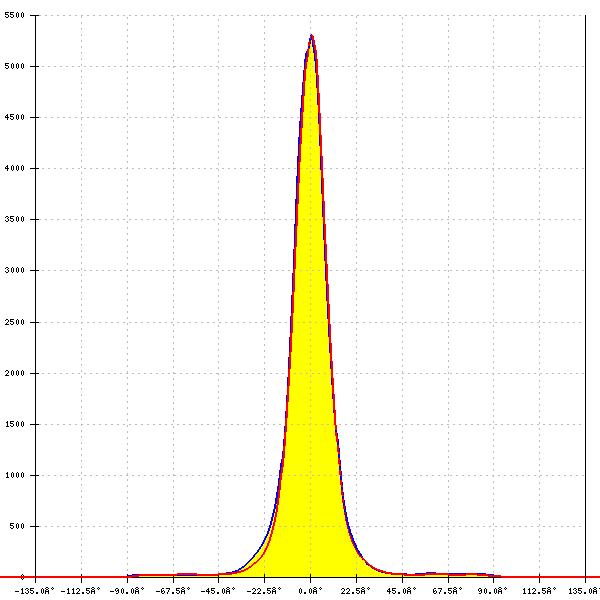

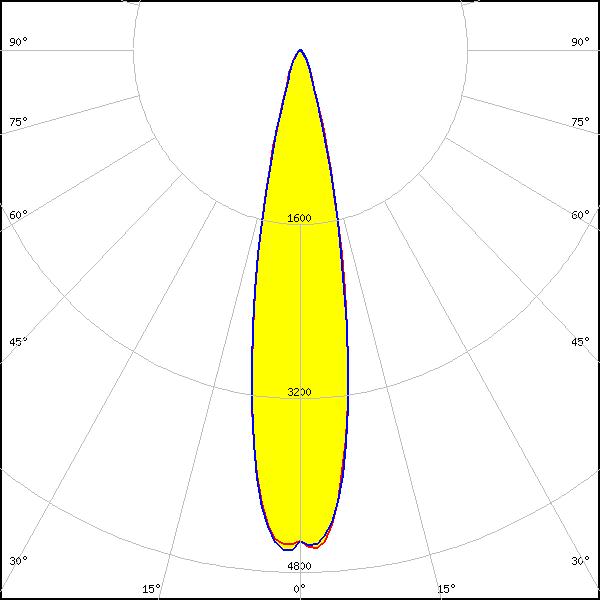

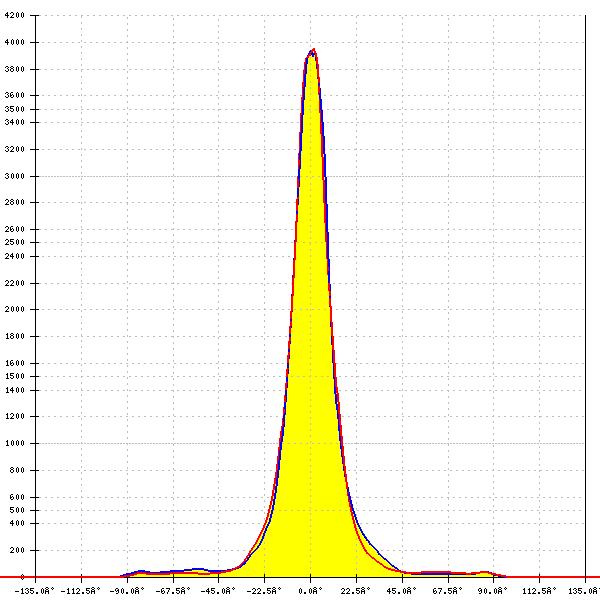

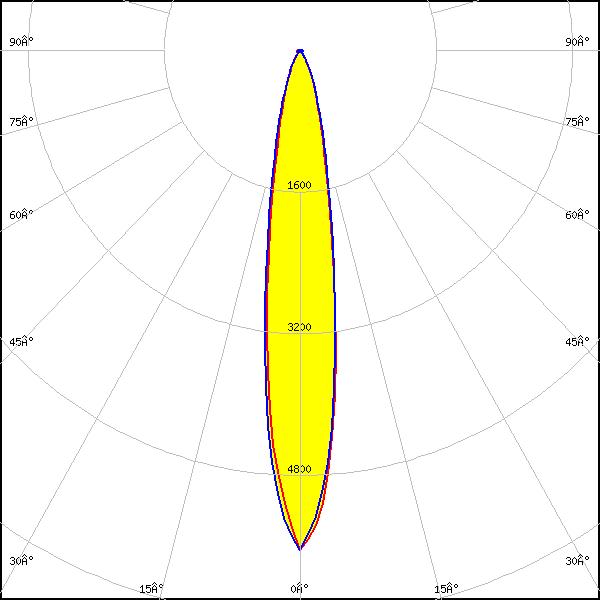

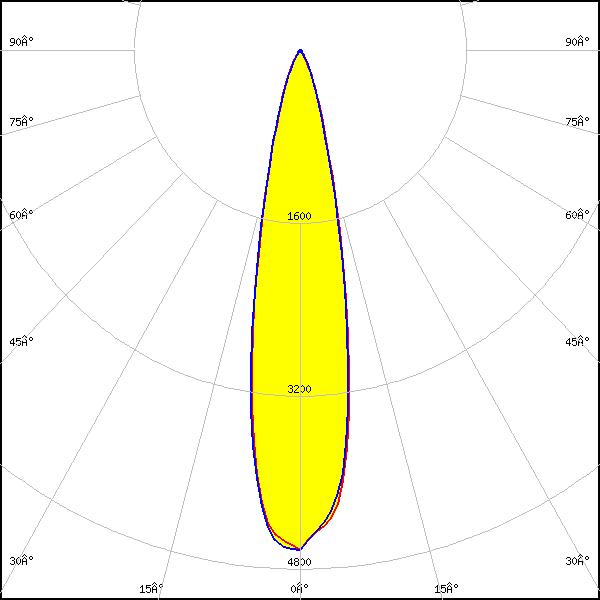

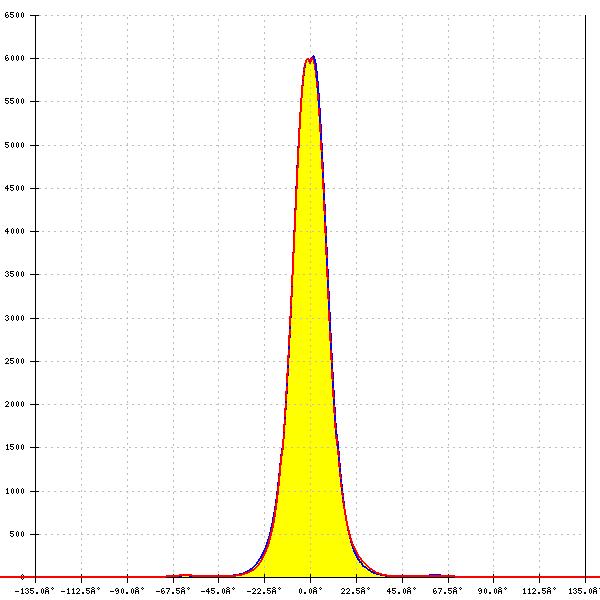

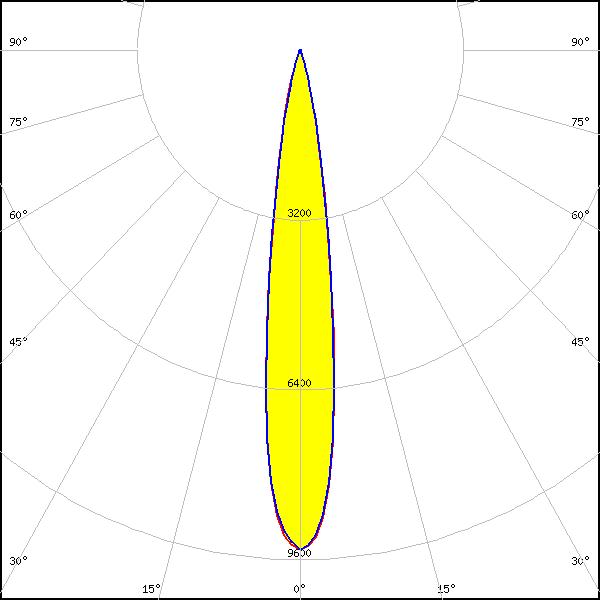

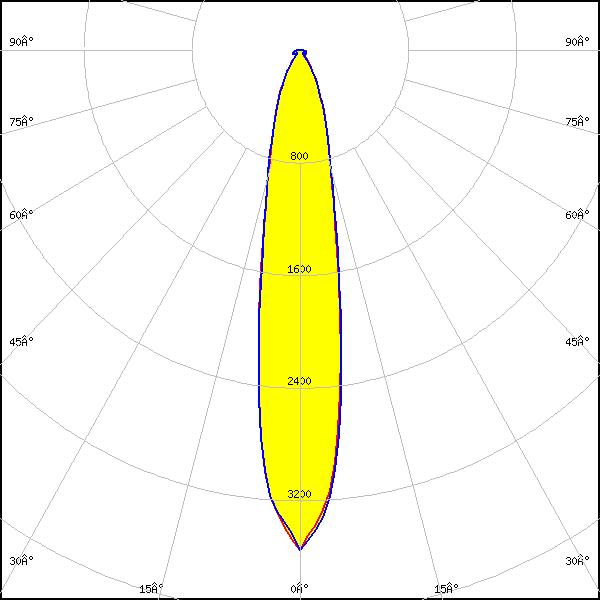

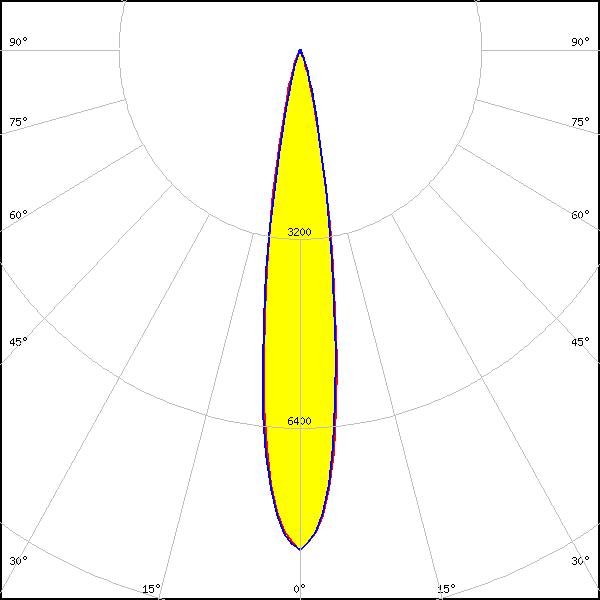

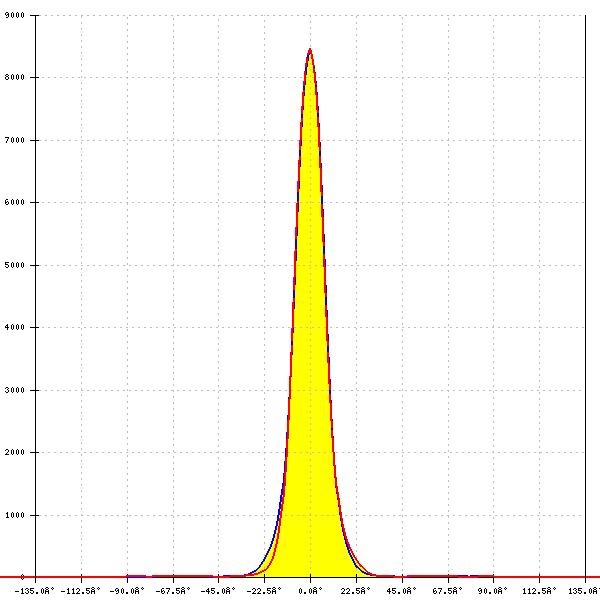

    Optical results

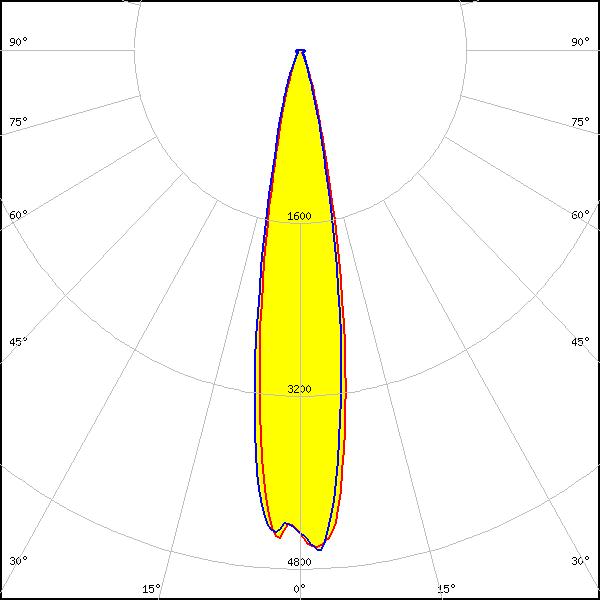

    LED: XD16
    FWHM: 19°
    FWTM: 36°
    Peak intensity: 4.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-E
    FWHM: 15°
    FWTM: 29°
    Peak intensity: 10.300 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

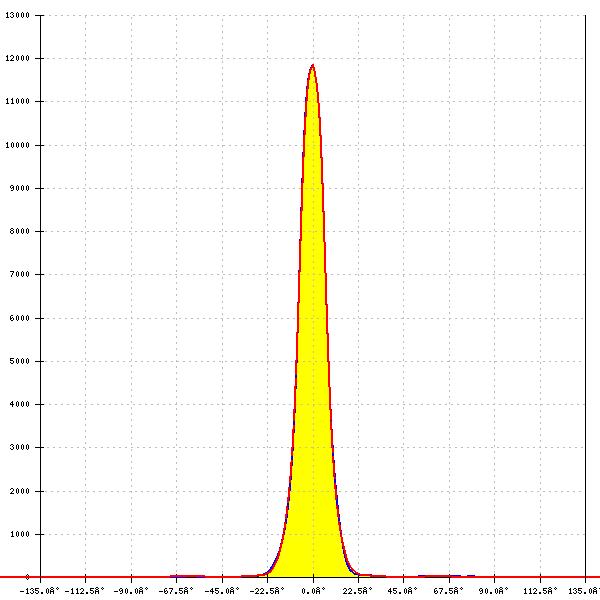

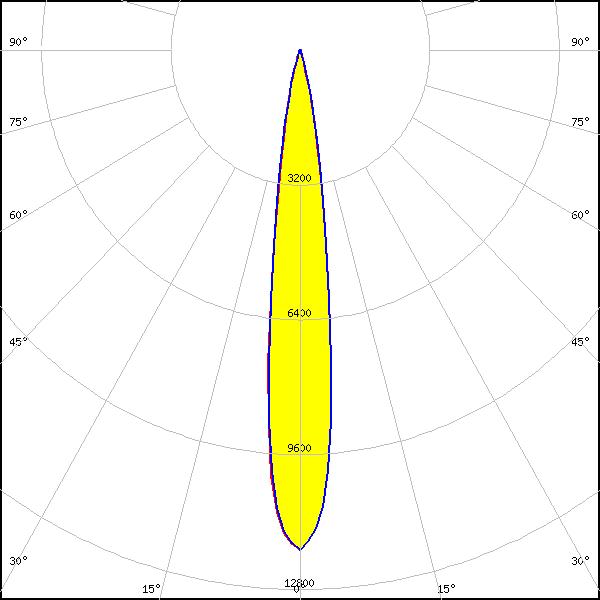

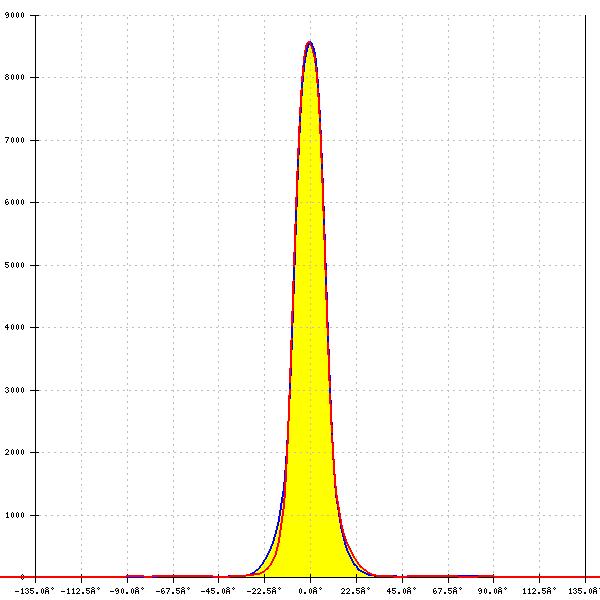

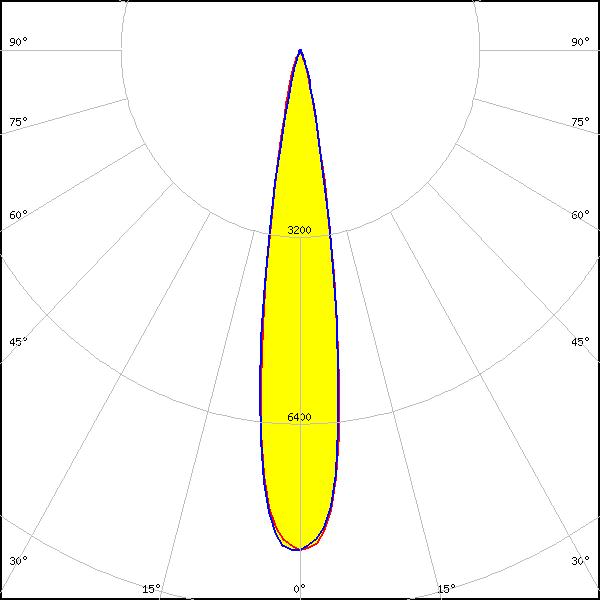

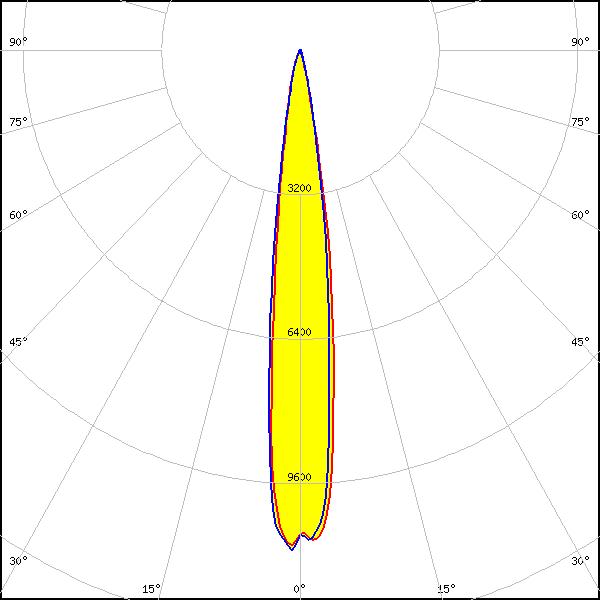

    LED: XP-E2
    FWHM: 14°
    FWTM: 26°
    Peak intensity: 11.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

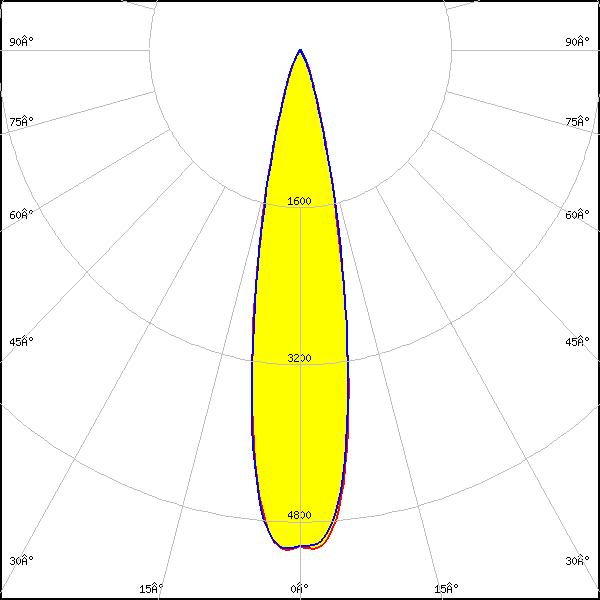

    LED: XP-G
    FWHM: 21°
    FWTM: 40°
    Peak intensity: 5.170 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 6.010 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: 24°
    FWTM: 47°
    Peak intensity: 3.491 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XQ-E HD
    FWHM: 13°
    FWTM: 28°
    Peak intensity: 11.000 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

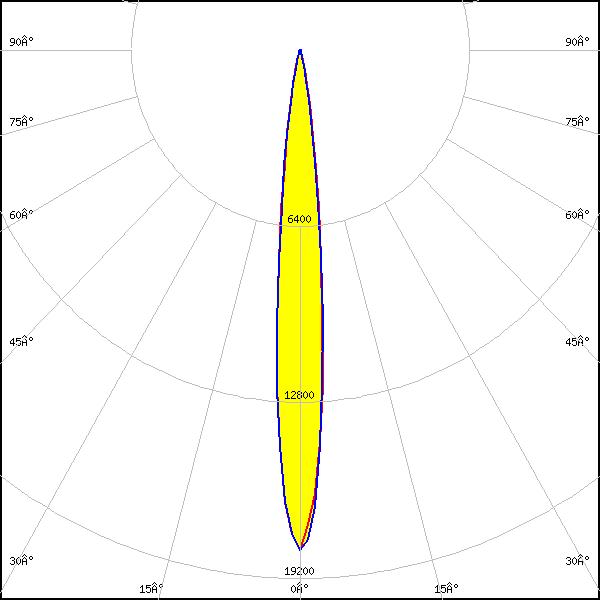

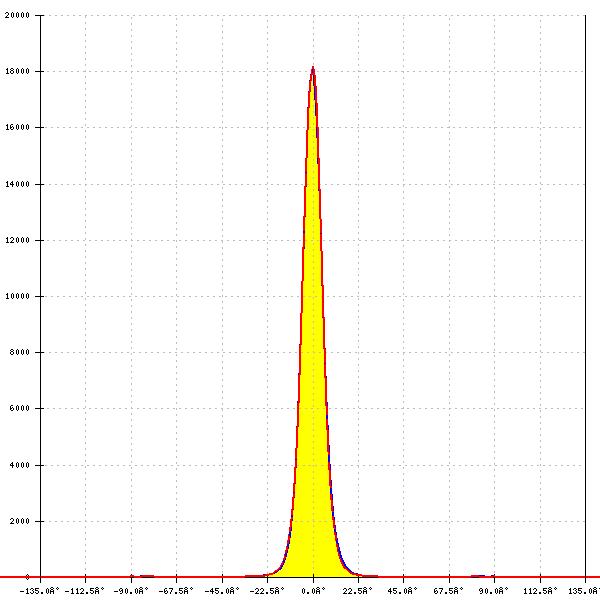

    LED: XQ-E HI
    FWHM: 9°
    FWTM: 24°
    Peak intensity: 14.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Line
    FWHM: 12°
    FWTM: 29°
    Peak intensity: 9.961 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: PC Amber

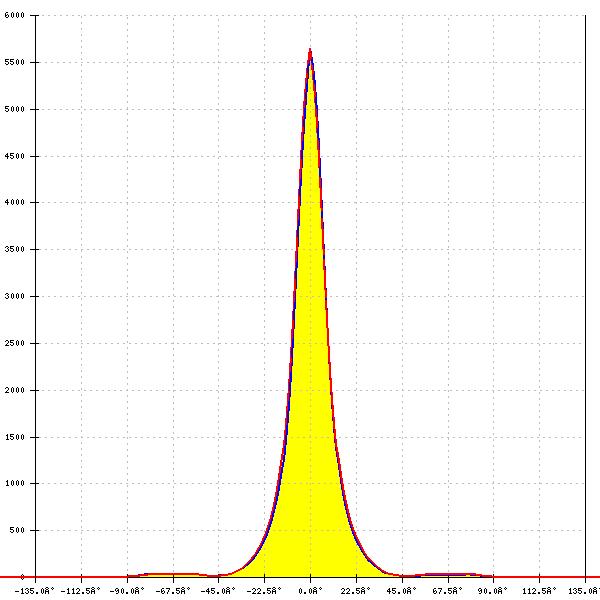

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 16°
    FWTM: 40°
    Peak intensity: 5.646 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 HV
    FWHM: 17°
    FWTM: 41°
    Peak intensity: 5.541 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON A
    FWHM: 21°
    FWTM: 42°
    Peak intensity: 4.540 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

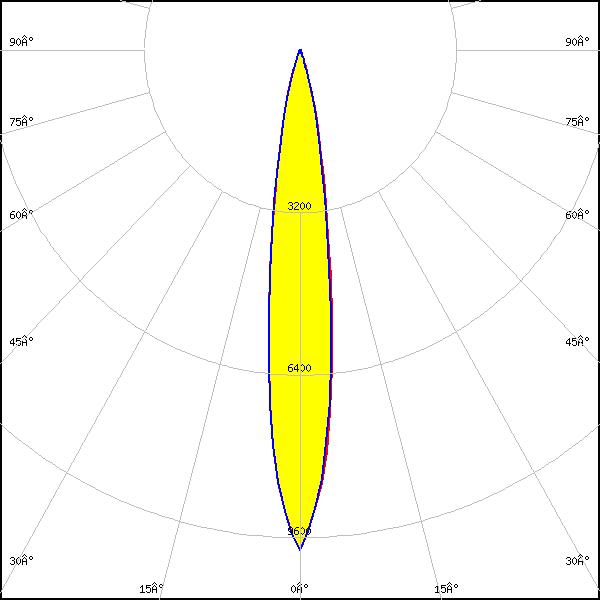

    LED: LUXEON C
    FWHM: 15°
    FWTM: 31°
    Peak intensity: 9.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL1Z
    FWHM: 12°
    FWTM: 30°
    Peak intensity: 10.232 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

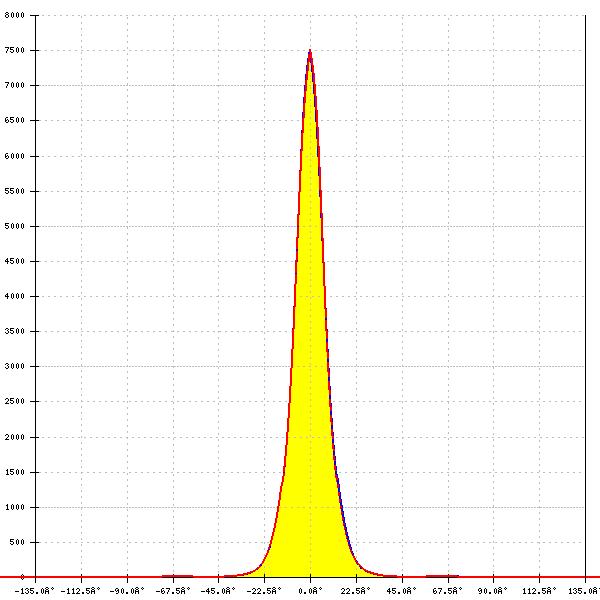

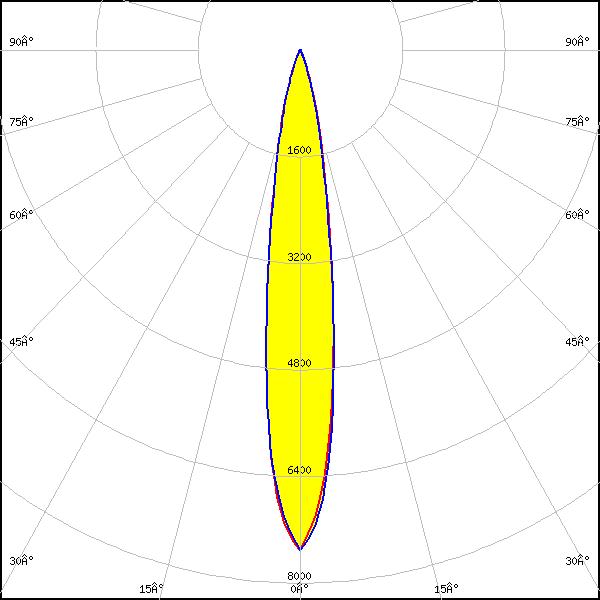

    LED: LUXEON Rebel
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.510 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

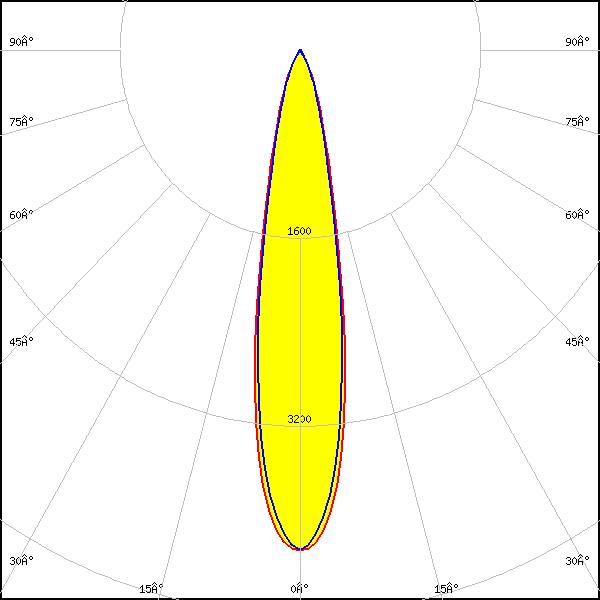

    LED: LUXEON Rebel ES
    FWHM: 21°
    FWTM: 43°
    Peak intensity: 4.300 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON T
    LEDs/each optic: 1
    Light colour/type: White

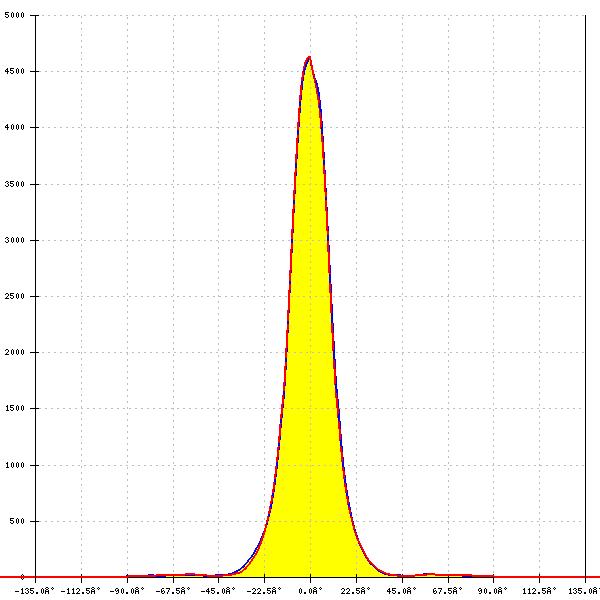

    LED: LUXEON T
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.653 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: 20°
    FWTM: 44°
    Peak intensity: 3.960 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

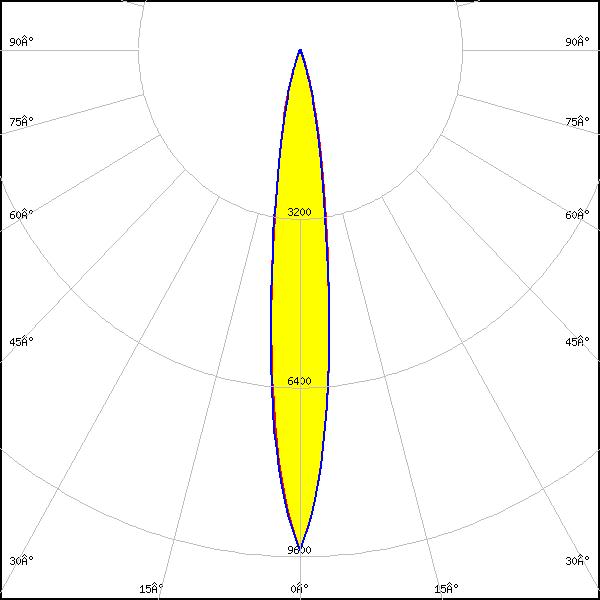

    LED: LUXEON Z ES
    FWHM: 14°
    FWTM: 31°
    Peak intensity: 9.500 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 11°
    FWTM: 32°
    Peak intensity: 7.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

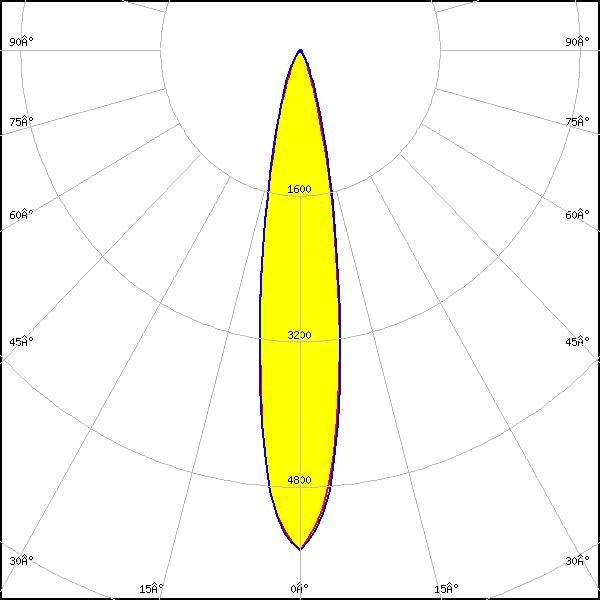

    LED: NF2x757G
    FWHM: 19°
    FWTM: 40°
    Peak intensity: 5.508 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

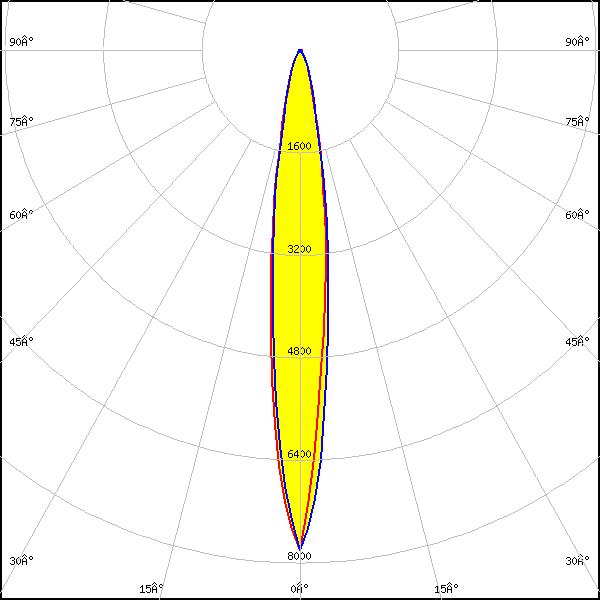

    LED: NFSx757G
    FWHM: 14°
    FWTM: 33°
    Peak intensity: 7.804 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

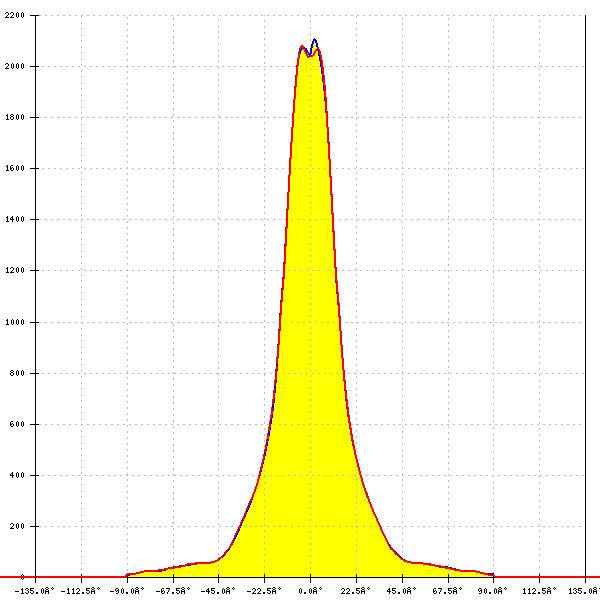

    LED: NV4WB35AM
    FWHM: 28°
    FWTM: 68°
    Peak intensity: 2.107 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 15°
    FWTM: 41°
    Peak intensity: 5.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

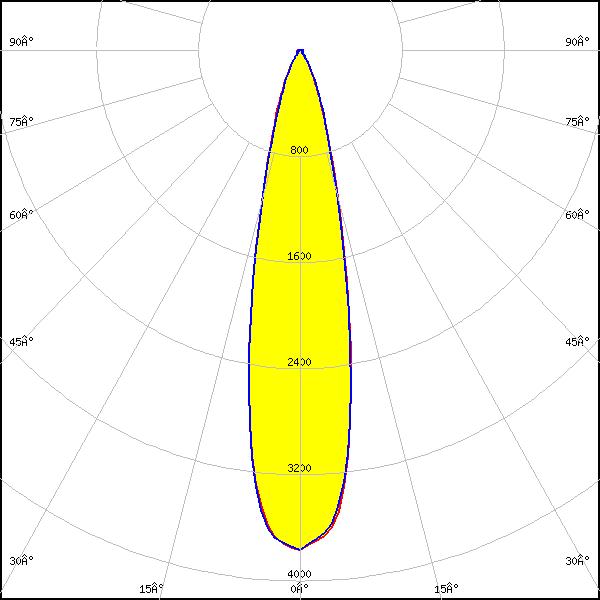

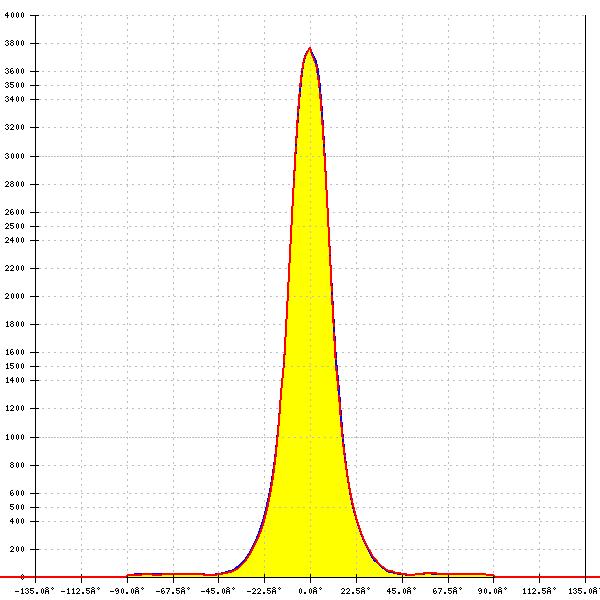

    LED: NVSxx19B/NVSxx19C
    FWHM: 24°
    FWTM: 47°
    Peak intensity: 3.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

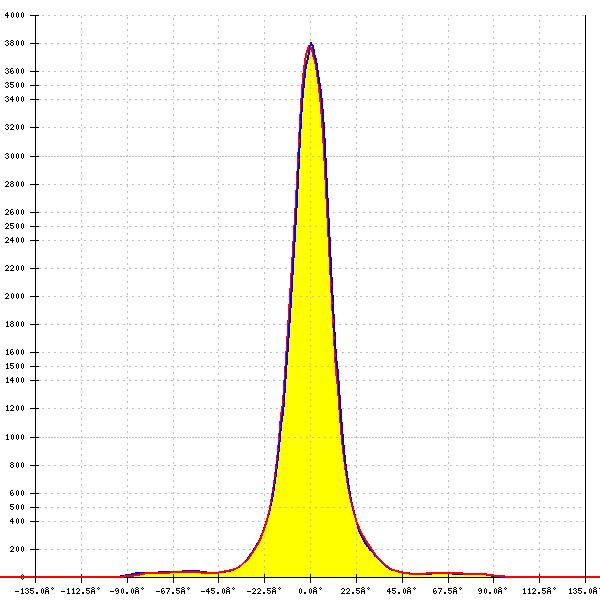

    LED: NVSxx19B/NVSxx19C
    FWHM: 21°
    FWTM: 45°
    Peak intensity: 3.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

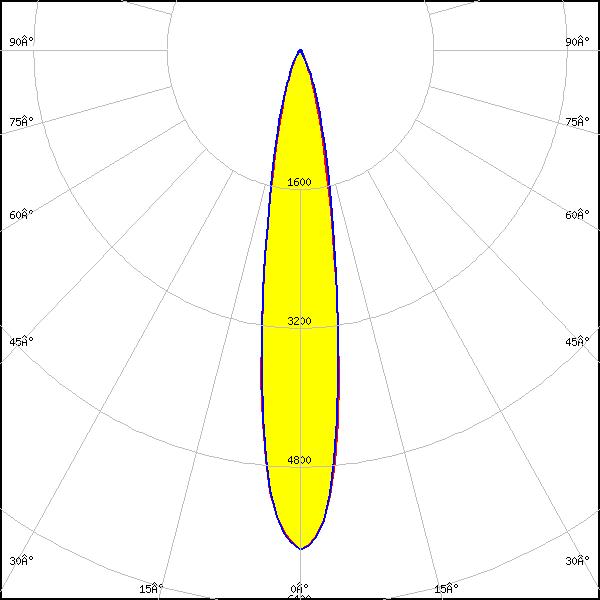

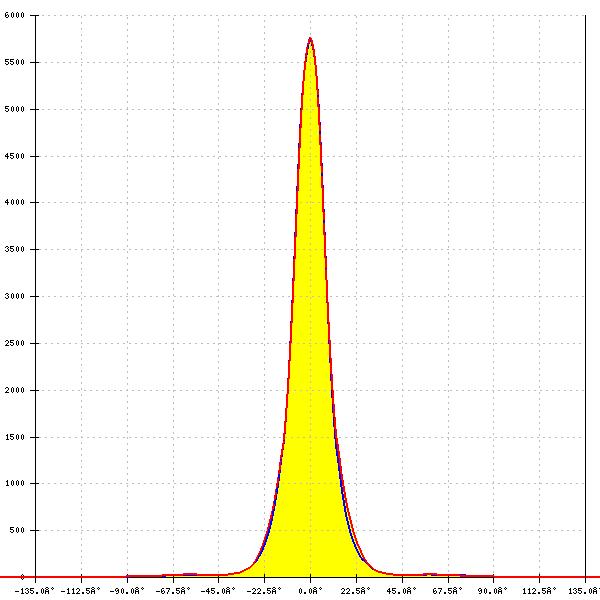

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 5.760 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

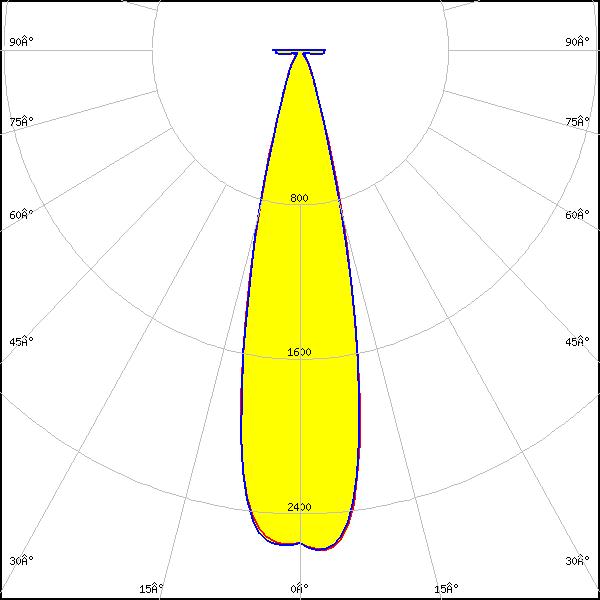

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 2.592 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

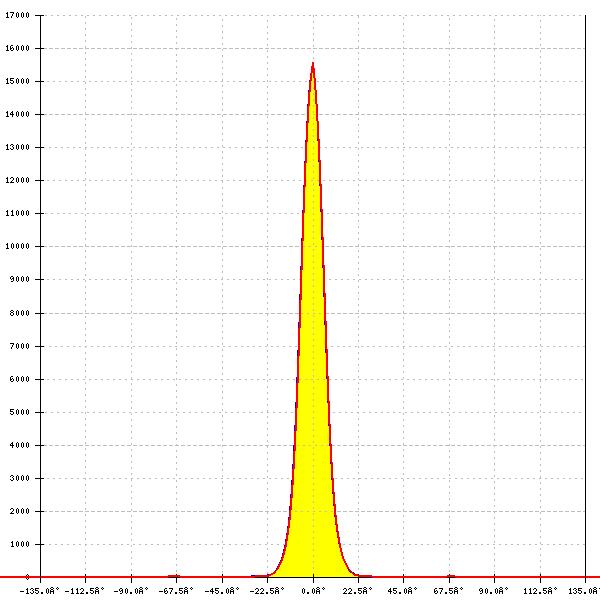

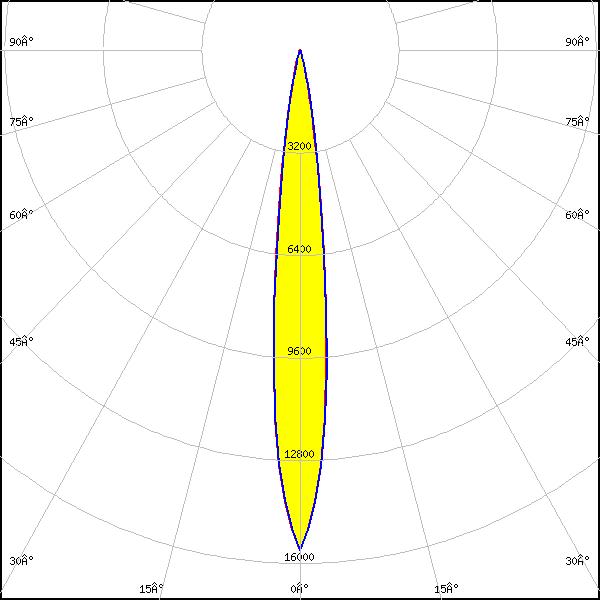

    LED: OSLON Pure 1414
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.591 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

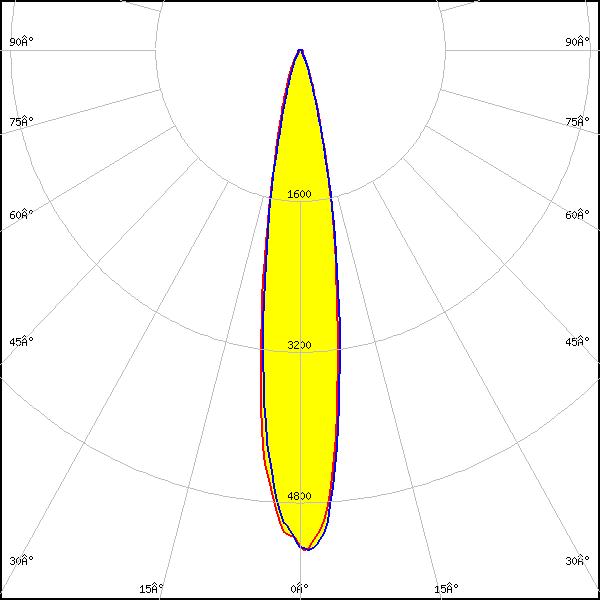

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 18°
    FWTM: 39°
    Peak intensity: 5.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square EC
    FWHM: 18°
    FWTM: 37°
    Peak intensity: 5.330 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

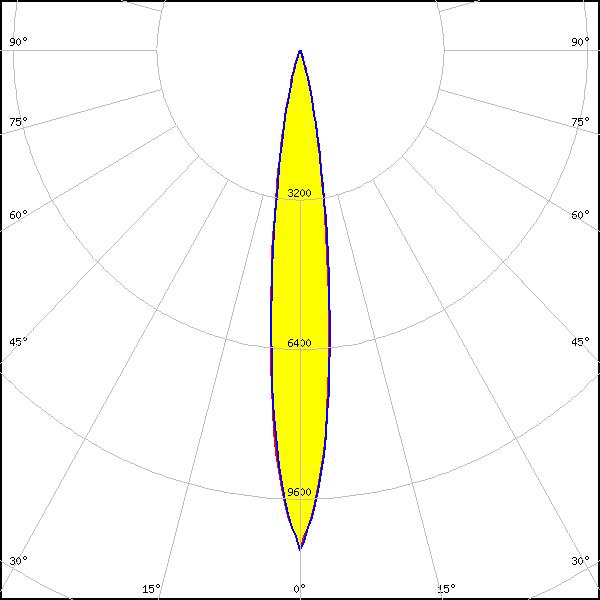

    LED: OSLON SSL 150
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 10.700 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

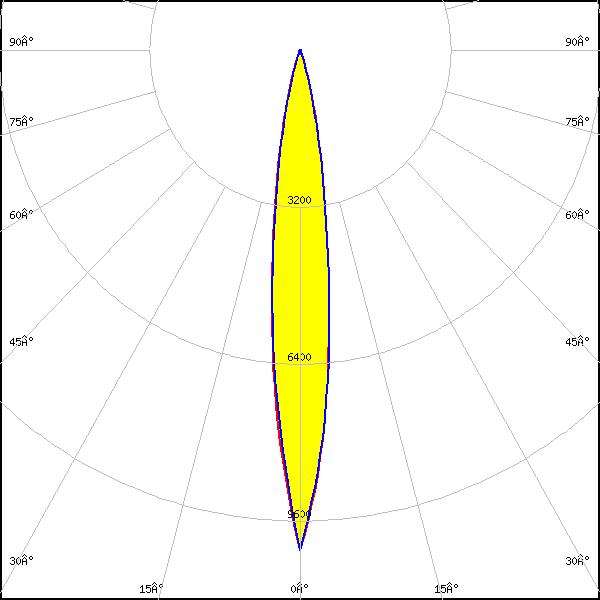

    LED: OSLON SSL 80
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 10.200 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SFH 4170S
    FWHM: 13°
    FWTM: 25°
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4180S
    FWHM: 11°
    FWTM: 22°
    LEDs/each optic: 1
    Light colour/type: IR

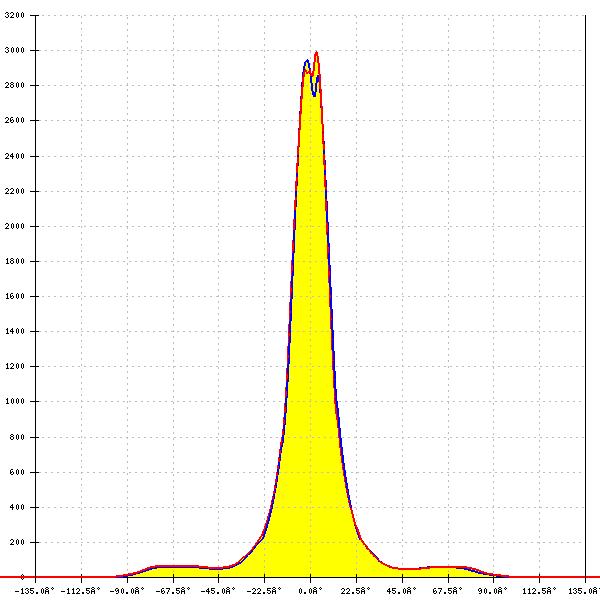

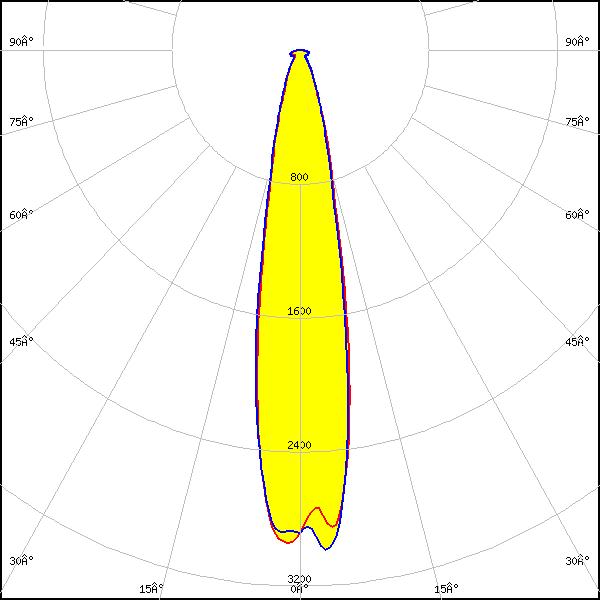

    LED: LH181A
    FWHM: 21°
    FWTM: 44°
    Peak intensity: 3.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

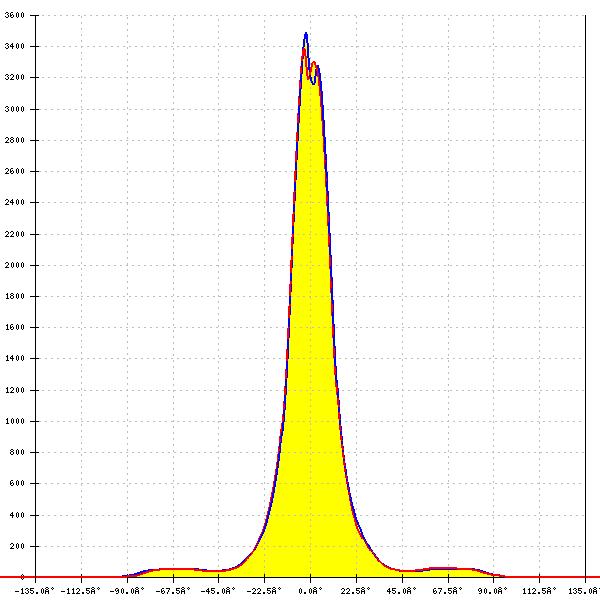

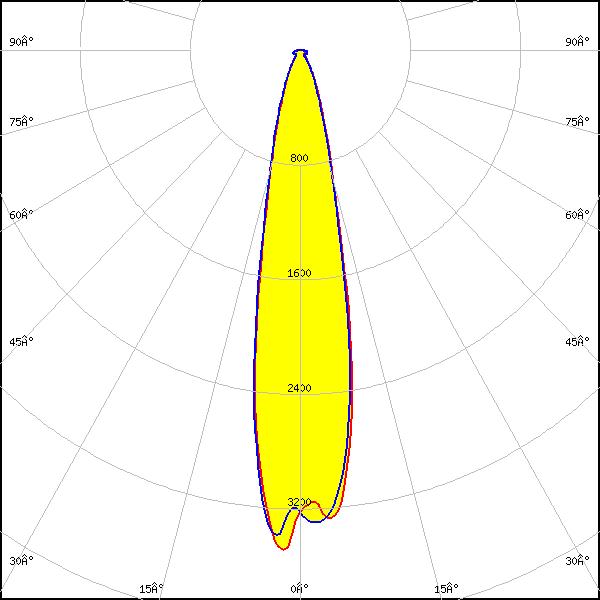

    LED: LH181B
    FWHM: 22°
    FWTM: 45°
    Peak intensity: 3.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

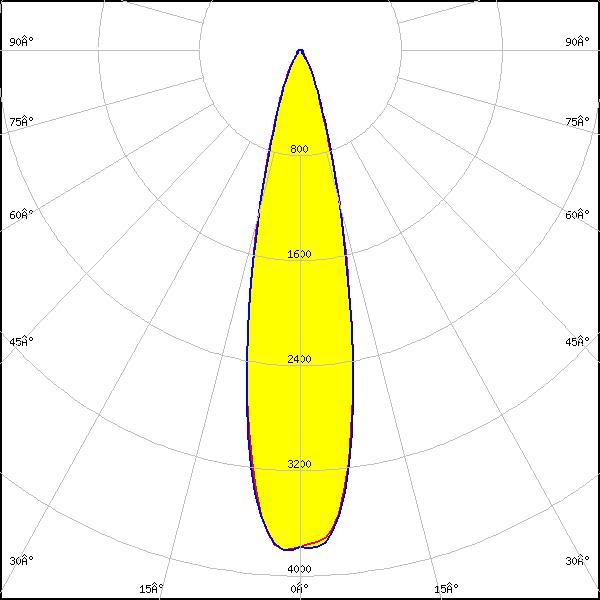

    LED: LH351B
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.850 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: 19°
    FWTM: 36°
    Peak intensity: 6.060 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

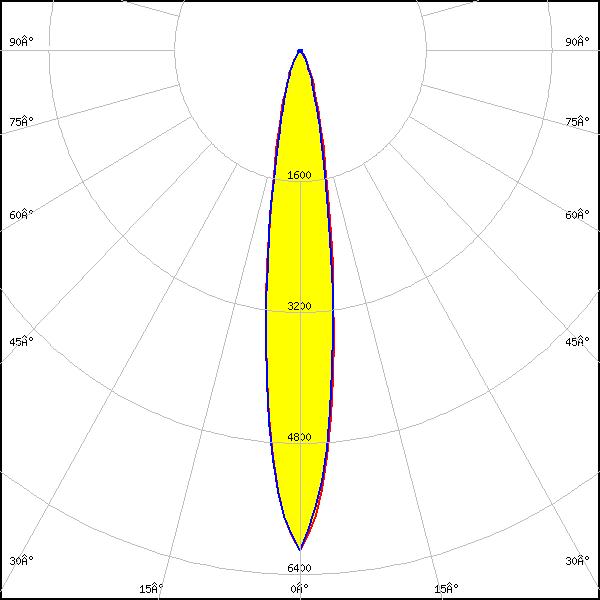

    LED: MJT 3030
