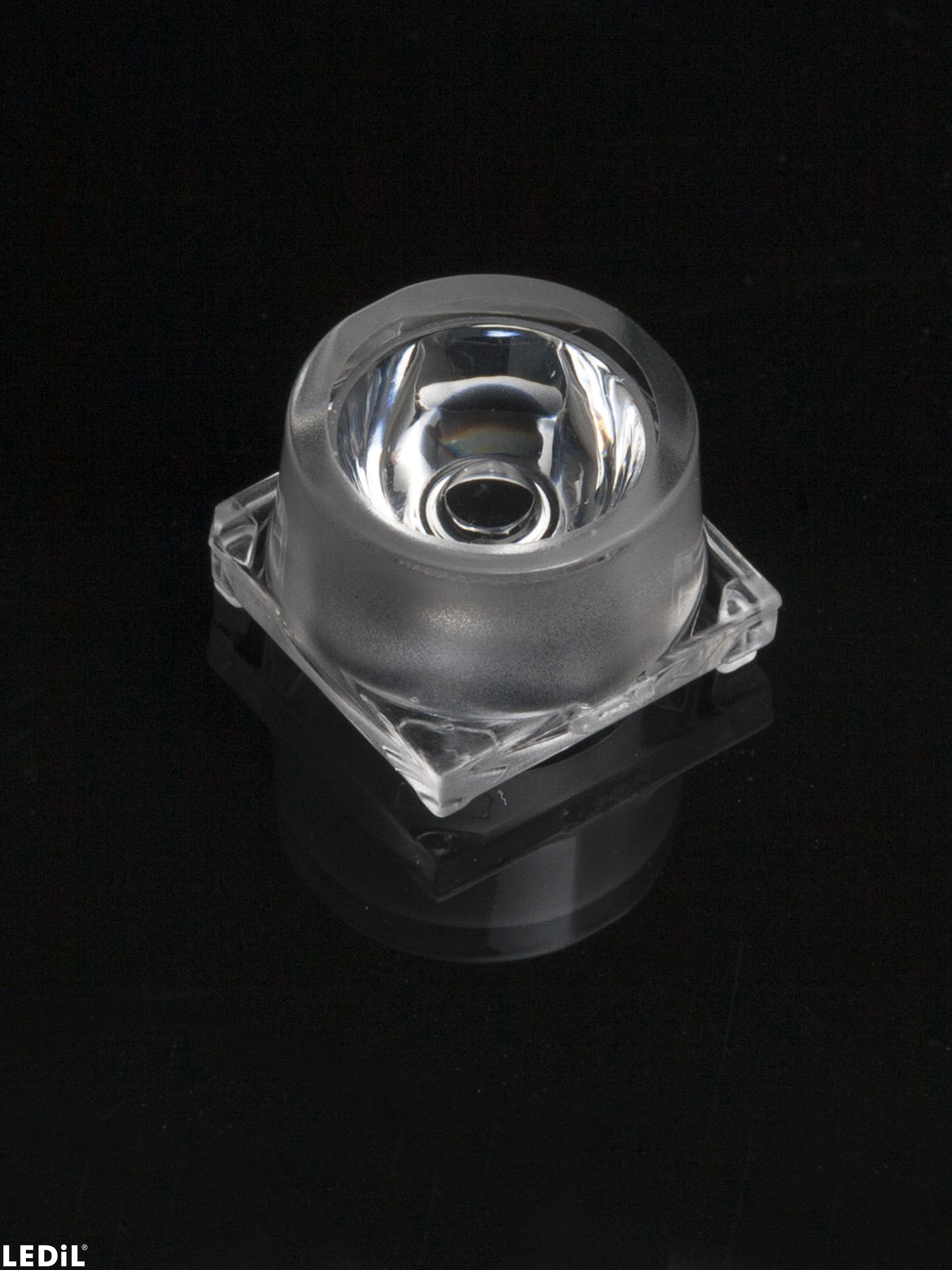

    CA15230_VERONICA-SQ-MINI-M

    Print

    ~35° medium beam

    Specification
    • Dimensions:
      14 x  14 mm
    • Height:
      8.86 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      5544 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.5 kg
    • MPQ:
      252 pcs
    • MOQ:
      252 pcs
    • MOQ size:
      480 x 280 x 20 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA15230_VERONICA-SQ-MINI-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR133.a - Change of product specification 020317

    Case story

    Hall of Justice

    Application guide

    Guide for Architectural lighting optics

    Application example

    Urban lighting with LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

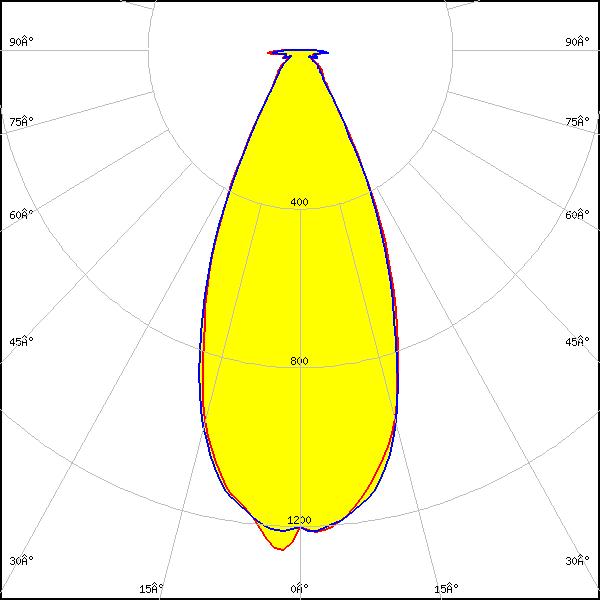

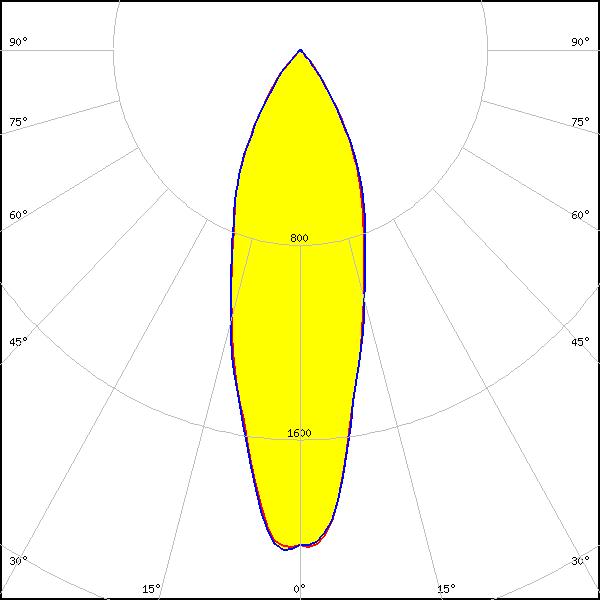

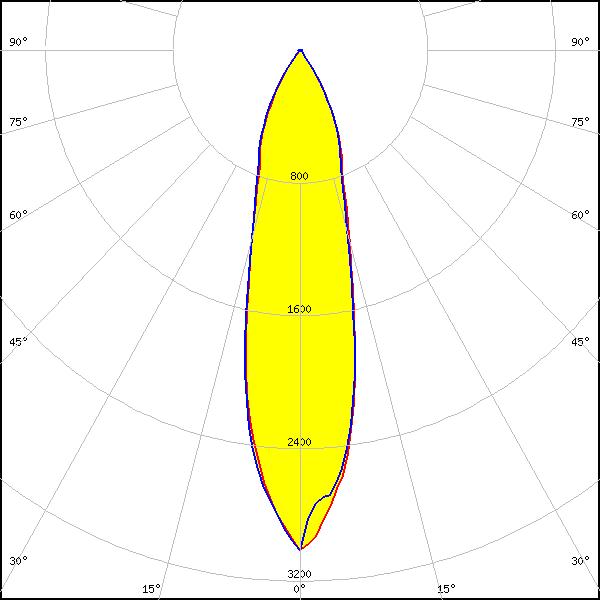

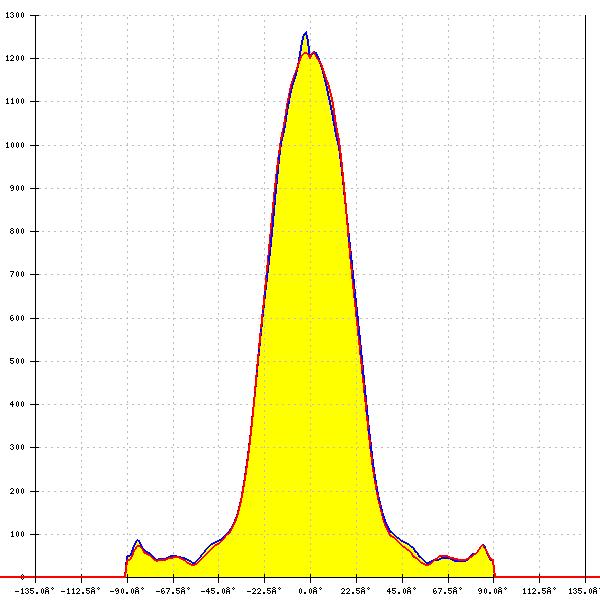

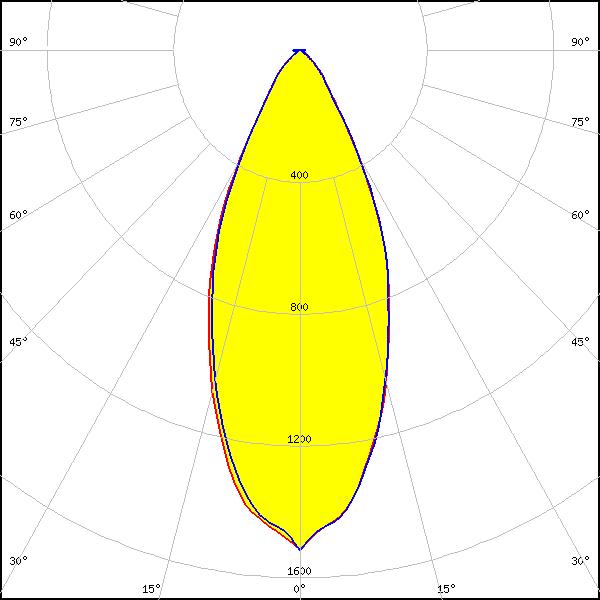

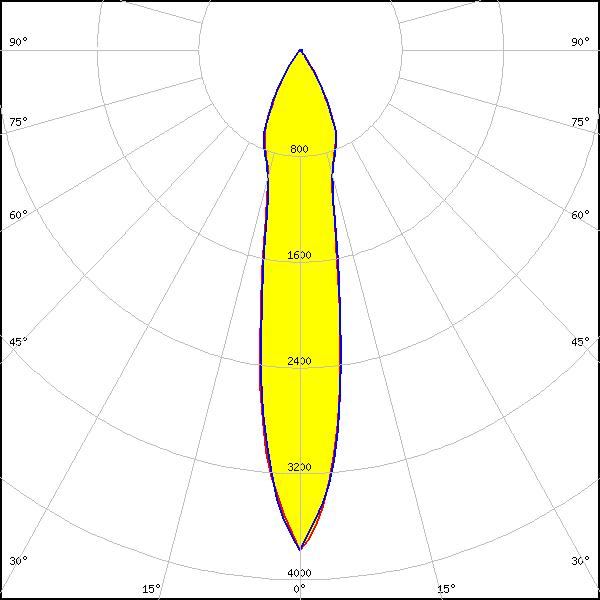

    Optical results

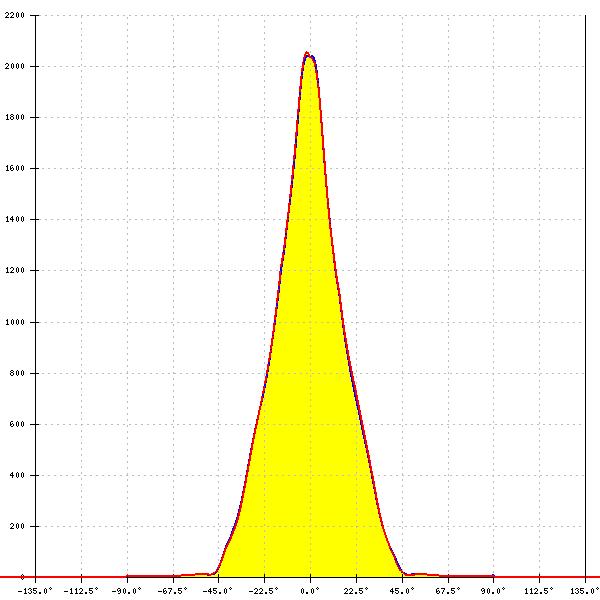

    LED: XP-E2
    FWHM: 33°
    FWTM: 73°
    Peak intensity: 2.076 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

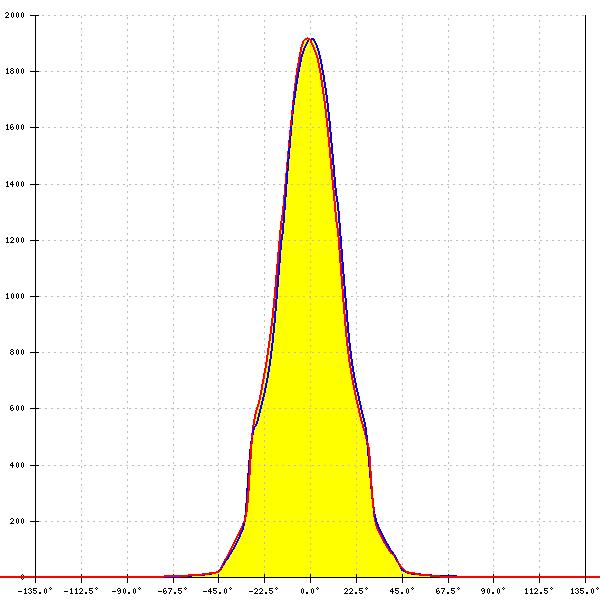

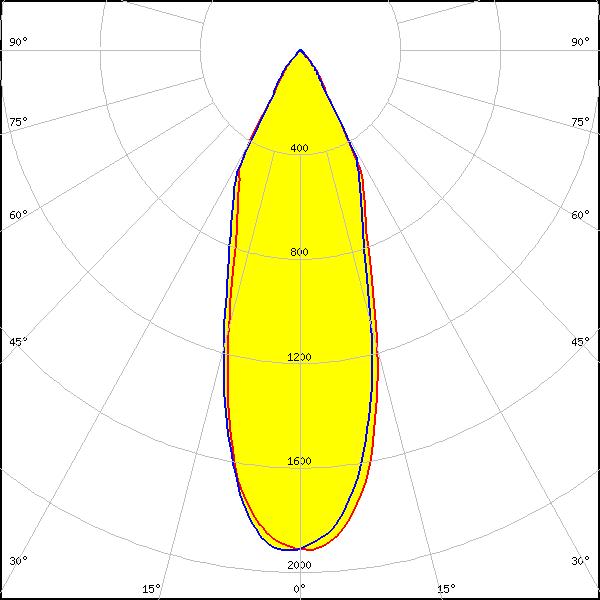

    LED: XP-G2
    FWHM: 34°
    FWTM: 65°
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

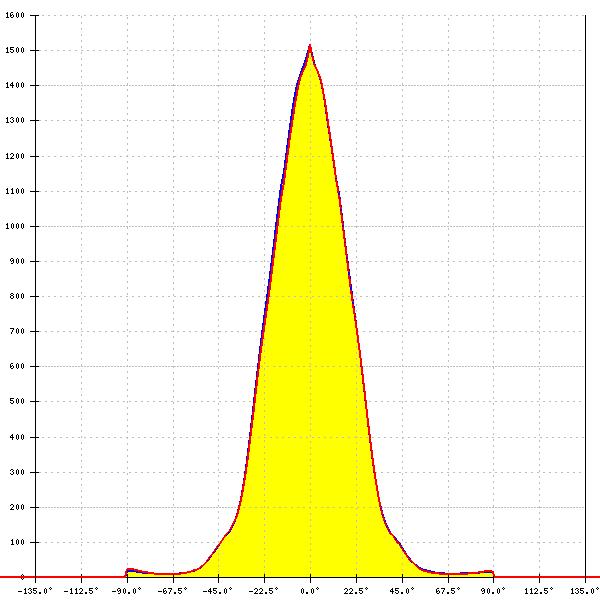

    LED: XP-G3
    FWHM: 44°
    FWTM: 75°
    Peak intensity: 1.517 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

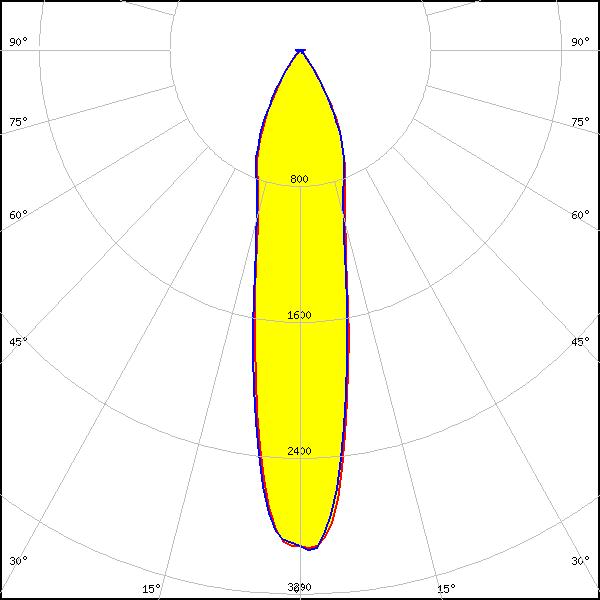

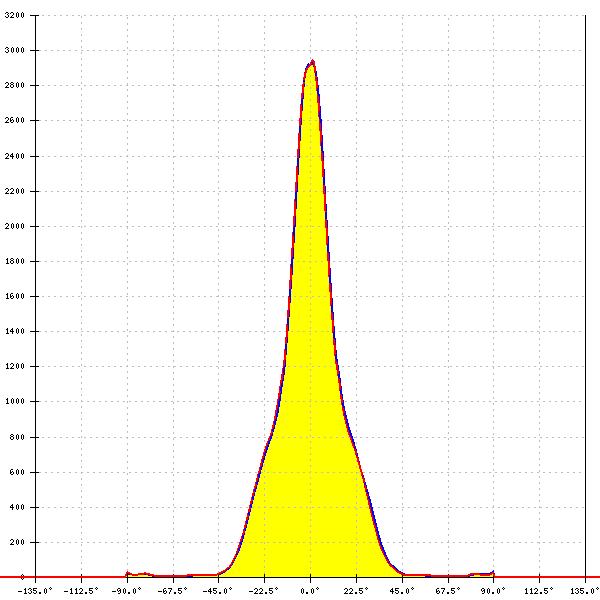

    LED: XQ-E HI
    FWHM: 23°
    FWTM: 64°
    Peak intensity: 2.980 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

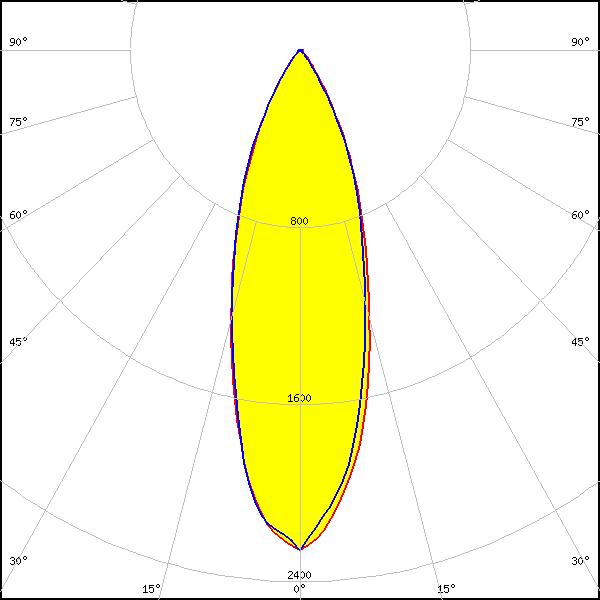

    LED: LUXEON 2835 Architectural
    FWHM: 28°
    FWTM: 64°
    Peak intensity: 2.595 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: PC Amber

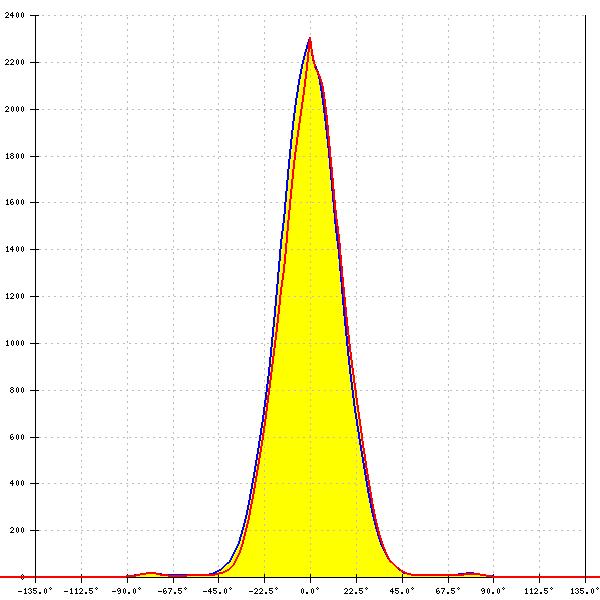

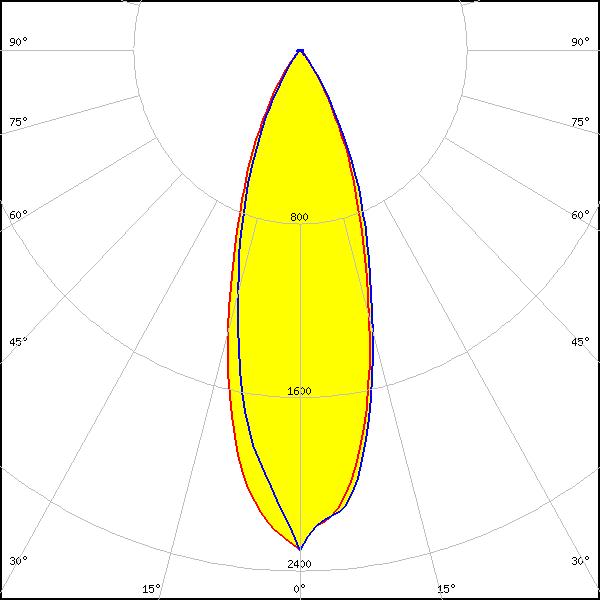

    LED: LUXEON 3030 HV
    FWHM: 33°
    FWTM: 64°
    Peak intensity: 2.305 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: 46°
    FWTM: 75°
    Peak intensity: 1.262 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

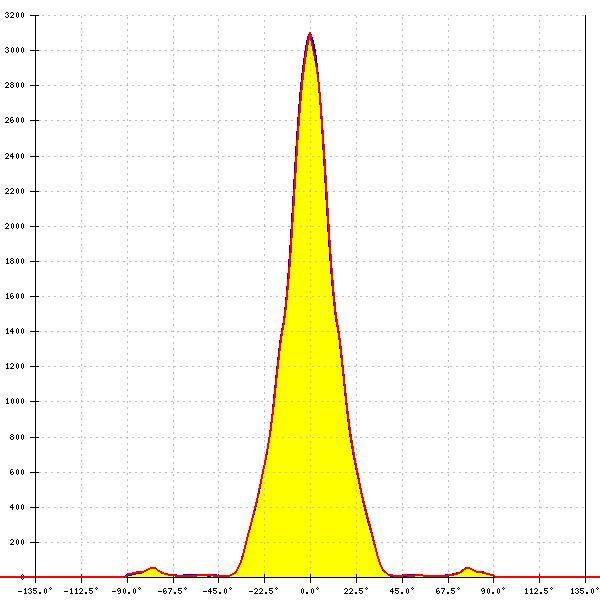

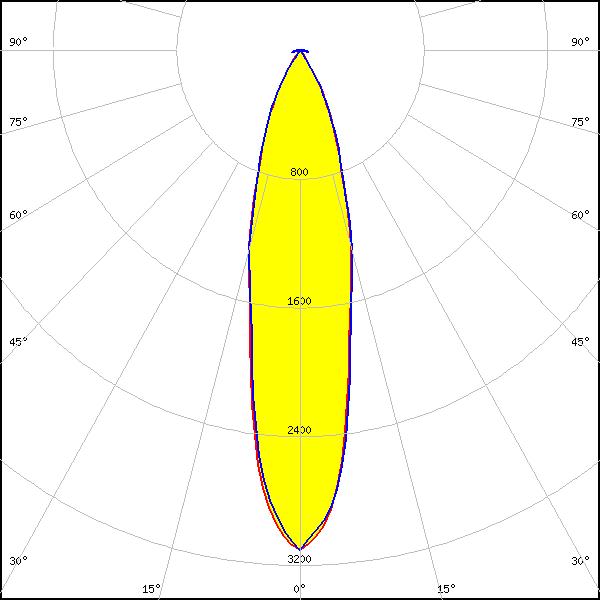

    LED: LUXEON HL1Z (White)
    FWHM: 24°
    FWTM: 58°
    Peak intensity: 3.106 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

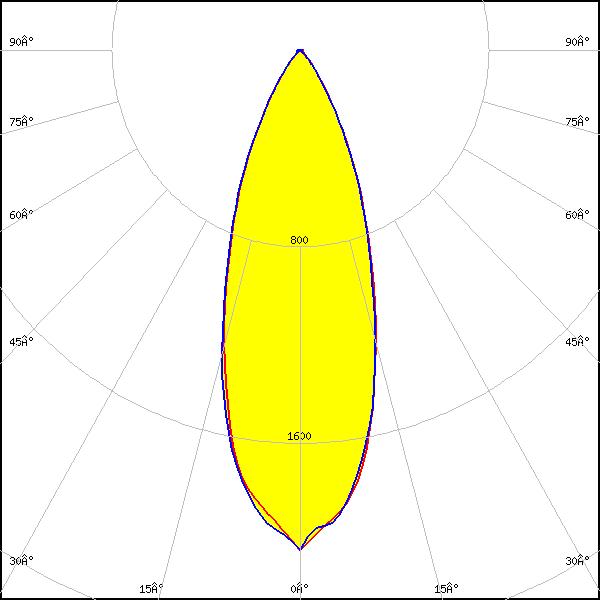

    LED: LUXEON HL2Z
    FWHM: 34°
    FWTM: 64°
    Peak intensity: 2.256 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

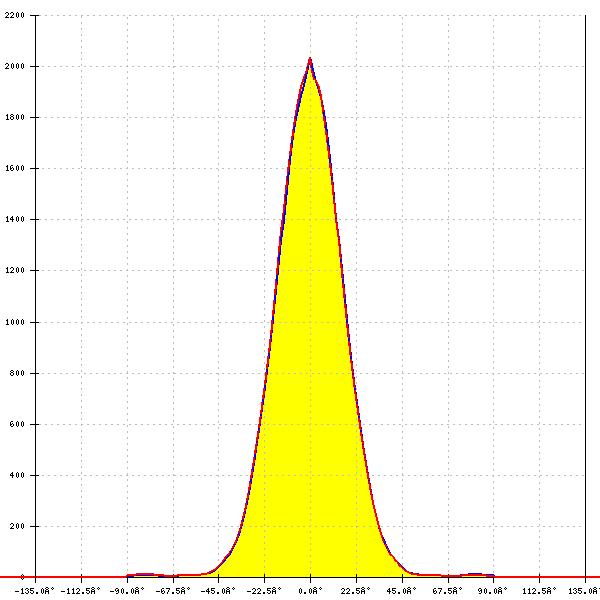

    LED: LUXEON HL4Z
    FWHM: 36°
    FWTM: 68°
    Peak intensity: 2.037 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

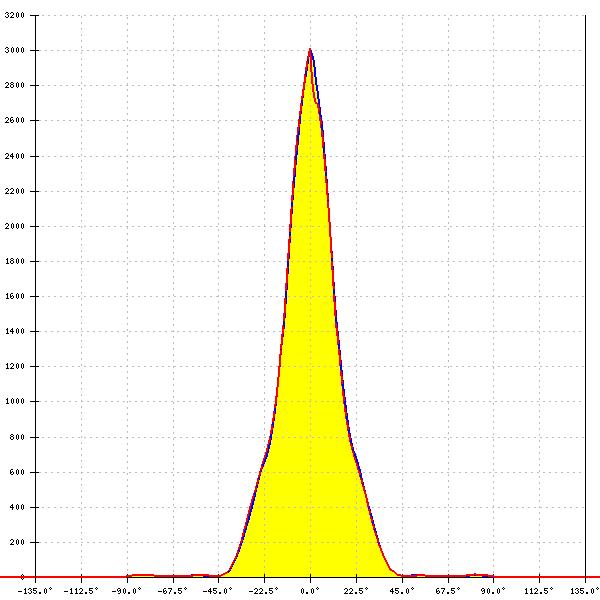

    LED: LUXEON Z ES
    FWHM: 25°
    FWTM: 62°
    Peak intensity: 3.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

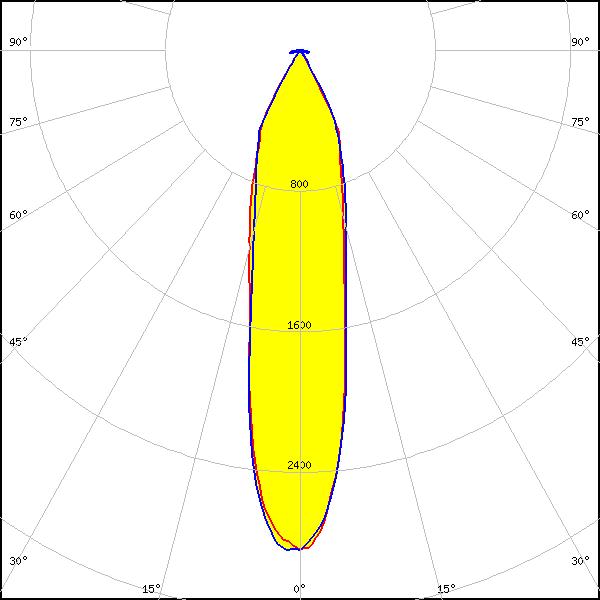

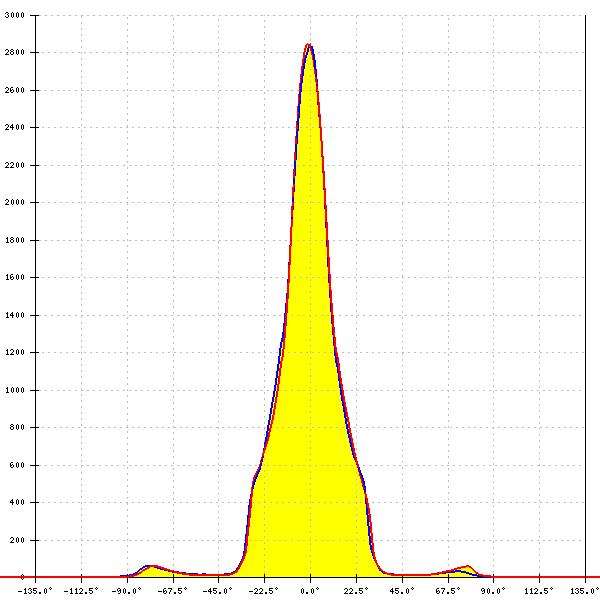

    LED: NCSxE17A
    FWHM: 23°
    FWTM: 59°
    Peak intensity: 2.800 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

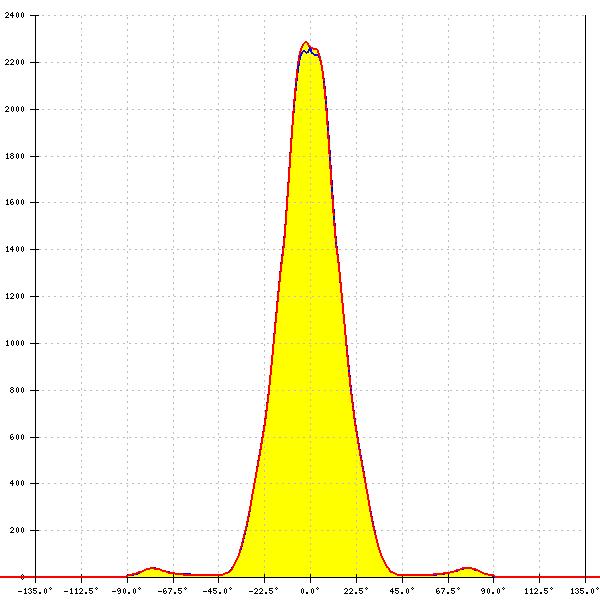

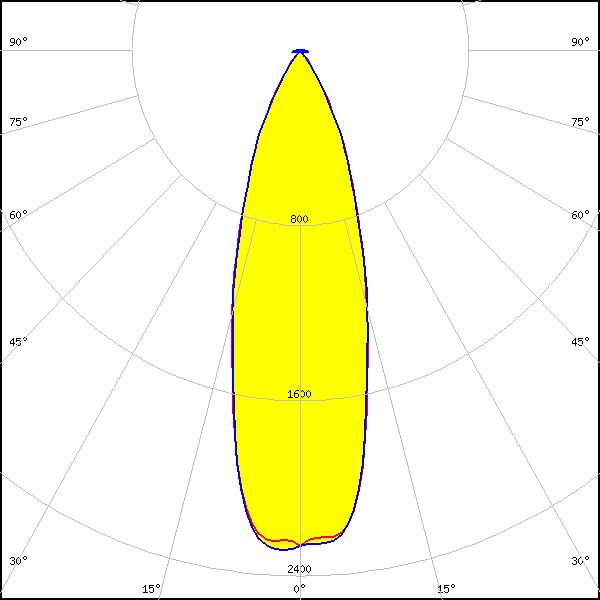

    LED: NVSxE21A
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 2.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

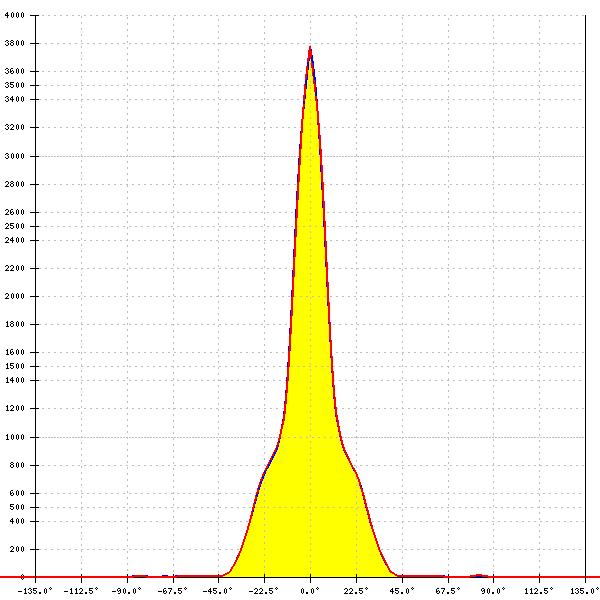

    LED: OSLON Pure 1414
    FWHM: 18°
    FWTM: 60°
    Peak intensity: 3.779 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

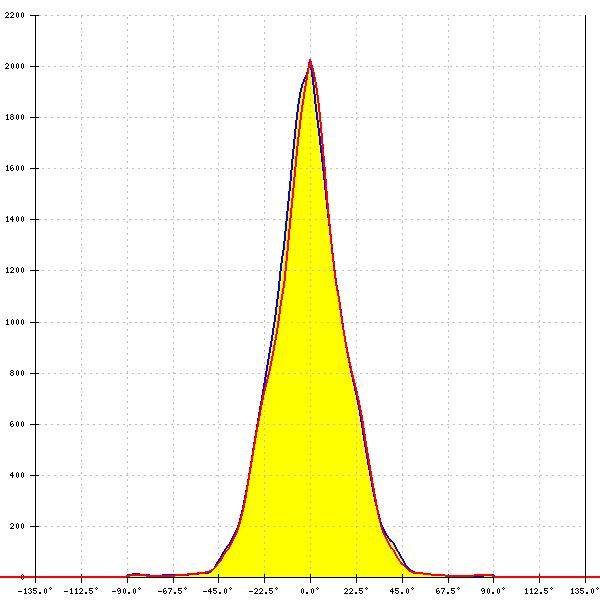

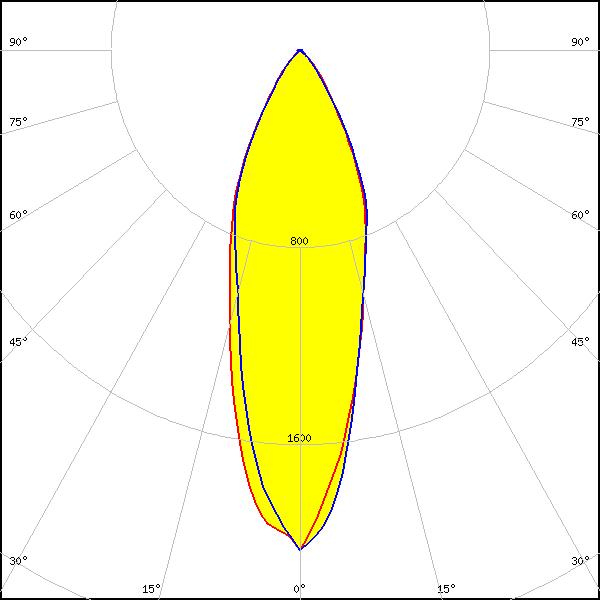

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 31°
    FWTM: 70°
    Peak intensity: 2.037 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

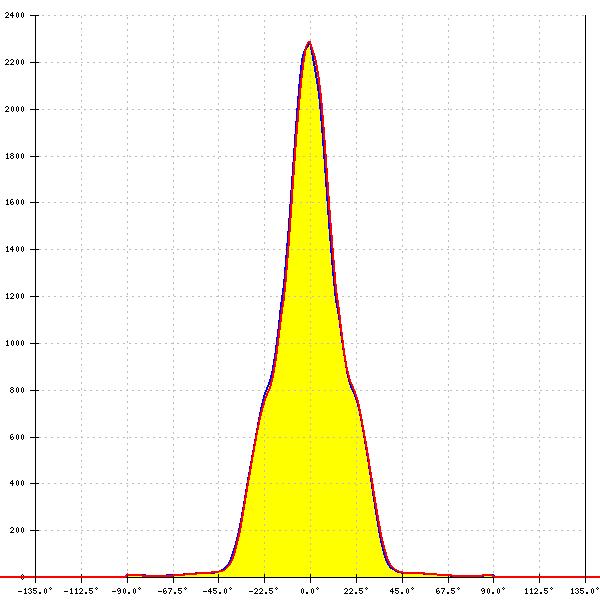

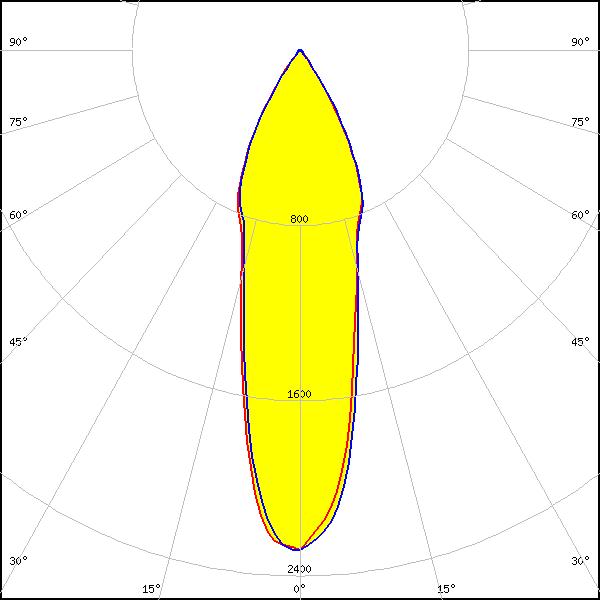

    LED: OSLON SSL 80
    FWHM: 28°
    FWTM: 68°
    Peak intensity: 3.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

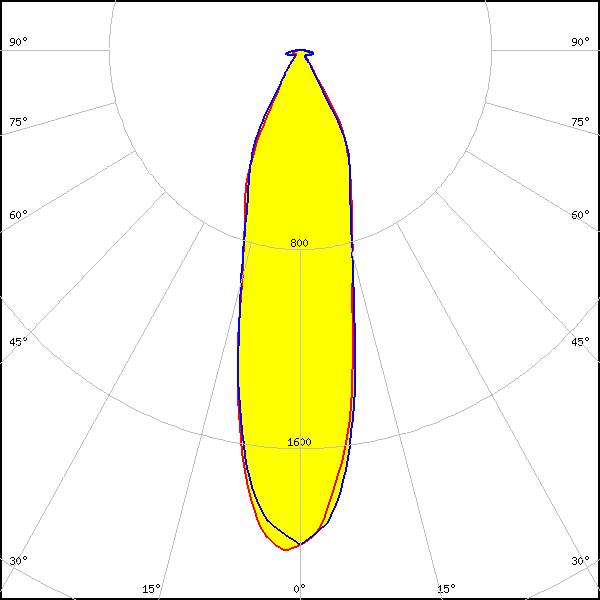

    LED: LH181A
    FWHM: 27°
    FWTM: 61°
    Peak intensity: 2.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

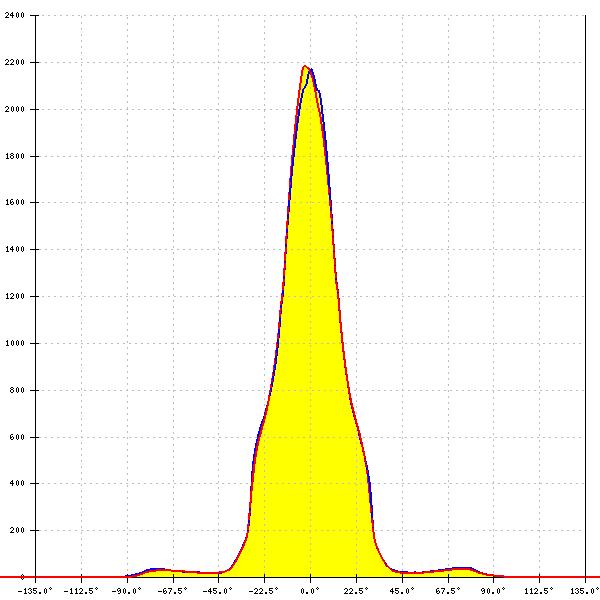

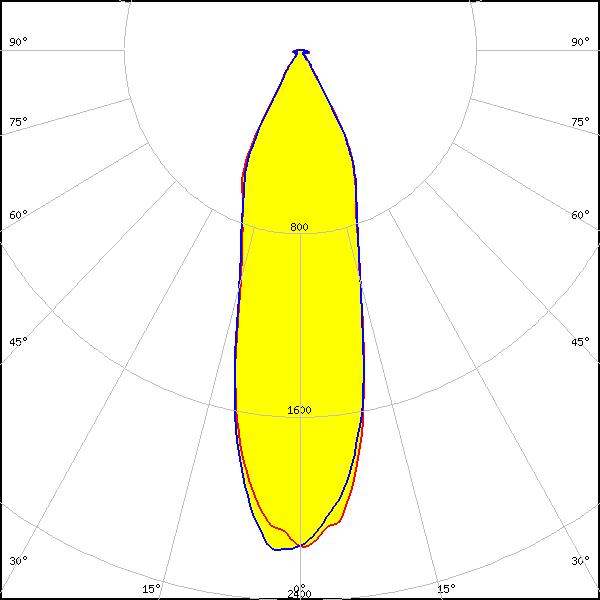

    LED: LH181B
    FWHM: 29°
    FWTM: 61°
    Peak intensity: 2.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

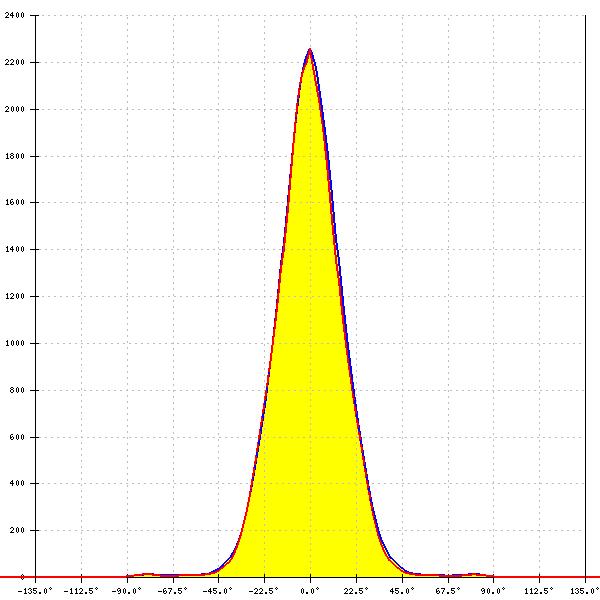

    LED: MJT 3030
    FWHM: 33°
    FWTM: 66°
    Peak intensity: 2.259 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

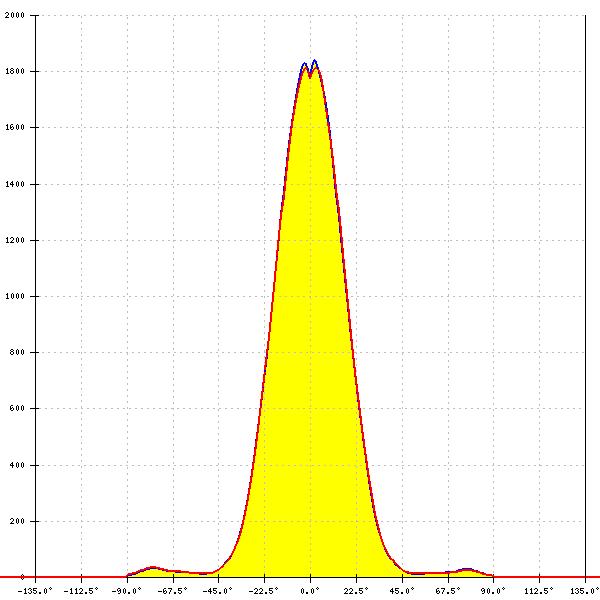

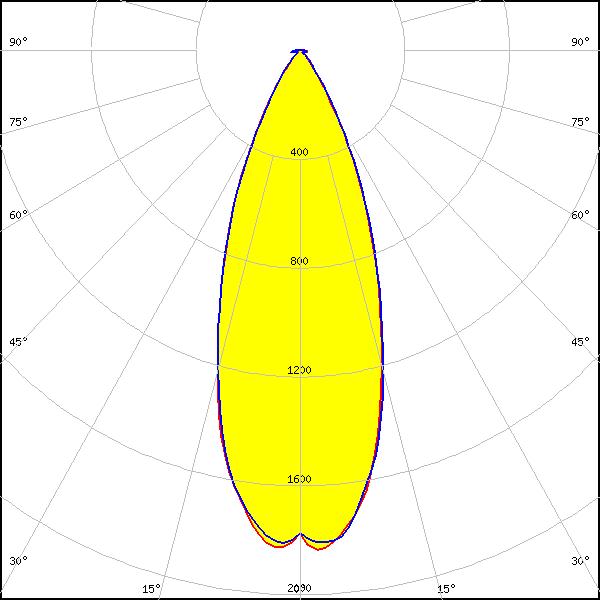

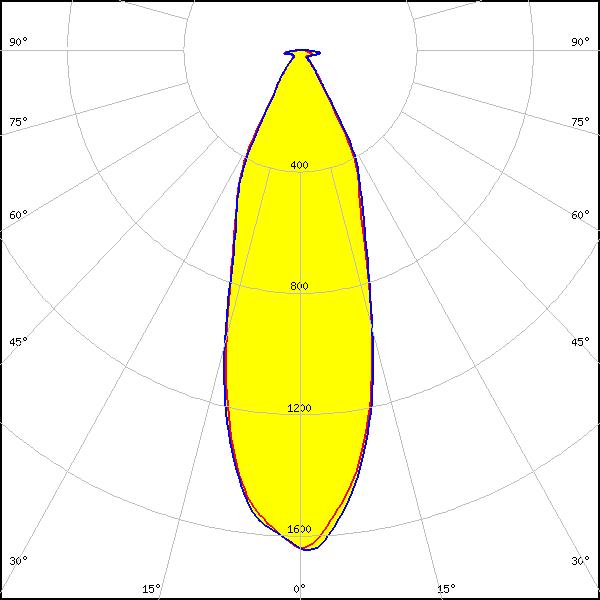

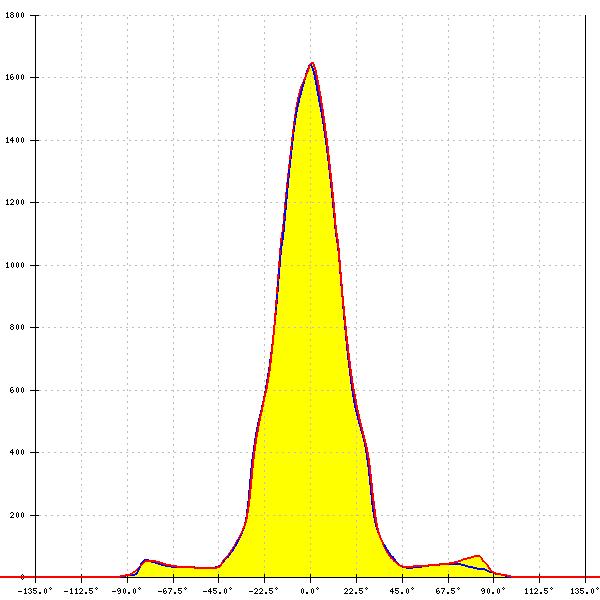

    LED: Z8Y22P
