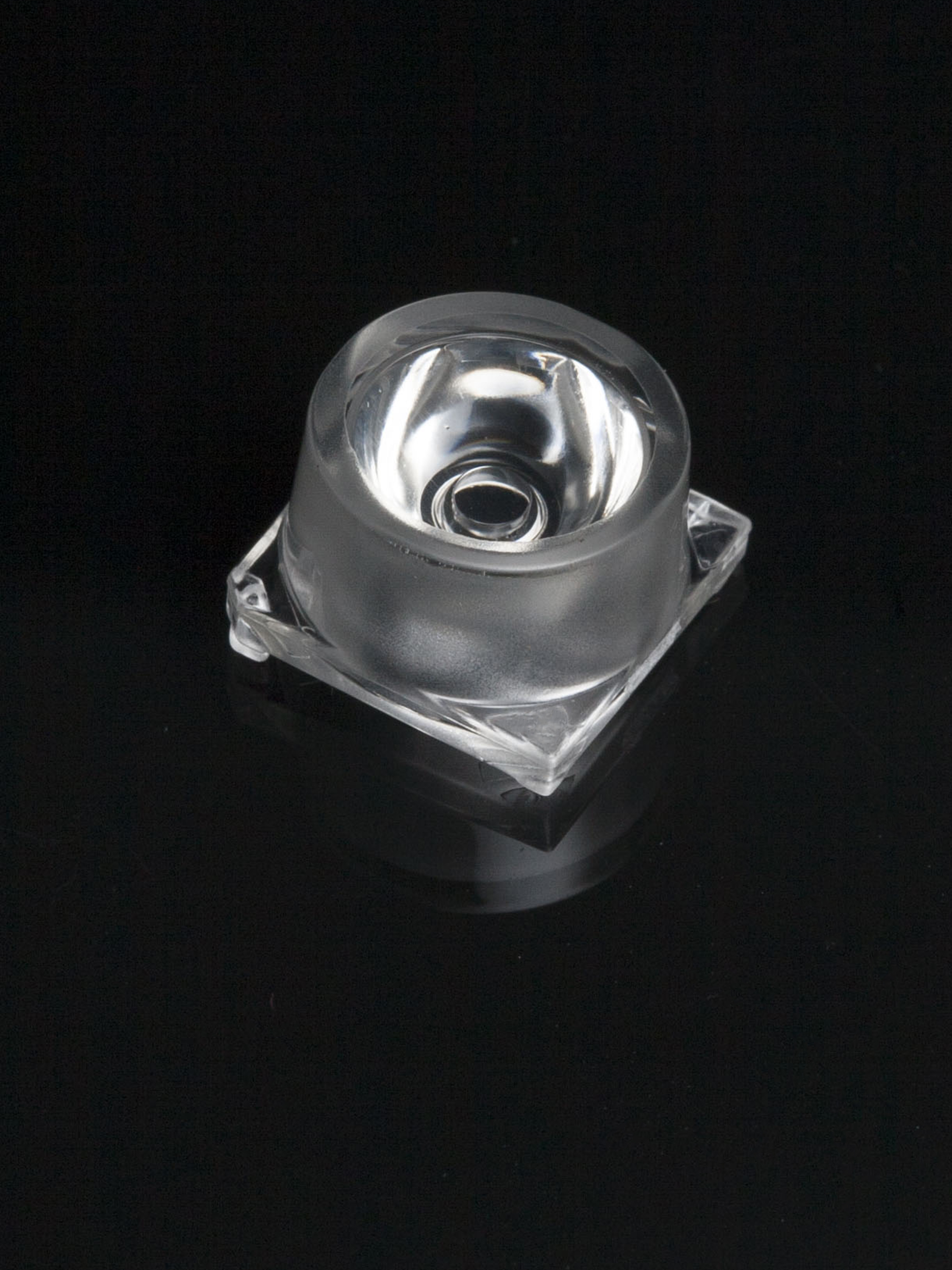

CA15231_VERONICA-SQ-MINI-W
Print
~55° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

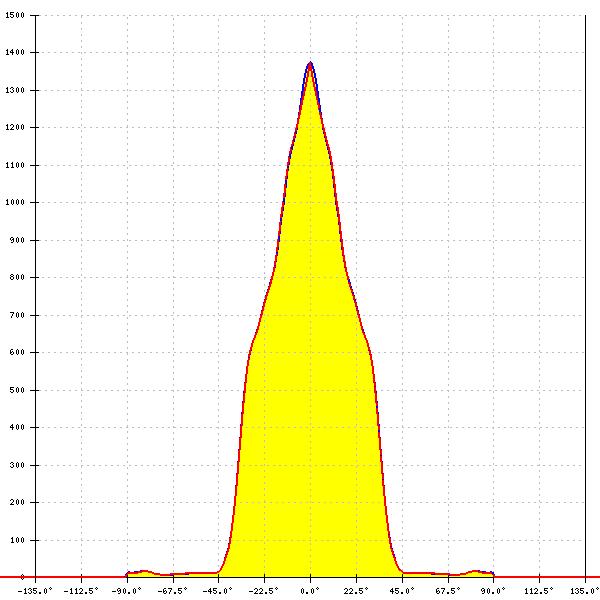

Optical results
LED:

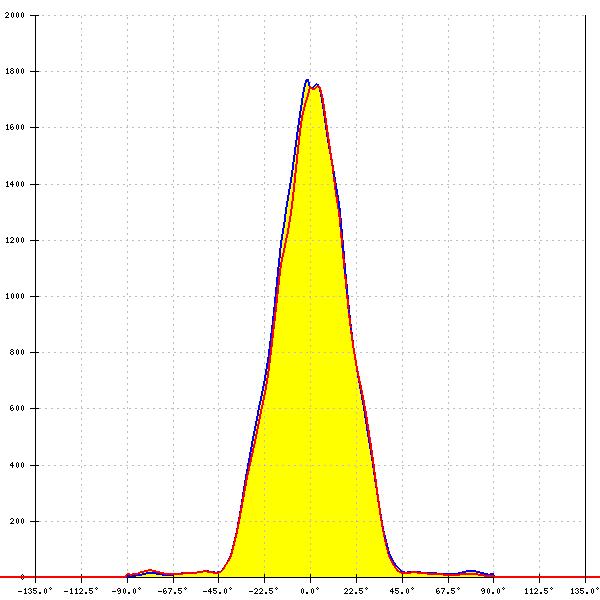

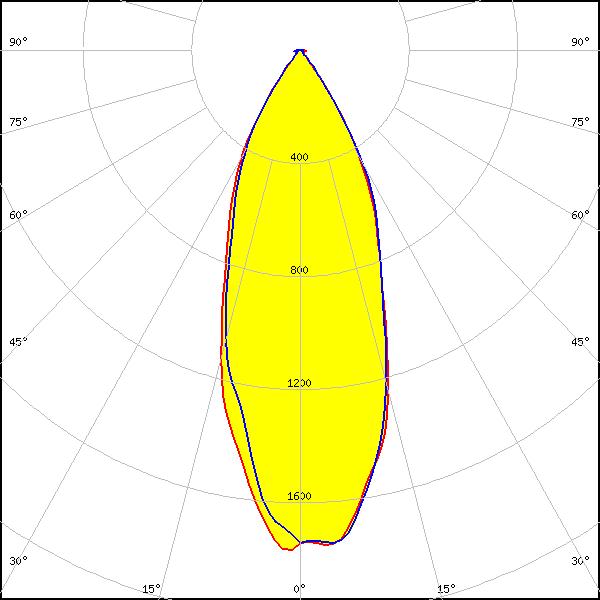

JB3030 HE B Class
FWHM:
38°
FWTM:
72°
Peak intensity:
1.775 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

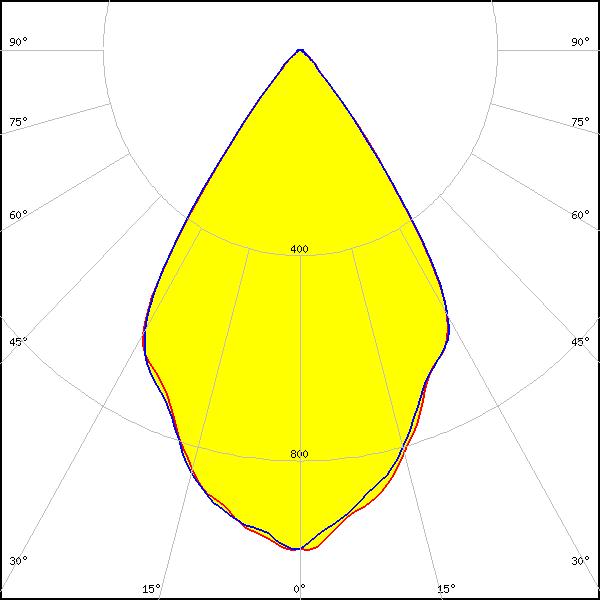

LED:

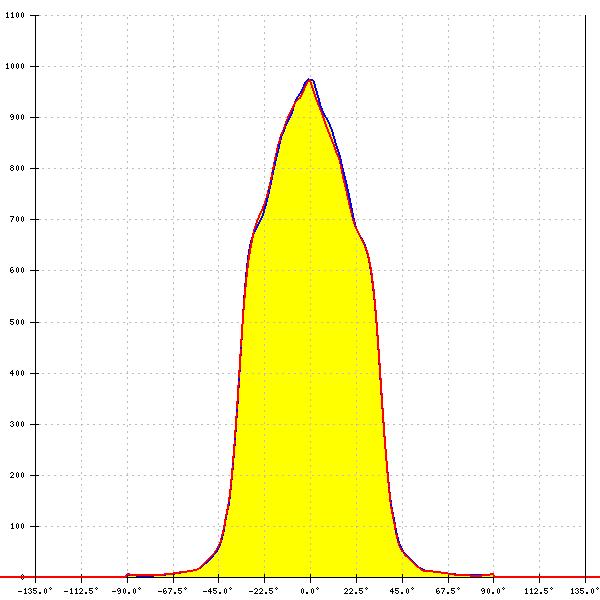

XP-E2
FWHM:
66°
FWTM:
84°
Peak intensity:
0.981 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

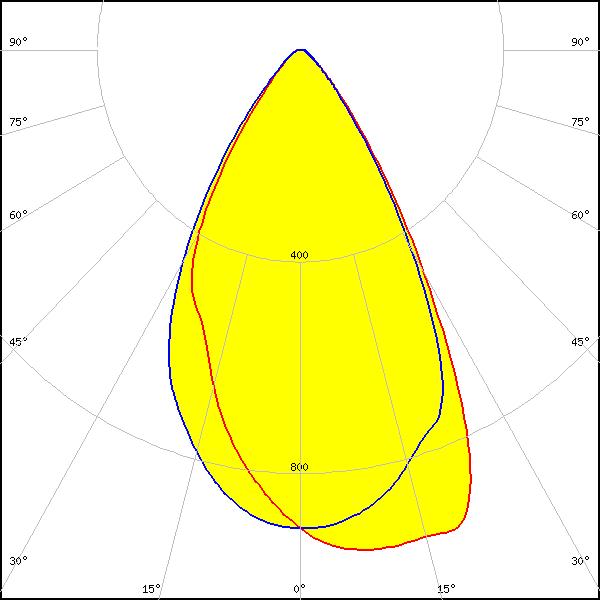

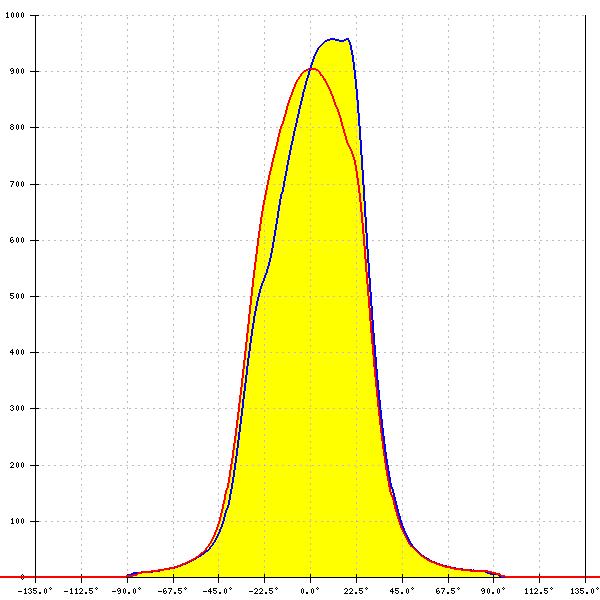

XP-G2
FWHM:
57°
FWTM:
88°
Peak intensity:
0.957 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

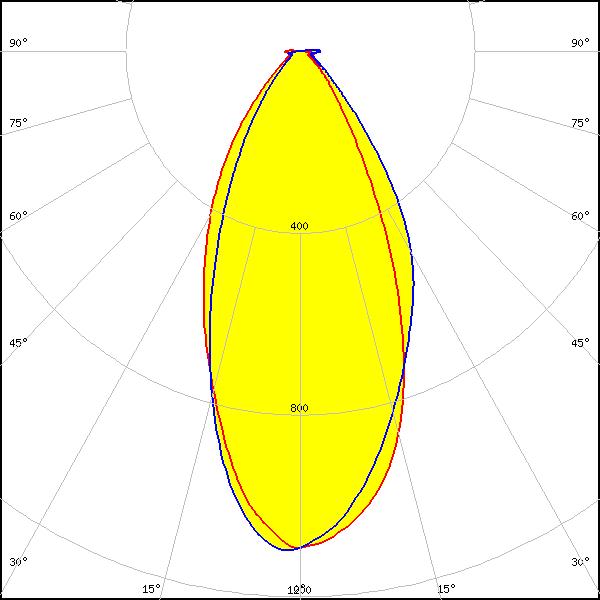

LED:

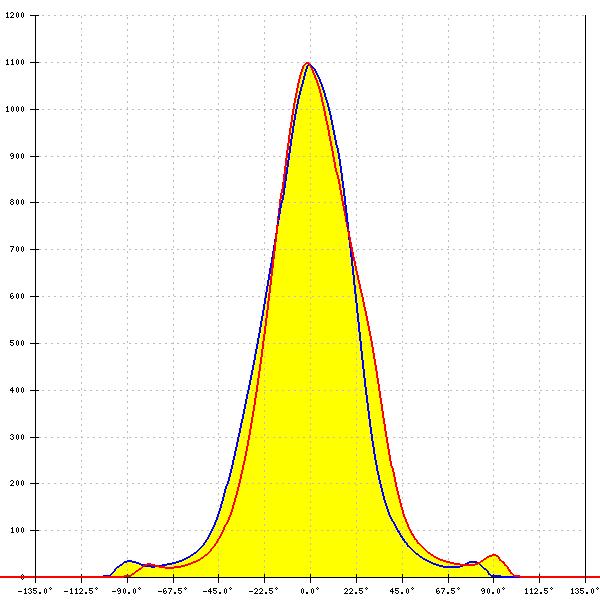

XP-G3
FWHM:
61°
FWTM:
86°
Peak intensity:
0.984 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

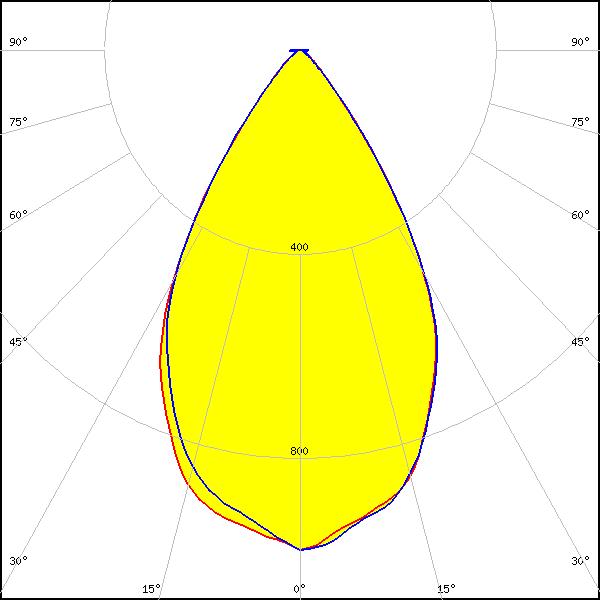

LED:
XP-G3
FWHM:
49°
FWTM:
89°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HD
FWHM:
48°
FWTM:
76°
Peak intensity:
1.375 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
41°
FWTM:
74°
Peak intensity:
1.679 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
PC Amber

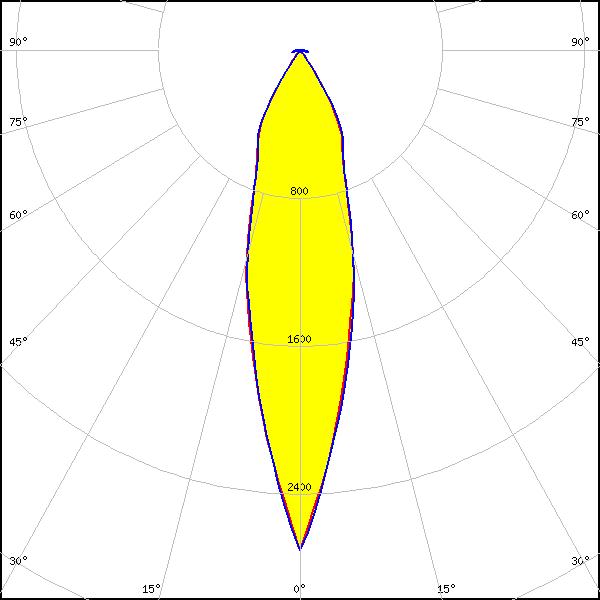

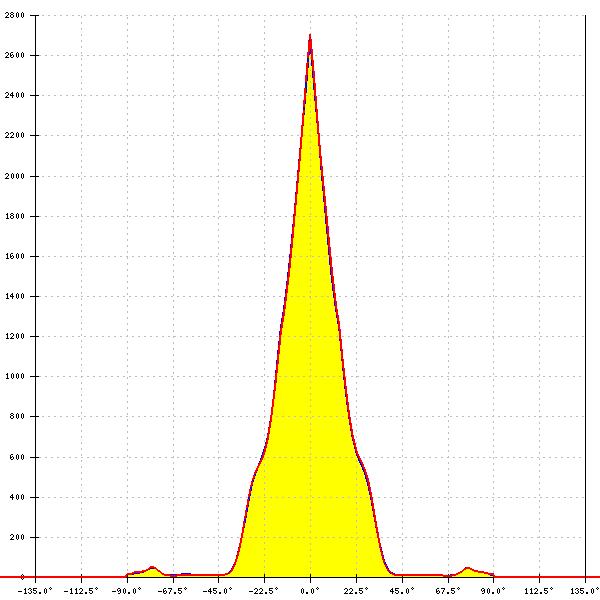

LED:
LUXEON HL1Z (White)
FWHM:
26°
FWTM:
64°
Peak intensity:
2.705 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

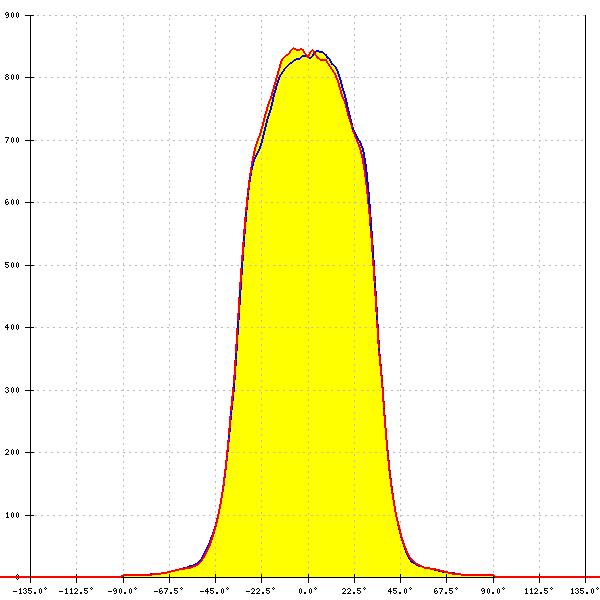

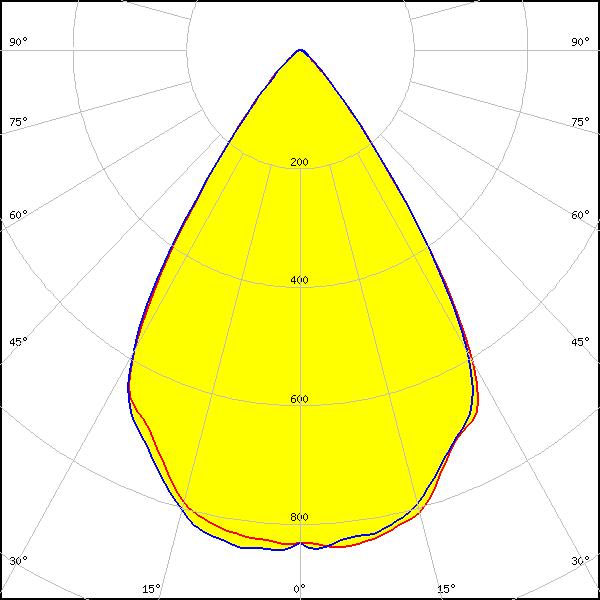

LUXEON HL2X
FWHM:
68°
FWTM:
89°
Peak intensity:
0.859 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

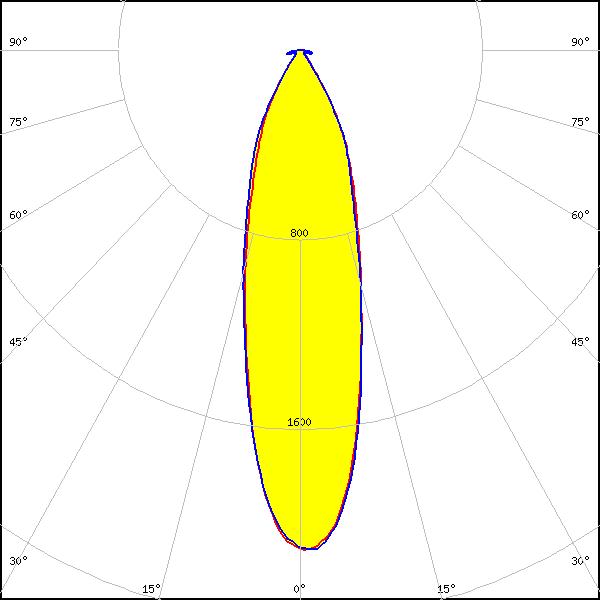

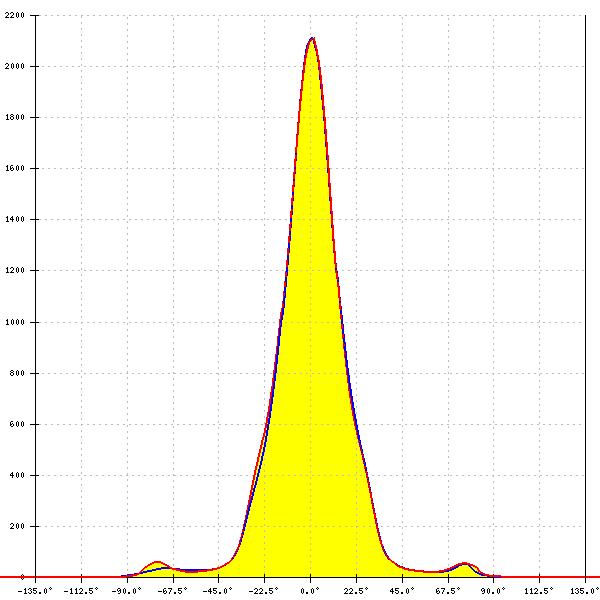

LED:
NCSxE17A
FWHM:
28°
FWTM:
65°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

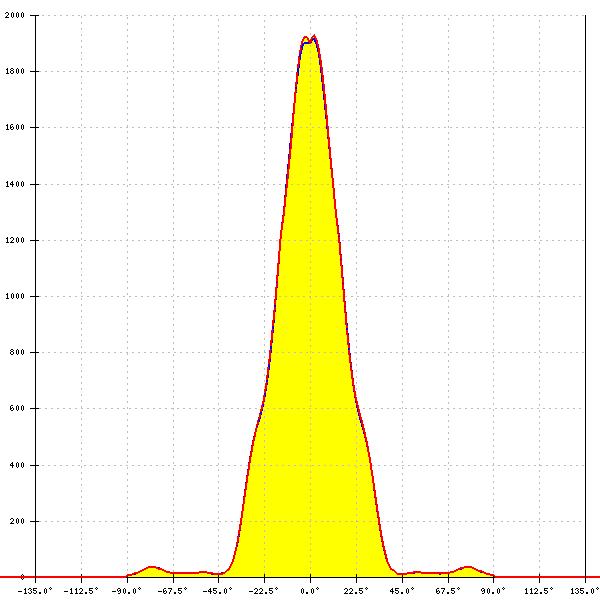

LED:

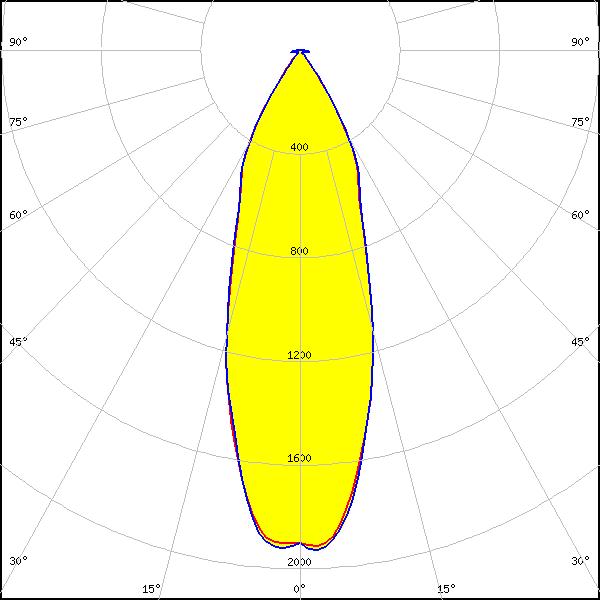

NVSxE21A
FWHM:
34°
FWTM:
68°
Peak intensity:
1.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

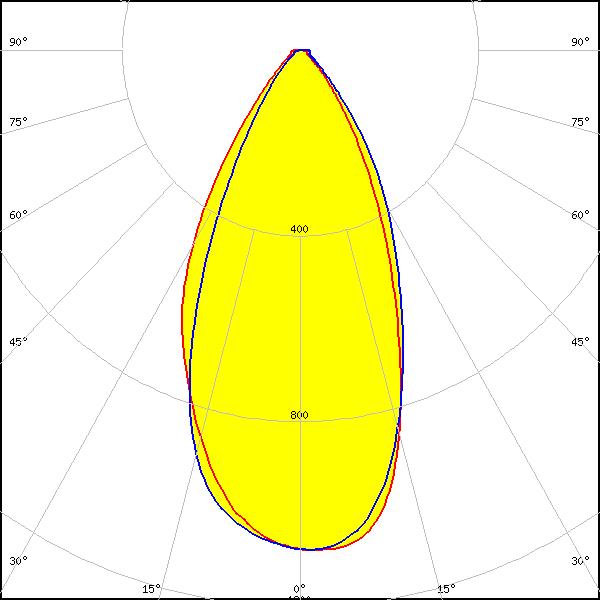

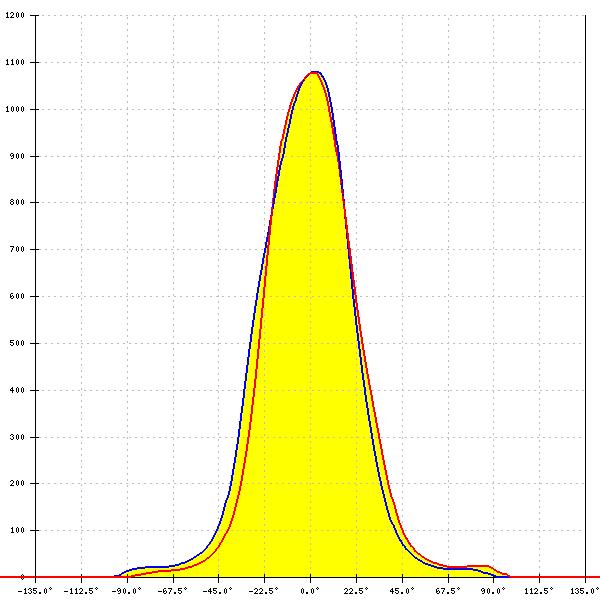

LED:
NVSxx19B/NVSxx19C
FWHM:
50°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

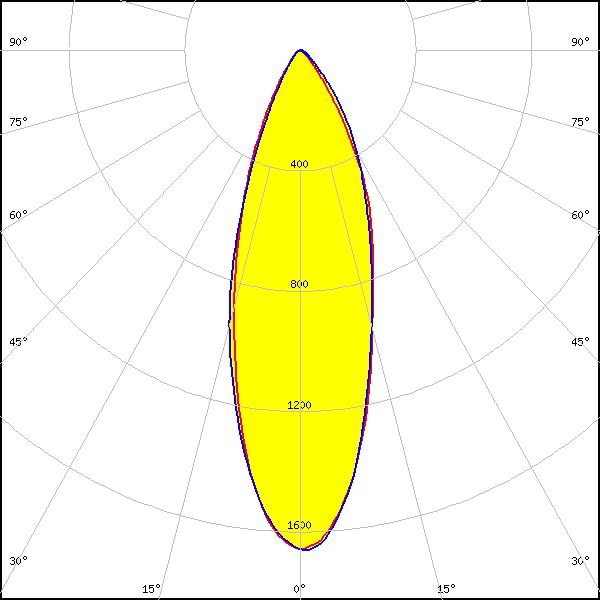

LED:

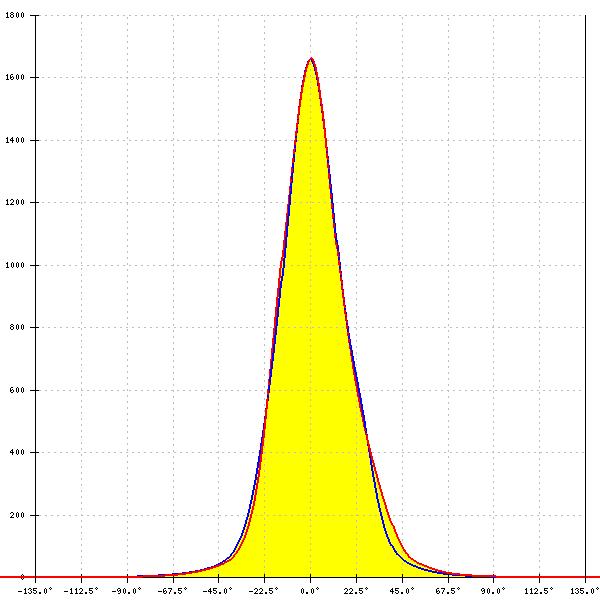

DURIS S5 (2 chip)
FWHM:
34°
FWTM:
69°
Peak intensity:
1.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

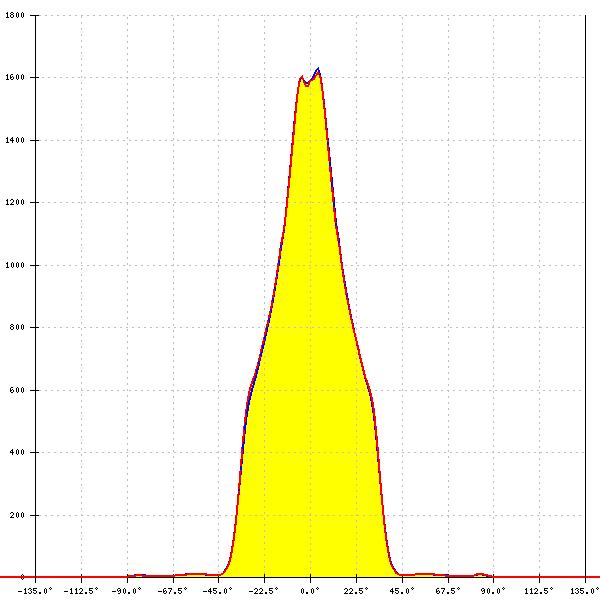

LED:

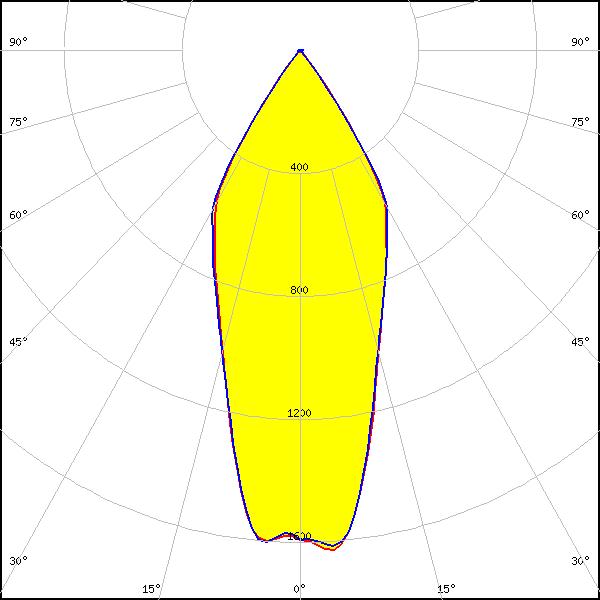

OSLON Pure 1414
FWHM:
41° + 42°
FWTM:
74° + 74°
Peak intensity:
1.664 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Signal
FWHM:
64°
FWTM:
80°
Peak intensity:
1.131 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
OSLON Signal
FWHM:
37°
FWTM:
74°
Peak intensity:
1.729 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Yellow
LED:
OSLON Signal
FWHM:
60°
FWTM:
80°
Peak intensity:
1.226 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Red
LED:

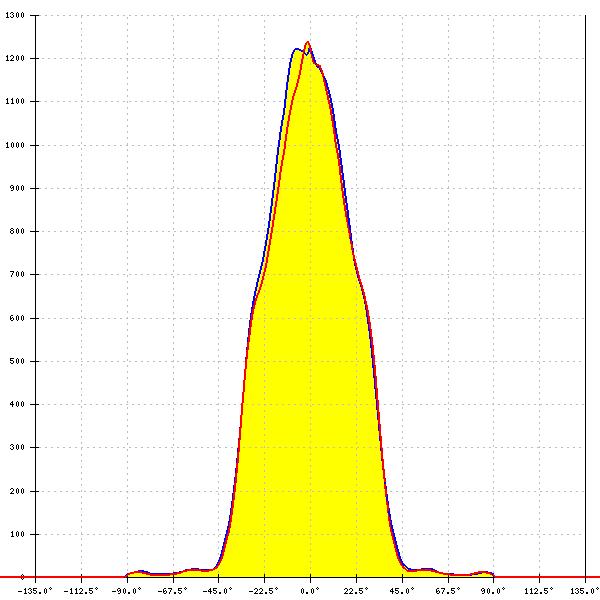

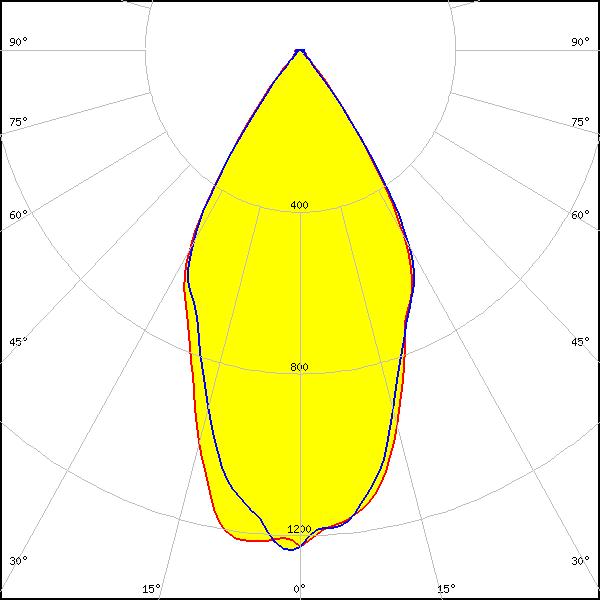

OSLON Square CSSRM2/CSSRM3
FWHM:
57°
FWTM:
80°
Peak intensity:
1.255 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
31°
FWTM:
72°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
30°
FWTM:
72°
LEDs/each optic:
1
Light colour/type:
IR

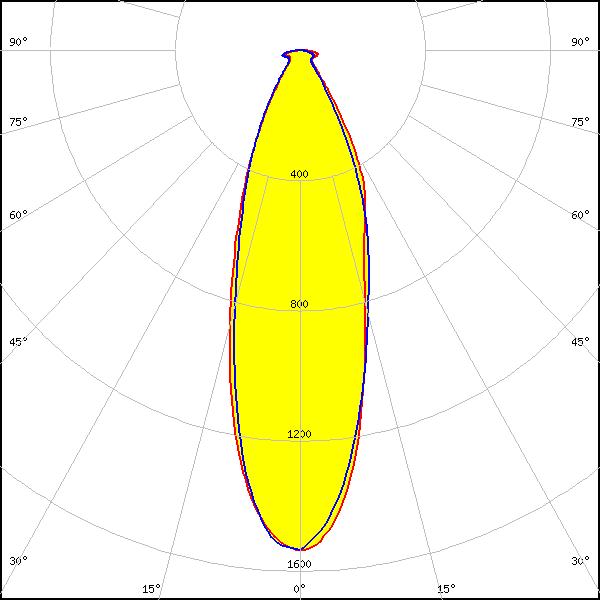

LED:

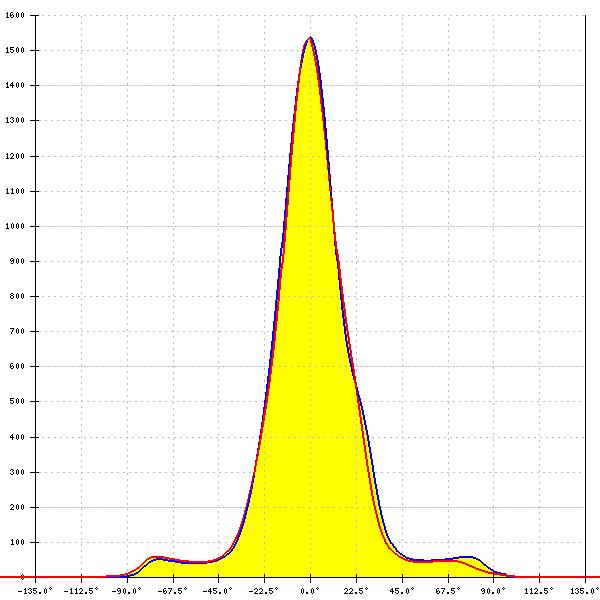

LH181A
FWHM:
32°
FWTM:
68°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

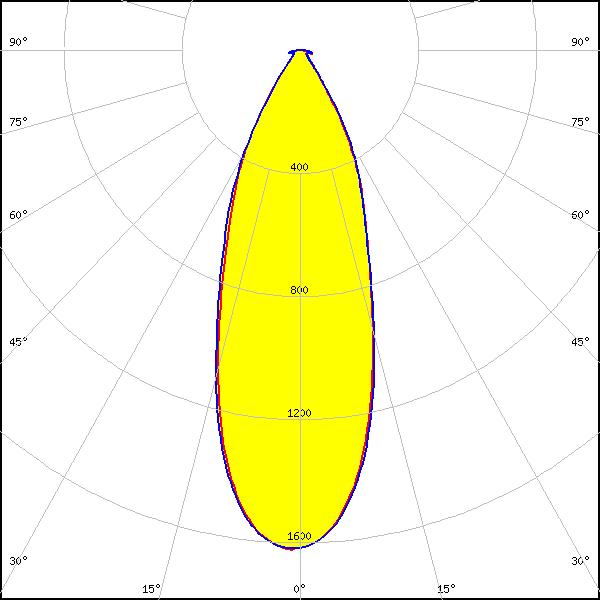

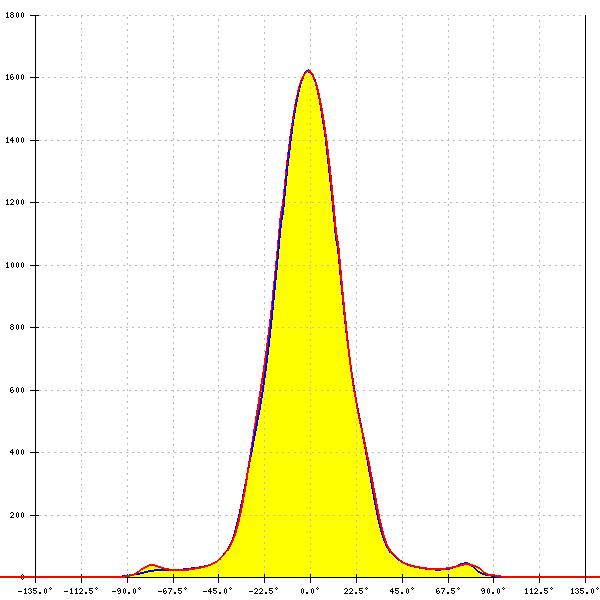

LH181B
FWHM:
37°
FWTM:
71°
Peak intensity:
1.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

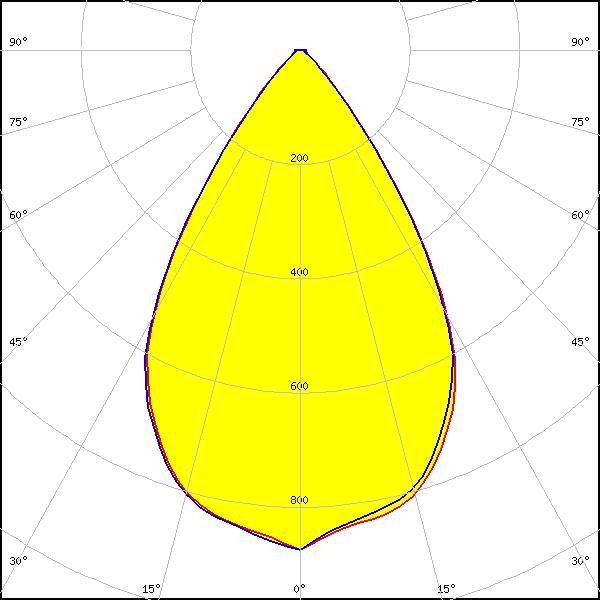

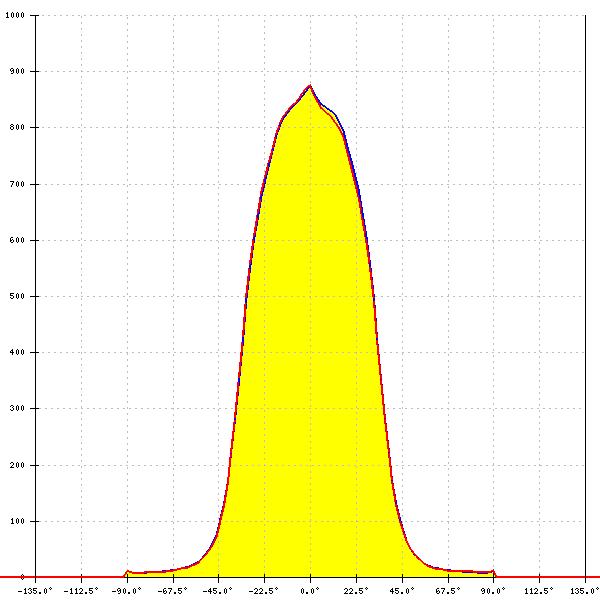

LH351B
FWHM:
65°
FWTM:
90°
Peak intensity:
0.880 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

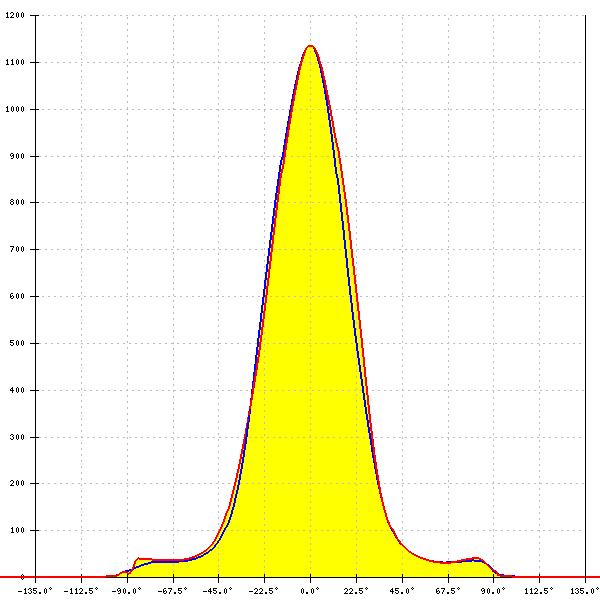

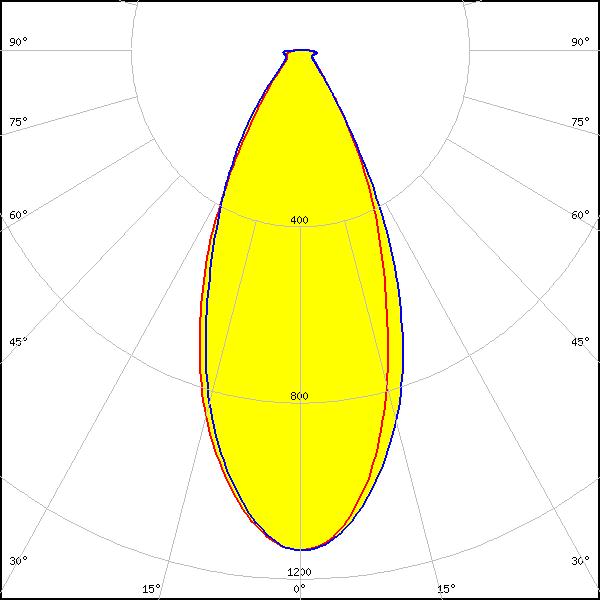

Z8Y22P
FWHM:
46°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

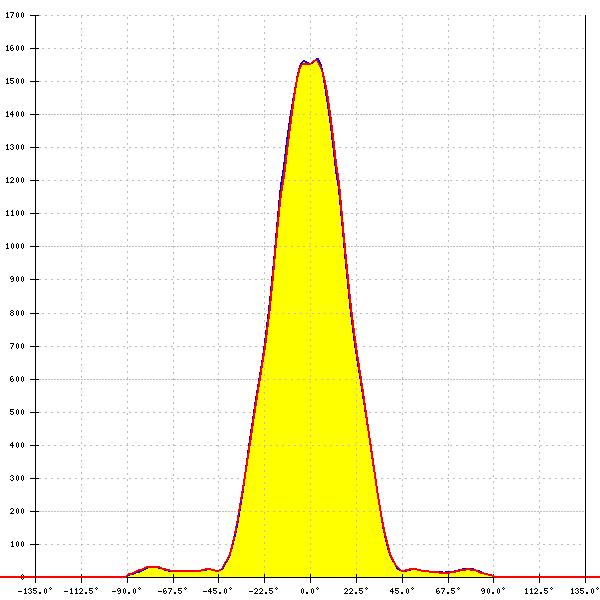

LED:

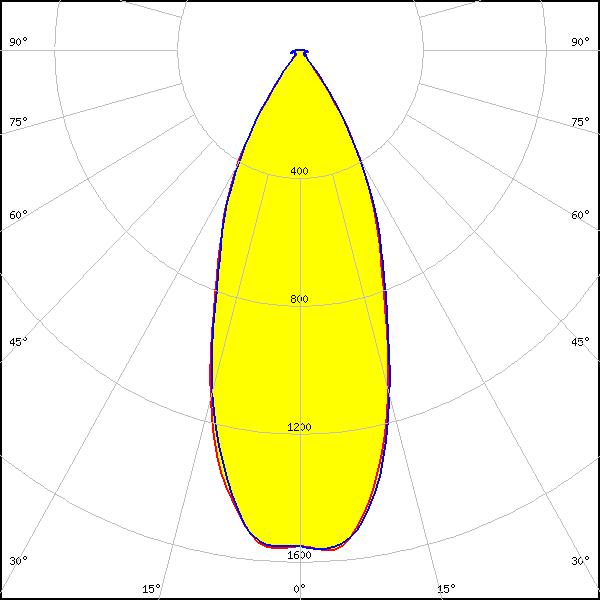

Z8Y22T
FWHM:
41°
FWTM:
72°
Peak intensity:
1.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
