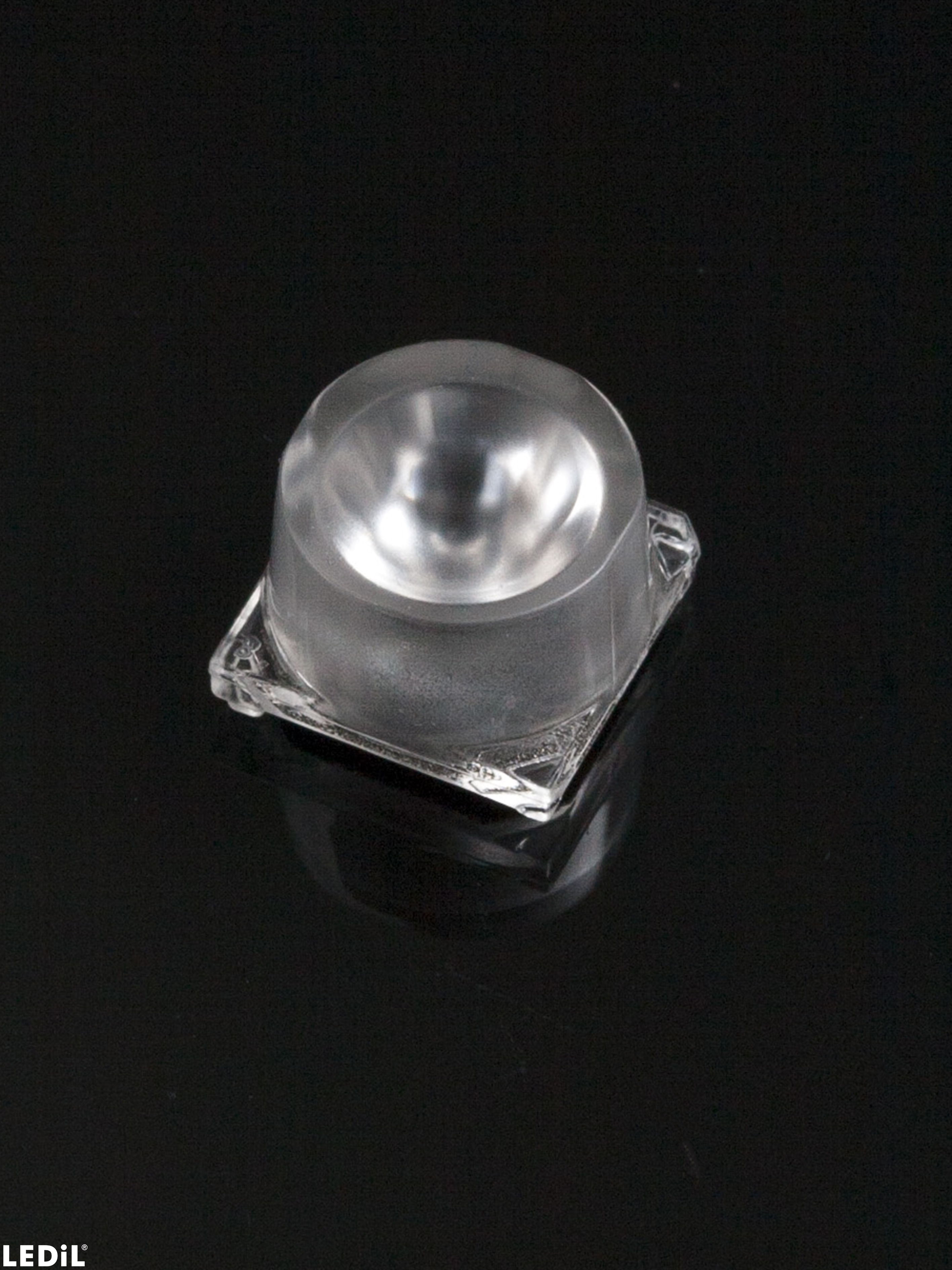

CA15519_VERONICA-SQ-MINI-D
Print
~15° diffused spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

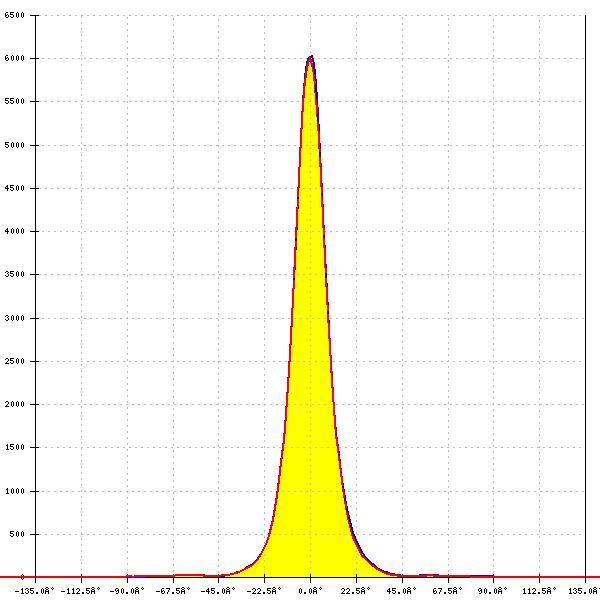

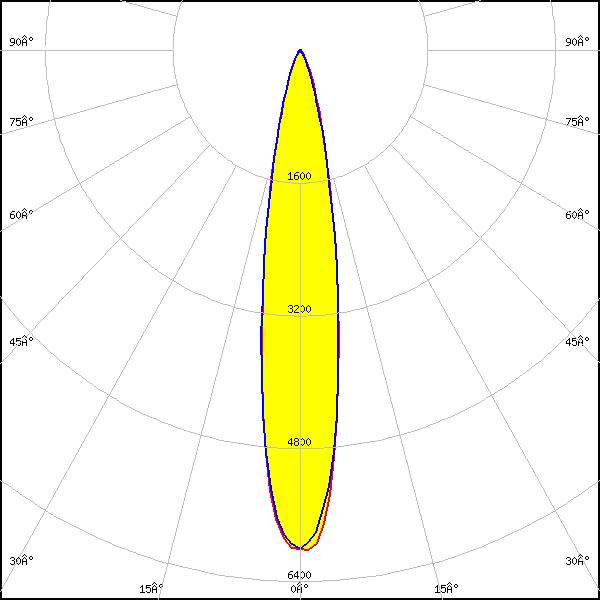

LED:
JB3030 HE B Class
FWHM:
18°
FWTM:
38°
Peak intensity:
6.124 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

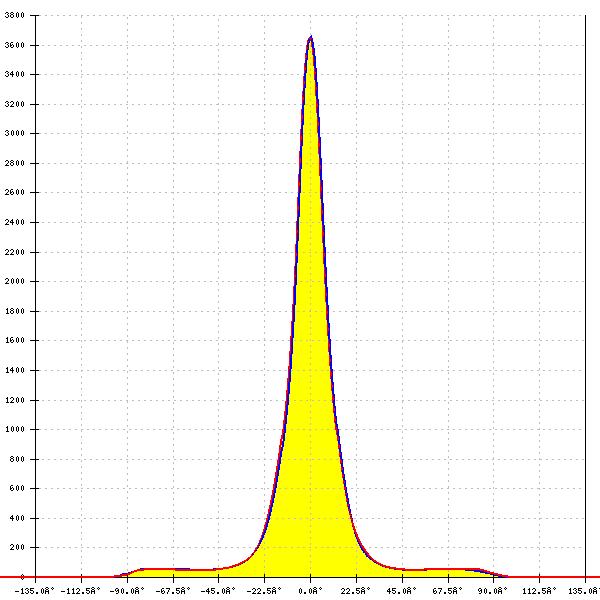

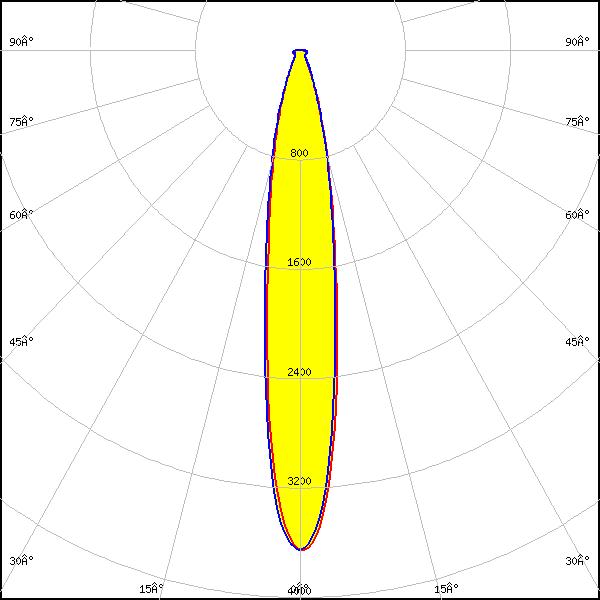

LED:
XD16
FWHM:
17°
FWTM:
42°
Peak intensity:
3.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

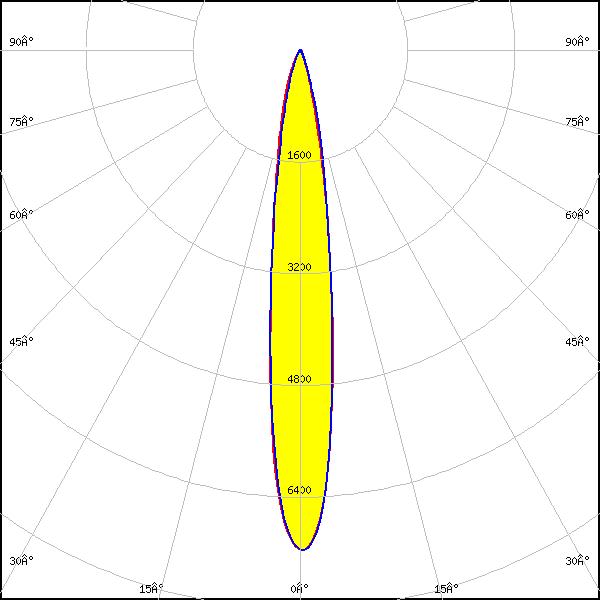

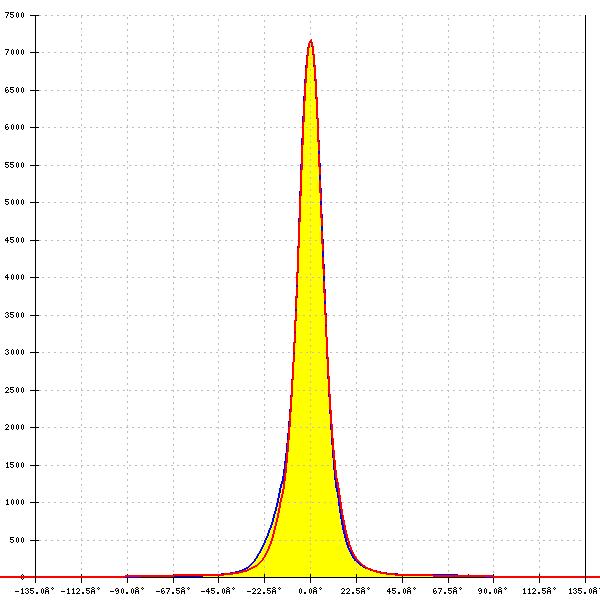

LED:
XP-E2
FWHM:
15°
FWTM:
33°
Peak intensity:
7.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

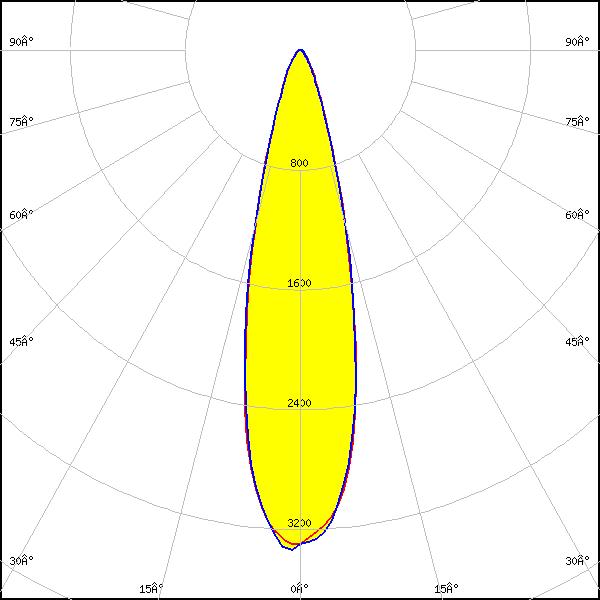

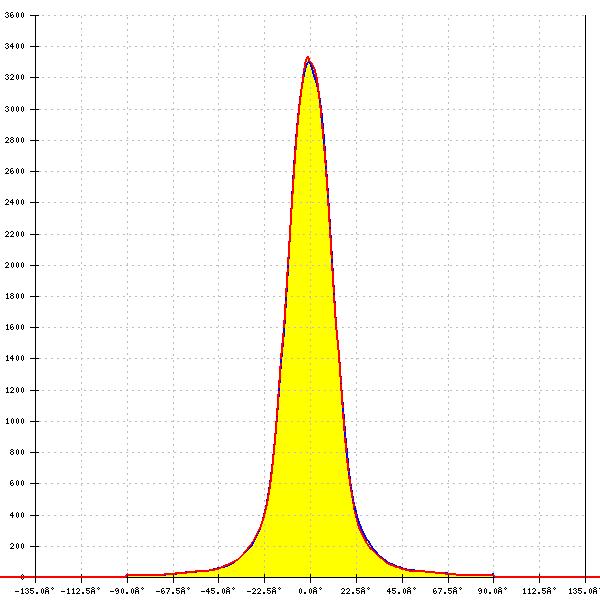

LED:
XP-G2 HE
FWHM:
26°
FWTM:
49°
Peak intensity:
3.356 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

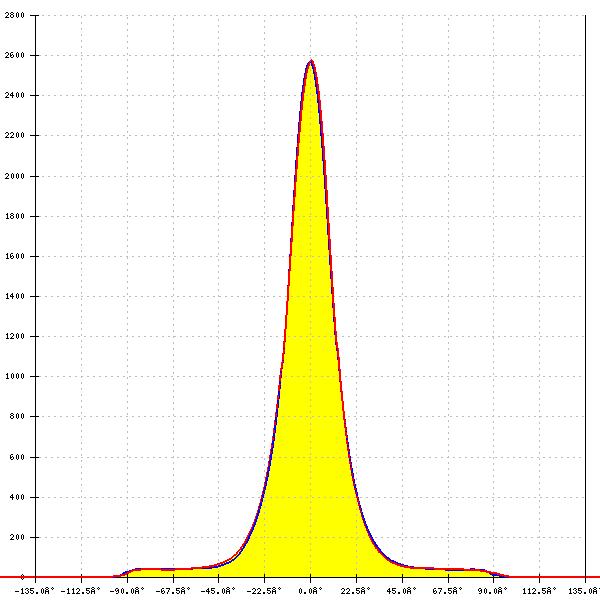

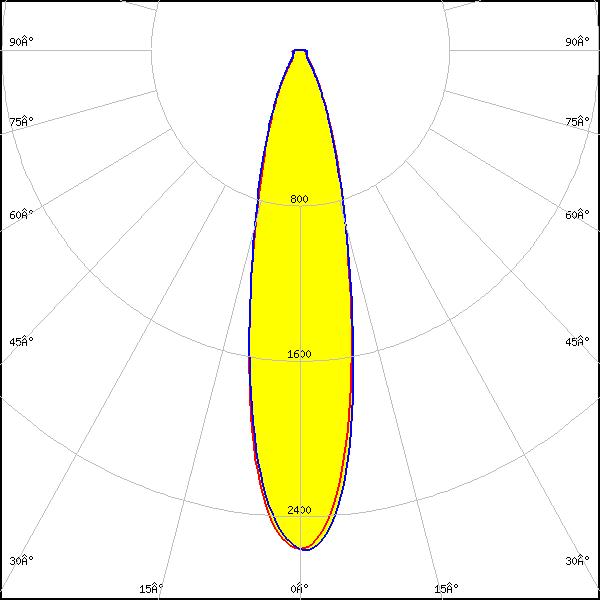

LED:
XP-G3
FWHM:
24°
FWTM:
55°
Peak intensity:
2.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 2835 Architectural
FWHM:
14°
FWTM:
32°
Peak intensity:
8.397 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
PC Amber

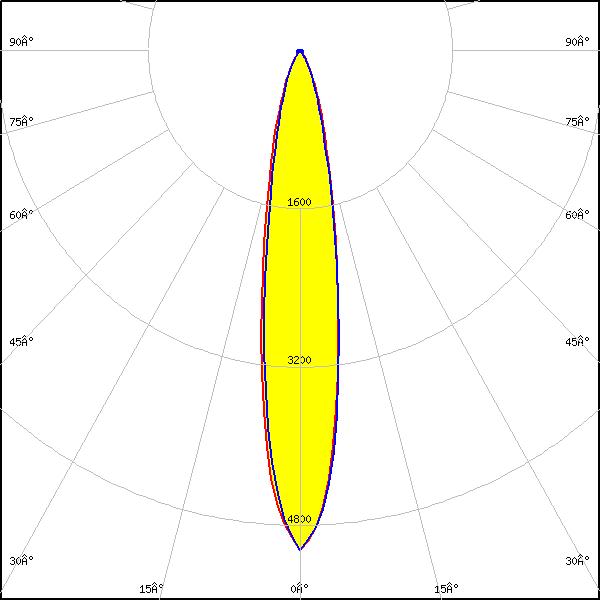

LED:
LUXEON 3030 HV
FWHM:
18°
FWTM:
43°
Peak intensity:
5.052 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

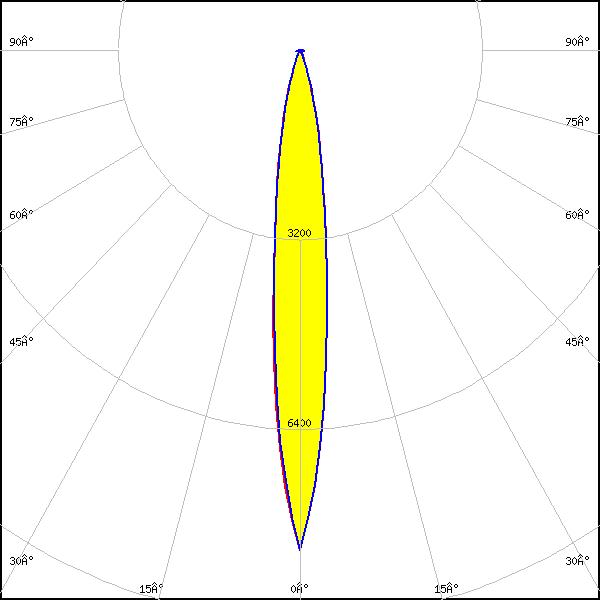

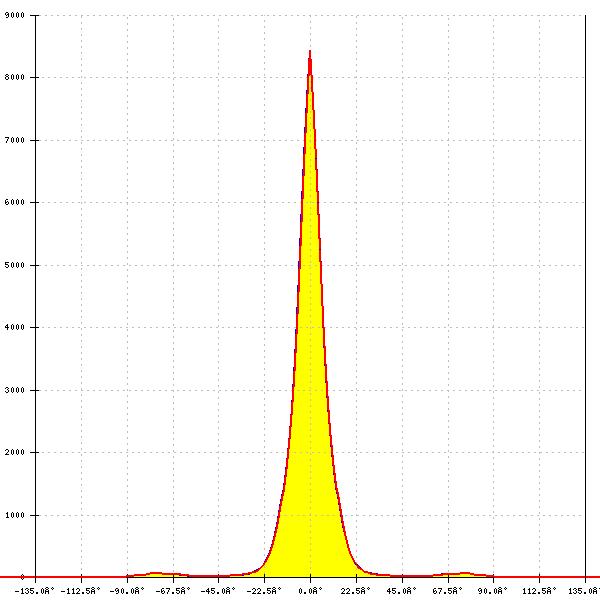

LED:
LUXEON HL1Z (White)
FWHM:
12°
FWTM:
32°
Peak intensity:
8.443 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

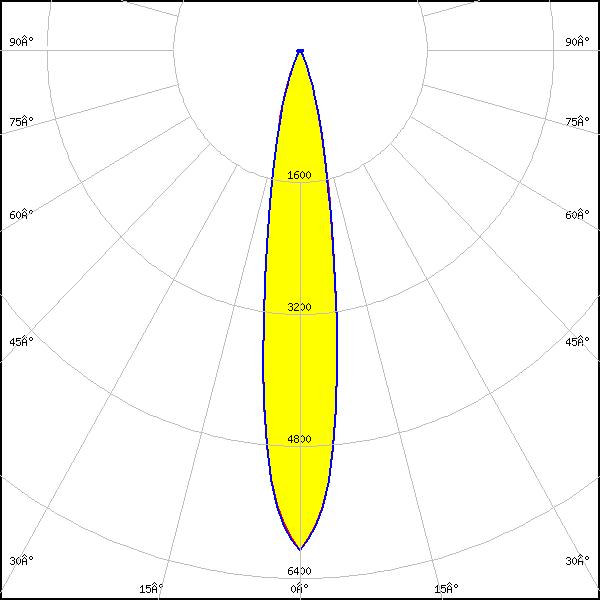

LED:
SST-20 Gen1
FWHM:
18°
FWTM:
38°
Peak intensity:
6.061 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

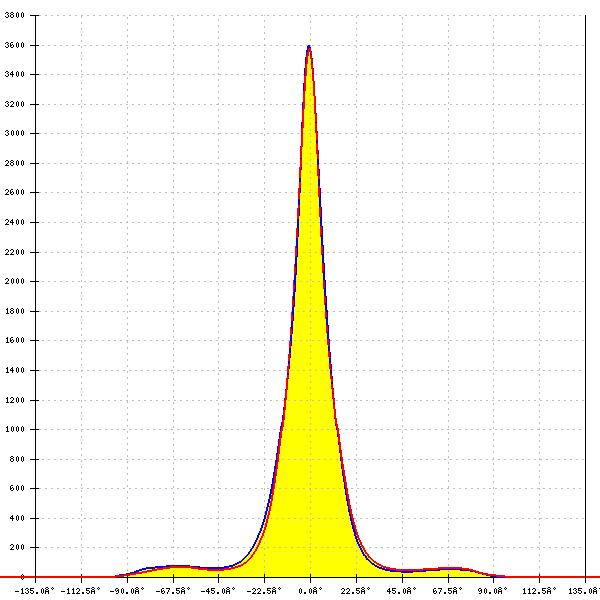

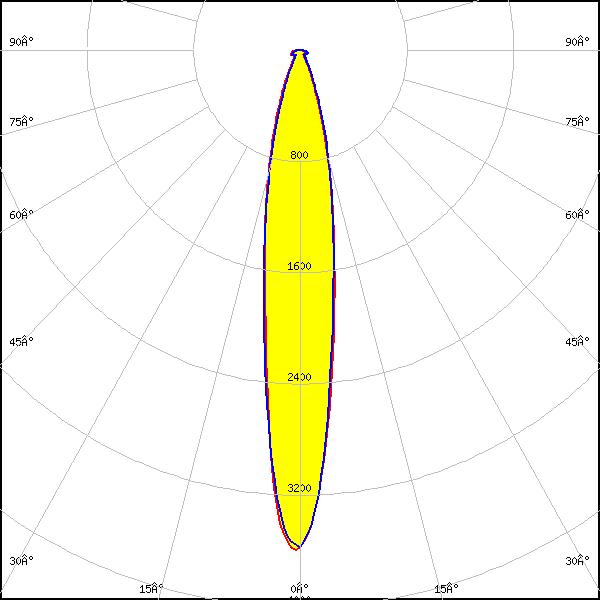

LED:
NCSxE17A
FWHM:
17°
FWTM:
44°
Peak intensity:
3.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

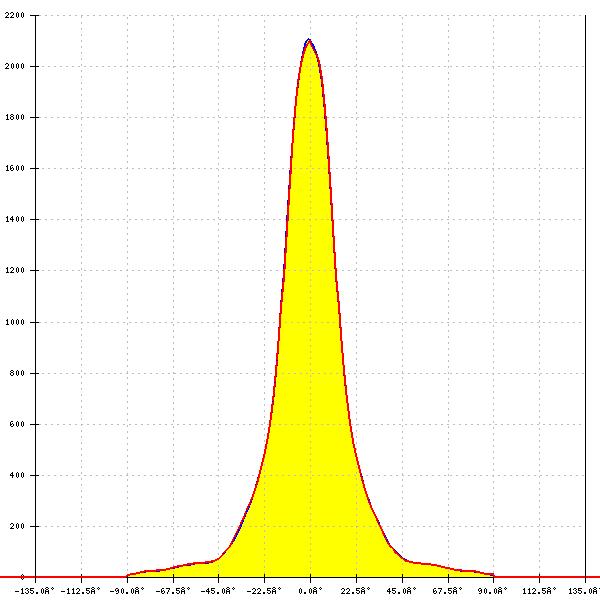

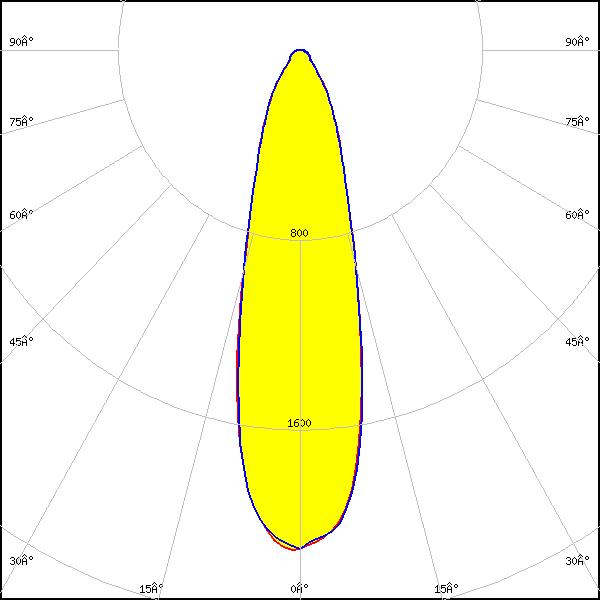

LED:
NV4WB35AM
FWHM:
28°
FWTM:
68°
Peak intensity:
2.114 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

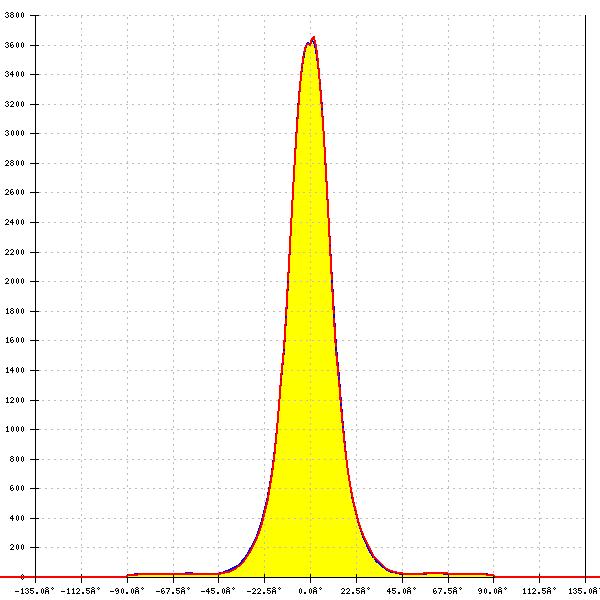

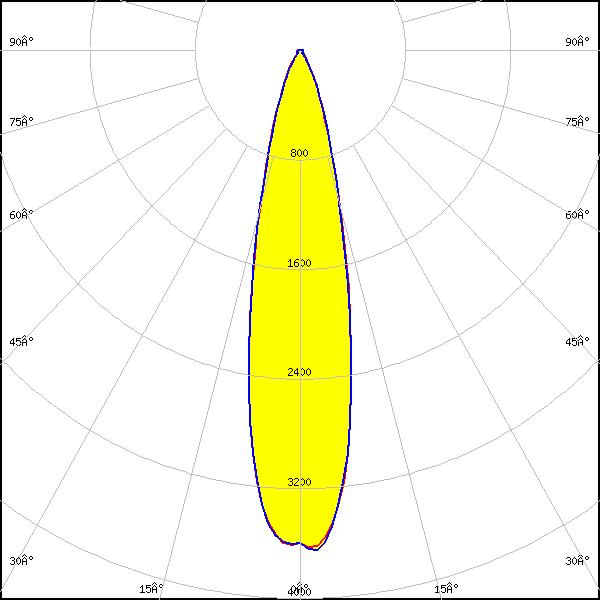

LED:
NVSxx19B/NVSxx19C
FWHM:
24°
FWTM:
48°
Peak intensity:
3.666 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

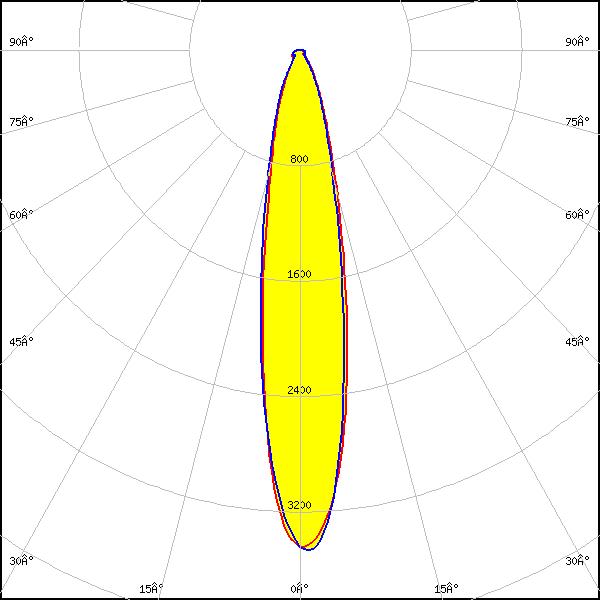

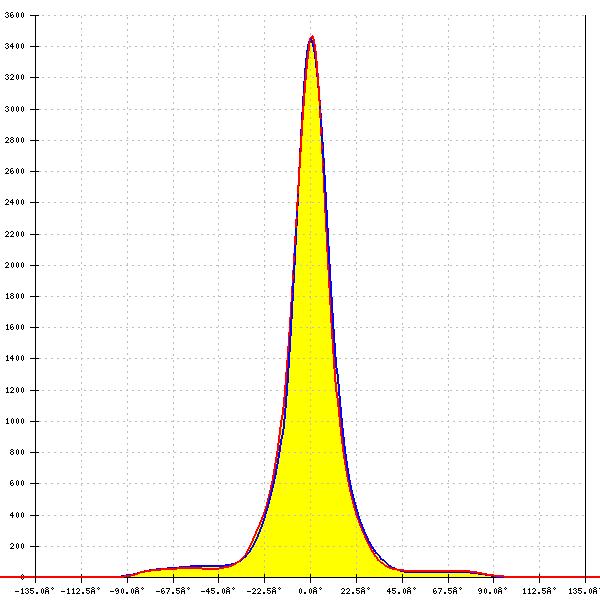

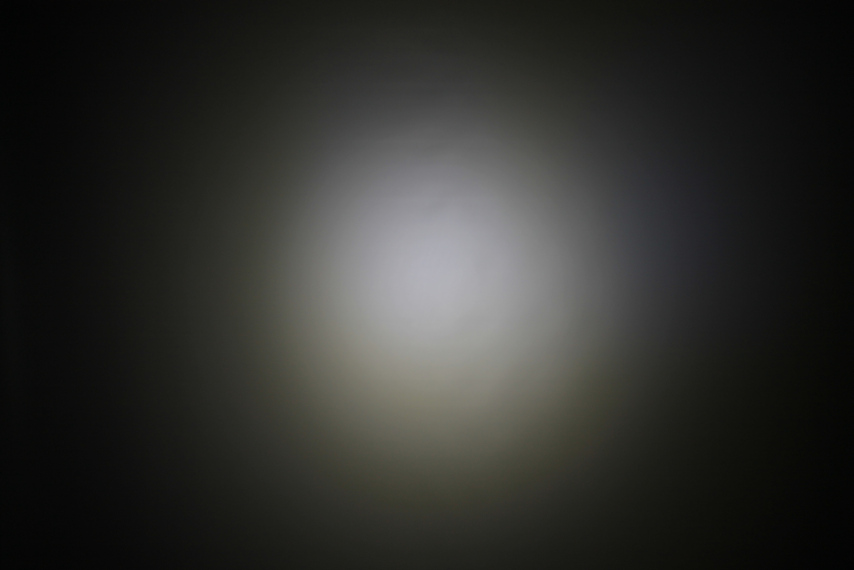

LED:
DURIS S5 (2 chip)
FWHM:
20°
FWTM:
48°
Peak intensity:
3.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

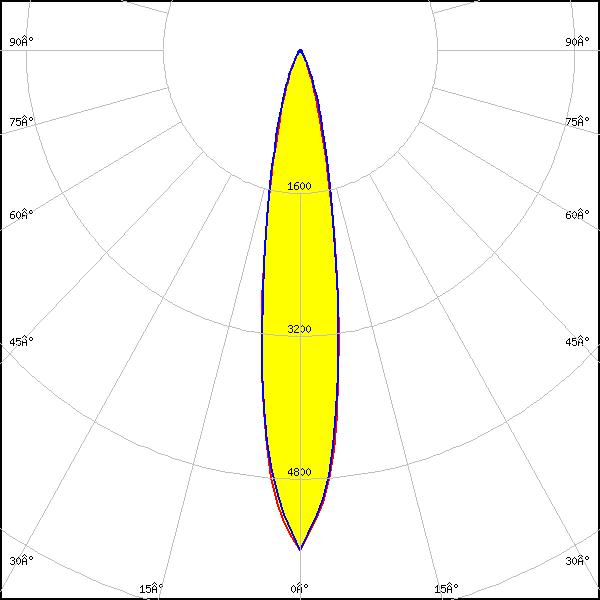

LED:
OSCONIQ P 3737 (2W version)
FWHM:
18°
FWTM:
39°
Peak intensity:
5.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

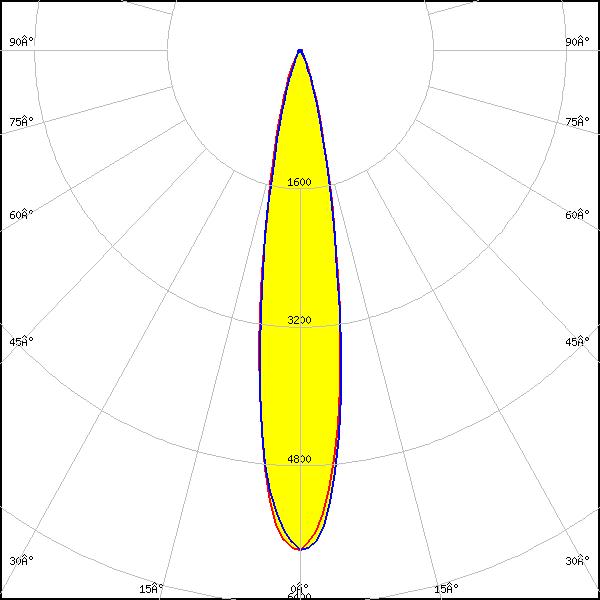

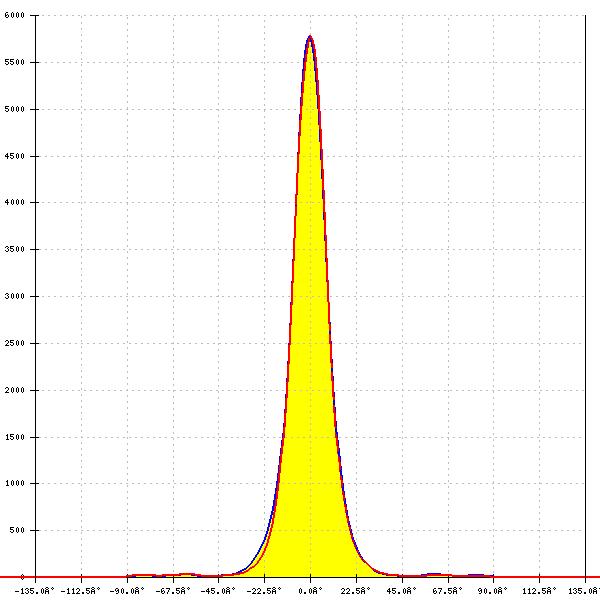

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
19°
FWTM:
38°
Peak intensity:
5.810 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
11°
FWTM:
31°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
11°
FWTM:
29°
LEDs/each optic:
1
Light colour/type:
IR

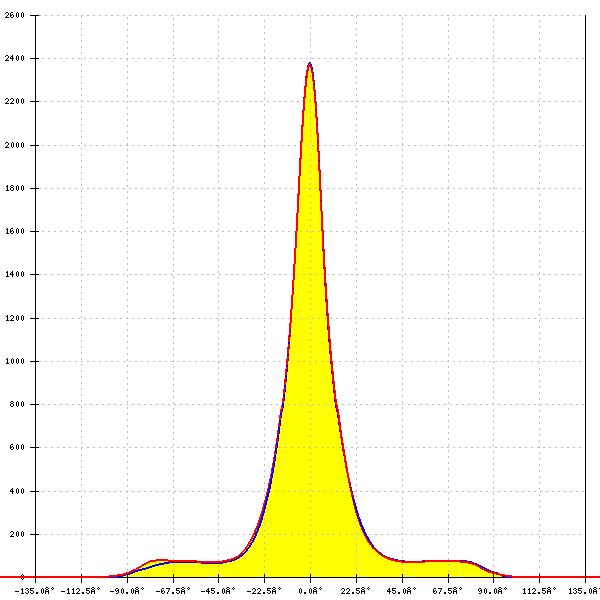

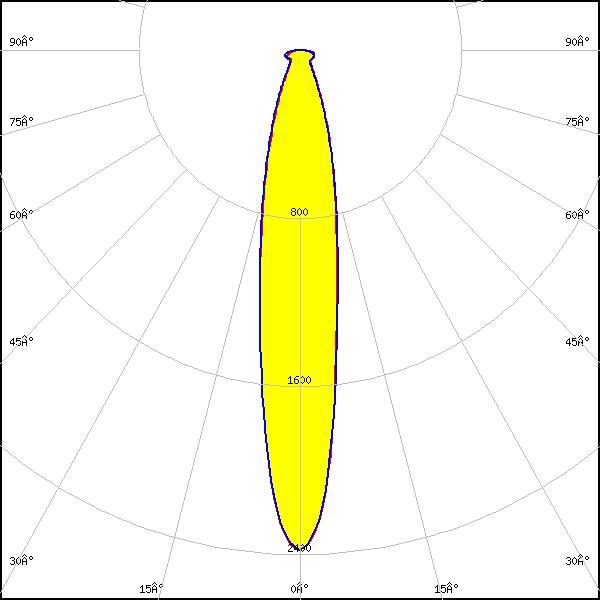

LED:
LH181A
FWHM:
19°
FWTM:
51°
Peak intensity:
2.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

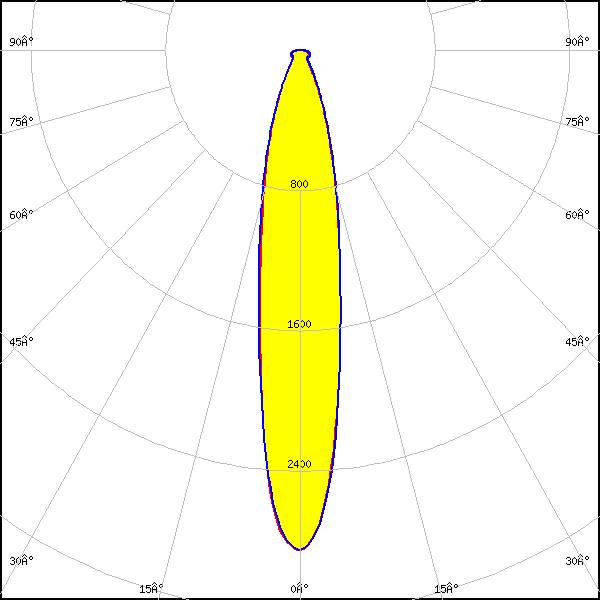

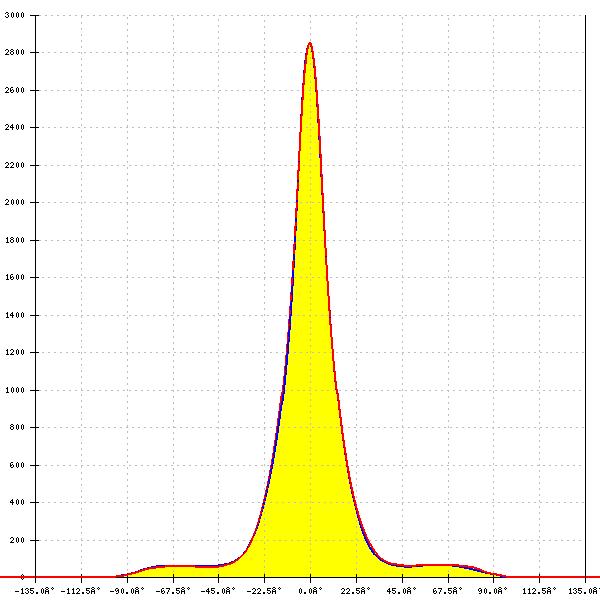

LED:
LH181B
FWHM:
19°
FWTM:
50°
Peak intensity:
2.850 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
24°
FWTM:
47°
Peak intensity:
3.750 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

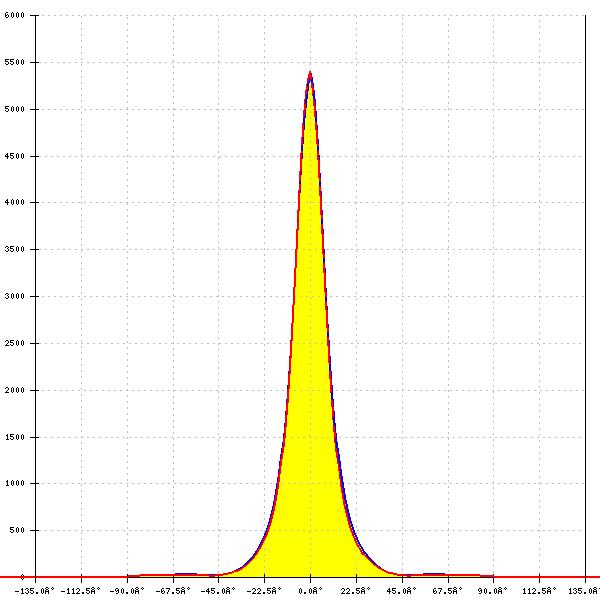

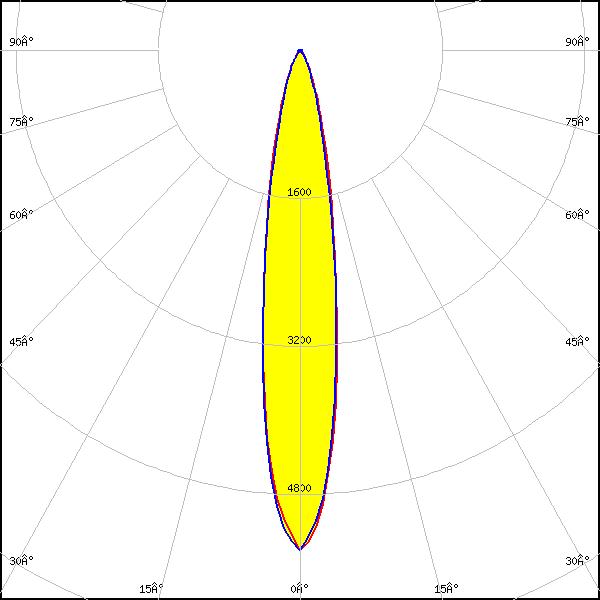

LED:
MJT 3030
FWHM:
18°
FWTM:
41°
Peak intensity:
5.404 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

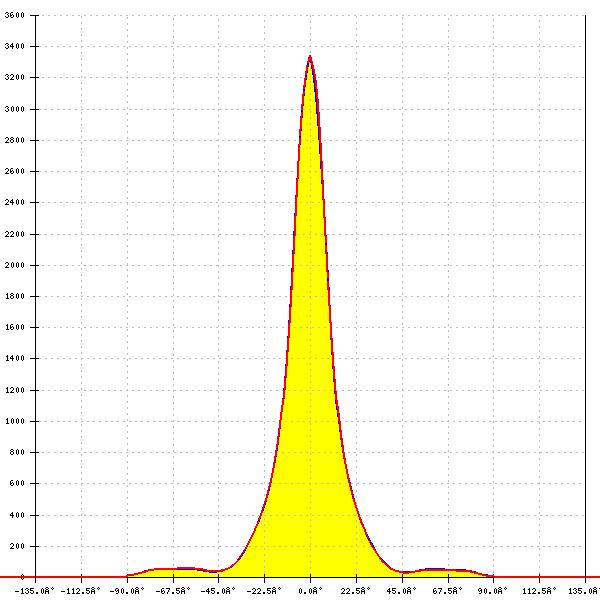

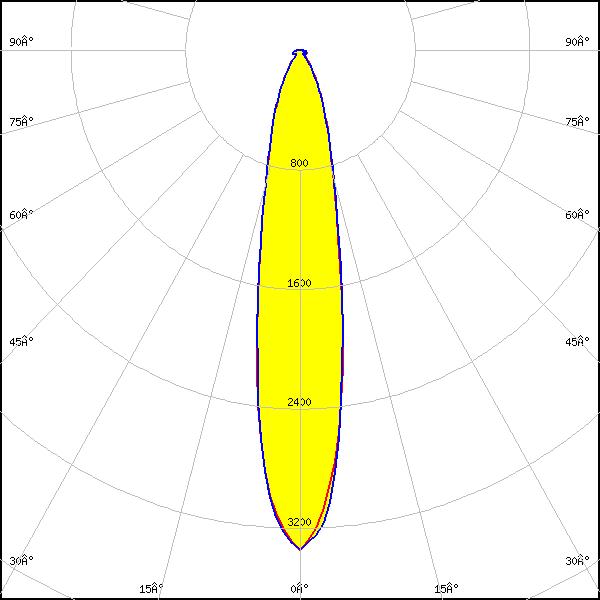

LED:
Z8Y22T
FWHM:
20°
FWTM:
52°
Peak intensity:
3.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
