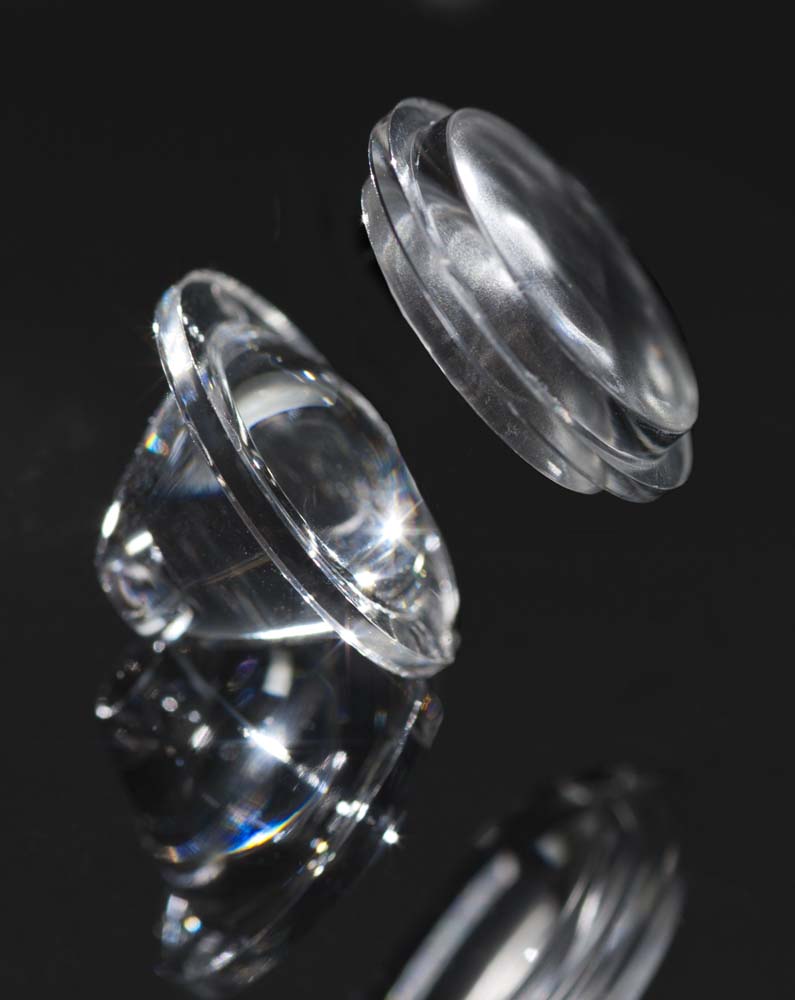

CC13052_ZOWIE-MINI

Print

~24° + 55° beam

Specification
  • Dimensions:
    15 mm
  • Height:
    11.5 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • ZOWIE-MINI-LENS1, Single lens, PMMA
  • ZOWIE-MINI-LENS2, Single lens, PMMA
Packing information
  • Quantity in box:
    2400 pcs
  • MPQ:
    120 pcs
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CC13052_ZOWIE-MINI

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Typical Applications

Optical results

LED: XP-E
FWHM: 18° + 49°
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: 24° + 60°
LEDs/each optic: 1
Light colour: White
LED: LUXEON A
FWHM: 25° + 56°
LEDs/each optic: 1
Light colour: White
LED: NVSxx19A
FWHM: 28° + 56°
LEDs/each optic: 1
Light colour: White
LED: OSLON Square EC
FWHM: 24° + 54°
LEDs/each optic: 1
Light colour: White
