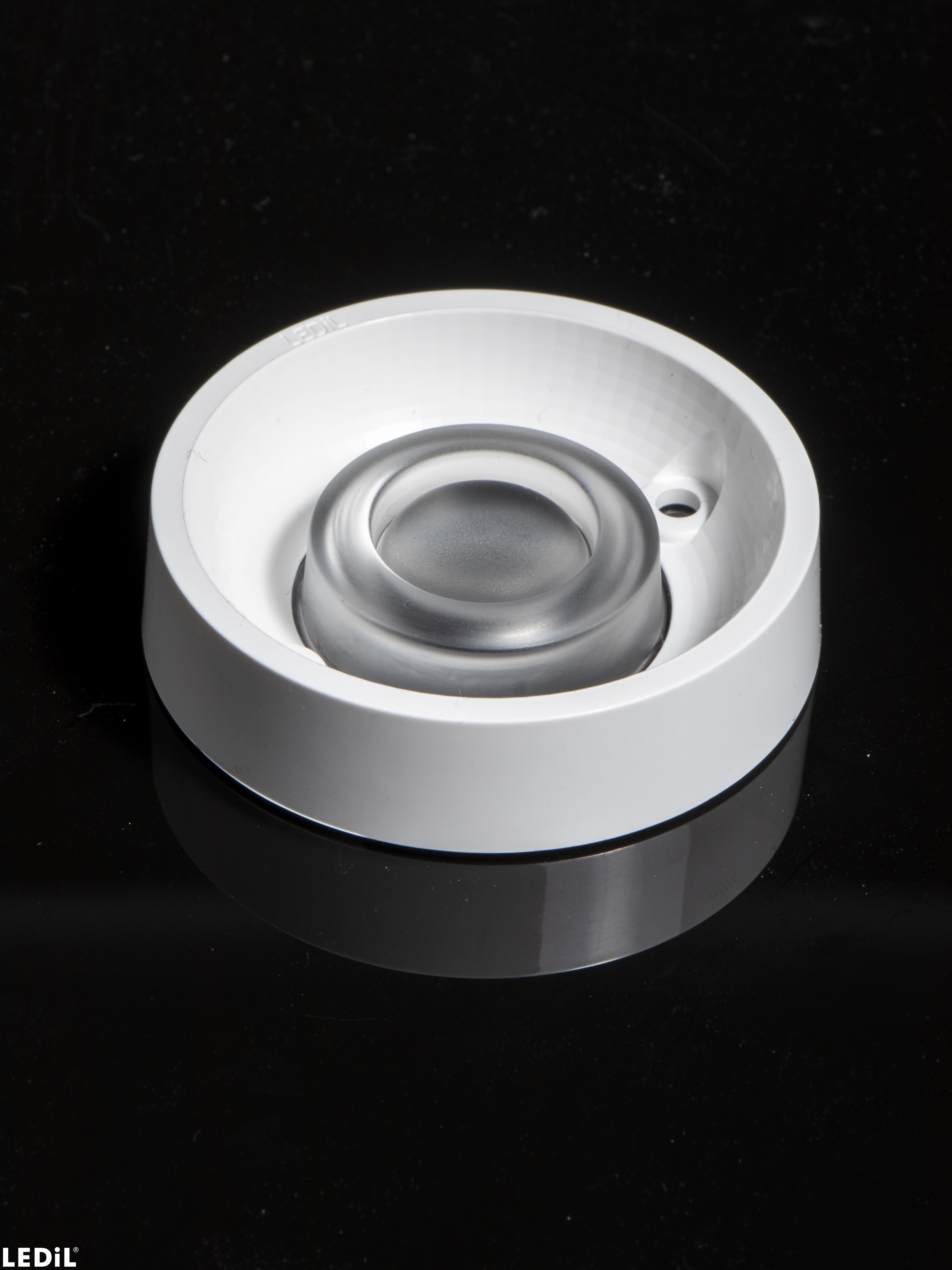

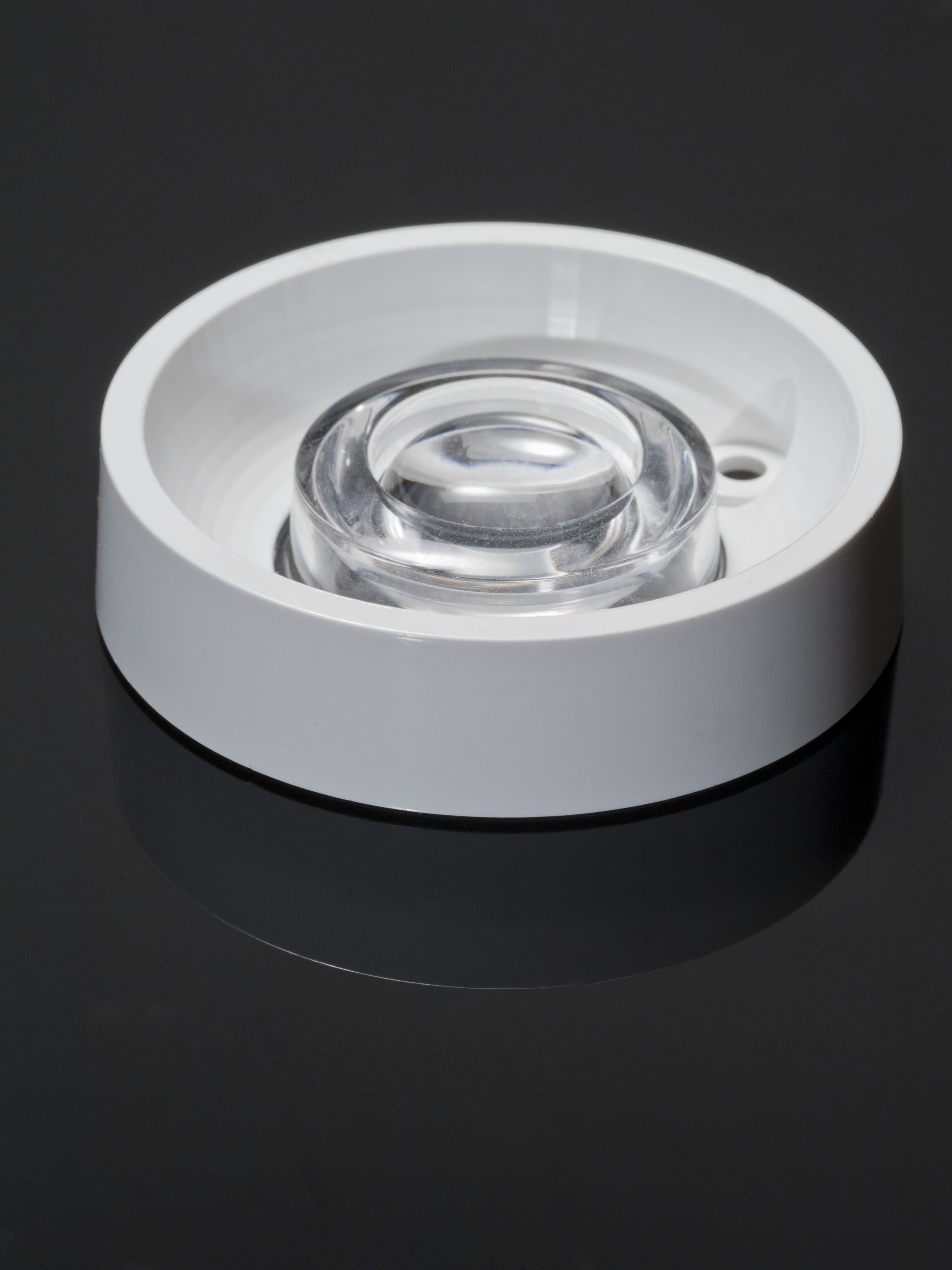

SAGA-HB-IP-WHT

Print

~60° high bay beam

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    50 mm
  • Height:
    12.00 mm
  • Fastening:
    screw
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • C13586_SAGA-HB-IP
    clear
  • Quantity in box:
    650 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.70 kg
  • MPQ:
    26 pcs
  • MOQ:
    52 pcs
  • MOQ Size:
    480 x 280 x 30 mm
  • MOQ Weight:
    0.50 kg
  • Holder
  • C13591_SAGA-FRAME-WHT
    white
  • Quantity in box:
    900 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.50 kg
  • MPQ:
    26 pcs
  • MOQ:
    52 pcs
  • MOQ Size:
    300 x 250 x 70 mm
  • MOQ Weight:
    0.50 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13586_SAGA-HB-IP
    C13591_SAGA-FRAME-WHT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

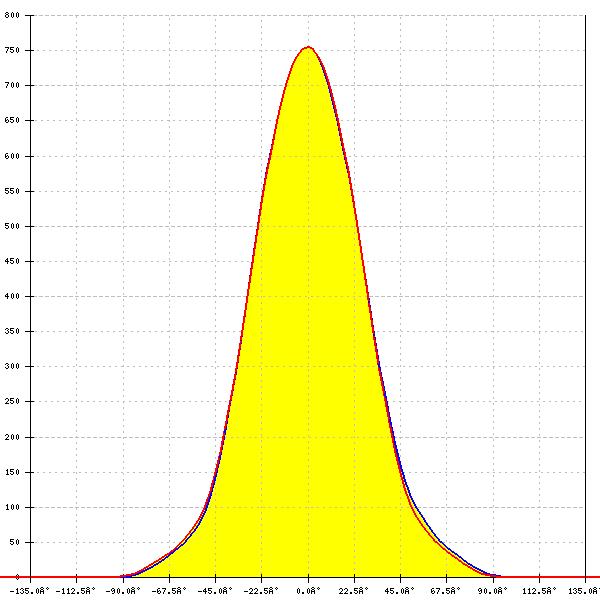

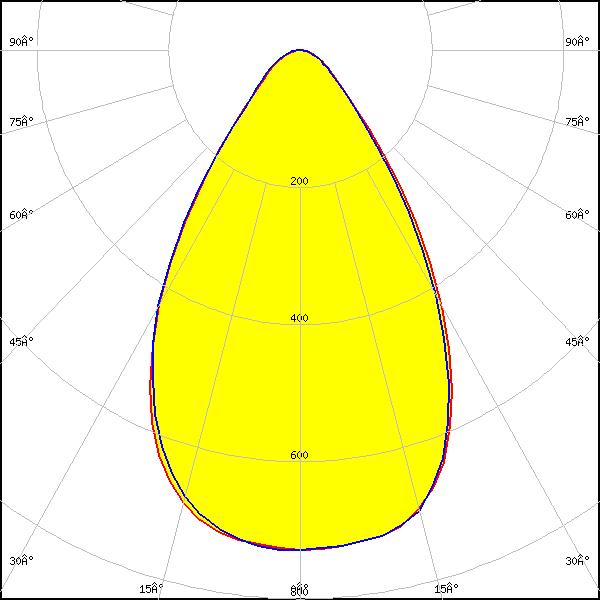

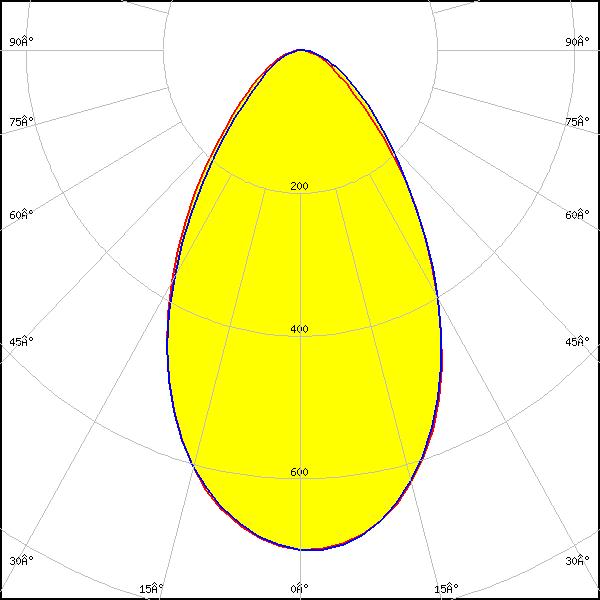

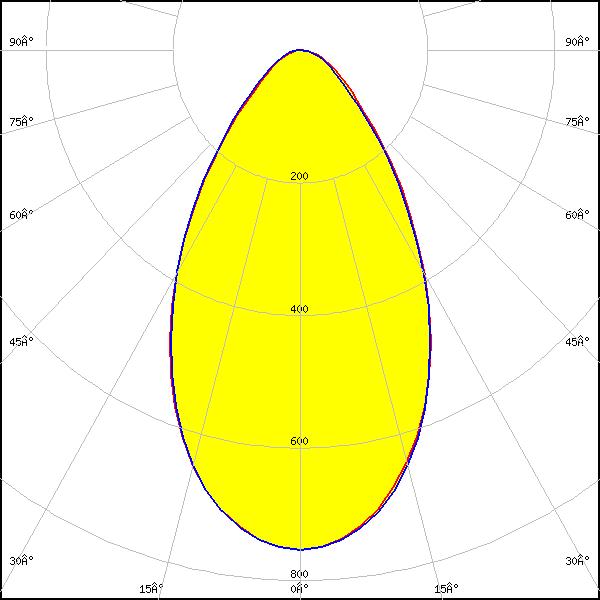

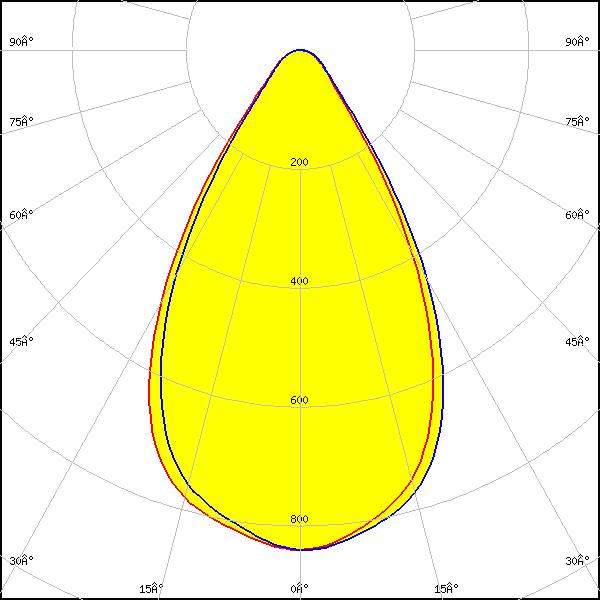

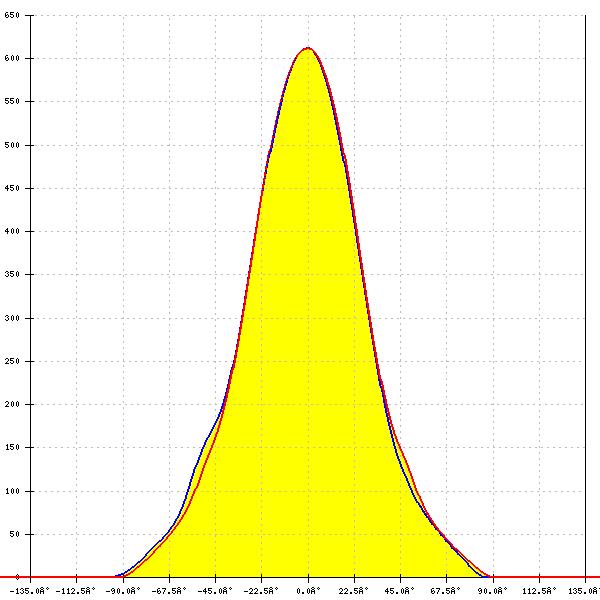

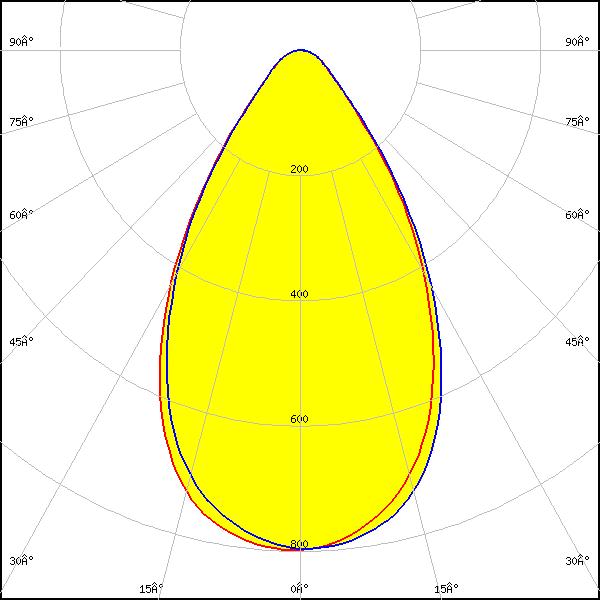

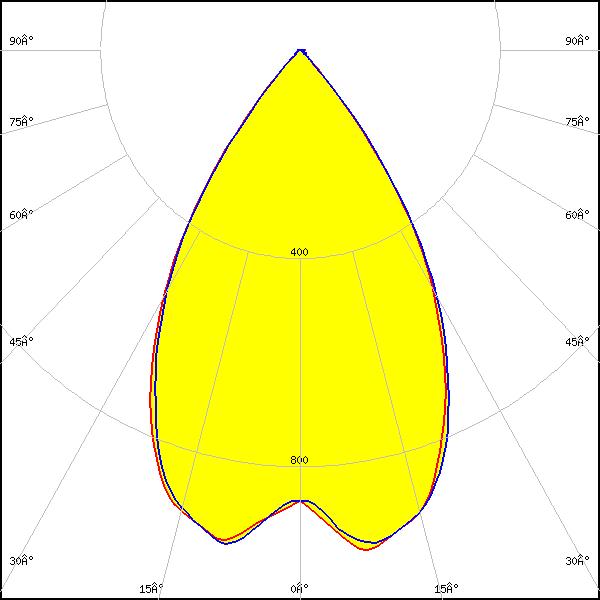

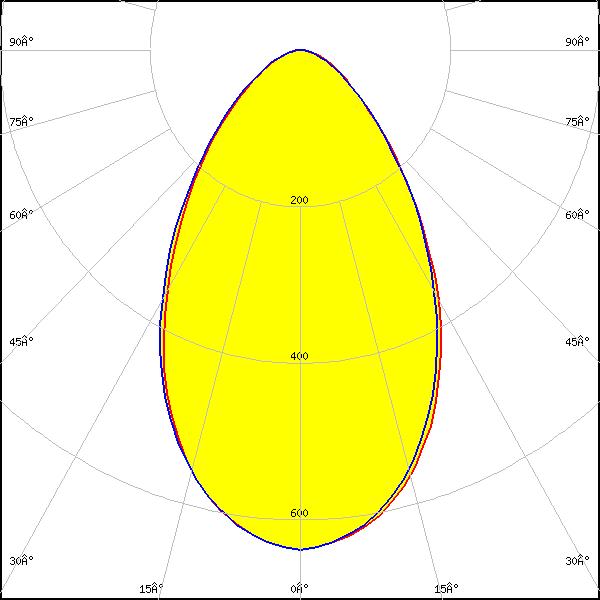

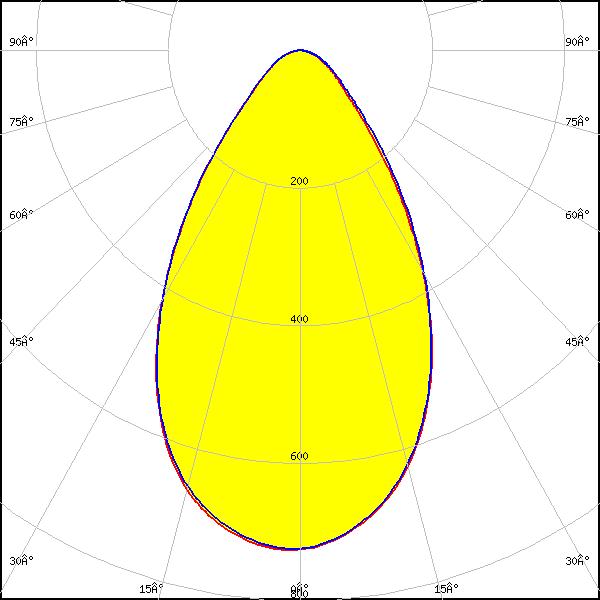

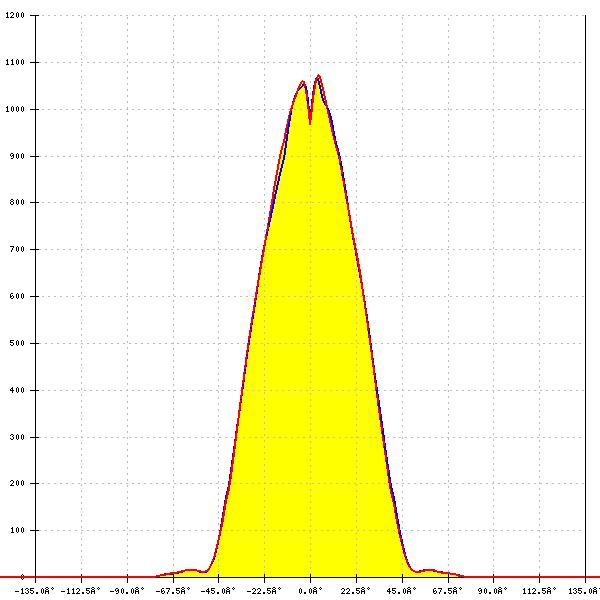

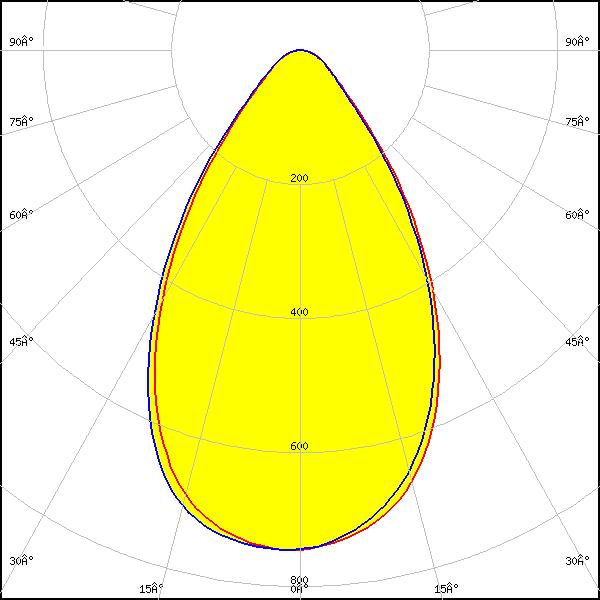

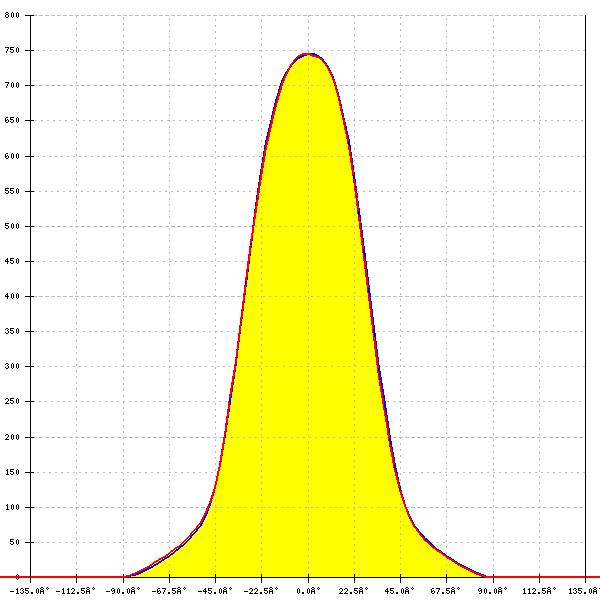

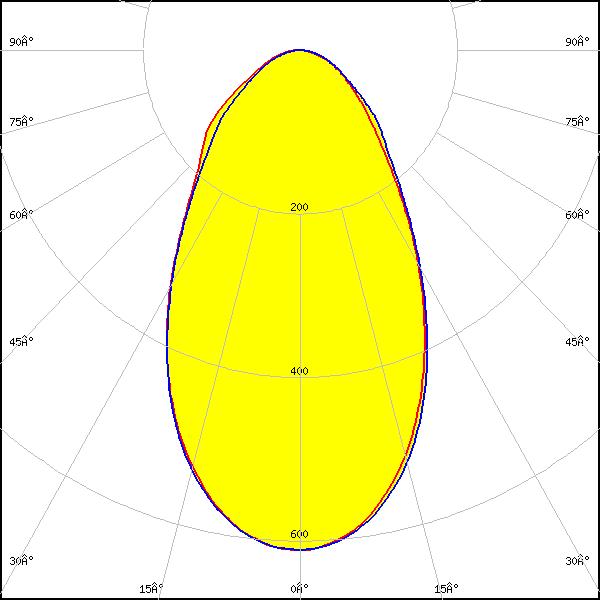

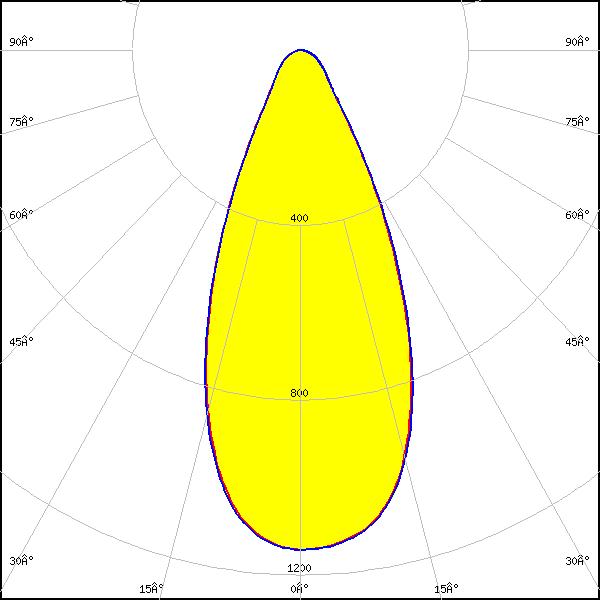

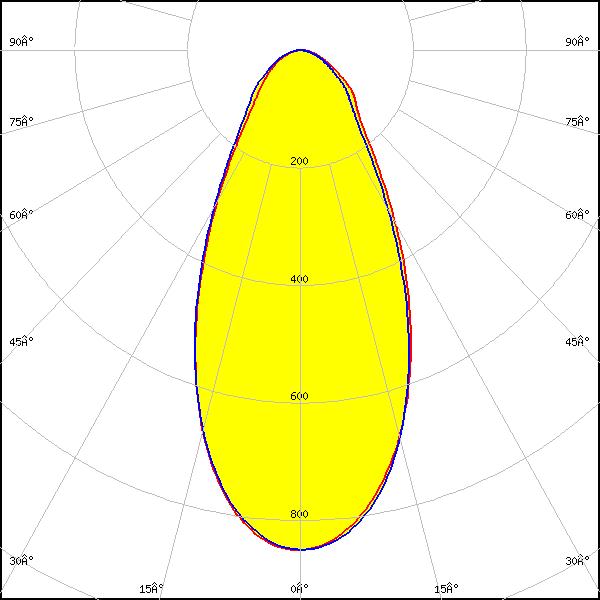

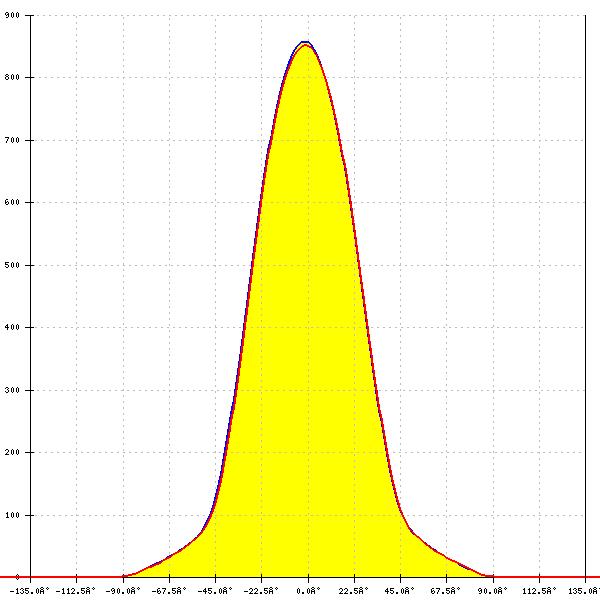

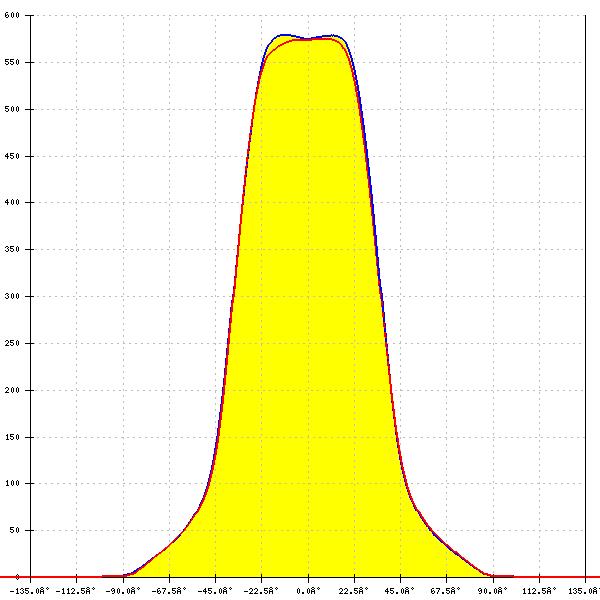

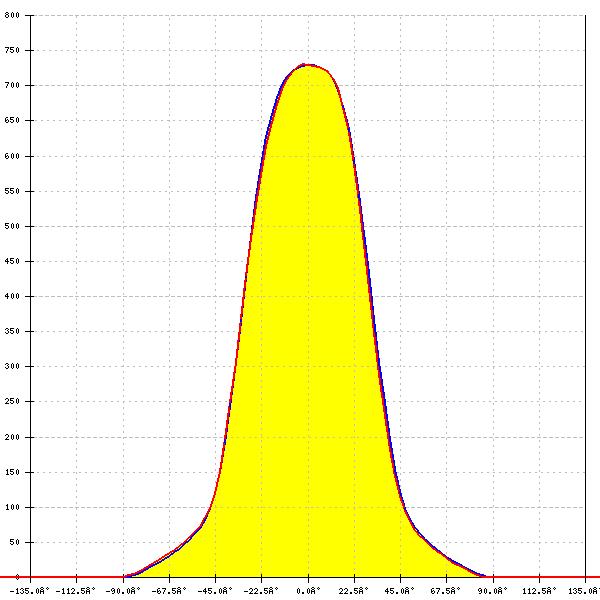

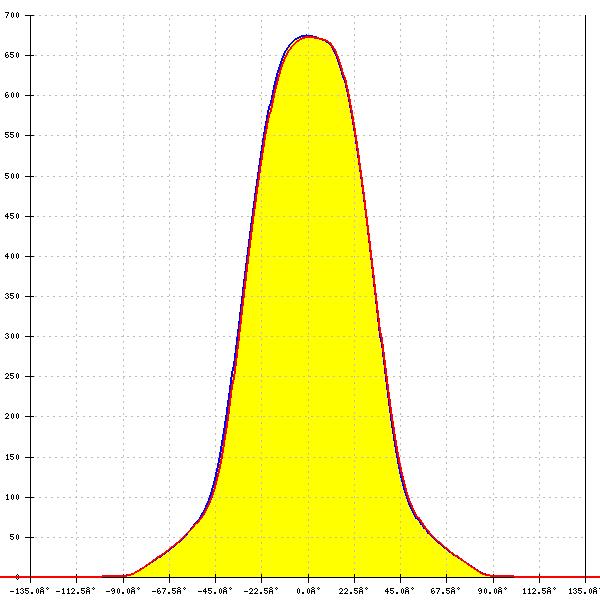

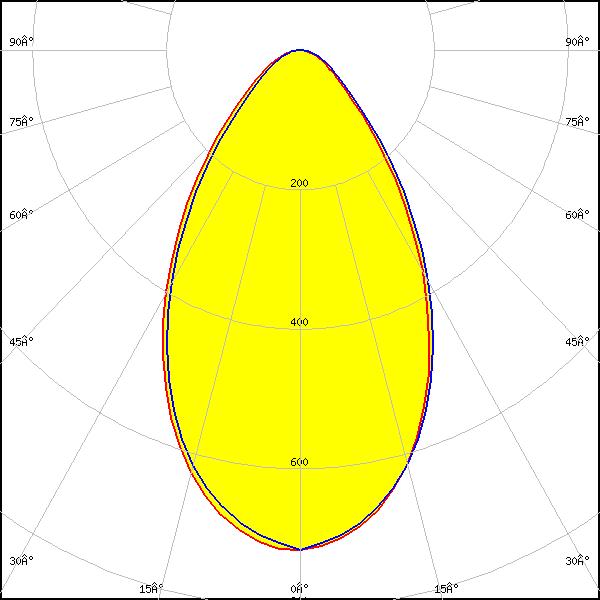

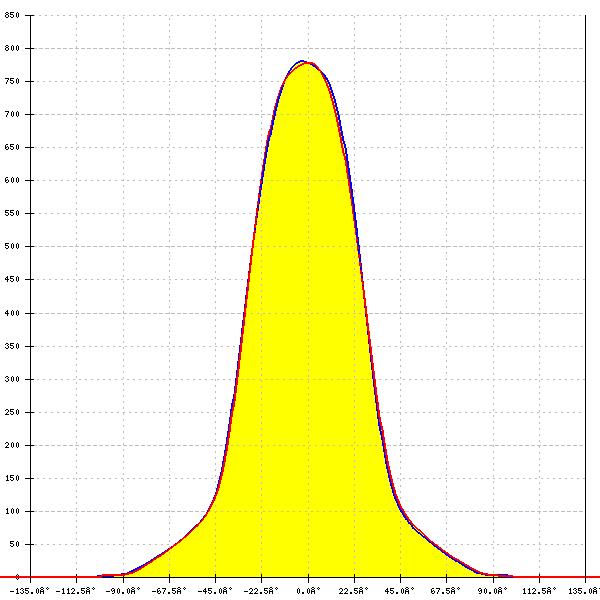

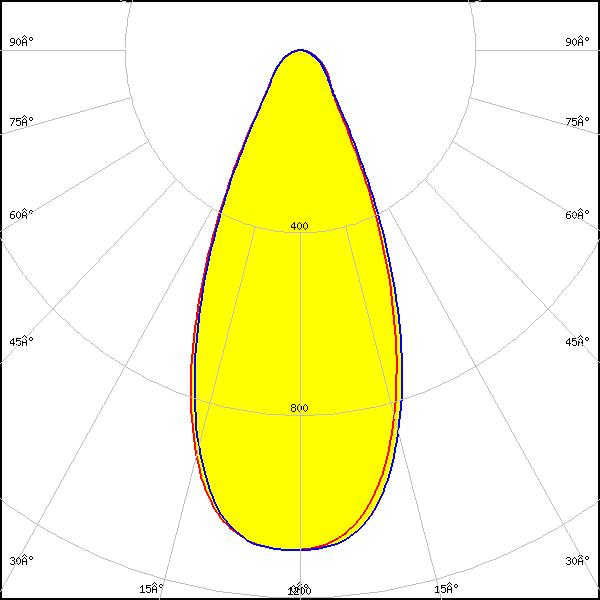

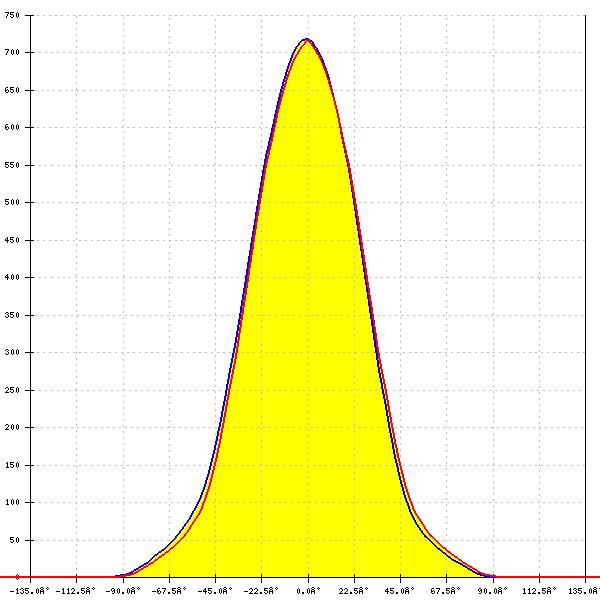

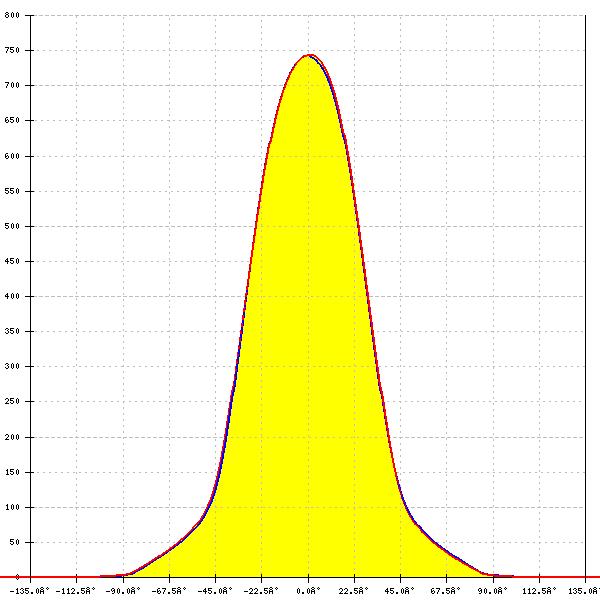

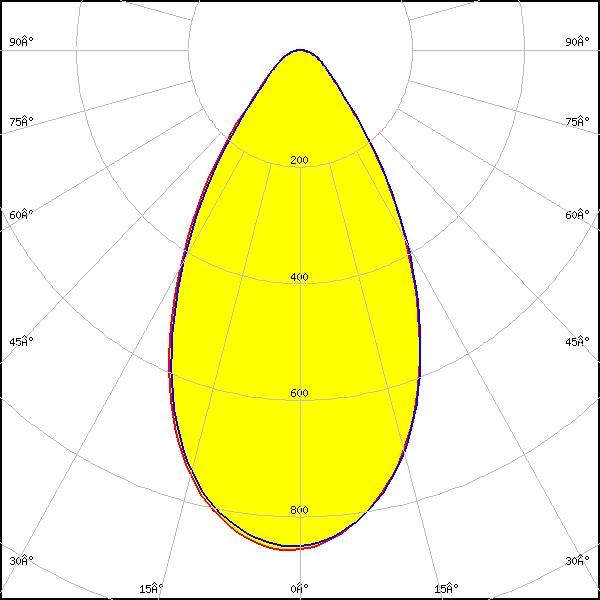

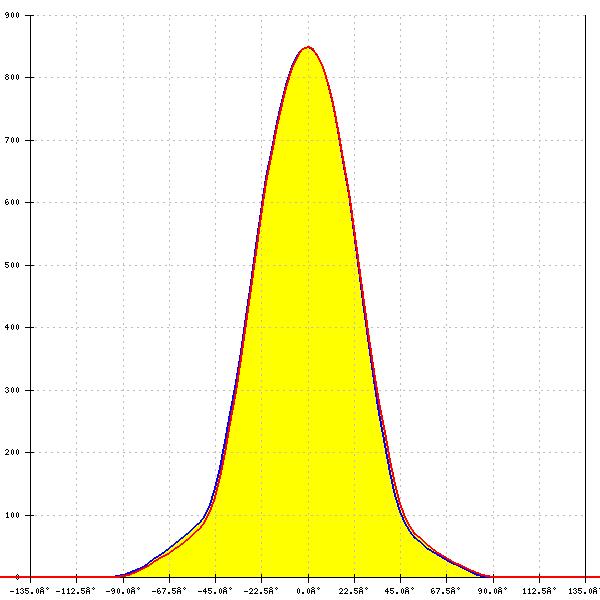

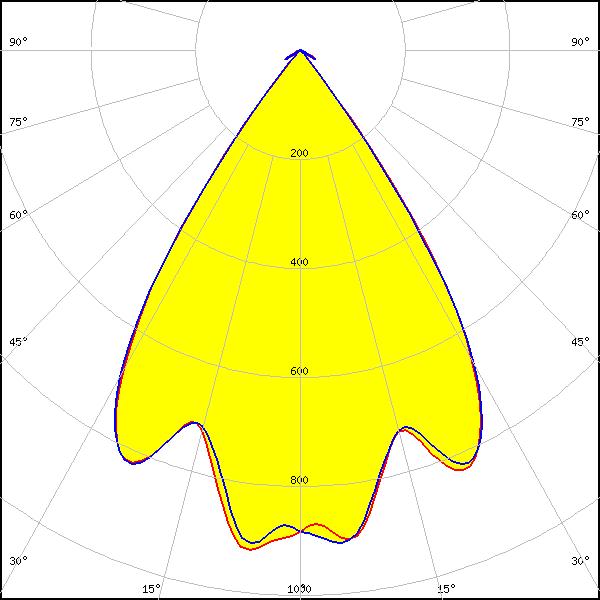

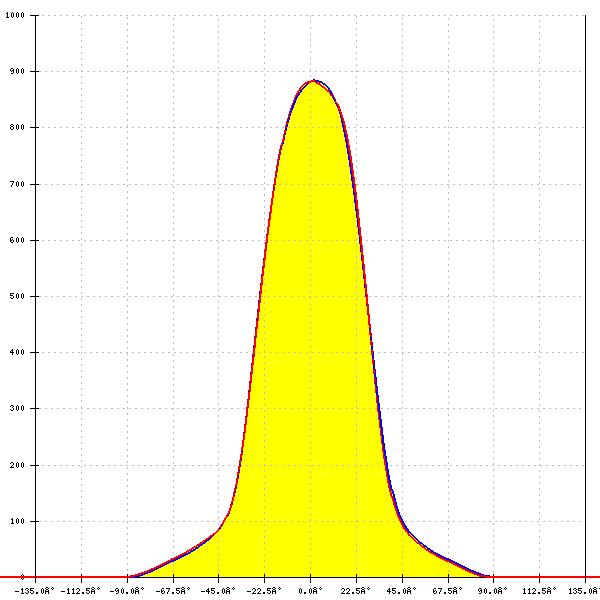

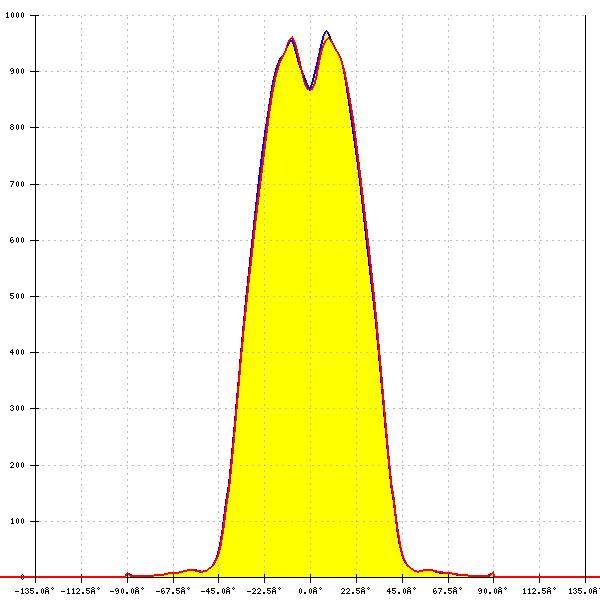

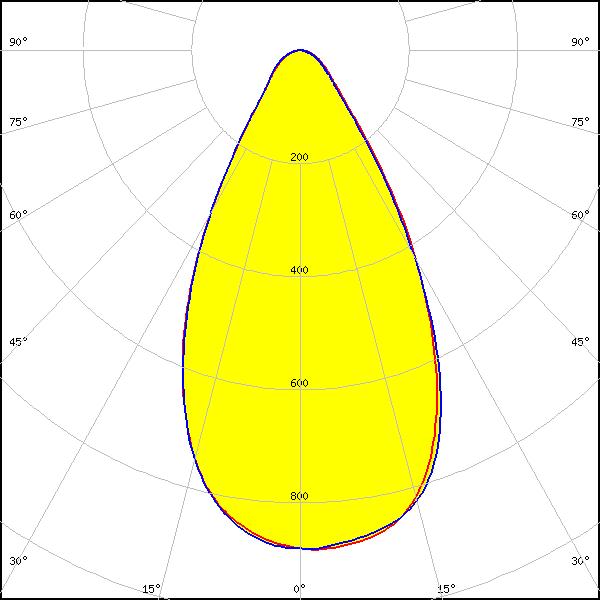

Optical results

LED: V10 Gen6
FWHM: 58°
FWTM: 106°
Peak intensity: 0.830 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

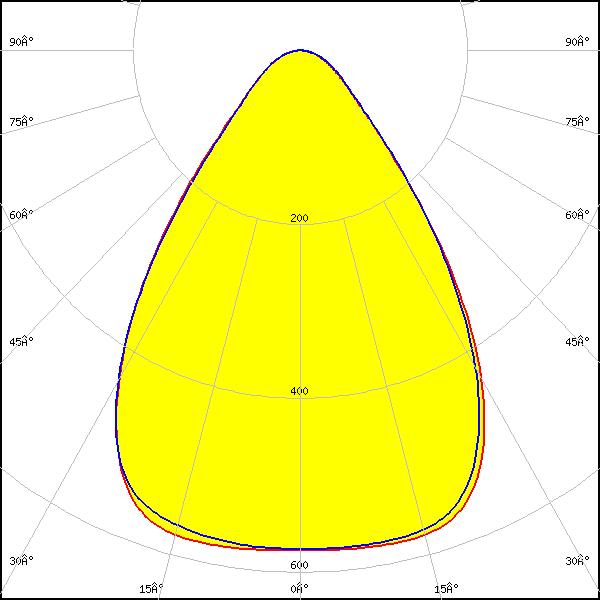

LED: V6 Gen6
FWHM: 73°
FWTM: 115°
Peak intensity: 0.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: V8 Gen6
FWHM: 66°
FWTM: 109°
Peak intensity: 0.670 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

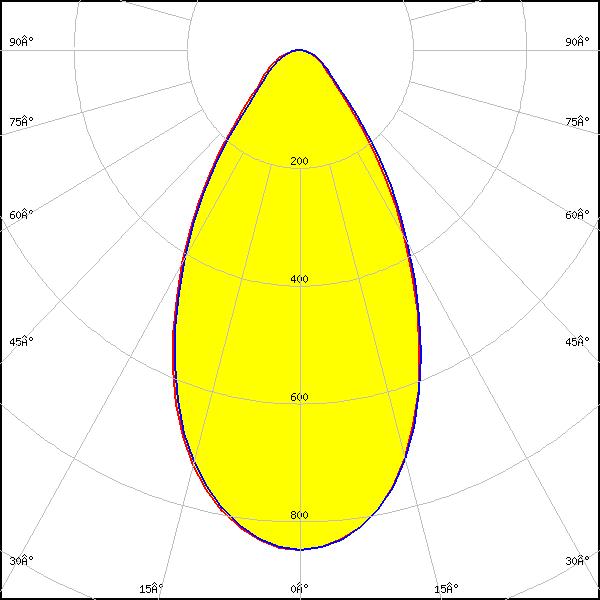

LED: VERO10
FWHM: 58°
FWTM: 101°
Peak intensity: 0.850 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

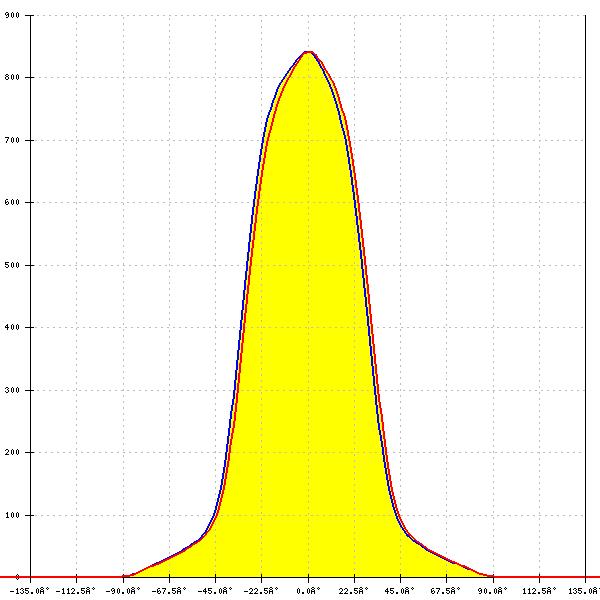

LED: CLL01x
FWHM: 61°
FWTM: 93°
Peak intensity: 0.840 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
FWHM: 58°
FWTM: 98°
Peak intensity: 0.860 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

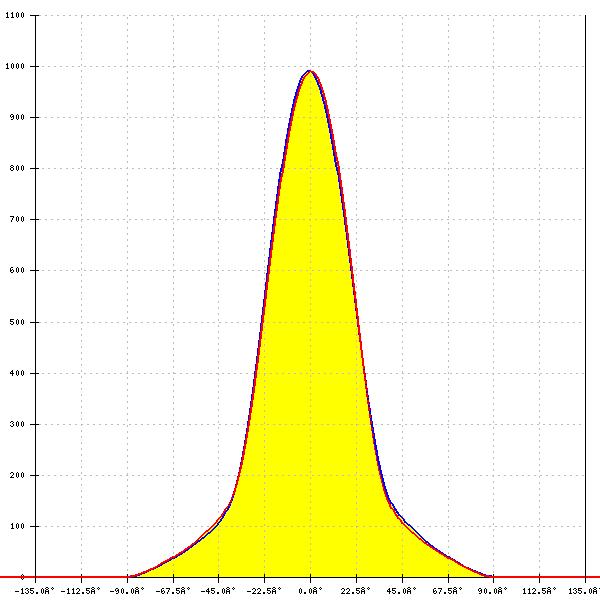

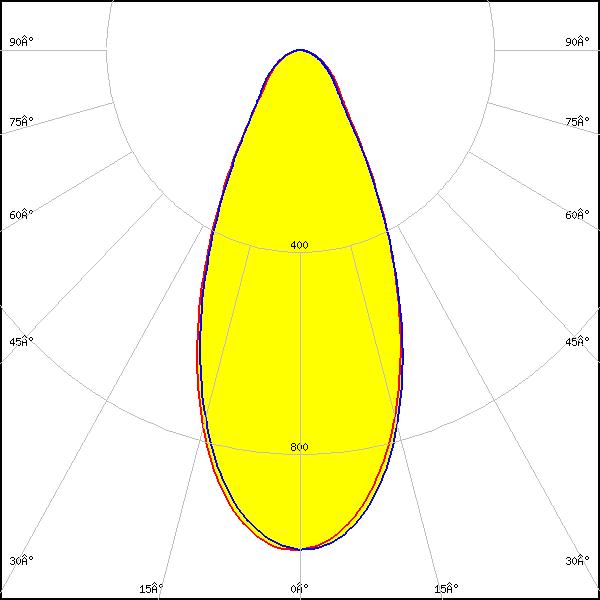

LED: CLL02x/CLU02x (LES10)
Required components:
Bender Wirth: 434 Typ L6
FWHM: 47°
FWTM: 95°
Peak intensity: 1.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

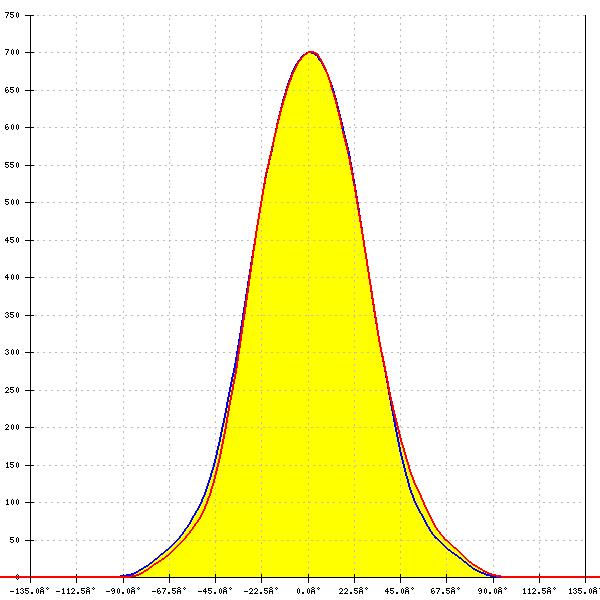

LED: CLL03x/CLU03x
FWHM: 64°
FWTM: 116°
Peak intensity: 0.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
Bender Wirth: 433 Typ L6
FWHM: 61°
FWTM: 125°
Peak intensity: 0.610 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: CLU700/701/702
FWHM: 56°
FWTM: 90°
Peak intensity: 0.900 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

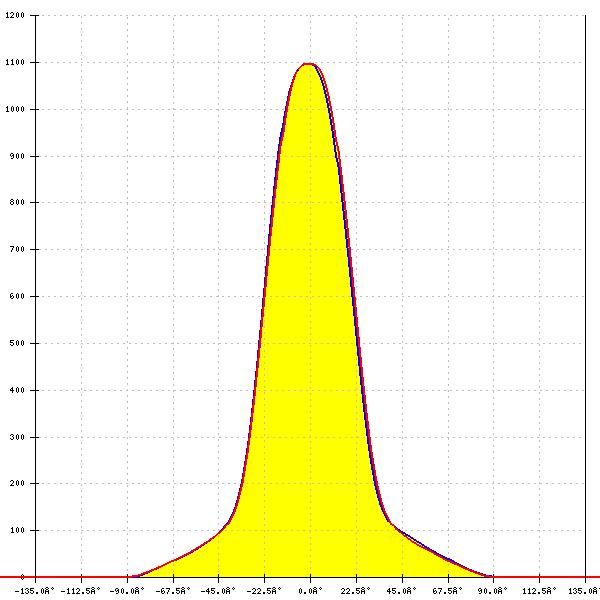

LED: CLU700/701/702
Required components:
Bender Wirth: 434 Typ L6
FWHM: 46°
FWTM: 82°
Peak intensity: 1.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

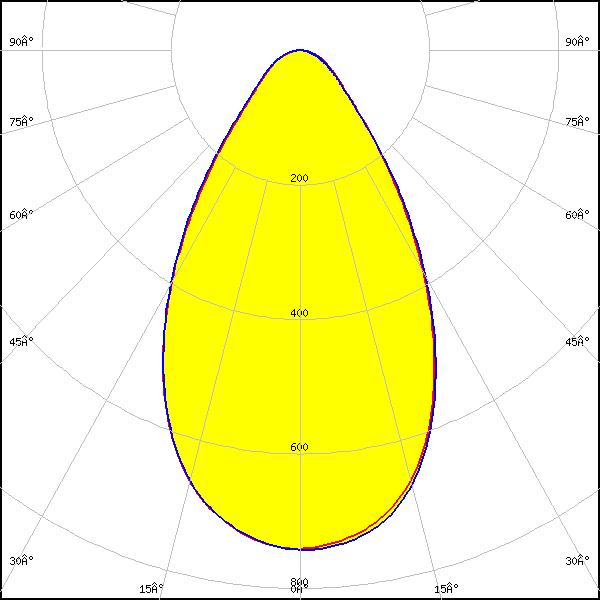

LED: CLU710/711
FWHM: 62°
FWTM: 107°
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CLU720/721
FWHM: 61°
FWTM: 113°
Peak intensity: 0.730 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

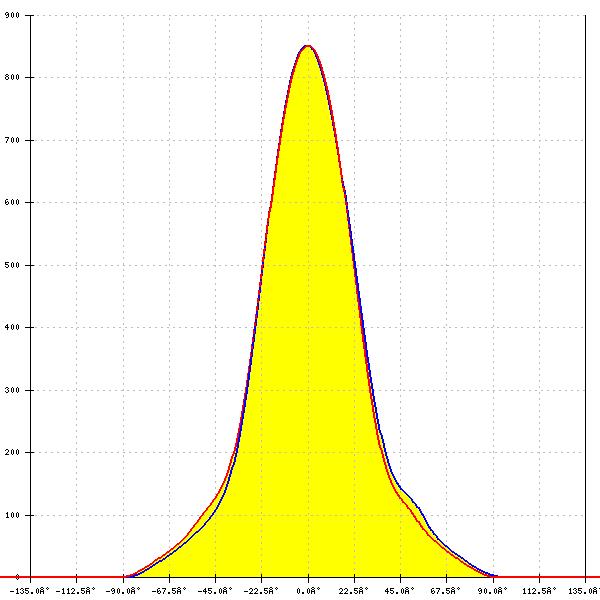

LED: CLU720/721
Required components:
Bender Wirth: 433 Typ L6
FWHM: 50°
FWTM: 109°
Peak intensity: 0.850 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

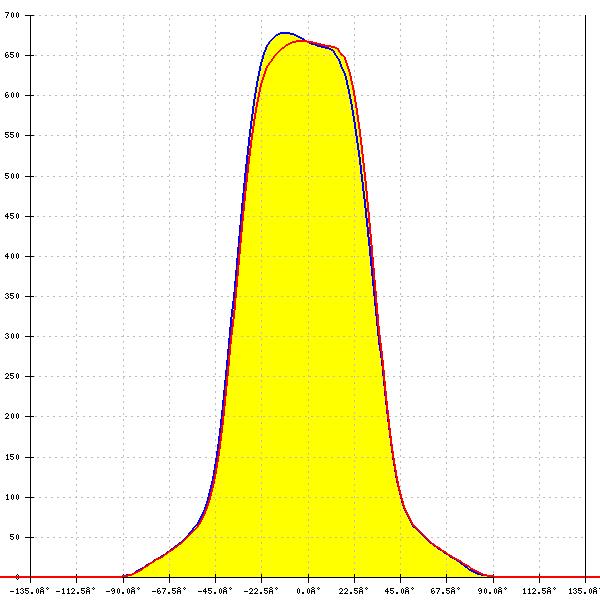

LED: CXA/B 13xx
FWHM: 70°
FWTM: 104°
Peak intensity: 0.680 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

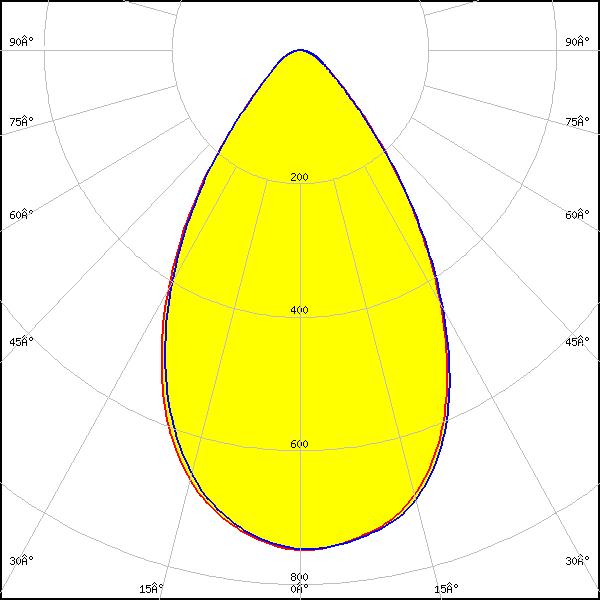

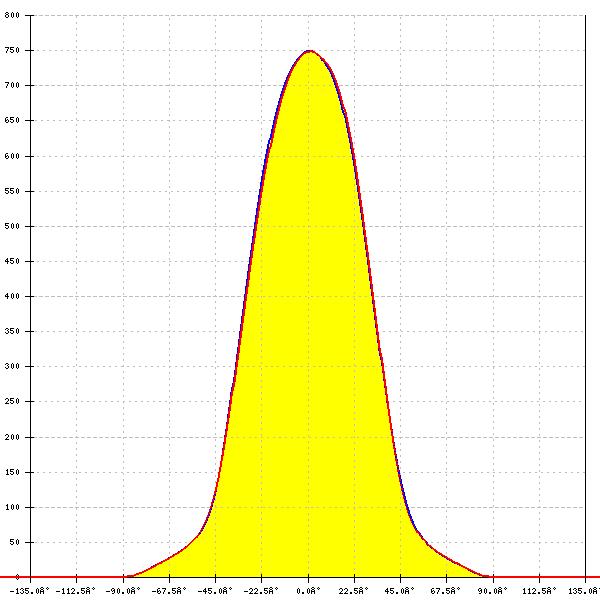

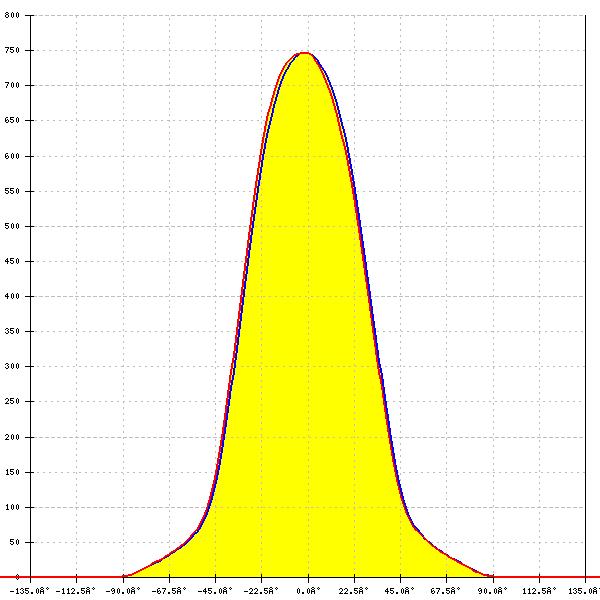

LED: CXA/B 15xx
FWHM: 64°
FWTM: 104°
Peak intensity: 0.750 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 15xx
FWHM: 64°
FWTM: 102°
Peak intensity: 0.750 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: 63°
FWTM: 111°
Peak intensity: 0.730 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

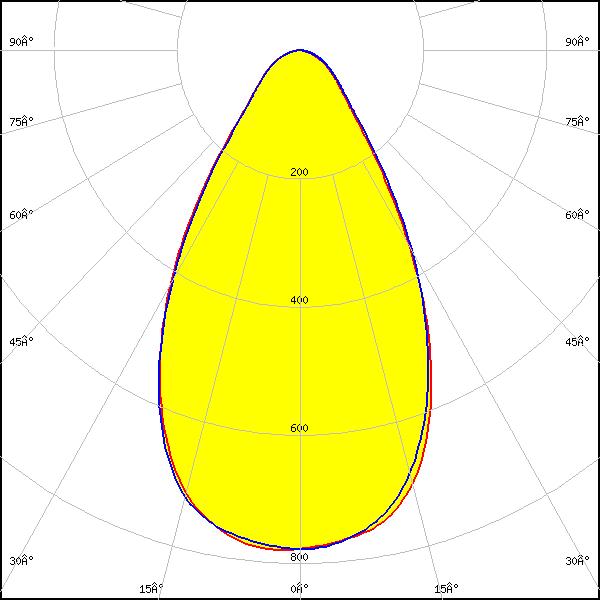

LED: MHD-E/G
FWHM: 60°
FWTM: 105°
Peak intensity: 0.780 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

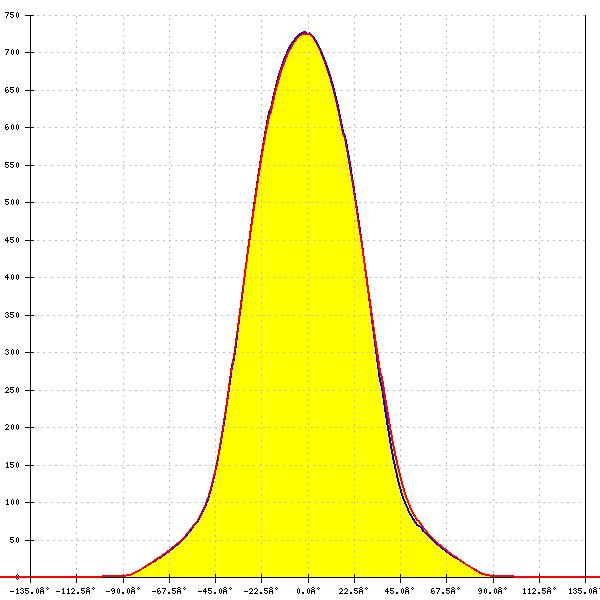

LED: LUXEON CoB 1202/1203
FWHM: 63°
FWTM: 108°
Peak intensity: 0.730 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202s
FWHM: 67°
FWTM: 106°
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB Compact
FWHM: 67°
FWTM: 106°
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CxM-14 (19x19)
Required components:
Bender Wirth: 433 Typ L6
FWHM: 61°
FWTM: 125°
Peak intensity: 0.610 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

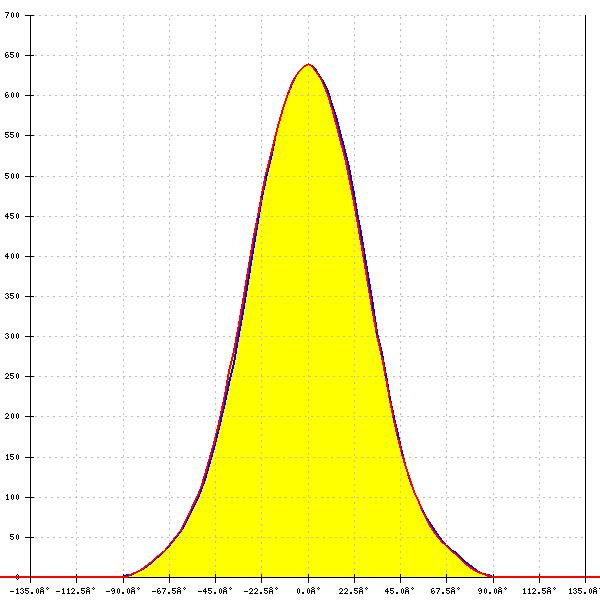

LED: CxM-14 (19x19)
FWHM: 66°
FWTM: 121°
Peak intensity: 0.640 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CxM-6 (12x13)
FWHM: 66°
FWTM: 104°
Peak intensity: 0.730 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

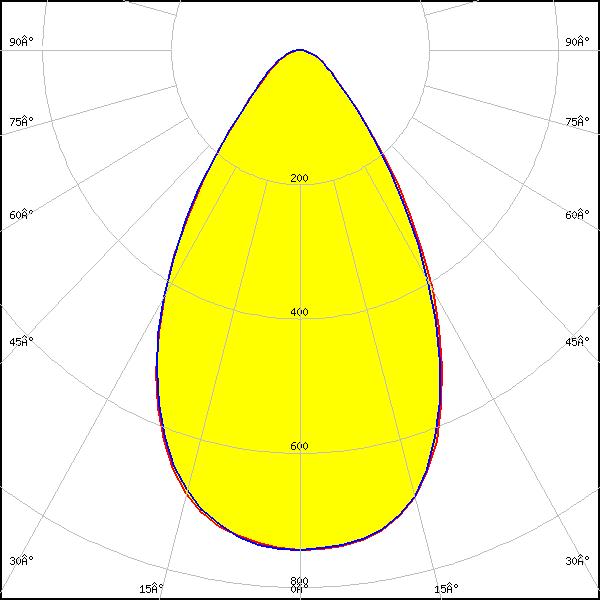

LED: CXM-7 (13x13)
FWHM: 64°
FWTM: 105°
Peak intensity: 0.750 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CxM-9 (13.5x13.5)
Required components:
Bender Wirth: 434 Typ L6
FWHM: 47°
FWTM: 95°
Peak intensity: 1.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

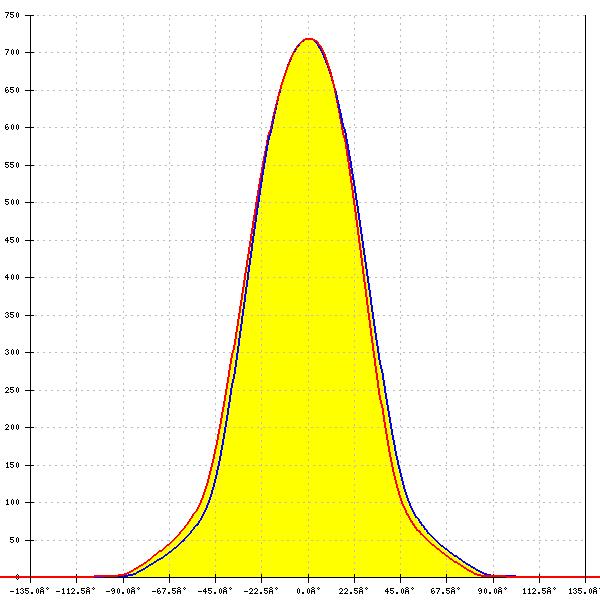

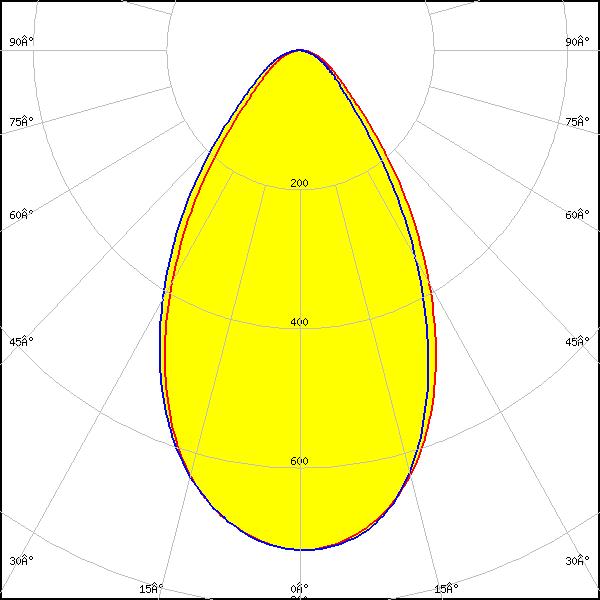

LED: CxM-9 (13.5x13.5)
FWHM: 63°
FWTM: 109°
Peak intensity: 0.720 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: COB S-Type (LES 7)
FWHM: 64°
FWTM: 84°
Peak intensity: 0.977 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: Duris S10
FWHM: 74°
FWTM: 106°
Peak intensity: 0.670 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Soleriq S13
FWHM: 61°
FWTM: 110°
Peak intensity: 0.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

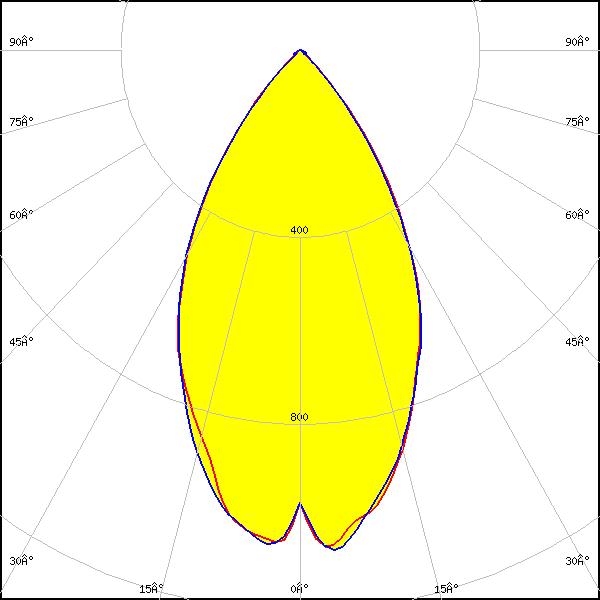

LED: Soleriq S9
FWHM: 56°
FWTM: 87°
Peak intensity: 1.100 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LC020C
Required components:
Bender Wirth: 479 Typ L6
FWHM: 42°
FWTM: 66°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LC040C
Required components:
Bender Wirth: 480 Typ L6
FWHM: 51°
FWTM: 81°
Peak intensity: 1.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

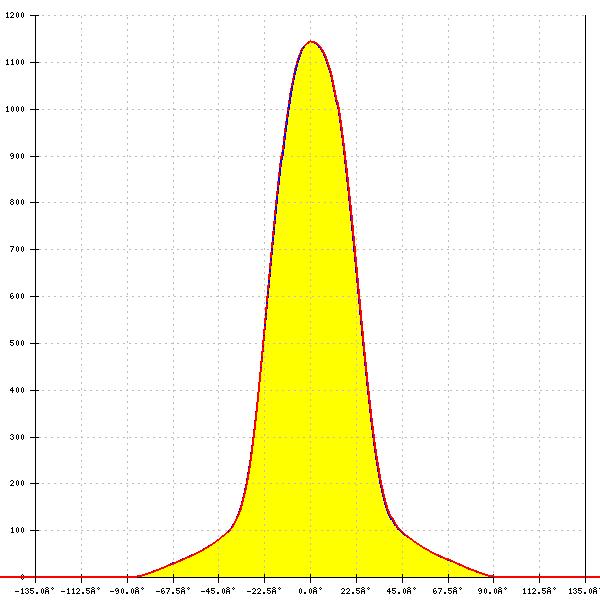

LED: MJT COB LES 6
Required components:
Bender Wirth: 434 Typ L6
FWHM: 46°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: ZC12/18
Required components:
Bender Wirth: 433 Typ L6
FWHM: 61°
FWTM: 125°
Peak intensity: 0.610 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: ZC4/6
Required components:
Bender Wirth: 434 Typ L6
FWHM: 47°
FWTM: 95°
Peak intensity: 1.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

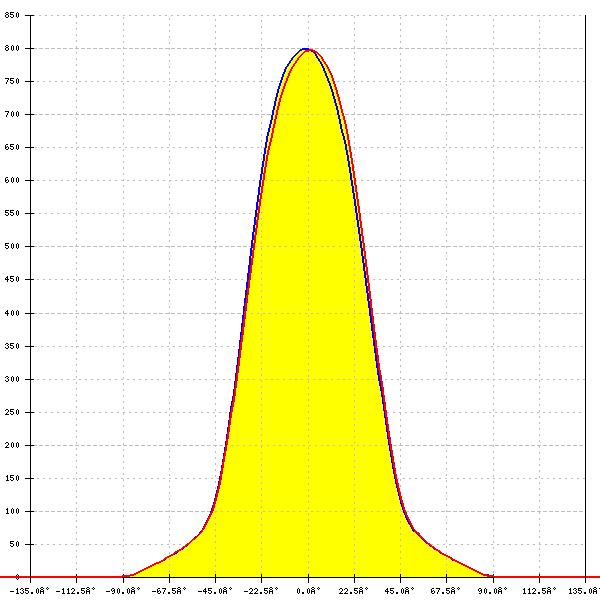

LED: Mini Zenigata (GW6BM)
FWHM: 62°
FWTM: 100°
Peak intensity: 0.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
