WINNIE-S
Print

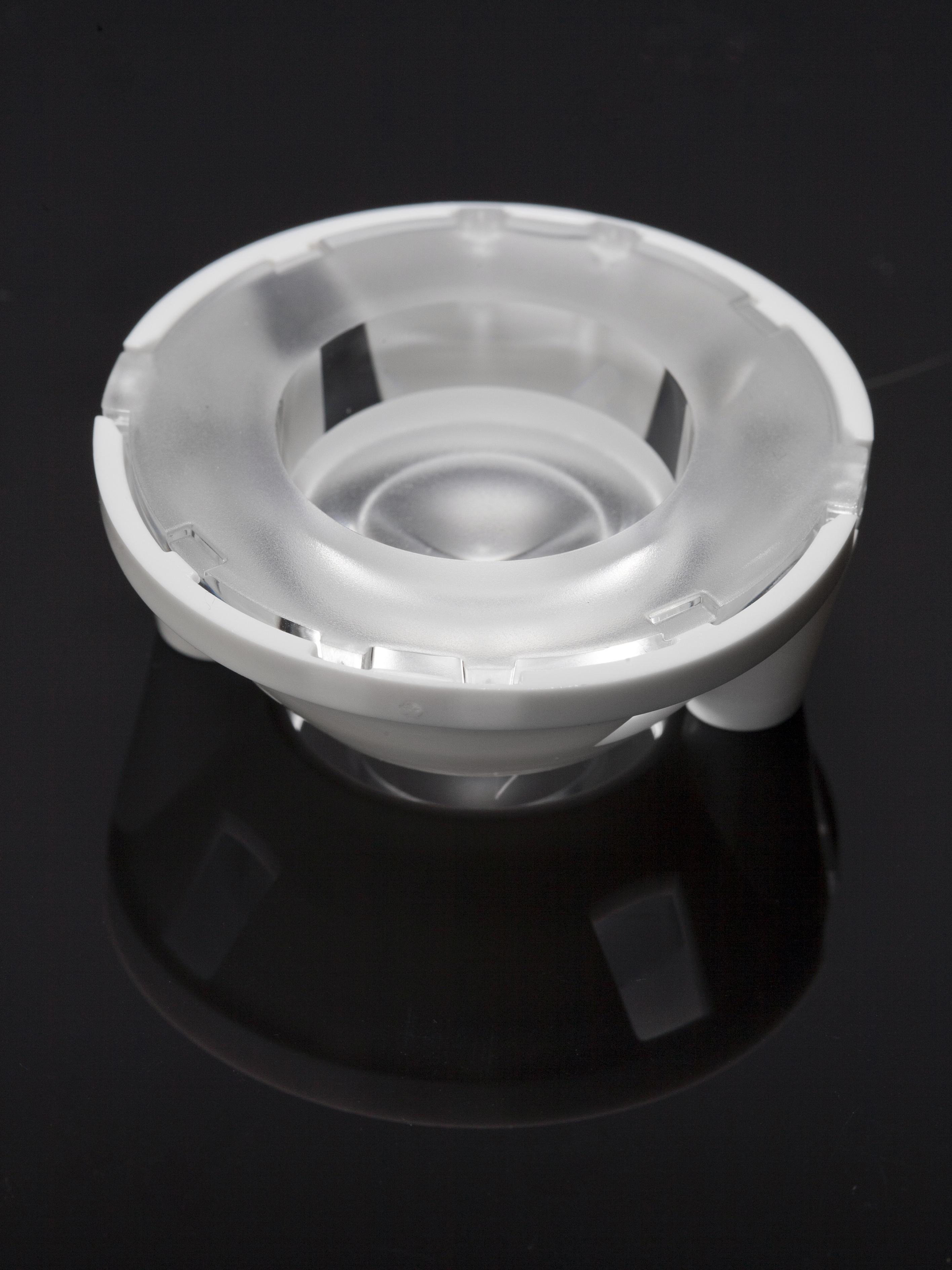

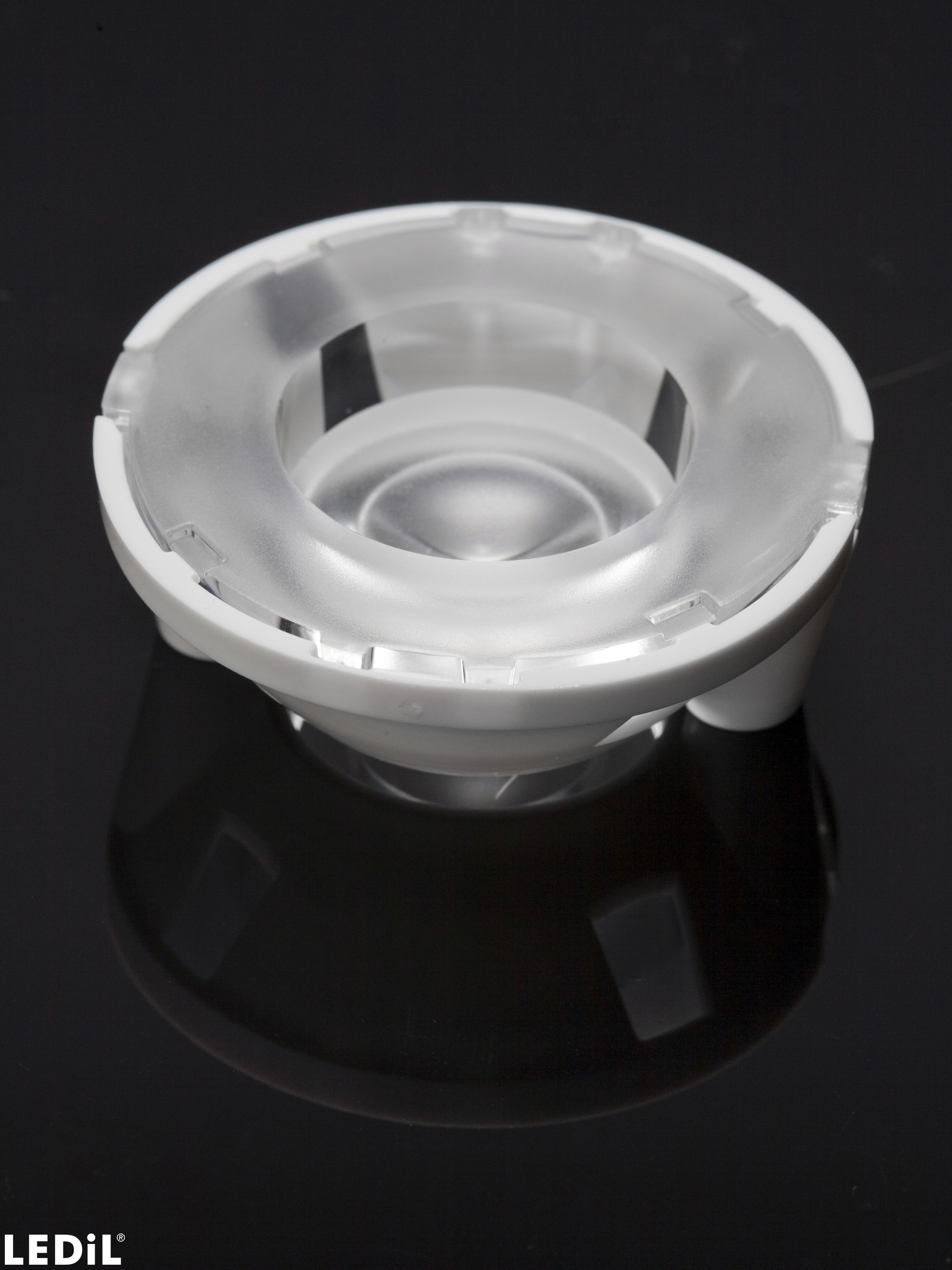

~20° spot beam. Holder with 35 mm screw hole distance according to Zhaga standard. Compatible with Bender+Wirth 4xx Typ L5 connector.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Component Materials
- WINNIE-SSingle lensPMMA
- WINNIE-HOLDERHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

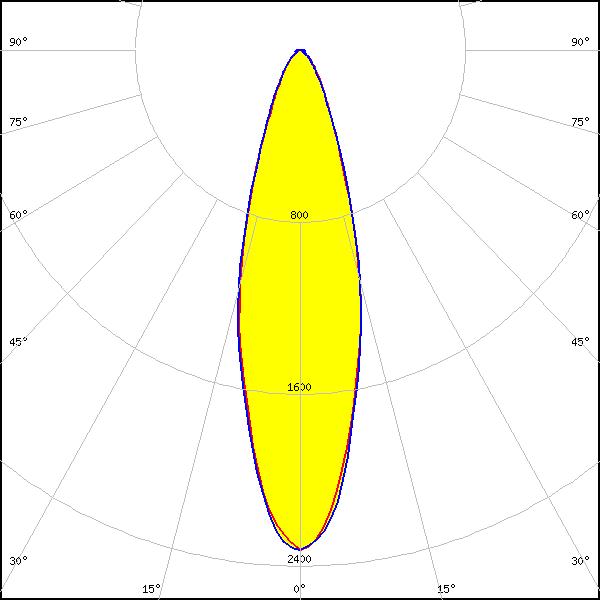

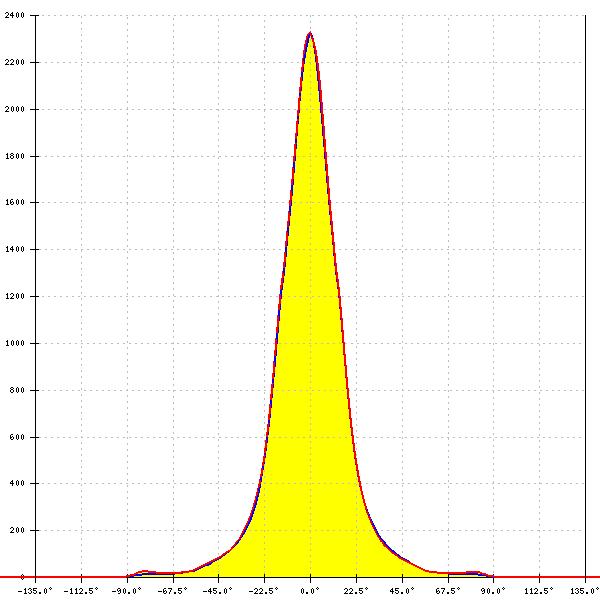

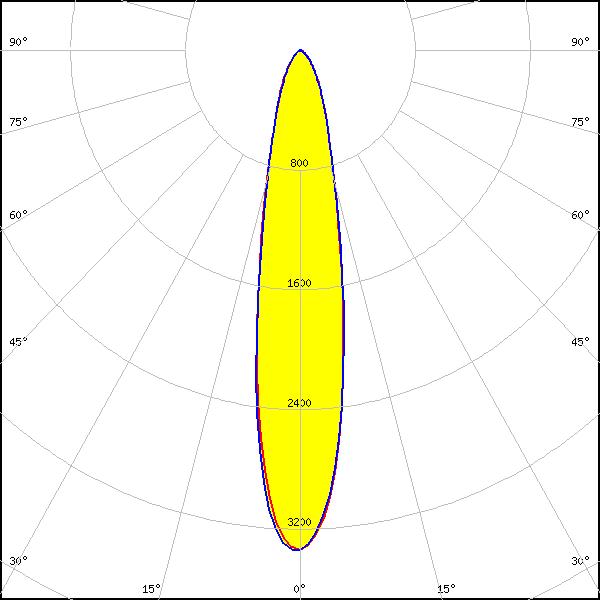

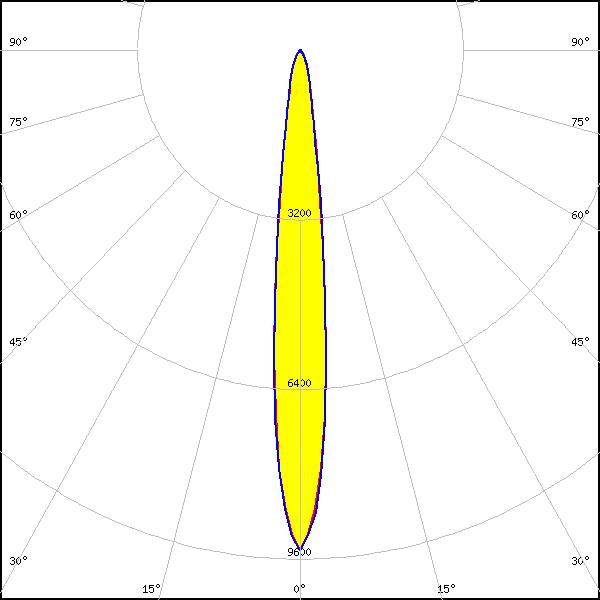

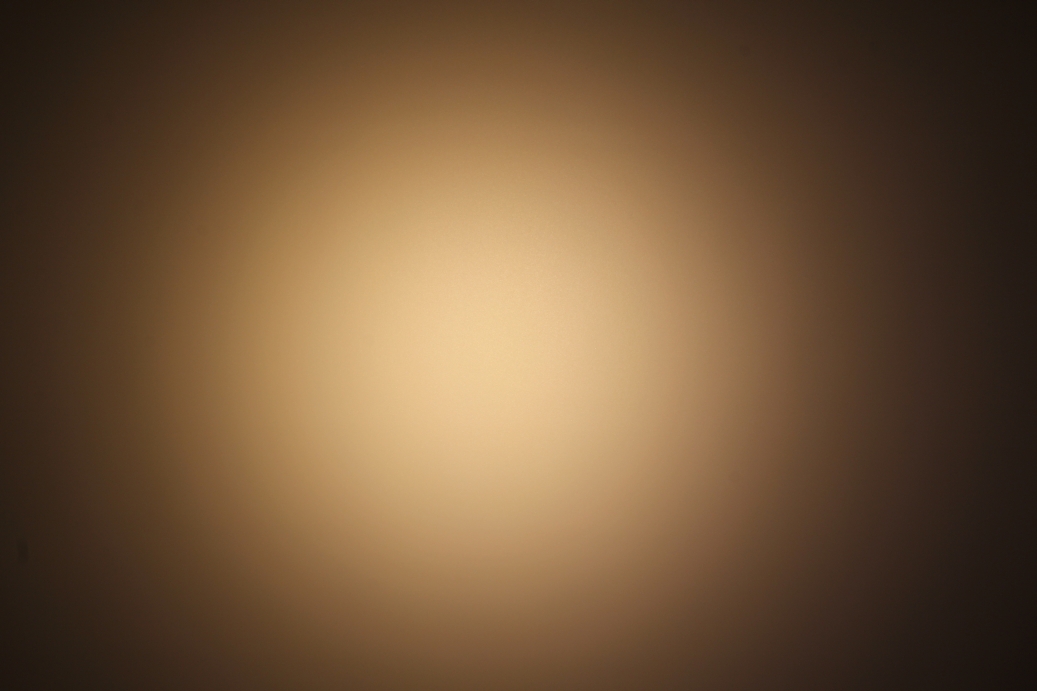

Optical results

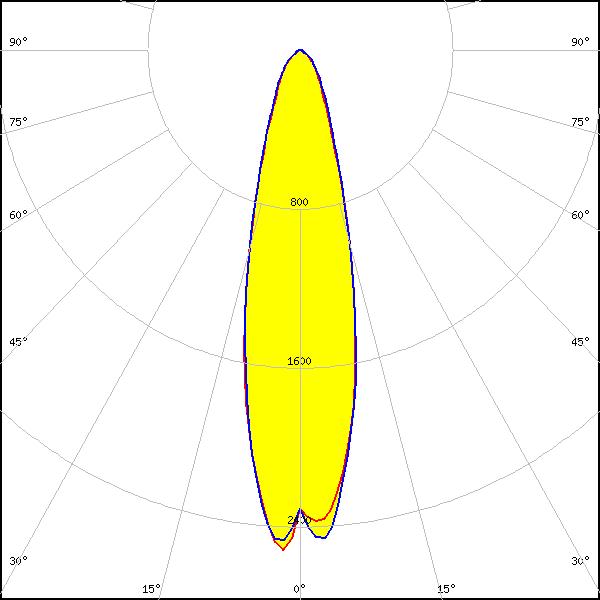

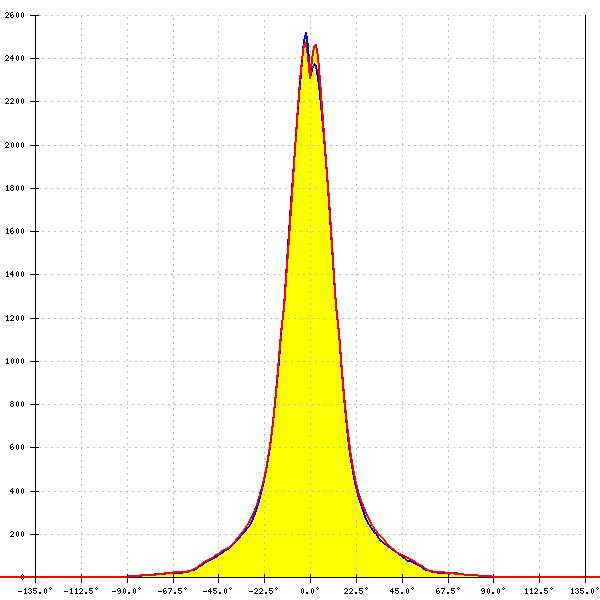

LED:
V13 Gen7
LES size: 14.0 mm
FWHM:
26°
FWTM:
60°
Peak intensity:
2.564 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

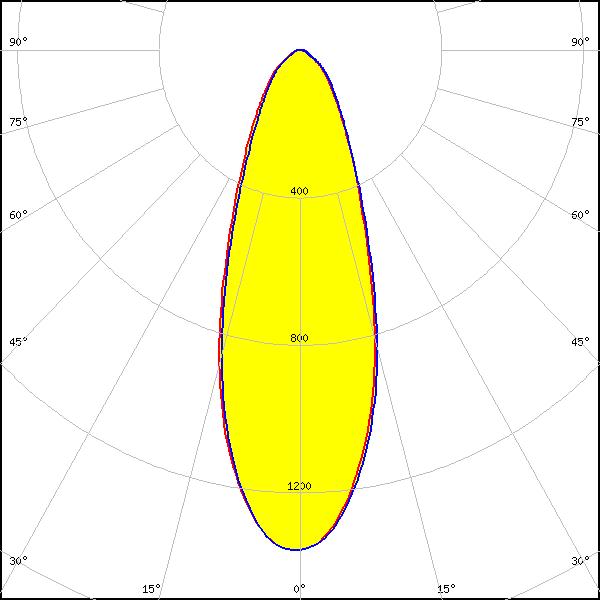

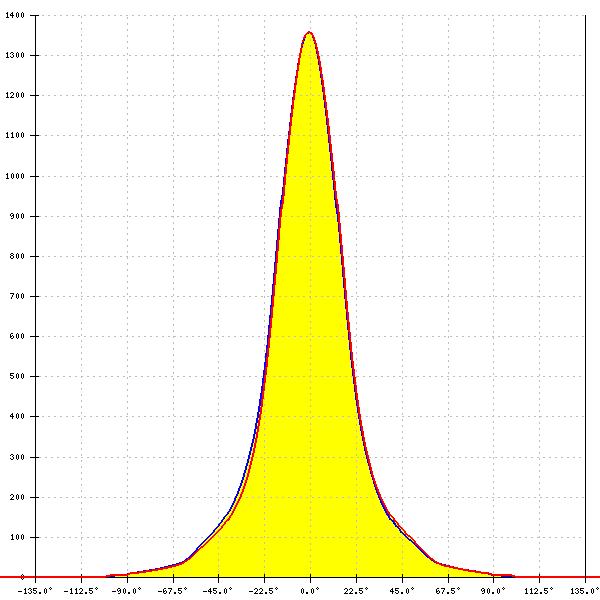

LED:
V18 Gen6
LES size: 18.6 mm
FWHM:
36°
FWTM:
84°
Peak intensity:
1.360 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

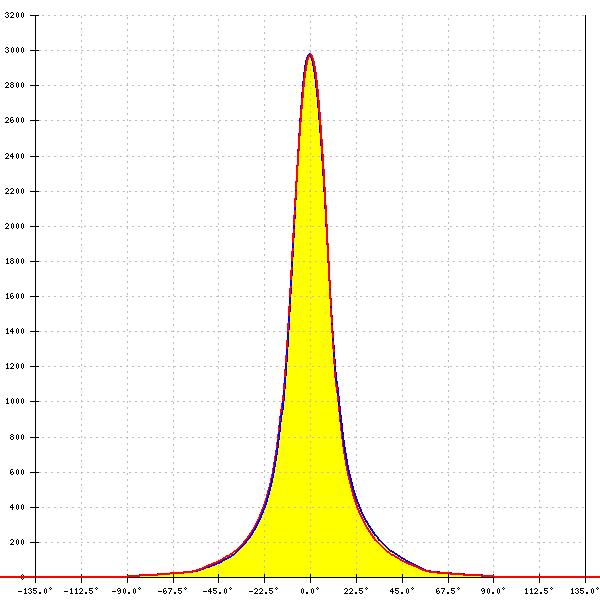

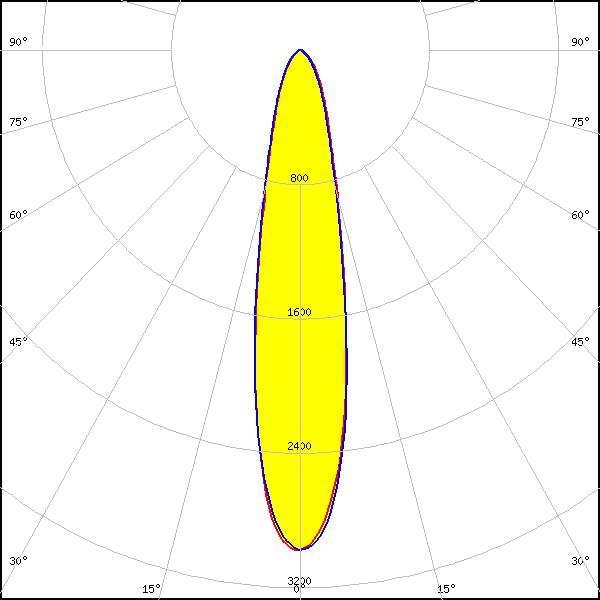

LED:
VERO10
LES size: 9.9 mm
FWHM:
21°
FWTM:
55°
Peak intensity:
3.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

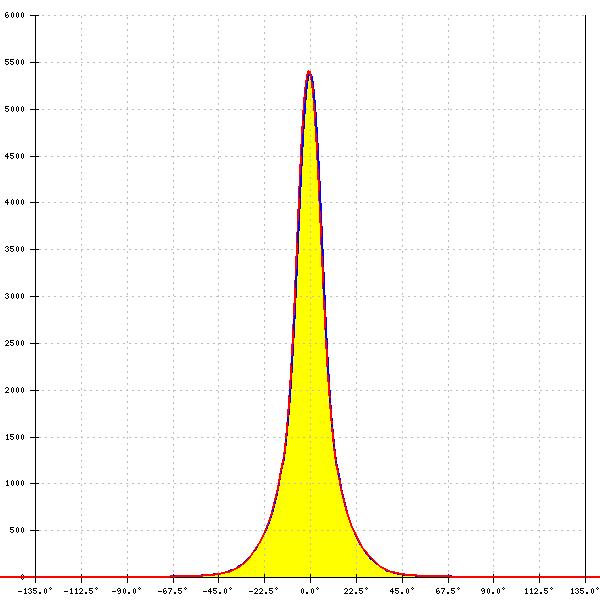

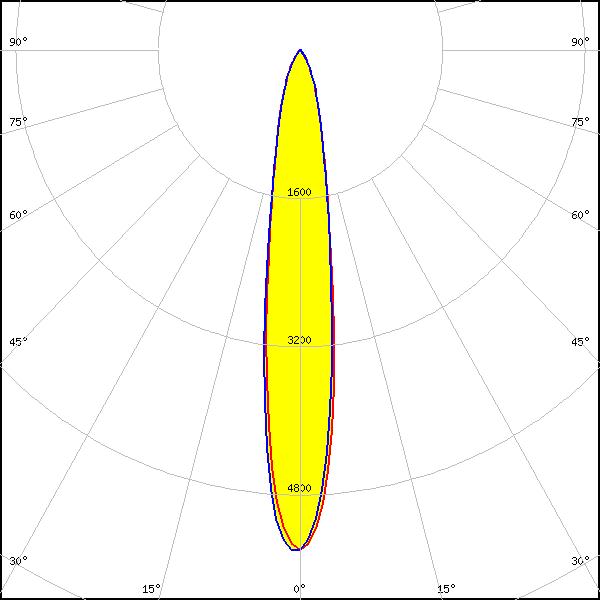

LED:
CLL01x
LES size: 6.0 mm
FWHM:
16°
FWTM:
42°
Peak intensity:
5.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
FWHM:
21°
FWTM:
52°
Peak intensity:
3.340 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

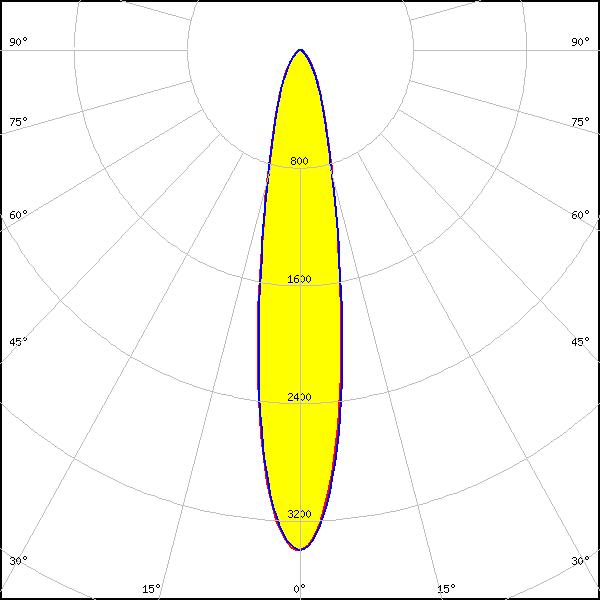

LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
20°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

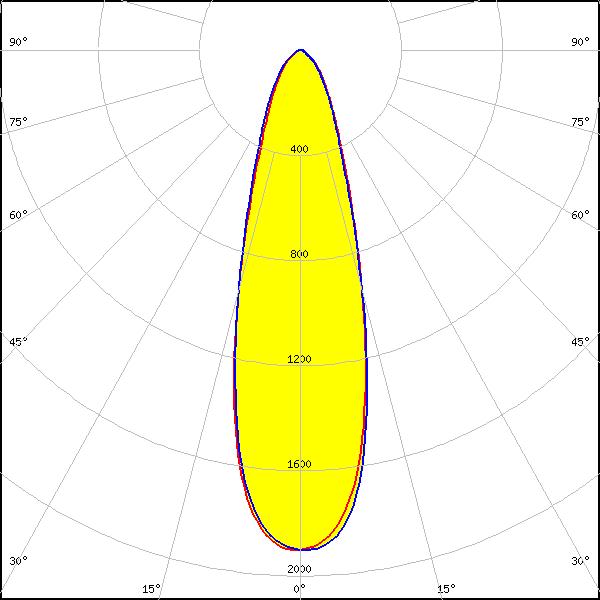

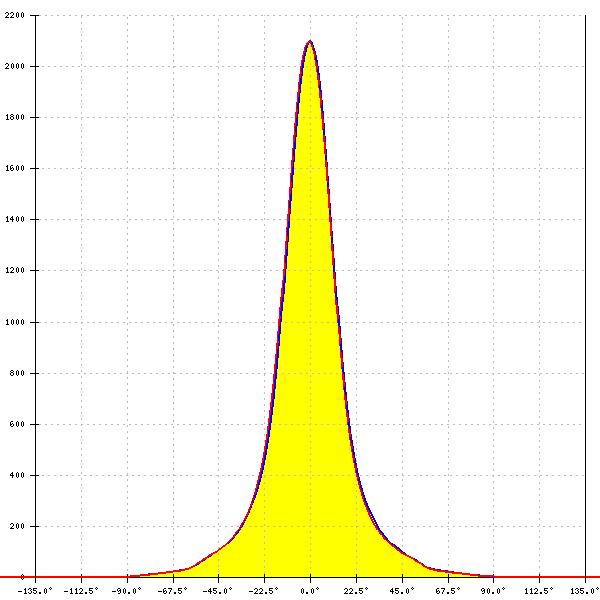

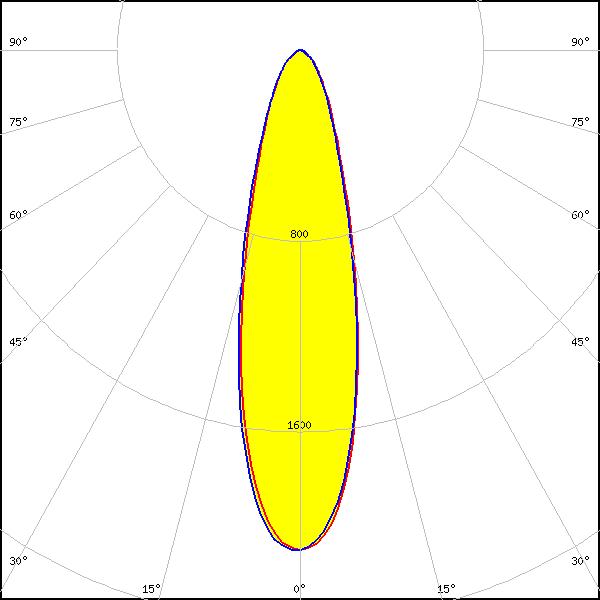

LED:
CLU03x
LES size: 14.5 mm
FWHM:
28°
FWTM:
66°
Peak intensity:
2.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

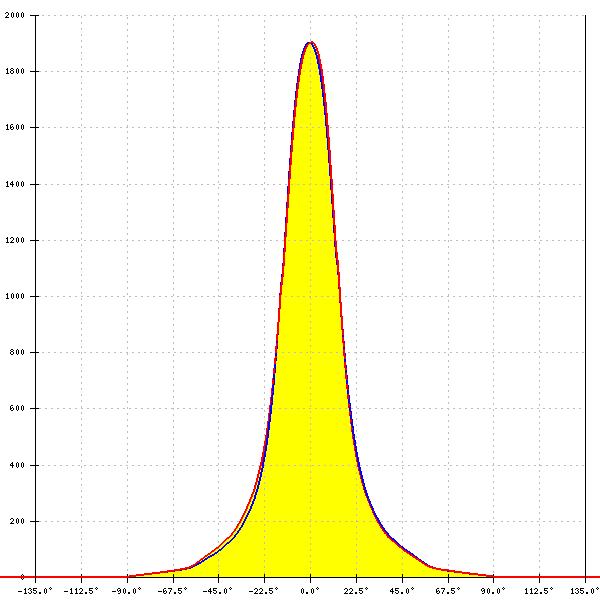

LED:
CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
30°
FWTM:
68°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

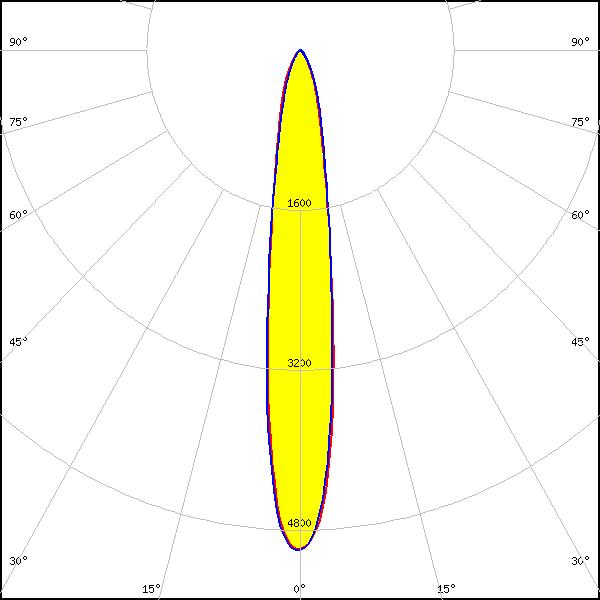

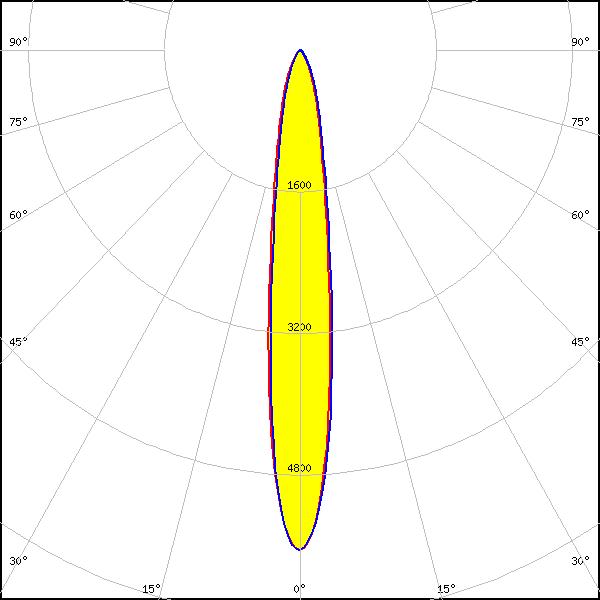

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
15°
FWTM:
39°
Peak intensity:
5.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
FWHM:
15°
FWTM:
41°
Peak intensity:
5.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

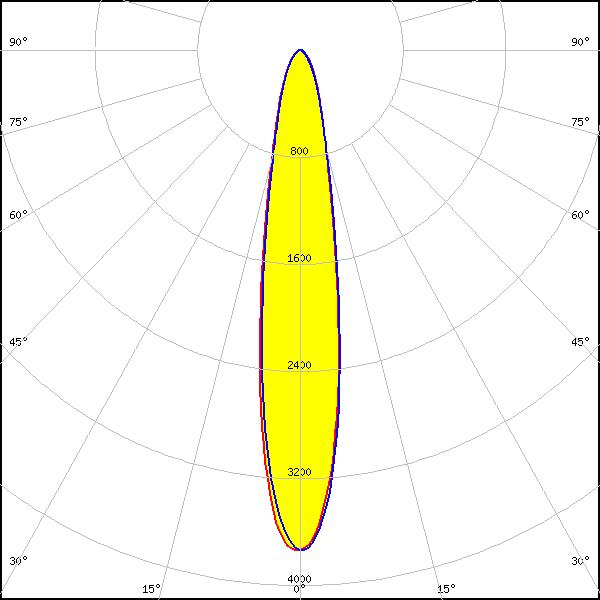

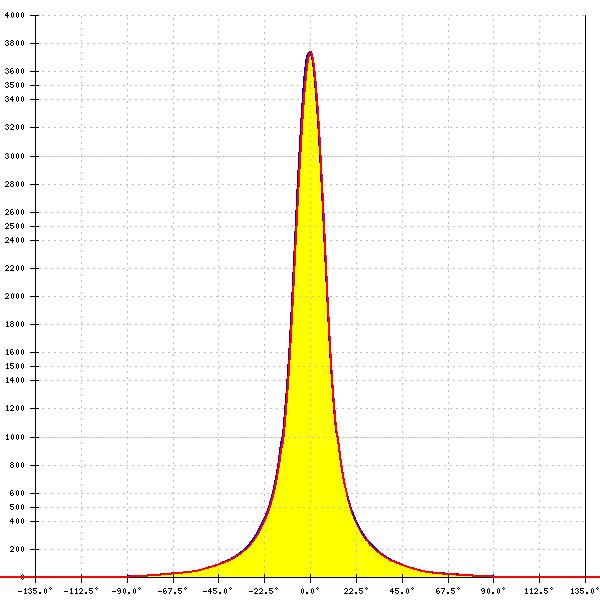

LED:
CLU710/711
LES size: 8.5 mm
FWHM:
18°
FWTM:
47°
Peak intensity:
3.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
FWHM:
18°
FWTM:
47°
Peak intensity:
3.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

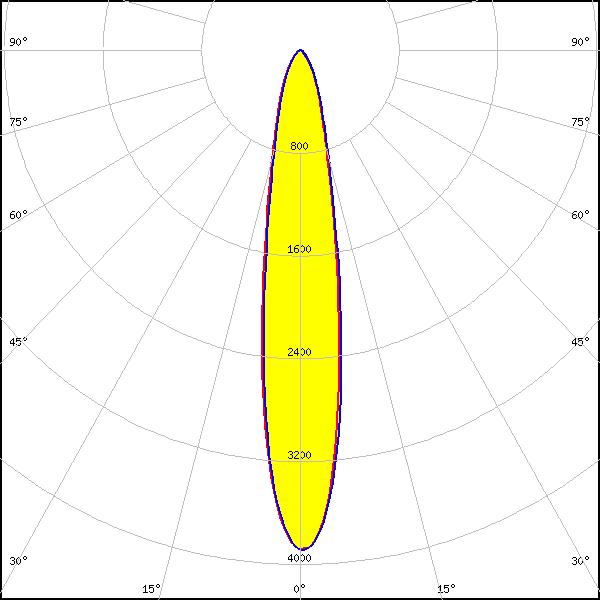

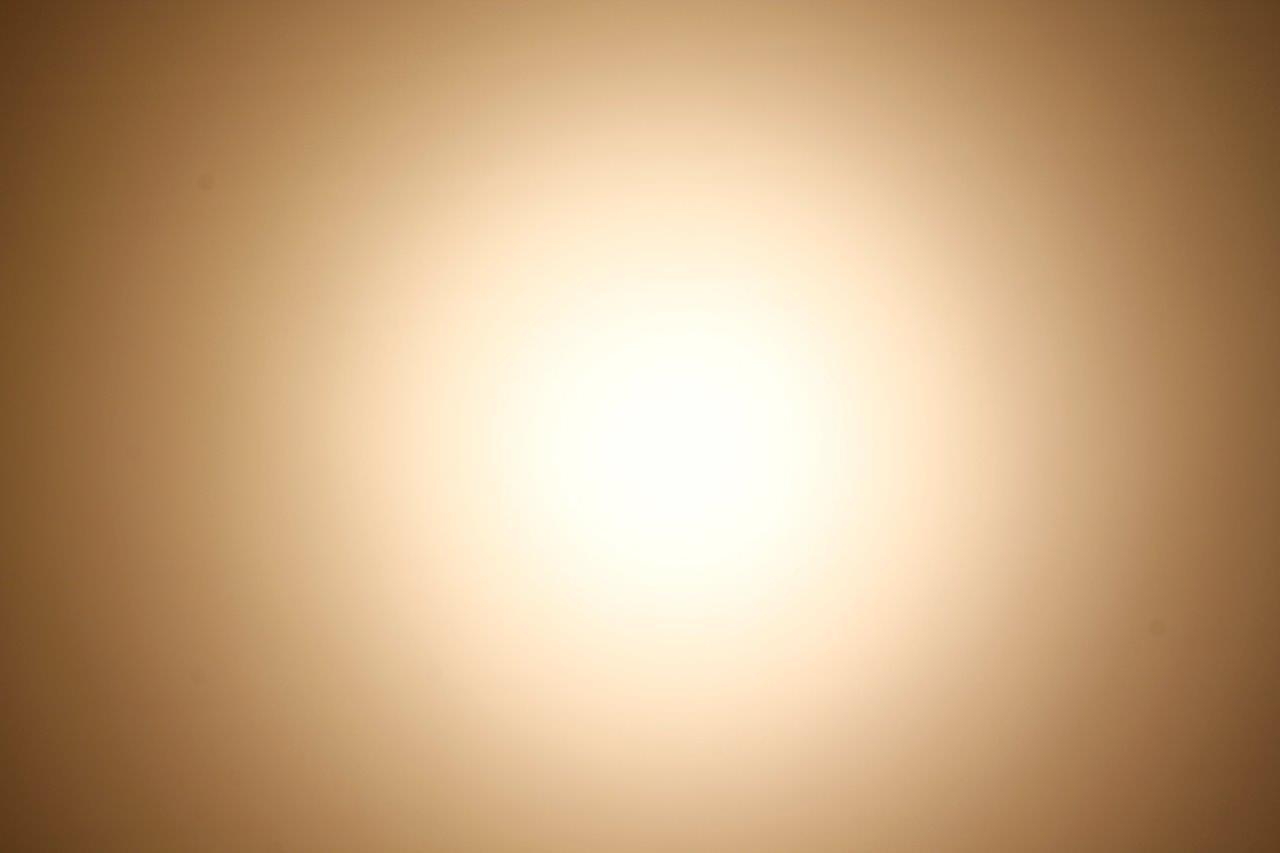

LED:
CLU710/711
LES size: 8.5 mm
Required components:
Bender Wirth: 470 Typ L5
FWHM:
18°
FWTM:
47°
Peak intensity:
3.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

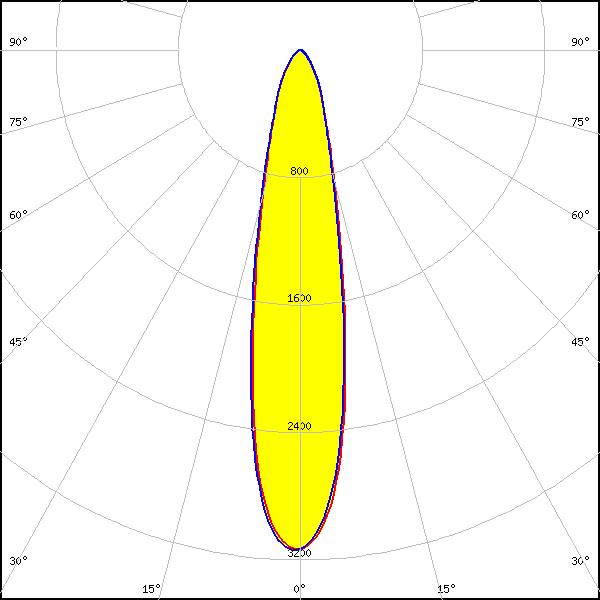

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
22°
FWTM:
54°
Peak intensity:
3.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

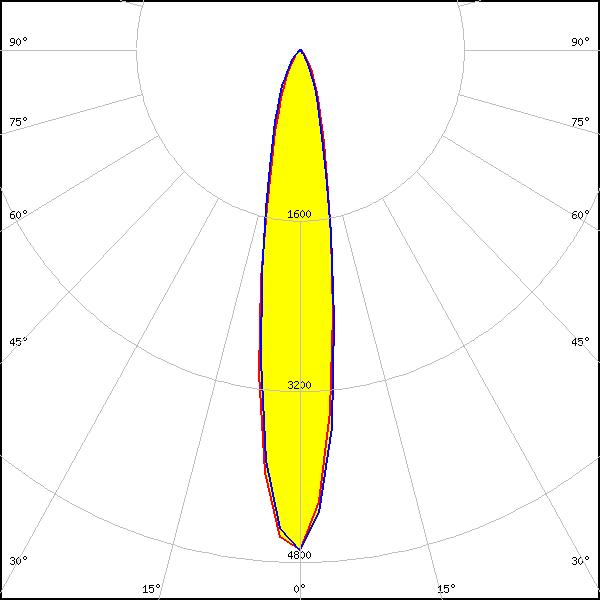

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
Bender Wirth: 448 Typ L5
FWHM:
12°
FWTM:
25°
Peak intensity:
10.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
18°
FWTM:
46°
Peak intensity:
4.690 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

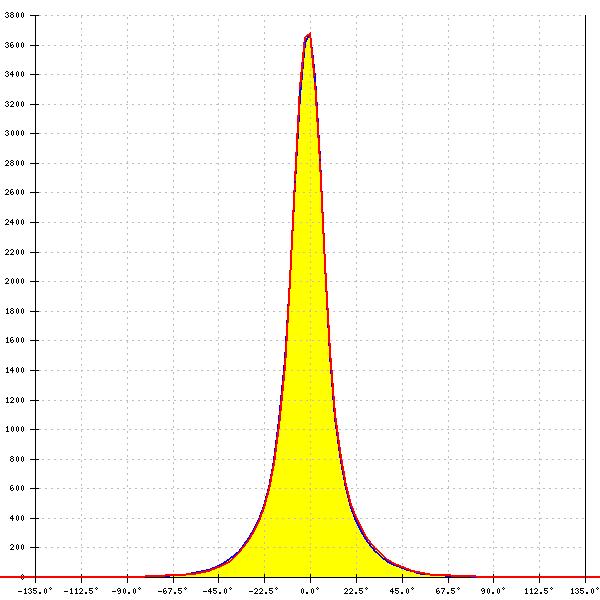

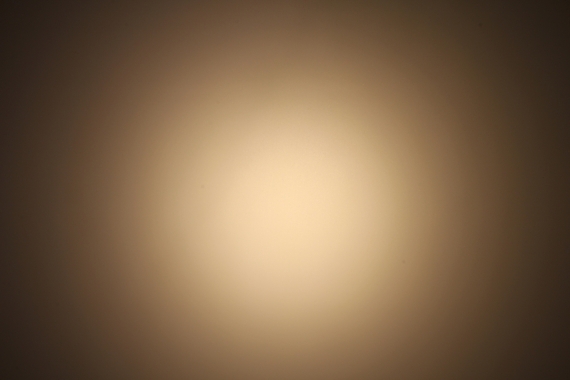

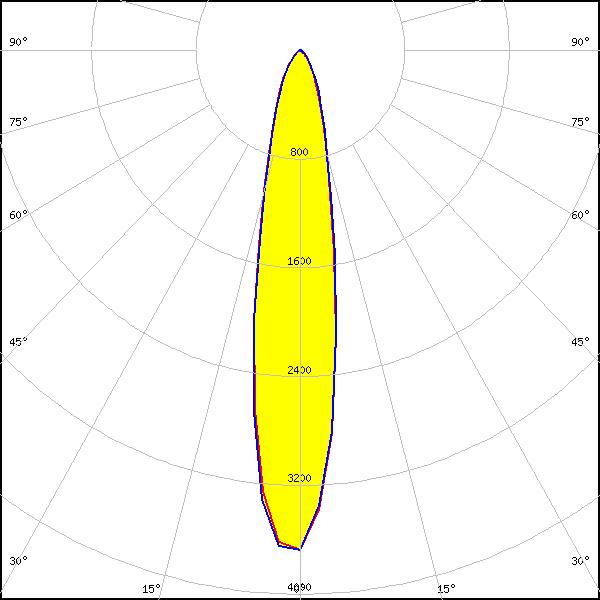

CXA/B 15xx
LES size: 8.9 mm
FWHM:
20°
FWTM:
49°
Peak intensity:
3.680 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

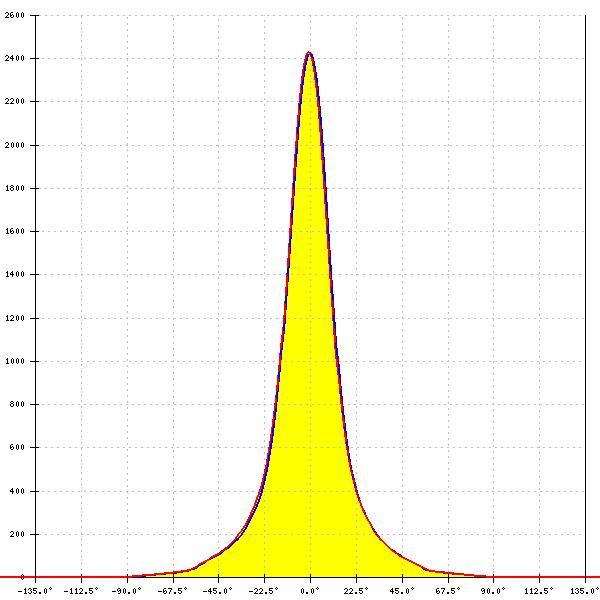

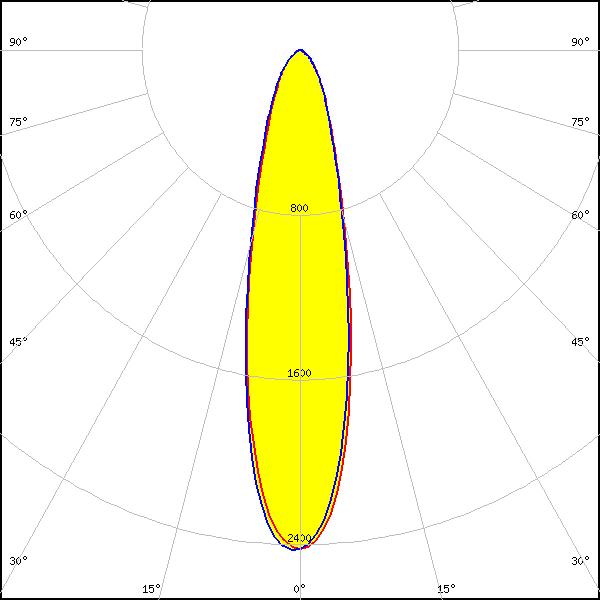

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
FWHM:
25°
FWTM:
61°
Peak intensity:
2.420 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

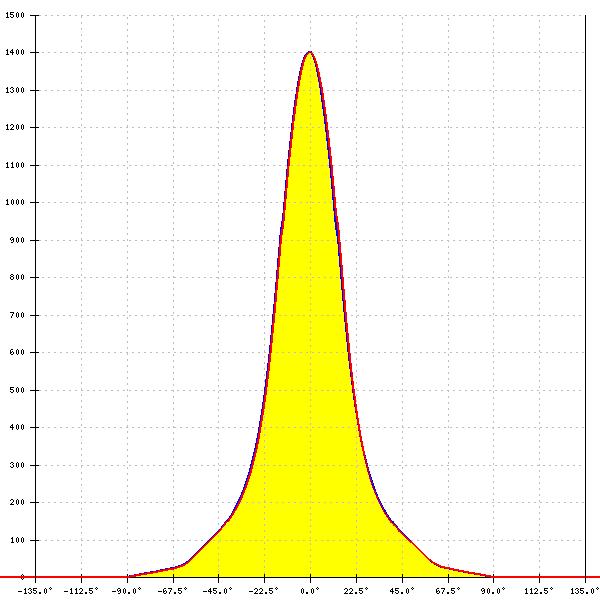

LED:

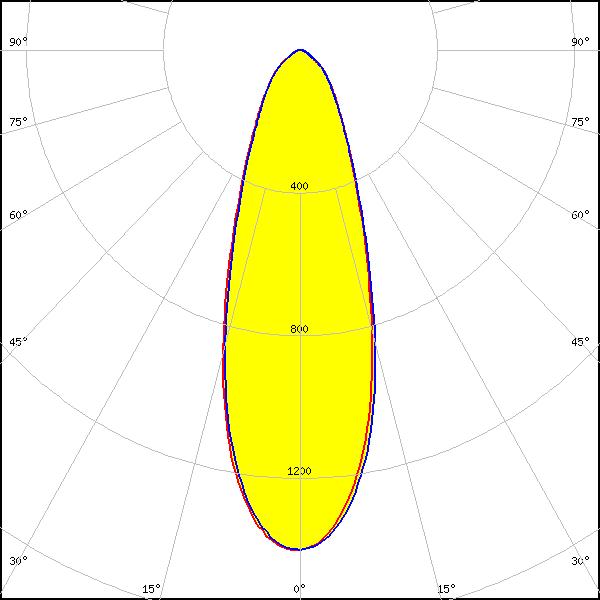

CXA/B 25xx
LES size: 19.0 mm
FWHM:
35°
FWTM:
83°
Peak intensity:
1.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

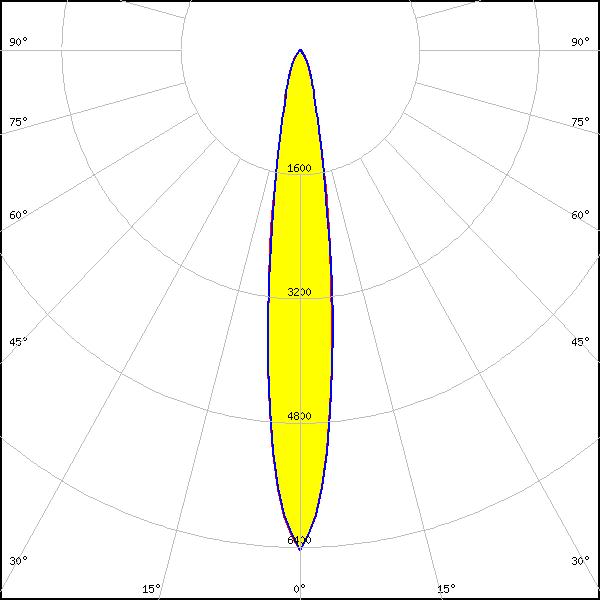

LED:
MHD-E/G
LES size: 0.0 mm
FWHM:
16°
FWTM:
36°
Peak intensity:
6.439 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

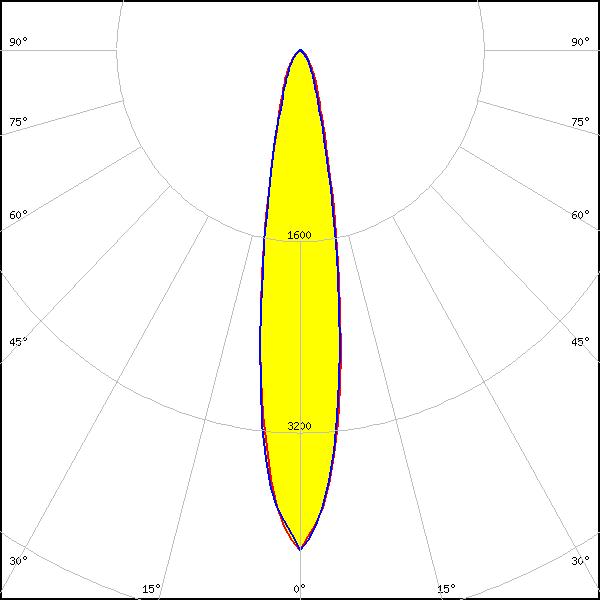

LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
Bender Wirth: 441 Typ L5
FWHM:
18°
FWTM:
44°
Peak intensity:
4.183 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
FWHM:
20°
FWTM:
54°
Peak intensity:
3.730 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
FWHM:
15°
FWTM:
42°
Peak intensity:
5.760 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
FWHM:
15°
FWTM:
42°
Peak intensity:
5.760 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

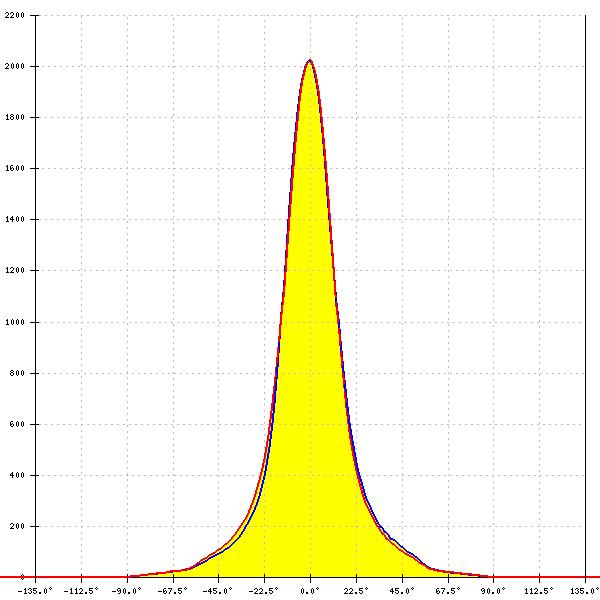

LED:

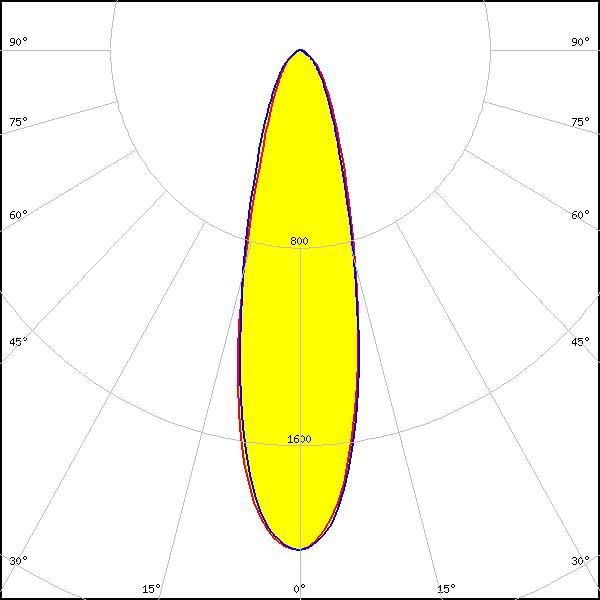

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
30°
FWTM:
68°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
FWHM:
29°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

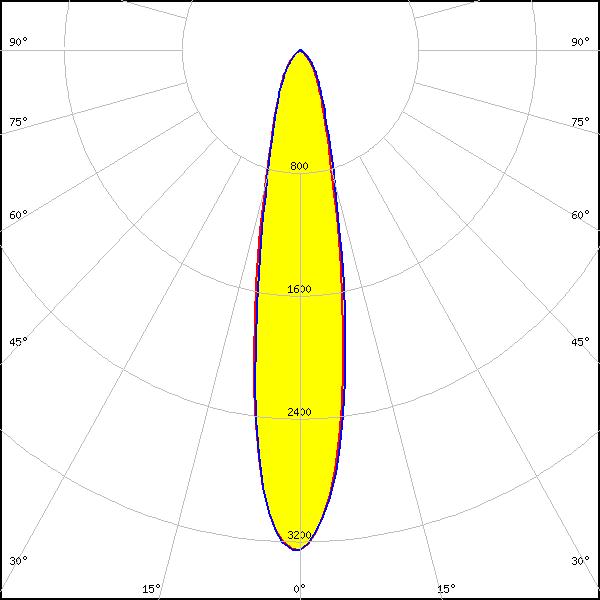

LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
20°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
FWHM:
22°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

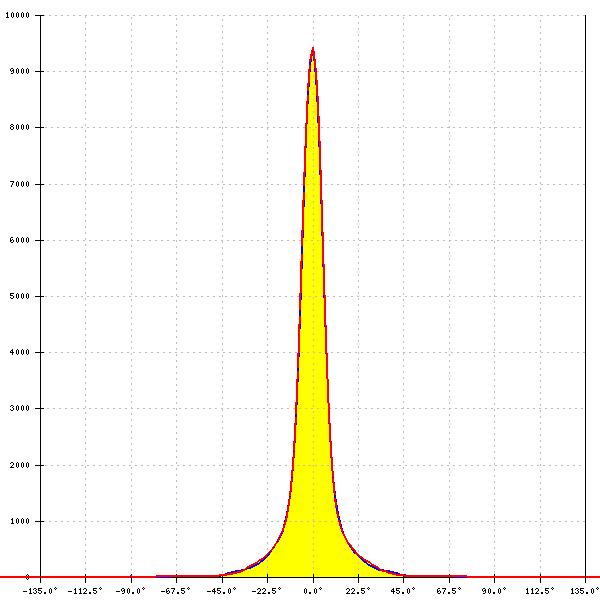

LED:
COB S-Type (LES 6)
LES size: 5.9 mm
FWHM:
12°
FWTM:
28°
Peak intensity:
9.437 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
FWHM:
18°
FWTM:
51°
Peak intensity:
4.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

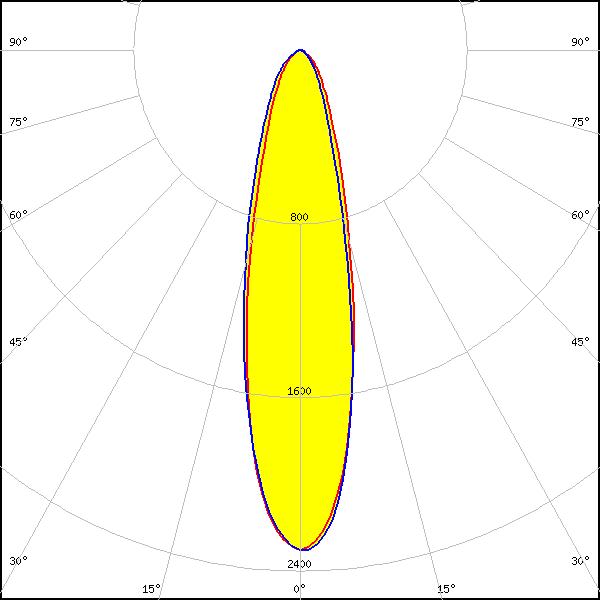

LED:
Soleriq S13
LES size: 13.2 mm
FWHM:
26°
FWTM:
64°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

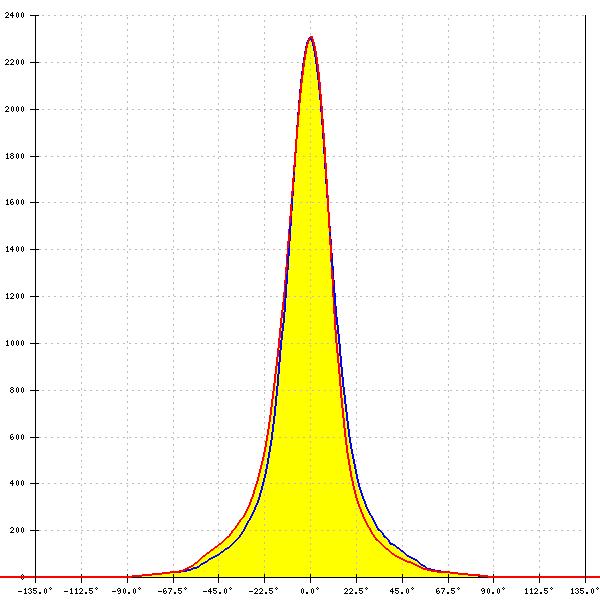

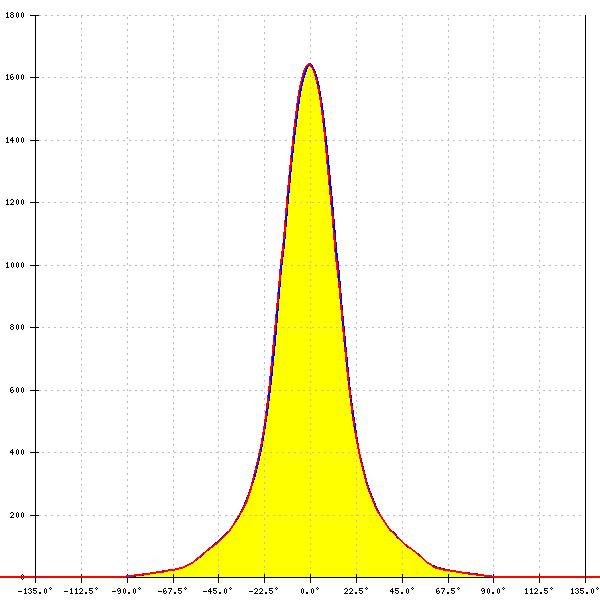

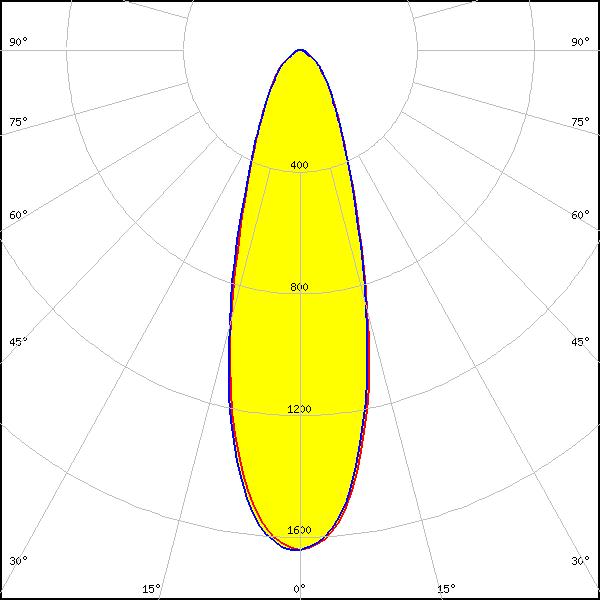

LED:
Soleriq S19
LES size: 17.9 mm
FWHM:
33°
FWTM:
77°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

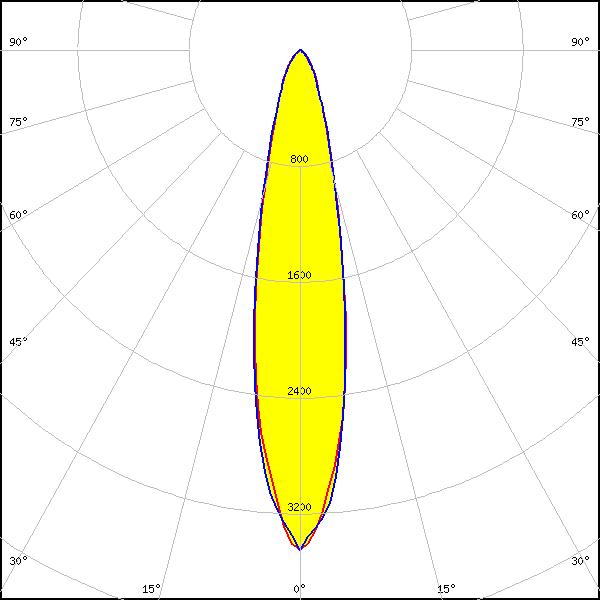

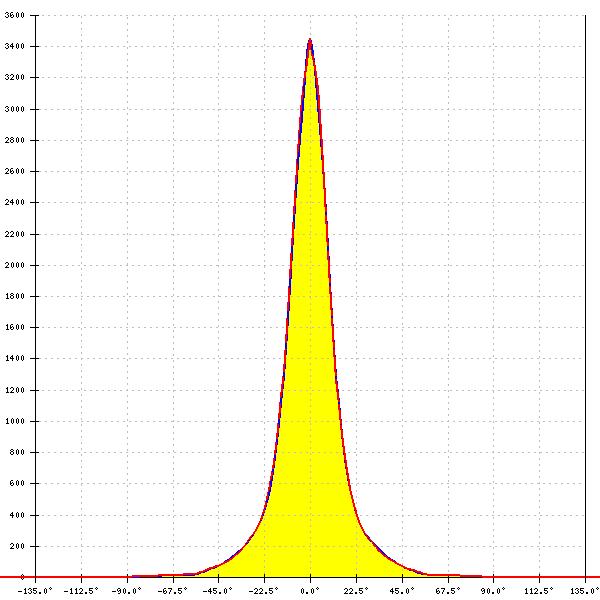

LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
22°
FWTM:
49°
Peak intensity:
3.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
LEDs/each optic:
1
Light colour/type:
White

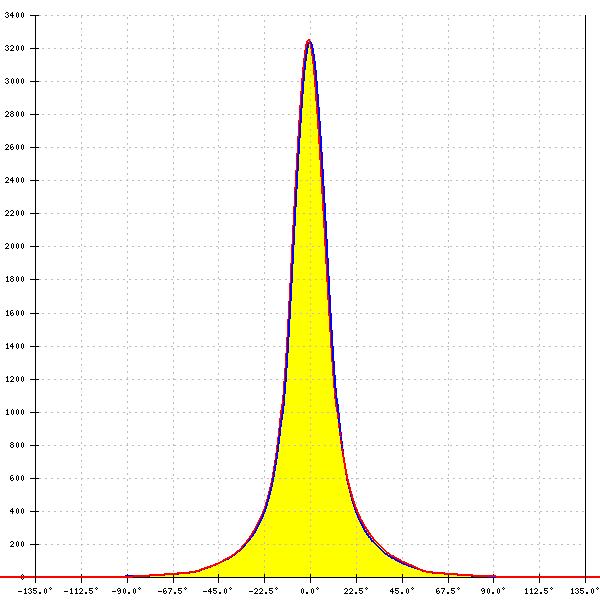

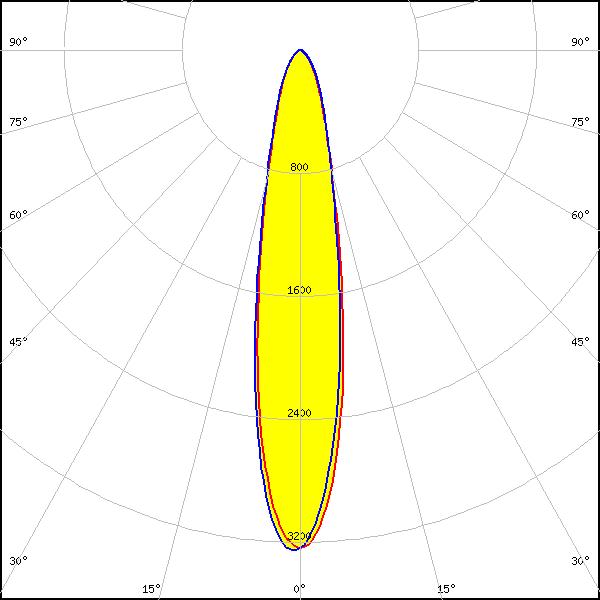

LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
FWHM:
20°
FWTM:
51°
Peak intensity:
3.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
12°
FWTM:
25°
Peak intensity:
10.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

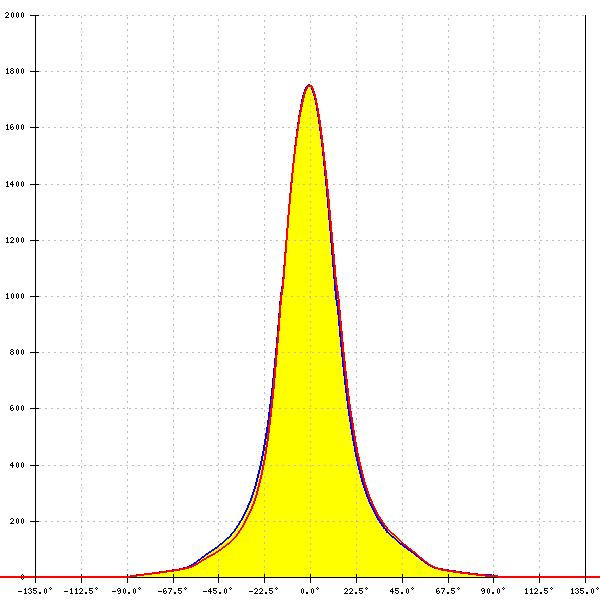

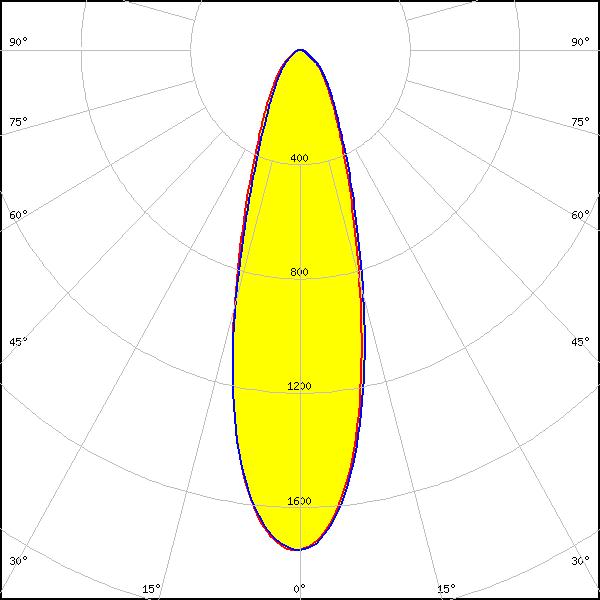

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM:
30°
FWTM:
72°
Peak intensity:
1.750 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
20°
FWTM:
46°
Peak intensity:
4.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
26°
FWTM:
59°
Peak intensity:
2.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
33°
FWTM:
79°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

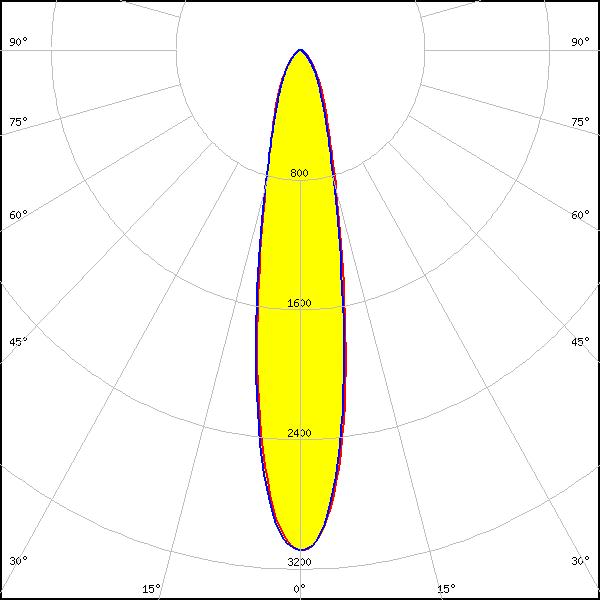

LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
21°
FWTM:
54°
Peak intensity:
3.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

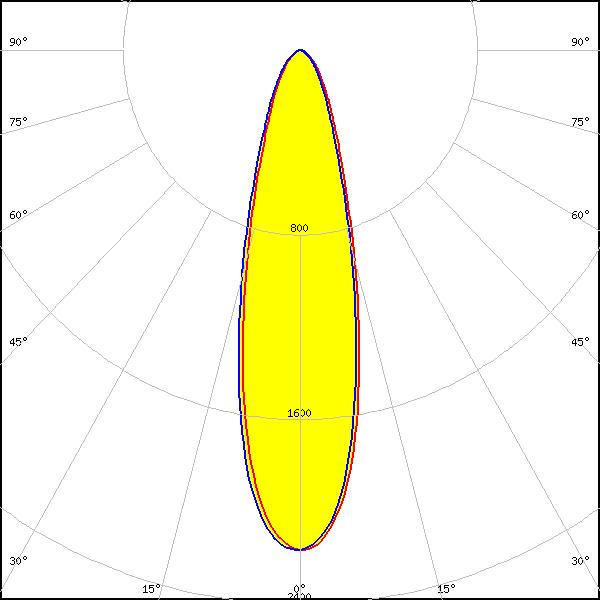

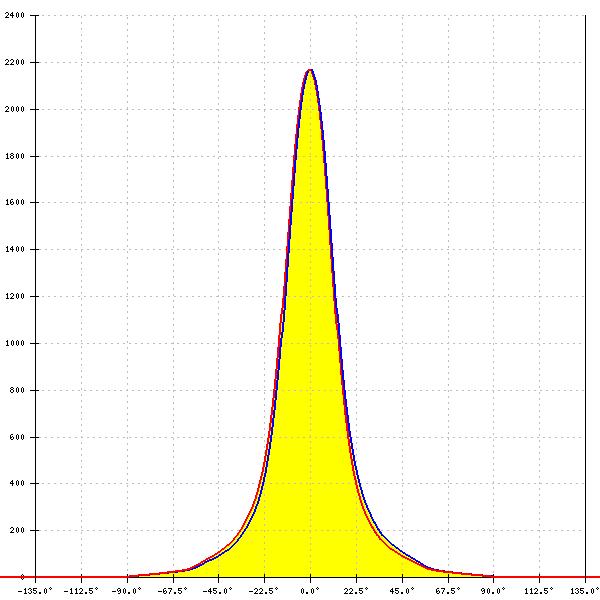

LED:
ZC12/18
LES size: 14.6 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
27°
FWTM:
64°
Peak intensity:
2.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

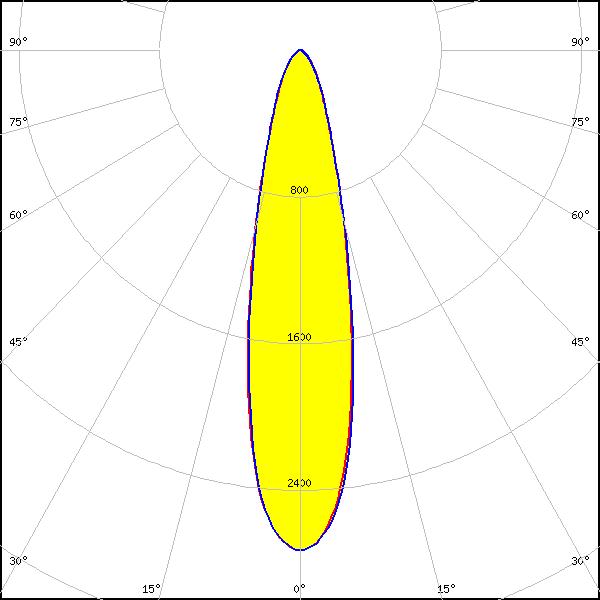

LED:
DMC 124 / 125
LES size: 11.1 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
24°
FWTM:
55°
Peak intensity:
2.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

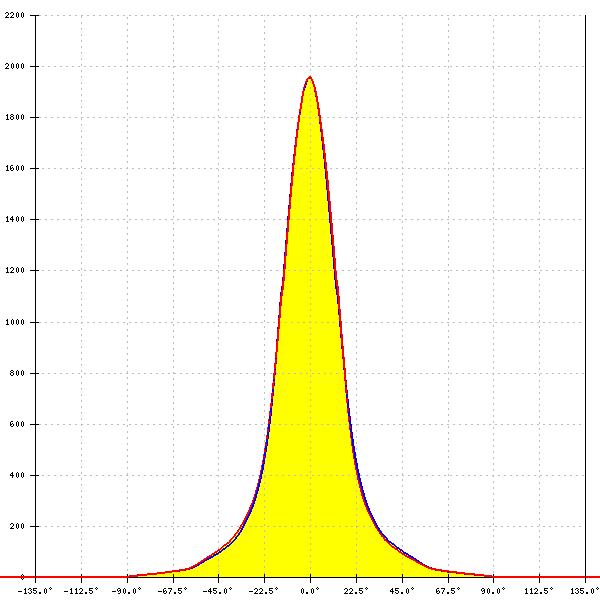

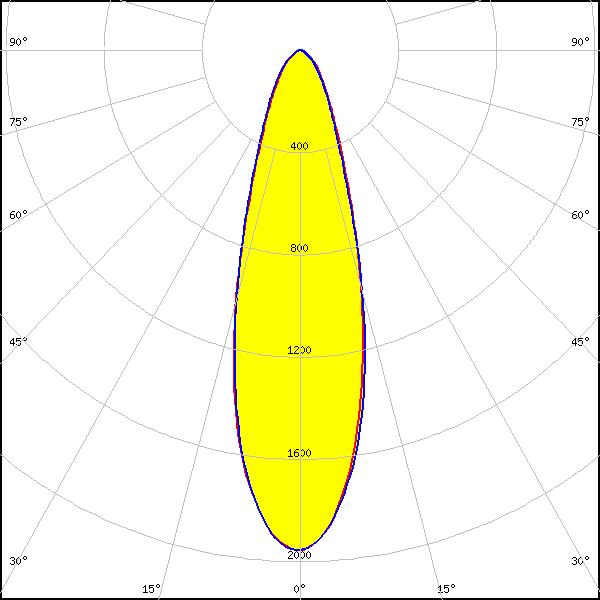

LED:
DMC 128
LES size: 13.8 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
30°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
