    CP10960_RGBX-SS

    Print

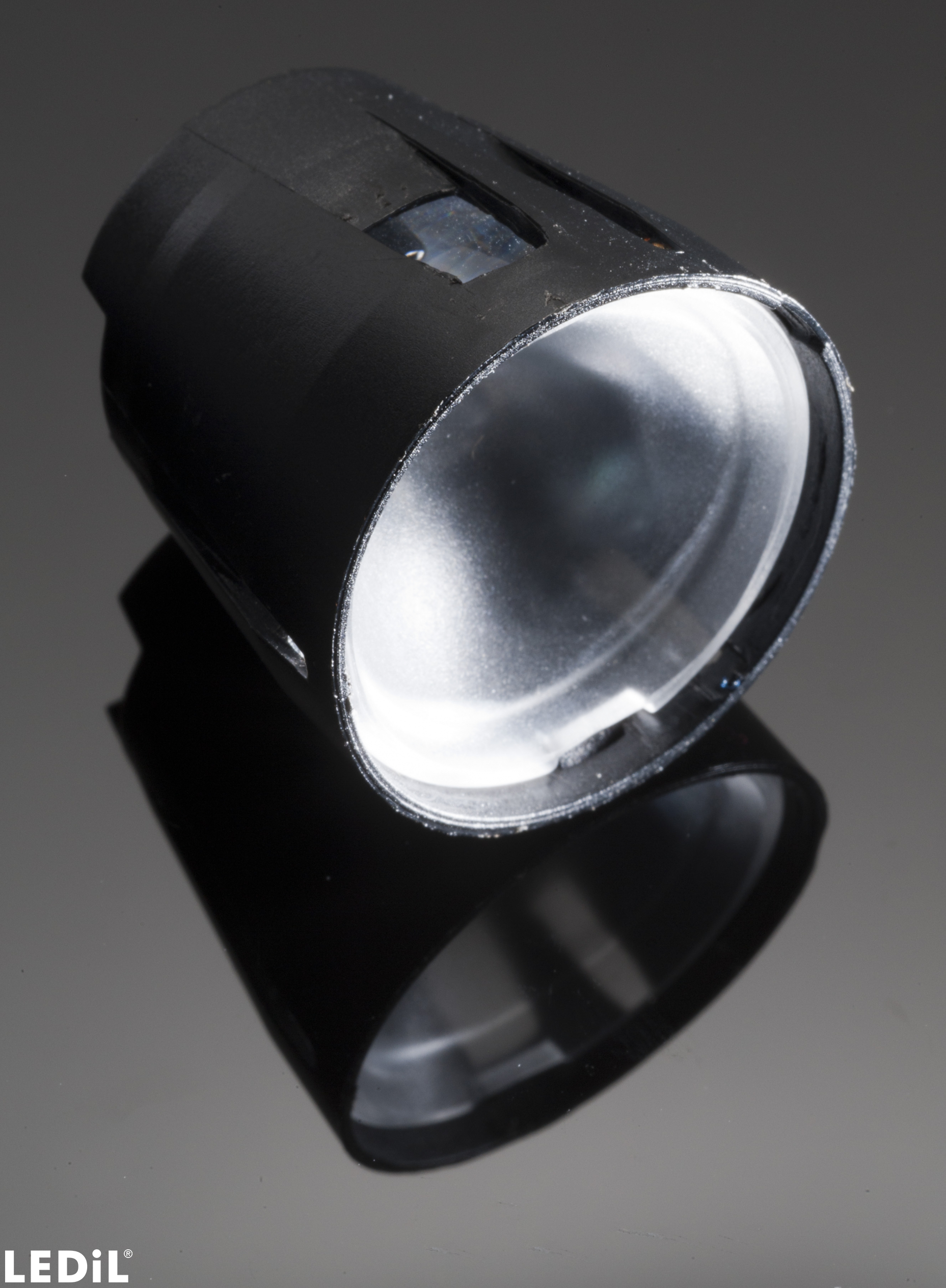

    ~20° smooth spot beam optimized for Osram Ostar-SMT RGB. Assembly with holder.

    Specification
    • Dimensions:
      30 mm
    • Height:
      28.00 mm
    • Fastening:
      glue
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      486 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.5 kg
    • MPQ:
      54 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP10960_RGBX-SS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Astrahanskiy Bridge

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Case story

    Fazer Visitor Centre

    Optical results

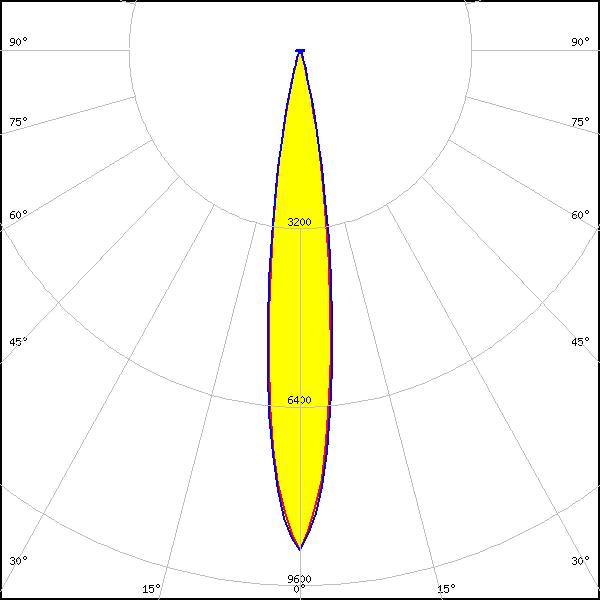

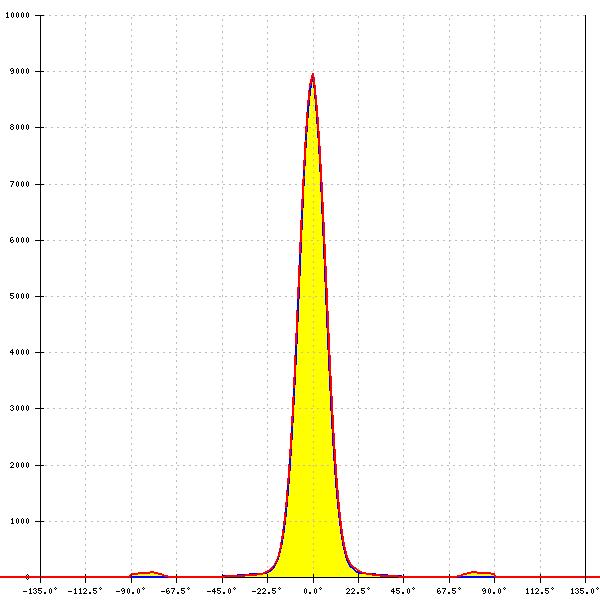

    LED: XB-D
    FWHM: 15°
    FWTM: 28°
    Peak intensity: 8.969 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 17°
    FWTM: 35°
    Peak intensity: 7.357 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

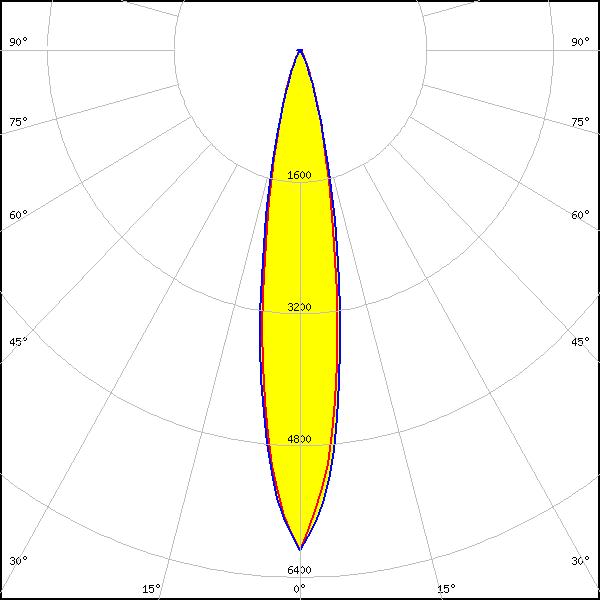

    LED: XP-G3
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 6.074 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

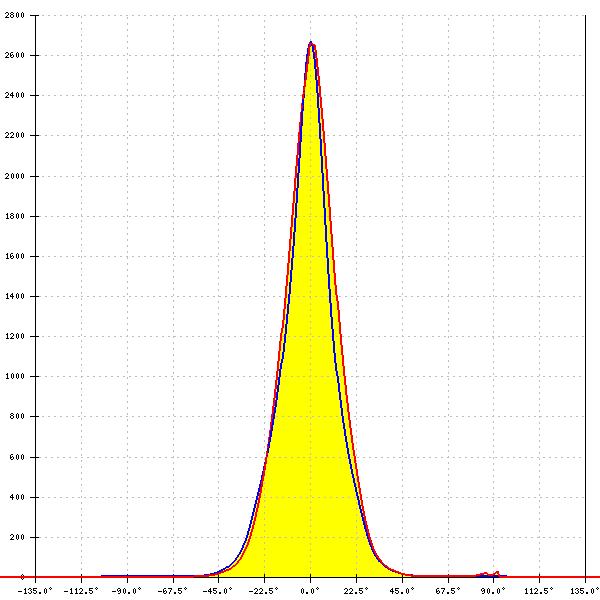

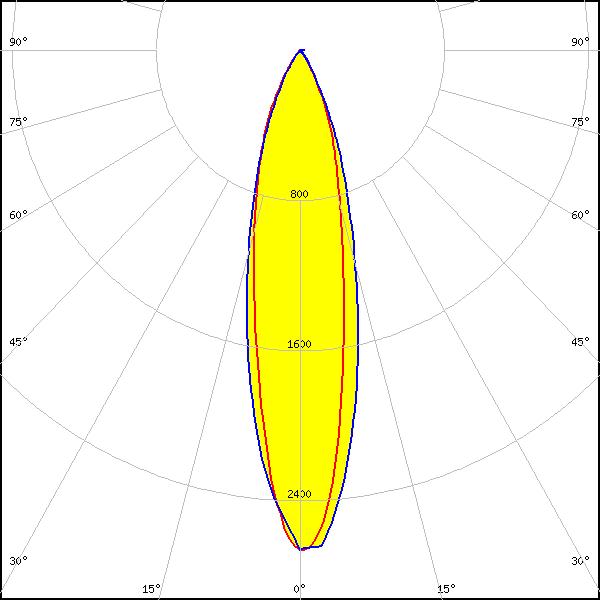

    LED: LUXEON C
    FWHM: 22°
    FWTM: 56°
    Peak intensity: 2.700 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: RGBW

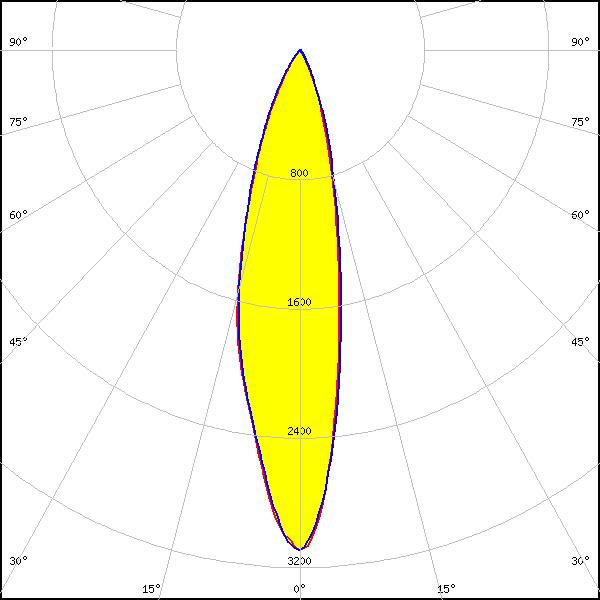

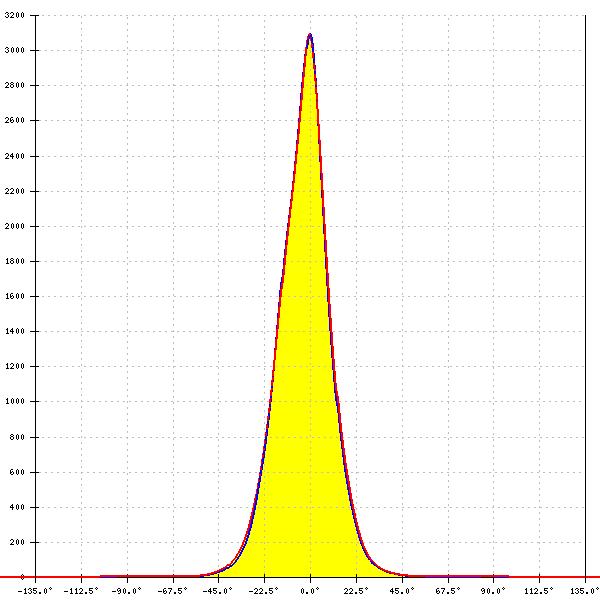

    LED: LUXEON CZ
    FWHM: 24°
    FWTM: 52°
    Peak intensity: 3.100 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 4
    Light colour/type: RGBW

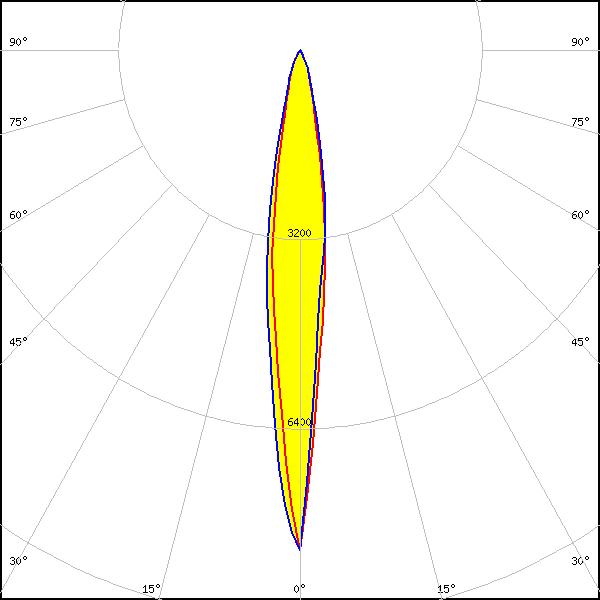

    LED: LUXEON Rubix
    FWHM: 12° + 13°
    FWTM: 31° + 33°
    Peak intensity: 8.453 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: SBM-40-RGBW
    FWHM: 19°
    FWTM: 46°
    Peak intensity: 4.100 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Pure 1414
    FWHM: 13°
    FWTM: 31°
    Peak intensity: 8.636 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: RGBW

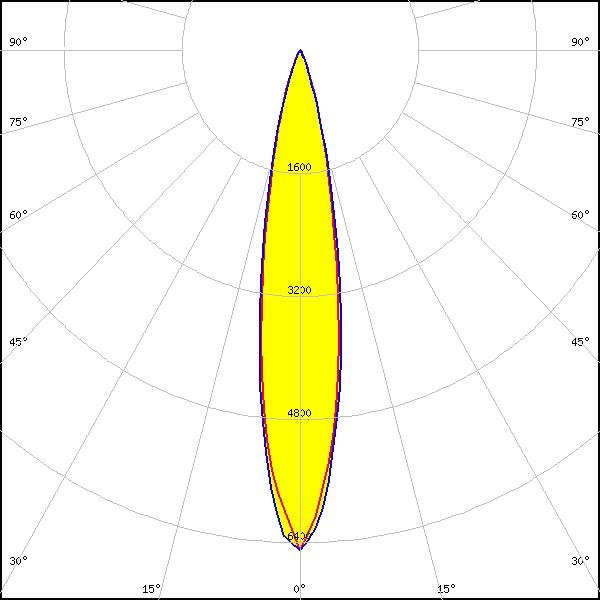

    LED: Ostar-SMT RGB
    FWHM: 18°
    FWTM: 45°
    Peak intensity: 4.400 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
