CP13939_RGBX2-O
Print

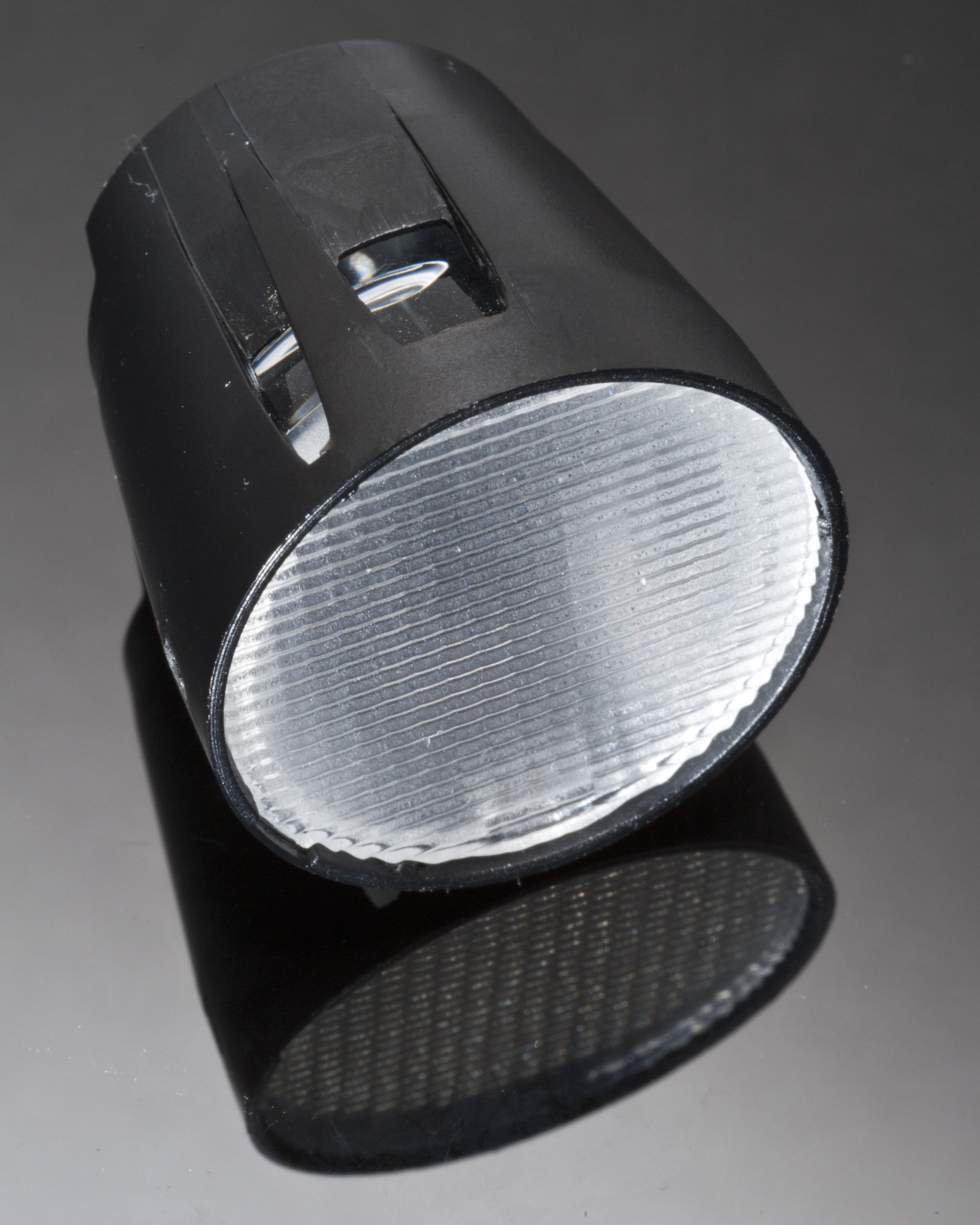

~50°+ 24° oval beam optimized for CREE XM-L RGB. Assembly with colour mixing sublens and holder.
Component Materials
- RGBX2-SSingle lensPMMA
- RGBX-HLDHolderPC
- RGBX-O-SUBSublensPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

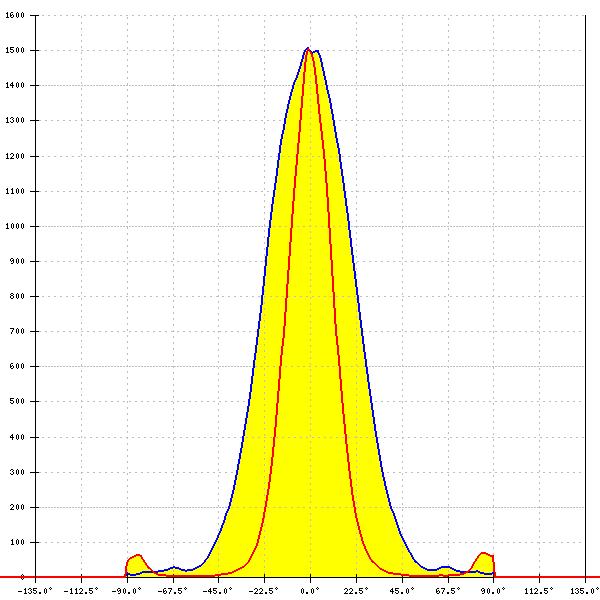

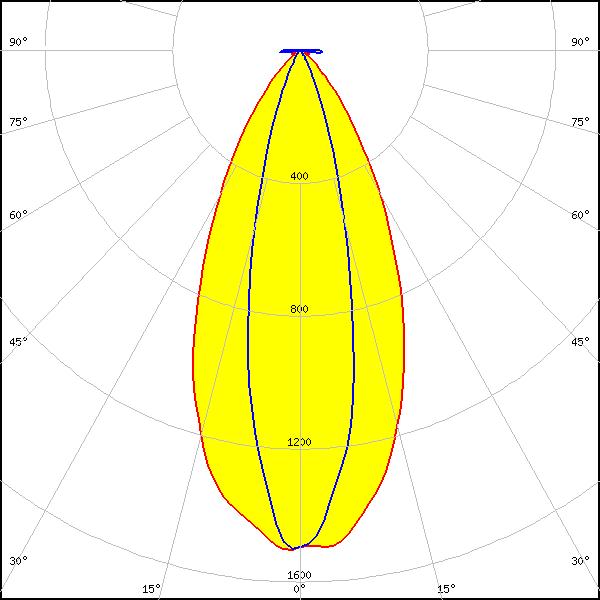

LED:
XB-D
FWHM:
48° + 24°
FWTM:
86° + 46°
Peak intensity:
1.516 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

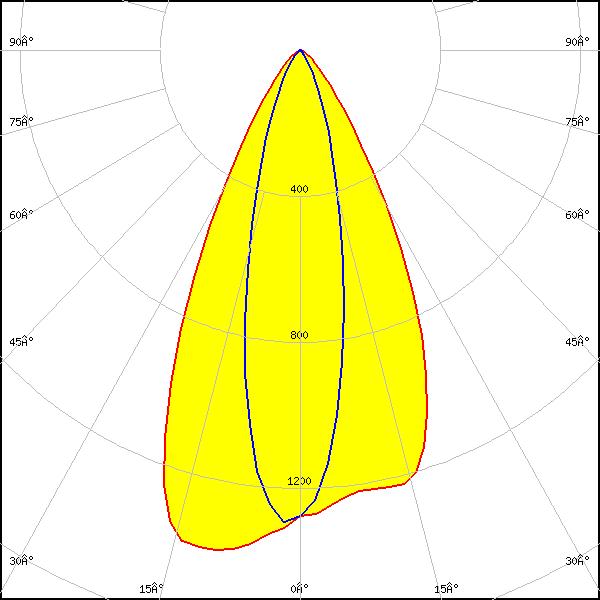

LED:
XM-L RGBW (XMLCTW)
FWHM:
48° + 24°
FWTM:
86° + 54°
Peak intensity:
1.480 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLDCL HD)
FWHM:
52° + 19°
FWTM:
82° + 37°
Peak intensity:
2.007 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XM-L RGBW (XMLDCL HI)
FWHM:
52° + 16°
FWTM:
80° + 39°
Peak intensity:
2.163 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
RGBW

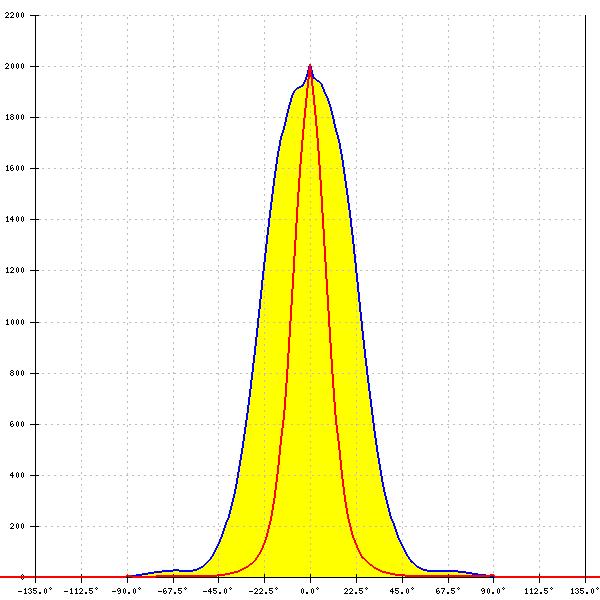

LED:
XP-E2
FWHM:
50° + 20°
FWTM:
82° + 40°
Peak intensity:
2.007 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

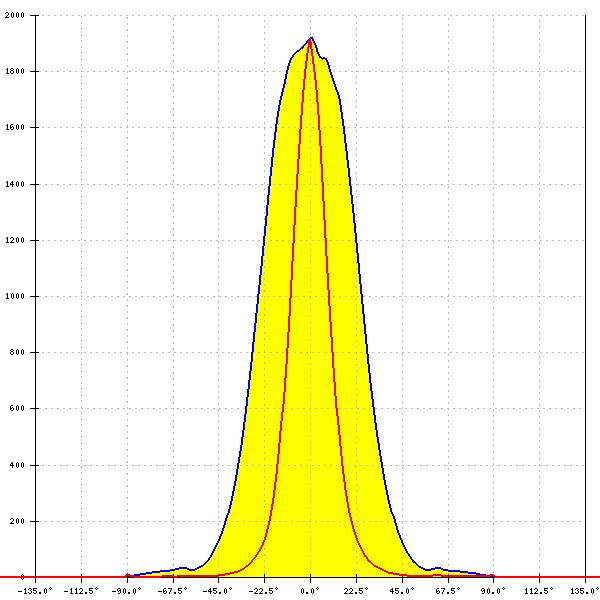

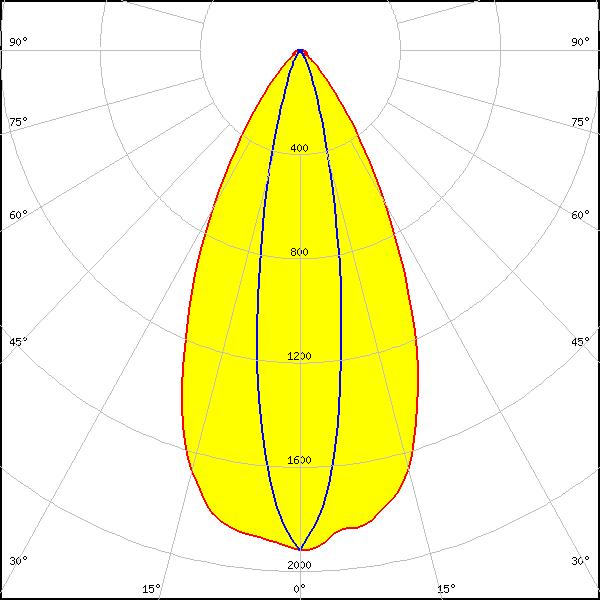

LED:
XP-G2
FWHM:
52° + 20°
FWTM:
84° + 40°
Peak intensity:
1.923 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

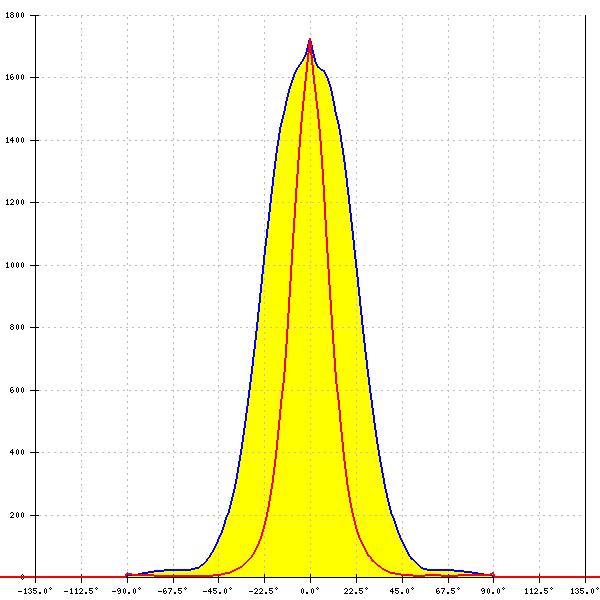

LED:

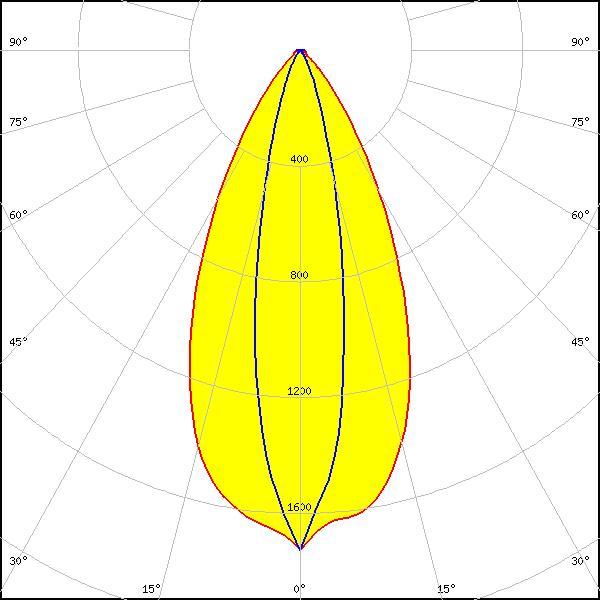

XP-G3
FWHM:
50° + 22°
FWTM:
84° + 44°
Peak intensity:
1.728 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

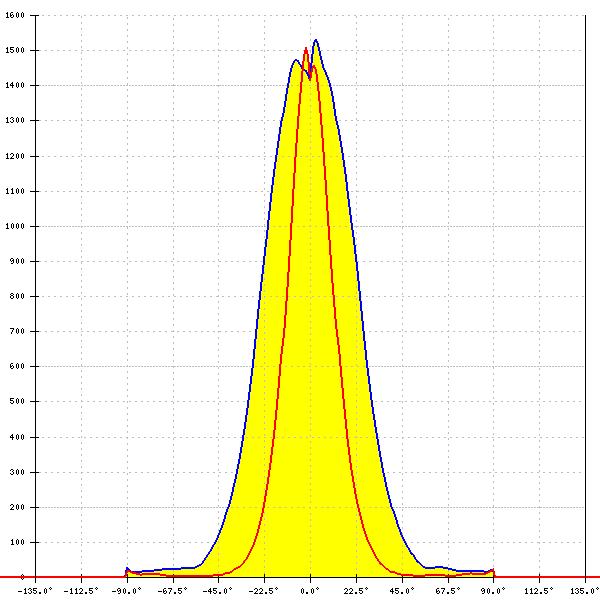

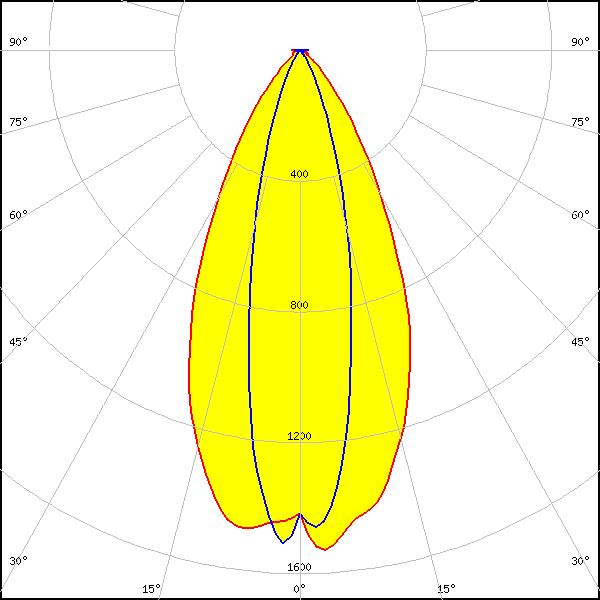

LED:
XQ-E HI
FWHM:
50° + 24°
FWTM:
86° + 51°
Peak intensity:
1.560 cd/lm
Efficiency:
70 %
LEDs/each optic:
4
Light colour/type:
RGBW

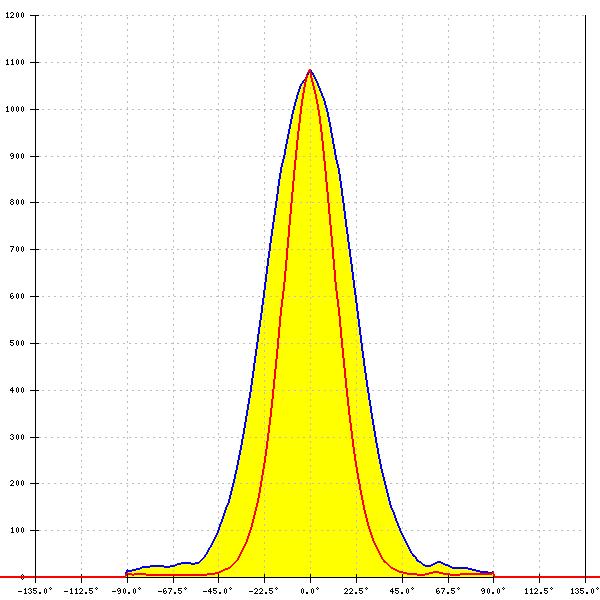

LED:
LUXEON C
FWHM:
49° + 30°
FWTM:
87° + 58°
Peak intensity:
1.084 cd/lm
Efficiency:
57 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
OSLON Pure 1414
FWHM:
52° + 20°
FWTM:
82° + 42°
Peak intensity:
1.963 cd/lm
Efficiency:
74 %
LEDs/each optic:
4
Light colour/type:
RGBW
