CP15212_CARMEN-S-B

Print

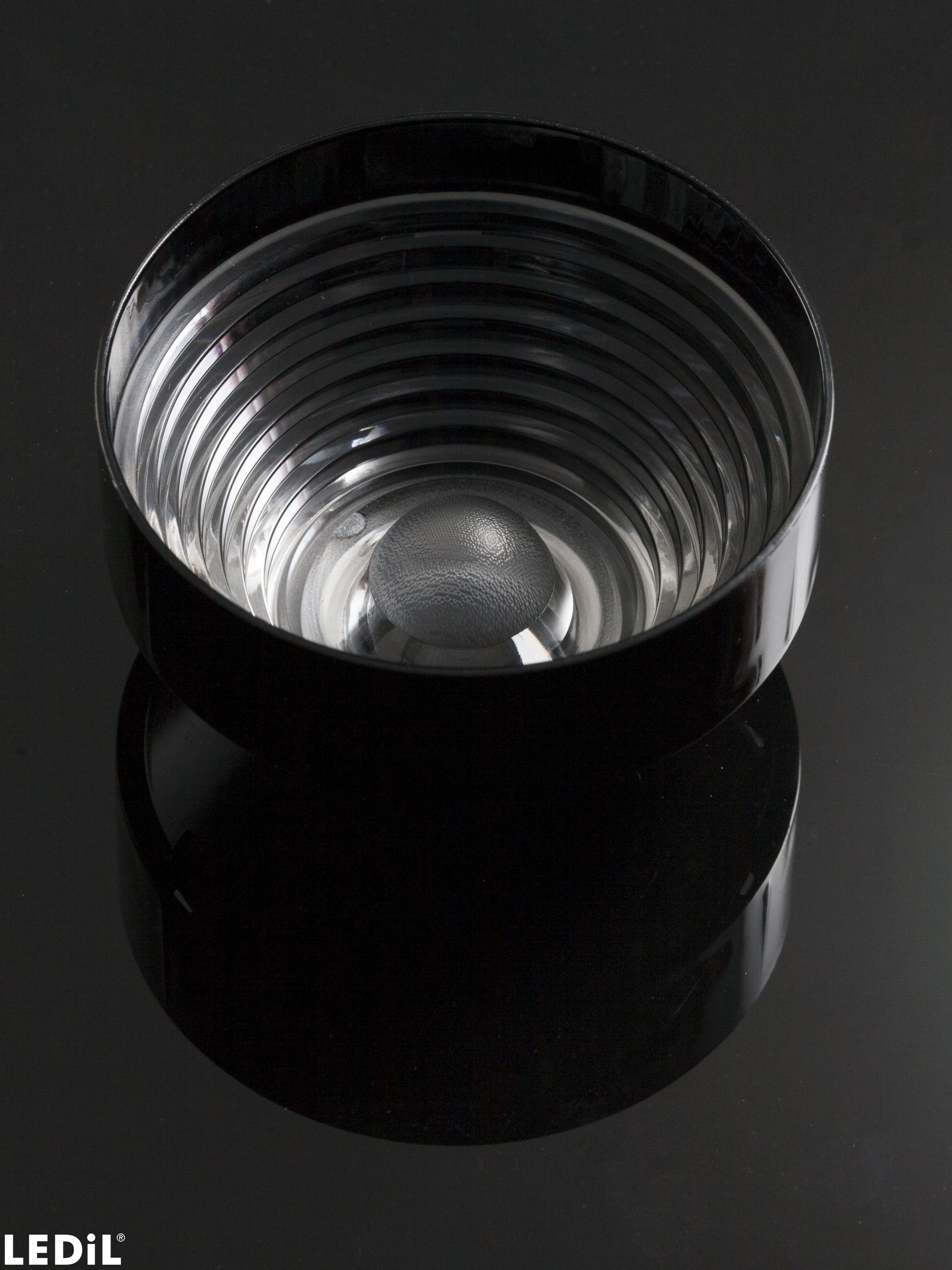

~14° spot beam. Assembly with holder B compatible with ∅40 mm BJB and B+W connectors.

Specification
  • Dimensions:
    70 mm
  • Height:
    36.26 mm
  • Fastening:
    socket
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    150 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    6.1 kg
  • MPQ:
    15 pcs
  • MOQ:
    150 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    6.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP15212_CARMEN-S-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

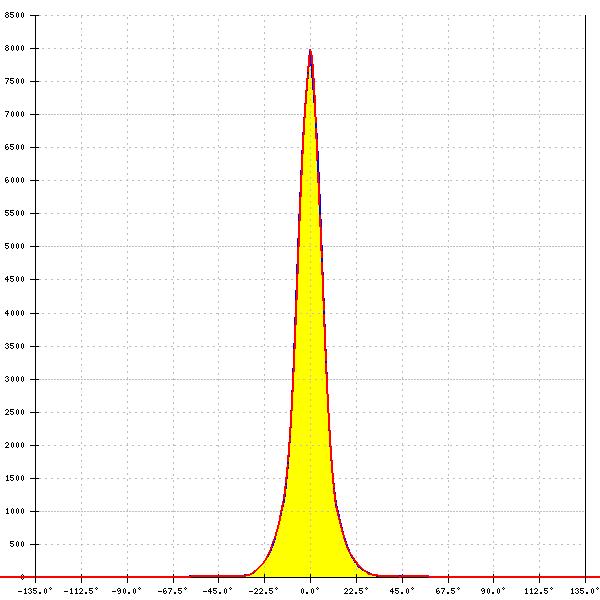

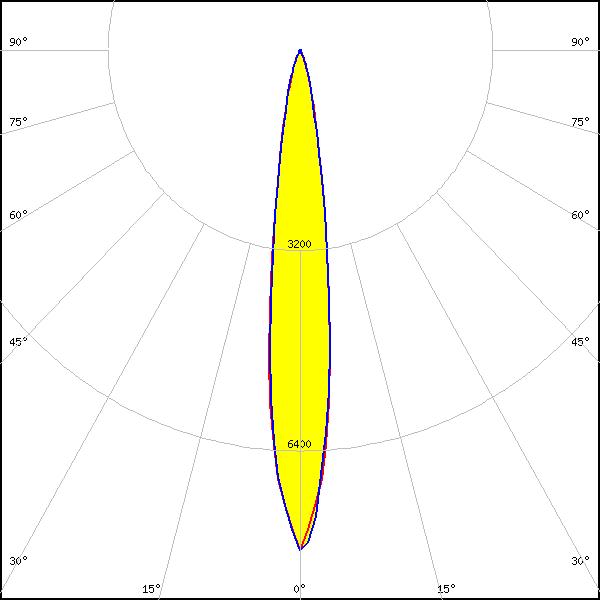

LED: V10 Gen6
LES size: 9.9 mm
Required components:
BJB: 47.319.6214
FWHM: 14°
FWTM: 30°
Peak intensity: 8.000 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

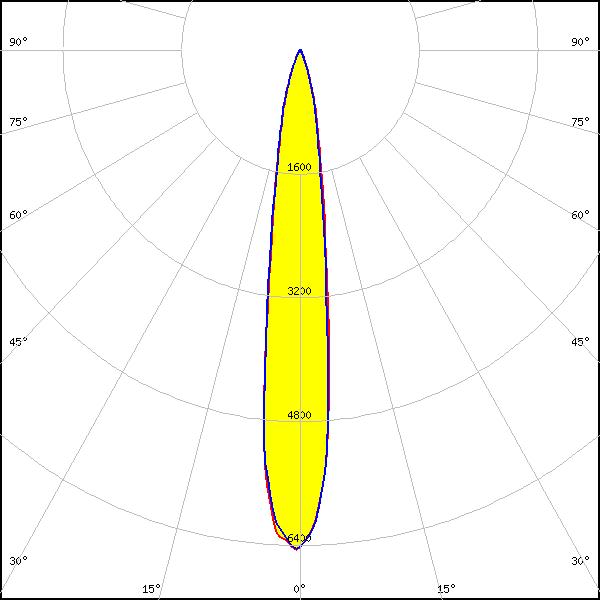

LED: V10 Gen7
LES size: 10.2 mm
Required components:
BJB: 47.319.6060
FWHM: 14°
FWTM: 34°
Peak intensity: 6.500 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen6
LES size: 13.4 mm
Required components:
BJB: 47.319.6264
LEDs/each optic: 1
Light colour/type: White
LED: CLL01x
LES size: 6.0 mm
LEDs/each optic: 1
Light colour/type: White

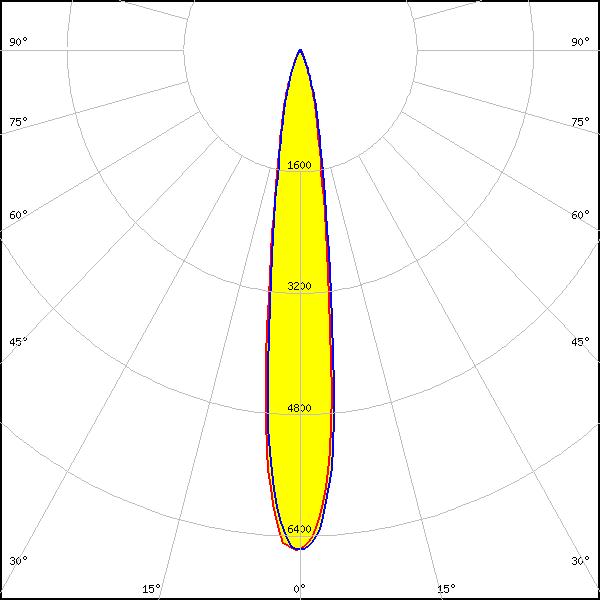

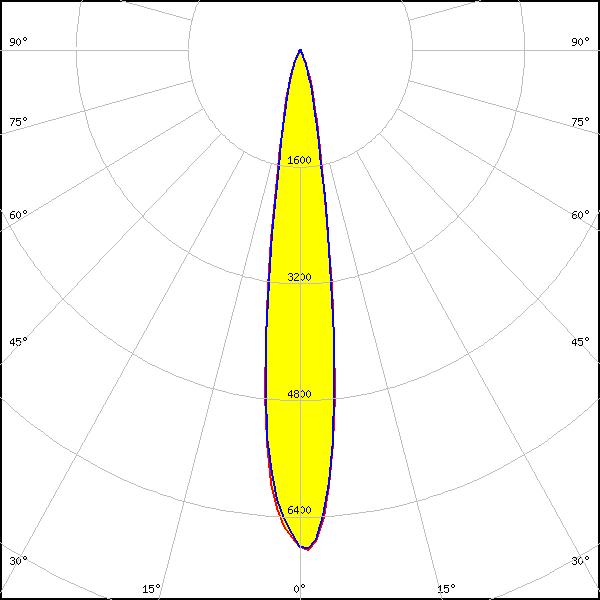

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
BJB: 47.319.6060
FWHM: 16°
FWTM: 32°
Peak intensity: 6.900 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

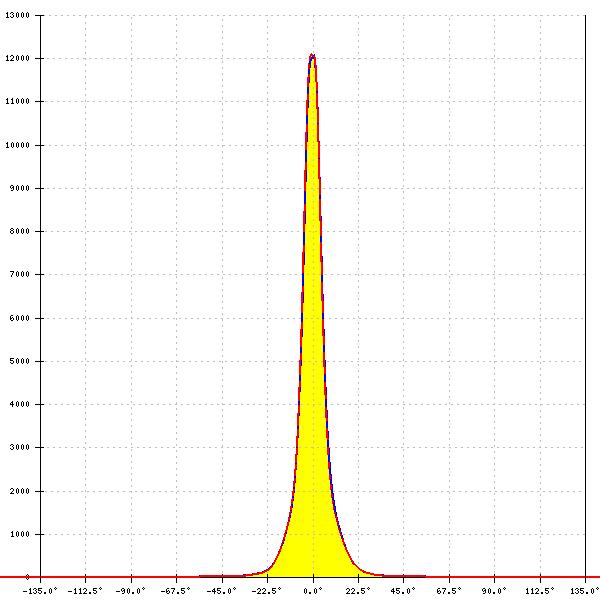

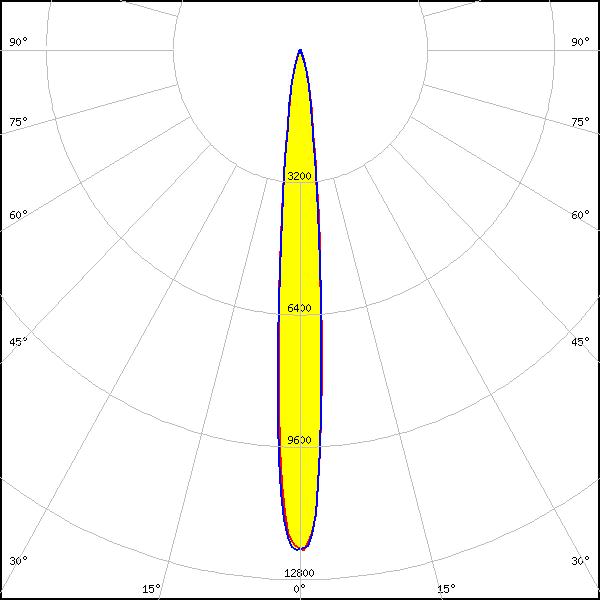

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
BJB: 47.319.6060
FWHM: 10°
FWTM: 25°
Peak intensity: 12.000 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

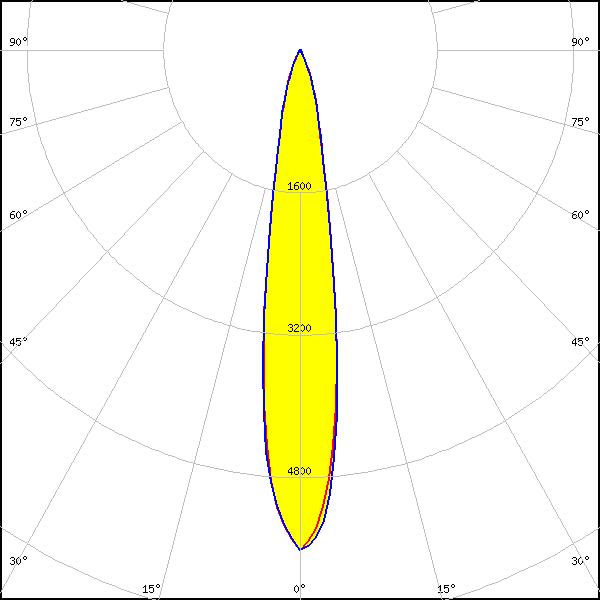

LED: CLU720/721/723
LES size: 11.0 mm
FWHM: 17°
FWTM: 37°
Peak intensity: 5.600 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

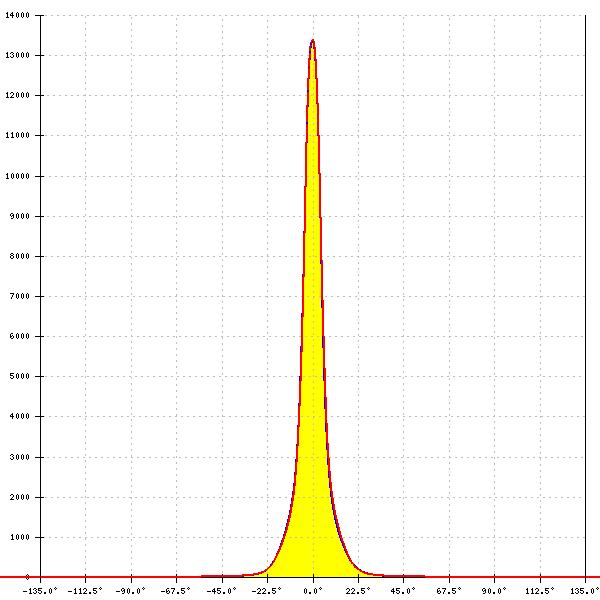

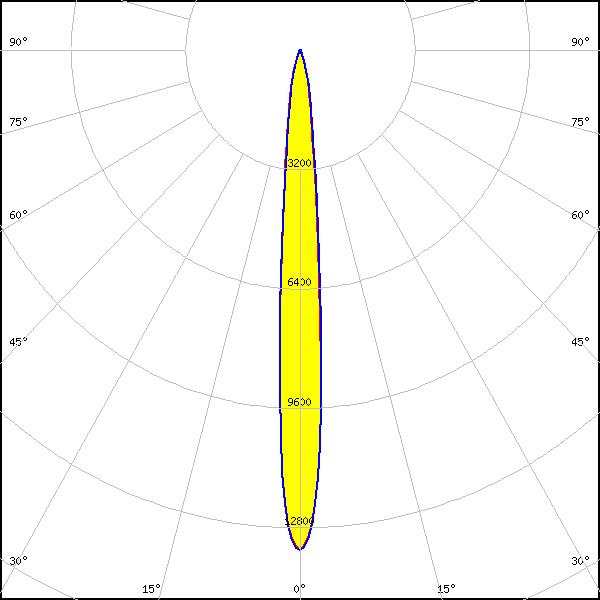

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
BJB: 47.319.6120
FWHM: 9°
FWTM: 24°
Peak intensity: 13.000 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

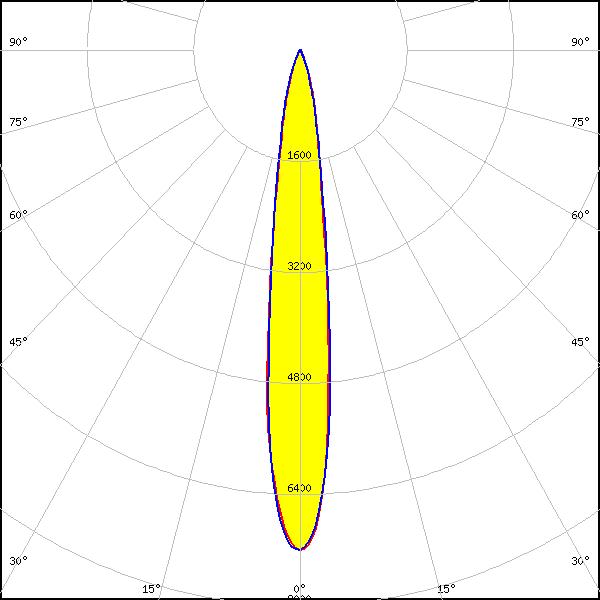

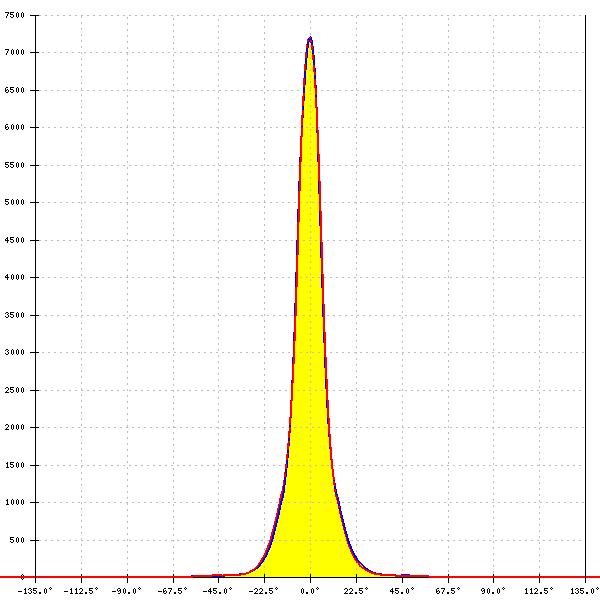

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
BJB: 47.319.6101
FWHM: 14°
FWTM: 33°
Peak intensity: 7.200 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
LEDs/each optic: 1
Light colour/type: White

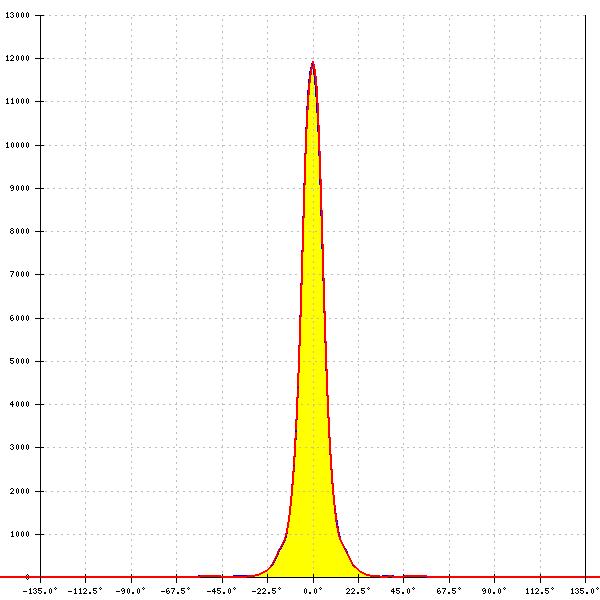

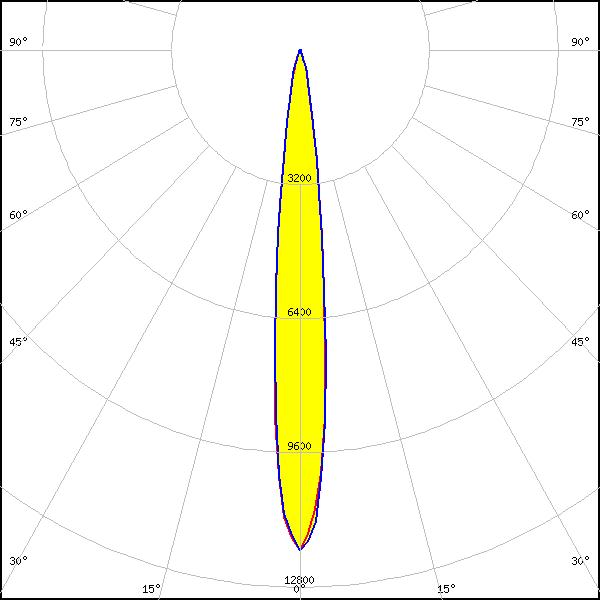

LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
BJB: 47.319.6180
FWHM: 12°
FWTM: 24°
Peak intensity: 11.900 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
A.A.G. STUCCHI: 8100-G2
FWHM: 15°
FWTM: 35°
Peak intensity: 6.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
BJB: 47.319.6060
FWHM: 15°
FWTM: 35°
Peak intensity: 6.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

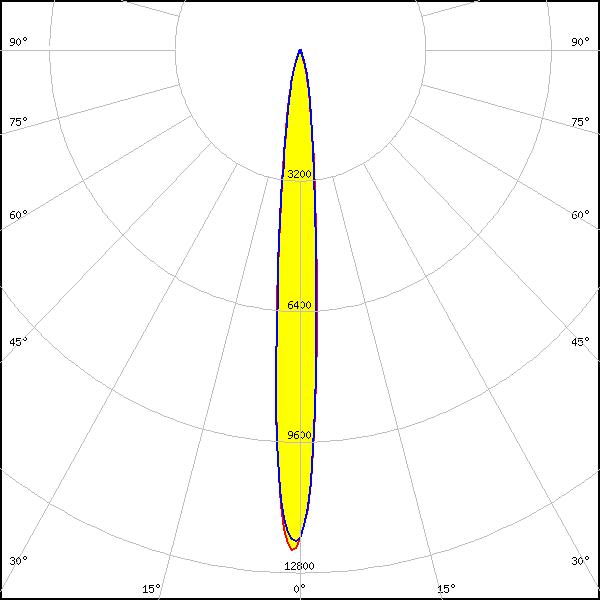

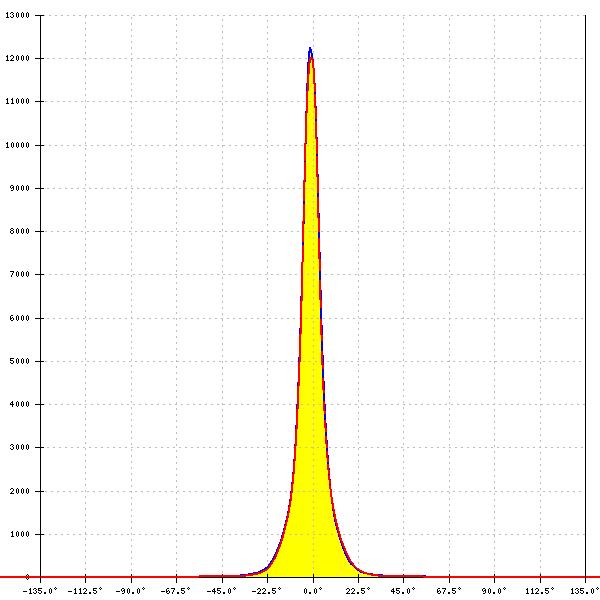

LED: MJT COB LES 6
LES size: 6.0 mm
Required components:
BJB: 47.319.6060
FWHM: 10°
FWTM: 25°
Peak intensity: 12.300 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
