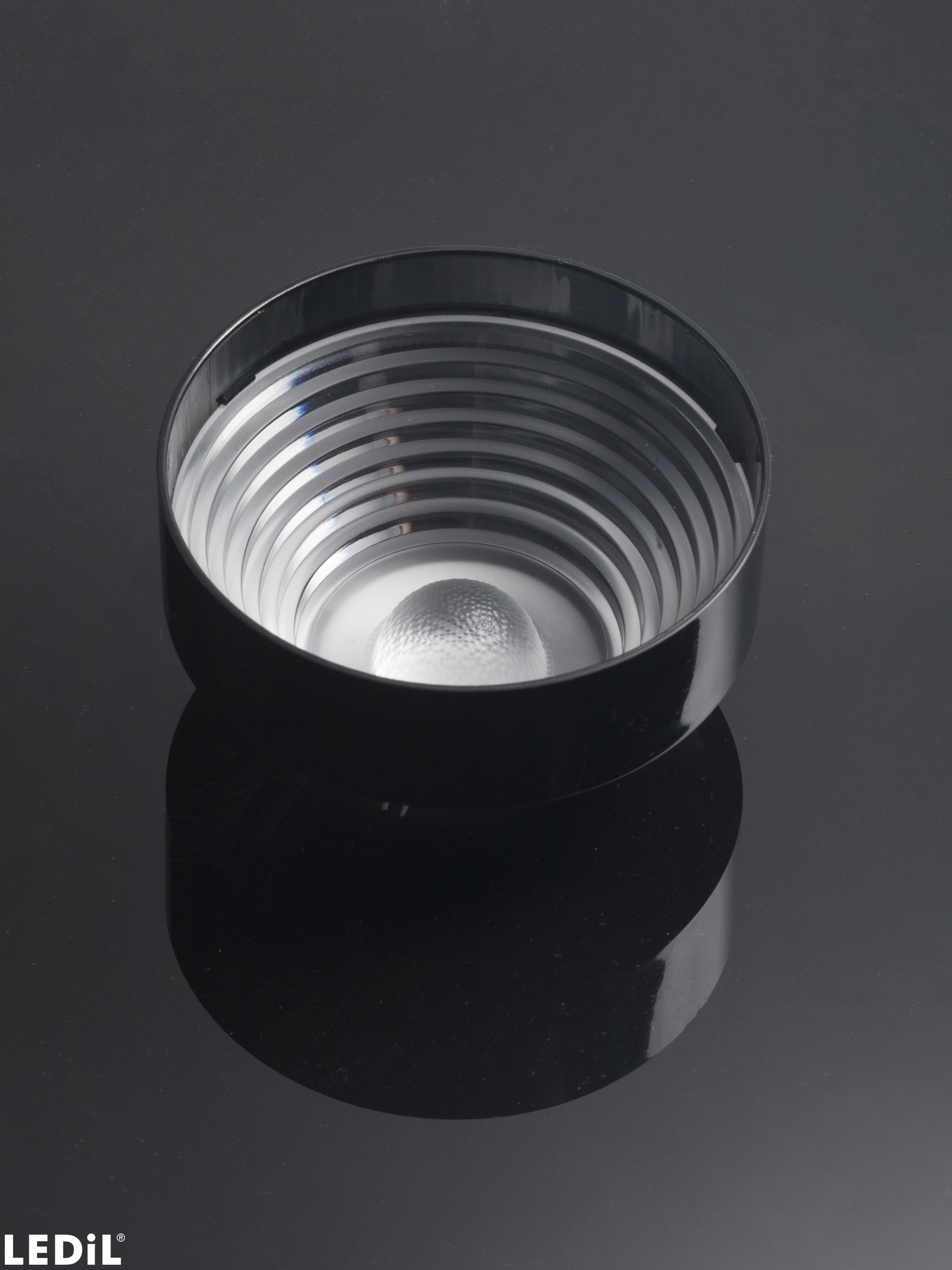

    CP15215_CARMEN-M-B

    Print

    ~35° medium beam. Assembly with holder B compatible with ∅40 mm BJB and B+W connectors.

    Specification
    • Dimensions:
      70 mm
    • Height:
      36.26 mm
    • Fastening:
      socket
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      150 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      6.0 kg
    • MPQ:
      15 pcs
    • MOQ:
      150 pcs
    • MOQ weight:
      6.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP15215_CARMEN-M-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - CARMEN

    PCN

    Product change notification NR120.a - Change of packaging quantities 270516

    Compatibility guide

    LEDiL connector and socket compatibility guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Platek floodlight

    News

    PRODUCT NEWS - CARMEN

    News

    Effective fashion retail lighting

    News

    HEKLA - Innovative family of sockets and solderless connectors

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

    LED: V10 Gen6
    LES size: 9.9 mm
    Required components:
    BJB: 47.319.6214
    LEDs/each optic: 1
    Light colour/type: White

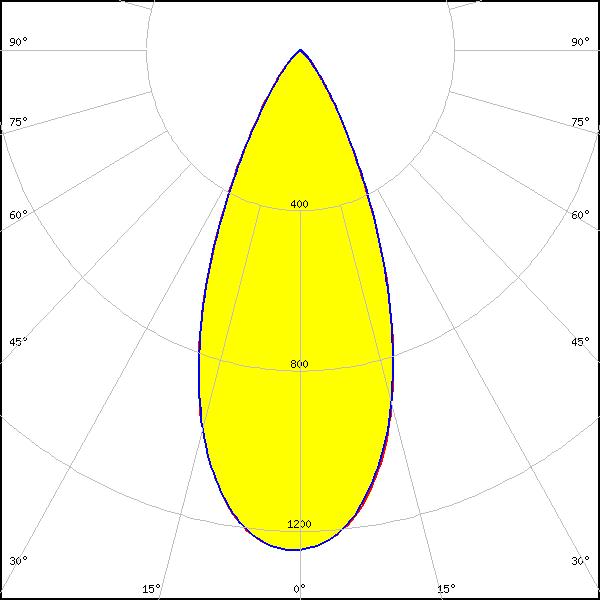

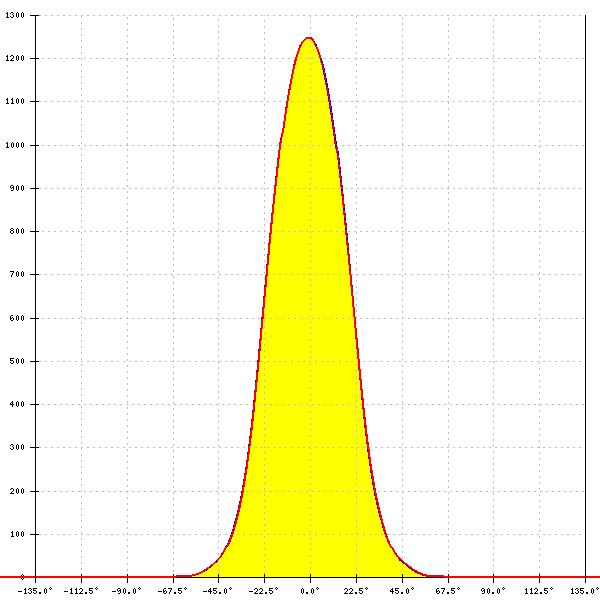

    LED: V10 Gen7
    LES size: 10.2 mm
    Required components:
    BJB: 47.319.6060
    FWHM: 44°
    FWTM: 73°
    Peak intensity: 1.200 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: V13 Gen6
    LES size: 13.4 mm
    Required components:
    BJB: 47.319.6264
    LEDs/each optic: 1
    Light colour/type: White

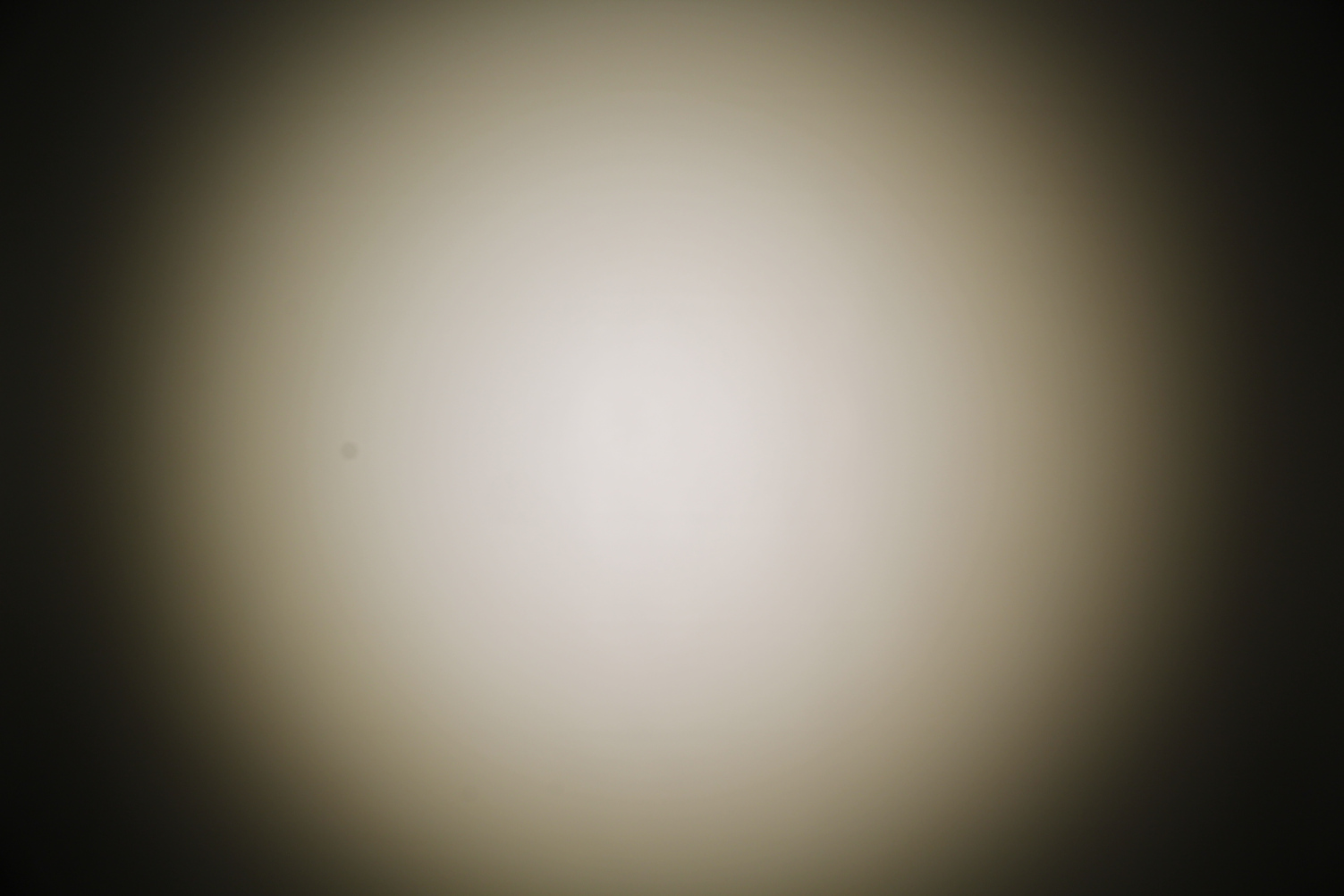

    LED: CLL01x
    LES size: 6.0 mm
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    BJB: 47.319.6060
    LEDs/each optic: 1
    Light colour/type: White

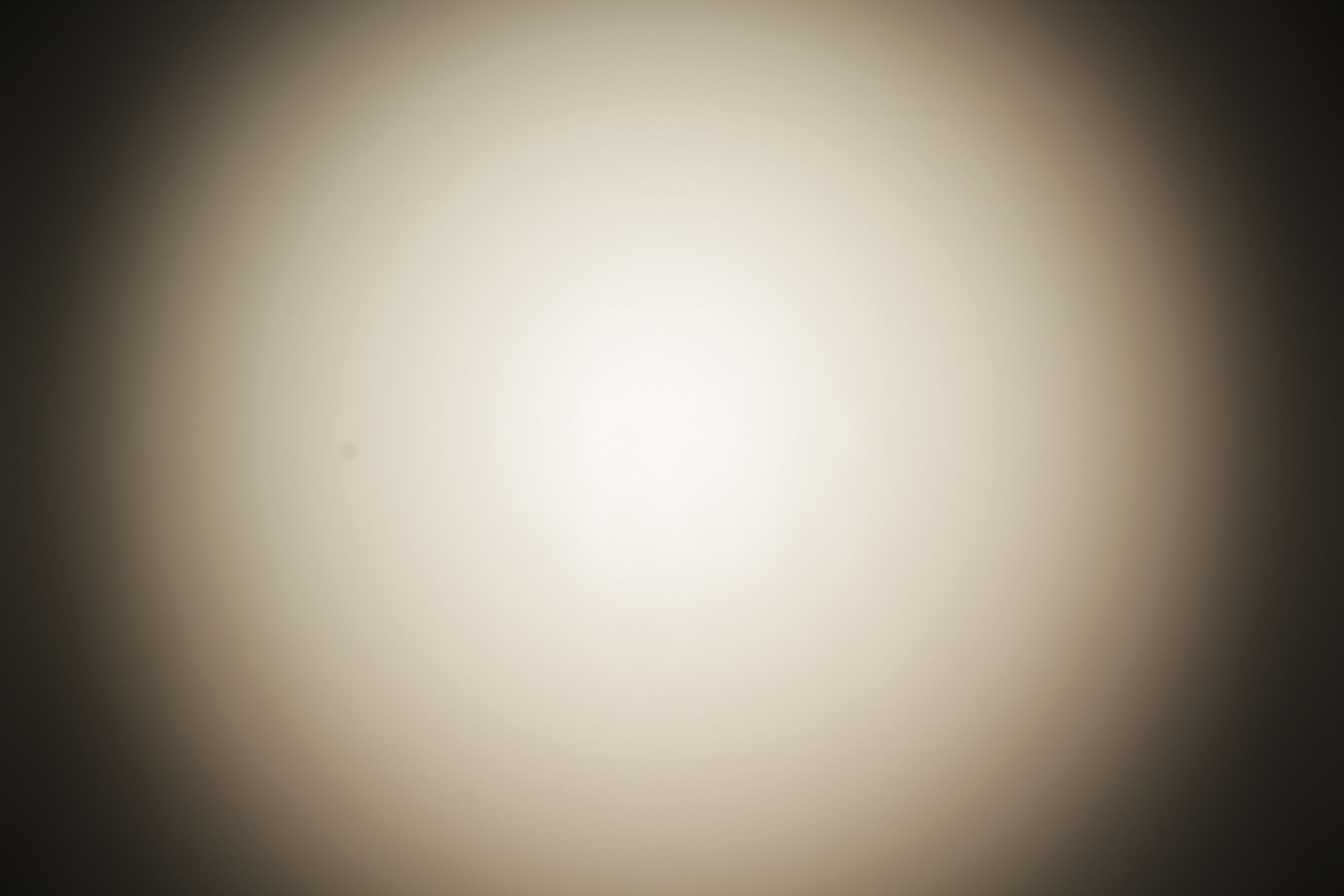

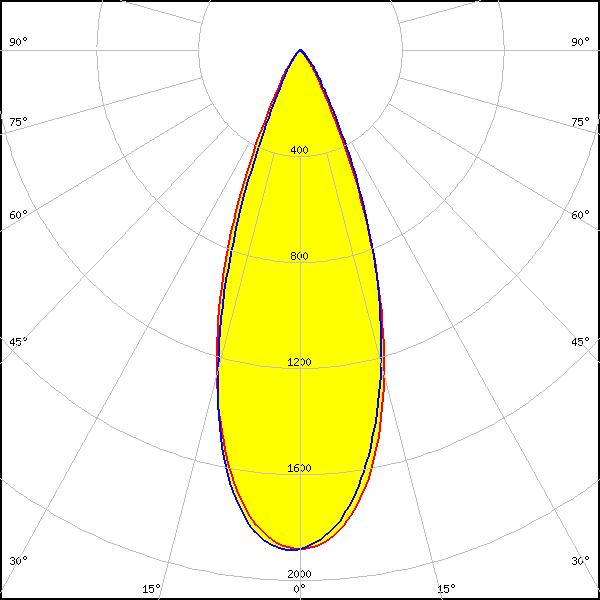

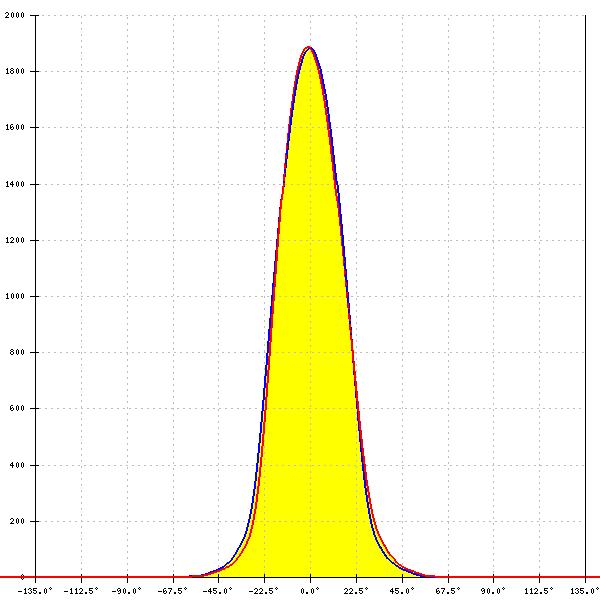

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    BJB: 47.319.6060
    FWHM: 38°
    FWTM: 60°
    Peak intensity: 1.900 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

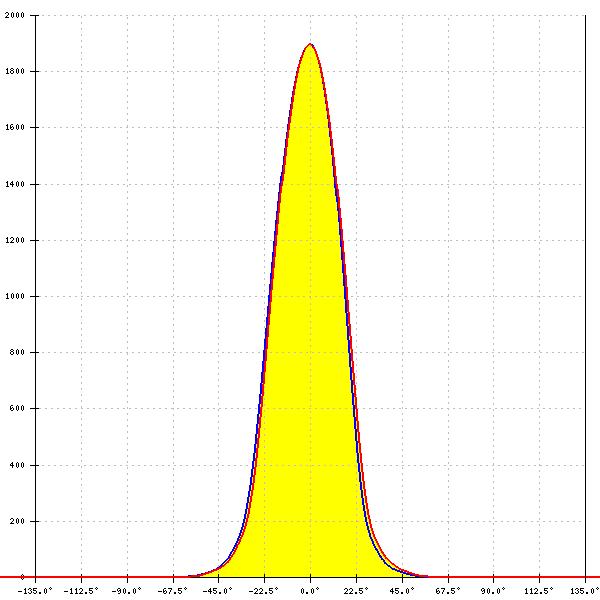

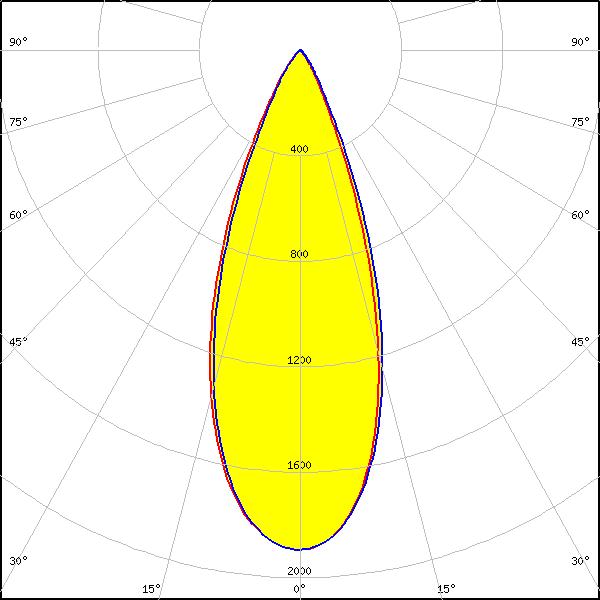

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    BJB: 47.319.6120
    FWHM: 38°
    FWTM: 61°
    Peak intensity: 1.900 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

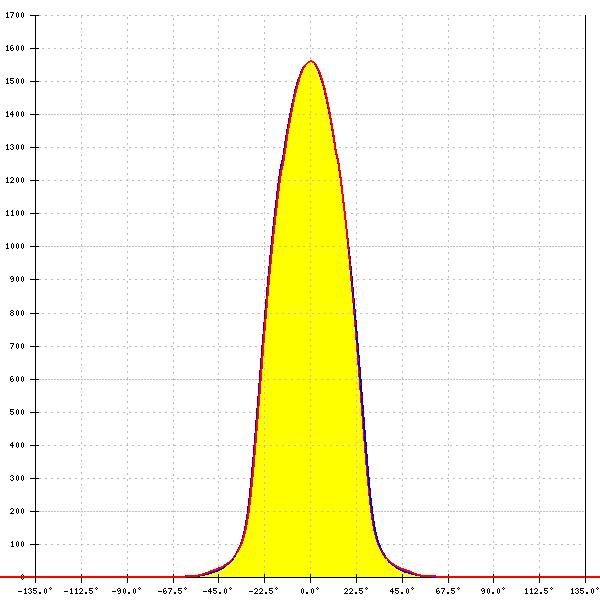

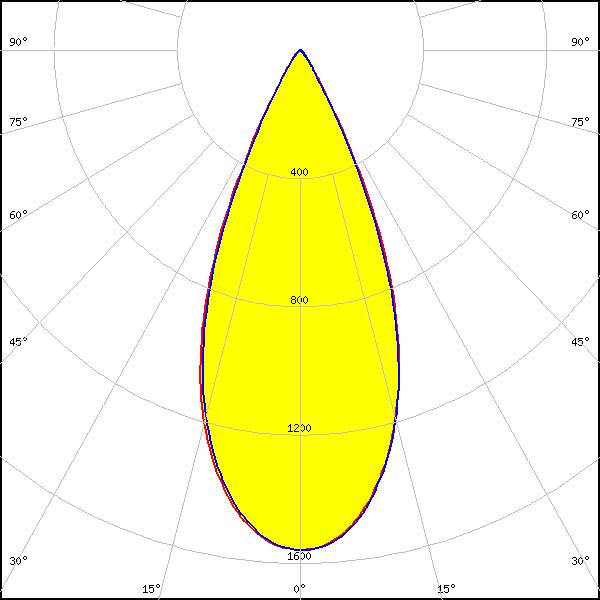

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    BJB: 47.319.6101
    FWHM: 44°
    FWTM: 63°
    Peak intensity: 1.600 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB Compact
    LES size: 6.5 mm
    LEDs/each optic: 1
    Light colour/type: White

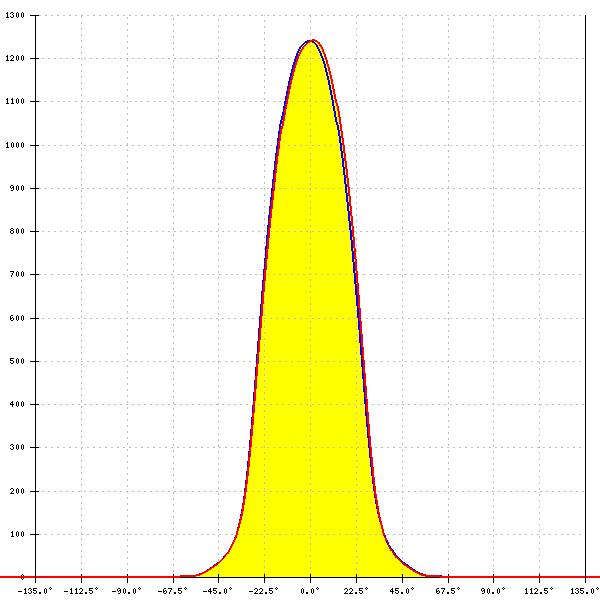

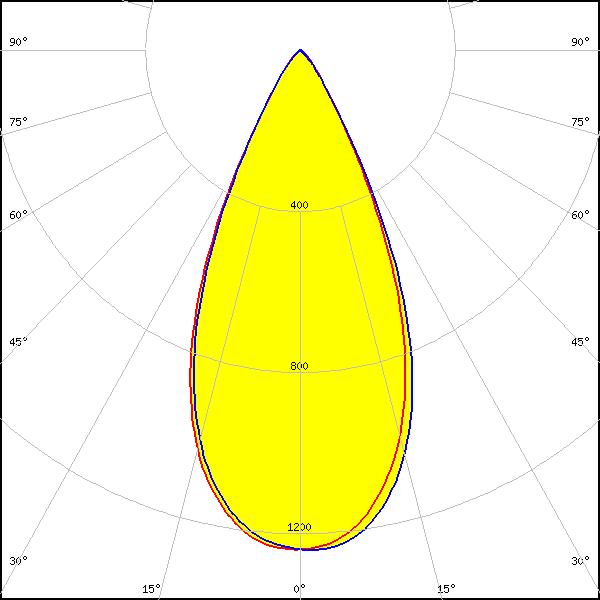

    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    BJB: 47.319.6060
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.240 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    Required components:
    A.A.G. STUCCHI: 8100-G2
    FWHM: 48°
    FWTM: 70°
    Peak intensity: 1.240 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

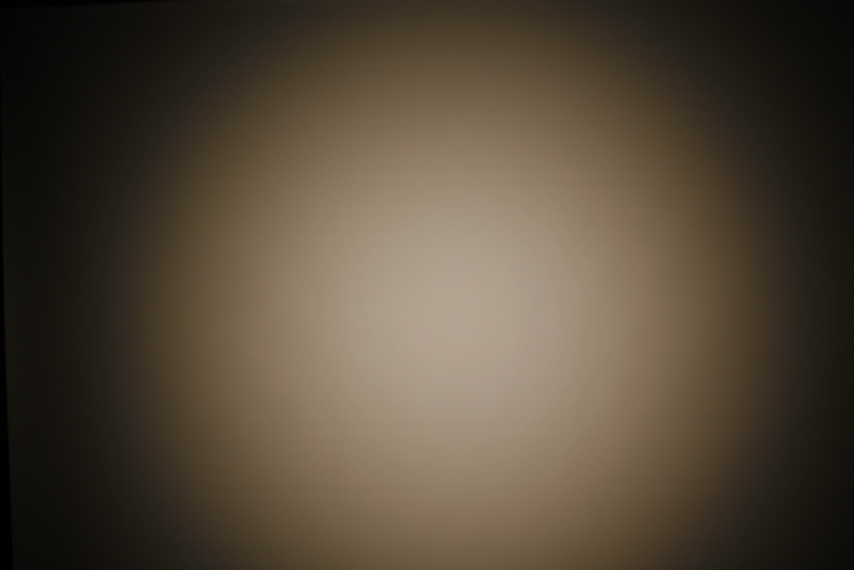

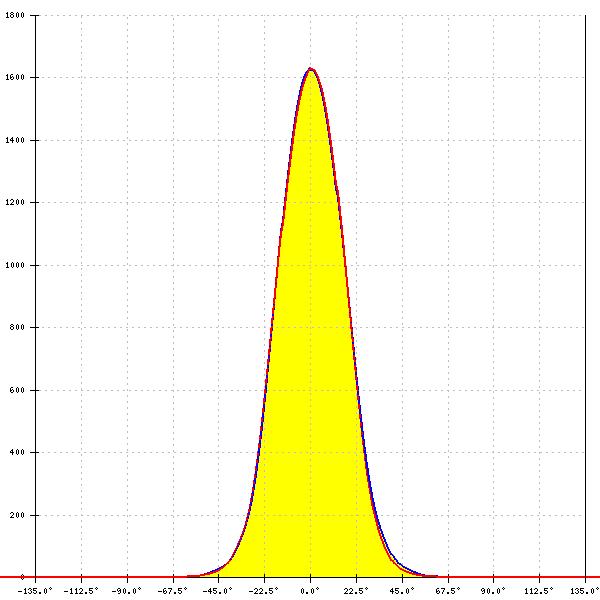

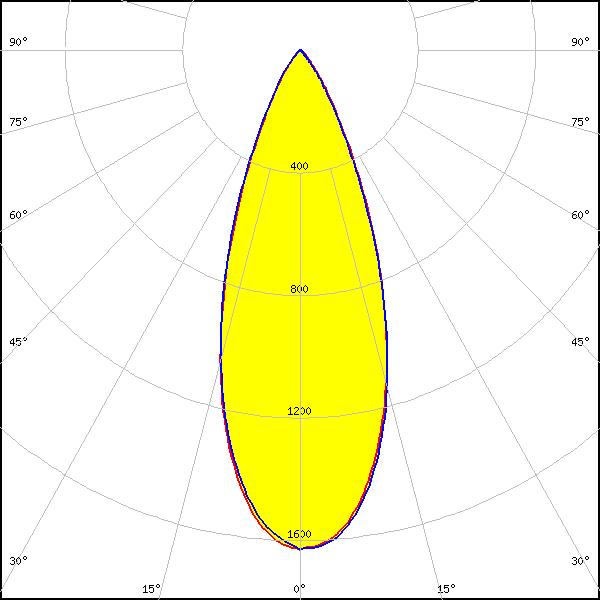

    LED: MJT COB LES 6
    LES size: 6.0 mm
    Required components:
    BJB: 47.319.6060
    FWHM: 38°
    FWTM: 66°
    Peak intensity: 1.600 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Mini Zenigata (GW6BM)
    LES size: 8.6 mm
    LEDs/each optic: 1
    Light colour/type: White
