CP17782_AMY-70-S-C

Print

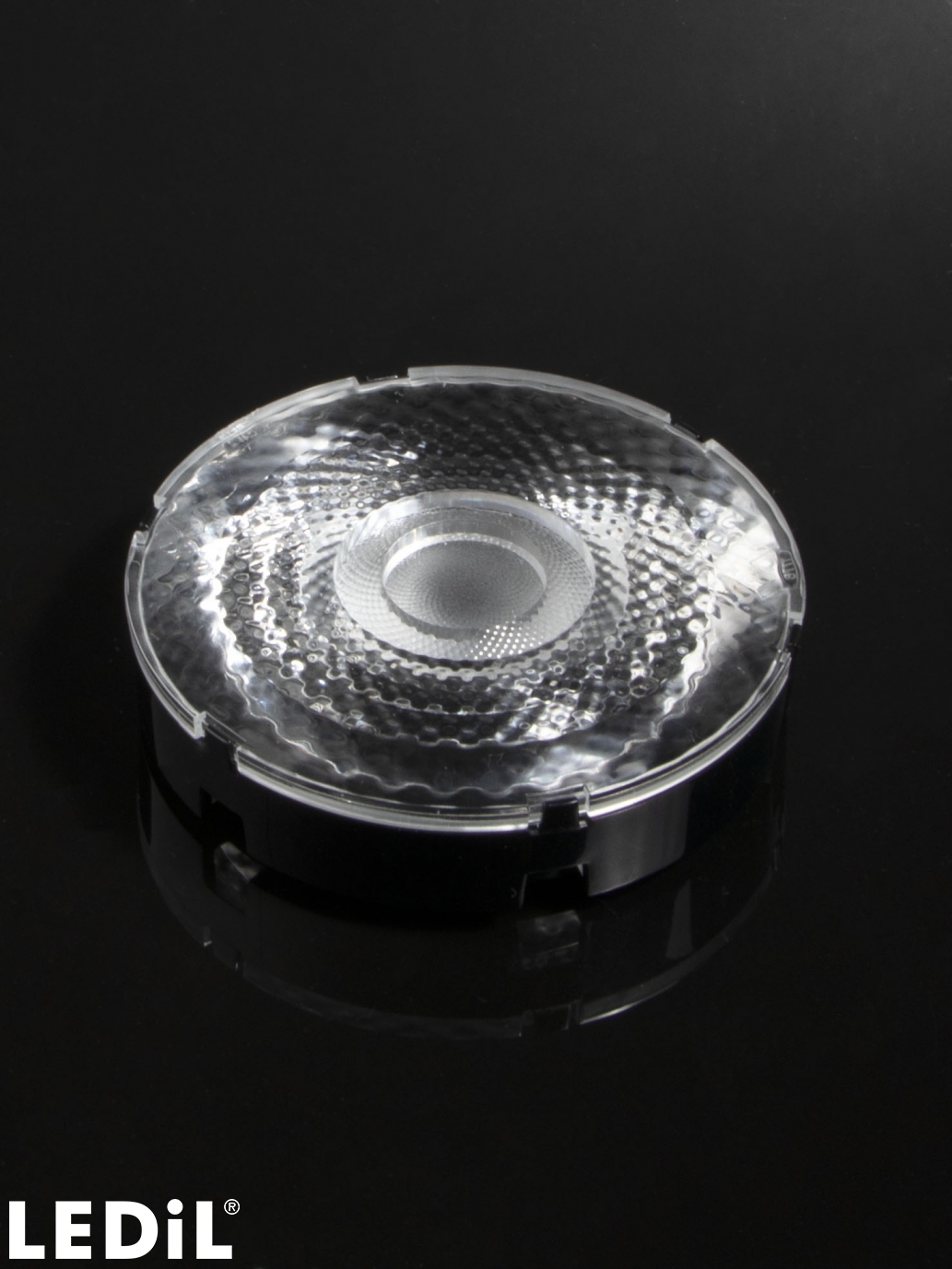

~18° spot beam. Assembly with holder C compatible with LEDiL HEKLA. Black version.

Specification
  • Dimensions:
    70 mm
  • Height:
    16.40 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    210 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.7 kg
  • MPQ:
    15 pcs
  • MOQ:
    210 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    8.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CP17782_AMY-70-S-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

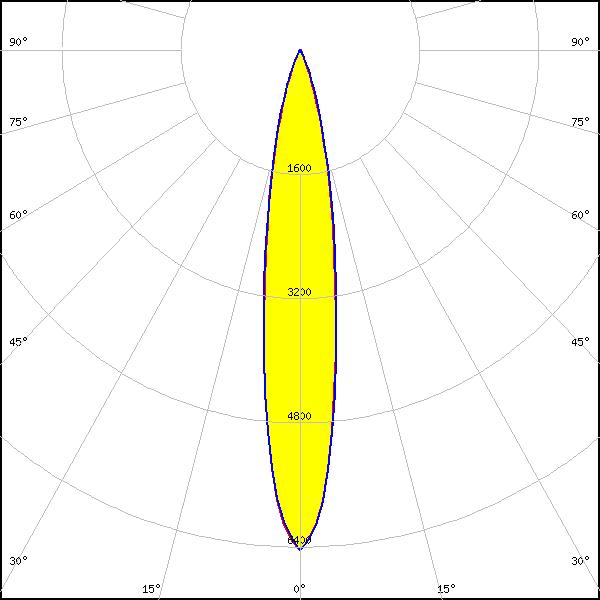

Optical results

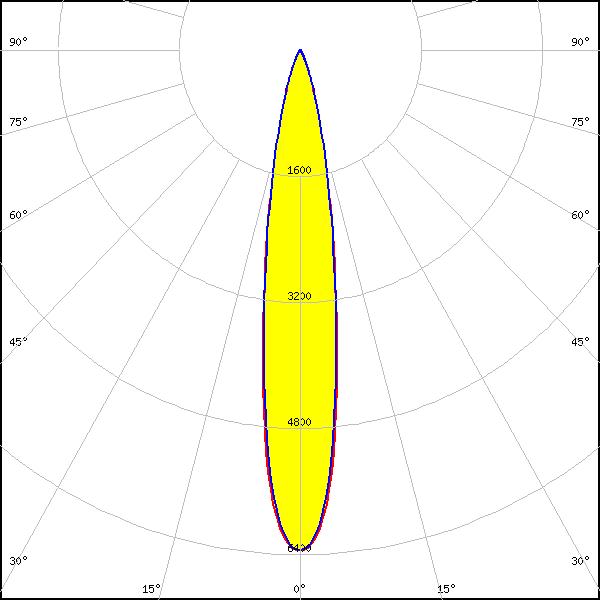

LED: V10 Gen 8
Required components:
FWHM: 17°
FWTM: 37°
Peak intensity: 6.352 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

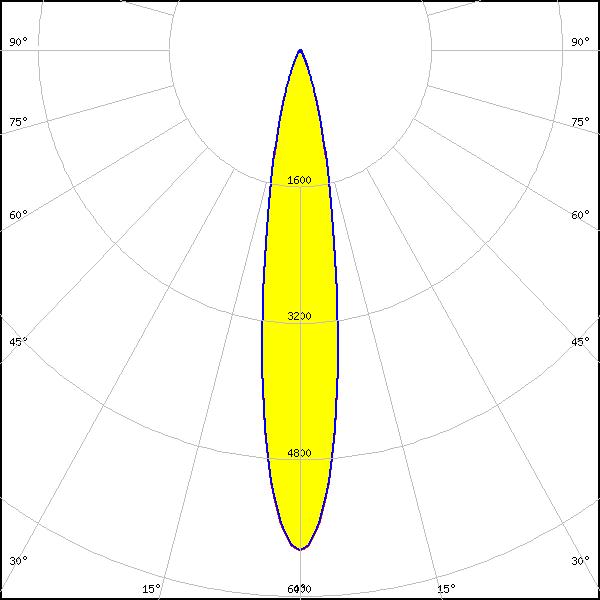

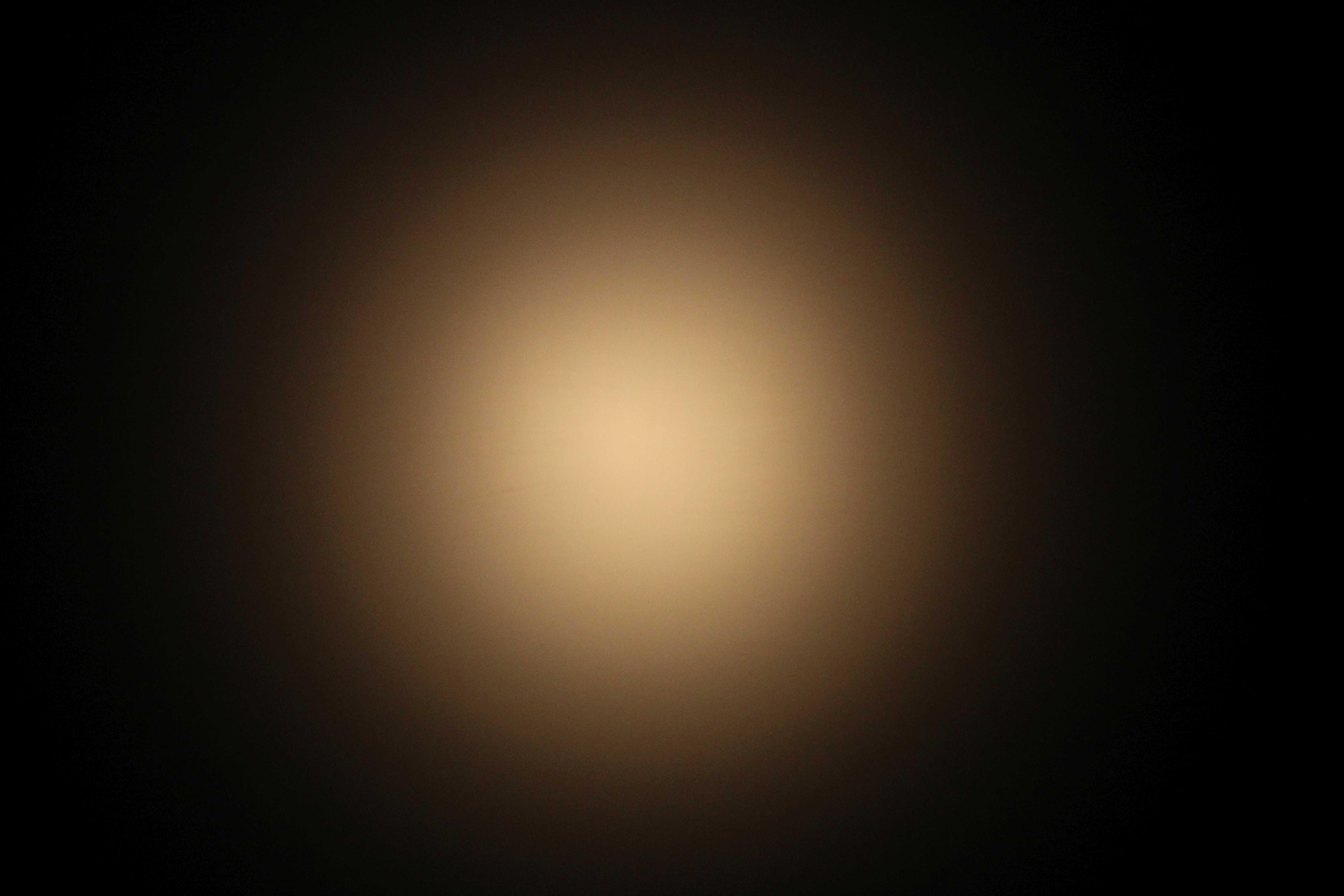

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 18°
FWTM: 38°
Peak intensity: 5.866 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

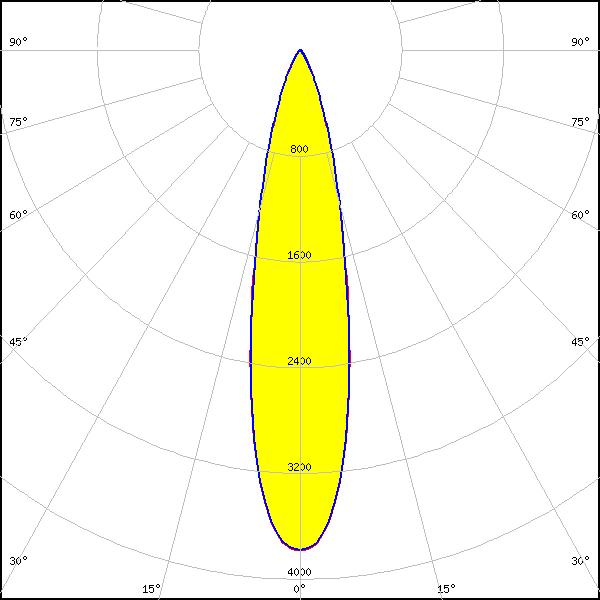

LED: V13 Gen 8
Required components:
FWHM: 23°
FWTM: 48°
Peak intensity: 3.784 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

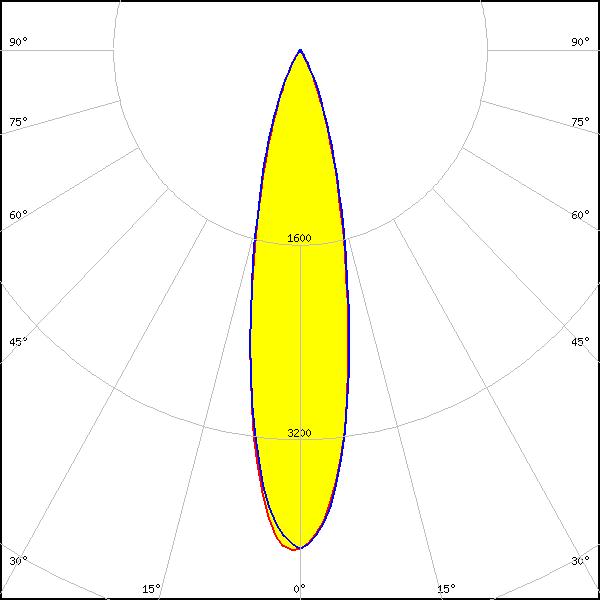

LED: V13 Gen7
FWHM: 23°
FWTM: 48°
Peak intensity: 4.128 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

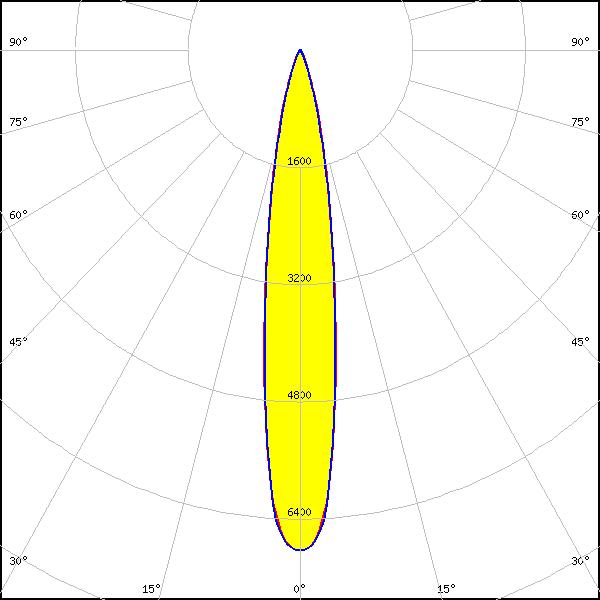

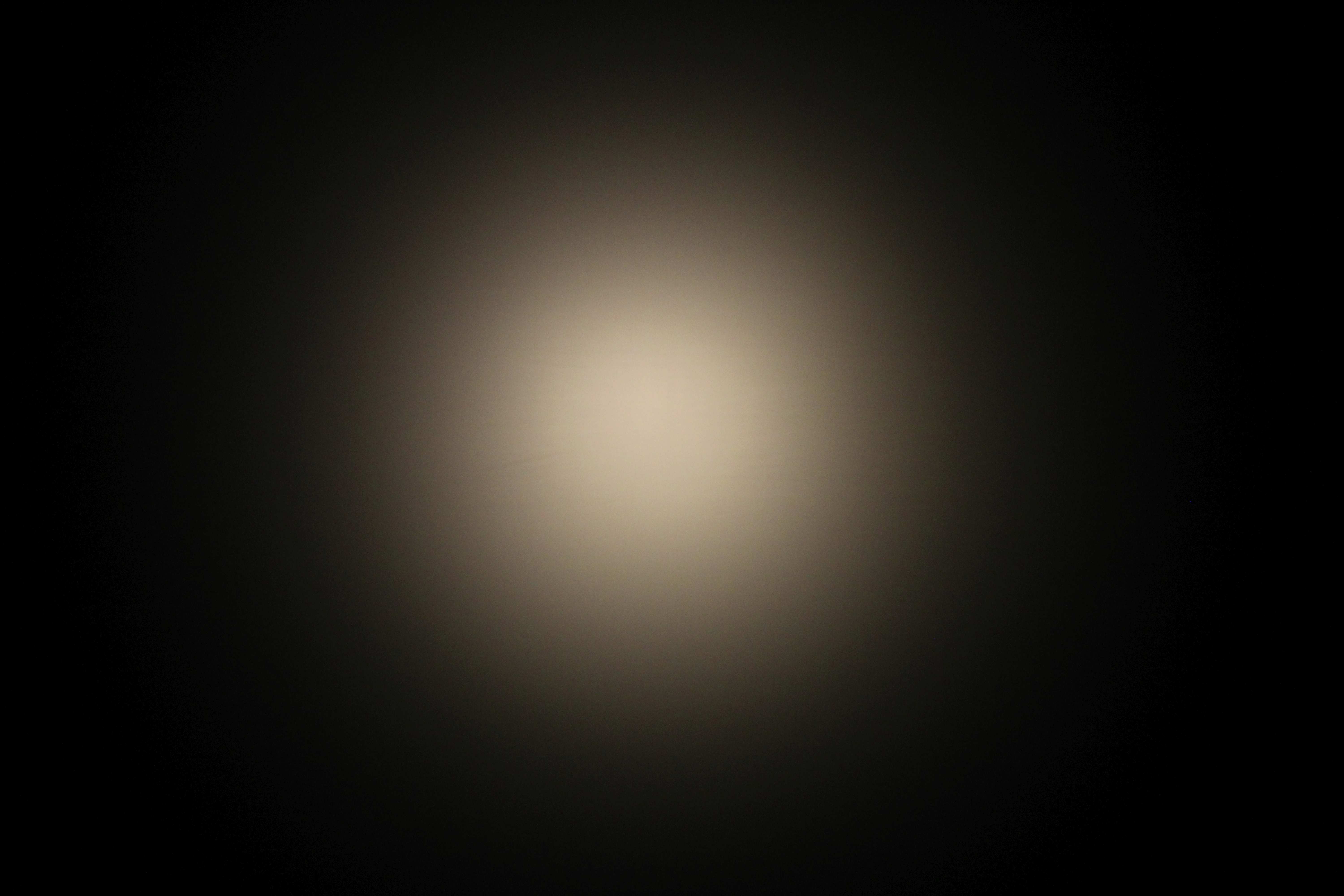

LED: V8 Gen 8
Required components:
FWHM: 17°
FWTM: 36°
Peak intensity: 6.848 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

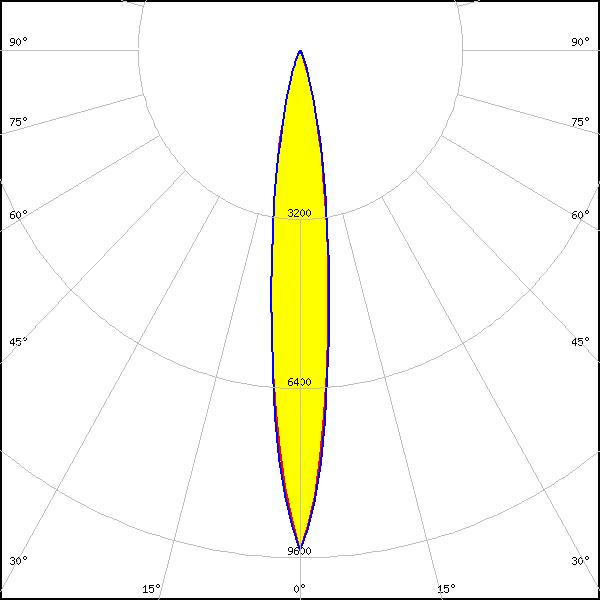

LED: V8 Gen7
Required components:
FWHM: 14°
FWTM: 32°
Peak intensity: 9.460 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

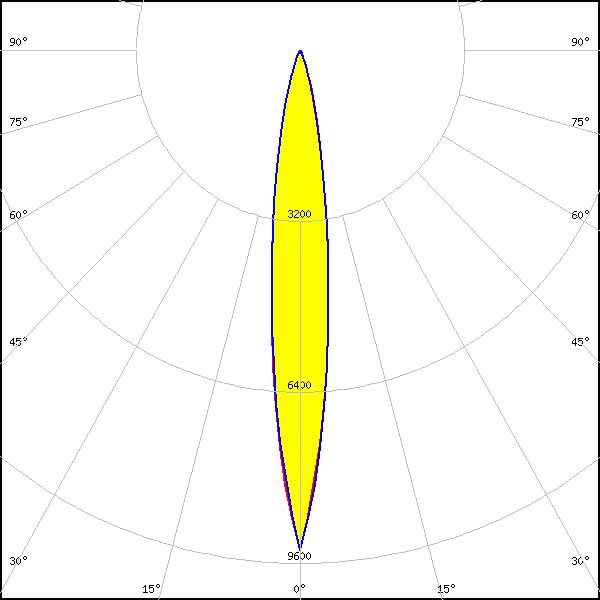

LED: VERO10
Required components:
FWHM: 14°
FWTM: 32°
Peak intensity: 9.359 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

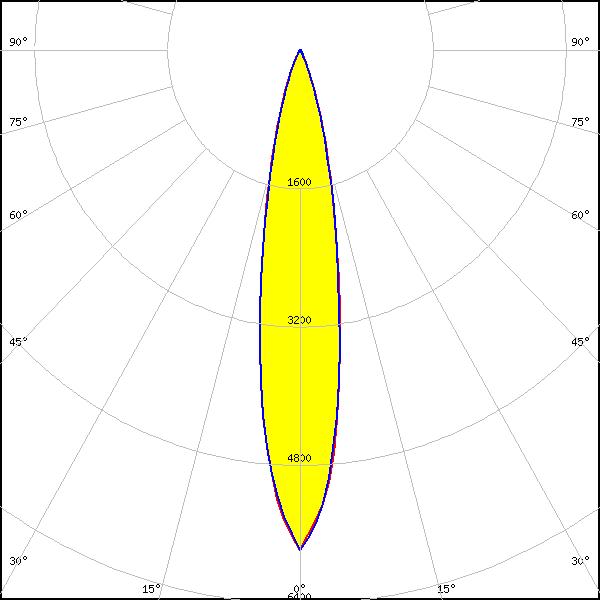

LED: VERO13
Required components:
FWHM: 18°
FWTM: 40°
Peak intensity: 5.784 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

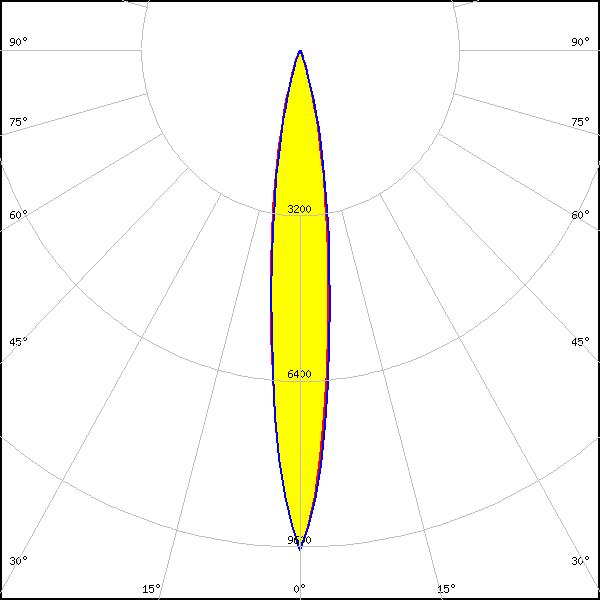

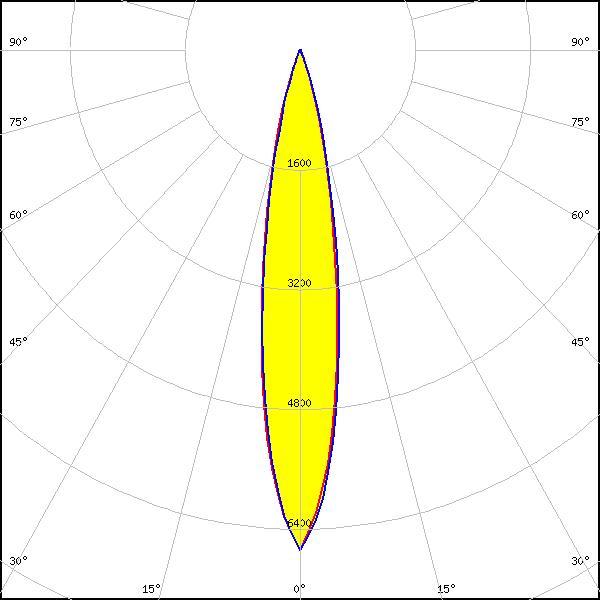

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
Bender Wirth: 652b Hekla
F18158_HEKLA-RZ-LENS
FWHM: 18°
FWTM: 36°
Peak intensity: 6.680 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
Bender Wirth: 652b Hekla
FWHM: 14°
FWTM: 32°
Peak intensity: 9.669 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 17°
FWTM: 36°
Peak intensity: 6.659 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

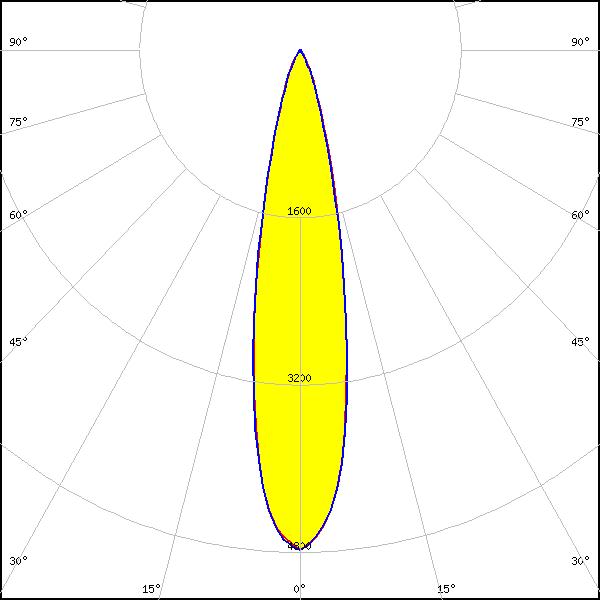

LED: CLL03x/CLU03x
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 4.786 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

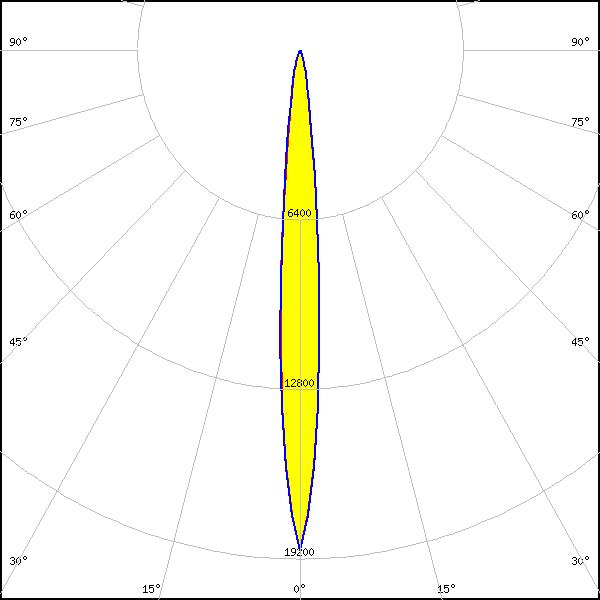

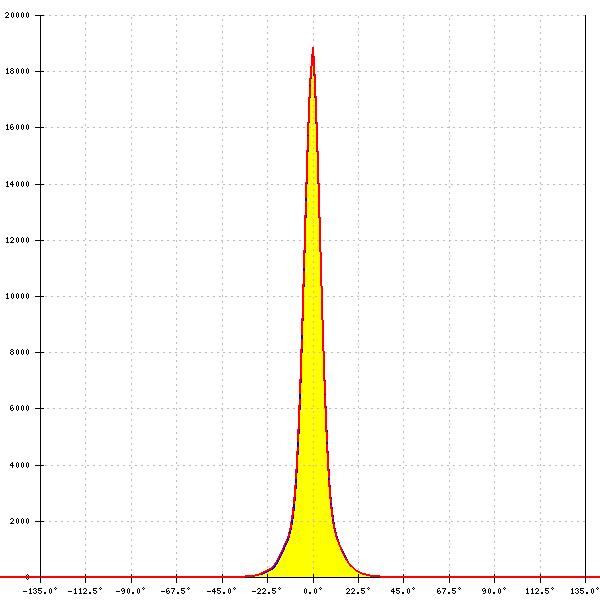

LED: CLU700/701/702/703
Required components:
FWHM: 10°
FWTM: 20°
Peak intensity: 18.878 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
Required components:
FWHM: 10°
FWTM: 22°
Peak intensity: 17.217 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

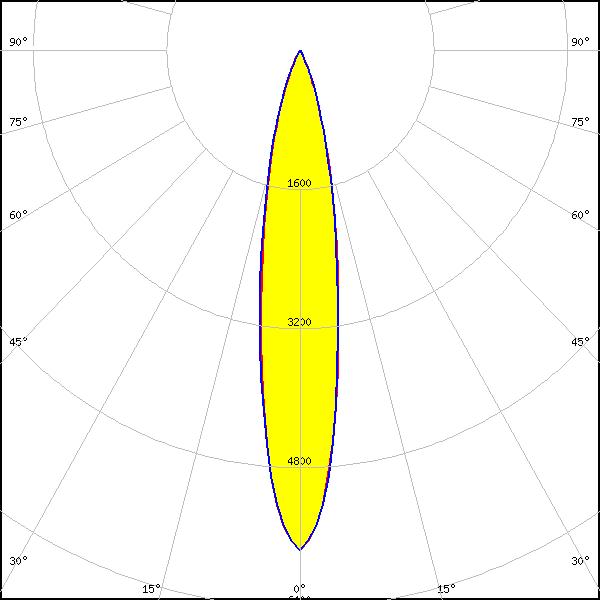

LED: CMA1825
Required components:
FWHM: 18°
FWTM: 41°
Peak intensity: 5.751 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

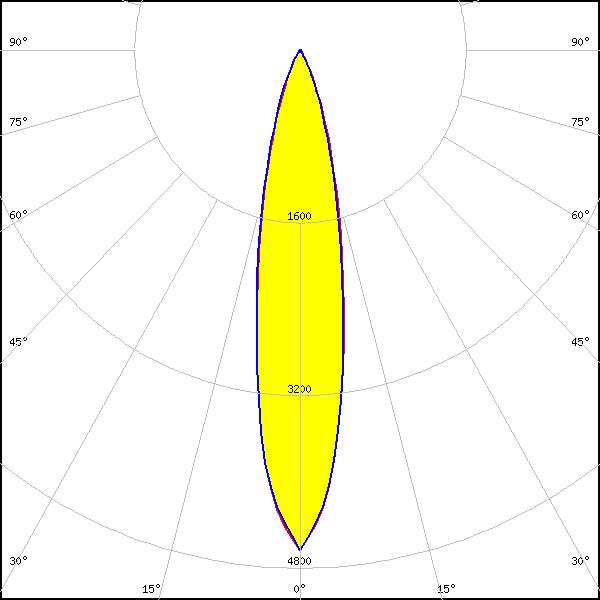

LED: CMA1840
Required components:
Bender Wirth: 637a Hekla
FWHM: 21°
FWTM: 45°
Peak intensity: 4.635 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

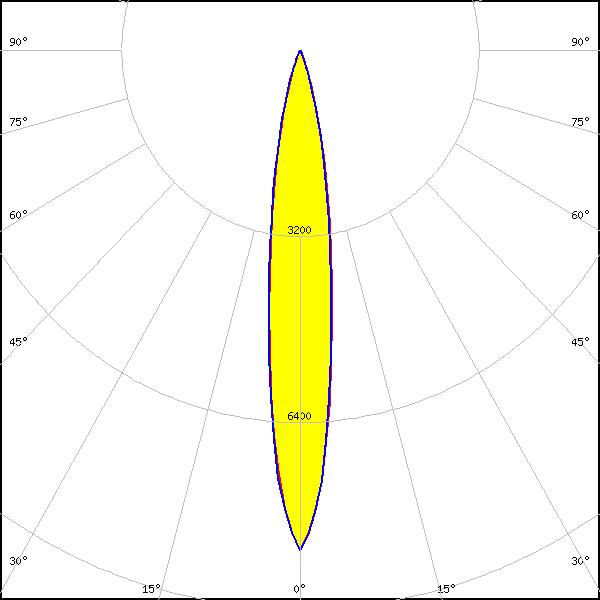

LED: CMT14xx
Required components:
FWHM: 15°
FWTM: 34°
Peak intensity: 8.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

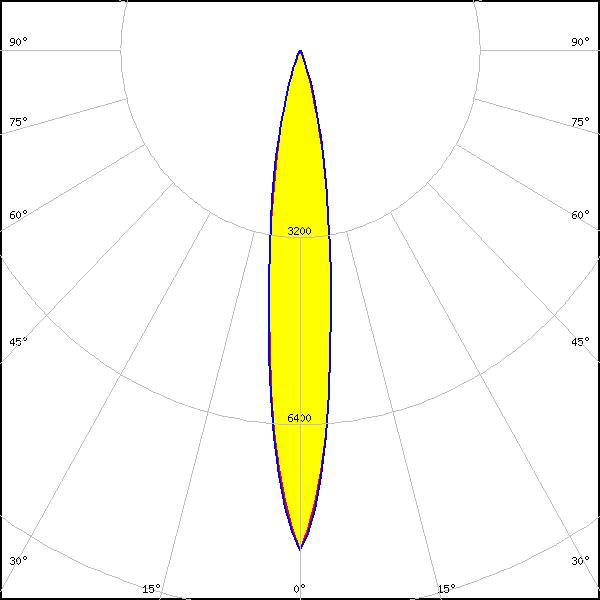

LED: CMU10xx
Required components:
FWHM: 14°
FWTM: 34°
Peak intensity: 8.553 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

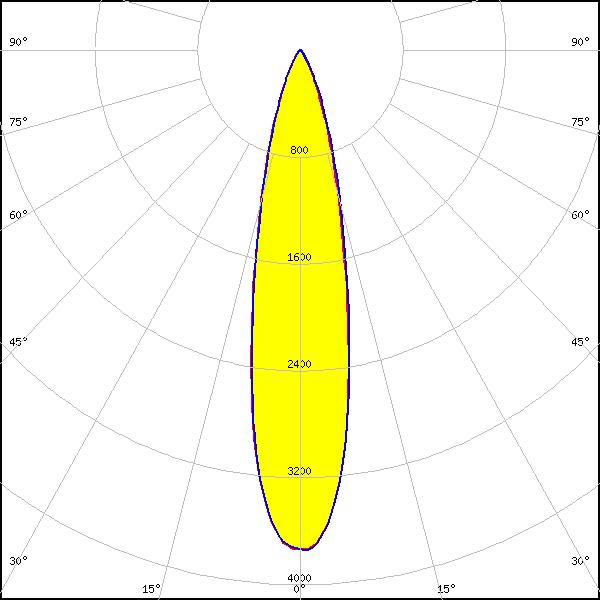

LED: CMU15xx
Required components:
FWHM: 23°
FWTM: 48°
Peak intensity: 3.743 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

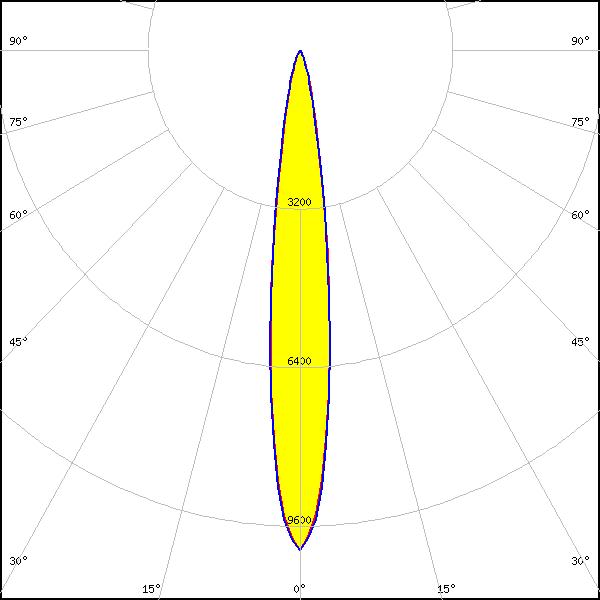

LED: CXA/B 15xx
Required components:
FWHM: 14°
FWTM: 29°
Peak intensity: 10.082 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 8.165 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Fusion 12-up (20x24)
Required components:
FWHM: 19°
FWTM: 38°
Peak intensity: 5.247 cd/lm
Efficiency: 84 %
LEDs/each optic: 12
Light colour/type: White
LED: LUXEON Fusion 21-up (20x24)
Required components:
FWHM: 19°
FWTM: 38°
Peak intensity: 4.941 cd/lm
Efficiency: 82 %
LEDs/each optic: 21
Light colour/type: White
LED: LUXEON Fusion 27-up (20x24)
Required components:
FWHM: 23°
FWTM: 45°
Peak intensity: 3.576 cd/lm
Efficiency: 82 %
LEDs/each optic: 27
Light colour/type: White

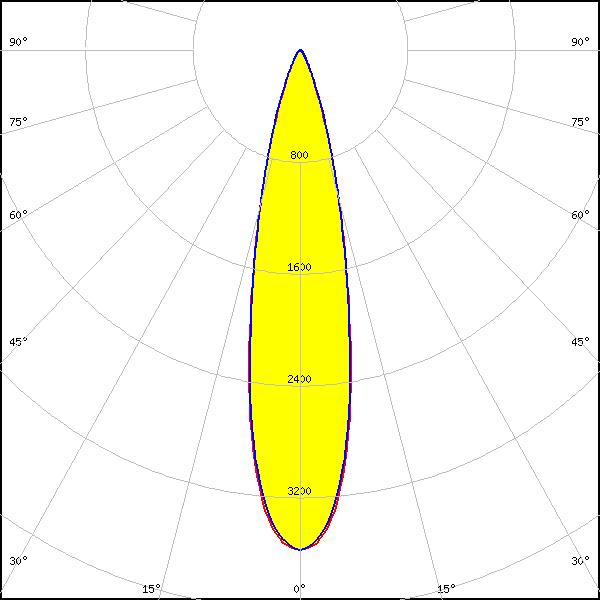

LED: COB L-Type (LES 11)
Required components:
FWHM: 18°
FWTM: 38°
Peak intensity: 6.444 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L15 CoB
Required components:
Bender Wirth: 632a Hekla XL
FWHM: 22°
FWTM: 44°
Peak intensity: 4.534 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

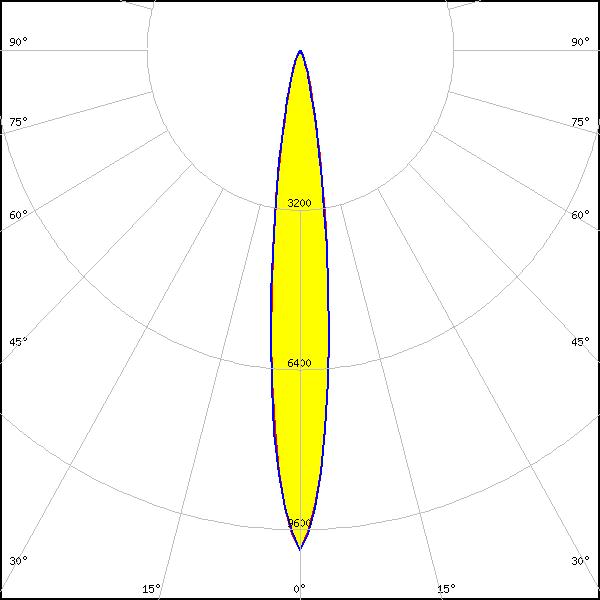

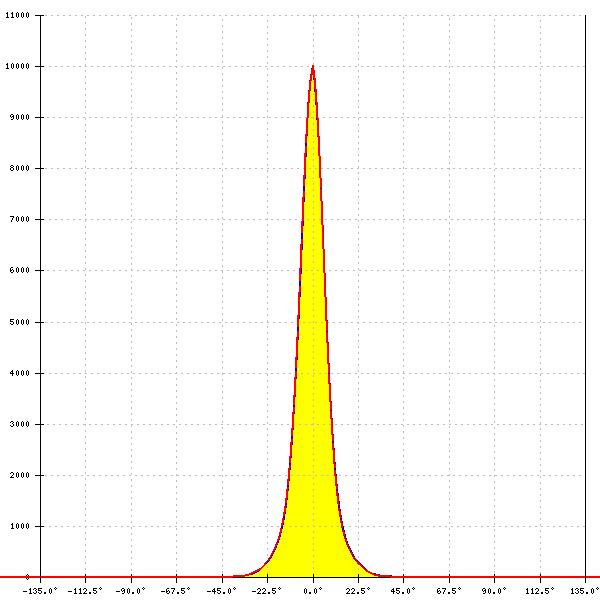

LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 10.015 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

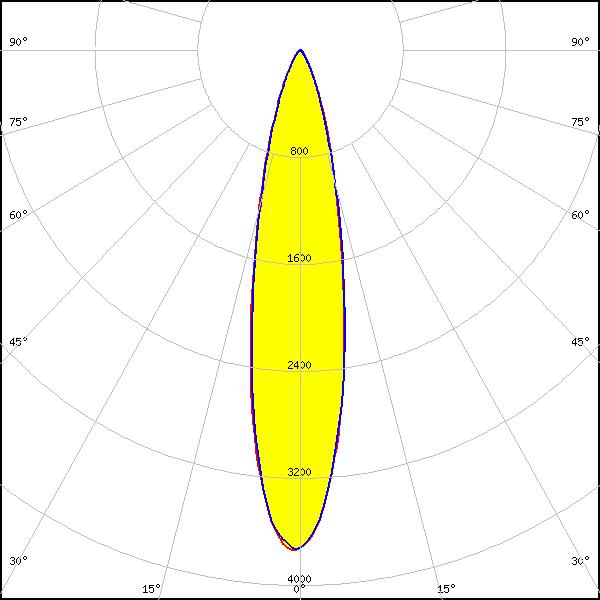

LED: LC016D / LC019D / LC026D / LC033D
FWHM: 23°
FWTM: 49°
Peak intensity: 3.741 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

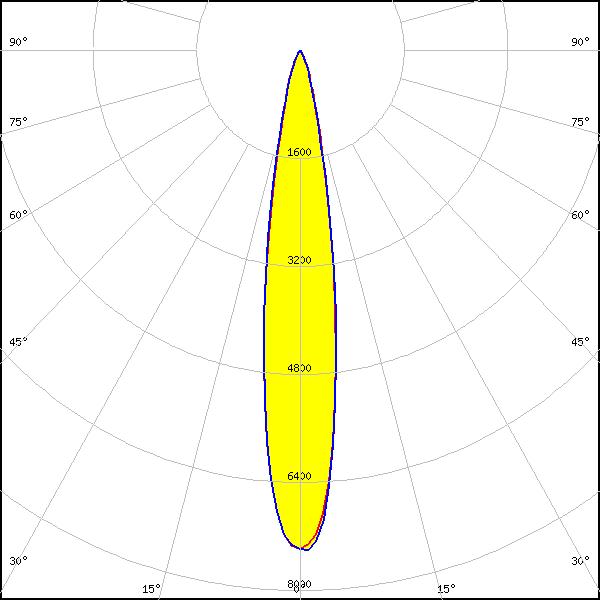

LED: LC020T (Tunable white)
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 7.427 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

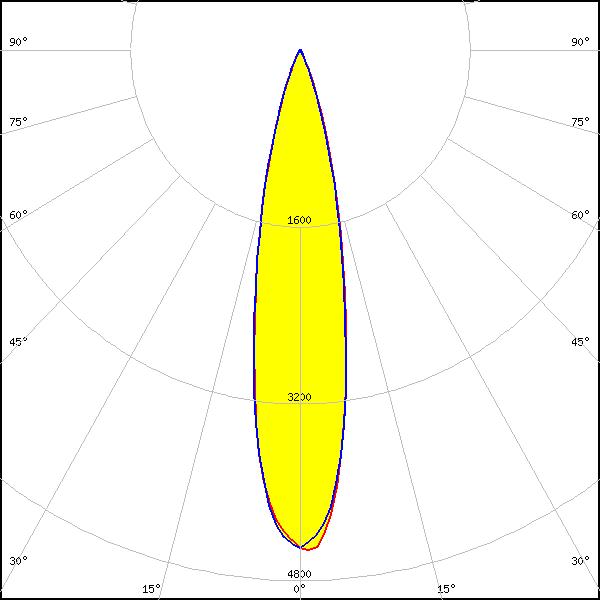

LED: XOB 14.5 mm
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 4.556 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
