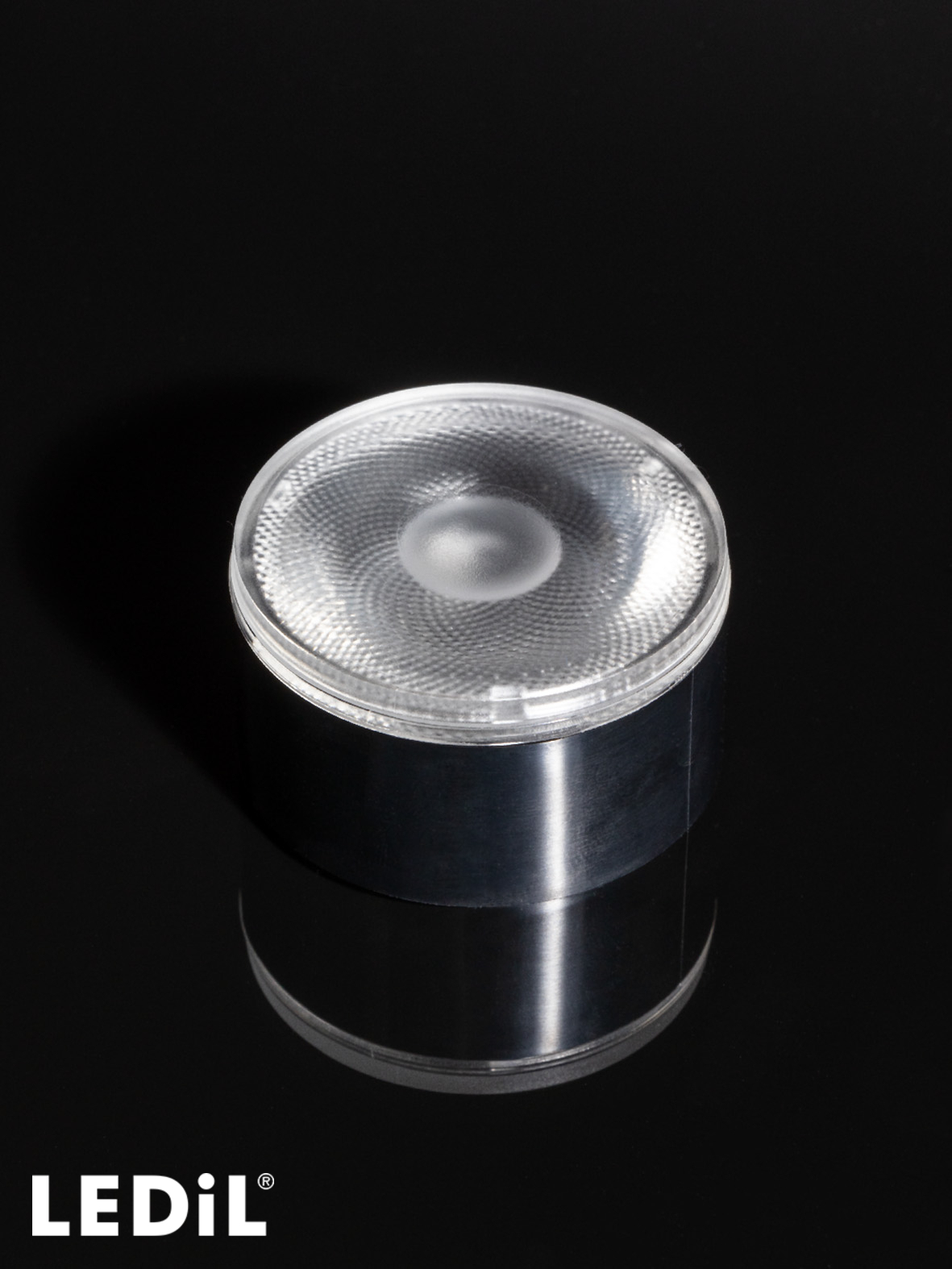

    CP19562_VERONICA-MAXI50-S

    Print

    ~24° spot beam

    Specification
    • Dimensions:
      48 mm
    • Height:
      25.90 mm
    • Fastening:
      socket
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      256 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      9.4 kg
    • MPQ:
      32 pcs
    • MOQ:
      256 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      9.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP19562_VERONICA-MAXI50-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Urban lighting optics

    Catalogue

    LEDiL-Latest-products-catalogue_Q1_2025_v1.1_web

    Application example

    Architectural tree lighting with VERONICA-MAXI50

    Application guide

    Guide for Architectural lighting optics

    News

    Paint with light – VERONICA-MAXI

    News

    New beams and products - September 2024

    Catalogue

    LEDiL Latest products catalogue

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    AVAILABLE LEDiL ACCESSORIES

    VERONICA-MAXI-SOCKET-IP

    Socket with silicone seal for VERONICA-MAXI50 lenses. Compatible with up to 7070 size LED packages or clusters of LEDs with max diameter of 8.2 mm.

    Optical results

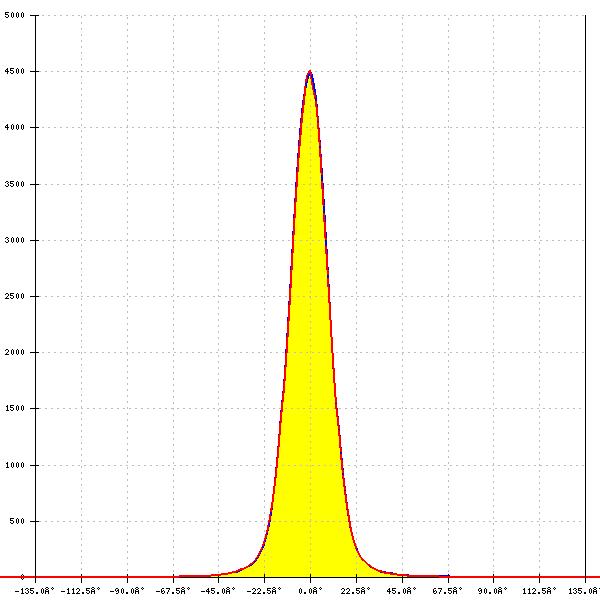

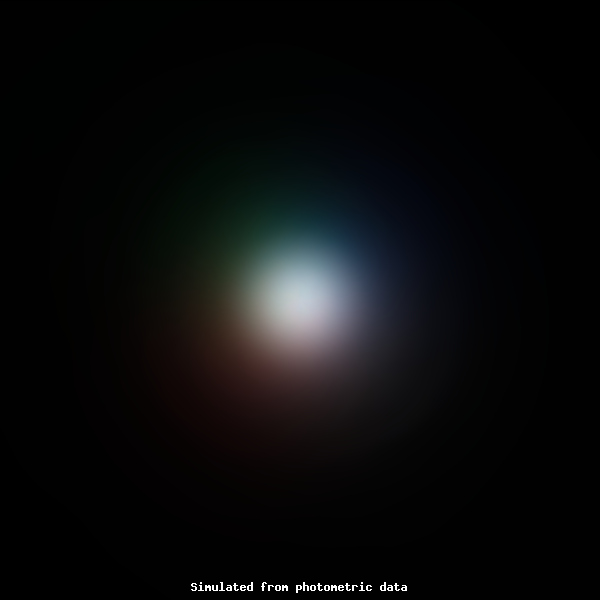

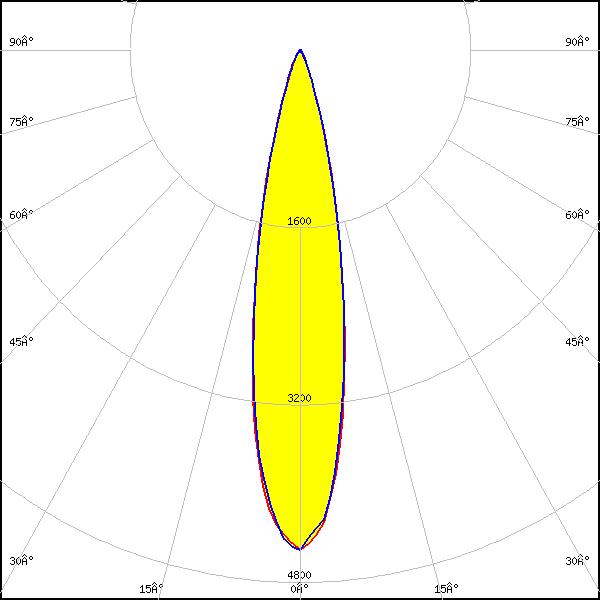

    LED: XM-L RGBW (XMLDCL HD)
    Required components:
    C18911_VERONICA-MAXI50-SOCKET
    FWHM: 21°
    FWTM: 40°
    Peak intensity: 4.556 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: RGBW

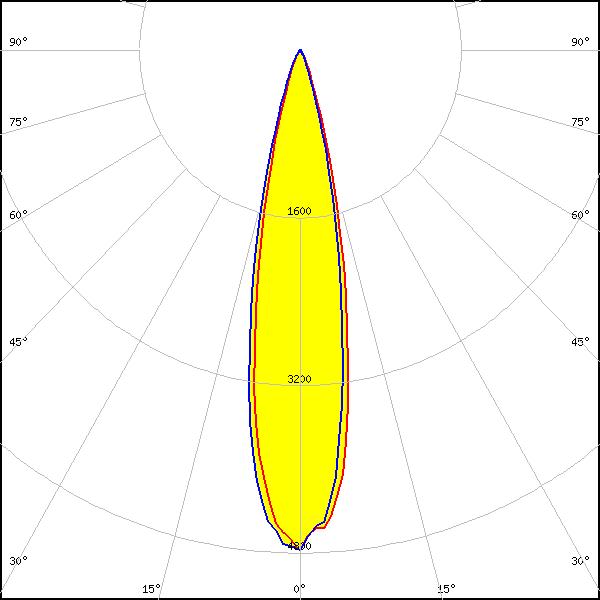

    LED: SBM-50
    FWHM: 21° + 22°
    FWTM: 39° + 40°
    Peak intensity: 4.837 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: RGBL
    LED: SBM-50
    FWHM: 21° + 22°
    FWTM: 39° + 40°
    Peak intensity: 4.837 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: RGBL

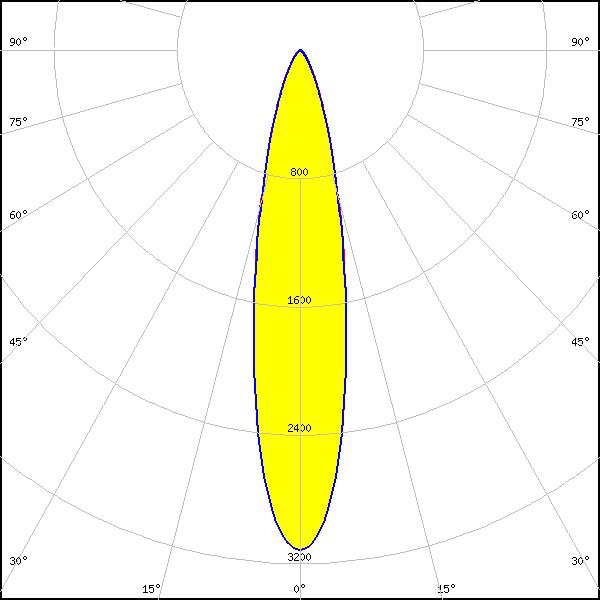

    LED: OSTAR Stage (S2WN)
    Required components:
    C18911_VERONICA-MAXI50-SOCKET
    FWHM: 22°
    FWTM: 49°
    Peak intensity: 3.118 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: RGBW
