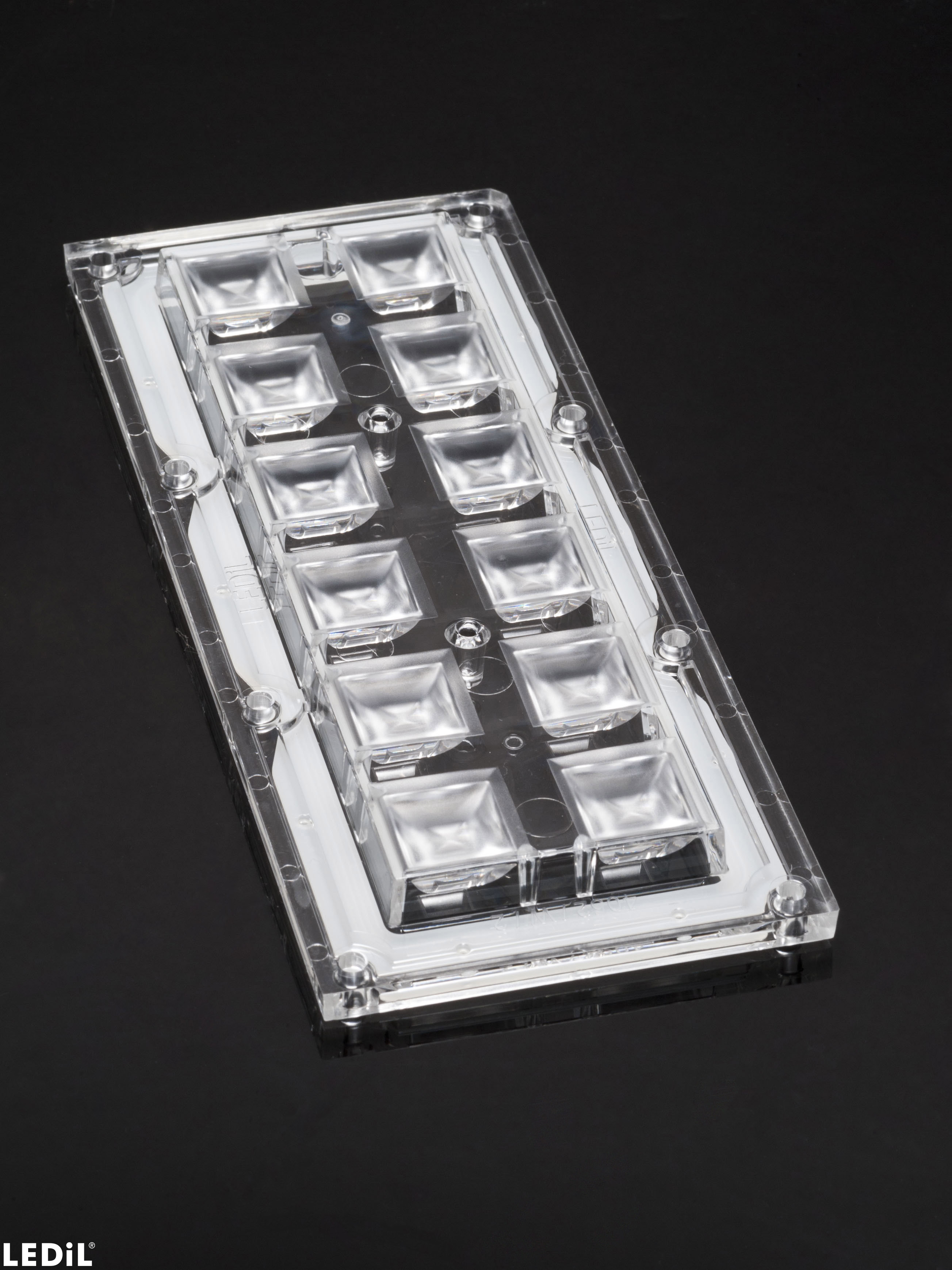

CS14130_HB-IP-2X6-W

Print

~60° wide beam

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    11.4 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • HB-IP-2X6-W, Multi-lens, PMMA
  • 2X6-SEAL25, Seal, Silicone

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    8.4 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    3.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

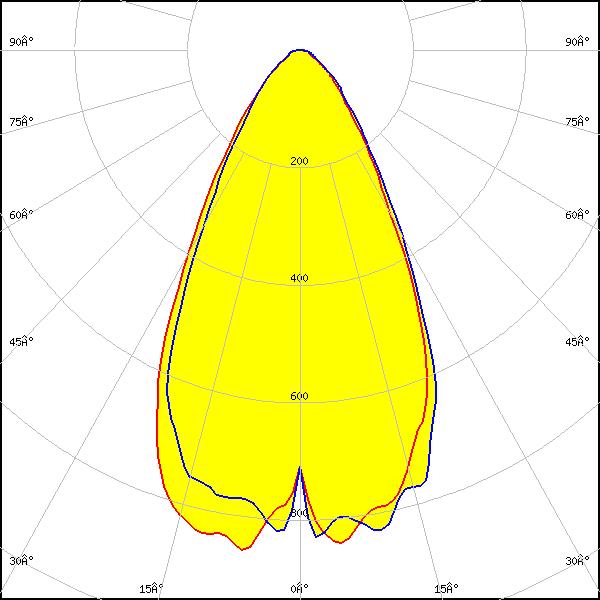

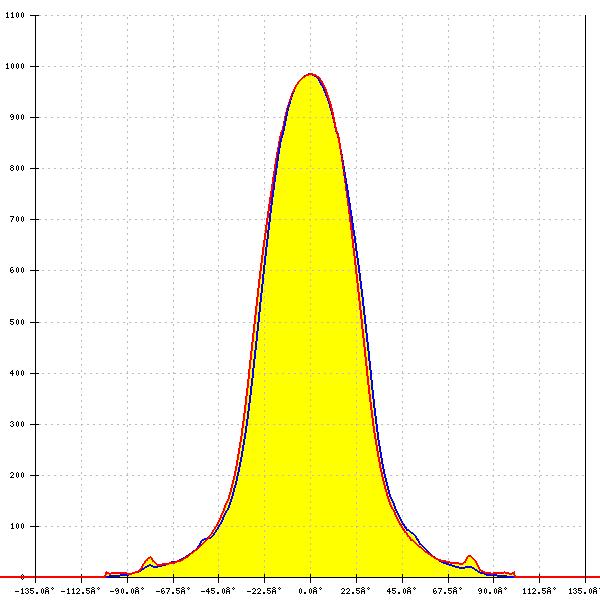

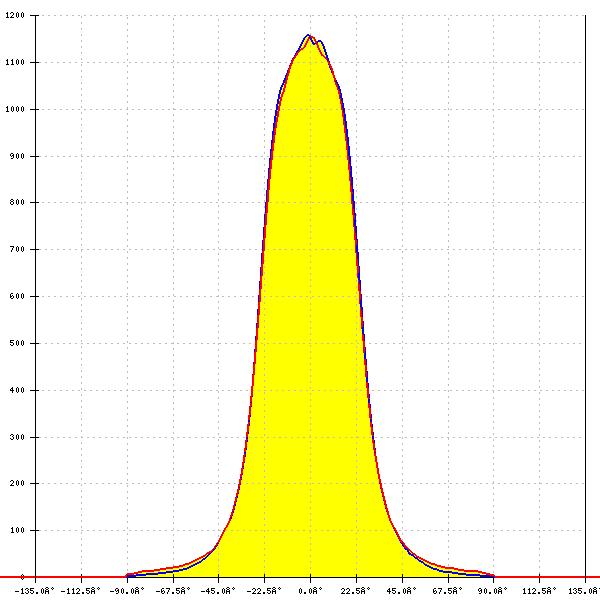

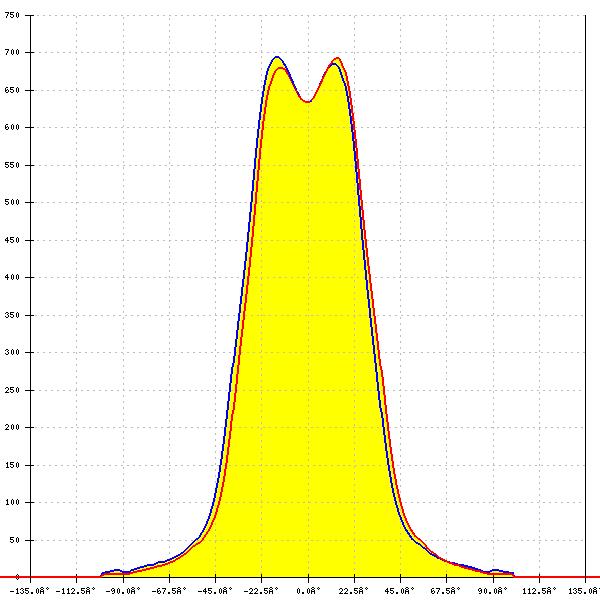

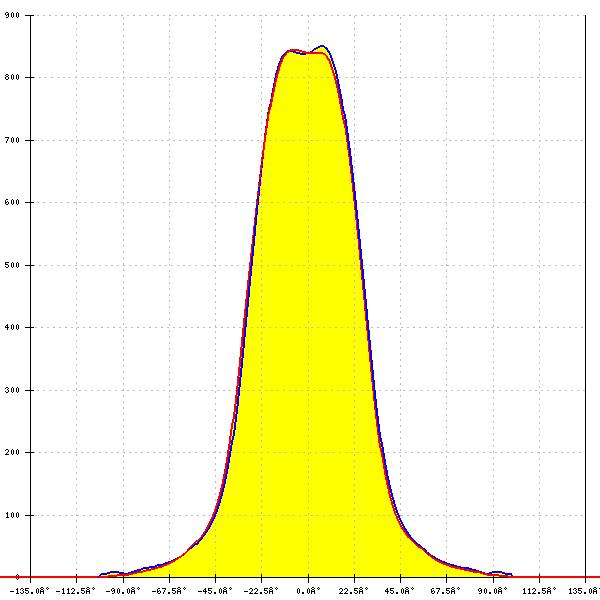

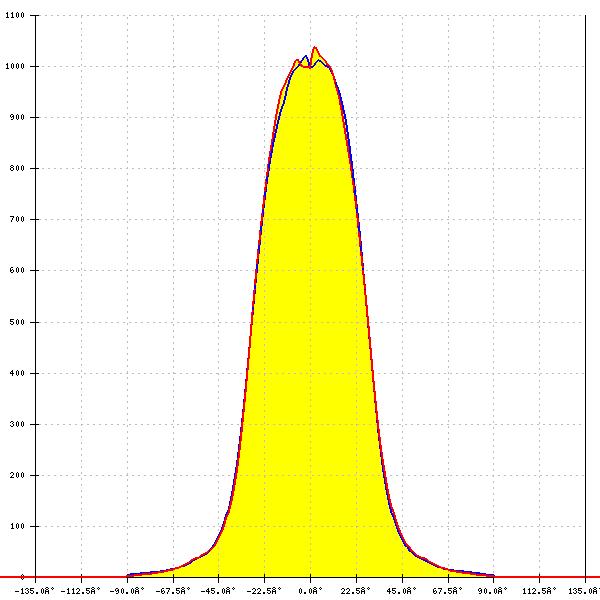

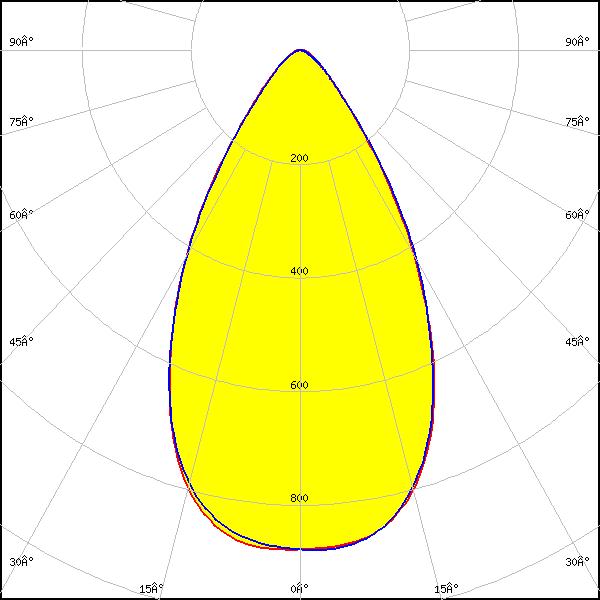

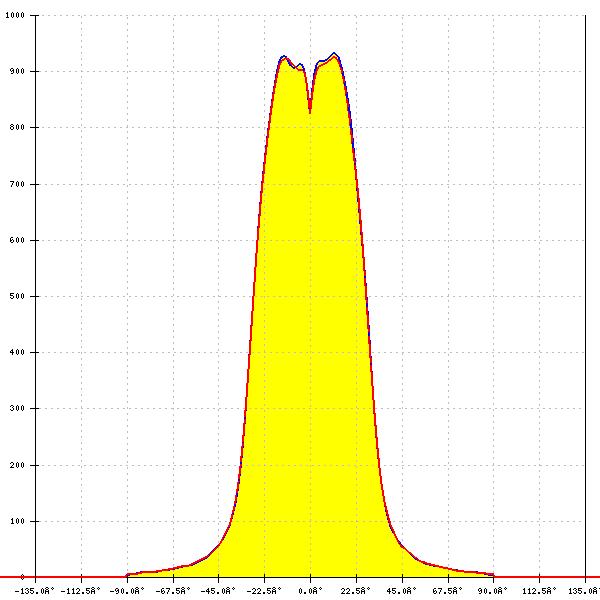

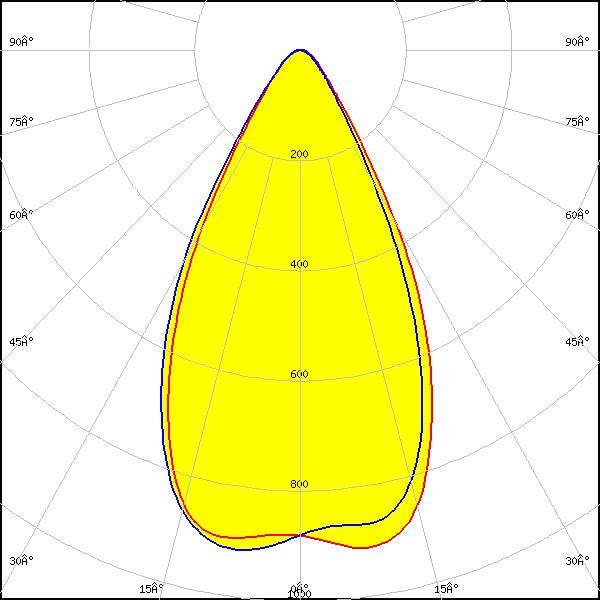

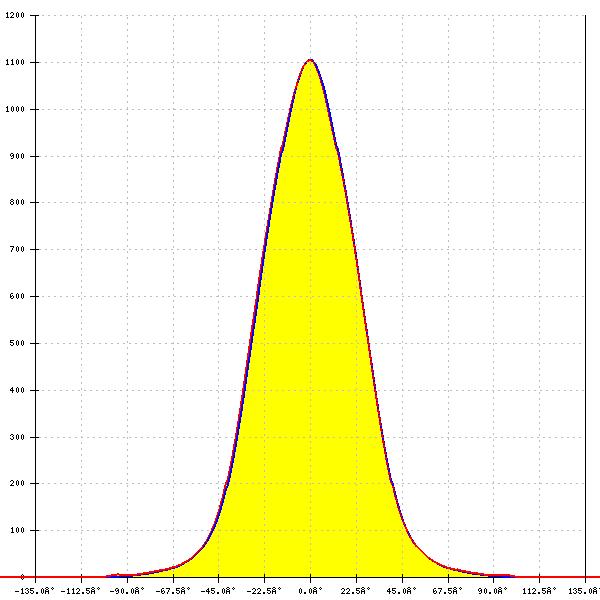

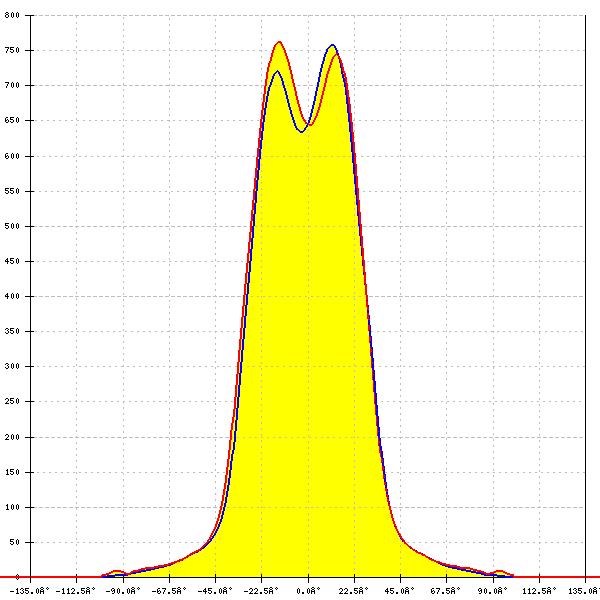

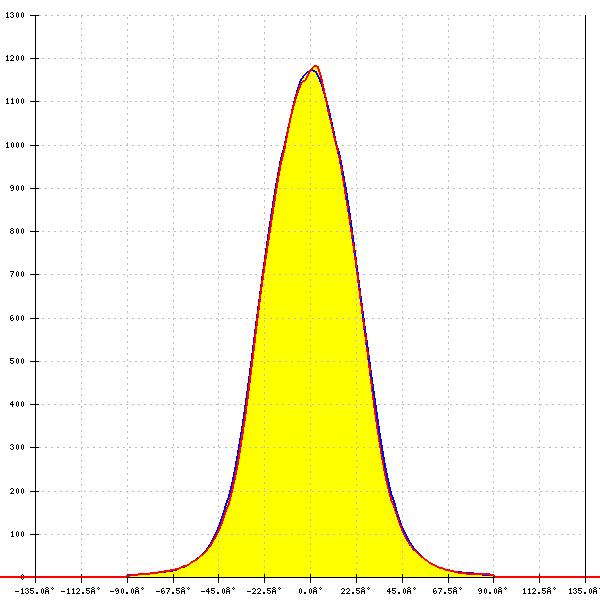

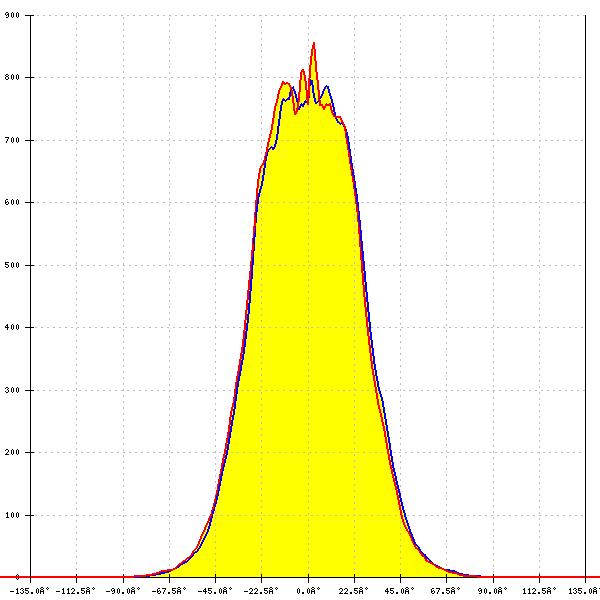

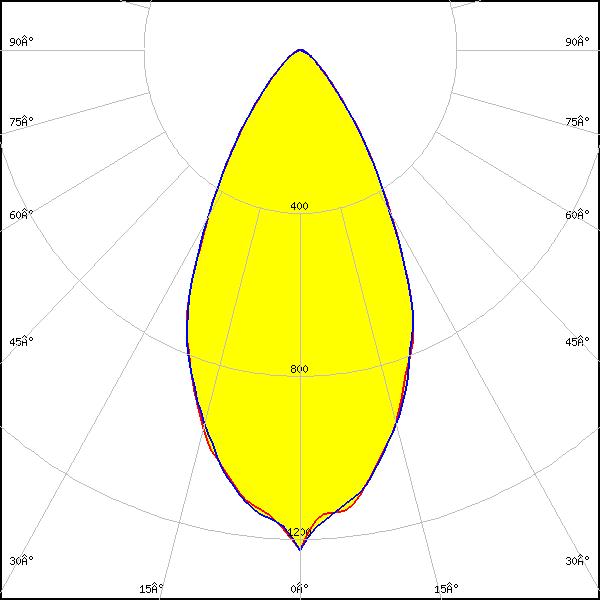

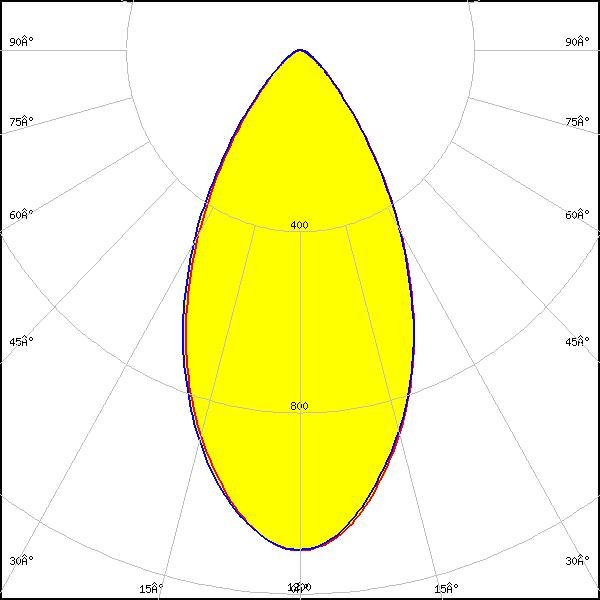

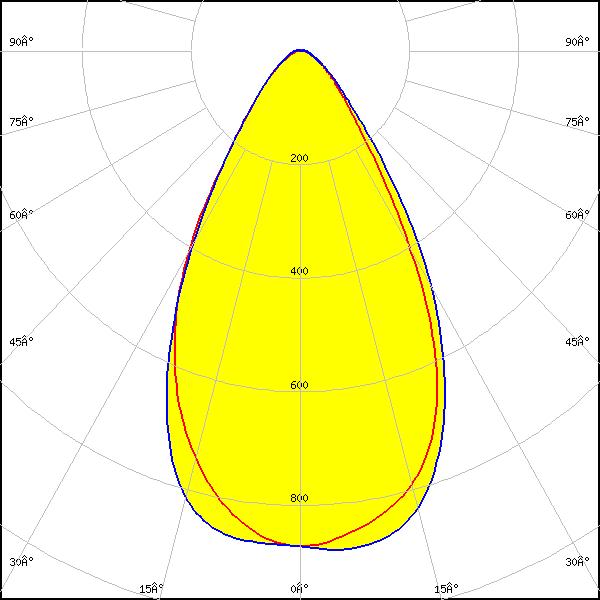

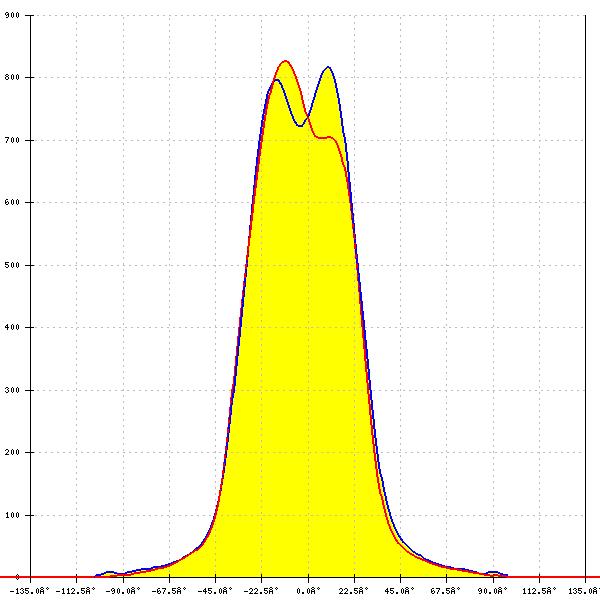

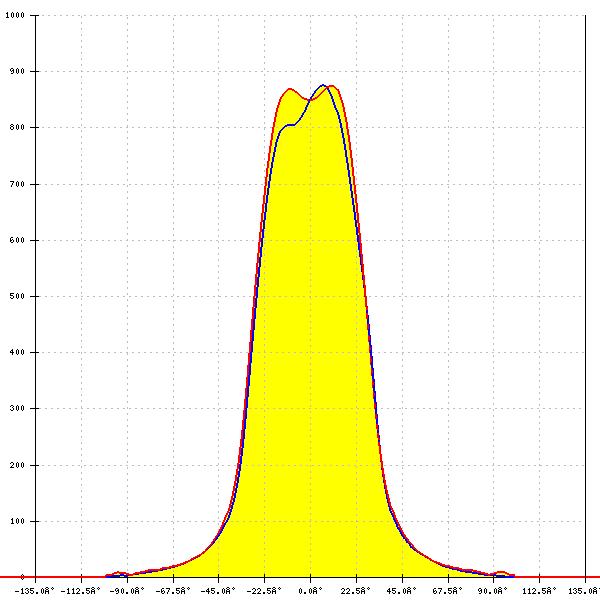

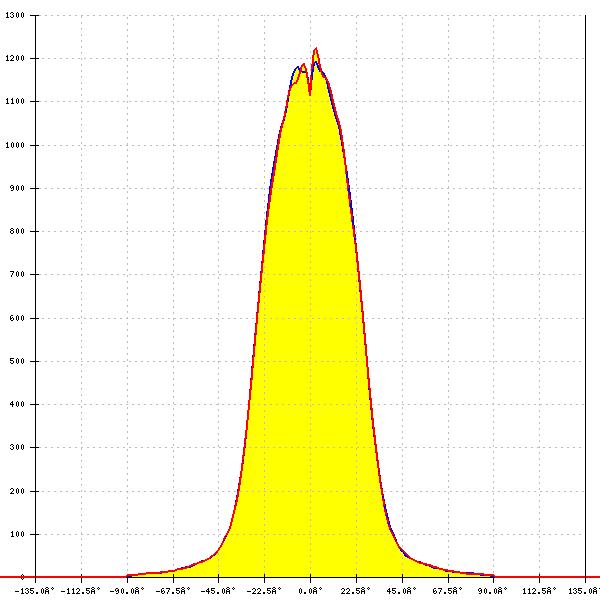

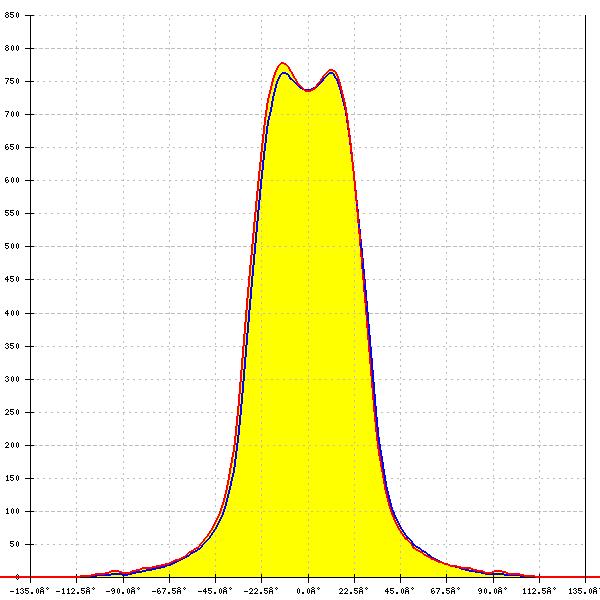

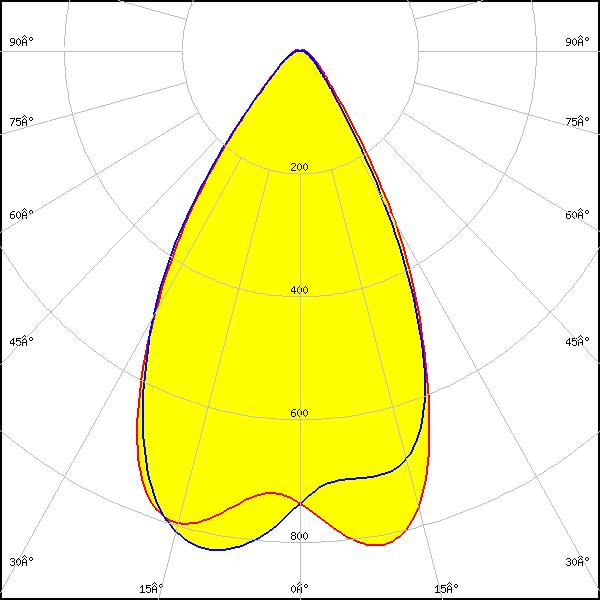

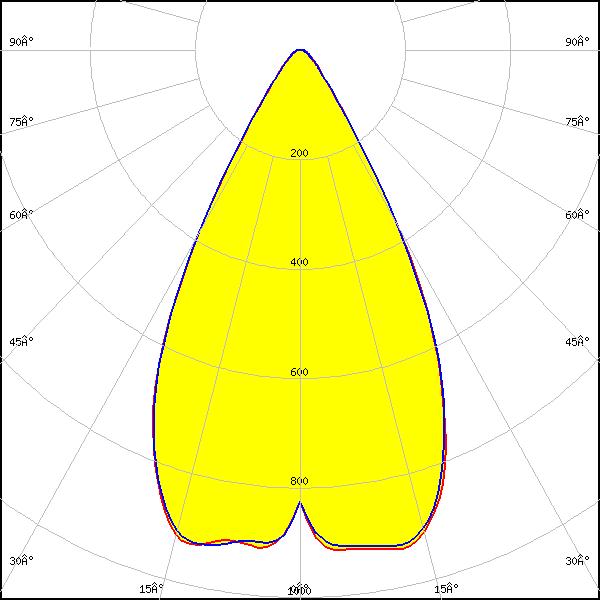

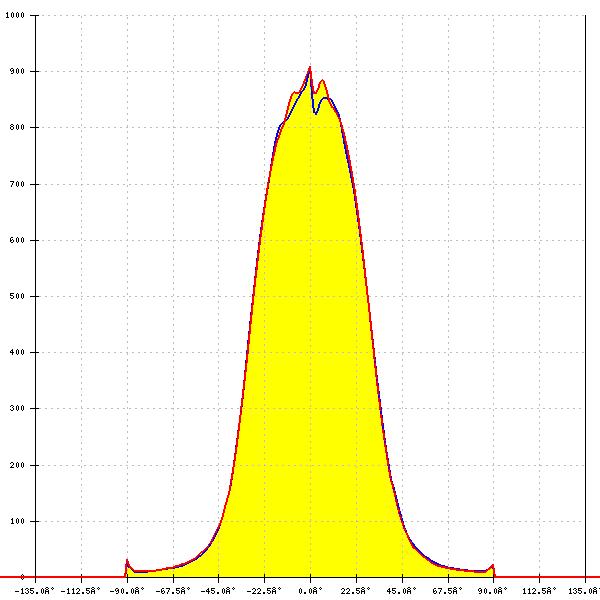

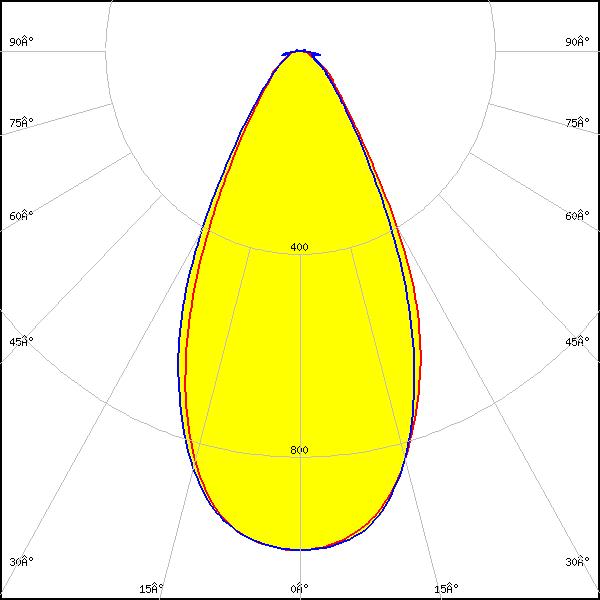

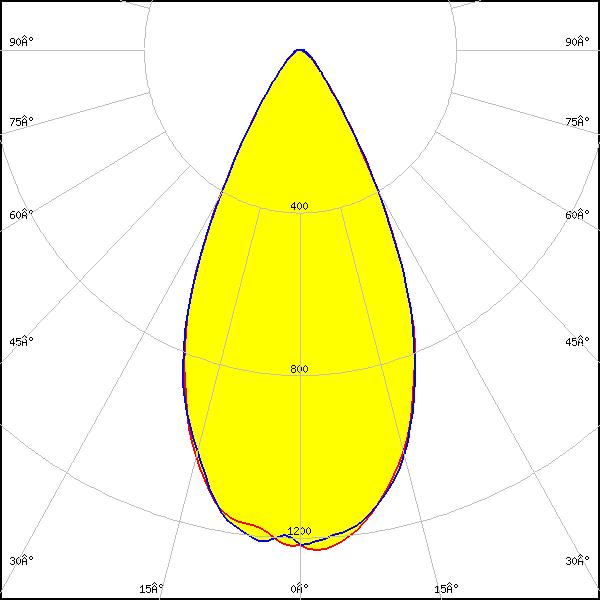

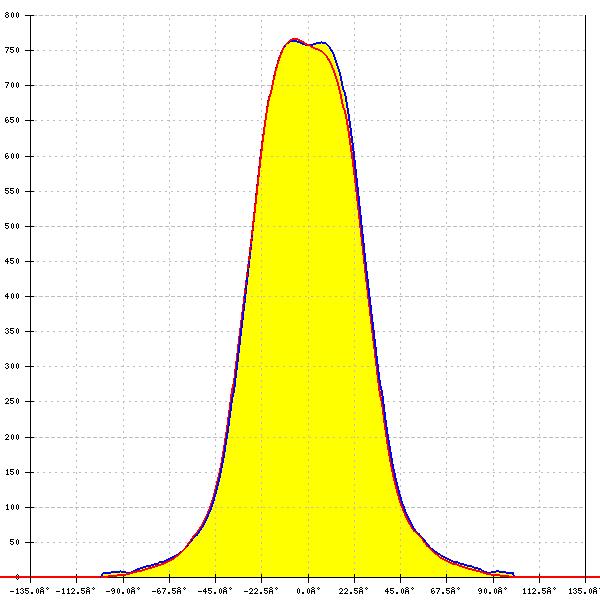

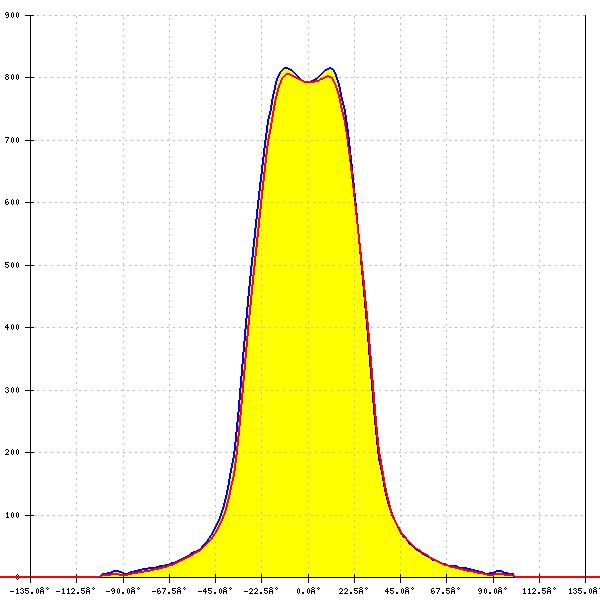

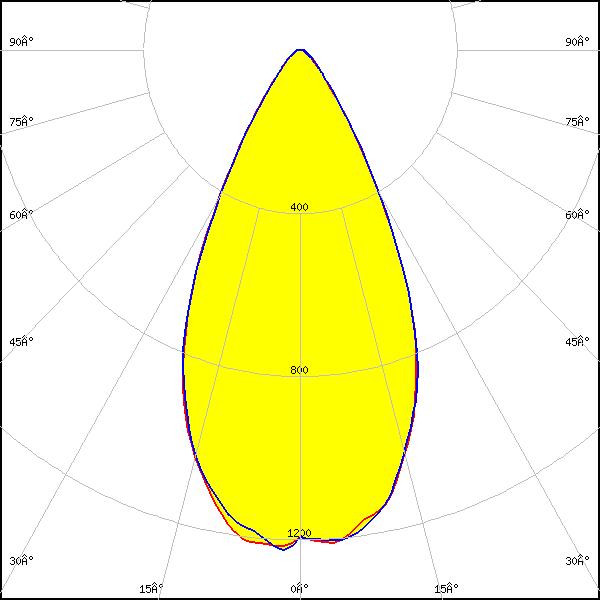

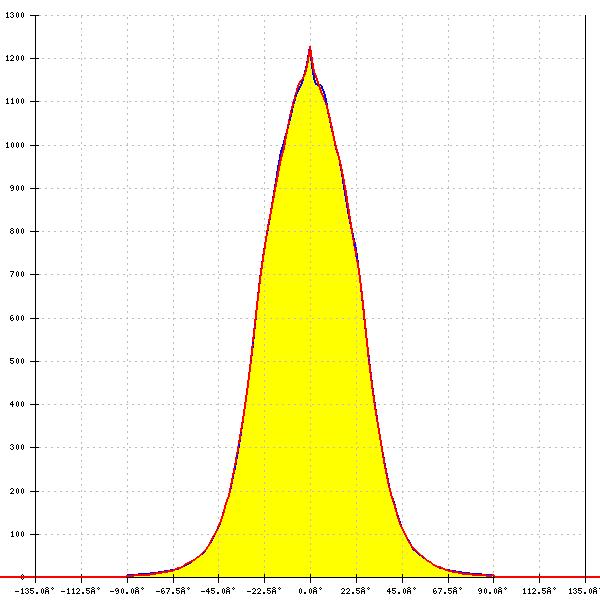

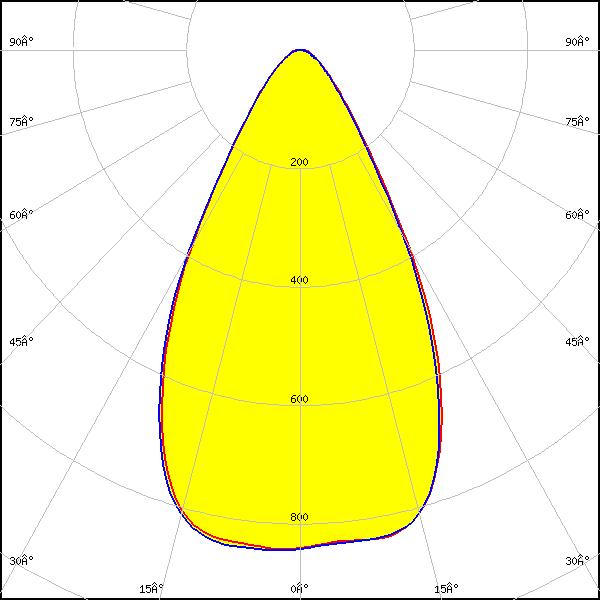

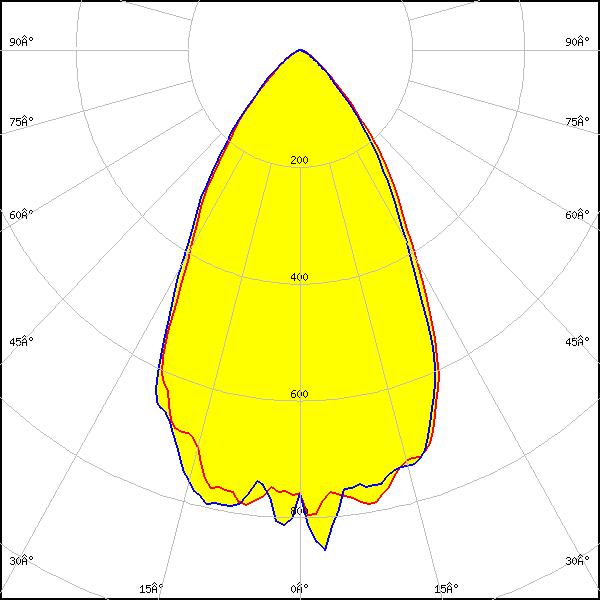

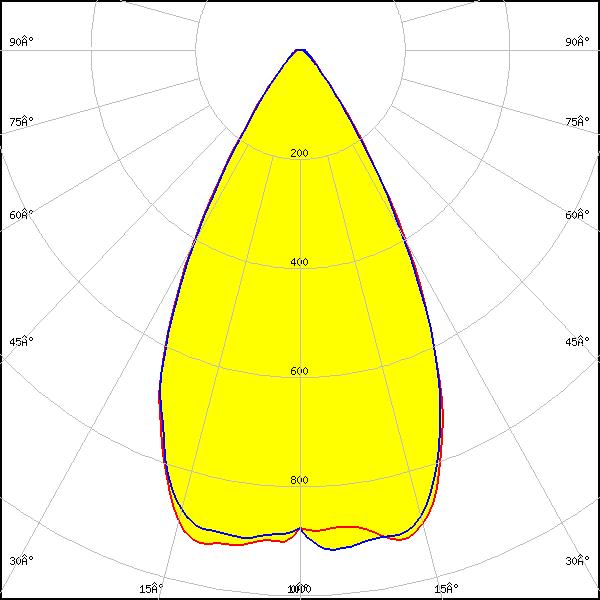

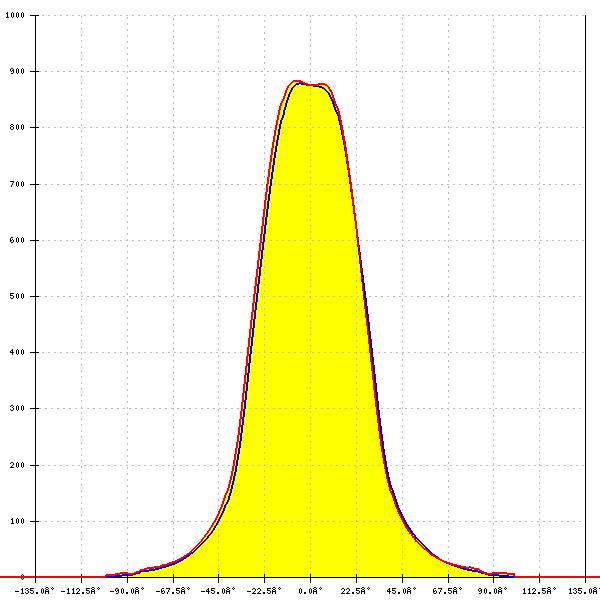

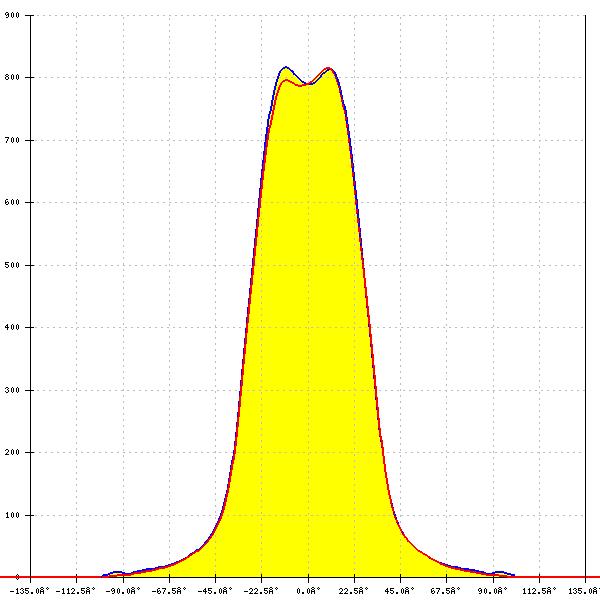

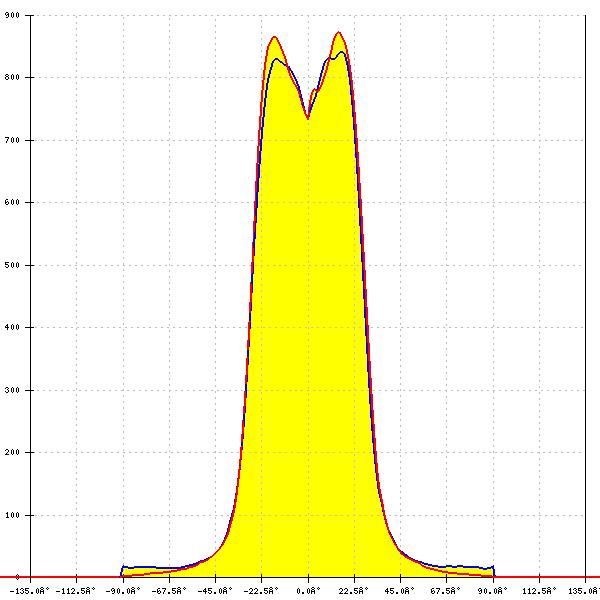

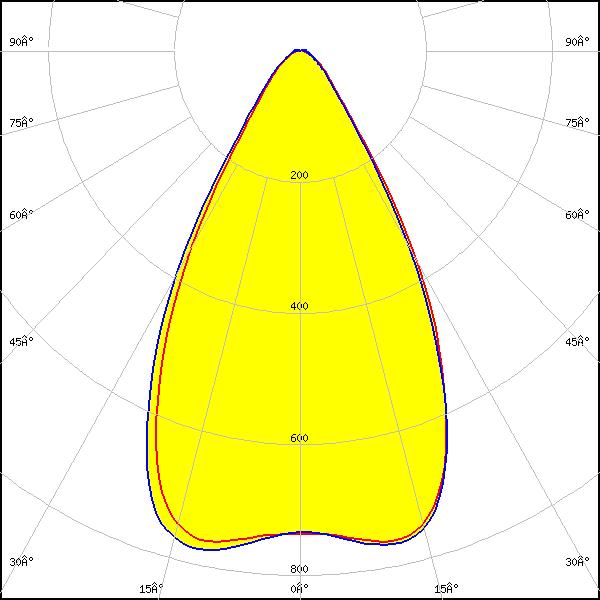

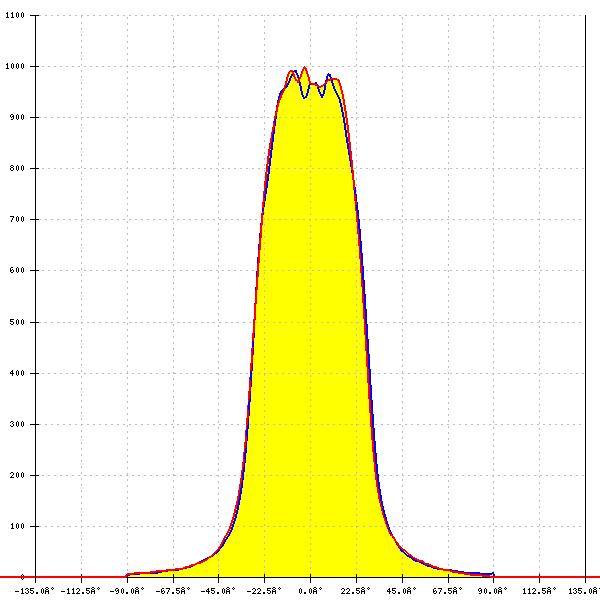

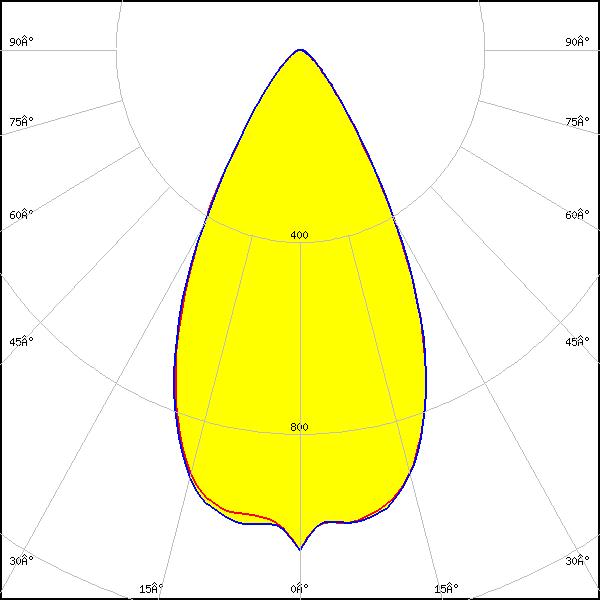

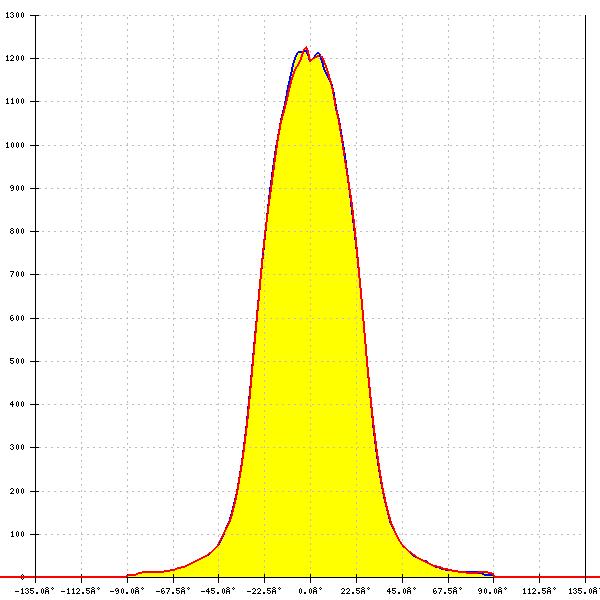

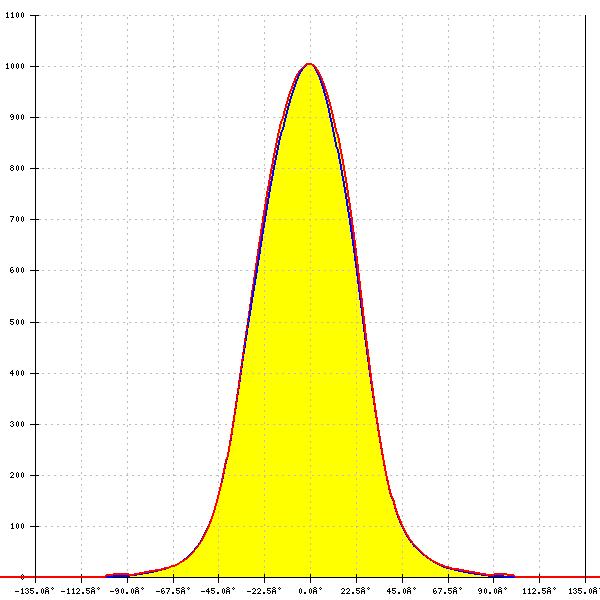

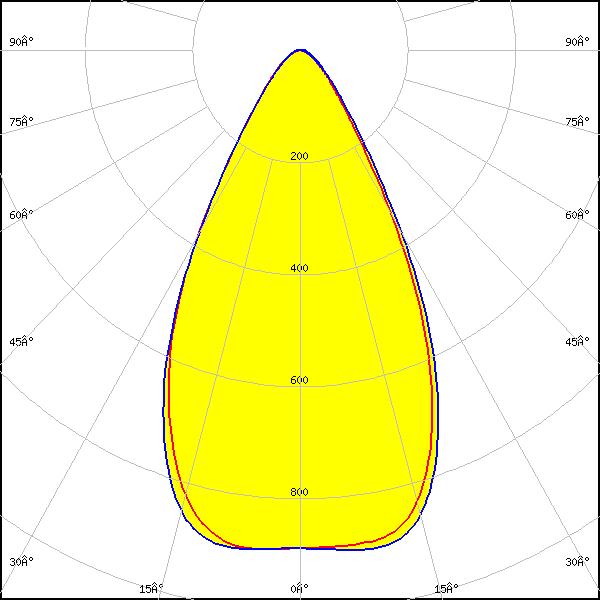

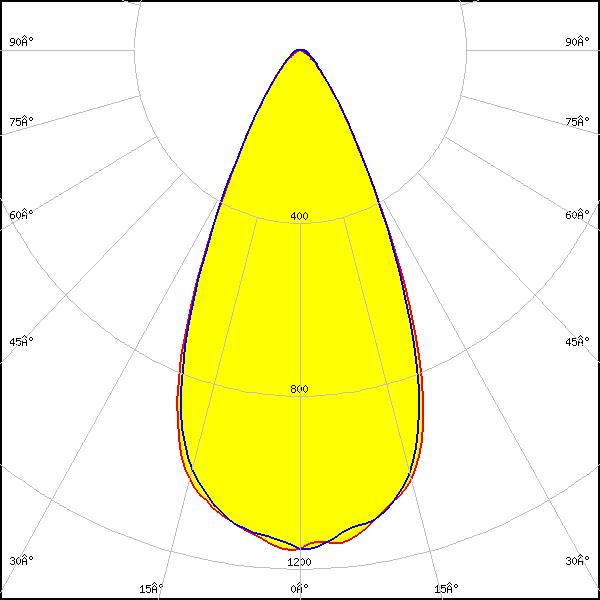

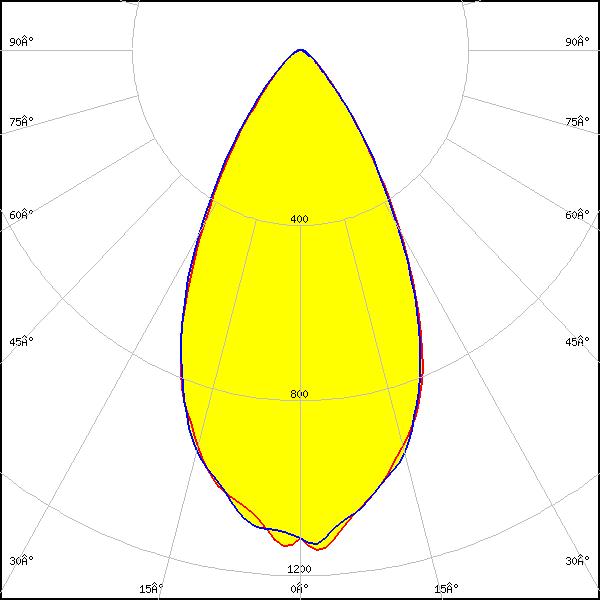

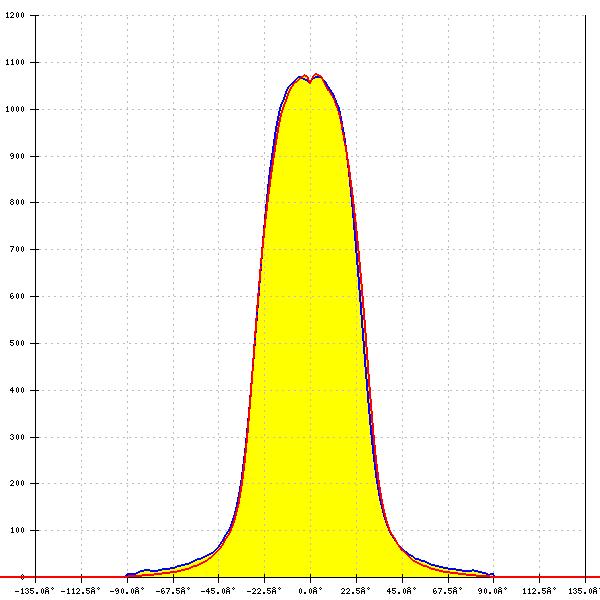

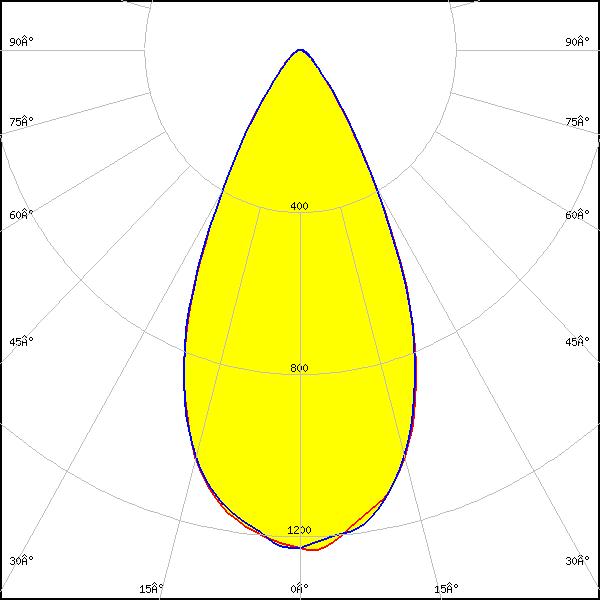

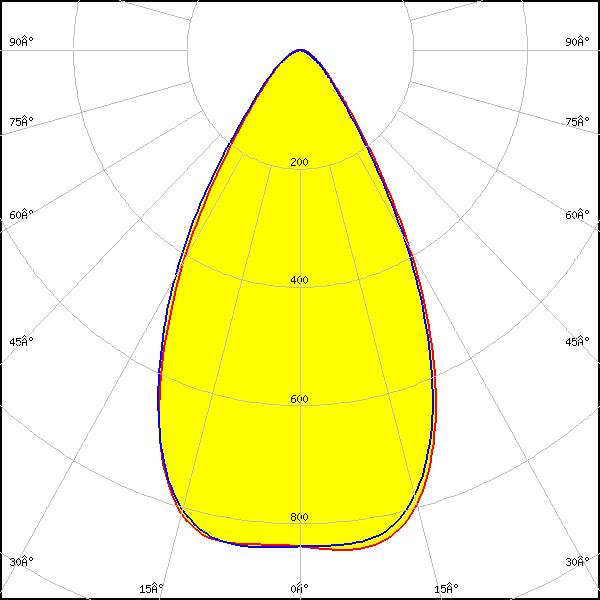

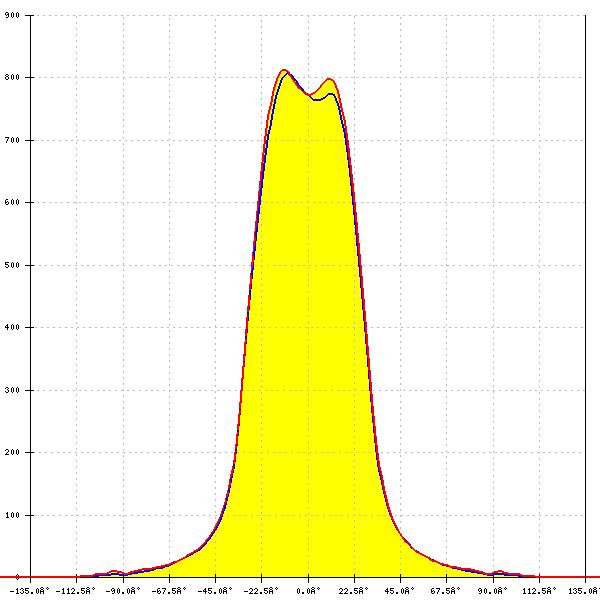

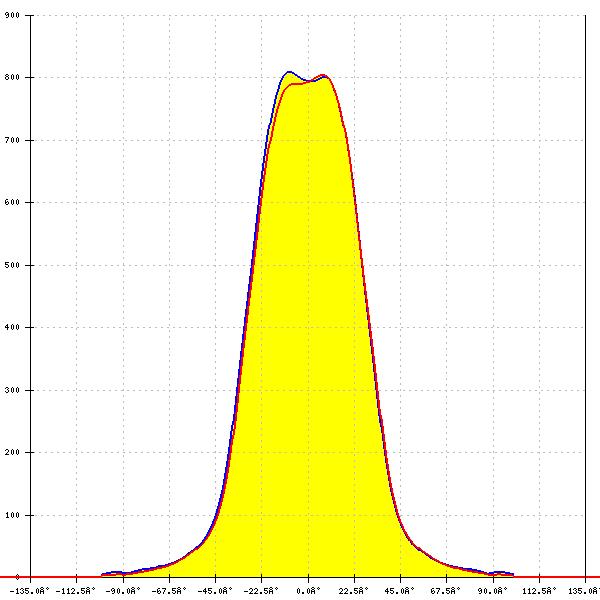

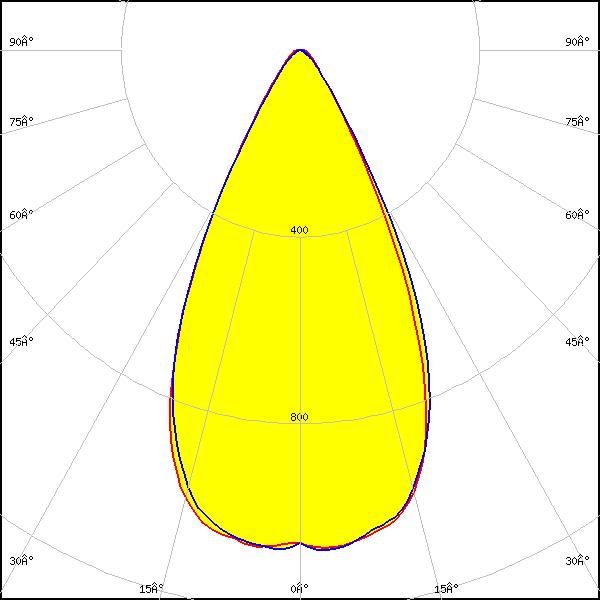

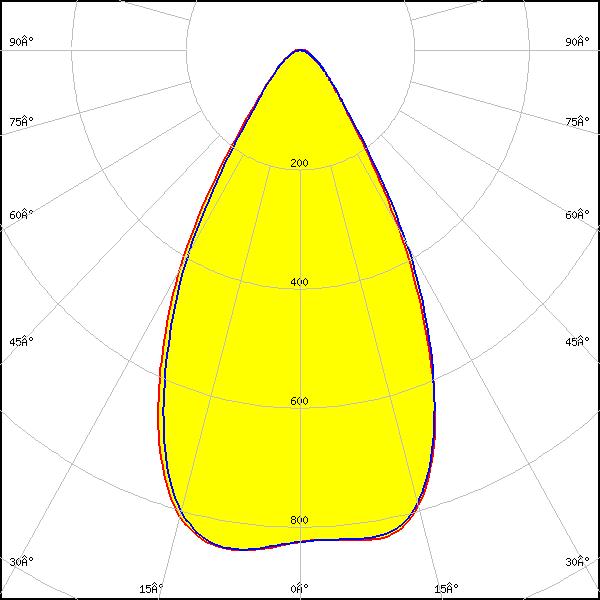

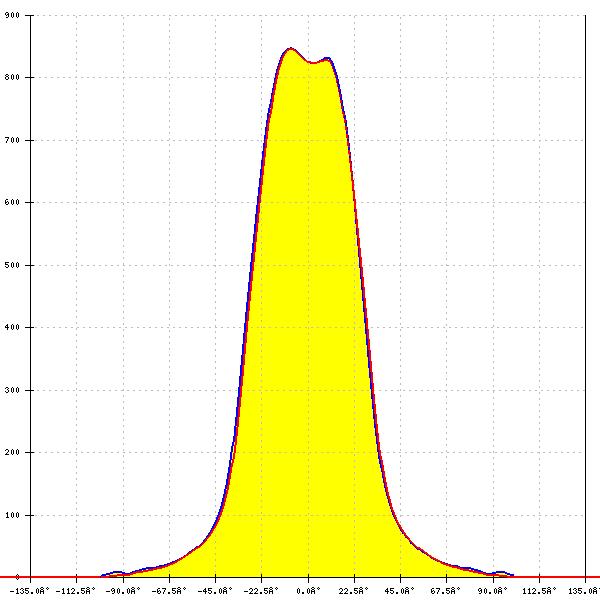

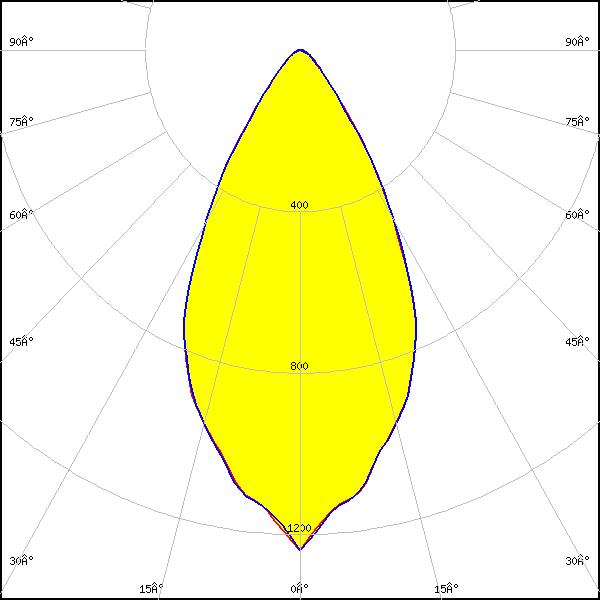

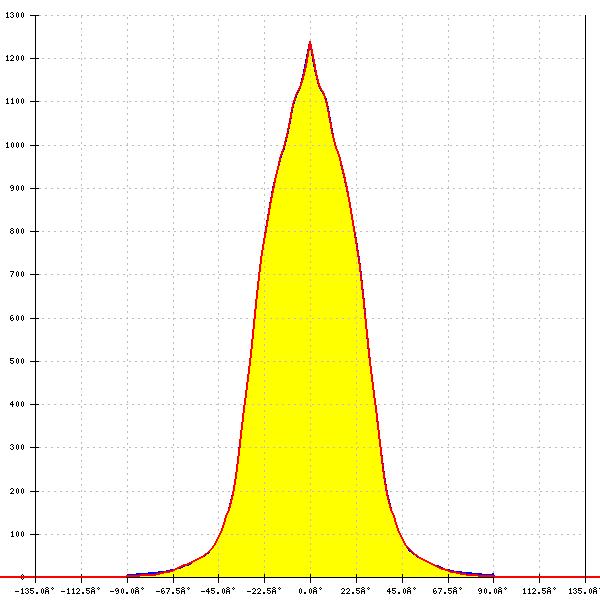

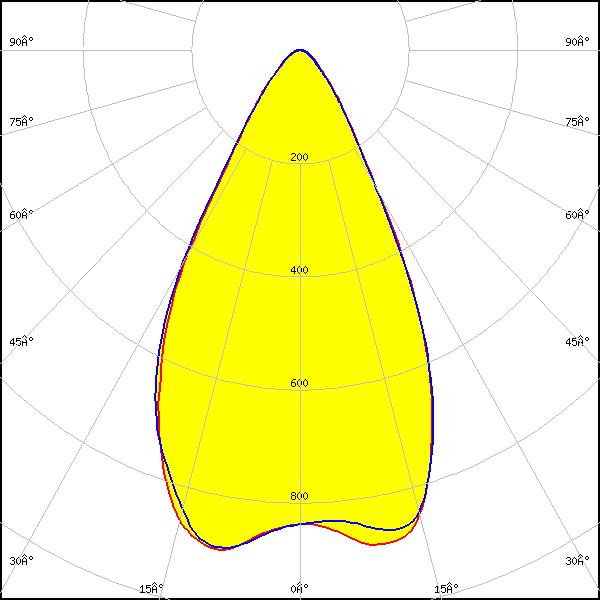

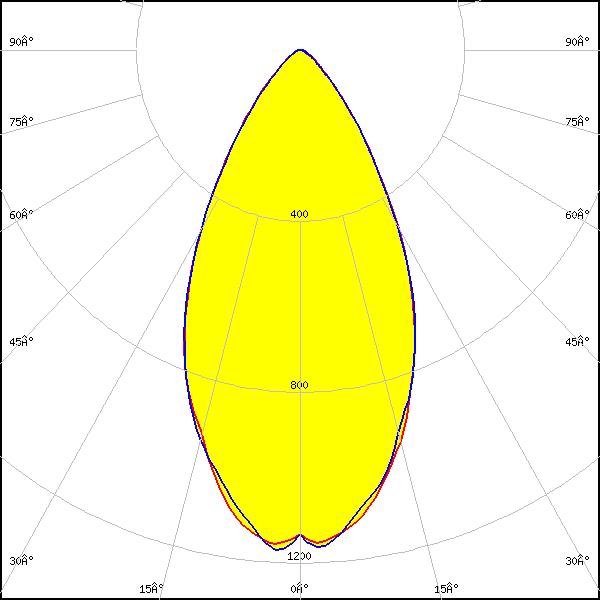

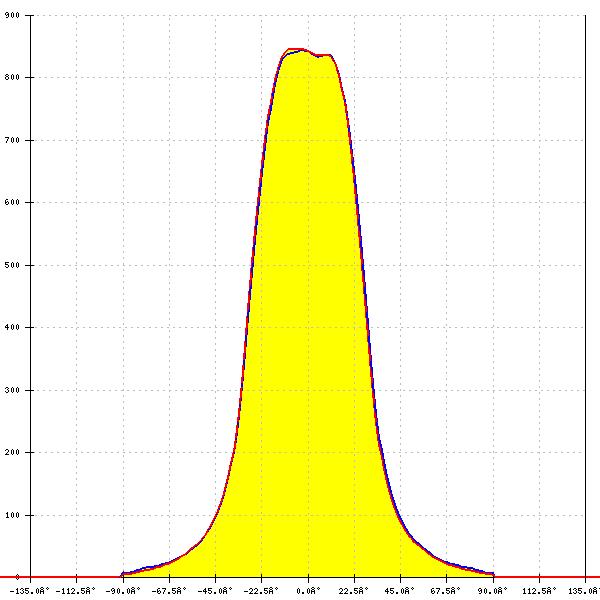

Optical results

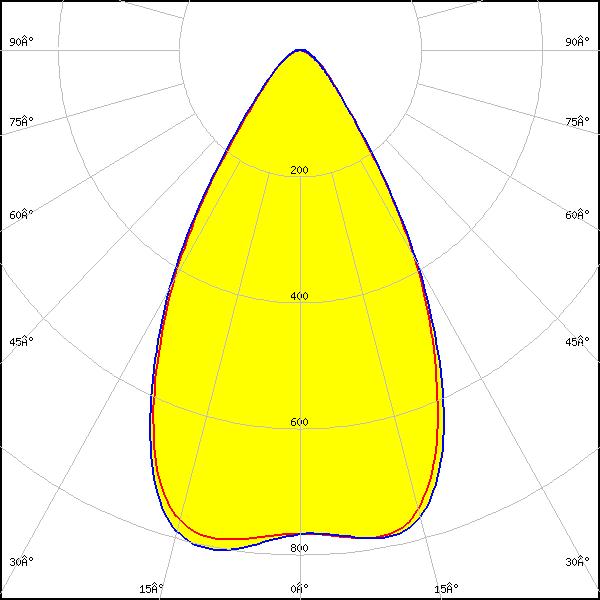

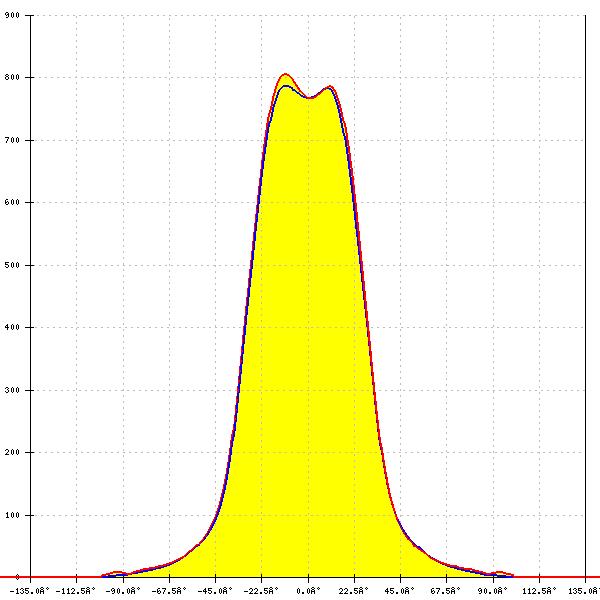

LED: QUICK FLUX 2x6 LED XG xxx G7+
FWHM: 60°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: QUICK FLUX 2x6 LED XT xxx G5
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

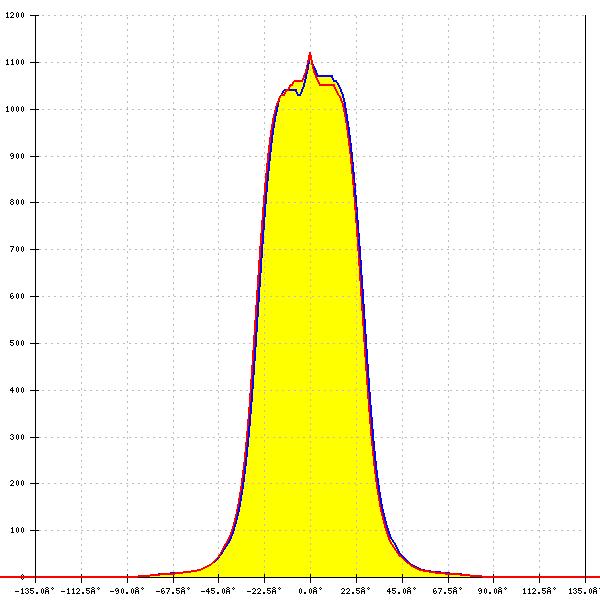

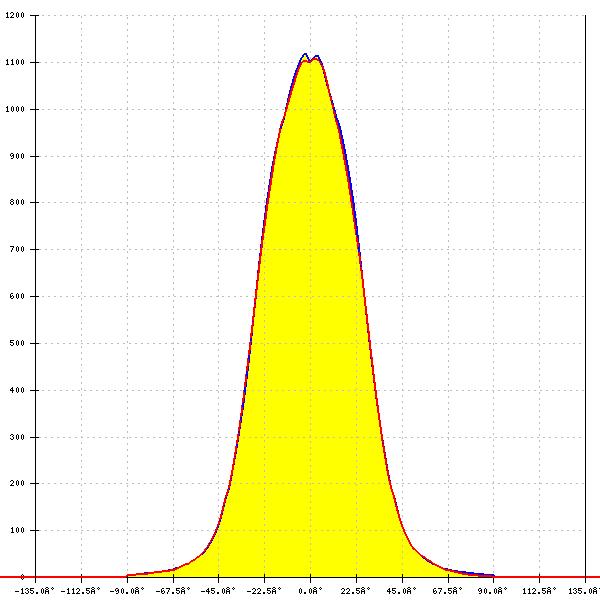

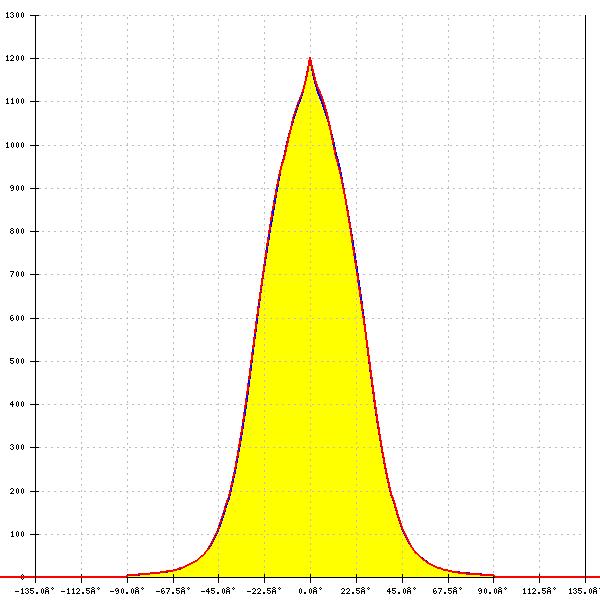

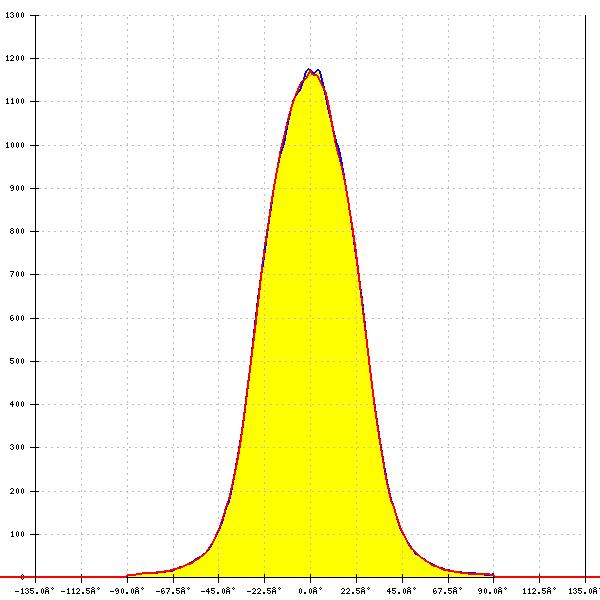

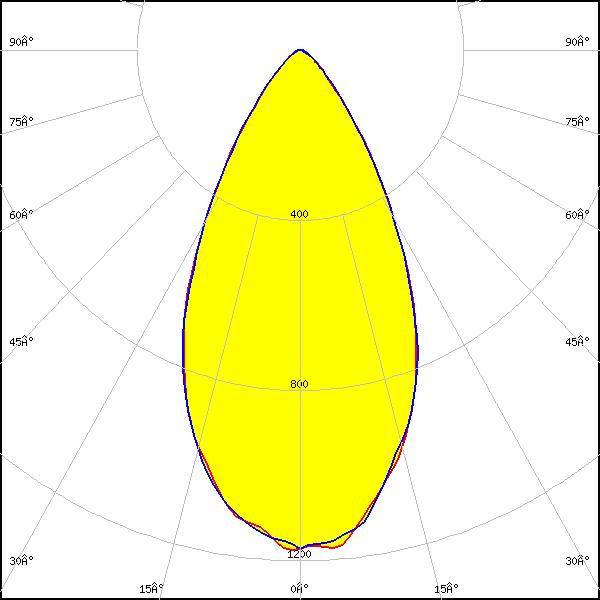

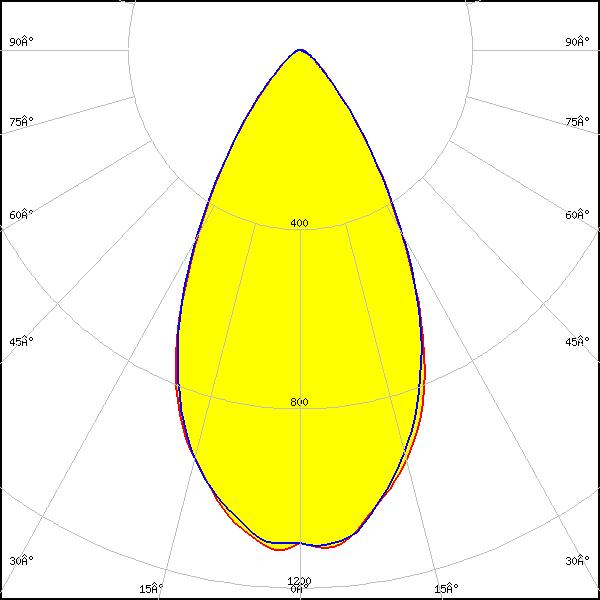

LED: J Series 5050
FWHM: 55°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: MHB-A/B
FWHM: 60°
Peak intensity: 0.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

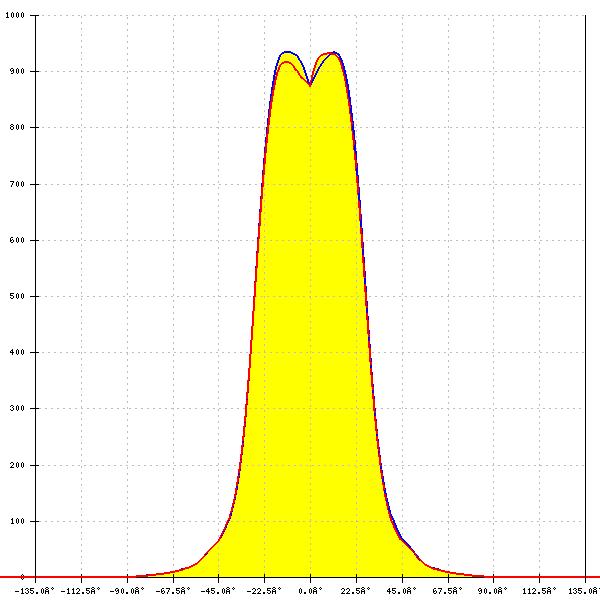

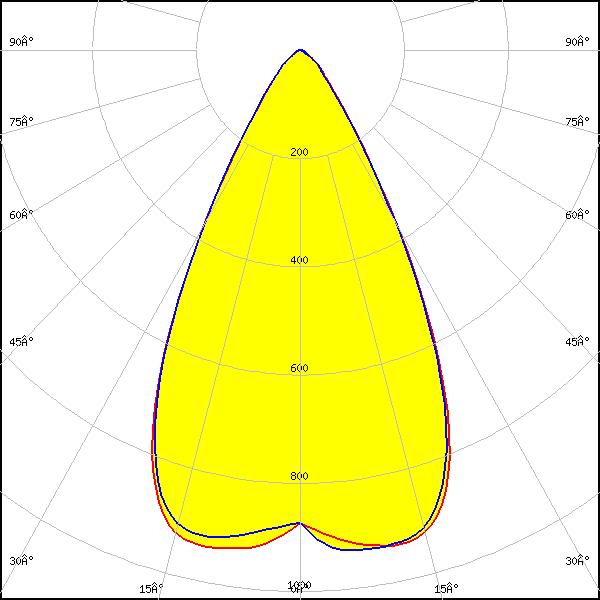

LED: XB-D
FWHM: 52°
Peak intensity: 1.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

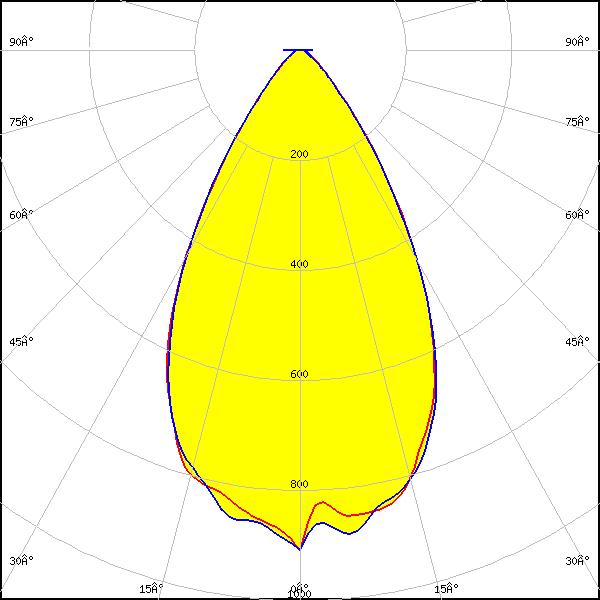

LED: XHP35 HD
FWHM: 60°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XHP35 HI
FWHM: 57°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XM-L
FWHM: 57°
Peak intensity: 1.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

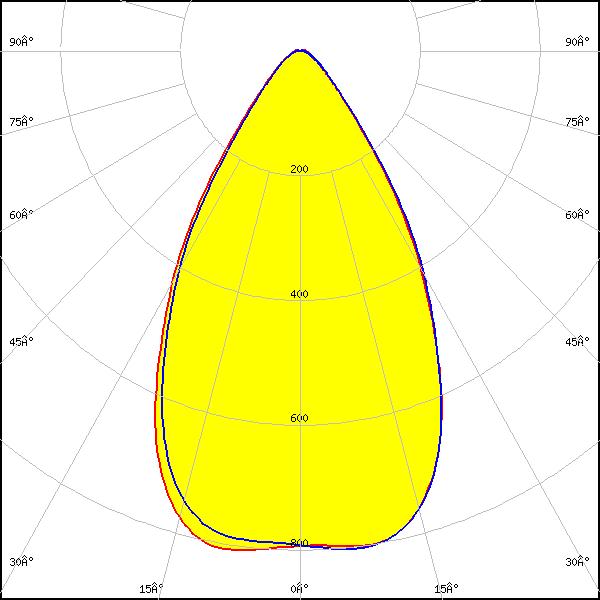

LED: XM-L2
FWHM: 61°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

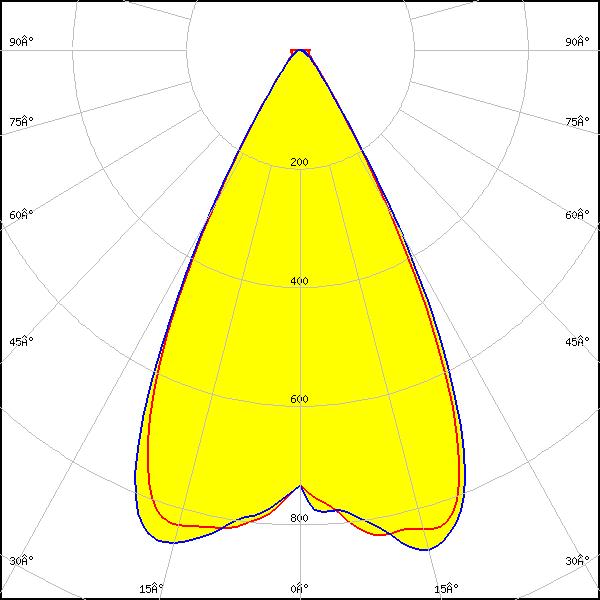

LED: XP-E2
FWHM: 56°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-G
FWHM: 60°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

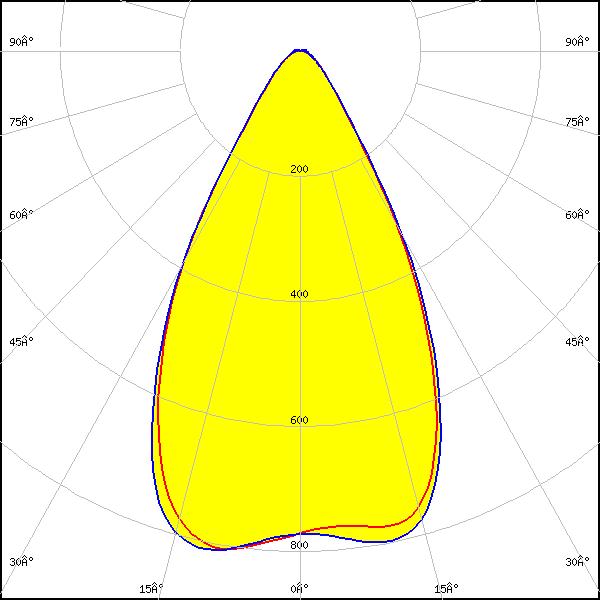

LED: XP-G2
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

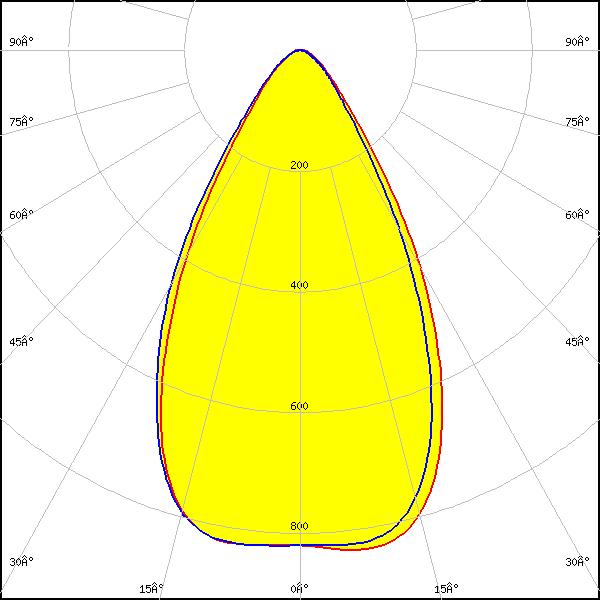

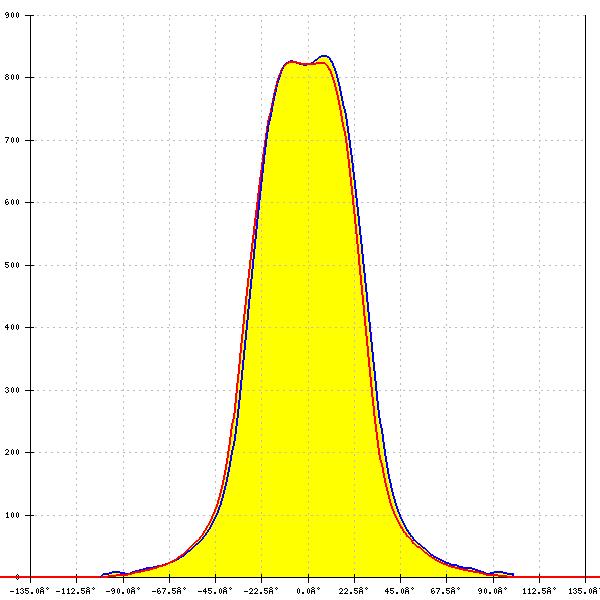

LED: XP-G3
FWHM: 59°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XP-L HD
FWHM: 67°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

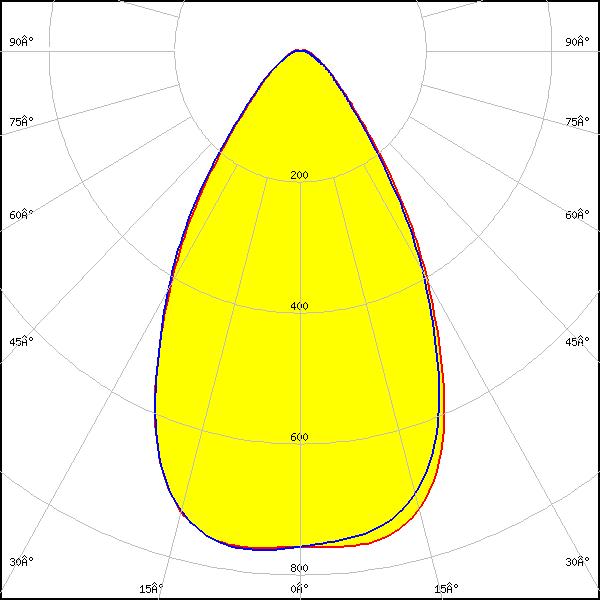

LED: XP-L2
FWHM: 62°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XT-E
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

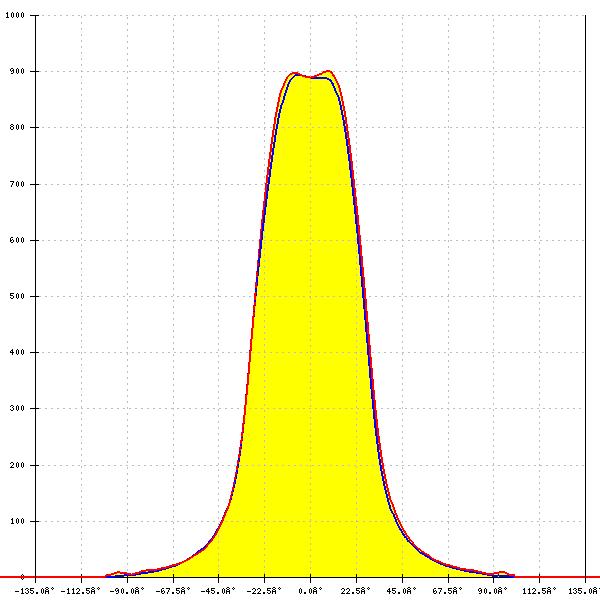

LED: XT-E HE
FWHM: 56°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: H35C1 (LEMWA33)
FWHM: 59°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

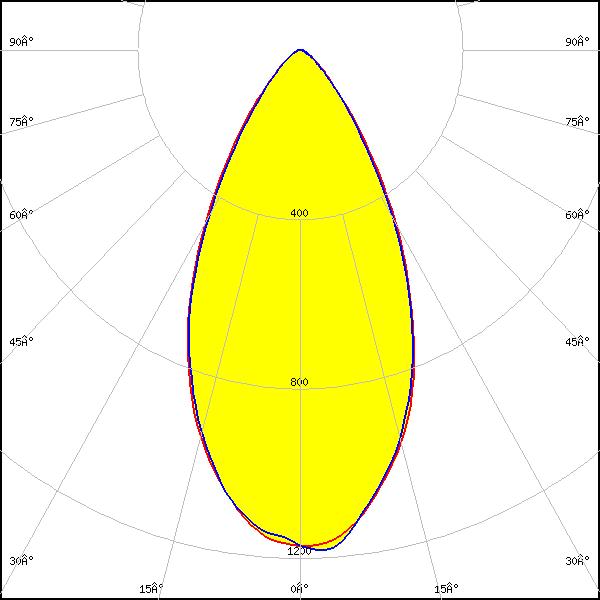

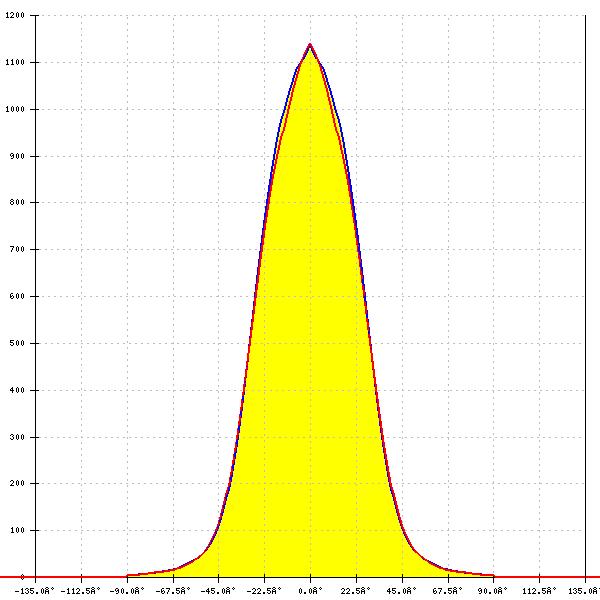

LED: LUXEON 5050
FWHM: 54°
Peak intensity: 1.1 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

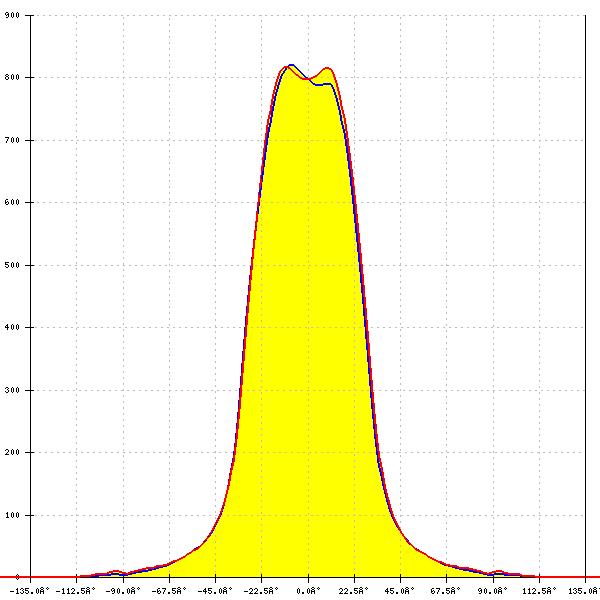

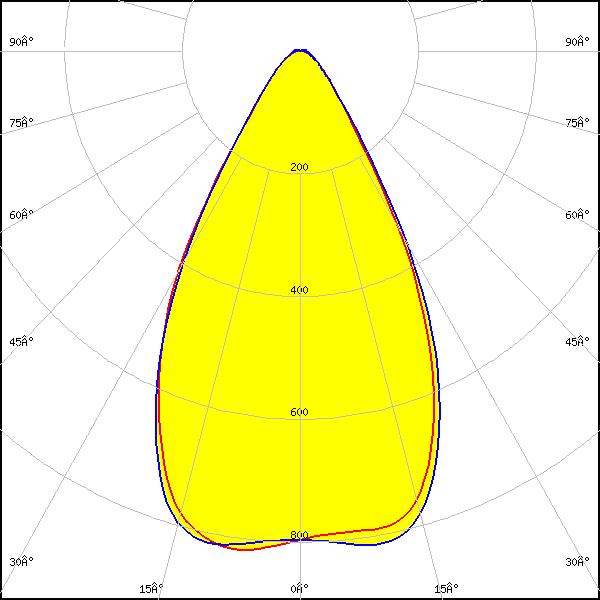

LED: LUXEON R
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

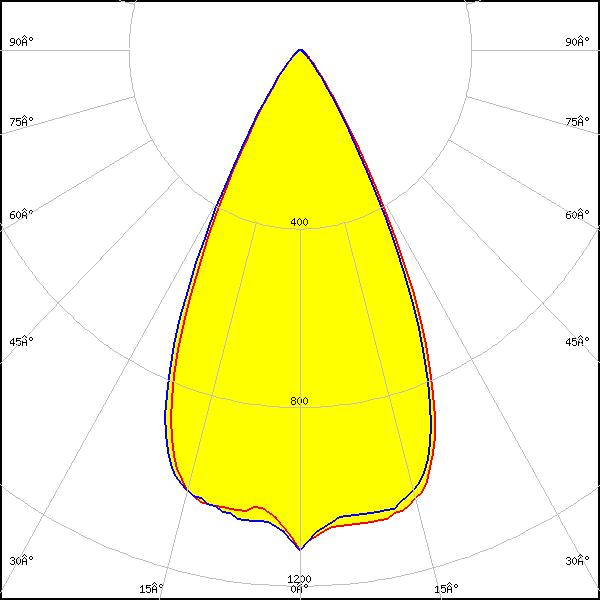

LED: LUXEON Rebel
FWHM: 50°
Peak intensity: 1.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

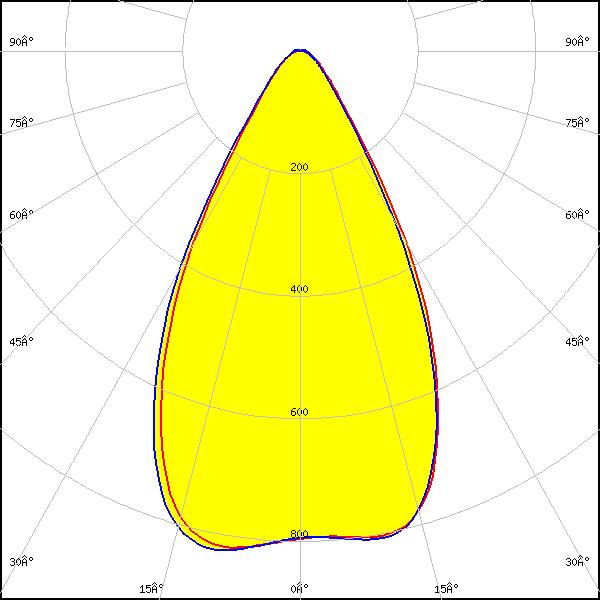

LED: LUXEON Rebel ES
FWHM: 57°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

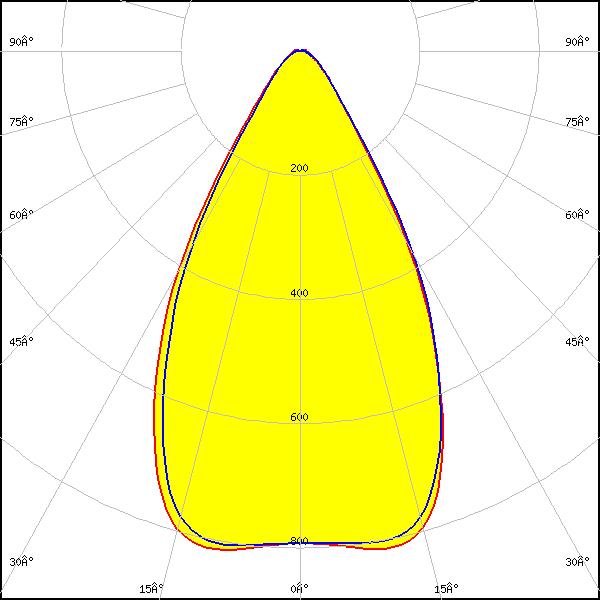

LED: LUXEON T
FWHM: 60°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

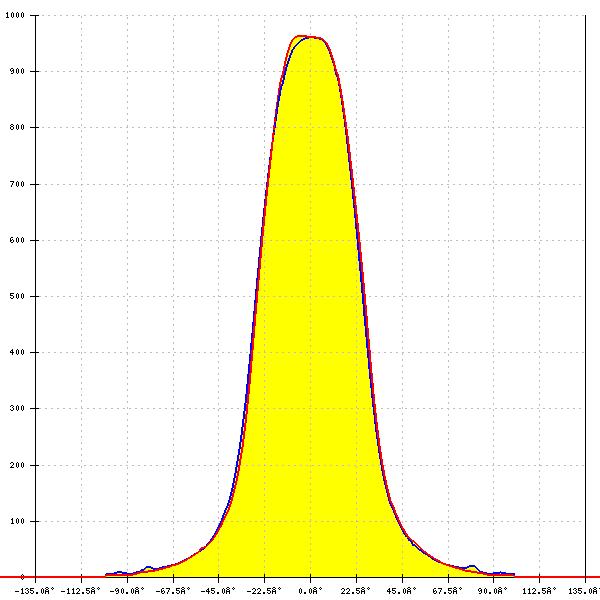

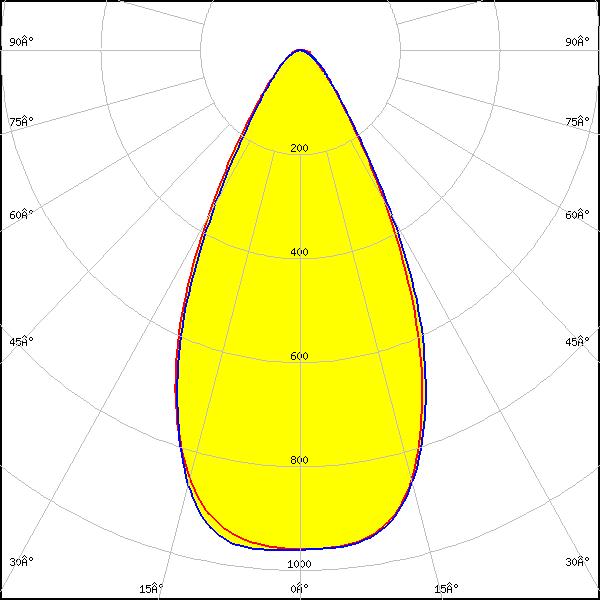

LED: LUXEON TX
FWHM: 54°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON V
FWHM: 59°
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

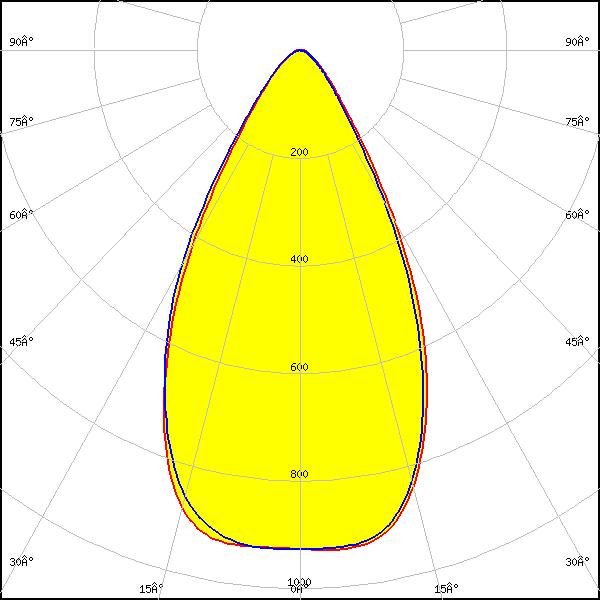

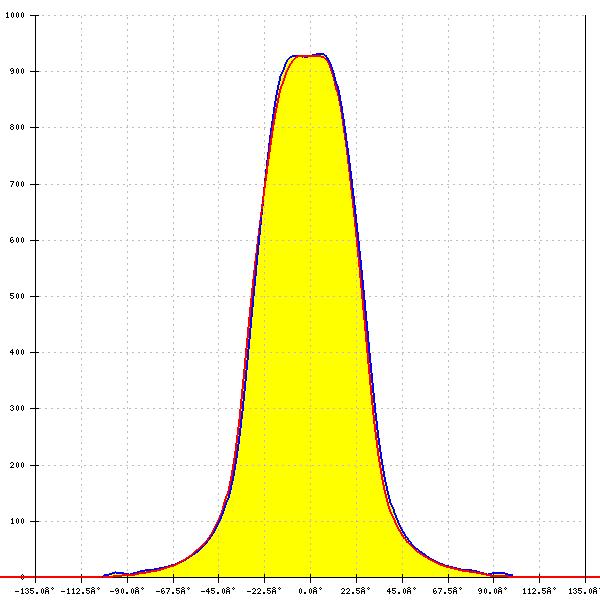

LED: LUXEON V2
FWHM: 56°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

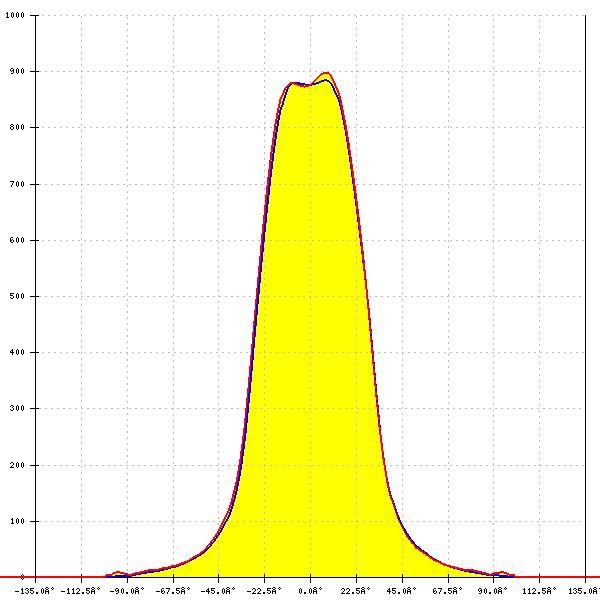

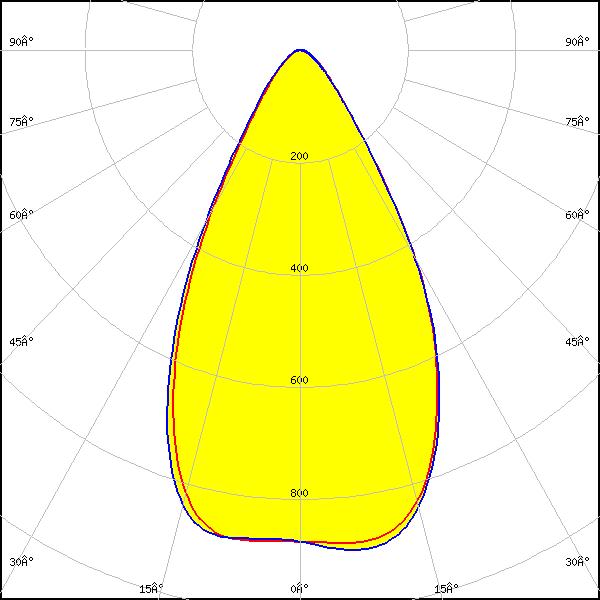

LED: LUXEON XR-TX (L2T0-xxyy012M)
FWHM: 60°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

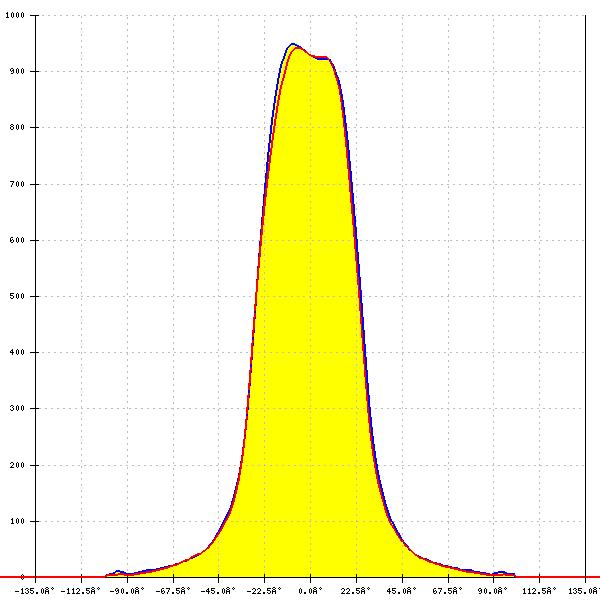

LED: LUXEON Z ES
FWHM: 52°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

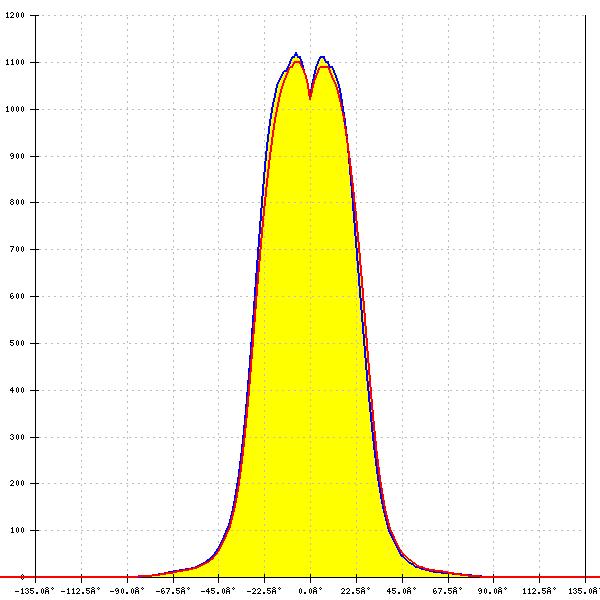

LED: NF2x757A
FWHM: 50°
Peak intensity: 1.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

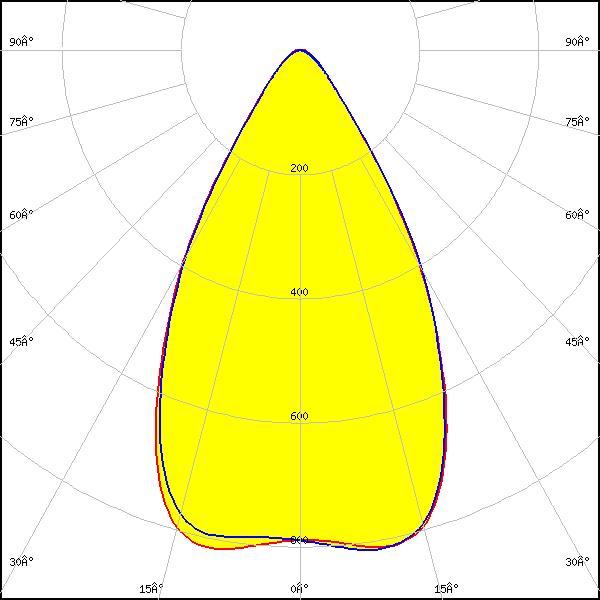

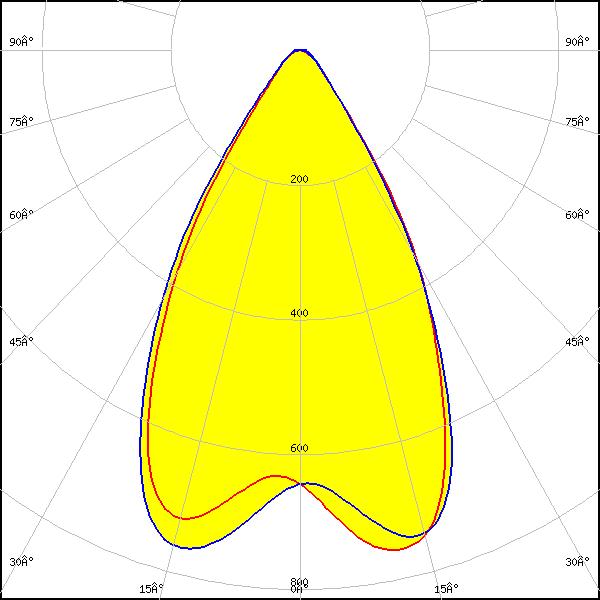

LED: NVSW219D
FWHM: 64°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

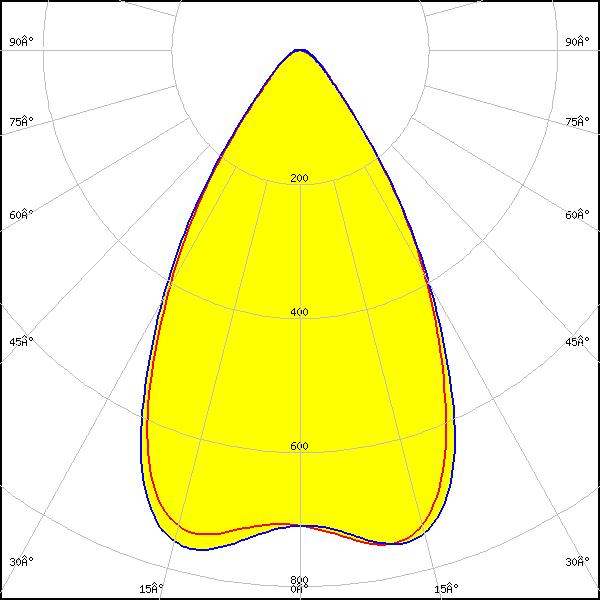

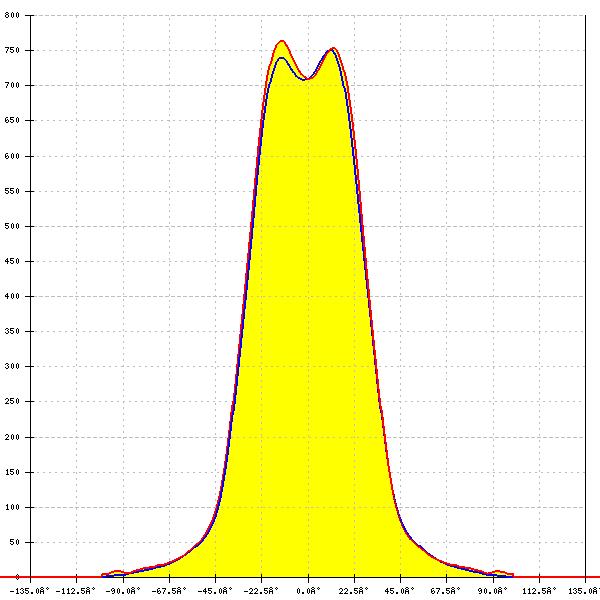

LED: NVSW319B
FWHM: 64°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

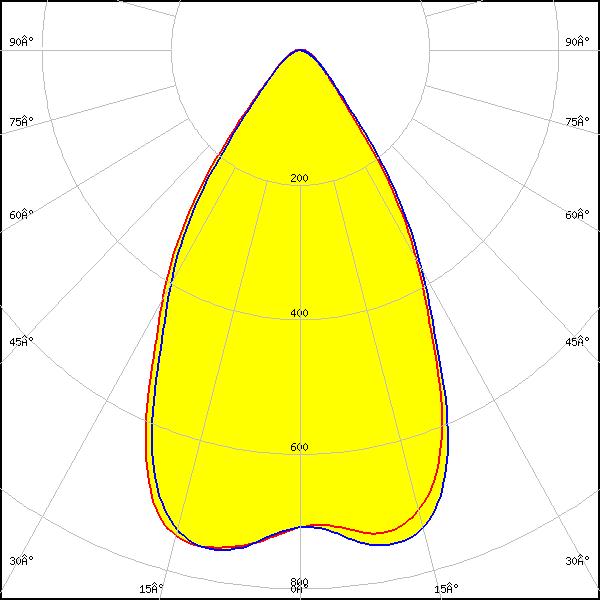

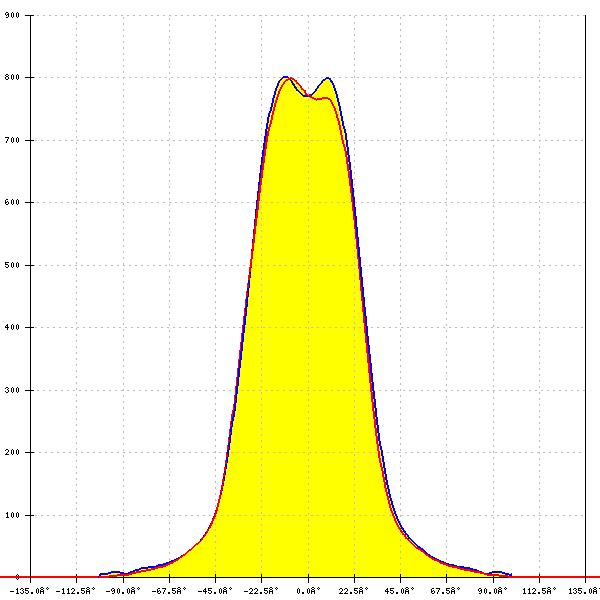

LED: NVSW3x9A
FWHM: 60°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

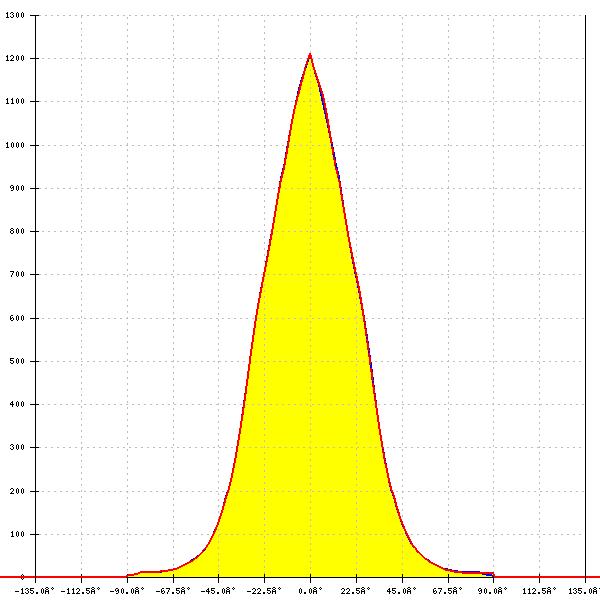

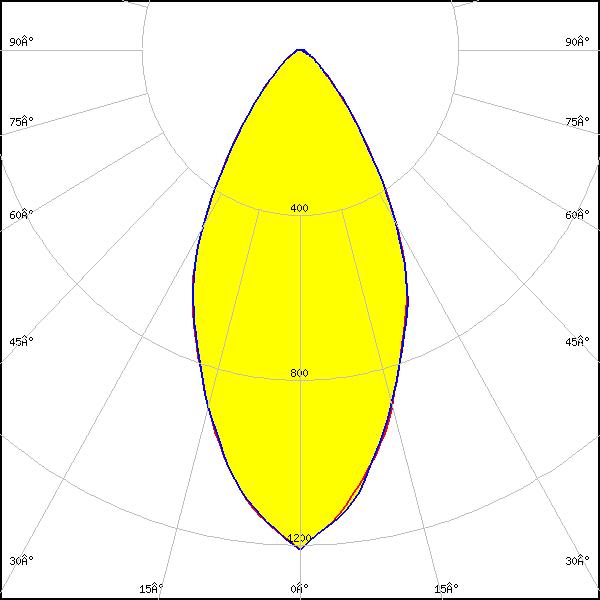

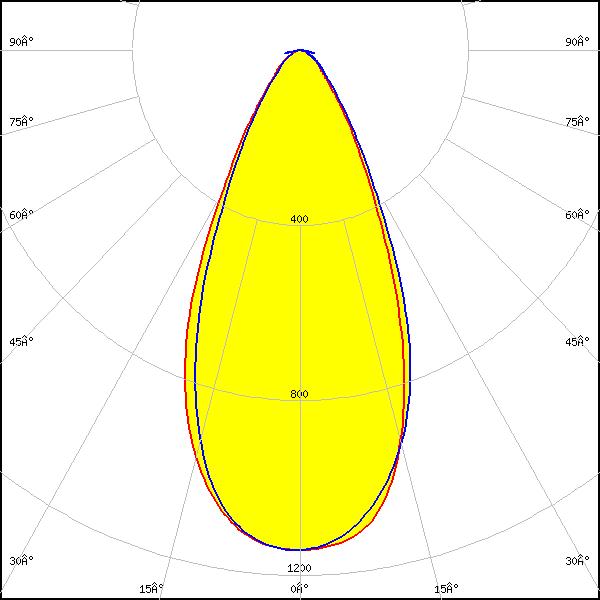

LED: NVSxE21A
FWHM: 51°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

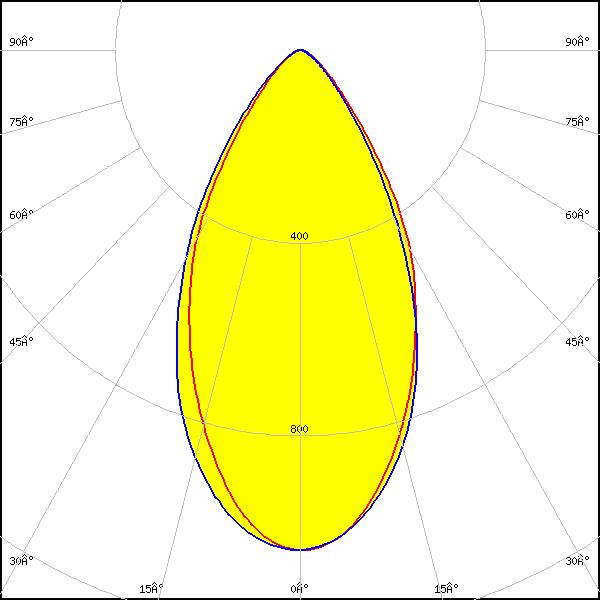

LED: Duris S8
FWHM: 54°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 57°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 56°
Peak intensity: 1.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

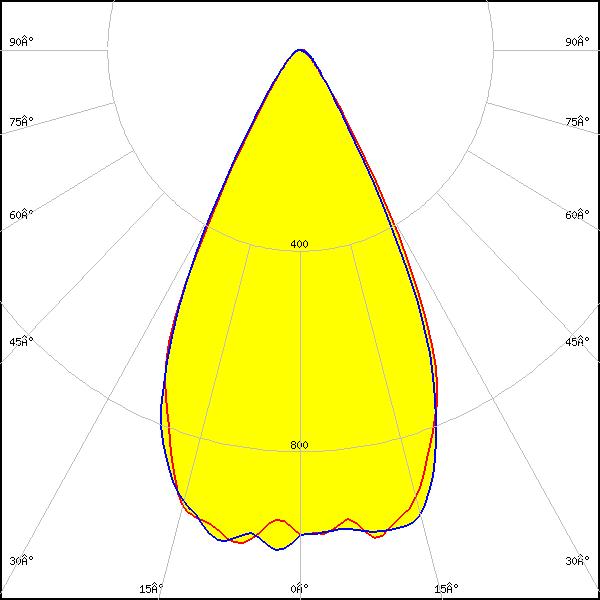

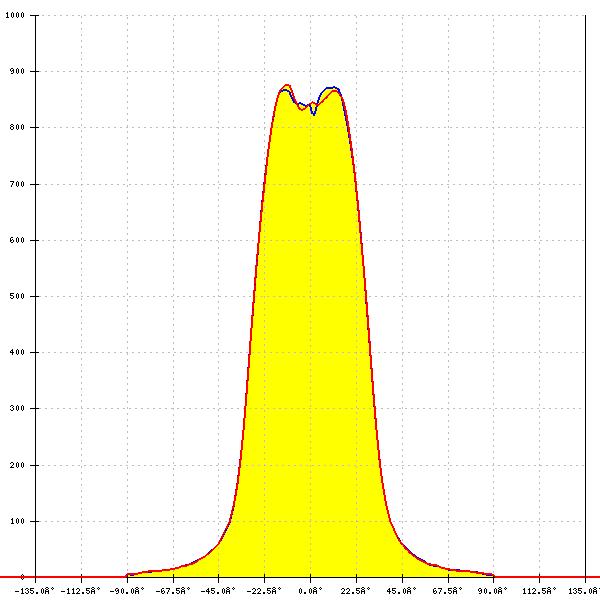

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 56°
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSLON Square EC
FWHM: 56°
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

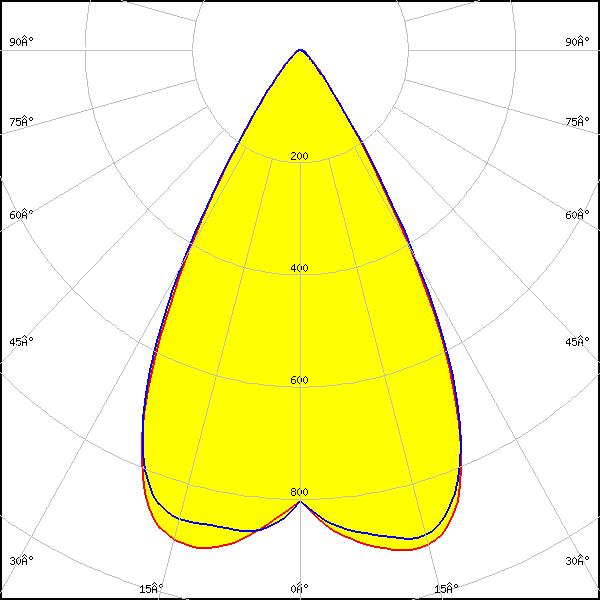

LED: OSLON Square PC
FWHM: 56°
Peak intensity: 1.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

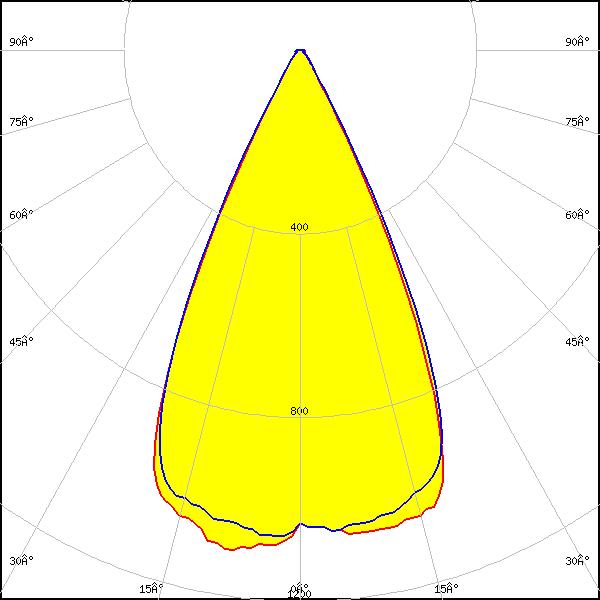

LED: OSLON SSL 80
FWHM: 52°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x6 DP G4
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x6 DPX G4
FWHM: 59°
Peak intensity: 0.8 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

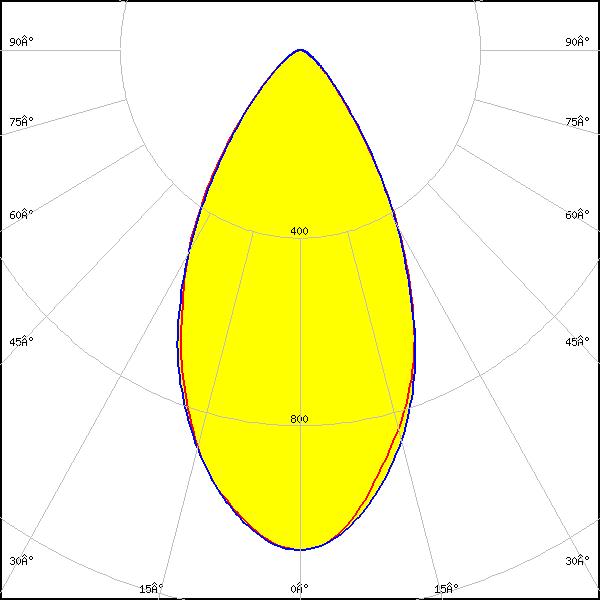

LED: HiLOM RH12 (LH351C)
FWHM: 61°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

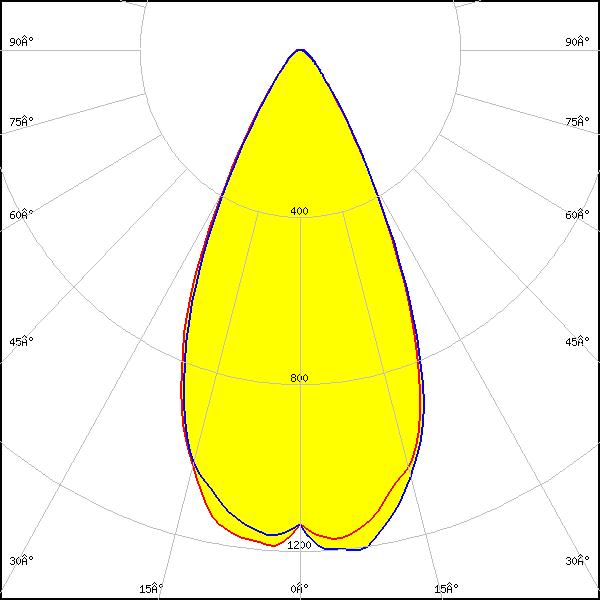

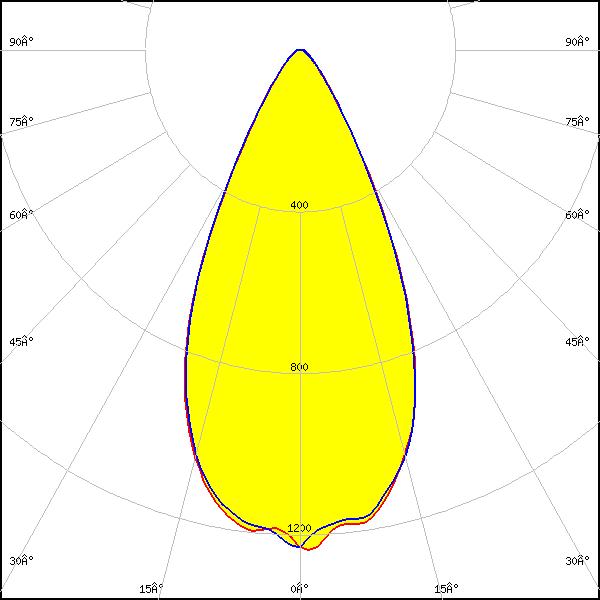

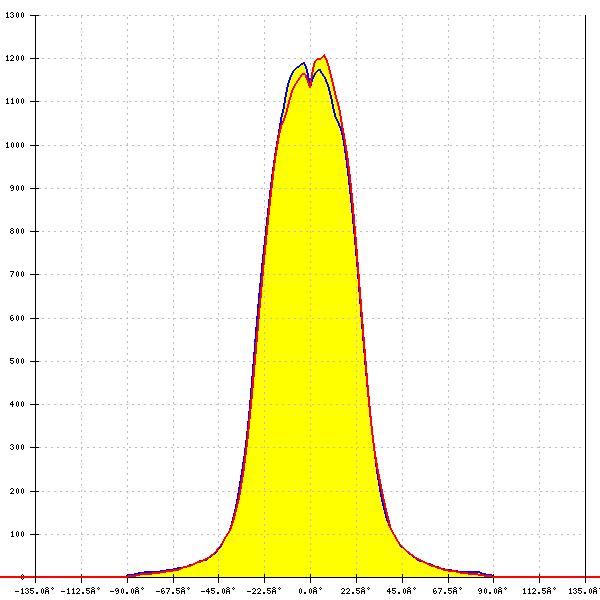

LED: LH181B
FWHM: 54°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

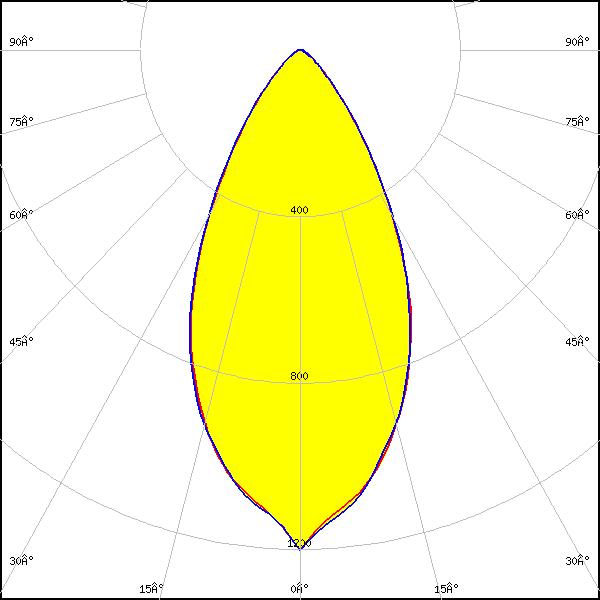

LED: LH508B
FWHM: 52°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: 56°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: XLE-S26XHP35 (XHP35 HD)
FWHM: 65°
Peak intensity: 0.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

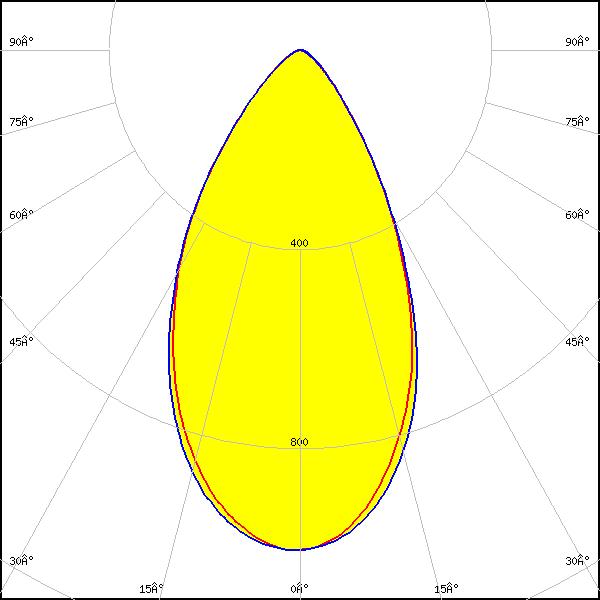

LED: 2x6 5050 module - SMJD-3625012F-XX
FWHM: 57°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

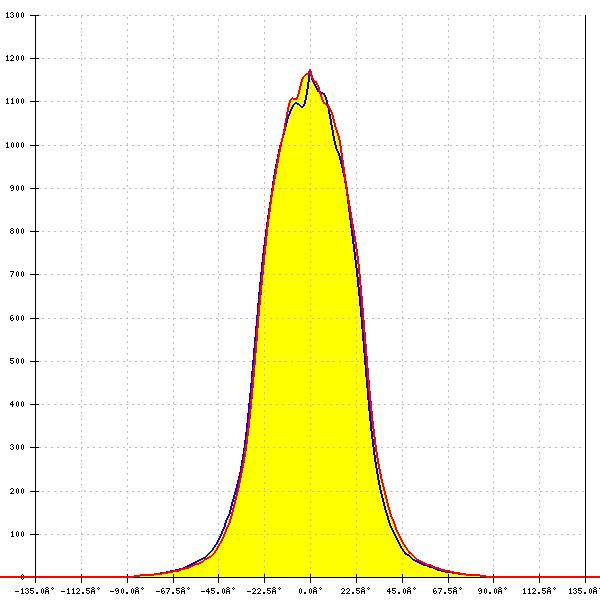

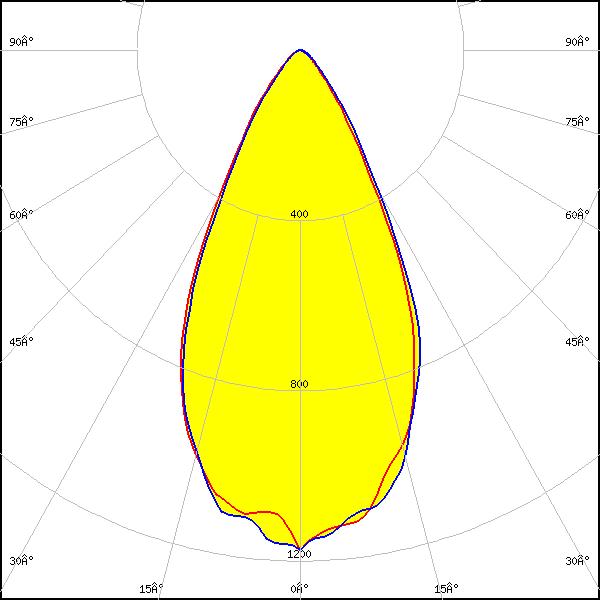

LED: Acrich MJT 4040
FWHM: 52°
Peak intensity: 1.2 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: SMJQ-D36W12Mx
FWHM: 53°
Peak intensity: 1.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

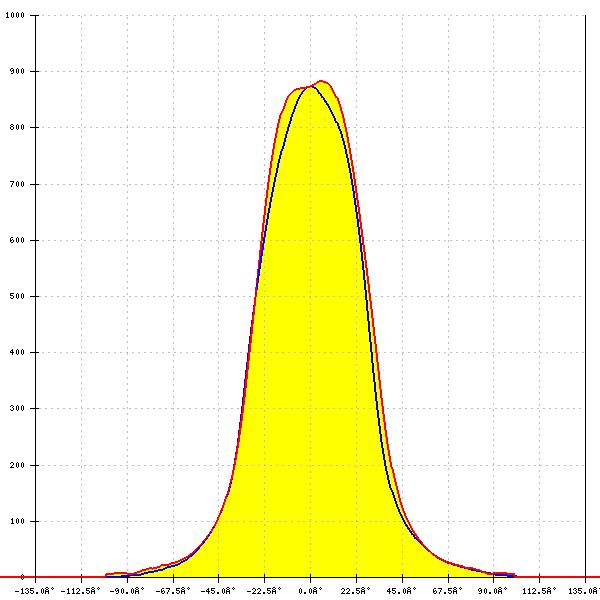

LED: SMJQ-D36W12Px
FWHM: 58°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

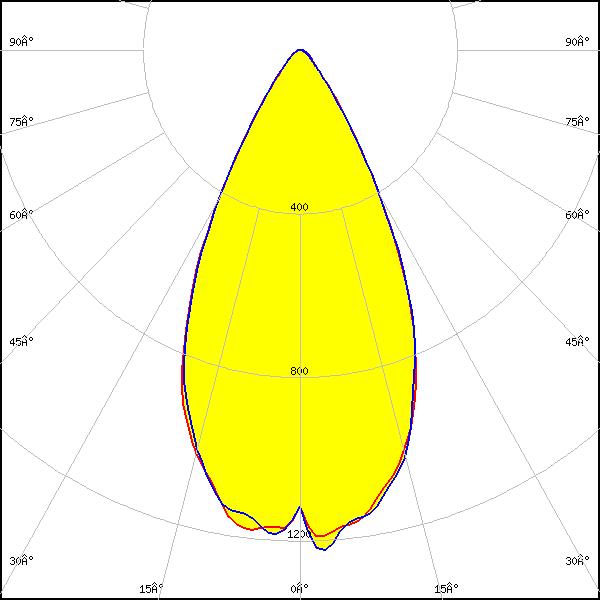

LED: Z5M
FWHM: 50°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

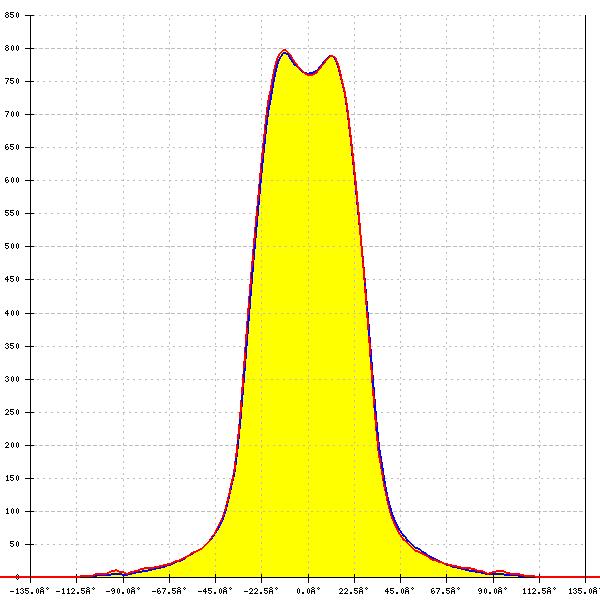

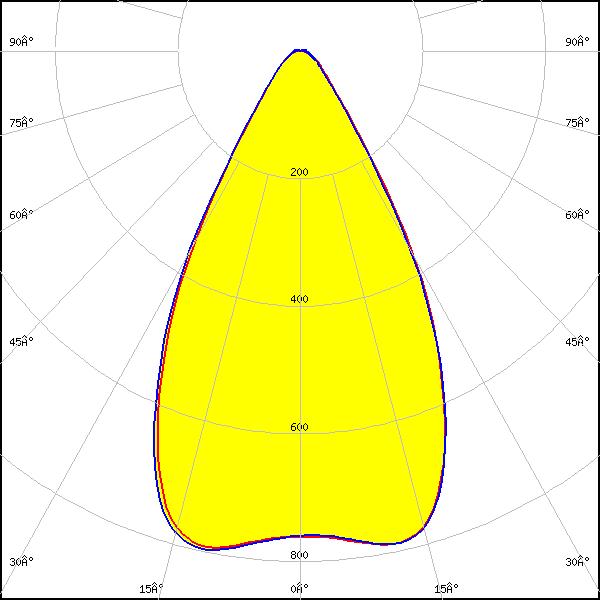

LED: Z5M1/Z5M2
FWHM: 59°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22
FWHM: 53°
Peak intensity: 1.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

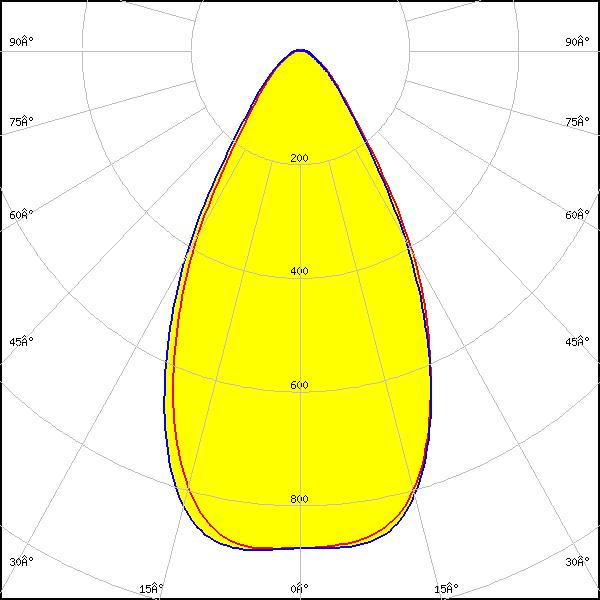

LED: Z8Y22P
FWHM: 57°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

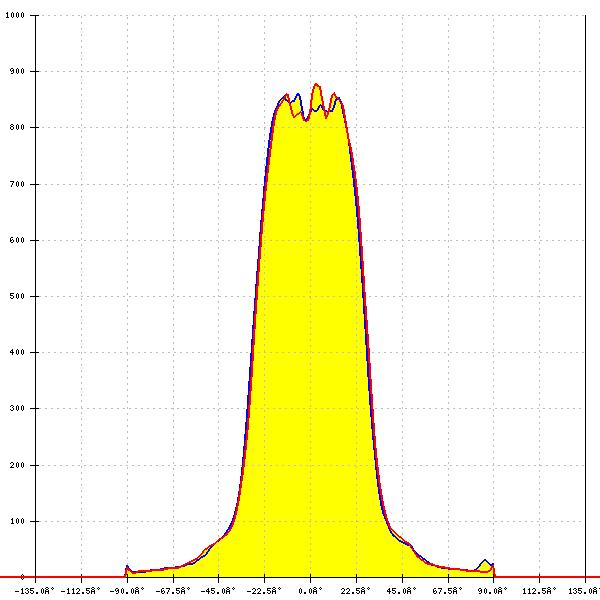

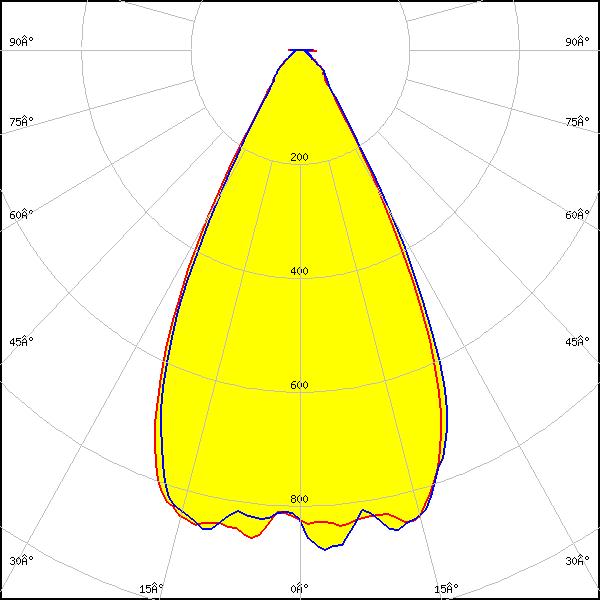

LED: TL1L2
FWHM: 55°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

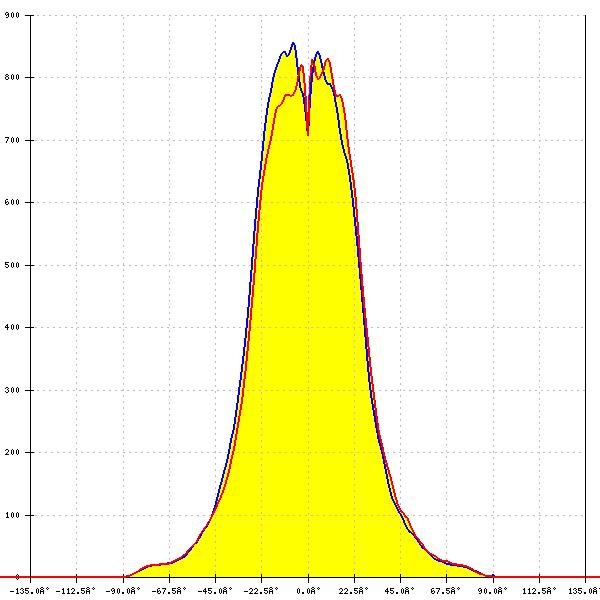

LED: TL1L3
FWHM: 54°
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: TL1L4
FWHM: 56°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

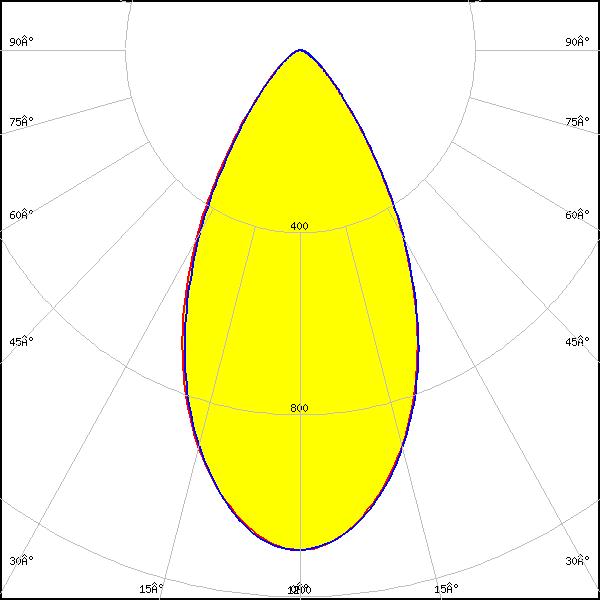

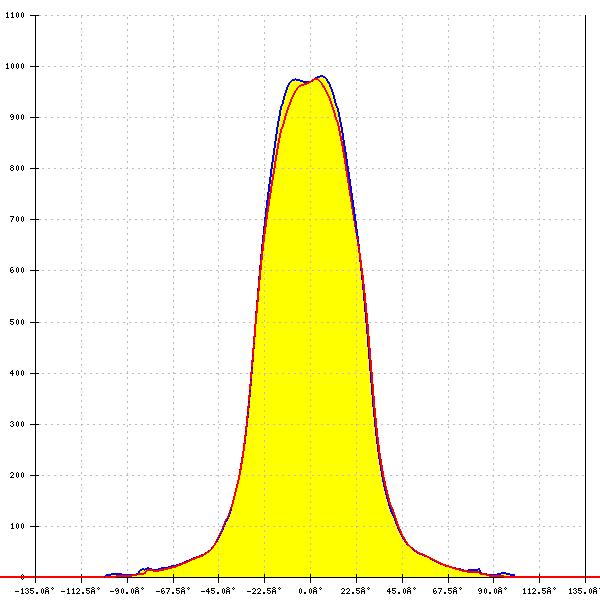

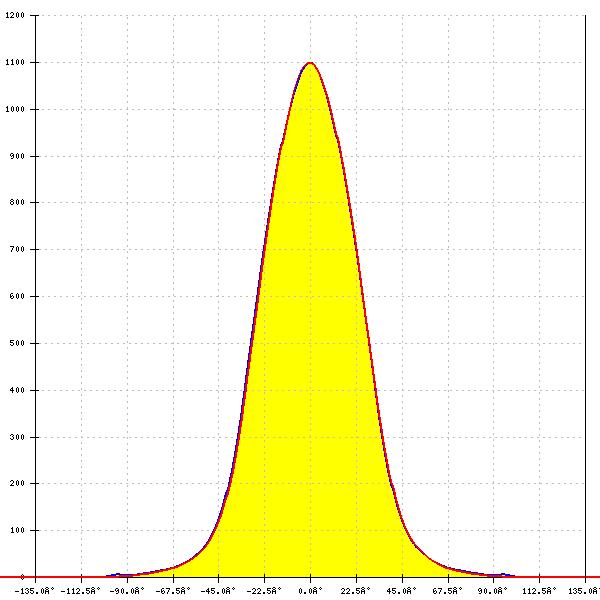

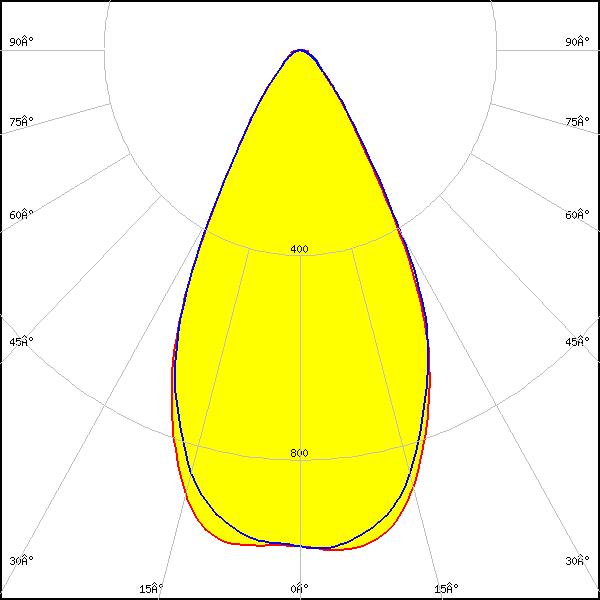

LED: RLE 2x6 3000lm HP EXC2 OTD
FWHM: 57°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
