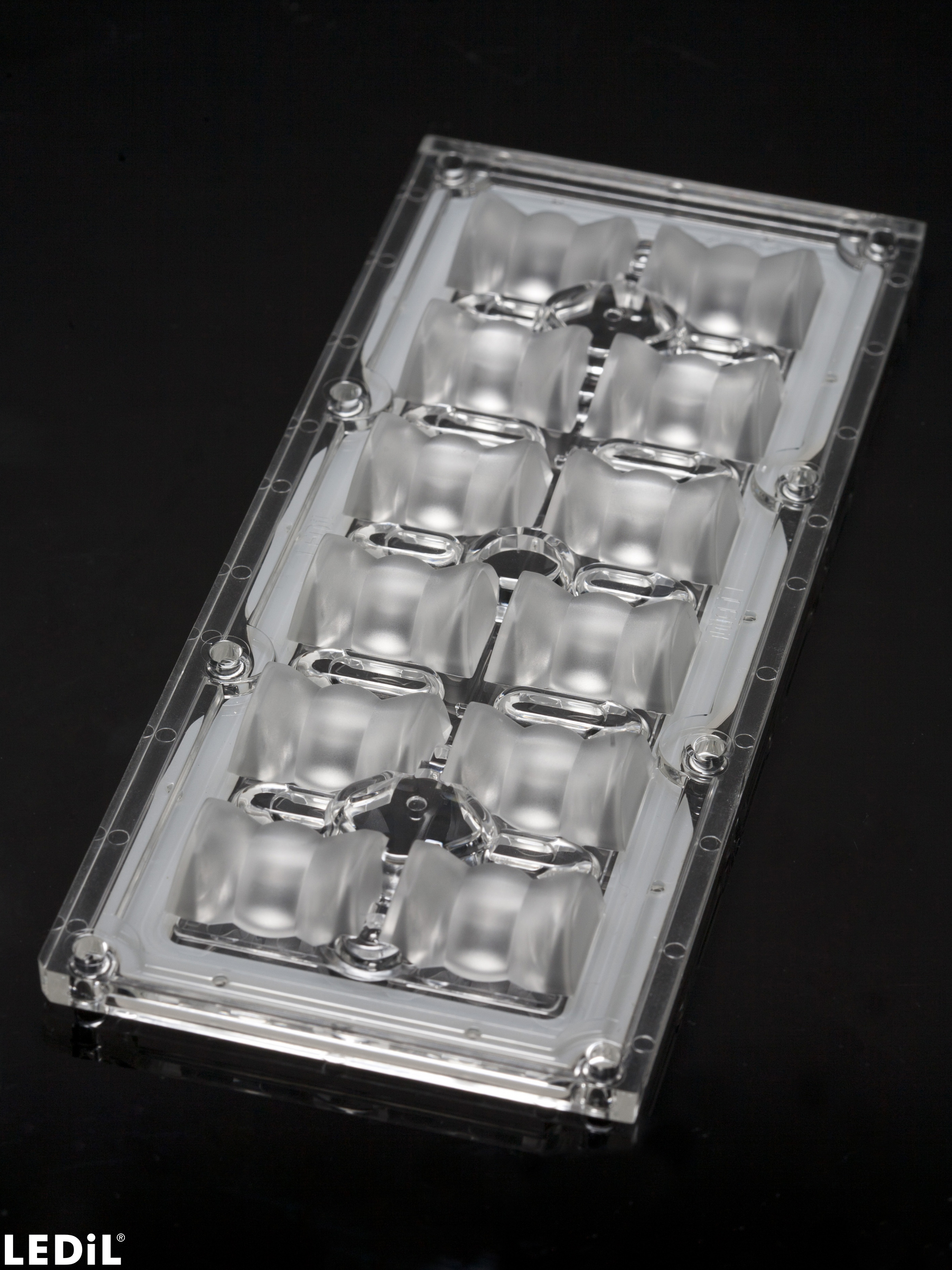

    CS14597_HB-IP-2X6-O

    Print

    ~30° + 115° oval beam

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      13.13 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      108 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      8.0 kg
    • MPQ:
      36 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      3.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS14597_HB-IP-2X6-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - HB-IP-2X6-O

    PCN

    Product change notification NR136 - Change of packaging quantities 070717

    PCN

    Product change notification NR125.b - Packing method and quantity changes 050916

    Case story

    Hyundai manufacturing plant

    PCN

    Product change notification NR134.a - Change of packaging methods 200417

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

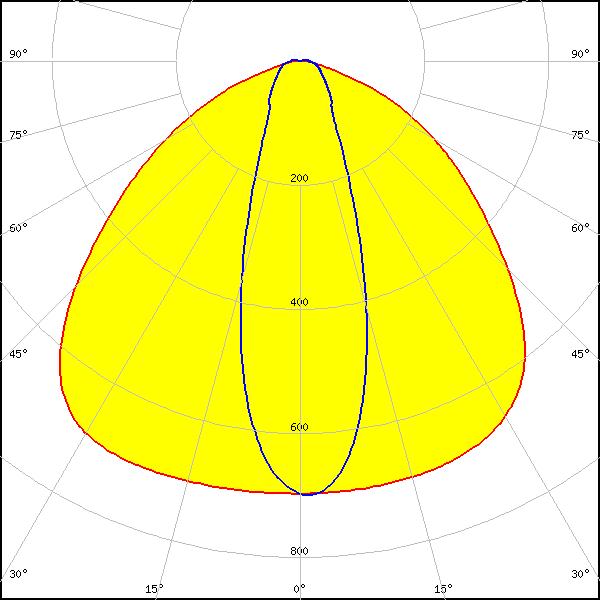

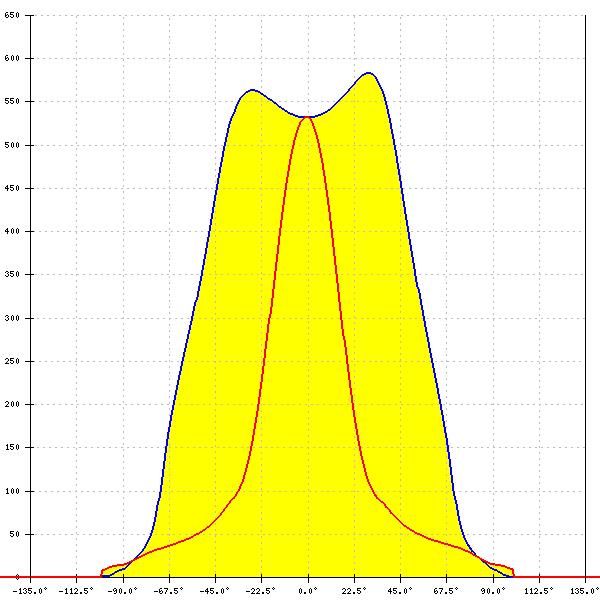

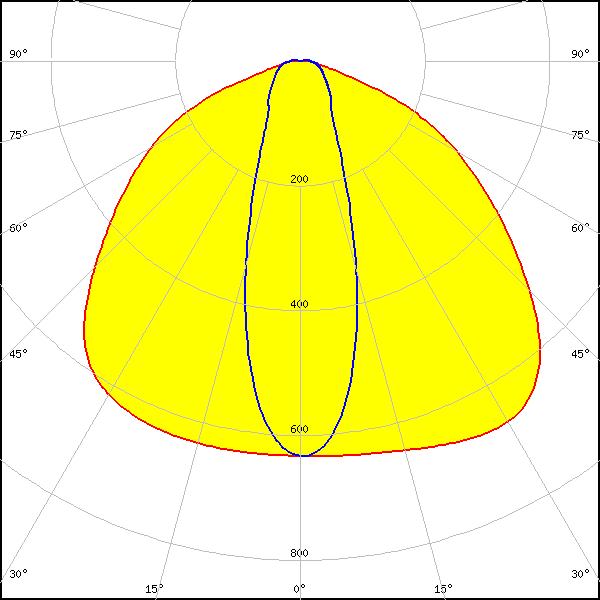

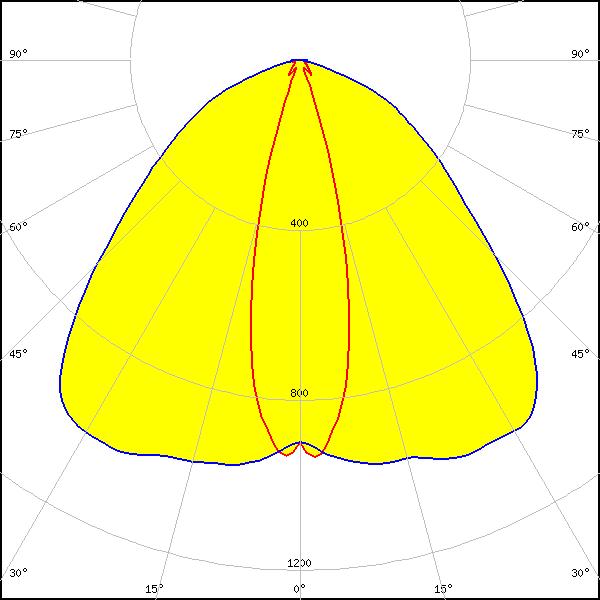

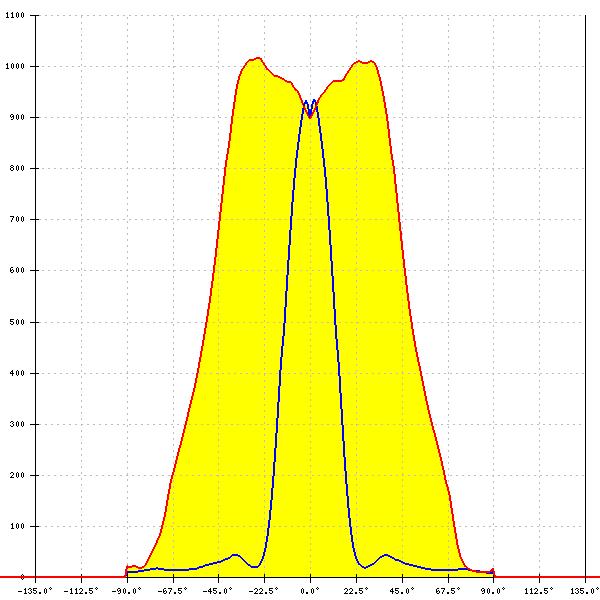

    Optical results

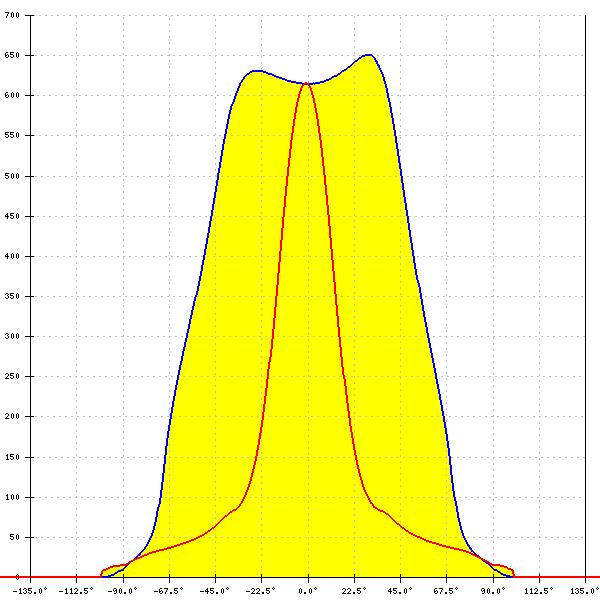

    LED: QUICK FLUX 2x6 LED XG xxx G7+
    FWHM: 116° + 32°
    FWTM: 149° + 92°
    Peak intensity: 0.650 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

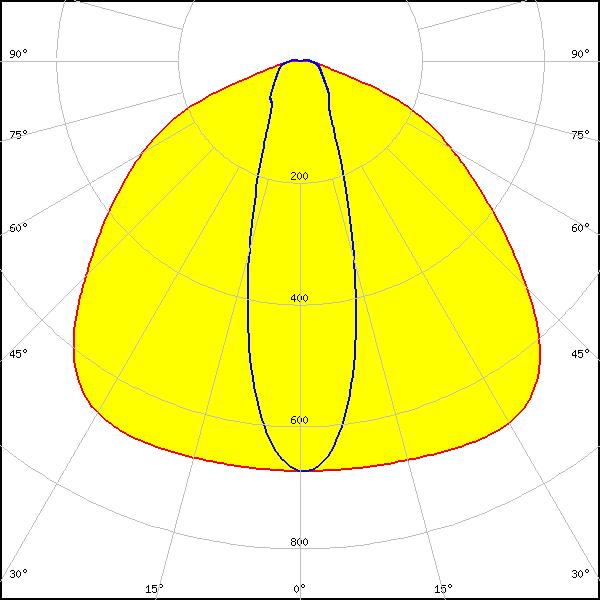

    LED: QUICK FLUX 2x6 LED XT xxx G5
    FWHM: 113° + 30°
    FWTM: 148° + 87°
    Peak intensity: 0.690 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

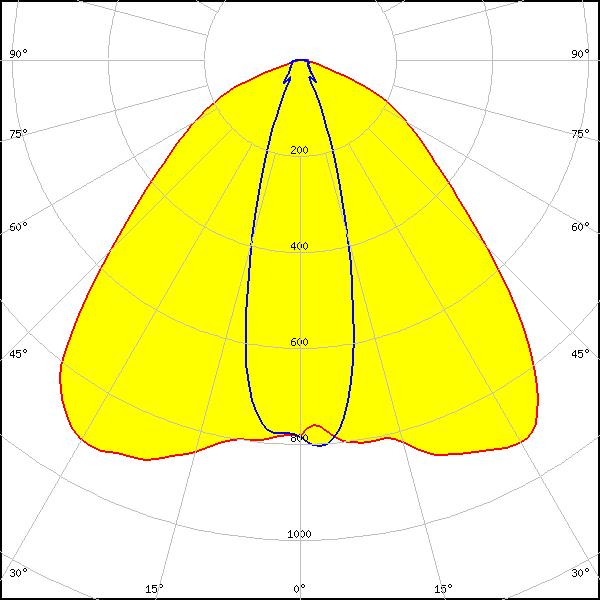

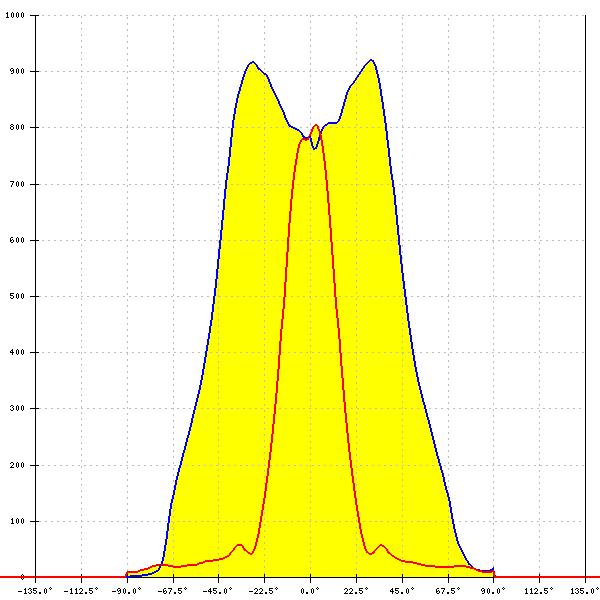

    LED: J Series 5050 Round LES
    FWHM: 29° + 96°
    FWTM: 50° + 141°
    Peak intensity: 0.920 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

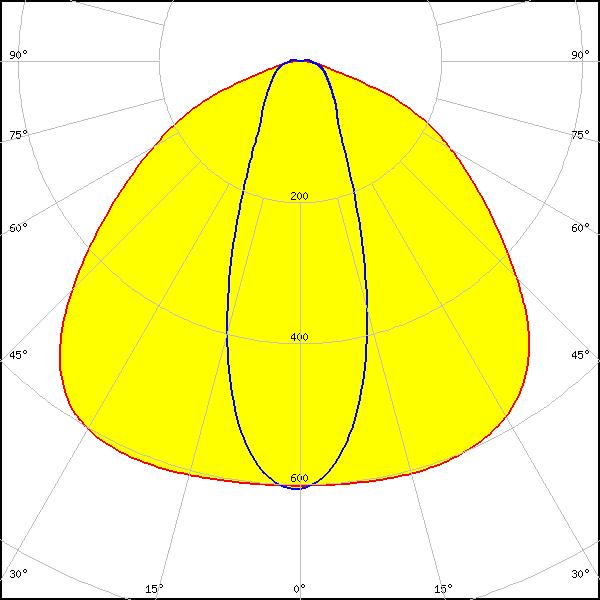

    LED: XM-L
    FWHM: 36° + 110°
    FWTM: 96° + 147°
    Peak intensity: 0.610 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

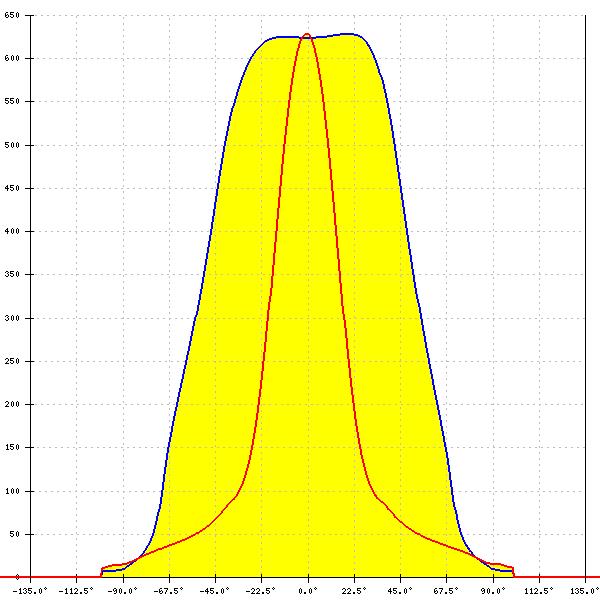

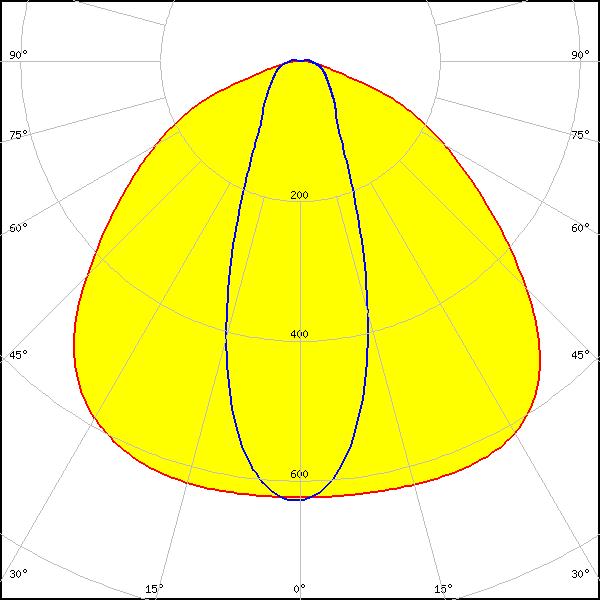

    LED: XM-L2
    FWHM: 36° + 108°
    FWTM: 92° + 147°
    Peak intensity: 0.630 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

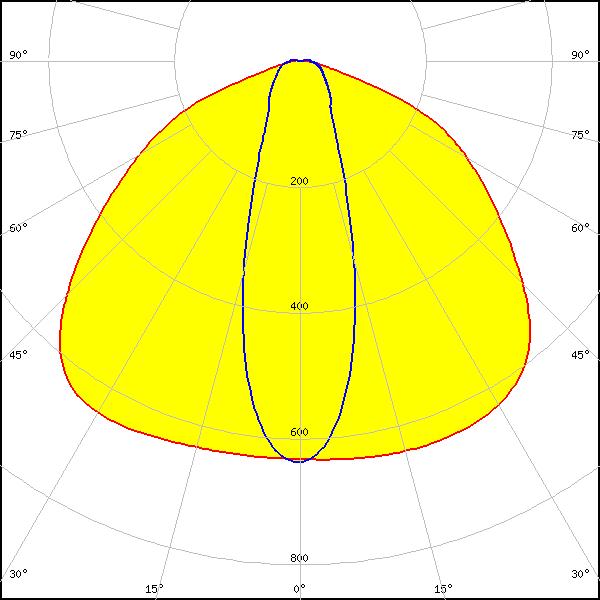

    LED: XP-G
    FWHM: 31° + 117°
    FWTM: 91° + 149°
    Peak intensity: 0.650 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: 32° + 116°
    FWTM: 91° + 149°
    Peak intensity: 0.660 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

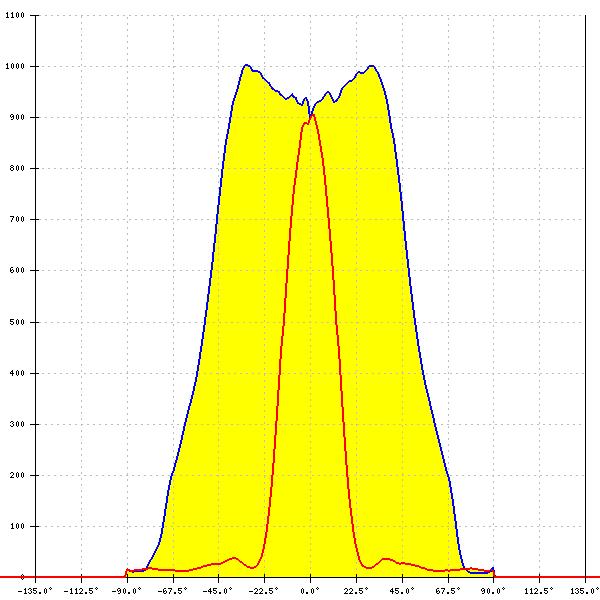

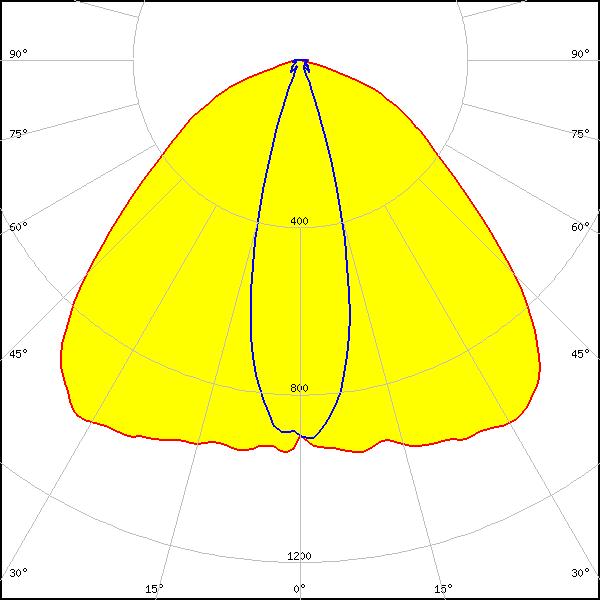

    LED: XP-G2 HE
    FWHM: 103° + 28°
    FWTM: 144° + 42°
    Peak intensity: 1.003 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

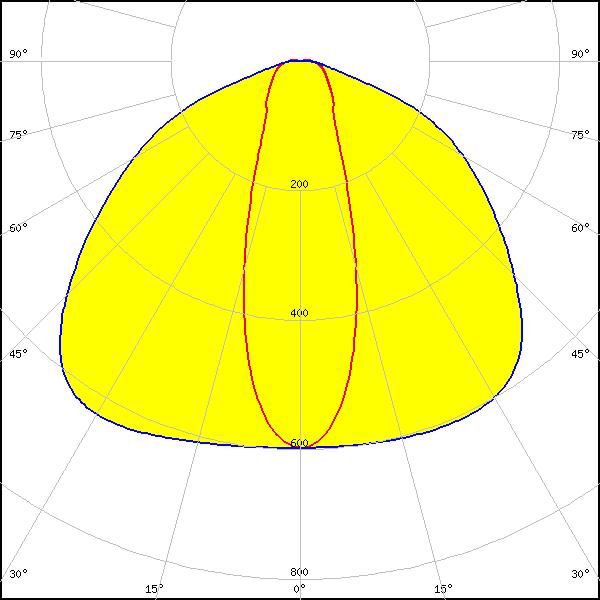

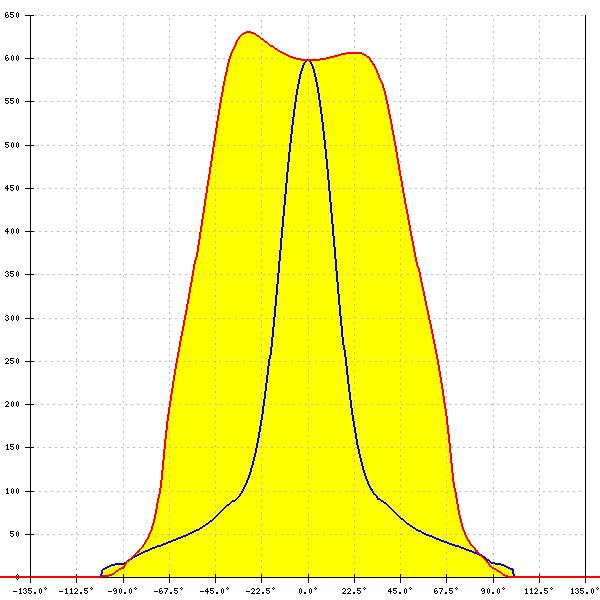

    LED: XP-G3
    FWHM: 33° + 119°
    FWTM: 100° + 150°
    Peak intensity: 0.630 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

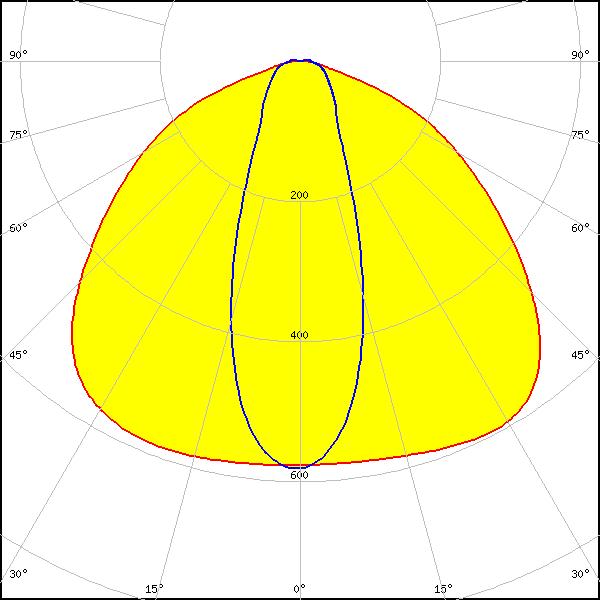

    LED: XP-L HD
    FWHM: 36° + 115°
    FWTM: 100° + 149°
    Peak intensity: 0.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

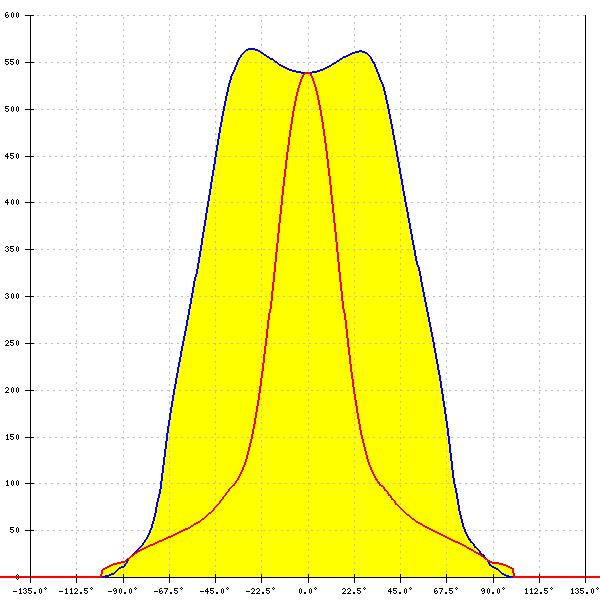

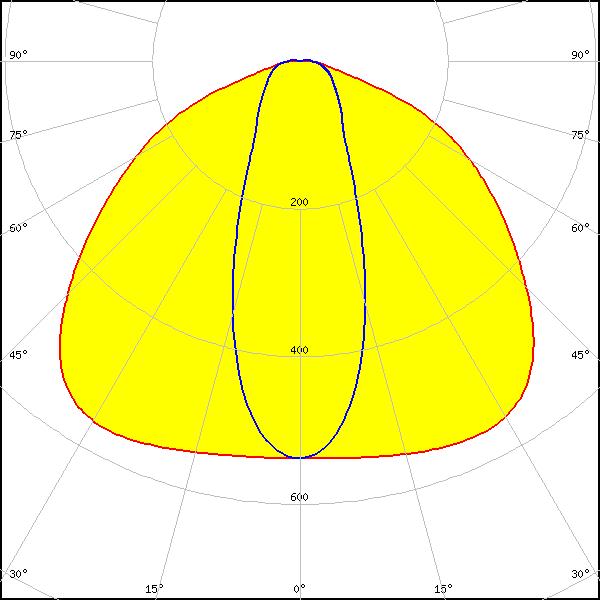

    LED: XP-L2
    FWHM: 118° + 38°
    FWTM: 151° + 114°
    Peak intensity: 0.560 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 31° + 119°
    FWTM: 99° + 151°
    Peak intensity: 0.630 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

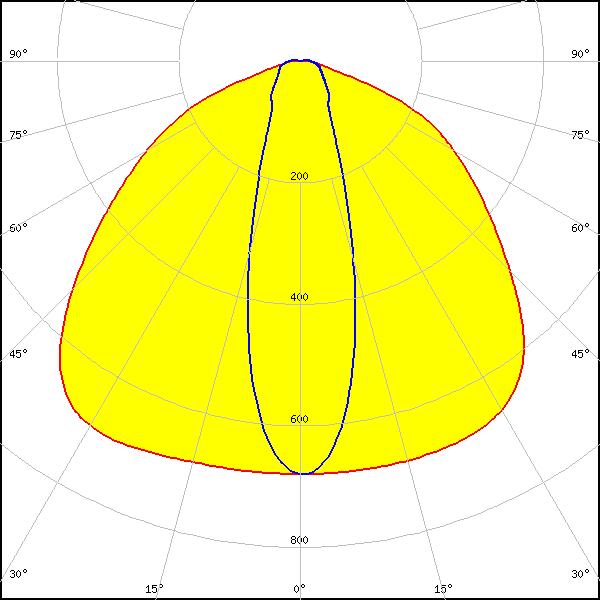

    LED: XT-E HE
    FWHM: 112° + 29°
    FWTM: 147° + 85°
    Peak intensity: 0.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

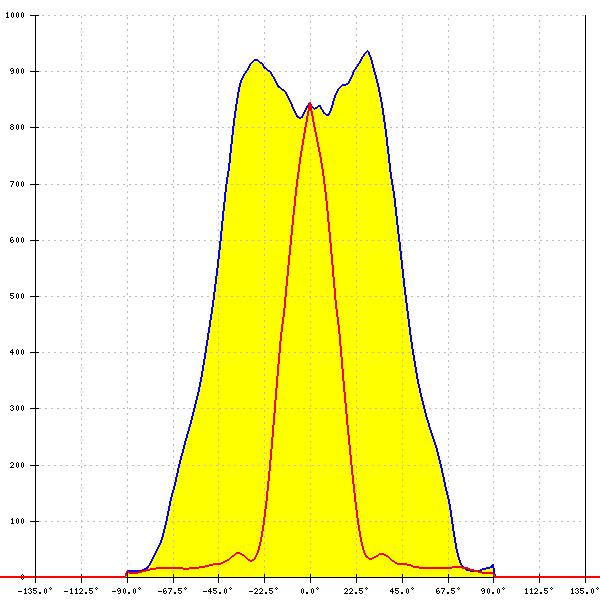

    LED: LUXEON 5050 Round LES
    FWHM: 34° + 96°
    FWTM: 61° + 141°
    Peak intensity: 0.940 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

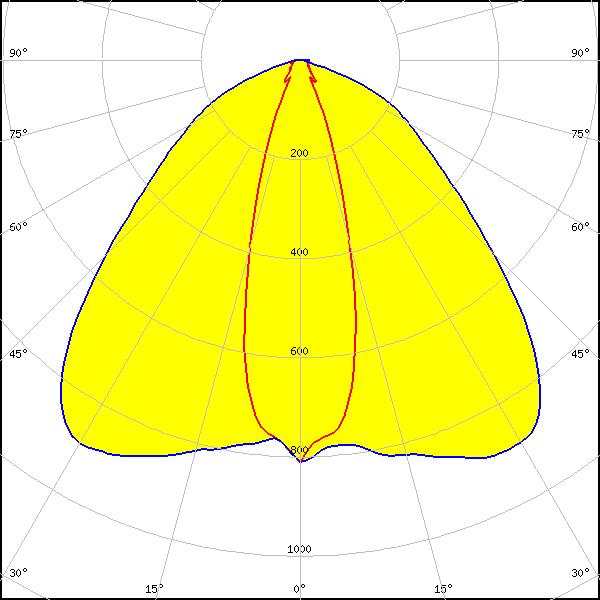

    LED: LUXEON 5050 Square LES
    FWHM: 30° + 98°
    FWTM: 52° + 141°
    Peak intensity: 0.892 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

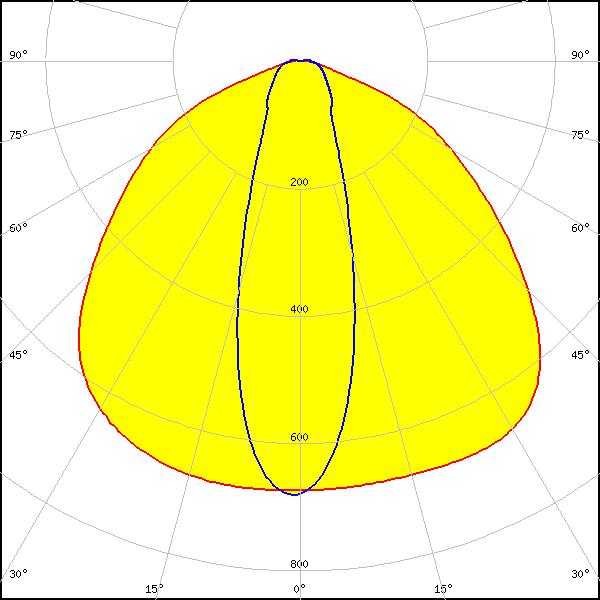

    LED: LUXEON R
    FWHM: 30° + 109°
    FWTM: 89° + 147°
    Peak intensity: 0.680 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

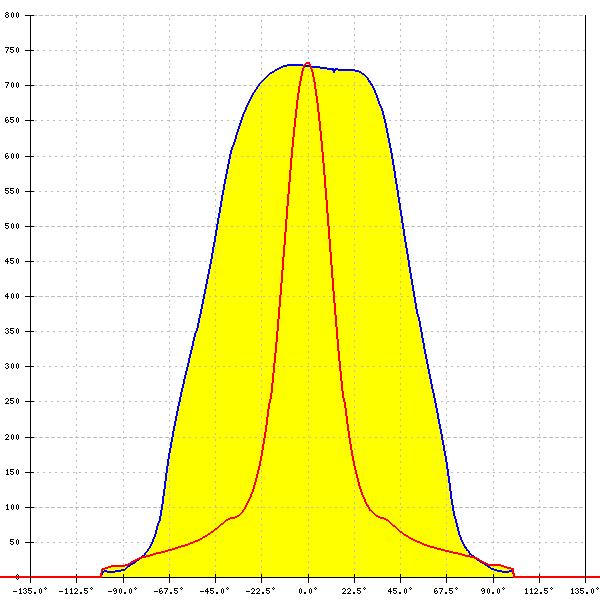

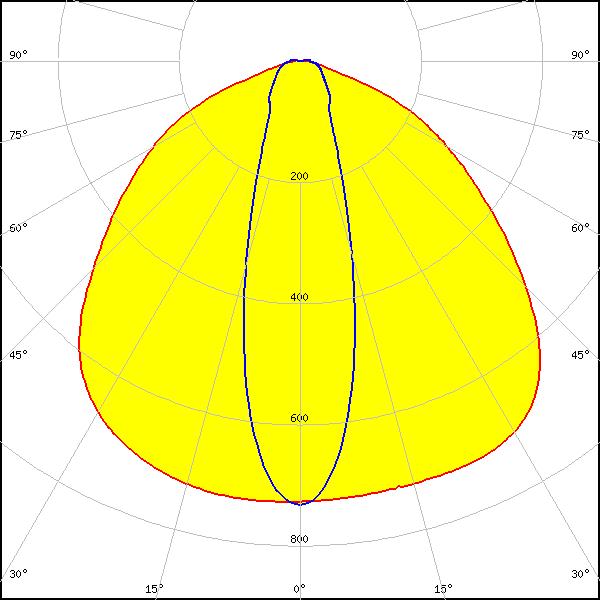

    LED: LUXEON Rebel
    FWHM: 28° + 107°
    FWTM: 84° + 145°
    Peak intensity: 0.730 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

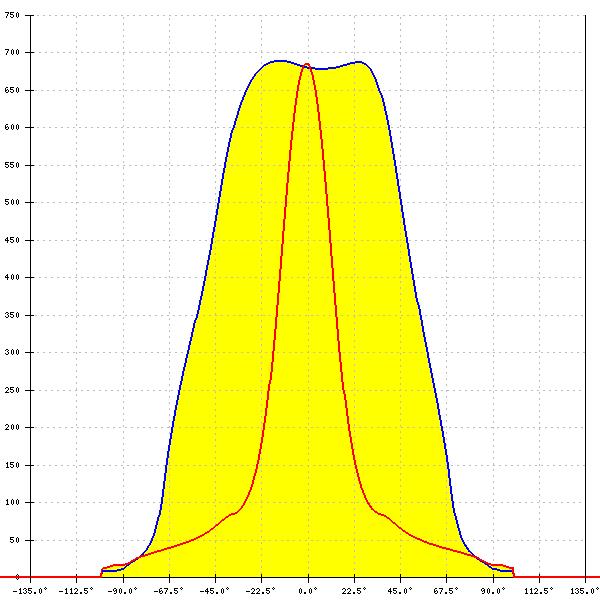

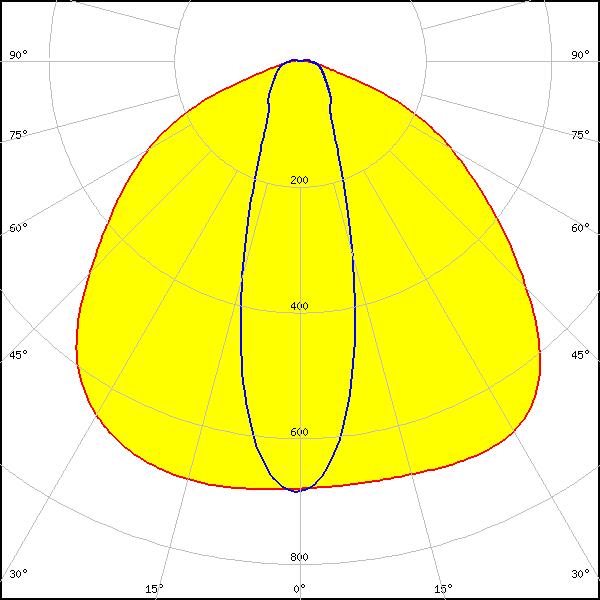

    LED: LUXEON Rebel ES
    FWHM: 30° + 110°
    FWTM: 88° + 146°
    Peak intensity: 0.690 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

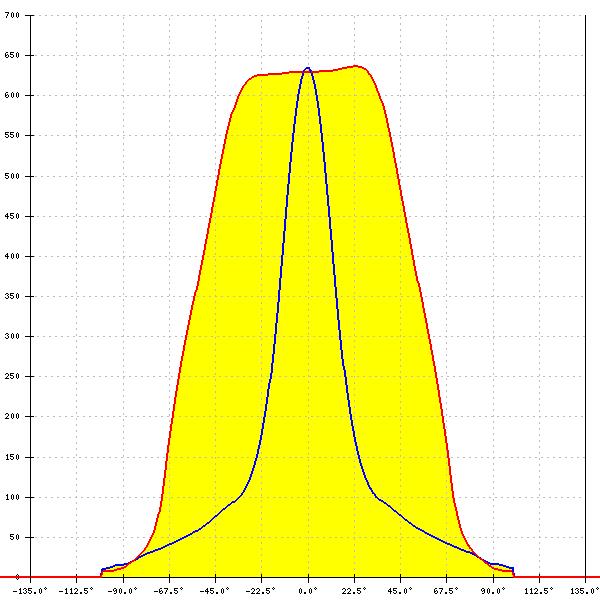

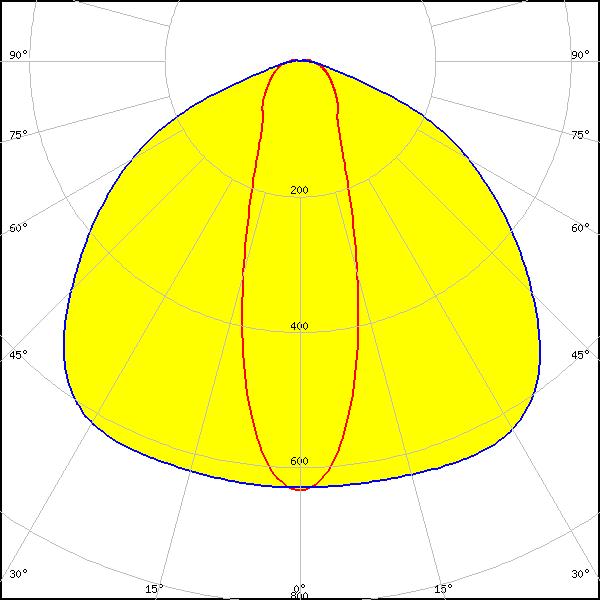

    LED: LUXEON T
    FWHM: 32° + 115°
    FWTM: 103° + 148°
    Peak intensity: 0.630 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

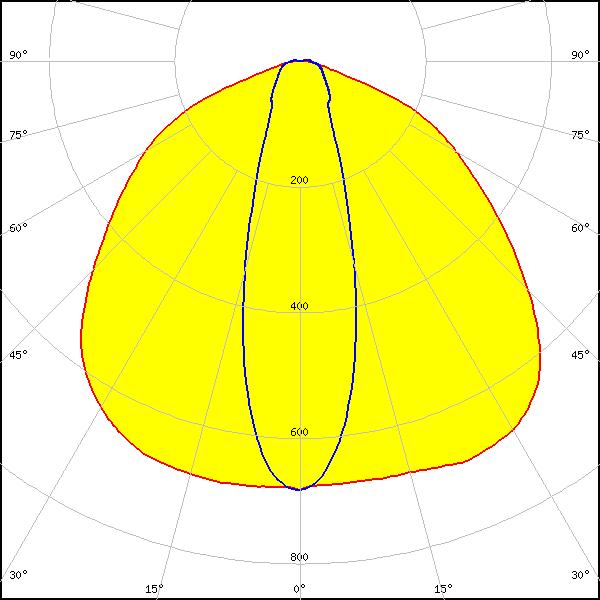

    LED: LUXEON TX
    FWHM: 30° + 111°
    FWTM: 84° + 147°
    Peak intensity: 0.690 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

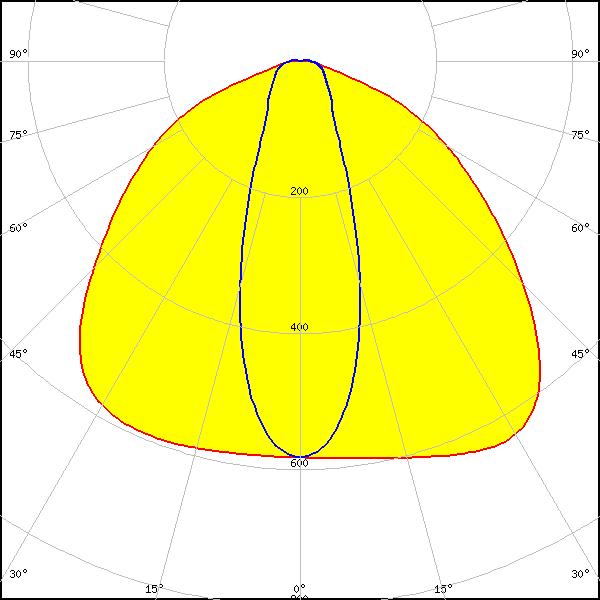

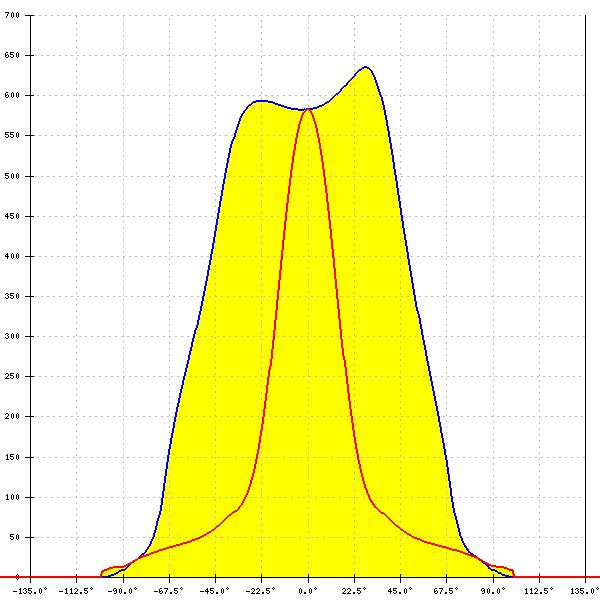

    LED: LUXEON V
    FWHM: 112° + 34°
    FWTM: 147° + 92°
    Peak intensity: 0.600 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

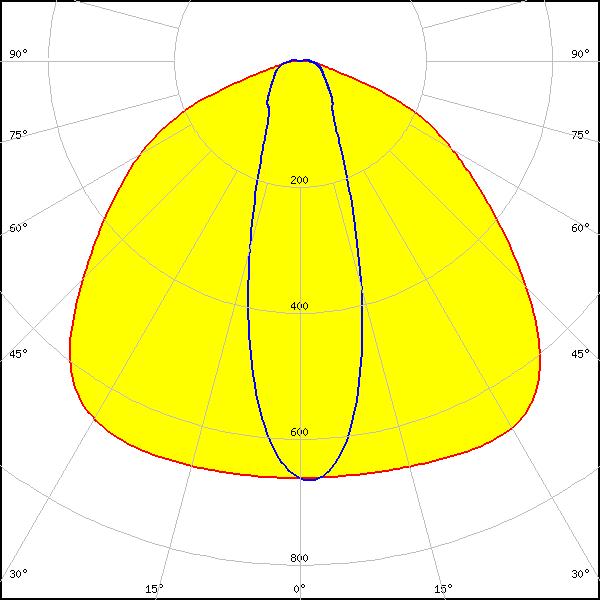

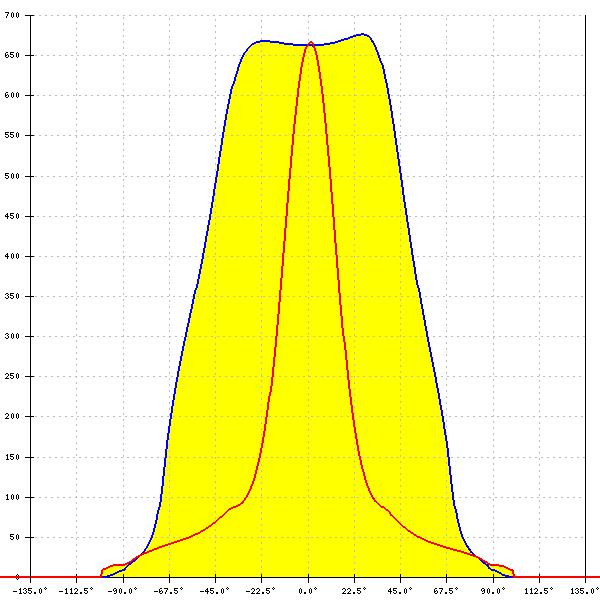

    LED: LUXEON V2
    FWHM: 113° + 31°
    FWTM: 147° + 91°
    Peak intensity: 0.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

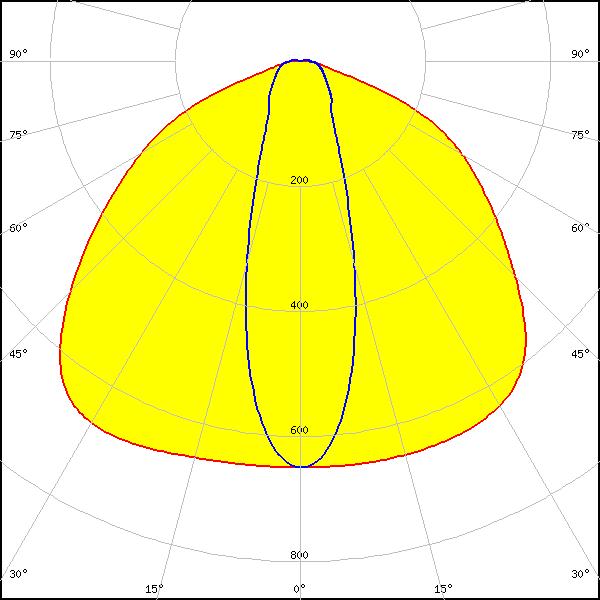

    LED: LUXEON XR-TX (L2T0-xxxx012M0000)
    FWHM: 30° + 115°
    FWTM: 92° + 148°
    Peak intensity: 0.670 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

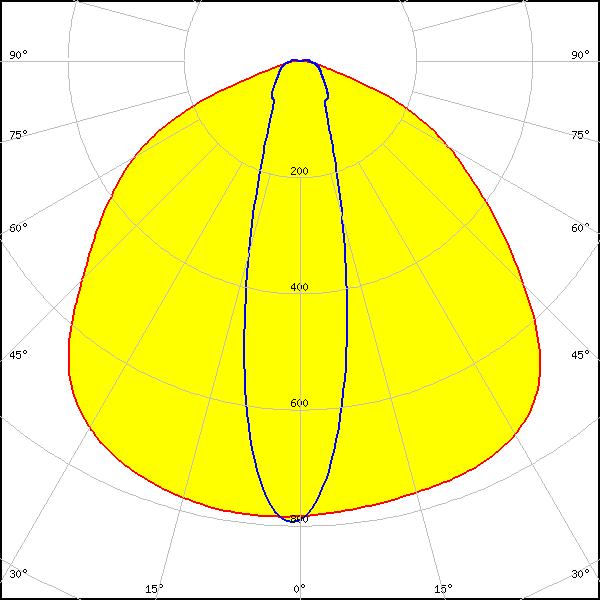

    LED: LUXEON Z ES
    FWHM: 25° + 108°
    FWTM: 73° + 145°
    Peak intensity: 0.790 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

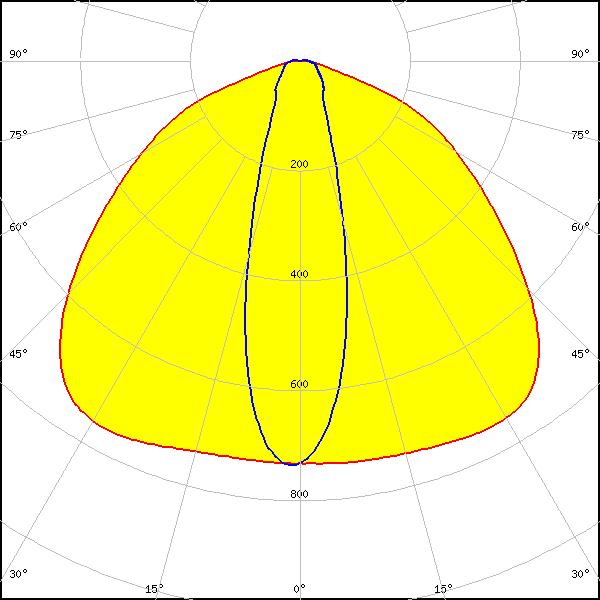

    LED: SST-10-B130
    LEDs/each optic: 1
    Light colour/type: Blue

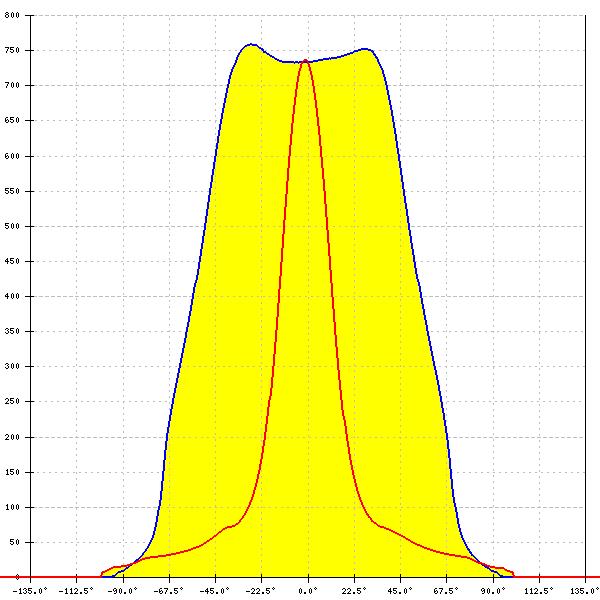

    LED: SST-10-B130
    FWHM: 114° + 28°
    FWTM: 147° + 70°
    Peak intensity: 0.758 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Deep Red
    LED: SST-20
    LEDs/each optic: 1
    Light colour/type: White

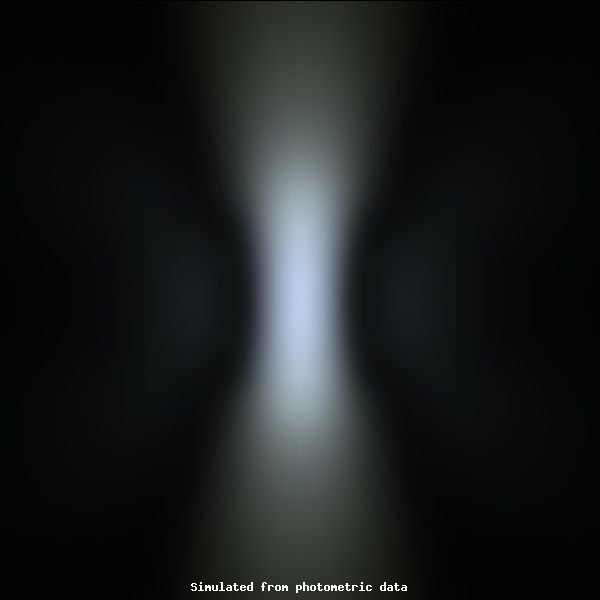

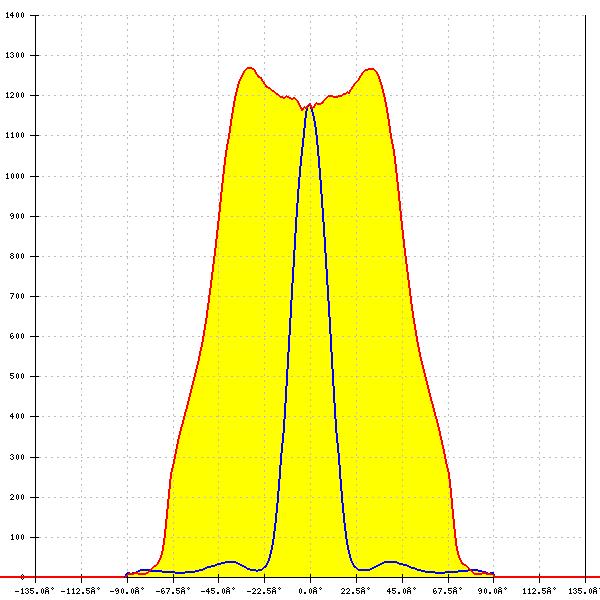

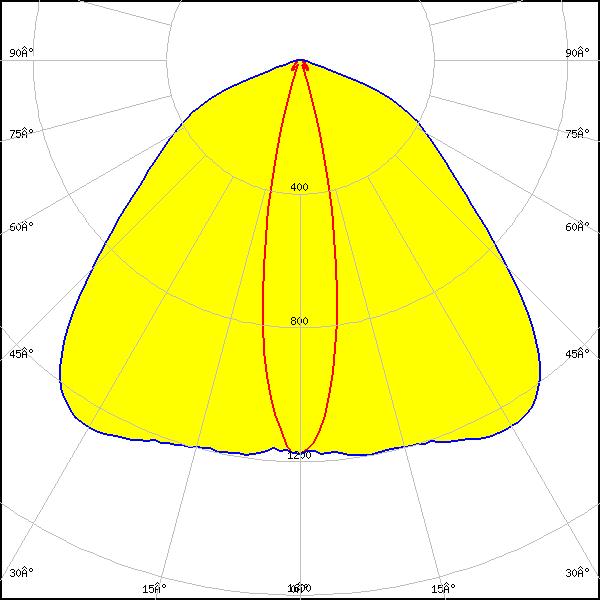

    LED: SST-20 Gen2
    FWHM: 20° + 102°
    FWTM: 34° + 142°
    Peak intensity: 1.269 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

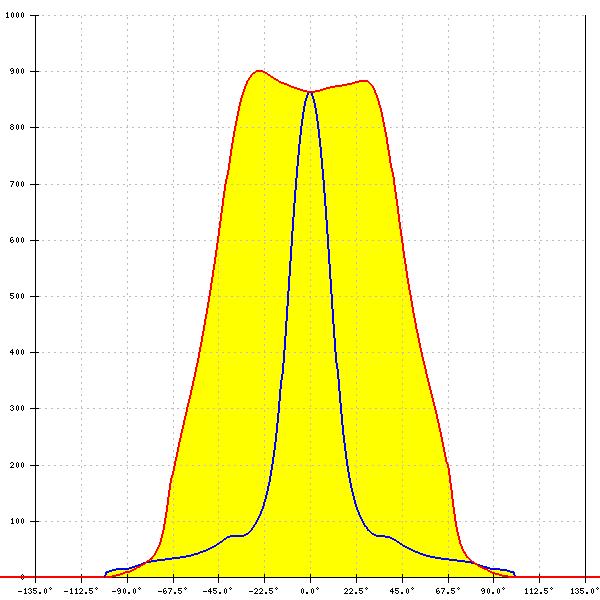

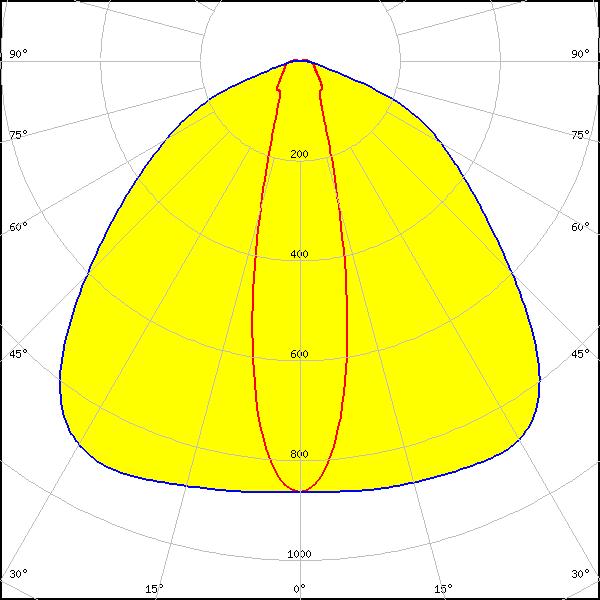

    LED: RecLED 146x45mm 2900lm 730 2x6 IP G1
    FWHM: 24° + 104°
    FWTM: 57° + 144°
    Peak intensity: 0.901 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

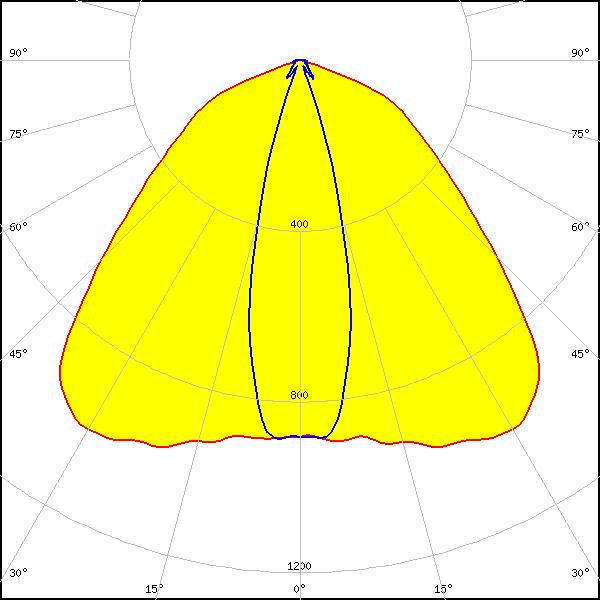

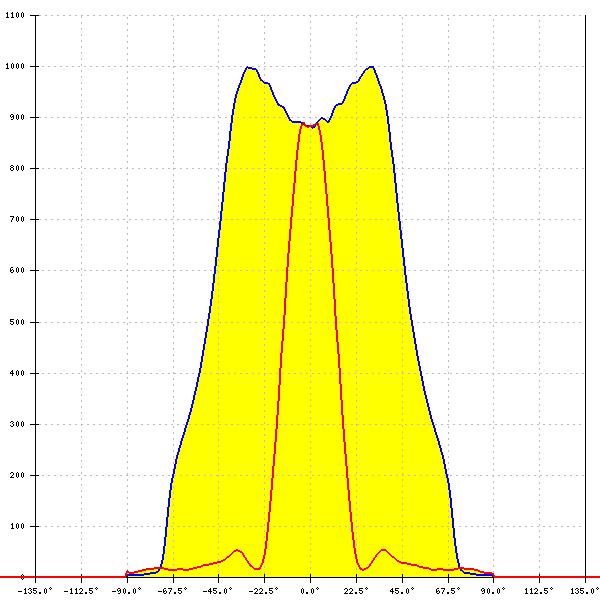

    LED: NV4WB35AM
    FWHM: 100° + 28°
    FWTM: 140° + 42°
    Peak intensity: 0.998 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

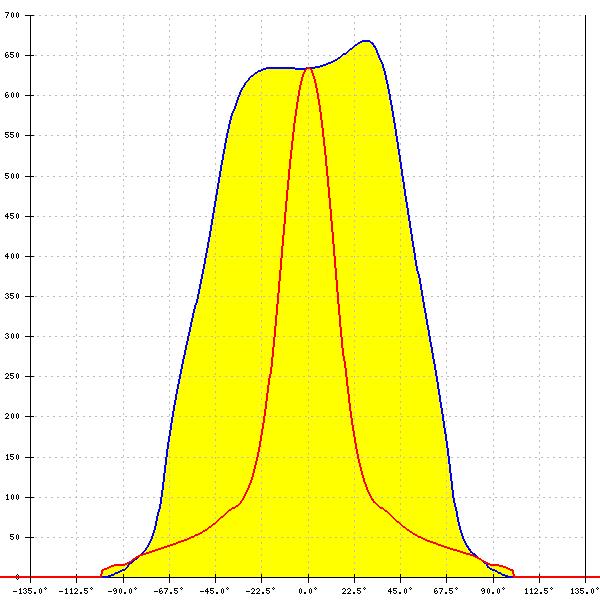

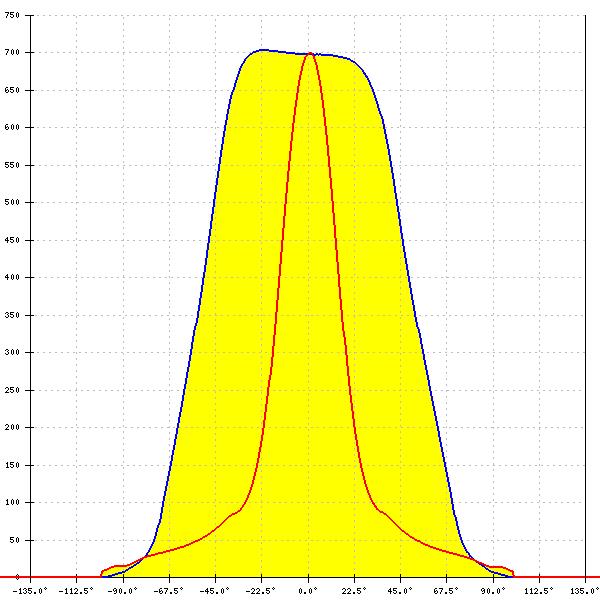

    LED: NVSW219D
    FWHM: 106° + 32°
    FWTM: 145° + 85°
    Peak intensity: 0.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: 112° + 32°
    FWTM: 147° + 88°
    Peak intensity: 0.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

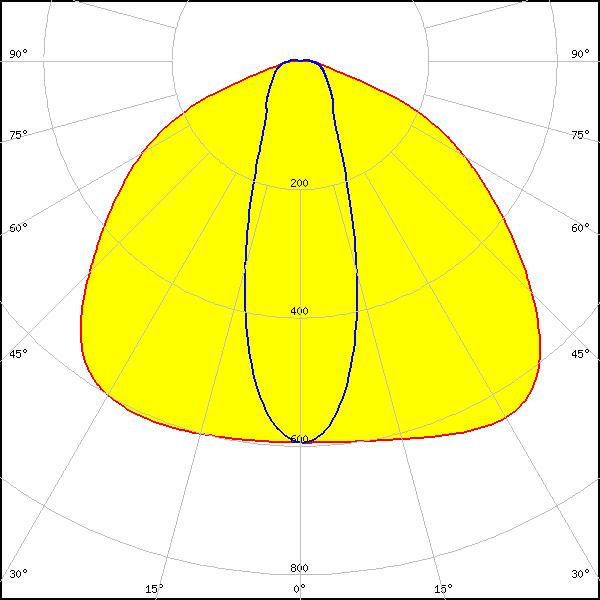

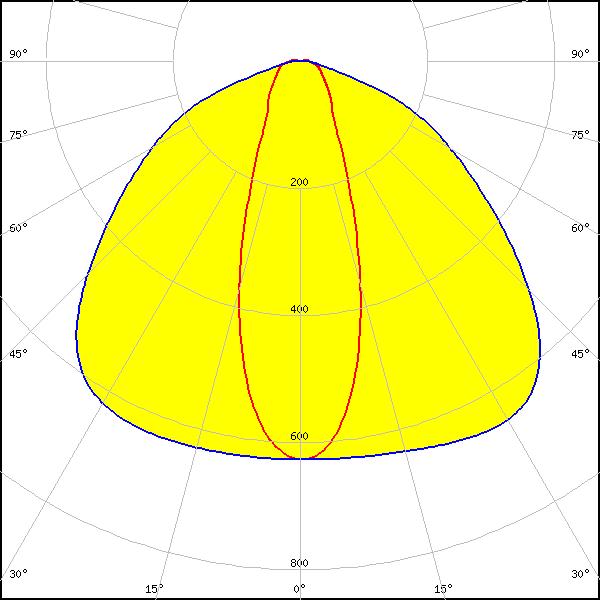

    LED: NVSW319B
    FWHM: 34° + 113°
    FWTM: 91° + 148°
    Peak intensity: 0.650 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: 119° + 33°
    FWTM: 149° + 100°
    Peak intensity: 0.640 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

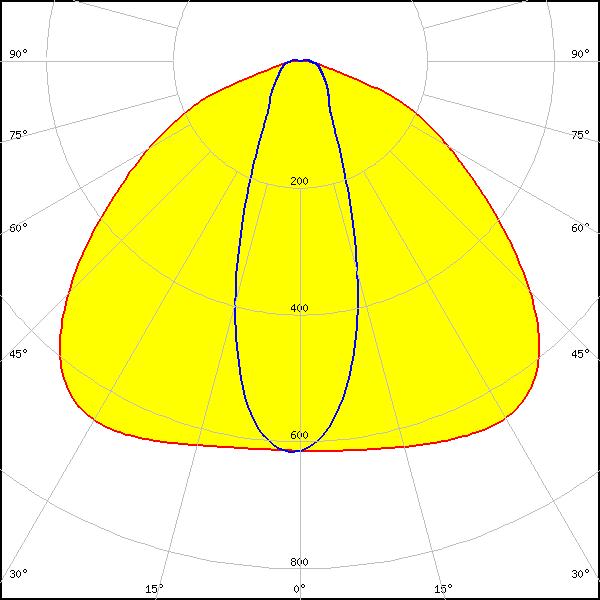

    LED: NVSW519A
    FWHM: 113° + 35°
    FWTM: 147° + 90°
    Peak intensity: 0.654 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

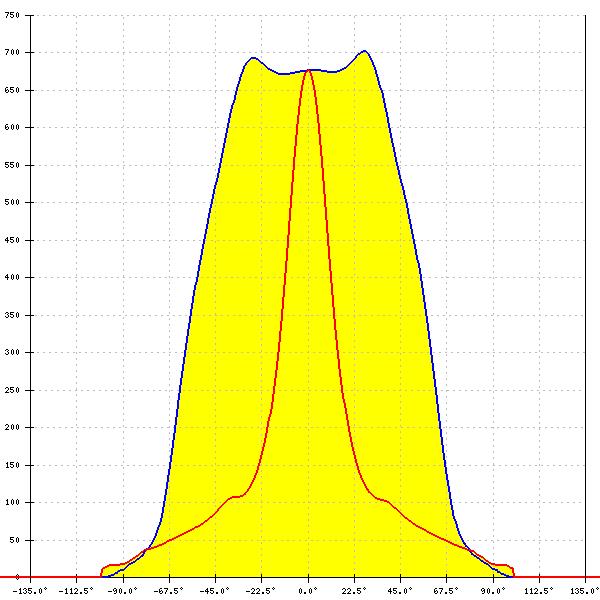

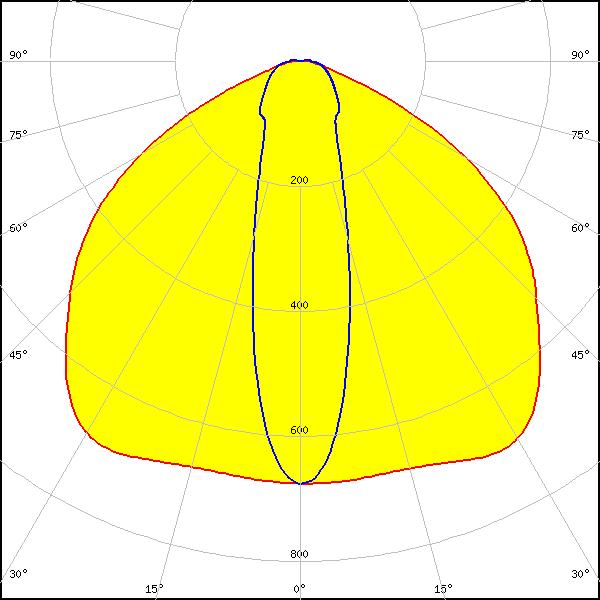

    LED: NVSxE21A
    FWHM: 26° + 116°
    FWTM: 107° + 145°
    Peak intensity: 0.700 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

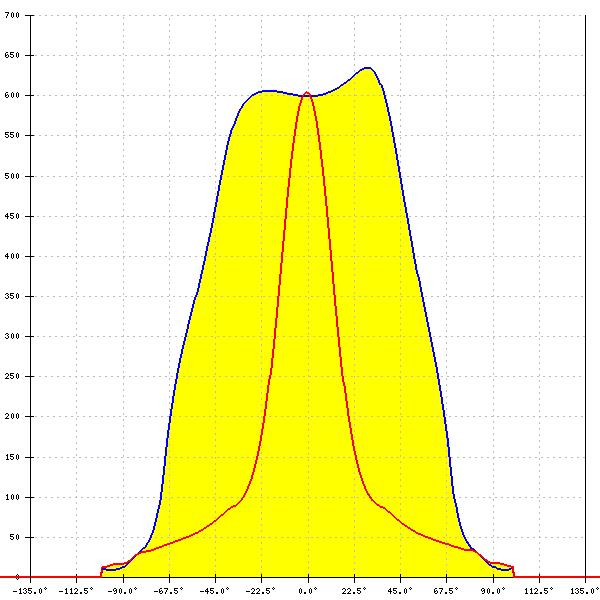

    LED: NVSxx19B/NVSxx19C
    FWHM: 114° + 32°
    FWTM: 148° + 93°
    Peak intensity: 0.670 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 31° + 116°
    FWTM: 100° + 149°
    Peak intensity: 0.630 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP IP 2x6
    FWHM: 24° + 97°
    FWTM: 36° + 141°
    Peak intensity: 1.165 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

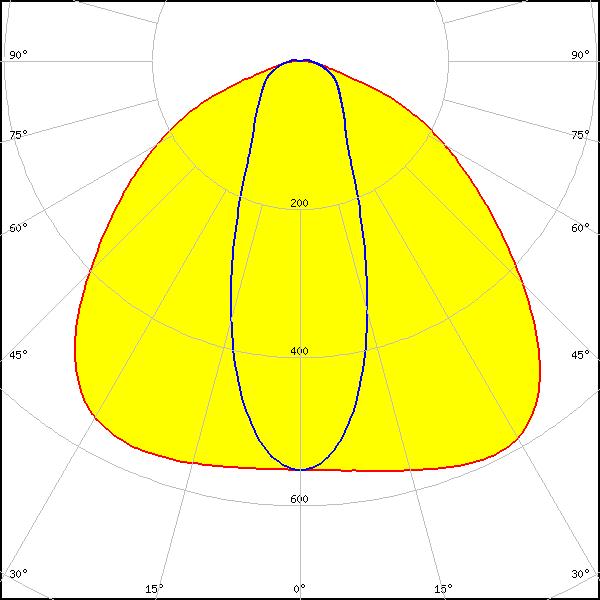

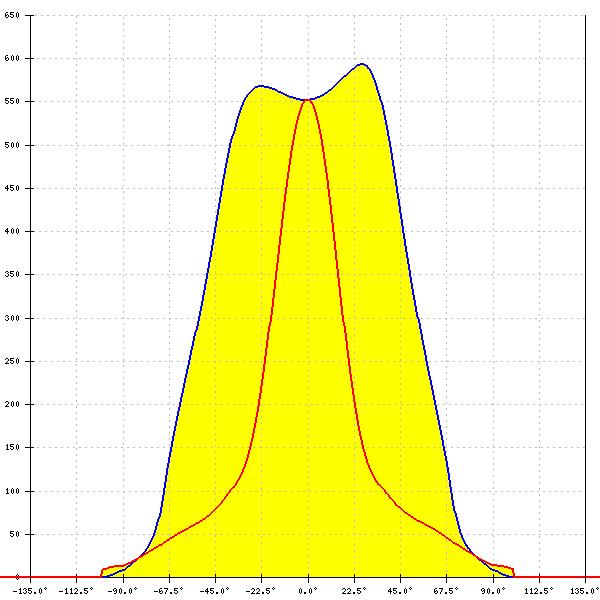

    LED: Duris S8
    FWHM: 111° + 38°
    FWTM: 148° + 121°
    Peak intensity: 0.920 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

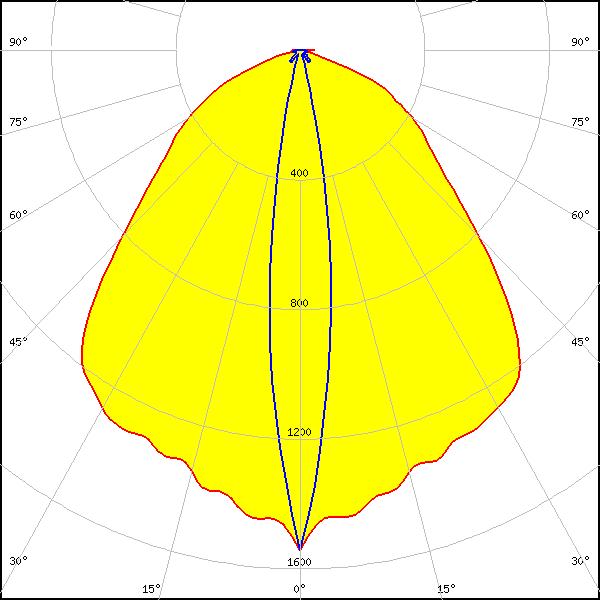

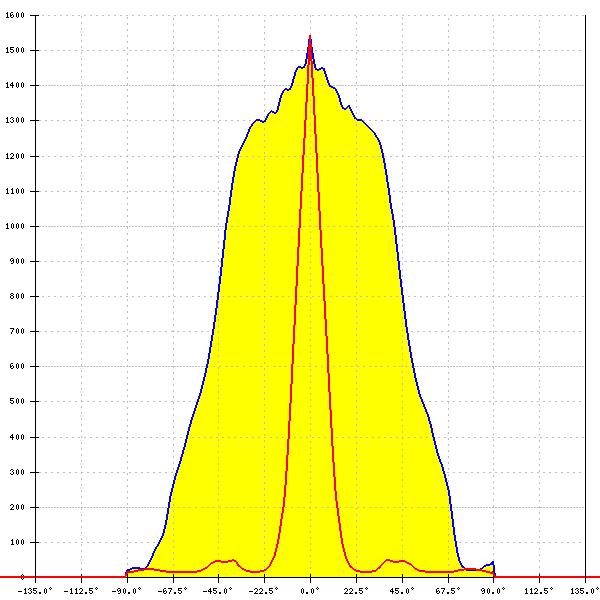

    LED: OSCONIQ P 3030
    FWHM: 92° + 14°
    FWTM: 141° + 28°
    Peak intensity: 1.543 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

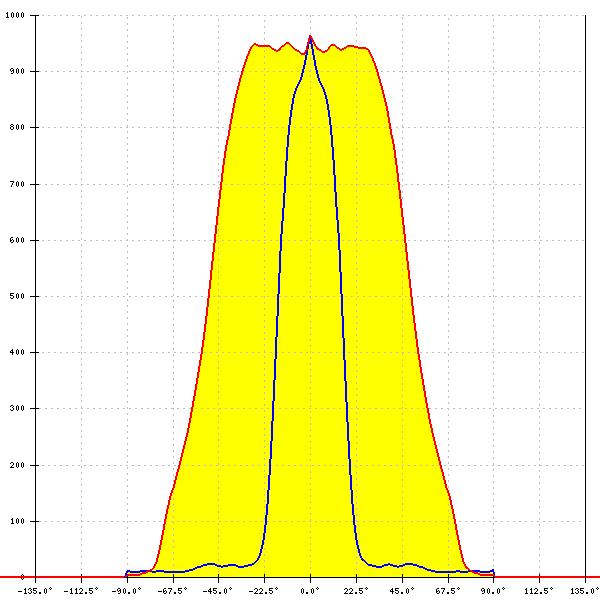

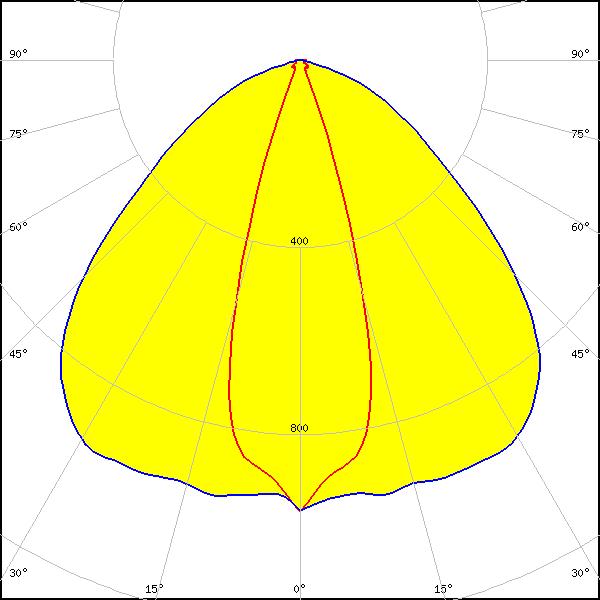

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 32° + 100°
    FWTM: 44° + 142°
    Peak intensity: 0.964 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: 27° + 100°
    FWTM: 44° + 143°
    Peak intensity: 1.020 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

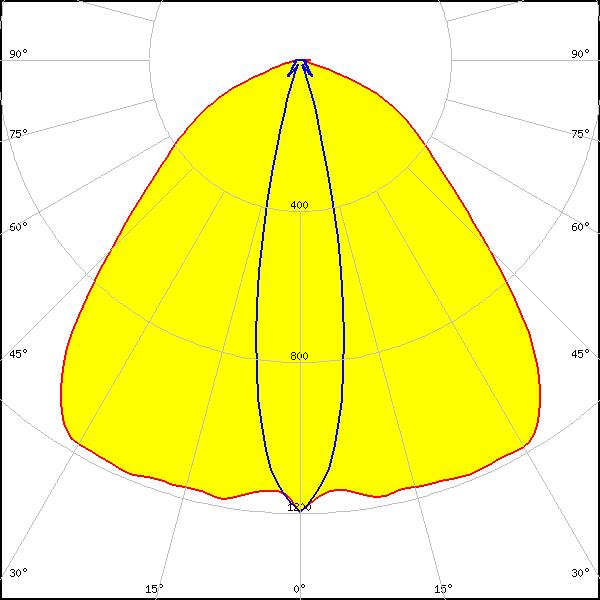

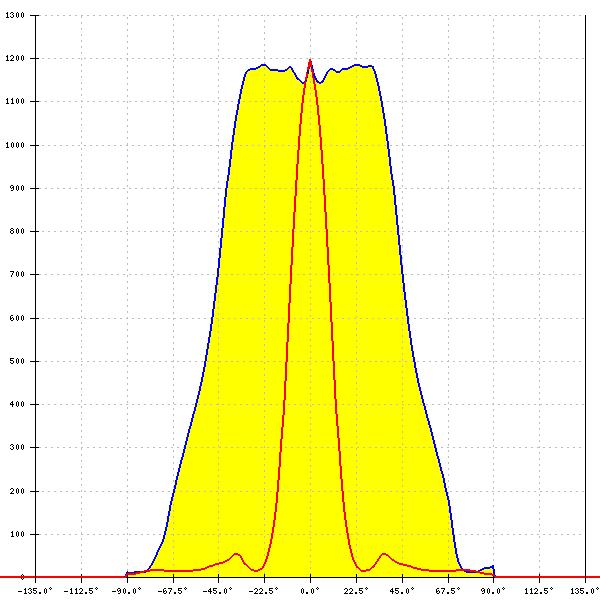

    LED: OSCONIQ P 3737 Flat
    FWHM: 96° + 22°
    FWTM: 140° + 36°
    Peak intensity: 1.198 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 110° + 29°
    FWTM: 146° + 86°
    Peak intensity: 0.720 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

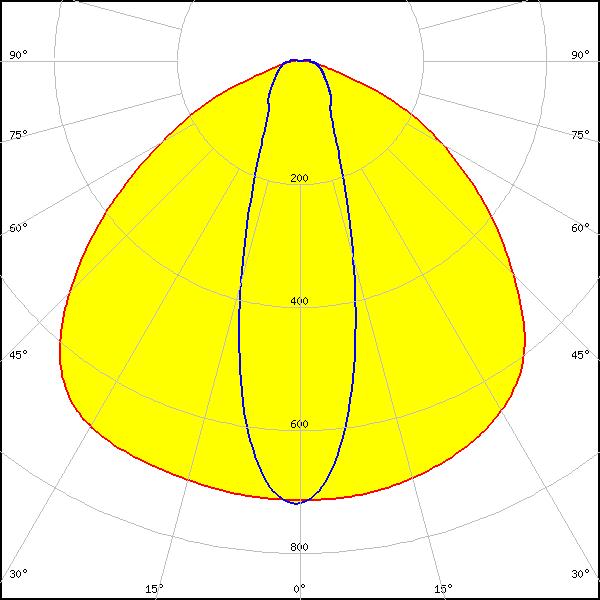

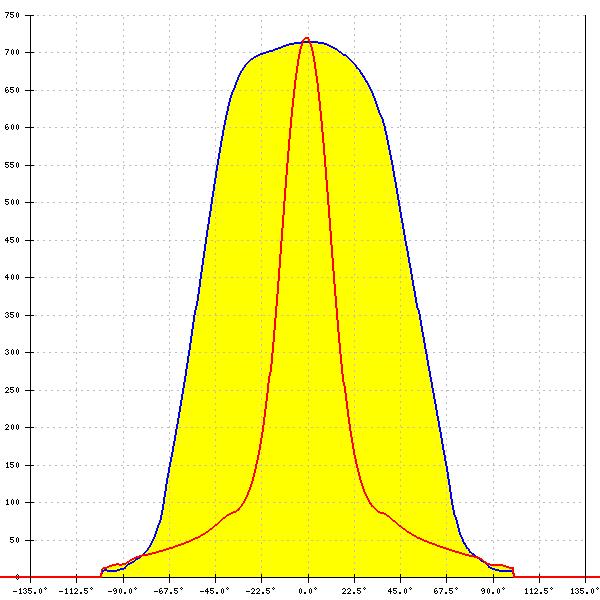

    LED: OSLON Square EC
    FWHM: 30° + 108°
    FWTM: 87° + 145°
    Peak intensity: 0.720 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

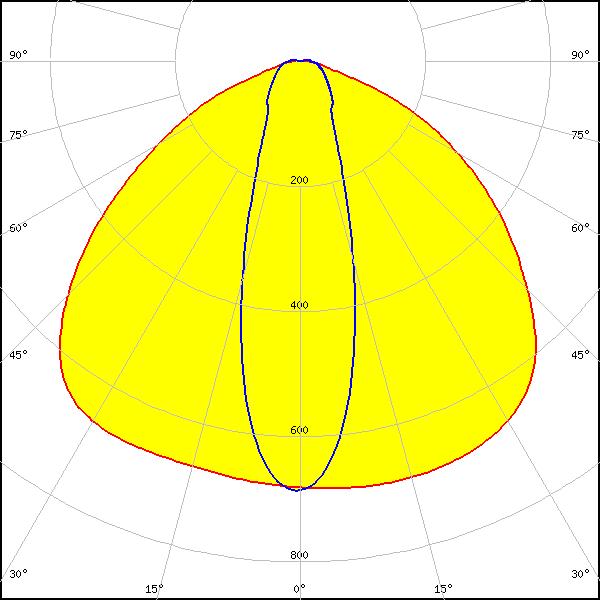

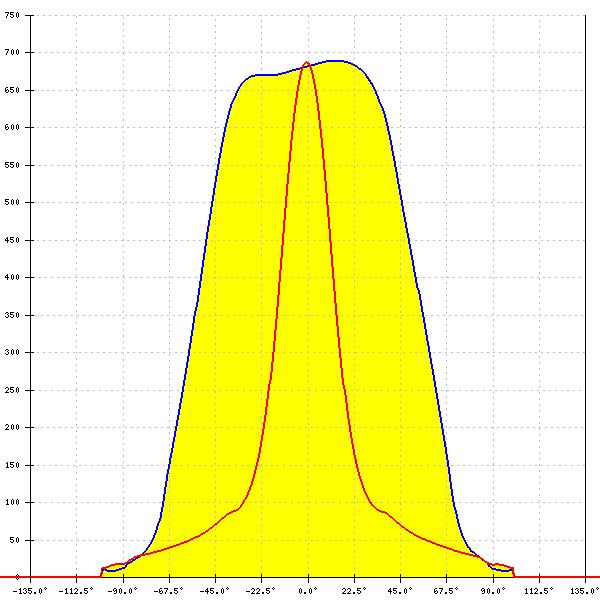

    LED: OSLON Square PC
    FWHM: 30° + 111°
    FWTM: 91° + 146°
    Peak intensity: 0.690 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

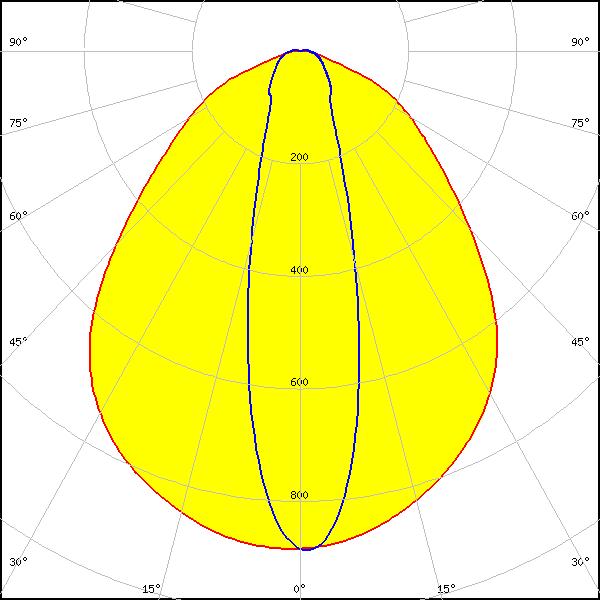

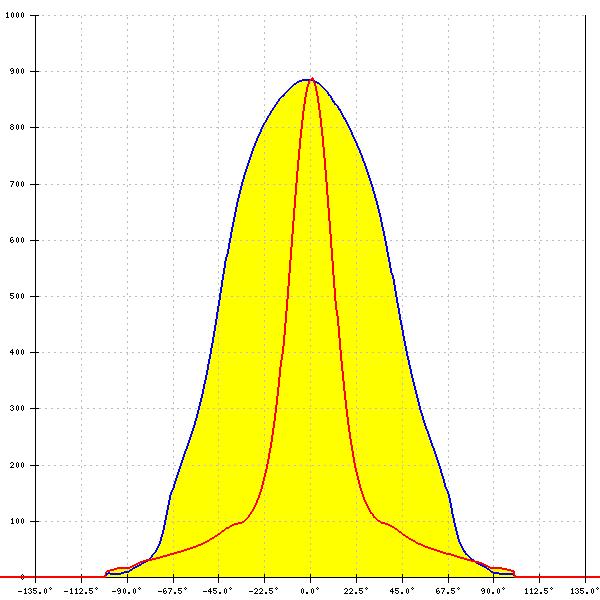

    LED: OSLON SSL 80
    FWHM: 26° + 92°
    FWTM: 81° + 143°
    Peak intensity: 0.890 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

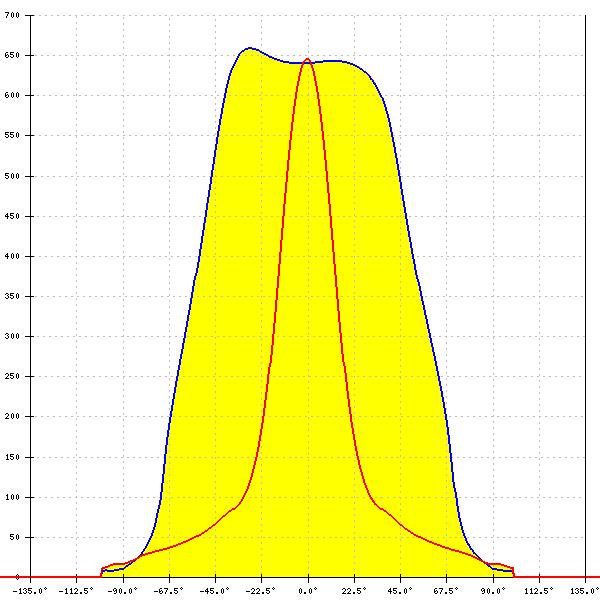

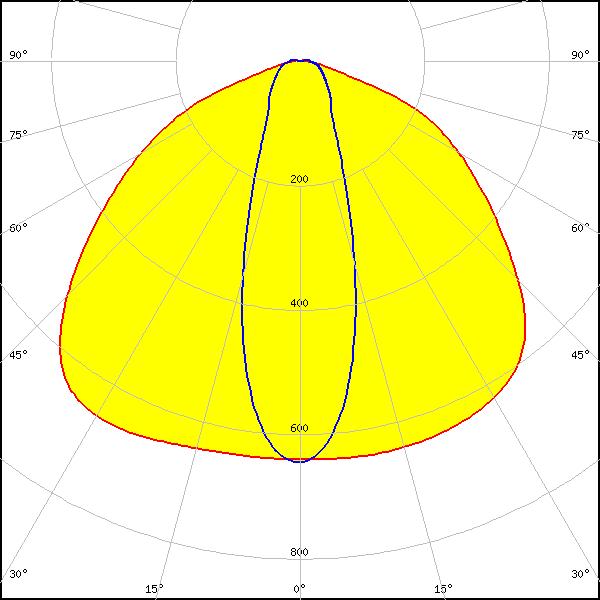

    LED: Fortimo FastFlex LED 2x6 DP G4
    FWHM: 32° + 116°
    FWTM: 91° + 149°
    Peak intensity: 0.660 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x6 DP G5
    FWHM: 108° + 29°
    FWTM: 145° + 72°
    Peak intensity: 0.768 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

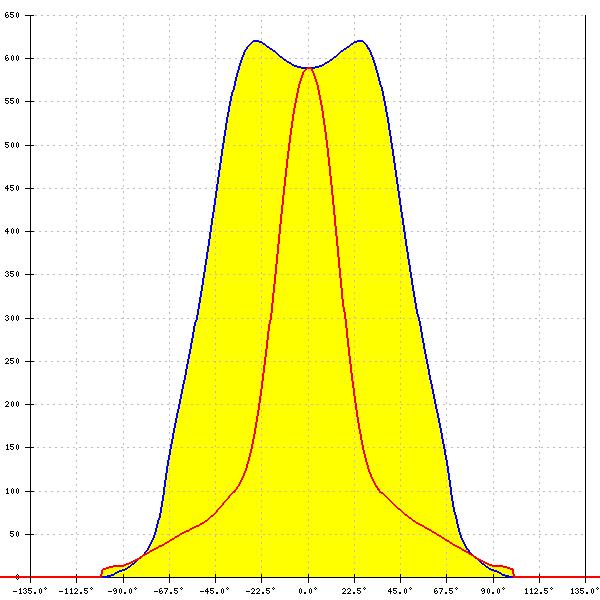

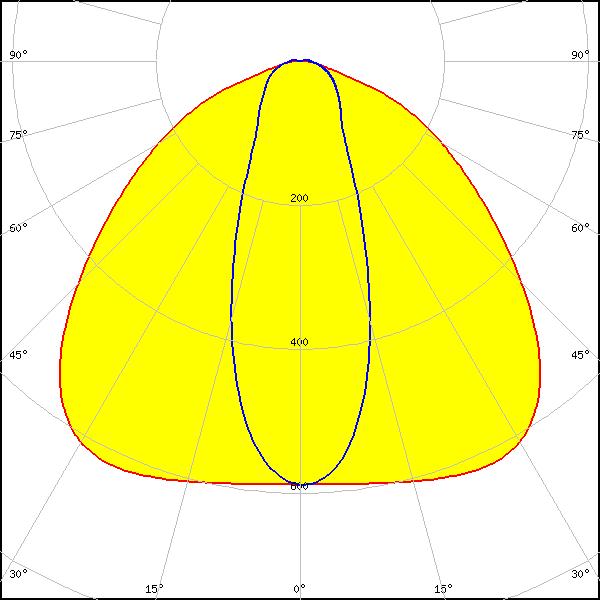

    LED: Fortimo FastFlex LED 2x6 DP HE
    FWHM: 106° + 37°
    FWTM: 146° + 110°
    Peak intensity: 0.627 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x6 DPX G4
    FWHM: 33° + 119°
    FWTM: 100° + 150°
    Peak intensity: 0.630 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

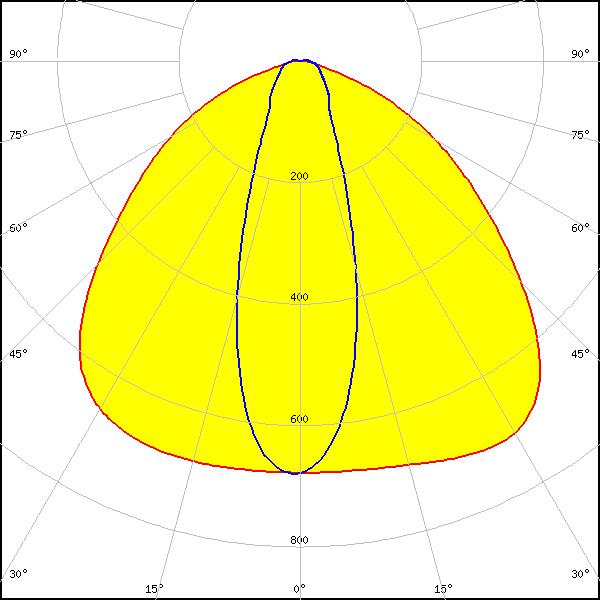

    LED: HiLOM RH12 (LH351C)
    FWHM: 107° + 32°
    FWTM: 145° + 85°
    Peak intensity: 0.710 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

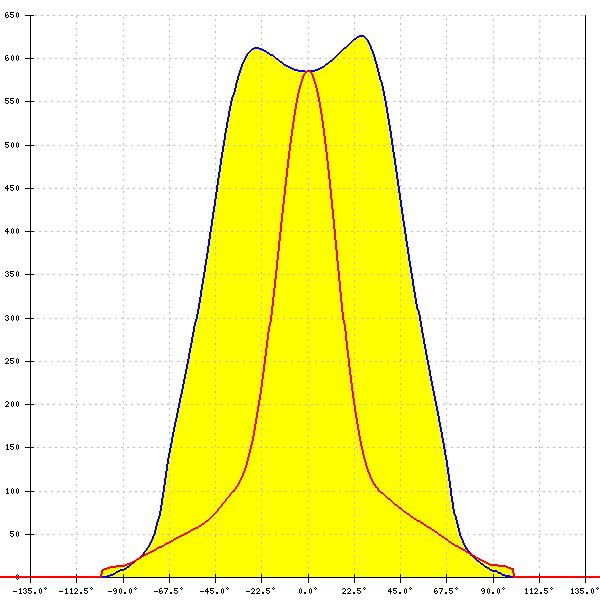

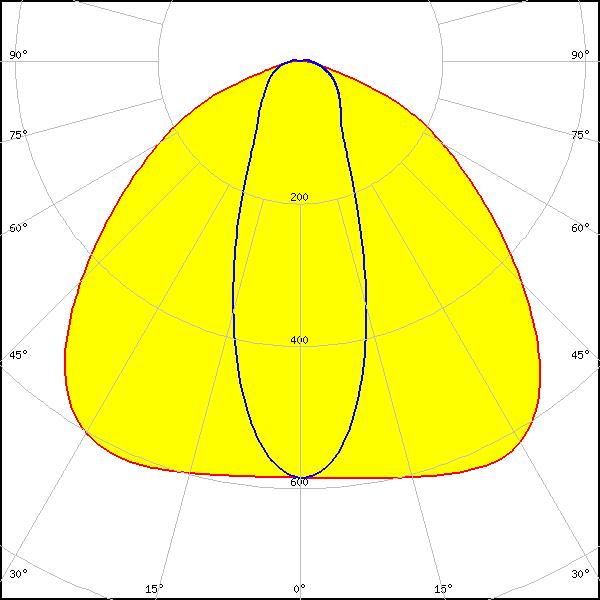

    LED: HiLOM RM12 ZP (LH502C)
    FWHM: 107° + 37°
    FWTM: 146° + 111°
    Peak intensity: 0.626 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

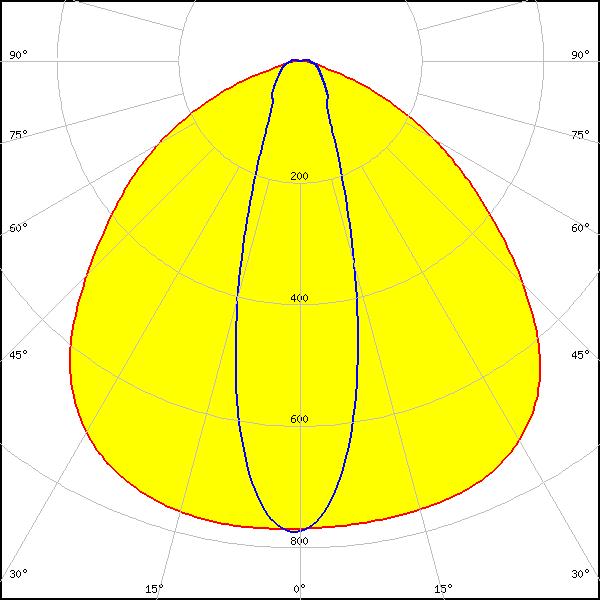

    LED: LH351Z
    FWHM: 29° + 104°
    FWTM: 70° + 144°
    Peak intensity: 0.770 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

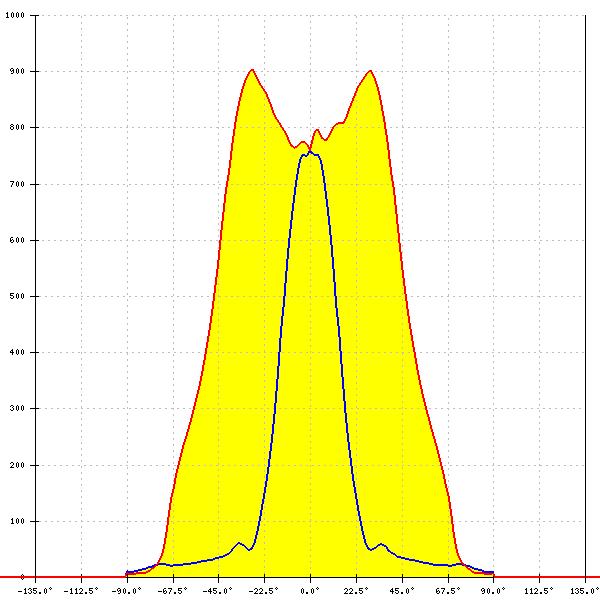

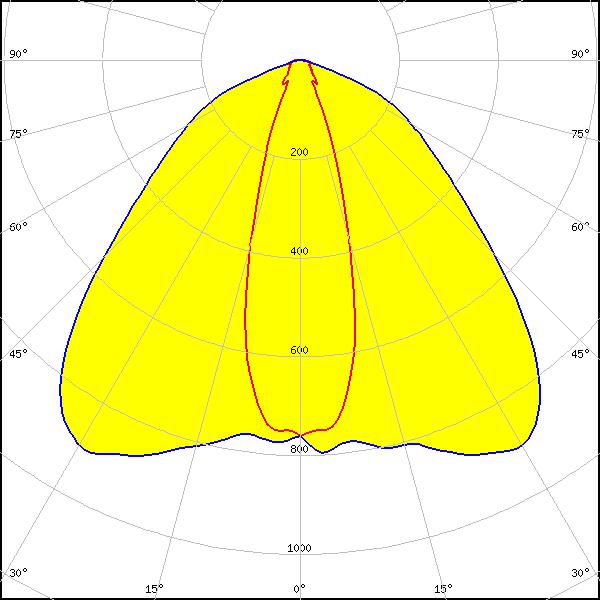

    LED: LH502D
    FWHM: 30° + 98°
    FWTM: 52° + 140°
    Peak intensity: 0.902 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

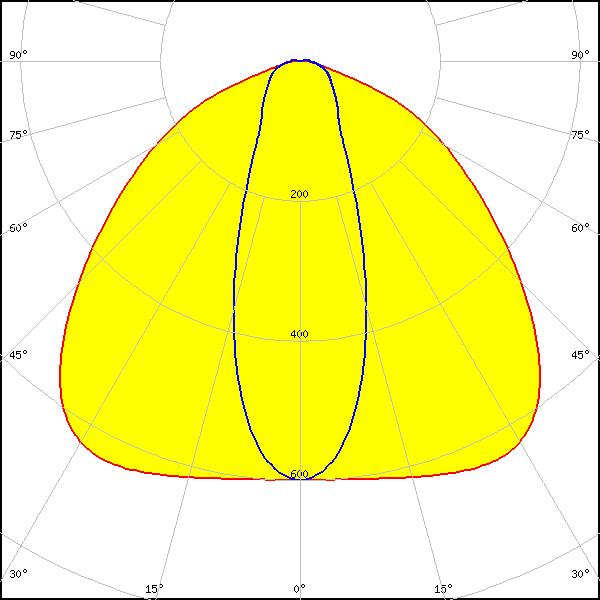

    LED: BALAM-VP-5250-750-36
    FWHM: asymmetric
    Peak intensity: 0.644 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

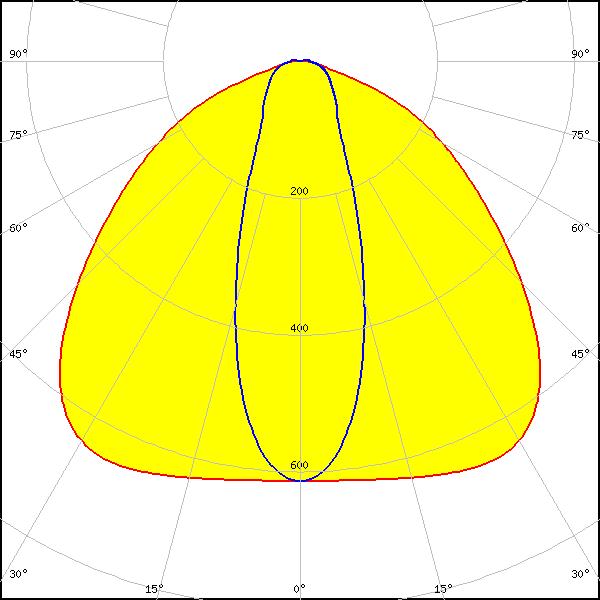

    LED: BALAMEC-VE-5700-740-36
    FWHM: 107° + 35°
    FWTM: 145° + 100°
    Peak intensity: 0.650 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: ROY-S26XPL2 (XP-L2)
    FWHM: 116° + 36°
    FWTM: 150° + 98°
    Peak intensity: 0.616 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

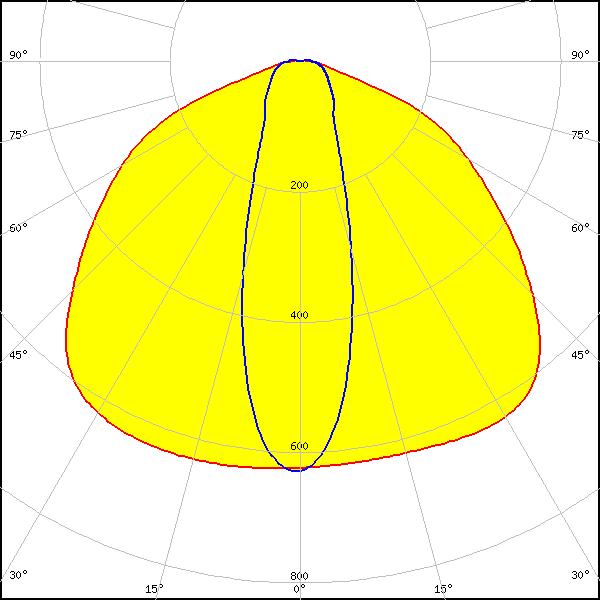

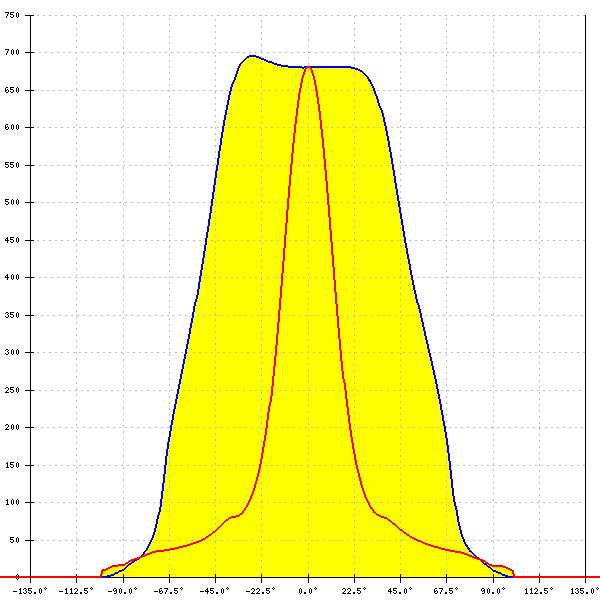

    LED: XLE-S22C4XTEHE (XT-E HE)
    FWHM: 112° + 29°
    FWTM: 147° + 85°
    Peak intensity: 0.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

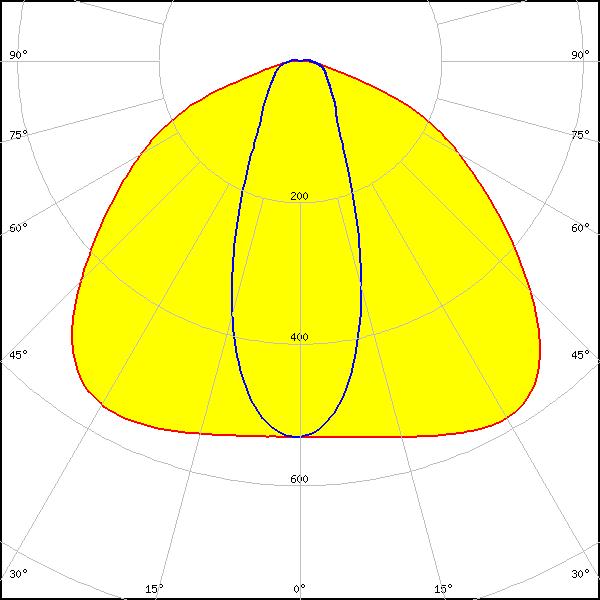

    LED: XLE-S26XHP35 (XHP35 HD)
    FWHM: 118° + 38°
    FWTM: 151° + 103°
    Peak intensity: 0.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

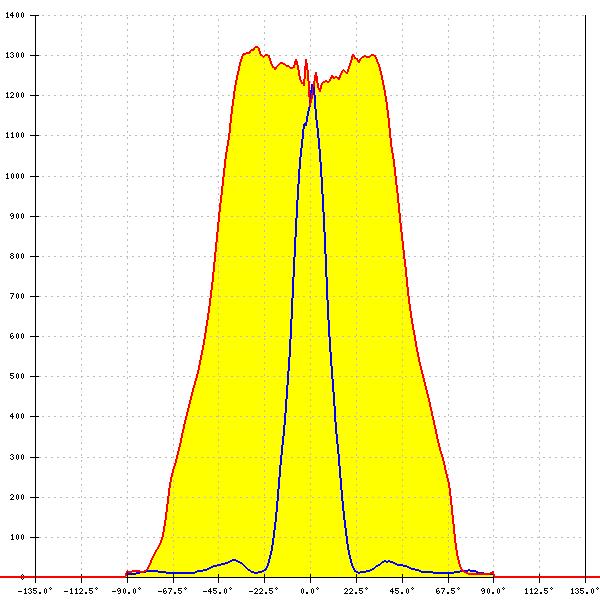

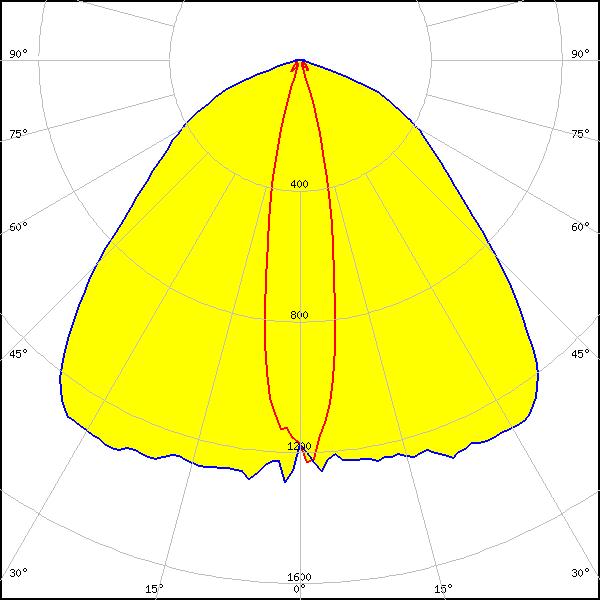

    LED: SEOUL DC 3528
    FWHM: 20° + 99°
    FWTM: 36° + 142°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

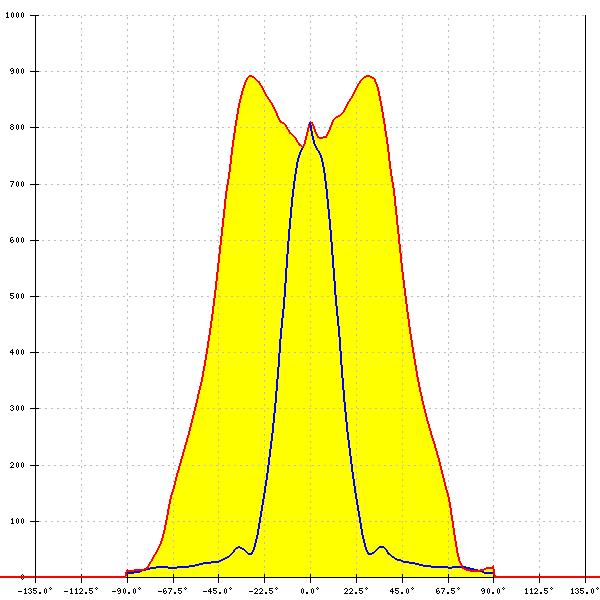

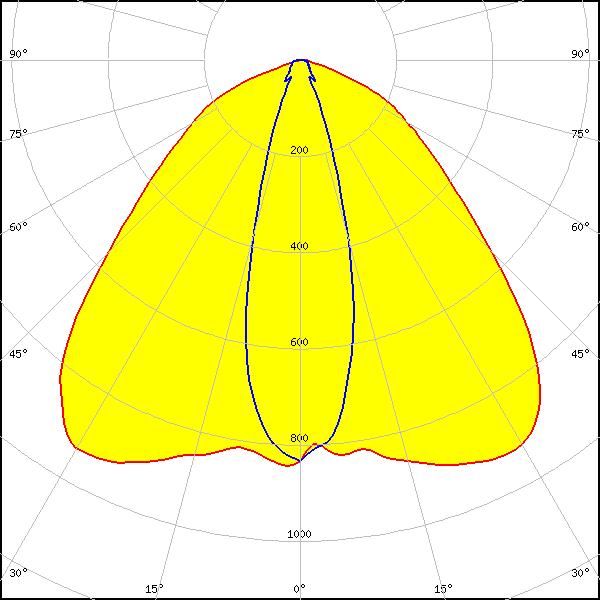

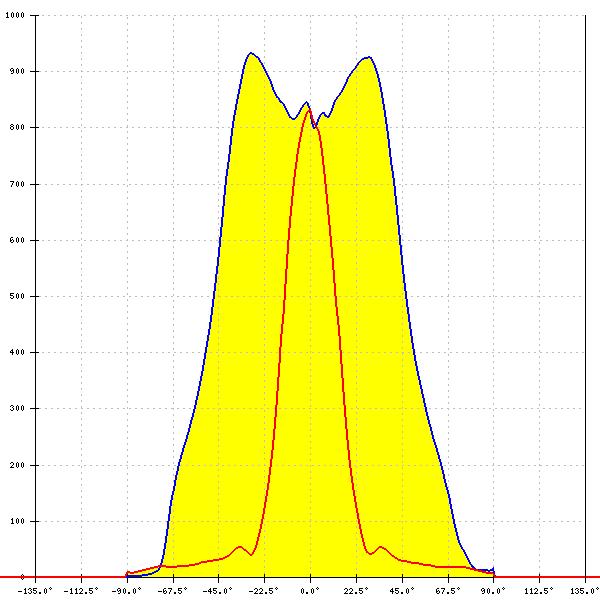

    LED: SEOUL DC 5050 6V
    FWHM: 97° + 29°
    FWTM: 142° + 49°
    Peak intensity: 0.930 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

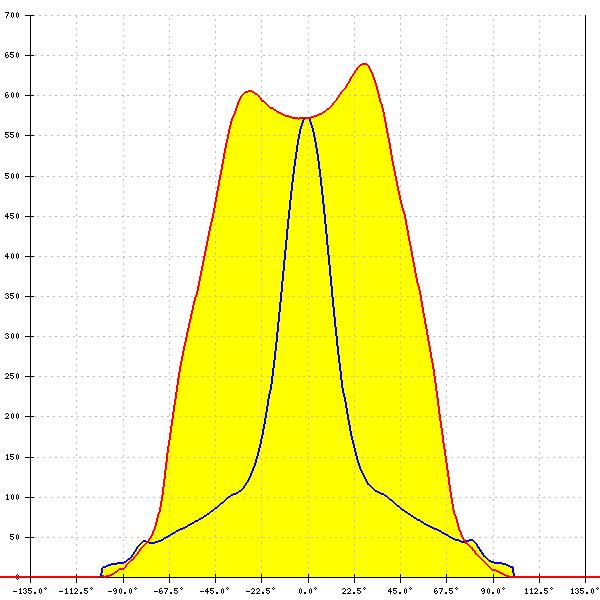

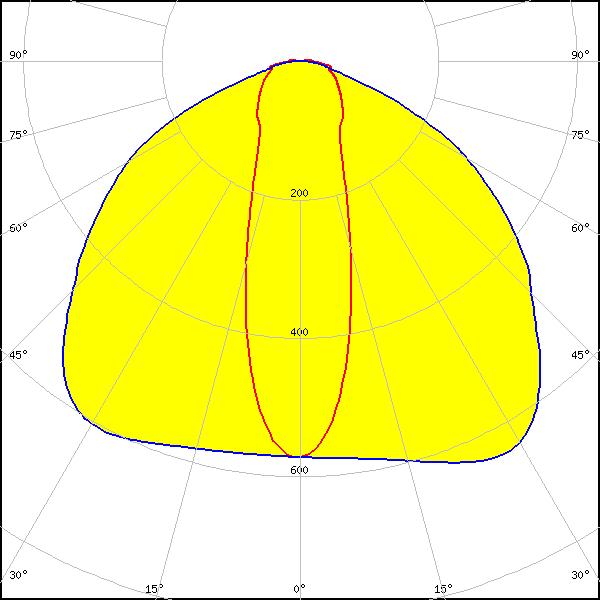

    LED: SMJQ-D36W12Mx
    FWHM: 30° + 119°
    FWTM: 128° + 149°
    Peak intensity: 0.640 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

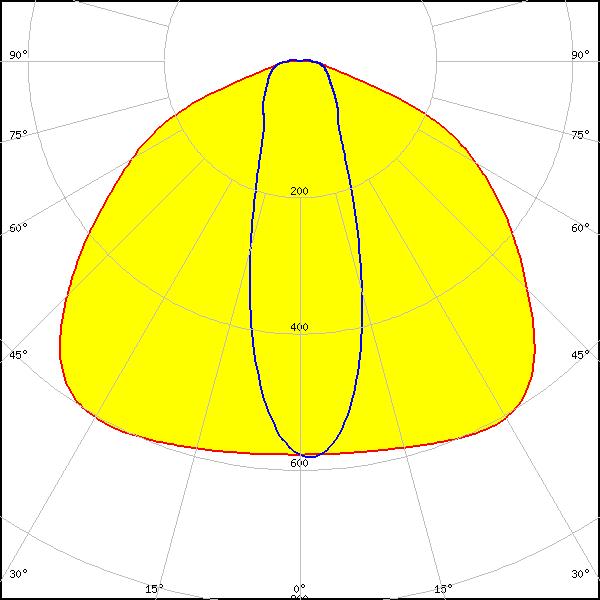

    LED: SMJQ-D36W12Px
    FWHM: 121° + 32°
    FWTM: 151° + 108°
    Peak intensity: 0.610 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

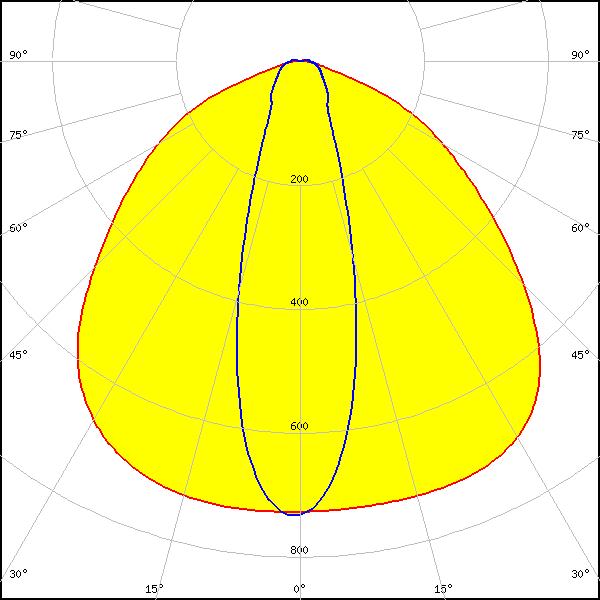

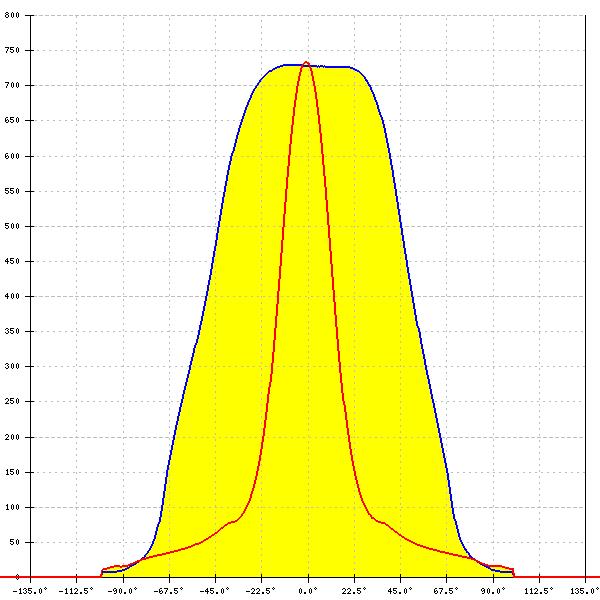

    LED: Z5M1/Z5M2
    FWHM: 29° + 105°
    FWTM: 79° + 145°
    Peak intensity: 0.730 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

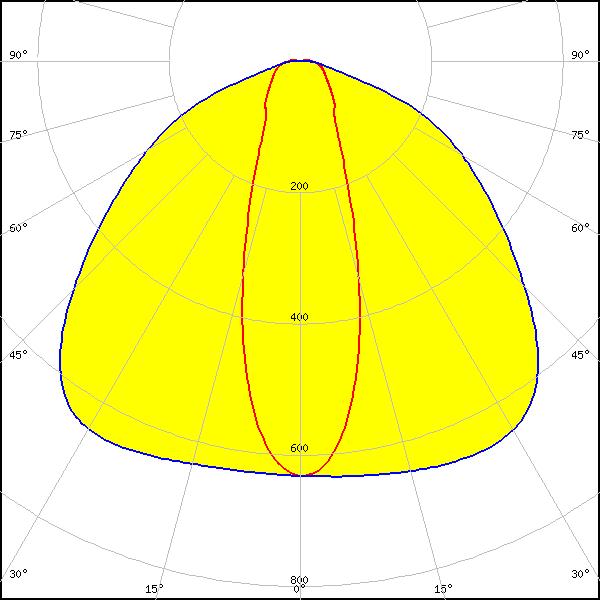

    LED: Z5M3
    FWHM: 32° + 111°
    FWTM: 96° + 148°
    Peak intensity: 0.656 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

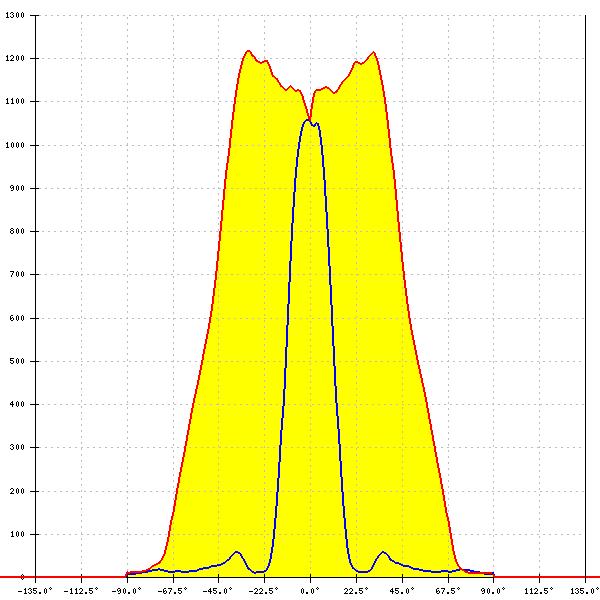

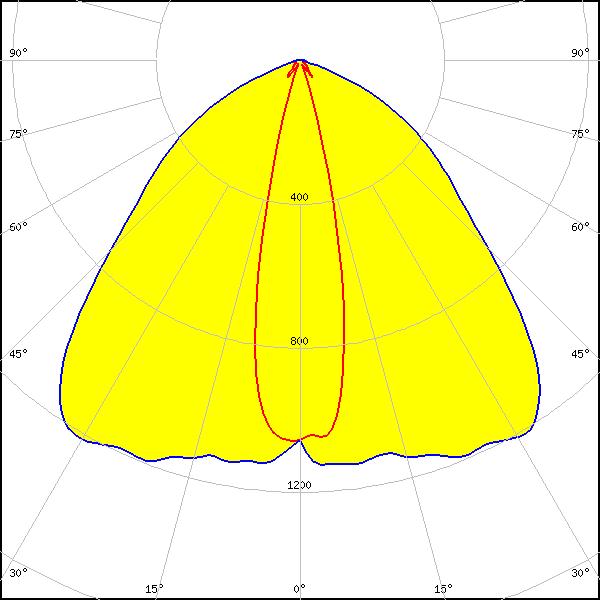

    LED: Z5M4
    FWHM: 24° + 98°
    FWTM: 34° + 136°
    Peak intensity: 1.216 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

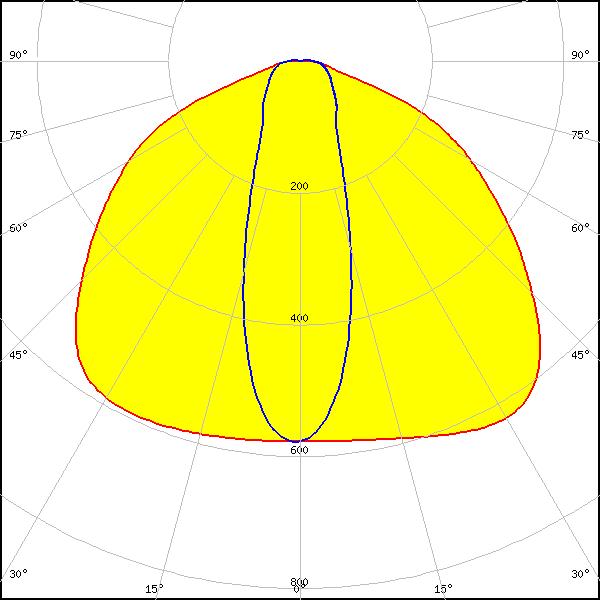

    LED: Z8Y22
    FWHM: 30° + 119°
    FWTM: 128° + 149°
    Peak intensity: 0.640 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

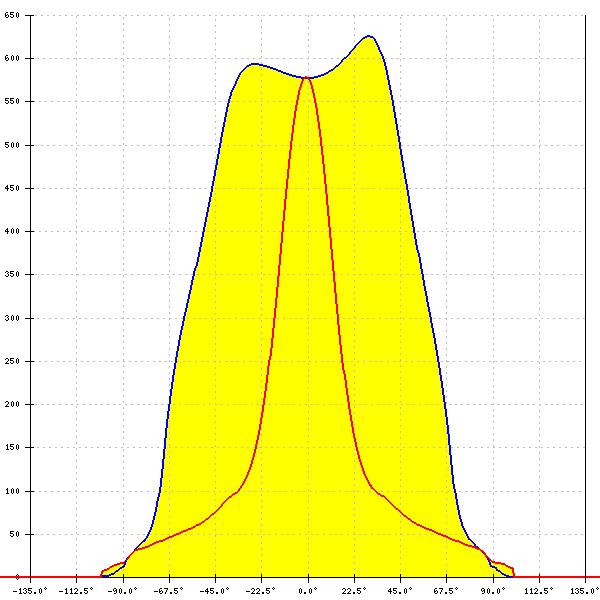

    LED: Z8Y22P
    FWHM: 122° + 32°
    FWTM: 151° + 111°
    Peak intensity: 0.630 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

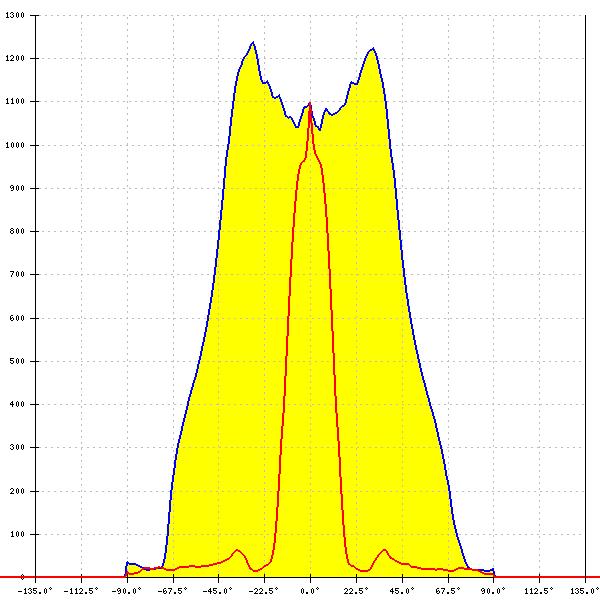

    LED: Z8Y22T
    FWHM: 97° + 21°
    FWTM: 141° + 32°
    Peak intensity: 1.240 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

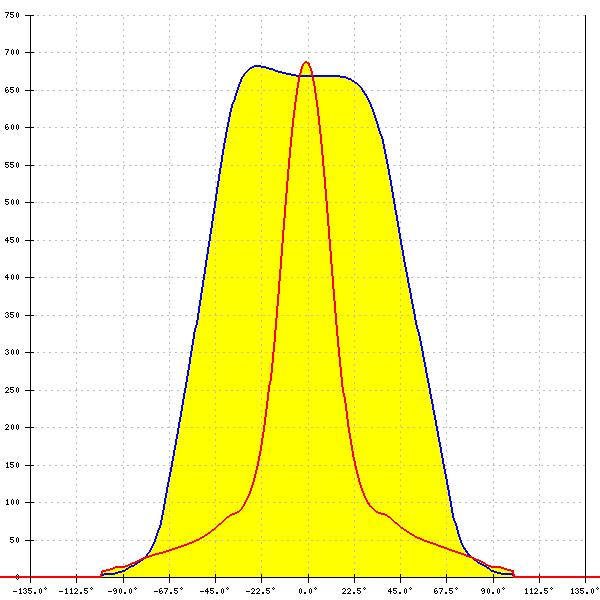

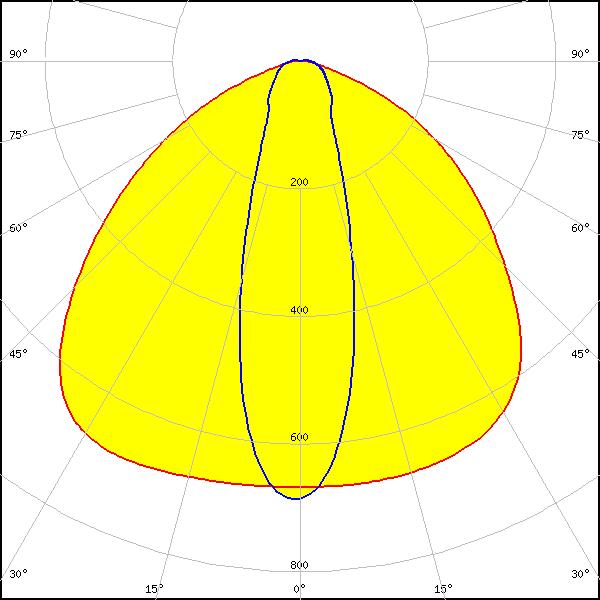

    LED: TL1L4
    FWHM: 29° + 107°
    FWTM: 88° + 144°
    Peak intensity: 0.690 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

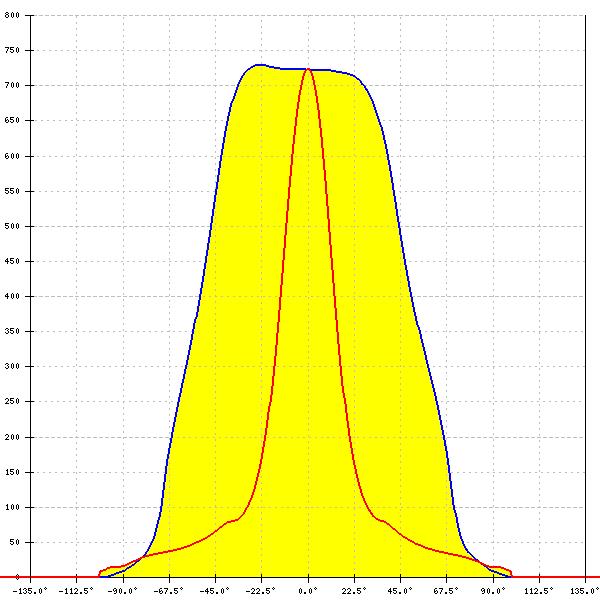

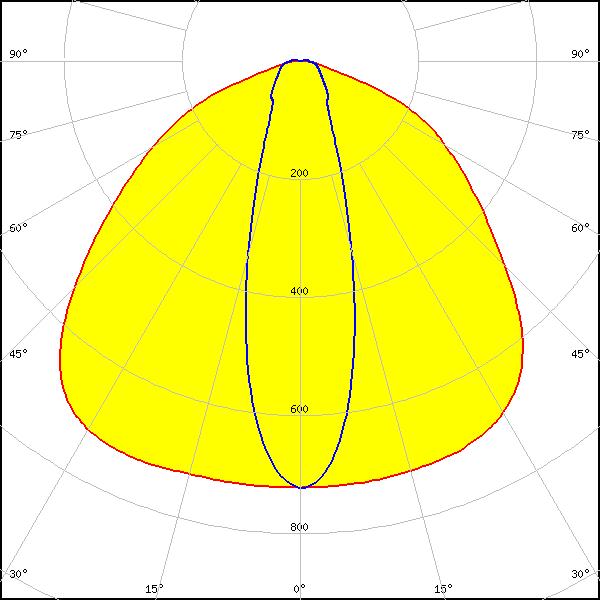

    LED: RLE 2x6 3000lm HP EXC2 OTD
    FWHM: 108° + 29°
    FWTM: 146° + 82°
    Peak intensity: 0.730 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
