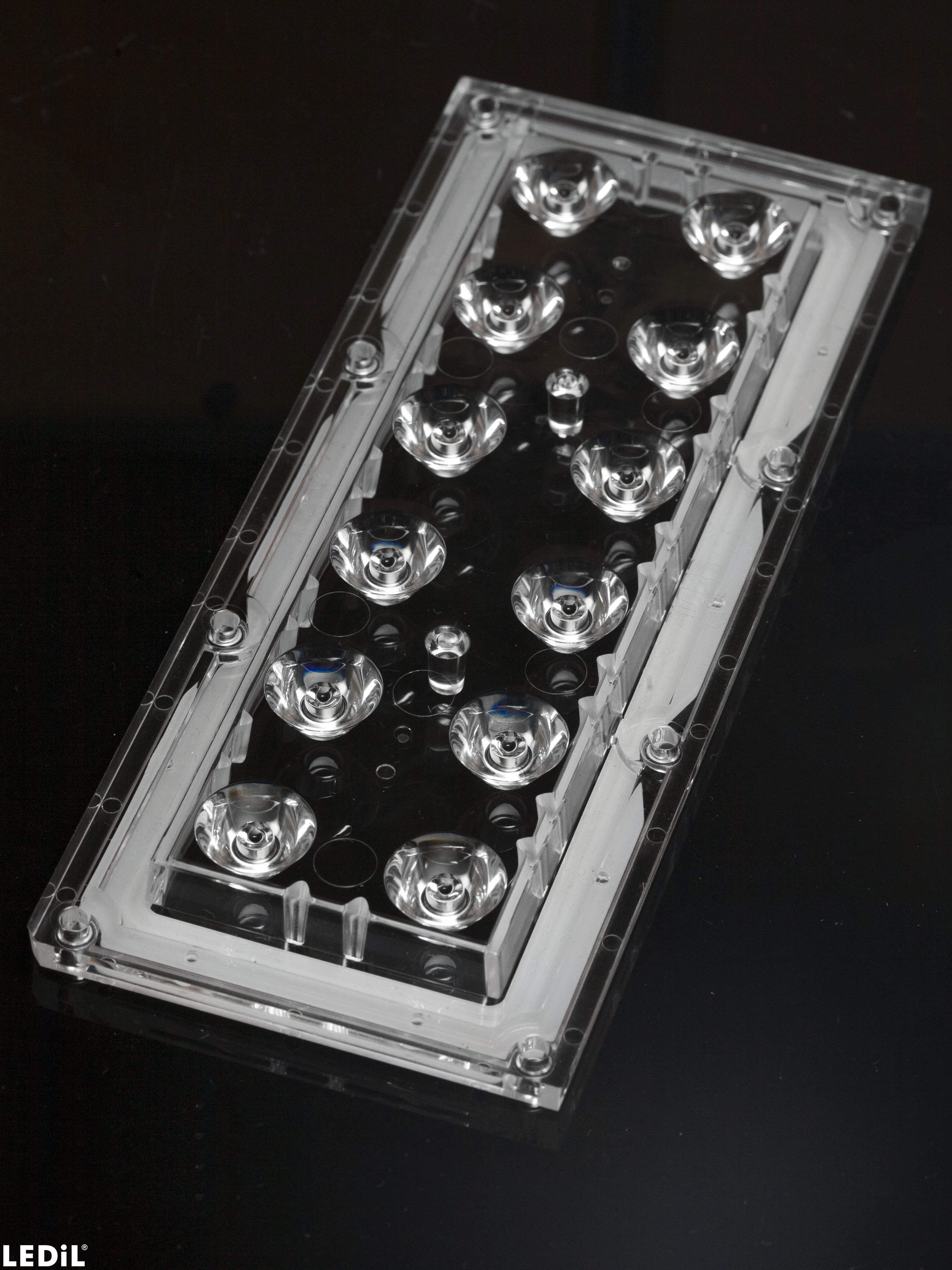

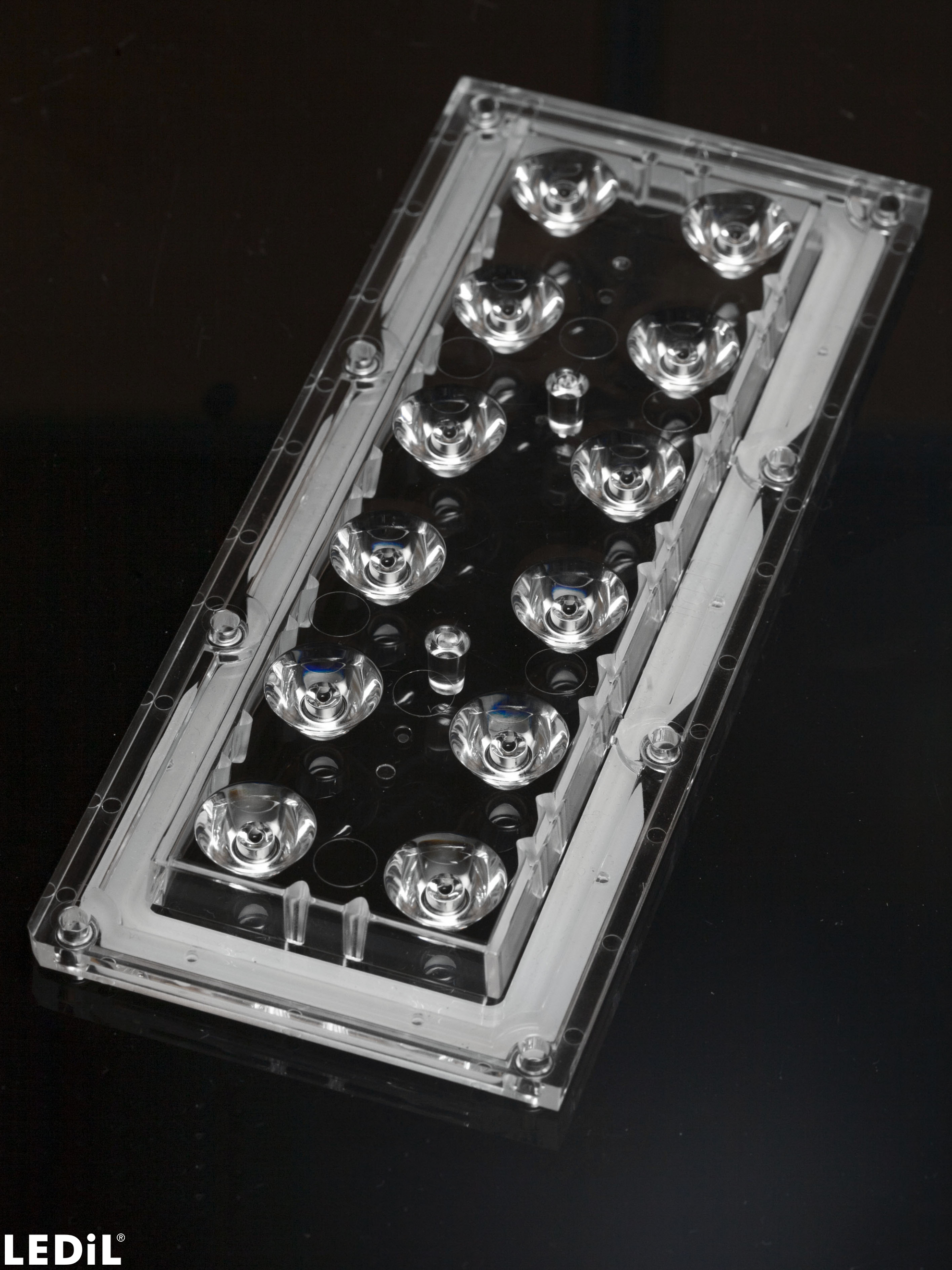

CS14895_HB-IP-2X6-RS

Print

~20° spot beam

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    11.39 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    8.0 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS14895_HB-IP-2X6-RS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

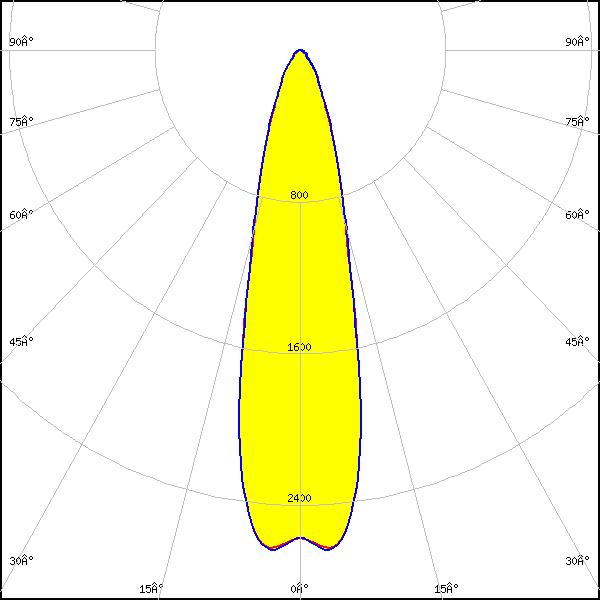

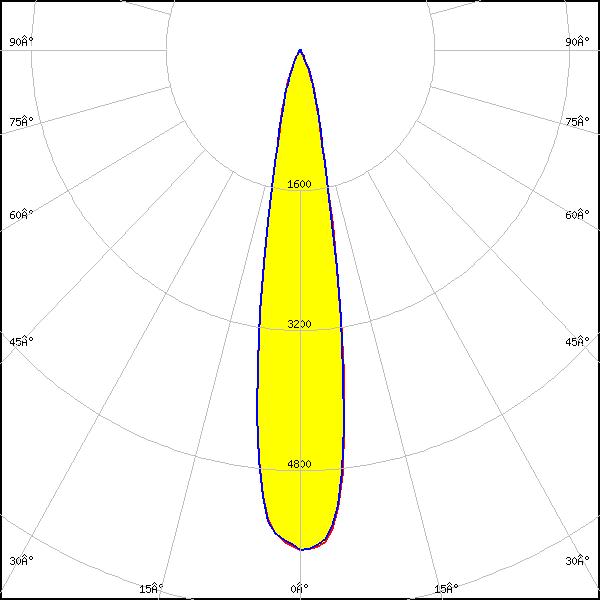

Optical results

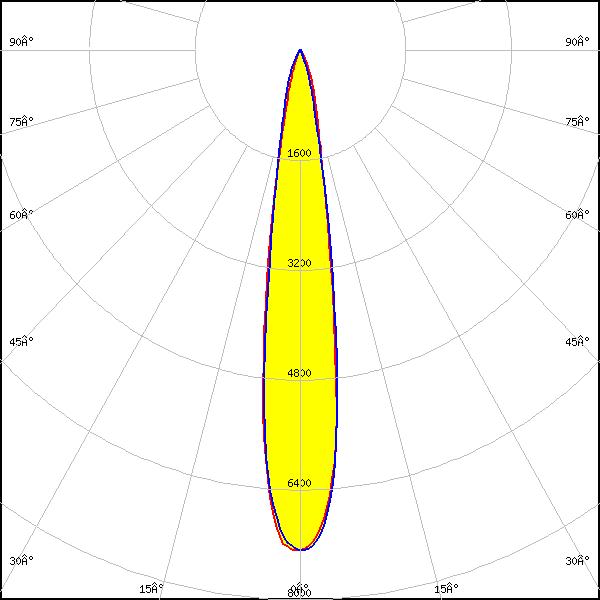

LED: QUICK FLUX 2x6 LED XG xxx G7+
FWHM: 16°
FWTM: 33°
Peak intensity: 7.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

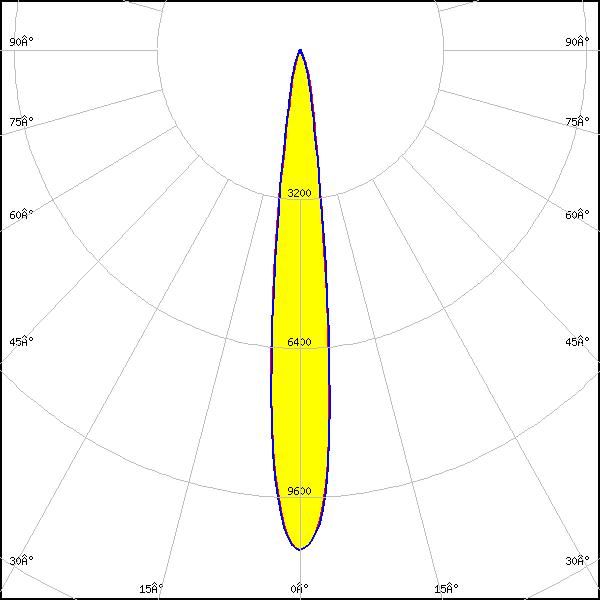

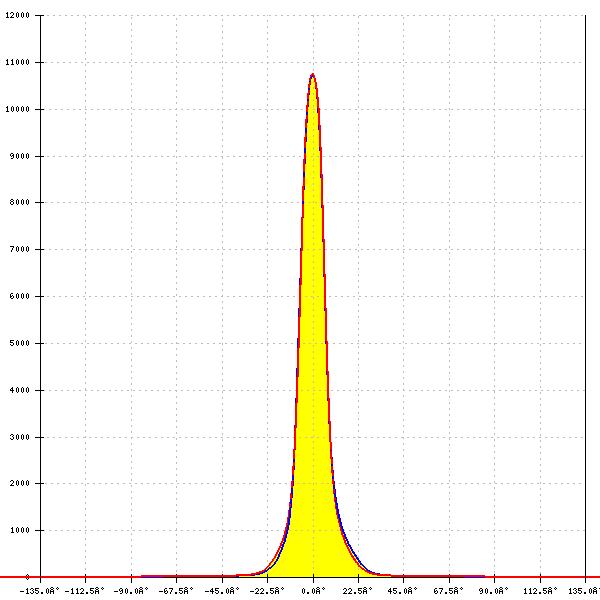

LED: QUICK FLUX 2x6 LED XT xxx G5
FWHM: 13°
FWTM: 26°
Peak intensity: 10.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: J Series 5050 Round LES
FWHM: 25°
FWTM: 51°
Peak intensity: 3.370 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

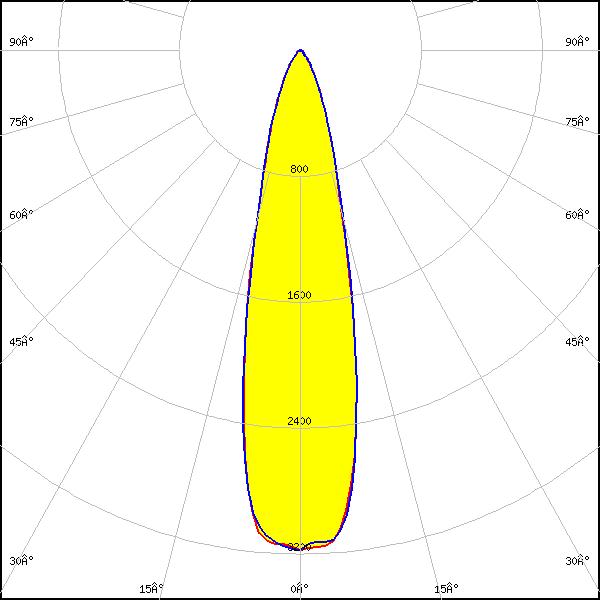

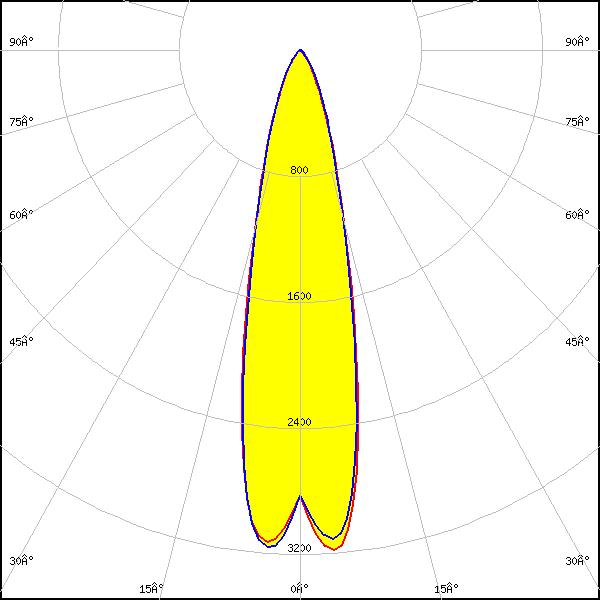

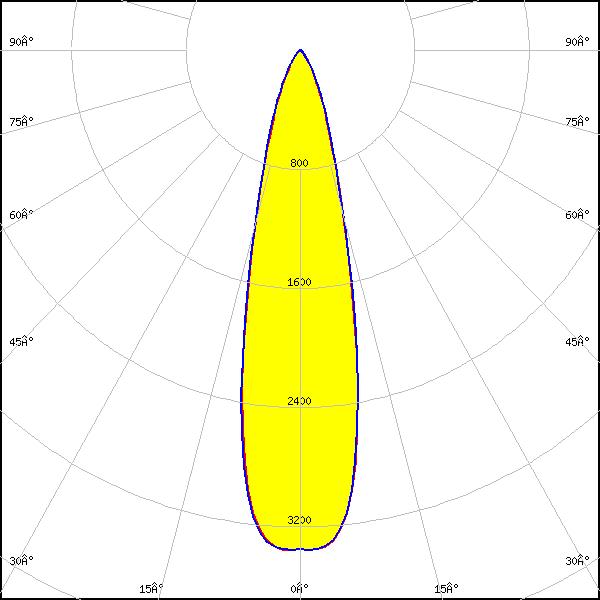

LED: J Series 5050 Square LES 6V
FWHM: 24°
FWTM: 52°
Peak intensity: 3.203 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

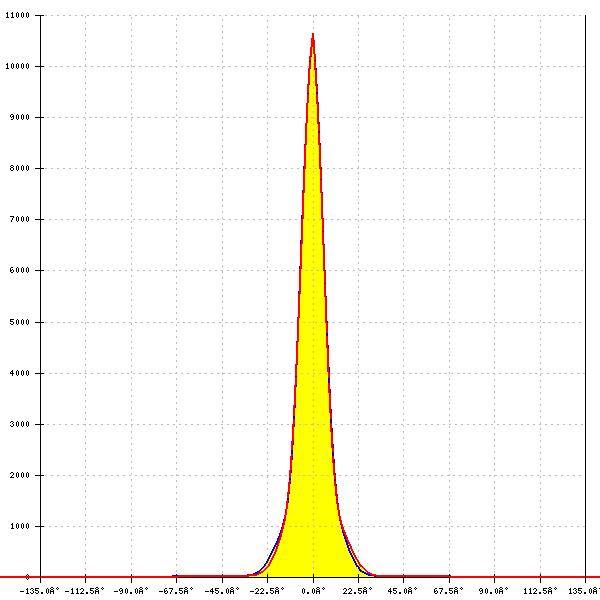

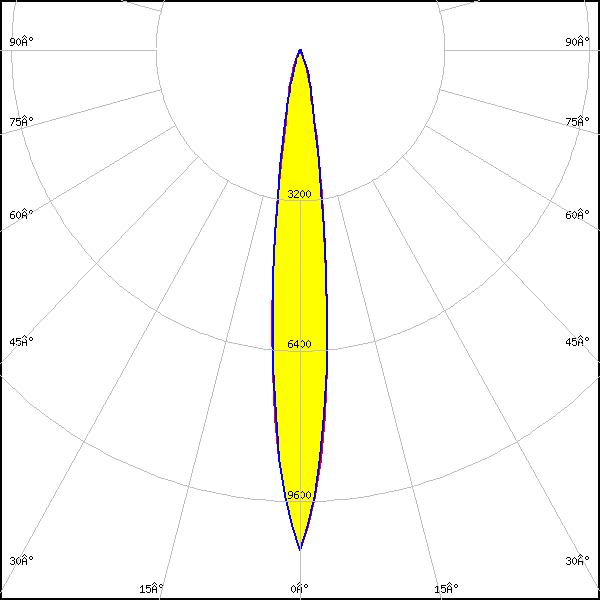

LED: XB-H
FWHM: 12°
FWTM: 28°
Peak intensity: 10.639 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

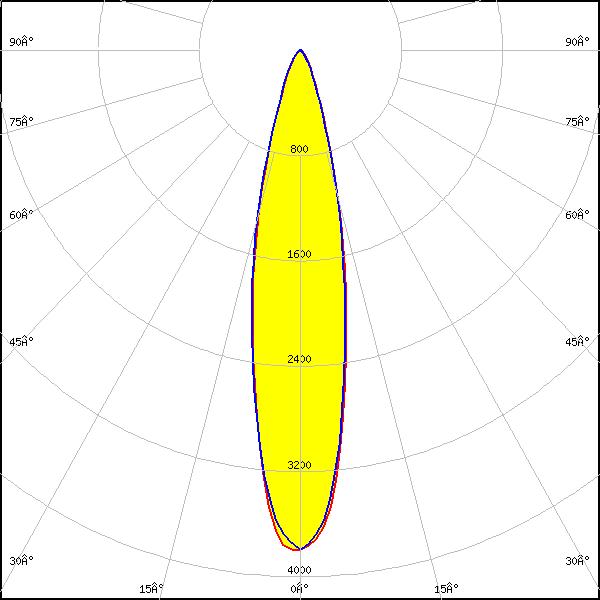

LED: XHP35 HD
FWHM: 22°
FWTM: 46°
Peak intensity: 3.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

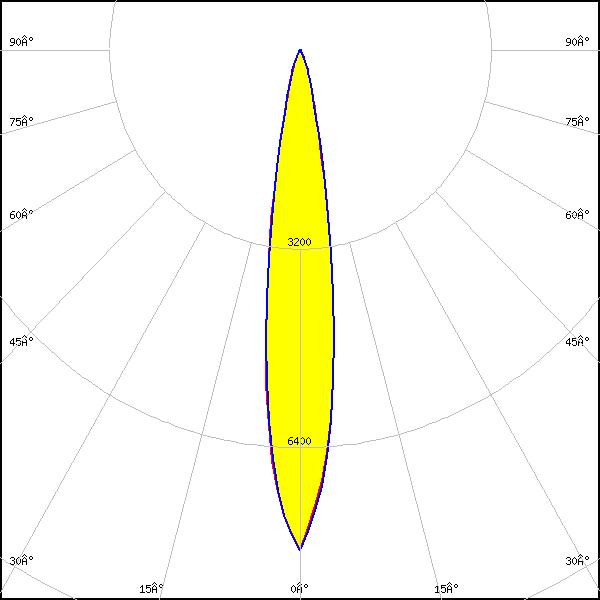

LED: XHP35 HI
FWHM: 16°
FWTM: 32°
Peak intensity: 8.050 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

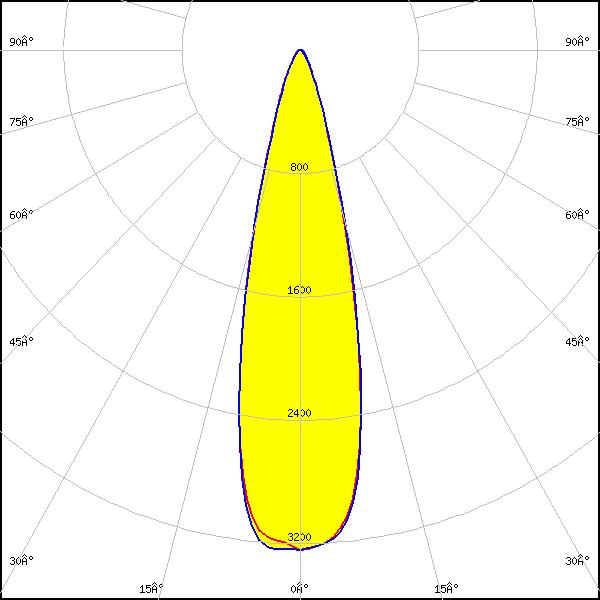

LED: XHP35.2 HD
FWHM: 26°
FWTM: 48°
Peak intensity: 3.278 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

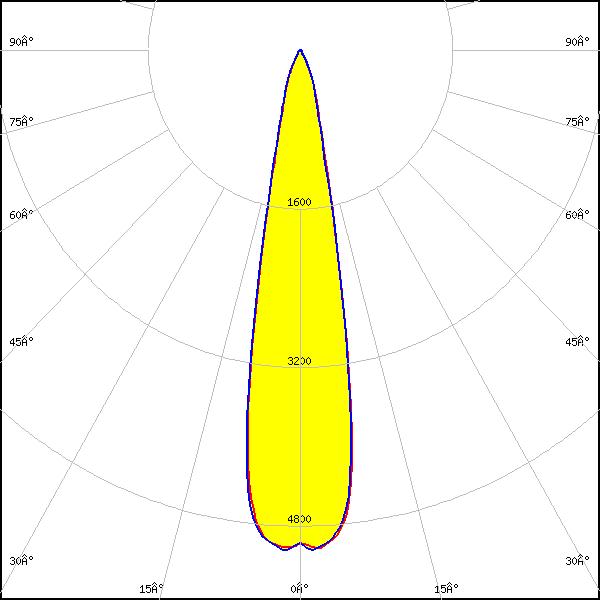

LED: XM-L
FWHM: 21°
FWTM: 38°
Peak intensity: 5.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

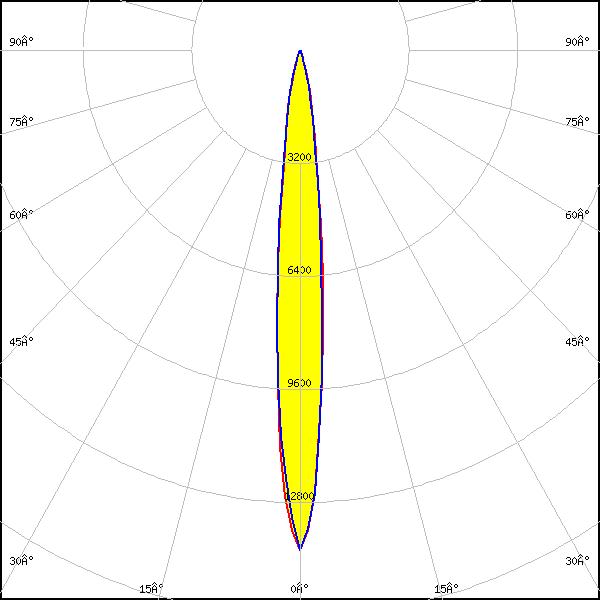

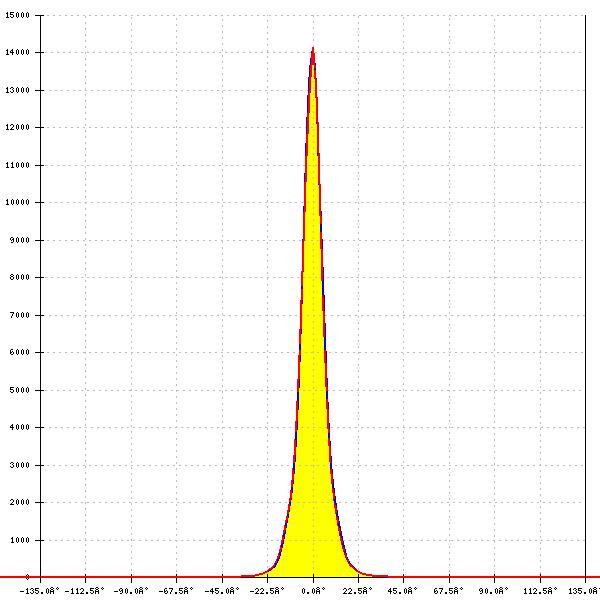

LED: XP-E2
FWHM: 11°
FWTM: 26°
Peak intensity: 14.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

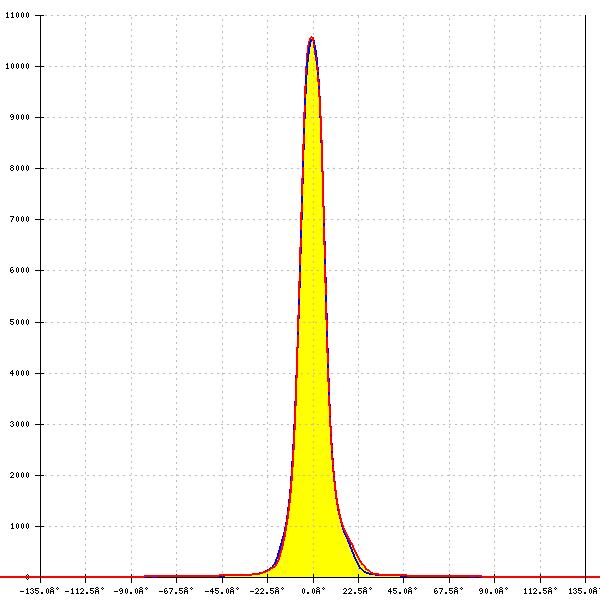

LED: XP-G2
FWHM: 13°
FWTM: 27°
Peak intensity: 10.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

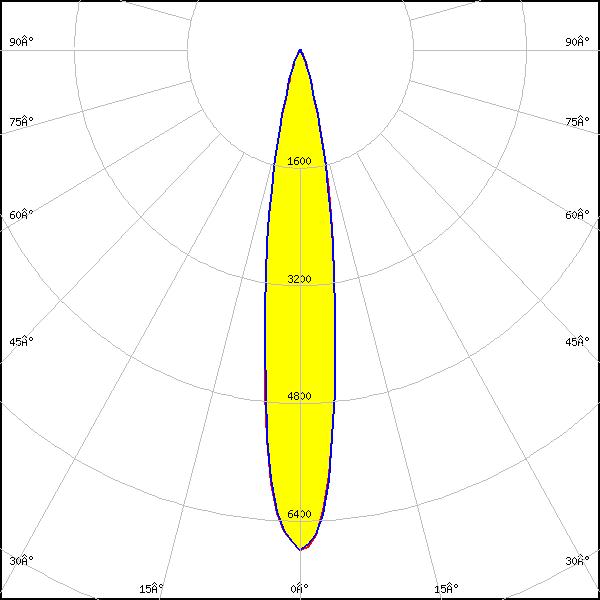

LED: XP-G2 HE
FWHM: 17°
FWTM: 35°
Peak intensity: 6.859 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

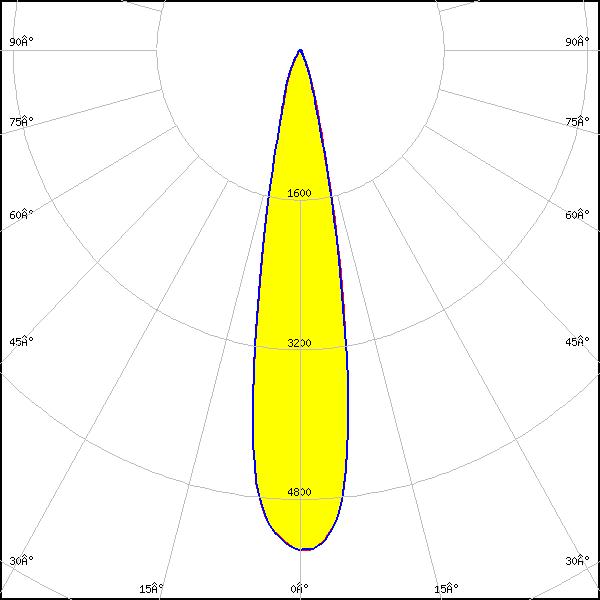

LED: XP-L HD
FWHM: 20°
FWTM: 37°
Peak intensity: 5.400 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

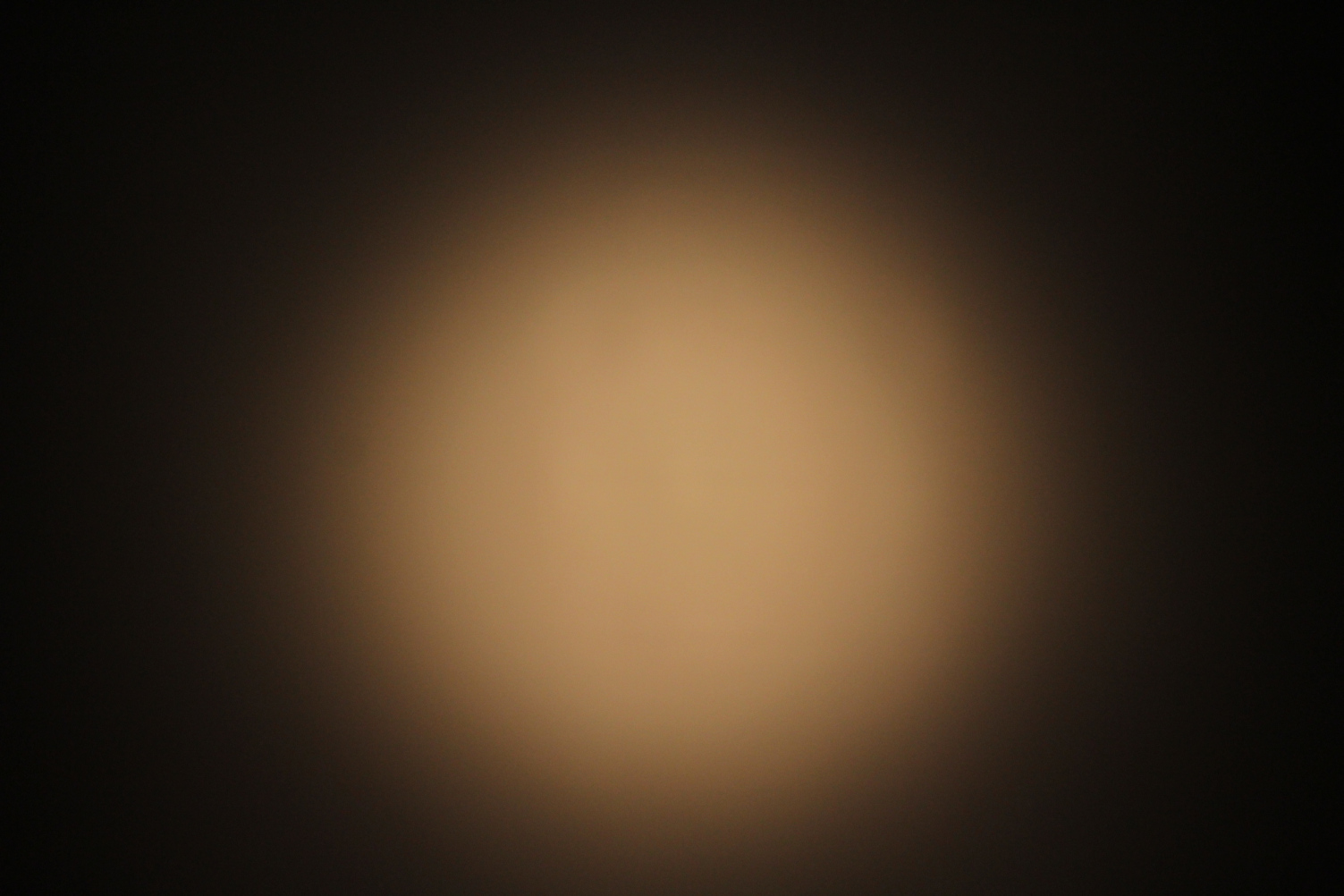

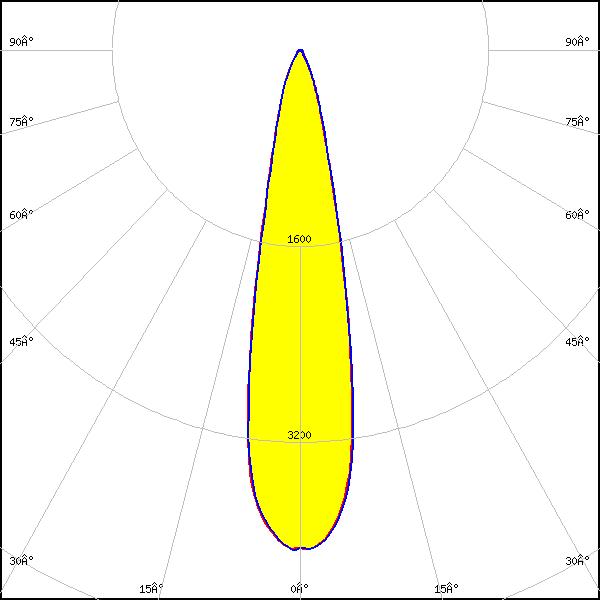

LED: XP-L2
FWHM: 22°
FWTM: 43°
Peak intensity: 4.100 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

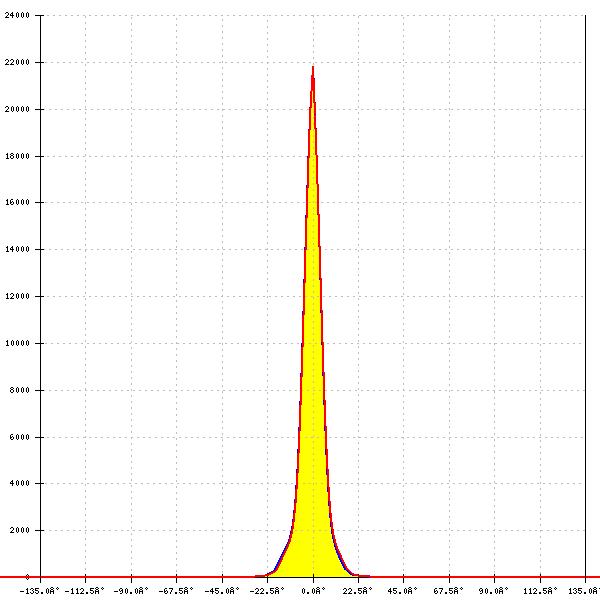

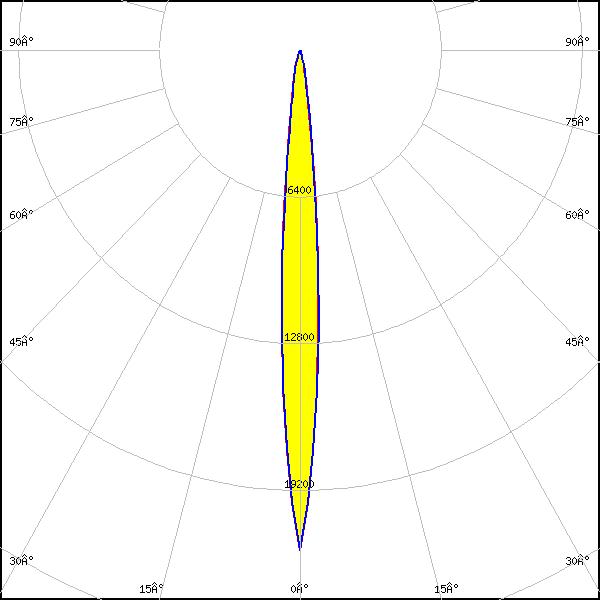

LED: XQ-E HD
FWHM: 8°
FWTM: 19°
Peak intensity: 21.814 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: XT-E HE
FWHM: 13°
FWTM: 26°
Peak intensity: 11.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

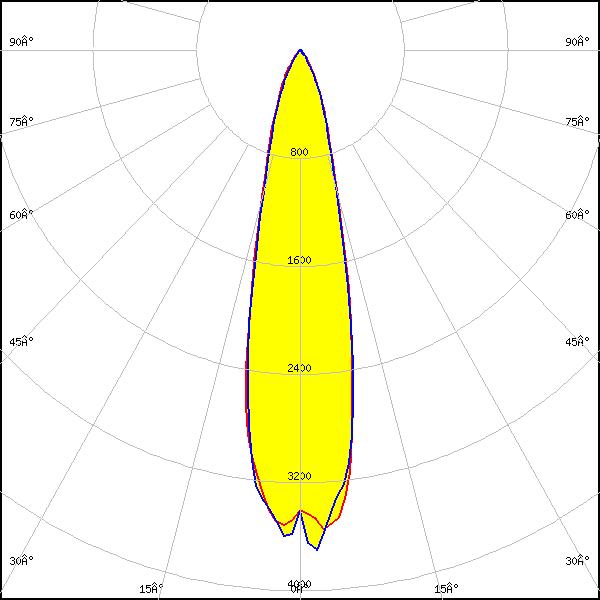

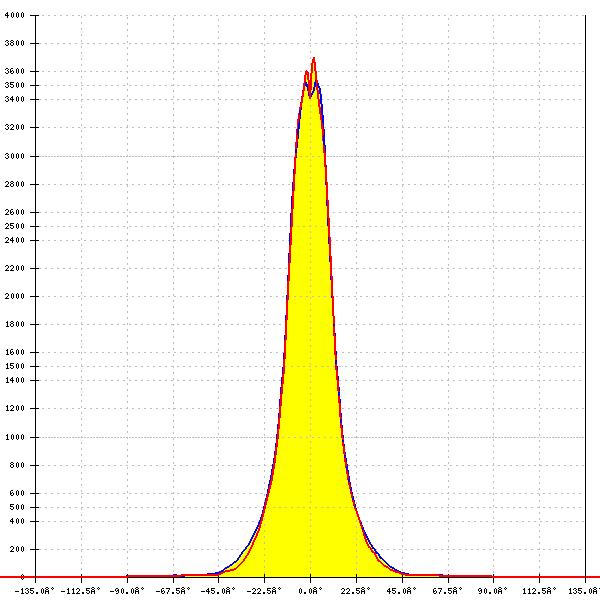

LED: LUXEON 5050 Round LES
FWHM: 23°
FWTM: 50°
Peak intensity: 3.740 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

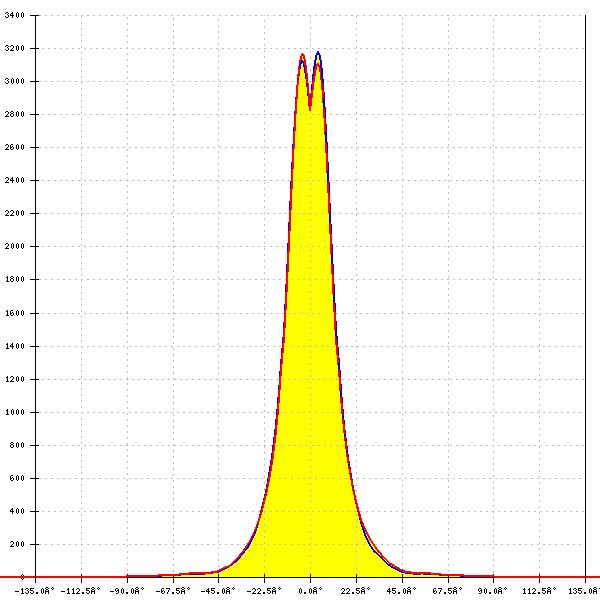

LED: LUXEON 5050 Square LES
FWHM: 25°
FWTM: 52°
Peak intensity: 3.181 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON C
FWHM: 10°
FWTM: 23°
Peak intensity: 17.313 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: Cyan

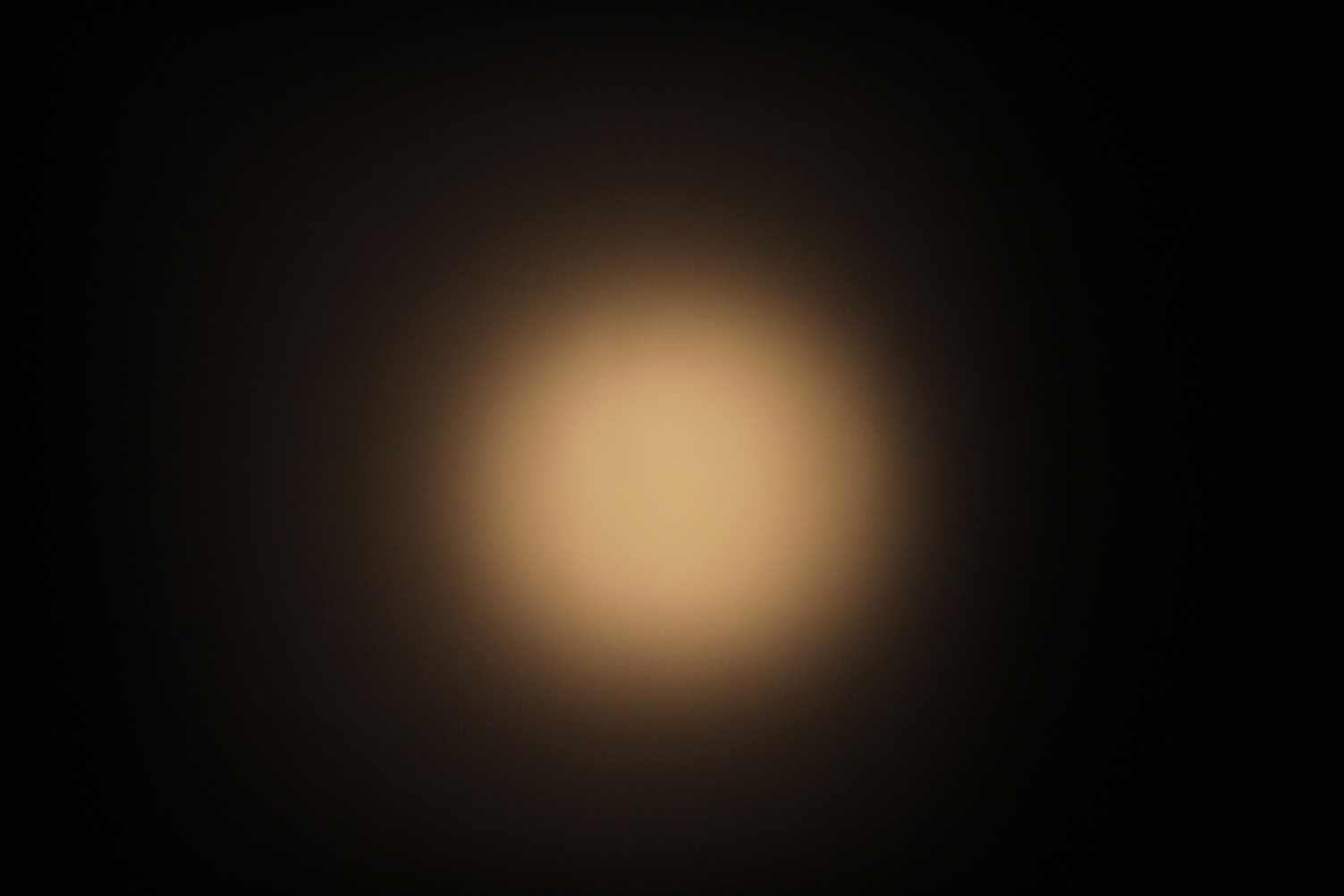

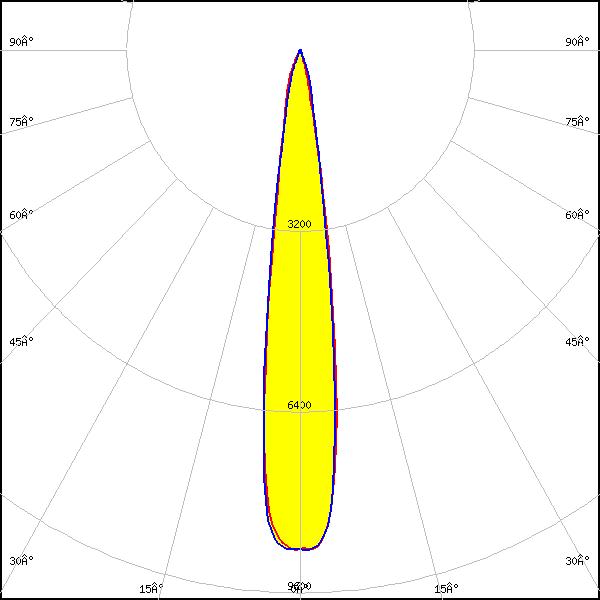

LED: LUXEON T
FWHM: 15°
FWTM: 29°
Peak intensity: 8.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

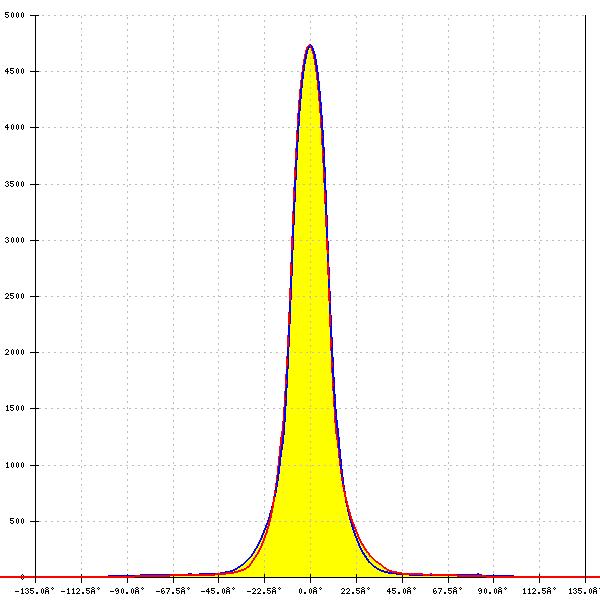

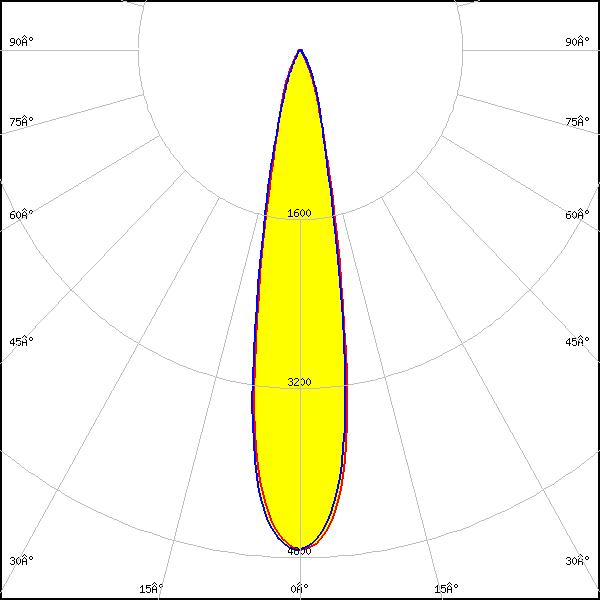

LED: LUXEON V
FWHM: 20°
FWTM: 41°
Peak intensity: 4.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

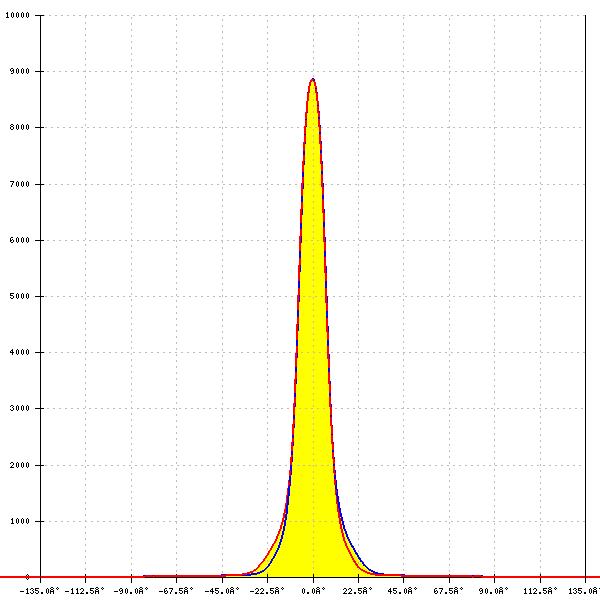

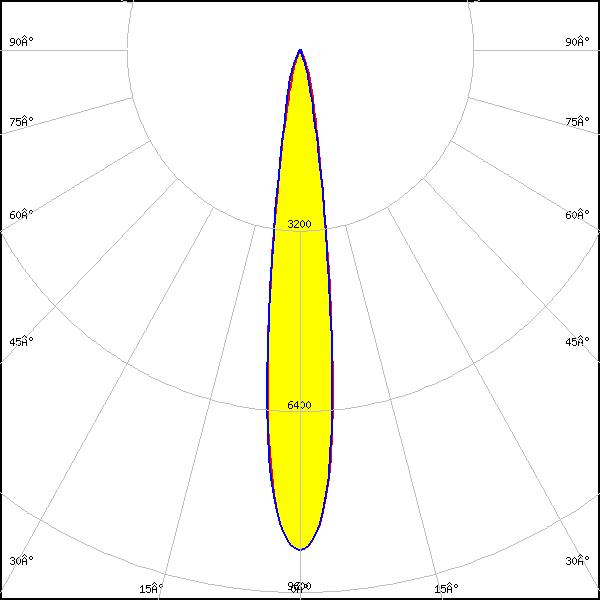

LED: LUXEON V2
FWHM: 15°
FWTM: 30°
Peak intensity: 8.900 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

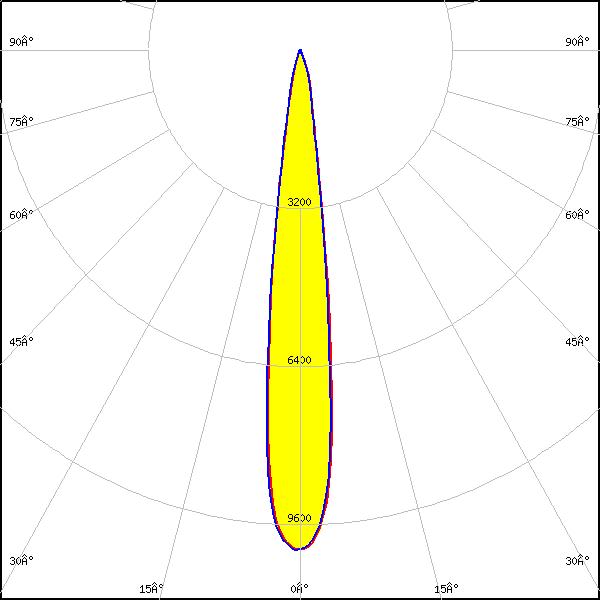

LED: LUXEON XR-TX (L2T0-xxxx012M0000)
FWHM: 14°
FWTM: 27°
Peak intensity: 10.120 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: SST-10-B130
LEDs/each optic: 1
Light colour: Blue

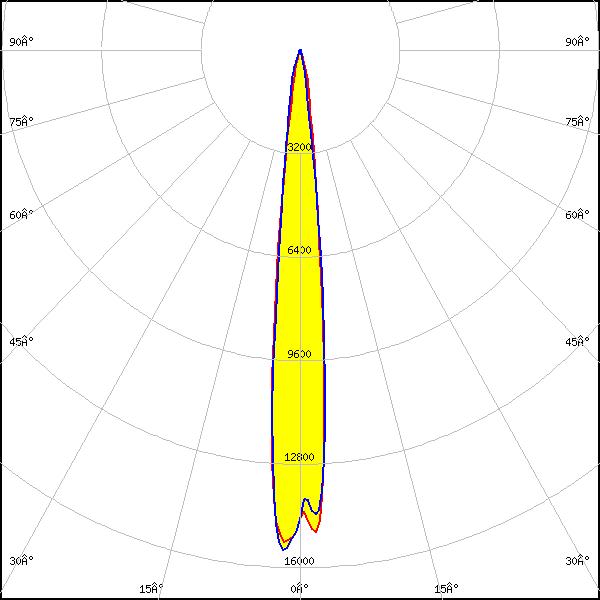

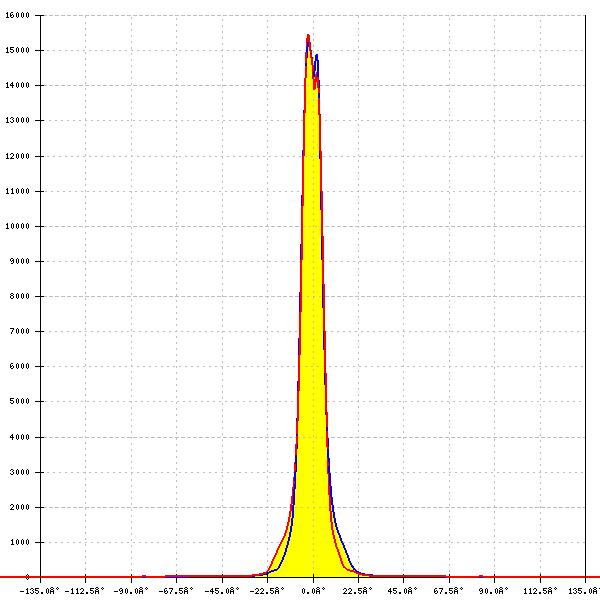

LED: SST-10-B130
FWHM: 12°
FWTM: 22°
Peak intensity: 15.561 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Deep Red

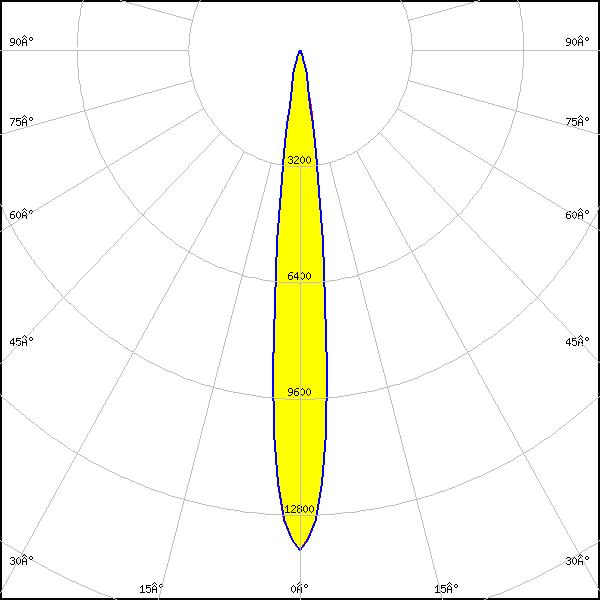

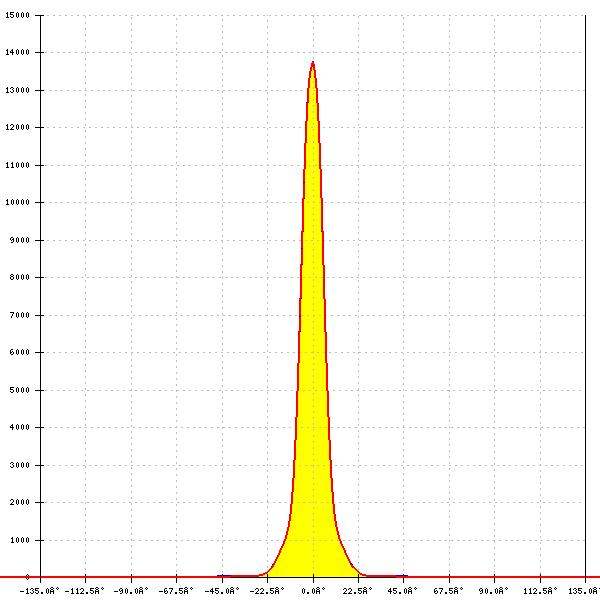

LED: SST-20
LEDs/each optic: 1
Light colour: White

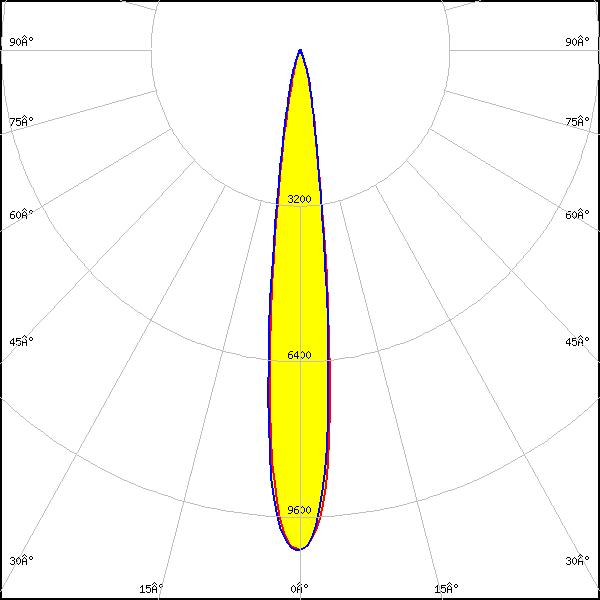

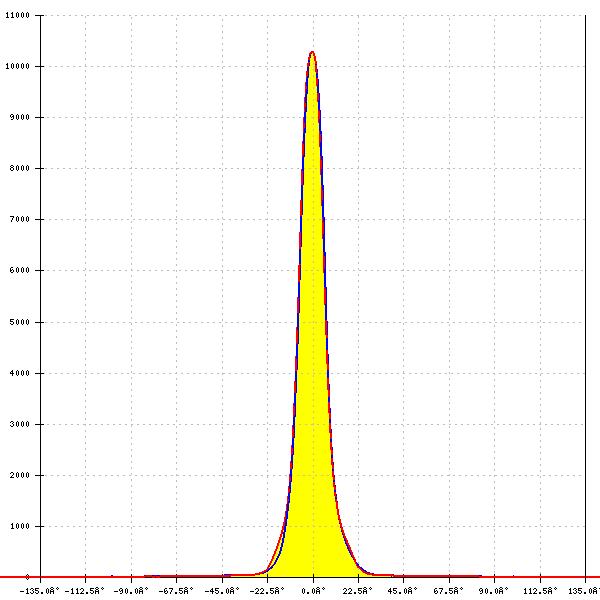

LED: RecLED 146x45mm 2900lm 730 2x6 IP G1
FWHM: 14°
FWTM: 27°
Peak intensity: 10.282 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

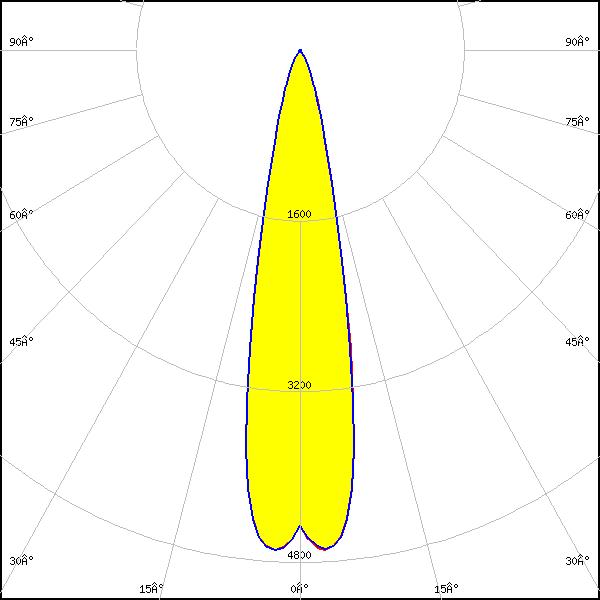

LED: NV4WB35AM
FWHM: 22°
FWTM: 40°
Peak intensity: 4.802 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

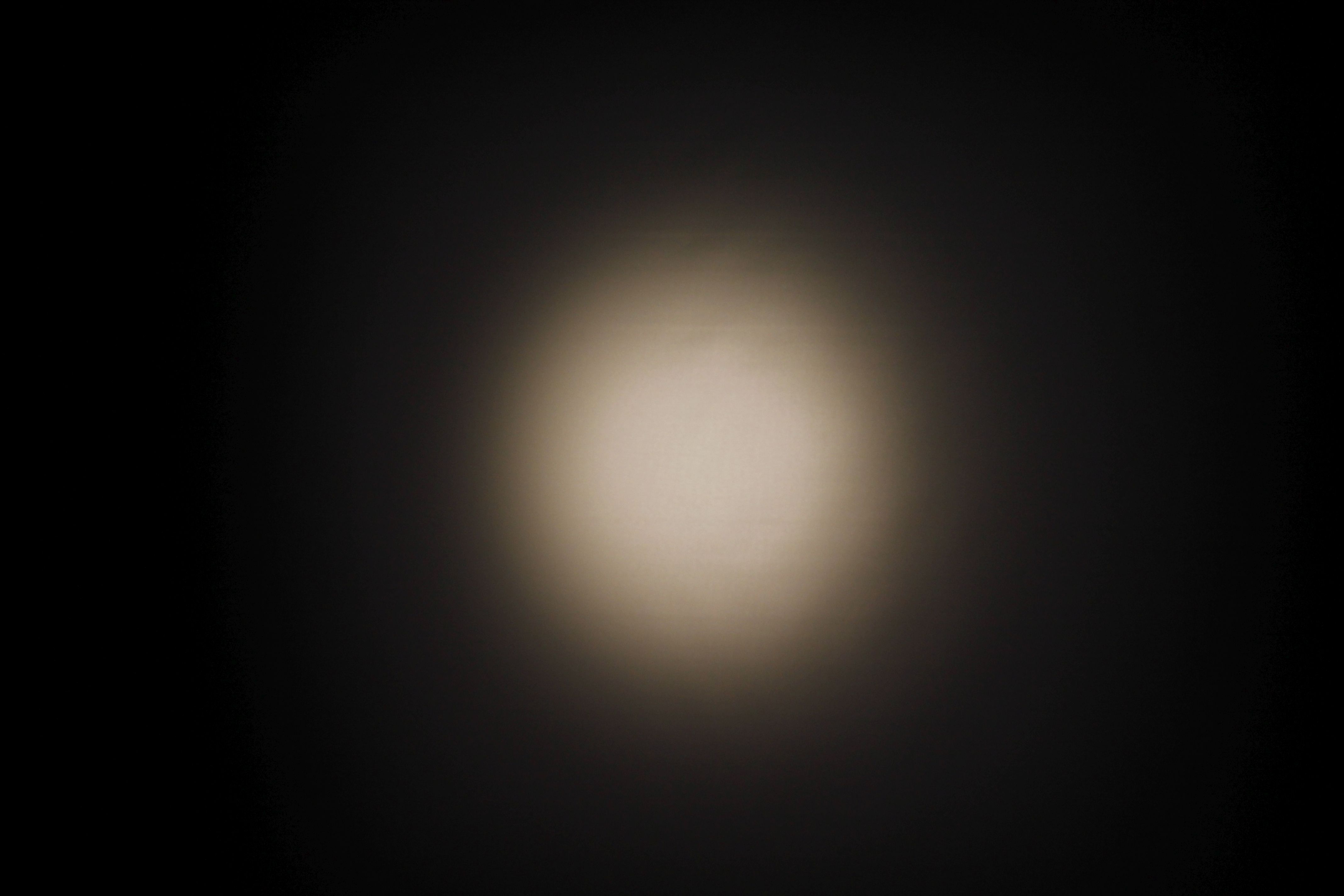

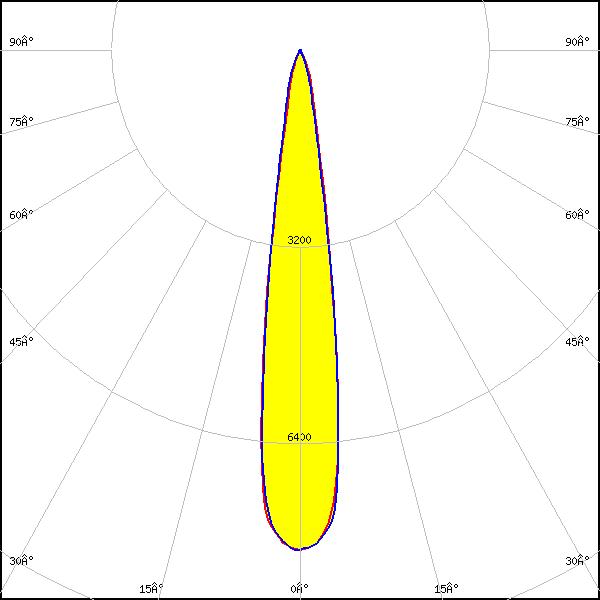

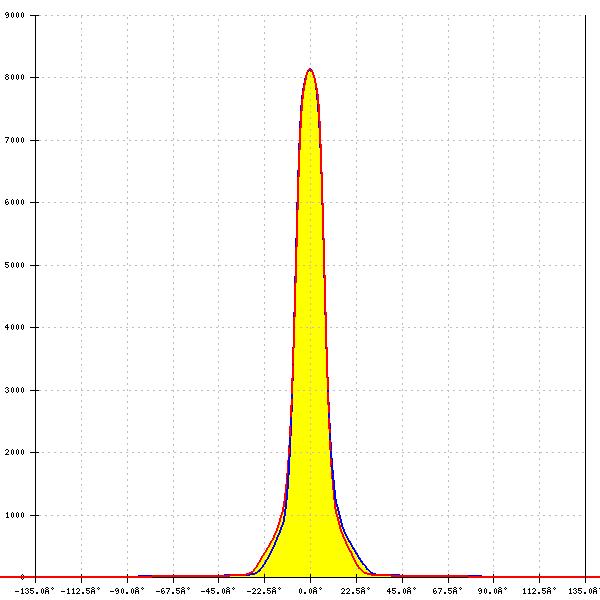

LED: NVSW219D
FWHM: 16°
FWTM: 30°
Peak intensity: 8.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

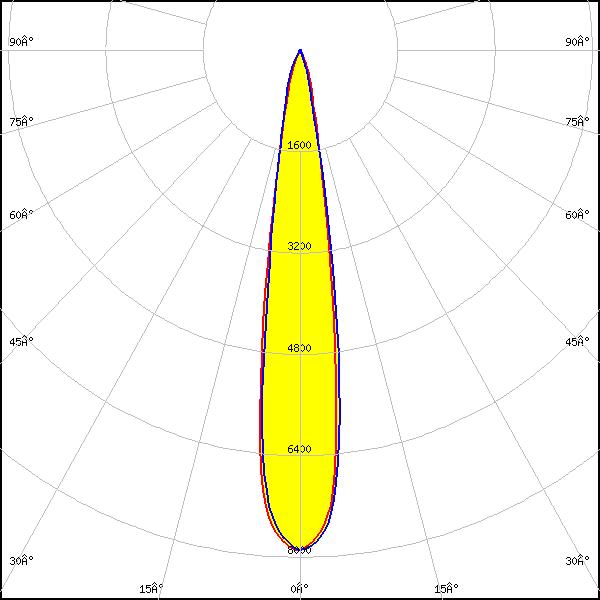

LED: NVSW219F
FWHM: 16°
FWTM: 31°
Peak intensity: 94.000 cd/lm
Efficiency: 8 %
LEDs/each optic: 1
Light colour: White

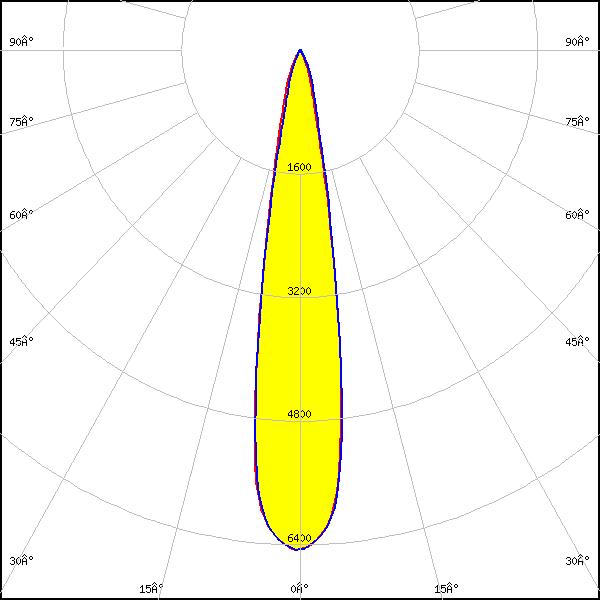

LED: NVSW319B
FWHM: 18°
FWTM: 34°
Peak intensity: 6.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSW3x9A
FWHM: 19°
FWTM: 36°
Peak intensity: 5.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

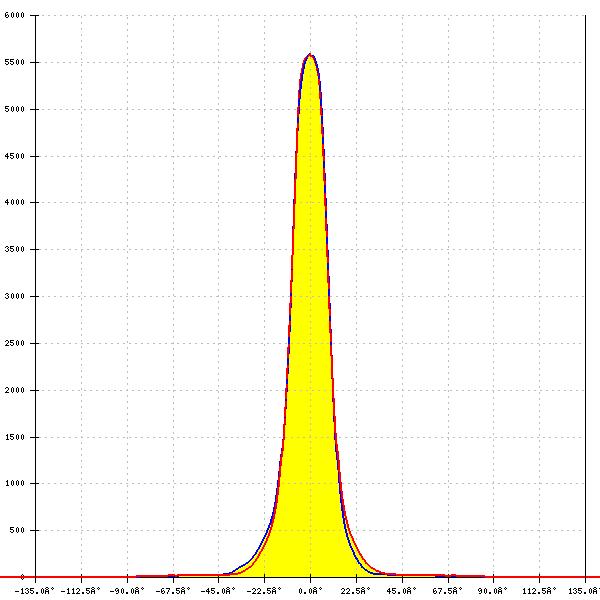

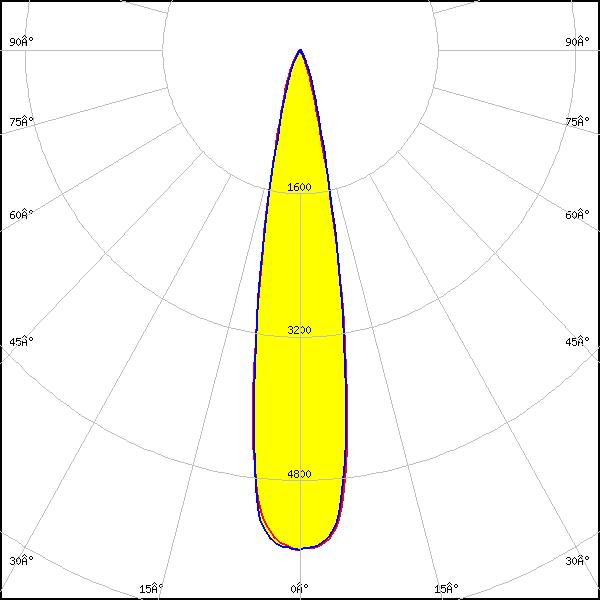

LED: NVSW519A
FWHM: 20°
FWTM: 37°
Peak intensity: 5.581 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

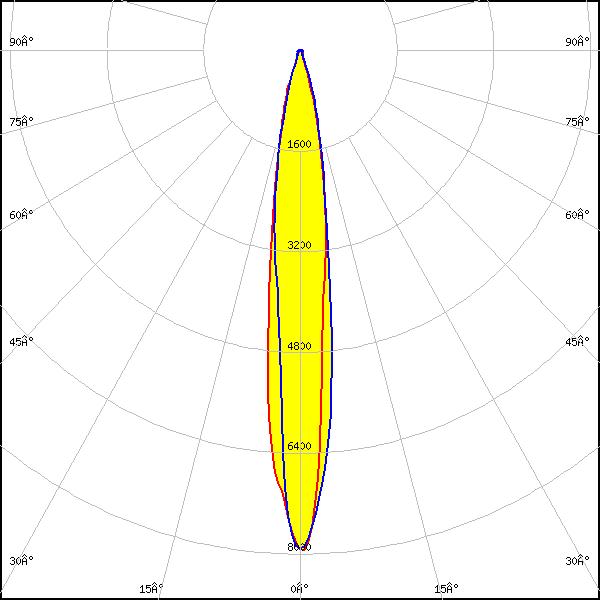

LED: NVSxE21A
FWHM: 13°
FWTM: 33°
Peak intensity: 7.950 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19B/NVSxx19C
FWHM: 16°
FWTM: 32°
Peak intensity: 7.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

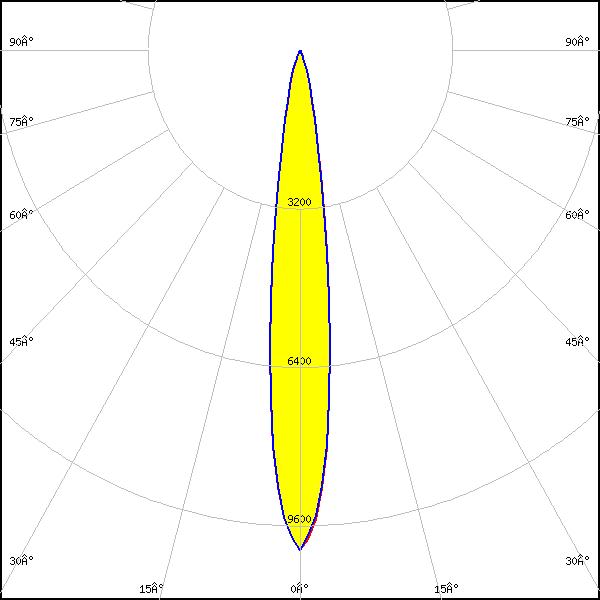

LED: PrevaLED Brick HP IP 2x6
FWHM: 14°
FWTM: 28°
Peak intensity: 10.092 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

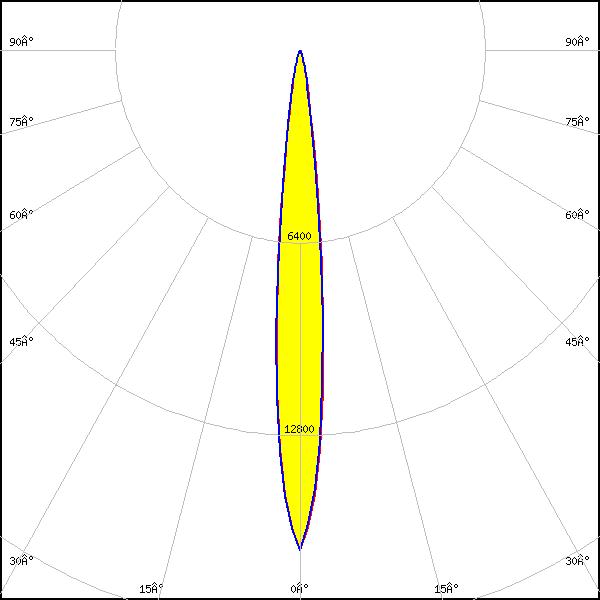

LED: OSCONIQ C 2424
FWHM: 11°
FWTM: 22°
Peak intensity: 16.611 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

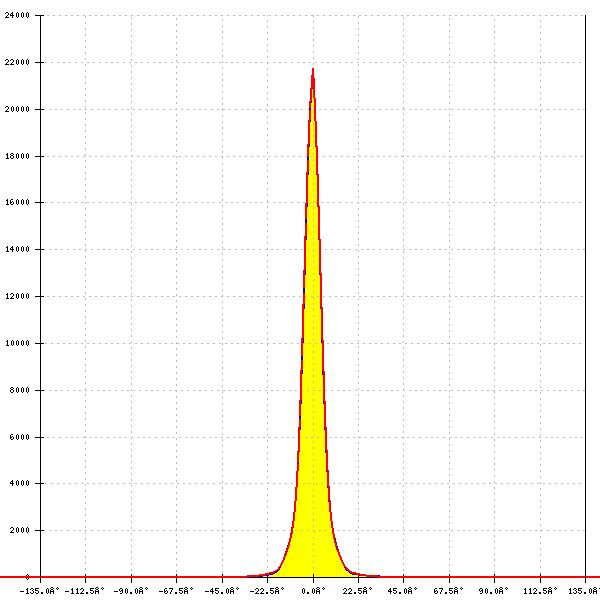

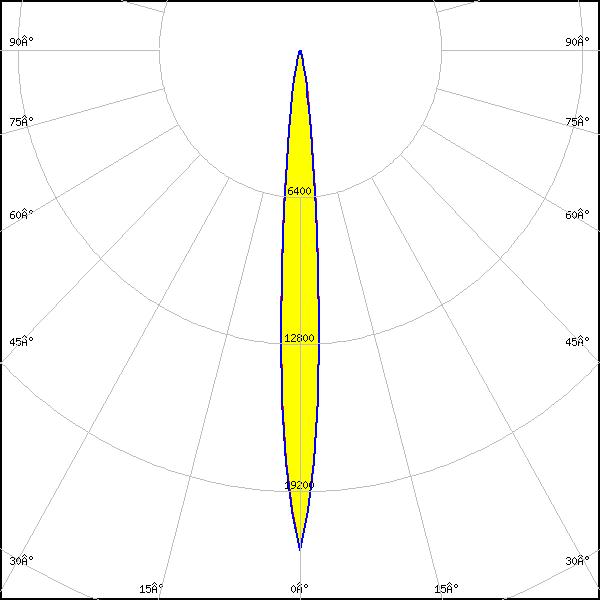

LED: OSCONIQ P 3030
FWHM: 9°
FWTM: 20°
Peak intensity: 21.753 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 12°
FWTM: 25°
Peak intensity: 13.000 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 3737 (3W version)
FWHM: 19°
FWTM: 37°
Peak intensity: 6.050 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

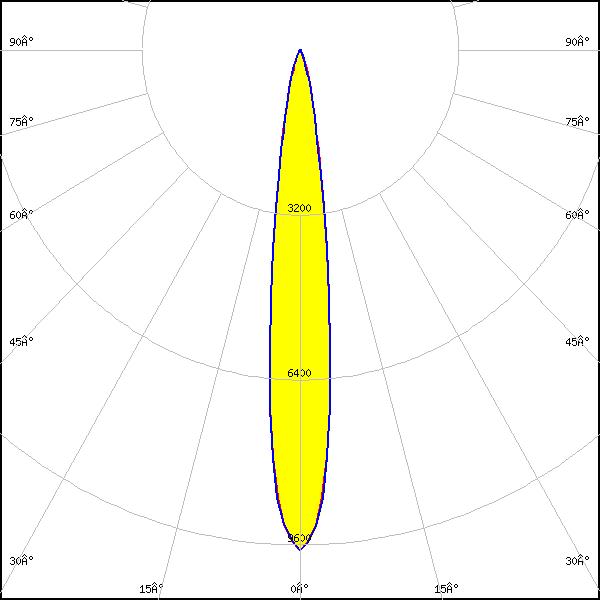

LED: OSCONIQ P 3737 Flat
FWHM: 14°
FWTM: 30°
Peak intensity: 9.708 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

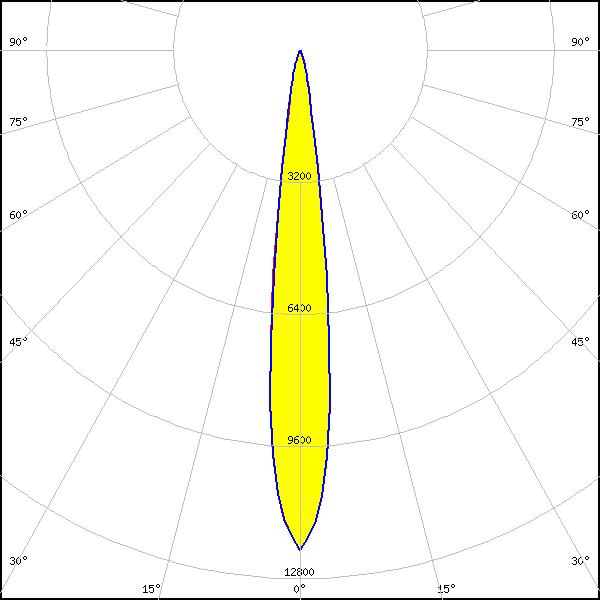

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 13°
FWTM: 24°
Peak intensity: 12.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

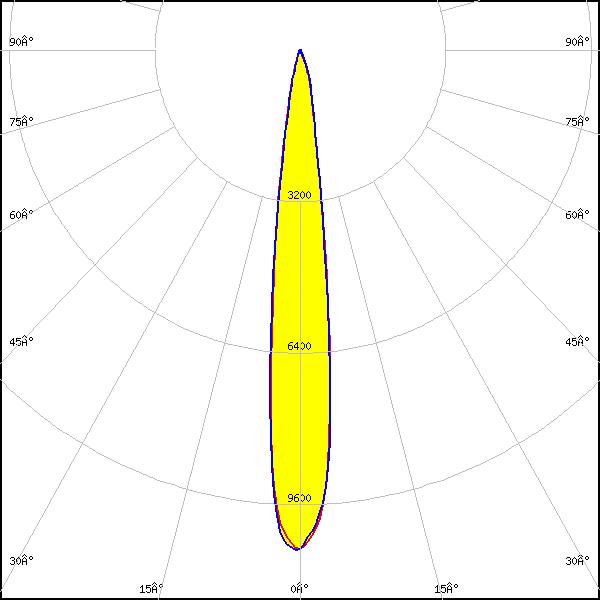

LED: Fortimo FastFlex LED 2x6 DP G4
FWHM: 13°
FWTM: 27°
Peak intensity: 10.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x6 DP G5
FWHM: 14°
FWTM: 26°
Peak intensity: 10.352 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

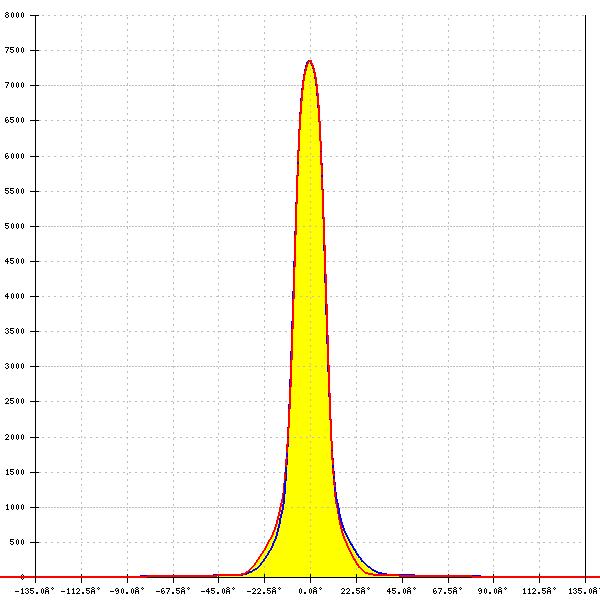

LED: HiLOM RH12 (LH351C)
FWHM: 17°
FWTM: 31°
Peak intensity: 7.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

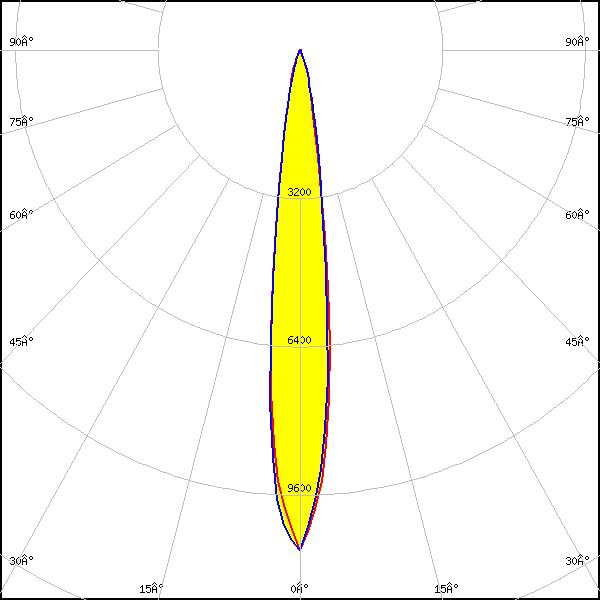

LED: LH181B
FWHM: 13°
FWTM: 28°
Peak intensity: 10.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

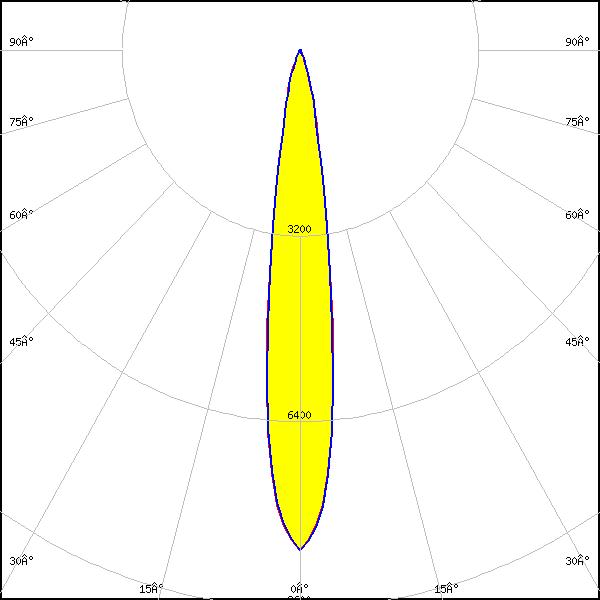

LED: LH231B
FWHM: 16°
FWTM: 32°
Peak intensity: 8.619 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

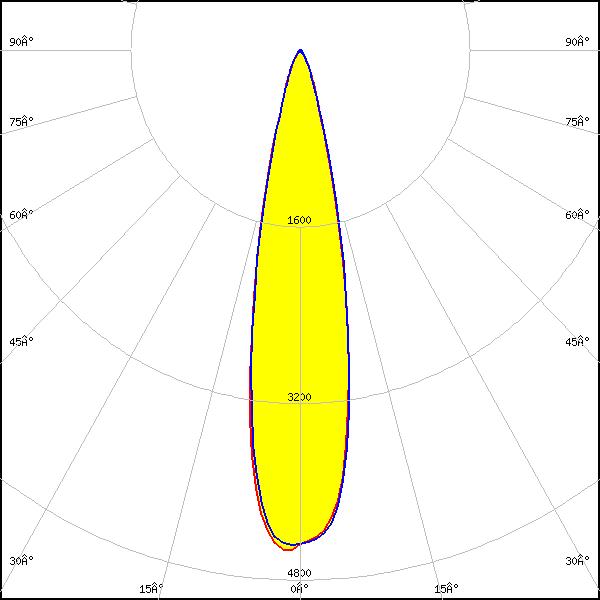

LED: LH351D
FWHM: 22°
FWTM: 40°
Peak intensity: 4.550 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

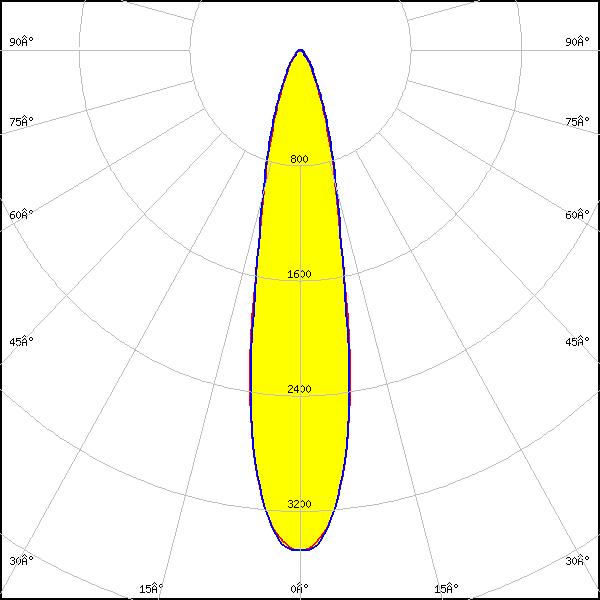

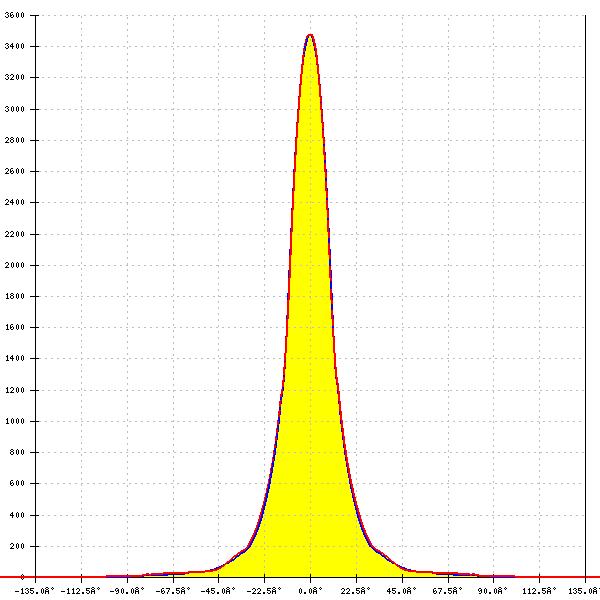

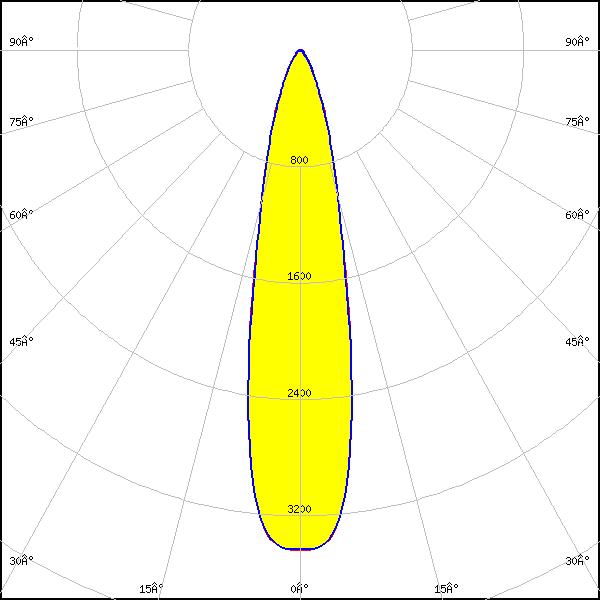

LED: BALAM-VP-5250-750-36
FWHM: 22°
FWTM: 50°
Peak intensity: 3.580 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

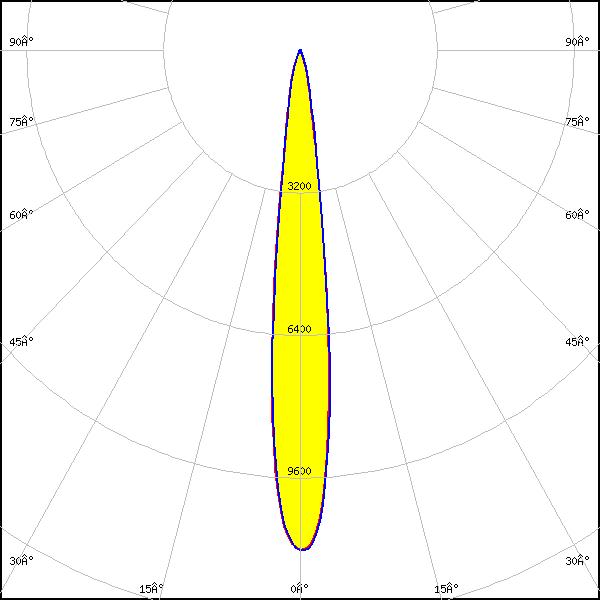

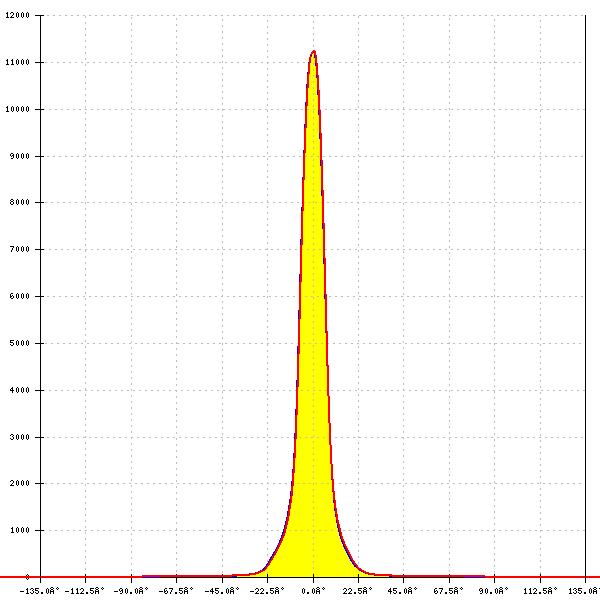

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: 13°
FWTM: 26°
Peak intensity: 11.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

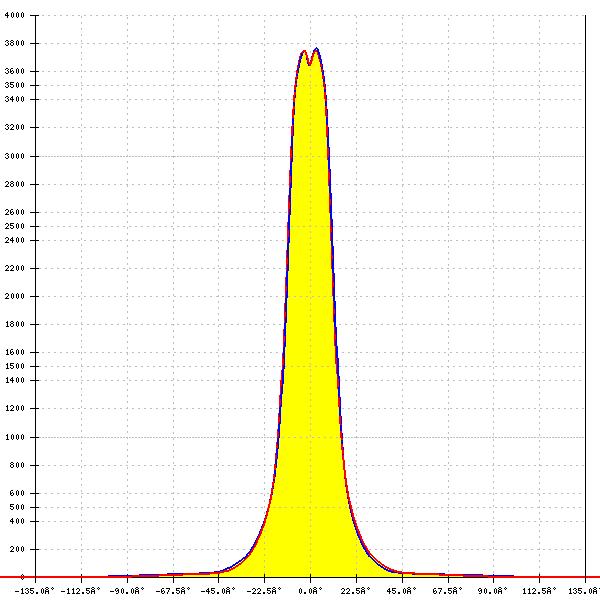

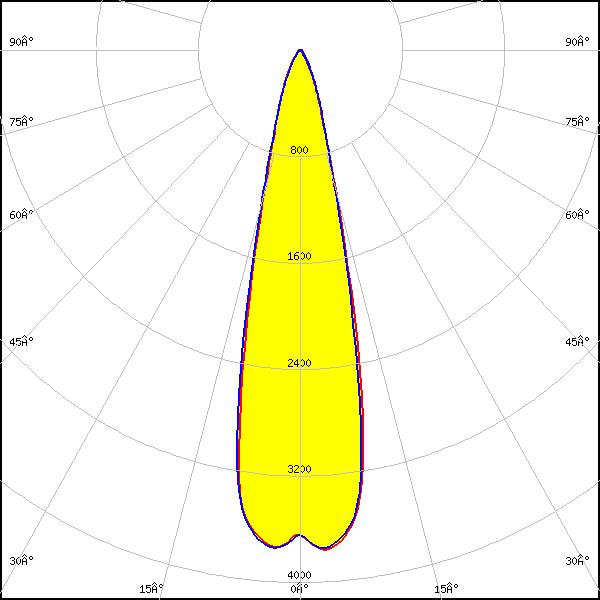

LED: XLE-S26XHP35 (XHP35 HD)
FWHM: 24°
FWTM: 45°
Peak intensity: 3.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

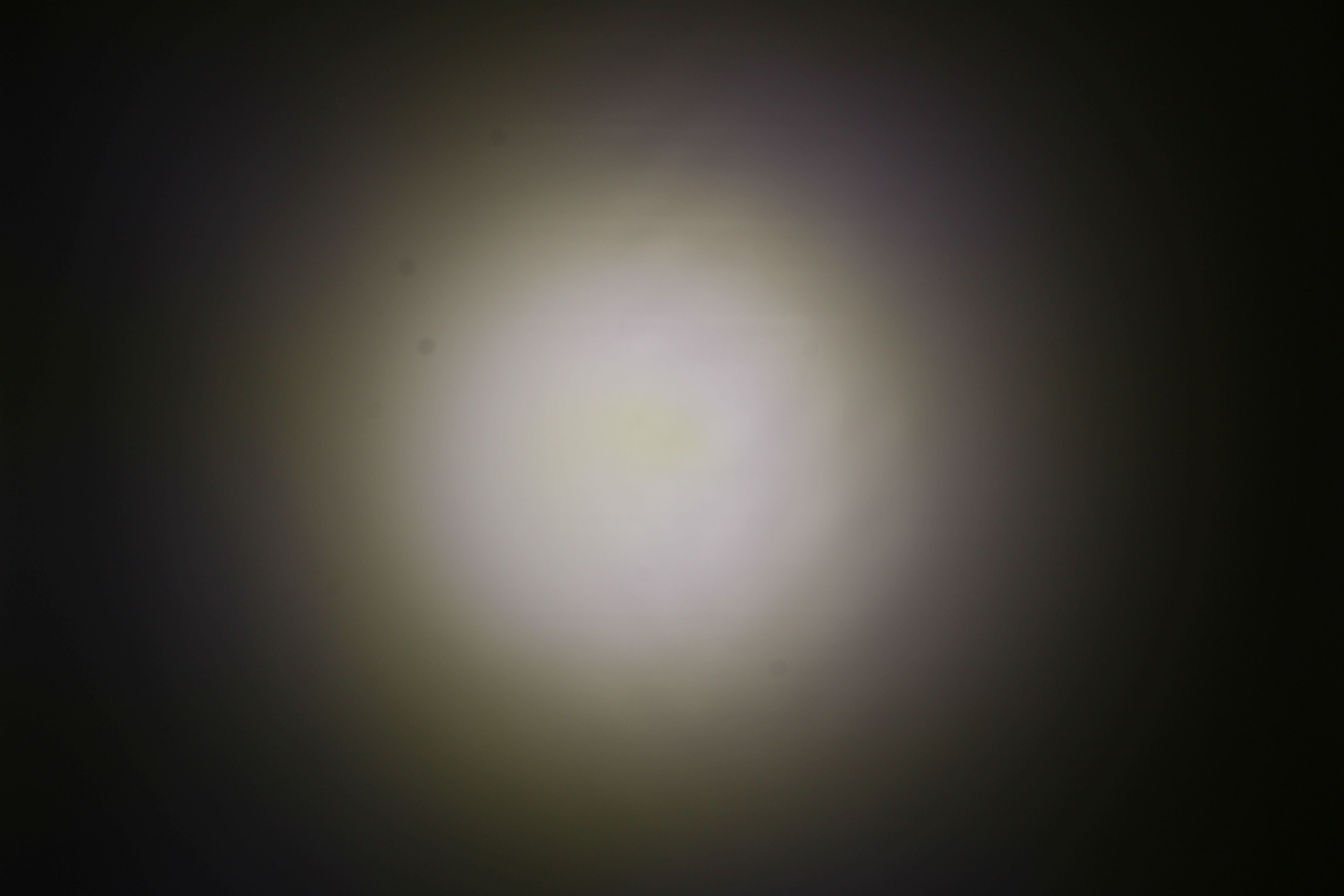

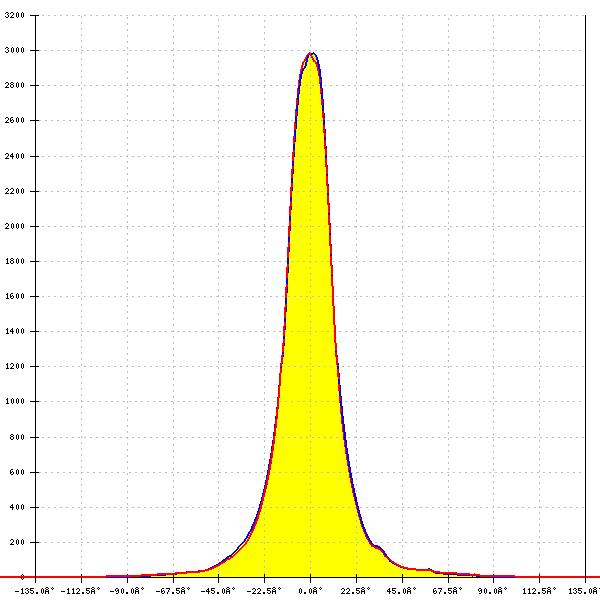

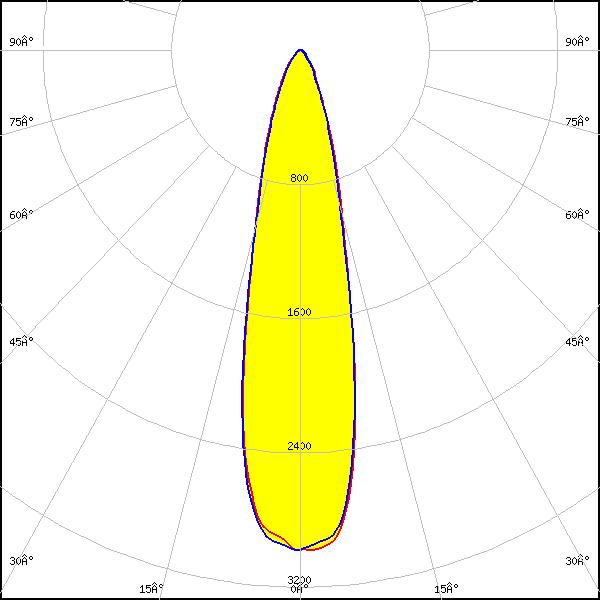

LED: 2x6 5050 module - SMJD-3625012F-XX
FWHM: 24°
FWTM: 53°
Peak intensity: 3.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

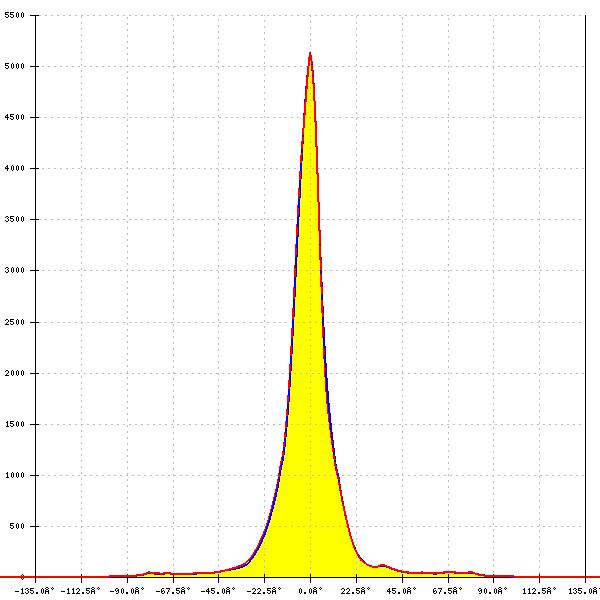

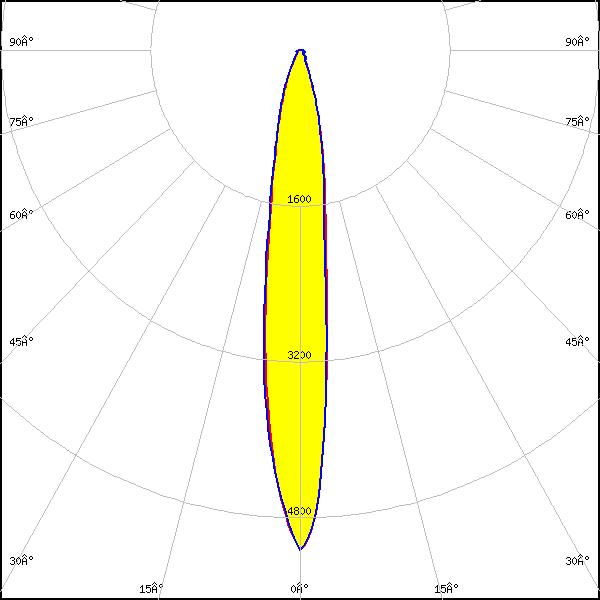

LED: SMJQ-D36W12Mx
FWHM: 15°
FWTM: 39°
Peak intensity: 5.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

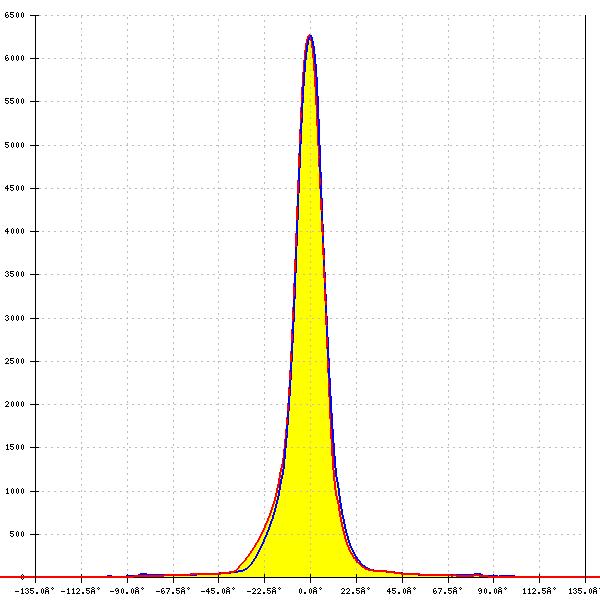

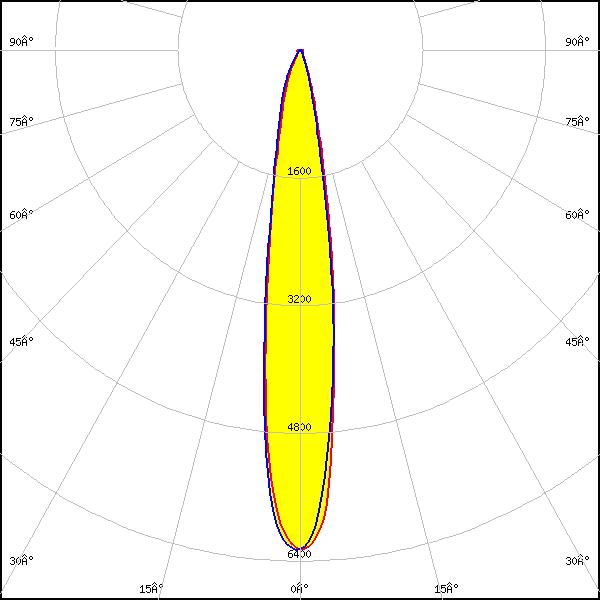

LED: SMJQ-D36W12Px
FWHM: 16°
FWTM: 36°
Peak intensity: 6.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

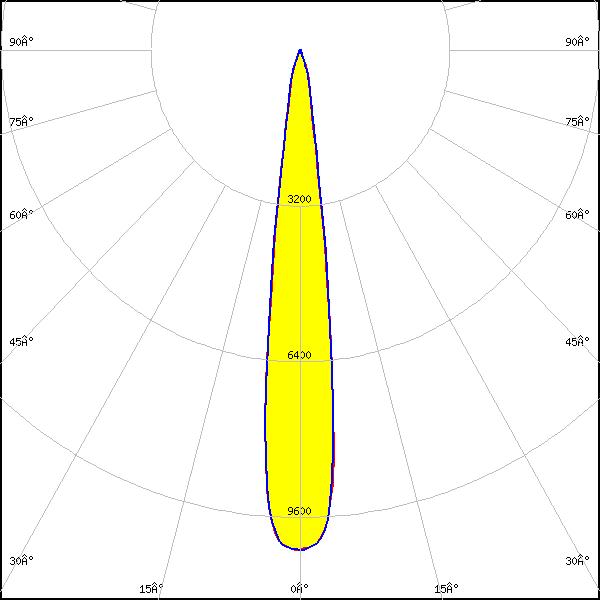

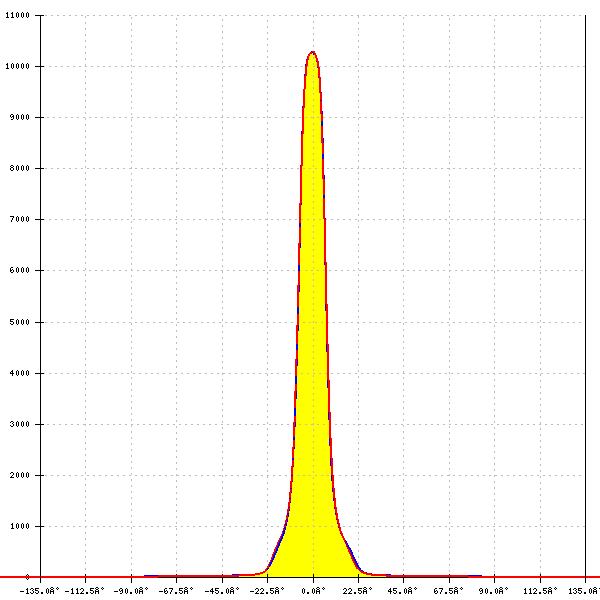

LED: Z5M1/Z5M2
FWHM: 14°
FWTM: 26°
Peak intensity: 10.000 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

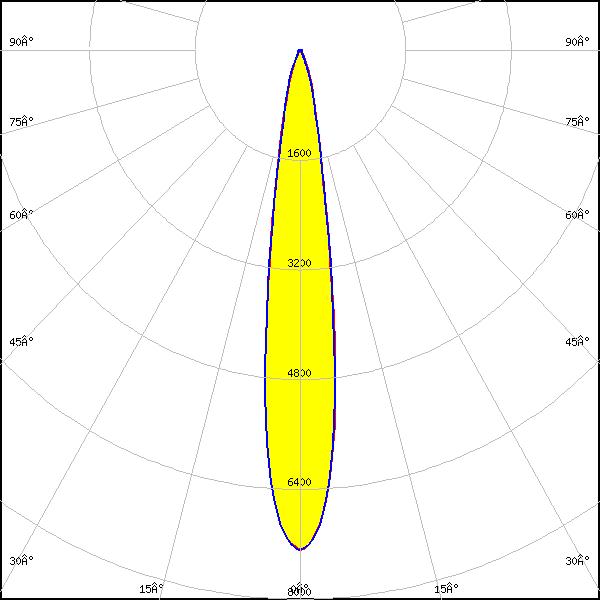

LED: Z5M3
FWHM: 16°
FWTM: 33°
Peak intensity: 7.290 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

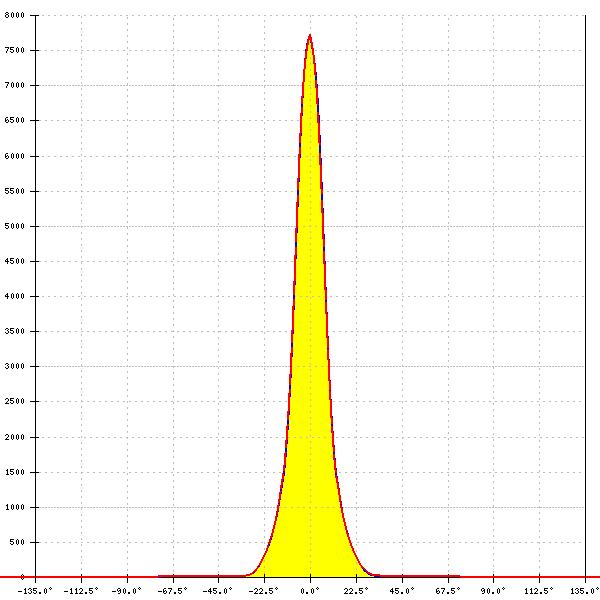

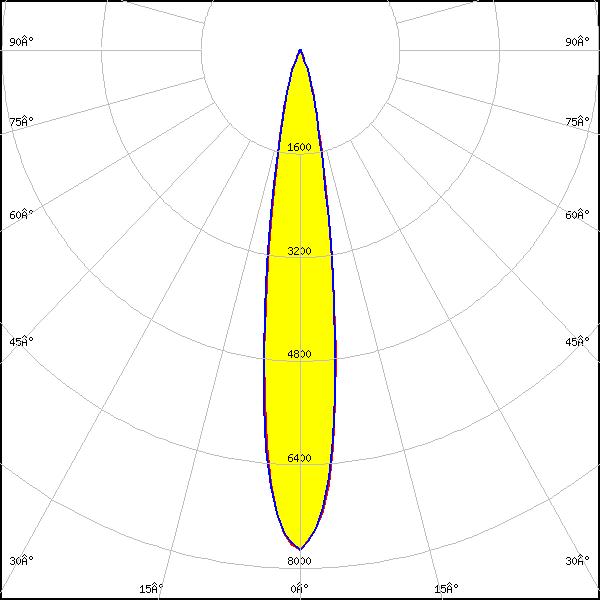

LED: Z5M4
FWHM: 16°
FWTM: 34°
Peak intensity: 7.723 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: Z8Y22
FWHM: 15°
FWTM: 39°
Peak intensity: 5.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

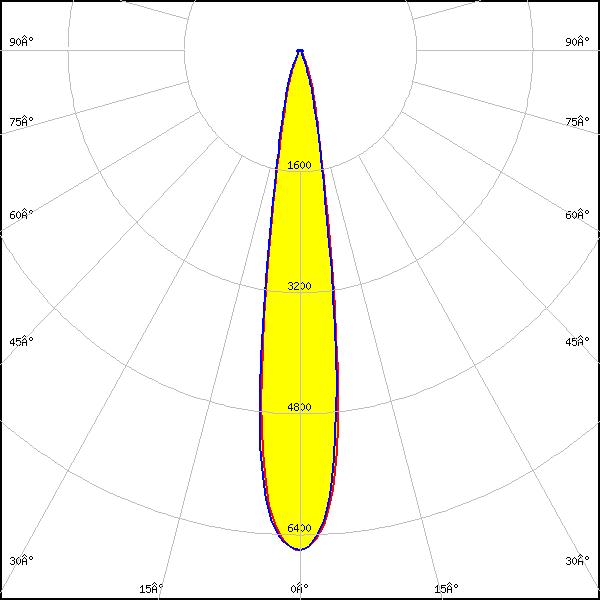

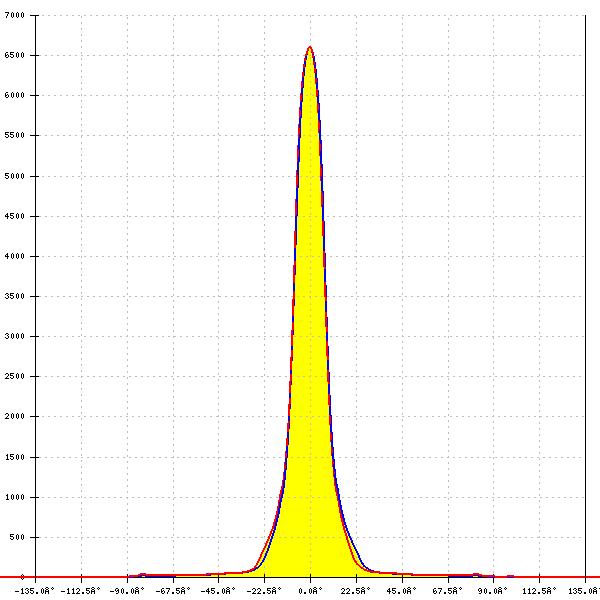

LED: Z8Y22P
FWHM: 17°
FWTM: 34°
Peak intensity: 6.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

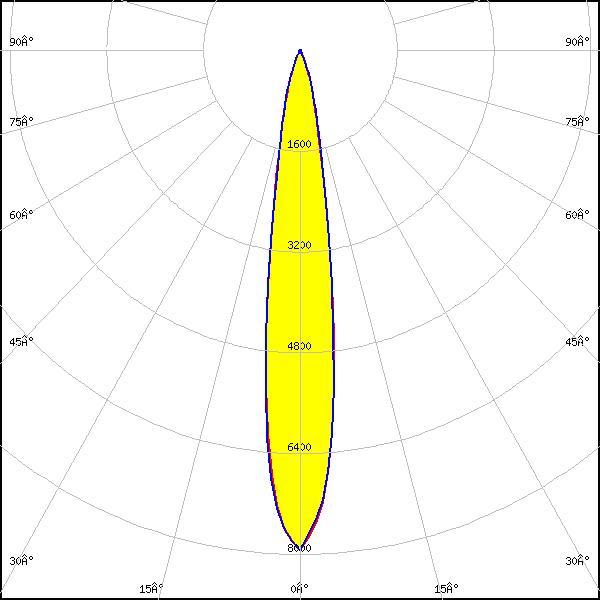

LED: Z8Y22T
FWHM: 15°
FWTM: 33°
Peak intensity: 7.940 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

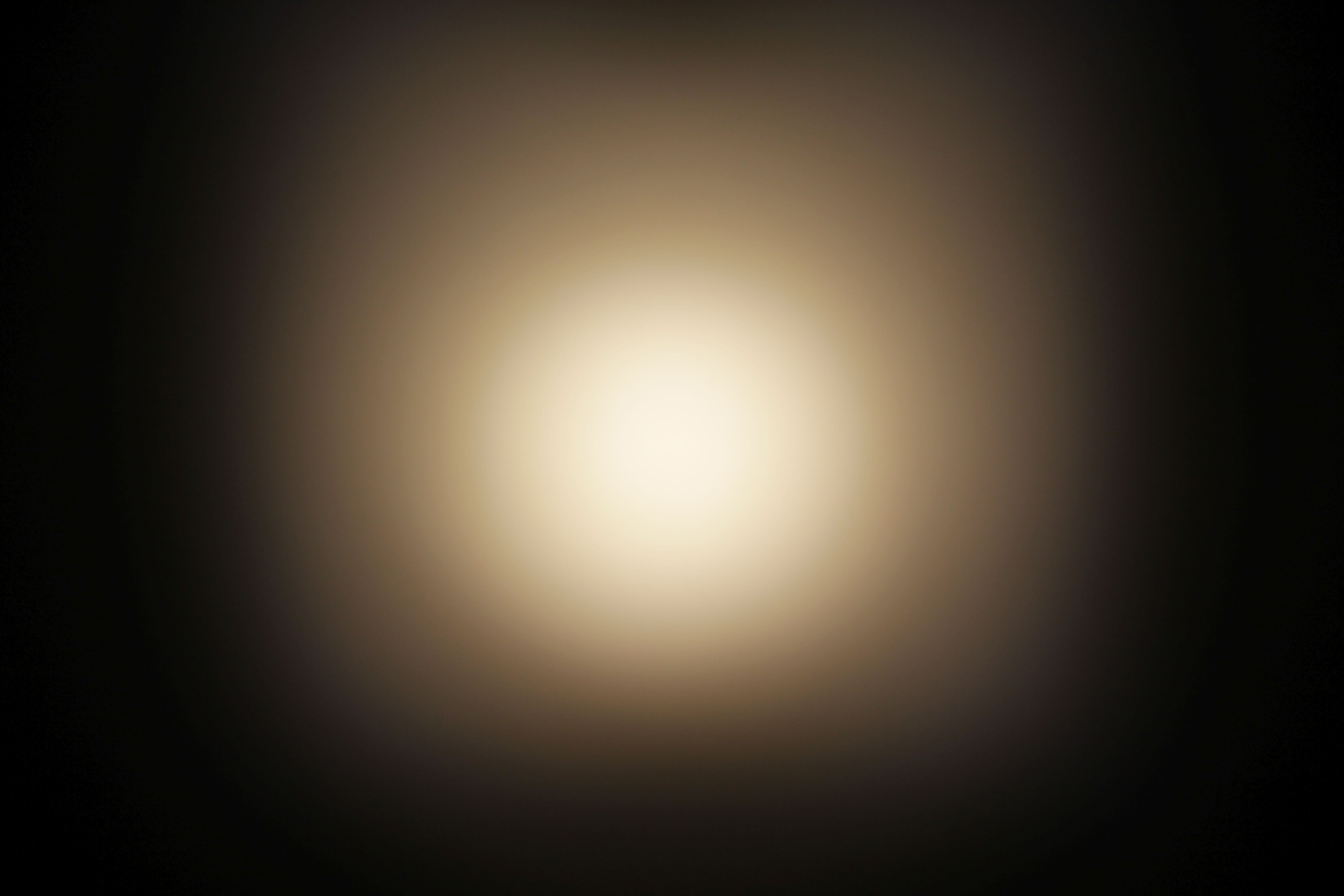

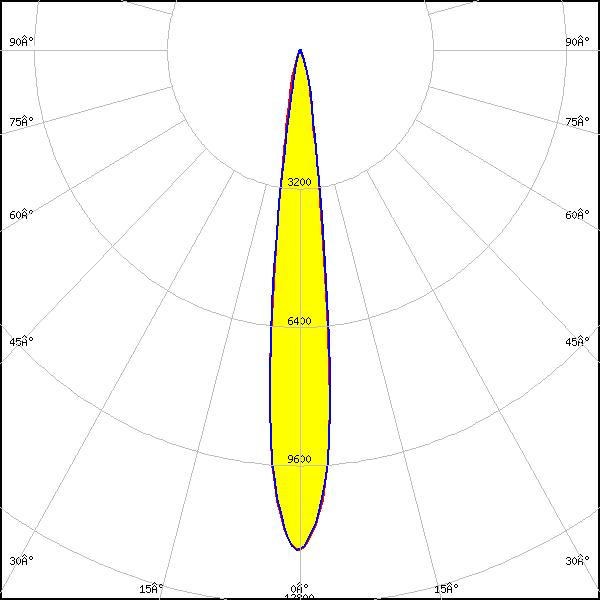

LED: RLE 2x6 3000lm HP EXC2 OTD
FWHM: 13°
FWTM: 25°
Peak intensity: 11.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
