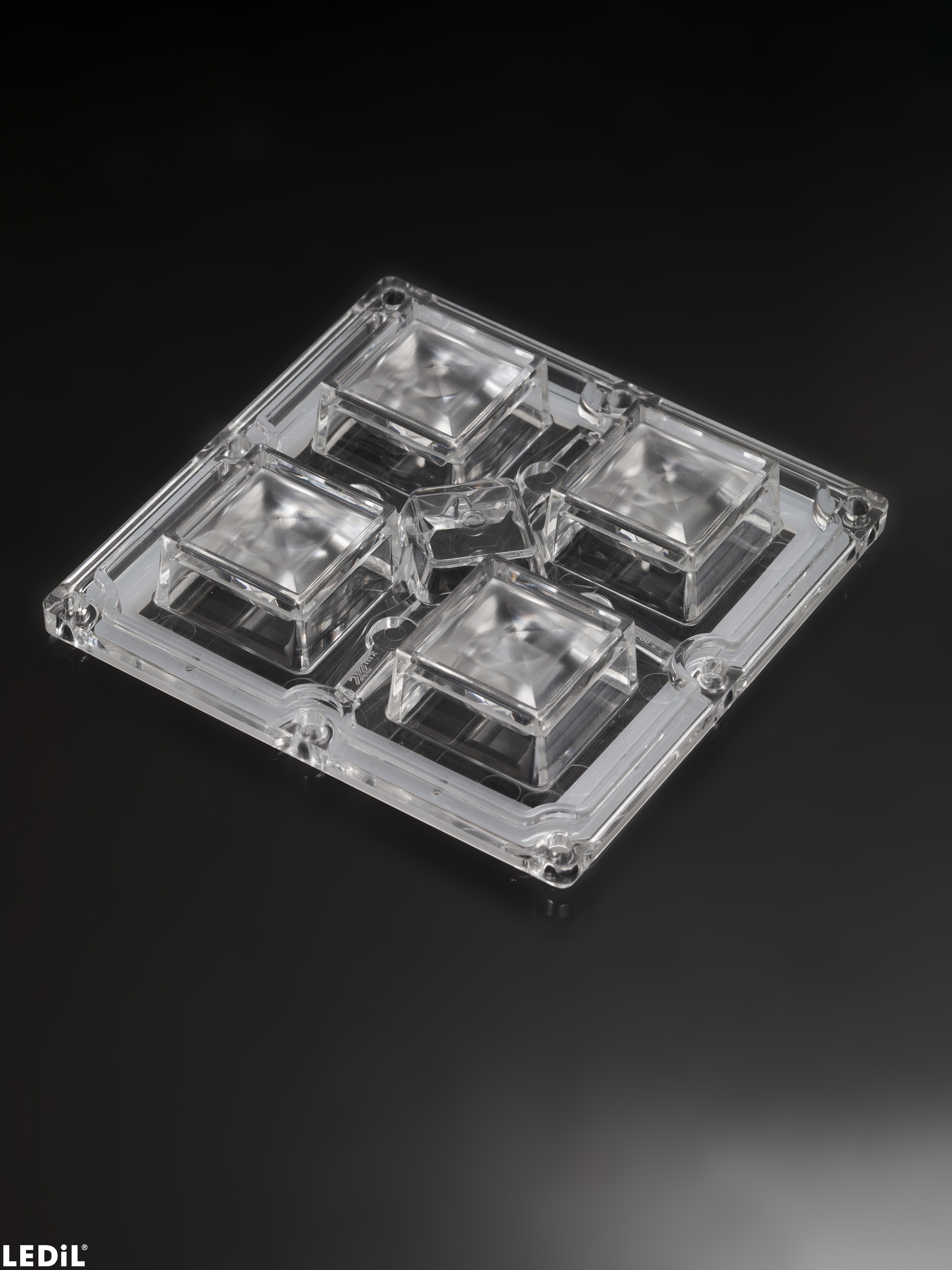

CS15759_HB-2X2MX-8-W

Print

~50° wide beam. New revision.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    16.89 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    8.8 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    3.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15759_HB-2X2MX-8-W
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

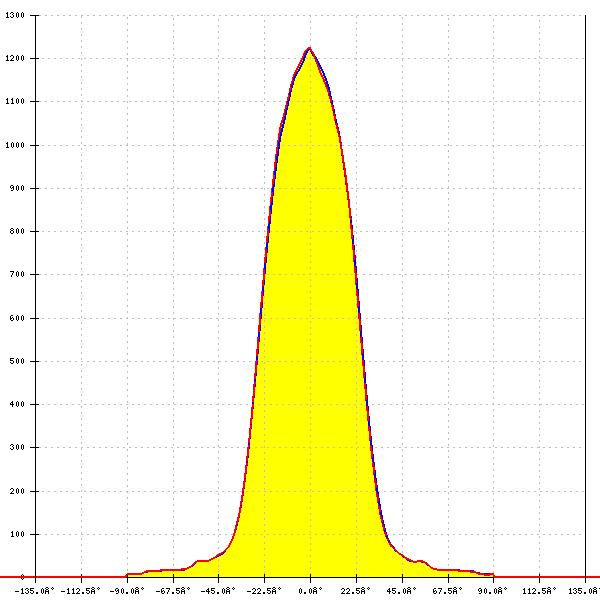

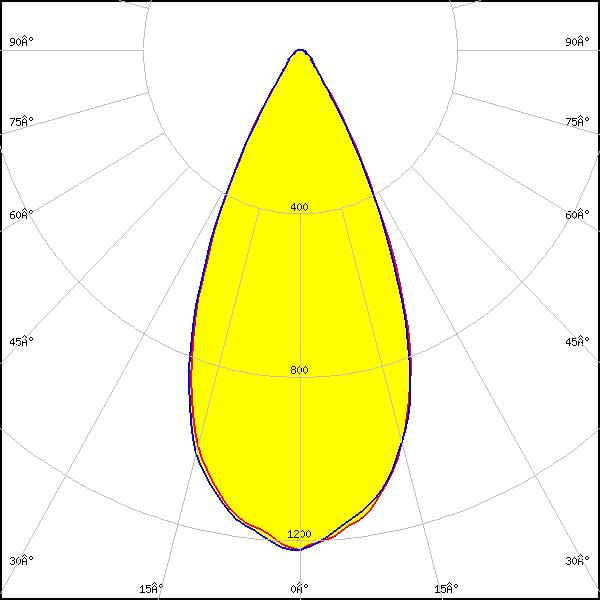

LED: Bridgelux SMD 5050
FWHM: 48°
FWTM: 73°
Peak intensity: 1.250 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

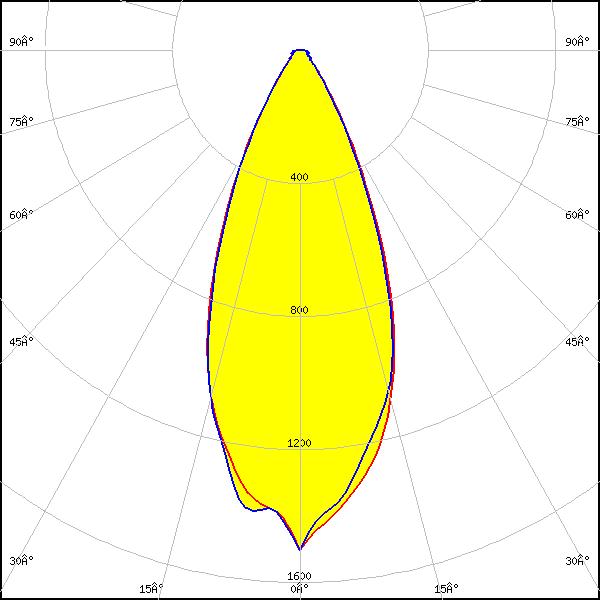

LED: CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV

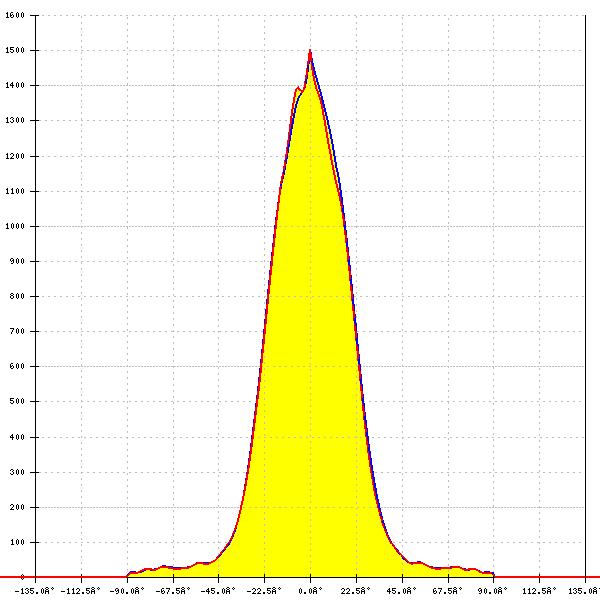

FWHM: 43°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV

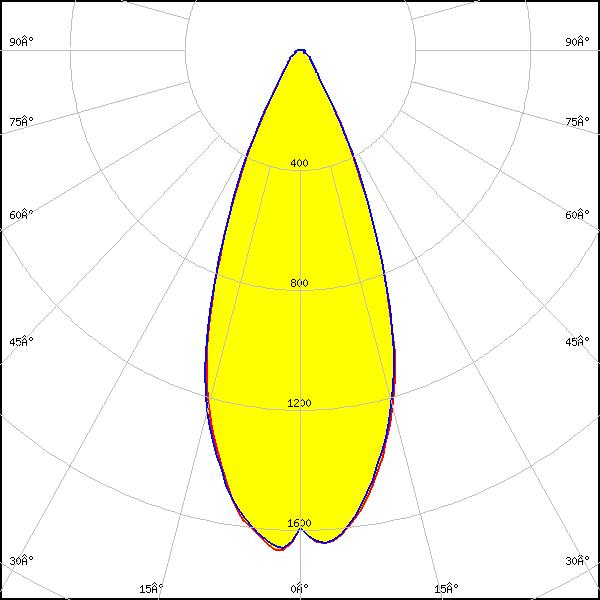

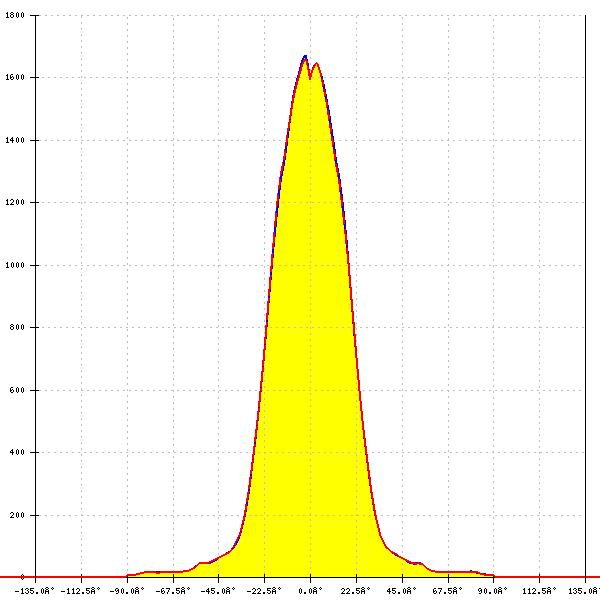

FWHM: 42°
FWTM: 66°
Peak intensity: 1.702 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

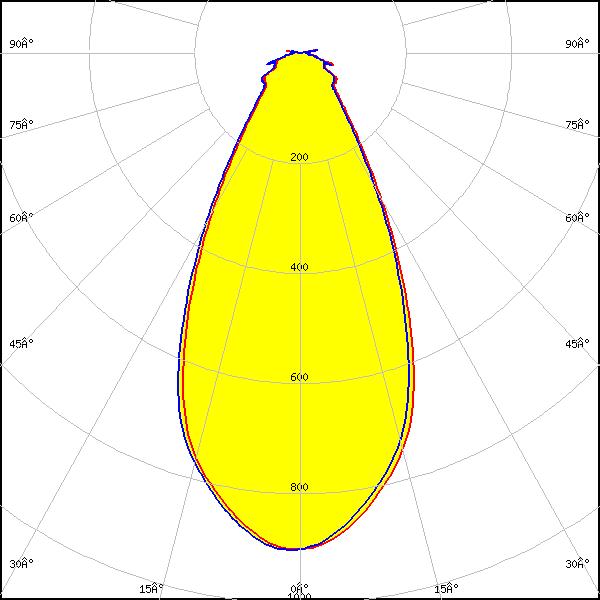

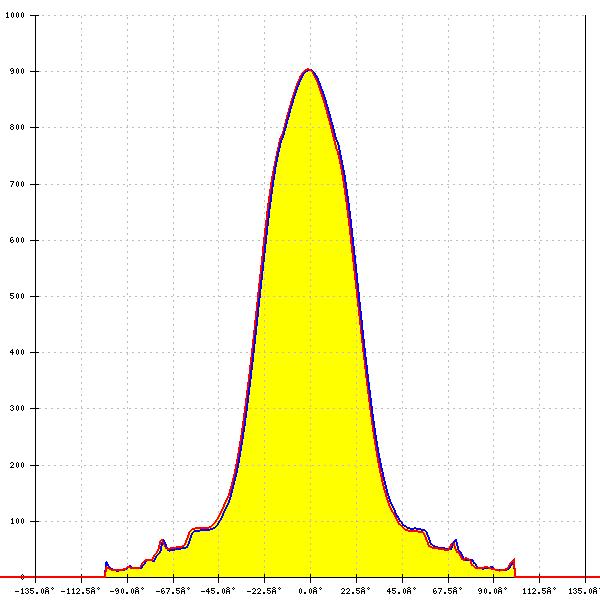

LED: CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM: 51°
FWTM: 90°
Peak intensity: 0.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

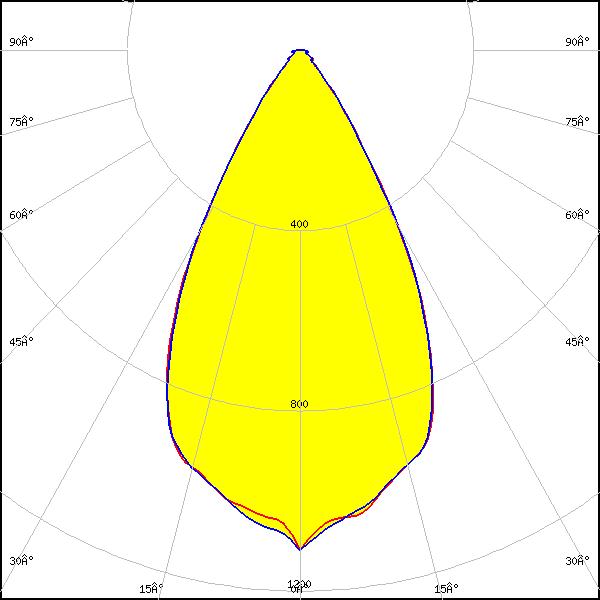

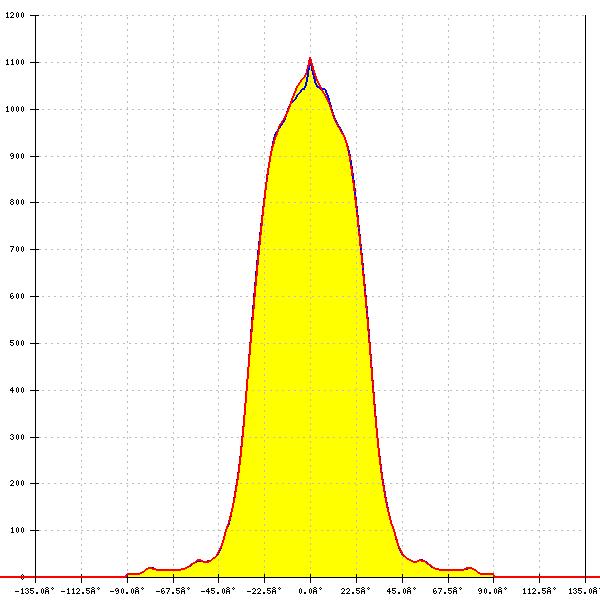

LED: J Series 7070B K Class
FWHM: 56°
FWTM: 80°
Peak intensity: 1.110 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

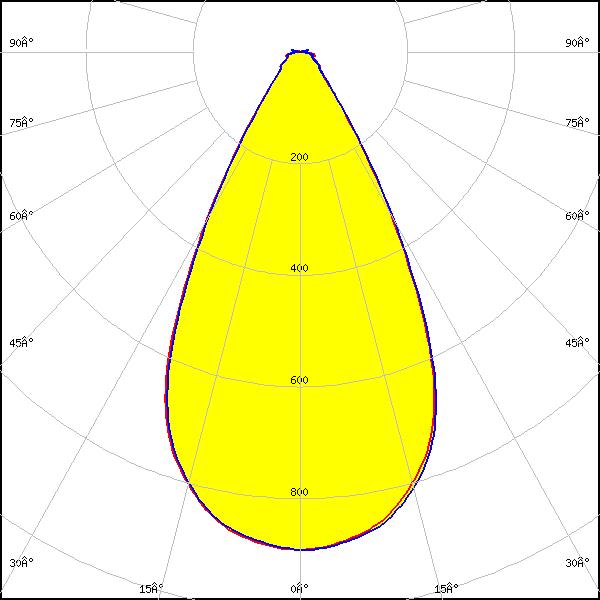

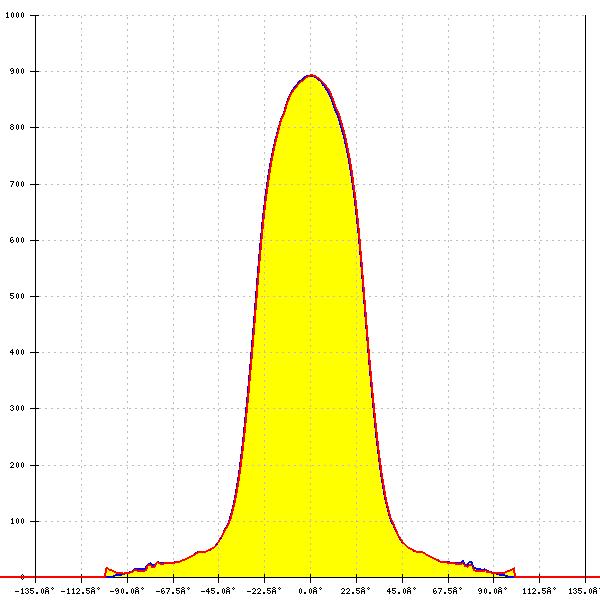

LED: XHP50.2
FWHM: 55°
FWTM: 82°
Peak intensity: 0.893 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

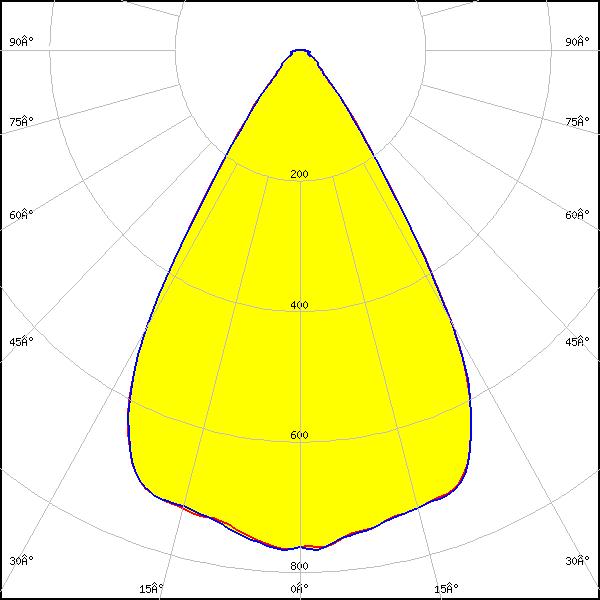

LED: XHP70.2
FWHM: 62°
FWTM: 90°
Peak intensity: 0.791 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

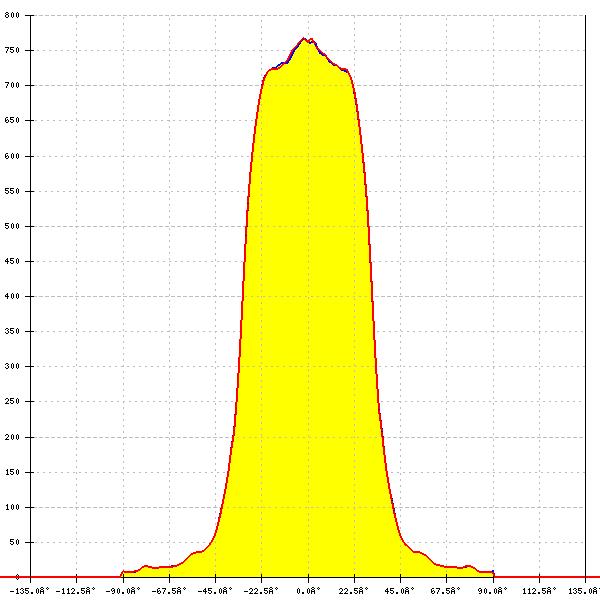

LED: XHP70.3 HD
FWHM: 64°
FWTM: 86°
Peak intensity: 0.796 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

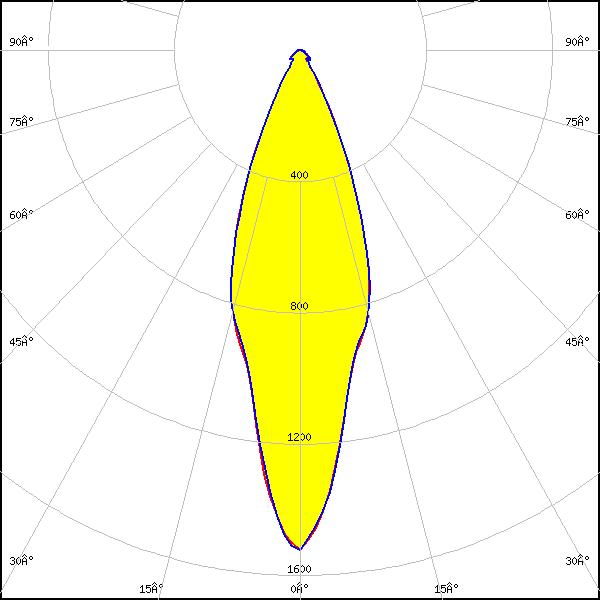

LED: XP-E2
FWHM: 34°
FWTM: 58°
Peak intensity: 1.685 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E HE
FWHM: 56°
FWTM: 87°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

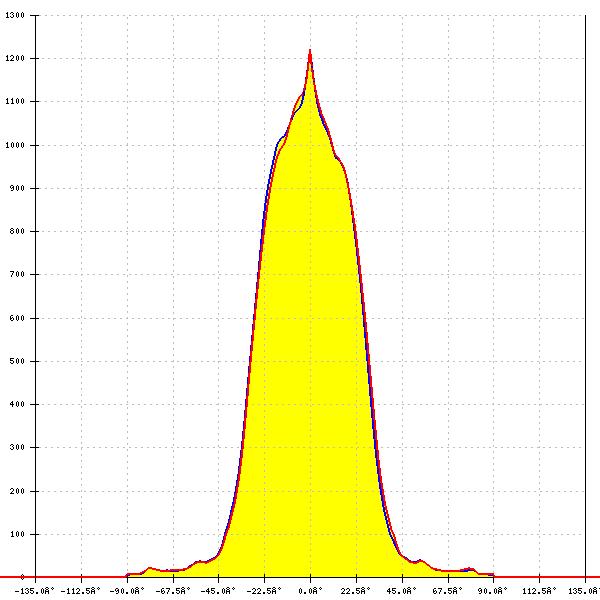

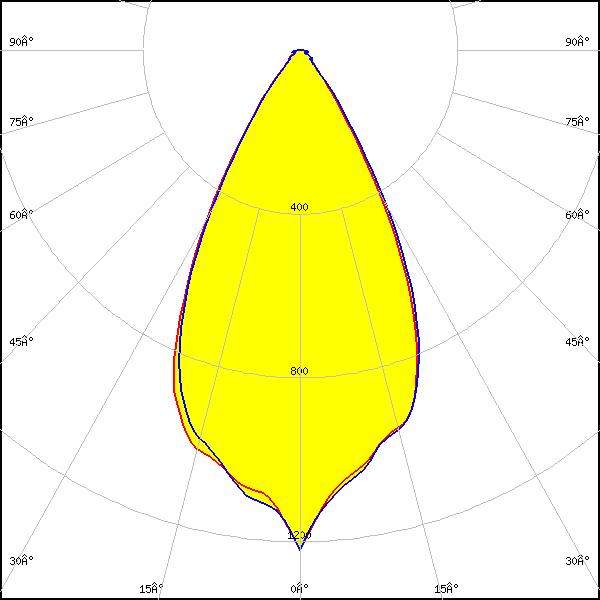

LED: LUXEON 7070
FWHM: 54°
FWTM: 80°
Peak intensity: 1.221 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

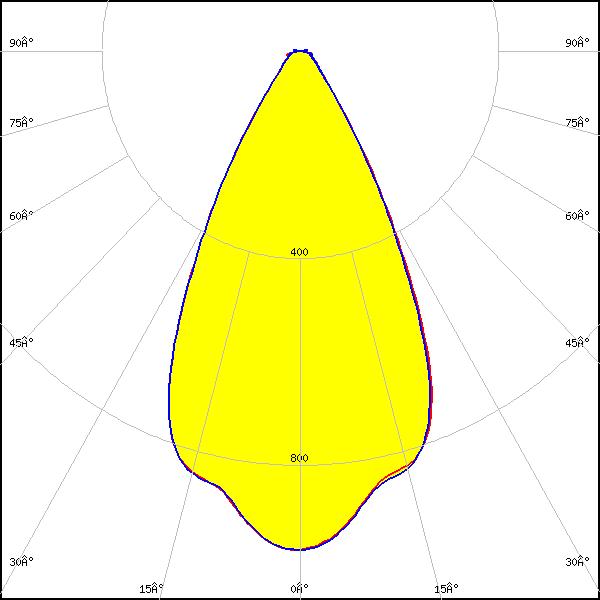

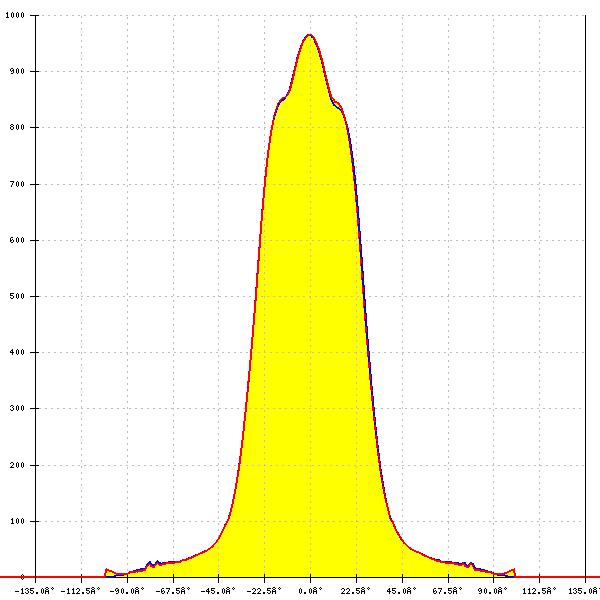

LED: LUXEON M/MX
FWHM: 54°
FWTM: 82°
Peak intensity: 0.970 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

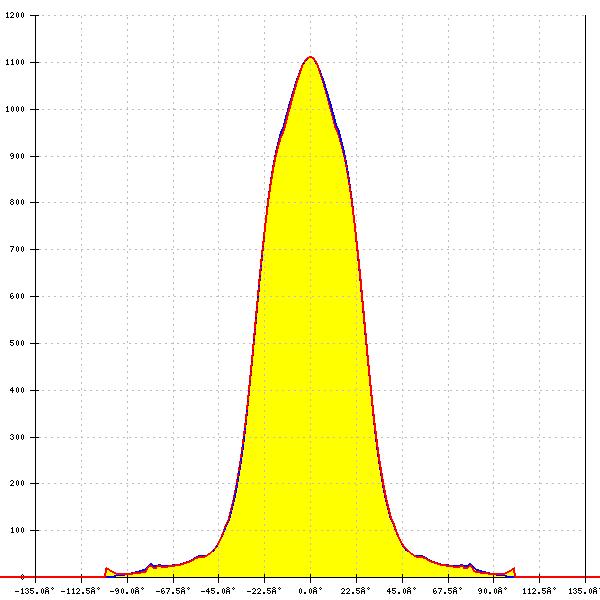

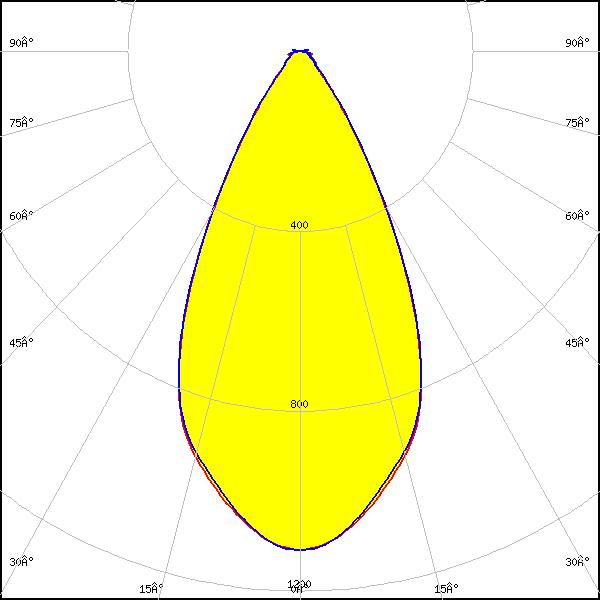

LED: LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: 53°
FWTM: 82°
Peak intensity: 1.110 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

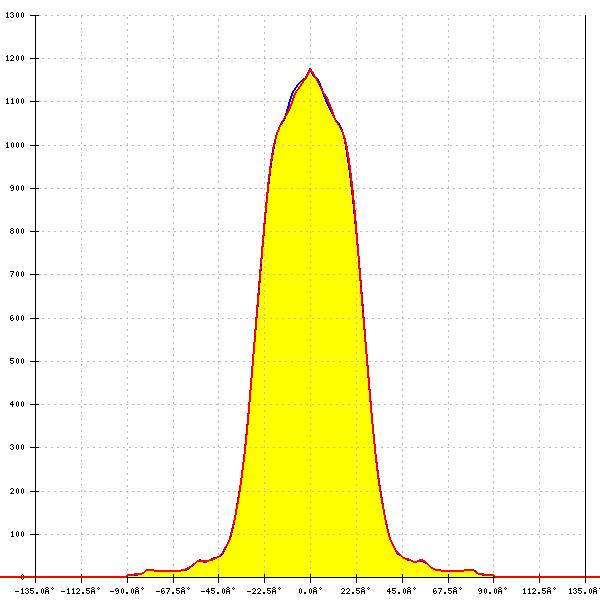

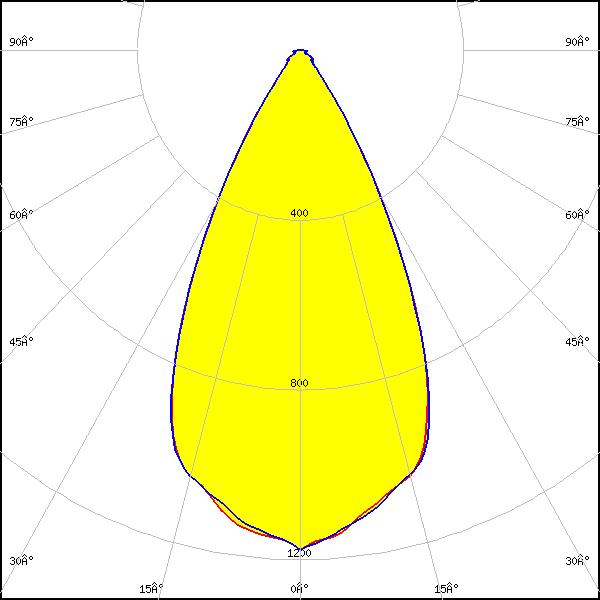

LED: MP 7070
FWHM: 52°
FWTM: 76°
Peak intensity: 1.179 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

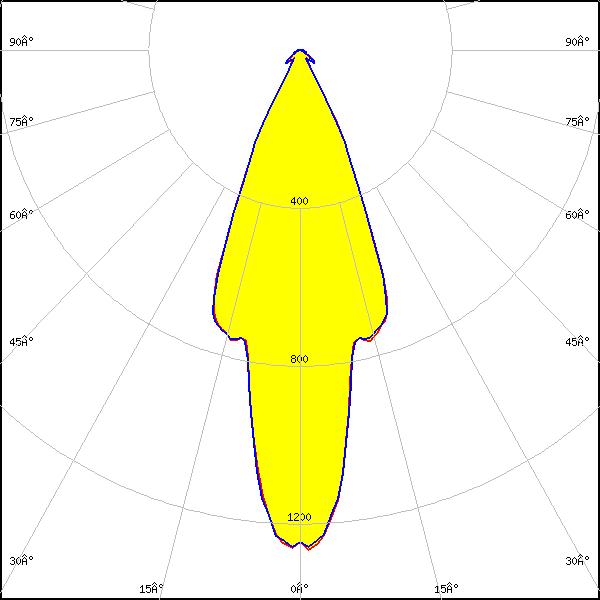

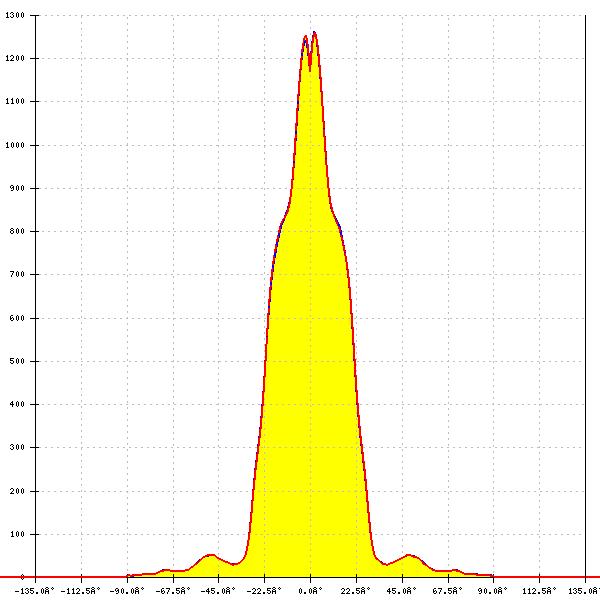

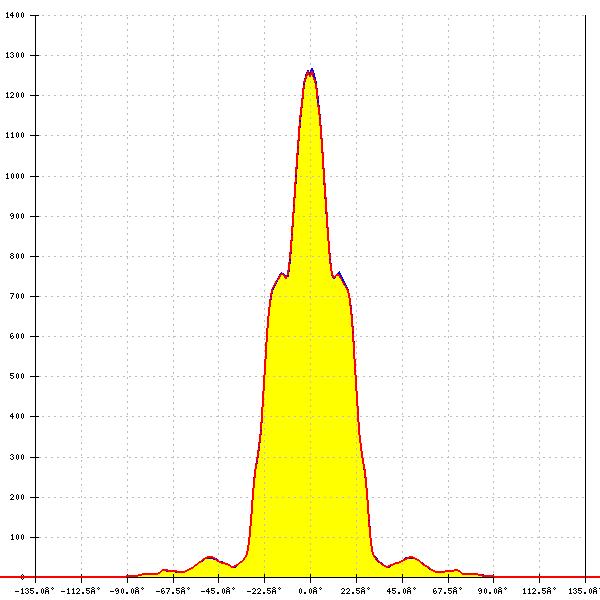

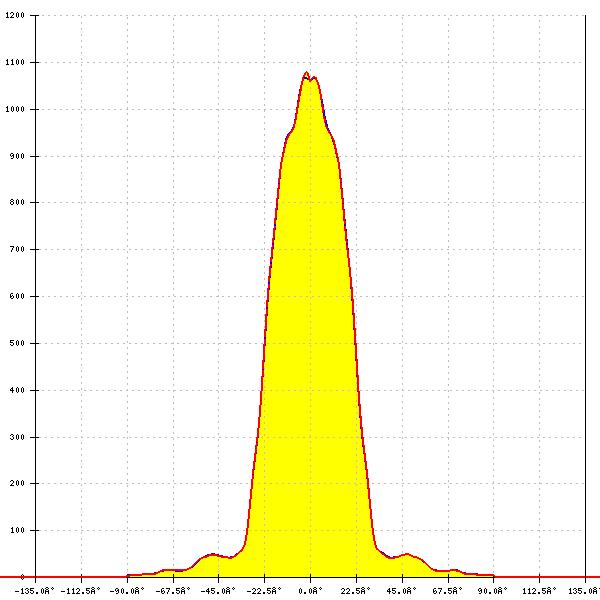

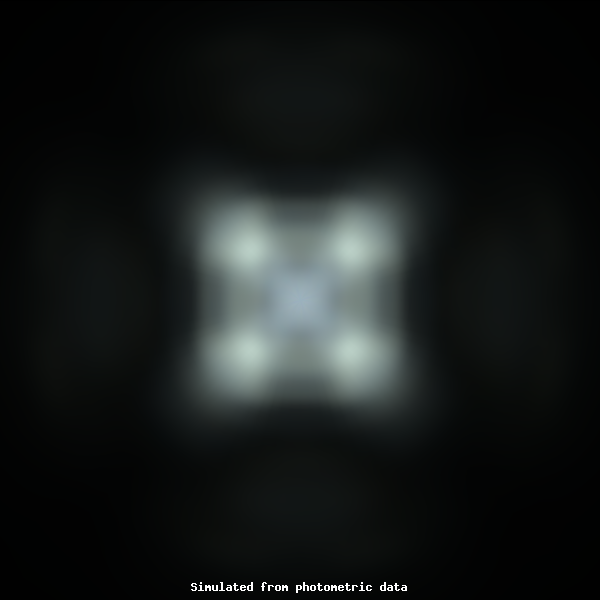

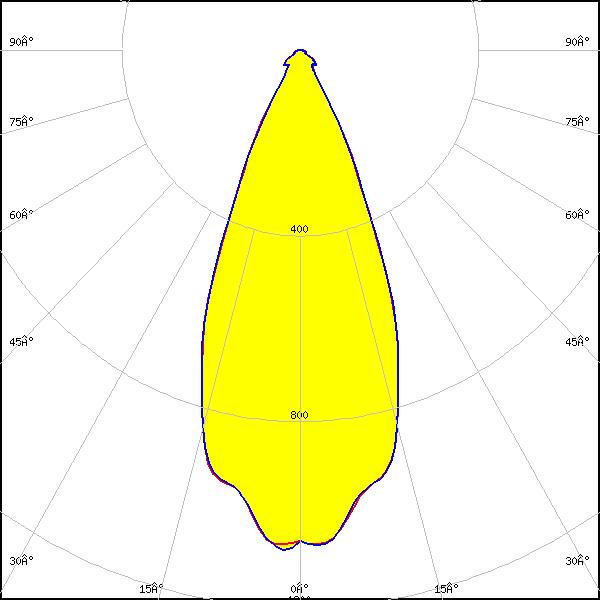

LED: SFT-40-WCS
FWHM: 40°
FWTM: 58°
Peak intensity: 1.936 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

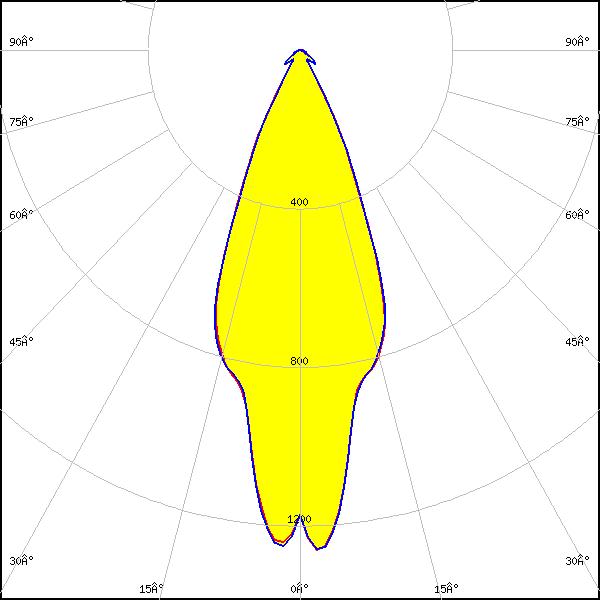

LED: SFT-40-WCS
FWHM: 44°
FWTM: 62°
Peak intensity: 1.692 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

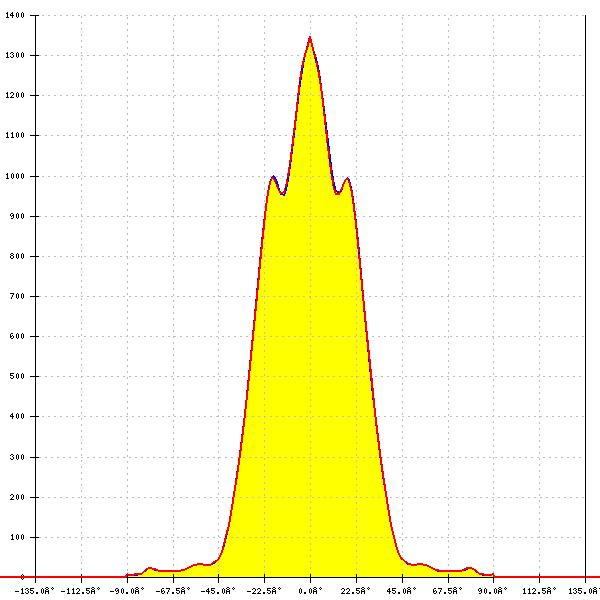

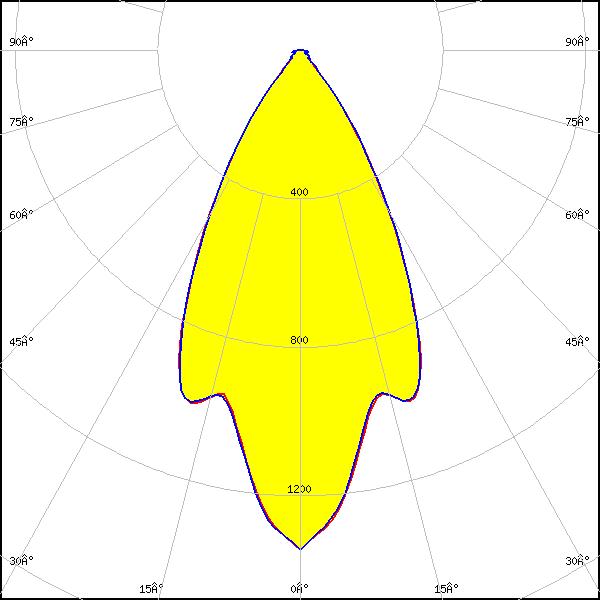

LED: NF2x757G
FWHM: 54°
FWTM: 80°
Peak intensity: 1.356 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

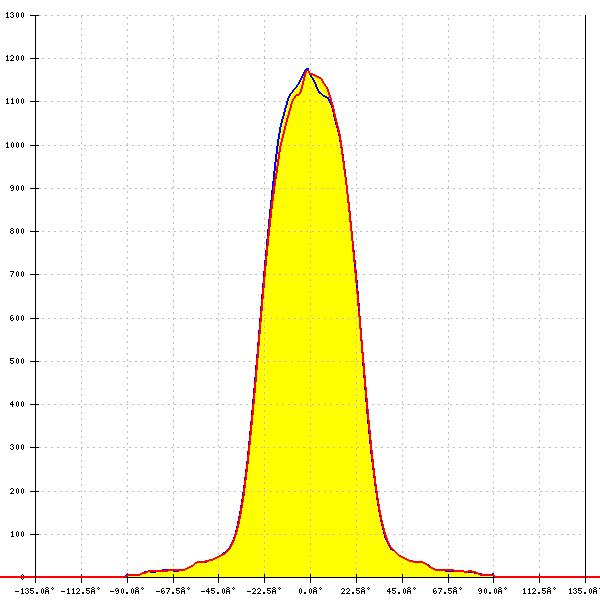

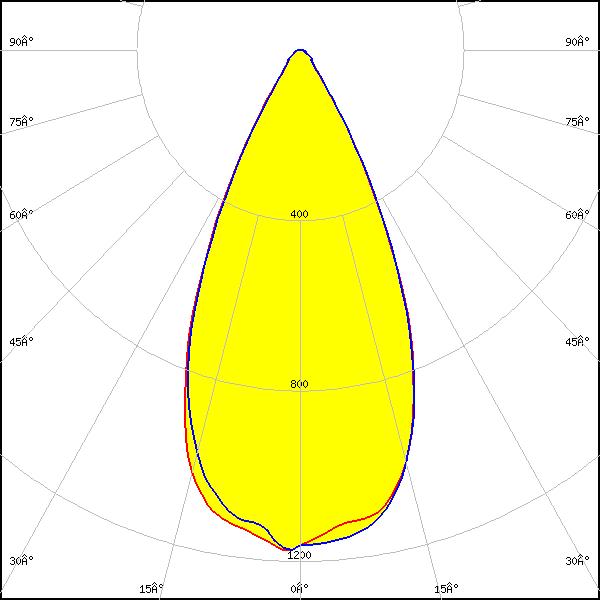

LED: NFMW48xA
FWHM: 49°
FWTM: 72°
Peak intensity: 1.180 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

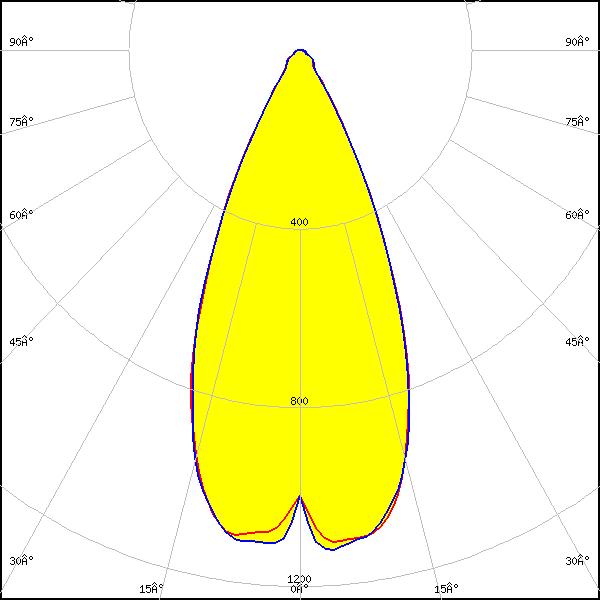

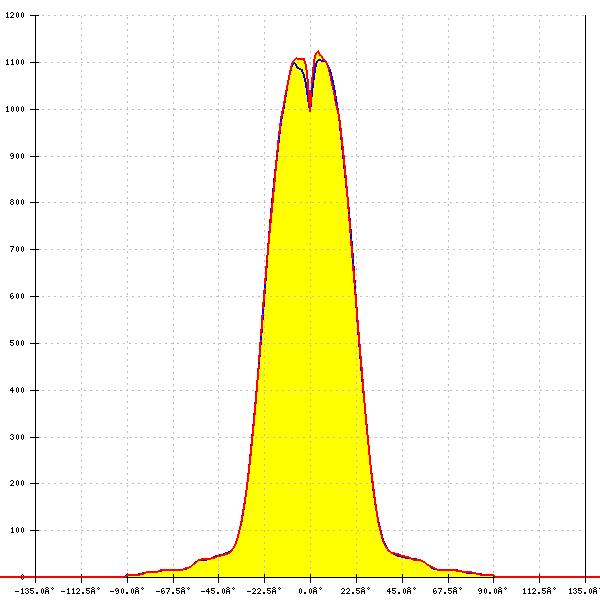

LED: NV4WB35AM
FWHM: 46°
FWTM: 68°
Peak intensity: 1.296 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

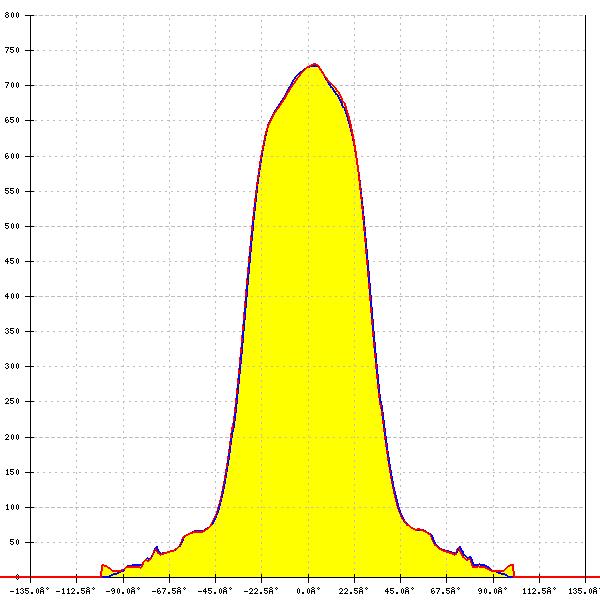

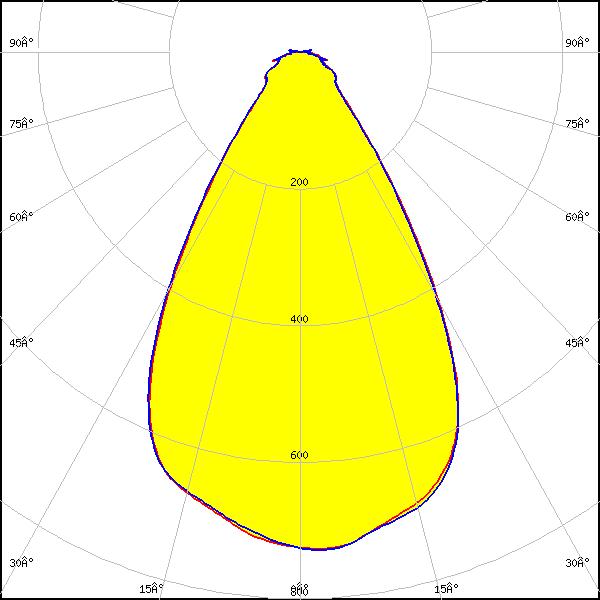

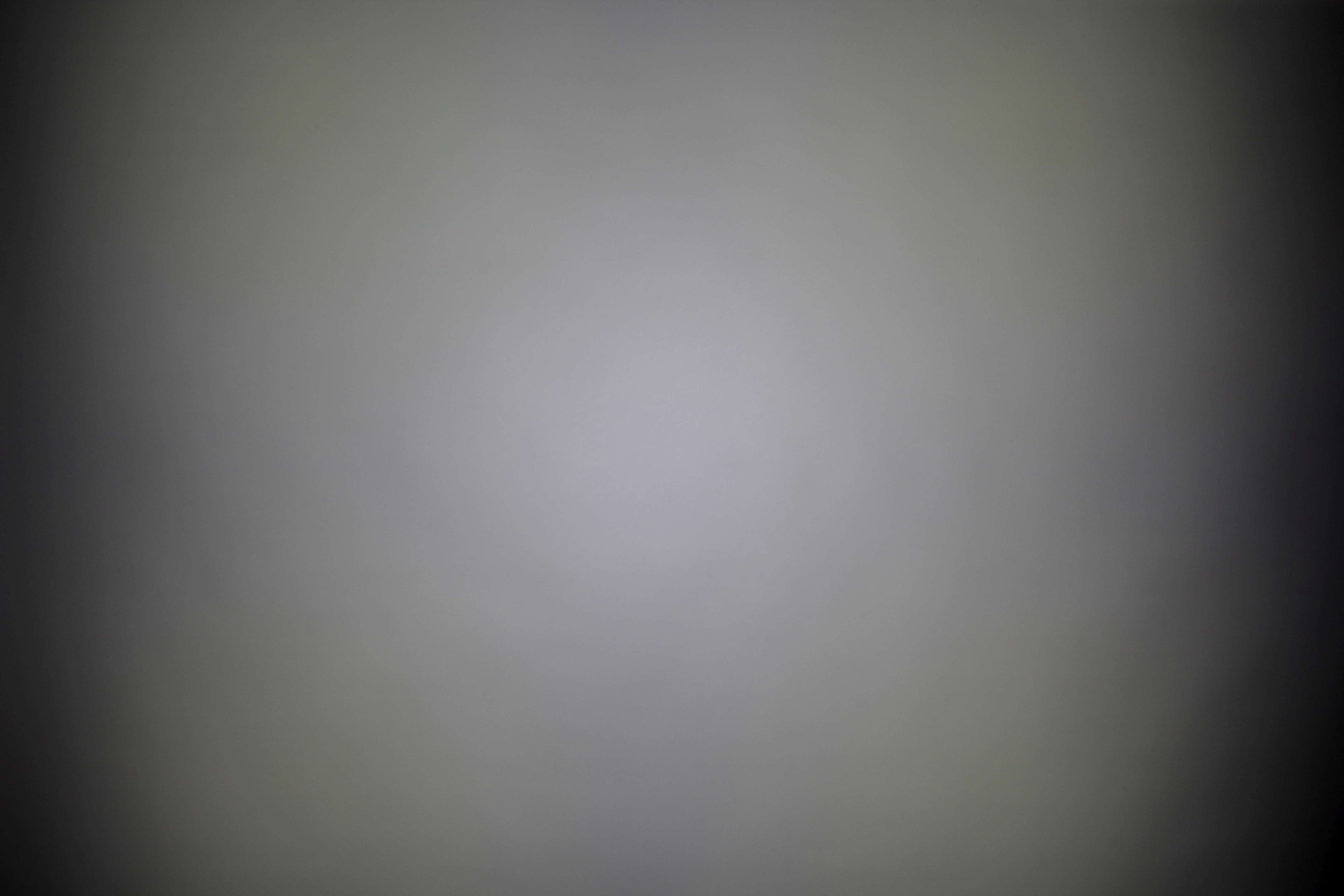

LED: NV9W149AM
FWHM: 63°
FWTM: 97°
Peak intensity: 0.730 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 48°
FWTM: 74°
Peak intensity: 1.485 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

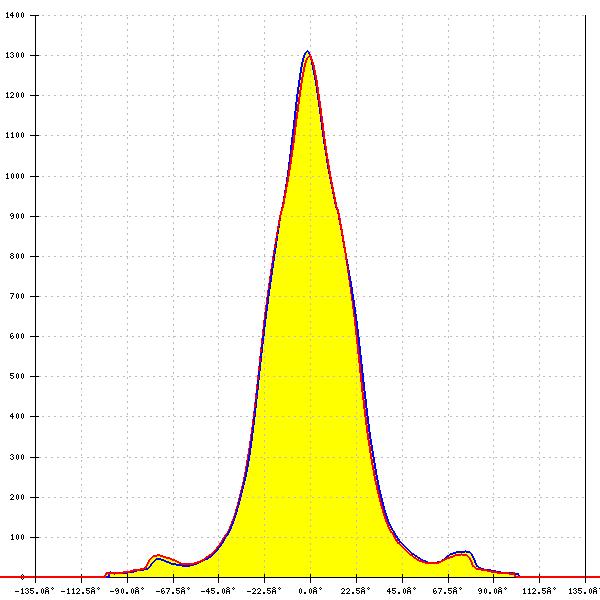

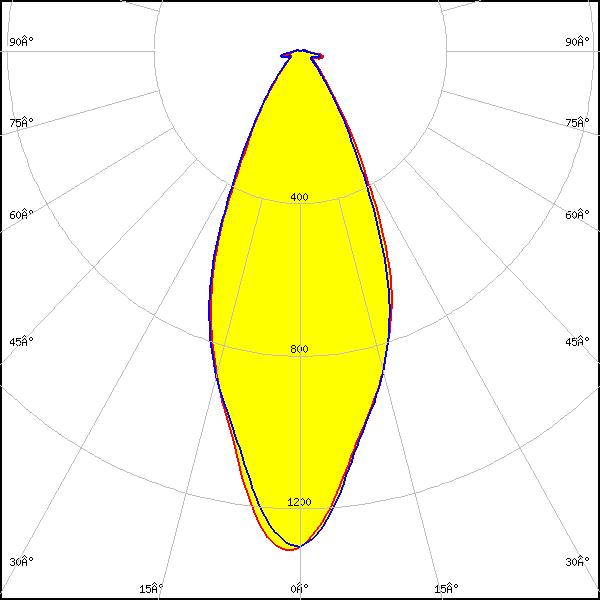

LED: HiLOM SC16 (LH181B)
FWHM: 44°
FWTM: 78°
Peak intensity: 1.300 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: PAL-LK-4950-740-48
FWHM: 55° + 56°
FWTM: 82° + 83°
Peak intensity: 0.893 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White

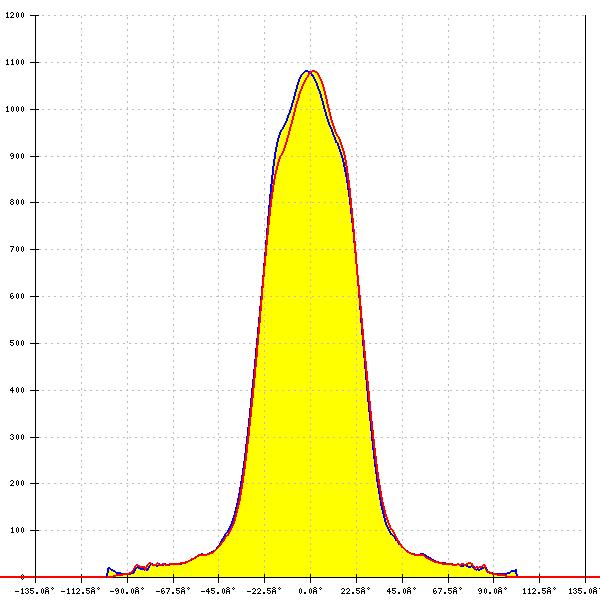

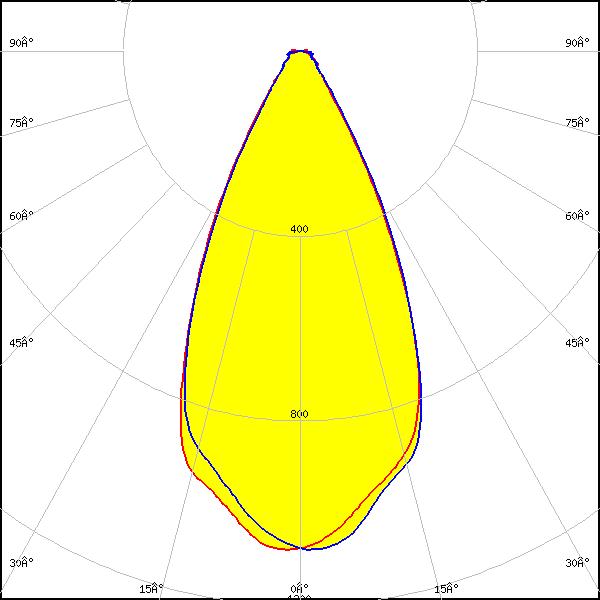

LED: XLE-S22C4XD16 (XD16)
FWHM: 50°
FWTM: 78°
Peak intensity: 1.083 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

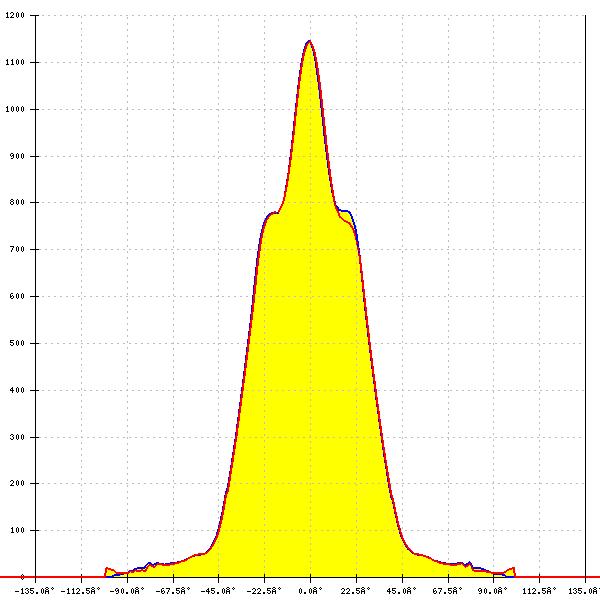

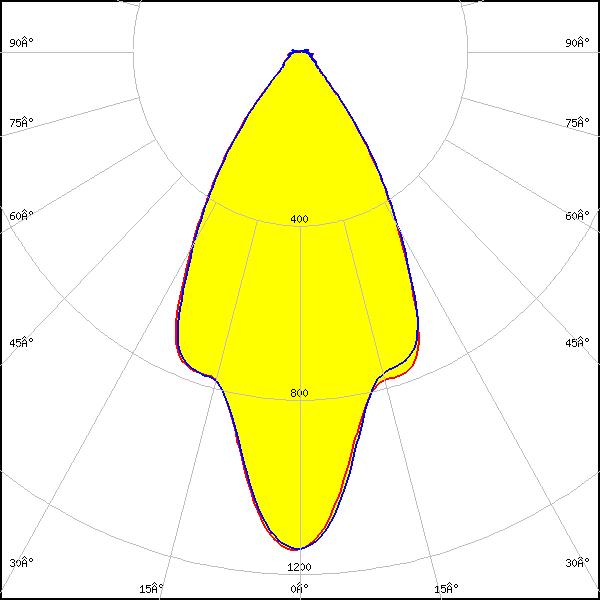

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: 56°
FWTM: 87°
Peak intensity: 1.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

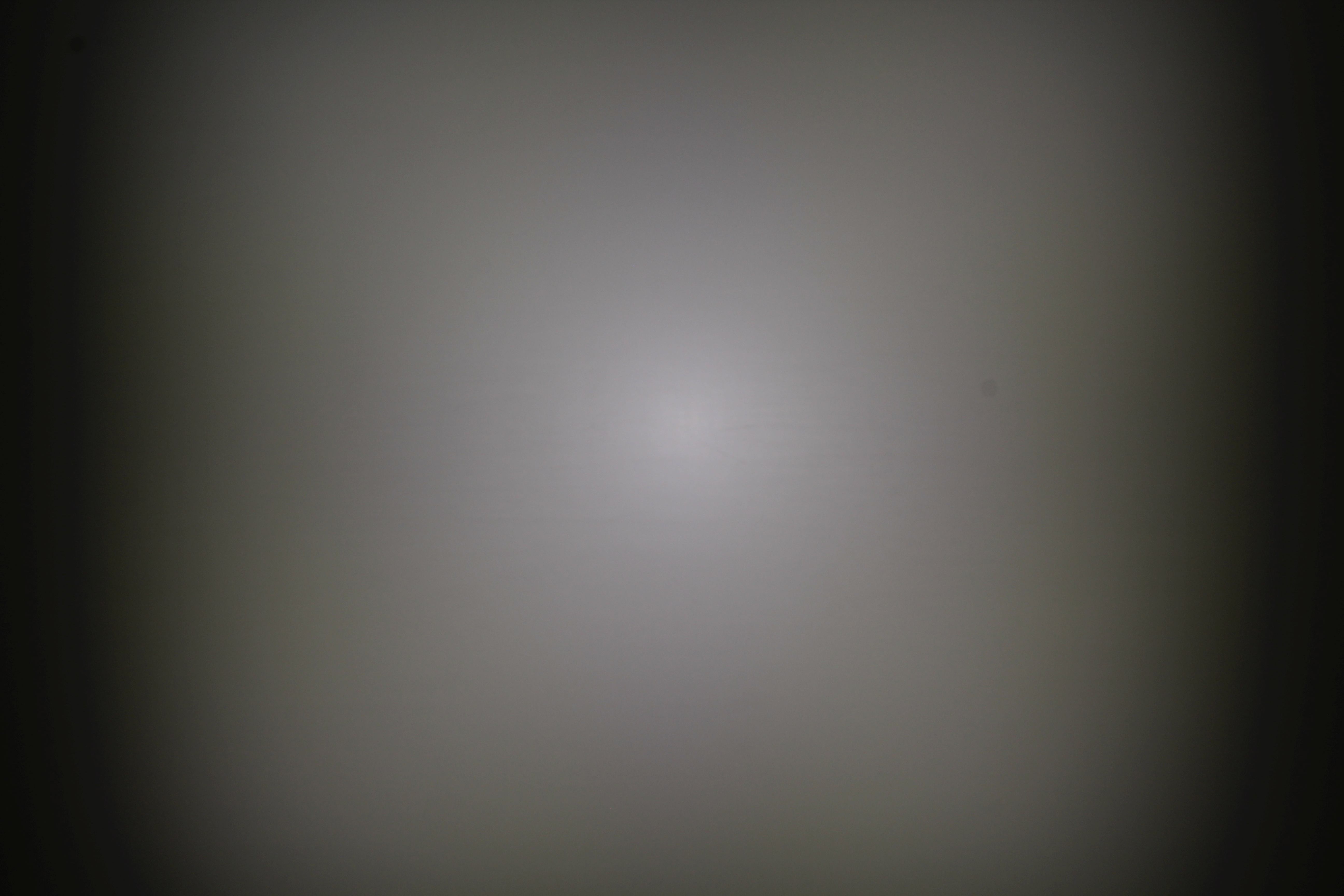

LED: XLE-S22XHP50B (XHP50.2)
FWHM: 55°
FWTM: 82°
Peak intensity: 0.893 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

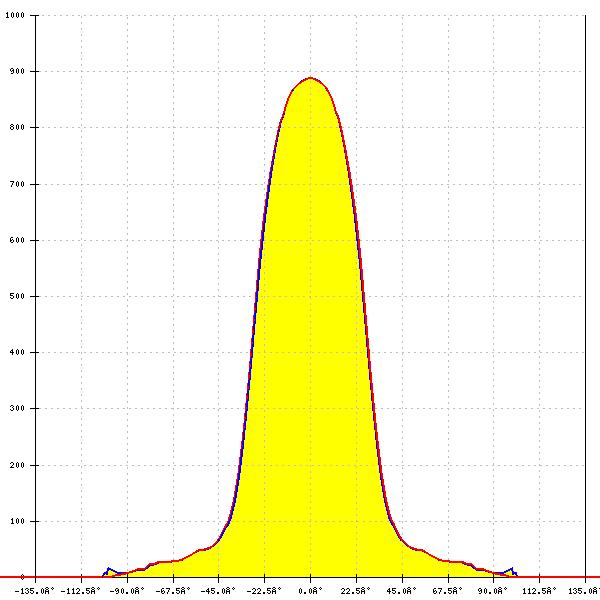

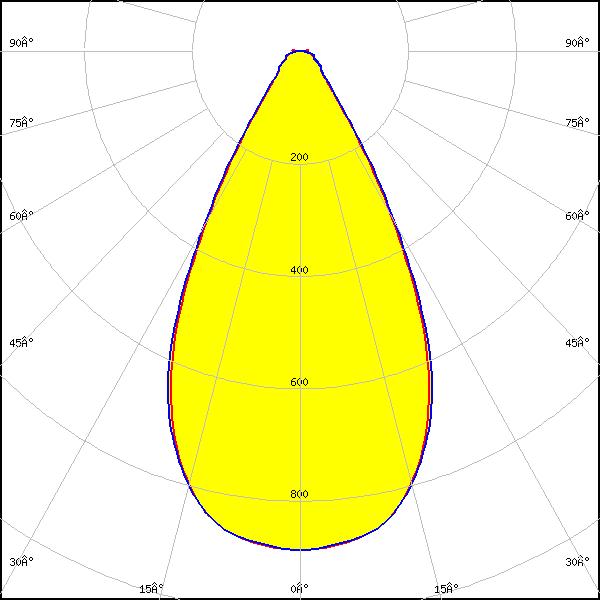

LED: WICOP 5050
FWHM: 56°
FWTM: 83°
Peak intensity: 0.892 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

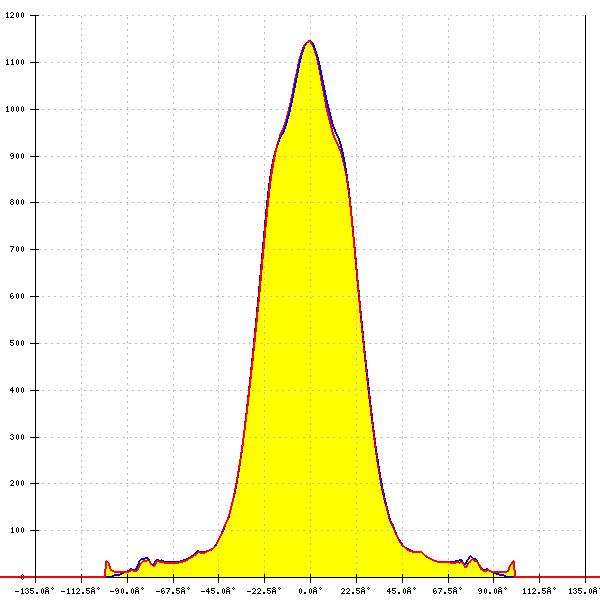

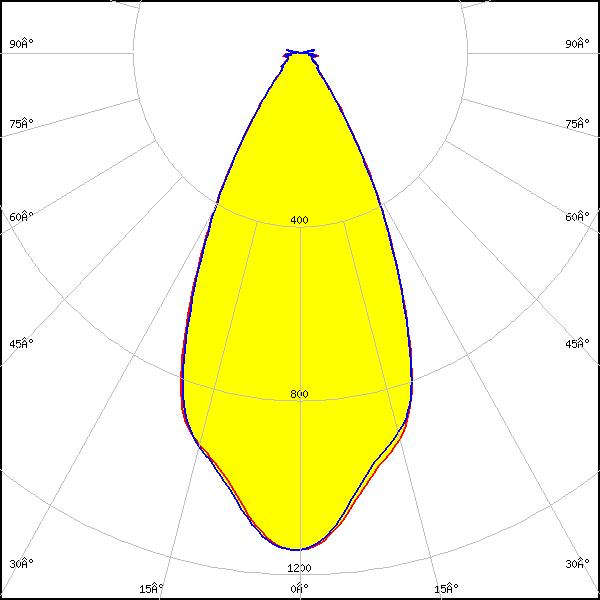

LED: Z8Y22
FWHM: 50°
FWTM: 81°
Peak intensity: 1.144 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
