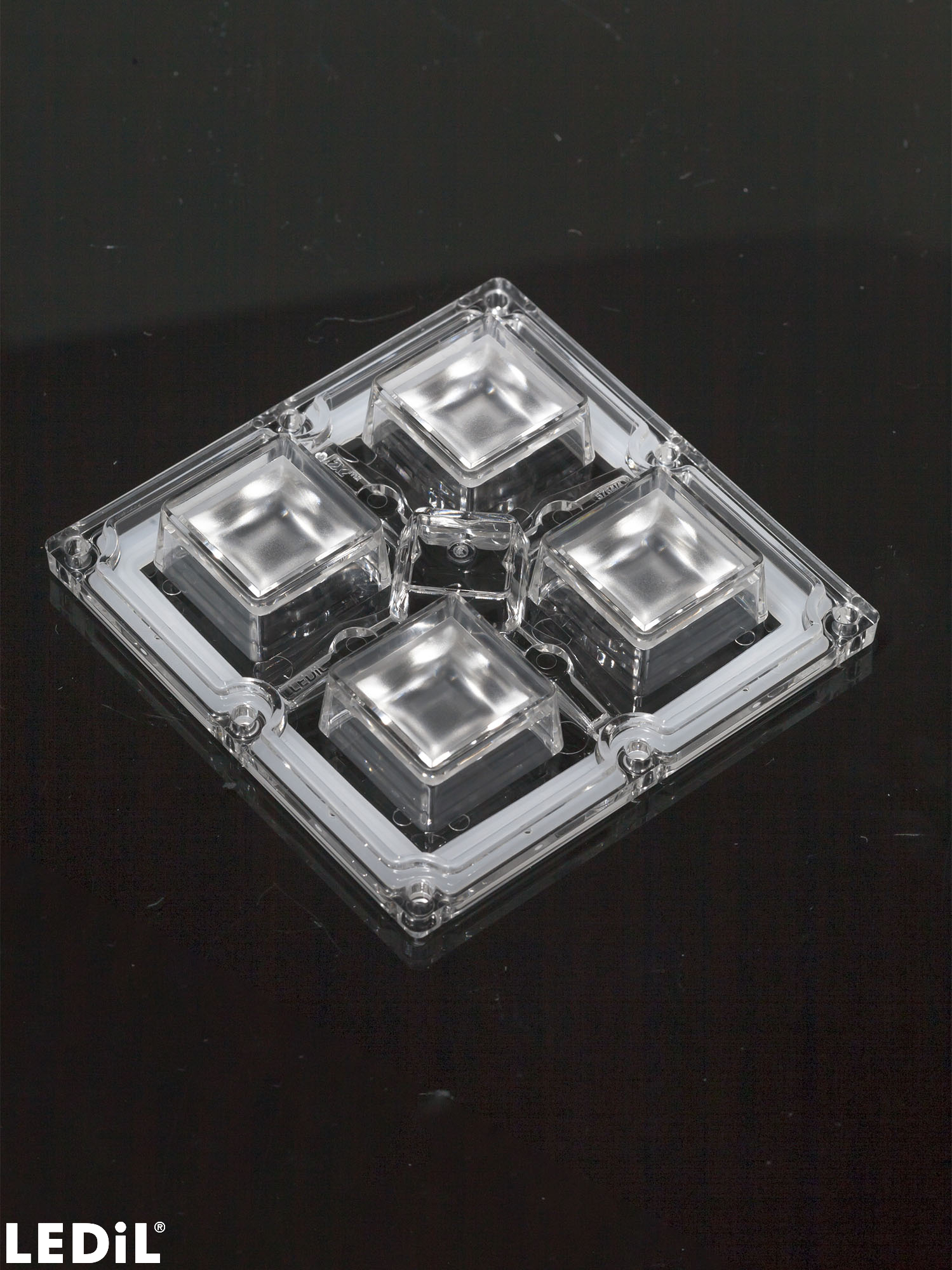

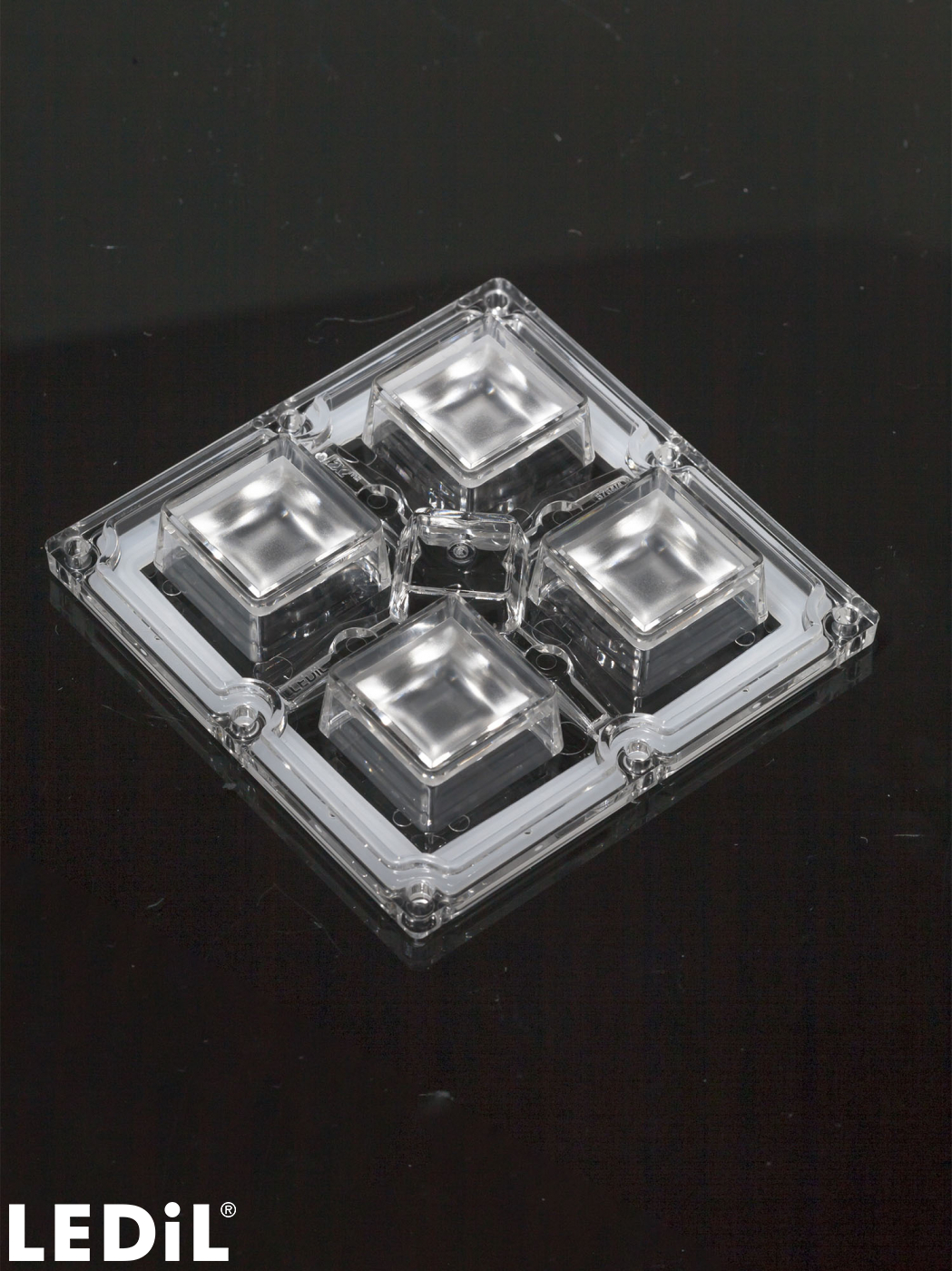

CS15765_HB-2X2MX-8-WWW

Print

~65° wide beam. New revision.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    16.38 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.4 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    3.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS15765_HB-2X2MX-8-WWW
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

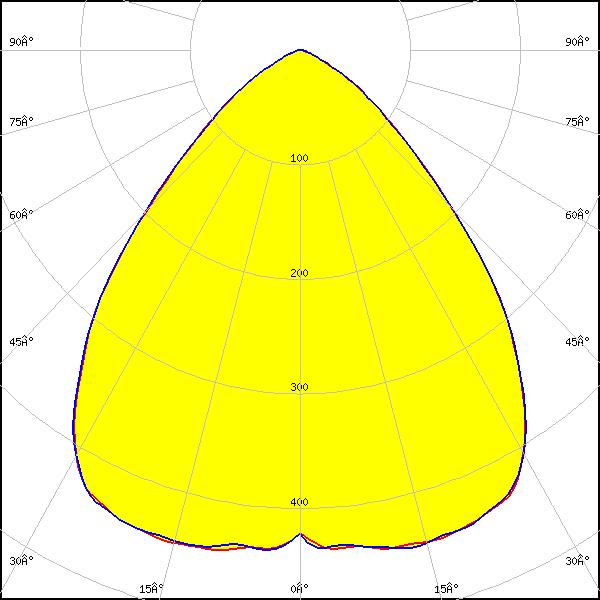

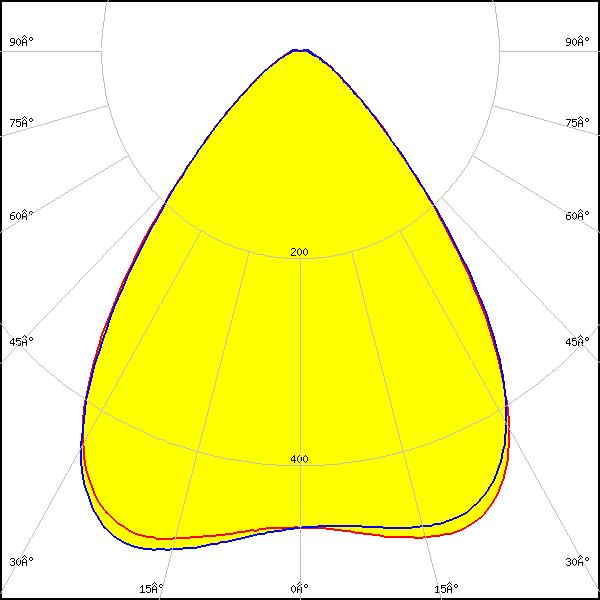

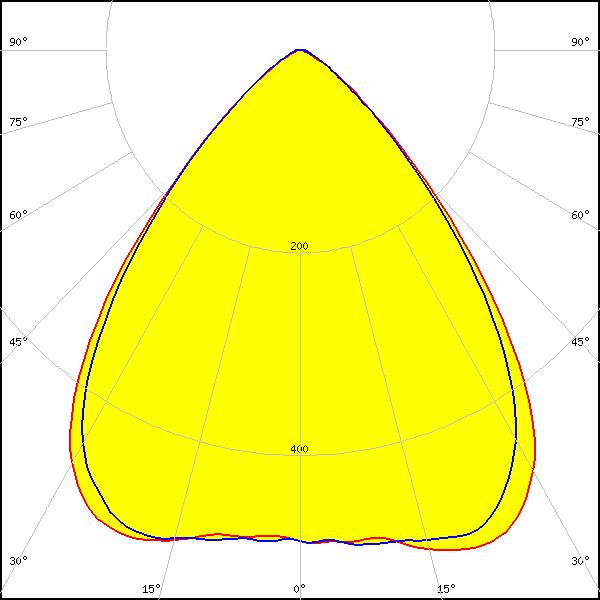

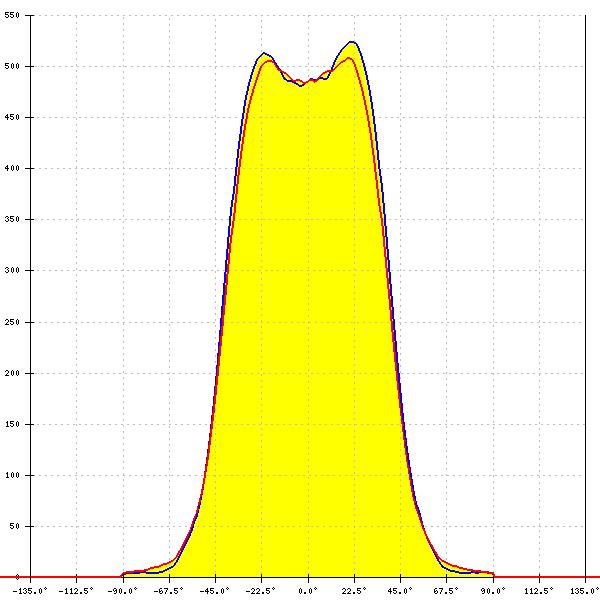

Optical results

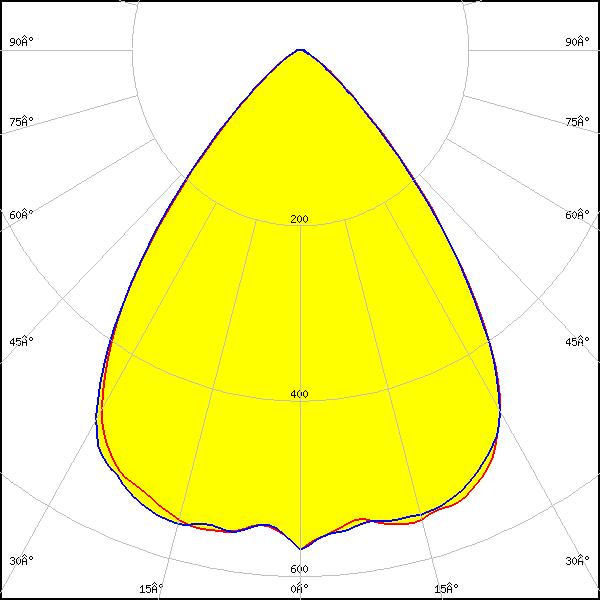

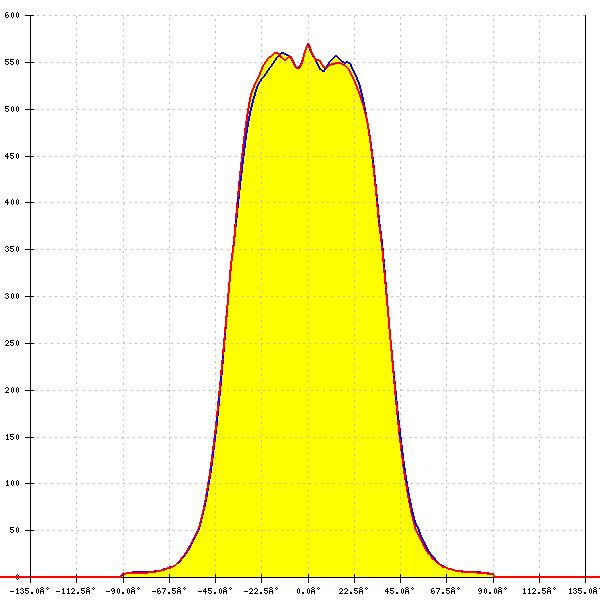

LED: Bridgelux SMD 5050
FWHM: 78°
FWTM: 105°
Peak intensity: 0.580 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

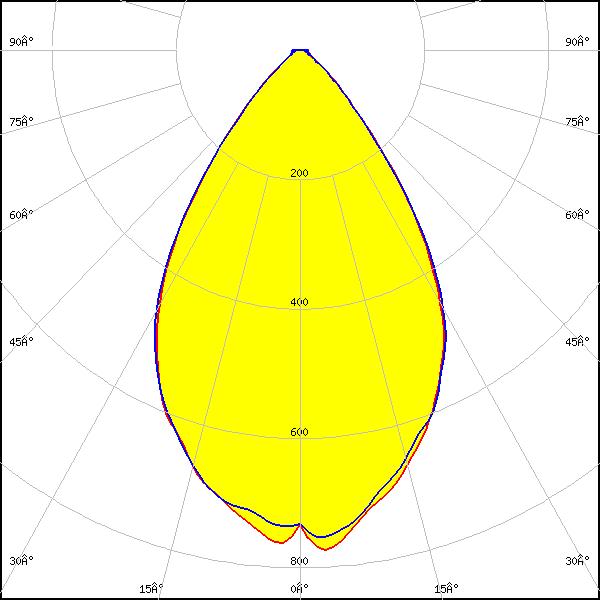

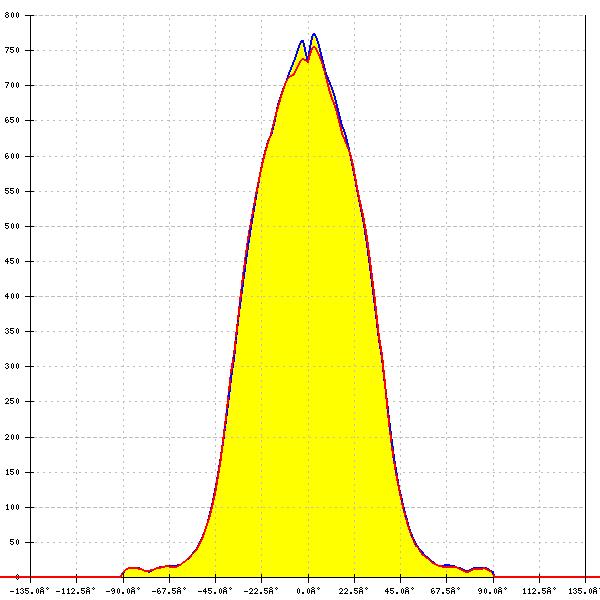

LED: CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: 66°
FWTM: 98°
Peak intensity: 0.770 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

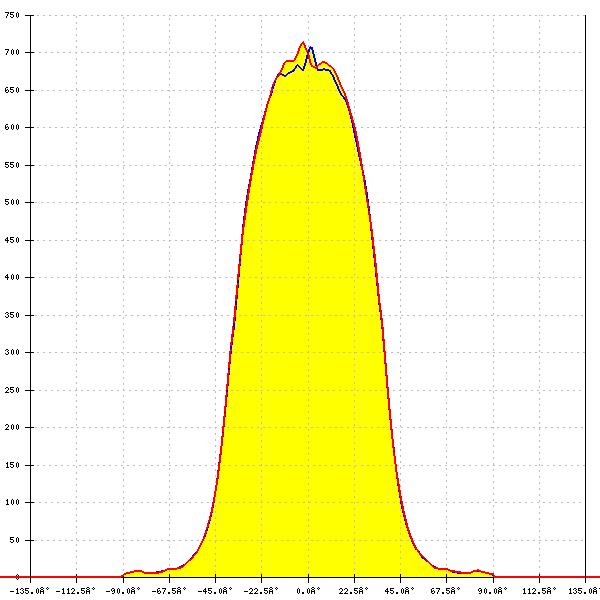

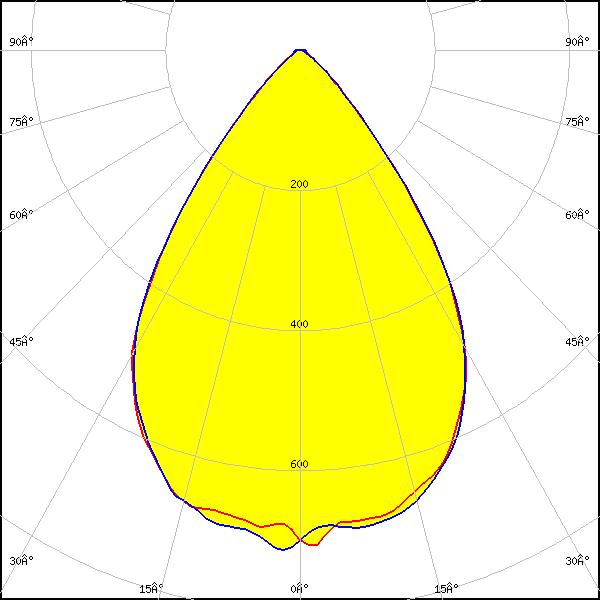

LED: CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM: 71°
FWTM: 96°
Peak intensity: 0.721 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

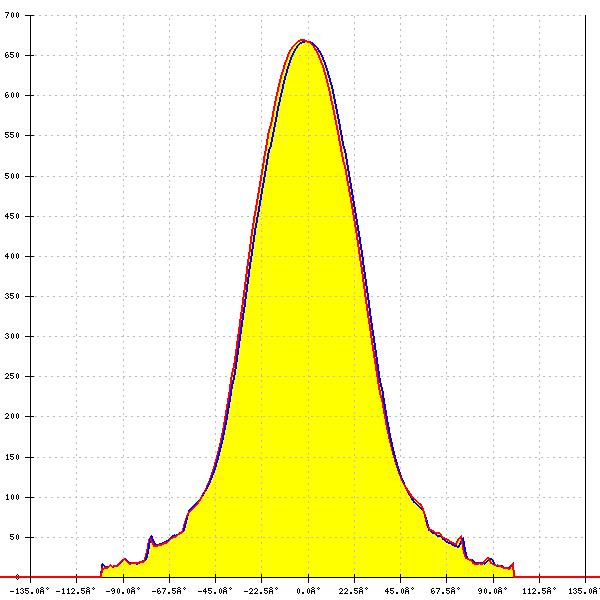

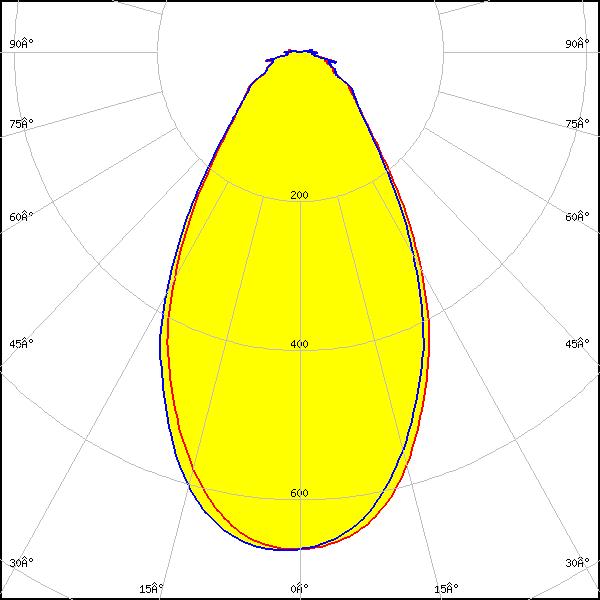

LED: CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM: 62°
FWTM: 123°
Peak intensity: 0.670 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

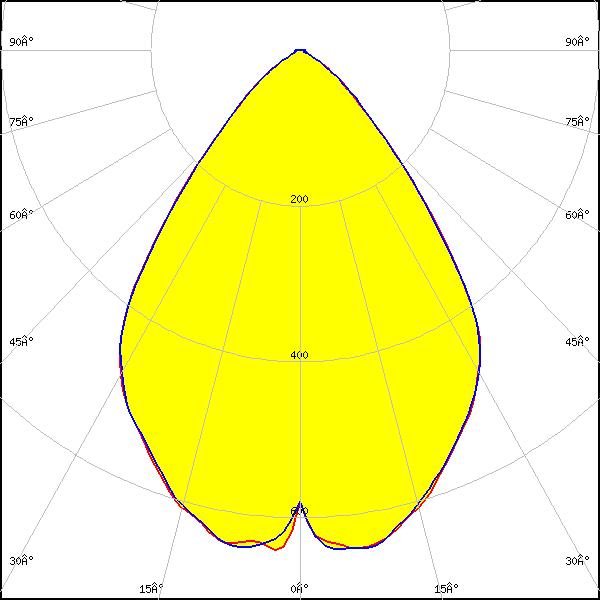

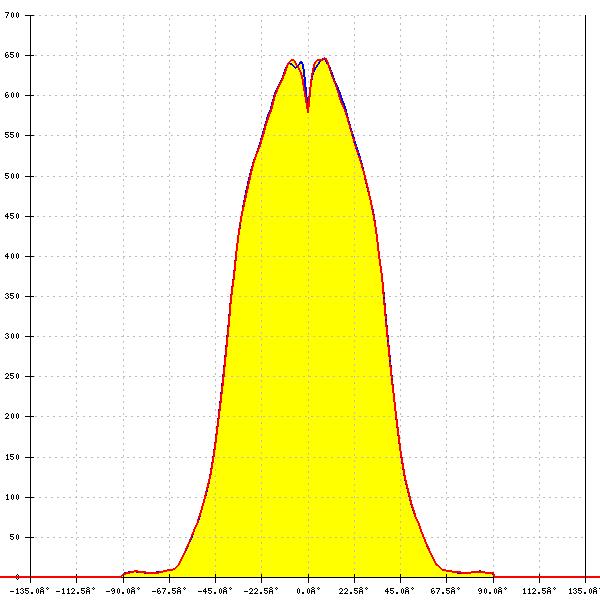

LED: J Series 7070B K Class
FWHM: 76°
FWTM: 108°
Peak intensity: 0.662 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

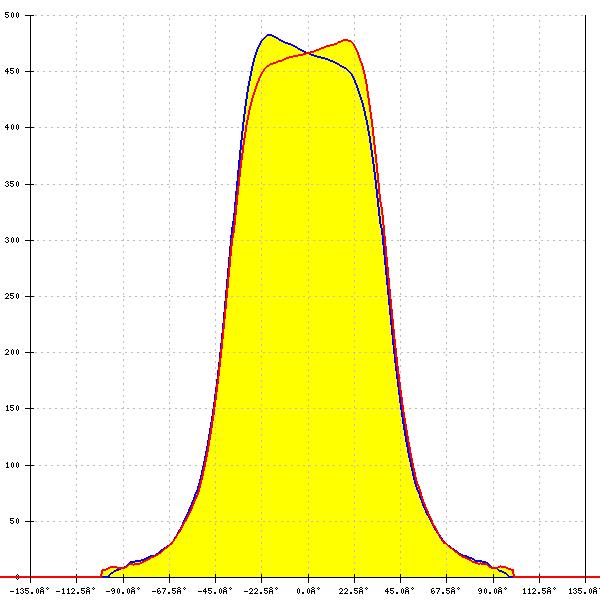

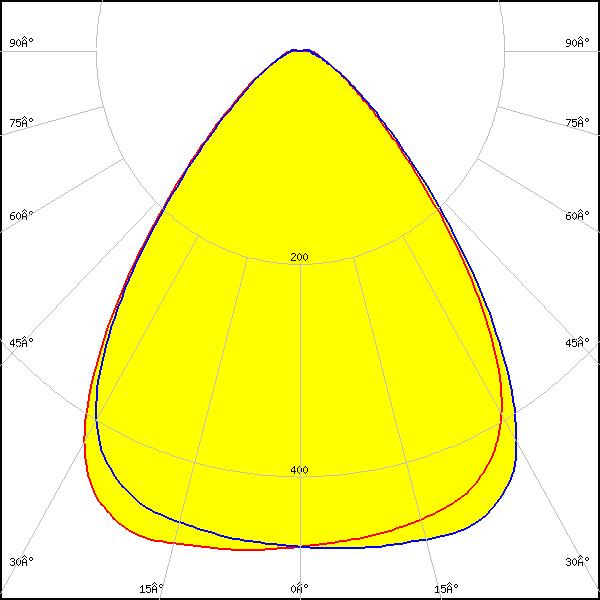

LED: XHP50.2
FWHM: 80°
FWTM: 121°
Peak intensity: 0.482 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

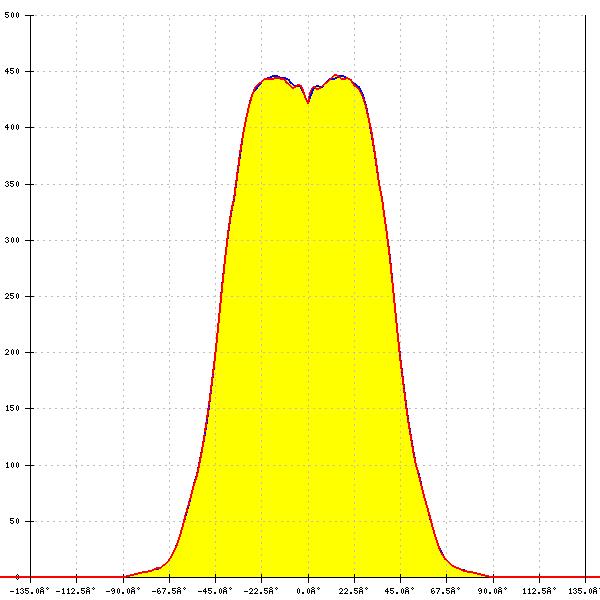

LED: XHP70.2
FWHM: 86°
FWTM: 122°
Peak intensity: 0.448 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

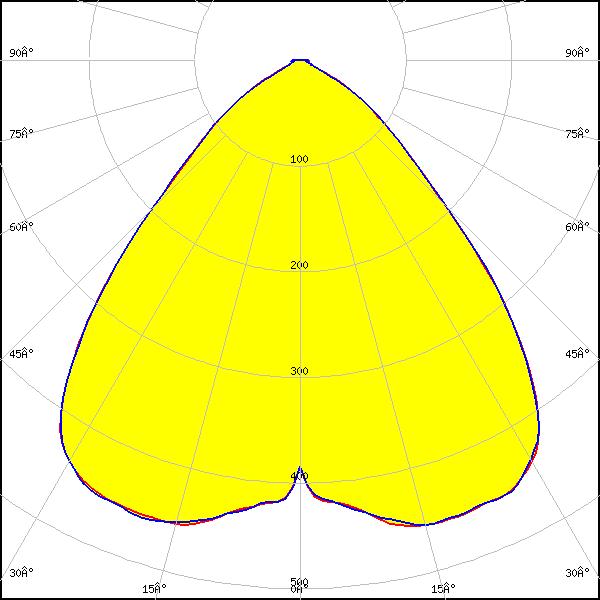

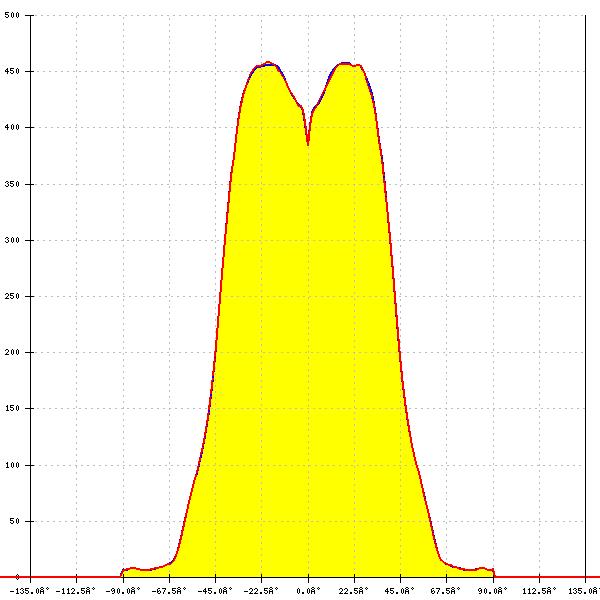

LED: XHP70.3 HD
FWHM: 86°
FWTM: 120°
Peak intensity: 0.462 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

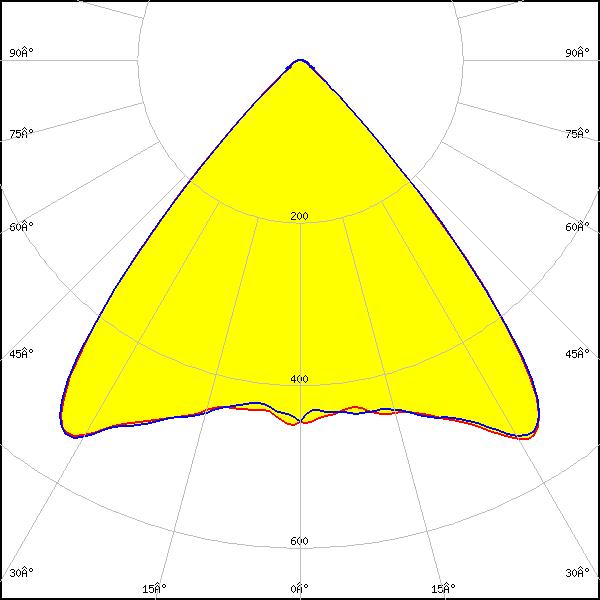

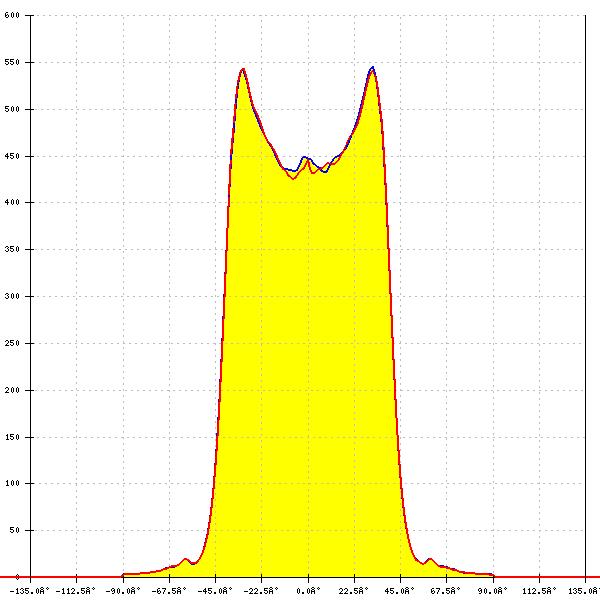

LED: XP-E2
FWHM: 82°
FWTM: 96°
Peak intensity: 0.545 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

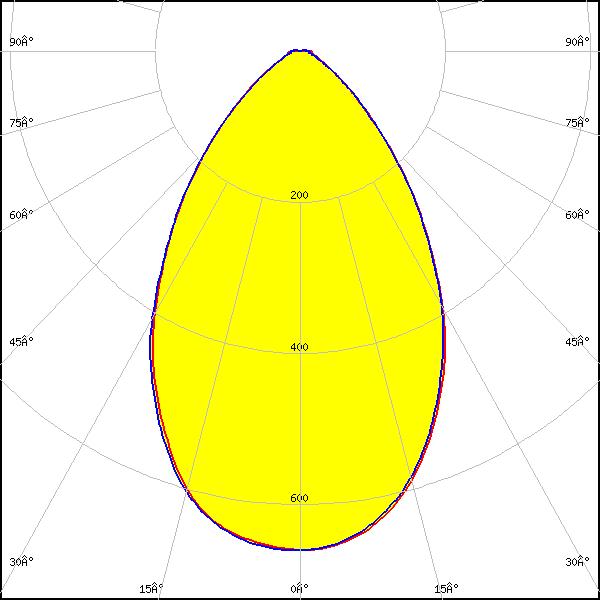

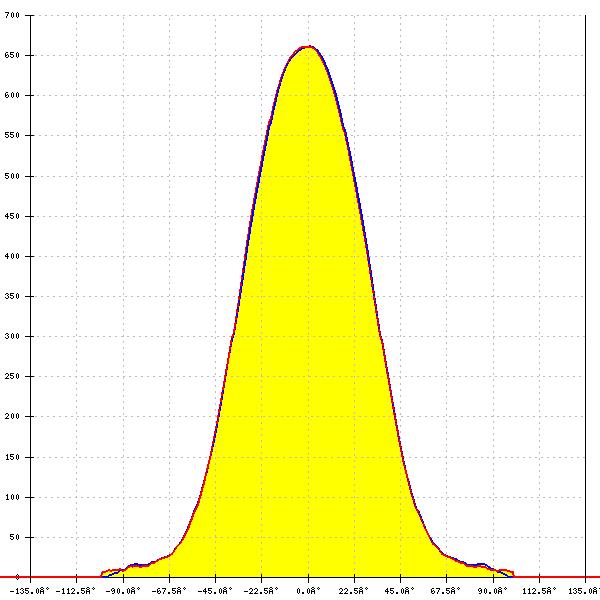

LED: XT-E HE
FWHM: 68°
FWTM: 114°
Peak intensity: 0.661 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

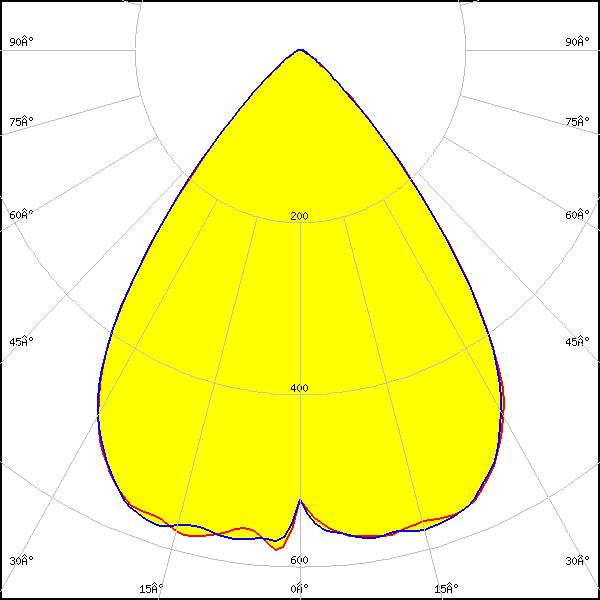

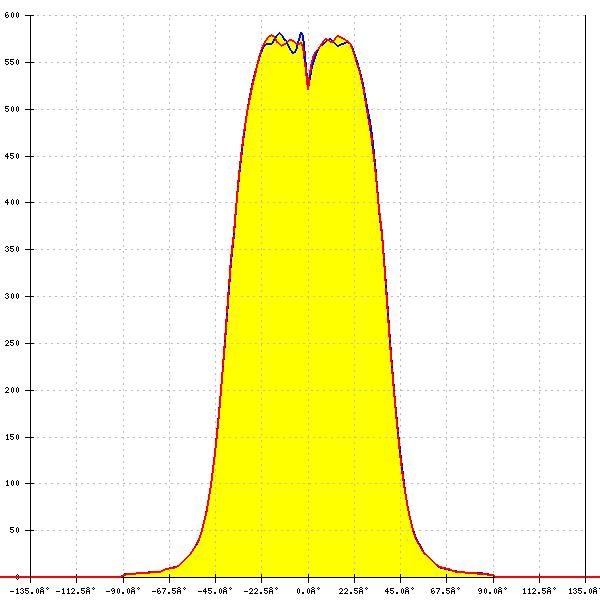

LED: LUXEON 5050 Round LES
FWHM: 78°
FWTM: 102°
Peak intensity: 0.588 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

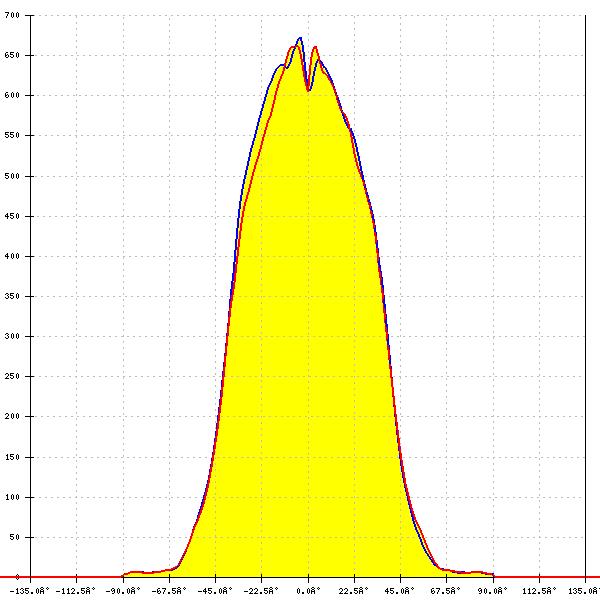

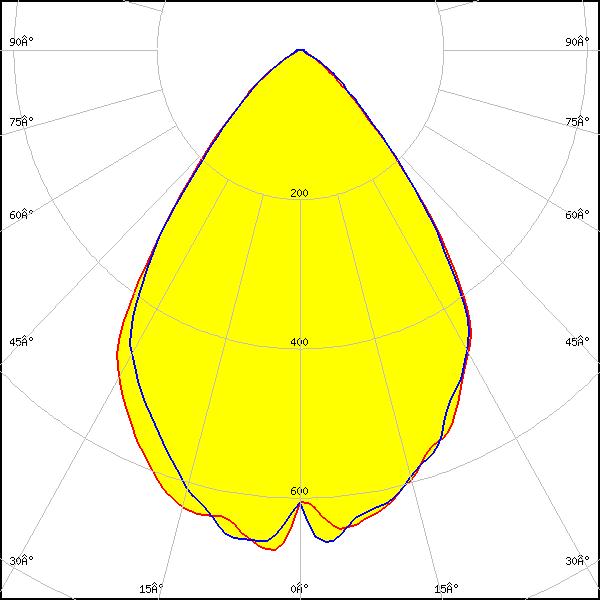

LED: LUXEON 7070
FWHM: 75°
FWTM: 108°
Peak intensity: 0.690 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

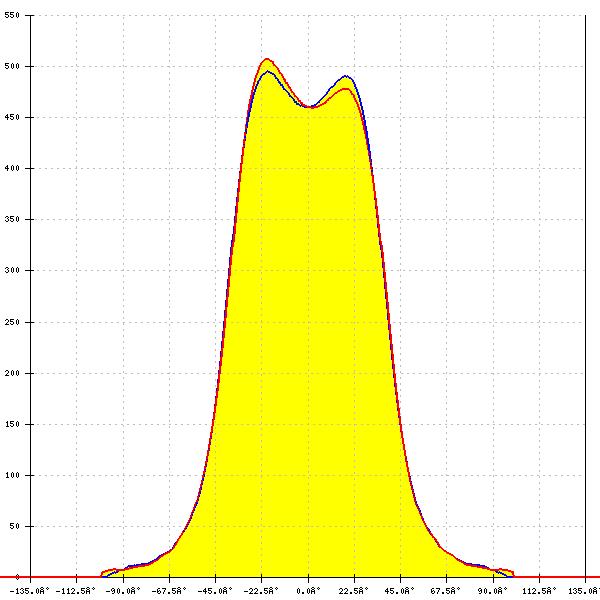

LED: LUXEON M/MX
FWHM: 82°
FWTM: 119°
Peak intensity: 0.510 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

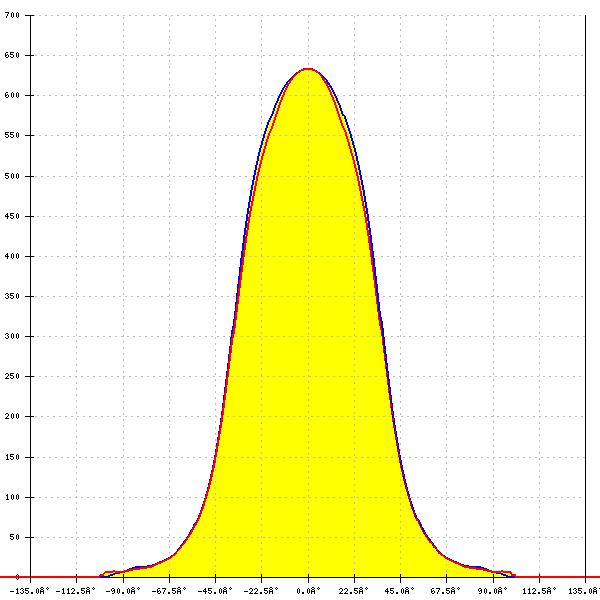

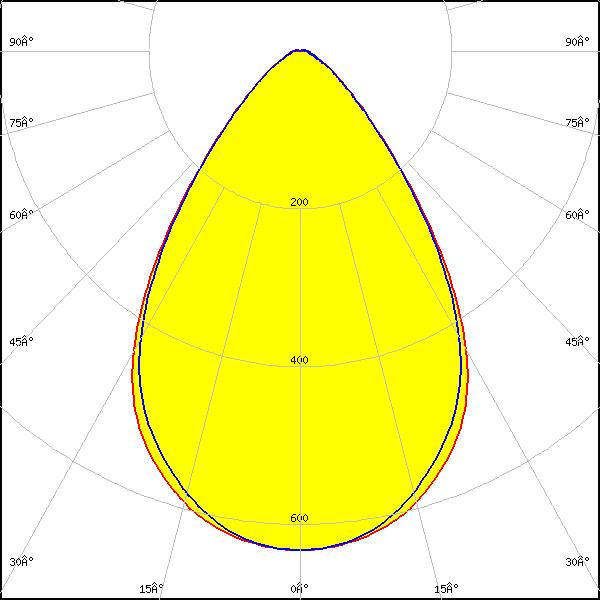

LED: LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: 72°
FWTM: 110°
Peak intensity: 0.633 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

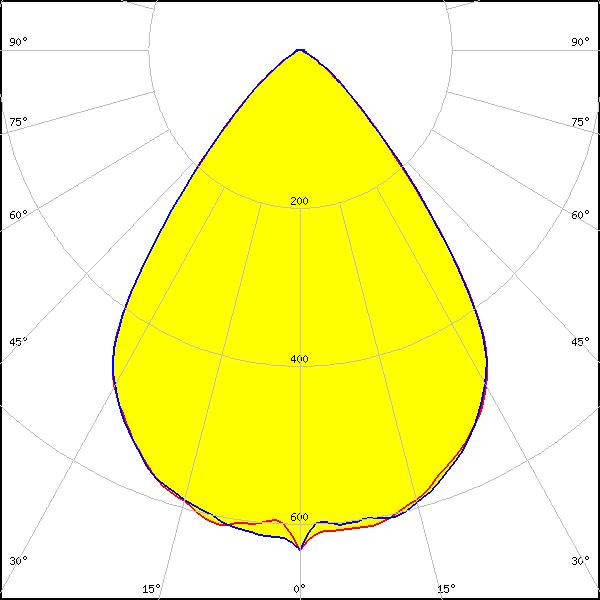

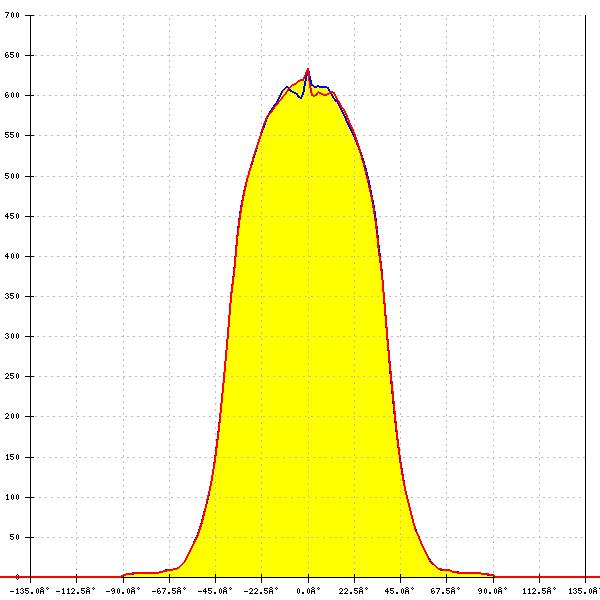

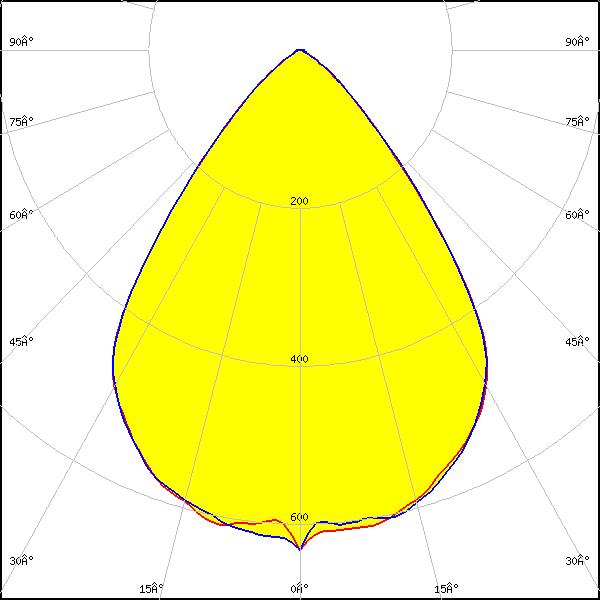

LED: MP 7070
FWHM: 76°
FWTM: 104°
Peak intensity: 0.634 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

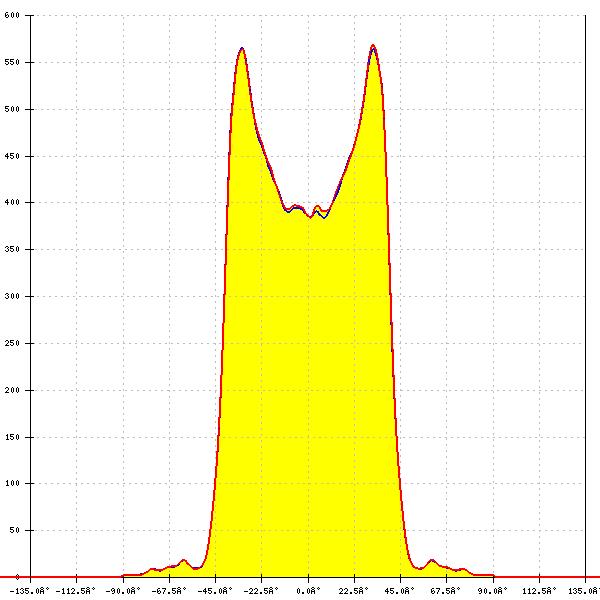

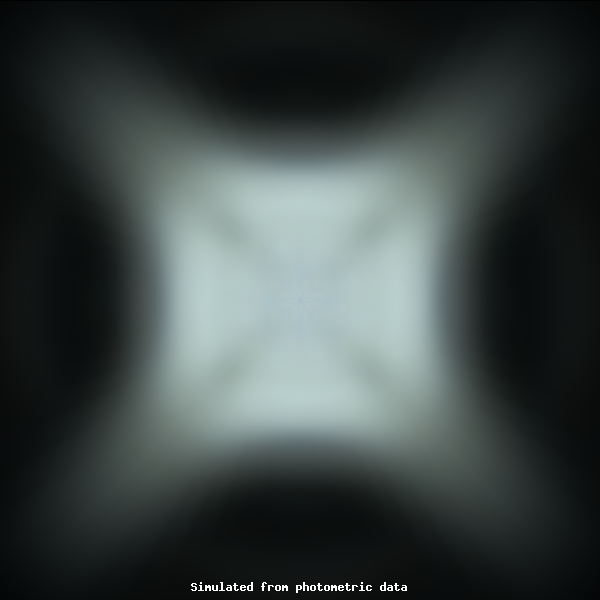

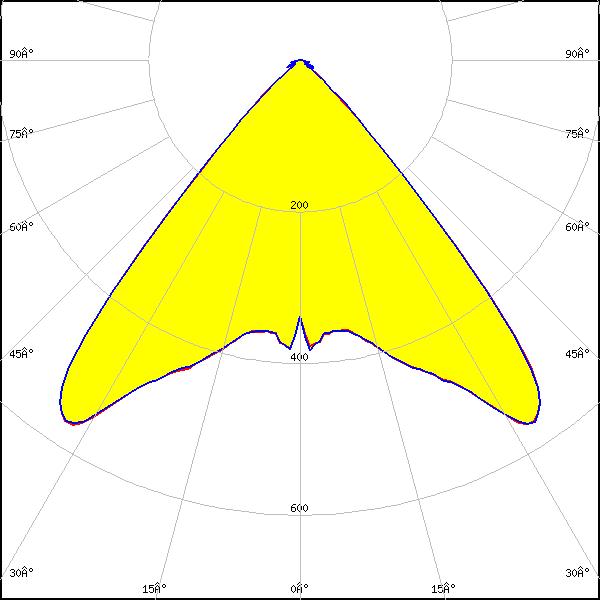

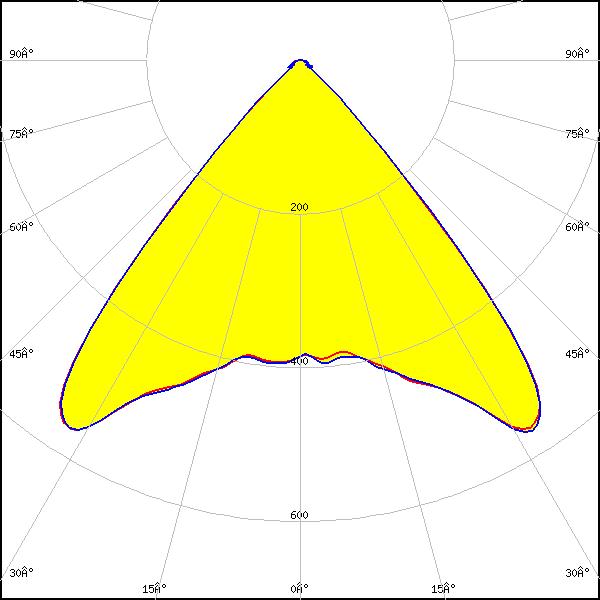

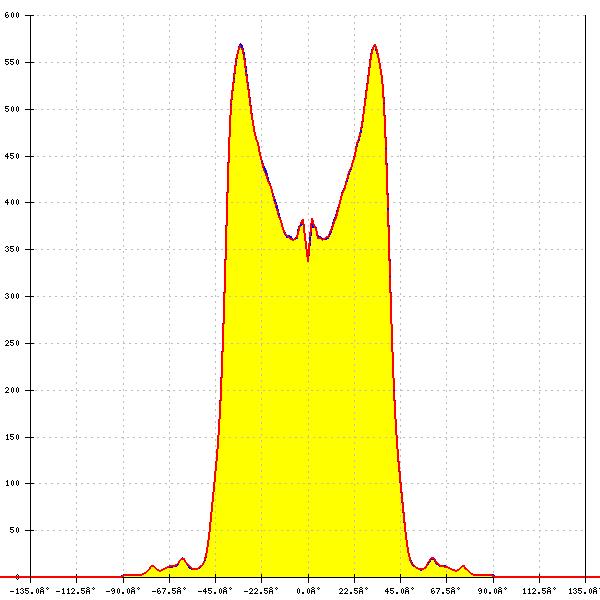

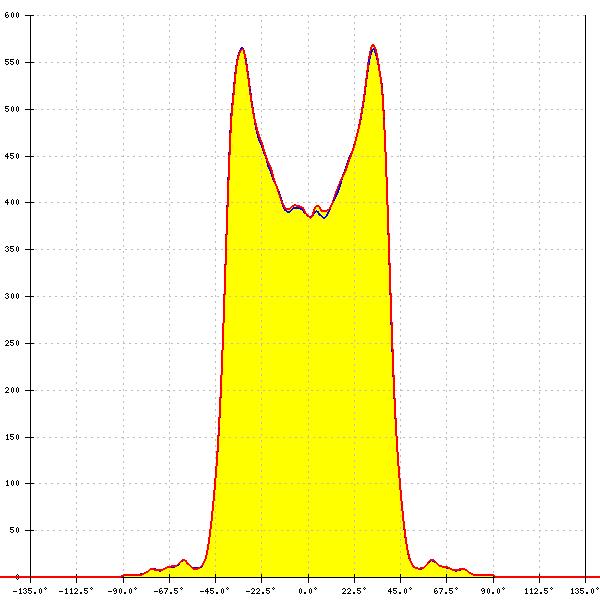

LED: SFT-40-WCS
FWHM: 82°
FWTM: 94°
Peak intensity: 0.570 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

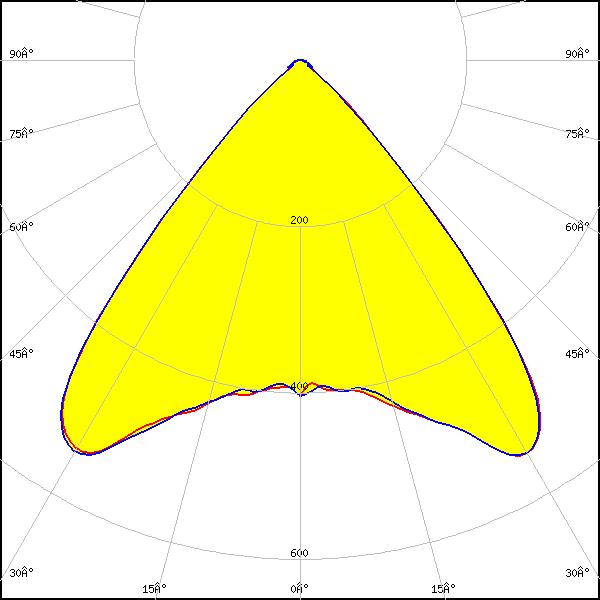

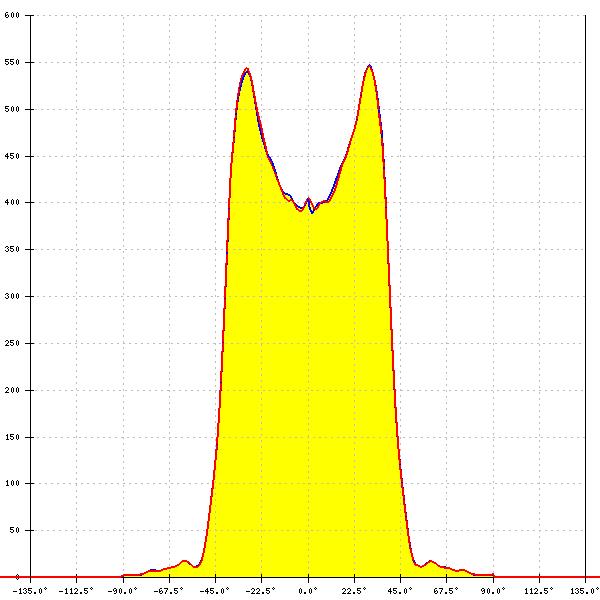

LED: SFT-70X-WCS
FWHM: 82°
FWTM: 98°
Peak intensity: 0.548 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

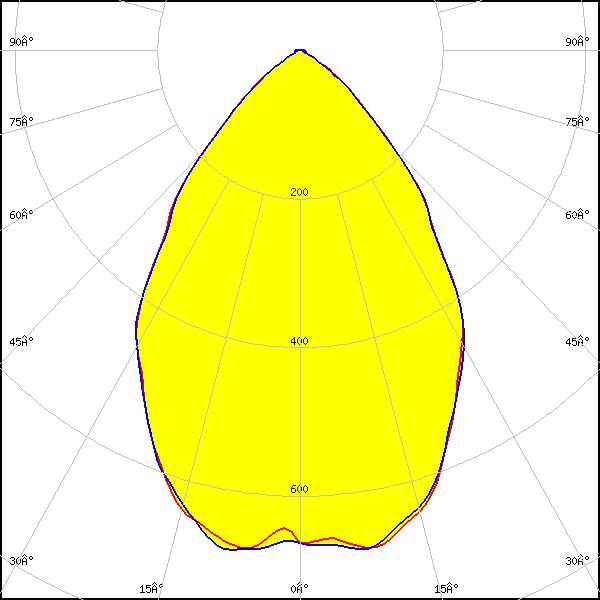

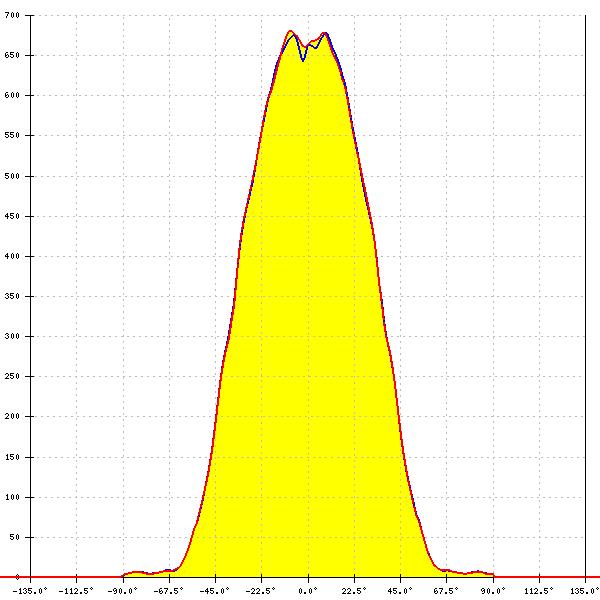

LED: NF2x757G
FWHM: 72°
FWTM: 108°
Peak intensity: 0.697 cd/lm
Efficiency: 97 %
LEDs/each optic: 4
Light colour/type: White

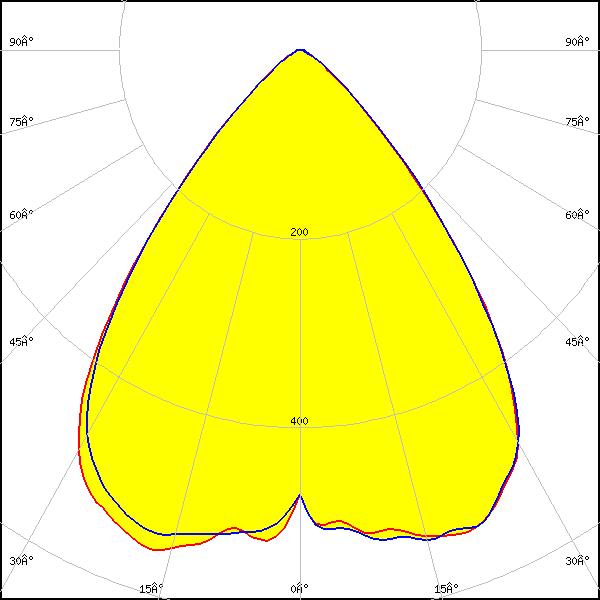

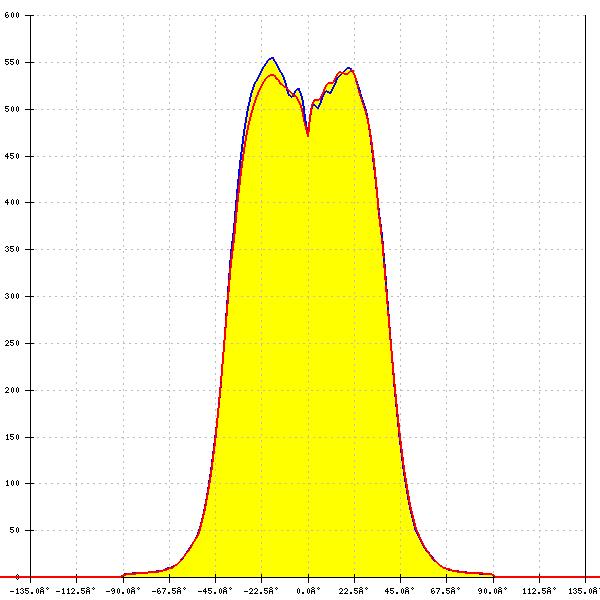

LED: NFMW48xA
FWHM: 79°
FWTM: 106°
Peak intensity: 0.560 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

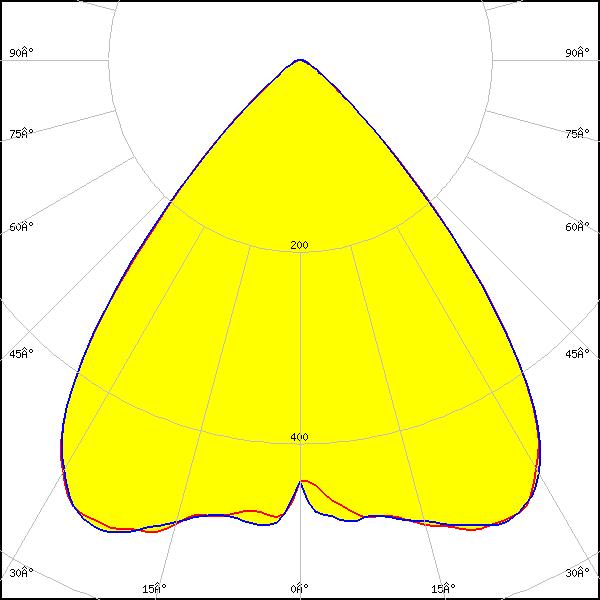

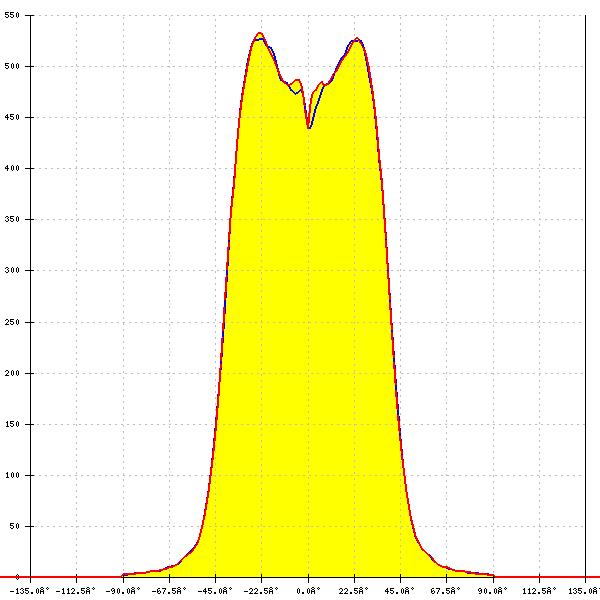

LED: NV4WB35AM
FWHM: 80°
FWTM: 102°
Peak intensity: 0.532 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

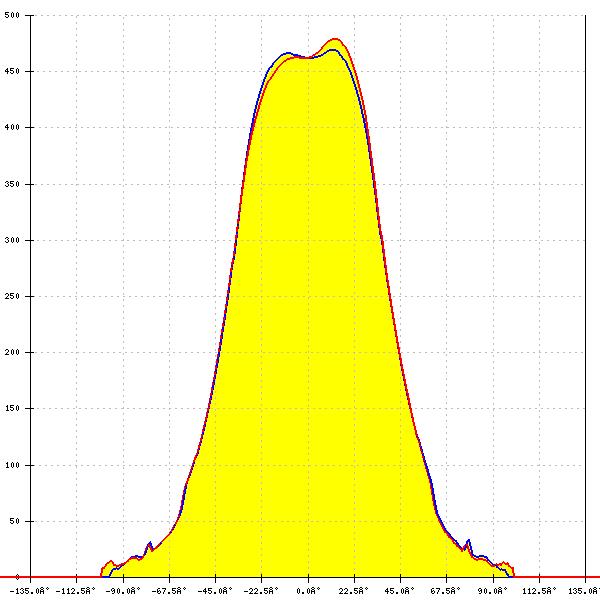

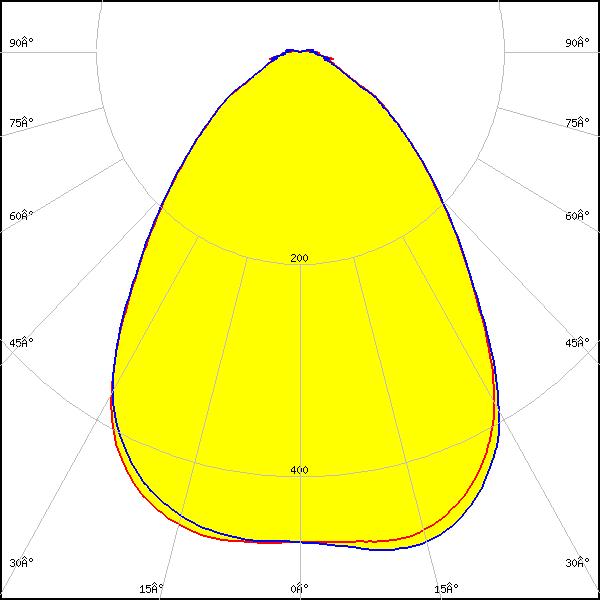

LED: NV9W149AM
FWHM: 81°
FWTM: 130°
Peak intensity: 0.480 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

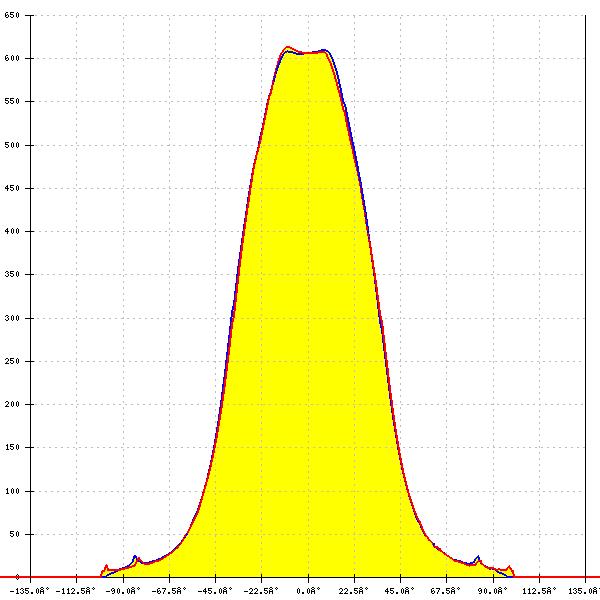

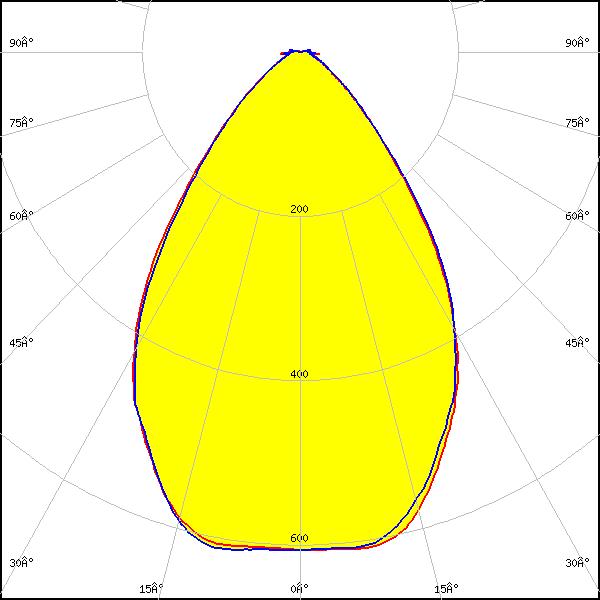

LED: PrevaLED Brick HP 2x2MX
FWHM: 71°
FWTM: 111°
Peak intensity: 0.615 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: OSCONIQ C 2424
FWHM: 74° + 75°
FWTM: 104° + 104°
Peak intensity: 0.615 cd/lm
Efficiency: 97 %
LEDs/each optic: 4
Light colour/type: White

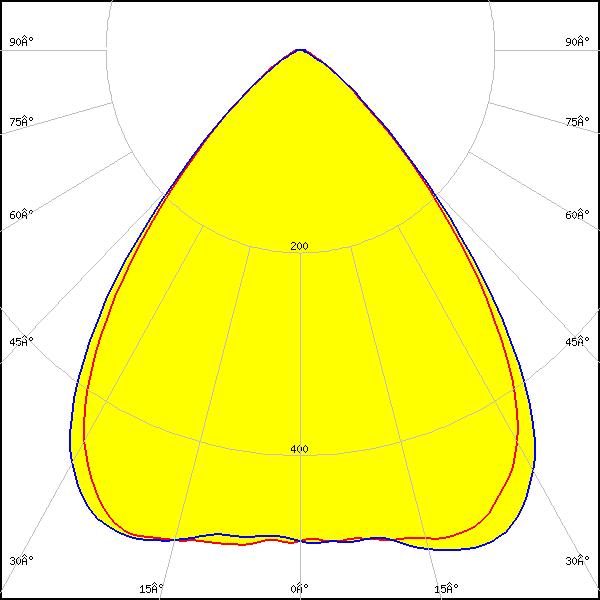

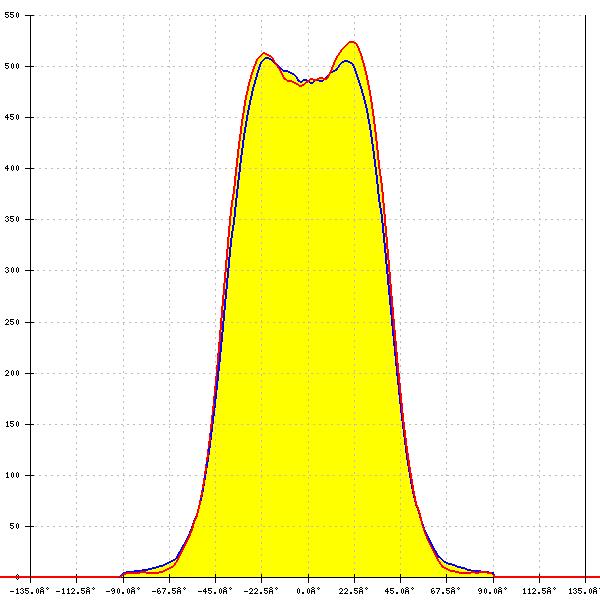

LED: OSCONIQ P 7070
FWHM: 82°
FWTM: 112°
Peak intensity: 0.524 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

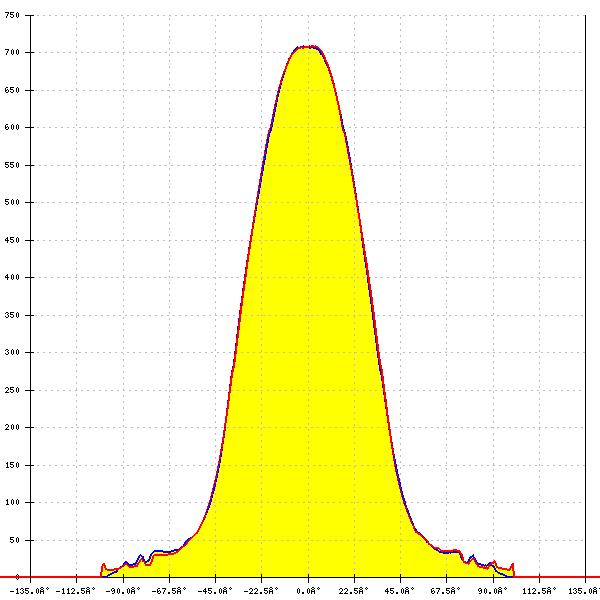

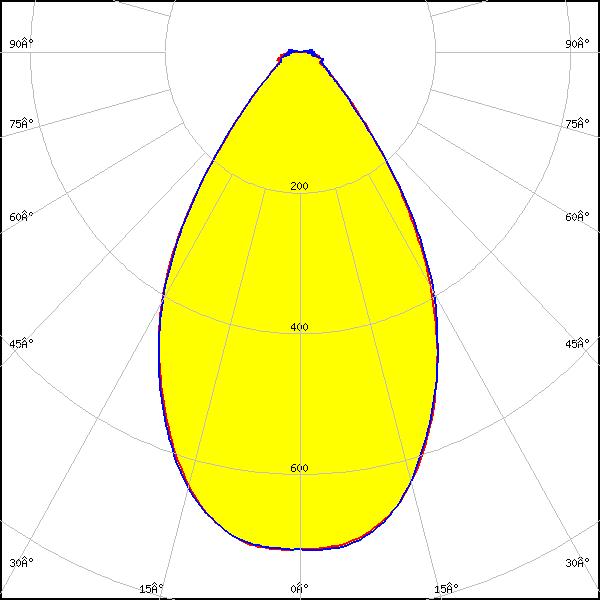

LED: HiLOM SC16 (LH181B)
FWHM: 65°
FWTM: 103°
Peak intensity: 0.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

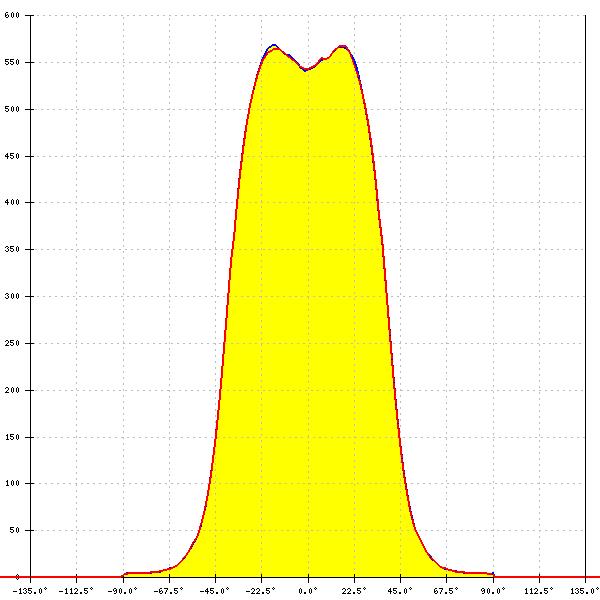

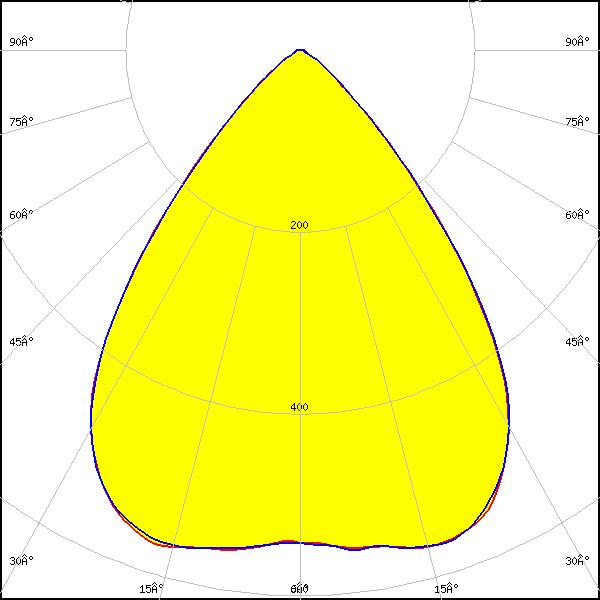

LED: LH502C
FWHM: 78°
FWTM: 104°
Peak intensity: 0.568 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

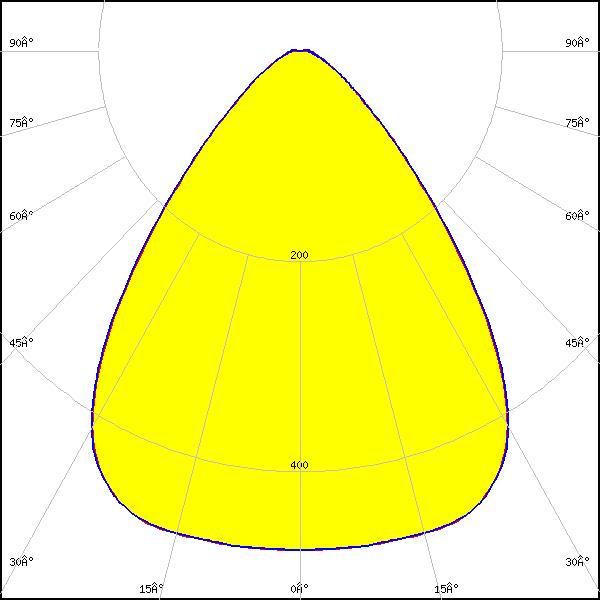

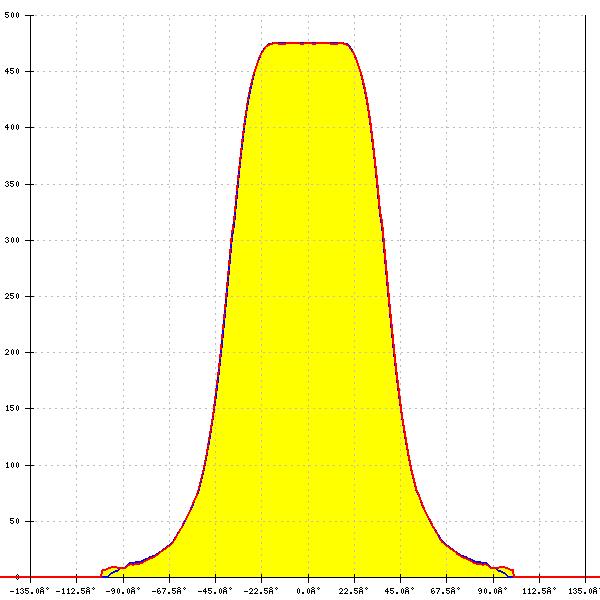

LED: PAL-LK-4950-740-48
FWHM: 80° + 81°
FWTM: 121° + 121°
Peak intensity: 0.482 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

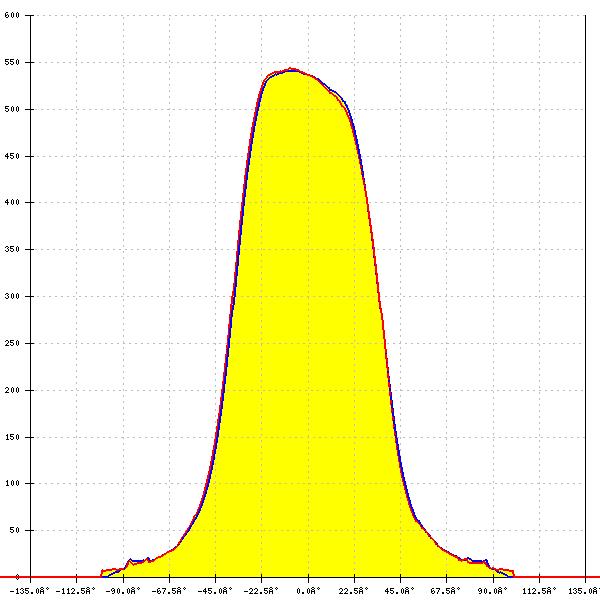

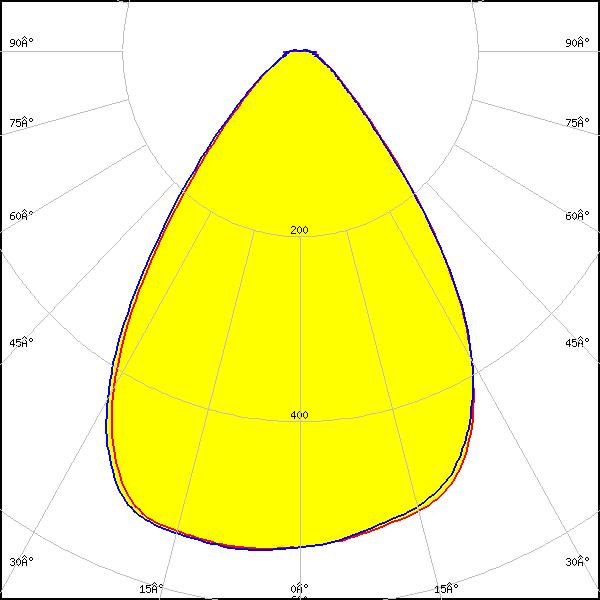

LED: XLE-S22C4XD16 (XD16)
FWHM: 74°
FWTM: 112°
Peak intensity: 0.544 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: 68°
FWTM: 114°
Peak intensity: 0.661 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XLE-S22XHP50B (XHP50.2)
FWHM: 80°
FWTM: 121°
Peak intensity: 0.482 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: WICOP 5050
FWHM: 80°
FWTM: 123°
Peak intensity: 0.477 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

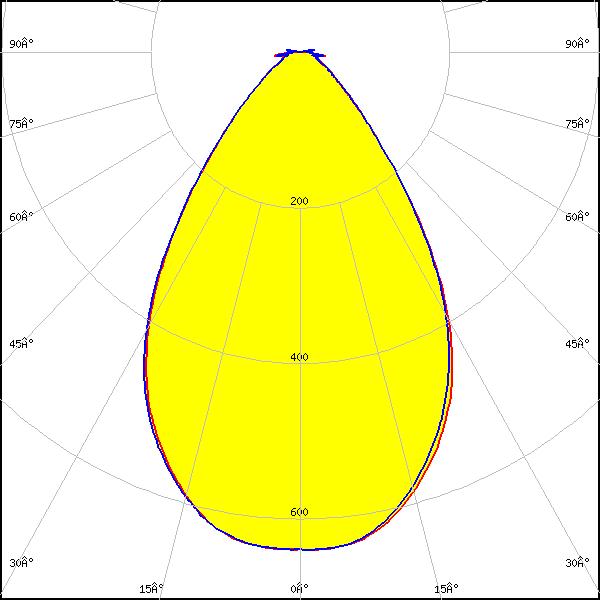

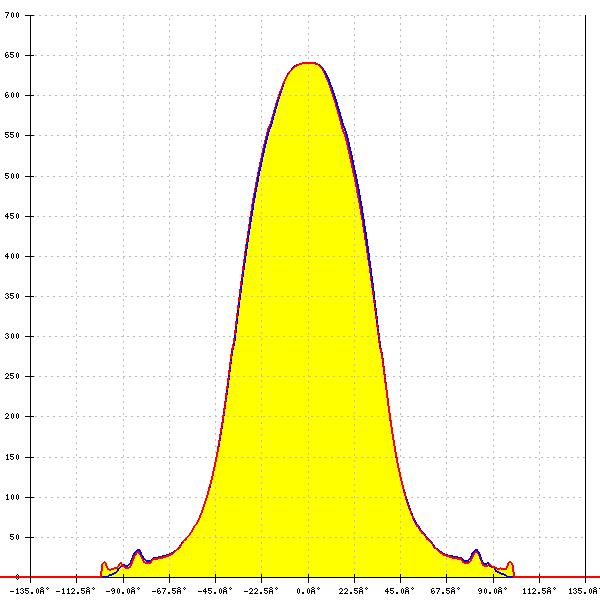

LED: Z8Y22
FWHM: 68°
FWTM: 108°
Peak intensity: 0.641 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
