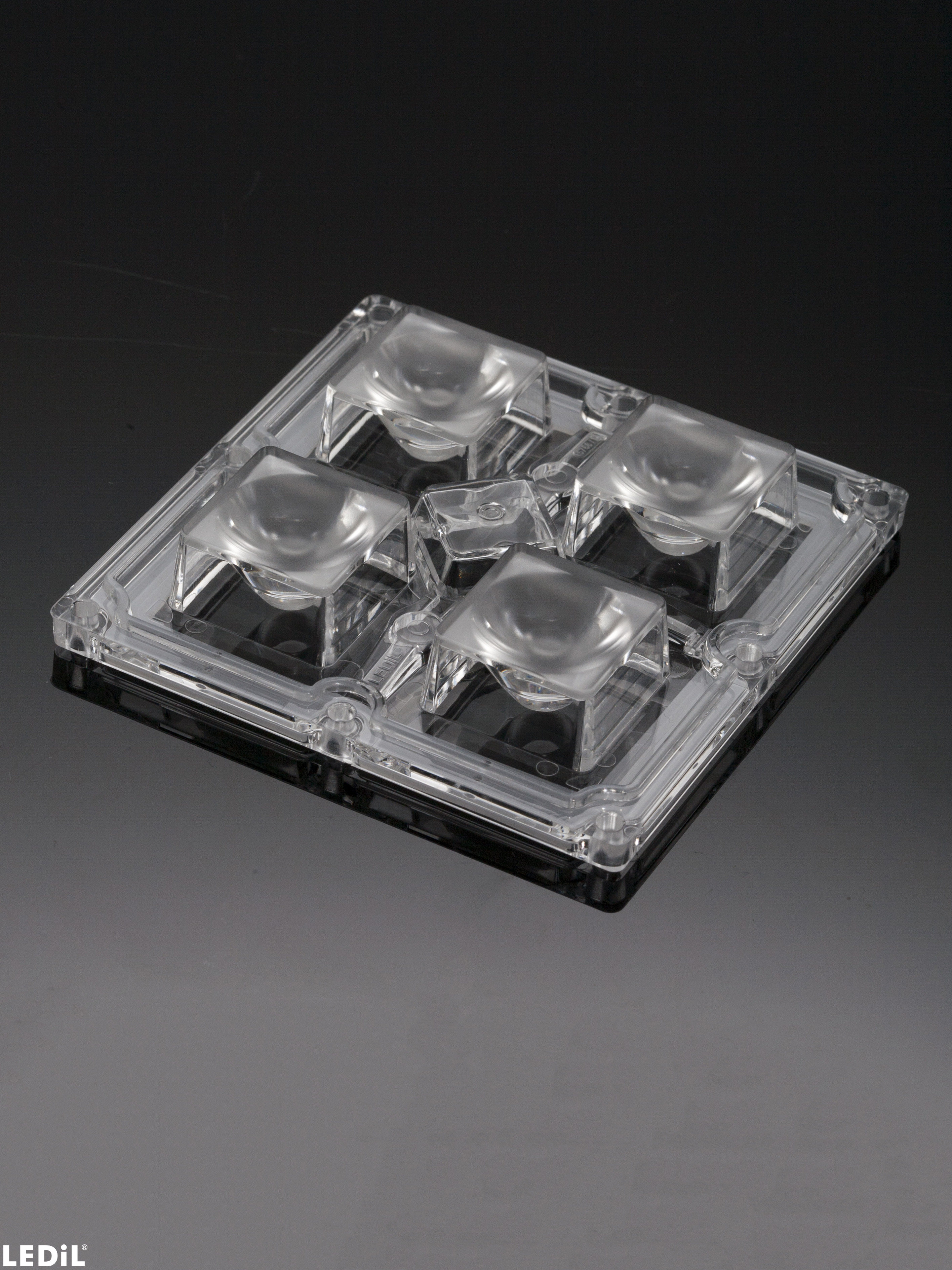

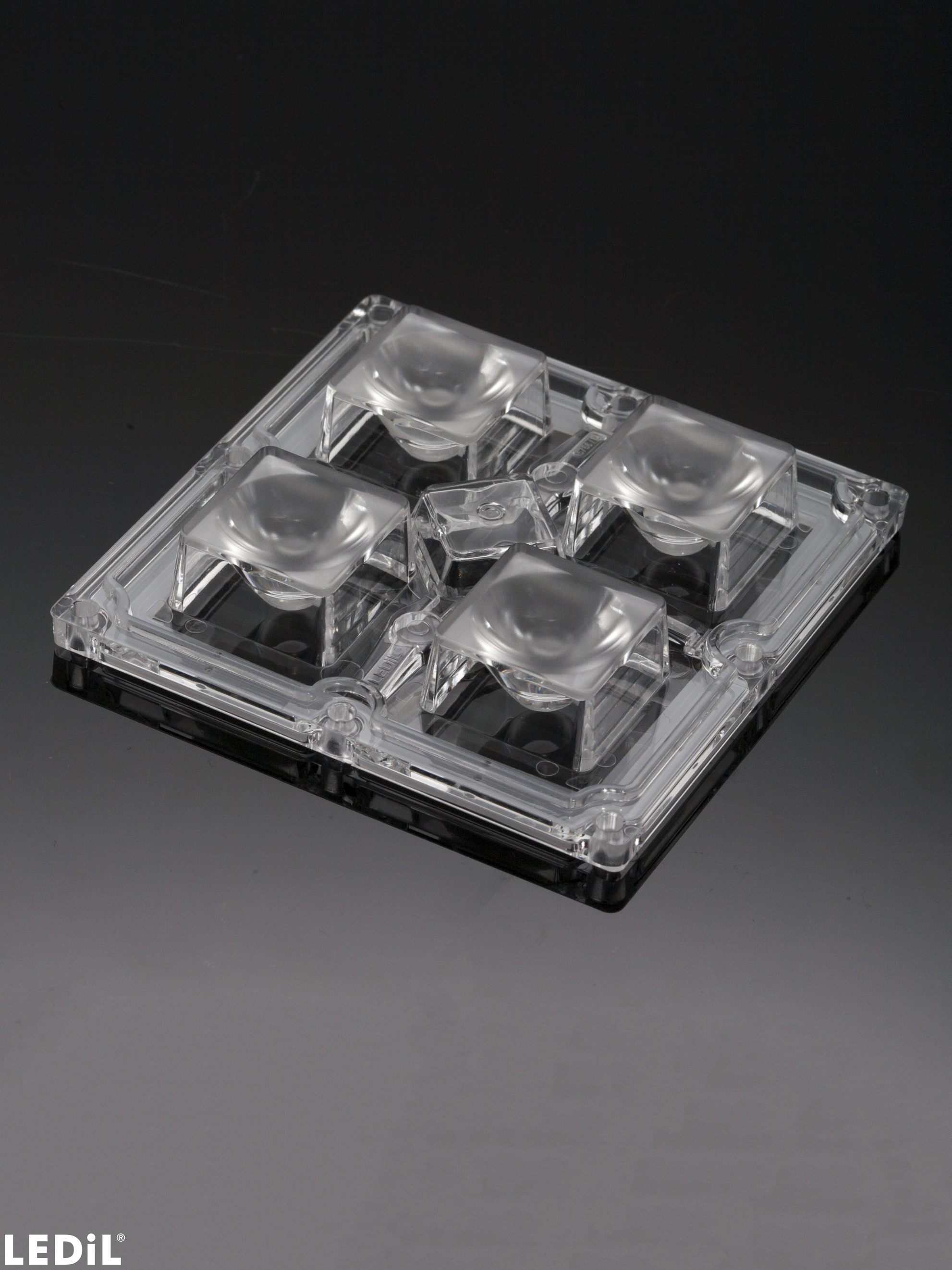

CS15767_HB-2X2MX-8-M
Print~30° wide beam. New revision.
Specification
-
Dimensions:90 x 90 mm
-
Height:16.38 mm
-
Fastening:screw
-
Colour:clear
-
Ingress protection classes:IP67
-
RoHS and REACH compliant:Yes
Materials
- HB-2X2MX-8-M, Multi-lens, PMMA
- STRADA-2X2MX-8-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:156 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:8.3 kg
-
MPQ:52 pcs
-
MOQ:52 pcs
-
MOQ size:480 x 280 x 110 mm
-
MOQ weight:2.9 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

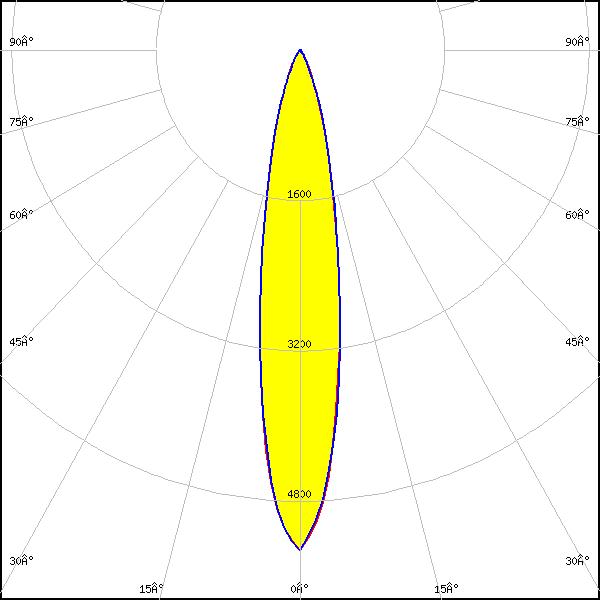

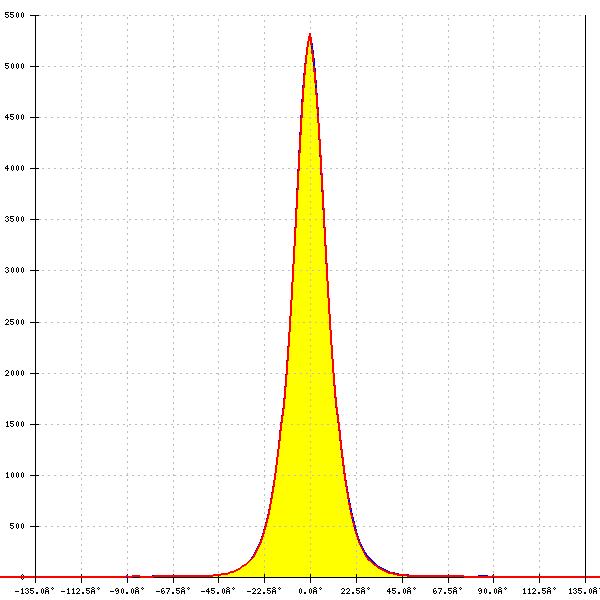

LED:
Bridgelux SMD 5050
FWHM:
19°
FWTM:
43°
Peak intensity:
5.320 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

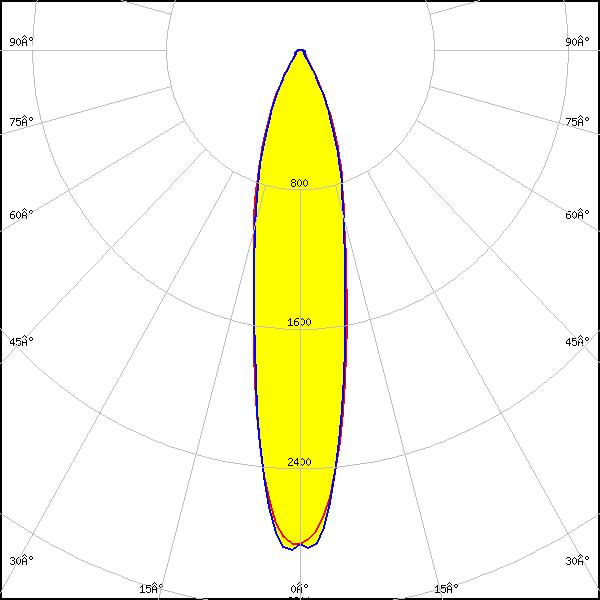

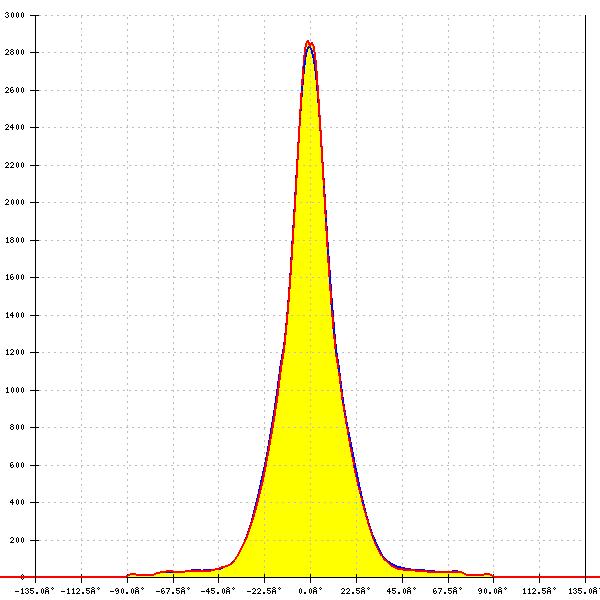

LED:
CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM:
22°
FWTM:
58°
Peak intensity:
2.870 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

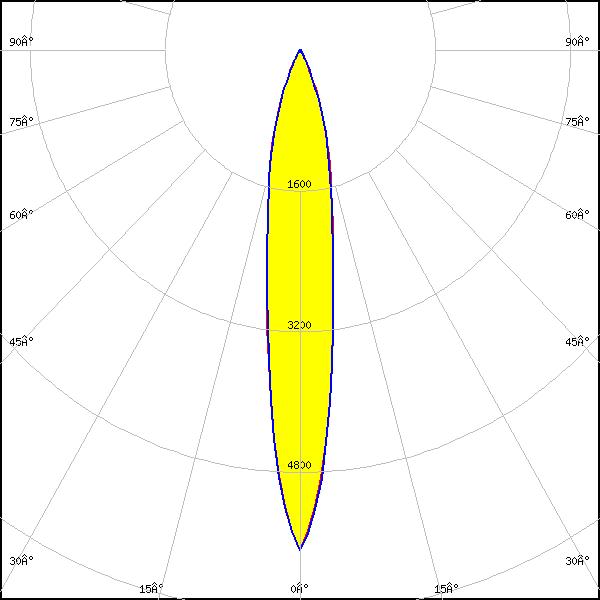

LED:
CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM:
16°
FWTM:
44°
Peak intensity:
5.688 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

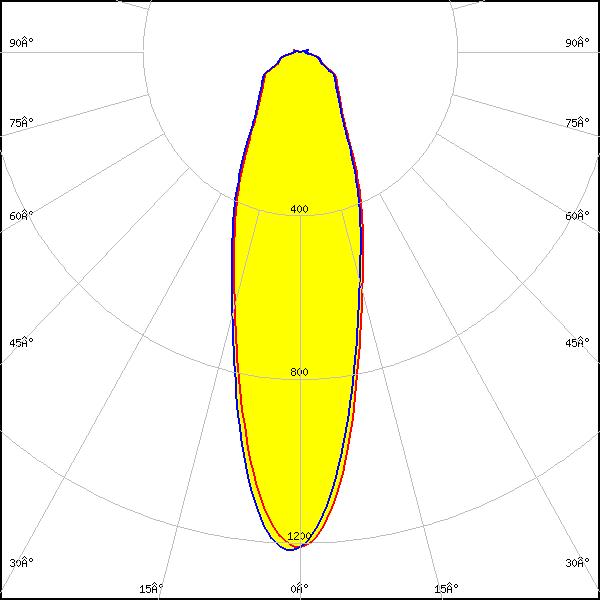

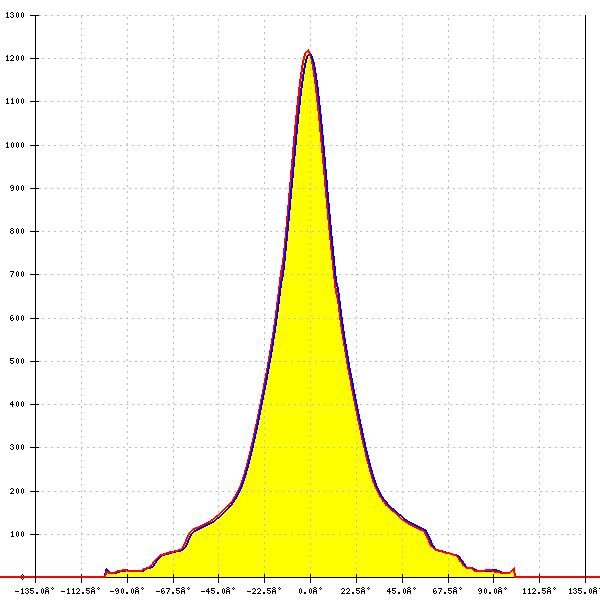

LED:
CXA/B 15xx
Required components:
Bender Wirth: 441 Typ 2x2MX HV
FWHM:
31°
FWTM:
101°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

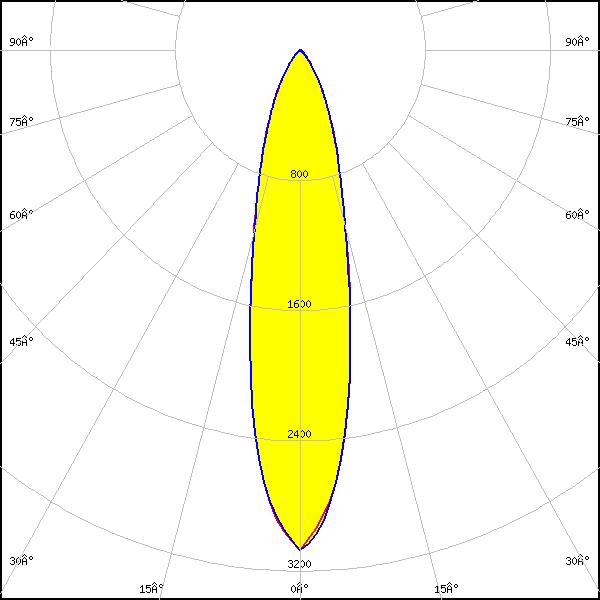

LED:
J Series 7070B K Class
FWHM:
24°
FWTM:
58°
Peak intensity:
3.073 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

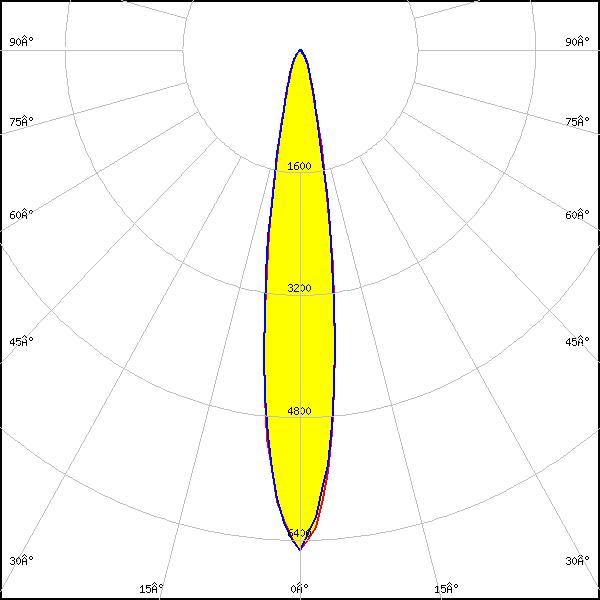

LED:
XHP35 HD
FWHM:
17°
FWTM:
34°
Peak intensity:
6.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

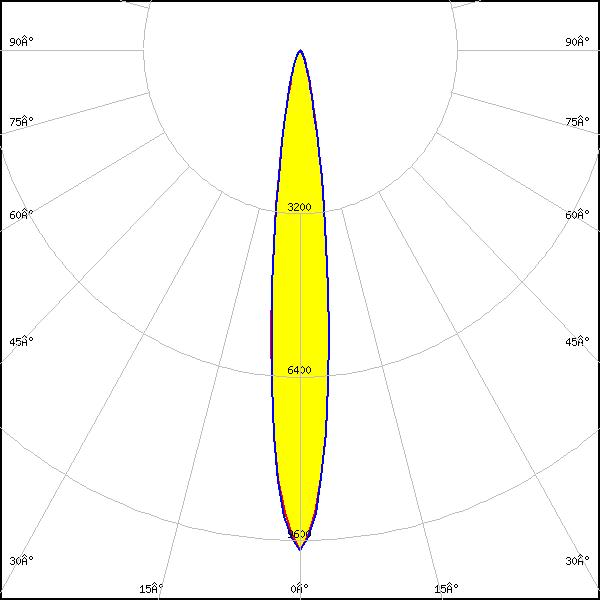

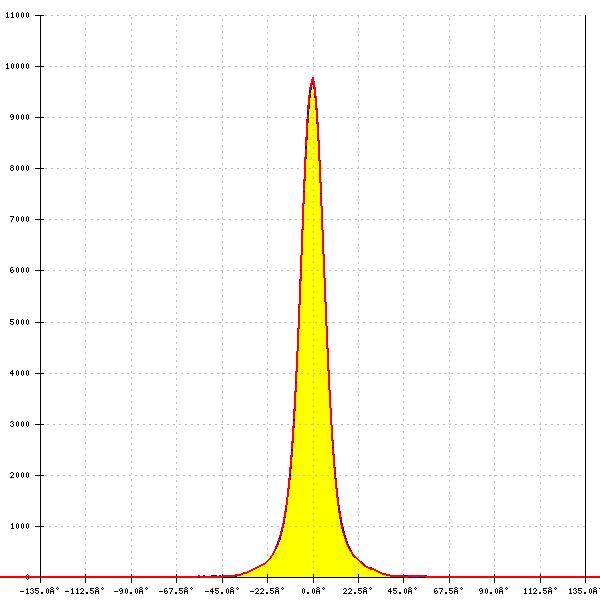

LED:
XHP35 HI
FWHM:
14°
FWTM:
30°
Peak intensity:
9.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

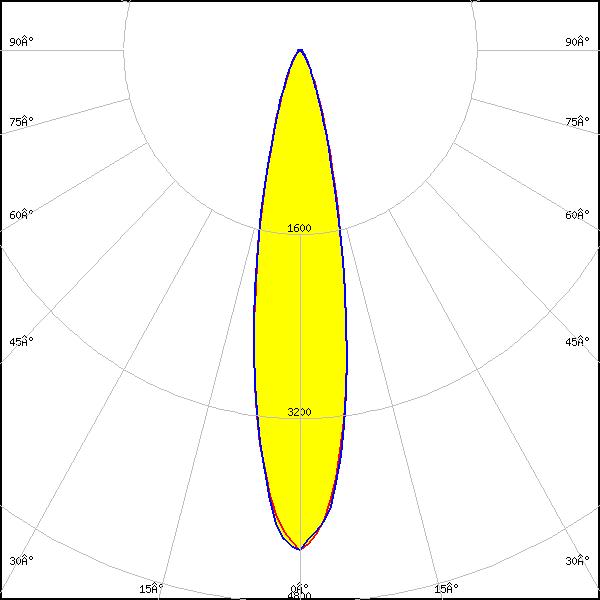

LED:
XHP50.2
FWHM:
22°
FWTM:
44°
Peak intensity:
4.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

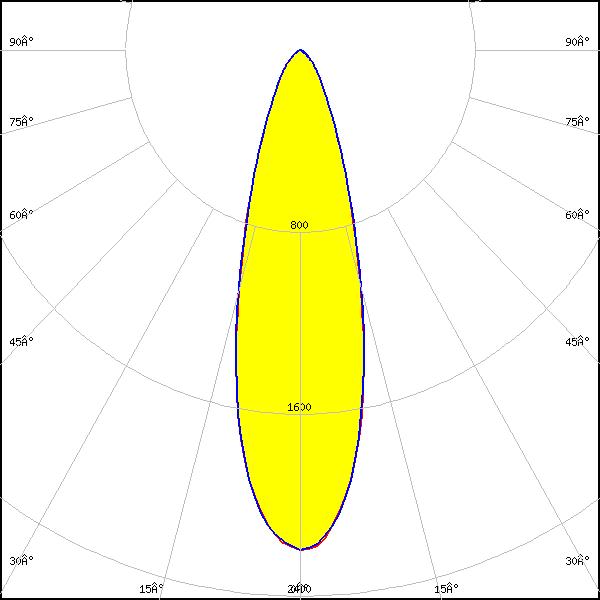

LED:
XHP70.2
FWHM:
30°
FWTM:
62°
Peak intensity:
2.204 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

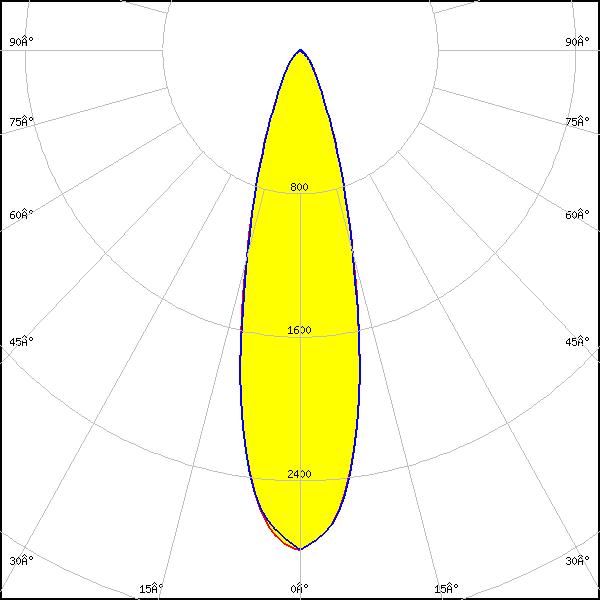

LED:
XHP70.3 HD
FWHM:
28°
FWTM:
56°
Peak intensity:
2.789 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 7070
FWHM:
24°
FWTM:
58°
Peak intensity:
3.175 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

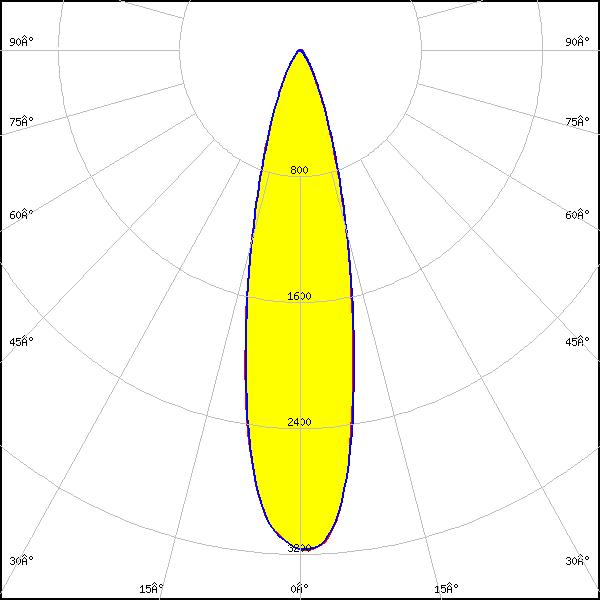

LED:
LUXEON M/MX
FWHM:
25°
FWTM:
52°
Peak intensity:
3.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

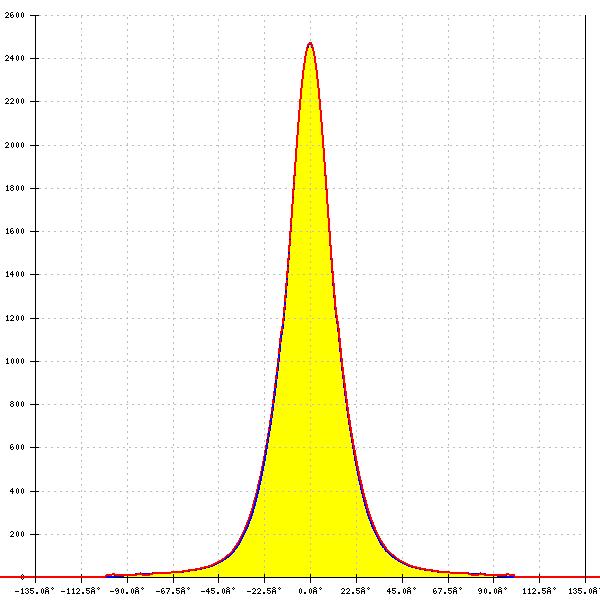

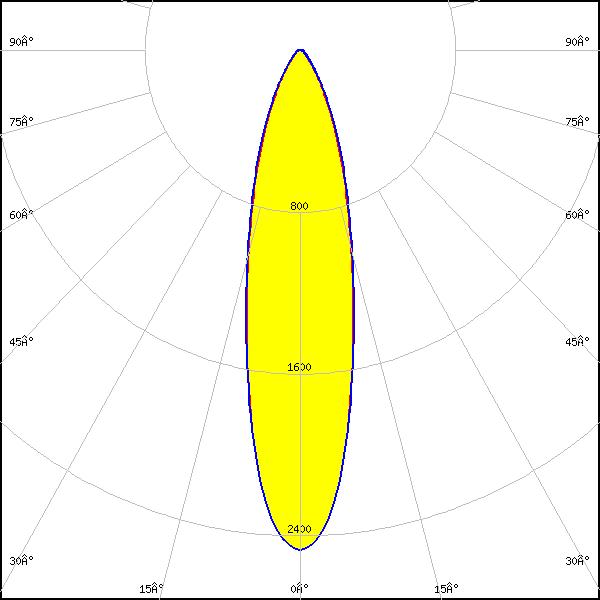

LED:
LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM:
26°
FWTM:
61°
Peak intensity:
2.472 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

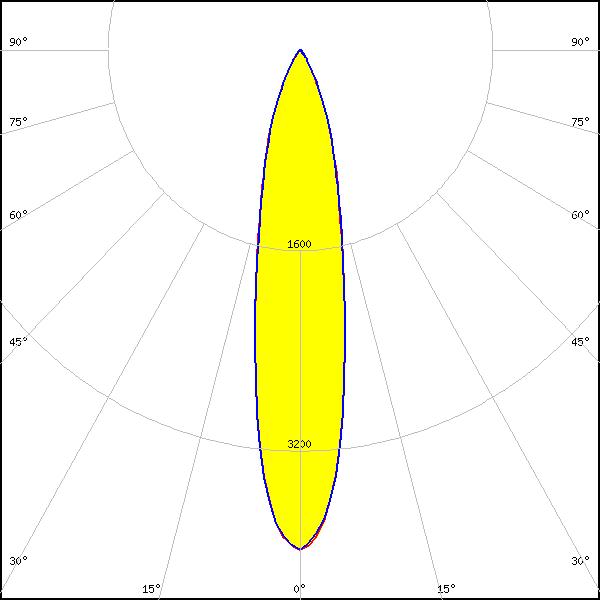

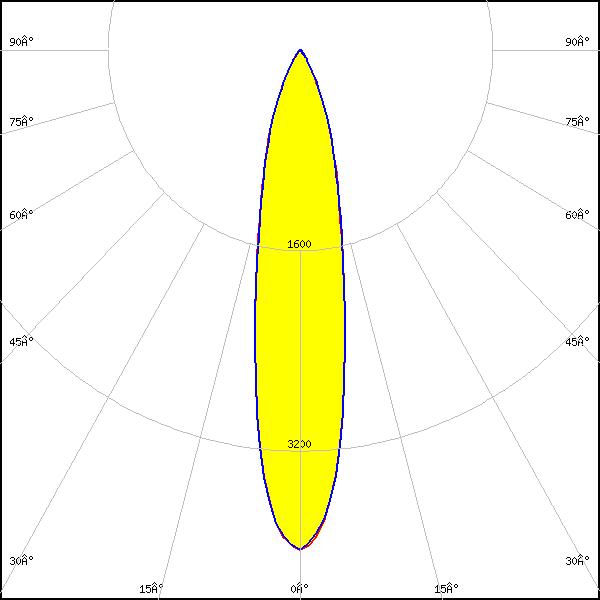

LED:
MP 7070
FWHM:
22°
FWTM:
52°
Peak intensity:
3.994 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

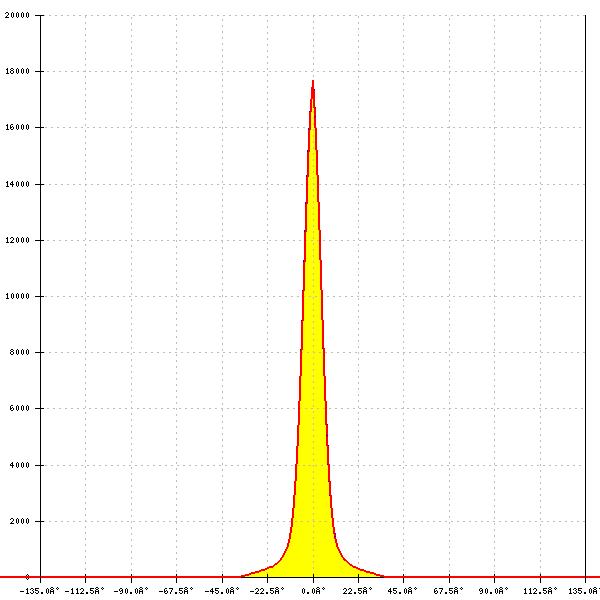

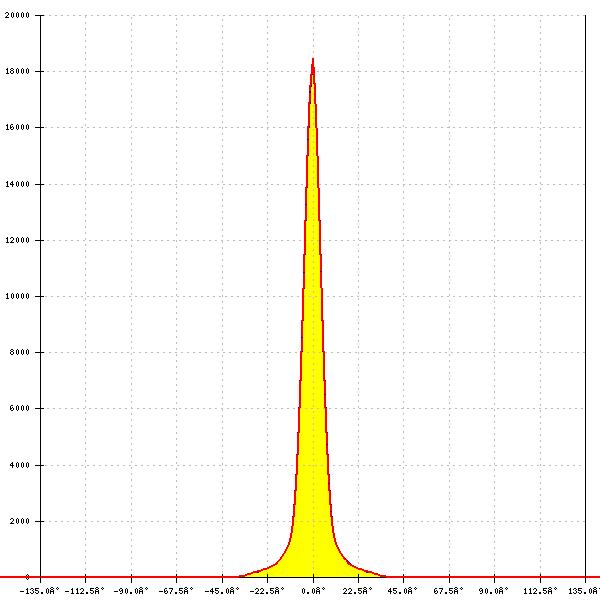

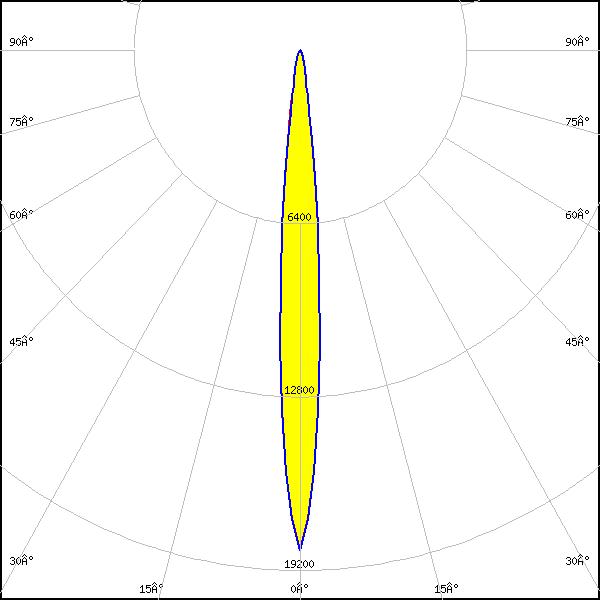

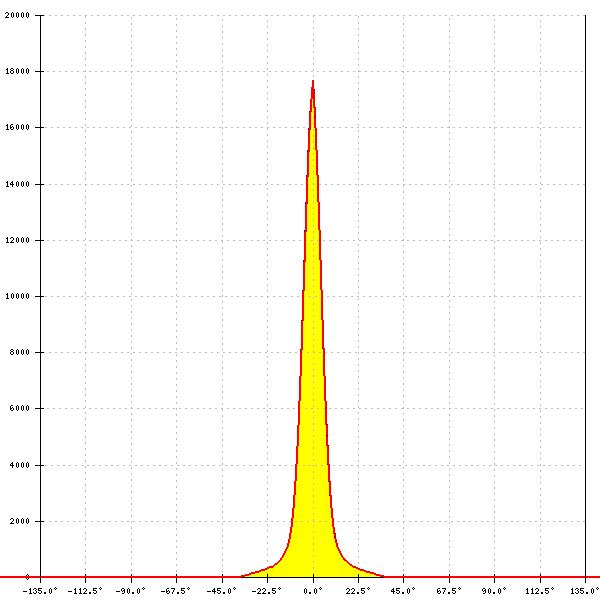

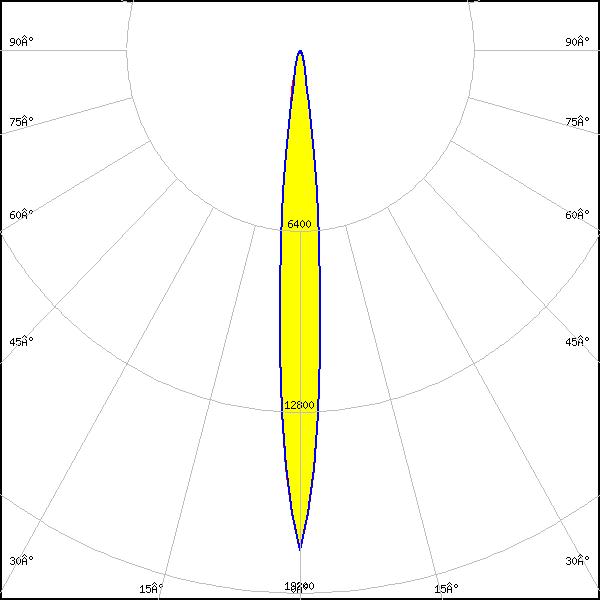

LED:
SFT-40-WCS
FWHM:
10°
FWTM:
20°
Peak intensity:
17.689 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

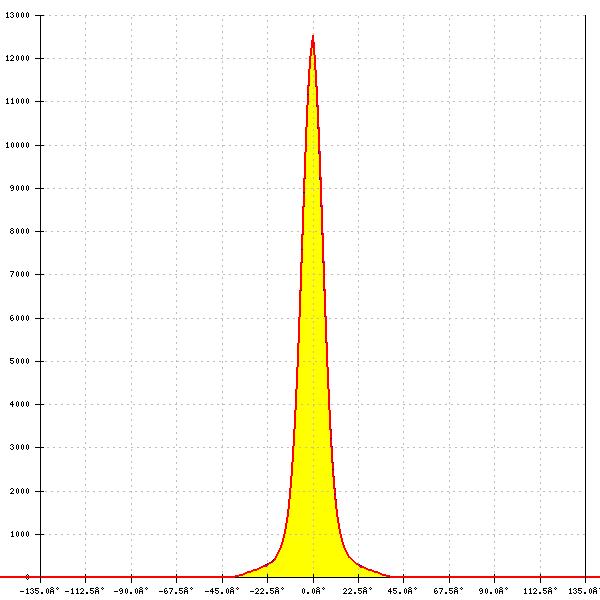

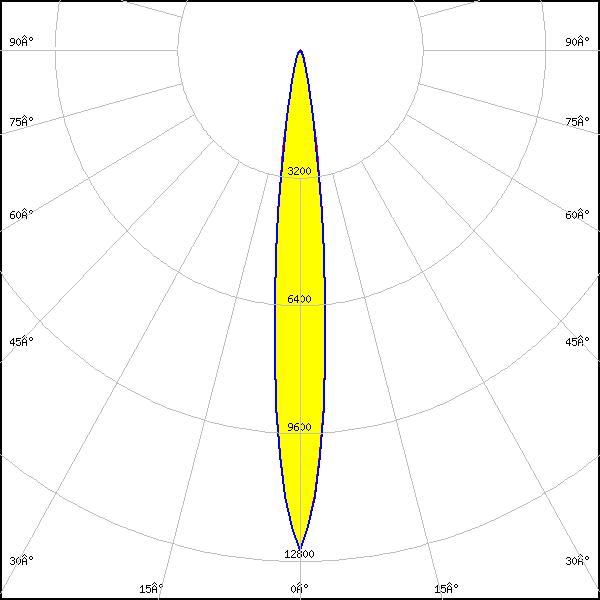

LED:
SFT-70X-WCS
FWHM:
12°
FWTM:
26°
Peak intensity:
12.527 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

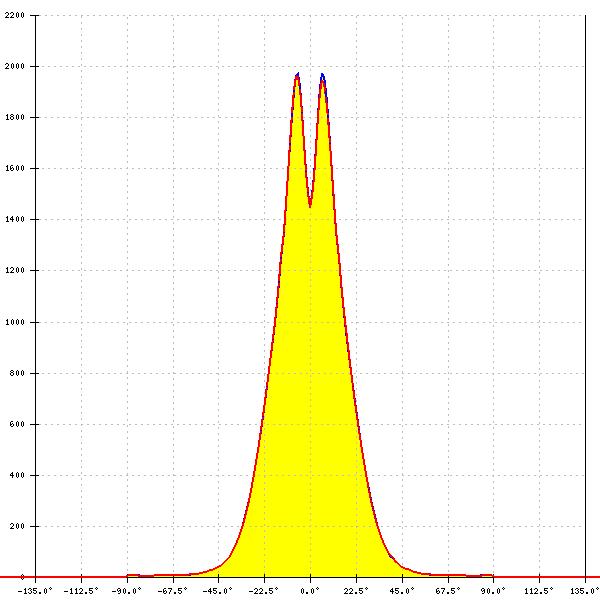

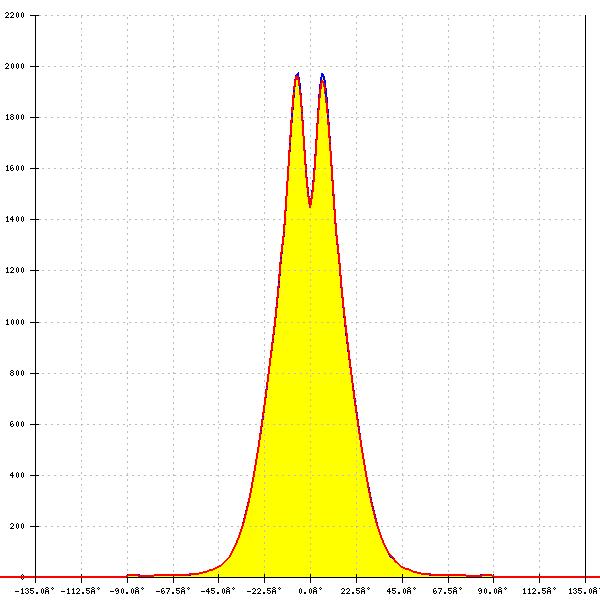

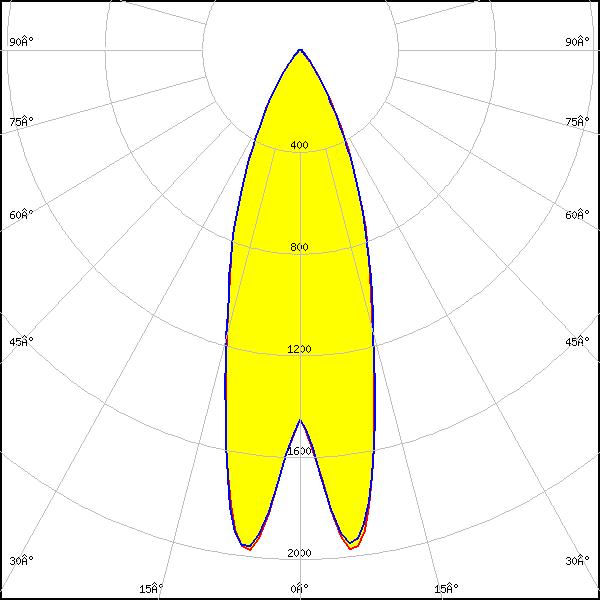

LED:
NF2x757G
FWHM:
34°
FWTM:
66°
Peak intensity:
1.987 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
White

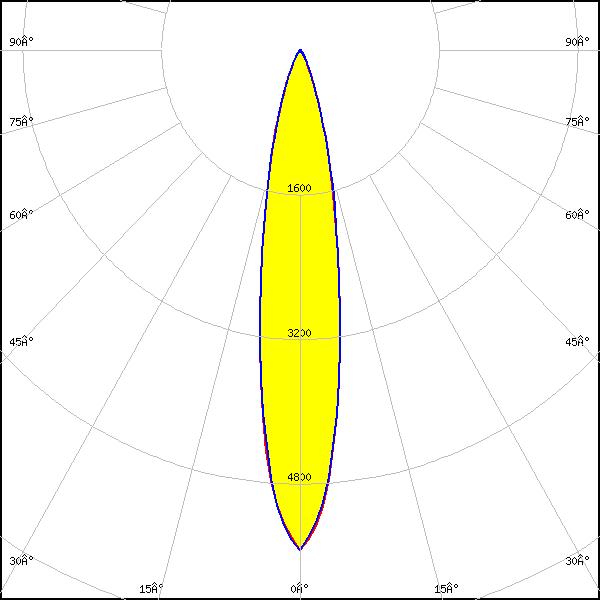

LED:
NFMW48xA
FWHM:
19°
FWTM:
42°
Peak intensity:
5.530 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

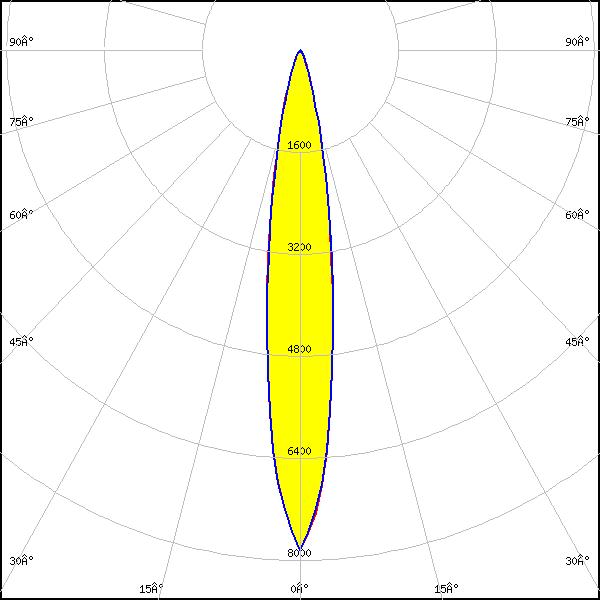

LED:
NV4WB35AM
FWHM:
16°
FWTM:
34°
Peak intensity:
7.846 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

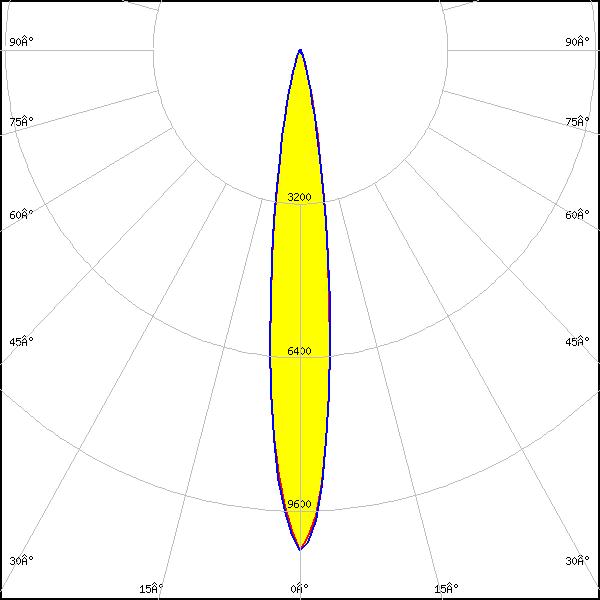

LED:
NVSxE21A
FWHM:
14°
FWTM:
28°
Peak intensity:
10.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

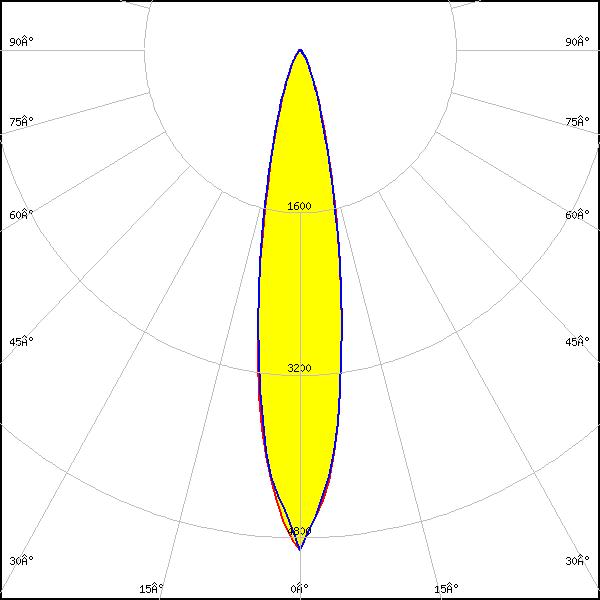

LED:
Duris S10
FWHM:
20°
FWTM:
43°
Peak intensity:
4.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 2424
FWHM:
28°
FWTM:
52°
Peak intensity:
3.287 cd/lm
Efficiency:
97 %
LEDs/each optic:
4
Light colour/type:
White

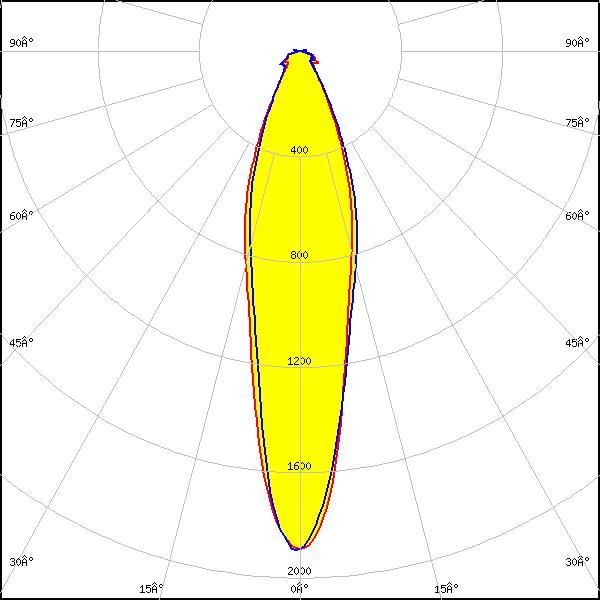

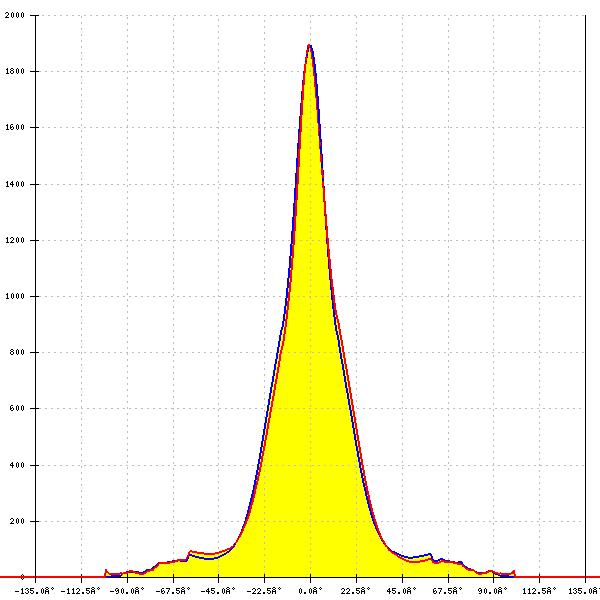

LED:
HiLOM SC16 (LH181B)
FWHM:
25°
FWTM:
64°
Peak intensity:
1.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

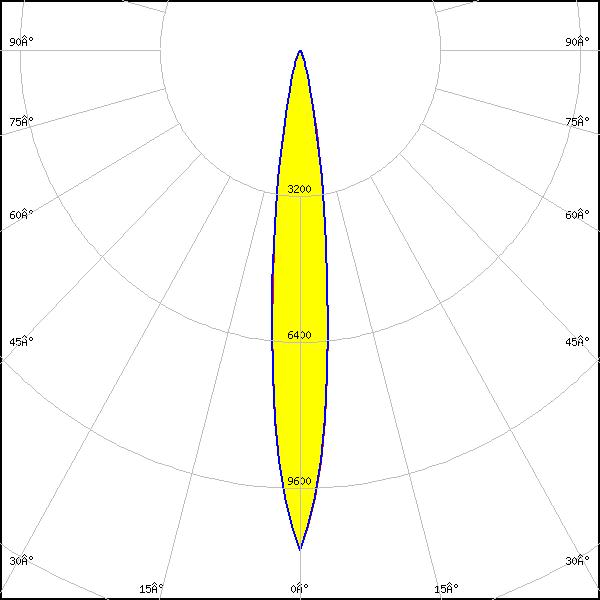

LED:
LH181B
FWHM:
14°
FWTM:
28°
Peak intensity:
10.961 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

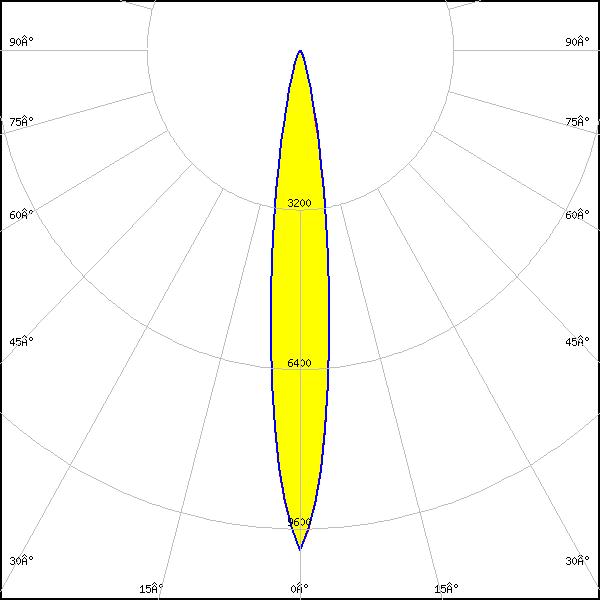

LED:
LH231B
FWHM:
14°
FWTM:
30°
Peak intensity:
10.028 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

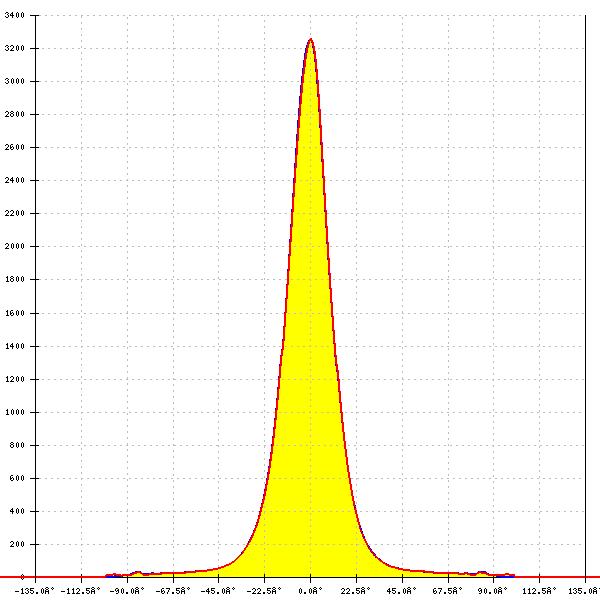

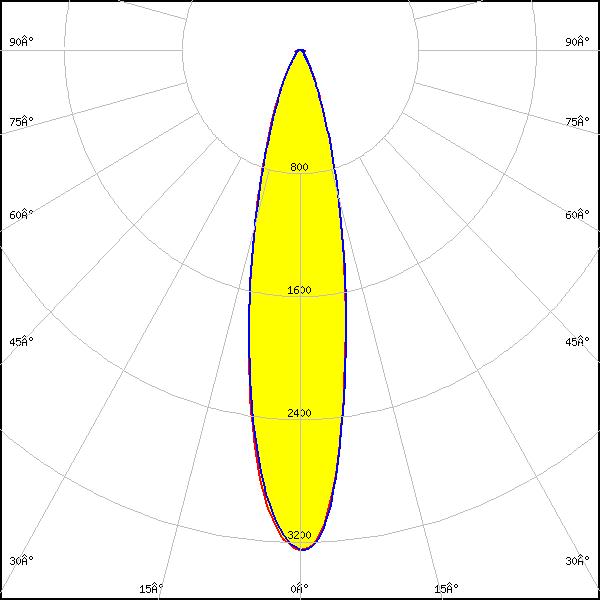

LED:
XLE-S22C4XD16 (XD16)
FWHM:
23°
FWTM:
50°
Peak intensity:
3.252 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White

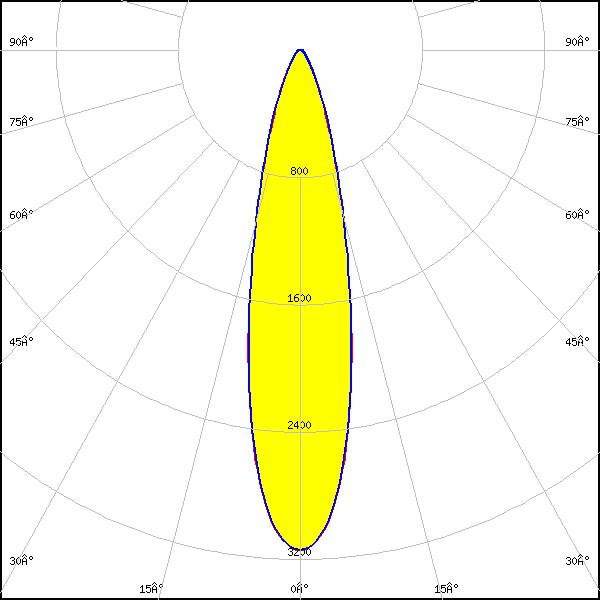

LED:
WICOP 5050
FWHM:
24°
FWTM:
51°
Peak intensity:
3.148 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

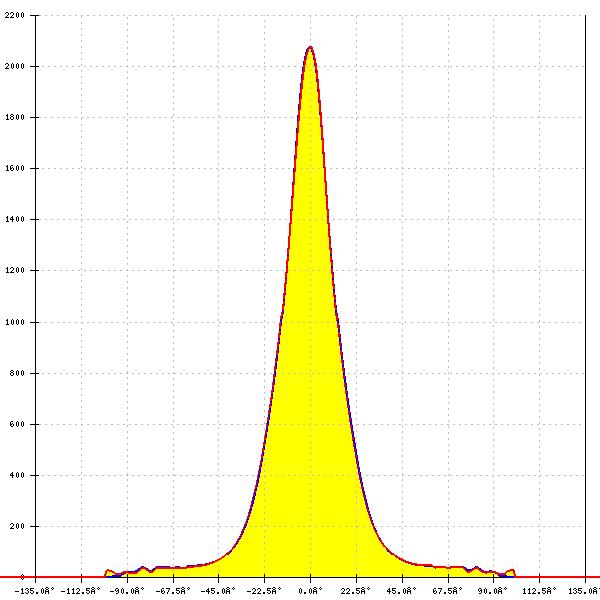

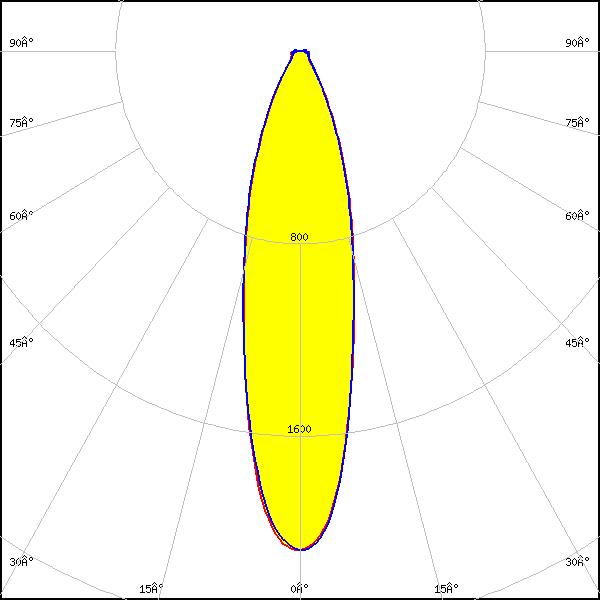

LED:
Z8Y22
FWHM:
27°
FWTM:
63°
Peak intensity:
2.075 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
White
