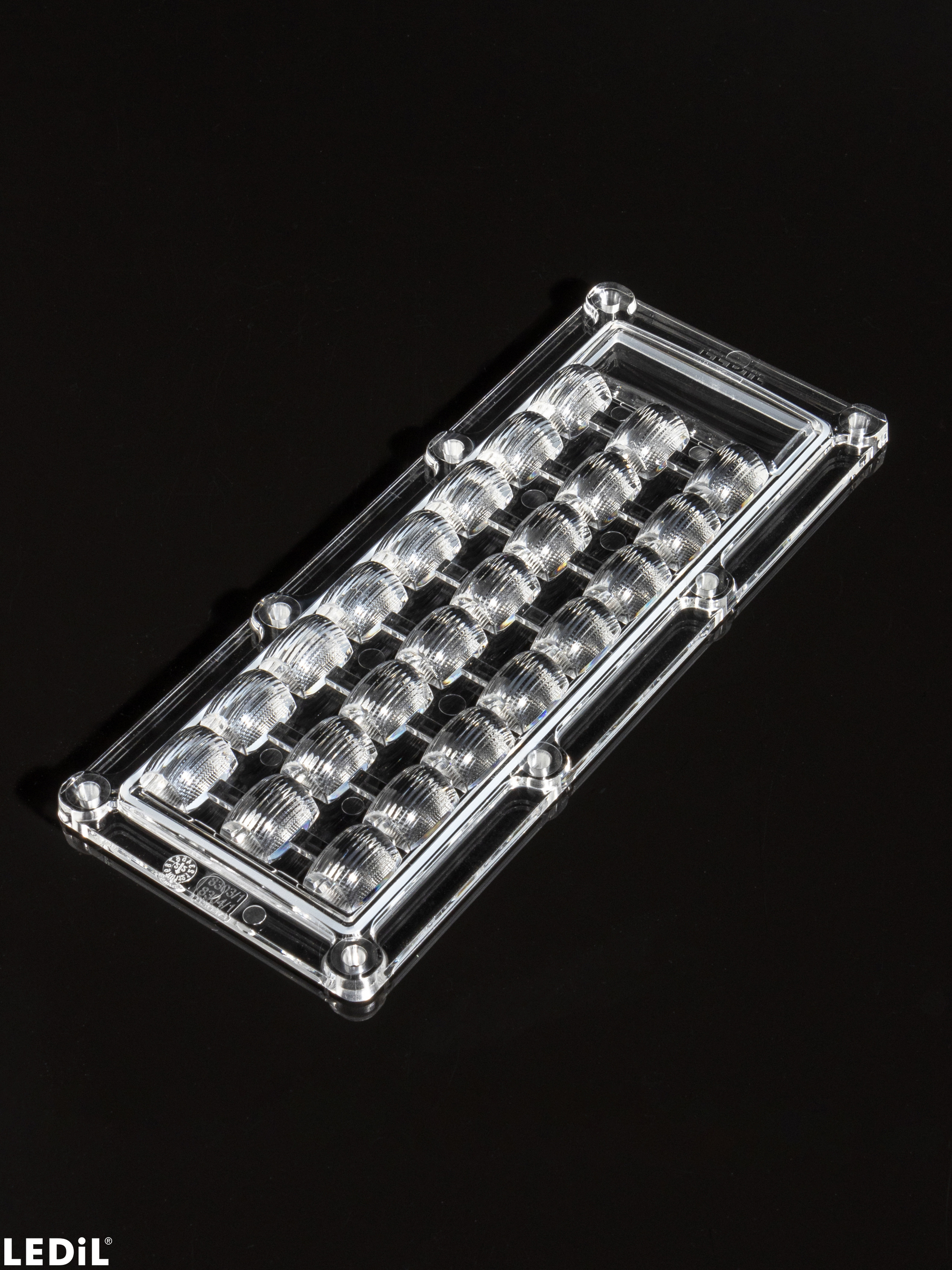

CS18305_HB-IP-24-O
Print

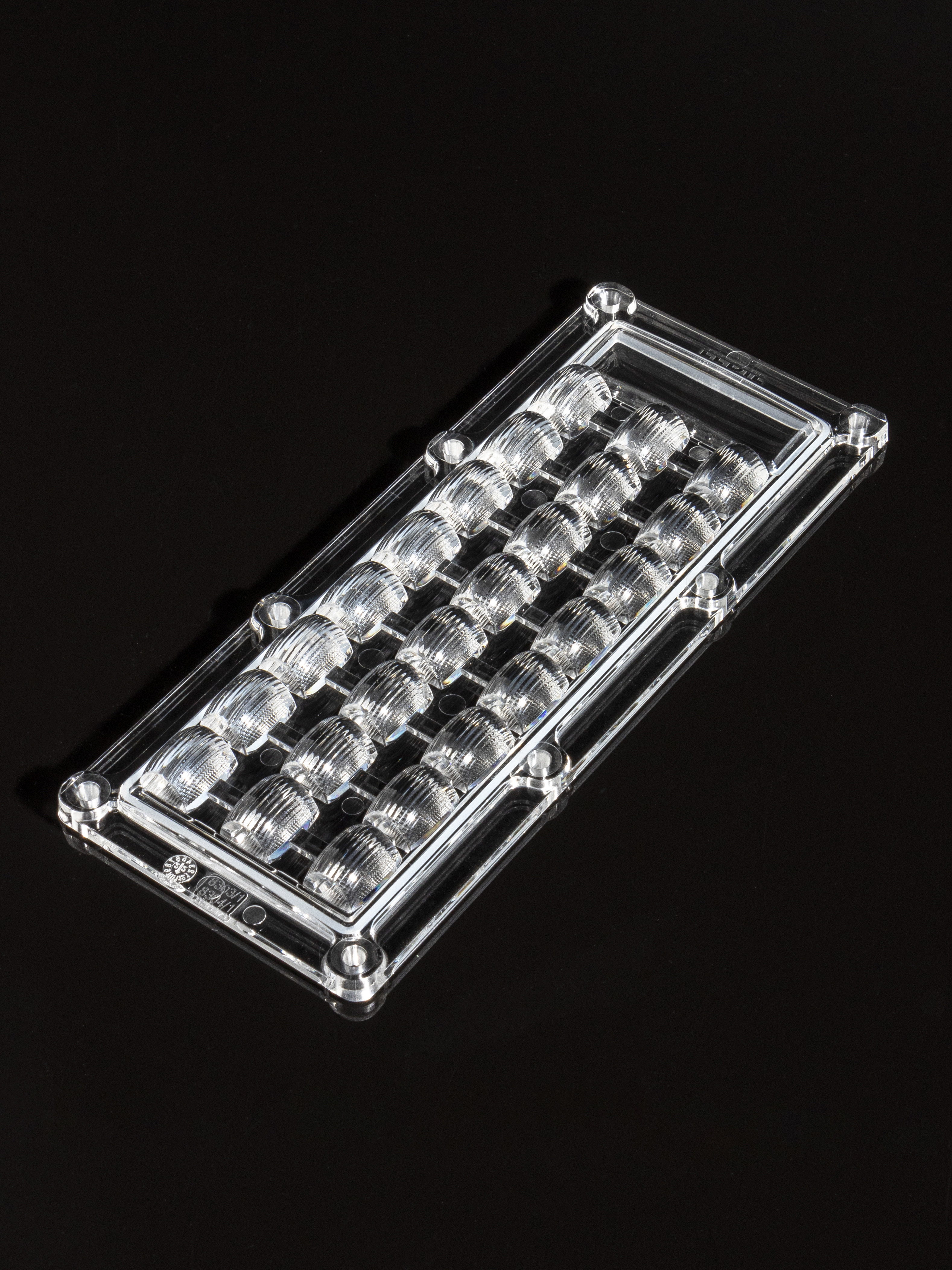

~40° + 75° oval beam for aisle lighting
Component Materials
- HB-IP-24-OMulti-lensPMMA
- STRADA-IP-24-SEALSealSilicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

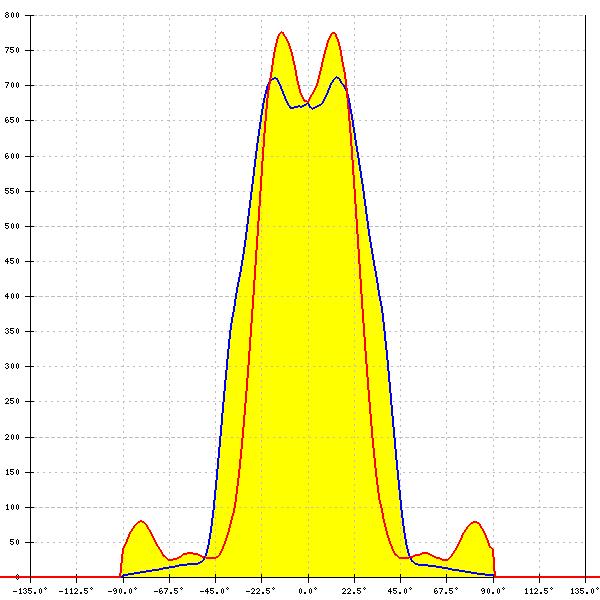

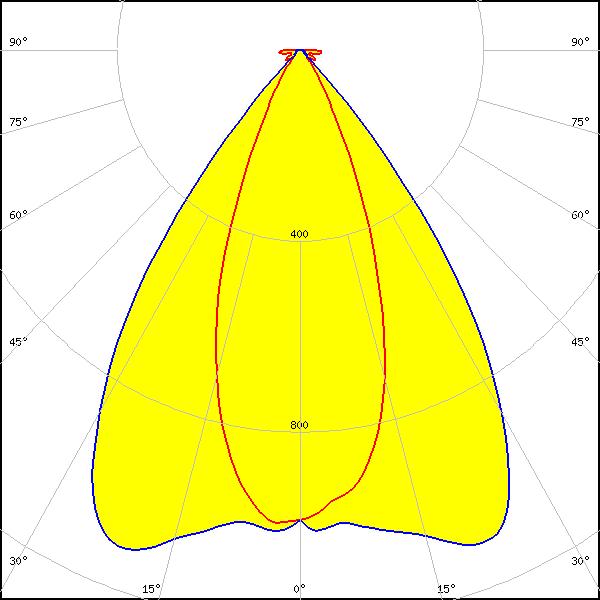

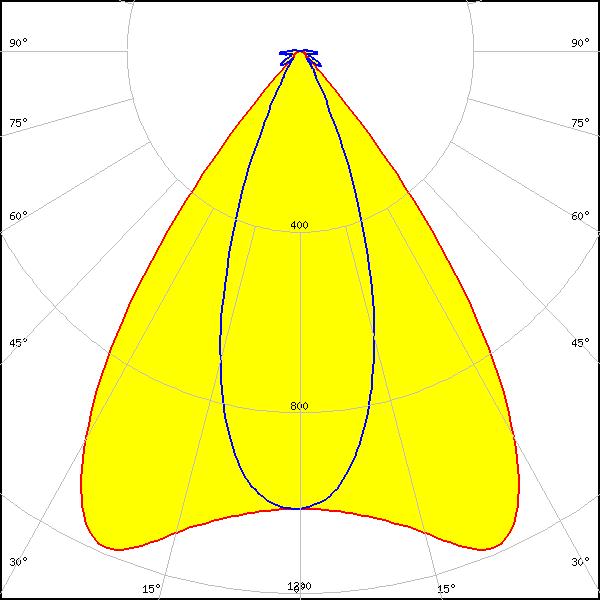

Optical results
LED:
LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
FWHM:
73° + 39°
FWTM:
88° + 63°
Peak intensity:
1.168 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

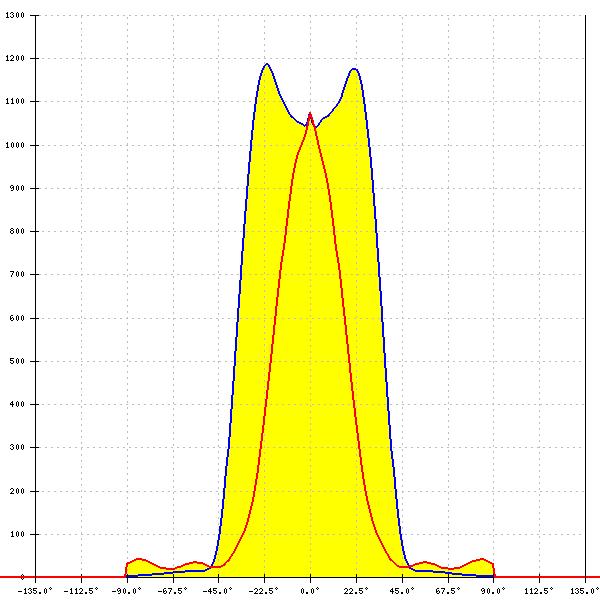

LED:

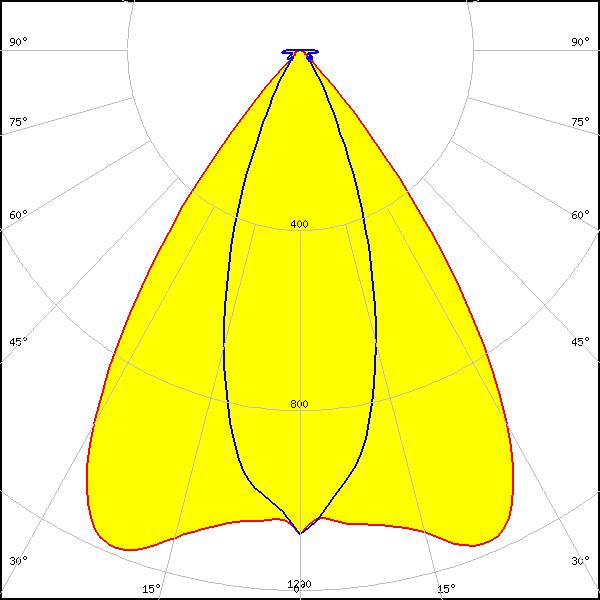

J Series 5050C 6V E Class
FWHM:
72° + 36°
FWTM:
88° + 64°
Peak intensity:
1.186 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

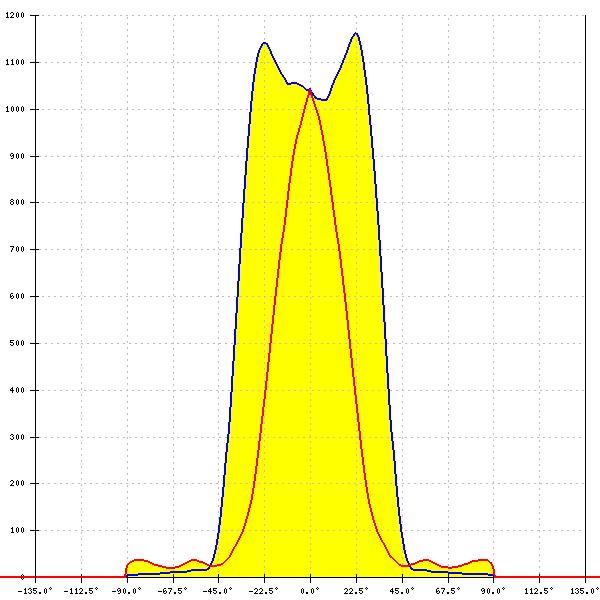

LED:

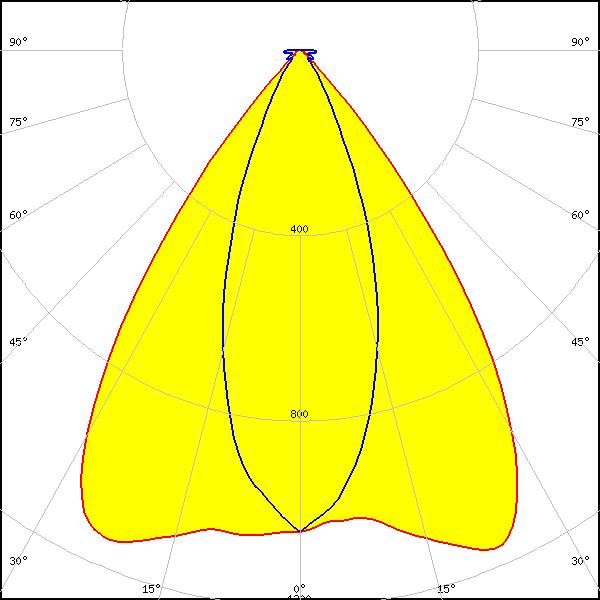

LUXEON 5050 HE
FWHM:
72° + 38°
FWTM:
88° + 66°
Peak intensity:
1.161 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

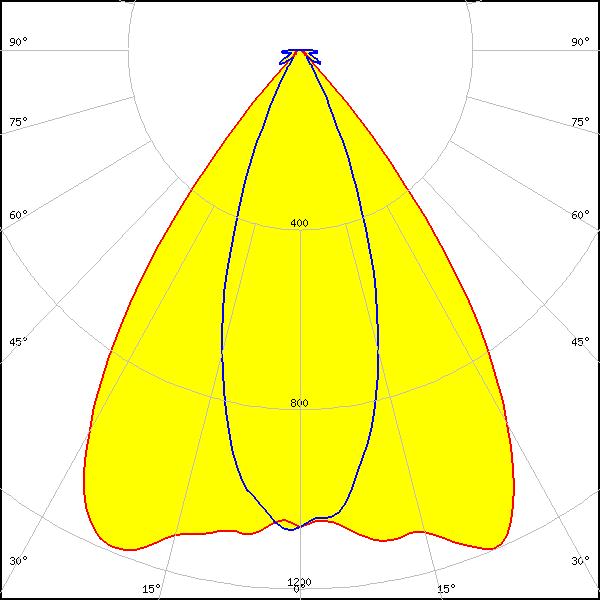

LUXEON 5050 Round LES
FWHM:
72° + 38°
FWTM:
88° + 62°
Peak intensity:
1.198 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
73° + 38°
FWTM:
88° + 63°
LEDs/each optic:
1
Light colour/type:
White
LED:

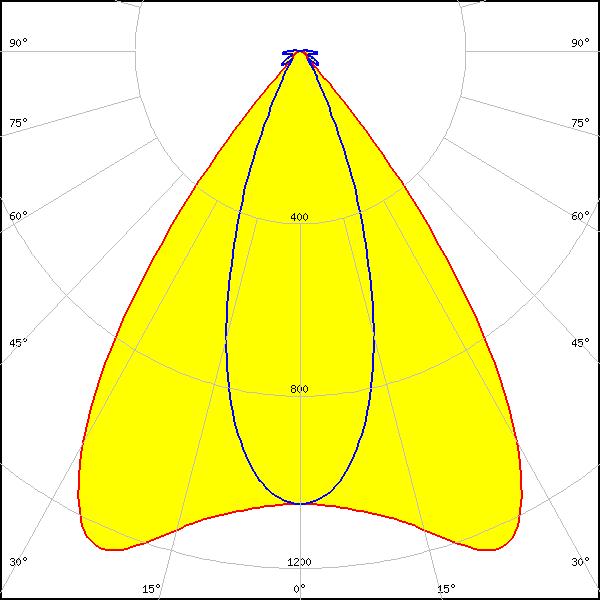

LUXEON XR-5050 HE (L225-xxxx024MLU010)
FWHM:
72° + 37°
FWTM:
86° + 62°
Peak intensity:
1.256 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

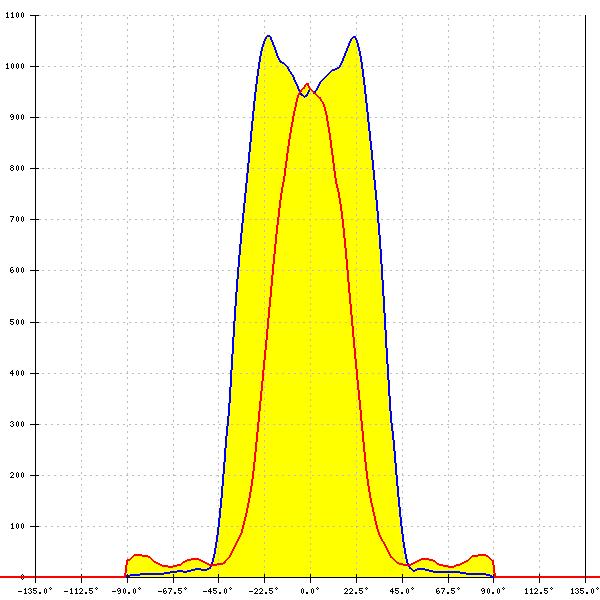

LED:

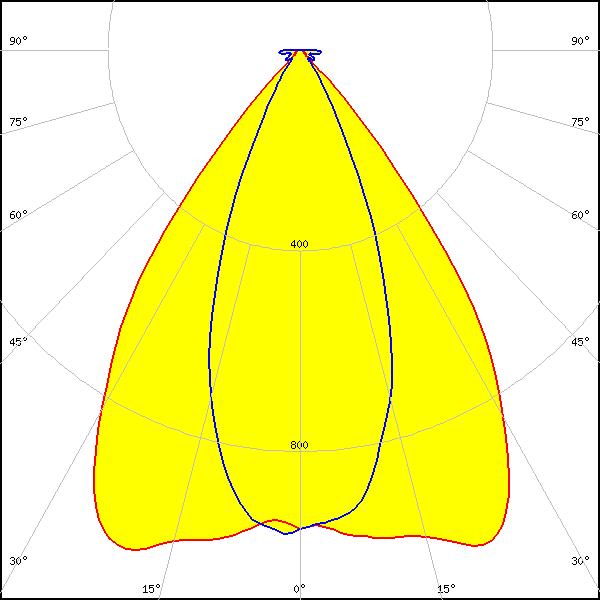

RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
FWHM:
74° + 42°
FWTM:
90° + 66°
Peak intensity:
1.060 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

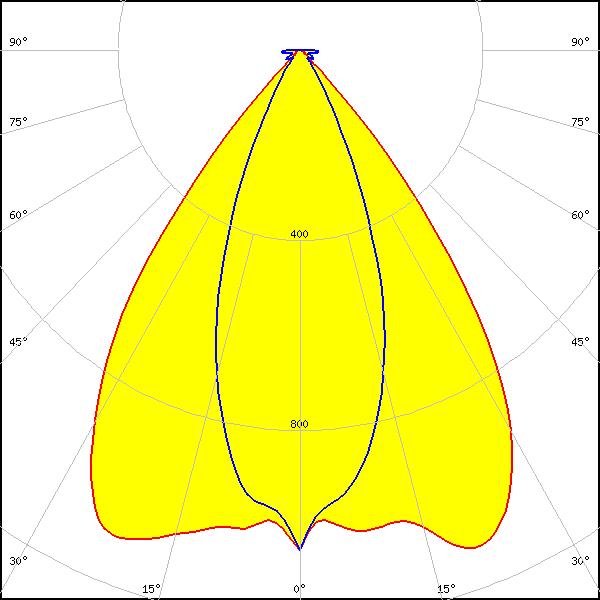

LED:

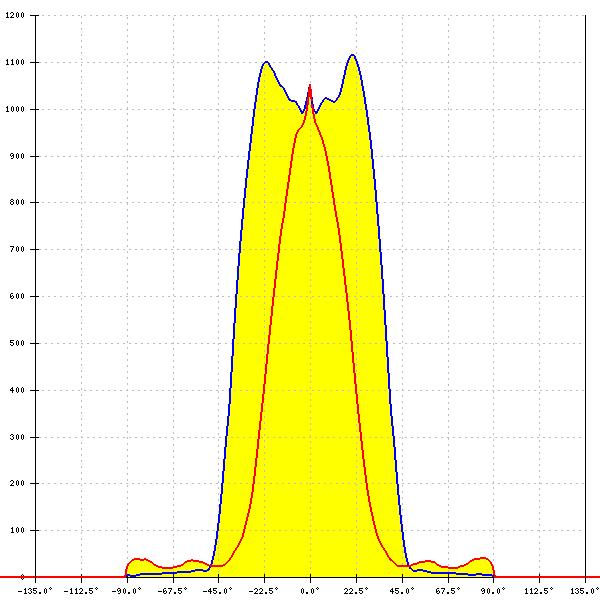

NFMW48xA
FWHM:
74° + 40°
FWTM:
90° + 64°
Peak intensity:
1.117 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

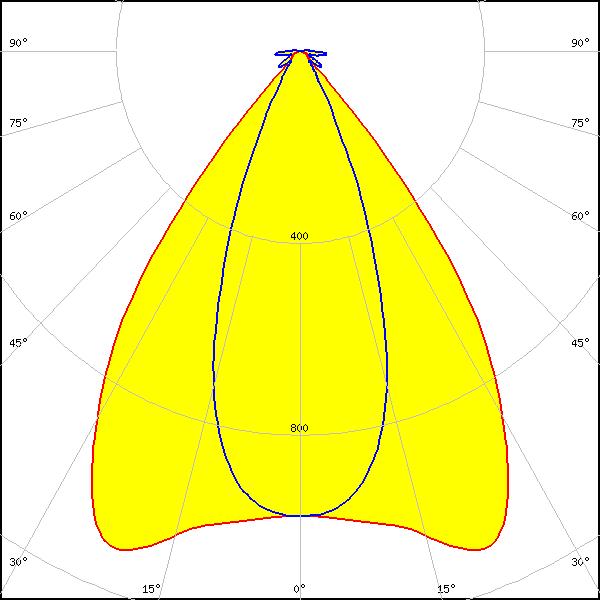

LED:
Duris S8
FWHM:
74° + 40°
FWTM:
88° + 63°
Peak intensity:
1.115 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

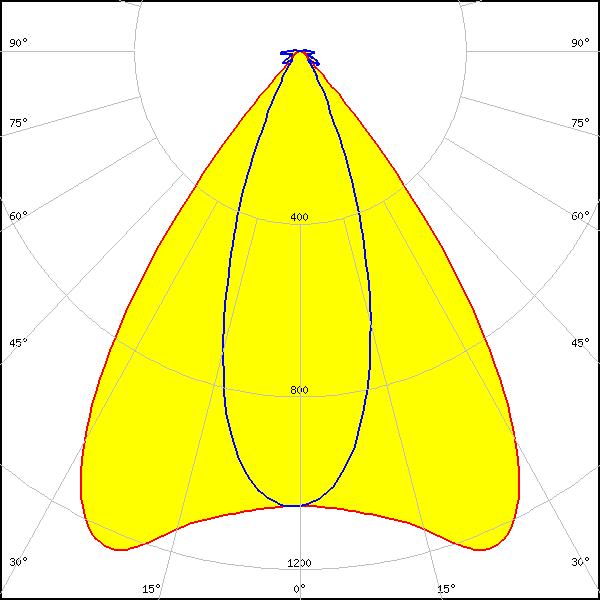

LED:

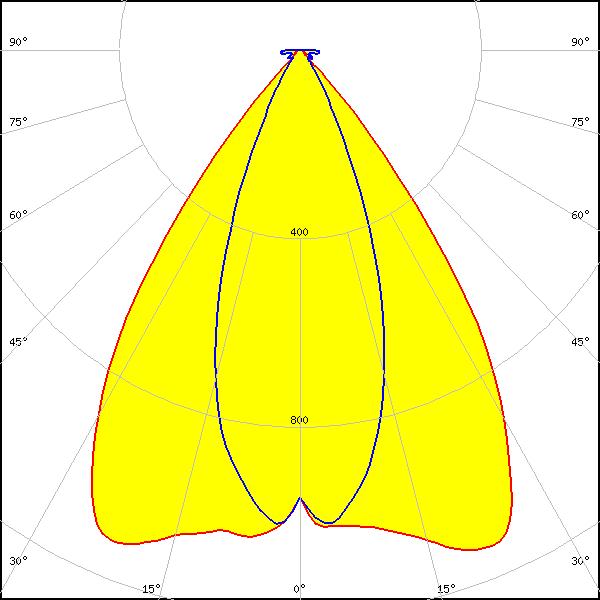

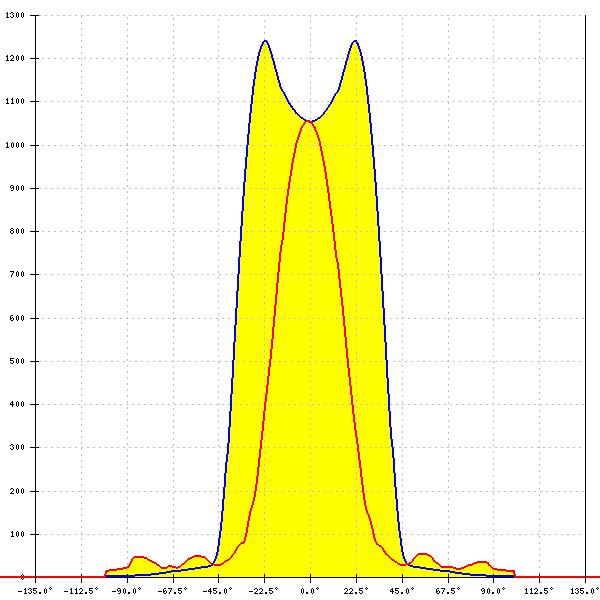

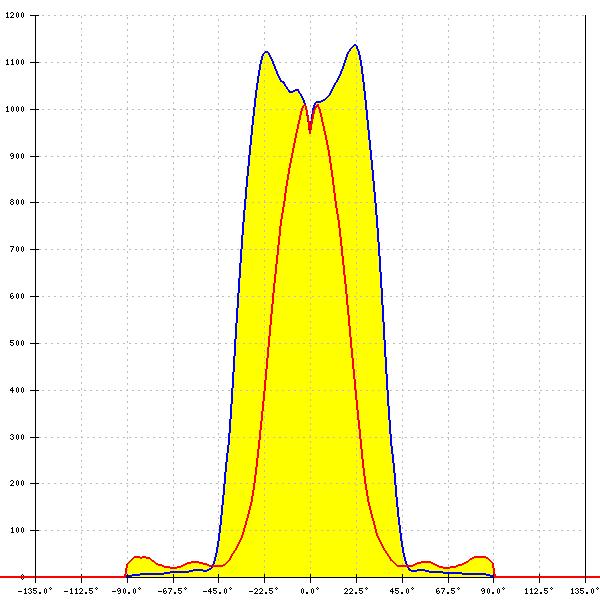

HiLOM RM24 ZP (LH502C)
FWHM:
72° + 40°
FWTM:
88° + 65°
Peak intensity:
1.135 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM24 ZP (LH502D)
FWHM:
73° + 37°
FWTM:
87° + 62°
Peak intensity:
1.245 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

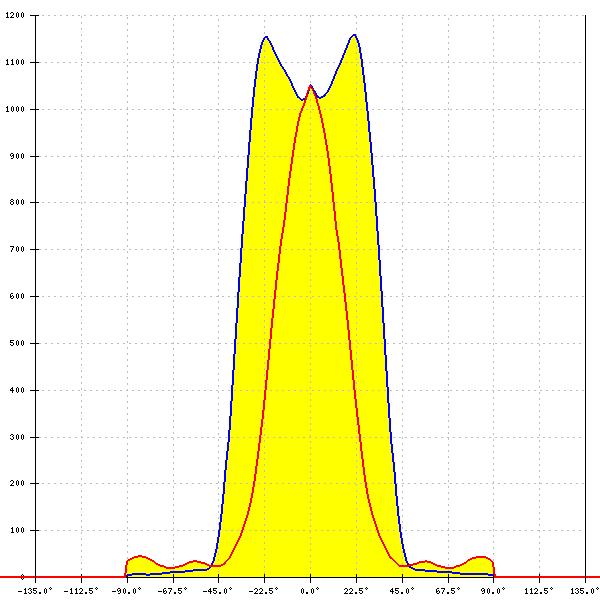

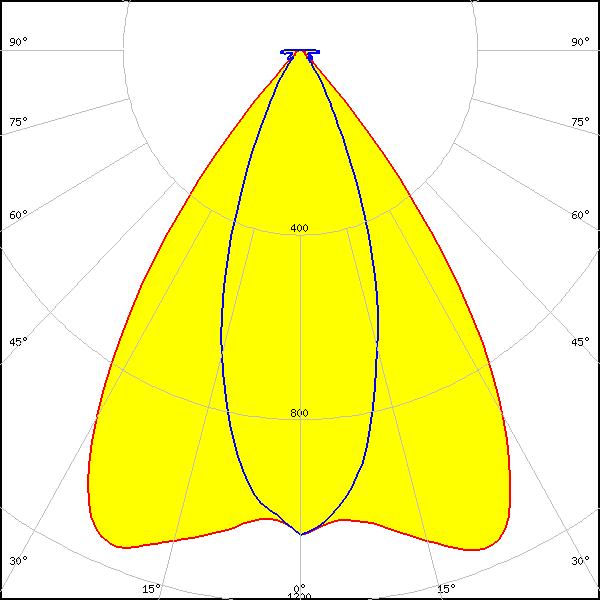

LH502D
FWHM:
72° + 38°
FWTM:
88° + 66°
Peak intensity:
1.157 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

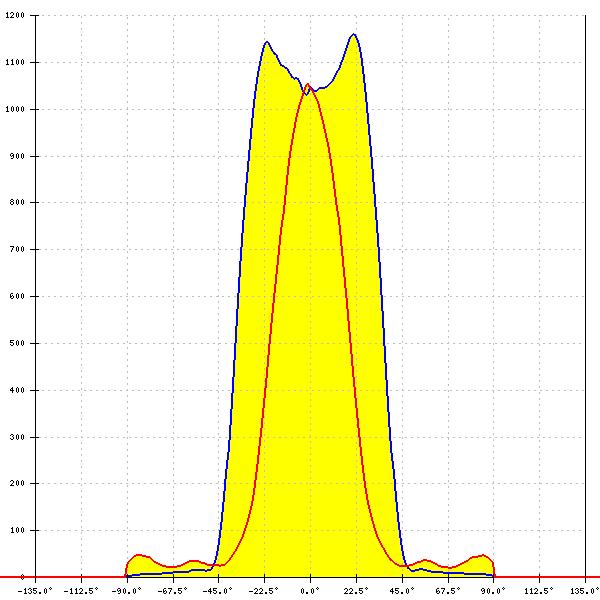

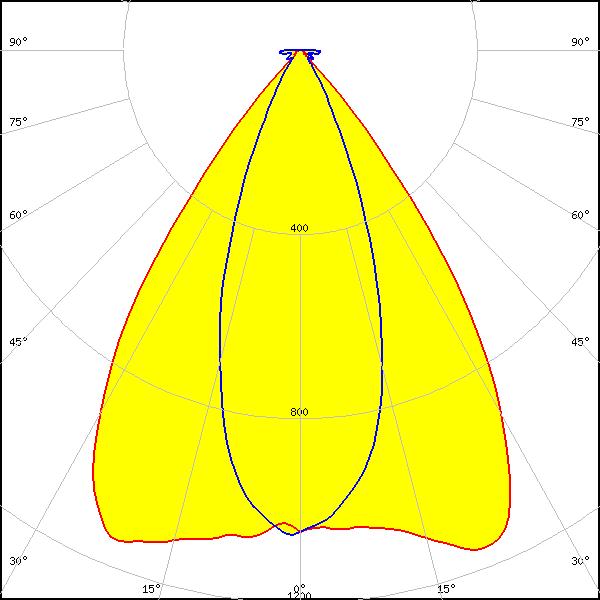

LH508C
FWHM:
72° + 38°
FWTM:
86° + 64°
Peak intensity:
1.159 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

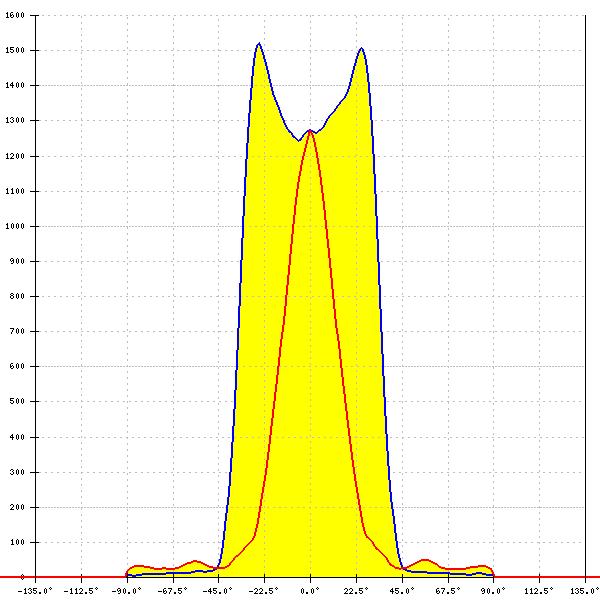

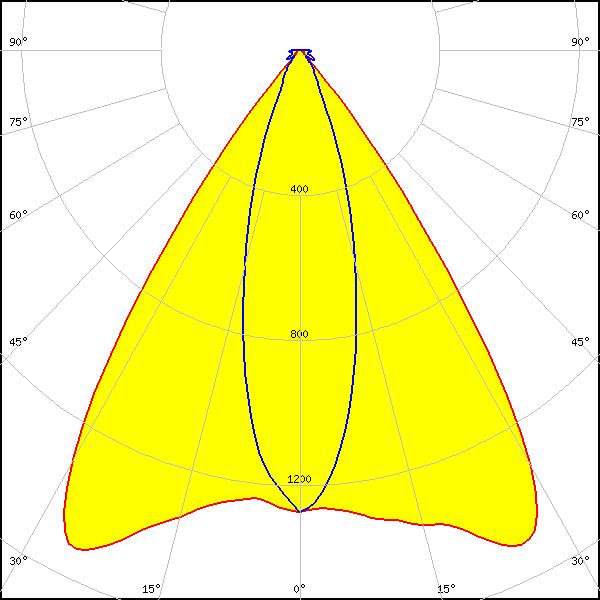

LM301D
FWHM:
70° + 29°
FWTM:
82° + 54°
Peak intensity:
1.519 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 5050 6V
FWHM:
72° + 40°
FWTM:
88° + 66°
Peak intensity:
1.113 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

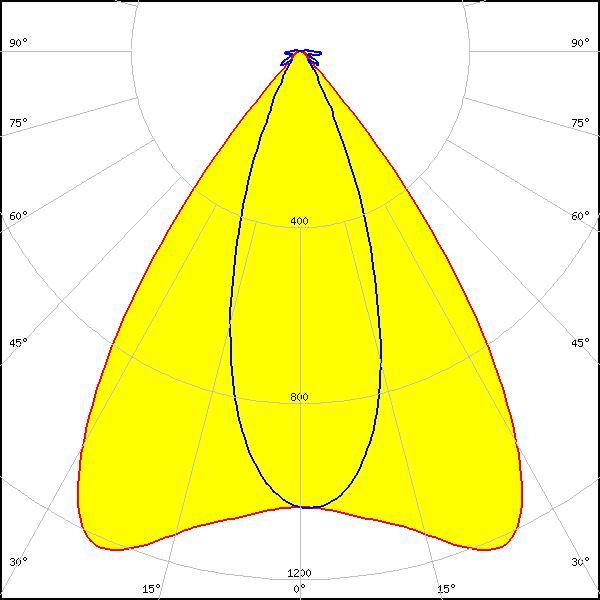

LED:

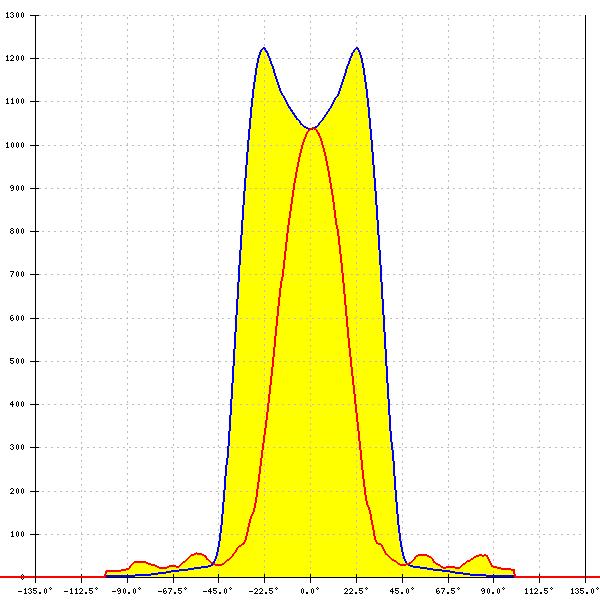

RLE 3x8 6000lm HP HE EXC3 OTD
FWHM:
72° + 37°
FWTM:
87° + 63°
Peak intensity:
1.231 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
