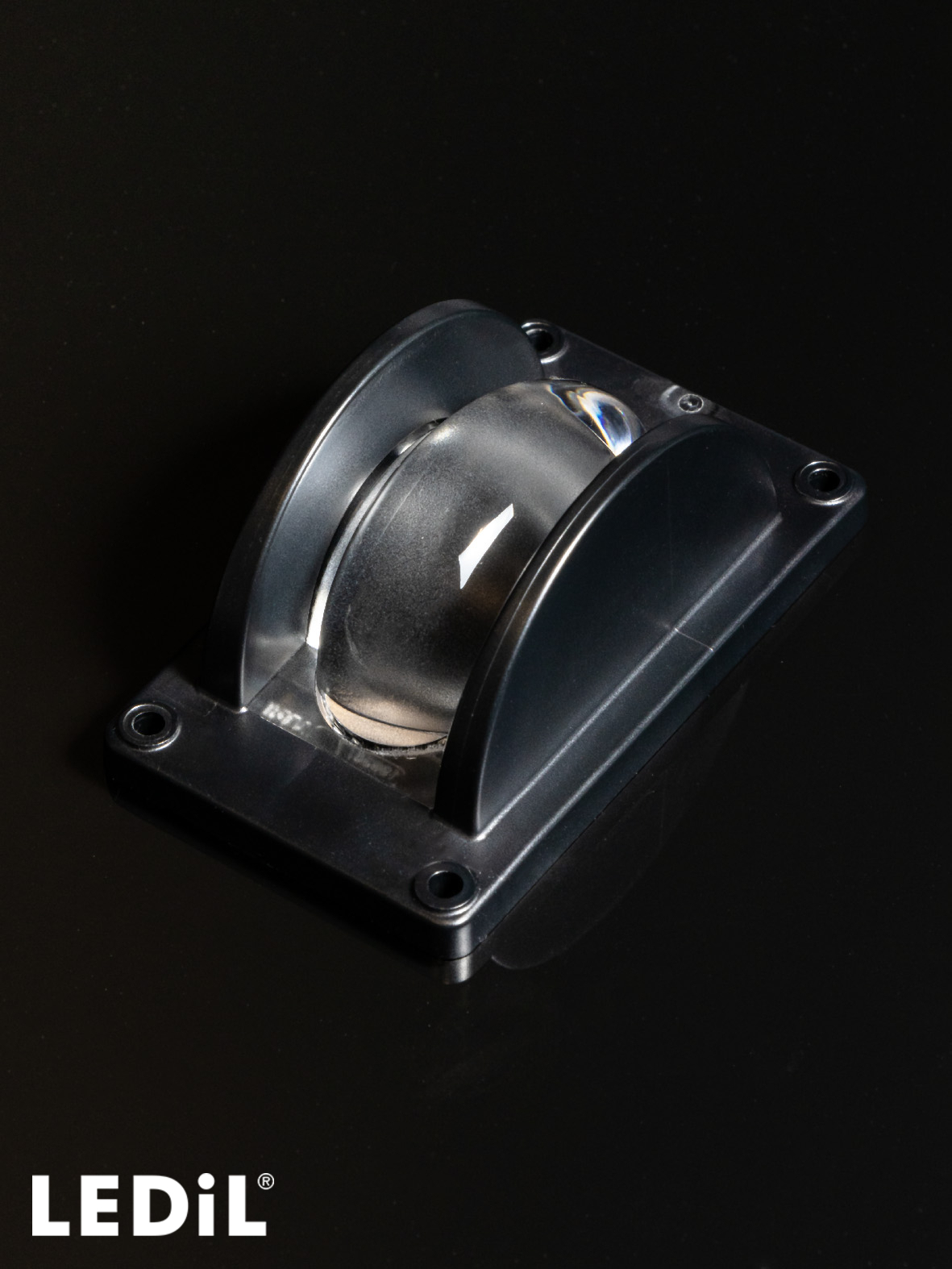

    CS19838_CORAL-IP-OW

    Print

    115 + 6° oval beam

    Specification
    • Dimensions:
      75 x  45 mm
    • Height:
      32.00 mm
    • Fastening:
      pin, screw
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      180 pcs
    • Box size:
      480 x 280 x 260 mm
    • Box weight:
      6.4 kg
    • MPQ:
      180 pcs
    • MOQ:
      180 pcs
    • MOQ size:
      480 x 280 x 260 mm
    • MOQ weight:
      6.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS19838_CORAL-IP-OW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – October 2024

    Application example

    Obstruction light with CORAL-IP

    Catalogue

    LEDiL Latest products catalogue Q1 2025

    Application guide

    Guide_for_Urban_lighting_optics_2025_v.1.1_WEB

    News

    Unleash the Va-Va-Voom with LEDiL CORAL

    Application guide

    Guide for Architectural lighting optics

    Application area

    Urban lighting with LEDiL optics

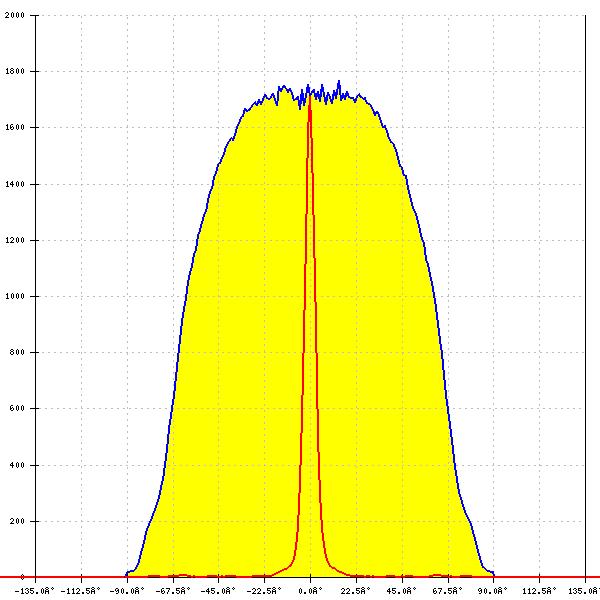

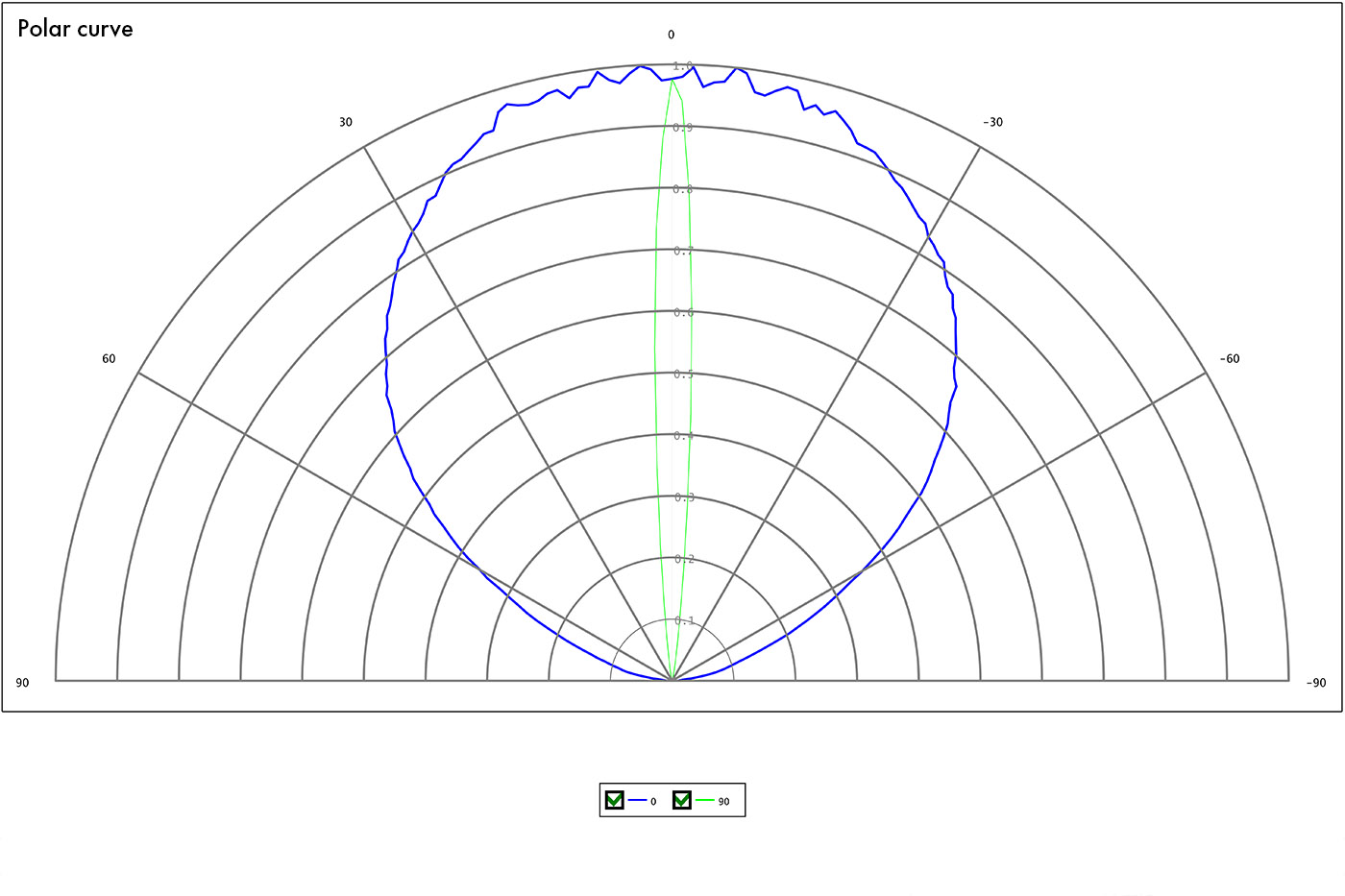

    Optical results

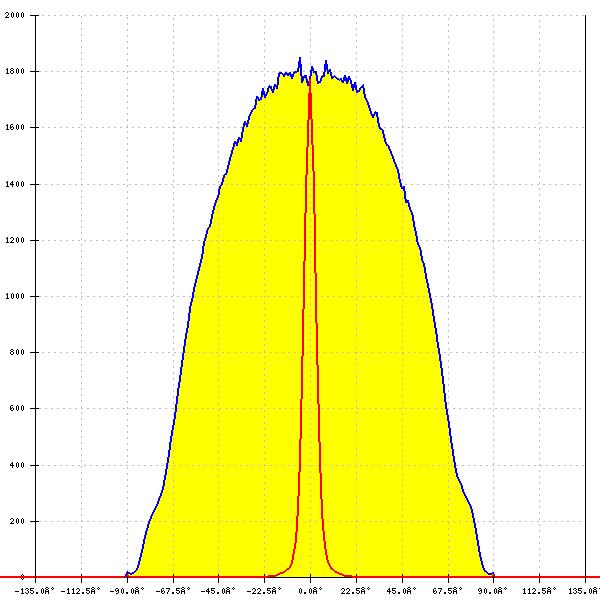

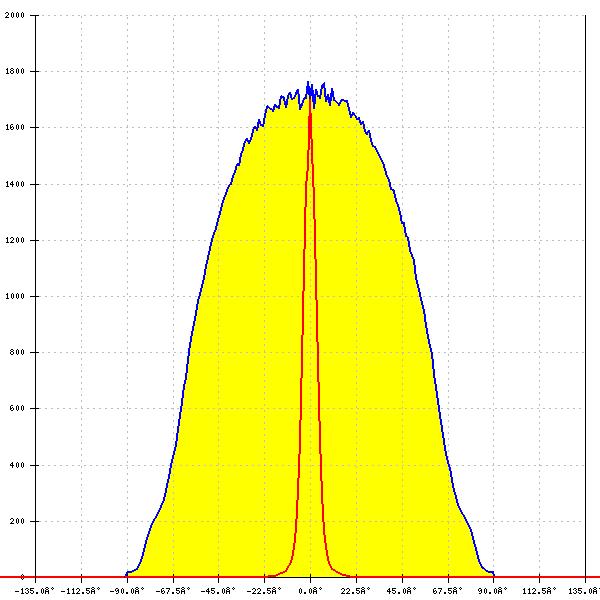

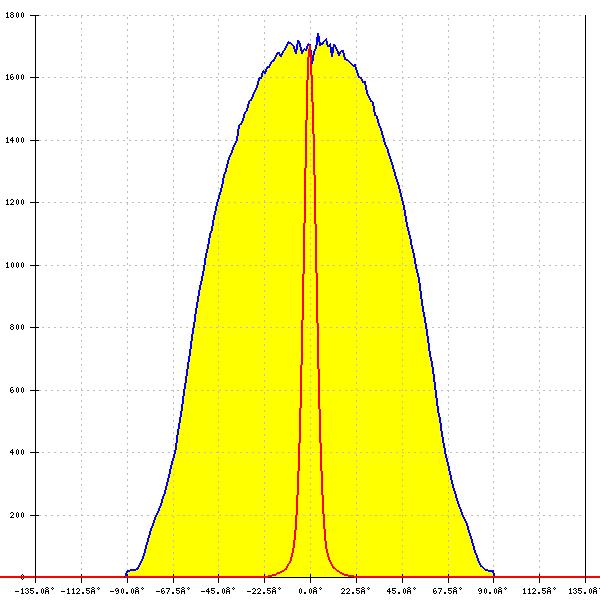

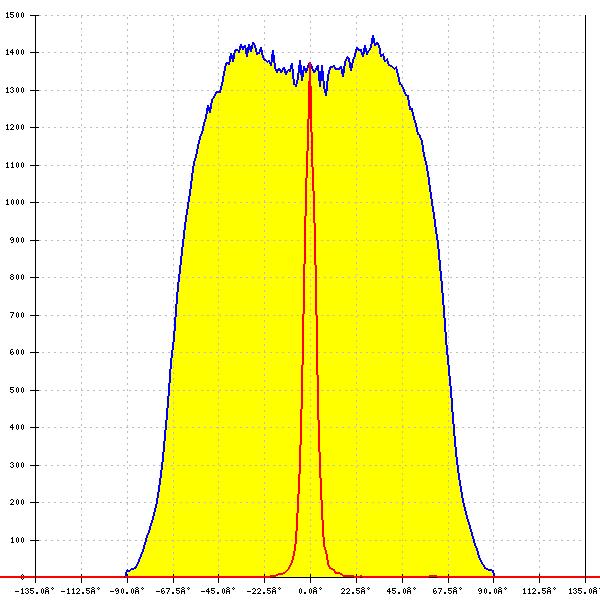

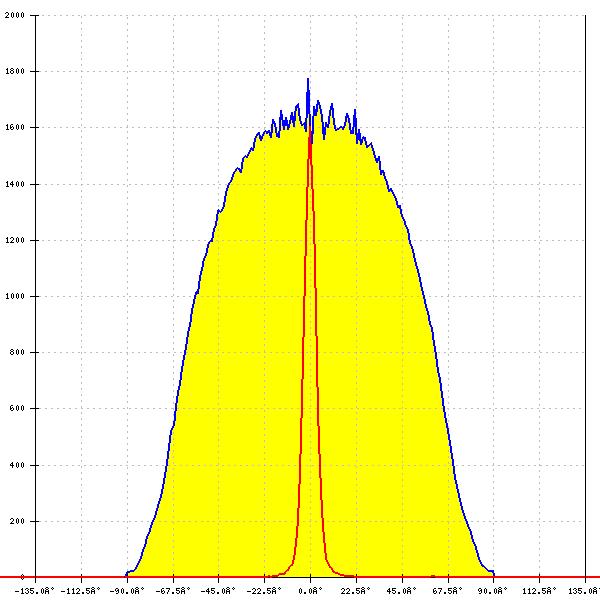

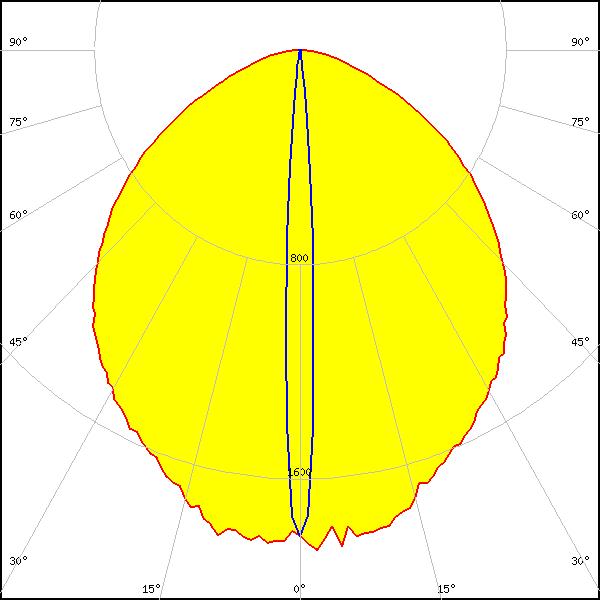

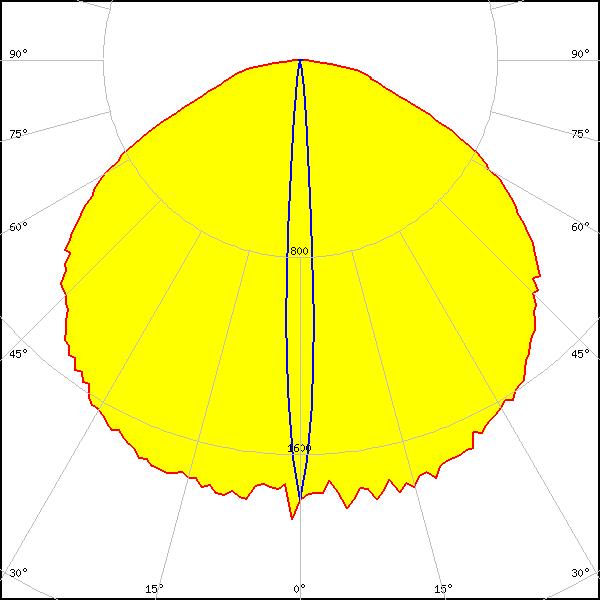

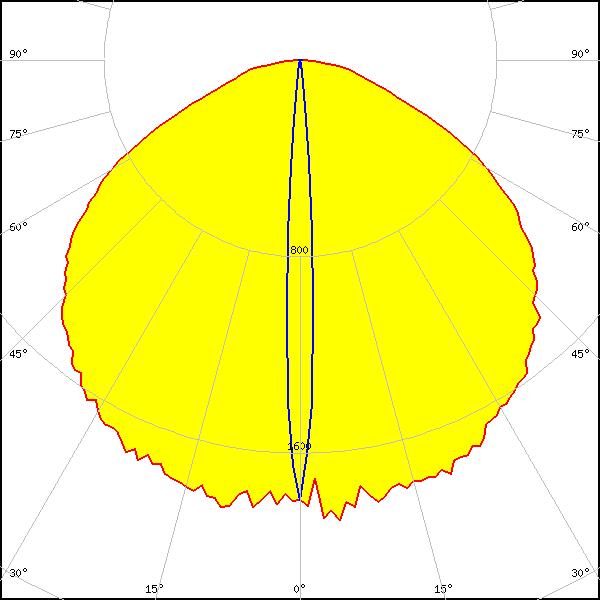

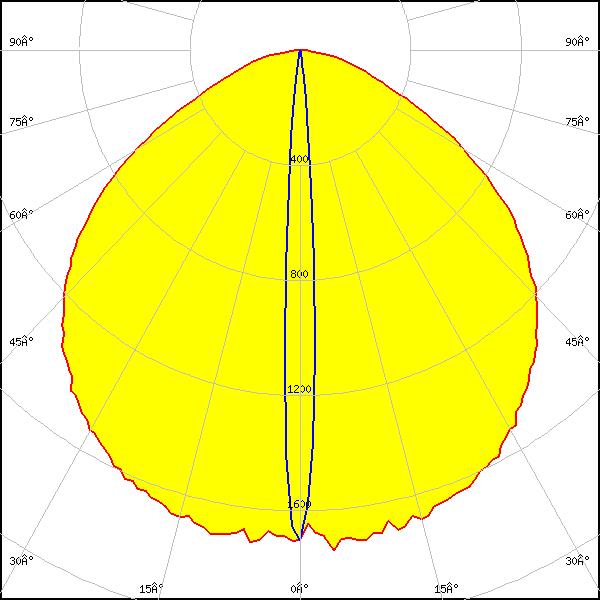

    LED: CSP 2727 (BXCP)
    FWHM: 111° + 8°
    FWTM: 154° + 14°
    Peak intensity: 1.812 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 6
    Light colour/type: White

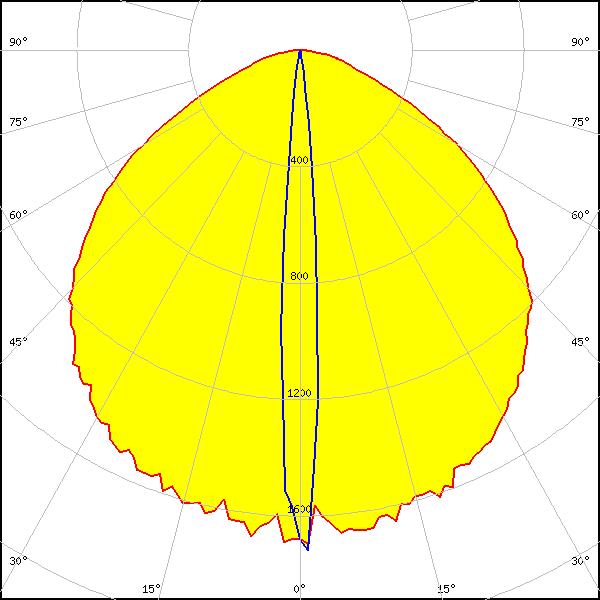

    LED: SMD 3838 RGBW 3V
    FWHM: 110° + 8°
    FWTM: 150° + 16°
    Peak intensity: 1.763 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 4
    Light colour/type: RGBW

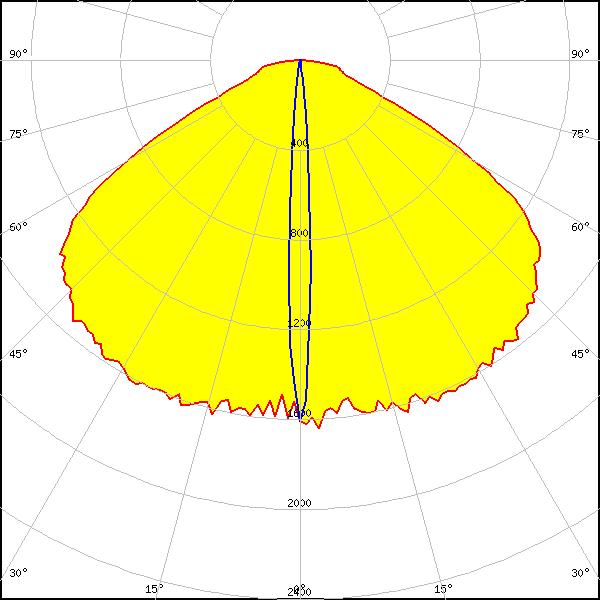

    LED: L0-048023-940-C1000-K430-2
    FWHM: 113° + 6°
    FWTM: 157° + 14°
    Peak intensity: 1.971 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 2
    Light colour/type: White

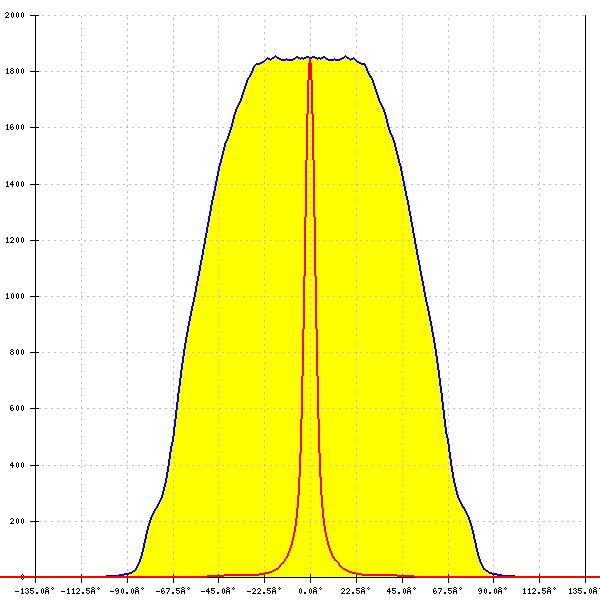

    LED: L0-048023-940-C1000-K430-4
    FWHM: 116° + 6°
    FWTM: 158° + 15°
    Peak intensity: 1.916 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White

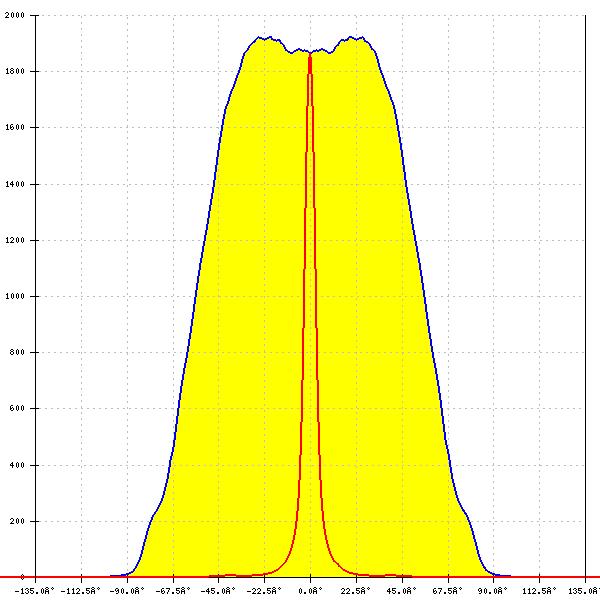

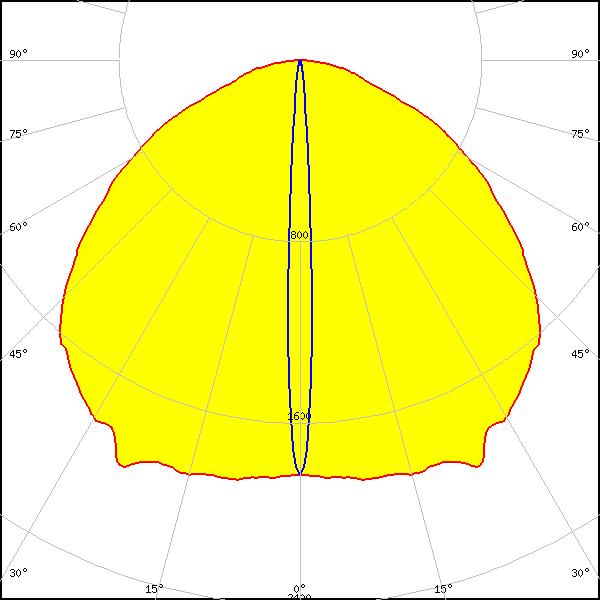

    LED: L0-048023-940-C1000-K434-1
    FWHM: 113° + 7°
    FWTM: 155° + 14°
    Peak intensity: 2.014 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 1
    Light colour/type: White

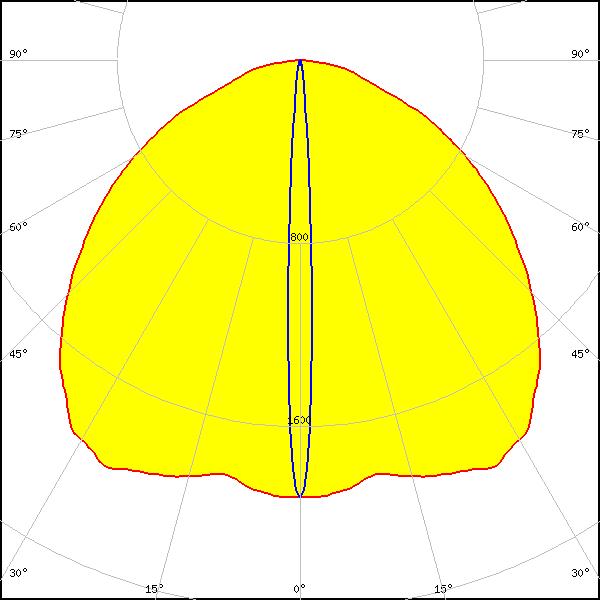

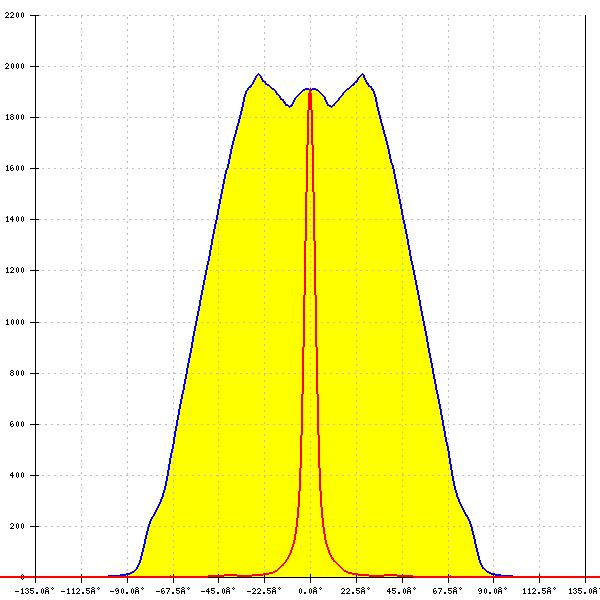

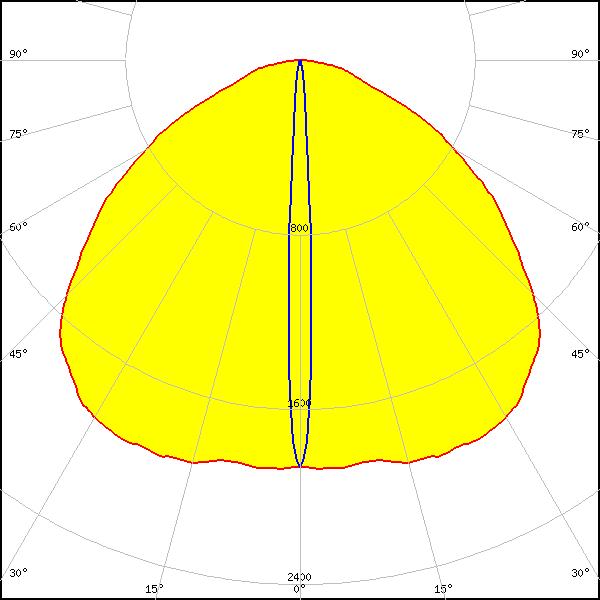

    LED: L0-048023-940-C1000-K434-3
    FWHM: 105° + 7°
    FWTM: 154° + 14°
    Peak intensity: 2.183 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 3
    Light colour/type: White

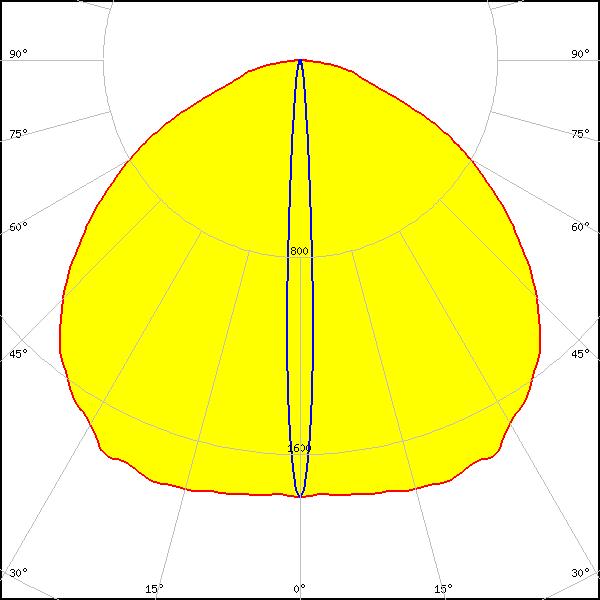

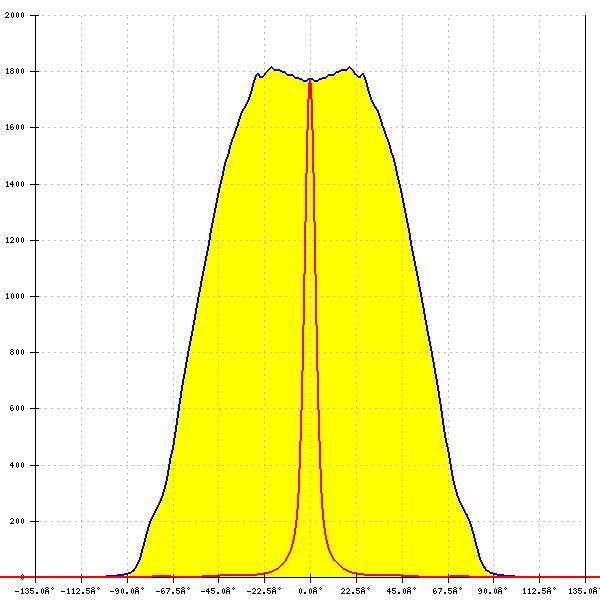

    LED: L0-048023-RGBW-C1000-K430
    FWHM: 114° + 7°
    FWTM: 158° + 14°
    Peak intensity: 1.868 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: RGBW

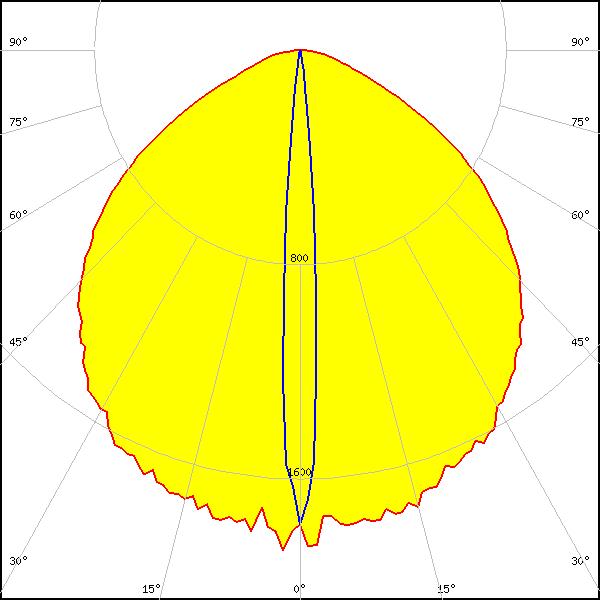

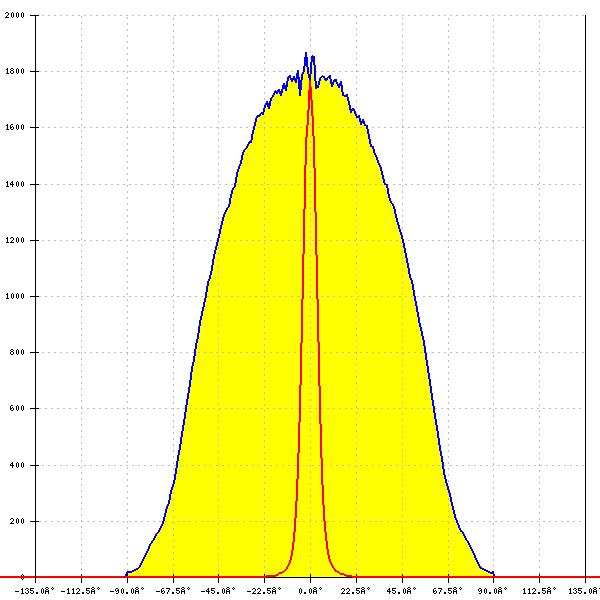

    LED: CLR6A-TKW
    FWHM: 106° + 8°
    FWTM: 146° + 16°
    Peak intensity: 1.914 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 4
    Light colour/type: RGBW

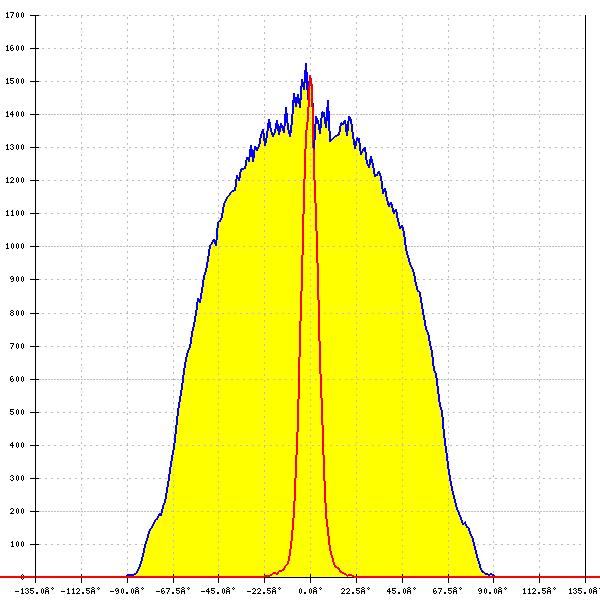

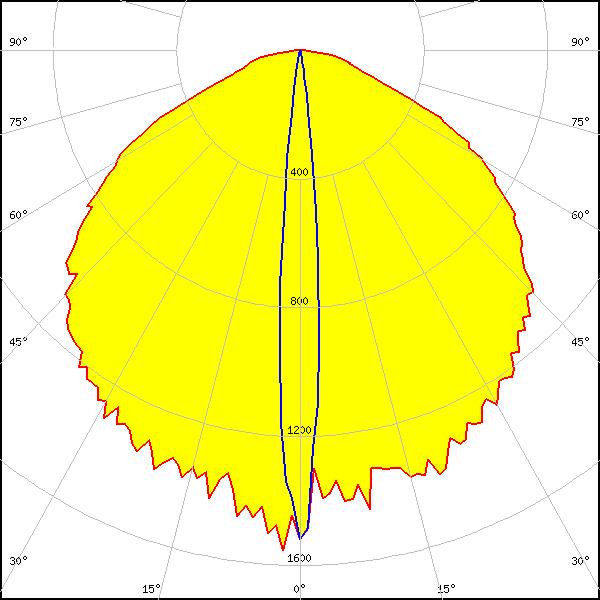

    LED: J Series 5050B 6V K Class
    FWHM: 113° + 10°
    FWTM: 154° + 18°
    Peak intensity: 1.686 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 1
    Light colour/type: White

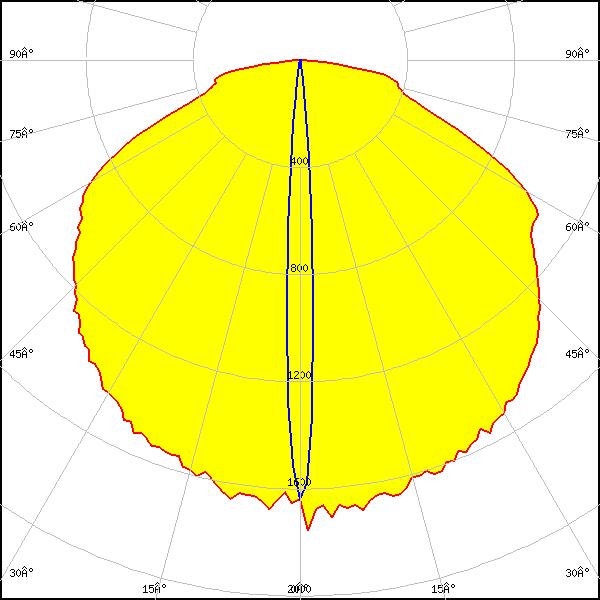

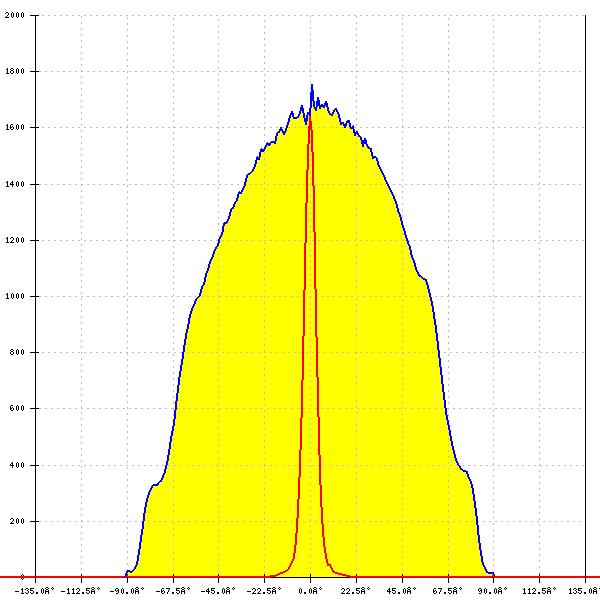

    LED: XB-D
    FWHM: 122° + 6°
    FWTM: 164° + 14°
    Peak intensity: 1.837 cd/lm
    Efficiency: 48 %
    LEDs/each optic: 4
    Light colour/type: RGBW

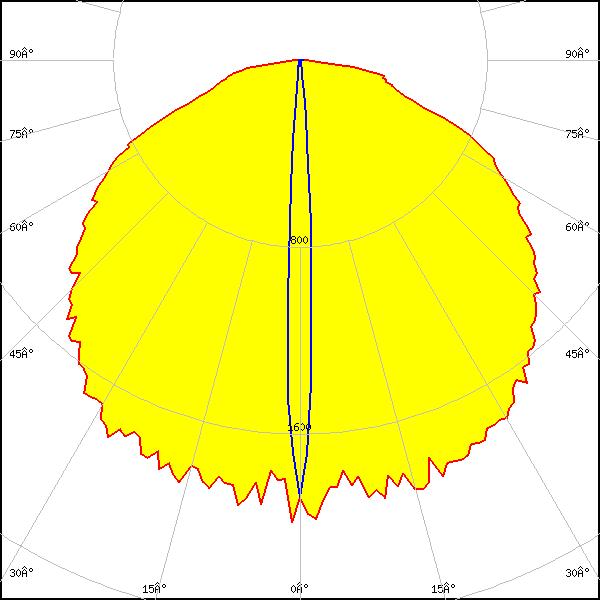

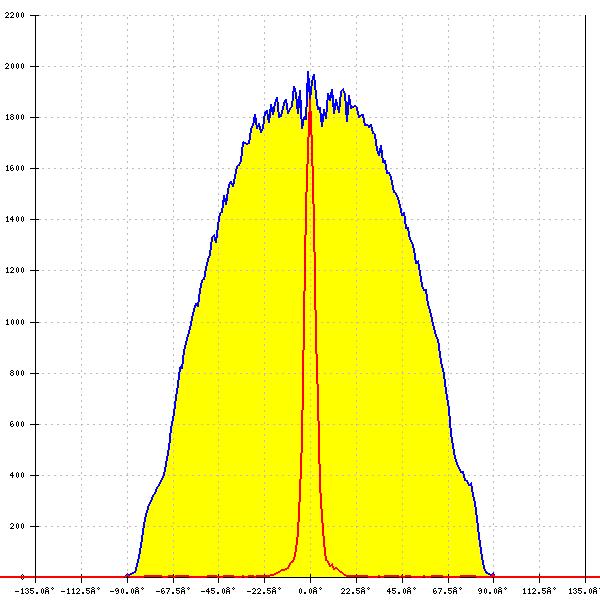

    LED: XE-G
    FWHM: 119° + 6°
    FWTM: 161° + 14°
    Peak intensity: 1.913 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: XE-G
    FWHM: 120° + 6°
    FWTM: 164° + 13°
    Peak intensity: 2.095 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 1
    Light colour/type: White

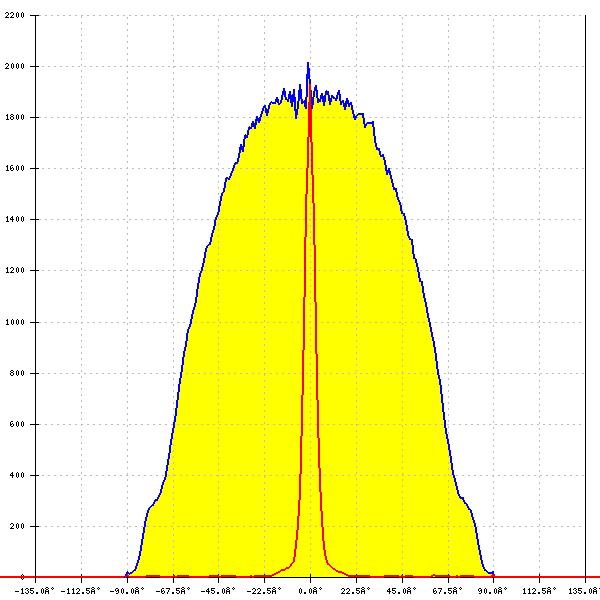

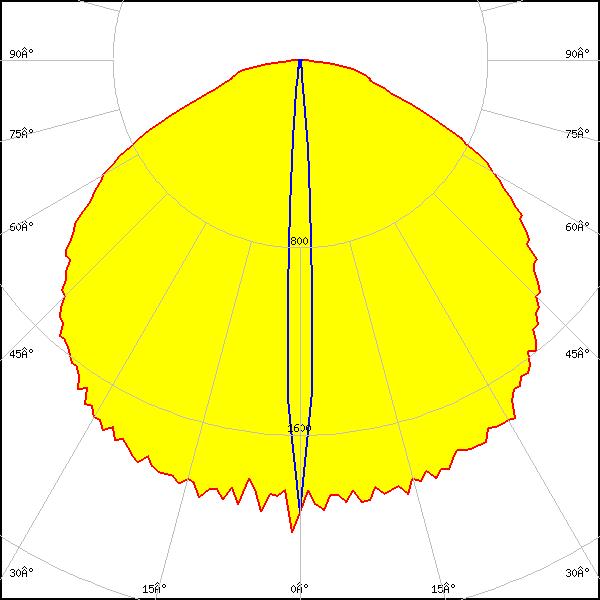

    LED: XE-G
    FWHM: 116° + 6°
    FWTM: 162° + 12°
    Peak intensity: 2.128 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White

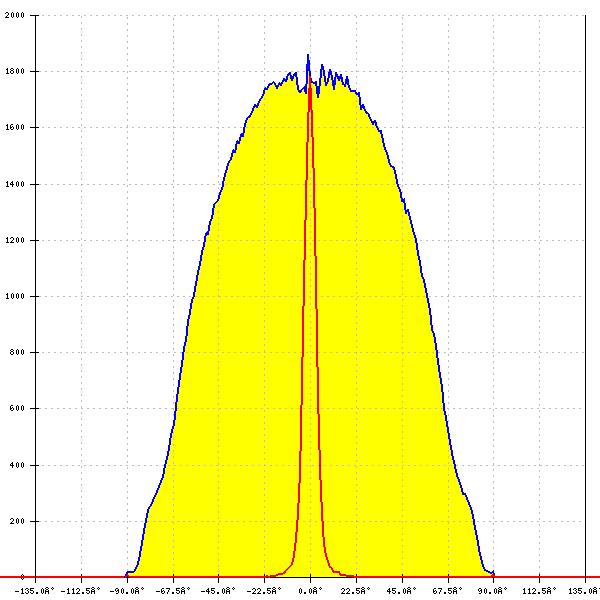

    LED: XE-G
    FWHM: 118° + 6°
    FWTM: 162° + 13°
    Peak intensity: 1.935 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 6
    Light colour/type: White

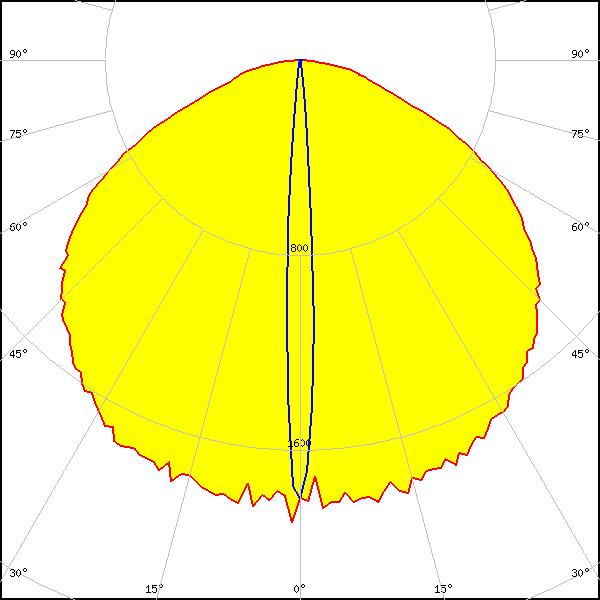

    LED: XE-G
    FWHM: 118° + 6°
    FWTM: 160° + 14°
    Peak intensity: 1.898 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 6
    Light colour/type: Red

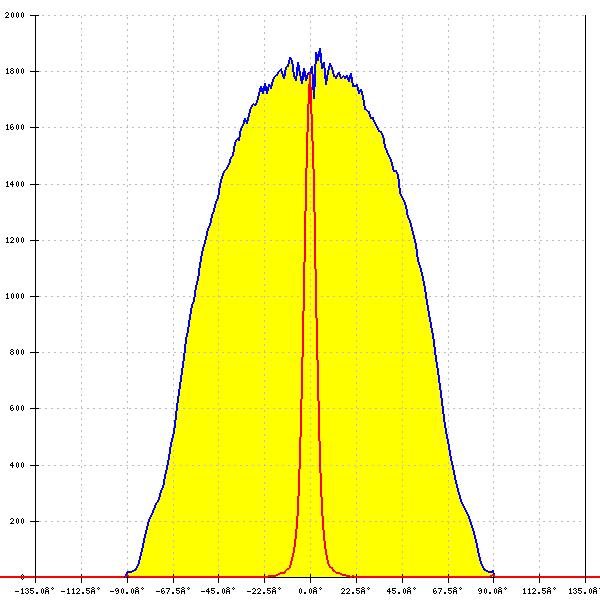

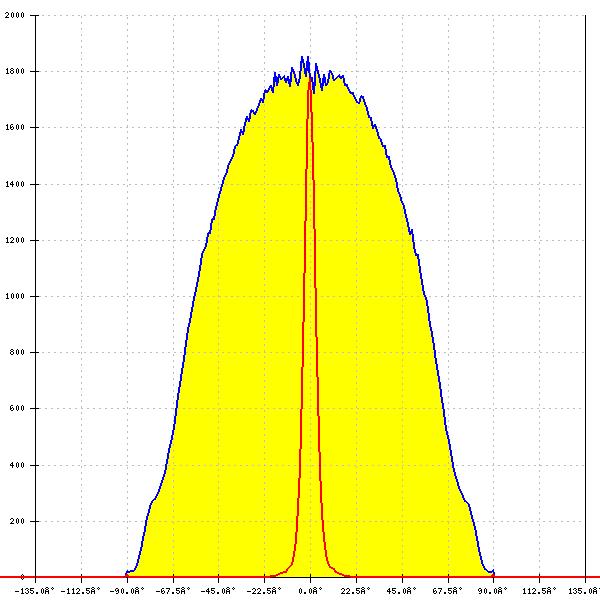

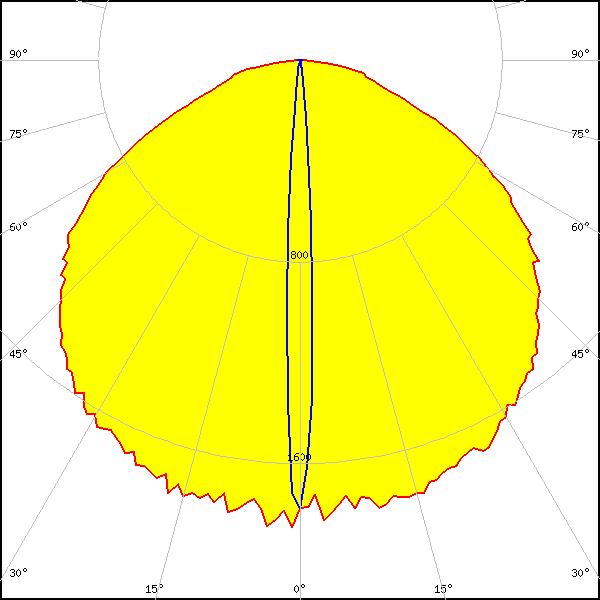

    LED: XE-G
    FWHM: 117° + 6°
    FWTM: 162° + 14°
    Peak intensity: 1.920 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 7
    Light colour/type: White

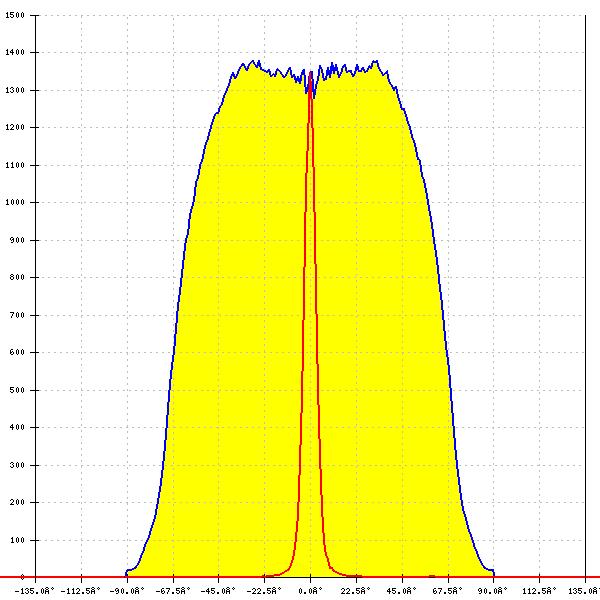

    LED: XE-G
    FWHM: 117° + 6°
    FWTM: 159° + 14°
    Peak intensity: 1.979 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 7
    Light colour/type: Red

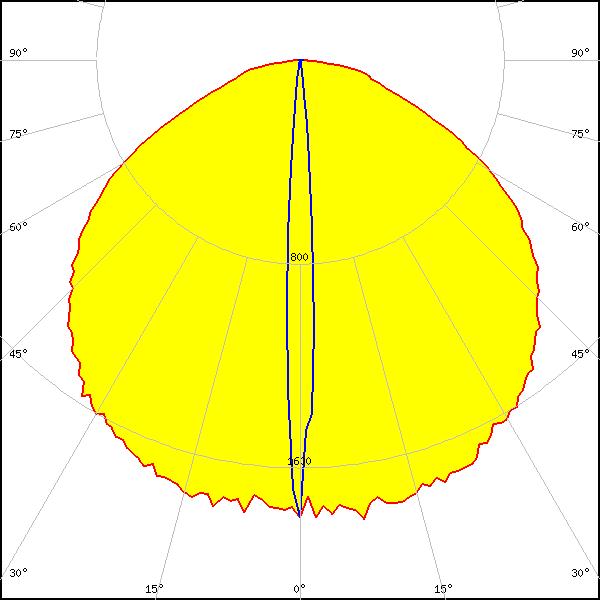

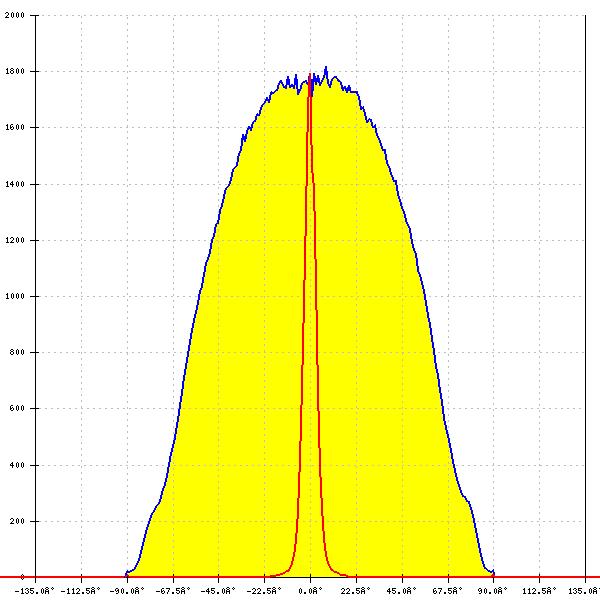

    LED: XE-G
    FWHM: 116° + 6°
    FWTM: 161° + 14°
    Peak intensity: 1.834 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 5
    Light colour/type: White

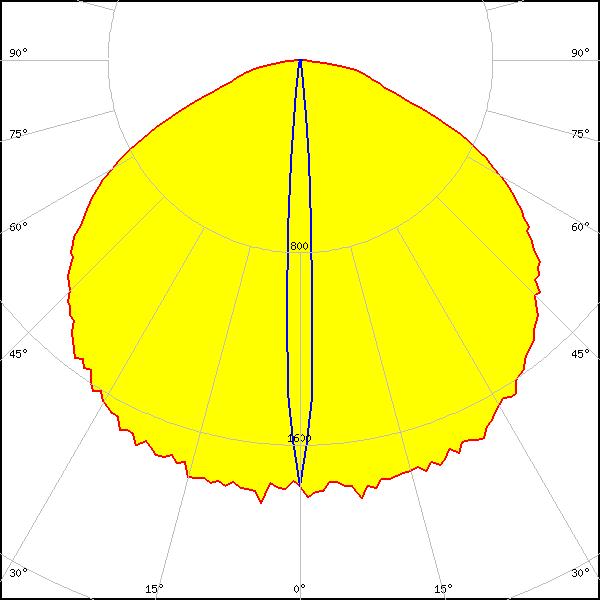

    LED: XE-G
    FWHM: 121° + 6°
    FWTM: 160° + 14°
    Peak intensity: 1.880 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 3
    Light colour/type: Red

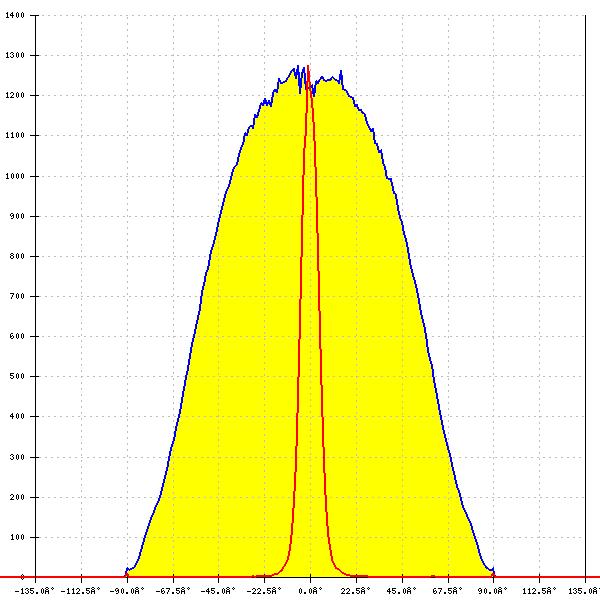

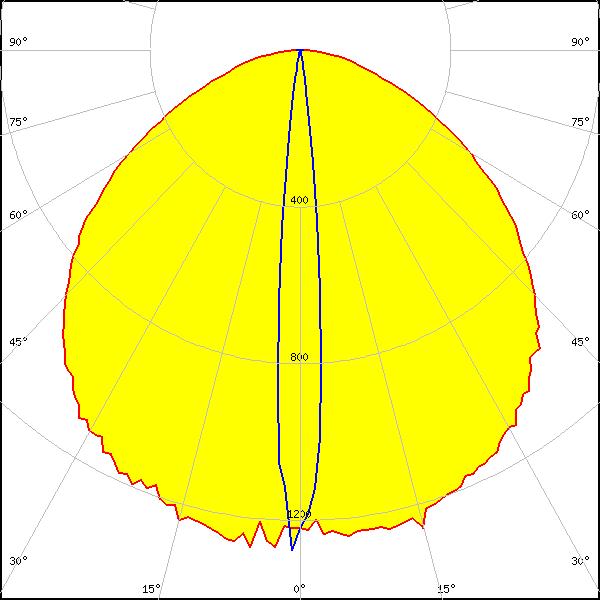

    LED: XE-G
    FWHM: 111° + 10°
    FWTM: 158° + 18°
    Peak intensity: 1.325 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 30
    Light colour/type: White

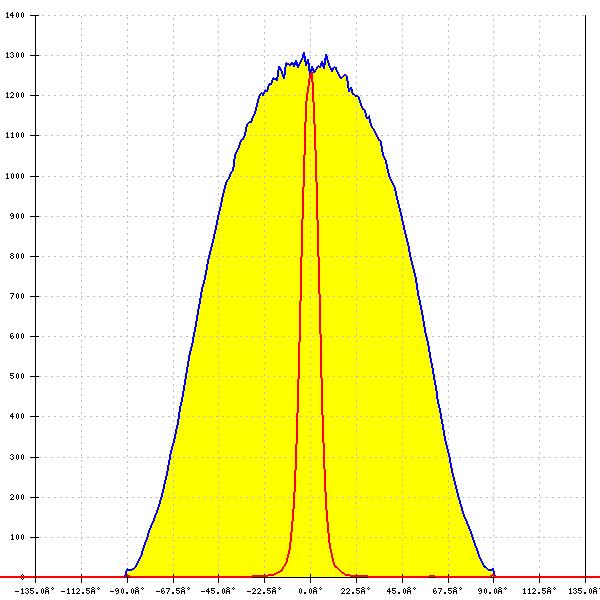

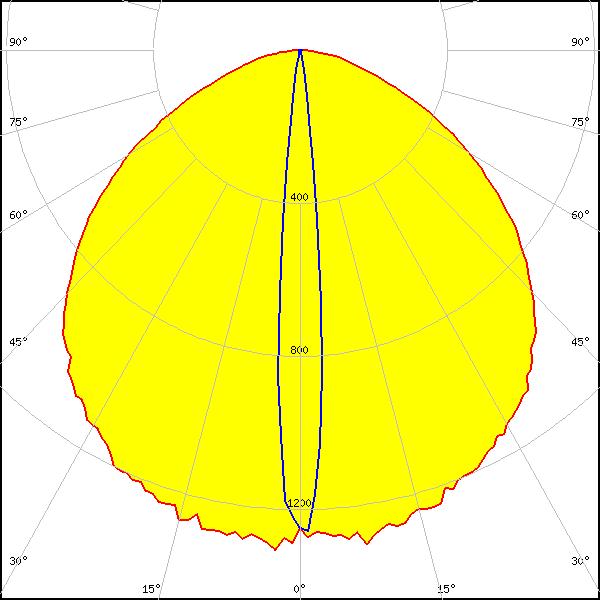

    LED: XE-G
    FWHM: 110° + 10°
    FWTM: 156° + 18°
    Peak intensity: 1.328 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 30
    Light colour/type: Red

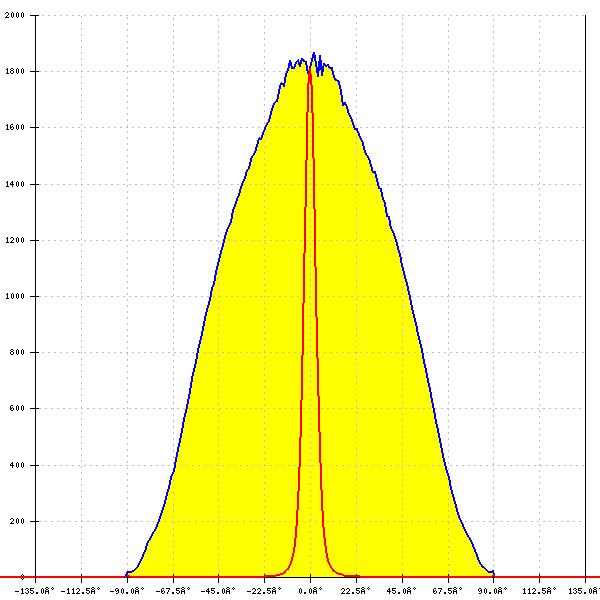

    LED: XE-G
    FWHM: 102° + 6°
    FWTM: 150° + 14°
    Peak intensity: 1.883 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 15
    Light colour/type: Red

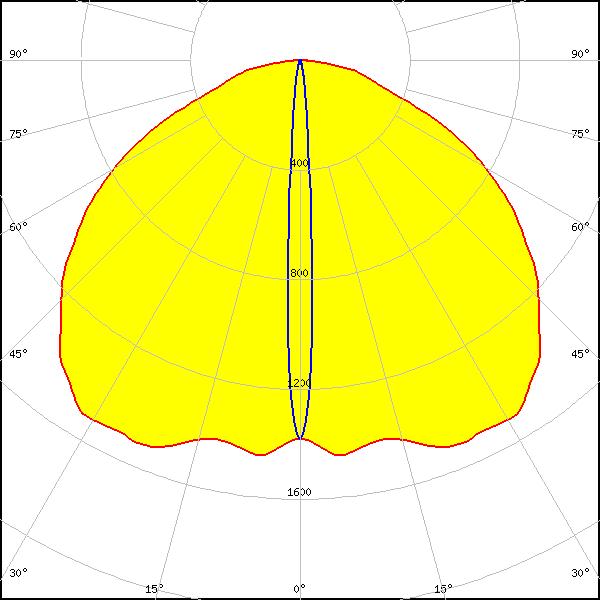

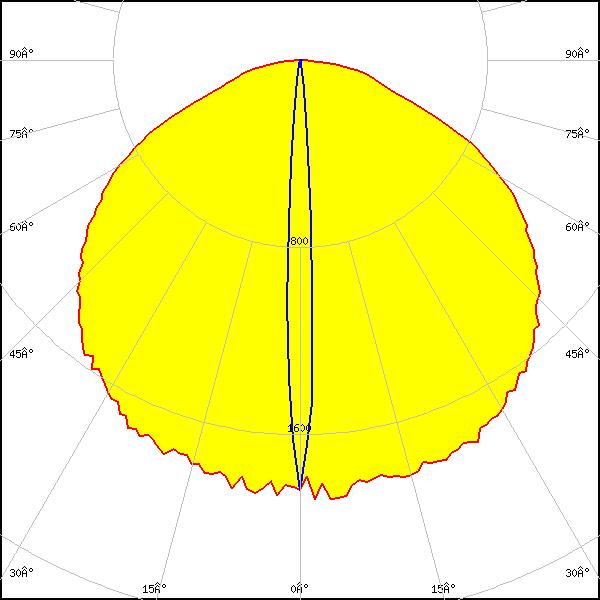

    LED: XE-G RGBW
    FWHM: 118° + 8°
    FWTM: 161° + 17°
    Peak intensity: 1.602 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 4
    Light colour/type: RGBW

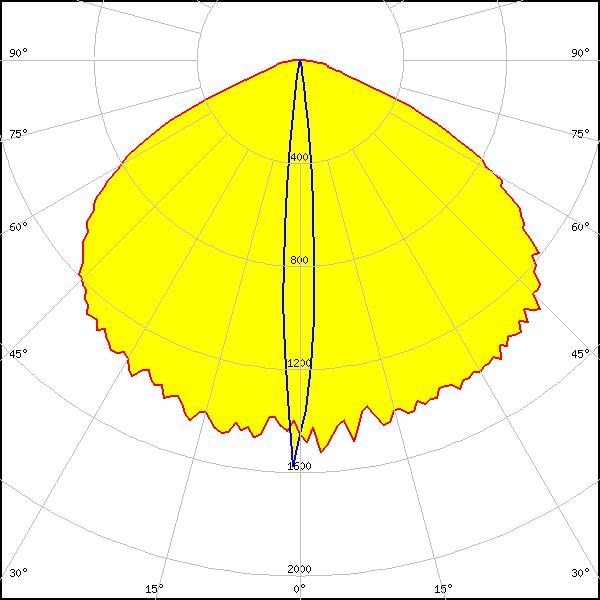

    LED: XM-L RGBW (XMLDCL HD)
    FWHM: 123° + 9°
    FWTM: 145° + 16°
    Peak intensity: 1.646 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: RGBW

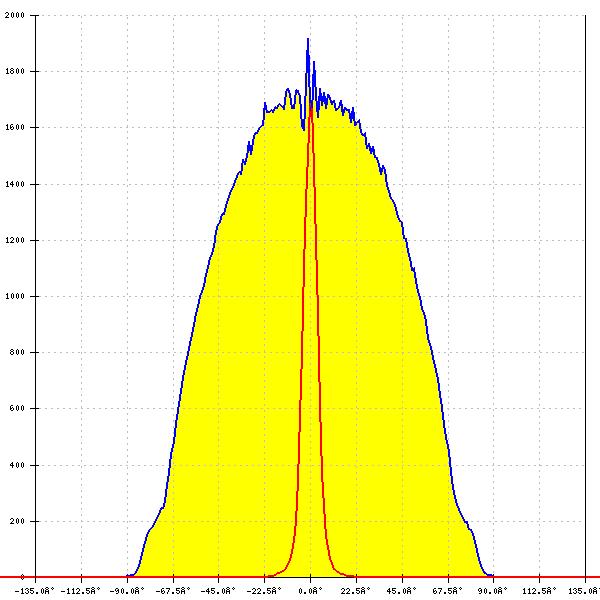

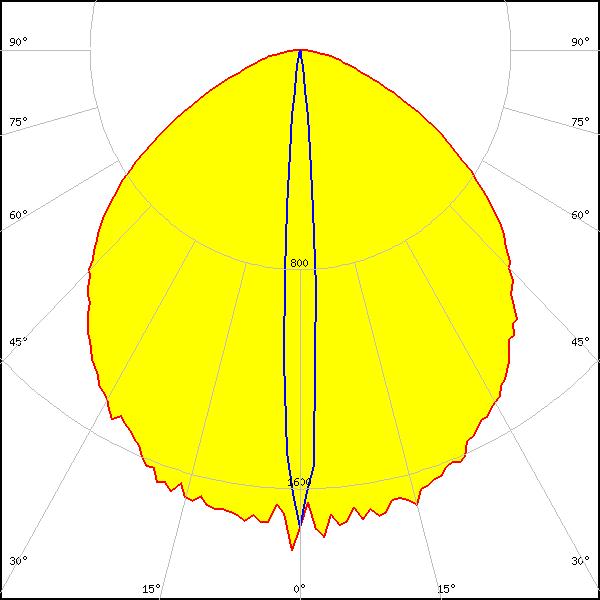

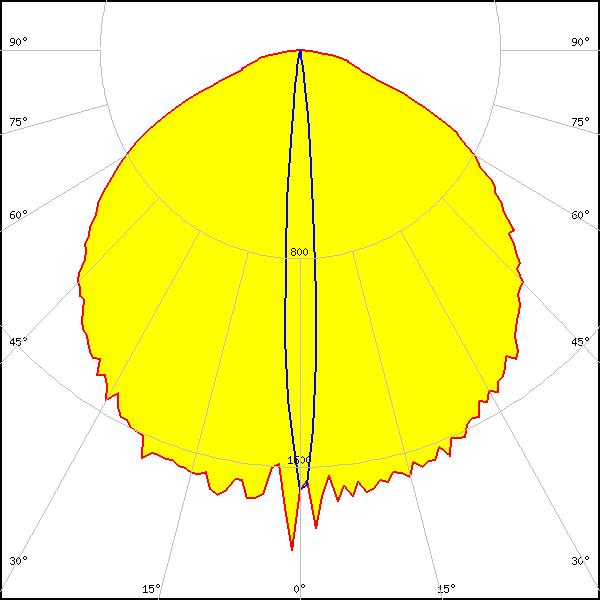

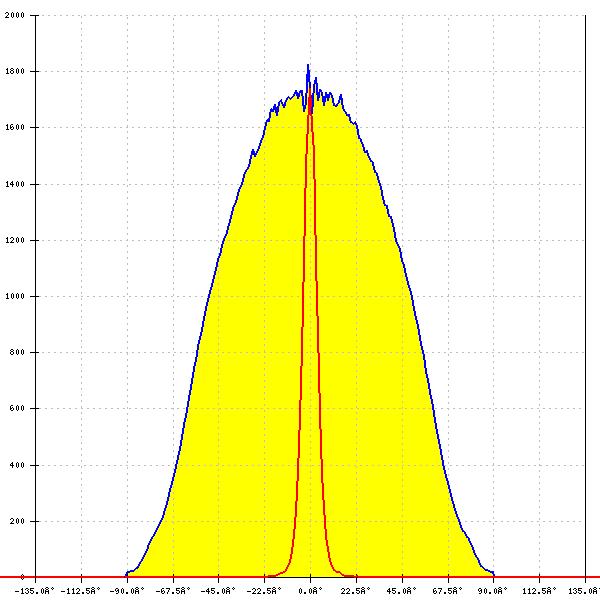

    LED: XM-L RGBW (XMLDCL HI)
    FWHM: 104° + 8°
    FWTM: 148° + 16°
    Peak intensity: 1.825 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: XM-L RGBW (XMLDCL HI)
    FWHM: 110° + 8°
    FWTM: 153° + 15°
    Peak intensity: 1.920 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: XN-P Color
    FWHM: 107° + 8°
    FWTM: 144° + 14°
    Peak intensity: 2.018 cd/lm
    Efficiency: 57 %
    LEDs/each optic: 4
    Light colour/type: RGBW

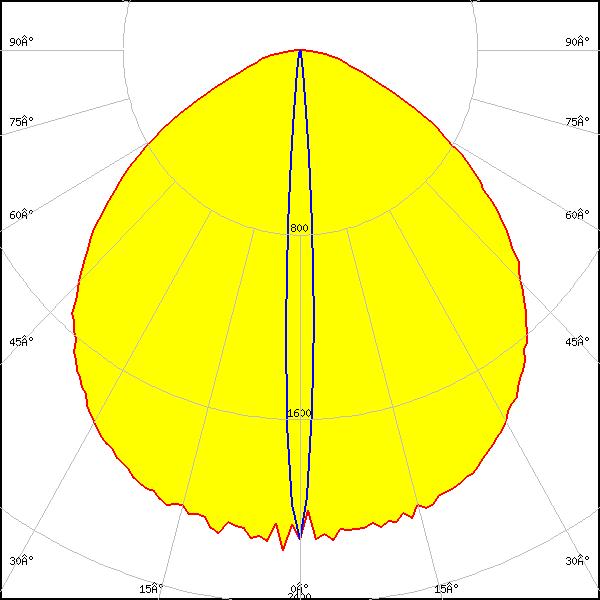

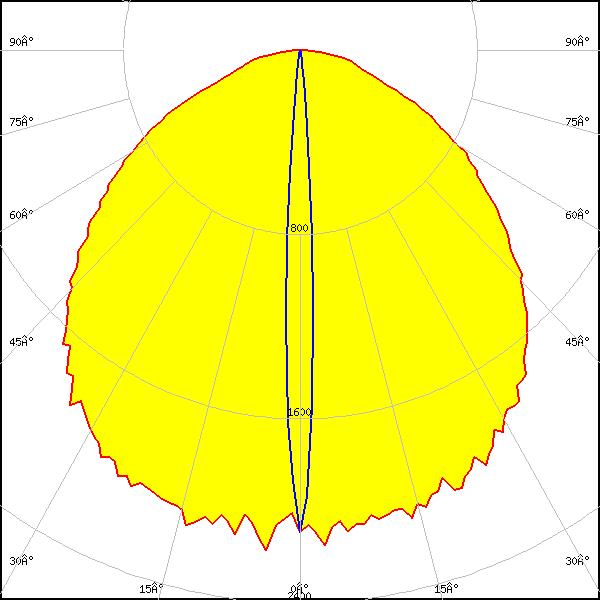

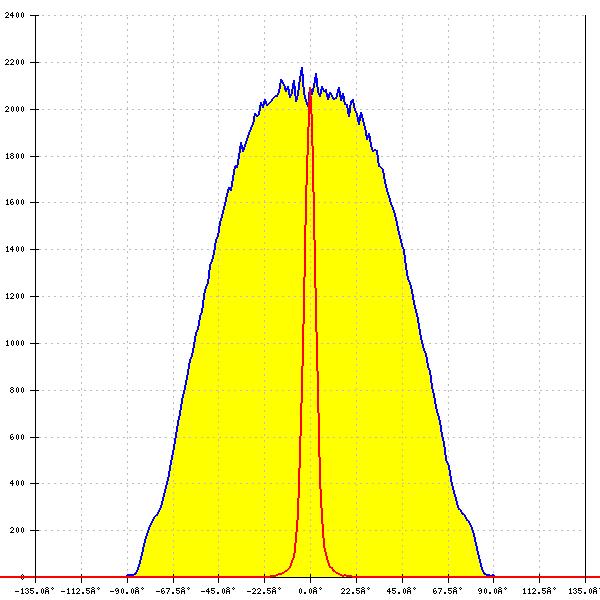

    LED: XP-E2
    FWHM: 107° + 6°
    FWTM: 158° + 13°
    Peak intensity: 2.239 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: White

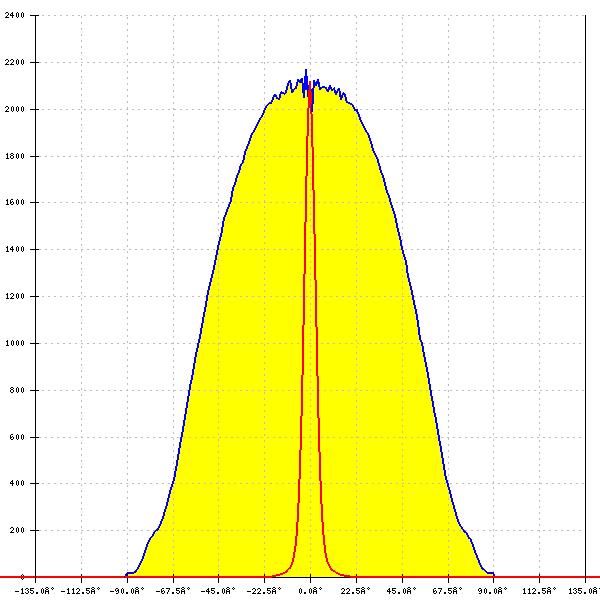

    LED: XP-E2
    FWHM: 106° + 6°
    FWTM: 148° + 12°
    Peak intensity: 2.180 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 4
    Light colour/type: White

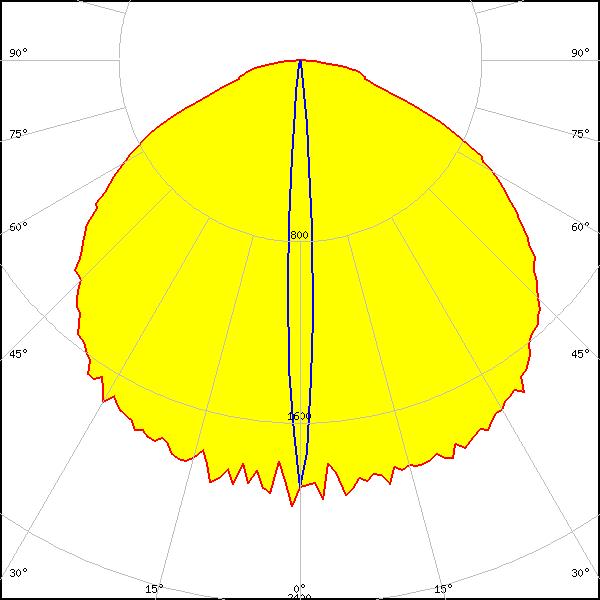

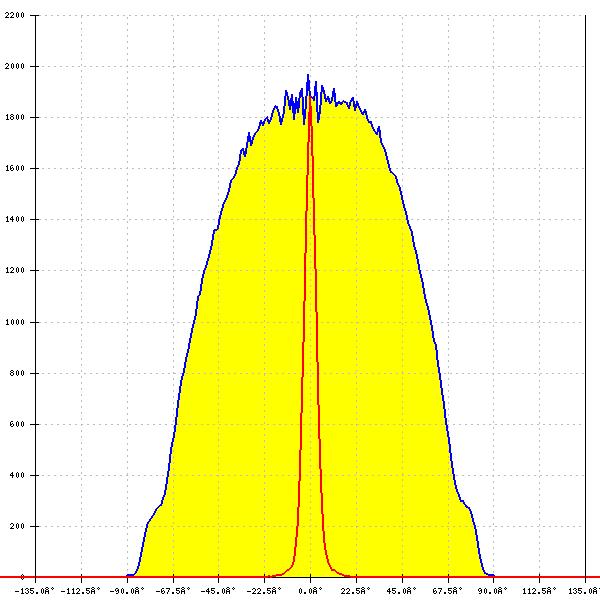

    LED: XP-G2
    FWHM: 117° + 6°
    FWTM: 161° + 13°
    Peak intensity: 2.062 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 1
    Light colour/type: White

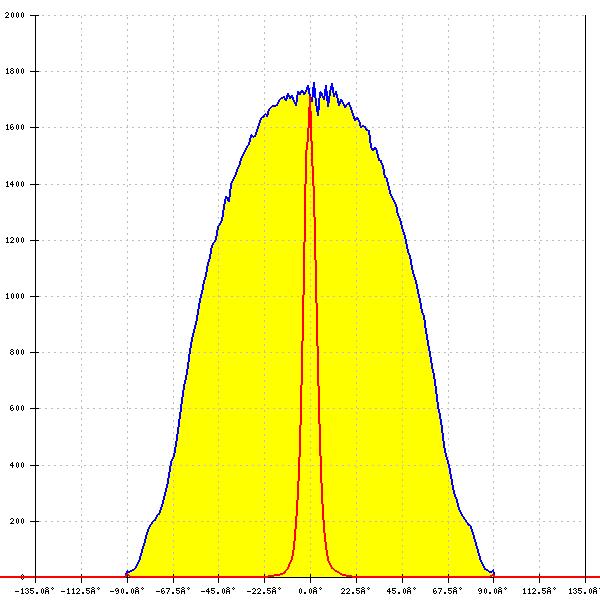

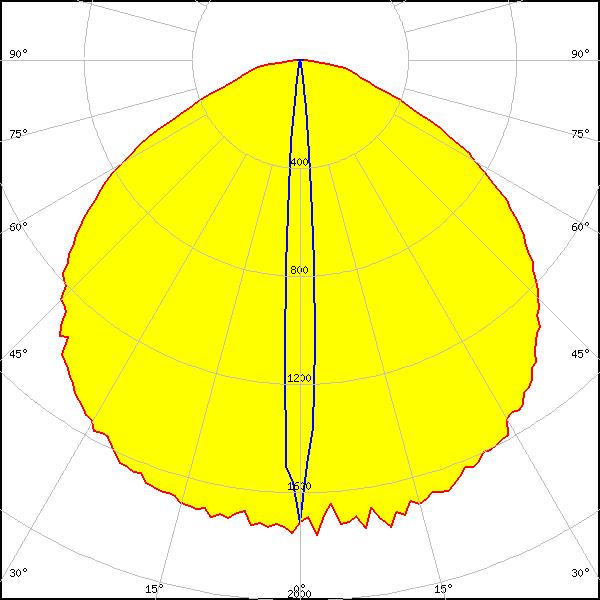

    LED: XP-L RGBW HI Blend
    FWHM: 114° + 8°
    FWTM: 158° + 14°
    Peak intensity: 1.824 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: RGBW

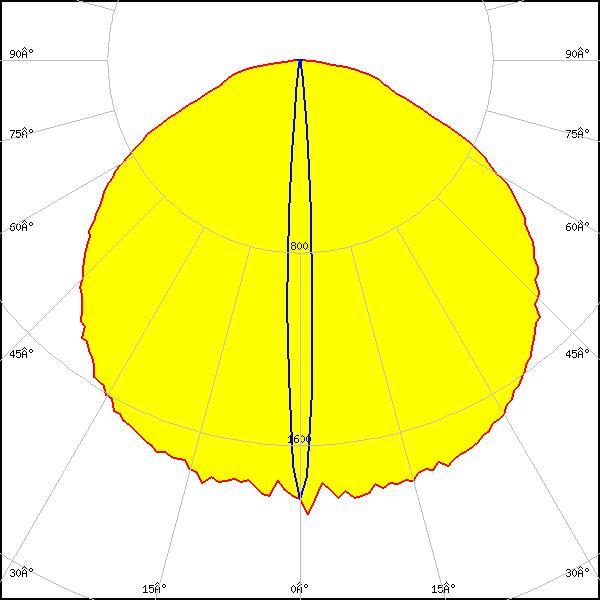

    LED: XQ-E HI
    FWHM: 117° + 6°
    FWTM: 162° + 13°
    Peak intensity: 1.923 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 4
    Light colour/type: RGBW

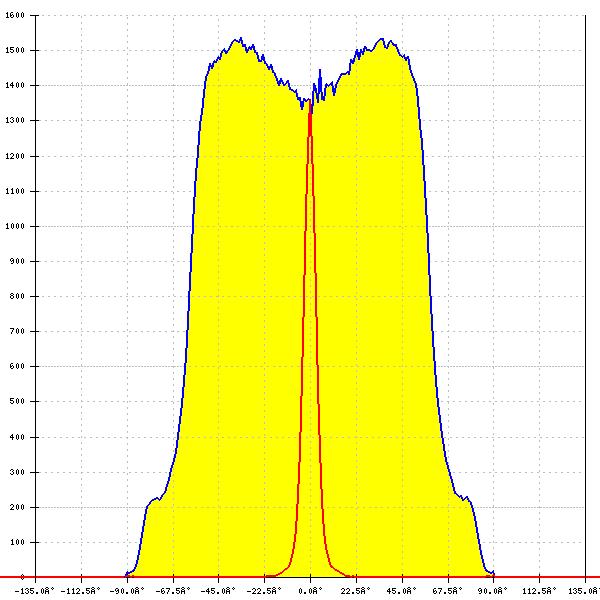

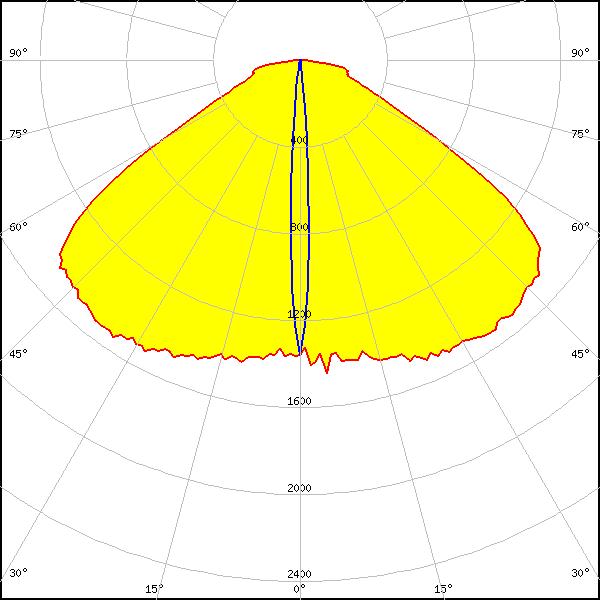

    LED: LUXEON C ES (Blue)
    FWHM: 120° + 7°
    FWTM: 163° + 14°
    Peak intensity: 1.537 cd/lm
    Efficiency: 48 %
    LEDs/each optic: 4
    Light colour/type: Blue

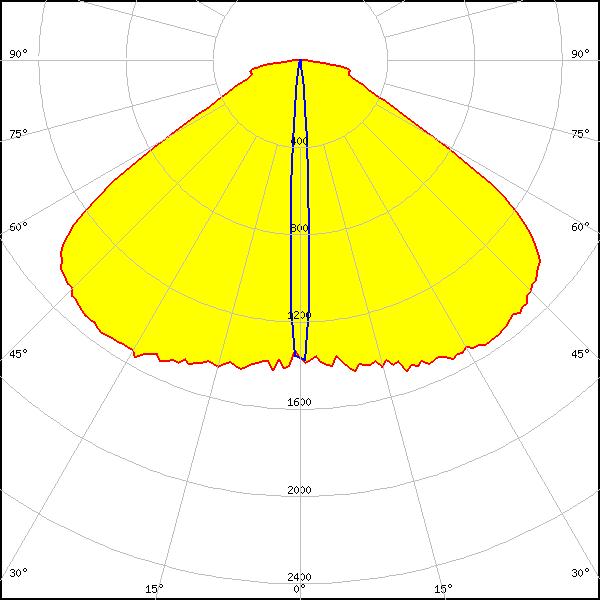

    LED: LUXEON C ES (Green)
    FWHM: 118° + 7°
    FWTM: 164° + 14°
    Peak intensity: 1.557 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 4
    Light colour/type: Green

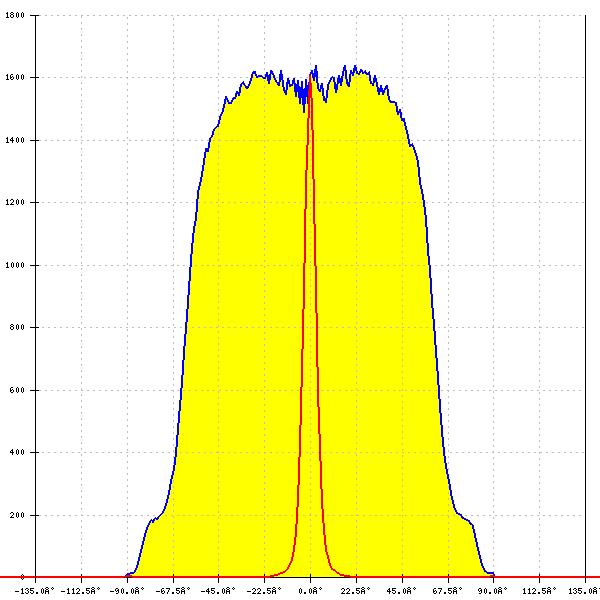

    LED: LUXEON C ES (Red)
    FWHM: 122° + 6°
    FWTM: 159° + 14°
    Peak intensity: 1.773 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: Red

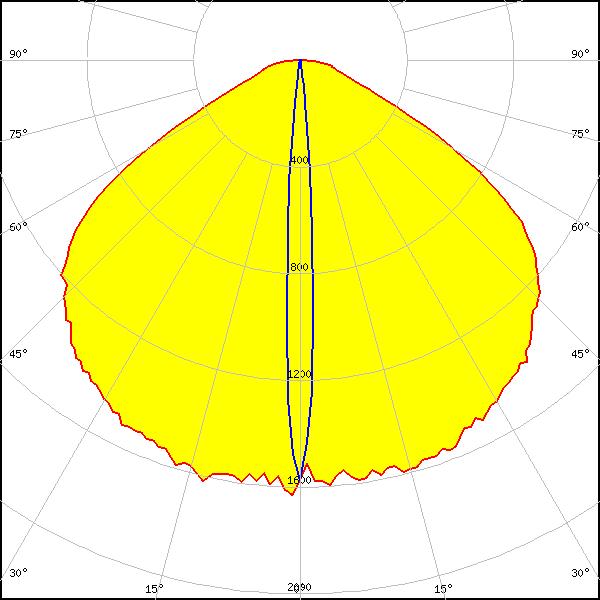

    LED: LUXEON C ES (Red)
    FWHM: 116° + 7°
    FWTM: 144° + 14°
    Peak intensity: 1.683 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 10
    Light colour/type: Red

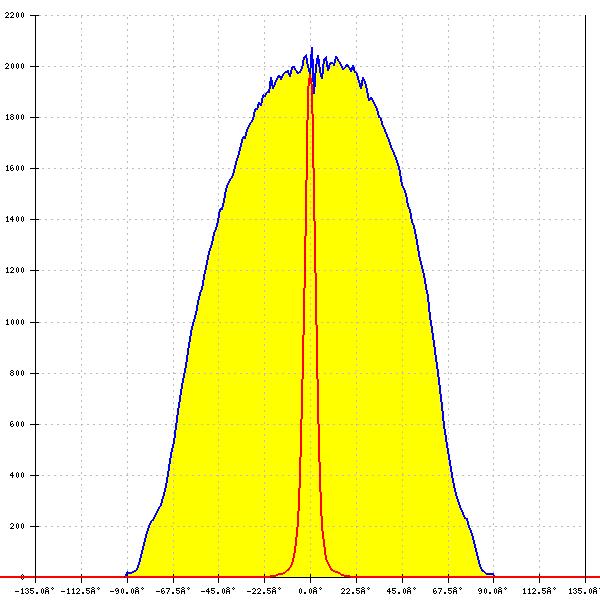

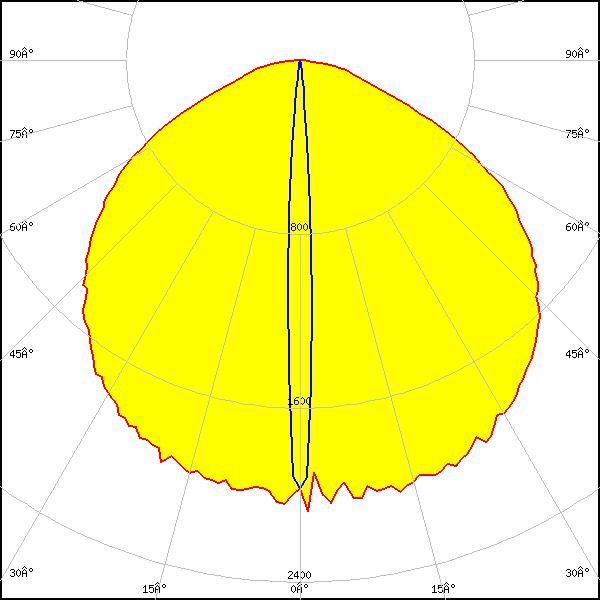

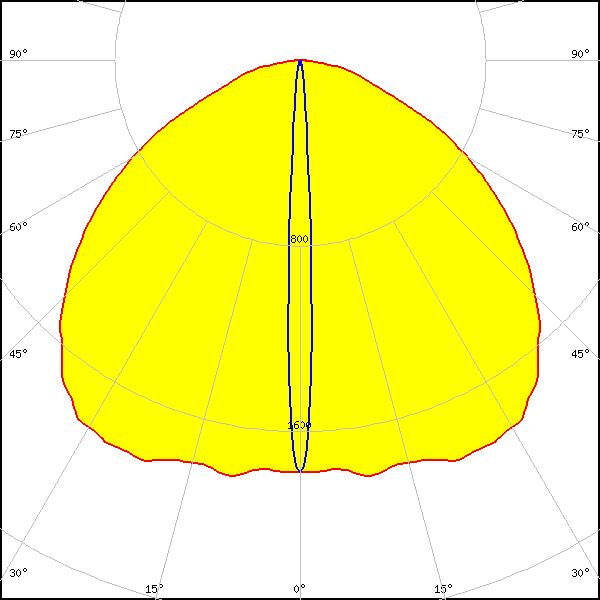

    LED: LUXEON CZ
    FWHM: 115° + 6°
    FWTM: 157° + 12°
    Peak intensity: 2.158 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: RGBW

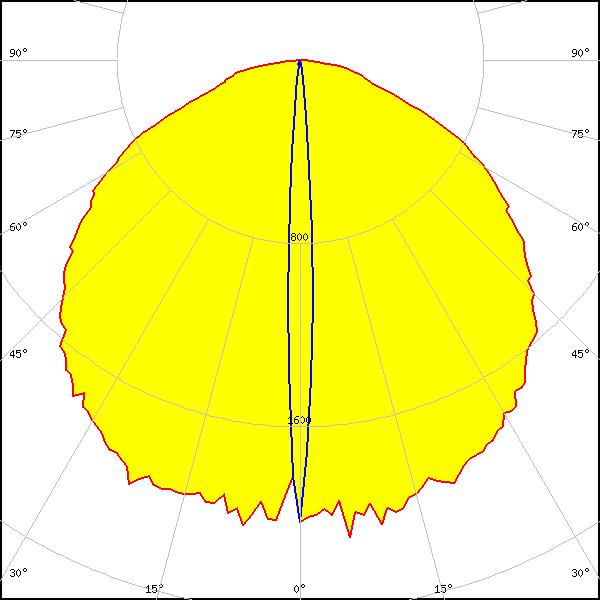

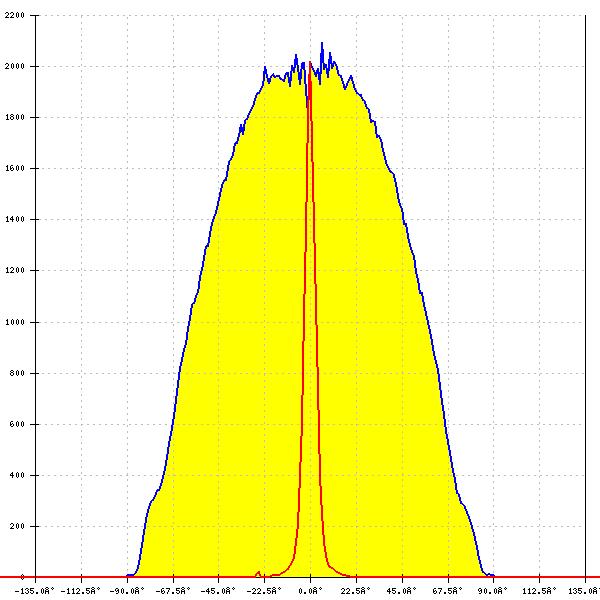

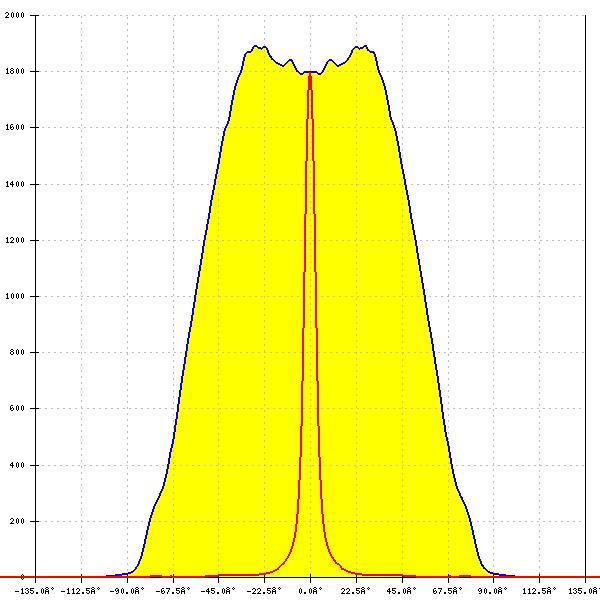

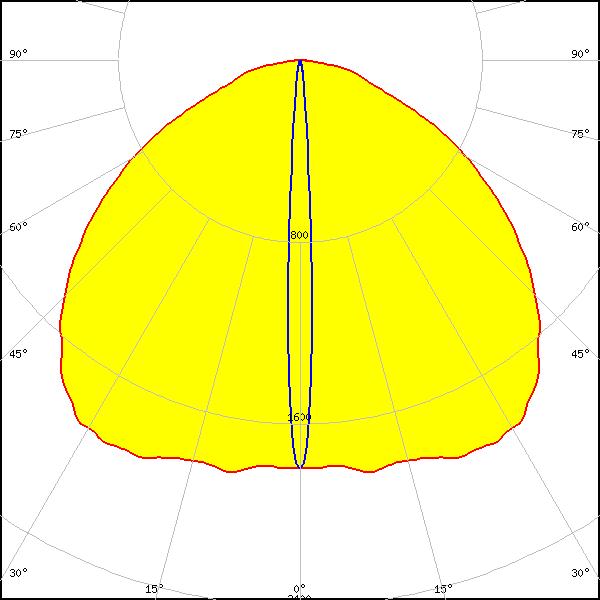

    LED: LUXEON CZ
    FWHM: 115° + 6°
    FWTM: 160° + 12°
    Peak intensity: 2.104 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 1
    Light colour/type: White

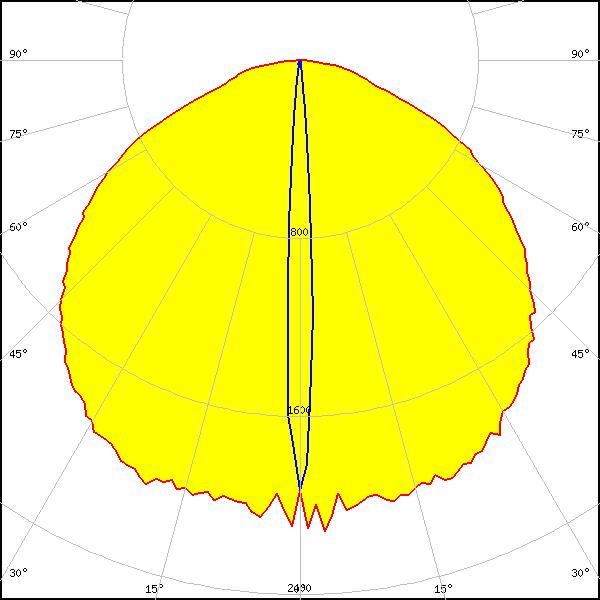

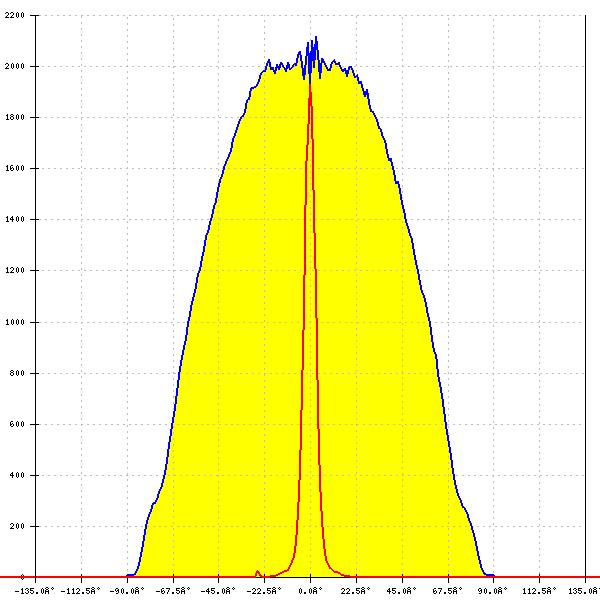

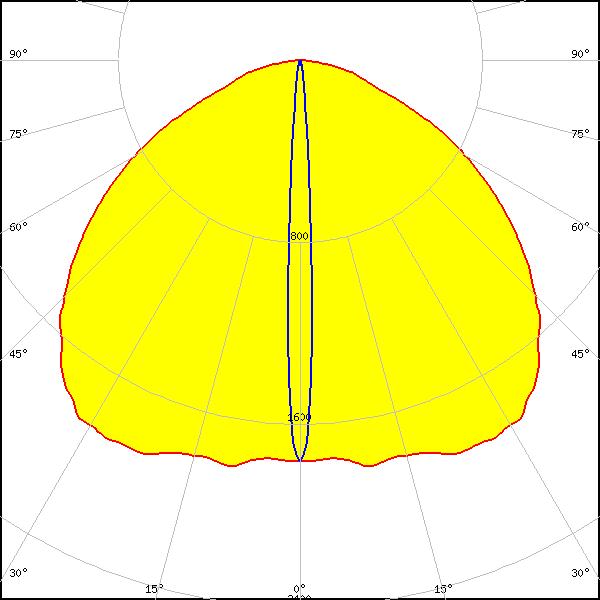

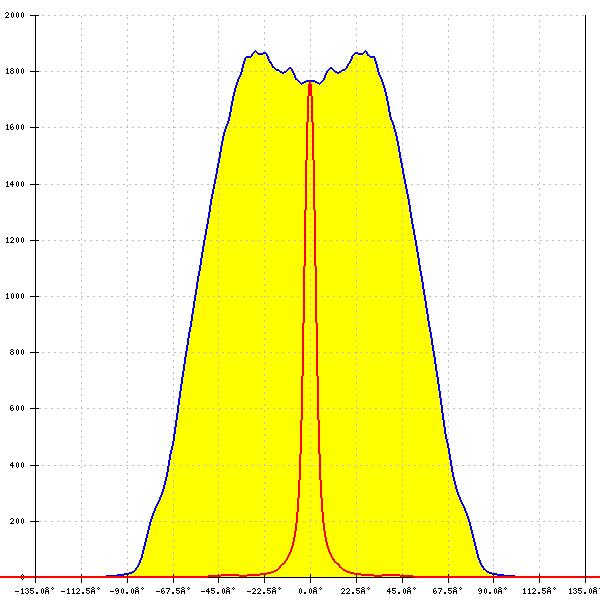

    LED: LUXEON CZ
    FWHM: 115° + 6°
    FWTM: 159° + 13°
    Peak intensity: 2.182 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: LUXEON CZ
    FWHM: 113° + 7°
    FWTM: 158° + 14°
    Peak intensity: 1.993 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON CZ
    FWHM: 113° + 7°
    FWTM: 156° + 14°
    Peak intensity: 1.982 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: Red
    LED: LUXEON CZ
    FWHM: 113° + 7°
    FWTM: 158° + 14°
    Peak intensity: 1.947 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: Green

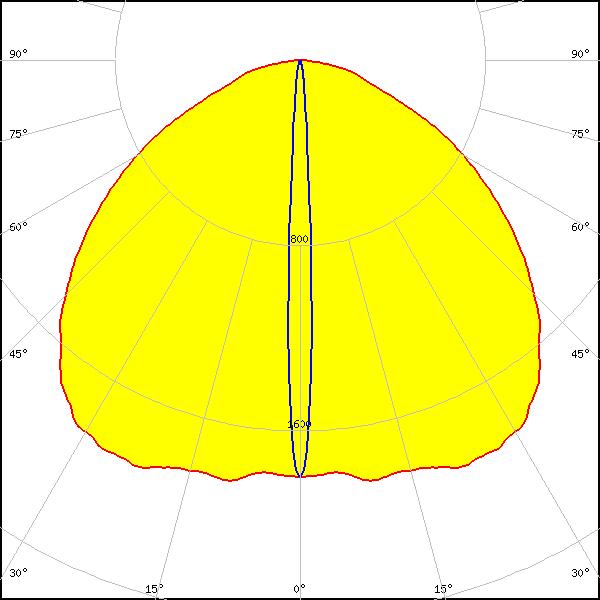

    LED: LUXEON CZ
    FWHM: 112° + 7°
    FWTM: 157° + 14°
    Peak intensity: 1.986 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: Royal Blue

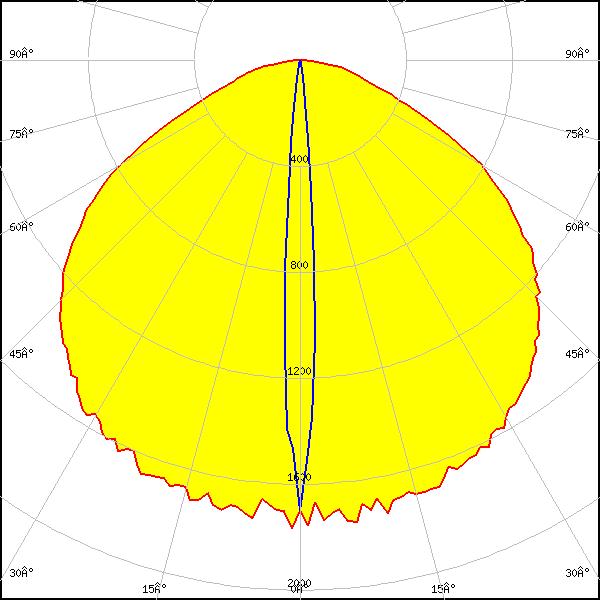

    LED: LUXEON HL4Z
    FWHM: 115° + 8°
    FWTM: 156° + 14°
    Peak intensity: 1.826 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White

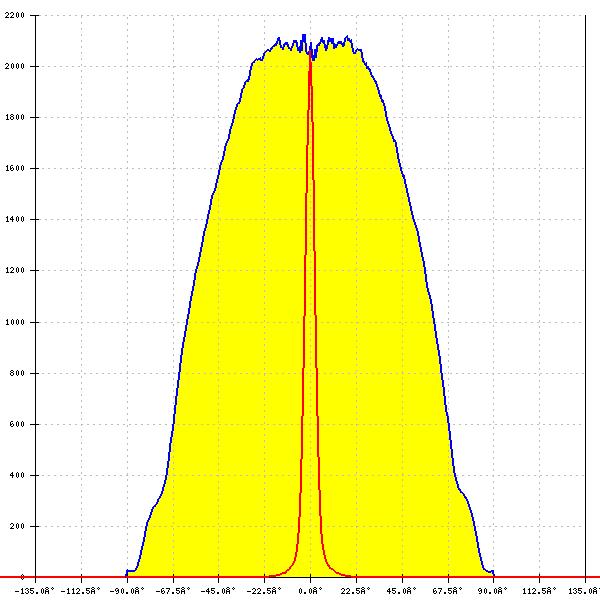

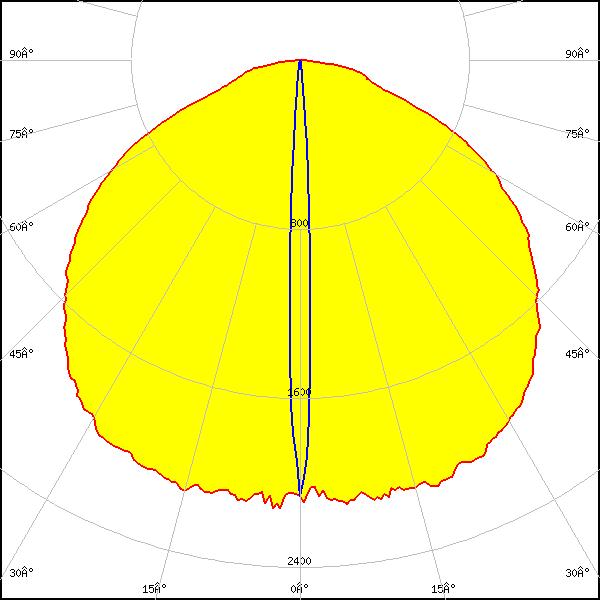

    LED: LUXEON Rubix
    FWHM: 119° + 5°
    FWTM: 161° + 11°
    Peak intensity: 2.215 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: RGBW

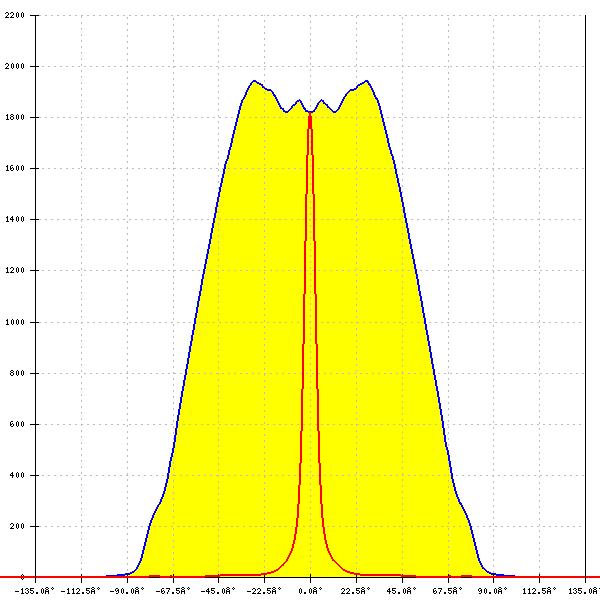

    LED: LUXEON Rubix
    FWHM: 112° + 7°
    FWTM: 156° + 14°
    Peak intensity: 2.058 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White

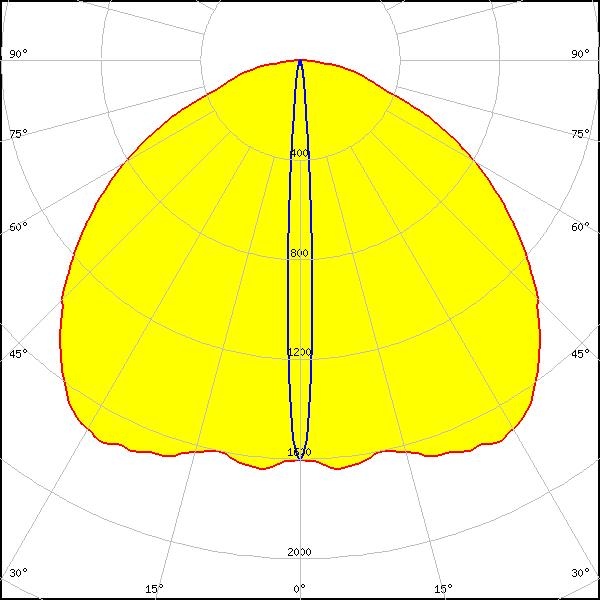

    LED: LUXEON Rubix
    FWHM: 115° + 7°
    FWTM: 160° + 15°
    Peak intensity: 1.802 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: Red

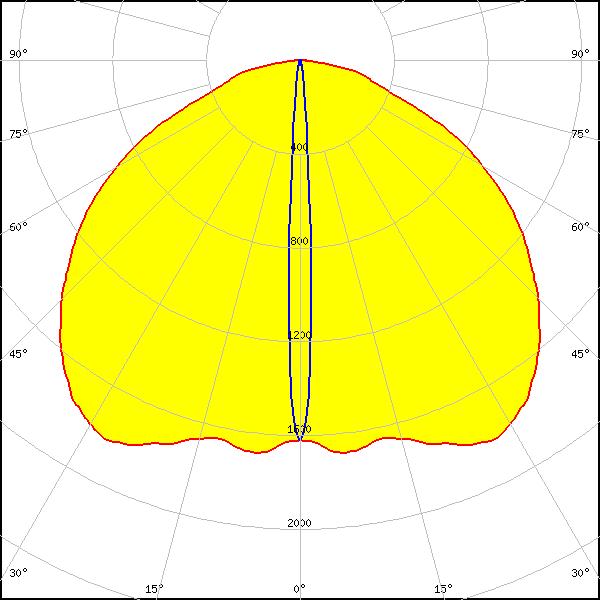

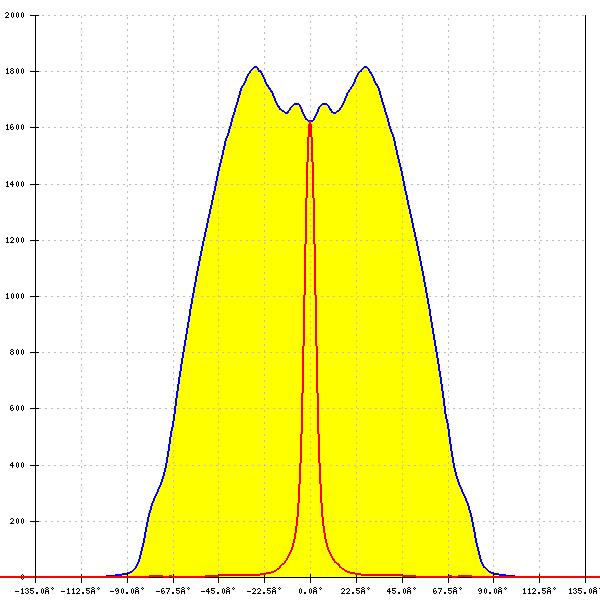

    LED: LUXEON Rubix
    FWHM: 116° + 7°
    FWTM: 160° + 15°
    Peak intensity: 1.926 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 4
    Light colour/type: Green

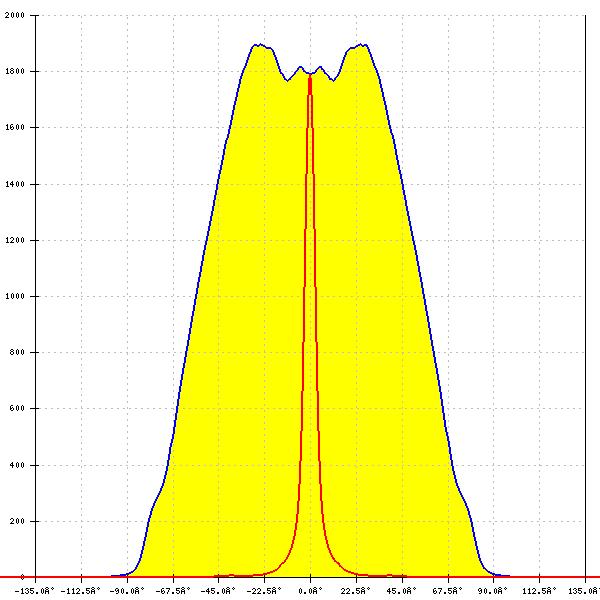

    LED: LUXEON Rubix
    FWHM: 112° + 6°
    FWTM: 158° + 14°
    Peak intensity: 2.004 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 4
    Light colour/type: Royal Blue

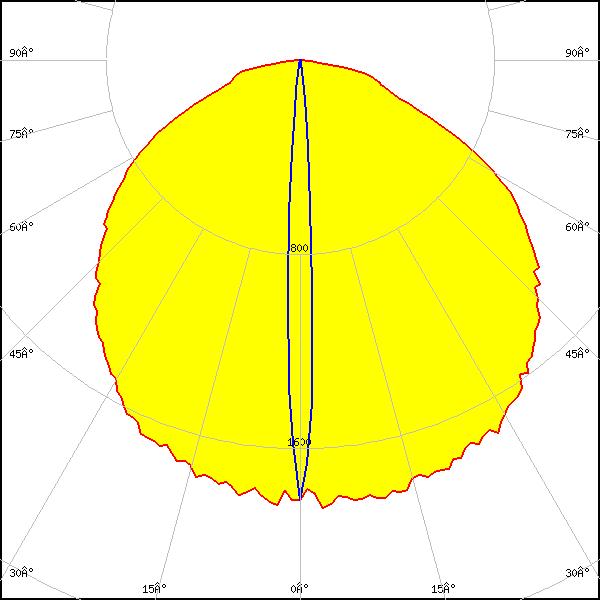

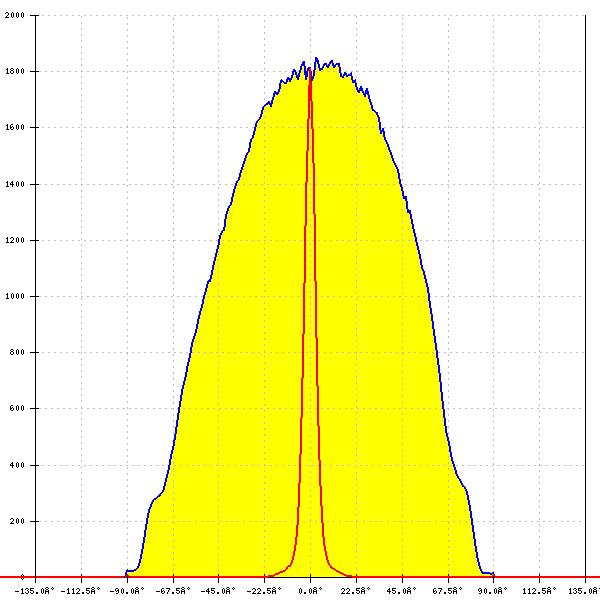

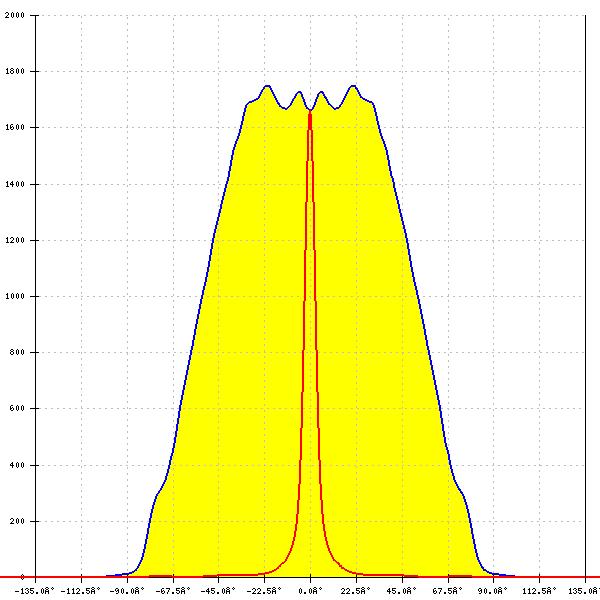

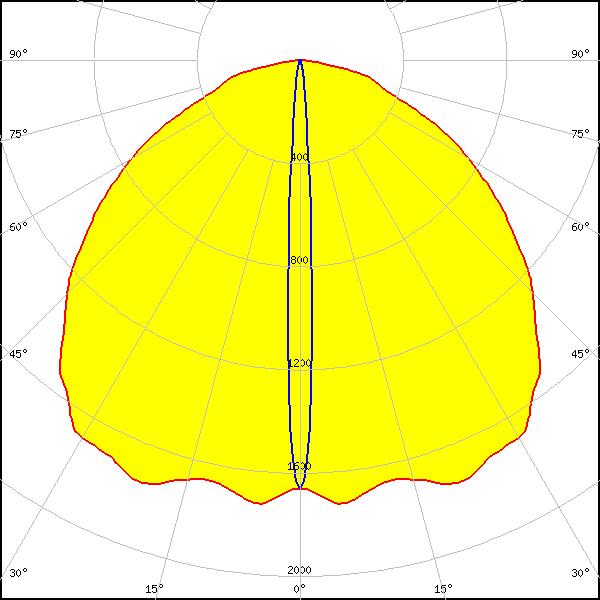

    LED: NCSxE17A
    FWHM: 115° + 6°
    FWTM: 160° + 12°
    Peak intensity: 1.905 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 4
    Light colour/type: RGBW

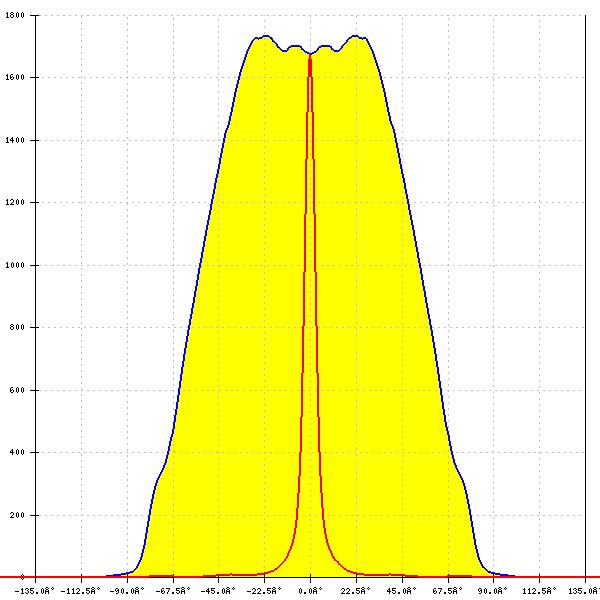

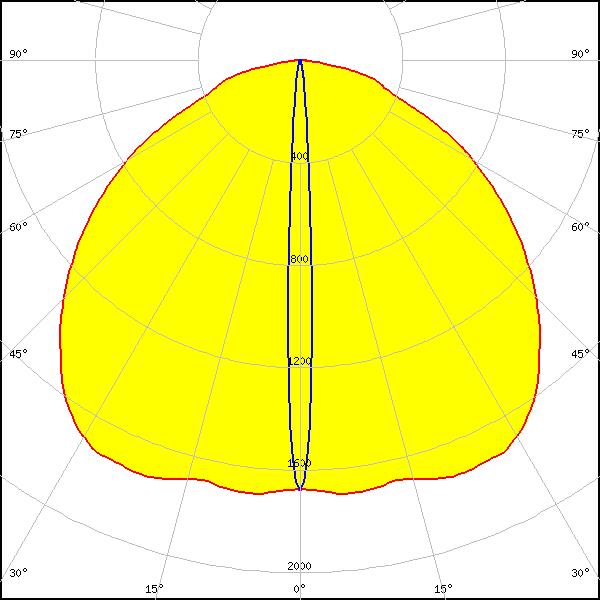

    LED: NCSxE17A
    FWHM: 113° + 6°
    FWTM: 158° + 14°
    Peak intensity: 1.816 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: White

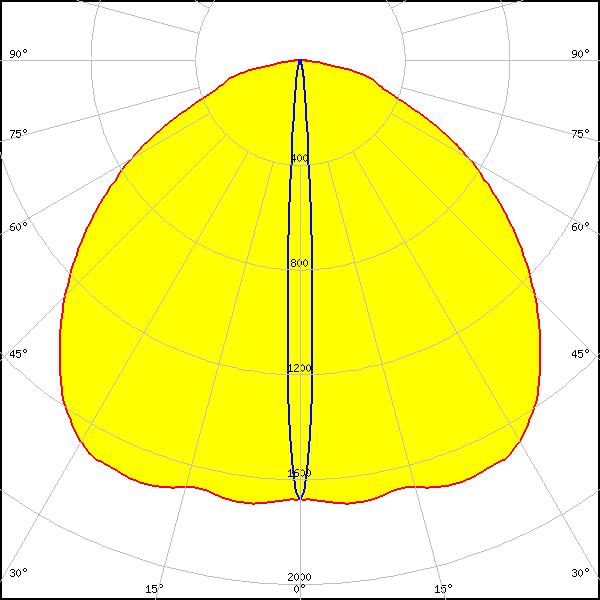

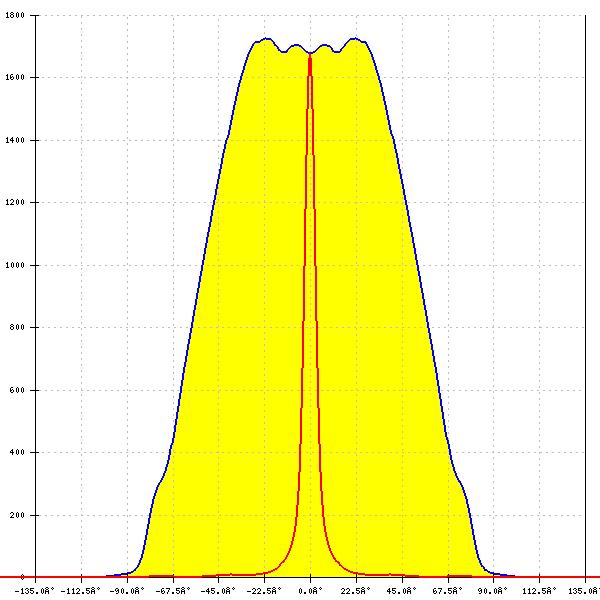

    LED: NCSxE17A
    FWHM: 111° + 7°
    FWTM: 158° + 15°
    Peak intensity: 1.812 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: Green

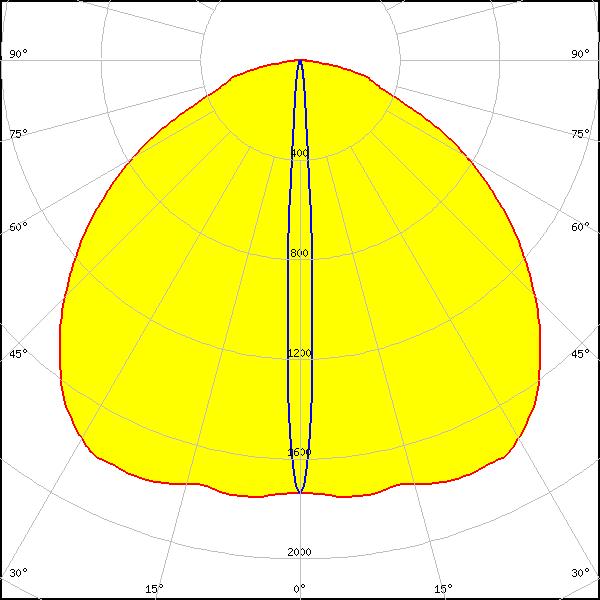

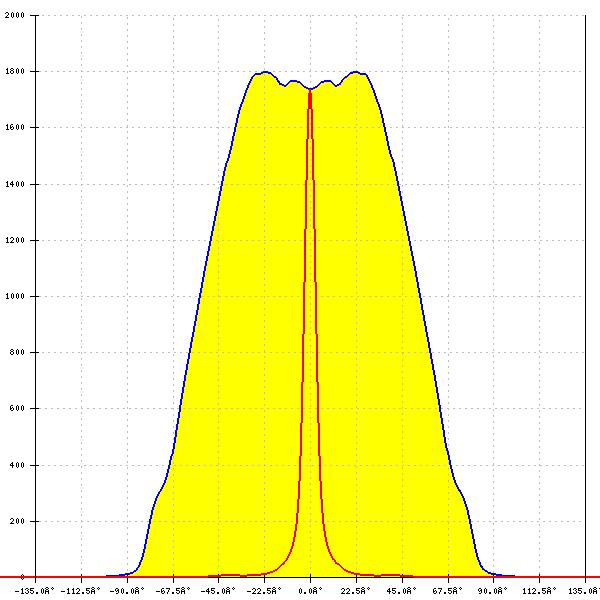

    LED: NCSxE17A
    FWHM: 111° + 7°
    FWTM: 158° + 14°
    Peak intensity: 1.893 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 4
    Light colour/type: Red

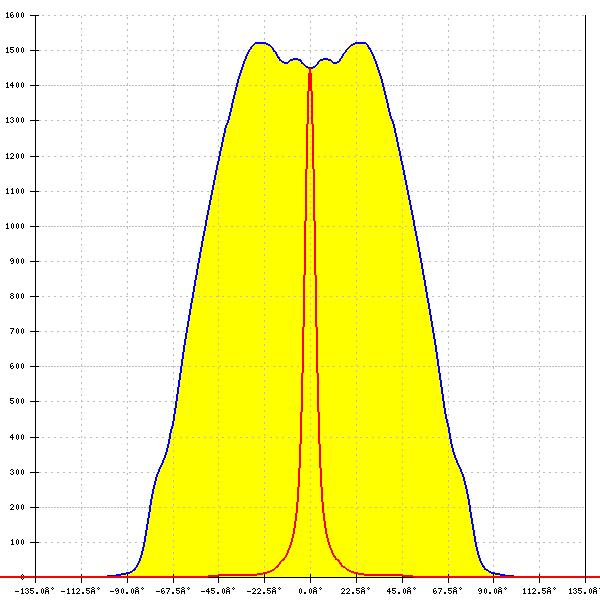

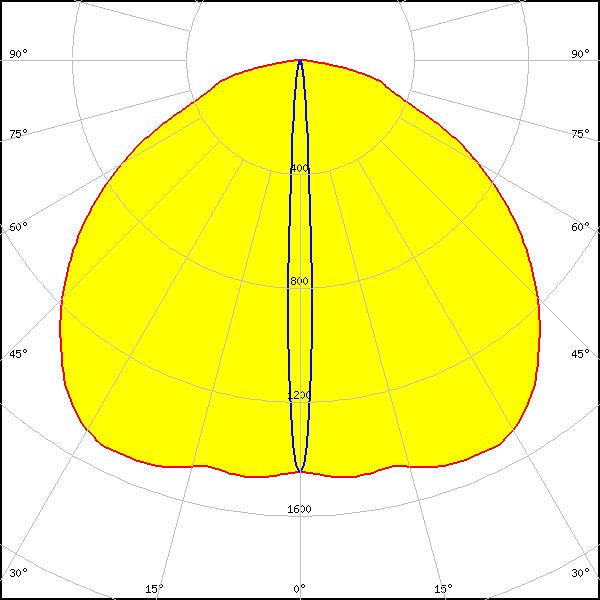

    LED: NCSxE17A
    FWHM: 114° + 7°
    FWTM: 159° + 15°
    Peak intensity: 1.600 cd/lm
    Efficiency: 47 %
    LEDs/each optic: 4
    Light colour/type: Royal Blue

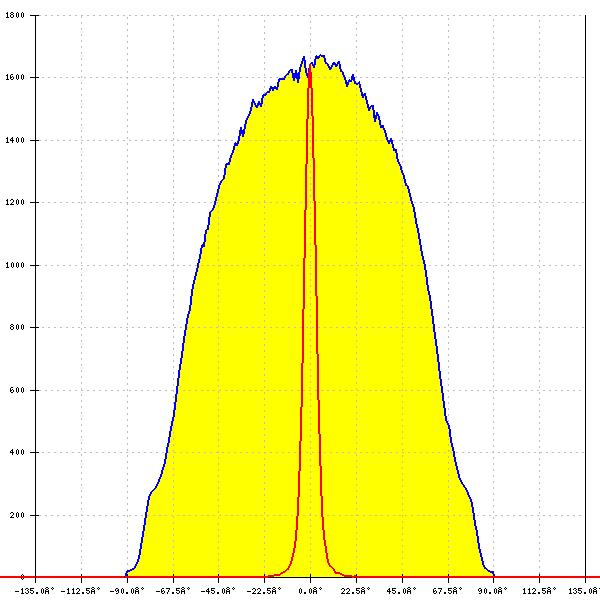

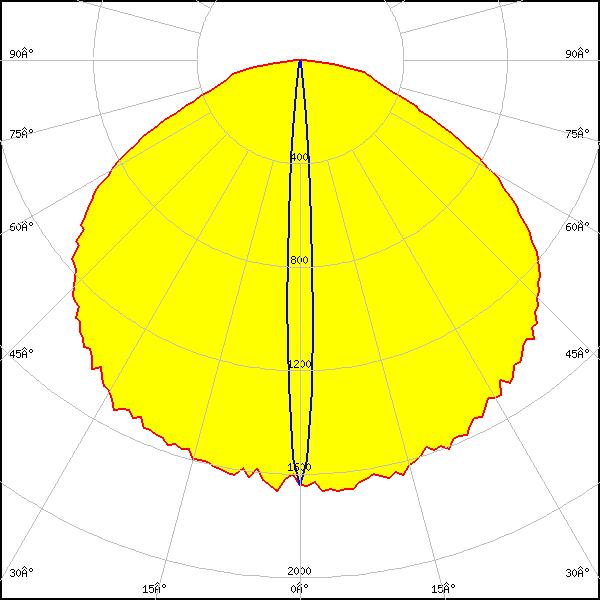

    LED: NCSxx19B
    FWHM: 120° + 6°
    FWTM: 162° + 14°
    Peak intensity: 1.722 cd/lm
    Efficiency: 50 %
    LEDs/each optic: 4
    Light colour/type: RGBW

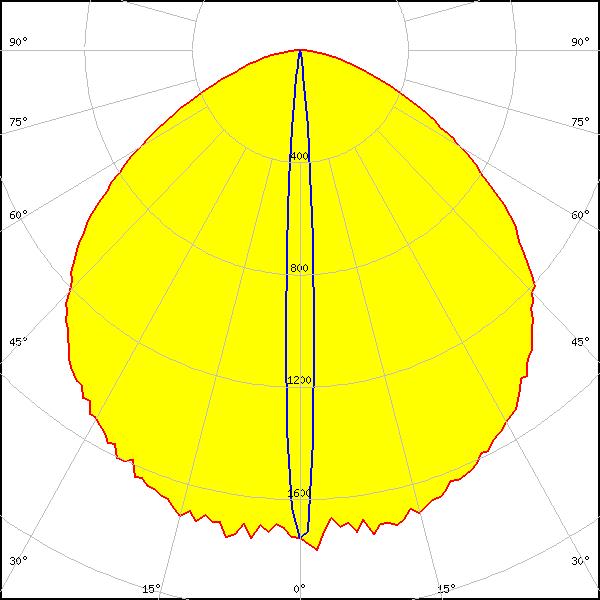

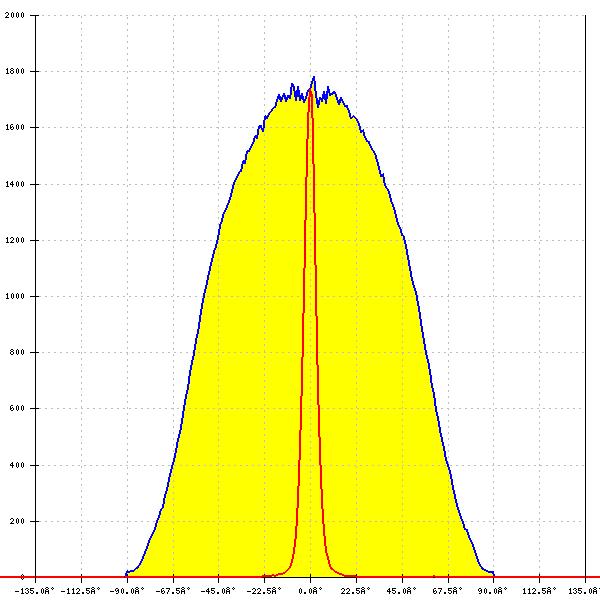

    LED: NVSR219GL-L1
    FWHM: 110° + 6°
    FWTM: 152° + 14°
    Peak intensity: 1.818 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 6
    Light colour/type: Red

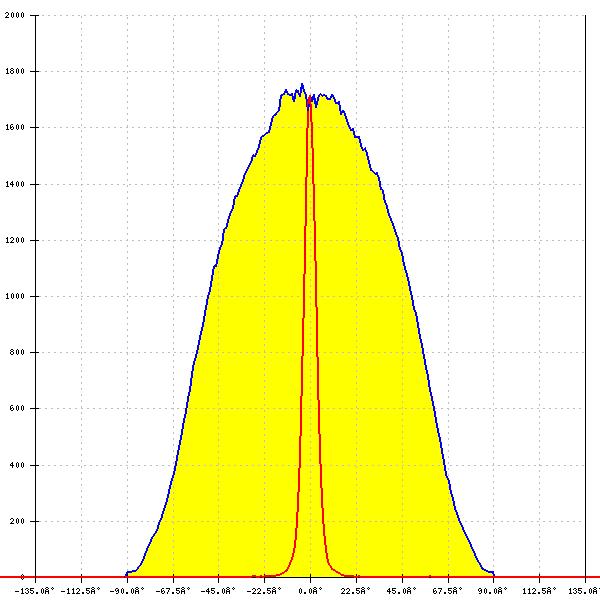

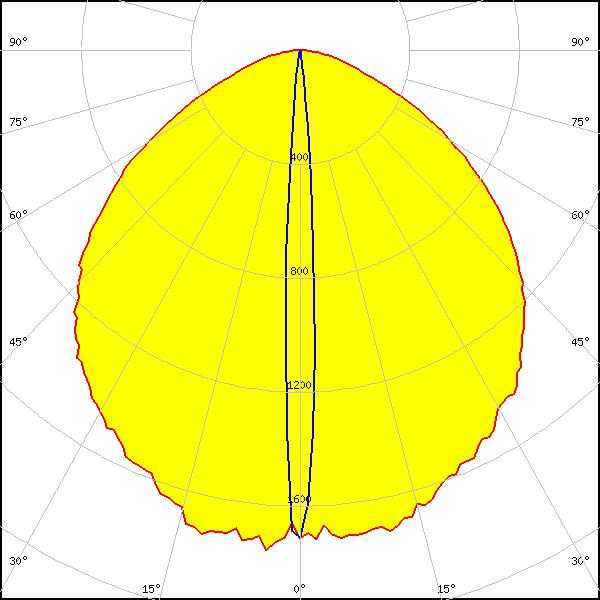

    LED: NVSR219GL-L1
    FWHM: 106° + 7°
    FWTM: 150° + 14°
    Peak intensity: 1.894 cd/lm
    Efficiency: 55 %
    LEDs/each optic: 7
    Light colour/type: Red

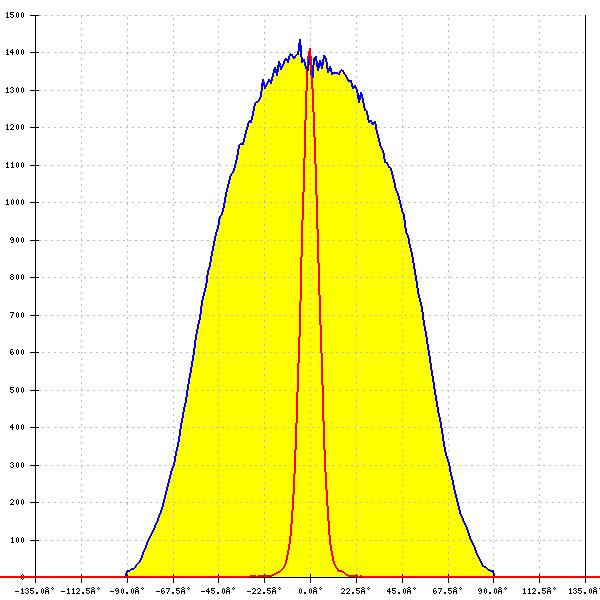

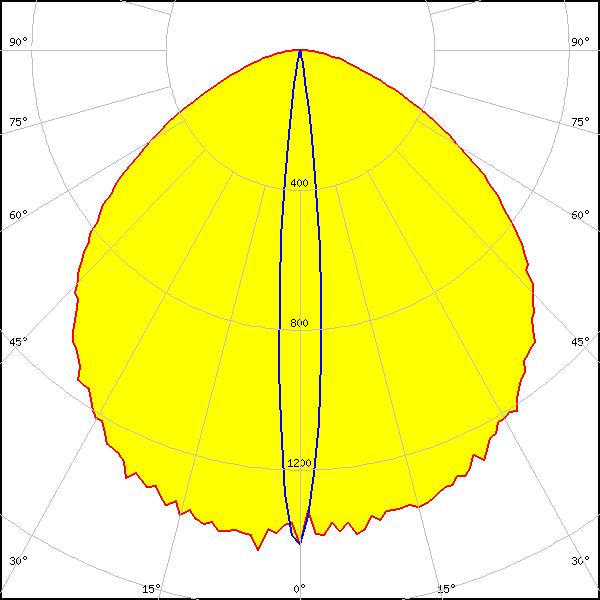

    LED: DURIS E 5050 (GW J9LHS2.4M)
    FWHM: 108° + 10°
    FWTM: 151° + 18°
    Peak intensity: 1.535 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: OSLON Pure 1414
    FWHM: 112° + 6°
    FWTM: 158° + 12°
    Peak intensity: 2.257 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: RGBW

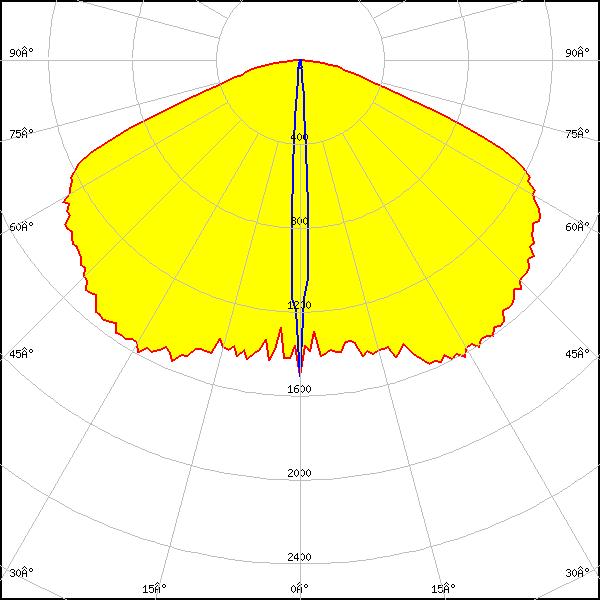

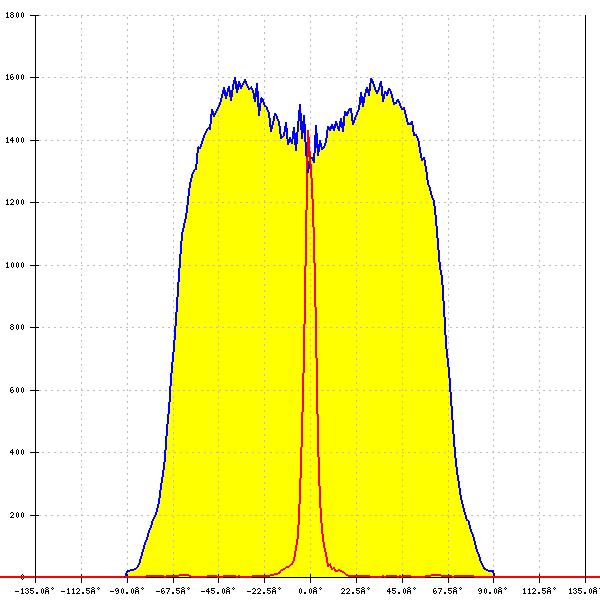

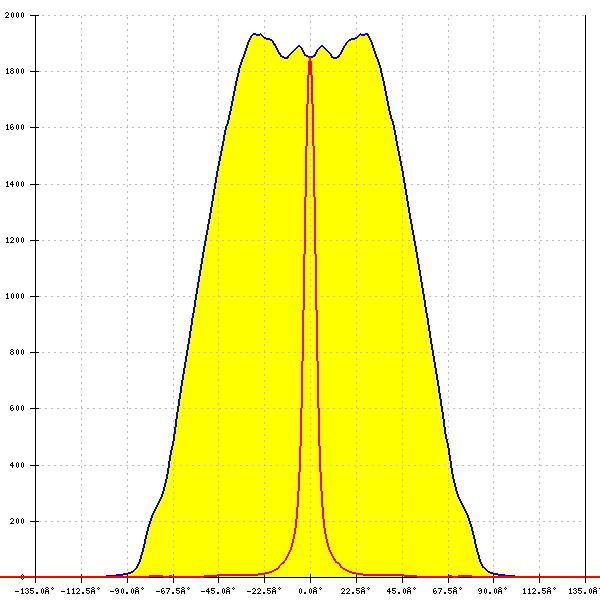

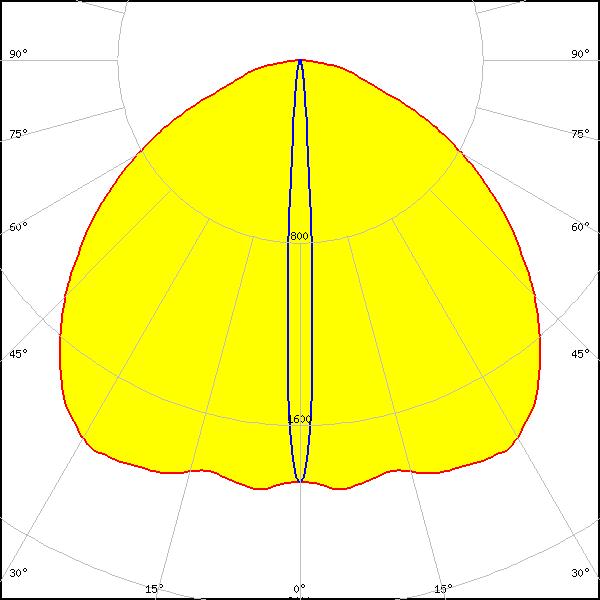

    LED: OSLON Pure 1414
    FWHM: 111° + 7°
    FWTM: 154° + 14°
    Peak intensity: 2.064 cd/lm
    Efficiency: 54 %
    LEDs/each optic: 4
    Light colour/type: True Green

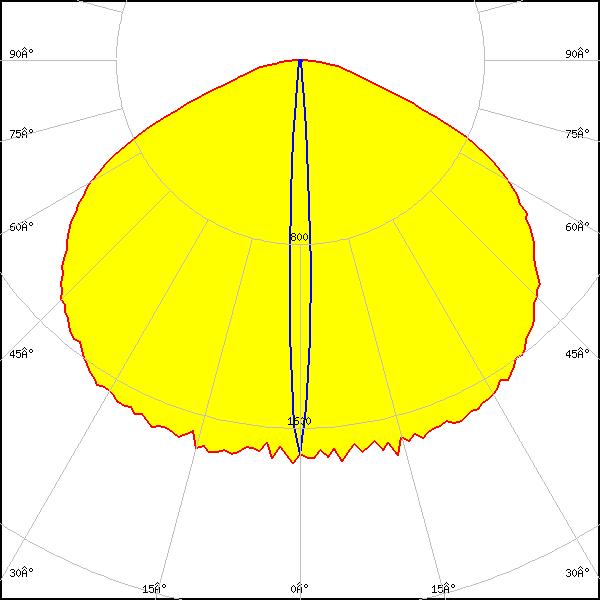

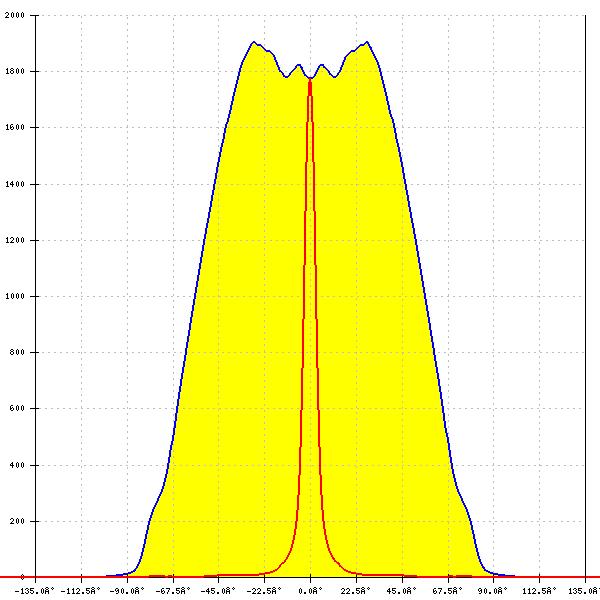

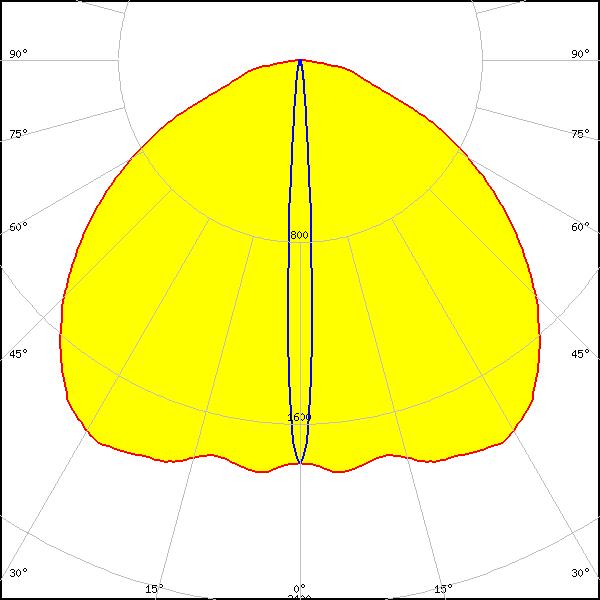

    LED: OSLON Pure 1414
    FWHM: 112° + 7°
    FWTM: 155° + 14°
    Peak intensity: 2.021 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: White

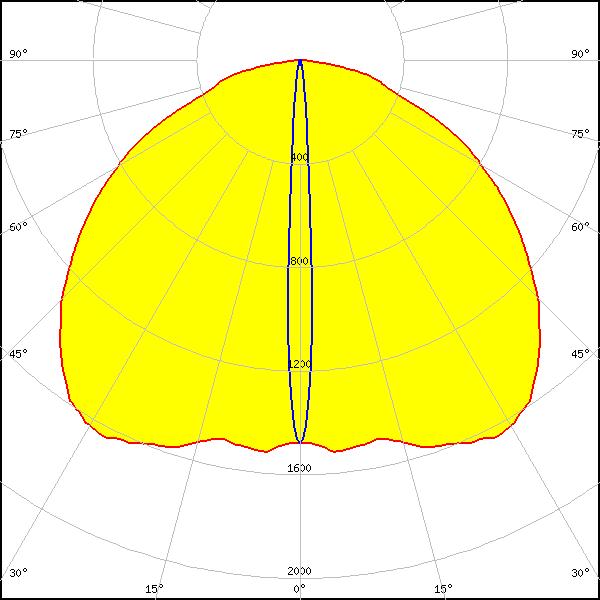

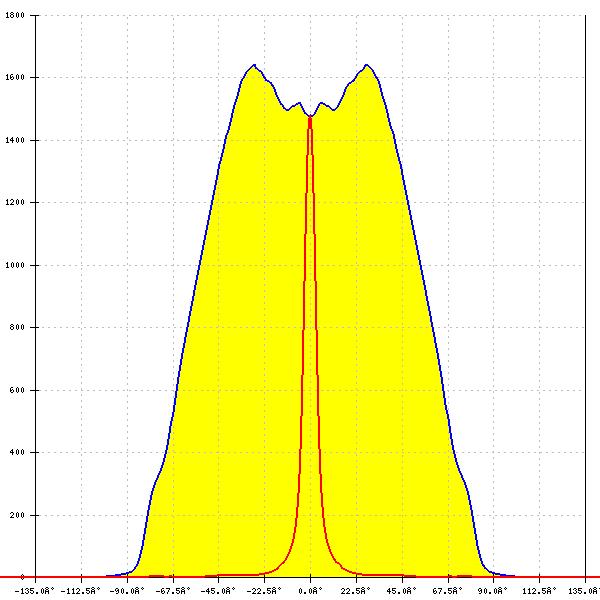

    LED: OSLON Pure 1414
    FWHM: 116° + 7°
    FWTM: 161° + 16°
    Peak intensity: 1.729 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 4
    Light colour/type: Red

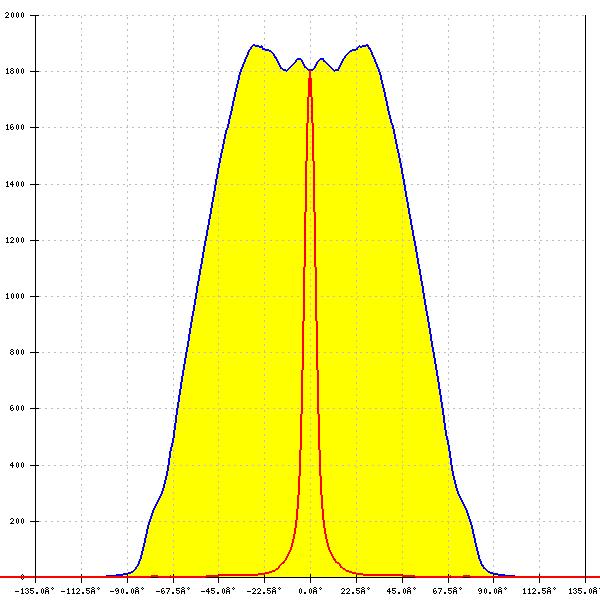

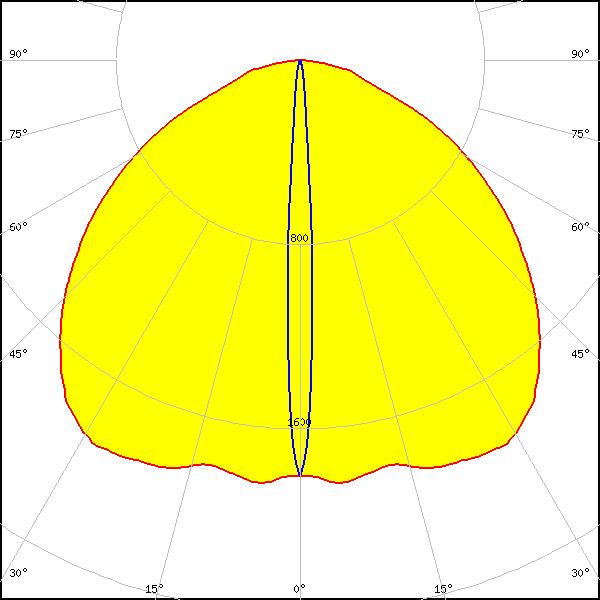

    LED: OSLON Pure 1414
    FWHM: 111° + 7°
    FWTM: 154° + 14°
    Peak intensity: 2.047 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 4
    Light colour/type: Blue

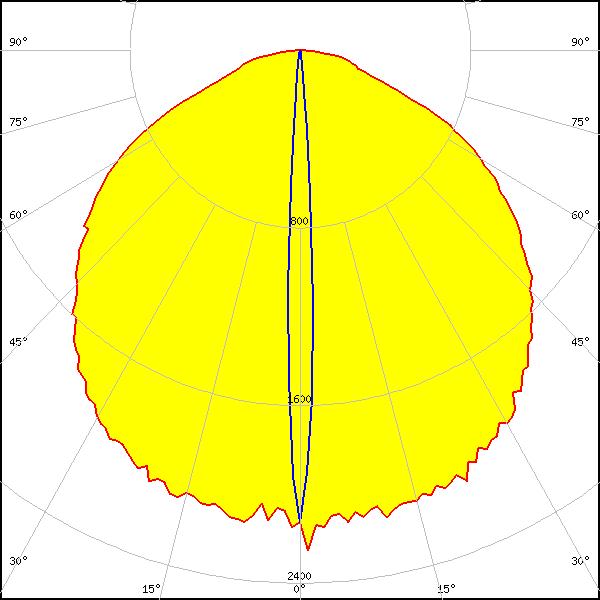

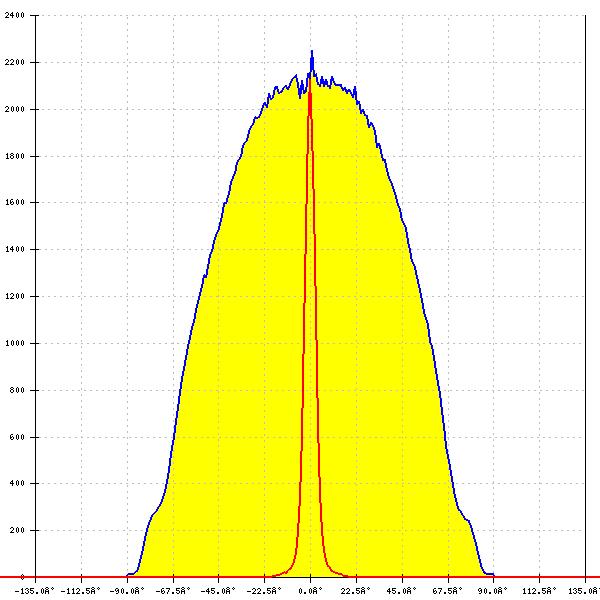

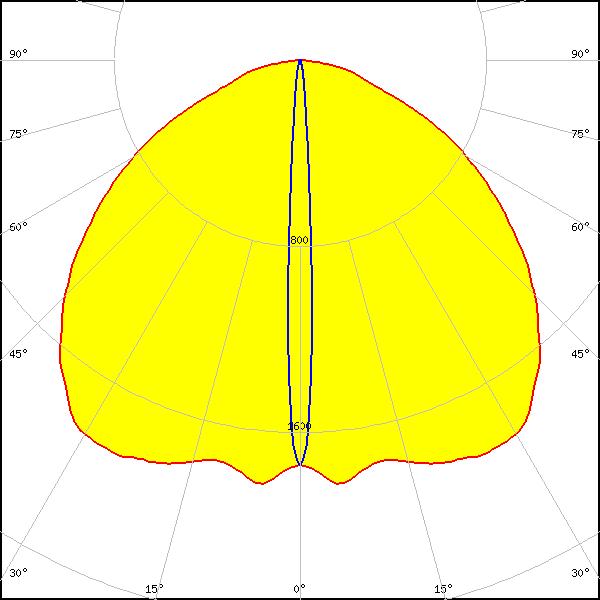

    LED: OSLON Pure 1414 RGBW
    FWHM: 112° + 7°
    FWTM: 156° + 15°
    Peak intensity: 1.979 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: RGBW

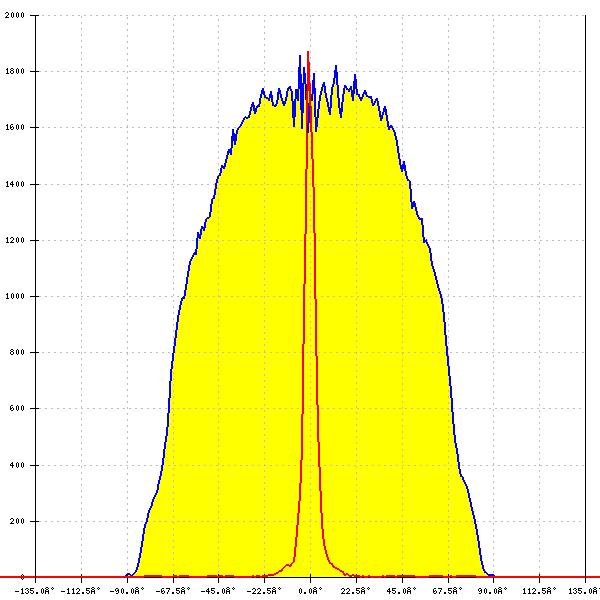

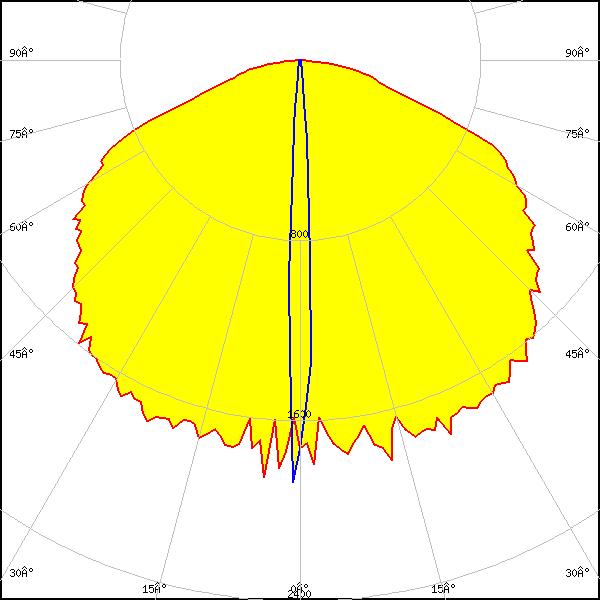

    LED: OSLON SSL 150
    FWHM: 131° + 6°
    FWTM: 162° + 12°
    Peak intensity: 1.881 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON SSL 150
    FWHM: 126° + 6°
    FWTM: 159° + 12°
    Peak intensity: 1.885 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 4
    Light colour/type: White

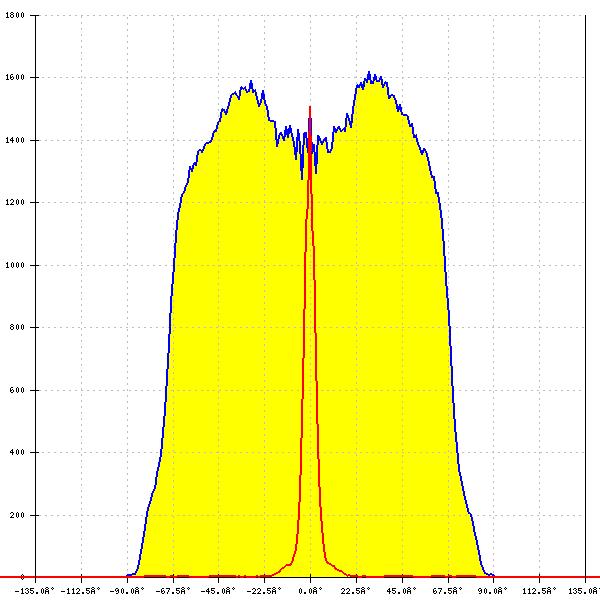

    LED: OSLON SSL 150
    FWHM: 137° + 6°
    FWTM: 161° + 12°
    Peak intensity: 1.620 cd/lm
    Efficiency: 49 %
    LEDs/each optic: 1
    Light colour/type: Red

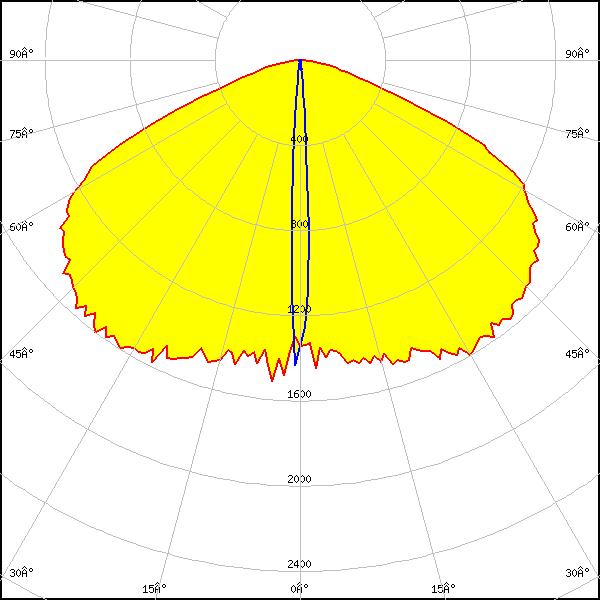

    LED: OSLON SSL 150
    FWHM: 133° + 6°
    FWTM: 157° + 12°
    Peak intensity: 1.603 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 4
    Light colour/type: Red

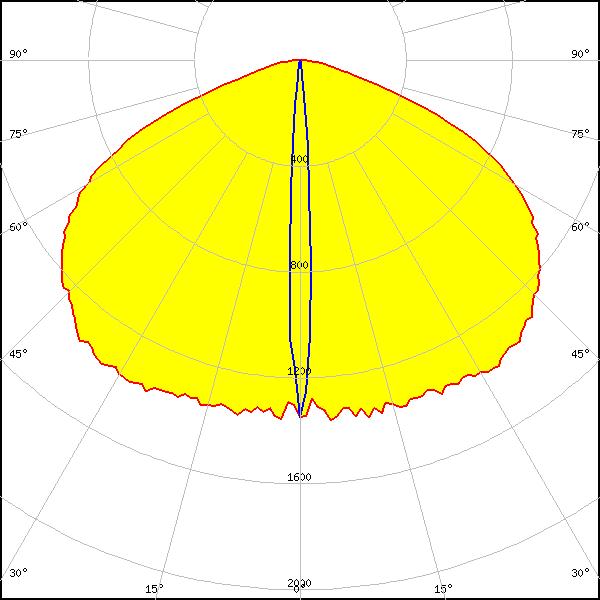

    LED: OSLON SSL 150
    FWHM: 132° + 6°
    FWTM: 154° + 14°
    Peak intensity: 1.461 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 7
    Light colour/type: Red

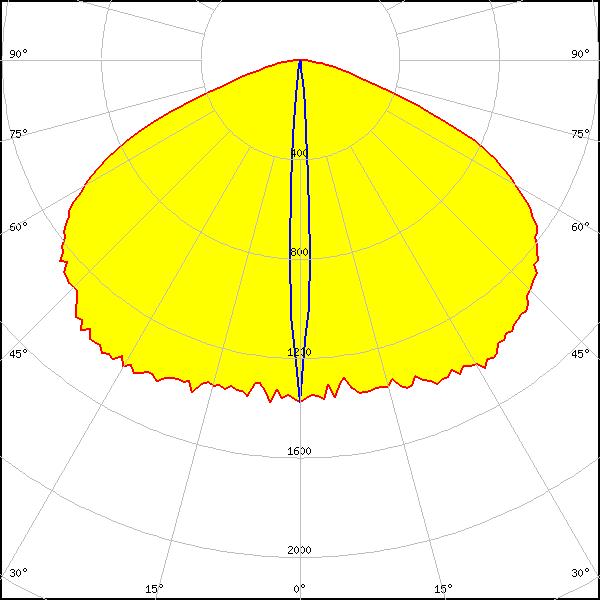

    LED: OSLON SSL 150
    FWHM: 132° + 6°
    FWTM: 156° + 13°
    Peak intensity: 1.453 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 6
    Light colour/type: Red

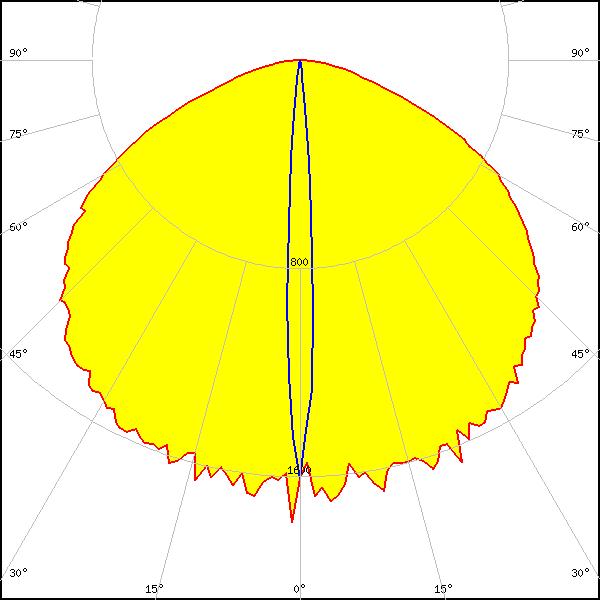

    LED: OSLON SSL 150
    FWHM: 119° + 6°
    FWTM: 156° + 14°
    Peak intensity: 1.775 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 6
    Light colour/type: White

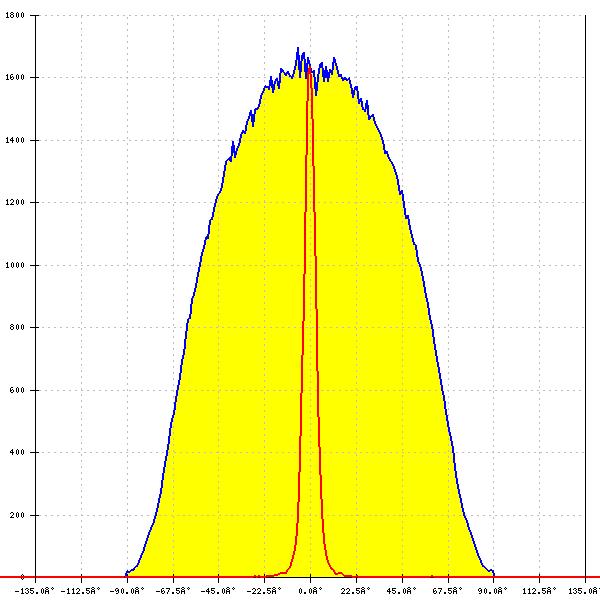

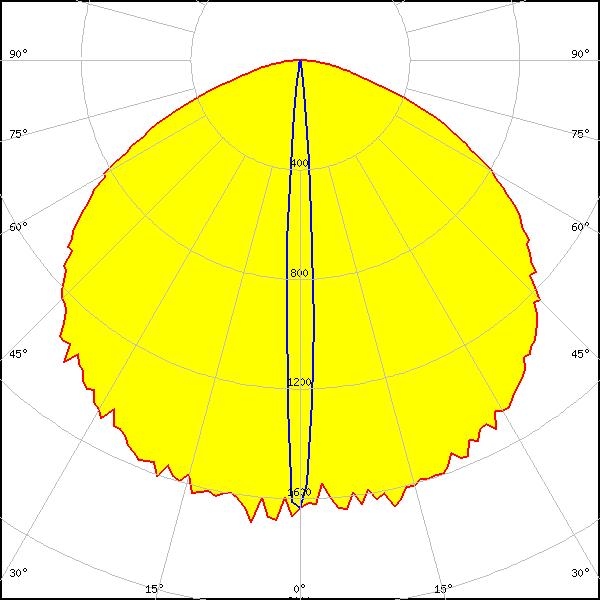

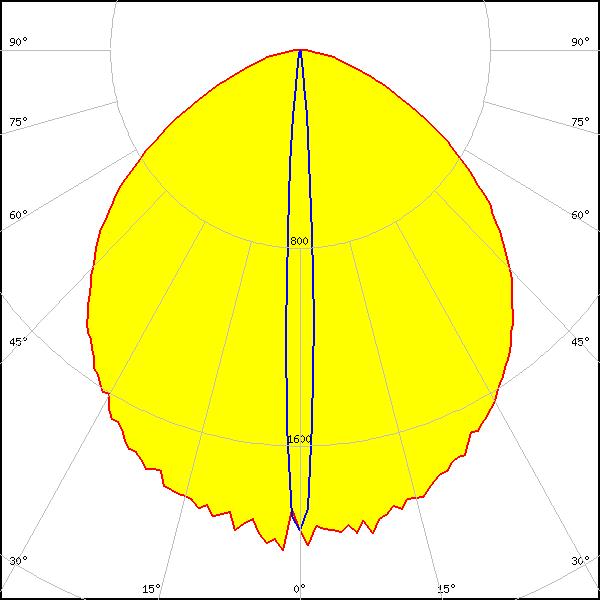

    LED: OSLON SSL 150
    FWHM: 118° + 6°
    FWTM: 154° + 13°
    Peak intensity: 1.768 cd/lm
    Efficiency: 53 %
    LEDs/each optic: 7
    Light colour/type: White

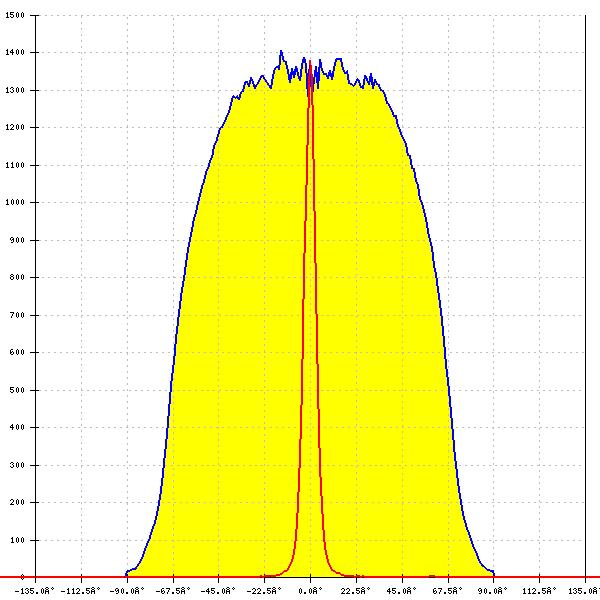

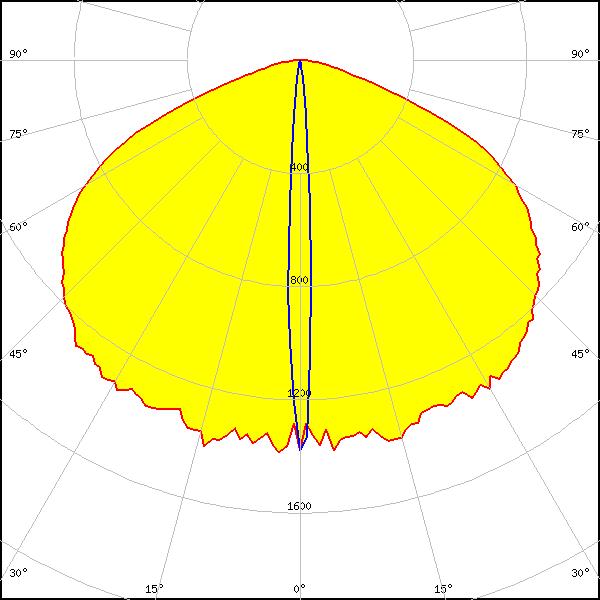

    LED: OSLON SSL 150
    FWHM: 130° + 6°
    FWTM: 153° + 14°
    Peak intensity: 1.407 cd/lm
    Efficiency: 52 %
    LEDs/each optic: 8
    Light colour/type: Red
    LED: OSTAR Stage (S2WN)
    FWHM: 108° + 8°
    FWTM: 146° + 14°
    Peak intensity: 1.911 cd/lm
    Efficiency: 56 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
