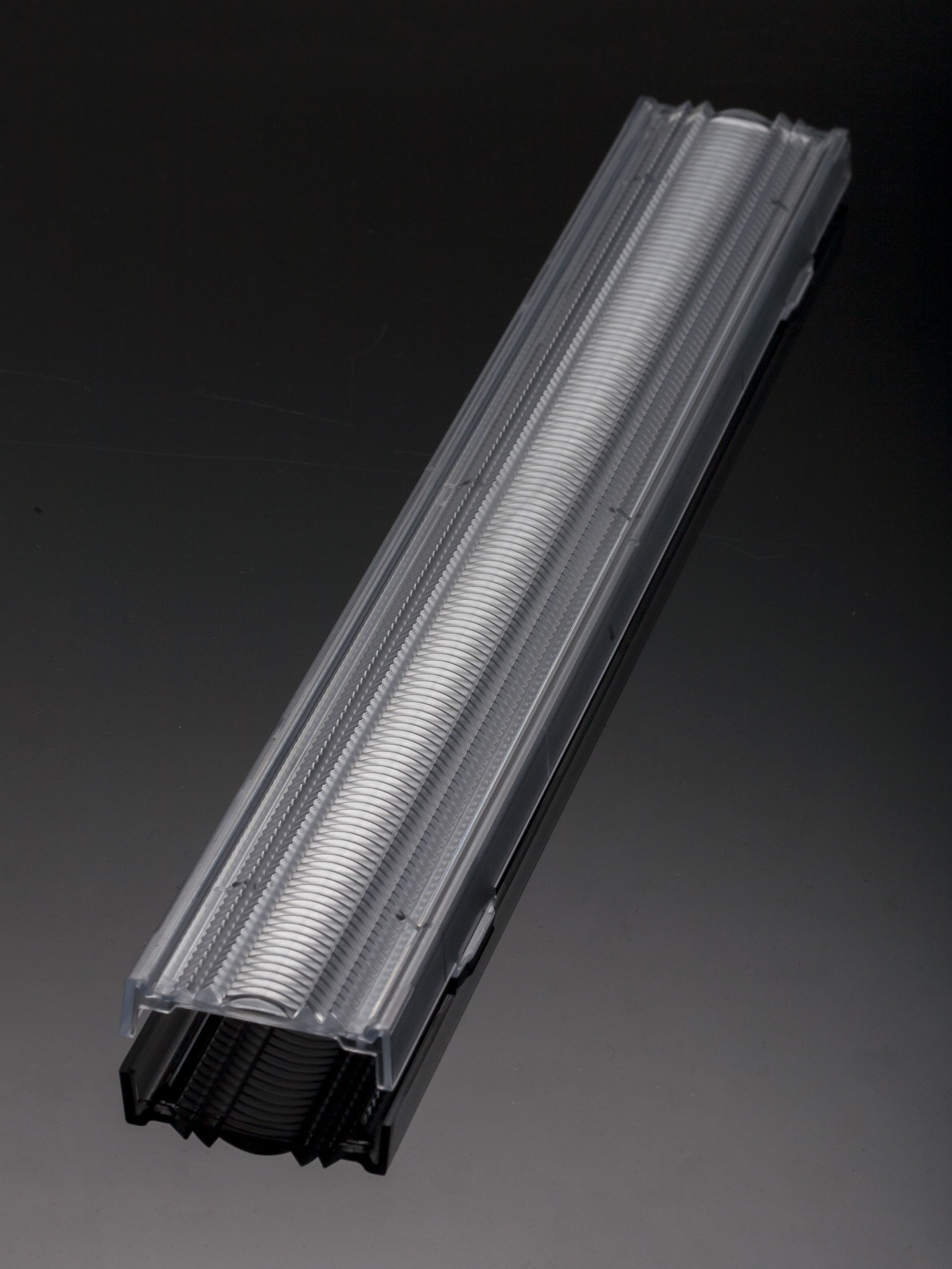

F16813_LINNEA-60-PMMA

Print

~60° + 90° beam optimized for 1.0 mm metal sheet or profile. Variant made from PMMA.


This product is currently in End-of-life and thus, is not recommended for new designs. Last Time Buy: 28.02.2021

Contact our sales for availability information or for an alternative product.

Specification
  • Dimensions:
    285 x  40 mm
  • Height:
    9.5 mm
  • Fastening:
    clips
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Ordering information
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F16813_LINNEA-60-PMMA

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: LP-282-840-009A 60/300
FWHM: 101° + 64°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LS-282-840-011A
FWHM: 101° + 64°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LX-282-840-023A
FWHM: 100° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: NF2x757G
FWHM: 100° + 61°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NFSW757H
FWHM: 101° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: PL-LIN-IND-Z1 2800 560x24
FWHM: 101° + 66°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: PL-LIN-Z5 1100 280x20
FWHM: 101° + 64°
Peak intensity: 0.5 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: PL-LIN-Z5 2000 280x20
FWHM: 101° + 64°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: Duris E 2835
FWHM: 100° + 60°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Duris S5 (Single chip)
FWHM: 101° + 64°
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 1100lm FC HV4 & LV4
FWHM: 101° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo LED Strip 1ft 650lm FC HV4 & LV4
FWHM: 100° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LM28xB Series
FWHM: 101° + 60°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LM301B
FWHM: 101° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LM561B Plus
FWHM: 101° + 64°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LT-H282C
FWHM: 101° + 61°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LT-Q282B
FWHM: 101° + 61°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LT-V282E
FWHM: 101° + 61°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030C
FWHM: 94° + 68°
Peak intensity: 0.6 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LLE 24x280mm 1250lm HV ADV5
FWHM: 101° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LLE 24x280mm 650lm HV ADV5
FWHM: 100° + 65°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
