F16816_LINNEA-O-PMMA

Print

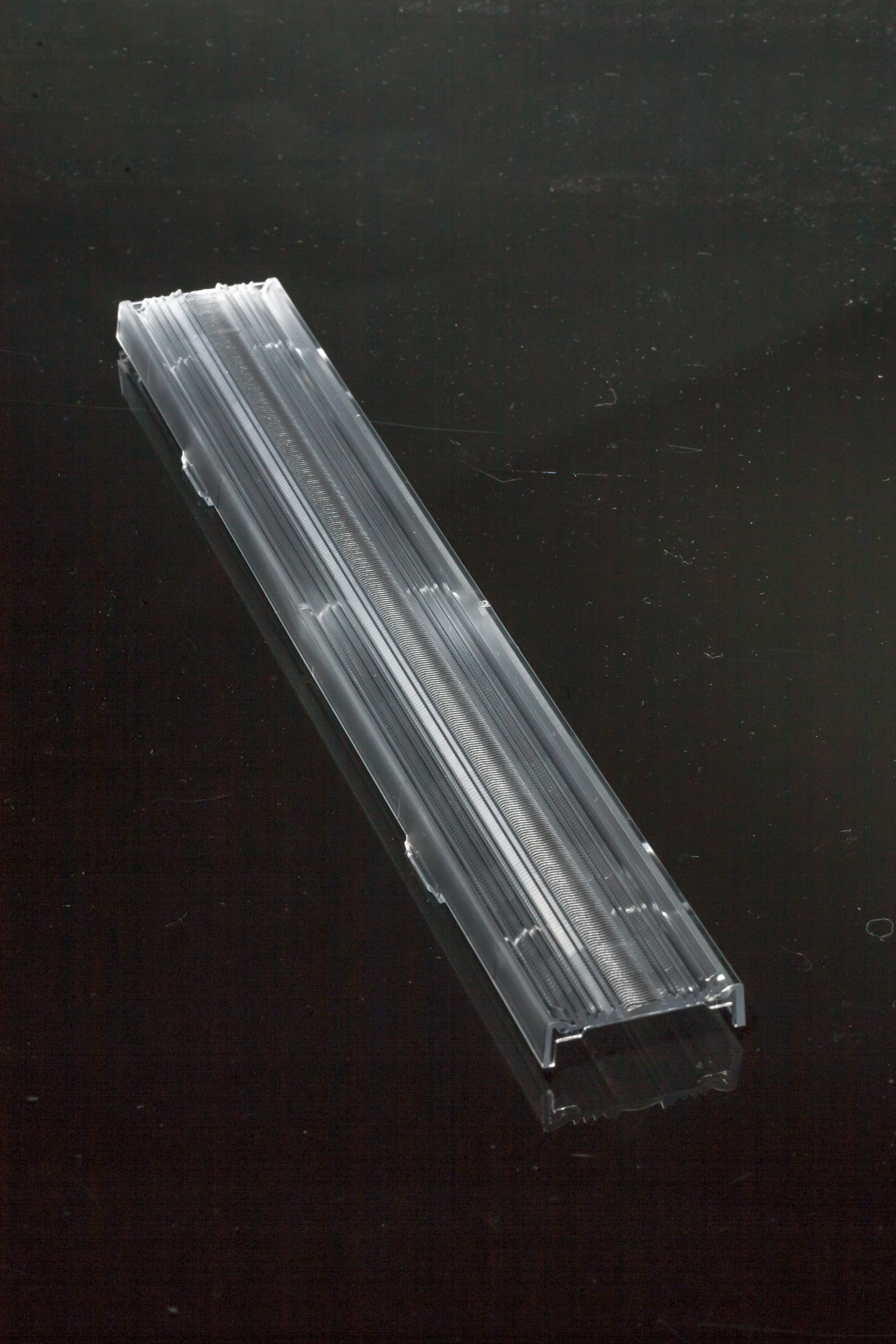

~35° + 70° oval beam optimized for 1.0 mm metal sheet or profile. Variant made from PMMA.

Specification
  • Dimensions:
    285 x  40 mm
  • Height:
    10.5 mm
  • Fastening:
    clips
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Packing information
  • Quantity in box:
    180 pcs
  • Box size:
    578 x 378 x 295 mm
  • Box weight:
    8.2 kg
  • MPQ:
    30 pcs
  • MOQ:
    30 pcs
  • MOQ size:
    568 x 378 x 70 mm
  • MOQ weight:
    1.6 kg

Typical Applications

Optical results

LED: NFSW757H
FWHM: 99° + 43°
Peak intensity: 0.7 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
