FA10302_OSS-O
Print

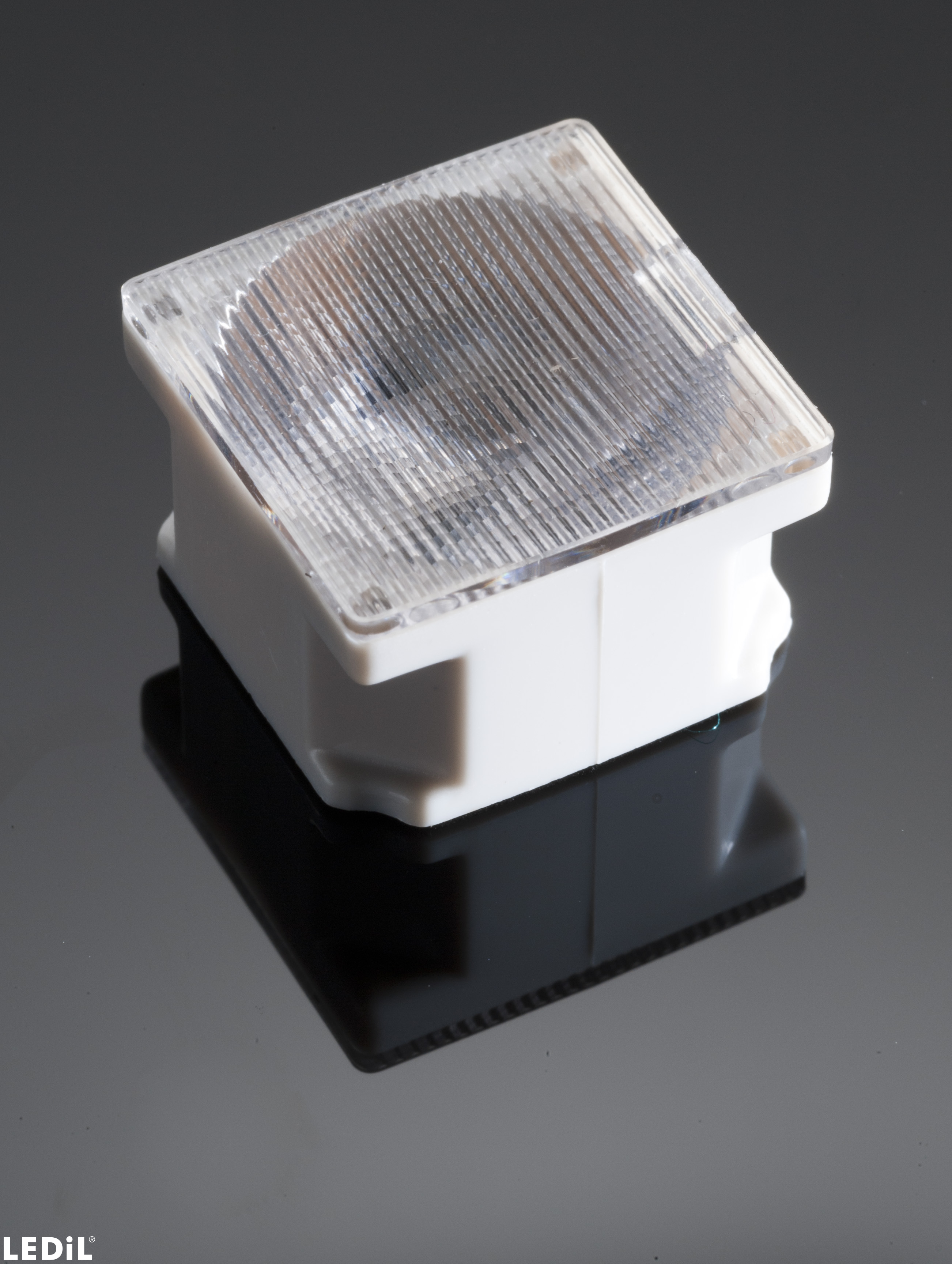

~45° + 15° oval beam optimized for Osram Golden Dragon+. Assembly with white holder.
Component Materials
- ROSE-A-A-OSingle lensPC
- ROSE-HLD-AHolderPC
- ROSE-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

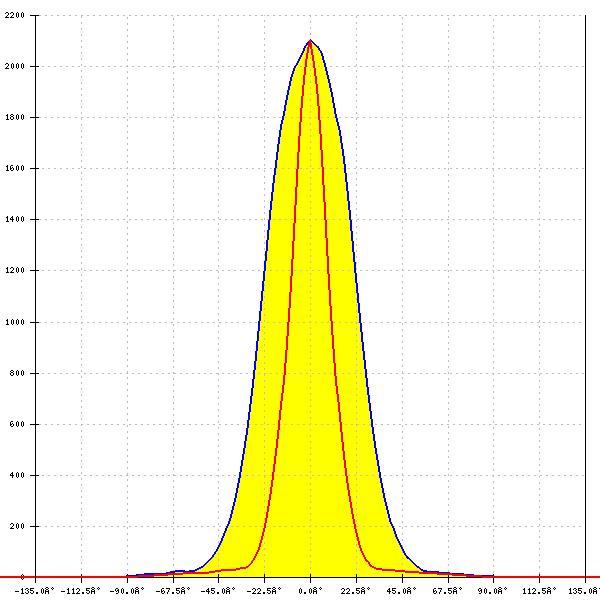

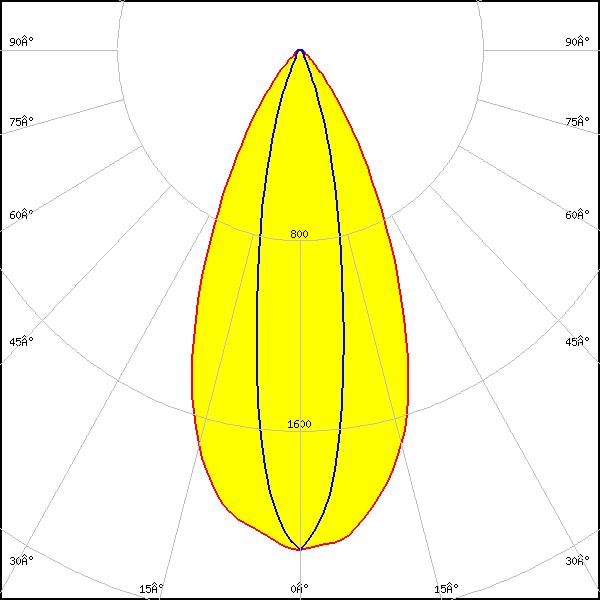

LED:
J Series 5050 Round LES
FWHM:
48° + 20°
FWTM:
80° + 44°
Peak intensity:
2.126 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

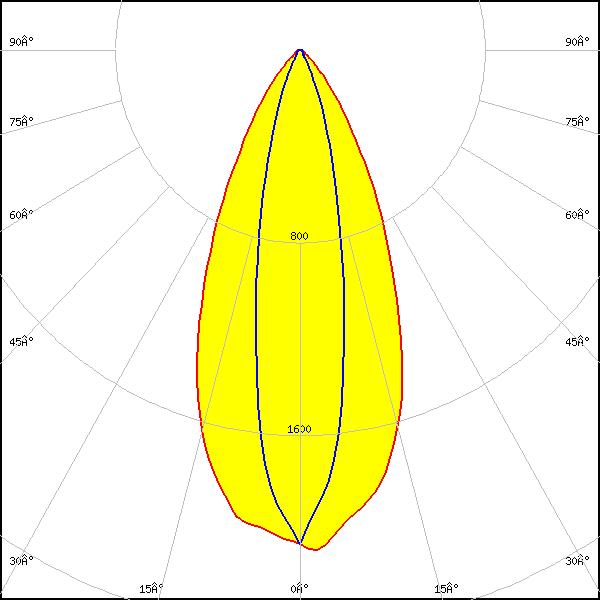

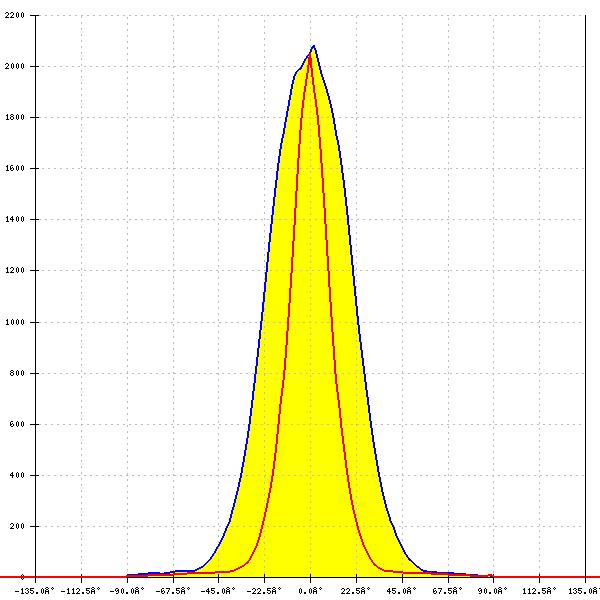

LED:
MHB-A/B
FWHM:
48° + 22°
FWTM:
82° + 47°
Peak intensity:
2.011 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
FWHM:
46° + 22°
FWTM:
80° + 46°
Peak intensity:
2.081 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

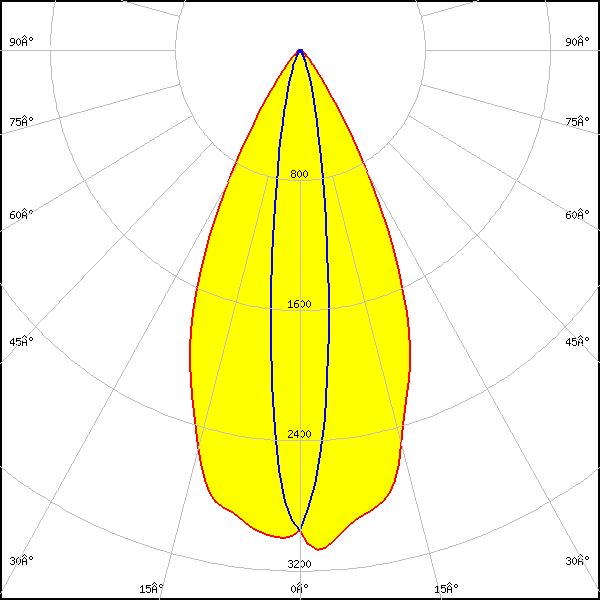

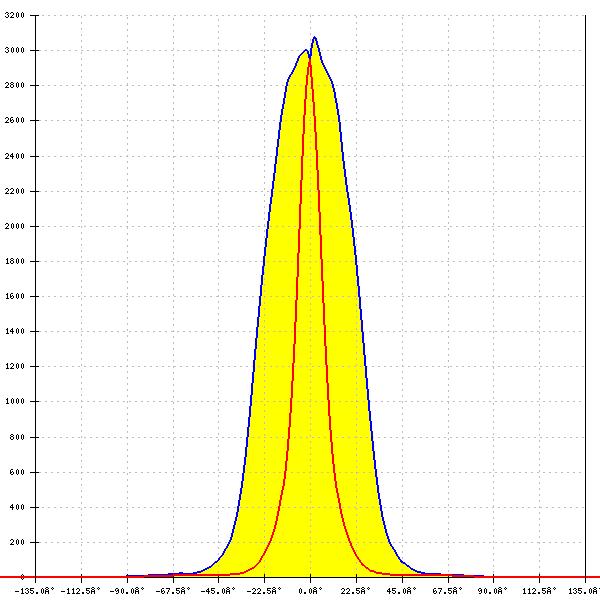

LED:
MX-3
FWHM:
50° + 14°
FWTM:
73° + 34°
Peak intensity:
3.075 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

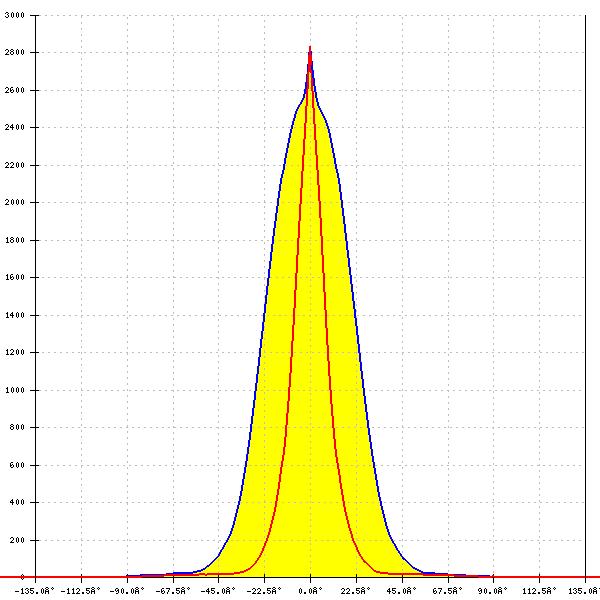

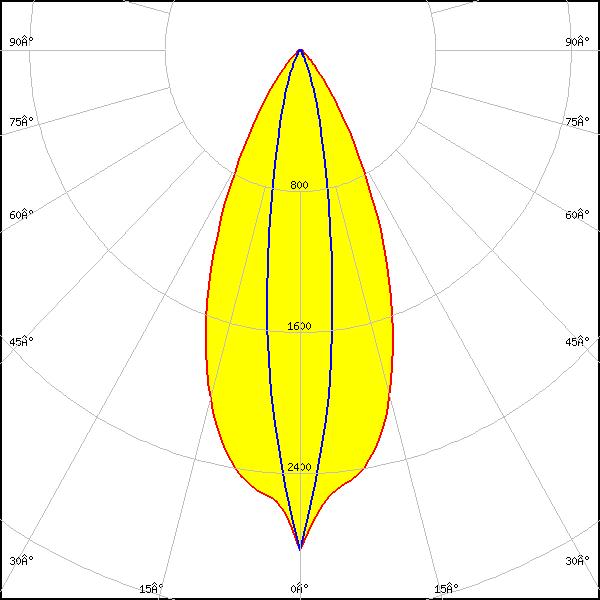

LED:
MX-6
FWHM:
44° + 16°
FWTM:
76° + 38°
Peak intensity:
2.835 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

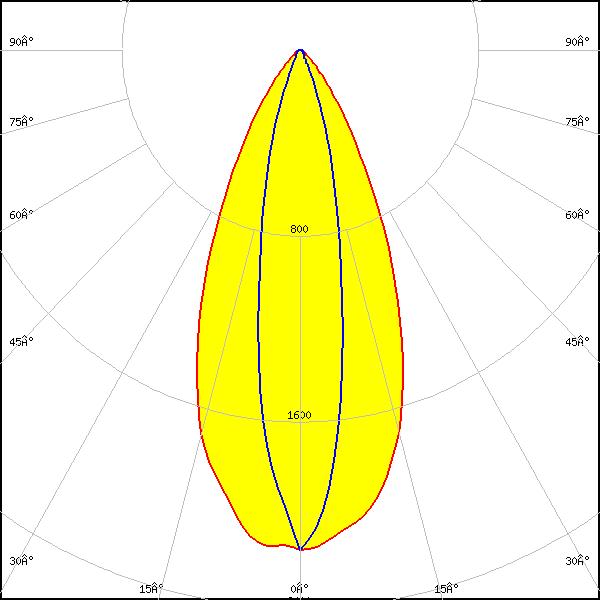

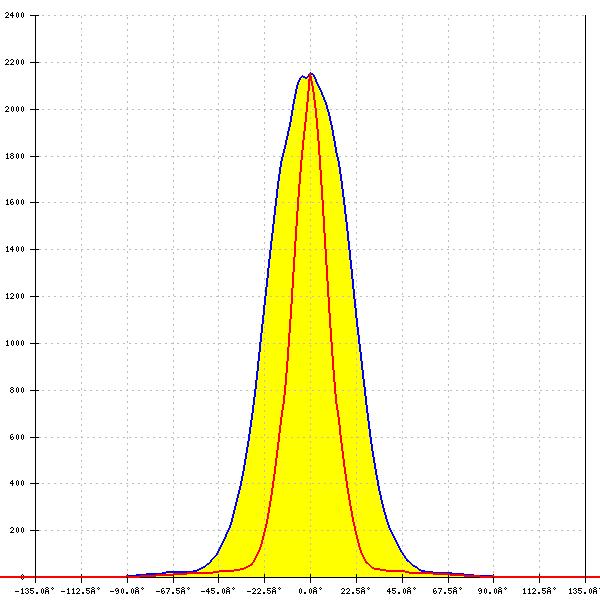

LED:
LUXEON 5050 Round LES
FWHM:
46° + 20°
FWTM:
79° + 44°
Peak intensity:
2.159 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

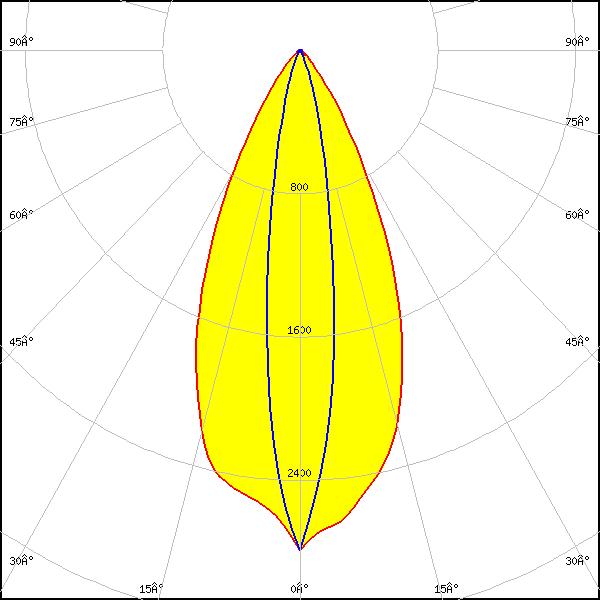

LED:

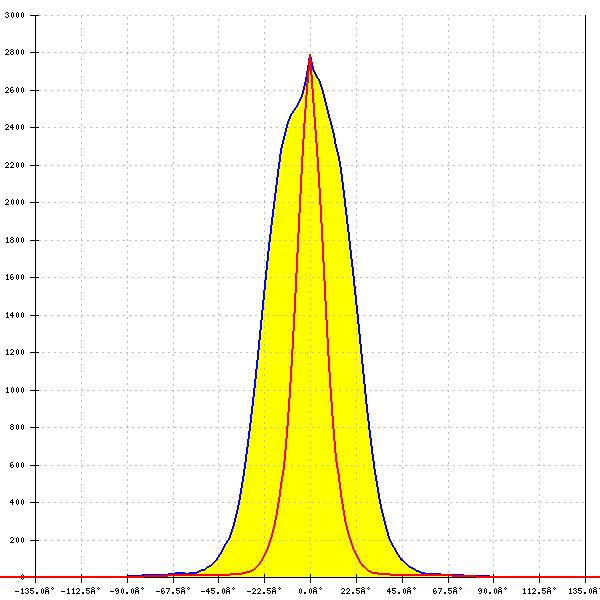

NS6x83
FWHM:
47° + 16°
FWTM:
75° + 35°
Peak intensity:
2.791 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Golden Dragon+
FWHM:
42° + 11°
FWTM:
69° + 22°
Peak intensity:
4.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

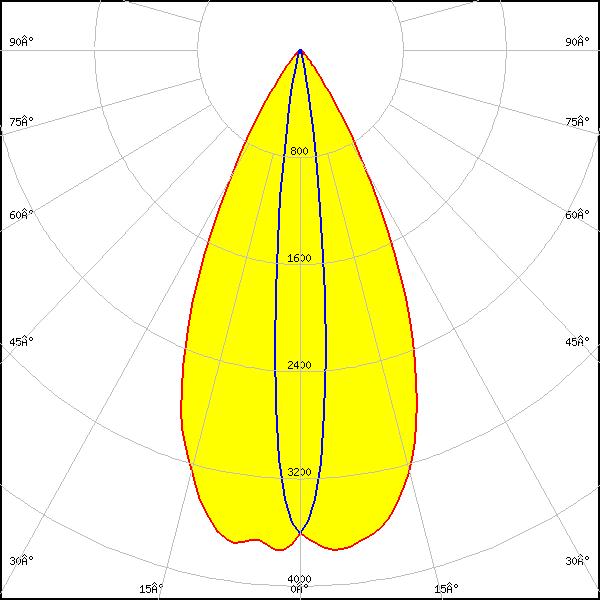

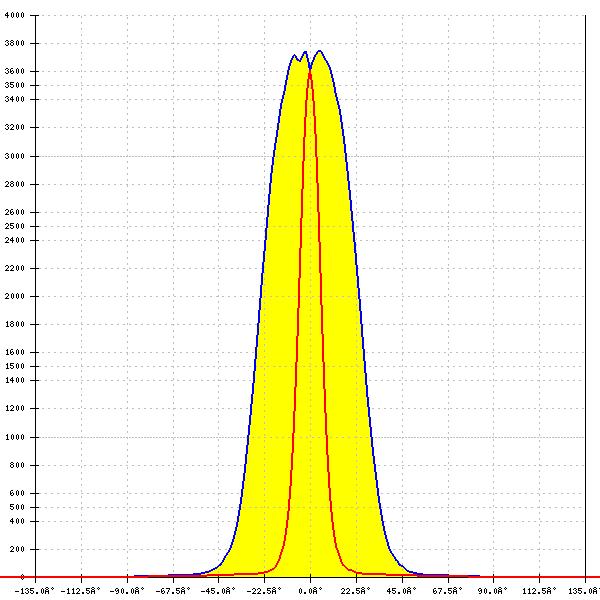

LED:
OSLON Square EC
FWHM:
12° + 50°
FWTM:
24° + 72°
Peak intensity:
3.777 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
